BPEL Workflow User Manual

BPEL Workflow User Manual

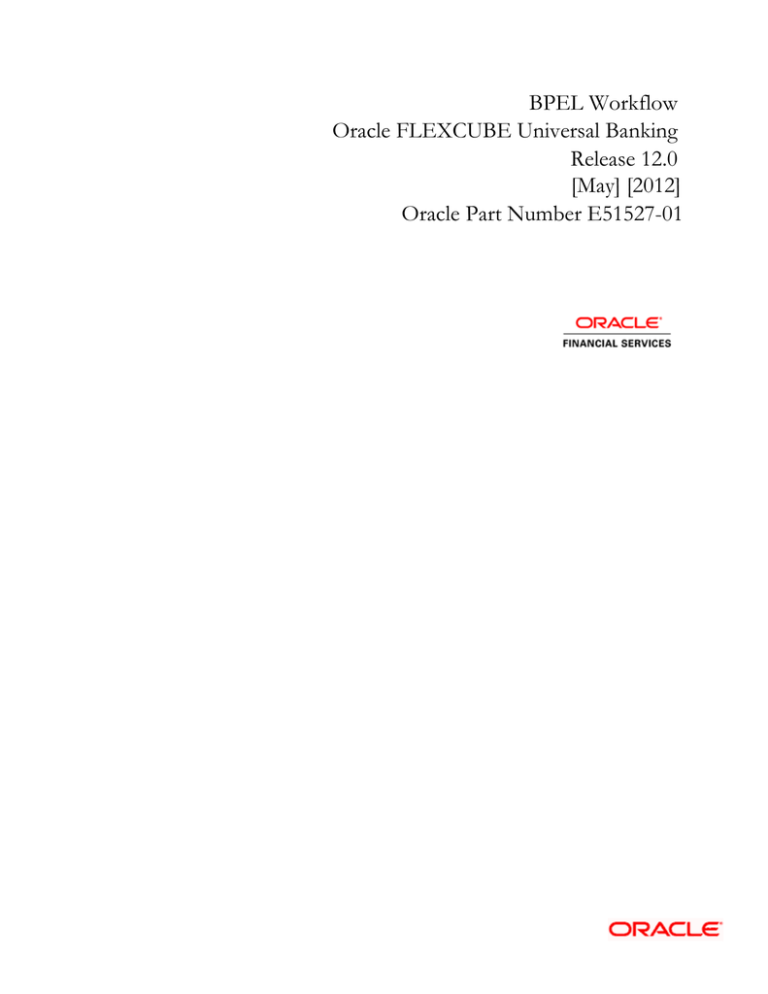

BPEL Workflow
Oracle FLEXCUBE Universal Banking
Release 12.0
[May] [2012]
Oracle Part Number E51527-01
BPEL Workflow
Table of Contents
1.
ABOUT THIS MANUAL................................................................................................................................ 1-1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
2.
BPEL – AN OVERVIEW ............................................................................................................................... 2-1
2.1
2.2
2.3
3.
INTRODUCTION ........................................................................................................................................... 2-1
NAVIGATING THE TASK MENU .................................................................................................................... 2-3
NAVIGATING THE WORKFLOW MENU ........................................................................................................ 2-6
OPERATIONS ................................................................................................................................................. 3-1
3.1
3.2
3.3
3.4
3.5
3.6
4.
INTRODUCTION ........................................................................................................................................... 1-1
AUDIENCE .................................................................................................................................................. 1-1
ABBREVIATIONS ......................................................................................................................................... 1-1
ORGANIZATION .......................................................................................................................................... 1-1
CONVENTIONS USED IN THIS MANUAL ....................................................................................................... 1-2
RELATED DOCUMENTS ............................................................................................................................... 1-2
GLOSSARY OF ICONS .................................................................................................................................. 1-2
INTRODUCTION ........................................................................................................................................... 3-1
CONFIGURING LANDING PAGE ................................................................................................................... 3-1
CONFIGURING QUEUES ............................................................................................................................... 3-3
CONFIGURING SUB-STAGES........................................................................................................................ 3-6
CHECKING DUPLICATE TRANSACTIONS ...................................................................................................... 3-7
ENABLING USER RIGHTS ............................................................................................................................ 3-8
SCREEN GLOSSARY .................................................................................................................................... 4-1
4.1
FUNCTION ID LIST...................................................................................................................................... 4-1
1.
1.1
About this Manual
Introduction
This manual is designed to help you quickly get acquainted with the basic features of the
workflow layer using Business Process Execution Language (BPEL) in Oracle FLEXCUBE.
1.2
Audience
This manual is intended for the following User/User Roles:
1.3
Role
Function
Corporate Customer Service
Executive
Collection of applications
Trade Finance Executive
Updation of details of contracts
Trade Finance Manager
Verification and authorization of contracts
Compliance Executive
Performance of compliance details of all parties in a
contract
Compliance Manager
Verification of compliance check carried out by Compliance
Executive
Abbreviations
The following abbreviations are used in this User Manual:
1.4
Abbreviation
Description
BPEL
Business Process Execution Language
WF
Workflow
Organization
This manual is organized into the following chapters:
Chapter 1
About this Manual gives information on the intended audience. It also lists the
various chapters covered in this User Manual
Chapter 2
BPEL - An Overview provides a basic understanding of the workflow and its
features.
Chapter 3
Operations explains the various actions that you can perform to suit your
requirements of look and feel of the BPEL workflow.
1-1
1.5
Conventions Used in this Manual
Important information is preceded with the
1.6
1.7
symbol.
Related Documents

The Security Management System User Manual

Procedures User Manual
Glossary of Icons
This User Manual may refer to all or some of the following icons:
Icons
Function
Exit
Add row
Delete
row
Option
List
1-2
2.
2.1
BPEL – An Overview
Introduction
The Business Process Execution Language (BPEL) workflow layer allows you to define a
workflow for handling different transactions. The front-end user interface of this layer allows you
to capture details required for the transactions and sends them to Oracle FLEXCUBE for
processing.
Each transaction in BPEL can be configured as a process. At certain points in a process, input
from the user-end is required. The input could be in the form of data to initiate or enrich a
transaction or to authorize an existing transaction. To facilitate this, human tasks are generated
by the BPEL engine as and when required during the process. These human tasks are
associated with a Function ID. When a user initiates a task, the different user roles associated to
the Function ID are assigned to the task.
Also, each process (transaction) passes through the workflow layer in stages. Access to each
stage is restricted to users who have the requisite rights. Once a task has been initiated or
completed for a particular stage, it is placed in the relevant queue or task list (explained later). To
proceed further with the process, a user - with relevant rights - needs to acquire it under his/her
user ID.
2-1
When you log into the application, the Landing Page, as shown below, is displayed:-
The following options are available to you in this screen:
 Menu
 Tasks
 Workflow
 Customer
2-2
2.2
Navigating the Task menu
Click on ‘Tasks’ in the menu. The following screen is displayed:
The system displays all the main menu items that you have maintained in the ‘Landing Page
Configuration’ screen along with the ‘Search’ and ‘Standard’ main menu items on the left hand
side of the screen.
2-3
You can query existing workflow tasks by clicking ‘Search’ and then choosing the relevant link
under it. Under ‘Search’, you are provided the option of searching tasks across all process flows
(the ‘ALL’ link) or for specific process flows. The fields available under the link ‘ALL’ are predefined in the system and the link ‘ALL’ is readily available. The other process flow specific links
are displayed only if you maintain them in the ‘Landing Page Configuration’ screen.
Refer the section ‘Configuring Landing Page’ under ‘Operations’ in this user manual for
further details.
2-4
Specify the basis for your search and click the ‘Search’ button. All the tasks that meet the
parameters specified are fetched as displayed in the screen below:
If you do not specify any search parameter before clicking ‘Search’ button, all the tasks will be
displayed.
Under the ‘Standard’ menu, the system displays the following sub-menus and the number of
tasks against each of these sub-menus:
 Acquired
 Assigned
 Completed
 Pending
 Supervisor
When you click a sub-menu, the different process flows (transactions) for the sub-menu and the
number of tasks outstanding for each process are displayed. Choose the process flow for which
you require details and click on it. Details for all the tasks under the corresponding queue are
shown in the Task List pane. When you click a task, the relevant details are displayed in the
Transaction History pane (below the Task List pane)
2-5
The workflow actions that you can perform for a task are:
Acquire/Release
After a task is assigned to a group, you, as a user, can further process the task only if you acquire
it. Select the transaction and click ‘Acquire’ button. The task will then be moved from the group
queue to your task list. You can release the task that has already been acquired by clicking
‘Release’ button..
Reassign
A task can be re-assigned only by a supervisor to any of his subordinates. If you have the
requisite rights, you can select the transaction and click ‘Reassign’ button in your task list. This is
done when a contract is transferred from the maker of the contract to another user for further
operations.
Resume
A task that has been suspended can be resumed when you click the ‘Resume’ button in your task
list. You can then continue with the suspended task.
The system also gives you the option of carrying out the same action on many tasks
simultaneously. To do this, you are required to select all the tasks that you want, by checking the
box at the beginning of each row. The operations common to all the tasks are listed at the top of
the Task Pane. You can select the appropriate one. The chosen action will be implemented for all
the selected tasks. For example, after choosing the tasks that you require, you can acquire all of
them in bulk (if the ‘Acquire’ operation is allowed for all the tasks)
2.3
Navigating the Workflow Menu
When you click the ‘Workflow’ option in the Landing Page, the following screen is displayed:
The screen displays the different queues of the workflow process and the number of tasks
against each queue. The workflow queues are as follows:
 Pending
 Assigned
 Failed
 Unassigned
 Completed
 Reversed
2-6
 Tanked
 Untanked
To view the details of a particular queue, click on the queue. The details of all the tasks under the
queue specified will be displayed as shown in the screen below:
You can select the task on which you wish to perform an action to complete the process flow.
You can also carry out a search for tasks based on parameters of your choice by clicking the
‘Search Tasks’ option available in this screen. The following screen will be displayed;
2-7
You can specify the parameters for the query and click on the ‘Search’ button. All records
satisfying the parameters are displayed. You can now choose the task on which you wish to
perform some action.
2-8
3.
3.1
Operations
Introduction
Oracle FLEXCUBE allows you to configure Queues, Landing and Sub-stages in the workflow
layer to suit your bank’s requirements. It also keeps track of duplication of transactions on the
basis of the fields that you indicate.
3.2
Configuring Landing Page
The page that is displayed on invoking the application is called as the ‘Landing Page’. As
mentioned above, you can launch a search for a particular task on the basis of the fields
displayed in the Task List pane under the ‘All’ sub-menu in the ‘Search’ main menu item. The
fields under this sub-menu (All) are pre-defined in the system and represent all process flows.
The search fields under the ‘All’ sub-menu are displayed as shown in the screen below:
You can also choose to maintain additional fields for specific process flows, When you maintain
additional fields for search operation for a process flow, the process flow is displayed under the
‘Search’ main menu and all the fields (pre-defined and the additional ones maintained for the
process flow) become available for you to search on.
3-1
You can define the process-flow specific additional fields in the ‘Landing Page Configuration’
screen, which you can invoke by typing ‘SMDLNDPG’ in the field at the top right corner of the
Application tool bar and clicking the adjoining arrow button. The following screen is displayed:
Here, you can capture the following details:
Process Code
Specify the function ID associated with the process work flow for which you are defining
additional details.
Field Name
Select the field name which should appear in the Task List pane when you carry out a search for
a task under the process flow mentioned above.
Field Label
Specify the name that should be displayed in the Task List pane.
Display
Check this box if the value of the field specified should be displayed as part of task details when
you click on a task. This is applicable only when the ‘Process Code’ field is ‘specified as ‘All’.
Searchable
Check this box to indicate that the field should be made available for searching tasks. This facility
is available for any ‘Process Code’.
Seq No
Specify the order of display for the filed.
3-2
For instance, if you have maintained the fields ‘Currency’ and Product ID as an additional field for
the Export LC process flow, you can see these fields along with the ones available under the ‘All’
sub-menu, when you click the ‘Export LC’ queue under the ‘Search’ main menu item as shown in
the screen below:
3.3
Configuring Queues
A queue represents a set of human tasks that are grouped on the basis of the common
characteristics they share. For instance, you could have groups based on whether the tasks have
been completed, deleted or the type of transaction
3-3
You can define the basis for grouping for each queue in the ‘Queue Maintenance’ screen. To
invoke this screen, type ‘SMDQUEMT’ in the field at the top right corner of the Application tool bar
and click the adjoining arrow button. The following screen is displayed:
In this screen, you are required to specify the following details:
Queue ID
Specify a unique identification code for the queue.
Queue Type
Indicate the type of tasks that should be displayed for the queue you are defining. Select one of
the following values from the adjoining drop-down list:
 Editable tasks: Tasks where the user will be allowed to modify existing data.
 Read-only Tasks: Tasks where the user can only view existing information.
 Normal Tasks – All the tasks for which the user has rights (editable/read-only)
 Supervisor – All tasks pertaining to the all the subordinates of the user.
 Current stage – The current stage of a process instance in which the user has performed at
least one task.
Queue Criteria
Specify the criteria to be used to filter all tasks. The criteria specified here and the queue type you
have indicated earlier determine the tasks that are displayed under each queue.
You can also associate Function IDs to queues by specifying them here. If you do so, only those
Function IDs that have been associated can be accessed by the user. If there is no such
association in the criteria, all Function IDs will be made available for the queue.
Filter Column
3-4
Indicate the basis for filtering the tasks.
Operator
Indicate the operator.
Filter Value
Specify the value to be considered for filtering.
Others
If ‘Filter Value’ chosen is ‘Others’, you can specify the value here.
Language Code
Indicate the language code to be used for the queue ID.
Main Menu
Indicate the name of the group under which the queue should be placed.
Sub-Menu
Specify the name for the queue. This will appear under the Main Menu.
Description
Specify a relevant description that will be displayed when you point the mouse on the Sub-Menu.
Workflow places the tasks that meet the criteria specified for each queue as shown below:
3-5
3.4
Configuring Sub-Stages
In the BPEL workflow layer, there are several points at which human tasks are generated. These
tasks can be further divided into sub-stages which have entry conditions, exit outcomes etc. You
can capture these details in the ‘Task Sub Stage Maintenance’ screen. You can invoke this
screen by typing ‘SMDSUBST’ in the field at the top right corner of the Application tool bar and
clicking the adjoining arrow button. The following screen is displayed:
You are required to maintain the following details in this screen:
Function ID
Specify the Function ID associated with the human task for which you are defining sub-stages.
The adjoining option list displays all valid function IDs available in the system. You can select the
appropriate one.
Seq No
The system displays the sequence number for the current sub-stage.
Sub Stage Function Id
Specify the Function ID for the sub-stage. The adjoining option list displays all valid function IDs
available in the system. You can select the appropriate one. The roles and the screen displayed
for the sub-stage are fetched accordingly. This can be the same as the main Function ID for the
task.
Sub Stage Name
Specify a unique name for the sub-stage.
Outcome List
3-6
Specify the possible outcomes allowed for this sub-stage. You can have any of the following:
 MOVENXT: If this is chosen, the current Function ID screen will be closed and the process
will move on to the next sub-stage in sequential order
 AUTOMOVENXT: If this option is selected, the task will go to the next stage. The next substage will be acquired automatically (provided the user has the relevant rights). The
Function ID of the next sub-stage will be displayed in the screen.
 MOVEPREV: If this is chosen, the task will be moved to the previous stage mentioned or to
the sub-stage sequence number specified in the ‘Reject To Stage’ field.
To facilitate this configuration, you need to map the first sub-stage to the Function ID of the
human task. Also, you will be allowed to select only the ‘MOVEPREV’ option for the last substage you have defined.
Entry Rule
Specify the conditions that need to be fulfilled for this sub-stage to be initiated. The specification
is done in the same syntax as that for the queue configuration. If the criteria specified are
satisfied, then the transaction comes to this sub-stage. If not, it moves to the next sub-stage.
Reject To Stage
This is the sub-stage to which a task is sent to in case the task is rejected at any point in the substage process. If you do not specify any value for this, a rejected task will be sent to the previous
level.
3.5
Checking Duplicate Transactions
During initiation of a process flow, when you enter and save the data, the system checks for
duplicate transactions among all authorized and unauthorized tasks carried out on the same day.
This check is performed based on a list of fields maintained for every transaction type. If duplicate
transactions exist, the system will display an override message containing the Workflow reference
numbers of all the matching tasks, as shown below:
You can however, override the message and continue with the current process.
You can define the fields that need to be matched for duplication in the ‘Function Description
Maintenance’ screen. You can invoke this screen by typing ‘SMDFNDSC’ in the field at the top
right corner of the Application tool bar and clicking the adjoining arrow button.
3-7
In this screen, you are required to indicate the following details to facilitate checking for duplicate
transactions:
Duplicate Check
Check this box to ensure that a validation is carried out to track duplication of transactions.
Field Name
Specify the field that should be the basis on which transaction duplication is checked.
Enabled
Check the box against each field whose values you want the system to compare across
transactions.
3.6
Enabling User Rights
As mentioned earlier, each human task has a Function ID and the roles assigned to the Function
ID are inherited by the task when it is initiated. A user, with access rights to the Function ID for
the task, can either view the details of the task or perform edit operations on it.
You can define these rights in the ‘Process Stage Rights’ screen. To invoke this screen, type
‘SMDROLDF’ in the field at the top right corner of the Application tool bar and click the adjoining
arrow button. In the ‘Role Maintenance’ screen that is displayed, click ‘Process Rights’ button.
The following screen is displayed:
3-8
Specify the following details in the screen:
Role Function
Specify the Function ID for which you wish to define rights. The adjoining option list displays all
valid function IDs available in the system. You can select the appropriate one.
Editable
Check this box if you wish to allow editing of data for this task/Function ID. If you do not check
this box, the user can only view details for the role function specified earlier.
You can, therefore, use this screen to allow only editing or only modifying rights for a user for
different role functions.
3-9
4.
Screen Glossary
4.1 Function ID List
The following table lists the function id and the function description of the screens covered as part
of this User Manual.
Function ID
Function Description
SMDFNDSC
Function Description Maintenance
SMDLNDPG
Landing Page Configuration
SMDQUEMT
Queue Maintenance
SMDROLDF
Process Stage Rights
SMDSUBST
Task Sub Stage Maintenance
4-1
BPEL Workflow
[May] [2012]
Version 12.0
Oracle Corporation
World Headquarters
500 Oracle Parkway
Redwood Shores, CA 94065
U.S.A.
Worldwide Inquiries:
Phone: +1.650.506.7000
Fax: +1.650.506.7200
www.oracle.com/ financial_services/
Copyright © [2012] Oracle Financial Services Software Limited. All rights reserved.
No part of this work may be reproduced, stored in a retrieval system, adopted or transmitted in any form or by any means,
electronic, mechanical, photographic, graphic, optic recording or otherwise, translated in any language or computer
language, without the prior written permission of Oracle Financial Services Software Limited.
Due care has been taken to make this document and accompanying software package as accurate as possible. However,
Oracle Financial Services Software Limited makes no representation or warranties with respect to the contents hereof and
shall not be responsible for any loss or damage caused to the user by the direct or indirect use of this document and the
accompanying Software System. Furthermore, Oracle Financial Services Software Limited reserves the right to alter,
modify or otherwise change in any manner the content hereof, without obligation of Oracle Financial Services Software
Limited to notify any person of such revision or changes.
All company and product names are trademarks of the respective companies with which they are associated.
4-1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
