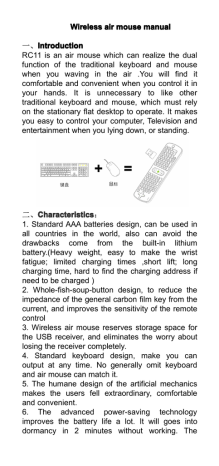

Wireless air mouse manual
Introduction
一、Introduction
RC11 is an air mouse which can realize the dual
function of the traditional keyboard and mouse
when you waving in the air .You will find it
comfortable and convenient when you control it in
your hands. It is unnecessary to like other
traditional keyboard and mouse, which must rely
on the stationary flat desktop to operate. It makes
you easy to control your computer, Television and
entertainment when you lying down, or standing.
Characteristics
二、Characteristics
Characteristics:
1. Standard AAA batteries design, can be used in
all countries in the world, also can avoid the
drawbacks come from the built-in lithium
battery.(Heavy weight, easy to make the wrist
fatigue; limited charging times ,short lift; long
charging time, hard to find the charging address if
need to be charged )
2. Whole-fish-soup-button design, to reduce the
impedance of the general carbon film key from the
current, and improves the sensitivity of the remote
control
3. Wireless air mouse reserves storage space for
the USB receiver, and eliminates the worry about
losing the receiver completely.
4. Standard keyboard design, make you can
output at any time. No generally omit keyboard
and air mouse can match it.
5. The humane design of the artificial mechanics
makes the users fell extraordinary, comfortable
and convenient.
6. The advanced power-saving technology
improves the battery life a lot. It will goes into
dormancy in 2 minutes without working. The
current of dormancy is only 10uA.you can press
any button to make it go on working.
7. Plug and play, no driver required. It can
compatible with USB1.1 and USB 2.0 interface.
8. Easy to connect, no cables required. Only if
insert batteries, plug the USB receiver into the
devices’ USB interface, then you can use the
keyboard and mouse in the meantime.
9. Support Windows XP/Windows Vista/Windows
7 system; support Android 2.2/2.3/2.4/4.0/5.0.
10. Can be used for Computers, projectors, smart
TV in sitting room, HDTC, android tablet PC,
android HD media player, Google smart TV player
boxes.
三、 The functions of buttons :
A、Shortcut buttons function
Button Function
ESC
Press to back or exit
Power Computer dormancy key, press to
enter the relevant state
F4
Open the system default web browser
home page
F5
Open Outlook Express
F6
Open the system default media
player ,such as cool dog, TT Player
and so on
F7
The system default media player to
play the last one
F8
The system default media player to
play or stop
F9
The system default media player to
play the next one
F10
Mute
F11
Press to increase volume
F12
Press to enter volume
B、The other functions of the keys are same as the
standard keyboards。
Initialize settings
四、Initialize
When the cursor appears to drift and cannot make
it move, please follow the operations of the air
mouse to do initialize setting .
1. Please put the device on the desktop, press the
up arrow and down arrow, and Enter key
sequentially, do not release other keys when you
press each one. While holding down these three
keys for 1 minute, the LED key of the air mouse
will become flashing state.
2.Rleasing when the LED key become flashing
state ,at the same time plug the USB receiver into
the USB interface of the device ,air mouse will start
to initialize code. The LED key will become lit state,
that is mean the air mouse do initialize setting
successful.
The area of the function keys
五、The
1. Locating key:press the key
,the cursor is
fixed and cannot move, press again ,then the
cursor will be to unlock.
2. The left button of the mouse: same function as
the left button of the standard mouse.
3. The right button of the mouse: same function as
the right button of the standard mouse.
Installation and connection :
六、Installation
1. Open the back cover of the air mouse, install
three new AAA batteries (Note make sure of the
polarity of the batteries are not backwards), then
close the back cover.
2. Plug the USB receiver into USB interface of the
computers or android media players
Using :
七、Using
1. Using of the air mouse:
According to the printing direction of the green
robot
, with one hand to hold the air mouse,
make the wrist as the axis, then rotate the wrist
right and left or up and down, you can move the
cursor freely.
2. Using of the wireless keyboard:
When moving the cursor to the specified location,
pressing the locating key of the mouse one time,
the cursor will be locked. Turning the air mouse 90
degrees counter-clockwise, holding both ends of
the air mouse with your hands , then you can use
the keyboard to enter any characters freely .
\
Instruction of the LED light state
八、Instruction
state:
1. It means that it connects failed when the LED of
the air mouse flashes,
2. The LED keep lighting, means connect well and
can work.
3. Press any button, the LED light will flash once.
Packing contents
九、Packing
contents:
NO.
Name
1
2
3
4
Wireless keyboard
USB receiver
User Manual
Repairing card
Quantity
(pc)
1
1
1
1
Product Specifications
十、Product
Specifications:
Technical Specifications
Hardware Specifications
RF radio frequency
2.4G RF
Power
AAA Batteries.5V
Buttons life
1500,000 times
USB receiver working
about 21.5 m A
current
remote control working
about 20 m A
current
Features
Signal transmission
2.4G RF
mode
Keyboard layout
QWERTY American
standard keyboard
Support operating
Windows XP / Vista /
system
7 / MAC / Linux /
Android2.2/2.3/4.0/5.
0
Power save time of the
2 minutes
mouse
