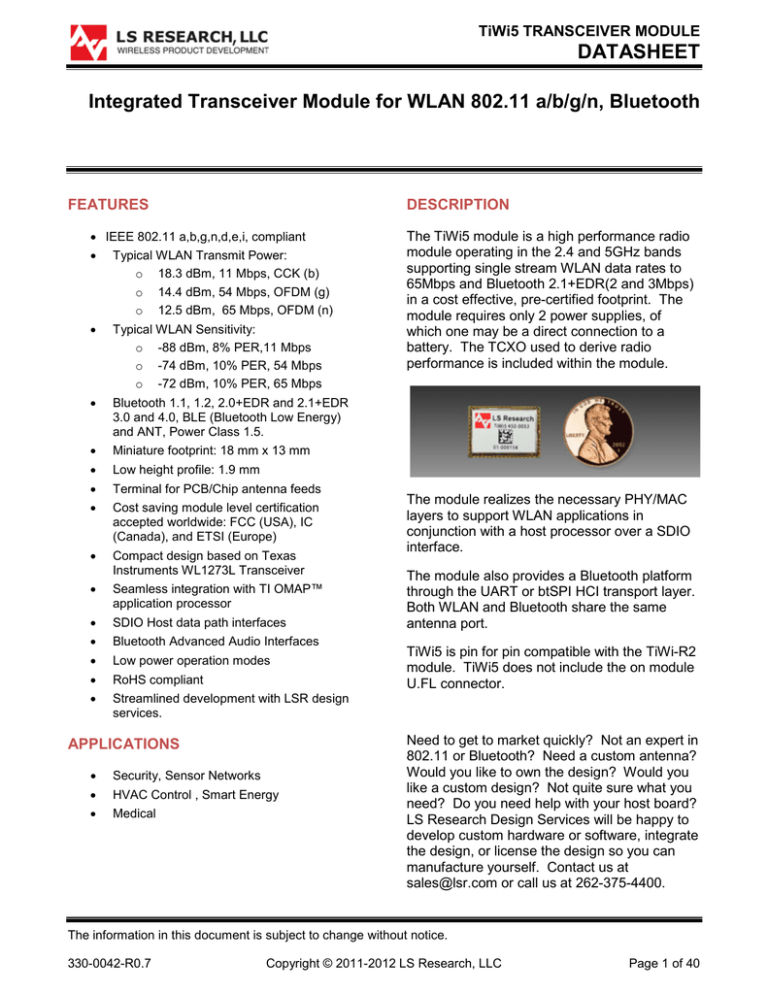

TiWi5 TRANSCEIVER MODULE
DATASHEET
Integrated Transceiver Module for WLAN 802.11 a/b/g/n, Bluetooth
FEATURES
DESCRIPTION
• IEEE 802.11 a,b,g,n,d,e,i, compliant
•
•
Typical WLAN Transmit Power:
o 18.3 dBm, 11 Mbps, CCK (b)
o 14.4 dBm, 54 Mbps, OFDM (g)
o 12.5 dBm, 65 Mbps, OFDM (n)
Typical WLAN Sensitivity:
o -88 dBm, 8% PER,11 Mbps
o -74 dBm, 10% PER, 54 Mbps
o -72 dBm, 10% PER, 65 Mbps
•
Bluetooth 1.1, 1.2, 2.0+EDR and 2.1+EDR
3.0 and 4.0, BLE (Bluetooth Low Energy)
and ANT, Power Class 1.5.
•
Miniature footprint: 18 mm x 13 mm
•
Low height profile: 1.9 mm
•
Terminal for PCB/Chip antenna feeds
•
Cost saving module level certification
accepted worldwide: FCC (USA), IC
(Canada), and ETSI (Europe)
•
Compact design based on Texas
Instruments WL1273L Transceiver
•
Seamless integration with TI OMAP™
application processor
•
SDIO Host data path interfaces
•
Bluetooth Advanced Audio Interfaces
•
Low power operation modes
•
RoHS compliant
•
Streamlined development with LSR design
services.
APPLICATIONS
•
Security, Sensor Networks
•
HVAC Control , Smart Energy
•
Medical
The TiWi5 module is a high performance radio
module operating in the 2.4 and 5GHz bands
supporting single stream WLAN data rates to
65Mbps and Bluetooth 2.1+EDR(2 and 3Mbps)
in a cost effective, pre-certified footprint. The
module requires only 2 power supplies, of
which one may be a direct connection to a
battery. The TCXO used to derive radio
performance is included within the module.
The module realizes the necessary PHY/MAC
layers to support WLAN applications in
conjunction with a host processor over a SDIO
interface.
The module also provides a Bluetooth platform
through the UART or btSPI HCI transport layer.
Both WLAN and Bluetooth share the same
antenna port.
TiWi5 is pin for pin compatible with the TiWi-R2
module. TiWi5 does not include the on module
U.FL connector.
Need to get to market quickly? Not an expert in
802.11 or Bluetooth? Need a custom antenna?
Would you like to own the design? Would you
like a custom design? Not quite sure what you
need? Do you need help with your host board?
LS Research Design Services will be happy to
develop custom hardware or software, integrate
the design, or license the design so you can
manufacture yourself. Contact us at
[email protected] or call us at 262-375-4400.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 1 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
ORDERING INFORMATION
Order Number
450-0053
450-0053R
Description
TiWi5 Module (Tray, SPQ = 100)
TiWi5 Module (Tape and Reel, SPQ = 1000)
Table 1 Orderable TiWi5 Part Numbers
MODULE ACCESSORIES
Order Number
Description
001-0009
2.4/5.5 GHz Dual-Band Dipole Antenna
with Reverse Polarity SMA Connector
080-0001
U.FL to Reverse Polarity SMA Bulkhead
Cable 105mm
Table 2 Module Accessories
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 2 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
BLOCK DIAGRAM
Figure 1 TiWi5 Module Block Diagram – Top-Level
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 3 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
TABLE OF CONTENTS
FEATURES .......................................................................................................................... 1
APPLICATIONS ................................................................................................................... 1
DESCRIPTION ..................................................................................................................... 1
ORDERING INFORMATION ................................................................................................ 2
MODULE ACCESSORIES ................................................................................................... 2
BLOCK DIAGRAM ............................................................................................................... 3
TIWI5 MODULE FOOTPRINT AND PIN DEFINITIONS....................................................... 6
PIN DESCRIPTIONS ............................................................................................................ 7
INI FILE RADIO PARAMETERS .......................................................................................... 9
ELECTRICAL SPECIFICATIONS ...................................................................................... 10
Absolute Maximum Ratings ..................................................................................................................... 10
Recommended Operating Conditions .................................................................................................... 10
General Characteristics ............................................................................................................................ 11
WLAN RF Characteristics......................................................................................................................... 14
BLUETOOTH RF Characteristics ............................................................................................................. 16
BLUETOOTH BLE RF Characteristics ..................................................................................................... 17
WLAN POWER-UP SEQUENCE ....................................................................................... 18
WLAN POWER-DOWN SEQUENCE ................................................................................. 19
BLUETOOTH POWER-UP SEQUENCE............................................................................ 20
BLUETOOTH POWER-DOWN SEQUENCE ..................................................................... 21
ENABLE SCHEME ............................................................................................................ 22
IRQ OPERATION ............................................................................................................... 22
SLOW (32 KHZ) CLOCK SOURCE REQUIREMENTS ..................................................... 23
BT HCI UART ..................................................................................................................... 24
SDIO INTERFACE TIMING ................................................................................................ 25
SDIO CLOCK TIMING........................................................................................................ 26
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 4 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
SOLDERING RECOMMENDATIONS ................................................................................ 27
Recommended Reflow Profile for Lead Free Solder ............................................................................. 27
CLEANING ......................................................................................................................... 28
OPTICAL INSPECTION ..................................................................................................... 28
REWORK ........................................................................................................................... 28
SHIPPING, HANDLING, AND STORAGE ......................................................................... 28
Shipping ..................................................................................................................................................... 28
Handling ..................................................................................................................................................... 28
Moisture Sensitivity Level (MSL) ............................................................................................................. 28
Storage ....................................................................................................................................................... 28
Repeating Reflow Soldering .................................................................................................................... 29
AGENCY CERTIFICATIONS ............................................................................................. 30
AGENCY STATEMENTS ................................................................................................... 30
Federal Communication Commission Interference Statement ............................................................ 30
Industry Canada Statements.................................................................................................................... 31
OEM RESPONSIBILITIES TO COMPLY WITH FCC AND INDUSTRY CANADA
REGULATIONS ....................................................................................................... 32
OEM LABELING REQUIREMENTS FOR END-PRODUCT .............................................. 33
OEM END PRODUCT USER MANUAL STATEMENTS.................................................... 34
MECHANICAL DATA......................................................................................................... 35
PCB FOOTPRINT .............................................................................................................. 36
TAPE AND REEL SPECIFICATION .................................................................................. 37
DEVICE MARKINGS .......................................................................................................... 38
Rev 1 Devices ............................................................................................................................................ 38
Rev 2 Devices ............................................................................................................................................ 38
Rev 3 Devices ............................................................................................................................................ 39
CONTACTING LS RESEARCH ......................................................................................... 40
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 5 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
TIWI5 MODULE FOOTPRINT AND PIN DEFINITIONS
To apply the TiWi5 module, it is important to use the module pins in your application as they are
designated in below and in the corresponding pin definition table found on pages 7 and 8. Not all the
pins on the TiWi5 module may be used, as some are reserved for future functionality.
Figure 2 TiWi5 Pinout (Top View)
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 6 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
PIN DESCRIPTIONS
Module
Pin
Name
I/O
Type
Buffer
Type
1
VBAT
PI
-
2
BT_FUNC5
DO
4 mA
HOST_WU (*)
3
WL_UART_DBG
DIO
4 mA
WL_UART_DBG
4
WLAN_IRQ
DO
4 mA
WLAN Interrupt Request
5
BT_EN
DI
-
BT_RST
6
FM_EN
DI
-
FM_RST [GND]
7
WL_RS232_RX
DI
-
WLAN TEST UART RX (*)
8
WL_RS232_TX
DO
4 mA
WLAN TEST UART TX (*)
9
FM_I2S_FSYNC
DO
4 mA
FM_I2S_IF [NC, OPEN] (*)
10
WL_EN
DI
-
WL_RST
11
VIO
PI
-
POWER SUPPLY FOR 1.8 VDC DIGITAL DOMAIN
12
GND
GND
-
Ground
13
SDIO_D3
DIO
8 mA
SDIO INTERFACE, HOST PULL UP
14
SDIO_D2
DIO
8 mA
SDIO INTERFACE, HOST PULL UP
15
SDIO_D1
DIO
8 mA
SDIO INTERFACE, HOST PULL UP
16
SDIO_D0
DIO
8 mA
SDIO INTERFACE, HOST PULL UP
17
SDIO_CMD
DIO
8 mA
HOST PULL UP
18
SDIO_CLK
DI
-
HOST PULL UP
19
SLOW_CLK
DI
-
SLEEP CLOCK (32 kHz), 1.8 VDC DIGITAL DOMAIN
20
FM_IRQ
DO
4 mA
FM_I2C_IF [NC, OPEN] (*)
21
FM_SDA
DO
4 mA
FM_I2C_IF [NC, OPEN] (*)
22
FM_SCL
DO
4 mA
FM_I2C_IF [NC, OPEN] (*)
23
FM_I2S_CLK
DO
4 mA
FM_I2C_IF [NC, OPEN] (*)
24
FM_I2S_DI
DI
4 mA
FM_I2C_IF [GND]
25
FM_I2S_DO
DO
4 mA
FM_I2C_IF [NC, OPEN] (*)
26
FM_AUD_RIN
AI
-
FM_AUD_RIN [GND]
27
FM_AUD_LIN
AI
-
FM_AUD_LIN[GND]
28
FMRFOUT
AO
-
FMRFOUT [NC, OPEN]
29
FMRFIN
AI
-
FMRFIN [GND]
30
GND
GND
-
Ground
31
FM_AUD_ROUT
AO
-
FM_AUD_ROUT [NC, OPEN]
Description [termination if FM not used]
Battery Voltage 3.6 VDC Nominal (3.0-4.8 VDC)
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 7 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
Module
Pin
Name
I/O
Type
32
FM_AUD_LOUT
AO
-
FM_AUD_LOUT [NC,OPEN]
33
AUD_FSYNC
DIO
4 mA
PCM I/F or FM_I2S_FSYNC
34
HCI_RX
DI
8 mA
BT UART (*)
35
HCI_RTS
DO
4 mA
BT UART (*)
36
HCI_TX
DIO
8 mA
BT UART
37
AUD_CLK
DO
4 mA
PCM I/F or FM_I2S_CLK (*)
38
AUD_OUT
DO
4 mA
PCM I/F or FM_I2S_DO (*)
39
HCI_CTS
DI
4 mA
BT UART (*)
40
AUD_IN
DI
4 mA
PCM I/F or FM_I2S_DI (*)
41
BT_FUNC2
DI
4 mA
BT WU/ DC2DC mode (*)
42
BT_FUNC4
DO
4 mA
BT_UARTD (DEBUG) (*)
43
VDD_LDO_CLASS_1P5
NC
-
VBAT VOLTAGE PRESENT, NO CONNECT
44
GND
GND
-
Ground
45
GND
GND
-
Ground
46
GND
GND
-
Ground
47
GND
GND
-
Ground
48
ANT
RF
49
GND
GND
-
Ground
50
GND
GND
-
Ground
51
GND
GND
-
Ground
52
GND
GND
-
Ground
PI = Power Input
AI = Analog Input
PO = Power Output
AO = Analog Output
Buffer
Type
Description [termination if FM not used]
Antenna terminal for WLAN and Bluetooth (note [1])
DI = Digital Input (1.8 VDC Logic Level)
DO = Digital Output (1.8 VDC Logic Level)
AIO = Analog Input/Output
RF = RF Port GND = Ground
Note[1]: Antenna terminal presents DC short circuit to ground.
(*) indicates that pin is capable of bidirectional operation, but is used as the type shown.
Table 3 TiWi5 Module Pin Descriptions
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 8 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
INI FILE RADIO PARAMETERS
There is an ini file that contains WLAN radio parameters which are critical to both the RF performance
and EMC compliance of the module.
The ini file available on the LSR website is only intended to be used with the LSR WLAN Eval Tool.
Note that this ini file will not work when using the TiWi5 module in normal operation which typically
involves an operating system. To use the TiWi5 module in normal operation, refer to specifics
contained in the TiWi Family INI File Radio Parameter User Guide which is also available for download
on the LSR website.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 9 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
ELECTRICAL SPECIFICATIONS
The majority of these characteristics are based on controlling and conditioning the tests using the TiWi5
control software application. Other control conditions may require these values to be re-characterized
by the customer.
Absolute Maximum Ratings
Parameter
Min
Max
Unit
Power supply voltage (VBAT)
-0.5
+5.5
V
Digital supply voltage (VIO)
-0.5
2.1
V
Voltage on any GPIO
-0.5
VIO + 0.5
V
Voltage on any Analog Pins
-0.5
2.1
V
+10
dBm
-40
+85
ºC
-
+105
ºC
RF input power, antenna port
Operating temperature
Storage temperature
Under no circumstances should exceeding the ratings specified in the Absolute Maximum Ratings
section be allowed. Stressing the module beyond these limits may result in permanent damage to the
module this is not covered by the warranty.
Table 4 Absolute Maximum Ratings
Recommended Operating Conditions
Parameter
Min
Typ
Max
Unit
VBAT
3.0
3.6
4.8
V
VIO
1.62
1.8
1.92
V
VIH
0.65 X VIO
-
VIO
V
VIL
0
-
0.35 X VIO
V
VOH @ 4, 8 mA
VIO-0.45
-
VIO
V
VOL @ 4, 8 mA
0
-
0.45
V
-40
25
85
ºC
Ambient temperature range
Table 5 Recommended Operating Conditions
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 10 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
General Characteristics
Parameter
Min
WLAN RF frequency range 1
WLAN RF frequency range 2
WLAN RF data rate
Max
Unit
2412
2472
MHz
4910
5835
1
BT RF frequency Range
Typ
802.11
a/b/g/n rates
supported
2402
65
Mbps
2480
MHz
Table 6 General Characteristics
Power Consumption – WLAN 2.4GHz
Parameter
Test Conditions
Min
Typ
Max
Unit
-
247
-
mA
-
180
-
mA
-
166
-
mA
CCK (802.11b) RX
Current
-
93
-
mA
OFDM (802.11g) RX
Current
-
93
-
mA
OFDM (802.11n) RX
Current
-
93
-
mA
Dynamic Mode [1]
-
<1.2
-
mA
2437 MHz, VBAT =3.6V, Tamb=+25°C
CCK (802.11b) TX
Current
Po=18.3 dBm, 11 Mbps CCK
L=1200 bytes, tdelay (idle)=4 µS.
2437 MHz, VBAT =3.6V, Tamb=+25°C
OFDM (802.11g) TX
Current
Po=14.4 dBm, 54 Mbps OFDM
L=1200 bytes, tdelay (idle)=4 µS.
2437 MHz, VBAT =3.6V, Tamb=+25°C
OFDM (802.11n) TX
Current
Po=12.5 dBm, 65 Mbps OFDM
L=1200 bytes, tdelay (idle)=4 µS.
[1] Total Current from VBAT for reception of Beacons with DTIM=1 TBTT=100 mS, Beacon duration
1.6ms, 1 Mbps beacon reception in Listen Mode.
Table 7 2.4GHz WLAN Power Consumption
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 11 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
Power Consumption – WLAN 5GHz
Parameter
Test Conditions
Min
Typ
Max
Unit
-
296
-
mA
-
235
-
mA
-
298
-
mA
-
219
-
mA
54/65 Mbps (802.11a/n)
RX Current
-
100
-
mA
Dynamic Mode [1]
-
<1.2
-
mA
5745 MHz, VBAT =3.6V, Tamb=+25°C
OFDM 9Mbps
(802.11a) TX Current
Po=17.6 dBm, 9 Mbps OFDM
L=1200 bytes, tdelay (idle)=4 µS.
5745 MHz, VBAT =3.6V, Tamb=+25°C
OFDM 54 Mbps
(802.11a) TX Current
Po=15.0 dBm, 54 Mbps OFDM
L=1200 bytes, tdelay (idle)=4 µS.
5745 MHz, VBAT =3.6V, Tamb=+25°C
MCS0
(802.11n) TX Current
Po=18.0 dBm, MCS0 OFDM
L=1200 bytes, tdelay (idle)=4 µS.
5745 MHz, VBAT =3.6V, Tamb=+25°C
MCS7
(802.11n) TX Current
Po=13.2 dBm, MCS7 OFDM
L=1200 bytes, tdelay (idle)=4 µS.
[1] Total Current from VBAT for reception of Beacons with DTIM=1 TBTT=100 mS, Beacon duration
1.6ms, 1 Mbps beacon reception in Listen Mode.
Table 8 5GHz WLAN Power Consumption
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 12 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
Power Consumption - Bluetooth
Parameter
Test Conditions
Min
Typ
Max
Unit
GFSK TX Current
Constant Transmit, 1DH5,
PRBS9
-
45
-
mA
EDR TX Current
Constant Transmit, 2DH5,3DH5,
PRBS9
-
43
-
mA
GFSK RX Current
Constant Receive, 1DH1
-
35
-
mA
EDR RX Current
Constant Receive, 2DH5, 3DH5
-
41
-
mA
Deep Sleep Current
Deep Sleep Mode
-
70
-
µA
Typ
Max
Unit
-
16
mA
Table 9 Bluetooth Power Consumption
DC Characteristics – General Purpose I/O
Parameter
Test Conditions
Min
VIO Current
Logic input low, VIL
0
-
0.35 X VIO
V
Logic input high, VIH
0.65 X VIO
-
VIO
V
Logic output low, VOL
(Full Drive)
Iout = 8 mA
0
-
0.45
V
Iout = 4 mA
0
-
0.45
V
Logic output low, VOL
(Reduced Drive)
Iout = 1 mA
0
-
0.112
V
Iout = 0.09 mA
0
-
0.01
V
Logic output high, VOH
(Full Drive)
Iout = -8 mA
VIO-0.45
-
VIO
V
Iout = -4 mA
VIO-0.45
-
VIO
V
Logic output high, VOH
(Reduced Drive)
Iout = -1 mA
VIO-0.112
-
VIO
V
Iout = -0.3 mA
VIO-0.033
-
VIO
V
Table 10 DC Characteristics General Purpose I/O
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 13 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
WLAN RF Characteristics
WLAN Transmitter Characteristics 2.4GHz
(TA =25°C, VBAT=3.6 V)
Test Conditions
Typ
EVM
Min
Typ
Max
Unit
11 Mbps CCK (802.11b)
TX Output Power
11 Mbps CCK , 802.11(b) Mask
Compliance, 35% EVM
RMS power over TX packet
1.1
-
18.3
-
dBm
9 Mbps OFDM (802.11g)
TX Output Power
9 Mbps OFDM , 802.11(g) Mask
Compliance, -8 dB EVM
RMS power over TX packet
-24
-
18.0
-
dBm
54 Mbps OFDM
(802.11g) TX Output
Power
54 Mbps OFDM, 802.11(g) Mask
Compliance, -25 dB EVM
RMS power over TX packet
-34
-
14.4
-
dBm
6.5 Mbps OFDM
(802.11n) TX Output
Power
6.5 Mbps OFDM, 802.11(n) Mask
Compliance, -5 dB EVM
-24
-
18.2
-
dBm
65 Mbps OFDM
(802.11n) TX Output
Power
65 Mbps OFDM, 802.11(n) Mask
Compliance, -28 dB EVM
-35
-
12.5
-
dBm
Parameter
RMS power over TX packet
RMS power over TX packet
Table 11 WLAN 2.4GHz Transmitter RF Characteristics
WLAN Transmitter Characteristics 5GHz
(TA =25°C, VBAT=3.6 V)
Parameter
9 Mbps TX
Output Power
54 Mbps TX
Output Power
MCS0 Mbps TX
Output Power
MCS7 Mbps TX
Output Power
Test Conditions
9 Mbps OFDM , 802.11(a) Mask
Compliance, -8 dB EVM RMS
power over TX packet
54 Mbps OFDM , 802.11(a) Mask
Compliance, -25 dB EVM RMS
power over TX packet
MCS0 OFDM , 802.11(n) Mask
Compliance, -5 dB EVM RMS
power over TX packet
MCS7 OFDM , 802.11(n) Mask
Compliance, -27 dB EVM RMS
power over TX packet
Typ
EVM
Start
Freq
-31
5170
-28
5260
-21
5745
17.8
5825
-31
5170
13.0
5240
-30
5260
-28
5745
15.2
5825
-31
5170
13.1
5240
-28
5260
-21
5745
18.2
5825
-31
5170
12.5
5240
-31
5260
-29
5745
Min
Typ
Max
13.0
-
-
-
-
15.6
14.6
15.7
12.8
13.5
End
Freq
Unit
5240
-
-
-
-
5700
5700
5700
5700
dBm
dBm
dBm
dBm
5825
Table 12 WLAN 5GHz Transmitter RF Characteristics
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 14 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
WLAN Receiver Characteristics 2.4GHz
(TA =25°C, VBAT=3.6 V) [1]
Parameter
Test Conditions
Min
Typ
Max
Unit
1 Mbps CCK (802.11b) RX
Sensitivity
8% PER
-
-97
-
dBm
11 Mbps CCK (802.11b) RX
Sensitivity
8% PER
-
-88
-
dBm
9 Mbps OFDM (802.11g) RX
Sensitivity
10% PER
-
-89
-
dBm
54 Mbps OFDM (802.11g)
RX Sensitivity
10% PER
-
-74
-
dBm
6.5 Mbps OFDM (802.11n)
RX Sensitivity
10% PER
-
-89
-
dBm
65 Mbps OFDM (802.11n)
RX Sensitivity
10% PER
-
-72
--
dBm
11 Mbps CCK (802.11b) RX
Overload Level.
8% PER
-
-
-10
dBm
9 Mbps OFDM(802.11g) RX
Overload Level.
10% PER
-
-
-17
dBm
54 Mbps OFDM(802.11g) RX
Overload Level.
10% PER
-
-
-17
dBm
65 Mbps OFDM(802.11n) RX
Overload Level.
10% PER
-
-
-17
dBm
[1] Up to 2 dB degradation at Channel 13 for 11g/n modes and up to 2 dB degradation at Channel 14 for
11b/g/n modes.
Table 13 2.4GHz WLAN Receiver RF Characteristics
WLAN Receiver Characteristics 5GHz
(TA =25°C, VBAT=3.6 V) [1]
Parameter
Test Conditions
Min
Typ
Max
Unit
9 Mbps (802.11a) RX
Sensitivity
10% PER
-
-87
-
dBm
54 Mbps (802.11b) RX
Sensitivity
10% PER
-
-72
-
dBm
MCS0 (802.11b) RX
Sensitivity
10% PER
-
-88
-
dBm
MCS7 (802.11b) RX
Sensitivity
10% PER
-
-70
-
dBm
<10% PER
-
-
-17
dBm
Max Input Level(3) OFDM (11a
or 11n)
Table 14 5GHz WLAN Receiver RF Characteristics
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 15 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
BLUETOOTH RF Characteristics
Bluetooth Transmitter GFSK and EDR Characteristics, Class 1.5
(TA =25°C, VBAT=3.6 V)
Parameter
Test
Conditions
Min
Typ
Max
GFSK RF Output Power
-
9.5
-
EDR RF Output Power
-
7.3
-
Power Control Step Size
2
5
EDR Relative Power
-2
BT Spec
Unit
-
dBm
8
2-8
dB
1
-4/+1
dB
Table 15 Bluetooth Transmitter RF Characteristics
Bluetooth Receiver Characteristics
(TA =25°C, VBAT=3.6 V)
Parameter
Test
Conditions
Min
Typ
Max
BT Spec
Unit
GFSK Sensitivity
BER=0.1%
-
-91
-
-70
dBm
EDR 2 Mbps Sensitivity
BER=0.01%
-
-90
-
-70
dBm
EDR 3 Mbps Sensitivity
BER=0.01%
-
-83
-
-70
dBm
GFSK Maximum Input Level
BER=0.1%
-
-
-5
-20
dBm
EDR 2 Maximum Input Level
BER=0.1%
-
-
-10
-
dBm
EDR 3 Maximum Input Level
BER=0.1%
-
-
-10
-
dBm
Table 16 Bluetooth Receiver RF Characteristics
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 16 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
BLUETOOTH BLE RF Characteristics
Bluetooth BLE Transmitter GMSK and EDR Characteristics, Class 1.5
(TA =25°C, VBAT=3.6 V)
Test
Conditions
Parameter
BT Spec
Min
Typ
Max
Unit
GMSK RF Output Power
-
10
-
-
dBm
Power Control Step Size
2
5
8
2-8
dB
(1) BLE spec = 10dBm max can be achieved using normal system losses due to filters etc, or by reducing value
through VS command.
Table 17 Bluetooth BLE Transmitter RF Characteristics
Bluetooth BLE Receiver Characteristics
(TA =25°C, VBAT=3.6 V)
Test
Conditions
Min
Typ
Max
BT Spec
Unit
GMSK Sensitivity
PER = 30.8%
-
-90
-
-70
dBm
GMSK Maximum Input Level
PER = 30.8%
-
-5
-
-20
dBm
Parameter
Table 18 Bluetooth BLE Receiver RF Characteristics
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 17 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
WLAN POWER-UP SEQUENCE
A.
After this sequence is completed, the device is in the low VIO-leakage state while in shutdown.
Figure 3-1 TiWi5 Power-up Sequence Requirements
The following sequence describes device power-up from shutdown. Only the WLAN Core is enabled; the
BT and FM cores are disabled.
1. No signals are allowed on the IO pins if no IO power supplied, because the IOs are not 'fail
safe’. Exceptions are CLK_REQ_OUT, SLOWCLK, XTALP and AUD_xxx, which are failsafe and
can tolerate external voltages with no VDDS and DC2DC".
2. VBAT,VIO and SLOWCLK must be available before WL_EN.
3. Twakeup = T1 + T2
The duration of T1 is defined as the time from WL_EN=high until Fref is valid for the SoC, T1 ~55ms
The duration of T2 depends on:
– Operating system
– Host enumeration for the SDIO/WSPI
– PLL configuration
– Firmware download
– Releasing the core from reset
– Firmware initialization
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 18 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
WLAN POWER-DOWN SEQUENCE
Figure 3-2 TiWi5 Module Power-down Sequence Requirements
1. DC_REQ will go low only if WLAN is the only core working. Otherwise if another core is working (e.g
BT) it will stay high.
2. CLK_REQ will go low only if WLAN is the only core working. Otherwise if another core is working and
using the Fref (e.g BT) it will stay high.
3. If WLAN is the only core that is operating, WL_EN must remain de-asserted for at least 64µsec before
it is re-asserted.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 19 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
BLUETOOTH POWER-UP SEQUENCE
The following sequence describes device power up from shutdown. Only the BT core is enabled; the
WLAN core is disabled.
Power up requirements:
1. No signals are allowed on the IO pins if no IO power supplied, because the IOs are not 'failsafe'.
Exceptions are CLK_REQ_OUT, SLOWCLK, XTALP and AUD_xxx, which are failsafe and can tolerate
external voltages with no VDDS and DC2DC.
2. VDDS and SLOWCLK must be stable before releasing BT_EN.
3. Fast clock must be stable maximum 55 ms after BT_EN goes HIGH.
Figure 3-3 BT Power-up Sequence
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 20 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
BLUETOOTH POWER-DOWN SEQUENCE
Figure 3-4 BT Power-down Sequence
The TiWi5 module indicates completion of BT power up sequence by asserting RTS low. This occurs up to
100 ms after BT_EN goes high.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 21 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
ENABLE SCHEME
The module has 3 enable pins, one for each core: WL_EN, and BT_EN and FM_EN. Presently, there are 2
modes of active operation now supported: WLAN and BT. It is recommended that the FM_EN pin be grounded to
disable the FM section. It is also recommended that the FM section be disabled by Bluetooth HCI commands.
1. Each core is operated independently by asserting each EN to Logic '1'. in this mode it is possible to
control each core asynchronously and independently.
2. BT mode operation. WLAN will be operated through WL_EN asynchronously independently
of BT
IRQ OPERATION
1. The default state of the WLAN_IRQ prior to firmware initialization is 0.
2. During firmware initialization, the WLAN_IRQ is configured by the SDIO module; a WLAN_IRQ
changes its state to 1.
3. A WLAN firmware interrupt is handled as follows:
a. The WLAN firmware creates an Interrupt-to-Host, indicated by a 1-to-0 transition on the
WLAN_IRQ line (host must be configured as active-low or falling-edge detect).
b.
After the host is available, depending on the interrupt priority and other host tasks, it masks the
firmware interrupt. The WLAN_IRQ line returns to 1 (0-to-1 transition on the WLAN_IRQ line).
c.
The host reads the internal register status to determine the interrupt sources - the register is
cleared after the read.
d. The host processes in sequence all the interrupts read from this register
e. The host unmasks the firmware interrupts.
4. The host is ready to receive another interrupt from the WLAN device.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 22 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
SLOW (32 KHZ) CLOCK SOURCE REQUIREMENTS
Parameter [1]
Condition
Symbol
Min
Input slow clock frequency
ppm
Tr/Tf
Frequency input duty cycle
30
Square wave,
DC coupled
Unit
Hz
WLAN, BT
Input transition time Tr/Tf – 10% to 90%
VIL
Max
32768
Input slow clock accuracy
Input voltage limits
Typ
VIH
0
Input impedance
50
0.65 x VDDS
100
Ns
70
%
VDDS
Vpeak
0.35 x VDDS
1
MW
Input capacitance
5
pF
Rise and fall time
100
ns
Phase noise
1 kHz
-125
dBc/Hz
[1] Slow clock is a fail safe input
Table 19 Slow Clock Source Requirements
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 23 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
BT HCI UART
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 24 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
SDIO INTERFACE TIMING
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 25 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
SDIO CLOCK TIMING
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 26 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
SOLDERING RECOMMENDATIONS
Recommended Reflow Profile for Lead Free Solder
Note: The quality of solder joints on the castellations (‘half vias’) where they contact the
host board should meet the appropriate IPC Specification. See IPC-A-610-D Acceptability
of Electronic Assemblies, section 8.2.4 Castellated Terminations.”
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 27 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
CLEANING
SHIPPING, HANDLING, AND STORAGE
In general, cleaning the populated modules is
strongly discouraged. Residuals under the
module cannot be easily removed with any
cleaning process.
Shipping
•
•
•
Cleaning with water can lead to capillary
effects where water is absorbed into the gap
between the host board and the module.
The combination of soldering flux residuals
and encapsulated water could lead to short
circuits between neighboring pads. Water
could also damage any stickers or labels.
Cleaning with alcohol or a similar organic
solvent will likely flood soldering flux
residuals into the RF shield, which is not
accessible for post-washing inspection. The
solvent could also damage any stickers or
labels.
Ultrasonic cleaning could damage the
module permanently.
OPTICAL INSPECTION
After soldering the Module to the host board,
consider optical inspection to check the
following:
•
Proper alignment and centering of the
module over the pads.
•
Proper solder joints on all pads.
•
Excessive solder or contacts to neighboring
pads, or vias.
REWORK
The module can be unsoldered from the host
board if the Moisture Sensitivity Level (MSL)
requirements are met as described in this
datasheet.
Never attempt a rework on the
module
itself,
e.g.
replacing
individual components. Such actions
will terminate warranty coverage.
Bulk orders of the TiWi5 modules are delivered
in trays of 100 or reels of 1,000.
Handling
The TiWi5 modules contain a highly sensitive
electronic circuitry. Handling without proper
ESD protection may destroy or damage the
module permanently.
Moisture Sensitivity Level (MSL)
Per J-STD-020, devices rated as MSL 4 and
not stored in a sealed bag with desiccant pack
should be baked prior to use.
After opening packaging, devices that will be
subjected to reflow must be mounted within 72
hours of factory conditions (<30°C and 60%
RH) or stored at <10% RH.
Bake devices for 48 hours at 125°C.
Storage
Please use this product within 6 months after
receipt. Any product used after 6 months of
receipt needs to have solderability confirmed
before use.
The product shall be stored without opening the
packing under the ambient temperature from 5 to
35deg.C and humidity from 20 to 70%RH.
(Packing materials, in particular, may be
deformed at the temperatures above this range.)
Do not store in salty air or in an environment
with a high concentration of corrosive gas, such
as Cl2, H2S, NH3, SO2, or NOX.
Do not store in direct sunlight.
The product should not be subject to excessive
mechanical shock.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 28 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
Repeating Reflow Soldering
Only a single reflow soldering process is encouraged for host boards.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 29 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
AGENCY CERTIFICATIONS
FCC ID: TFB-TIWI501, 15.247
IC ID: 5969A-TIWI501, RSS 210
ETSI: The European Telecommunications Standards Institute. It produces the radio and
communication standards for Europe. Our testing is to the ETSI standards EN 300 328 and
EN 301 489, which are the portions of the relevant directives needed for a radio to obtain a CE mark.
AGENCY STATEMENTS
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC CAUTION: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 30 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
Industry Canada Statements
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for
successful communication.
This device has been designed to operate with the antenna(s) listed below, and having a maximum
gain of 4.3 dBi (LSR Dipole) and 1.0dBi (Johanson Chip). Antennas not included in this list or having a
gain greater than 4.3 dBi and 1.0dBi are strictly prohibited for use with this device. The required
antenna impedance is 50 ohms.
List of all Antennas Acceptable for use with the Transmitter
1) LS Research 001-0009 dipole antenna and LS Research 080-0001 U.FL to Reverse Polarity SMA
cable.
2) Johanson 2450AD46A5400E chip antenna.
L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer
d'interférences et (2) cet appareil doit accepter toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement de l'appareil.
Pour réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doiventêtre
choisis de manière que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pascelle
permise pour une communication réussie.
Cet appareil a été conçu pour fonctionner avec l'antenne (s) ci-dessous, et ayant un gain maximum de
4,3 dBi (LSR dipôle) et1.0dBi (Chip Johanson). Antennes pas inclus danscette liste ou d'avoir un gain
supérieur à 4,3 dBi et-1.0dBi sont strictement interdites pour l'utilisation avec cet appareil. L'impédance
d'antenne requise est de 50 ohms.
Liste de toutes les antennes acceptables pour une utilisation avec l'émetteur
1) LS Research 001-0009 antenne dipôle et LS Research 080-0001 U. FL à Reverse SMA à polarité du
câble.
2) Antenne Johanson puce 2450AD46A5400E.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 31 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
OEM RESPONSIBILITIES TO COMPLY WITH FCC AND INDUSTRY CANADA
REGULATIONS
The TiWi5 Module has been certified for integration into products only by OEM integrators under the
following conditions:
This device is granted for use in Mobile only configurations in which the antennas used for this
transmitter must be installed to provide a separation distance of at least 20cm from all person and not
be co-located with any other transmitters except in accordance with FCC and Industry Canada multitransmitter product procedures.
As long as the two conditions above are met, further transmitter testing will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed (for example, digital device
emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for certain
configurations or co-location with another transmitter), then the FCC and Industry
Canada authorizations are no longer considered valid and the FCC ID and IC Certification
Number cannot be used on the final product. In these circumstances, the OEM integrator
will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC and Industry Canada authorization.
Le module de TiWi5 a été certifié pour l'intégration dans des produits uniquement par des
intégrateurs OEM dans les conditions suivantes:
Ce dispositif est accordé pour une utilisation dans des configurations mobiles seul dans lequel les
antennes utilisées pour cet émetteur doit être installé pour fournir une distance de séparation d'au
moins 20cm de toute personne et ne pas être colocalisés avec les autres émetteurs, sauf en conformité
avec la FCC et de l'Industrie Canada, multi-émetteur procédures produit.
Tant que les deux conditions précitées sont réunies, les tests de transmetteurs supplémentaires ne
seront pas tenus. Toutefois, l'intégrateur OEM est toujours responsable de tester leur produit final pour
toutes les exigences de conformité supplémentaires requis avec ce module installé (par exemple, les
émissions appareil numérique, les exigences de périphériques PC, etc.)
NOTE IMPORTANTE: Dans le cas où ces conditions ne peuvent être satisfaites (pour
certaines configurations ou de co-implantation avec un autre émetteur), puis la FCC et
Industrie autorisations Canada ne sont plus considérés comme valides et l'ID de la FCC
et IC numéro de certification ne peut pas être utilisé sur la produit final. Dans ces
circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris
l'émetteur) et l'obtention d'un distincte de la FCC et Industrie Canada l'autorisation.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 32 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
OEM LABELING REQUIREMENTS FOR END-PRODUCT
The TiWi5 module is labeled with its own FCC ID and IC Certification Number. The FCC ID and IC
certification numbers are not visible when the module is installed inside another device, as such the
end device into which the module is installed must display a label referring to the enclosed module.
The final end product must be labeled in a visible area with the following:
“Contains Transmitter Module FCC ID: TFB-TIWI501”
“Contains Transmitter Module IC: 5969A-TIWI501”
or
“Contains FCC ID: TFB-TIWI501”
“Contains IC: 5969A-TIWI501”
The OEM of the TiWi5 Module must only use the approved antenna(s) listed above, which have been
certified with this module.
Le module de TiWi5 est étiqueté avec son propre ID de la FCC et IC numéro de certification. L'ID de la
FCC et IC numéros de certification ne sont pas visibles lorsque le module est installé à l'intérieur d'un
autre appareil, comme par exemple le terminal dans lequel le module est installé doit afficher une
etiquette faisant référence au module ci-joint. Le produit final doit être étiqueté dans un endroit
visible par le suivant:
“Contient Module émetteur FCC ID: TFB-TIWI501"
“Contient Module émetteur IC: 5969A-TIWI501"
ou
“Contient FCC ID: TFB-TIWI501"
“Contient IC: 5969A-TIWI501"
Les OEM du module TiWi5 ne doit utiliser l'antenne approuvée (s) ci-dessus, qui ont été certifiés avec
ce module.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 33 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
OEM END PRODUCT USER MANUAL STATEMENTS
The OEM integrator should not to provide information to the end user regarding how to install or
remove this RF module or change RF related parameters in the user manual of the end product.
The user manual for the end product must include the following information in a prominent
location:
This device is granted for use in Mobile only configurations in which the antennas used for this
transmitter must be installed to provide a separation distance of at least 20cm from all person and not
be co-located with any other transmitters except in accordance with FCC and Industry Canada multitransmitter product procedures.
Other user manual statements may apply.
L'intégrateur OEM ne devraient pas fournir des informations à l'utilisateur final sur la façon d'installer ou
de supprimer ce module RF ou modifier les paramètres liés RF dans le manuel utilisateur du produit
final.
Le manuel d'utilisation pour le produit final doit comporter les informations suivantes dans
unendroit bien en vue:
Ce dispositif est accordé pour une utilisation dans des configurations mobiles seule dans laquelle les
antennes utilisées pour cet émetteur doit être installé pour fournir une distance de séparation d'au
moins 20cm de toute personne et ne pas être co-localisés avec les autres émetteurs, sauf en
conformité avec FCC et Industrie Canada, multi-émetteur procédures produit.
Autres déclarations manuel de l'utilisateur peuvent s'appliquer.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 34 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
MECHANICAL DATA
Figure 4: Module Mechanical Dimensions (Maximum Module Height = 1.9 mm)
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 35 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
PCB FOOTPRINT
Figure 5 TiWi5 Recommended PCB Footprint (Top View)
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 36 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
TAPE AND REEL SPECIFICATION
Figure 6 TiWi5 Tape and Reel Specification
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 37 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
DEVICE MARKINGS
Rev 1 Devices
WL1273L: WL1273LYFVR PG3.32
Front End: TQP6M9002
•
Pre-production devices.
LS RESEARCH
TiWi5 450-0053
2D
Bar
Code
1-XXXXXX
Where 1 = Revision
XXXXXX = incremental serial number
2D Barcode Format is Data Matrix Standard
Rev 2 Devices
WL1273L: WL1273LYFVR PG3.32
Front End: TQP6M9002
•
•
•
•
LSR logo changed from red to black.
Added FCC and IC numbers to the label.
Revision number is no longer part of the serial number.
Minor label format changes.
LS RESEARCH
XXXXXX
Model: TiWi5
P/N: 450-0053
FCC: TFB-TIWI501
IC: 5969A-TIWI501
REV 2
2D
Bar
Code
Where 2 = Revision
XXXXXX = incremental serial number
2D Barcode Format is Data Matrix Standard
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 38 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
Rev 3 Devices
WL1273L: WL1273LYFVR PG3.32
Front End: TQP6M9002
•
Incorporated PCB DFM improvements.
LS RESEARCH
XXXXXX
Model: TiWi5
P/N: 450-0053
FCC: TFB-TIWI501
IC: 5969A-TIWI501
REV 3
2D
Bar
Code
Where 3 = Revision
XXXXXX = incremental serial number
2D Barcode Format is Data Matrix Standard
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 39 of 40
TiWi5 TRANSCEIVER MODULE
DATASHEET
CONTACTING LS RESEARCH
Headquarters
LS Research, LLC
W66 N220 Commerce Court
Cedarburg, WI 53012-2636
USA
Tel: (262) 375-4400
Fax: (262) 375-4248
Website
www.lsr.com
Wiki
wiki.lsr.com
Technical Support
forum.lsr.com
Sales Contact
[email protected]
The information in this document is provided in connection with LS Research (hereafter referred to as “LSR”)
products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by
this document or in connection with the sale of LSR products. EXCEPT AS SET FORTH IN LSR’S TERMS AND
CONDITIONS OF SALE LOCATED ON LSR’S WEB SITE, LSR ASSUMES NO LIABILITY WHATSOEVER AND
DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL LSR BE LIABLE FOR ANY
DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF LSR HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. LSR makes no representations or warranties with
respect to the accuracy or completeness of the contents of this document and reserves the right to make changes
to specifications and product descriptions at any time without notice. LSR does not make any commitment to
update the information contained herein. Unless specifically provided otherwise, LSR products are not suitable
for, and shall not be used in, automotive applications. LSR’s products are not intended, authorized, or warranted
for use as components in applications intended to support or sustain life.
The information in this document is subject to change without notice.
330-0042-R0.7
Copyright © 2011-2012 LS Research, LLC
Page 40 of 40
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
LS Research:
450-0053
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
