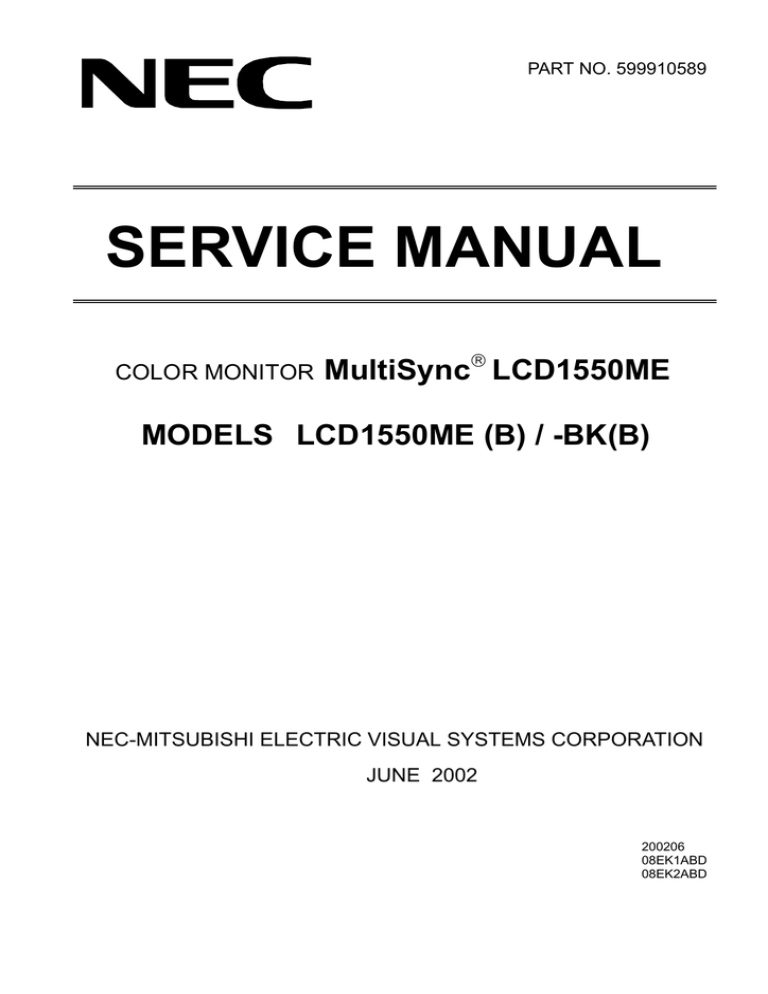

SERVICE MANUAL

SERVICE MANUAL

PART NO. 599910589

SERVICE MANUAL

COLOR MONITOR

MultiSync

LCD1550ME

MODELS LCD1550ME (B) / -BK(B)

NEC-MITSUBISHI ELECTRIC VISUAL SYSTEMS CORPORATION

JUNE 2002

200206

08EK1ABD

08EK2ABD

WARNING

The SERVICE PERSONNEL should have the appropriate technical training, knowledge and experience necessary to:

• Be familiar with specialized test equipment, and

• Be careful to follow all safety procedures to minimize danger to themselves and their coworkers.

To avoid electrical shocks, this equipment should be used with an appropriate power cord.

This equipment utilized a micro-gap power switch. Turn off the set by first pushing power switch. Next, remove the power cord from the AC outlet.

To prevent fire or shock hazards, do not expose this unit to rain or moisture.

This symbol warns the personnel that un-insulated voltage within the unit may have sufficient magnitude to cause electric shock.

This symbol alerts the personnel that important literature concerning the operation and maintenance of this unit has been included.

Therefore, it should be read carefully in order to avoid any problems.

PRODUCT SAFETY CAUTION

1. When parts replacement is required for servicing, always use the manufacturer's specified replacement.

2. When replacing the component, always be certain that all the components are put back in the place.

3. As for a connector, pick and extract housing with fingers properly since a disconnection and improper contacts may occur, when wires of the connector are led.

4. Use a proper screwdriver. If you use screwdriver that does not fit, you may damage the screws.

CONTENTS

Page No.

USER'S MANUAL ------------------------------------------------------------------- 1-1

SERIAL NUMBER INFORMATION --------------------------------------------- 2-1

DISASSEMBLY ----------------------------------------------------------------------- 3-1

ADJUSTMENT PROCEDURES -------------------------------------------------- 4-1

INSPECTION --------------------------------------------------------------------------- 5-1

TROUBLE SHOOTING ------------------------------------------------------------- 6-1

CIRCUIT DESCRIPTION ----------------------------------------------------------- 7-1

REPLACEMENT PARTS LIST --------------------------------------------------- 8-1

BLOCK DIAGRAM ------------------------------------------------------------------- 9-1

SCHEMATIC DIAGRAMS -------------------------------------------------------- 10-1

User's Manual

MultiSync LCD1550ME

User’s Manual

1-1

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN

EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS

CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE

COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the MultiSync LCD1550ME (L15XA231-BN and L15XA231-BNBK) with a 220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

When operating the MultiSync LCD1550ME with a 220-240V AC power source in

Australia, use the power cord provided with the monitor.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

E

NERGY

S

TAR

is a U.S. trademark.

As an E

NERGY

S

TAR

® Partner, NEC-Mitsubishi Electronics Display of America, Inc. has determined that this product meets the E

NERGY

S

TAR

guidelines for energy efficiency.

The E

NERGY

S

TAR

emblem does not represent EPA endorsement of any product or service.

IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of

International Business Machines Corporation.

Apple and Macintosh are registered trademarks of Apple Computer Inc.

Microsoft and Windows are registered trademarks of the Microsoft Corporation.

NEC is a registered trademark of NEC Corporation.

All other trademarks or registered trademarks are property of their respective owners.

English-1

1-2

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor

MultiSync LCD1550ME (L15XA231-BN)

MultiSync LCD1550ME (L15XA231-BNBK) is in compliance with

Council Directive 73/23/EEC:

– EN 60950

Council Directive 89/336/EEC:

– EN 55022

– EN 61000-3-2

– EN 61000-3-3

– EN 55024 and marked with

NEC-Mitsubishi Electric Visual Systems, Corp.

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

English-2

1-3

For the Customer to use in

U.S.A. or Canada

Canadian Department of Communications

Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du

Règlement sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety

Regulations according to CSA C22.2 #950.

Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 950.

FCC Information

1. Use the attached specified cables with the MultiSync LCD1550ME colour monitor so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following condition.

Power supply cord Non shield type, 3-conductor

Length 2.0 m

Plug shape

(2) Shielded video signal cable. Use of other cables and adapters may cause interference with radio and television reception.

English-3

1-4

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications

Commission, helpful: “How to Identify and Resolve Radio-TV

Interference Problems.” This booklet is available from the U.S.

Government Printing Office, Washington, D.C., 20402,

Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible party:

Address:

Tel. No.:

NEC-Mitsubishi Electronics

Display of America, Inc.

1250 N. Arlington Heights Road

Itasca, Illinois 60143-1248

(630)467-3000

Type of Product:

Equipment Classification:

Models:

Computer Monitor

Class B Peripheral

MultiSync LCD1550ME

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

English-4

1-5

Contents

Your new NEC MultiSync LCD monitor box* should contain the following:

• MultiSync LCD1550ME monitor with tilt base

• Power Cord

• Video Signal Cable

• Audio Cable

• User’s Manual

• CD ROM (includes complete User’s Manual in PDF format). To see the User’s Manual, Acrobat Reader 4.0 must be installed on your PC.

1550ME

Power Cord

ME

User’s Manual

Audio Cable Video Signal Cable CD ROM

* Remember to save your original box and packing material to transport or ship the monitor.

English-5

1-6

Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. Remove connector cover and cable cover. Connect the audio cable to

“AUDIO INPUT” on the back of the monitor and the other end to the

“Audio out” terminal of the computer. Place the Audio cable under

Clip B (Figure A.1).

3. For PC: Connect the 15-pin mini D-SUB of the appropriate signal cable to the connector for the display card in your system

(Figure B.1). Tighten all screws.

For Mac: Connect the MultiSync LCD1550ME Macintosh cable adapter to the computer (Figure C.1). Attach the 15-pin mini D-SUB end of the appropriate signal cable to the MultiSync LCD1550ME

Macintosh cable adapter (Figure C.1). Tighten all screws.

4. Connect the 15-pin mini D-SUB of the video signal cable to the appropriate connector on the back of the monitor (Figure D.1). Place the Video Signal Cable under Clip B.

5. Headphones may be connected to the “Headphones” output on the front of the monitor’s bezel marked “ ” (Figure E.1). While the headphones are connected, the sound from the speakers will be disabled. Headphones can be purchased from your local electronics store.

6. Connect one end of the power cord to the MultiSync LCD Series monitor and the other end to the power outlet. Place the video signal cable and AC power cord under the clips (Figure D.1). Replace connector cover and cable cover.

NOTE:

Adjust the position of the cable under the clips to avoid damage for cable or monitor.

NOTE:

Please refer to Caution section of this manual for proper selection of AC power cord.

7. The Vacation Switch on the left side of the monitor must be turned on

(Figure F.1). Turn on the monitor with the Power Button and the computer.

English-6

1-7

NOTE:

The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

8. No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM controls:

• Auto Adjust Contrast

• Auto Adjust

Refer to the Controls section of this User’s Manual for a full description of these OSM controls.

NOTE:

If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

Clip B

Figure A.1

Macintosh

Cable

Adapter

(not included)

Figure B.1

Figure C.1

English-7

Macintosh G3 and

G4 do not need a

Macintosh cable adapter

1-8

Figure D.1

Clip B

Connector cover

Cable cover

Figure E.1

1550ME

Vacation Switch

Figure F.1

English-8

Power Button

1-9

Tilt

Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Remove the connector cover and cable cover (Figure R.1).

2. Disconnect all cables.

3. Place monitor face down on a non-abrasive surface (Figure R.2).

4. Remove the 4 screws connecting the monitor to the stand and lift off the stand assembly (Figure R.2) the monitor is now ready for mounting in an alternate manner.

5. Connect the AC cord, signal cable and audio cable to the back of the monitor (Figure R.3).

6. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Figure TS.1

English-9

1-10

Figure R.1

Non-abrasive surface

Figure R.2

Figure R.3

English-10

1-11

7. This LCD monitor is designed for use with a flexible arm. Please use the attached screws (4pcs) when mounting. To meet the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor shall only be used with an approved arm (e.g. GS mark).

Replace screws

Thickness of bracket (arm)

2.0 ~ 3.2 mm

Tighten all screws

75 mm

75 mm

4 SCREWS

(MAX depth: 8.6 mm)

If use other screw, check depth of hole.

Weight of LCD assembly: 3.1kg (MAX)

English-11

1-12

Controls

OSM (On-Screen-Manager) Controls

The OSM controls on the front of the monitor function as follows:

To access OSM press any of the control buttons ( , , -, +, NEXT).

Control

EXIT

CONTROL /

ADJUST -/+

NEXT

RESET/MUTE

Menu

Exits the OSM controls.

Exits to the OSM main menu.

Moves the highlighted area left/right to select control menus.

Moves the highlighted area up/down to select one of the controls.

Moves the bar left/right to increase or decrease the adjustment.

Activates Auto Adjust function.

Enter the sub menu.

Moves the highlighted area of main menu right to select one of the controls.

Resets the highlighted control to the factory setting.

When no OSM menu is shown, the speaker sound will be muted.

NOTE:

When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the EXIT button.

Sound

VOLUME

Control the sound volume of speakers and headphones.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

English-12

1-13

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO ADJUST

Adjusts the image displayed for non-standard video inputs.

Auto Adjust

Automatically adjusts the Image Position, the H. Size and Fine setting.

Position Controls

LEFT/RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN/UP

Controls Vertical Image Position within the display area of the LCD.

H. SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

Colour Control Systems

Five colour presets select the desired colour setting.

Each colour setting is adjusted at the factory.

R,G,B

Increases or decreases Red, Green or Blue colour depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the bars.

English-13

1-14

Tools

OSM POSITION

You can choose where you would like the OSM control image to appear on your screen. Selecting OSM

Location allows you to manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF

The OSM control menu will stay on as long as it is use.

In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10,

20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT

This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out.

To activate the OSM Lock Out function, press , then and hold down simultaneously. To de-activate the OSM

Lock Out, press , then and hold down simultaneously.

RESOLUTION NOTIFIER

This optimal resolution is 1024 x 768. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1024 x 768.

FACTORY PRESET

Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the

RESET button.

Information

DISPLAY MODE

Indicates the current display resolution and frequency setting of the monitor.

English-14

1-15

MONITOR INFO.

Indicates the model and serial numbers of your monitor.

OSM Warning

OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the

No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the

Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of

Range menu will appear.

CHECK CABLE: This function will advise you to check all Video Inputs on the monitor and computer to make sure they are properly connected.

English-15

1-16

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND

USING THE MULTISYNC LCD COLOUR MONITOR:

DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the flourescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• Do not cover vent on monitor.

• If monitor is broken, do not come in contact with the liquid crystal.

• If glass is broken. Handle with care.

English-16

1-17

CAUTION

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

CORRECT PLACEMENT AND ADJUSTMENT OF

THE MONITOR CAN REDUCE EYE, SHOULDER

AND NECK FATIGUE. CHECK THE FOLLOWING

WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow

20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level.

Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 53 cm.

• Rest your eyes periodically by focusing on an object at least 6 m away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an antiglare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

English-17

1-18

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Use the preset Size and Position controls with standard signals.

• Use the preset Colour Setting.

• Use non-interlaced signals with a vertical refresh rate between

60-75 Hz.

• Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

English-18

1-19

Specifications

Monitor Specifications

LCD Module Diagonal:

Viewable Image Size:

Native Resolution (Pixel Count):

MultiSync LCD1550ME Monitor Notes

38 cm/15 inches

38 cm/15 inches

1024 x 768

Active matrix; thin film transistor (TFT) liquid crystal display (LCD);

0.30 mm dot pitch;

250cd/m

2

white luminence, typical; 400:1 contrast ratio, typical.

Input Signal

Display Colours

Synchronization Range

Video:

Sync:

ANALOG 0.7 Vp-p/75 Ohms

Separate sync.TTL Level

Horizontal sync. Positive/Negative

Vertical sync. Positive/Negative

Analog input:

16,777,216

Horizontal:

Vertical:

31.5 kHz to 60.0 kHz

56.2 Hz to 75.1 Hz

Depends on display card used.

Automatically

Automatically

Viewing Angle

Resolutions Supported

Left/Right:

Up/Down:

± 60°

+ 45°/- 55°

720 x 400*

1

:VGA text

640 x 480* 1 at 60 Hz to 75 Hz

800 x 600*

1

at 56 Hz to 75 Hz

832 x 624* 1 at 75 Hz

1024 x 768*

2

at 60 Hz to 75 Hz

Some systems may not support all modes listed.

Active Display

Area

Power Supply

Current Rating

Horizontal:

Vertical:

304 mm/12 inches

228 mm/9.0 inches

Dependent upon signal timing.

AC 100-120 V/220-240 V 50/60 Hz

0.7 A @ 100-120 V, 0.35 A @ 220-240 V

Dimensions 345.2 mm (W) x 362.6 mm (H) x 162.0 mm (D)

13.6 inches (W) x 14.3 inches (H) x 6.4 inches (D)

Weight

Environmental Considerations

Operating Temperature:

Humidity:

Altitude:

Storage Temperature:

Humidity:

Altitude:

3.9 kg (8.6 lbs)

5 °C to 35 °C

30% to 80%

0 to 3,000 m

-10 °C to +60 °C

10% to 85%

0 to 9,500 m

Speakers Practical Audio Output

1.0W + 1.0W

English-19

1-20

*1

Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the

LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

*2 NEC-Mitsubishi Electronics Display cites recommended resolutions at 75 Hz for optimal display performance.

NOTE: Technical specifications are subject to change without notice.

English-20

1-21

Features

Colour Control System: Allows you to adjust the colours on your screen and customize the colour accuracy of your monitor to a variety of standards.

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations.

The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

OSM (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

No-touch Auto Adjust: No-touch auto adjust automatically adjusts the monitor to optimal settings upon initial setup.

ErgoDesign Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money.

Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with

MPRII and TCO guidelines for lower emissions.

Plug and Play: The Microsoft solution with the Windows 95/98/ME/

2000/XP operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

English-21

1-22

VESA Standard Mounting Interface: Allows users to connect their

MultiSync monitor to any VESA standard (75 mm pitch) third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

English-22

1-23

Troubleshooting

No picture

• The signal cable should be completely connected to the display card/ computer.

• The display card should be completely seated in its slot.

• Check the Vacation Switch should be in the ON Position. Front power

Switch and computer power switch should be in the ON position.

• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

• Check the Vacation Switch on the left hand side of the monitor.

Image persistence

• Image persistence is when a “ghost” of an image remains on the screen even after the monitor has been turned off. Unlike CRT monitors, LCD monitors’ image persistence is not permanent.

To alleviate image persistence, turn the monitor off for as long as an image was displayed. If an image was on the monitor for one hour and a “ghost” of that image remains, the monitor should be turned off for one hour to erase the image.

NOTE:

As with all personal display devices, NEC-Mitsubishi Electronic

Displays recommends using a screen saver at regular intervals whenever the screen is idle.

English-23

1-24

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the fine total. When the display mode is changed, the OSM Image Adjust settings may need to be readjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

• If your text is garbled, change the video mode to non-interlace and use 60 Hz refresh rate.

Message “OUT OF RANGE” is displayed (screen is either blank or shows rough images only)

• OSM warning “OUT OF RANGE” is displayed on a blank screen:

Signal frequency is out of range. Choose one of the supported modes.

LED on monitor is not lit (no green or amber colour can be seen)

• Power Switch should be in the ON position and power cord should be connected.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the

H.Size.

• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

Selected resolution is not displayed properly

• Use OSM Display Mode to enter Information menu and confirm that the appropriate resolution has been selected. If not, select corresponding option.

English-24

1-25

No Sound

• Check to see if speaker cable is properly connected.

• Check to see if mute is activated.

• Check to see if volume in OSM is set at minimum.

English-25

1-26

TCO’99

This is a translation of the original English TCO'99 document.

MultiSync LCD1550ME White Model (L15XA231-BN)

Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing.

Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the

TCO (The Swedish Confederation of Professional Employees), Svenska

Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy

Administration).

English-26

1-27

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants,

CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO’99 demand requires that plastic components weighing more than

25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’99 requirement permits the inclusion of lead since no replacement has yet been developed.

English-27

1-28

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries may not contain any Mercury.

It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards.

CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are

Bioaccumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: +46 8 782 92 07

E-mail (Internet): [email protected]

You may also obtain current information on TCO’99 approved and labelled products by visiting their website at: http://www.tco-info.com/

English-28

1-29

TCO’95

This is a translation of the original English TCO'95 document.

MultiSync LCD1550ME Black Model (L15XA231-BNBK)

Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing.

Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the

TCO (The Swedish Confederation of Professional Employees),

Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical

Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

English-29

1-30

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants,

CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

TCO’95 is a co-operative project between TCO (The Swedish

Confederation of Professional Employees), Naturskyddsforeningen

(The Swedish Society for Nature Conservation) and NUTEK

(The National Board for Industrial and Technical Development in

Sweden).

Environmental Requirements

Brominated flame retardants

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO’95 demand requires that plastic components weighing more than

25 grams must not contain organically bound chlorine and bromine.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’95 requirement permits the inclusion of lead since no replacement has yet been developed.

English-30

1-31

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than

25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than

25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the back-light system.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are

Bioaccumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: +46 8 782 92 07

E-mail (Internet): [email protected]

You may also obtain current information on TCO’95 approved and labelled products by visiting their website at: http://www.tco-info.com/

English-31

1-32

Serial Number Information

Refer to the serial number information shown below.

EX.) SERIAL NUMBER LABEL

Model Name : LCD1550ME

SERIAL NO. :

LCD1550ME-BK g g g g g g g g g

Manufactured Year :

( Last digit )

Manufactured Month :

January to September 1 to 9

October X

Serial Number(5-digit)

November Y

(sequential number at production month,

00001-99999)

Factory Code:

LITE-ON Taiwan factory ...... “U”

LITE-ON China factory ...... “G”

Control Code:

A: A ver. (for U.S.A.)

B: B ver. (for Europe, Asia and Pacific)

C: C ver. (for China)

2-1

DISASSEMBLY

g Before you disassemble the set, turn off power and pull out the power plug. g Use the proper screwdriver. If oversize or undersize screwdriver is used, screws may be damaged. g Assembly is the opposite process of disassembly.

SYMBOL CODE DESCRIPTION

White

White

1 2

3

4

3-1

SYMBOL CODE

5

5

79PL1897

DESCRIPTION

REAR COVER ASS'Y-NMV-NEC White

79PL2043 REAR COVER ASS’Y-NEC-NEC- Black

5

SYMBOL CODE

6 ---

DESCRIPTION

BRACKET VESA ASS’Y

7 79PL1915 RUBBER CUSHION(REAR COVER)

7

6

3-2

SYMBOL CODE DESCRIPTION

SYMBOL CODE

8

DESCRIPTION

9

11

12

13

3-3

SYMBOL CODE DESCRIPTION

P301

CN1

16

CN2

19

CN3

14

P307

8

15

P804

18

P306

8

17

P304

P003

3-4

SYMBOL CODE

20 79PL1819

DESCRIPTION

FUNCTION KEY BD-NEC-FA150

21 79PL1901 HEAD PHONE BD-NEC-FA15AA

23 79PL1464 SPEAKER 4P N13AA12PCH22 J

25 79PL1462 SW POWER HF606A1GGATA HUA

24

20

21

22

25

23

SYMBOL CODE

27

27

DESCRIPTION

79PL2041 FRONT COVER ASS’Y-NMV-NEC White

79PL2042 FRONT COVER ASS’Y-NEC-NEC Black

26

27

3-5

SYMBOL CODE

29 ---

DESCRIPTION

BRACKET CHASSIS BASE ASS'Y

28

31

29

28

30

32

3-6

SYMBOL CODE DESCRIPTION

33

SYMBOL CODE

36

35

34

DESCRIPTION

White

38

39

37

3-7

SYMBOL CODE

42

DESCRIPTION

40

41

3-8

ADJUSTMENT PROCEDURES

TABLE OF CONTENS

Page

1.

Application ------------------------------------------------------------------------------------------------------------- 4-2

2.

Basic operation-------------------------------------------------------------------------------------------------------- 4-2

2.1.

General conditions --------------------------------------------------------------------------------------------------- 4-2

2.2.

Basic function --------------------------------------------------------------------------------------------------------- 4-2

2.2.1.

Key layout ----------------------------------------------------------------------------------------------------------- 4-2

2.2.2.

Aging ----------------------------------------------------------------------------------------------------------------- 4-2

2.2.3.

Service mode------------------------------------------------------------------------------------------------------- 4-3

3.

Set adjustments------------------------------------------------------------------------------------------------------- 4-4

3.1.

Measuring instruments to be used ------------------------------------------------------------------------------- 4-4

3.2.

Power source voltage ----------------------------------------------------------------------------------------------- 4-4

3.3.

Electrification ---------------------------------------------------------------------------------------------------------- 4-4

3.4.

Input signals ----------------------------------------------------------------------------------------------------------- 4-4

3.5.

POWER ON and signal input-------------------------------------------------------------------------------------- 4-4

3.6.

Manual adjustments ------------------------------------------------------------------------------------------------- 4-5

3.6.1.

Input video signal-------------------------------------------------------------------------------------------------- 4-5

3.6.2. VIDEO gain adjustments ---------------------------------------------------------------------------------------- 4-6

3.6.3. Factory setting--------------------------------------------------------------------------------------------------------4-7

4-1

1. Application

This specification shall be applied to the adjustment of the LCD1550ME set.

2. Basic operation

2.1. General conditions

Unless otherwise specified, adjustments shall be carried out under the following conditions:

1) Power source voltage: AC 100 - 120V/ 220 - 240V

± 5%, 50/60Hz

2) Equipment to be used: Equipment that can generate an output of the adjusted VG-819 unit or equivalent

3) Connections: Connections are made to the D-Sub connector of the unit under inspection by means of the connector that can carry each output of the VG-819.

2.2. Basic function

Exit

Control

Adjust

Next

Reset

2.2.2. Aging

EXIT wCONTROL8 −ADJUST+ NEXT RESET/MUTE

: Menu Close, Sub menu exit

: Menu Open, Cursor Move, Item Select

: Menu Open, Adjust select item, Enter Sub menu

: Menu Open, Tag Select, Function execute

: Open reset menu, Sound Mute

Prior to the adjustment of this model, 30 minutes of aging shall be carried out. The method of aging mode setting shall conform to the following:

1) Turn the POWER switch on while there are no inputs of the VIDEO and SYNC signals.

2) Press the ( 4) RIGHT or(3) LEFT or (+) PLUS or (-) MINUS key to display the information OSM.

3) Then, Press the (+) PLUS and (-) MINUS keys simultaneously with the RESET key kept pressed. Then the mode moves to the aging mode.

Push (+) PLUS and (-) MINUS and RESET

4-2

4) If there is no particular operation, an all white screen (255/255 gradation) is displayed.

5) Operate the(

4) RIGHT and (3)LEFT keys in this state. Then, operation for the gradation becomes possible. It is also possible to change the pattern by operating the (

4)RIGHT and (3)LEFT keys.

6) When withdrawing from the aging mode, press the EXIT key.

During operation in the aging mode, the power save mode is not assumed. The LED maintains the green display.

At the time of adjustment of this model, a suggestion may be given to enter the service (factory) mode. This will be explained below.

(1) Service mode:

1) In the “display mode” menu, press the (+) and (

−) LEFT keys at the same time while pressing the

RESET key.

2) When the NEXT key is pressed under the condition that the WARNING screen is displayed, the mode moves to the SERVICE mode. At that time, the LED is kept lit in green. The OSM AUTO-OFF function is disabled.

3) When withdrawing from the SERVICE mode, press the EXIT key in the highest hierarchy of the

SERVICE menu, or make a signal changeover, or take an action of POWER OFF.

Push (+) PLUS and (-) MINUS and RESET

(2) Service menu:

This is an OSM menu to be displayed when the mode is changed over to the SERVICE mode. The conditions differ in each mode, in regard to entering and withdrawal, and whether the data are recorded in the EEPROM. Items of the service menu are used in common.

4-3

3. Set adjustments

3.1. Measuring instruments to be used

The measuring instruments considered necessary for the adjustment of the LCD1550ME set are specified below.

1) Equipment that can generate an output of the adjusted VG-819 unit or equivalent

3.2. Power source voltage

100 - 120V/ 220 - 240V

± 5%, 50/60Hz

3.3. Electrification

1) Make connections according to the mode intended for VG-819 cable setting.

2) Turn on the POWER switch of the VG-819 unit.

3) Connect an AC power cable to the unit under inspection.

4) Confirm that the vacation switch (seesaw switch) at the left side of the unit being inspected has been moved to the “I” side, and turn the POWER switch ON at the right side of the front.

5) The LED of the unit under inspection is lit in amber. (In the middle of signal discrimination)

6) After the completion of signal discrimination, the LED is lit in green.

Note 1: When the POWER source switch is turned on for the first time, the initialization of EEPROM is effected regardless of the ON/OFF position of the POWER switch. In this period (about 1 minutes), the POWER switch must not be moved to the ON or OFF position. Upon the completion of the initialization, a normal screen is displayed. (If no signal input is entered, the information OSM is displayed.) If the screen is not displayed for more than 5 minutes after the electrification, however, this seems to have resulted from failure in the initialization of EEPROM.

Such a condition is regarded as NG.

Note 2: Connections for the connectors should be carried out always under the condition that the AC

POWER cord plug has been pulled out.

3.4. Input signals

Refer to Paragraph 3.6.1 for each adjustment item.

3.5. POWER ON and signal input

1) Turn on the vacation switch located on the side of the main unit (the power supply for the signal generator turned off) and turn on the power circuit by pressing the POWER key on the front panel.

Confirm in this case that the LED is lit in amber. When the power supply is turned on for the first time after the completion of PWB assembly, do not turn off the power supply for at least 10 seconds because initialization is required to be performed.

2) Turn on the power supply of the signal generator and enter an input of Signal 1. Confirm that the LED is turned from amber to green.

* If this LED is not lit in green at that time, it is regarded as a defective LED.

3) Prior to adjustments, execute the factory reset procedure without fail. The method of this action is described below. a) Display the SERVICE menu and adjust the cursor to the item of [FACTORY RESET]. b) Enter a signal 2 input of VGA 640x480(Solid all white pattern). c) Press the (+) PLUS or (-) MINUS keys to execute the factory reset procedure.

4-4

3.6. Manual adjustments

3.6.1. Input video signal

VG-819 setting values

MODE

TOTAL

DISP

SYNC PULSE

BACK

HDstrat

Hdwidth

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V INTERLACE

TOTAL [H]

DISP

SYNC PULSE

[H]

[H]

BACK PORCH

EQPfp

EQPbp

SERRATION

[H]

[H]

[H]

[H]

EDP

VDs

VBf

[H]

[H]

[H]

OUTPUT OUTPUT MODE

NRZ/RZ

CV

HS

VS

CS

HD

VD

RGB

HT

C

VIDEO

Set-up

Sync

Display setting

Signal 1

VESA [email protected]

78.75

1312

1024

96

176

0

0

NON

800

768

3

28

0

0

OFF

OFF

0

0

ANALOG

NRZ

POS

POS

NEG

NEG

NEG

POS

POS

POS

0.70

OFF

0.3

Gray scale + External frame

(16 gradations)

0 ~ 100%

25.18

800

640

96

48

0

0

Signal 2

VGA 640x480

NON

525

480

2

33

0

0

OFF

OFF

0

0

ANALOG

NRZ

NEG

NEG

NEG

NEG

NEG

POS

POS

POS

0.70

OFF

0.3

Solid all white

4-5

3.6.2. VIDEO gain adjustments

Use the signal source for which the analog output (R/G/B) has been adjusted to 0.7V.

1) Enter a signal 1 input of SXGA 1024x768(75Hz).

2) Turn off the display pattern completely and obtain an all black screen.

3) Assume the FACTORY mode in the procedures of Paragraph 2.2.3 and display the SERVICE menu.

4) Press the NEXT key once and advance to the tag [2].

5) Adjust the display pattern to Gray Scale (0 to 100%: in 16 gradations) + External Frame.

6) Use the ( 4) RIGHT or (3) LEFT keys and adjust the cursor to [AUTO OFFSET]. Make adjustments by pressing the (+) PLUS or (-) MINUS keys.

7) When adjustments are over and the original screen has been recovered, confirm that all the 16 gradations of black to white are displayed.

8) Use the ( 4) RIGHT or (3) LEFT keys and adjust the cursor to [AUTO CONT MAX].

9) Press the EXIT key and withdraw from the SERVICE mode.

4-6

1) Enter a signal input. (no prescribe)

2) Assume the FACTORY mode in the procedures of Paragraph 2.2.3 and display the SERVICE menu.

3) Press the NEXT key three times and advance to the tag |4|.

4) Use the ( 4) RIGHT or (3) LEFT keys and adjust the cursor to [OSD DESIGN],[OSM SELECT] and

[URL]. Set by pressing the (+) PLUS or (-) MINUS keys.

OSD DESIGN

OSM SELECT

0

0

URL 1

5) Press the EXIT key and withdraw from the SERVICE mode.

4-7

INSPECTION

TABLE OF CONTENS

Page

1.

Set Inspection----------------------------------------------------------------------------------------------------- 5-2

1.1.1. Application ----------------------------------------------------------------------------------------------------------- 5-2

1.2.

Inspection conditions --------------------------------------------------------------------------------------------- 5-2

1.2.1. Power source voltage --------------------------------------------------------------------------------------------- 5-2

1.2.2. Equipment to be used--------------------------------------------------------------------------------------------- 5-2

1.2.3. Inspection cables/connections ---------------------------------------------------------------------------------- 5-2

1.2.4. Brightness setting -------------------------------------------------------------------------------------------------- 5-2

1.2.5. Inspection mode---------------------------------------------------------------------------------------------------- 5-2

1.2.6. OSM functions ------------------------------------------------------------------------------------------------------ 5-2

1.2.7. Configuration of inspection jigs --------------------------------------------------------------------------------- 5-2

1.2.8. Inspection mode setting ------------------------------------------------------------------------------------------ 5-3

1.3.

OSM control operation ------------------------------------------------------------------------------------------5-12

1.3.1. Switch functions ---------------------------------------------------------------------------------------------------5-12

1.3.2. Basic operational procedures ----------------------------------------------------------------------------------5-12

1.4.

Power ON ----------------------------------------------------------------------------------------------------------5-13

1.5.

Inspection ----------------------------------------------------------------------------------------------------------5-13

1.5.1. Inspection on LCD brightness and contrast ----------------------------------------------------------------5-13

1.5.2. Inspection on automatic adjustment function---------------------------------------------------------------5-14

1.5.3. Inspection on input signal identification----------------------------------------------------------------------5-15

1.5.4. Inspection on Audio function -----------------------------------------------------------------------------------5-16

1.6.

Setting before shipment-----------------------------------------------------------------------------------------5-17

1.7.

Safety test ----------------------------------------------------------------------------------------------------------5-17

1.7.1. Input current measurements -----------------------------------------------------------------------------------5-17

1.7.2. Power source/earth connections ------------------------------------------------------------------------------5-18

1.7.3. Dielectric strength test -------------------------------------------------------------------------------------------5-18

1.7.4. Leakage current test----------------------------------------------------------------------------------------------5-19

1.7.5. Insulation resistance test ----------------------------------------------------------------------------------------5-19

2.

External inspection on the LCD module --------------------------------------------------------------------5-20

2.1.

External inspection of the display surface ------------------------------------------------------------------5-20

2.1.1. Inspection items ---------------------------------------------------------------------------------------------------5-20

2.1.2. Inspection standards ---------------------------------------------------------------------------------------------5-20

3.

Inspection of PLUG & PLAY communication and OSM "MONITOR INFORMATION" for model name/ serial number ------------------------------------------------------------------------------------5-22

3.1.

A construction of System ---------------------------------------------------------------------------------------5-22

3.2.

Input Signal --------------------------------------------------------------------------------------------------------5-22

3.3.

Operational procedures -----------------------------------------------------------------------------------------5-23

3.4.

EDID data file------------------------------------------------------------------------------------------------------5-24

5-1

1. Set Inspection

1.1.1. Application

The inspection procedures specified in this item shall be applied to the inspection of the LCD1550ME unit.

1.2. Inspection conditions

Unless otherwise specified, inspection shall be carried out under the following conditions.

1.2.1. Power source voltage

AC voltage: AC 100 - 120V/ 220 - 240V

± 5%, 50/60Hz

1.2.2. Equipment to be used

Equipment that can generate an output of the adjusted VG-819 unit or equivalent.

The signal timing for the inspection ROM shall conform to the table provided in Paragraph 1.2.8 herein.

1.2.3. Inspection cables/connections

1) Connections between the unit under inspection and the VG-819 shall be made through D-SUB connector of the unit under inspection and the cable that can carry each output of the VG-819, as specified below.

BNC-DSUB (female) connector

2) For connections to the power supply, an AC cable for LCD1550VM shall be used.

1.2.4. Brightness setting

Unless otherwise specified, inspection shall be carried out under the condition that the LCD brightness is set at the highest level.

1.2.5. Inspection mode

Each inspection shall be carried out in the inspection mode specified in each relevant inspection item.

The detailed setting for each mode shall be specified in Paragraph 1.2.8 herein.

1.2.6. OSM functions

If checking and operation by OSM are specified in each inspection item, display and operation of the

OSM shall be carried out by operating the push switches of the unit under inspection, according to the instructions.

Outline operation is described in Item 1.3, “Operation of OSM control.”

1.2.7. Configuration of inspection jigs

Signal source

1) A video signal generator shall be used, which can generate an output of the VG-819 unit or equivalent.

5-2

1.2.8. Inspection mode setting

The respective setting data shall be the data for the VG-819.

Signal

Mode

H CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

PAT SEL

CLOCK DELAY

CHRA

PATTERN

GRAY

Format

Code

Font

Cell

Direction : 0

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

01 02

VG-819 setting values

03

Not used

04 05

28.322

900

720

108

54

0

0

35.500

936

720

72

108

0

0

21.053

848

640

64

84

0

0

28.322

900

720

108

54

0

0

35.500

936

720

72

108

0

0

449

350

2

60

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

446

350

3

61

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

440

400

8

25

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

449

400

2

35

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

446

400

3

42

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec 4 nsec 4 nsec 4 nsec 4 nsec

OPTION 2 OPTION 2 OPTION 2 OPTION 2 OPTION 2

1

82

16*16

16*16

L0: 0

L7: 127

LE: 239

1

82

16*16

16*16

L1: 17

L8: 143

LF: 255

L2: 34

L9: 159

1

82

16*16

16*16

L3: 51

LA: 175

1

82

16*16

16*16

L4: 68

LB: 191

1

L5: 85

LC: 207

82

16*16

16*16

L6: 102

LD: 223

5-3

Mode

H

Signal

CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

CLOCK DELAY

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

PAT SEL

CHRA

PATTERN

Format

Code

GRAY

Font

Cell

Direction : 0

06

25.18

800

640

96

48

0

0

07

30.24

864

640

64

96

0

0

VG-819 setting values

31.5

832

640

40

128

0

0

08

31.5

840

640

64

120

0

0

09

36.0

832

640

56

80

0

0

10

525

480

3

39

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

G

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

525

480

2

33

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

520

480

3

28

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

500

480

3

16

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

OPTION 2 OPTION 2 OPTION 2 OPTION 2 OPTION 2

1

82

1

82

1

82

1

82

1

82

16*16

16*16

L0: 0

L7: 127

LE: 239

16*16

16*16

L1: 17

L8: 143

LF: 255

L2: 34

L9: 159

16*16

16*16

L3: 51

LA: 175

16*16

16*16

L4: 68

LB: 191

16*16

16*16

L5: 85

LC: 207

L6: 102

LD: 223

509

480

3

25

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

5-4

Mode

H

Signal

CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

CLOCK DELAY

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

PAT SEL

CHRA

PATTERN

Format

Code

GRAY

Font

Cell

Direction : 0

11

36.0

1024

800

72

128

0

0

40.0

12

1056

800

128

88

0

0

VG-819 setting values

49.5

13

1056

800

80

160

0

0

50.0

14

1040

800

120

64

0

0

56.25

1048

800

64

152

0

0

15

628

600

4

23

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

625

600

2

22

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

625

600

3

21

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

666

600

6

23

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

OPTION 2 OPTION 2 OPTION 2 OPTION 2 OPTION 2

1

82

1

82

1

82

1

82

1

82

16*16

16*16

L0:0

L7:127

LE:239

16*16

16*16

L1:17

L8:143

LF:255

L2:34

L9:159

16*16

16*16

L3:51

LA:175

16*16

16*16

L4:68

LB:191

16*16

16*16

L5:85

LC:207

L6:102

LD:223

631

600

3

27

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

5-5

Mode

H

Signal

CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

CLOCK DELAY

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

PAT SEL

CHRA

PATTERN

Format

Code

GRAY

Font

Cell

Direction : 0

16

57.28

1152

832

64

224

0

0

65.0

17

1344

1024

136

160

0

0

VG-819 setting values

18

70.49

1344

1024

136

160

0

0

75.0

19

1328

1024

136

144

0

0

20

78.75

1312

1024

96

176

0

0

806

768

6

29

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

667

624

3

39

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

POSI

POSI

POSI

POSI

G

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

806

768

6

29

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

806

768

6

29

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

OPTION 2 OPTION 2 OPTION 2 OPTION 2 OPTION 2

1

82

1

82

1

82

1

82

1

82

16*16

16*16

L0:0

L7:127

LE:239

16*16

16*16

L1:17

L8:143

LF:255

L2:34

L9:159

16*16

16*16

L3:51

LA:175

16*16

16*16

L4:68

LB:191

16*16

16*16

L5:85

LC:207

L6:102

LD:223

800

768

3

28

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

G

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

5-6

Mode

Signal

H CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

CLOCK DELAY

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

PAT SEL

CHRA

PATTERN

Format

Code

GRAY

Font

Cell

Direction : 0

21 22

VG-819 setting values

23 24

107.50

1664

1280

192

160

0

0

25

Not used

94.5

1376

1024

96

208

0

0

94.50

1528

1152

128

208

0

0

108.00

1800

1280

112

312

0

0

126.00

1680

1280

144

224

0

0

937

900

4

31

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

808

768

3

36

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

1000

960

3

36

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

1000

960

3

36

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

NEGA

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

OPTION 2 OPTION 2 OPTION 2 OPTION 2 OPTION 2

1

82

1

82

1

82

1

82

1

82

16*16

16*16

L0:0

L7:127

LE:239

16*16

16*16

L1:17

L8:143

LF:255

L2:34

L9:159

16*16

16*16

L3:51

LA:175

16*16

16*16

L4:68

LB:191

16*16

16*16

L5:85

LC:207

L6:102

LD:223

1078

1024

4

43

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

5-7

Mode

H

Signal

CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

CLOCK DELAY

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

PAT SEL

CHRA

PATTERN

Format

Code

GRAY

Font

Cell

Direction : 0

26

108.00

1688

1280

112

248

0

0

27

117.00

1632

1280

112

224

0

0

VG-819 setting values

28

135.00

1688

1280

144

248

0

0

29

135.00

1664

1280

64

288

0

0

94.50

1480

1152

96

200

0

0

30

1067

1024

8

33

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

1066

1024

3

38

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

1066

1024

3

38

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

POSI

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

1066

1024

8

32

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

POSI

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

OPTION 2 OPTION 2 OPTION 2 OPTION 2 OPTION 2

1

82

1

82

1

82

1

82

1

82

16*16

16*16

L0:0

L7:127

LE:239

16*16

16*16

L1:17

L8:143

LF:255

L2:34

L9:159

16*16

16*16

L3:51

LA:175

16*16

16*16

L4:68

LB:191

16*16

16*16

L5:85

LC:207

L6:102

LD:223

912

864

3

44

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

POSI

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

5-8

Mode

H

Signal

CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

CLOCK DELAY

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

PAT SEL

CHRA

PATTERN

Format

Code

GRAY

Font

Cell

Direction : 0

31

108.00

1600

1152

128

256

0

0

32

162.00

2160

1600

192

304

0

0

VG-819 setting values

33

108.00

1688

1280

112

248

0

0

1250

1200

3

46

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

POSI

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

900

864

3

32

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

POSI

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

OPTION 2 OPTION 2 OPTION 2

1

82

1

82

1

82

16*16

16*16

L0:0

L7:127

LE:239

16*16

16*16

L1:17

L8:143

LF:255

L2:34

L9:159

16*16

16*16

L3:51

LA:175

L4:68

LB:191

1066

1024

3

6380

0

0

OFF

OFF

0

0

Nonint

NRZ

POSI

POSI

NEGA

NEGA

NEGA

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

34

L5:85

LC:207

35

L6:102

LD:223

5-9

Mode

H

Signal

CLOCK

HPERIOD

HDISP

HSYNC

HBACKP

HDSTART

HDWIDTH

[MHz]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

[DOT]

V VTOTAL

VDISP

VSYNC

VBACKP

EQP FP

EQP BP

SERRATION

EQP

VDSTART

VDLINE

SCAN

OUTPUT NRZ/RZ

HS

VS

CS

HD

VD

CLOCK

SYNC ON

RGB

VIDEO

SETUP

CLKMODE

CLKOUT

DISP,1CH,2CH

SW0,SW1

RGB

R(7-0),G(7-0),B(7-0)

DELAY

CLOCK DELAY

[H]

[H]

[H]

[H]

[H]

[H]

[H]

[H]

PAT SEL

CHRA

PATTERN

GRAY

Format

Code

Font

Cell

Direction : 0

36 37

VG-819 setting values

38 39 40

34.40

800

34.40

800

640

96

48

0

0

640

96

48

0

0

1024

480

2

1024

480

2

33

0

0

OFF

OFF

0

0

Nonint

33

0

0

OFF

OFF

0

0

Nonint

NRZ

NEGA

POSI

NEGA

NEGA

POSI

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

NRZ

NEGA

NEGA

NEGA

NEGA

POSI

NEGA

POSI

0.70V

OFF

1/2

ALL

POSI

OFF

8 bit

11111111

ON

4 nsec

CHARA CHARA

1 1

L0:0

L7:127

LE:239

L1:17

L8:143

LF:255

L2:34

L9:159

L3:51

LA:175

82

16*16

16*16

L4:68

LB:191

L5:85

LC:207

82

16*16

16*16

L6:102

LD:223

5-10

Note 1:

According to the designation of sync signals and the setting of each inspection mode, the analog outputs

(BNC) of the signal generator shall be connected as specified below. (Except the cases when otherwise specified)

1) SEPARATE: R/G/B CONNECTION, HS

←→ H, VS ←→ V, CS not connected

Note 2:

Screen of Option 2

5-11

1.3. OSM control operation

Each OSM function is available by pressing the push-button switches (EXIT, 3,4, -, +, NEXT, RESET) allocated in the lower section of the front bezel (or the control PWB when a PWB unit only is furnished).

1.3.1. Switch functions

The basic functions of the respective push-button switches (or called the keys, but in the same meaning) are described below.

In a mode where no OSM display is presented, the main menu of the OSM menu can be displayed when any key out of UP, DOWN, -, and + is pressed.

Exit: Menu Close, Sub menu exit

Control (

3,4):

Menu Open, Cursor Move, Item Select

Adjust (+, -): Menu Open, Adjust select item, Enter Sub menu

Next

Reset:

Menu Open, Tag Select, Function execute

Open reset menu, Sound Mute

1.3.2. Basic operational procedures

1) Press any key out of

3or4or + or -, and confirm that a menu as shown below is displayed.

2) When the NEXT key is used, the selective tag moves to the right and the adjusting screen changes.

With the adjusting screen selected, use the keys

3and4to select the adjusting item (simply “item” hereafter) and set the adjusting value by the use of the keys - and +. To execute an automatic adjustment function (CONTRAST AUTO ADJUST, AUTO ADJUST), press the key + or - in the state of item highlight. Then, auto adjust are carried out.

When the adjusting item is present in TOOL or INFO., move to the selecting item with the NEXT key and select the wanted item with the keys

3and4. In the state that the wanted item is highlighted in green, press the key + or - in order to get the adjusting screen displayed for each item.

3) When inspection is finished, press the EXIT key to withdraw from the OSM menu.

5-12

1.4. Power ON

1) Connect an AC power cable to the unit being inspected.

2) Connect the VG-819 cable to the unit being inspected. Any input connector is acceptable.

3) Turn on the POWER switch of the VG-819 to generate an output of Signal 17.

4) There is a vacation switch (a seesaw switch) at the left side of the unit being inspected. Confirm that this switch is set at the “

” side. Press the POWER key at the right end of the front to turn on the unit being inspected.

5) The LED is then lit in green and a screen is displayed.

1.5. Inspection

1.5.1. Inspection on LCD brightness and contrast

1) Enter Signal 17 through INPUT. The screen display is made in all white.

2) Display the BRIGHTNESS/CONTRAST tag of the OSM menu.

3) Get BRIGHTNESS highlighted with the 3and4keys.

Brightness adjust menu

4) Confirm that the green bar is changed by the operation of the (-) and (+) keys, and that the screen brightness is changed.

5) Confirm that the highlight display is for BRIGHTNESS. Press the RESET key. Then, the confirmation screen is displayed. Press the NEXT key to make resetting. (The BRIGHTNESS bar is returned fully to the right.)

6) Use the 3and4keys to obtain CONTRAST displayed in the highlight mode.

Contrast adjust menu

7) Confirm that the green bar is changed and the screen contrast is also changed when the (-) and (+) keys are operated.

5-13

8) Get AUTO ADJUST highlighted with the (-) and (+) keys.

Contrast Auto Adjust menu

9) Press the (-) and (+) keys and wait until the OSM display is restored to the former display. At that time, confirm that the screen is normally displayed.

1.5.2. Inspection on automatic adjustment function

1) Enter Signal 17 through INPUT. (1-dot loss + External frame screen)

2) Display the OSM menu. Use the NEXT key to move as far as to the POSITION tag.

Horizontal Position adjust menu Vertical Position adjust menu

H.SIZE adjust menu FINE adjust menu

3) Move the cursor to the HORIZONTAL POSITION, using the 3and4keys. Operate the (-) and (+) keys to shift the POSITION to an extent so that the caused difference can be visually perceived.

4) In the same manner, shift the VERTICAL POSITION, H. SIZE, and FINE from their initial levels.

5) Use the NEXT key to move as far as to the AUTO ADJUST adjusting tag.

Auto Adjust menu

6) Execute automatic adjustments by the use of the (+) or (-) key.

Confirm that the screen (POSITION/SIZE/PHASE) is normally adjusted.

5-14

1.5.3. Inspection on input signal identification

Purpose of inspection: Confirming that a normal display is obtainable for each signal input.

Unless otherwise specified, the display pattern is as shown in the initial screen, conforming to 1.2.8 [Inspection mode setting].

--- Inspection of signal input ---

1) According to the table below, make setting of the input connector and the signal, and enter a signal input.

Item No. Inspection signal No. SYNC

1 1 SEPARATE

2 4 SEPARATE

3 6 SEPARATE

4 8 SEPARATE

5 9 SEPARATE

6 11 SEPARATE

7 12 SEPARATE

8 13 SEPARATE

9 14 SEPARATE

10 17 SEPARATE

11 19 SEPARATE

12 20 SEPARATE

2) When a screen is displayed, visually check whether the display is free from abnormality.

(Freedom from any extreme displacement in position, size, and phase, flickering in the screen, and extreme color deterioration)

3) Check the OSM menu for the signals that have signal numbers underlined. Display the OSM information screen (the rightmost tag). Get the [DISPLAY MODE] highlighted with the (

3) LEFT or (4)

RIGHT keys. Then, display the [DISPLAY MODE] screen with the (+) PLUS or (-) MINUS key. Confirm that the displayed definition coincides with the definition of the input signal.

--- Inspection of POWER SAVE ---

4) Remove the output signal of the VG-819 from H.sync and V.sync connector. Confirm that the screen disappears and the OSM menu of the [NO SIGNAL] is displayed. Wait in this state for about 5 seconds, and confirm that the LED display is turned into amber and the POWER SAVE mode is assumed.

5-15

1.5.4. Inspection on Audio function

Purpose of inspection: Confirming that the audio function works normally.

1) It connects audio-in with the PC or the audio player and it enters a sound.

AUDIO INPUT

PC or Audio Player

2) Enter Signal 17 through INPUT.

3) Display the OSM menu. Use the NEXT key to move as far as to the Volume tag.

Sound Volume menu

4) Confirm that the green bar is changed and the audio volume is also changed when the (-) and (+) keys are operated.

5) It confirms that sound is outputted from the left-right speakers and headphones.

5-16

1.6. Setting before shipment

In order to recover the initial conditions of all settings, the contents of the memory are reset before shipment. This reset process involves actions in regard to the memory of signal modes. Therefore, these actions should be taken after the completion of all electrical inspection and display inspection.

1) Enter an input of Signal 4 through INPUT. Operate the OSM to enter the service mode, and display a service menu.

2) Adjust the cursor to [FACTORY PRESET] by the use of the(

3) LEFT or (4) RIGHT keys, and press the

(+) PLUS, (-) MINUS keys.

Service menu

3) When the OSM is displayed again, the resetting process has been finished. Press the EXIT key to withdraw from the service mode.

Note 1: After the completion of this process, confirm, without fail, that the present condition is surely after the withdrawal from the service mode.

1.7. Safety test

• Destination

: All over the world

• Applicable standards

: UL1950/C-UL/EN60950

• Unit class

: Class I units (the units protected against electric shocks by protective earthing, or those equipped with 3-core power cords)

• Ratings

: AC100-120/220-240V 50/60Hz 0.7 / 0.35A

1.7.1. Input current measurements

Under the measuring conditions specified below, an input current shall be measured while the 50Hz input voltage is maintained at 220V AC (+0 to -5V). The input currents measured shall be confirm so they satisfy the judgment standard. (The rear rating plates are the same as those for North America and

Europe. Therefore, measurements should also be based on this setting.)

(1) Measuring conditions

Condition of the set

Measuring conditions

: ON mode

: The inspection signal is set at “17” and “white” is displayed throughout the screen.

At that time, the brightness and contrast shall be kept under the brightest condition.

(2) Judgment standard

The input current shall be kept below 0.7A +10%.

5-17

1.7.2. Power source/earth connections

a. Checks on the power source/earth connections

The earth side of the cord or the earth wire of the inlet filter for the cord set shall be visually checked to see that it is connected to the chassis block of the unit as specified below.

1) The earth wire color shall be spiral of green and yellow.

[Units applicable to UL1950 or IEC60950 (EN60950)]

2) The earth wire shall be firmly connected to the chassis block by the use of a screw (See Note) of

3.5mm

∅ in diameter.

Note: Spring washers or star washers shall be used, without fail. b. Earth resistance testing

This testing shall be carried out prior to the dielectric strength test.

The earth resistance shall be 0.1

Ω or less when a current of 25A AC is carried between the earth side of the cord (the plug block or the section closest to the plug where no plug is provided) and the metallic block (the DVI connector) that is used as a safety earth for the unit.

Where the earth resistance exceeds 0.1

Ω, the condition shall be still acceptable if the earth resistance is

0.1

Ω or less when the resistance of the power cord is excepted.

1.7.3. Dielectric strength test

To confirm the freedom from insulation breakdown, testing shall be carried out under the conditions specified below.

1) Measuring conditions

Measuring instrument : Dielectric strength tester (The specified voltage shall be maintained in the state that a current of 10mA is carried.)

• Testing point : Between the electrical circuit block and the exposed metallic block (D-SUB connector)

Note: The electrical circuit block shall mean the power input block (primary side). Testing shall be carried out under the condition that both poles of the power plug are short-circuited. (Where a 3-core cord is used, the two poles other than the earth terminal shall be short-circuited.)

2) Judgment standard

The freedom from insulation breakdown shall be confirmed under the condition that the applied voltage is maintained at 1500V AC (+0 to 50V) for one minute.

Even though the result of this testing is OK, such a condition shall be regarded as unacceptable if there is a leakage (flashing) around the section where the test voltage has been applied.

If the result of insulation resistance test is found unacceptable, to be carried out after this testing, such a condition shall be regarded as that an insulation breakdown has occurred.

5-18

1.7.4. Leakage current test

A leakage current shall be measured under the conditions specified below, in order to confirm that the requirements of the judgment standard are met.

1) Measuring conditions

Measuring instrument : Leakage current meter (A 1500

Ω resistor shall be incorporated, together with a bypass capacitor of 0.15

µF.)

Testing point : Between the exposed metallic block (D-SUB connector) and Phases A and

B of the power source.

Condition of the set : A power cable shall be connected without connecting a signal generator. The see-saw switch on the set side shall be turned ON and OFF.

2) Judgment standard

The leakage current measured shall be 1.5mA or less with an input of 240V AC

× 1.06 +5/-0V (60Hz).

1.7.5. Insulation resistance test

An insulation resistance shall be measured under the conditions specified below, in order to confirm that the requirements of the judgment standard are met.

(1) Measuring conditions

• Measuring instrument

• Testing point

: 500V DC megger

: Between the power circuit block and the exposed metallic block

(D-SUBI connector)

• Measured value readout

: A test voltage shall be applied for one minute and the resistance value shall be read out thereafter.

(2) Judgment standard : 10M

Ω or more

5-19

2. External inspection on the LCD module

2.1. External inspection of the display surface

The display surface shall be visually inspected according to the inspection items specified below. In cases of the discovery of extreme defects or doubtful judgment, final judgment should be made on the basis of relevant detailed standards for inspection.

Unless otherwise specified, the inspection signals shall be used at the timing of Signal 17 specified in

Paragraph 1.2.8 herein.

2.1.1. Inspection items

1) Examination of the missing of lines (horizontal or vertical lines failing to be displayed).

2) Presence of extreme missing of dots (bright dots and black dots), or conspicuous ones.

3) Presence of extreme flaws, wrinkles, air bubble, dents, lint, foreign matter, and conspicuous abnormality on the display surface.

2.1.2. Inspection standards

Inspection standards for external appearance and display conditions

(1) Inspection condition a) Viewing distance is approximately 385cm. b) Ambient illuminant is from 300 to 500lux. c) Viewing angle is +/- 10 deg. d) Ambient temperature is approximately 25deg C. e) Input signal clock frequency: 40MHz.

5-20

Visual Defect

Defect type

Scratch

Dent

Block spot

Lint

Electrical defect

Newton rings

Bright dot

Dark dot

Total dot

Two adjacent dot

Bright dot

Dark dot

Three or more adjacent dot

Distance between defects

Bright dot

Dark dot

Line defect

*1) W: Width, L: Length, N: Number

*2) Definition of Adjacent

R G B R G B R G B

Limit

0.01mm

≤ W ≤ 0.05mm

L

≤ 10mm

0.01mm

≤ W

10mm < L

0.05mm < W

0.15mm

≤ Φ ≤ 0.4mm

0.4mm <

Φ

0.15mm

≤ Φ ≤ 0.5mm

0.5mm <

Φ

L

≤ 3mm

3mm < L

Not allowed

N

≤ 4 (Green:4)

N

≤ 4

N

≤ 4

≤ 2 pairs

≤ 2 pairs

No allowed

≥ 15mm

≥ 15mm

No allowed

R G B R G B R G B

Defective pixel

Adjacent pixel

R G B R G B R G B

N

≤ 4

N = 0

N = 0

N

≤ 4

N = 0

N

≤ 4

N = 0

N

≤ 4

N = 0

*3) Bright dot is defined as follows:

≥ 1/3 area of sub-pixel

Dark dot is defined as follows:

≥ 1/3 area of sub-pixel

5-21

3. Inspection of PLUG & PLAY communication and OSM "MONITOR

INFORMATION" for model name/ serial number

3.1. A construction of System

This system should be connected as shown below.

P R O G R A M

P A R T N o . 5 9 9 9 1 0 5 7 8

P ro g ra m D is k

S ig n a l G e n e ra to r

P C

R G B H V

A U T O A D J I/F J IG

P a rt N o . 5 9 9 9 1 0 4 0 1 (1 2 0 V ) (F o r A v e r.)

P a rt N o . 5 9 9 9 1 0 4 0 2 (2 2 0 V ) (F o r B ve r.)

D -S u b 1 5 p in S ig n a l C a b le

3.2. Input Signal

Horizontal synchronization frequency : 43kHz(Negative)

Vertical synchronization frequency : 42Hz(Negative)

P rin te r C a b le

5-22

3.3. Operational procedures

1. Start PNP.EXE from DOS mode or DOS pronto of Windows.

2. Operation key assignment

• Determine the operation mode with the F1 ~ F9 and ESC keys.

F1 (Select Model) : Setting file changeover for respective models

F4 (Read) : EDID data for reading

F5 (Write Input 1) : It is not used in this model.

F8 (Write Input 2) : It is not used in this model.

F9 (Write ALL)

ESC (EXIT)

: EDID data and OSM data of the writing and inspection.

: End of program

3. Press the F1 key and enter an input of setting file for the related model. Press the Enter key.

File name Model

08EK1ABD LCD1550ME

4. Writing and inspection procedures a. Press the F9 key (Write ALL). b. Since the screen is changed over to the one that waits for an input of serial number, examine the serial number of the set, enter it from the keyboard, and press the Enter key.

The message of the screen:

Model Name "LCD1550ME "

Input serial number (Enter only: Use previous number) c. Model name and serial number writing for the OSM “MONITOR INFO.”

According to the screen commands, change over the signals, and make OSM menu setting for the writing set.

Signal: fH 43kHz (Negative) fV 42Hz (Negative)

When the Enter key is pressed, the model name and serial number of the OSM “MONITOR

INFORMATION” are written. d. EDID data writing

When the Enter key is pressed, the EDID data of the D-SUB INPUT are written.

The message of the screen:

Input 1 File 1 set V 42Hz N (Hit any key) e. Upon normal completion, a screen display is presented "OK". f. A power-supply switch is switched off -> turned on, Display “MONITOR INFORMATION” of the OSM, and confirm that the model name (LCD1550ME) and serial number have been correctly written.

5-23

3.4. EDID data file

The EDID data file text is shown below. When you write or inspect EDID for this monitor, the following table can be used. file name : L1550ME.TXT

0 1 2 3 4 5 6 7 8 9 A B C D E F

00 00 FF FF FF FF FF FF 00 38 A3 E3 65 01 01 01 01

10 *1) *2) 01 03 08 1E 17 78 EA 9D 9E 99 58 4C 93 26

20 21 4C 54 BF EE 00 01 01 01 01 01 01 01 01 01 01

30 01 01 01 01 01 01 C3 1E 00 20 41 00 20 30 10 60

40 13 00 30 E4 10 00 00 1E 00 00 00 FD 00 37 4B 1F

50 3C 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4E

60 45 43 20 4C 43 44 31 35 35 30 4D 45 00 00 00 FF

70 00 *3) *3) *3) *3) *3) *3) *3) *3) *3) *3) *3) *3) *3) 00 *4)

Table 1 Data list (Management number : L1550ME)

Note 1: address 10h

Note 2: address 11h

Week of manufacture = Month of manufacture

× 4

Year of manufacture - 1990

Notes 3: address 71h ~ 7Dh Serial Number (ASCII coded)

If less than 13 char, terminate with 0Ah and fill the rests with 20h.

Note 4: address 7Fh Checksum

The sum of entire 128 byte shall be equal to 00h.

5-24

TROUBLE SHOOTING

TABLE OF CONTENTS

page

1. No display of screen(Screen is black ,color of LED is amber) -------------------------------- 6-2

2. Nothing displays on screen(Screen is black ,color of LED is green) ------------------------ 6-3

3. Checking the back light unit --------------------------------------------------------------------------- 6-6

4. Abnormal screen ----------------------------------------------------------------------------------------- 6-7

5. No OSM display ------------------------------------------------------------------------------------------ 6-9

6. Abnormal plug and play operation ----------------------------------------------------------------- 6-10

7. Checking the interface circuit of sync signal ----------------------------------------------------- 6-11

7.1 Checking the control circuit of horizontal sync pulse ---------------------------------------- 6-11

7.2 Checking the control circuit of vertical sync pulse -------------------------------------------- 6-11

8. Checking the resolution change IC movement ------------------------------------------------- 6-12

9. No power on ---------------------------------------------------------------------------------------------- 6-13

9.1 No power on (1) ----------------------------------------------------------------------------------------6-13

9.2 No power on (2) ----------------------------------------------------------------------------------------6-14

10. Checking the DC/DC converter circuit ----------------------------------------------------------- 6-15

11. Checking the operation of CPU ------------------------------------------------------------------- 6-16

12. Checking the audio circuit -------------------------------------------------------------------------- 6-17

13. Check the inverter board circuit ------------------------------------------------------------------- 6-18

6-1

1. No display of screen (Screen is black, color of LED is amber)

Does OSM display when you push key button.

When a signal isn't being inputted, it is indicated with "NO VIDEOINPUT". It is indicated with "OUT OF

RANGE" at the time of the frequency that it can't be distinguished.

YES

NO

Pressed "No OSM display" section.

Check if the sync signal from

Computer is output and if the video cable is connected normally.

OK

NG

Proceed "Checking the resolution change IC movement" section.

Input the sync signal of computer, or change the cable.

6-2

2. Nothing displays on screen (Screen is black, color of LED is green)

Is backlight lit?

OK

OK

NG

Does computer output

RGB video signals?

Check OSM menu is displayed on screen when you push the

"NEXT" key.

OK

NG

NG

Proceed "Abnormal screen" section.

Refer "Checking the backlight unit" section

Check the video cable for failure.

Check the host for output signal with all black only.

1) Change pattern of video signal output on the host.

2) Reconnect the video cable.

3) Change the video cable.

Next page

6-3

Continue

Check the 3.3 V power are supplied on I310 pin 2.

OK

NG

Check if the voltage on I310 pin3 that is high level DC at 5V.

OK

NG

Failure point

I310 Failure

Is a dot clock being outputted under the condition that a LCD module is connected to P307 pin 44?

OK

NG

Check the H-sync pulse of negative polarity is output on P307 pin 38 at TTL level.

OK

NG

Check the V-sync of negative polarity are output on P307 pin 40.

OK

NG

Next page

Failure point

Printed wire broke between P301 and I310

Failure point

1) I306 failure

2) Printed wire broke between I306 and P307 pin 44.

Failure point

1) I306 failure

2) Printed wire broke between I306 and P307 pin 38.

Failure point

1) I306 failure

2) Printed wire broke between I306 and P307 pin 40.

6-4

Continue

Check the data enable of positive polarity are output on P307 pin 42.

OK

OK

NG

Check the data signal output on

P306 and P307 R, G, B data pin.

NG

1) I306 failure

2) Printed wire broke between I306 and P307 pin 37.

1) I306 failure

Failure point

Failure point

2) Printed wire broke between I306 and P306 data line

1) The cable broke between P306, P307 and LCD module.

2) LCD module failure.

Failure point

6-5

3. Checking the back light unit

Is +15V supplied to P803 pin 3, 4 to inverter PWB?

OK

Check the INV_EN signal of the rectangle input I309 pin 5 at TTL high level

OK

OK

NG

NG

NG

Failure point

Failure point

Inverter cable disconnection.

Is a "H" level being output in the TTL level from I302 pin 2

Or, is INV_EN signal of the rectangle being output?

1) Inverter cable disconnection.

2) Inverter of LCD module failure.

NG

Failure point

Printed wire broke between

I302 pin 2 and I309 pin 5

Check the PWM signal of the input from I302 pin 1 is a BRI signal.

Failure point

1) Printed wire broke between

I302 pin 1 and I309 pin 3.

2) I309 failure.

6-6

4. Abnormal screen

Check the R, G, B video signal from computer input on D-Sub R, G, B connector.

NG

OK

Check the R, G, B input signals on

I306 pin 95, 91, 87 respectively that their level is 0.7Vp-p maximum.

OK

Is the pulse of the TTL level being output to P306, P307 from the data line of I306?

OK

Check the negative horizontal sync pulse output to P307 pin 38 from I306 pin 74 at TTL level.

OK

NG

NG

NG

Next page

Failure point

1) No R, G and B video signal output from host computer.

Check computer

2) Video signal cable disconnection.

Failure point

In the case of the Red signal. (A Green and Blue signal is the same path, too.)

1) Printed wire broke between D-Sub(R) and I306 pin 95.

2) R346 short.

3) C348 open.

4) R345 open.

Failure point

1) Printed wire broke between I306 data line and P306, P307.

2) I317 failure.

Failure point

1) Printed wire broke between I306 pin 74 and P307 pin 35.

2) R350 open

3) C383 short

6-7

Continue

Check the negative vertical sync pulse output to P307 pin 40 from

I306 pin 73 at TTL level.

OK

NG

Check the positive DE pulse output to P307 pin 42 from I306 pin 43 at TTL level.

OK

Check the SHFCLK OUTPUT to

P307 pin 44 from I306 pin 44 at

TTL level.

OK

NG

NG

Process "Checking the resolution change IC movement" section.

Failure point

1) Printed wire broke between I306 pin 73 and P307 pin 40.

2) R351 open

3) C384 short

Failure point

1) Printed wire broke between I306 pin 42 and P307 pin 42.

2) R352 open

3) C385 short

Failure point

1) Printed wire broke between I306 pin 44 and P307 pin 39.

2) FB312 open

3) FB311 open

4) C354 short

5) C355 short

6-8

5. No OSM display

Check the input of pulse from I306 pin 98, 103, 99, 102, 104, 105.

OK

NG

Failure point

1) Printed wire broke between I306 pin 99 and I302 pin 17.

2) Printed wire broke between I306 pin 102 and I302 pin 21.

3) Printed wire broke between I306 pin 104 and I302 pin 20.

4) Printed wire broke between I306 pin 105 and I302 pin 18.

5) Printed wire broke between I306 pin 103 and I302 pin 22.

6) Printed wire broke between I306 pin 98 and I302 pin 23.

Process "Checking the resolution change IC movement" section.

6-9

6. Abnormal plug and play operation

Confirm the input of serial clock on I308 pin 6 SCL at TTL level.

OK

NG Failure point

I308 failure

Failure point

1) The video cable may have failed or may not have connections for DDC.

2) Between I308 pin 6 and P302 pin 14 may have failed.

3) R337 open.

4) Cable failure.

Confirm the input of serial data on I308 pin 5 SDA at TTL level.

OK

NG

Failure point

I308 failure

Failure point

1) The host machine isn't communicating in DDC2 mode.

2) The video cable may have failed or may not to have connections for DDC.

3) Between I308 pin 6 and P302 pin 13 may have failed.

4) R338 open.

5) Cable failure.

6-10

7. Checking the interface circuit of sync signal

7.1 Checking the control circuit of horizontal sync pulse

Check the horizontal sync signal on I306 pin 150 TTL level.

OK

NG

Failure point

1) Video cable may have failed.

2) Printed wire broke between P302 pin 13 and I306 pin 150.

3) FB302, R332 open.

Process "Checking the resolution change IC movement" section.

7.2 Checking the control circuit of vertical sync pulse

Check the vertical sync signal on I306 pin 148 TTL level.

OK

NG Failure point

1) Video cable may have failed.

2) Printed wire broke between P302 pin 14 and I306 pin 148.

3) FB301, R328 open.

Process "Checking the resolution change IC movement" section.

6-11

8. Checking the resolution change IC movement

Is there +3.3V supply on I306 pin 77, 79, 84, 96, 92, 88, 8, 129, 136,

139, 137, 143, 11, 21, 58, 108, 149, 12, 33, 40 and 65.

NG

Proceed "Checking the DC/DC converter circuit" section.

OK

Is 20MHz clock input to I306 pin 141 at TTL level?

OK

NG

Is 20MHz clock output from X301 at TTL level?

OK

NG

Failure point

X301 failure.

Failure point

Print wire broke between

X301 and I306 pin 141.

Is +5.0V supplied to I306 pin 100 at

High level?

NG

OK

Check the output of 5.0V "H" pulse from I301 pin 6.

NG

Is 5.0V supplied to I301 pin 7?

Failure point

OK

NG

Failure point

I306 failure. OK

1) FB318 failure

2) Power source

Failure point

Print wire broke between

I301 pin 6 and I306 pin 100.

Failure point

I301 failure.

6-12

9. No power on

9.1 No power on (1)

Check output voltage +5V, +15V is right or not.

NG

OK

Check power switch is turn on or not.

NG

OK

It is not power board problem.

Turn switch on.

Check power cord(P801), Signal cable(P302), P802, P803 is connected right or not.

OK

NG

Connect it right.

Check C805 is about DC 140V-330V or not.

OK

NG

Check C807 is over 10V or not.

Check F801, D801, P801 and repair them.

NG

OK

Check pin 6 of I801 have same pulse or not.

OK

NG

Check R805, R803, ZD802,

Q801, I801 and repair them.

Check peripheral components of I801 and repair them. (e.g. Q805, Q806)

Check pin 3 of T802 have same pulse or not.

Check peck voltage of R811 triangle pulse is up to 1 volt or not.

OK

NG

Check Q803, R813, R814, D806,

R812 and repair them.

Check D809, D810, C816, C821, T802 have same short circuit, or the output +5V, +15V is over load.

OK

NG

Check D804, R807 and repair them.

OK

NG

Check feedback circuit around I802, I803 and the other components and repair them.

Repair them.

6-13

9.2 No power on (2)

Check +5V power is supplied from power source.

NG

OK

Is LED turned on in amber momentarily when a power button is pushed ?

NG

OK

Process "Checking the operation of CPU" section.

Failure point

Power source failure.

Failure point

Power source failure.

6-14

10. Checking the DC/DC converter circuit

Check the output of 3.3V line voltage from I310 pin 2.

NG

Is the output FB320 being inputted to I315 pin 3?

OK

NG

Failure point

OK

Failure point

I310 failure

Printed wire broke between I310 pin 3 and output of FB321.

Failure point

Printed wire broke between I310 pin 2 and I306 power supply pin.

6-15

11. Checking the operation of CPU

Is there +5.0V supply on I302 pin 8.

OK

NG

Check the input of 5V "H" pulse from I303 pin 4 are same as I302 pin 7.

(14 msec Typ)

I302 failure.

Failure point

Printed wire broke between output of FB319 and I302 power supply pin.

Is 20MHz clock input to I302 pin 11 and 12 at TTL level?

OK

OK

NG

NG

Failure point

X301 failure.

Failure point

Printed wire broke between I303 pin 4 and I302 pin 7.

6-16

12. Checking the audio circuit

Is a cable with the host PC connected?

NG Failure point

OK Audio cable disconnection.

Aren't the setups of the host PC a minimum and off?

OK

NG Failure point

The setup of the host PC is changed.

Is correct output waveform being inputted from JK011 pin 2, 3 of the host PC?

OK

NG Failure point

Audio cable disconnection.

Is the waveform which is the same as JK011 being inputted to I001 pin 4, 9?

OK

NG

1) Printed wire broke between JK011 pin 2, 3 and I001 pin 4, 9.

2) R040, R041 open.

3) R042, R043 short.

4) C040, C041 open.

OK

Is Variable DC volume control at pin 6.

OK

Failure point

Is output waveform being outputted in I001 pin 14, 17?

OK

NG

Failure point

1) Speaker cable disconnection.

2) Speaker failure.

Is 15V supplied to I001 pin 15, 16?

OK

NG

NG

NG

Failure point

I001 failure

Proceed section 9.1 "No power on (1)".

Is mute/STD-BY low level at pin 11, pin 12.

Proceed section 11. "Checking the operation of CPU".

Proceed section 11. "Checking the operation of CPU".

6-17

13. Check the inverter board circuit

Check Vin pin is around 15.5V.

On/Off pin is over 2V.

Brightness pin is between 0.3V and 3.0V.

NG

OK

Check IC pin 3 around 5V.

OK

NG

Check CN2 and CN3 is connected right.

NG

OK

Check the IC pin 3 is PWM.

NG

OK

OK

OK

OK

It is not inverter problem.

Check Q1, Q2, Q8, D1, F1 and repair them.

Check one of these components was short to GND.

Check CCFL and repair them.

Check the IC pin 11 is triangle.

NG

Check D2, C14, R11and repair them.

Check the IC pin 9 is 2.5V.

NG

Check R20 and R28 and repair them.

Check the IC pin 8 feedback waveform.

NG

Check CR1, CR2 and repair them.

Repair the LM339.

Check the buck circuit.

OK

NG

Next page

Check the Q4, Q10, R5, D5, L1 and repair them.

6-18

Continue

Check the Royer circuit.

OK

NG

Check the H.V. and balance circuit.

NG

OK

Check the Feedback and protection circuit.

Check the Q19, Q7, Q11, D3, Q14 and repair them.

Check one of these components was short to GND.

Check the Q17, Q20, Q5, Q6, C13 and repair them.

Check the transformer and repair them.

Check the one of these components was short to

GND.

Check the C3, C7, C12, C20, L3 and repair them.

6-19

CIRCUIT DESCRIPTION

TABLE OF CONTENTS

Page

1. Audio circuit ----------------------------------------------------------------------------------------- 7-2

1.1 Audio input ------------------------------------------------------------------------------------ 7-2

1.2 Audio output ----------------------------------------------------------------------------------- 7-2

3. On-screen circuit --------------------------------------------------------------------------------- 7-3

4. Video input circuit -------------------------------------------------------------------------------- 7-3

5. Definition converter LSI peripheral circuit ------------------------------------------------- 7-3

6. System reset, LED control circuit ------------------------------------------------------------ 7-4

6.1 System reset ------------------------------------------------------------------------------------ 7-4

6.2 LED control circuit ----------------------------------------------------------------------------- 7-4

9. CPU circuit ---------------------------------------------------------------------------------------- 7-4

9.1 Detection of POWER switch status -------------------------------------------------------- 7-4

9.2 Display mode identification ------------------------------------------------------------------ 7-4

9.3 User Control ------------------------------------------------------------------------------------- 7-6

9.4 Control of definition converter MCU I306 ------------------------------------------------ 7-6

9.6 Power ON sequence -------------------------------------------------------------------------- 7-7

9.7 Power OFF sequence ------------------------------------------------------------------------ 7-8

10.1 Circuit Diagram ------------------------------------------------------------------------------- 7-9

7-1

1. Audio circuit (Circuit diagrams Main PWB)

1.1 Audio input

The audio signal input received from the audio input terminal (JK011) is applied to the amplifier I001 of 4

(L-CH) and 9 (R-CH) through the low-pass filter consisting of R040, R041, R042, R043, C040 and C041.

In this amplifier, controls of Volume, and mute are conducted. The audio signal controlled at the pin 6 determines the attenuation of output of the amplifiers. Since then, the signal is output to the jack P003.

1.2 Audio output

The audio signal is output from the Audio output terminal (P003) of the jack board to the internal speaker system.

2. Power supply (Circuit diagrams MAIN PWB)

1. Line filter consists of C801, T801, C803, C804. It eliminates high frequency interference to meet EMI’s requirement.

2. Rec & Filter

Bridge diode D801 converts AC source into pulsed DC. This pulsed DC is smoothed and filtered by C805.

R802 is an NTC ( negative thermal coefficient ) resistor, used to reduce inrush current to be within safe range.

3. Power transformer :

T802 converts energy for square wave from power source C805 to secondary side to generate +12V and

+5V.

4. Output :

The square wave from T802 is rectified by D809, D810, then filtered by C817, C822 to generate +12V and +5V respectively.

4.1 A 5V power supply for LCD module, CPU and logic is generated from the power source.

4.2 I310 : 3-terminal regulator

A 3.3V power supply for I306 analog is generated from the 5V source.

4.3 I310 : 3-terminal regulator

A 3.3V power supply for I306 digital is generated from the 5V source.

Q303, Q304 ON/OFF control for LCD Module

ON/OFF control is performed for power ON/OFF and also for the power saving sequence.

5. Driver : Q803

If the electrical potential of gate is larger than source by about 10 volts, Q803 turns on.

6. FB :

Negative feedback CKT consists of photo coupler I802 and adjustable regulator I803. It can maintain output voltages +5V and +12V at a stable level.

7. PWM :

7.1 Start : When power is turned on, R805, R803 conducts due to bias from C805. C807 is charged a 16 volt and a starting current to pin 7 of I801. I801 starts to oscillate and outputs a pulse train through pin 6 to drive Q803.

7.2 OPP : When Q803 turns on, C805 supplies a linearly increasing triangle current through the primary inductance of T802 to the driver Q803, once the peak value of this current multiplied by R811 exceeds1 volt, pulse train will be shut down immediately to protect Q803, T802 from being burned out.

7-2

7.3 Regulation : If output voltage +5V goes up, the R terminal of I803 gets more bias, accordingly photo transistor and photo diode flows more current. The voltage of pin 2 goes up too, making the pulse width of pin 6 to become narrower. So the output voltage +5V will be pulled down to a stable value.

7.4 OVP : If +5V goes up too much, the induced voltage on pin 4 of T802 becomes large also. Suppose that it is over 18 volts, ZD801 conducts, pin 3 of I801 is pulled up over 1 volt. The pulse train at pin 6 goes down to zero, shutting Q803 off completely.

7.5 SCP : If output terminal is short to ground, photo transistor does not conduct, hence Q806 does not conduct neither. The reference voltage +5V at pin 8 begins to charge on C829 and activates Q806 to conduct either. Then oscillation of I801 is stop, shutting Q803 off completely.

LCD 1550ME Power Board Block Diagram

Line Filter

Rec.

&

Filter

Power

Transformer

Output Rec. & Filter

PWM Driver

FB

3. On-screen circuit (Circuit diagrams Main PWB)

I306 (gmZAN1) Embeded function.

On-screen menu screen is established and the resultant data are output from I306 (Circuit diagram MAIN

PWB, gmZAN1)

4. Video input circuit (Circuit diagram MAIN PWB)

The AC-coupled video signal is used to clamp the black level at 0V.

5. Definition converter LSI peripheral circuit (Circuit diagram MAIN PWB)

I306 gmZAN1 is the definition converter LSI.

The analog R,G,B signal input entered from the video input circuit is converted into the digital data of video signal through the incorporated A/D converter. Based on this conversion, this device performs interpolation during pixel extension. The source voltage for this device is 3.3V and the system clock frequency is 20MHz.

The withstand voltage level for the input signal voltage is 3.3V and 5V.

7-3

6. System reset, LED control circuit (Circuit diagram MAIN PWB)

6.1 System reset

System reset is performed by detecting the rising and falling of the 5V source voltage at I301.

6.2 LED control circuit

Green / amber is lit with the control signal of the LED GREEN and LED AMBER signal pin 32, 33 from

I302 (Circuit diagram MAIN PWB).

7. E

2

PROM for PnP (Circuit diagram MAIN PWB)

Data transfer between I304 and host.

There are two forms of communications protocol. In both, display capabilities are retrieved by the system software during the boot-up and configuration time.

For the PC platform, this software layer is defined in the VESA BIOS Extension / Display Data Channel,

DDC2, standard.

8. E

2

PROM (Circuit diagram MAIN PWB)

Data transfer between I304 (24LC32) and CPU (I302) is effected through the IIC bus SCL (pin 14) and SDA

(pin 13) of I302. The data to be transferred to each device are stored in I304.

I303 control data.

OSD related setting data.

Other control data for service menu.

9. CPU circuit (Circuit diagram MAIN PWB)

I302 (MTV312MV64) functions as the CPU.

The source voltage for the device is 5.0V and the system clock frequency is 20MHz.

9.1 Detection of POWER switch status

The CPU identifies the ON status of the two power supplies. The identification is made when the power supply is turned off. For example, if the power supply is turned off with the POWER switch, the POWER switch must be turned on when activating the power supply again. If the power supply is turned off by pulling out the power cord, then this power supply can be turned on by connecting the power cord, without pressing the POWER switch.

9.2 Display mode identification

9.2.1 Functions

(1) Display mode identification

The display mode of input signal is identified based on Table 1, and according to the frequency and polarity (HPOL, VPOL) of horizontal or vertical sync signal, presence of the horizontal or vertical sync signal, and the discrimination signal (HSYNC_DETECT, VSYNC_DETECT).

When the mode has been identified through the measurement of horizontal and vertical frequencies, the total number of lines is determined with a formula of “Horizontal frequency / Vertical frequency =

Total number of lines. “Final identification can be made by examining the coincidence of the obtained figure with the number of lines for the mode identified from the frequency.

When the detected frequency if the sync signal has changed, the total number of lines should be counted even through it is rge identified frequency in the same mode. Then, it is necessary to examine whether the preset value for the vertical display position of Item 4-3 has exceeded the total number of lines. If exceeded, a maximum value should be set up, which does not exceed the vertical display position of Item 4-3.

7-4

(2) Out of range

This out-of-range mode is assumed when the frequency of the horizontal / vertical signal is as specified below.

Vertical frequency : Below 56.2Hz or above 75.1Hz

Horizontal frequency : Below 31.5KHz or above 60KHz

(3) Power save mode.

The power save mode is assumed when the horizontal / vertical signals are as specified below.

If there is no horizontal sync signal input.

If there is no vertical sync signal input.

If the horizontal sync signal outside the measuring range of gmZAN1.

If the vertical sync signal outside the measuring range of gmZAN1.

Table 1

Mode No

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

247

102

103

182

173

109

104

116

110

117

108

Resolution

VGA 720 x 350 70Hz

VGA 720 x 400 70Hz

VGA 640 x 480 60Hz

MAC 640 x 480 66Hz

VESA 640 x 480 72Hz

VESA 640 x 480 75Hz

VESA 800 x 600 56Hz

VESA 800 x 600 60Hz

VESA 800 x 600 75Hz

VESA 800 x 600 72Hz

MAC 832 x 624 75Hz

118 VESA 1024 x 768 60Hz

217 SUN 1024 x 768 65Hz

157 VESA 1024 x 768 70Hz

141 VESA 1024 x 768 75Hz

H-freq

(KHz)

31.47

31.47

31.47

35

37.86

37.5

35.16

37.88

46.88

48.08

49.72

48.36

52.45

56.48

60.02

Band Width

(MHz)

28.322

28.322

25.175

30.24

31.5

31.5

36

40

49.5

50

57.283

65

70.49

75

78.75

-

-

Polarity

H V

+ -

- +

-

-

-

-

+ +

+ +

+ +

+ +

- -

-

-

-

-

-

-

+ +

-

-

Attention:

1. When resolution beyond 1024 x 768 is inputted, resolution is lowered with Down scaling to

1024 x 768, and indicated, and OSD should indicate OUT of Range.

7-5

9.3 User Control

General Key Description

EXIT wCONTROL8 −ADJUST+ NEXT RESET/MUTE

Exit : Turn off OSM menu, Exit sub menu.

Control : Move the green cursor and select control items.

Adjust : Change the value of each function / Enter to submenu / Proceed auto adjust / Proceed reset

Next : Move the NEXT tag

Reset : Reset the select item (Open reset warning before reset) / Mute the speaker / headphone sound (short cut: when no OSM menu is shown)

9.3.1 Related ports of I306

Port Pin No. I/O Signal name

MFB1 112 1 RESET/

Mute

MFB5 107

MFB10 124

1

1

EXIT

DOWN

EXIT

-

Function input input switch input switch input

Remarks

The set value is returned to the initial value

Withdraw from OSD

( - )key

MFB4 109 1 UP + switch input ( + )key

MFB11 123 1 LEFT

MFB3 110 1 RIGHT

4 switch

MFB2 111 1 NEXT

3 switch input ( input

4 )key

9.3.2 Functions

Control is effected for the push-switches to be used when the user changes the parameters, in order to modify the respective setting values. Whether the switch has been pressed is identified with the switch input level that is turned “L”.

Each switch input port is pulled up at outside of MCU.

Each parameter is stored in the EEPROM, the contents of which are updated as required.

9.4 Control of definition converter MCU I306

9.4.1 Ports related to control

Pin No.

101

103

99

98

I/O

I

Signal name

IRQ

O HCLK

I/O HDATA

O HFS

Function gmZan1 interrupt signal gmZan1 serial clock gmZan1 serial data gmZan1 serial select

7-6

9.4.2 Functions

Major function of I306 are as follows:

(1) Expansion of the display screen.

(2) Timing control for various signal types.

(3) Power-supply sequence (LCD panel).

9.5 I

2

C bus control

9.5.1 Related ports of I306

Post Pin No.

P3.5 14

P3.4 13

I/O

O

Signal name

IICCLK

I/O IICDATA

Function

IIC bus clock

IIC bus data

9.6 Power ON sequence

When the POWER switch is pressed, the POWER OFF signal is turned “H”. When this “H” potential is detected, the CPU begins to establish the respective power supplies according to the sequence shown below.

POWER

PPWR

140ms or more

100ms or more

DOTCLK

430ms or more

INV_EN

LED

110ms

DATA

7-7

9.7 Power OFF sequence

When the POWER switch is pressed while the power supply is ON, the POWER ON signal is turned “H”.

When shown below. His “H” potential is detected, the CPU begins to turn off the respective power supplies according to the sequence.

POWER

PPWR

660ms or more

340ms

DOTCLK

More than 40ms

INV_EN

330ms or more

LED

340ms or more

DATA

7-8

10. Inverter

10.1 Circuit Diagram

HV circuit

Input Power

Buck circuit

Royer circuit Balance circuit

ON/OFF circuit

IC

Protection circuit

Feedback

Lanp:1 Lanp:2 circuit

10.2 Inverter basic function

This is a Dc-AC Inverter which is developed for driving 2 Cold Cathode Fluorescent Lamp (CCFL) in LCD panel backlight system.

Circuit explain below:

(1) On/Off circuit

This is an input signal to turn on or off the AC output voltage of the Inverter.

ON states : On/Off pin>=2.5V

OFF state : On/Off pin<=2.0V

(2) IC (LM393)

It will get input signal from customer system and control the lamps current and brightness. The other function include burst mode control, PWM control, and soft start.

7-9

(3) Buck circuit

Used the PMOSFET to control the input power.

DC

Q3

Q/S13457DW

Vin

4

6

5

2

1

C1

1

R24

R5

2

N9

1

L1

100uH

2

D5

1

Q4

Volt

GND

Q10

N25

Vo=DxVin=(Ton/Ts)xVin

LM339

OUTPUT

Vout (avg) = Vin*D = Vin*(Ton/Ts). Ts: Transformer period Ton: turn on period.

EX: Vout(avg) = 10V, Vin = 15V U, D=(10/15)*100%=66.66%

(4) Royer circuit

T1

2 3 4 5 6 1 10

7

L1

100uH

C13 waveform

Q5

C13

0.22u

Q6

R15

R16

This is a standard Royer structure. It transfer the DC input signal to a AC output single. The resistors R15,

R16 are supply the base current for Q5, Q6. The C13 and transformer decide the oscillation frequency

(working frequency).

EX. If the primary voltage is 15Vrms and the transformer turn ratio is 100.

That secondary voltage is about :15*100=1500Vrms

7-10

(5) H.V and balance circuit

The H.V connect to the lamps and supply the power to drive the lamps. The balance circuit is use L,C,R resonant to control the output current. It can get the same output current even the load is different.

(6) Feedback circuit

The sense voltage of the feed back is set at 2.5 voltage. And the IC compare the sense voltage with output current, and release the control signal to PWM.

(7) Protection circuit

The protection circuit is sense the output current and abnormal signal to protect the inverter.

(a) For output current

The protect circuit will be monitor the lamps current. If the lamps current is correct, it will be allow the inverter to operating continually. In other ward if the lamps current is abnormal it will be shutdown the inverter.

(b) For other abnormal signal in the inverter.

We sense the abnormal signal from PWM and Royer stage. If something wrong at power stage, the protect circuit will be shutdown the inverter.

7-11

REPLACEMENT PARTS LIST

The components specified for Model LCD1550ME(B)

SYMBOL

*** ICS ***

I001

I301

I302

I303

I304

I305

I306

I308

I309

I310

I801

I802

I803

PART NO

79PL1440

79PL1948

79PL1951

79PL1950

79PL1447

79PL1949

79PL1323

79PL2046

79PL1322

79PL1441

79PL1439

79PL1438

79PL1437

DESCRIPTION

IC TDA7496L 20P PDIP SG

IC-M51953AFP-8P-SOP

IC-MTV312MV64-44P-PLCC-MY

IC-TTL-NC7SZ04M5X-5P-FAIR

IC 24LC32A 8P SOP MICROCH

IC-TTL-NC7SZ08M5X-5P-FAIR

IC GMZAN1 160P PQFP GENES

IC-CPU-24LC024-8PIN-SOIC-

IC LM358DT 8P SOP ST

IC AIC1084 33CM 3P TO26

IC KA3842AE S 8P PDIP F

IC LTV 817D 4P PDIP LIT

IC KA431AZ 3PIN TO-92 T

*** TRANSISTORS ***

Q301

Q302

79PL1321

79PL1321

Q303

Q304

79PL1435

79PL1036

Q305

Q306

Q307

Q308

Q309

79PL1037

79PL1036

79PL1036

79PL1436

79PL1436

Q310

Q311

Q312

Q313

Q803

Q806

79PL1037

79PL1036

79PL1436

79PL1436

79PL2058

79PL2069

*** DIODES ***

D301 79PL1947

D304

D305

D306

D307

79PL1947

79PL1144

79PL1947

79PL1144

D308

D309

D310

D311

79PL1947

79PL1144

79PL1249

79PL1249

TR NPN SST2222A 800MA/50V

TR NPN SST2222A 800MA/50V

FET P-CHNL SI2305DS VISHA

TR NPN SST3904 SMD

TR PNP 2SA1037AK T146/R

TR NPN SST3904 SMD

TR NPN SST3904 SMD

FET N&P-CHNL 2SK3018 ROHM

FET N&P-CHNL 2SK3018 ROHM

TR PNP 2SA1037AK T146/R

TR NPN SST3904 SMD

FET N&P-CHNL 2SK3018 ROHM

FET N&P-CHNL 2SK3018 ROHM

FET-N-CHNL-SSS4N60AS-2.3A

TRANSISTOR-PNP-2SA733P-T-

DIODE-MM4148-SMD-GOODARK

DIODE-MM4148-SMD-GOODARK

DIODE ZNR RLZ TE-11 5.6B

DIODE-MM4148-SMD-GOODARK

DIODE ZNR RLZ TE-11 5.6B

DIODE-MM4148-SMD-GOODARK

DIODE ZNR RLZ TE-11 5.6B

DIODE DAN217 T146 SMD3

DIODE DAN217 T146 SMD3

8-1

SYMBOL PART NO

D312

D313

D314

D315

D316

D317

D600

D801

D803

D804

79PL1249

79PL1249

79PL1032

79PL1032

79PL1144

79PL1144

79PL1431

79PL2053

79PL0923

79PL1423

D806

D809

D810

79PL2068

79PL2054

79PL2055

ZD801 79PL2072

DESCRIPTION

DIODE DAN217 T146 SMD3

DIODE DAN217 T146 SMD3

DIODE RLS4148 LL-34 SMD

DIODE RLS4148 LL-34 SMD

DIODE ZNR RLZ TE-11 5.6B

DIODE ZNR RLZ TE-11 5.6B

LED LTL-1BEDJ-012 1(Y)3(G

DIODE-BRIDGE-KBP205G-2A/6

DIODE FUF4006AMP

DIODE FUF4005AMP 1A/600V

DIODE-SWITCHING-1N4148 T-

DIODE--SF34-3A/200V-T52--

DIODE-SWITCHING-SB360-3A/

DIODE-ZENER-GDZJ18B-T/B--

*** TRANSFORMERS ***

T802 79PL2062 XFRMER-POWER-TPW-1085-ER-

*** VARIABLE RESISTORS ***

VR801 79PL1385 VARIABLE KOHM 1 0.3W TA 6

*** RELAYS & SWITCHES ***

P805A 79PL1462

S601

S602

79PL1975

79PL1975

S603

S604

S605

79PL1975

79PL1975

79PL1975

S606

S607

S608

79PL1975

79PL1975

79PL1975

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

*** PWB ASSYS ***

FUKEYB 79PL1819

HEPNBD 79PL1901

INTBD 79PL2044

INVA

POWEBD

79PL1982

79PL2047

FUNCTION KEY BD-NEC-FA150

HEAD PHONE BD-NEC-FA15AA

INVERTER-DC-AC-AMBIT:T15I

POWER BD

*** COILS & FILTERS ***

FB301 79PL1952

FB302 79PL1952

FB303 79PL1060

FB304

FB305

79PL1060

79PL1060

FB306 79PL1953

FB307 79PL1953

FB308 79PL1953

CORE-BEAD-WB201209B401QNT

CORE-BEAD-WB201209B401QNT

BEAD CORE WB201209F050QST

BEAD CORE WB201209F050QST

BEAD CORE WB201209F050QST

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

8-2

SYMBOL PART NO

FB309 79PL1098

FB311 79PL1954

FB313 79PL1098

FB314

FB315

79PL1098

79PL1098

FB316

FB317

FB318

FB319

FB320

79PL1098

79PL1098

79PL1098

79PL1098

79PL1098

FB321

FB322

FB323

FB324

FB325

79PL1098

79PL1098

79PL1098

79PL1098

79PL1098

FB326 79PL1098

FB327 79PL1952

FB328 79PL1098

FB329 79PL1098

FB330 79PL1953

FB331 79PL1953

FB332 79PL1953

L001 79PL0993

L301

L302

L802

T801

79PL0991

79PL0991

79PL2056

79PL1377

DESCRIPTION

BEAD CORE WB201209B300QST

CORE-BEAD-FCM1608C-301T01

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

CORE-BEAD-WB201209B401QNT

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

COIL CHOKE 45UH K

COIL CHOKE 3UH K

COIL CHOKE 3UH K

COIL CHOKE--UH-33-K-DRWW1

LINE FILTER TLF-1030 MH 1

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

AUDA 79PL1452 AUDIO CABLE UL2547#26X2C

F801

F801A

P307A

P801

PC01

79PL1461

79PL0329

79PL1454

79PL2057

79PL1856

FUSE TIME LAG 3.15A/250V

FUSE CLIP FC-04 FOR D=5MM

HARNESS 4P/3P 160MM 2547#

AC INLET-3P-INALWAYS-AS07

CABLE-POWER-TO WALL-2000M

R802

SP00

V001

V002

V003

V006

V150

X301

79PL1378

79PL1464

79PL2007

79PL2036

79PL2037

79PL2038

79PL2039

79PL1053

THERMISTOR 8 OHM 3A P=5 S

SPEAKER 4P N13AA12PCH22 J

CABLE-VIDEO-DSUBX2-2000MM

HARNESS-FFC-45P(0.5)-95/1

HARNESS-FFC-30P(0.5)-115/

HARNESS--12P-330MM-CG150-

LCD-15-CLAA150XG01-CPT"

CRYSTAL 20MHZ HC-49/US

*** APPEARANCE PARTS ***

B0106 79PL1897

B01U

B02P

79PL1836

79PL1835

REAR COVER ASS'Y-NMV-NEC

COVER(CONNECTOR)

STAND FRONT

8-3

SYMBOL

B02Z

B03M

B03Q

B03R

B02M

B02N

B02Q

F01

PART NO

79PL1825

79PL1898

79PL1875

79PL1869

79PL1905

79PL1906

79PL1907

79PL2041

DESCRIPTION

COVER CABLE

STAND-BASE-NMV-NEC-FA15AA

BRACKET-STAND PLATE-NEC-

FOOT RUBBER

HINGE-L-NEC-NEC-FA150ATUA

HINGE-R-NEC-NEC-FA150ATUA

BRACKET-HINGE-NEC-FA150AT

FRONT COVER ASS'Y-NMV-NEC

*** PRINTED & PACKING MATERIALS ***

B0102 79PL2076

P11

P21

79PL2075

79PL1881

CARTON-NMV--NEC-FA15AA(9)

CUSHION-FOAM-EPS-LCD1550M

P31

P32

Y001

Y002

Y003

Y004

79PL1841

79PL2005

79PL2080

79PL1960

79PL2079

79PL2034

PLASTIC BAG

BAG-PE ORDINARY-ALL MODEL

MANUAL-MANUAL ASS'Y-NMV-F

CARD-CAUTION SHEET-NEC-FA

CARD-SETUP CARD-NEC-FA15A

CARD-PRODUCT BROCHURE-NEC

R045

R046

R047

R053

R054

R055

R056

R301

R305

R306

*** RESISTORS ***

FB312

R001

79PL1294

79PL0064

R002

R003

79PL0064

79PL1297

R004

R040

R041

R042

R043

79PL1972

79PL1386

79PL1386

79PL1398

79PL1398

79PL1296

79PL1294

79PL1302

79PL1973

79PL1973

79PL1296

79PL1296

79PL1302

79PL1295

79PL1295

R307

R308

R309

R310

R312

R314

R315

R316

79PL1296

79PL1296

79PL1302

79PL1302

79PL1302

79PL1302

79PL1295

79PL1295

CHIP-R OHM 0 1/10W J 0603

CF OHM 270 1/4W J T26

CF OHM 270 1/4W J T26

CHIP-R KOHM 100 1/10W J

RES. CHIP-R-KOHM-300-1/10

R,CHIP R KOHM 1 1/10W F

R,CHIP R KOHM 1 1/10W F

R,CHIP R KOHM 47 1/10W F

R,CHIP R KOHM 47 1/10W F

CHIP-R KOHM 10 1/10W J 06

CHIP-R OHM 0 1/10W J 0603

CHIP-R KOHM 4.7 1/10W J

RES. CHIP-R-KOHM-150-1/10

RES. CHIP-R-KOHM-150-1/10

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

CHIP-R OHM 100 1/10W J 06

CHIP-R OHM 100 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R OHM 100 1/10W J 06

CHIP-R OHM 100 1/10W J 06

8-4

SYMBOL

R348

R349

R350

R351

R352

R353

R354

R355

R356

R357

R338

R339

R340

R341

R342

R343

R344

R345

R346

R347

R328

R329

R330

R331

R332

R333

R334

R335

R336

R337

R317

R318

R319

R320

R321

R322

R323

R325

R326

R327

R358

R359

R360

R361

R368

R370

R371

R801

PART NO

79PL1303

79PL1298

79PL1305

79PL1298

79PL1298

79PL1305

79PL1298

79PL1298

79PL1305

79PL1298

79PL1941

79PL1941

79PL1300

79PL1300

79PL1300

79PL1297

79PL1297

79PL1297

79PL1295

79PL1295

79PL1004

79PL1004

79PL1296

79PL1302

79PL1302

79PL1302

79PL1296

79PL1296

79PL1296

79PL1294

79PL1295

79PL1239

79PL1294

79PL1239

79PL1295

79PL1399

79PL1399

79PL1399

79PL1302

79PL1303

79PL1302

79PL1399

79PL1399

79PL1941

79PL1296

79PL1303

79PL1387

79PL1384

DESCRIPTION

CHIP-R 470H 1/8W J 805

CHIP-R 470H 1/8W J 805

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R OHM 0 1/10W J 0603

CHIP-R OHM 100 1/10W J 06

CHIP-R KOHM 2.2 1/16W J

CHIP-R OHM 0 1/10W J 0603

CHIP-R KOHM 2.2 1/16W J

CHIP-R OHM 100 1/10W J 06

R,CHIP R KOHM 47 1/10W J

R,CHIP R KOHM 47 1/10W J

R,CHIP R KOHM 47 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R OHM 47 1/10W J

CHIP-R OHM 47 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 75 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 75 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 75 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R-KOHM-3.3-1/10W-J-6

CHIP-R-KOHM-3.3-1/10W-J-6

CHIP-R OHM 22 1/10W J

CHIP-R OHM 22 1/10W J

CHIP-R OHM 22 1/10W J

CHIP-R KOHM 100 1/10W J

CHIP-R KOHM 100 1/10W J

CHIP-R KOHM 100 1/10W J

CHIP-R OHM 100 1/10W J 06

CHIP-R OHM 100 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

R,CHIP R KOHM 47 1/10W J

R,CHIP R KOHM 47 1/10W J

CHIP-R-KOHM-3.3-1/10W-J-6

CHIP-R KOHM 10 1/10W J 06

CHIP-R OHM 47 1/10W J

R,CHIP R KOHM 1 1/10W J

R,MGF KOHM 470 1/4W J AT5

8-5

SYMBOL PART NO

R815

R817

R818

R819

R820

R823

R824

R825

R826

R827

R803

R805

R806

R807

R808

R810

R811

R812

R813

R814

R832

R833

RN301

79PL0088

79PL2061

79PL1011

RN302 79PL1011

RN303 79PL1013

RN304 79PL1013

RN305 79PL1307

RN306 79PL1307

RN307 79PL1307

RN308 79PL1307

RN309 79PL1307

RN310 79PL1307

RN311 79PL1307

RN312 79PL1307

RN313 79PL1307

RN314 79PL1307

RN315 79PL1307

RN316 79PL1307

79PL2059

79PL2059

79PL0741

79PL0086

79PL0089

79PL0077

79PL2060

79PL0056

79PL2070

79PL0081

79PL2071

79PL0083

79PL0089

79PL0088

79PL0039

79PL0064

79PL0065

79PL0040

79PL0039

79PL0055

*** CAPACITORS ***

C002 79PL1418

C003

C004

79PL1407

79PL1418

C007

C008

C009

C010

C015

79PL1418

79PL1418

79PL1418

79PL0186

79PL1418

DESCRIPTION

RES. MOF-KOHM-100-2W-J-HO

RES. MOF-KOHM-100-2W-J-HO

MOF KOHM 33 3W J HOR

CF OHM 4.7 1/4W J T26

CF KOHM 51 1/4W J T26

CF KOHM 3.9 1/4W J T26

RES. MOF-OHM-1.2-1W-J-HOR

CF KOHM 20 1/4W J T26

RES. CF-OHM-220-1/4W-J-T5

CF OHM 47 1/4W J T26

RES. CF-KOHM-1-1/4W-J-T52

CF KOHM 4.7 1/4W J T26

CF KOHM 51 1/4W J T26

CF KOHM 5.1 1/4W J T26

CF KOHM 1 1/4W J T26

CF OHM 270 1/4W J T26

CF KOHM 2.7 1/4W J T26

CF KOHM 10 1/4W J T26

CF KOHM 1 1/4W J T26

CF KOHM 2 1/4W J T26

CF KOHM 5.1 1/4W J T26

RES. MOF-KOHM-1.2-1W-J-HO

FRN 10KH 1/16W J 8P4R

FRN 10KH 1/16W J 8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

C,MC UF 0.1 25V Z Y5V SMD

C,ALU UF 680 25V NF 105C

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

ALU UF 100 25V T 105C 6

C,MC UF 0.1 25V Z Y5V SMD

8-6

SYMBOL

C334

C335

C336

C337

C338

C339

C340

C341

C342

C343

C320

C321

C322

C323

C324

C325

C326

C327

C328

C329

C307

C308

C310

C311

C312

C313

C316

C317

C318

C319

C040

C041

C042

C043

C044

C301

C302

C303

C305

C306

C344

C345

C346

C347

C348

C349

C350

C351

PART NO

79PL1418

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1141

79PL1141

79PL1418

79PL1317

79PL1317

79PL1141

79PL1418

79PL1319

79PL1318

79PL1319

79PL1418

79PL1944

79PL1944

79PL1407

79PL1407

79PL1418

79PL1943

79PL1418

79PL1417

79PL1418

79PL1141

79PL1141

79PL1418

79PL1014

79PL1418

79PL1314

79PL1318

79PL1143

79PL1143

79PL1418

79PL1418

79PL1319

79PL1318

79PL1319

79PL1418

79PL1319

79PL1318

79PL1319

79PL1418

DESCRIPTION

ALU-UF-4.7-50V-F-105C-6.3

ALU-UF-4.7-50V-F-105C-6.3

C,ALU UF 680 25V NF 105C

C,ALU UF 680 25V NF 105C

C,MC UF 0.1 25V Z Y5V SMD

ALU-UF-1000-10V-F-105-10X

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.047 25V K X7R S

C,MC UF 0.1 25V Z Y5V SMD

MC PF 100 50V NPO J SMD 0

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

ALU 10UF 16V 105C T SMD

C,MC UF 0.1 25V Z Y5V SMD

MC PF 22 50V NPO J SMD

MC 5PF 50V NPO J SMD 0603

ALU UF 4.7 25V 85C T SMD

ALU UF 4.7 25V 85C T SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC PF 100 50V NPO J SMD 0

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

MC 47PF 50V NPO J SMD

MC 47PF 50V NPO J SMD

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 5PF 50V NPO J SMD 0603

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 5PF 50V NPO J SMD 0603

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 5PF 50V NPO J SMD 0603

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

8-7

SYMBOL

C433

C434

C435

C436

C437

C438

C439

C440

C441

C442

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C413

C414

C415

C416

C417

C418

C419

C420

C421

C422

C352

C353

C354

C356

C357

C358

C384

C385

C411

C412

C443

C444

C445

C446

C447

C448

C449

C450

PART NO

79PL1974

79PL1974

79PL1418

79PL1974

79PL1418

79PL1319

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1974

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1943

79PL2045

79PL1418

79PL1319

79PL1418

79PL1141

79PL1141

79PL1418

79PL1974

79PL1319

79PL1418

79PL1418

79PL1418

79PL1418

79PL1407

79PL1319

79PL1418

79PL1313

79PL1319

79PL1418

79PL1418

79PL1974

79PL1418

79PL1319

79PL1418

79PL1418

79PL1418

DESCRIPTION

C,MC UF 0.1 25V Z Y5V SMD

ALU-UF-1000-10V-F-105-10X

CAP. MC-PF-82-50V-J-NPO-S

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

MC PF 100 50V NPO J SMD 0

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,ALU UF 680 25V NF 105C

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

ALU UF 470 16V 105 10X11

MC 0.01UF 50V X7R M SMD

CAP. ALU-UF-220-10V-NF-10

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

8-8

SYMBOL PART NO

C805

C806

C807

C810

C811

C812

C813

C814

C815

C816

C454

C455

C456

C457

C458

C464

C801

C802

C803

C804

C817

C818

C820

C821

C822

C824

C826

C827

C828

C831

79PL2065

79PL2065

79PL0252

79PL2066

79PL2067

79PL0483

79PL0252

79PL0526

79PL2052

79PL0185

CN359 79PL1955

CN360 79PL1955

CN361 79PL1955

CN362 79PL1955

CN363 79PL1955

CN364 79PL1955

CN365 79PL1955

CN366 79PL1955

CN367 79PL1955

CN368 79PL1955

CN369 79PL1955

CN370 79PL1955

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1946

79PL2048

79PL2049

79PL2050

79PL2050

79PL2051

79PL0517

79PL0189

79PL0252

79PL0231

79PL0252

79PL0232

79PL0191

79PL0526

79PL2064

DESCRIPTION

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

MC-UF-0.47-25V-M-Y5V-SMD

CAP. X2-MEF-UF-0.33-275V-

CAP. X2-MEF-UF-0.33-275V-

CAP. CD-PF-2200-250V-M-F-

CAP. CD-PF-2200-250V-M-F-

CAP. ALU-UF-100-400V-NF-1

CD UF 0.01 1000V M Z5U F

ALU UF 47, 25V,T,105C,

CD UF 0.1 50V Z Y5V T

CD PF 1000 50V K Y5P T

CD UF 0.1 50V Z Y5V T

CD UF 0.01 50V K Y5P T

ALU UF 10 50V T 105C

MEM,UF,0.1 , 50V,J,T

CAP. CD-PF-1000-100V-K-T-

ALUMINATOR-UF-680-25V-T-1

ALUMINATOR-UF-680-25V-T-1

CD UF 0.1 50V Z Y5V T

CAP. CD-PF-1000-100V-K-T-

CAP. ALU-UF-470-25V-T-105

ALU UF 1000 16V T 105C

CD UF 0.1 50V Z Y5V T

MEM,UF,0.1 , 50V,J,T

CAP. CD-PF-1000-250V-M-F-

ALU UF 10 25V T 105C

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

8-9

REPLACEMENT PARTS LIST

The components specified for Model LCD1550ME-BK(B)

SYMBOL

*** ICS ***

I001

I301

I302

I303

I304

I305

I306

I308

I309

I310

I801

I802

I803

PART NO

79PL1440

79PL1948

79PL1951

79PL1950

79PL1447

79PL1949

79PL1323

79PL2046

79PL1322

79PL1441

79PL1439

79PL1438

79PL1437

DESCRIPTION

IC TDA7496L 20P PDIP SG

IC-M51953AFP-8P-SOP

IC-MTV312MV64-44P-PLCC-MY

IC-TTL-NC7SZ04M5X-5P-FAIR

IC 24LC32A 8P SOP MICROCH

IC-TTL-NC7SZ08M5X-5P-FAIR

IC GMZAN1 160P PQFP GENES

IC-CPU-24LC024-8PIN-SOIC-

IC LM358DT 8P SOP ST

IC AIC1084 33CM 3P TO26

IC KA3842AE S 8P PDIP F

IC LTV 817D 4P PDIP LIT

IC KA431AZ 3PIN TO-92 T

*** TRANSISTORS ***

Q301

Q302

79PL1321

79PL1321

Q303

Q304

79PL1435

79PL1036

Q305

Q306

Q307

Q308

Q309

79PL1037

79PL1036

79PL1036

79PL1436

79PL1436

Q310

Q311

Q312

Q313

Q803

Q806

79PL1037

79PL1036

79PL1436

79PL1436

79PL2058

79PL2069

*** DIODES ***

D301 79PL1947

D304

D305

D306

D307

79PL1947

79PL1144

79PL1947

79PL1144

D308

D309

D310

D311

79PL1947

79PL1144

79PL1249

79PL1249

TR NPN SST2222A 800MA/50V

TR NPN SST2222A 800MA/50V

FET P-CHNL SI2305DS VISHA

TR NPN SST3904 SMD

TR PNP 2SA1037AK T146/R

TR NPN SST3904 SMD

TR NPN SST3904 SMD

FET N&P-CHNL 2SK3018 ROHM

FET N&P-CHNL 2SK3018 ROHM

TR PNP 2SA1037AK T146/R

TR NPN SST3904 SMD

FET N&P-CHNL 2SK3018 ROHM

FET N&P-CHNL 2SK3018 ROHM

FET-N-CHNL-SSS4N60AS-2.3A

TRANSISTOR-PNP-2SA733P-T-

DIODE-MM4148-SMD-GOODARK

DIODE-MM4148-SMD-GOODARK

DIODE ZNR RLZ TE-11 5.6B

DIODE-MM4148-SMD-GOODARK

DIODE ZNR RLZ TE-11 5.6B

DIODE-MM4148-SMD-GOODARK

DIODE ZNR RLZ TE-11 5.6B

DIODE DAN217 T146 SMD3

DIODE DAN217 T146 SMD3

8-10

SYMBOL PART NO

D312

D313

D314

D315

D316

D317

D600

D801

D803

D804

79PL1249

79PL1249

79PL1032

79PL1032

79PL1144

79PL1144

79PL1431

79PL2053

79PL0923

79PL1423

D806

D809

D810

79PL2068

79PL2054

79PL2055

ZD801 79PL2072

DESCRIPTION

DIODE DAN217 T146 SMD3

DIODE DAN217 T146 SMD3

DIODE RLS4148 LL-34 SMD

DIODE RLS4148 LL-34 SMD

DIODE ZNR RLZ TE-11 5.6B

DIODE ZNR RLZ TE-11 5.6B

LED LTL-1BEDJ-012 1(Y)3(G

DIODE-BRIDGE-KBP205G-2A/6

DIODE FUF4006AMP

DIODE FUF4005AMP 1A/600V

DIODE-SWITCHING-1N4148 T-

DIODE--SF34-3A/200V-T52--

DIODE-SWITCHING-SB360-3A/

DIODE-ZENER-GDZJ18B-T/B--

*** TRANSFORMERS ***

T802 79PL2062 XFRMER-POWER-TPW-1085-ER-

*** VARIABLE RESISTORS ***

VR801 79PL1385 VARIABLE KOHM 1 0.3W TA 6

*** RELAYS & SWITCHES ***

P805A 79PL1462

S601

S602

79PL1975

79PL1975

S603

S604

S605

79PL1975

79PL1975

79PL1975

S606

S607

S608

79PL1975

79PL1975

79PL1975

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

SWITCH-TACT-TSAB-3-260GF-

*** PWB ASSYS ***

FUKEYB 79PL1819

HEPNBD 79PL1901

INTBD 79PL2044

INVA

POWEBD

79PL1982

79PL2047

FUNCTION KEY BD-NEC-FA150

HEAD PHONE BD-NEC-FA15AA

INVERTER-DC-AC-AMBIT:T15I

POWER BD

*** COILS & FILTERS ***

FB301 79PL1952

FB302 79PL1952

FB303 79PL1060

FB304

FB305

79PL1060

79PL1060

FB306 79PL1953

FB307 79PL1953

FB308 79PL1953

CORE-BEAD-WB201209B401QNT

CORE-BEAD-WB201209B401QNT

BEAD CORE WB201209F050QST

BEAD CORE WB201209F050QST

BEAD CORE WB201209F050QST

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

8-11

SYMBOL PART NO

FB309 79PL1098

FB311 79PL1954

FB313 79PL1098

FB314

FB315

79PL1098

79PL1098

FB316

FB317

FB318

FB319

FB320

79PL1098

79PL1098

79PL1098

79PL1098

79PL1098

FB321

FB322

FB323

FB324

FB325

79PL1098

79PL1098

79PL1098

79PL1098

79PL1098

FB326 79PL1098

FB327 79PL1952

FB328 79PL1098

FB329 79PL1098

FB330 79PL1953

FB331 79PL1953

FB332 79PL1953

L001 79PL0993

L301

L302

L802

T801

79PL0991

79PL0991

79PL2056

79PL1377

DESCRIPTION

BEAD CORE WB201209B300QST

CORE-BEAD-FCM1608C-301T01

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

CORE-BEAD-WB201209B401QNT

BEAD CORE WB201209B300QST

BEAD CORE WB201209B300QST

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

CORE-BEAD-SBK160808T-300Y

COIL CHOKE 45UH K

COIL CHOKE 3UH K

COIL CHOKE 3UH K

COIL CHOKE--UH-33-K-DRWW1

LINE FILTER TLF-1030 MH 1

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

AUDA 79PL1452 AUDIO CABLE UL2547#26X2C

F801

F801A

P307A

P801

PC01

79PL1461

79PL0329

79PL1454

79PL2057

79PL1848

FUSE TIME LAG 3.15A/250V

FUSE CLIP FC-04 FOR D=5MM

HARNESS 4P/3P 160MM 2547#

AC INLET-3P-INALWAYS-AS07

CABLE-POWER-TO WALL-2000M

R802

SP00

V001

V002

V003

V006

V150

X301

79PL1378

79PL1464

79PL2078

79PL2036

79PL2037

79PL2038

79PL2039

79PL1053

THERMISTOR 8 OHM 3A P=5 S

SPEAKER 4P N13AA12PCH22 J

CABLE-VIDEO-DSUBX2-2000MM

HARNESS-FFC-45P(0.5)-95/1

HARNESS-FFC-30P(0.5)-115/

HARNESS--12P-330MM-CG150-

LCD-15-CLAA150XG01-CPT"

CRYSTAL 20MHZ HC-49/US

*** APPEARANCE PARTS ***

B0106 79PL2043

B01U

B02M

79PL1844

79PL1905

REAR COVER ASS'Y-NEC-NEC-

COVER-CONNECTOR-NMV(NEC)-

HINGE-L-NEC-NEC-FA150ATUA

8-12

SYMBOL

B02N

B02Q

B02P

B02Z

B03M

B03Q

B03R

F01

PART NO

79PL1906

79PL1907

79PL1845

79PL1833

79PL2040

79PL1875

79PL1869

79PL2042

DESCRIPTION

HINGE-R-NEC-NEC-FA150ATUA

BRACKET-HINGE-NEC-FA150AT

COVER-STAND FRONT-NMV(NEC

COVER CABLE(LCD1550MBK B)

BASE ASS'Y-NEC-NEC-FA15AA

BRACKET-STAND PLATE-NEC-

FOOT RUBBER

FRONT COVER ASS'Y-NEC-NEC

*** PRINTED & PACKING MATERIALS ***

B0102 79PL2077

P11

P21

79PL2075

79PL1881

CARTON-NMV--NEC-FA15AA(9)

CUSHION-FOAM-EPS-LCD1550M

P31

P32

Y001

Y002

Y003

Y004

79PL1841

79PL1102

79PL2080

79PL1960

79PL2079

79PL2034

PLASTIC BAG

PLASTIC BAG

MANUAL-MANUAL ASS'Y-NMV-F

CARD-CAUTION SHEET-NEC-FA

CARD-SETUP CARD-NEC-FA15A

CARD-PRODUCT BROCHURE-NEC

R045

R046

R047

R053

R054

R055

R056

R301

R305

R306

*** RESISTORS ***

FB312

R001

79PL1294

79PL0064

R002

R003

79PL0064

79PL1297

R004

R040

R041

R042

R043

79PL1972

79PL1386

79PL1386

79PL1398

79PL1398

79PL1296

79PL1294

79PL1302

79PL1973

79PL1973

79PL1296

79PL1296

79PL1302

79PL1295

79PL1295

R307

R308

R309

R310

R312

R314

R315

R316

79PL1296

79PL1296

79PL1302

79PL1302

79PL1302

79PL1302

79PL1295

79PL1295

CHIP-R OHM 0 1/10W J 0603

CF OHM 270 1/4W J T26

CF OHM 270 1/4W J T26

CHIP-R KOHM 100 1/10W J

RES. CHIP-R-KOHM-300-1/10

R,CHIP R KOHM 1 1/10W F

R,CHIP R KOHM 1 1/10W F

R,CHIP R KOHM 47 1/10W F

R,CHIP R KOHM 47 1/10W F

CHIP-R KOHM 10 1/10W J 06

CHIP-R OHM 0 1/10W J 0603

CHIP-R KOHM 4.7 1/10W J

RES. CHIP-R-KOHM-150-1/10

RES. CHIP-R-KOHM-150-1/10

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

CHIP-R OHM 100 1/10W J 06

CHIP-R OHM 100 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R OHM 100 1/10W J 06

CHIP-R OHM 100 1/10W J 06

8-13

SYMBOL

R348

R349

R350

R351

R352

R353

R354

R355

R356

R357

R338

R339

R340

R341

R342

R343

R344

R345

R346

R347

R328

R329

R330

R331

R332

R333

R334

R335

R336

R337

R317

R318

R319

R320

R321

R322

R323

R325

R326

R327

R358

R359

R360

R361

R368

R370

R371

R801

PART NO

79PL1303

79PL1298

79PL1305

79PL1298

79PL1298

79PL1305

79PL1298

79PL1298

79PL1305

79PL1298

79PL1941

79PL1941

79PL1300

79PL1300

79PL1300

79PL1297

79PL1297

79PL1297

79PL1295

79PL1295

79PL1004

79PL1004

79PL1296

79PL1302

79PL1302

79PL1302

79PL1296

79PL1296

79PL1296

79PL1294

79PL1295

79PL1239

79PL1294

79PL1239

79PL1295

79PL1399

79PL1399

79PL1399

79PL1302

79PL1303

79PL1302

79PL1399

79PL1399

79PL1941

79PL1296

79PL1303

79PL1387

79PL1384

DESCRIPTION

CHIP-R 470H 1/8W J 805

CHIP-R 470H 1/8W J 805

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R KOHM 10 1/10W J 06

CHIP-R OHM 0 1/10W J 0603

CHIP-R OHM 100 1/10W J 06

CHIP-R KOHM 2.2 1/16W J

CHIP-R OHM 0 1/10W J 0603

CHIP-R KOHM 2.2 1/16W J

CHIP-R OHM 100 1/10W J 06

R,CHIP R KOHM 47 1/10W J

R,CHIP R KOHM 47 1/10W J

R,CHIP R KOHM 47 1/10W J

CHIP-R KOHM 4.7 1/10W J

CHIP-R OHM 47 1/10W J

CHIP-R OHM 47 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 75 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 75 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R OHM 75 1/10W J

CHIP-R OHM 150 1/10W J

CHIP-R-KOHM-3.3-1/10W-J-6

CHIP-R-KOHM-3.3-1/10W-J-6

CHIP-R OHM 22 1/10W J

CHIP-R OHM 22 1/10W J

CHIP-R OHM 22 1/10W J

CHIP-R KOHM 100 1/10W J

CHIP-R KOHM 100 1/10W J

CHIP-R KOHM 100 1/10W J

CHIP-R OHM 100 1/10W J 06

CHIP-R OHM 100 1/10W J 06

CHIP-R KOHM 4.7 1/10W J

R,CHIP R KOHM 47 1/10W J

R,CHIP R KOHM 47 1/10W J

CHIP-R-KOHM-3.3-1/10W-J-6

CHIP-R KOHM 10 1/10W J 06

CHIP-R OHM 47 1/10W J

R,CHIP R KOHM 1 1/10W J

R,MGF KOHM 470 1/4W J AT5

8-14

SYMBOL PART NO

R815

R817

R818

R819

R820

R823

R824

R825

R826

R827

R803

R805

R806

R807

R808

R810

R811

R812

R813

R814

R832

R833

RN301

79PL0088

79PL2061

79PL1011

RN302 79PL1011

RN303 79PL1013

RN304 79PL1013

RN305 79PL1307

RN306 79PL1307

RN307 79PL1307

RN308 79PL1307

RN309 79PL1307

RN310 79PL1307

RN311 79PL1307

RN312 79PL1307

RN313 79PL1307

RN314 79PL1307

RN315 79PL1307

RN316 79PL1307

79PL2059

79PL2059

79PL0741

79PL0086

79PL0089

79PL0077

79PL2060

79PL0056

79PL2070

79PL0081

79PL2071

79PL0083

79PL0089

79PL0088

79PL0039

79PL0064

79PL0065

79PL0040

79PL0039

79PL0055

*** CAPACITORS ***

C002 79PL1418

C003

C004

79PL1407

79PL1418

C007

C008

C009

C010

C015

79PL1418

79PL1418

79PL1418

79PL0186

79PL1418

DESCRIPTION

RES. MOF-KOHM-100-2W-J-HO

RES. MOF-KOHM-100-2W-J-HO

MOF KOHM 33 3W J HOR

CF OHM 4.7 1/4W J T26

CF KOHM 51 1/4W J T26

CF KOHM 3.9 1/4W J T26

RES. MOF-OHM-1.2-1W-J-HOR

CF KOHM 20 1/4W J T26

RES. CF-OHM-220-1/4W-J-T5

CF OHM 47 1/4W J T26

RES. CF-KOHM-1-1/4W-J-T52

CF KOHM 4.7 1/4W J T26

CF KOHM 51 1/4W J T26

CF KOHM 5.1 1/4W J T26

CF KOHM 1 1/4W J T26

CF OHM 270 1/4W J T26

CF KOHM 2.7 1/4W J T26

CF KOHM 10 1/4W J T26

CF KOHM 1 1/4W J T26

CF KOHM 2 1/4W J T26

CF KOHM 5.1 1/4W J T26

RES. MOF-KOHM-1.2-1W-J-HO

FRN 10KH 1/16W J 8P4R

FRN 10KH 1/16W J 8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

FRN,OHM,47,1/16W,J,8P4R

C,MC UF 0.1 25V Z Y5V SMD

C,ALU UF 680 25V NF 105C

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

ALU UF 100 25V T 105C 6

C,MC UF 0.1 25V Z Y5V SMD

8-15

SYMBOL

C334

C335

C336

C337

C338

C339

C340

C341

C342

C343

C320

C321

C322

C323

C324

C325

C326

C327

C328

C329

C307

C308

C310

C311

C312

C313

C316

C317

C318

C319

C040

C041

C042

C043

C044

C301

C302

C303

C305

C306

C344

C345

C346

C347

C348

C349

C350

C351

PART NO

79PL1418

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1319

79PL1141

79PL1141

79PL1418

79PL1317

79PL1317

79PL1141

79PL1418

79PL1319

79PL1318

79PL1319

79PL1418

79PL1944

79PL1944

79PL1407

79PL1407

79PL1418

79PL1943

79PL1418

79PL1417

79PL1418

79PL1141

79PL1141

79PL1418

79PL1014

79PL1418

79PL1314

79PL1318

79PL1143

79PL1143

79PL1418

79PL1418

79PL1319

79PL1318

79PL1319

79PL1418

79PL1319

79PL1318

79PL1319

79PL1418

DESCRIPTION

ALU-UF-4.7-50V-F-105C-6.3

ALU-UF-4.7-50V-F-105C-6.3

C,ALU UF 680 25V NF 105C

C,ALU UF 680 25V NF 105C

C,MC UF 0.1 25V Z Y5V SMD

ALU-UF-1000-10V-F-105-10X

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.047 25V K X7R S

C,MC UF 0.1 25V Z Y5V SMD

MC PF 100 50V NPO J SMD 0

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

ALU 10UF 16V 105C T SMD

C,MC UF 0.1 25V Z Y5V SMD

MC PF 22 50V NPO J SMD

MC 5PF 50V NPO J SMD 0603

ALU UF 4.7 25V 85C T SMD

ALU UF 4.7 25V 85C T SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC 0.01UF 50V X7R M SMD

MC PF 100 50V NPO J SMD 0

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

MC 47PF 50V NPO J SMD

MC 47PF 50V NPO J SMD

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 5PF 50V NPO J SMD 0603

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 5PF 50V NPO J SMD 0603

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

MC 5PF 50V NPO J SMD 0603

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

8-16

SYMBOL

C433

C434

C435

C436

C437

C438

C439

C440

C441

C442

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C413

C414

C415

C416

C417

C418

C419

C420

C421

C422

C352

C353

C354

C356

C357

C358

C384

C385

C411

C412

C443

C444

C445

C446

C447

C448

C449

C450

PART NO

79PL1974

79PL1974

79PL1418

79PL1974

79PL1418

79PL1319

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1974

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1943

79PL2045

79PL1418

79PL1319

79PL1418

79PL1141

79PL1141

79PL1418

79PL1974

79PL1319

79PL1418

79PL1418

79PL1418

79PL1418

79PL1407

79PL1319

79PL1418

79PL1313

79PL1319

79PL1418

79PL1418

79PL1974

79PL1418

79PL1319

79PL1418

79PL1418

79PL1418

DESCRIPTION

C,MC UF 0.1 25V Z Y5V SMD

ALU-UF-1000-10V-F-105-10X

CAP. MC-PF-82-50V-J-NPO-S

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

MC PF 100 50V NPO J SMD 0

MC PF 100 50V NPO J SMD 0

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,ALU UF 680 25V NF 105C

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

ALU UF 470 16V 105 10X11

MC 0.01UF 50V X7R M SMD

CAP. ALU-UF-220-10V-NF-10

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

CAP. ALU-UF-220-10V-NF-10

C,MC UF 0.1 25V Z Y5V SMD

MC 0.01UF 50V X7R M SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

8-17

SYMBOL PART NO

C805

C806

C807

C810

C811

C812

C813

C814

C815

C816

C454

C455

C456

C457

C458

C464

C801

C802

C803

C804

C817

C818

C820

C821

C822

C824

C826

C827

C828

C831

79PL2065

79PL2065

79PL0252

79PL2066

79PL2067

79PL0483

79PL0252

79PL0526

79PL2052

79PL0185

CN359 79PL1955

CN360 79PL1955

CN361 79PL1955

CN362 79PL1955

CN363 79PL1955

CN364 79PL1955

CN365 79PL1955

CN366 79PL1955

CN367 79PL1955

CN368 79PL1955

CN369 79PL1955

CN370 79PL1955

79PL1418

79PL1418

79PL1418

79PL1418

79PL1418

79PL1946

79PL2048

79PL2049

79PL2050

79PL2050

79PL2051

79PL0517

79PL0189

79PL0252

79PL0231

79PL0252

79PL0232

79PL0191

79PL0526

79PL2064

DESCRIPTION

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

C,MC UF 0.1 25V Z Y5V SMD

MC-UF-0.47-25V-M-Y5V-SMD

CAP. X2-MEF-UF-0.33-275V-

CAP. X2-MEF-UF-0.33-275V-

CAP. CD-PF-2200-250V-M-F-

CAP. CD-PF-2200-250V-M-F-

CAP. ALU-UF-100-400V-NF-1

CD UF 0.01 1000V M Z5U F

ALU UF 47, 25V,T,105C,

CD UF 0.1 50V Z Y5V T

CD PF 1000 50V K Y5P T

CD UF 0.1 50V Z Y5V T

CD UF 0.01 50V K Y5P T

ALU UF 10 50V T 105C

MEM,UF,0.1 , 50V,J,T

CAP. CD-PF-1000-100V-K-T-

ALUMINATOR-UF-680-25V-T-1

ALUMINATOR-UF-680-25V-T-1

CD UF 0.1 50V Z Y5V T

CAP. CD-PF-1000-100V-K-T-

CAP. ALU-UF-470-25V-T-105

ALU UF 1000 16V T 105C

CD UF 0.1 50V Z Y5V T

MEM,UF,0.1 , 50V,J,T

CAP. CD-PF-1000-250V-M-F-

ALU UF 10 25V T 105C

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

MC-PF-33-50V-K-NPO-SMD-06

8-18

BLOCK DIAGRAM (LCD1550ME)

INVERTER

PANEL

DC-DC POWER

CIRCUIT

DC15V

DC 5V

I310

Regulator

5V TO 3V

DC 3.3V

I308

EDID

P307

I306 SCALER

P306

PANEL DATA OUTPUT

RC FILTER

SCALER RLC

CLOCK FILTER

ESD PORTECTION

CIRCUIT

P302 VGA

INPUT

I302

MCU

I301

RESET

I001

AUDIO

AUDIO IN

FUNCTION KEY-PAD

EXTERNAL

ISP-RS232 BOARD

SPEAKER

9-1

SCHEMATIC DIAGRAM INTERFACE PWB (1/5) (MICROCONTROLLER/KEY FUNCTION)

GND

C301 1000uF/10V

VCC

4 OSD_VS

HREF

VREF

3 SDA

3 SCL

DATA0

DATA1

DATA2

FSW

SDA

SCL

R362

R363

1

2

3

4

C302

I301

NC

NC

NC

GND

M51953A

0.1uF

NC

VCC

RST

DLY

8

7

6

5

C303

47nF

P303

HEADER 4

1

2

3

4

VCC

GND

Reset Time 13.67 [email protected] DCV 4.76

RESETn

GND

I303

NC7SZ04

GND

3

R305 100

VCC

R306 100

C306

100pF

C307

100pF

5

C305

0.1uF

VCC

GND

IRQ

SDA

SCL

3,4,5 VCC

VCC

HDATA0

HDATA1

HDATA2

HDATA3

HCLK

HFS

RST

C308 0.1uF

3

4

1

2

A0

A1

A2

VSS

I304

VCC

WP

SCL

SDA

24LC32

8

7

6

5

C314 C315

NC NC

R307

R308

R309

R310

R315

R316

10K

10K

4K7

4K7

100

100

C312

22pF

C313

5pF

RN301

10Kx4

I302

MTV312M64

36

37

15

43

44

12

11

5

6

22

23

24

25

7

17

18

20

21

29

28

19

13

14

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

RST

HSCL/P3.0/RxD

HSDA/P3.1/TxD

P3.2/INT0

ISDA/P3.4/T0

ISCL/P3.5/T1

VBLANK/P4.0

HBLANK/P4.1

STOUT/P4.2

HSYNC

VSYNC

XTAL1

XTAL2

NC

NC

1

X301

2

20MHz

Ampl 3.3 Vpp

TCLK 3

NC

NC

DA0/P5.0

DA1/P5.1

DA2/P5.2

DA3/P5.3

DA4/P5.4

DA5/P5.5

DA6/P5.6

DA7/HCLAMP

DA8/HLFHO

DA9/HALFV

3

2

1

42

41

40

34

35

39

38

P6.0/AD0

P6.1/AD1

P6.2/AD2/HLFHI

P6.3/AD3

P6.4/DA10

P6.5/DA11

P6.6/DA12

P6.7/DA13

VDD

VDD3

8

4

30

31

32

33

27

26

16

9

VSS

10

GND

R320

4K7

C320

0.1uF

GND

1

HCLK

2

VCC

I305

NC7SZ08

4

GND

GND

R322

HFS

HDATA0

RESETn

IRQ

HREF

VREF

OSD-CLK

4K7

DATA0

DATA1

DATA2

FSW

98

103

99

100

101

115

116

117

I306A

HFS

HCLK

HDATA

RESETn

IRQ

OSD-HREF

OSD-VREF

OSD-CLK

118

119

120

121

OSD-DATA0

OSD-DATA1

OSD-DATA2

OSD-DATA3

122

OSD-FSW gmZAN1

MFB0

MFB1

MFB2

MFB3

MFB4

MFB5

MFB6

MFB7

MFB8

MFB9

MFB10

MFB11

113

112

111

110

109

107

106

105

104

102

124

123

MFB0

MFB1

MFB2

MFB3

MFB4

MFB5

MFB6

HDATA1

HDATA2

HDATA3

MFB10

MFB11

MFB0

MFB1

MFB2

MFB3

MFB4

MFB10

MFB11

MFB6

MFB5

3

4

1

2

RN303

4K7X4

R321

6

5

8

7

4K7

3

4

1

2

RN304

4K7X4

6

5

8

7

RN302

10KX4

R364

R365

R366

C459

NC

5

10

OSD-CLK

2

13

14

15

11

12

7

8

HREF

VREF

OSD-CLK

B

G

R

HTONE

FBKG

SDA

SCL

C460

NC

C461

NC

R327

I311

INV_EN

BRI

IIC_EN 3

INV_EN 5

BRI 5

0

R358 4K7

VCC

NC

NC

NC

VDD2

VDD1

VSS2

VSS1

NC

SSB

3

6

9

4

16

1

NC

LED_GREEN

LED_AMBER

NC

2

FB333

1

C462

NC

C463

NC

VSS

R367

NC

VCC

PWR_OFF 6

MUTE 6

VOL 6

DDC-GND 3

C321

10nF

C325

10nF

C322

10nF

C326

10nF

C323

10nF

C327

10nF

C324

10nF

C328

10nF

GND

VCC

+

C310

10uF

C311

0.1uF

R311

NC

GND

CVDD0 3,4,5

CVDD0

Q301

SST2222A

C316

4.7uF/25V

R317

470

GND

R319

10K

C318

0.1uF

GND

C319

0.1uF

GND

R312

4K7

CVDD0

R313

NC

Q302

SST2222A

R318

470

GND

C317

4.7uF/25V

GREEN

AMBER

POWER

RESET

PROCEED

RIGHT

UP

DOWN

LEFT

EXIT

R314

4K7

7

8

5

6

3

4

1

2

9

10

11

12

P304

HEADER 12

10-1

GND

SCHEMATIC DIAGRAM INTERFACE PWB (2/5) (VGA INTERFACE/CLOCK RECOVERY)

2,4,5 DVDD

4,5

5

DAC_DGNDA

DAC_DVDDA

5 PLL_DVDDA

4,5 PLL_DGNDA

4,5 PLL_SGNDA

5 PLL_SVDDA

DVDD

DAC_DGNDA

DAC_DVDDA

PLL_DVDDA

PLL_DGNDA

PLL_SVDDA

147

152

153

154

155

157

156

125

I306B

DVDD

127

128

DAC_DGNDA

DAC_DVDDA

129

130

131

PLL_DVDDA

RESERVED

PLL_DGNDA

132

133

SUB_DGNDA

SUB_SGNDA

134

135

136

PLL_SGNDA

RESERVED

PLL_SVDDA

RESERVED

RESERVED

STI_TM1

STI_TM2

SCAN_IN1

SCAN_IN2

RESERVED gmZAN1

SVDD

DAC_SVDDA

DAC_SGNDA

PLL_RVDDA

PLL_RGNDA

RESERVED

SUB_RGNDA

139

137

138

143

144

145

146

TCLK

141

SVDD

DAC_SVDDA

DAC_SGNDA

PLL_RVDDA

PLL_RGNDA

R330 0

X302

NC

SVDD 2,4,5

DAC_SVDDA 5

DAC_SGNDA 4,5

PLL_RVDDA 5

PLL_RGNDA 4,5

C330

NC

XTAL

142

C333

NC

GND

VSYNC

HSYNC/CSYNC

148

150

VSYNC_IN

HSYNC

TCLK 2

GND

C329

100pF

C334

100pF

C335

0.1uF

1

A0

2

A1

3

A2

4

VSS

I308

VCC

8

WP

7

SCL

6

SDA

24LC024

5

R337

R338

47

47

D309

ZD5.6B

R333

47K

R334

47K

R335

47K

C336 C337 C338

47pF 47pF 100pF

D301

D304

PIN9

VCC 2,4,5

VCC

Q307

SST390 4

2 SCL

2 SDA

R336

4K7

SCL

SDA

R328

100

R332

100

GND

IIC_EN 2

R368

10K

1

1

Q308

2SK3018

3

Q309

2SK3018

3 3

3

Q313

2SK3018

1

1

Q312

2SK3018

I306C

ADC_RVDDA

RED+

RED-

ADC_RGNDA

96

95

94

93

ADC_GVDDA

GREEN+

GREEN-

ADC_GGNDA

92

91

90

89

ADC_BVDDA

BLUE+

BLUE-

ADC_BGNDA

88

87

86

85

83

RESERVED gmZAN1

GND

ADC_VDD2

ADC_VDD1

ADC_VDDA

ADC_RVDDA

RED+

RED-

ADC_RGNDA

ADC_GVDDA

GREEN+

GREEN-

ADC_GGNDA

ADC_BVDDA

BLUE+

BLUE-

ADC_BGNDA

ADC_GNDA

ADC_GND1

ADC_GND2

ADC_VDD2 5

ADC_VDD1 5

ADC_VDDA 5

ADC_RVDDA 5

ADC_RGNDA 5

ADC_GVDDA 5

ADC_GGNDA 5

ADC_BVDDA 5

ADC_BGNDA 5

ADC_GNDA 5

ADC_GND1 4,5

ADC_GND2 4,5

BLUE+

BLUE-

GREEN+

GREEN-

RED+

RED-

C348

10nF

C350

10nF

C340

10nF

C342

10nF

C344

10nF

C346

10nF

R345

150

R347

150

R339

150

R341

150

R342

150

R344

150

2 DDC-GND

R370

47

CVDD0

1

D310

C339

FB330

SBK160808T-300YS

C341

5pF

AGND

CVDD0

1

D311

FB331

C343

SBK160808T-300YS

C345

5pF

AGND

CVDD0

FB332

SB160808T-300YS

C347

C349

5pF

CVDD0

AGND

1

D312

1

D313

C351

2

DAN217

0.1uF

2

DAN217

0.1uF

2

DAN217

0.1uF

2

DAN217

0.1uF

10-2

AGND

D314

MM4148

D316

ZD5.6B

FB301

WB201209B401QNT

2 1

VGA_VSYNC

R329

2.2K

GND

D315

MM4148

GND

D317

ZD5.6B

GND

R331

2.2K

2 1

FB302

WB201209B401QNT

VGA_HSYNC

GND GND

WB201209F050QST

1 2

FB303

1 2

FB304

WB201209F050QST

FB305

WB201209F050QST

2 1

DDC_SCL

VGA_VSYNC

VGA_HSYNC

DDC_SDA

PIN9

AGND

4

11

3

10

2

9

1

6

13

5

12

8

15

7

14

P302

VGA DB15

DIP TYPE

GND

FB306

SBK160808T-300YS

2 1

R340

75

AGND

FB307

SBK160808T-300YS

2 1

R343

75

AGND

FB308

SBK160808T-300YS

2 1

R346

75

SCHEMATIC DIAGRAM INTERFACE PWB (3/5) (PANEL INTERFACE)

Bridge Panel Interface

1

FB311

FCM1608C-301T01

2

FB312

FCM1608C-301T01

1 2

C354

100pF

SHFCLK

C355

NC

PCLKA

PD46

PD45

PD42

PD41

PD39

PD38

PD36

PD37

PD19

PD1

PD4

PD21

PD7

PD10

PD23

PD13

PD16

PD25

PD27

PD29

PD30

PD32

PD34

PD40

PD43

PD44

PD47

5 CVDD

GND

CVDD

I306D

PD46

PD45

PD42

PD41

PD39

PD38

PD36

PD37

PCLKA

PCLKB

PD19

PD1

PD4

PD21

PD7

PD10

PD23

PD13

PD16

PD25

PD27

PD29

PD30

PD32

PD34

PD40

PD43

PD44

PD47

RESERVED

PSCAN

RESERVED

RESERVED

SCAN_OUT1

SCAN_OUT2

159

160

6

4

5

2

3

16

13

10

44

45

29

28

26

24

53

50

35

32

46

70

67

39

63

56

37

7

9

14

15

17

19

22

20

11 21 58

GND

97 10 12 33 40 65

PVDD

PVDD 5

PD24

PD26

PD28

PD31

PD33

PD35

RESERVED

RESERVED

PD6

PD8

PD9

PD11

PD22

PD12

PD14

PD15

PD17

PDispE

PHS

PVS

PD18

PD0

PD2

PD3

PD5

PD20

PPWR

PBIAS

36

34

31

27

25

23

60

59

54

52

51

48

43

64

62

57

55

38

74

73

47

71

69

68

66

42

76

75

PHS

PVS

PD18

PD0

PD2

PD3

PD5

PD20

PD6

PD8

PD9

PD11

PD22

PD12

PD14

PD15

PD17

PDE

PD24

PD26

PD28

PD31

PD33

PD35

PPWR gmZAN1

1 8 18 30 41 49 61 72

VSS

VSS 3 , 5

GND

R350

R351

R369

22

22

NC

LP

FLM

R352 22 DE

OSD_VS 2

PD40

PD41

PD12

PD13

PD14

PD15

PD16

PD17

PD38

PD39

PD6

PD7

PD8

PD9

PD10

PD11

PD36

PD37

PD0

PD1

PD2

PD3

PD4

PD5

PD44

PD45

PD24

PD25

PD26

PD27

PD28

PD29

PD42

PD43

PD18

PD19

PD20

PD21

PD22

PD23

PD46

PD47

PD30

PD31

PD32

PD33

PD34

PD35

2,3,5 VCC

VCC

2,3,5 CVDD0

CVDD0

PPWR

R349

3.3K

FB309

WB201209B300QST

FB310

NC

R371 1K

C464

0.47uF

R348

3.3K

1

Q304

SST3904

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1

2

RN305

3

4

1

2

3

4

1

2

47X4

RN306

3

4

1

2

3

4

1

2

47X4

RN307

47X4

RN308

47X4

RN309

47X4

RN310

47X4

RN311

47X4

RN312

47X4

RN313

47X4

RN314

47X4

RN315

47X4

RN316

47X4

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

6

5

8

7

PNL44

PNL45

PNL24

PNL25

PNL26

PNL27

PNL28

PNL29

PNL42

PNL43

PNL18

PNL19

PNL20

PNL21

PNL22

PNL23

PNL46

PNL47

PNL30

PNL31

PNL32

PNL33

PNL34

PNL35

PNL36

PNL37

PNL0

PNL1

PNL2

PNL3

PNL4

PNL5

PNL38

PNL39

PNL6

PNL7

PNL8

PNL9

PNL10

PNL11

PNL40

PNL41

PNL12

PNL13

PNL14

PNL15

PNL16

PNL17

C352 0.1uF

C353 1000uF/10V

Q303

GND

VCC-P

5V CPT 680mA

Panasonic 600mA

3.3V

LG 800mA

SI2305DS

FB313

VCC-P 5

FB314

Inrush Current 8.94 A

Continuous 310 mA

WB201209B300QST

C356

0.1uF

WB201209B300QST

C357

10nF

C358

0.1uF

6

5

8

7

C360 33pFX4

3

4

1

2

6

5

8

7

C362 33pFX4

3

4

1

2

6

5

8

7

C364 33pFX4

3

4

1

2

C359

6

5

8

7

33pFX4

3

4

1

2

C361

6

5

8

7

33pFX4

3

4

1

2

C363

6

5

8

7

33pFX4

3

4

1

2

PNL8

PNL9

PNL10

PNL11

PNL40

PNL41

PNL12

PNL13

PNL14

PNL15

PNL16

PNL17

PNL36

PNL37

PNL0

PNL1

PNL2

PNL3

PNL4

PNL5

PNL38

PNL39

PNL6

PNL7

PNLVCC

PNLVCC

RO0

RO1

RO2

RO3

RO4

RO5

RO7

GO0

GO1

GO2

GO3

GO4

GO5

GO6

GO7

BO0

BO1

BO2

BO3

BO4

BO5

BO6

BO7

C385

100pF

100pF

C386

NC

C384

C383

NC

LP

FLM

DE

SHFCLK

6

5

8

7

C366 33pFX4

3

4

1

2

6

5

8

7

C368 33pFX4

3

4

1

2

6

5

8

7

C370 33pFX4

3

4

1

2

C365

6

5

8

7

33pFX4

3

4

1

2

C367

6

5

8

7

33pFX4

3

4

1

2

C369

6

5

8

7

33pFX4

3

4

1

2

PNL42

PNL43

PNL18

PNL19

PNL20

PNL21

PNL22

PNL23

PNL44

PNL45

PNL24

PNL25

PNL26

PNL27

PNL28

PNL29

PNL46

PNL47

PNL30

PNL31

PNL32

PNL33

PNL34

PNL35

GE0

GE1

GE2

GE3

GE4

GE5

GE6

GE7

BE0

BE1

BE2

BE3

BE4

BE5

BE6

BE7

RE0

RE1

RE2

RE3

RE4

RE5

RE6

RE7

GND

GND

GND

10-3

P306

25

26

27

28

29

30

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

HEADER 30

P307

29

30

31

32

25

26

27

28

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

7

8

5

6

3

4

1

2

37

38

39

40

33

34

35

36

41

42

43

44

45

HEADER 45

SCHEMATIC DIAGRAM INTERFACE PWB (4/5) (POWER SUPPLY)

Q305

2SA1037AK

12V

GND

P301

HEADER 10

9

10

7

8

5

6

3

4

1

2

C415

0.1uF

FB315

FB317

C416

0.1uF

C417

0.1uF

FB318

C420

0.1uF

FB322

WB201209B300QST

R353

100K

R359 47K

R356

100

+

R357

L301

3uH

L302

3uH

I309A

LM358

1

C412

220uF/10V

100

C418

680uF/25V

C421

470uF/16V

+

-

2

3

R354

100K

R355

100K

R360

C413

10nF

C414

0.1uF

BRI 2

7

+

-

I309B

LM358

C411 0.1uF

5

6

INV_EN 2

GND

GND

C419

10nF

FB316

WB201209B300QST

FB319

WB201209B300QST

12V

12V 6

FB320

WB201209B300QST

1 2

C422

10nF

VCC

VCC 2,3,4

885mA @60KHz&2ON2OFF

Ripple under 20mVpp

GND

C424

220uF/10V

GND

3

I310

AIC1084-33CM

IN

C425

0.1uF

TO263 3A

OUT

2

GND

C426

220uF/10V

47K

R361

Q306

SST3904

GND

3.3K

VCC-P

VCC-P 4

CVDD0

CVDD0 2,3,4

FB321

C427

0.1uF

C428

10nF

WB201209B300QST

C423

220uF/10V

+

FB324

WB201209B300QST

+

CVDD0

GND

FB325

WB201209B300QST

FB328

WB201209B300QST

FB329

WB201209B300QST

C440

0.1uF

DVDD 2,3,4

VSS 3,4

SVDD 2,3,4

C442

0.1uF

C443

0.1uF

DAC_DVDDA

PLL_DVDDA

C448

0.1uF

PLL_DGNDA

DAC_SVDDA

C450

0.1uF

PLL_SVDDA

C455

0.1uF

PLL_SGNDA

PLL_RVDDA

C457

0.1uF

DAC_DVDDA 3

DAC_DGNDA 3,4

PLL_DVDDA 3

PLL_DGNDA 3,4

DAC_SVDDA 3

DAC_SGNDA 3,4

PLL_SVDDA 3

PLL_SGNDA 3,4

PLL_RVDDA 3

PLL_RGNDA 3,4

CVDD0

C429

0.1uF

C430

0.1uF

C431

0.1uF

C432

0.1uF

C433

0.1uF

C434

0.1uF

GND

CVDD 4

FB323

WB201209B300QST

C435

220uF/10V

+

FB326

WB201209B300QST

FB327

WB201209B401QNT

PVDD

PVDD 4

C436

0.1uF

C437

0.1uF

C438

0.1uF

C439

0.1uF

GND

3,4 VSS

VSS

GND

C441

C444

C449

C454

C456

C458

0.1uF

ADC_VDD2 3

ADC_GND2 3,4

ADC_VDD1 3

0.1uF

ADC_VDDA

0.1uF

ADC_GNDA

0.1uF

0.1uF

0.1uF

ADC_GND1 3,4

ADC_VDDA 3

ADC_GNDA 3

ADC_RVDDA 3

ADC_RGNDA 3

ADC_GVDDA 3

ADC_GGNDA 3

ADC_BVDDA 3

ADC_BGNDA 3

AGND

GND1 GND2 GND3 GND4 GND5 GND6 GND7 GND8 GND9 GND10

GND

10-4

SCHEMATIC DIAGRAM INTERFACE PWB (5/5) (AUDIO)

12V

C002

100nF

L001

45uH

DRWW 10 x 10

+12V

+12V

R055

10K

2 MUTE

MUTE R047 47K

Q310 2SA103 7

R056

10K

R053

150K

R054

150K

Q311

SST3904

2 PWR_OFF

C008

100nF

Jk011

PHONEJACK

INPUT

2 VOL

R040

R041

1K

1K

R042

47K

VOL

R003

100K

C009

100nF

C007

100nF

R043

47K

PWR_OFF

GND

470uF/25V 105C

+ C003 C004

100nF

4.7uF/50V

IN_R C040

IN_L

C041

4.7uF/50V

C010

100uF/25V 105C

+

4

10

2

1

9

G2 G

G1

INR

3 1

3 18 19 20 7 15 16

_R V

INL

SVR

OUTR

STBY

MUTE

OUTL

I001

TDA7496L

14

11

12

17

R004

C015

100nF

300K

680uF/25V 105C

C042

C044

100nF 0

NC

10K

R046

R044

R045

C043

680uF/25V 105C

SP_L+

SP_R+

P003

4

3

2

1

OUTPUT

10-5

SCHEMATIC DIAGRAM POWER PWB (1/1)

10-6

SCHEMATIC DIAGRAM INVERTER PWB (1/1)

3 1 2 4 5 6 7 8

D

A

C

B

T1

EEL19 9:9:3:1450

1

C12

2 N68 1

47P

C3

2

47P

N15

Vcc

1

F1

ICP-S1.8

2

CN1

3

4

5

1

2

6

JST S6B-PH-SM3-TB

1

Vcc

Bri

ON/OFF

R0

R/0

2

C1

47uF/35V

N1

+

R24

2K/0805

2

N34

Q3

Q/SI3457DV

4

Q4

2

N3

Q10

3906/SOT-23

6

5

2

1

N4 1

L1 100uH/MLD10F

2

D6

D5

B240/SMB

N5

N6

N7

D2

LS4148

C4

102J/0805

R11

30K/0805

5VDC

ON/OFF

R6

221K/0603

N28

0.1u

C6

2

22k

Q1

R42

470/0805

22k

N39 2

Q2

3904/SOT-23

N11

2

Q13

TP-0610

R7

NC/0603

N12 13

U1D

11

10

LM339A

N25

R1

10K/0805

R2

510/1206

N60

R13

R14

NC/0603

N26

N62 2

Q8

3904/SOT-23

CP2

CP

D1

5.6C

5VDC

C2

104Z/X7R/0603

N27

OLSD

2

Q9

2N7002

22k

2

BURST

BURST

22k

Q12

DTC124EKA/SOT-23

1

N32

R15 N8

2

Q5

Q/2SD1802T

N33

C13

0.22uF/160V

1 2 N9

R16

680/1206

2 N10

Q6

Q/2SD1802T

N14

1

C20

2 N69 1

47P

C7

47P

2

L3

450mH

N17

R23

2K/0603

2 14

C5

104K/0603

R21

34K/0603

R12

NC/0603

N23

CP1

CP

U1C

9

8

LM339A

N22

R20

2K/0603

1

R209

NC

R60

0/0603

N47

LS4148

D7

Bri

2

R28

2K/0603

C8

NC

R18

12.7K

N48

R19

1.5K

N21

CP3

CP

5VDC

N19

CP4

CP

N1

R8

7.5K/0805

R29

280/0805

N1

1

R211

R/NC

N13

R3

100/1206

N16

N63

Q17

PMOS-T0610

3 N67

R9

100/1206

R10

100/1206

1

R32

510/0603

N46

1

CR2

BAV99/SOT-23

2

2

A

R200

30.9K

R202

66.5K

N58

N59

5

4

U1B

R203

22.1K

2

N57

C14

105K/0805

5VDC

R205

66.5K

N6

1

D3

1SS355

2 N18 2

C16

105Z

47k

22k

Q14

DTC144W

N4

R47

10K

N65 2

R54

909K

1

3

CN2

SM08

1

R17

10K/0603

2 N19

N19

2

C18

NC/0603

C25

105Z/0603

R50

2M/0603

N5

R22

200 ohm/1206

N66

C30

101J

N46

1

CR1

BAV99

Q20

2N7002

C9

1

N32

2

C/474K/0805

CN3

1

N42 3

1

SM08

R48

510/0603

2

2

Q7

3904/SOT-23

1

R49

1M/0603

R51

3M/0603

1

R33

10K/0603

2

N45

2 2

OLSD

C21

474/0603

BURST

5VDC

Q11

3904/SOT-23

R45

200K/0603

A

Q19

3904/SOT-23

C15

R201

75K

LM339A

N55

R208

5.1K

NC C10

104K

R204

4.87K

D8

2

LS4148

Bri

R206

54.9K

7

6

U1A

LM339A

1

BURST

BURST

1 2

C11

103Z

R207

100K

3

I006V0A-ICT

I006V0A-ICT.Sch

4

1 Short R5

0 INITIAL

REV.

DESCRIPTION

5

Title

AMBIT

05/09/2002

03/21/2002

File Name

REL. DATE

6

SHEET

Doc.No.

PREPARED BY

I006V0A

REVIEWED BY

1/1

APPROVED BY

7

½u¸ô¹Ï

T15I006.01

8

10-7

D

A

C

B

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
