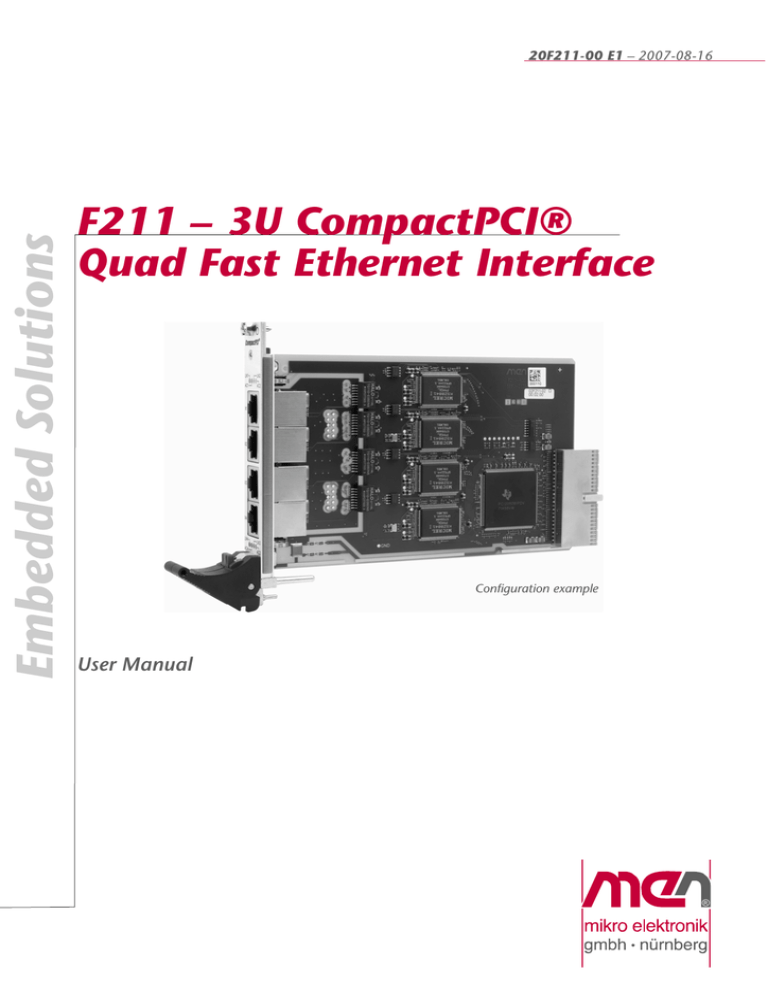

MEN Mikro F211 Manual

20F211-00 E1 – 2007-08-16

F211 – 3U CompactPCI®

Quad Fast Ethernet Interface

Configuration example

User Manual

®

F211 – 3U CompactPCI® Quad Fast Ethernet Interface

F211 – 3U CompactPCI® Quad Fast Ethernet Interface

The F211 is a single Eurocard CompactPCI® networking controller that needs only one slot on the CompactPCI® bus.

The four Fast Ethernet channels on one card occupy four individual MAC/IP addresses. They support full-duplex or half-duplex with 10Base-T and 100Base-TX physical layers for distances up to 100 m. Featuring auto-negotiation, collision and link detection the maximum data transfer rate per channel is 200 Mbits/s with fullduplex operation.

The Ethernet channels on the F211 can be used individually as well as in redundant mode for high availability systems by using some of the Ethernet ports in parallel.

The F211 has been designed for rugged and mobile applications with demand for multiple network controllers such as firewalls, gateways, routers, or as a fieldbus data concentrator based on industrial Ethernet.

The F211 is qualified for extended operation temperature and prepared for conformal coating for use in harsh and mobile environments.

Technical Data

Ethernet Interfaces

• Four 10/100Base-TX interfaces

• Four Micrel KSZ8841 controllers

• IEEE802.3x support

- Full-duplex flow control

- Half-duplex back pressure collision flow control

• Internal 8KB RX/TX FIFO buffers

• Auto-negotiation and auto MDIX crossover

• LinkMD® cable diagnostics to determine cable length, cable faults and distance to fault

• Media Access Control (MAC) addresses stored in on-board serial EEPROMs

• 4x2 status LEDs to signal link status, activity, speed and collision

Front Connections

• Four standard 8-pin RJ45 receptacle connectors

CompactPCI® Bus

• Compliance with CompactPCI® Core Specification PICMG 2.0 R3.0

• Peripheral slot

• 32-bit/33-MHz PCI-to-PCI bridge

• V(I/O): +3.3V or +5V (Universal Board)

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

2

Technical Data

Electrical Specifications

• Isolation voltage: 1000V between Ethernet links and 1500V between Ethernet links and shield or ground

• Supply voltage/power consumption:

- +3.3V (-3%/+5%), 1A max.

• MTBF: 875,481h @ 40°C according to IEC/TR 62380 (RDF 2000)

Mechanical Specifications

• Dimensions: conforming to CompactPCI® specification for 3U boards

• Weight: 115g (standard version)

Environmental Specifications

• Temperature range (operation):

- -40..+85°C (qualified components)

- Airflow: min. 10m³/h

• Temperature range (storage): -40..+85°C

• Relative humidity (operation): max. 95% non-condensing

• Relative humidity (storage): max. 95% non-condensing

• Altitude: -300m to + 3,000m

• Shock: 15g/11ms

• Bump: 10g/16ms

• Vibration (sinusoidal): 2g/10..150Hz

• Conformal coating on request

Safety

• PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers

EMC

• Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and

IEC1000-4-4 (burst) with regard to CE conformity

Software Support

• Drivers for Windows®, Linux and VxWorks® from Micrel

• Driver for QNX® from QNX®

• For more information on supported operating system versions and drivers see online data sheet.

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

3

Block Diagram

Block Diagram

Isolation

RJ45/

D-Sub

RJ45/

D-Sub

RJ45/

D-Sub

RJ45/

D-Sub

EEPROM

10/100Base-T

Ethernet

Controller

EEPROM

10/100Base-T

Ethernet

Controller

EEPROM

10/100Base-T

Ethernet

Controller

EEPROM

10/100Base-T

Ethernet

Controller

PCI

PCI-to-PCI

Bridge

PCI

Configuration Options

Front Connection

• 4 Ethernet channels on 4 D-Sub connectors, 2-slot front panel (8 HP)

• 4 Ethernet channels on 2 D-Sub connectors (shared), 1-slot front panel (4 HP)

• 4 Ethernet channels on 4 M12 receptacle connectors, 2-slot front panel (8 HP)

Please note that some of these options may only be available for large volumes.

Please ask our sales staff for more information.

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

4

Product Safety

Product Safety

!

Electrostatic Discharge (ESD)

Computer boards and components contain electrostatic sensitive devices.

Electrostatic discharge (ESD) can damage components. To protect the board and other components against damage from static electricity, you should follow some precautions whenever you work on your computer.

• Power down and unplug your computer system when working on the inside.

• Hold components by the edges and try not to touch the IC chips, leads, or circuitry.

• Use a grounded wrist strap before handling computer components.

• Place components on a grounded antistatic pad or on the bag that came with the component whenever the components are separated from the system.

• Store the board only in its original ESD-protected packaging. Retain the original packaging in case you need to return the board to MEN for repair.

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

5

About this Document

About this Document

This user manual describes the hardware functions of the board, connection of peripheral devices and integration into a system. It also provides additional information for special applications and configurations of the board.

The manual does not include detailed information on individual components (data sheets etc.). A list of literature is given in the appendix.

History

Edition

E1

Comments

First edition

Technical Content

V. Barbier, M. Beer

Date of Issue

2007-08-16

Conventions

!

italics

bold

monospace hyperlink

IRQ#

/IRQ in/out

This sign marks important notes or warnings concerning proper functionality of the product described in this document. You should read them in any case.

Folder, file and function names are printed in italics.

Bold type is used for emphasis.

A monospaced

font type is used for hexadecimal numbers, listings, C function descriptions or wherever appropriate. Hexadecimal numbers are preceded by "0x".

Hyperlinks are printed in blue color .

The globe will show you where hyperlinks lead directly to the Internet, so you can look for the latest information online.

Signal names followed by "#" or preceded by a slash ("/") indicate that this signal is either active low or that it becomes active at a falling edge.

Signal directions in signal mnemonics tables generally refer to the corresponding board or component, "in" meaning "to the board or component", "out" meaning

"coming from it".

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

6

About this Document

Legal Information

MEN Mikro Elektronik reserves the right to make changes without further notice to any products herein. MEN makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does MEN assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages.

"Typical" parameters can and do vary in different applications. All operating parameters, including "Typicals" must be validated for each customer application by customer's technical experts.

MEN does not convey any license under its patent rights nor the rights of others.

Unless agreed otherwise, MEN products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the MEN product could create a situation where personal injury or death may occur. Should Buyer purchase or use MEN products for any such unintended or unauthorized application, Buyer shall indemnify and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that MEN was negligent regarding the design or manufacture of the part.

Unless agreed otherwise, the products of MEN Mikro Elektronik are not suited for use in nuclear reactors and for application in medical appliances used for therapeutical purposes. Application of MEN products in such plants is only possible after the user has precisely specified the operation environment and after MEN Mikro Elektronik has consequently adapted and released the product.

ESM™, MDIS™, MDIS4™, MENMON™, M-Module™, M-Modules™, SA-Adapter™, SA-Adapters™, UBox™ and

USM™ are trademarks of MEN Mikro Elektronik GmbH. PC-MIP® is a registered trademark of MEN Micro, Inc. and SBS

Technologies, Inc. MEN Mikro Elektronik®, ESMexpress® and the MEN logo are registered trademarks of MEN Mikro

Elektronik GmbH.

CompactPCI® is a registered trademark of PCI Industrial Computer Manufacturers Group.

LinkMD® is a registered trademark of Micrel, Inc.

Microsoft® and Windows® are registered trademarks of Microsoft Corp. Windows® Vista™ is a trademark of Microsoft Corp.

QNX® is a registered trademark of QNX Ltd.

Tornado® and VxWorks® are registered trademarks of Wind River Systems, Inc.

All other products or services mentioned in this publication are identified by the trademarks, service marks, or product names as designated by the companies who market those products. The trademarks and registered trademarks are held by the companies producing them. Inquiries concerning such trademarks should be made directly to those companies. All other brand or product names are trademarks or registered trademarks of their respective holders.

Information in this document has been carefully checked and is believed to be accurate as of the date of publication; however, no responsibility is assumed for inaccuracies. MEN Mikro Elektronik accepts no liability for consequential or incidental damages arising from the use of its products and reserves the right to make changes on the products herein without notice to improve reliability, function or design. MEN Mikro Elektronik does not assume any liability arising out of the application or use of the products described in this document.

Copyright © 2007 MEN Mikro Elektronik GmbH. All rights reserved.

Please recycle

Germany

MEN Mikro Elektronik GmbH

Neuwieder Straße 5-7

90411 Nuremberg

Phone +49-911-99 33 5-0

Fax +49-911-99 33 5-901

E-mail [email protected]

www.men.de

France

MEN Mikro Elektronik SA

18, rue René Cassin

ZA de la Châtelaine

74240 Gaillard

Phone +33 (0) 450-955-312

Fax +33 (0) 450-955-211

E-mail [email protected]

www.men-france.fr

USA

MEN Micro, Inc.

24 North Main Street

Ambler, PA 19002

Phone (215) 542-9575

Fax (215) 542-9577

E-mail [email protected]

www.menmicro.com

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

7

Contents

Contents

1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Maps of the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.2 Integrating the Board into a System . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.3 Installing Driver Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2 Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.1 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2 Ethernet Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2.1

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2.2

Status LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.2.3

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.2.4

10Base-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.2.5

100Base-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.2.6

Ethernet Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.3 CompactPCI Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2.4 PCI Signal and Interrupt Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.1 Literature and Web Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.1.1

Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.1.2

CompactPCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.2 Finding out the Board’s Article Number, Revision and Serial Number19

Figures

Figure 1. Map of the board – front panel views. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 2. Map of the board – top view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 3. Labels giving the board’s article number, revision and serial number. 19

Tables

Table 1.

Signal mnemonics of Ethernet interfaces . . . . . . . . . . . . . . . . . . . . . . . 12

Table 2.

Pin assignment of 8-pin RJ45 connectors. . . . . . . . . . . . . . . . . . . . . . . 13

Table 3.

Pin assignment of 9-pin D-Sub plug connectors (single link) . . . . . . . 13

Table 4.

Pin assignment of 9-pin D-Sub plug connectors (dual link) . . . . . . . . 13

Table 5.

Pin assignment of 4-pin M12 receptacle connectors . . . . . . . . . . . . . . 14

Table 6.

Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 7.

PCI signal and interrupt assignments . . . . . . . . . . . . . . . . . . . . . . . . . . 17

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

8

Getting Started

1 Getting Started

This chapter gives an overview of the board and some hints for first installation in a system.

1.1

Maps of the Board

Figure 1. Map of the board – front panel views

Standard

4 RJ45

Option

2 D-Sub

Option

4 D-Sub

Option (on request)

4 M12

LN1

AC1

X1

LN2

AC2

LN1

AC1

LN2

AC2

LN1

AC1

LN2

AC2

X2

X1

X2

X1 X2

LN1

AC1

LN2

AC2

X1 X2

X3

X4

LN4

AC4

LN3

AC3

LN4

AC4

X3

X4

LN3

AC3

X3

LN4

AC4

LN3

AC3

X4

X3

LN4

AC4

LN3

AC3

X4

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

9

Figure 2. Map of the board – top view

LEDs

LAN1/2

LAN1

"X1"

LAN2

"X2"

LAN3

"X3"

LAN4

"X4"

LEDs

LAN3/4

Getting Started

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

10

Getting Started

!

1.2

Integrating the Board into a System

You can use the following check list when installing the board in a system for the first time and with minimum configuration.

Note: The F211 must not be inserted into the system slot! The system slot of every

CompactPCI system is marked by a triangle on the backplane and/or at the front panel.

; Power-down the system.

; Insert the F211 into your CompactPCI system, making sure that the Compact-

PCI connectors are properly aligned.

; Power-up the system.

; You can now install driver software for the F211.

1.3

Installing Driver Software

The F211 is supported under Windows, Linux, VxWorks and QNX. Third-party driver software supporting the Micrel KSZ8841-PMQL is available as follows:

• Windows and Linux: Driver package available from Micrel.

• VxWorks: Design kit including source code available from Micrel.

• QNX: Driver software available directly from QNX.

You can find the most up-to-date information on driver software and downloads on the F211 software page on MEN’s website .

For a detailed description on how to install driver software please refer to the respective documentation.

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

11

2

Functional Description

Functional Description

!

2.1

Power Supply

Power supply is fed via the CompactPCI backplane. The board operates on +3.3 V only.

2.2

Ethernet Interfaces

The F211 has four Ethernet interfaces controlled by four Micrel KSZ8841-PMQL controllers. All channels support 10/100Base-TX physical layers, and half-duplex and full-duplex operation complying with IEEE802.3x.

Each of the four controllers has its own EEPROM to store the MAC address etc.

The unique MAC address is set at the factory and should not be changed. Any attempt to change this address may create node or bus contention and thereby render the board inoperable. The MAC addresses on F211 are:

• LAN1:

• LAN2:

• LAN3:

• LAN4:

0x 00 C0 3A 4A xx xx

0x 00 C0 3A 4B xx xx

0x 00 C0 3A 4C xx xx

0x 00 C0 3A 4D xx xx where "00 C0 3A" is the MEN vendor code, "4A" to "4D" are the MEN product codes, and "xx xx" is the hexadecimal serial number of the product, which depends on your board, e. g. "...

00 2A

" for serial number "000042". (See Chapter 3.2

Finding out the Board’s Article Number, Revision and Serial Number on page 19 .)

2.2.1

Connection

Four standard RJ45 connectors are available at the front panel for connection to network environments. In optional versions, the F211 is also available with two or four D-Sub connectors. A model with four M12 connectors is also possible. (Please contact our sales team for more information.)

In any case the front panel includes two status LEDs for each channel.

The pin assignments correspond to the Ethernet specification IEEE802.3.

Table 1. Signal mnemonics of Ethernet interfaces

Signal

RX+/-

TX+/in

Direction

out

Function

Differential pair of receive data lines

Differential pair of transmit data lines

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

12

Functional Description

Connection via RJ45 Connectors

Connector types:

• Modular 8/8-pin mounting jack according to FCC68

• Mating connector:

Modular 8/8-pin plug according to FCC68

Table 2. Pin assignment of 8-pin RJ45 connectors

1

8

7

8

5

6

3

4

1

2

TX+

TX-

RX+

-

-

RX-

-

-

Connection via 9-pin D-Sub Connectors

D-Sub connectors can be implemented as an option in two ways:

• Single-link: one channel per connector, 4 D-Sub connectors on 8-HP front panel

• Dual-link: two channels per connector, 2 D-Sub connectors on 4-HP front panel

Connector types:

• 9-pin D-Sub plug according to DIN41652/MIL-C-24308, with thread bolt UNC

4-40

• Mating connector:

9-pin D-Sub receptacle according to DIN41652/MIL-C-24308, available for ribbon cable (insulation piercing connection), hand-soldering connection or crimp connection

Table 3. Pin assignment of 9-pin D-Sub plug connectors (single link)

6

9

1

5

6

7

8

9

TX-

-

-

RX-

3

4

1

2

5

TX+

-

-

-

RX+

Table 4. Pin assignment of 9-pin D-Sub plug connectors (dual link)

6

9

1

5

6

7

8

9

TX1-

TX2-

RX2-

RX1-

3

4

1

2

5

TX1+

TX2+

-

RX2+

RX1+

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

13

Functional Description

Connection via 4-pin M12 Connectors

M12 connectors can be implemented as an option. In this case, the board occupies two front-panel slots in the CompactPCI system (8 HP).

Connector types:

• 4-pin circular M12 receptacle

• Mating connector: 4-pin circular M12 plug

Table 5. Pin assignment of 4-pin M12 receptacle connectors

1 4 1 TX+ 4 RX-

2 RX+ 3 TX-

2 3

2.2.2

Status LEDs

The front panel includes two status LEDs for each channel. They signal the link and activity:

Table 6. Status LEDs

LED Color

Yellow

LED Designation

AC

Function

Full-duplex/Collision

Green LN

On: Full-duplex

Off: Half-duplex

Blinking: Collision

Link/Activity

On: Link

Off: No link

Blinking: Activity

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

14

Functional Description

2.2.3

General

Ethernet is a local-area network (LAN) protocol that uses a bus or star topology and supports data transfer rates of 100Mbps and more. The Ethernet specification served as the basis for the IEEE 802.3 standard, which specifies the physical and lower software layers. Ethernet uses the CSMA/CD access method to handle simultaneous demands. It is one of the most widely implemented LAN standards.

Ethernet networks provide high-speed data exchange in areas that require economical connection to a local communication medium carrying bursty traffic at high-peak data rates.

A classic Ethernet system consists of a backbone cable and connecting hardware

(e.g. transceivers), which links the controllers of the individual stations via transceiver (transmitter-receiver) cables to this backbone cable and thus permits communication between the stations.

2.2.4

10Base-T

10Base-T is one of several adaptations of the Ethernet (IEEE 802.3) standard for

Local Area Networks (LANs). The 10Base-T standard (also called Twisted Pair

Ethernet) uses a twisted-pair cable with maximum lengths of 100 meters. The cable is thinner and more flexible than the coaxial cable used for the 10Base-2 or

10Base-5 standards. Since it is also cheaper, it is the preferable solution for costsensitive applications.

Cables in the 10Base-T system connect with RJ45 connectors. A star topology is common with 12 or more computers connected directly to a hub or concentrator.

The 10Base-T system operates at 10Mbps and uses baseband transmission methods.

2.2.5

100Base-T

The 100Base-T networking standard supports data transfer rates up to 100Mbps.

100Base-T is actually based on the older Ethernet standard. Because it is 10 times faster than Ethernet, it is often referred to as Fast Ethernet. Officially, the 100Base-T standard is IEEE 802.3u.

Like Ethernet, 100Base-T is based on the CSMA/CD LAN access method. There are several different cabling schemes that can be used with 100Base-T, e.g.

100Base-TX, with two pairs of high-quality twisted-pair wires.

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

15

Functional Description

2.2.6

Ethernet Controller

The KSZ8841-PMQL is a single-port Fast Ethernet MAC chip with a 32-bit/33-

MHz PCI processor interface. It is designed to be fully compliant with the IEEE

802.3u standard.

Physical signal transmission and reception are enhanced through the use of analog circuitry, making the design more efficient and allowing for lower power consumption.

The KSZ8841-PMQL is a mixed-signal analog/digital device offering Wake-on-

LAN technology. Its extensive feature set includes management information base

(MIB) counters and CPU control/data interfaces.

The controller includes a unique cable diagnostics feature called LinkMD. This feature calculates the length of the cabling plant and determines if there is an open/ short condition in the cable. Accompanying software allows the cable length and cable conditions to be conveniently displayed. In addition, the controller supports

Auto-MDIX, eliminating the need to differentiate between straight or crossover cables in applications.

Main Features

• Fully compliant with the IEEE 802.3u standard

• Supports 10/100Base-T/TX

• Supports IEEE 802.3x full-duplex flow control and half-duplex backpressure collision flow control

• Supports burst data transfers

• 8 KB internal memory for RX/TX FIFO buffers

• Early TX/RX functions to minimize latency through the device

• Dynamic buffer memory scheme

• LinkMD cable diagnostic capabilities to determine cable length and distance to fault, and to diagnose faulty cables

• Wake-on-LAN technology

• Auto MDIX crossover with disable and enable option

• Enhanced power management feature with power-down feature

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

16

Functional Description

2.3

CompactPCI Interface

The F211 supports a 32-bit 33-MHz CompactPCI interface fully compatible with

CompactPCI specification PICMG 2.0 Rev. 3.0. It is a universal board and can be used in a +3.3 V or +5 V signaling environment.

For full CompactPCI functionality only the J1 connector is needed, therefore the board only has a J1 connector to the bus.

Connector type of J1:

• 110-pin shielded, 2mm-pitch, 5-row receptacle according to IEC 917 and IEC

1076-4-101

The pin assignment of connector J1 as defined in the CompactPCI specification will not be repeated here.

2.4

PCI Signal and Interrupt Routing

The interrupt lines from the Ethernet controllers are routed directly to the

CompactPCI J1 connector. The following table shows the signals assignments.

Table 7. PCI signal and interrupt assignments

Device

IDSEL

Default Optional GNT#

Ethernet controller 1 AD[16]

Ethernet controller 2 AD[17]

AD[28]

AD[29]

GNT[0]#

GNT[1]#

REQ#

REQ[0]#

REQ[1]#

CLK

CLK[0]

CLK[1] -

CompactPCI Interrupts

INTA#

INTA# -

INTB# INTC# INTD#

INTB# -

-

-

Ethernet controller 3 AD[18]

Ethernet controller 4 AD[19]

AD[30]

AD[31]

GNT[2]# REQ[2]# CLK[2] -

GNT[3]# REQ[3]# CLK[3] -

-

-

INTC# -

INTD#

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

17

3

Appendix

Appendix

3.1

Literature and Web Resources

• F211 data sheet with up-to-date information and documentation: www.men.de

3.1.1

Ethernet

• KSZ8841-PMQL Single-Port Ethernet MAC Controller with PCI Interface

Data sheet, February 2007; Micrel Inc.

www.micrel.com

• Ethernet in general:

- The Ethernet, A Local Area Network, Data Link Layer and Physical

Layer Specifications, Version 2.0; 1982; Digital Equipment Corporation, Intel Corp., Xerox Corp.

- ANSI/IEEE 802.3-1996, Information Technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan

Area Networks - Specific Requirements - Part 3: Carrier Sense Multiple

Access with Collision Detection (CSMA/CD) Access Method and Physical Layer Specifications; 1996; IEEE www.ieee.org

• www.ethermanage.com/ethernet/ links to documents describing Ethernet, components, media, the Auto-Negotiation system, multi-segment configuration guidelines, and information on the Ethernet Configuration Guidelines book

• www.iol.unh.edu/training/ethernet.html

collection of links to Ethernet information, including tutorials, FAQs, and guides

• ckp.made-it.com/ieee8023.html

Connectivity Knowledge Platform at Made IT technology information service, with lots of general information on Ethernet

3.1.2

CompactPCI

• CompactPCI Specification Revision 2.0 R3.0:

1997; PCI Industrial Computers Manufacturers Group (PICMG) www.picmg.org

• PCI Local Bus Specification Revision 2.1:

1995; PCI Special Interest Group

P.O. Box 14070

Portland, OR 97214, USA www.pcisig.com

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

18

Appendix

3.2

Finding out the Board’s Article Number, Revision and

Serial Number

MEN user documentation may describe several different models and/or hardware revisions of the F211. You can find information on the article number, the board revision and the serial number on two labels attached to the board.

Article number: Gives the board’s family and model. This is also MEN’s ordering number. To be complete it must have 9 characters.

Revision number: Gives the hardware revision of the board.

Serial number: Unique identification assigned during production.

If you need support, you should communicate these numbers to MEN.

Figure 3. Labels giving the board’s article number, revision and serial number

Complete article number

02F211-00

00.00.00

Revision number

Serial number

MEN Mikro Elektronik GmbH

20F211-00 E1 – 2007-08-16

19

You can request the circuit diagrams for the current revision of the product described in this manual by completely filling out and signing the following non-disclosure agreement.

Please send the agreement to MEN by mail. We will send you the circuit diagrams along with a copy of the completely signed agreement by return mail.

MEN reserves the right to refuse sending of confidential information for any reason that MEN may consider substantial.

Non-Disclosure Agreement

for Circuit Diagrams provided by MEN Mikro Elektronik GmbH between

MEN Mikro Elektronik GmbH

Neuwieder Straße 5-7

D-90411 Nürnberg

(”MEN”)

and

____________________

____________________

____________________

____________________

(”Recipient”)

We confirm the following Agreement:

MEN

Date:

Name:

Function:

______________________

______________________

______________________

Recipient

Date:

Name:

Function:

______________________

______________________

______________________

Signature: Signature:

____________________________________ ____________________________________

MEN Mikro Elektronik GmbH

The following Agreement is valid as of the date of the MEN signature.

Neuwieder Straße 5-7

90411 Nürnberg

Deutschland

Tel. +49-911-99 33 5-0

Fax +49-911-99 33 5-901

Non-Disclosure Agreement for Circuit Diagrams page 1 of 2

E-Mail [email protected]

www.men.de

®

1 Subject

The subject of this Agreement is to protect all information contained in the circuit diagrams of the following product:

Article Number: __________________ [filled out by recipient]

MEN provides the recipient with the circuit diagrams requested through this Agreement only for information.

2 Responsibilities of MEN

Information in the circuit diagrams has been carefully checked and is believed to be accurate as of the date of release; however, no responsibility is assumed for inaccuracies. MEN will not be liable for any consequential or incidental damages arising from reliance on the accuracy of the circuit diagrams. The information contained therein is subject to change without notice.

3 Responsibilities of Recipient

The recipient, obtaining confidential information from MEN because of this Agreement, is obliged to protect this information.

The recipient will not pass on the circuit diagrams or parts thereof to third parties, neither to individuals nor to companies or other organizations, without the written permission by MEN. The circuit diagrams may only be passed to employees who need to know their content. The recipient protects the confidential information obtained through the circuit diagrams in the same way as he protects his own confidential information of the same kind.

4 Violation of Agreement

The recipient is liable for any damage arising from violation of one or several sections of this Agreement.

MEN has a right to claim damages amounting to the damage caused, at least to

€100,000.

5 Other Agreements

MEN reserves the right to pass on its circuit diagrams to other business relations to the extent permitted by the Agreement.

Neither MEN nor the recipient acquire licenses for the right of intellectual possession of the other party because of this Agreement.

This Agreement does not result in any obligation of the parties to purchase services or products from the other party.

6 Validity of Agreement

The period after which MEN agrees not to assert claims against the recipient with respect to the confidential information disclosed under this Agreement shall be _______ months [filled out by MEN]. (Not less than twenty-four (24) nor more than sixty (60) months.)

7 General

If any provision of this Agreement is held to be invalid, such decision shall not affect the validity of the remaining provisions and such provision shall be reformed to and only to the extent necessary to make it effective and legal.

This Agreement is only effective if signed by both parties.

Amendments to this Agreement can be adopted only in writing. There are no supplementary oral agreements.

This Agreement shall be governed by German Law.

The court of jurisdiction shall be Nuremberg.

MEN Mikro Elektronik GmbH

Neuwieder Straße 5-7

90411 Nürnberg

Deutschland

Tel. +49-911-99 33 5-0

Fax +49-911-99 33 5-901

Non-Disclosure Agreement for Circuit Diagrams page 2 of 2

E-Mail [email protected]

www.men.de

®

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
