GW2010 user manual

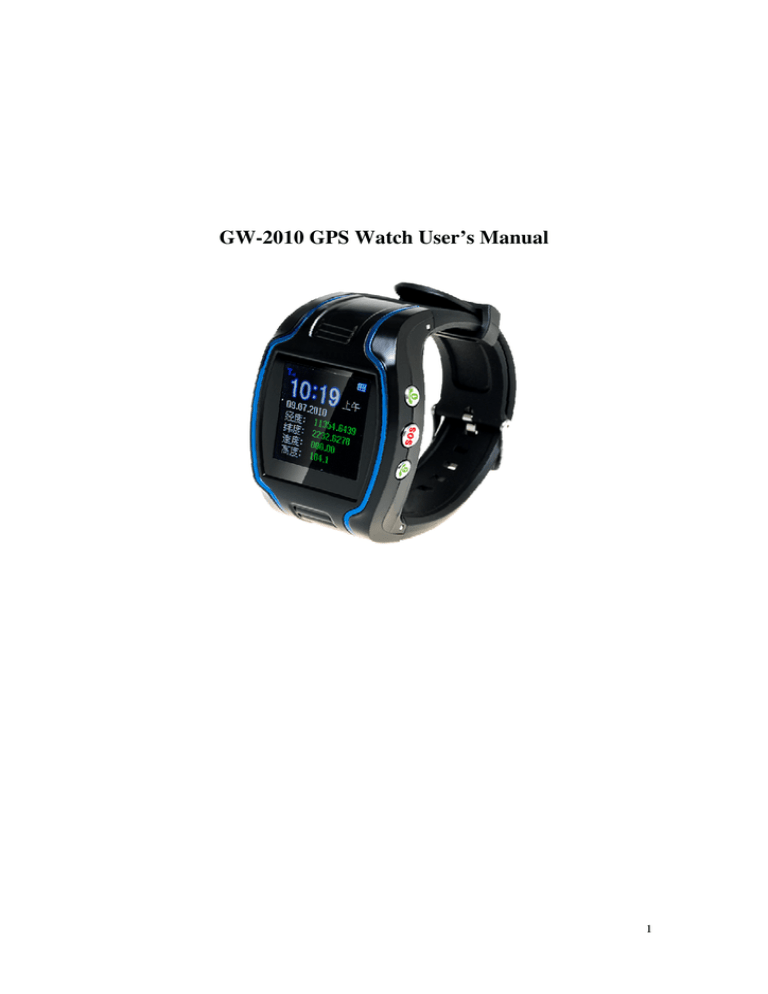

GW-2010 GPS Watch User’s Manual
1
Table of Contents
Chapter I Preface……………………………………………………..4
I.General……………………………………………………………...4
II.Notices……………………………………………………………..4
Chapter II about the Device……………………………………….5
1. Appearance…………………………………………………………..5
2. Product Features…………………………….……………………….5
3. Product Specification………………………….…………………….6
(1).Technical Specifications……………………………………………6
(2).Others……………………………………………………………7
Chapter III Usage Preparation………………………………………8
I.Accessories…………………………………………………………..8
II.Appearance and Interface………………………………………...8
Appearance and Buttons…………………………………………...8
Interface Definition………………………………………………...9
III.Charge the Battery……………………………………………….9
IV.Installation of SIM Card………………………………………...11
Chapter IV Commands and Operation Functions………………11
Location Inquiry………………………………………………….12
SMS Inquiry……………………………………………………12
Platform Inquiry………………………………………………..13
Setup of Centre Number………………………………………….13
Bi-directional Call Function……………………………………...13
Adjust Receiver Volume…………………………………………..14
SOS Function……………………………………………………...15
Monitoring Function……………………………………………...15
Regular Upload Interval Setup…………………………………..16
Function of Changing Password…………………………………16
Set User Name Command………………………………………...17
Set APN Command………………………………………………..17
Set Server Address Command……………………………………18
Low Voltage Alarming Function………………………………....19
Method to Set Time Zone………………………………………...19
Electronic Fence Function……………………………………….20
(1). GPS Fence Function…………………………………………...20
(2). Fence Reading Function……………………………………….20
(3). Function of Canceling Fence…………………………………..21
15. Auxiliary Functions………………………………………………21
Notices…………………………………………………………………..22
2
Chapter I Preface
I. General
GW2010 represents the perfect combination of GSM and GPS technologies. This model, with its
precise dimensions and compact appearance, expresses the advanced workmanship in the GSM
and GPS field. It is a typical design combing communication products and GPS services.
As a professional security and positioning company, we will provide you with more and better
products and services. Before using the watch, please spend several minutes reading this user’s
manual in order to get to know about operation details and obtain better services.
II. Notices
1.
2.
3.
Please read this user’s manual carefully and always use correct operation
methods to prevent any possible errors.
This user’s manual is for reference only. If some contents and operation steps are
inconsistent with those for the actual product, the latter will prevail.
The defaulted password of this product is 0000.
Chapter II about the Device
GW2010, as a personal remote positioning device made up of GPS module and
GSM/GPRS module, is compact in dimensions with high accuracy. On the basis of
GPS satellites and under dynamic conditions, it can provide you with accurate and
correct location information. With such features, it can be used to protect and look for
our old people and children. It can also be used for safety purpose and other purposes,
such as remote positioning to protect property safety.
3
1 Appearance
2 Product Features
Inbuilt GPS Module
Internet positioning service center, used to receive and send positioning information
GSM /GPRS modem supports Quad frequency bands, i.e. 850/900/1800/1900 MHz
High-sensitivity, new workmanship and the most advanced GPS chip
Can work effectively in limited space such as urban canyon
Low energy consumption
Fast signal acquisition
Supports single positioning and continuous tracking;
Supports alarming and remote monitoring
Supports fast dial button
Supports the location information inquiry by SMS and Internet
May monitor without disturbing the tracked person and realizes real-time tracking;
Can position the holder by call or SMS
In emergency, press the SOS button to have an accurate positioning
4
3 Product Specifications
(1). Technical Specifications
GSM module
GPS sensitivity
GPS center frequency
GPS
positioning
accuracy
GSM
positioning
accuracy
Speed accuracy
Time accuracy
GPS Datum
Hot start
Warm start
Max. altitude
Max. speed
Gravitational
acceleration
GSM 850/900/1800/1900 MHz Quad frequency
-163dBm
L1, 1575.42MHz
5-25m
100-500m
0.1 m/s
Synchronous with GPS
WGS-84
< 1s
< 38s
18000m
515m/s
﹤4g
(2). Others
Operating temperature
Humidity
Dimensions
Voltage
Power supply
Standby time
Buttons
-20---65℃
5%---95%
64.5mm×45.5mm×17.5 mm (main unit)
Rechargeable 450mAh battery
DC5V
>48h
SOS button for emergency aid; Call 1, Call 2, Switch
on / off buttons, interface switch button
5
Chapter III Usage Preparation
I. Accessories
1.
2.
3.
4.
5.
Main unit
USB data cable
Charger
Headset cable (optional)
5 Battery
II. Appearance and Interface
1. Appearance and Buttons
Five buttons are equipped with this watch, the upper left button
switch-on and hold-on, the bottom left button
upper right button
serves for
serves interface switch, while the
for predetermined number 1, middle right button
emergency aid (SOS button) and the bottom right button
for
for predetermined
number 2 as shown in picture 1:
2. Interface Definition
GSM signal strength is indicated on the upper left corner of the main interface as
showed in picture 2:
6
Bottom left button is for interface switch as showed in picture 3:
III. Charge the Battery
Please use up the battery and discharge it for 2-3 times and then charge the battery for at
least 12 hours for initial use, in order to keep the quality of the battery.
The normal charging time of this product is 4-5 hours.
Put the battery into the inside of the terminal and connect the charger to 100V/220V AC
power supply to charge the battery. Then the power indicator on the upper right corner of the
terminal screen will keep strolling as showed in picture 3-1:
( picture 3-1 )
When the battery is fully charged, the power indicator will stop strolling; if the battery is
charged on switch-off mode, the following picture 3-2 indicates the charging is finished:
( picture 3-2 )
Notes:
Please always use the charger offered by the supplier. Dangers damages of the
product caused by usage of any unconfirmed charger will not be compensated
and repaired.
The battery should be charged in time when the terminal automatic shutdown or
being alarmed with low power.
The standby duration and call duration offered by the supplier is calculated in
perfect functional mode, in practice, working hours of the battery may vary due
to difference of internet service, functional mode and usage mode.
Disconnect the terminal and charger as soon as possible after the battery is well
charged.
7
IV. Installation of SIM Card
Open the back cover, then you will see the place where the SIM card is placed. Then push the SIM
card into the slot until it comes into its proper position completely and consolidate it with the
dome sheet nearby.
Choose SIM card:
The type of the SIM card is GSM card (the SIM card of China Mobile is recommended).
Ensure sufficient money is within the SIM card in order to pay the communication fee.
Prepare a SIM card for mobile phone (the SIM card of China Mobile is recommended),
make sure that the card has opened such functions of Caller ID and sending and receiving
SMS. If service platform real-time tracking is in need, then GPRS function should be open.
8
Chapter IV Commands Corresponding to and Operation
Method of Basic Functions
1. Location Inquiry
(1) SMS Inquiry
Create 666 + password command (defaulted password as 0000) via mobile phone and
send it to the terminal mobile phone number; after successful sending, the guardian’s
mobile phone will receive a piece of message. See the flow as follows:
① Send command to the terminal.
② The terminal return confirmation message to the mobile phone.
By the same means, send the command 987 plus password to the terminal, then the
terminal will return a piece of website message. The guardian may inquire the
9
location information of the ward attached with local map through this website
message.
(2) Platform Inquiry
Step 1: Log onto the platform (Please contact with the service provider to get the
platform address).
Step 2: Click the terminal of the ward, then the location of the ward will be displayed
on the map.
2. Setup of Centre Number (point to server (P2S))
Set the centre number by SMS through the mobile phone, after the setup
is successful, then the mobile phone that sending the SMS will receive
the “&710&successful setting&&” response message from the terminal.
Command format: #710# center number # user password ##
For example: #710#134xxxxxxxx#0000##
Note: All alarming information thereafter including SOS, low power,
electronic fence, etc will be returned to that number.
3. Bi-directional Call Function
Incoming calls can be rejected by pressing upper left button or received
by pressing middle right button.
Send the command in form of SMS to the terminal via mobile phone.
After the setup is successful, the mobile phone will receive the
10
“&710&successful setting&&” response message from the terminal.
Setup format: #711# Call1# Call2 # Call3 # 0000##
incoming call interface and call duration interface
Notes: After the setup is successful, press the upper right button for a
while, then the terminal will automatically dial the first phone number.
Press the bottom right button, then the terminal will automatically dial the
second phone number.
4. Adjust Receiver Volume
While making phone calls, the user could press upper or bottom right
button to adjust receiver volume.
5. SOS Function
If a ward number (predetermined number in item3) is set, when the ward
encounters emergency and presses the SOS button, the terminal will send
alarming information to the center number and dial the three ward
numbers in turn. Picture 5 is SOS alarming interface:
11
SOS button for emergency aid interface
SOS SMS format: IMEI number: SOS (information about latitude and
longitude or base station)
Example: 356823031017473:SOS(11354.6397,E,2232.6283,N)
or 356823031017473:SOS(26280E77)
Remarks: when interface in picture 5 appears on the phone, the terminal
will skip to standby mode automatically; sound and interface during the
dialing will be completely shielded.
6. Monitoring Function
The guardian may send SMS 555 plus password to the terminal of the
ward, then the ward terminal will automatically call back to the mobile
phone of the guardian and the guardian may hear the sound of the
surroundings within 10m around the ward.
12
SMS format: 5550000
Remarks: 0000 is the initial defaulted password and in practice the
password could be set by the user.
7. Regular Upload Interval Setup
The defaulted upload interval of this product is 0, meaning that the
defaulted GPRS is closed. The user may change the parameter according
to actual demand.
Command format: # command number 730# Sampling interval # Pieces
of uploads # User password ##
Example: 730#20#4#0000##
Notes: The parameter “20” indicates getting one point every 20s; after
getting points accumulatively for 4 times, upload one piece of positioning
information with the upload interval as 20*4=80s. The user may change
this parameter as the case may be.
8. Function of Changing Password
13
Send the SMS “#770# User new password # User old password ##” by
mobile phone to the terminal number, after successful sending, the mobile
phone with such setup will receive one piece of ‘&770&successful
setting&&’ response information or ‘&770&PASSWORD ER&&’ if the
password is wrong, as shown in the following picture:
① Send command to the terminal.
② The terminal return confirmation message to the mobile phone.
9. Set User name Command
SMS Command Format: #801#4~20-digit letters or numbers #4-digit
password ##
Example: #801#13900139000#0000##
Notes: After executing this command, the user name of the terminal on
14
GPRS mode is required to be set up according to actual demand. After the
setup is successful, the terminal will send reply with ‘&801&successful
setting&&’ or ‘&801&PASSWORD ER&&’ if the password is wrong.
10. Set APN Command
Create the SMS “802#APN letters or digits, 4-20 bits # Log user name
letters or digits 4-20 bits in # Log password letter or digits 4-20 bits in #
terminal password 4 bits ##” and send it to the terminal; after executing
this command, the terminal will automatically restart and connect to
GPRS with APN set.
Command example 1: #802#cmnet###0000###
Command example 2: #802#CCDLEN#QIUXIA.21#RX0000#0000##
After this command is executed, APN will be CCDLEN; the login
user name is QIUXIA.21 and login password is RX0000.
Note: The default APN of this product is CMNET.
11. Setup of Server Address
Command Format: #803# Fixed IP address# port number#4-digit
password##
This command is used to set GPRS center server address, which could
be fixed IP number, like IP1, IP2, IP3, IP4……as well as domain
name with the length less than 64. After the setup is successful, the
15
module will send a reply with ‘&803&successful setting&&’ or
‘&803&PASSWORD ER&&’ if the password is wrong.
Example: #803#222.73.173.204#7003#0000##
Setup via domain name:
Example: #803#gps.chinaradio.hk#9876#0000##
12. Low-Voltage Alarming Function
If the terminal of the ward has a very low power and needs to be powered
off, the terminal of the ward will automatically upload one piece of
low-voltage alarming command to the monitoring center number.
SMS Format: IMEI Number: low power; please charge the battery in time
(information about latitude and longitude or base station)
Example: 356823031017473: low power, please charge the battery in
time (11354.6397, E, 2232.6283, N) or 356823031017473: low power;
please charge the battery in time (26280E77).
13. Method to Set Time Zone
Command Format: 896xxxxDnn
Notes: xxxx stands for a 4-digit password, D depends on E,W, while E
representing eastern time zone and W representing western time zone, nn
is a two-digit number, meaning time zone number. For example, given the
16
current time is 09:30:08, after sending the command 8960000E08, the
time will add with 8 and change into 17:30:08. Similarly, when setting the
command 8960000W07, the time will automatically reduce with 7 and
change into 02:30:08.
When satellite time is corrected to GMT automatically, send SMS
command 8960000E08 and the time will change into Beijing time.
14. Electronic Fence Function
(1)GPS Fence Function
The guardian could get the center spot of a fence through Google map or
single inquiry.
Set Fence Format: # command number (751) # fence radius # sampling
interval # longitude # latitude # user password ##.
Example: #751#500#5#22.5442N#113.91E#0000##
After the setup is successful, the mobile phone will receive a piece of
‘&751&succeful setting&&’. Then, each time when the ward leaves this
area, the terminal will send the alarming information of being out of the
fence to the center number.
17
(2) Fence Reading Function
Send commands to the terminal: # command number (752) # user
password 4 digits ##; after the command is set successfully, the terminal
will read the data of the module fence working status and return message
to the sending mobile phone, or PASSWORD ER if the password is
wrong.
Example: #752#0000##
Return:#open:1#lat:11456.209400#lng:2233.470100#distance:500#time:5
#status:2
Where, open: 1 indicates fence open; Open: 0 indicates fence closed;
lat:11456.209400, latitude;
lng: 2233.470100; longitude;
distance: 500; fence radius;
time: 5 sampling interval;
status: 2, terminal has obtained valid satellite data, fence works normally;
status: 1, fence open, but there are no valid satellite data have been
received;
status: 0, no electronic fence is set.
18
(3) Function of Canceling Fence
Command name: # command number (760) # user password 4-digits ##
Example: #760#0000##
After the terminal receiving this command, all fence settings will be
cancelled.
Advice: Do not set GSM fence and GPS fence at the same time.
15. Auxiliary Function
(1) #901##
Command of inquiring machine parameters
(2) #902##
Command of inquiring GPRS parameters
(3) #904##
GPRS connection command
(4) #905##
GPRS disconnection command
Notices
1. This device is of non-waterproof design.
2. This device must work with the cooperation of GSM/GPRS network.
3. Make sure that the SIM card has sufficient balance in order to avoid
inconvenience in use.
4. This device will not be able to work in case of power-off and out of
the service area, even if you are a registered user.
19
5. This device supports the dual positioning mode of GPS and
GSM/GPRS.
6. Please use this device in a legal area, any illegal consequence will be
borne by the user.
Notes: due to the high sensitivity of the GPS module adopted by this
product, it is normal to be drifting with weak GPS signal.
20
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
