User manual | 900E User Manual

Auto leaders

900E

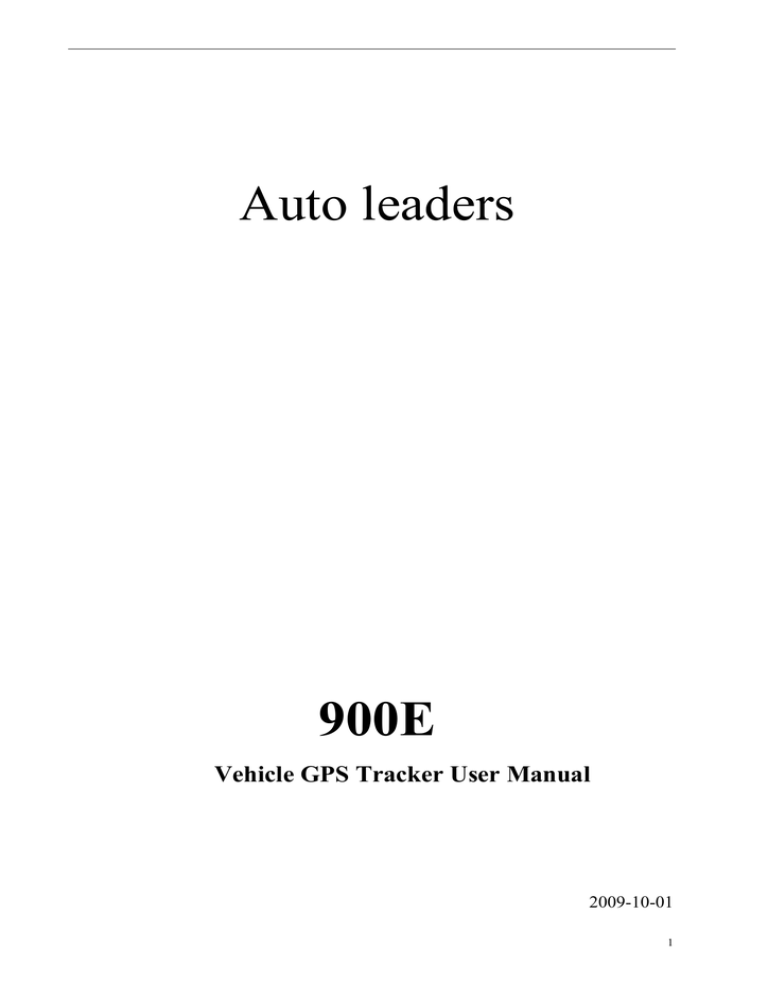

Vehicle GPS Tracker User Manual

2009-10-01

1. Working Directions..................................................................................................................

…

..3

2. GPS Tracker Installation...............................................................................................................3

2.1. Product Parts List ................................................................................................................3

2.2. Precaution before Installation ..............................................................................................4

2.3. Installation............................................................................................................................5

2.4. Wiring Description................................................................................................................6

3. Operating Instructions .................................................................................................................7

4. SMS Tracking by Mobile............................................................................................................10

4.1. Position Report Function...................................................................................................10

4.2. Tracking Function..............................................................................................................11

4.3. Stop tracking function………………..……………………………..….……...........................11

5. GPRS Tracking by computer....................................................................................................12

5.1. Set APN..............................................................................................................................12

5.1. Set IP and Port...................................................................................................................12

6. Take Photo function...................................................................................................................13

6.1. Take photos.......................................................................................................................13

6.2. Take photos by press SOS button. ...................................................................................13

6.3. Set the time interval to take photos. ..................................................................................13

7. LCD Screen……….....................................................................................................................13

7.1. Use as navigation...............................................................................................................13

7.2. Make and receive phone calls. ..........................................................................................13

7.3. Receive massages from control center. .............................................................................14

7.4. Receive GPS signal. ..........................................................................................................14

1. Working Directions

Thank you for your purchase of 900E Vehicle GPS Tracker. In order to realize the full functions of this product, please read this manual carefully before starting to use the product.

This product can only be maintained and repaired by qualified professional service personnel. If you detach this product for maintenance or repair, your warranty will be invalidated.

When connecting the other devices, read carefully their instruction manuals, so as to carry out correct installation; do not connect incompatible device.

Please use genuine original parts and qualified batteries and peripheral equipments, so as to avoid damage to this product.

As this product is a high-tech product, please read carefully this manual before starting to use the product, so as to avoid inappropriate operation.

Drivers should not operate this product while driving a vehicle, thereby, affecting safe driving.

This product can work properly only when GSM communication is in good condition.

Please reduce electromagnetic wave interference to the product; and use it properly.

GPS communication is liable to be affected by environmental shielding; may fail to carry out positioning during certain circumstances. It will resume the positioning function as soon as it leaves the shielding environment. This is normal. Please do not worry when encountering

9. such problem.

Each signal sent out from the system will be confirmed for successful transmission in the base station of the mobile operator. However, if system stoppage occurs or if the mobile telephone is preset to a switch off state by the customer, it cannot ensure successful transmission.

10. For safety reason, do not tell the other people your 900E mobile number, without taking precautions. Otherwise, your privacy may be compromised along with other safety problem.

2. Wiring Installation

2.1. Product Parts List

GPS Tracker Unit

GPS Antenna

GSM Antenna

Car Charger

Lighter Socket

2.2. Precaution before Installation

1 Check if all the parts are included.

Prepare a SIM card for GSM communication. Use some other mobile phone to confirm that the PIN code has not been set and that it can dial out and receive telephone calls and SMS without problem.

Before install the SIM card; make sure to cut off power from the GPS Tracker unit. The correct installation method is to push the tray completely into the GPS Tracker unit, until you feel it is hooked by something.

4 Find a suitable place inside the car for installing the unit.

Check if all the wiring has been connected correctly; then connect the GPS Tracker unit to the power source.

2.3. INSTALLATION

2.3.1 Step 1: Install SIM Card

Using a speculate object to poke the small button of the SIM card seat, and then it will pop-up a small drawer.

Put the SIM card in the drawer, and put back the drawer, as direction shown in the picture.

Make sure to turn off the power before install the SIM card.

Make sure to deactivate the PIN code, so that the SIM card can operate without PIN protection.

Before install the SIM card to the GPS Tracker, please use a mobile phone to make sure the SIM card can make & receive phone calls without problem.

Before install the SIM card to the GPS Tracker, please use a mobile phone to empty the

SMS storage of the SIM card.

2.3.2 Step 2: Connect GSM Antenna

1 Connect the GSM Antenna to the unit.

2 Fasten the connection by turning the screw in the bottom.

3 Please do not swing round the antenna itself.

2.3.3 Step 3: Connect GPS Antenna

1 GPS antenna is used to receive satellite signals in the sky. It should be positioned at a place where it will have an unobstructed view of the sky. The ideal location is top of the dashboard or close to the rear window of the car.

GPS antenna can pick up signals through glass and plastic, but will not "see the sky" through metal or other conductive surfaces. To avoid distractions of GPS signal, make sure the antenna is not covered or shielded by any object containing metal, such as the metallic windshield.

If your car is with metallic windshield please cut a hole on the windshield above the place where you put the GPS antenna, so that the antenna can receive the GPS signals.

2.3.4 Step 4: Connect power charging

900E connects to the 4pin and 6pin wires.

2.4. Wiring Description

4 pins connector

Pin

Color

Red

Yellow

function

power switch power switch

Connect to door sensor

4 Green Undefined input. for example you can use it to detect the signal of car alarm

6 pins connector

Pin

Color function

Red DC in

Input voltage: 8-40V

Suggestion: 12V

Black GND

Brown Output , starter kill relay you can use it to cut the electricity or oil of the car

4 White SOS button

Green Output , starter kill relay you can use it to cut the electricity or oil of the car

Blue ACC signal detecting

According to the relay parameter to make sure to following requirement:

The input voltage of relay must be suited to the car battery

3. Operating Instructions

SMS protocol of 900E, the default password of 900E is 000000

SMS Instruction Format Remark

1 Request one position A******, 000

2 Modify user password A******, 001 ,######

3 Set a preset phone number for SOS button or monitoring number.

A******, 002 ,1, Tel

Number

When this button is pressed,

900E will send the SOS and position message to the preset number.

A******, 002 ,2, Tel

Number

000: command code

******: password, default 000000

001: command code

******: old password , default 000000

######: new password

002: command code

******: password, default 000000

1 : Set SOS number

Tel Number: Preset Tel. number

(Tel Number must <20 digits )

002: command code

******: password, default 000000

2 : Set monitoring number

Tel Number: Preset Tel. number

(Tel Number must <20 digits )

4 Set the time interval of position refresh to SOS number

A******, 003 ,XXX

5 Set low power alarm

When the 900E voltage is lower than the preset value, 900E will send one lower power alarm

SMS to the control number.

Otherwise,there is not this function in vehicle tracker

A******, 004 ,X

6 Set over speed alarm A******, 005 ,XX

When the 900E speed higher than the preset value, 900E will send one over speed alarm

SMS to the control number.

GPRS Status, To check GPRS Status

Get IMEI

A******, 502

A******, 505

9 Set GPRS internal of position refresh

A******, 506 ,00030

Check GPRS interval of position refresh

Inquire GPRS parameter

Return Including IP,

Port, APN

A******,

507

006

003: command code

******: password, default 000000

XXX: (3 digital)

XXX =000,stop

XXX = 001 – 999 time internal (unit: min)

004: command code

******: password, default 000000

X : voltage preset value

X=0, close (default )

X =1, <3.5V send SMS alarm

X =2, <3.6V send SMS alarm

X =3, <3.7V send SMS alarm

X =4, <3.8V send SMS alarm

X =5, <3.9V send SMS alarm

005: command code

******: password, default 000000

XX : the speed preset value

XX = 00 , close

≤

99 (unit: XX Km/h)

502: command code

******: password, default 000000

505: command code

******: password, default 000000

506: command code

******: password, default 000000

00030: Such as 30 seconds interval is 00030

507: command code

******: password, default 000000

006: command code

******: password, default 000000

Control the output

Time zone setting

A******,

007

008

,P,F

,+8

007: command code

******: password, default 000000

P: the position of the output

P =1 output 1

P =2 output 2

F: the control signal

F =1 give the relay the current to drive it (cut off the car power).

F =0 cut off the current of the relay

(comeback the normal).

008: command code

******: password, default 000000

+8: Set the local time zone, the default value is +8

009: command code

******: password, default 000000

14 Inquire the system parameter.

Including the software version, password, interval, speed limit, area limit, I/O state,

GPS state, SOS number, control number, etc

15 GPRS switch

A******, 009

A******, 010 ,X

SET APN

Set the center IP and

A******, 011 ,APN, username,password

A******, 012 ,IP:Port

010: command code

******: password, default 000000

X: GPRS function

=0 GPRS OFF

=1 GPRS UDP

=2 GPRS TCP

011: command code

******: password, default 000000

APN: GPRS use this gateway to connect internet.

Username: APN Username

Password: APN Password

The default APN is CMNET

012: command code

Port

Set server parameter

18 LED Light Switch A******, 666 , X

19 Reset to factory settings A******, 888

******: password, default 000000

IP: Platform server ip

Port: Platform server port

666: command code

******: password, default 000000

X: LED Light Switch

X =0 LED Light OFF

X =1 LED Light ON

888: command code

******: password, default 000000

20 Restart Tracker A******, 999 999: command code

******: password, default 000000

4. SMS Tracking by Mobile

4.1. Position Report Function

4.1.1. Get position from vehicle - way 1:

No matter where you are, when you want to know the position of your vehicle

Step1

Send a SMS message or make a telephone call to the 900E. vehicle will report its location back to you by SMS, which including the position

Step2

information

Edit a message as following format, and then send it to 900E:

Send Format:

For Example

Send message:

Back information:

Command

A+Password+,+000

A000000, 000

Lat:2232.6022N, Lon:11402.2969E

Remark

Get position command code is:

000

000: command code

000000: password, default

000000

This mean your position is on

North Latitude 22 degree 32.2232 cent and East Longitude 114

degree 2.2969 cent

4.1.2. Get position from vehicle - way 2:

Apply for one position service by another way: you need pre-storage the phone number in SIM card:

Step1

Make a cell phone call to 900E

Step2

Step3

After listening the ring of 900E, it will hold off after two rings.

Then, after 10 second, the cell phone will receive the Position SMS. (Its means is

900E will send Position Data every 5 minute.)

4.2. Tracking Function

Tracking report function can be turned on or off according to the requirements of the user.

Tracking function will continually report vehicle position until it get stop command .In this tracking mode, 900E will send one position message at a preset time interval.

Step1. Edit a message as following format, then send it to 900E

Command

Send Format:

A+Password+,+003,+XXX

Remark

Note: XXX , if XXX=000 it is

STOP tracking

For example:

A000000, 003 ,003

Unit: preset minute interval

Command code : 003

003: command code

000000: password, default

000000

003: 3 minute interval

It means is 900E will send

Position Data every 3 minute.

Step2. 900E will send back one SMS-----Set Time OK.

This SMS means that 900E is in tracking mode now and preset time interval is 3 minutes.

Step3. 900E will send back position SMS at preset time interval.

In this example, the SMS will send back at preset time interval: 3 minute

4.3. Stop tracking function.

This function is used to turn off tracking report function. Edit a message as following format, and then send it to 900E:

Command Remark

Command format:

A+passwaord+,+003+,+000

For example:

A000000, 003 ,000

003: command code

000000: password, default

000: 0 minute interval, mean stop back

5. GPRS Tracking by Computer

The default mode is GPRS when powering on the unit. The default setting is ours; you need to send the following SMS to Set APN and IP, Port. (If you use our server, you only need to set APN).
