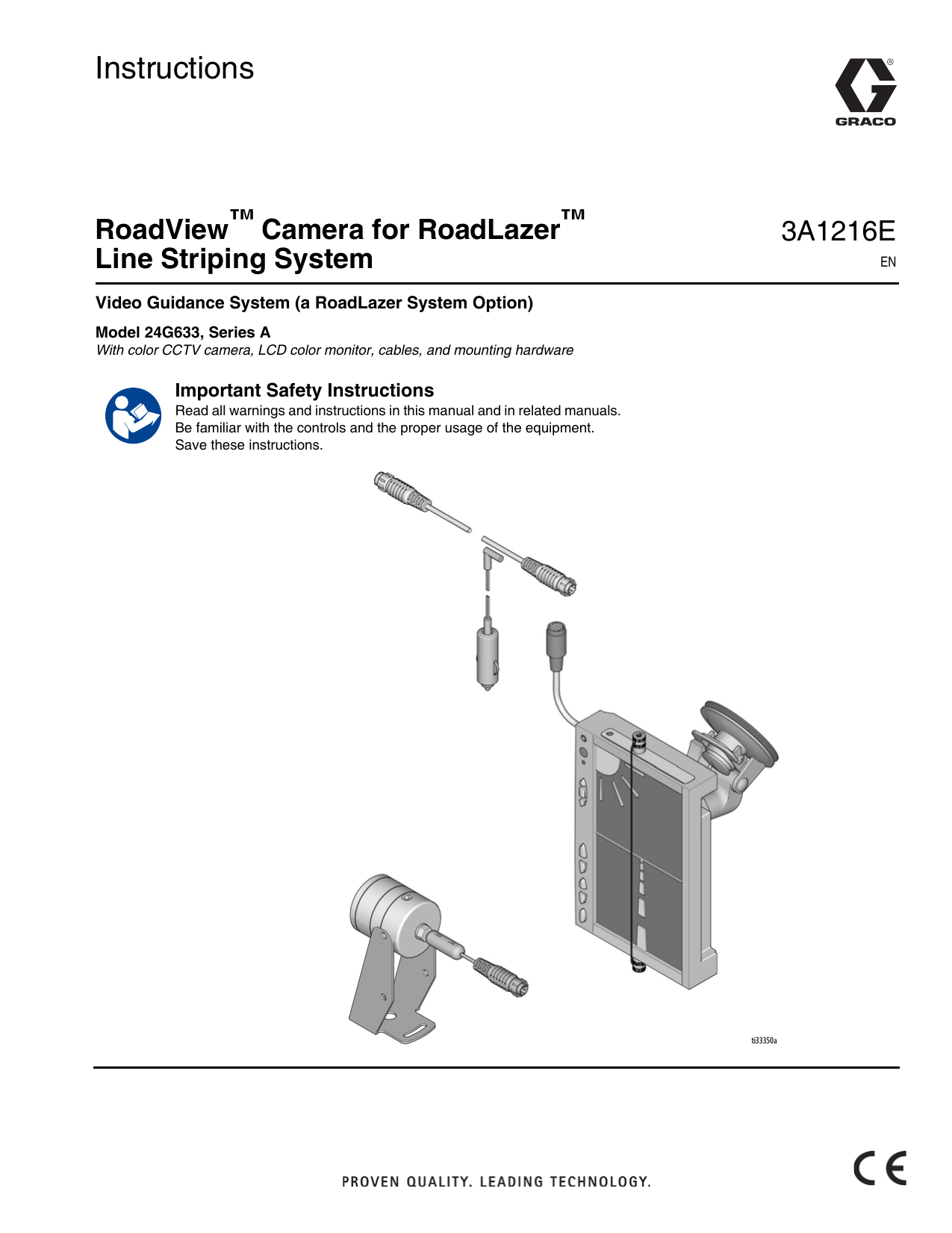

Graco 3A1216E, RoadView™ Camera for RoadLazer™ Line Striping System, 24G633 Instructions

Instructions
RoadView™ Camera for RoadLazer™
Line Striping System
Video Guidance System (a RoadLazer System Option)
Model 24G633, Series A
With color CCTV camera, LCD color monitor, cables, and mounting hardware
Important Safety Instructions
Read all warnings and instructions in this manual and in related manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
3A1216E
EN
Video Guidance System
Video Guidance System
Camera Installation on Gun Arm
Installation
1. Install mounting bracket onto gun arm.
This manual makes references to other components in
the RoadLazer System. For complete warnings and
safety instructions see RoadLazer™ Line Striper System
manual. Save these instructions.
Video Monitor Installation
NOTICE
To Prevent damage to the video monitor:
• Do not expose video monitor to extreme
temperatures or direct sunlight.
• Avoid dust and moisture.
• Avoid dropping and strong impact.
• Turn power off and unplug the adaptor when not
in use or during thunderstorm.
2. Mount camera to bracket with fasteners and tighten
with fingers. NOTE: Camera can be mounted in
either A or B locations.
• Do not attempt to perform maintenance.
1. Mount video monitor in truck cab in a position that is
easy to view. Mount it level with dashboard but not
obstructing forward vision. Monitor has mounting is
supplied with windshield mounting bracket.
2. Connect plug of camera power/video cable to camera.
3. Connect monitor cable plug to monitor power cable.
4. Connect end of monitor power cable to truck receptacle.
3. Route camera cable through hose wrap and camera
location. Plug camera into power/video cable. Turn
monitor ON. Press A/V button once if image is not
seen on monitor.
ti16411a
2
3A1216E
Video Guidance System
4. Aim camera in direction of travel then tighten to 12
in-lb. Review image on monitor to ensure camera is
in correct orientation.
2. Mount extension arm to flatbed, or other desired
location on truck.
Camera Installation on Flatbed
1. Install mounting bracket onto extension arm.
3. Mount camera to bracket with fasteners and tighten
with fingers.
NOTE: Camera can be mounted in either A or B locations.
3A1216E
3
Video Guidance System
4. Route camera cable accordingly.
ti16415a
(Preferred Orientation)
2. Mount magnet line to monitor. For best reference
the line should be as close as possible tot he monitor.
5. Aim camera in direction of travel then tighten to 12
in-lb. Review image on monitor to ensure camera is
in correct orientation.
ti16414a
3. Adjust vertical line to your preference by sliding the
magnet on the monitor (if cross hairs are desired).
ti16413a
NOTE: Remove monitor when not in use to prevent it
from obstructing view while driving.
Install Cross hairs (Optional)
NOTE: When not in use, disconnect power to monitor to
prevent power from being drained from vehicle battery.
Elastic cross hairs allow the user to create a reference
line to guide the vehicle while striping. A vertical line
may be used to define the reference point.
1. Install TABS onto monitor after it has been placed in
the vehicle. For best results wipe monitor sides with
alcohol to remove any contaminants from the surface. Remove tape film and apply tab to monitor in
the desired location (2 places).
4
3A1216E
Video Guidance System
Installing the Auxiliary Camera (Optional)
1. Select view location for camera. The gun arm
bracket is made to accommodate 2 cameras. To
mount second camera see Camera Installation
steps 3-5 (page 4). Press A/V button to switch
between cameras on monitor.
2. The magnetic base can be used to mount camera in
any location with ferrous material. Route cable
accordingly.
ti16411a
a
(Alternative Mounting)
3A1216E
5
Operation
Operation
For RoadLazer operating instructions, see RoadLazer
System manual 3A5384.
Striping
To get accustomed to using a reference string to paint
lines, practice spraying with water. The cross hairs can
be moved across the screen in infinite increments to
provide a guideline to place accurate lines. For example, when painting a single line the elastic string can be
place centered on the paint gun. When driving, keep the
line to be painted on the elastic string for accurate overlay. Alternately, the elastic string can be placed in the
center of the gun arm as shown above. In this case the
driver would keep a constant from one line or centered
between two lines. Using the elastic string is a matter of
user preference. This can be mastered after minutes of
use to paint accurate lines on roadway surfaces. A second camera can be mounted onto the gun arm for a
wider angle view. This can be useful for painting curved
lines. To switch between two cameras press the AV button.
6 mm
16 mm
6
3A1216E
Troubleshooting
Troubleshooting
Problem
No picture on video monitor screen
Cause
No power to camera or monitor
Solution
Check connections.
Check truck fuse.
No video signal
Check video connections. Repair or
replace cable.
Check cable connection between
monitor video cable (122) and camera power cable (61).
Faint or hard-to-see image on video
monitor screen
Glare on video monitor screen
Tilt monitor back slightly.
Rotate monitor slightly left or right.
Wear dark clothing.
Tint truck windows.
Washed out colors on video monitor
screen
3A1216E
Contrast or color settings out of
adjustment
Adjust with controls on monitor.
7
Parts - Video Camera and Gun Arm Mounting Assembly
Parts - Video Camera and Gun Arm Mounting Assembly
Ref.
1
8
2
3
4
5
6
7
Part
16G158
24H612
24G838
110755
24G837
16G443
16G160
17Y658
9
16G444
12
13
16
17
100016
101501
24G771
24H555
16G442
18
19
16G448
131812
Description
Qty.
MONITOR, LCD, color
1
KIT, monitor (includes 5)
1
SLIDE, cross hair with tape
2
WASHER, plain
2
ADJUSTER, cross hair
1
BRACKET, windshield mount
1
CABLE, camera
1
MONITOR, wire harness (included
1
in 1-16G158)
BRACKET, mounting, double
1
camera
WASHER, lock
2
SCREW, mach, slot hex wash
2
CAMERA, 6 mm (includes 6)
1
CAMERA, 16 mm (includes 6)
1
SPOOL, elastic string
1
(not shown)
CABLE, automotive, power supply
1
CABLE, 5 pin monitor cable
1
3A1216E
Parts - Extension Mounting Arm
Parts - Extension Mounting Arm
Ref.
25
26
27
28
29
30
31
32
33
34
35
36
37
3A1216E
Part
191692
24F989
224136
111145
191691
191694
105431
101566
100017
109570
801020
131390
112731
Description
BRACKET, support
EXTENSION, arm, guide
CLAMP, extension
KNOB, pronged
BRACKET, mount
BAR, lock
SCREW, manifold
NUT, lock
SCREW, cap, hex hd
WASHER, plain
NUT, lock, hex
BOLT, 1/2-13 fully threaded
NUT, hex, flanged
Qty.
1
1
2
2
2
2
4
4
2
2
3
1
1
9
Technical Data
Technical Data
Video Guidance System
Electrical requirements
Sender input
Ground
Operating Temperature
12-15 VDC
Negative
32 - 130 F (0 - 54 C)
Weight (approximate)
Camera and bracket (with magnet)
0.75 lb (0.34 kg)
Monitor
1.25 lb (0.57 kg)
Dimensions (approximate)
Camera Body
Monitor
10
2.54 L x 2.32 Dia.
9.06 in. L x 6.0 in. W x 1.40 in. D
3A1216E
