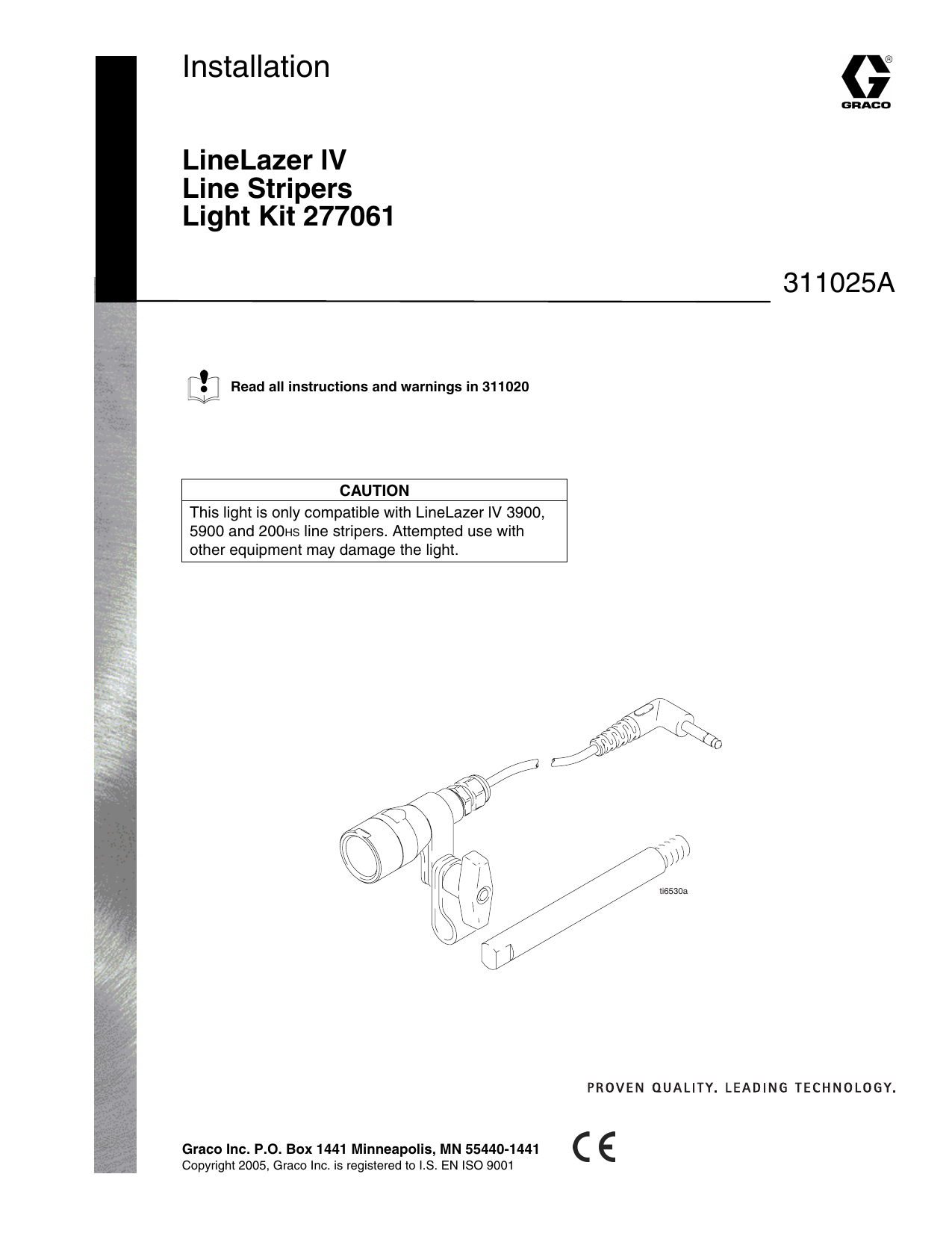

Installation
LineLazer lV
Line Stripers
Light Kit 277061
311025A
Read all instructions and warnings in 311020
CAUTION
This light is only compatible with LineLazer lV 3900,
5900 and 200HS line stripers. Attempted use with
other equipment may damage the light.
WLD
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2005, Graco Inc. is registered to I.S. EN ISO 9001
WLD
General
Rear Gun Support Bracket Mount
The light kit may be mounted on the gun support bracket in the
front or rear of the sprayer. It may also be mounted on the
frame with the included hardware. The light switch on the control panel now lights both the LCD display and the light kit.
1
2
3
4
5
Front Gun Support Bracket Mount
1
2
3
Position light on front gun support bracket.
Tighten knob and secure light.
Plug light cord into control panel.
Remove gun support bracket from front of striper.
Install gun support bracket at rear of striper.
Position light on gun support bracket.
Tighten knob and secure light.
Plug light cord into control panel.
Frame Mount
1
2
3
4
5
Remove a screw from frame.
Install included mounting bar into frame.
Position light on mounting bar.
Tighten knob and secure light.
Plug light cord into control panel.
TO PLACE AN ORDER, contact your Graco distributor, or call 1-800-690-2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
