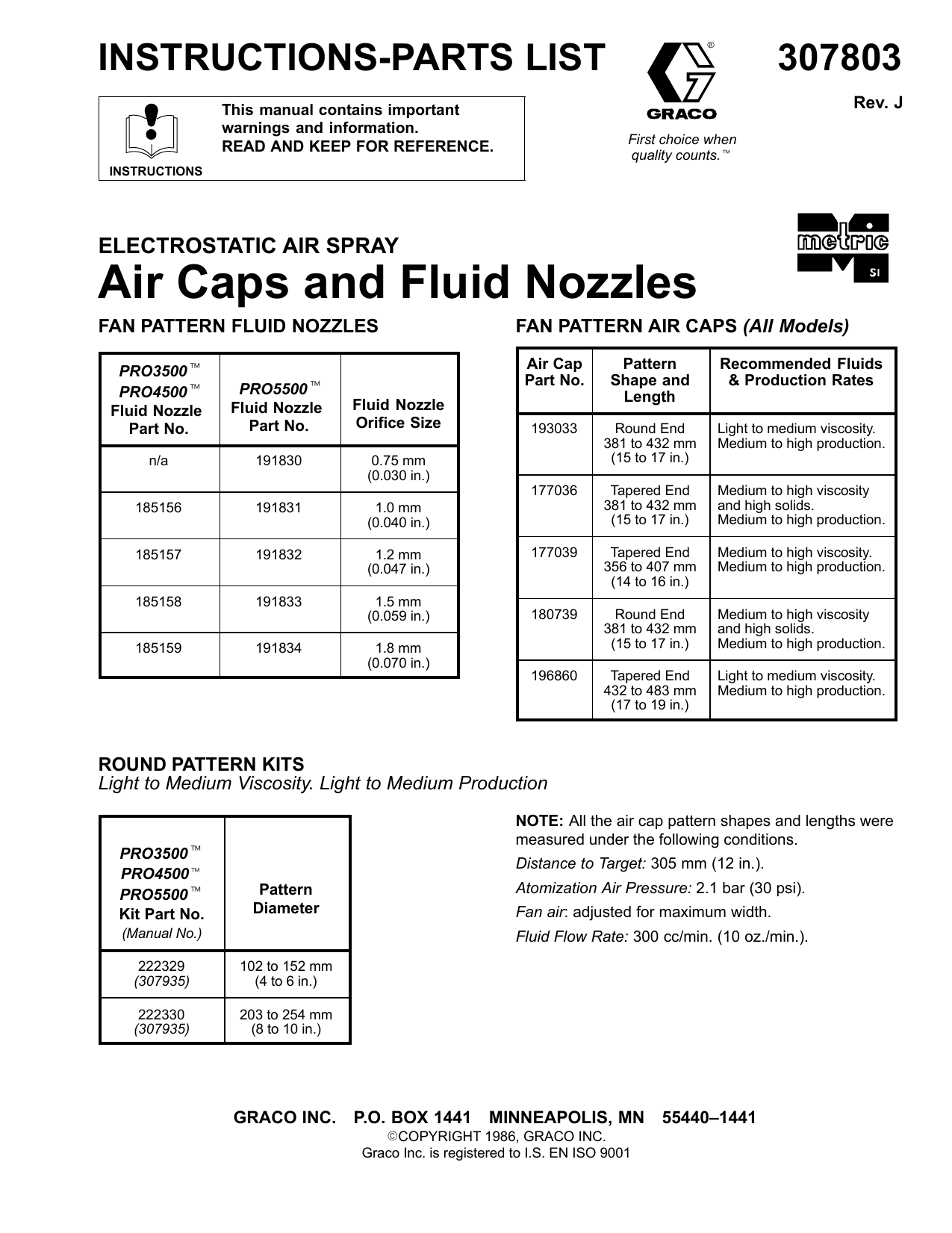

Graco 307803J Electrostatic Air Spray Air Cap and Fluid Nozzles Owner's Manual

INSTRUCTIONS-PARTS LIST
307803
Rev. J
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
First choice when
quality counts.t
INSTRUCTIONS
ELECTROSTATIC AIR SPRAY
Air Caps and Fluid Nozzles
FAN PATTERN FLUID NOZZLES
PRO3500t
PRO4500t
Fluid Nozzle
Part No.
PRO5500t
Fluid Nozzle
Part No.
n/a
191830
0.75 mm
(0.030 in.)
185156
191831
1.0 mm
(0.040 in.)
185157
191832
1.2 mm
(0.047 in.)
185158
191833
1.5 mm
(0.059 in.)
185159
191834
1.8 mm
(0.070 in.)
Fluid Nozzle
Orifice Size
FAN PATTERN AIR CAPS (All Models)
Air Cap
Part No.
Pattern
Shape and
Length
Recommended Fluids
& Production Rates
193033
Round End
381 to 432 mm
(15 to 17 in.)
Light to medium viscosity.
Medium to high production.
177036
Tapered End
381 to 432 mm
(15 to 17 in.)
Medium to high viscosity
and high solids.
Medium to high production.
177039
Tapered End
356 to 407 mm
(14 to 16 in.)
Medium to high viscosity.
Medium to high production.
180739
Round End
381 to 432 mm
(15 to 17 in.)
Medium to high viscosity
and high solids.
Medium to high production.
196860
Tapered End
432 to 483 mm
(17 to 19 in.)
Light to medium viscosity.
Medium to high production.
ROUND PATTERN KITS
Light to Medium Viscosity. Light to Medium Production
PRO3500t
PRO4500t
PRO5500t
Kit Part No.
NOTE: All the air cap pattern shapes and lengths were
measured under the following conditions.
Distance to Target: 305 mm (12 in.).
Atomization Air Pressure: 2.1 bar (30 psi).
Pattern
Diameter
Fan air: adjusted for maximum width.
(Manual No.)
Fluid Flow Rate: 300 cc/min. (10 oz./min.).
222329
(307935)
102 to 152 mm
(4 to 6 in.)
222330
(307935)
203 to 254 mm
(8 to 10 in.)
GRACO INC.
P.O. BOX 1441
MINNEAPOLIS, MN
ECOPYRIGHT 1986, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
55440–1441
WARNING
Always turn off the power, air, and fluid supply to the gun, and trigger the gun to relieve system pressure before
installing or removing the air cap/fluid nozzle assembly. This will help reduce the risk of serious injury, including
splashing in the eyes or on the skin, or electric shock.
NOTE: Refer to your air spray gun instruction manual to install the air cap and fluid nozzle. If you do not have a
copy of the manual, copies are available at no charge from Graco Inc.
Terms
Viscosity
Fan Pattern Production Rate
Light: 20 centipoise at 21_C (70_F)
Medium: 70 centipoise at 21_C (70_F)
Heavy: 160, 260 centipoise at 21_C (70_F)
High Solids: Over 360 centipoise at 21_C (70_F)
Centipoise = centistokes x fluid specific gravity.
Light Production:
Fluid flow of up to 200 cc/min.
(7 oz./min.)
Medium Production: Fluid flow of up to 400 cc/min.
(14 oz./min.)
High Production:
Fluid flow of up to 600 cc/min.
(14 oz./min.)
Round Pattern Production Rate
Light Production:
NOTE: Refer to the Viscosity Conversion Chart on
the back cover to convert to other units of
measurement.
Fluid flow of up to 150 cc/min.
(5 oz./min.)
Medium Production: Fluid flow of up to 200 cc/min.
(7 oz./min.)
How to Use the Fluid Nozzle Graphs
KEY
260 Centipoise Fluid
160 Centipoise Fluid
70 Centipoise Fluid
20 Centipoise Fluid
Use the procedure below to select the proper fluid
nozzle for your application.
1. For each of the fluid nozzle graphs, find the point
on the graph corresponding to your desired fluid
flow rate and viscosity. Mark the point on each
graph with a pencil.
2
307803
2. The thick vertical line in each graph represents the
target flow rate for that nozzle size. Find the graph
that has the marked point closest to the thick
vertical line. This is the recommended nozzle size
for your application. Significantly exceeding the
target flow rate may result in lower spray performance due to excessive fluid viscosity.
3. From the marked point, move across to the vertical
scale to find the required fluid pressure. If the
required pressure is too high, then use the next
largest nozzle size. If the fluid pressure is too low
(< 0.35 bar, 5psi), then use the next smallest
nozzle size.
Fluid Nozzle Performance Graphs
Fluid pressures are measured at the spray gun inlet.
ORIFICE SIZE: 0.75 mm (0.030 in.)
ORIFICE SIZE: 1.2 mm (0.047 in.)
Bar/PSI
Bar/PSI
50
3.0
50
45
3.0
2.5
2.0
40
FLUID PRESSURE
FLUID PRESSURE
40
35
30
25
1.5
1.0
20
15
2.5
2.0
1.5
1.0
30
20
15
10
0.5
5
oz./min.
35
25
10
0.5
45
0
1
2
cc/min.
60
3
4
5
120
6
7
180
8
9 10
240
5
oz./min.
0
5
cc/min.
300
10
200
FLUID FLOW
ORIFICE SIZE: 1.0 mm (0.040 in.)
45
3.0
35
30
20
15
2.5
2.0
1.5
1.0
cc/min.
30
20
15
10
0.5
5
oz./min.
35
25
10
0.5
45
40
FLUID PRESSURE
FLUID PRESSURE
1.0
800
50
25
1.5
600
30
ORIFICE SIZE: 1.5 mm (0.059 in.)
40
2.0
25
Bar/PSI
50
2.5
400
20
FLUID FLOW
Bar/PSI
3.0
15
0
5
10
200
15
400
20
25
600
FLUID FLOW
Performance Graphs are continued on page 4.
30
800
5
oz./min.
cc/min.
0
5
10
200
15
400
20
25
600
30
800
FLUID FLOW
307803
3
Fluid Nozzle Performance Graphs
Fluid pressures are measured at the spray gun inlet.
ORIFICE SIZE: 1.8 mm (0.070 in.)
Bar/PSI
50
3.0
45
FLUID PRESSURE
40
2.5
2.0
35
30
25
1.5
1.0
20
15
10
0.5
5
oz./min.
cc/min.
0
5
10
200
15
400
FLUID FLOW
4
307803
20
600
25
30
800
Air Cap Comparison
BEST
Air Cap and Operator Cleanliness
BEST
Atomization
193033
177036
177039
180739
193033
177036
177039
180739
Air Cap Air Consumption
Transfer Efficiency
BEST
AIR CAP AIR FLOW (SCFM)
15
193033
177036
177039
180739
14
13
12
11
10
193033
177036
177039
180739
Test Conditions:
D Target Distance: 305 mm (12 in.)
D Fluid Flow Rate: 300 cc/min (10 oz/min.)
D PRO 4500 Gun with 2.8 bar (40 psi) air at the gun
inlet.
D Fan Valve adjusted for a 356 mm (14 in.) pattern
width.
307803
5
Notes
6
307803
Viscosity Conversion Chart
Light
Medium
Heavy
High
Solids
Poise
0.2
0.7
2.6
3.6
Zahn 1
37
Centipoise
20
70
260
360
Zahn 2
18
Du Pont Parlin 7
32
Du Pont Parlin 10
13
Fisher 1
30
Fisher 2
15
33
Sears Craftsman Cup
Ford Cup 3
12
36
Redwood No. 1 Sec.
Ford Cup 4
10
28
68
35
58
62
370
1280
1730
Measurement
Krebs Units KU
Saybolt Universal
SSU
100
Shell 2
40
Shell 3
15
Shell 4
20
Heavy
High
Solids
Zahn 3
30
41
Zahn 4
21
28
Zahn 5
13
18
286
1060
1465
30.05
105.6
149
9.4
34.65
47.75
35
124.5
171.5
Measurement
Light
Medium
23
98
Redwood No. 2 Sec.
Engler Degrees
30
2.9
Saybolt Furol Sec.
48
22
