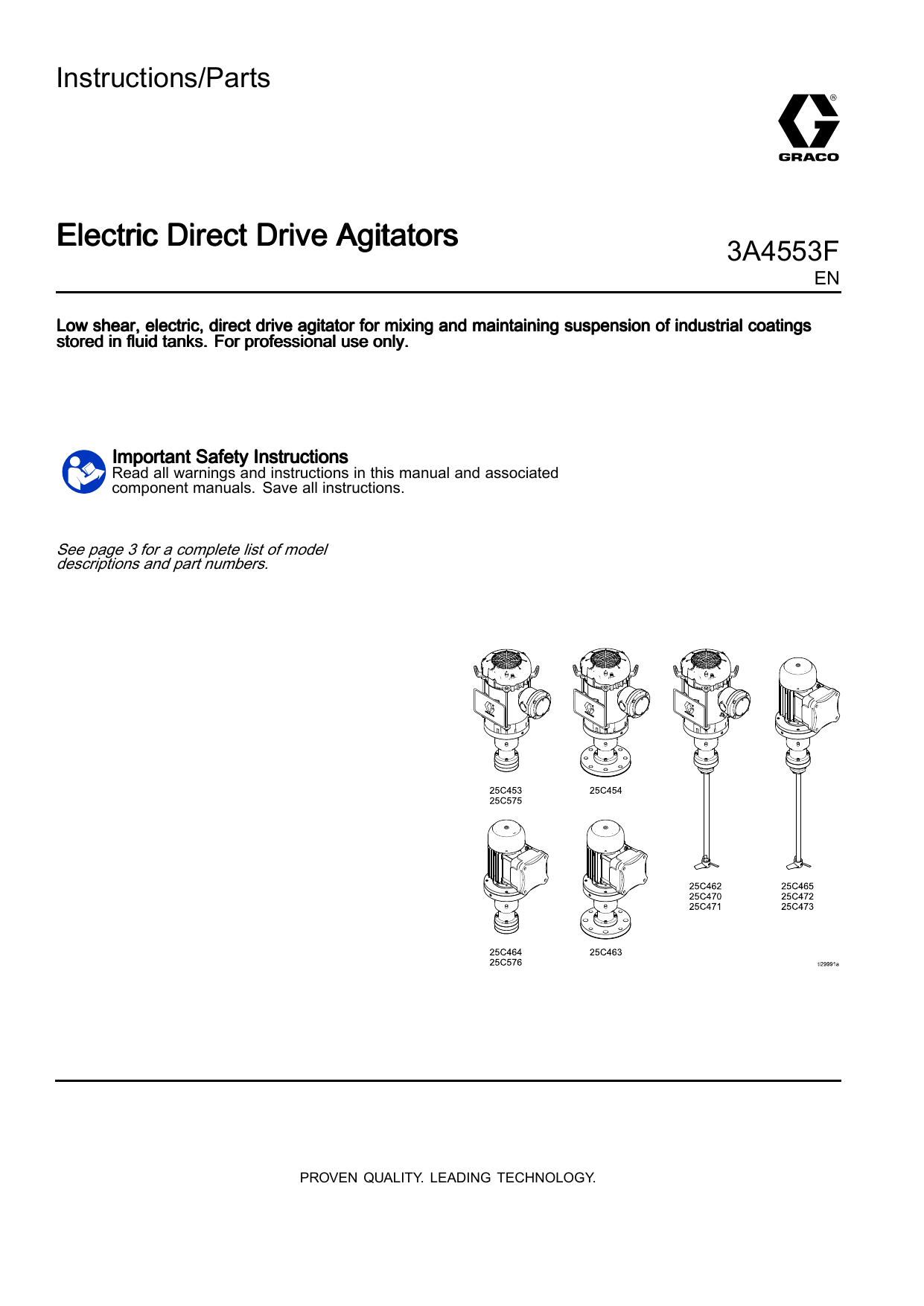

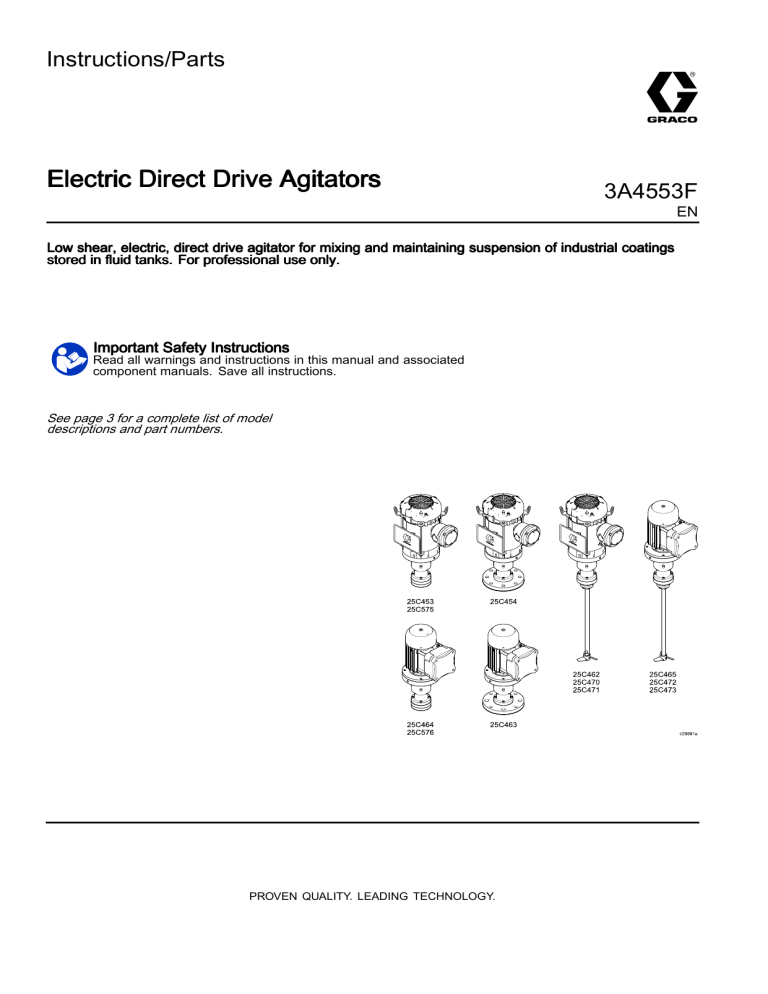

Graco 3A4553F Instructions

Instructions/Parts
Electric Direct Drive Agitators
3A4553F
EN
Low shear, electric, direct drive agitator for mixing and maintaining suspension of industrial coatings
stored in fluid tanks. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and associated
component manuals. Save all instructions.
See page 3 for a complete list of model
descriptions and part numbers.
PROVEN QUALITY. LEADING TECHNOLOGY.
Contents
Related Manuals ................................................ 2
Models............................................................... 3
Warnings ........................................................... 4
Installation..........................................................
Shaft and Impeller Size ................................
Optional 4.8 to 1 Gear Reducer Kits ..............
Motor, Bearing Housing, and Impeller
Installation......................................
VFD ............................................................
Connect VFD to Motor..................................
Grounding the Agitator .................................
Gear Reducer Kit Installation ........................
6
6
6
7
8
8
8
9
Operation ........................................................... 10
General Operation ....................................... 10
Finding the Proper Agitator Speed ................ 10
Routine Periodic Maintenance ...................... 11
Check Screw and Bolt Tightness................... 11
Bearings...................................................... 11
Gear Reducer .............................................. 11
Service .............................................................. 12
Shaft Seal Removal and Replacement ........... 12
Parts.................................................................. 13
Models 25C454 and 25C463 ........................ 13
Models 25C453, 25C575, 25C464,
25C576.......................................... 15
Models 25C462, 25C470, 25C471,
25C465, 25C472, 25C473............... 17
Dimensions ........................................................ 19
Power Usage Charts........................................... 20
Technical Specifications...................................... 22
Maintenance ...................................................... 11
Related Manuals
Manual Number
Title
3A4793
VFD (Variable Frequency Drive)
308369
5, 10, and 15 Gallon Pressure Tanks
Card P/N 4054
Leeson® Electric Corporation, General Installation and Operating Instructions (for UL
Listed motors)
Numero: UM-3.1
cemp Flameproof Electric Motors, ATEX safety instructions
2
3A4553F
Models
Models
The Electric Direct Drive Agitator requires power from a variable frequency drive (VFD) to control speed and is not
to be used without one. See manual 3A4793 for a listing of part numbers for related VFD controls, to be ordered
separately.
Table 1 UL Listed Explosion Proof Inverter Duty Motor
Part No.
Description
25C453+
3" Quick-clamp Flange Mount Agitator Motor
25C575+
4” Quick-clamp Flange Mount Agitator Motor
25C454+
7.5" OD Flange Mount Agitator Motor (3" 150# ANSI Flange
Mounting Holes)
25C462*
Pressure Tank Agitator Assembly (5 Gallon)
25C470*
Pressure Tank Agitator Assembly (10 Gallon)
25C471*
Pressure Tank Agitator Assembly (15 Gallon)
Motor Hazardous Location
Approvals
Table 2 ATEX Listed Explosion Proof Inverter Duty Motor
Part No.
Description
25C464+
3" Quick-clamp Flange Mount Motor
25C576+
4” Quick-clamp Flange Mount Motor
25C463+
7.5" OD Flange Mount Motor (3" 150# ANSI Flange Mounting
Holes)
25C465*
Pressure Tank Agitator Assembly (5 Gallon)
25C472*
Pressure Tank Agitator Assembly (10 Gallon)
25C473*
Pressure Tank Agitator Assembly (15 Gallon)
Agitator Approvals
+ Does not come with shaft or impeller. See Shaft and Impeller Size, page 6 for proper shaft length and impeller
diameter part numbers, to be ordered separately.
* These models include a shaft and impeller, but do not include pressure tanks. These models are for the replacement
of existing air motor driven pressure tank agitators. See manual 308369 for corresponding pressure tank part
numbers, to be ordered separately.
Optional Gear Reducer Kits
Optional gear reducer kits are available for both the UL and ATEX motors.
See Optional 4.8 to 1 Gear Reducer Kits, page 6 for more information.
3A4553F
3
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation
point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these
symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and
warnings not covered in this section may appear throughout the body of this manual where applicable.
DANGER
HIGH VOLTAGE ELECTRIC SHOCK HAZARD
This equipment uses high voltage power. Improper contact with high voltage equipment
will cause death or serious injury.
• Turn off and disconnect power at main switch before disconnecting any cables and before
servicing equipment.
• This equipment must be grounded. Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes
and regulations.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or
solvent flowing through the equipment can cause static sparking. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static arc).
• Ground all equipment in the work area. See Grounding instructions.
• Never spray or flush solvent at high pressure.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they
are antistatic or conductive.
• Stop operation immediately if static sparking occurs or you feel a shock, Do not use equipment until
you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
4
3A4553F
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request SDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and
create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Before checking, moving, or servicing equipment, disconnect all power sources.
TOXIC FLUID OR FUMES
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read Safety Data Sheet (SDS) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but
is not limited to:
• Protective eyewear and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
3A4553F
5
Installation
Installation
Shaft and Impeller Size
Flange-mounted and quick-clamp flange mounted
agitators need shafts and blades. See below
to determine the length of the shaft and the
recommended impeller diameter.
Table 3 Recommended Impeller Diameter*
Impeller
Kit
Number
Inside Tank
Diameter “T”
Stainless Steel
Impeller Diameter
“D”
17N704
12" (30 cm) or less
4" (10 cm)
17N708
12" (30 cm) to
22" (56 cm)
8" (20 cm)
17N712
22" to 36”
(56 to 91.5 cm)
Figure 1 Measure for Shaft Length
Table 4 Shaft Length Part Numbers
12" (30 cm)**
*Recommended impeller blade diameter is generally
determined by taking the inside dimension of the
tank, drum, or vessel (T in Figure 1) and multiplying
by 0.35.
**Speed is limited by material viscosity and
tank diameter for 12” (30 cm) impeller. See
Finding the Proper Agitator Speed, page 10.
To determine the shaft length (“A” in Table 4):
1. Find the distance from the bottom of the tank up
1/2 the impeller diameter (i.e., 2”, 4”, or 6”) (See
0.5 D in Figure 1 ).
Shaft
Part No.
Length “A”
in (cm)
Part No.
Length “A”
in (cm)
17P005
54 (137)
17P015
34 (86)
17P006
52 (132)
17P016
32 (81)
17P007
50 (127)
17P017
30 (76)
17P008
48 (122)
17P018
28 (71)
17P009
46 (117)
17P019
26 (66)
17P010
44 (112)
17P020
24 (61)
17P011
42 (107)
17P021
22 (56)
17P012
40 (101)
17P022
20 (51)
17P013
38 (97)
17P023
18 (46 cm)
17P014
36 (91)
2. From that point, measure to the lid mounting
surface (L).
3. Add measurement in step 2 (L) to the length of
the bearing housing (5” or 127 mm).
Optional 4.8 to 1 Gear Reducer Kits
Example: Shaft length “A” = L + 5 inches (127 mm).
• Use Kit 25N644 for mounting onto UL listed motor
assemblies (see Table 1 UL Listed Explosion Proof
Inverter Duty Motor, page 3 ).
NOTE: Round each measurement up or down to
nearest shaft length in Table 4.
• Use Kit 25N645 for mounting onto ATEX listed
motor assemblies (see Table 2 ATEX Listed
Explosion Proof Inverter Duty Motor, page 3 ).
Kits include the gear reducer and mounting
hardware. To install and mount the gear reducer, see
Gear Reducer Kit Installation, page 9 .
6
3A4553F
Installation
Motor, Bearing Housing, and Impeller
Installation
NOTE: Eye bolts (26) are shipped loose to be
attached for lifting the agitator. See attachment
location ( Parts, page 13).
1. Install bearing housing/flange assembly per the
following:
All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations. Only trained and qualified personnel
who have read and who understand the information
in this manual should install this equipment.
Always maintain a minimum of 1 in. (25.4 mm)
clearance between rotating agitator parts and
container to prevent sparks from contact.
Personal injury or equipment damage may result
from lifting/falling heavy equipment. To avoid
personal injury or equipment damage:
• Do not lift the drum cover and agitator without
proper assistance
• Do not walk or stand beneath a raised elevator.
For best results, do not remove any protective
wrappings from any of the agitator parts until just
prior to assembly and installation. Store all parts
indoors, in clean dry air.
Figure 2 shows the holes for installing agitator flanges
(part numbers 25C454 and 25C453) to the mounting
surface. Holes required in the mounting surface are:
Shaft hole: 1" - 2" (2.54 cm - 5.08 cm)
Mounting the flange (3 methods):
• (3) holes to mount to Graco drum lids that have
mounting surface for back-gear agitator housings.
• (4) holes for 3" 150# ANSI flange pattern (6"
diameter bolt circle). This pattern is for new
installations.
• (4) holes for mounting to an existing Graco LSA
supplied agitator mounting pattern (6.25" diameter
bolt circle).
a. For flange mount: See
Models 25C454 and 25C463, page 13 for
parts identification. Place gasket (20) and
bearing housing/flange assembly (A) on tank
cover. Install flat washers, mounting bolts,
and nuts (not provided). Tighten securely.
b. For quick-clamp flange mount: See
Models 25C453, 25C575, 25C464, 25C576,
page 15 for parts identification. Place
bearing housing/flange assembly (A) on
top of quick-clamp gasket (not provided)
and existing quick-clamp flange on tank.
Attach with clamp (not provided) and tighten
securely.
c.
For pressure tank: See Models 25C462,
25C470, 25C471, 25C465, 25C472, 25C473,
page 17 for parts identification. Place gasket
(21) and bearing housing/flange assembly
(A) on pressure tank cover. Install and
secure with lock washer (32) and nut (22).
Tighten securely to prevent assembly from
rotating.
2. Install the retaining ring (6) in the machined slot
in the agitator shaft (24).
3. Slide shaft through the bearing housing/flange
assembly from the top side of the bearing housing
until the retaining ring rests on the upper bearing.
4. Slide the impeller (23) (see Figure 3) onto the
shaft (24) so the blade is pushing material down
with the blade turning clockwise when viewed
from above. Shaft can be moved up and down in
the bearing housing to install the impeller.
5. Position the impeller along the shaft as required:
The distance from the tank bottom to the lowest
impeller blade (BB) should be 1/2 to 1–1/2 times
the impeller blade diameter (blade diameter is
determined by measuring the distance from the
tip of the impeller to the shaft center (AA) and
multiplying by two).
Figure 3 Impeller Installation
Figure 2 Agitator Mounting Hole Dimensions
Motor and bearing housing weigh approximately 50
lbs (22.6 kg). Verify that adequate personnel are
available or a secure lifting device is available for use
in positioning and installing.
3A4553F
6. Secure the impeller by tightening the set screws
(23a). See Parts, page 13.
7. Place coupling (7) onto agitator shaft above the
retaining ring and tighten set screw (7a) securely.
8. Place spider disk coupling (8) on top.
7
Installation
9. For UL motors: Fasten motor flange (10) to
bearing housing with 4 cap screws (5).
For ATEX motors: Place the adapter (28) on
the motor shaft and secure with set screw (29).
Attach the adapter flange (30) to the motor (12)
with 4 socket head cap screws (31).
10. For UL motors: Place coupling (9) flush to the
bottom of the motor shaft. See Figure 4, left side.
Securely tighten set screw in coupling.
For ATEX motors: Place coupling (9) flush to the
bottom of the adapter (28). See Figure 4, right
side.
MOTOR THERMOSTAT LEADS
For ATEX motors, follow the thermal protection wiring
requirements described in the ATEX motor manual.
The ATEX motor manual is included with the agitator.
For Non-Graco supplied VFD — see the motor
Installation manual for instructions to connect to the
VFD.
Grounding the Agitator
Figure 4 Coupling on Motor Shaft
11. Place motor on motor flange (10) and secure
with 4 cap screws (13). Rotate motor to desired
location based on the electrical connection. If
motor is to be removed often, motor can be
secured to the motor flange with the supplied
wing screws (labeled as 13 in parts list).
VFD
See the VFD manufacturer’s manual for information
on installation and operation of the VFD.
For a Graco supplied VFD, see manual 3A4793 for
information on VFD installation and operation.
Connect VFD to Motor
NOTICE
To avoid equipment damage, do not plug the
motor directly into a wall socket. The motor must
be wired to a VFD.
The equipment must be grounded to reduce the
risk of static sparking and electric shock. Electric
or static sparking can cause fumes to ignite or
explode. Improper grounding can cause electric
shock. Grounding provides an escape wire for the
electric current.
The drum cover and all electrically conductive
objects or devices in the dispensing area must be
properly grounded. Check your local electrical code
for detailed grounding instructions for your area and
type of equipment.
To ground the agitator, connect one end of the
ground wire (G) to the ground connector on the
agitator (33). Connect the other end of the ground
wire to a true earth ground.
NOTE: Ground wire is not supplied. To order
separately, use part number 237569, Wire Assembly,
25 FT.
Follow the instructions in the motor manufacturer’s
manual provided with this agitator to connect the
VFD to the motor. Wire size, fuse size, and other
electrical devices must comply with all local codes
and regulations.
Motors are equipped with an automatic thermal
protective device. Review the warning label on the
motor stating the requirement for connecting to the
control circuit terminals of the VFD. UL and NEC
require connection of motor thermostat leads P1 and
P2 into the control portion of a manual reset start
circuit.
For Graco supplied VFDs, motor thermostat leads P1
and P2 connect to terminals 4 and 13B on the VFD,
as shown below.
8
Figure 5 Agitator Ground Wire
3A4553F
Installation
Gear Reducer Kit Installation
The following figures illustrate how to install the gear reducer kits onto UL and ATEX listed motor assemblies.
Figure 6
Figure 7
Mounting Kit 25N644 onto UL Motor and
Bearing Housing Assembly
Mounting Kit 25N645 onto ATEX Motor and
Bearing Housing Assembly
Ref
No.
Part No.
8
—
9
9a
10
Qty
Ref
No.
Part No.
Description
DISK, SPIDER,
HYTREL ALIGNMENT
1
34
25N644
25N645
FLANGE, MOUNT,
OUTPUT
1
—
COUPLING,
ALIGNMENT, 0.62”
BORE DIAMETER
1
34a
—
SCREW, SOCKET
HEAD CAP
4
34b
—
FLANGE, SPACER
1
—
SCREW, SET
1
34c
—
1
SCREW, SOCKET
HEAD CAP
4
—
FLANGE, MOUNT,
MOTOR
34d
—
FLANGE, ADAPTER
1
—
MOTOR, UL Listed; 3/4,
230/460, TEFC, XP, 60
HZ (model 25C454)
1
34e
—
COLLAR
1
34f
—
SCREW, SET
1
34g
—
SCREW, CAP
4
—
MOTOR, ATEX; 0.37
kW, 230/400, TEFC,
XP, 50 HZ (model
25C463)
1
—
SCREW, CAP,
SOCKET HEAD;
3/8–16 x 1”
4
—
SCREW, WING;
3/8–16 x 1.5” (Not
Shown)
4
12
13
3A4553F
Description
Qty
9
Operation
Finding the Proper Agitator Speed
Operation
1. Fill the fluid supply container to about 3 or 4
inches (75 to 100 mm) above the agitator blade.
2. Start the agitator and gradually increase the
speed until a vortex begins to form in the fluid.
3. Reduce the speed slightly, then fill the fluid
container.
To reduce the risk of serious injury, including cuts,
amputation of fingers by the agitator blades, and
splashing in the eyes or on the skin, always power
off and disconnect power to the VFD before raising,
checking, or repairing the agitator.
NOTE: Speed is limited to approximately 300 rpm for
the 12” (30 cm) impeller.
If using a Graco supplied VFD, the agitator speed
can be calculated by using the formula below, or
determined by the graph below using the VFD
frequency.
Equipment surfaces and fluid that is heated can
become very hot during operation, resulting in
severe burns. To avoid severe burns do not touch
hot fluid or equipment.
Example 1: (AIB) x C = D
Example 2: (10 hz I60 hz) x 1725 rpm = 292 rpm
General Operation
Use the VFD to start, stop, and adjust the agitator
speed. See the VFD manufacturer’s manual for
operating information. For a Graco supplied VFD,
see manual 3A4793 for operating information.
Agitators are used to maintain solids in suspension.
If solids have settled in the container, use a shaker
or some other device to bring product back in
suspension before installing and operating the
agitator.
A
VFD Frequency
B
Motor Frequency
C
Motor Speed
D
Agitator RPM
Note
Divide agitator speed by 5 when agitator
installation contains the optional gear
reducer.
Activate the agitator to mix fluid thoroughly before
supplying fluid to the dispensing equipment. Continue
mixing fluid while the dispensing equipment is being
supplied.
NOTE: Always use moderate agitation speeds.
Excessive agitator speed may cause vibration,
foaming of fluid, and increased wear on parts.
Agitator Shaft Speed
650
600
550
500
450
400
350
(rpm)
300
250
200
150
100
50
0
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20
VFD Frequency (Hz)
— UL Motor Agitator Shaft Speed – – – ATEX Motor Agitator Shaft speed
10
3A4553F
Maintenance
Maintenance
Bearings
Bearings are sealed and do not require lubrication.
Inspect yearly to verify bearings are running smoothly
and not damaged. Replace if necessary with a new
bearing housing.
Moving parts, such as an impeller blade, can pinch
or amputate fingers. To reduce risk of injury,
always power off and disconnect power from the
VFD before raising, checking, or repairing the
agitator.
Routine Periodic Maintenance
Gear Reducer
The gear reducer is filled with synthetic oil and should
be replaced after every 20,000 operating hours or
after every four years. Consult the gear reducer
manual shipped with the gear reducer for instructions
on replacing the lubrication oil.
Check and retighten all cap screws every six months
or during down times if they occur more frequently.
Check Screw and Bolt Tightness
Within the first two weeks of operation, check all cap
screws and set screws to make sure the screws are
tightened. Retighten as required.
3A4553F
11
Service
Service
9. Complete the procedure by following the steps in
Motor, Bearing Housing, and Impeller Installation,
page 7 .
• Moving parts, such as an impeller blade, can
pinch or amputate fingers. To reduce risk of
injury, always disconnect power from the agitator
before performing maintenance or service.
• Improper handling of hazardous fluids or inhaling
toxic fumes can cause serious injury due to
splashing in the eyes, ingestion, or bodily
contamination.
Shaft Seal Removal and Replacement
The shaft seal (2) and spacer (3) are located at the
bottom of the agitator flange (1). The shaft seal
should be inspected periodically, per usage, for wear
or damage, and replaced if necessary.
Figure 8 Shaft Seal Replacement for
Flange/Quick-clamp Mount
To inspect and replace the shaft seal follow the steps
below.
1. Disconnect the VFD power supply.
2. Remove the motor and the agitator shaft by
reversing the steps in Motor, Bearing Housing,
and Impeller Installation, page 7 .
3. Remove the cap screws (5) holding the bearing
housing (4) in place.
4. Remove the bearing housing.
5. Remove the spacer (3) and shaft seal (2).
6. Inspect the seal for damage. Replace if
necessary.
7. To reinstall, place the new seal spring-side down
in the flange (1) with spacer on top of it.
8. Place the bearing housing on the flange and
secure with the cap screws. Tighten securely.
Figure 9 Shaft Seal Replacement for Pressure
Tank
12
3A4553F
Parts
Parts
Models 25C454 and 25C463
Flange Mount
3A4553F
13
Parts
Ref
No.
Part No.
A
N/A
Description
ASSEMBLY,
HOUSING/FLANGE,
BEARING
1
1
1*
17N898
2*
17N588
SEAL, PTFE
1
15Y360
SPACER, SEAL, ASME
SHAFT
1
25C455
HOUSING, BEARING
1
4*
112222
SCREW, CAP,
SOCKET HEAD;
1/4–20 x 1”
8
6
17N949
RING, RETAINING,
HEAVY DUTY
1
7
122761
COUPLING,
ALIGNMENT, 0.75”
BORE DIAMETER
1
7a
N/A
8
122760
5*
9
9a
10
16P923
N/A
SCREW, SET
DISK, SPIDER,
HYTREL ALIGNMENT
1
COUPLING,
ALIGNMENT, 0.62”
BORE DIAMETER
1
SCREW, SET
1
17N899
FLANGE, MOUNT,
MOTOR
1
25C967
MOTOR, UL Listed; 3/4,
230/460, TEFC, XP, 60
HZ (model 25C454)
1
25C968
MOTOR, ATEX; 0.37
kW, 230/400, TEFC,
XP, 50 HZ (model
25C463)
12
Part No.
Description
C19837
SCREW, CAP,
SOCKET HEAD;
3/8–16 x 1”
4
17P459
SCREW, WING;
3/8–16 x 1.5 “ (Not
Shown)
4
20
17N963
GASKET, AGITATOR
7.5” Diameter
1
IMPELLER, 4”; KIT
1
23+
See
Table 3
IMPELLER, 8”; KIT
1
IMPELLER, 12”; KIT
1
SCREW, SET
1
13
FLANGE, MOUNTING,
3" LID; 150#
3*
Ref
No.
Qty
1
Qty
23a
N/A
24+
See
Table 4
SHAFT, AGITATOR
1
26
17R748
BOLT, EYE;
3/8–16 x 1.5”
2
28
17P777
ADAPTER, MOTOR,
ATEX
1
29
108161
SCREW, SET,
SOCKET HEAD;
M4 x 0.7 x 8 mm
1
30
17P776
FLANGE, MOTOR,
ATEX
1
31
107530
SCREW, CAP,
SOCKET HEAD;
M6 x 1 x 12 mm
4
33
116343
SCREW, GROUND,
WASHER HEAD;
M5 x 8 mm
1
44▲
17R088
LABEL, WARNING
1
* Part of factory-assembled item A.
+
Not included with 25C454 or 25C463. Must be
ordered separately.
▲ Replacement
Danger and Warning labels, signs,
tags, and cards are available at no cost.
14
3A4553F
Parts
Models 25C453, 25C575, 25C464, 25C576
Quick-Clamp Mount
3A4553F
15
Parts
Ref
No.
Part No.
A
N/A
ASSEMBLY,
HOUSING/FLANGE,
BEARING
Qty
Ref
No.
1
Part No.
Description
C19837
SCREW, CAP,
SOCKET HEAD;
3/8–16 x 1”
4
17P459
SCREW, WING;
3/8–16 x 1.5” (Not
Shown)
4
IMPELLER, 4”; KIT
1
IMPELLER, 8”; KIT
1
IMPELLER, 12”; KIT
1
SCREW, SET
2
13
17N901
FLANGE, AGITATOR,
3" QUICK-CLAMP
(models 25C453,
25C464)
17P566
FLANGE, AGITATOR,
4" QUICK-CLAMP
(models 25C575,
25C576)
1
17N588
SEAL, PTFE
1
15Y360
SPACER, SEAL, ASME
SHAFT
1
4*
25C455
HOUSING, BEARING
5*
112222
6
1*
1
23+
See
Table 3
Qty
23a
N/A
24+
See
Table 4
SHAFT, AGITATOR
1
1
26
17R748
BOLT, EYE;
3/8–16 x 1.5”
2
SCREW, CAP,
SOCKET HEAD;
1/4–20 x 1”
8
28
17P777
ADAPTER, MOTOR,
ATEX
1
17N949
RING, RETAINING,
HEAVY DUTY
1
29
108161
SCREW, SET,
SOCKET HEAD;
M4 x 0.7 x 8 mm
1
7
122761
COUPLING,
ALIGNMENT, 0.75”
BORE DIAMETER
1
30
17P776
FLANGE, MOTOR,
ATEX
1
7a
N/A
SCREW, SET
1
31
107530
4
122760
DISK, SPIDER,
HYTREL ALIGNMENT
1
SCREW, CAP,
SOCKET HEAD,
M6 x 1 x 12 mm
33
116343
1
SCREW, GROUND,
WASHER HEAD;
M5 x 8 mm
1
16P923
COUPLING,
ALIGNMENT, 0.62”
BORE DIAMETER
44▲
17R088
LABEL, WARNING
1
SCREW, SET
1
* Part of factory-assembled item A.
17N899
FLANGE, MOUNT,
MOTOR
1
+ Not
25C967
MOTOR, UL LISTED;
3/4, 230/460, TEFC,
XP, 60 HZ (model
25C453 and 25C575)
1
25C968
MOTOR, ATEX; 0.37
kW, 230/400 V, TEFC,
XP 50 HZ (model
25C464 and 25C576)
1
2*
3*
8
9
9a
10
N/A
12
16
Description
included with 25C453, 25C575, 25C464, or
25C576. Must be ordered separately.
▲ Replacement
Danger and Warning labels, signs,
tags, and cards are available at no cost.
3A4553F
Parts
Models 25C462, 25C470, 25C471, 25C465, 25C472, 25C473
Pressure Tank Mount
3A4553F
17
Parts
Ref
No.
Part No.
A
N/A
Description
Qty
ASSEMBLY,
HOUSING/FLANGE,
BEARING
1
1
1*
17N900
2*
17N588
SEAL, PTFE
1
15Y360
SPACER, SEAL, ASME
SHAFT
1
4*
25C455
HOUSING, BEARING
1
5*
112222
SCREW, CAP,
SOCKET HEAD;
1/4–20 x 1”
8
6
17N949
RING, RETAINING,
HEAVY DUTY
1
7
122761
COUPLING,
ALIGNMENT, 0.75”
BORE DIAMETER
1
SCREW, SET
1
1
7a
N/A
8
122760
DISK, SPIDER,
HYTREL ALIGNMENT
16P923
COUPLING,
ALIGNMENT, 0.62”
BORE DIAMETER
1
SCREW, SET
1
1
9
9a
N/A
10
17N899
FLANGE, MOUNT,
MOTOR
25C967
MOTOR, UL Listed; 3/4,
230/460, TEFC, XP, 60
HZ (models 25C462,
25C470, 25C471)
1
MOTOR, ATEX; 3/4,
230/460, TEFC, XP, 60
HZ (models 25C465,
25C472, 25C473)
1
12
25C968
Part No.
Description
C19837
SCREW, CAP,
SOCKET HEAD;
3/8–16 x 1”
4
17P459
SCREW, WING;
3/8–16 x 1.5” (Not
Shown)
4
21
196309
GASKET
1
22
188784
NUT
1
1
17N704
IMPELLER, 4”; KIT
(models 25C462,
25C470, 25C465,
25C472)
IMPELLER, 4”; KIT
(models 25C471,
25C473)
2
SCREW, SET
1
17P015
SHAFT, 34” (25C471,
25C473)
1
17P020
SHAFT, 24” (25C470,
25C472)
1
17P023
SHAFT, 18” (25C462,
25C465)
1
26
17R748
BOLT, EYE;
3/8–16 x 1.5”
2
28
17P777
ADAPTER, MOTOR,
ATEX
1
29
108161
SCREW, SET,
SOCKET HEAD;
M4 x 0.7 x 8 mm
1
30
17P776
FLANGE, MOTOR,
ATEX
1
31
107530
SCREW, CAP,
SOCKET HEAD;
M6 x 12 mm
4
32
17N542
WASHER, LOCK
1
33
116343
SCREW, GROUND,
WASHER HEAD;
M5 x 8 mm
1
44▲
17R088
LABEL, WARNING
1
13
FLANGE, AGITATOR,
PRESSURE TANK
3*
Ref
No.
23+
23a
24
N/A
Qty
* Part of factory-assembled item A.
▲ Replacement
Danger and Warning labels, signs,
tags, and cards are available at no cost.
18
3A4553F
Dimensions
Dimensions
Reference
Flange Mount Models
Quick Clamp Models
Pressure Tank Mount Models
in. (cm)
in. (cm)
in. (cm)
UL
ATEX
UL
ATEX
UL
ATEX
25C454
25C463
25C453,
25C575
25C464,
25C576
25C462,
25C470,
25C471
25C465,
25C472,
25C473
11.62 (29.5)
8.84 (22.5)
11.62 (29.5)
8.84 (22.5)
11.62 (29.5)
8.84 (22.5)
(with
optional gear
reducer)
24.52 (62.3)
20.14 (51.2)
24.52 (62.3)
20.14 (51.2)
24.52 (62.3)
20.14 (51.2)
B
20.44 (51.9)
17.75 (45.1)
20.84 (52.9)
17.75 (45.1)
20.48 (52.0)
17.75 (45.1)
28.04 (71.2)
24.65 (62.6)
28.43 (72.2)
24.65 (62.6)
28.08 (71.3)
24.65 (62.6)
-
-
-
-
5 Gallon 12.80 (32.5)
-
-
-
-
10 Gallon 18.80 (47.8)
-
-
-
-
15 Gallon 32.80 (83.3)
A
A
B
(with
optional gear
reducer)
C
3A4553F
19
Power Usage Charts
Power Usage Charts
In the following charts, the power measured includes the VFD power usage. That power was measured with 480 VAC
3 ph line voltage with no gear reductions.
UL Motor with 4 in. (10 cm) Diameter Impeller
60
50
Material Viscosity
40
Power (W)
300 cp
30
100 cp
20
0 cp
10
0
0
50
100
150
200
250
300
350
400
450
500
Agitator RPM
UL Motor with 8 in. (20 cm) Diameter Impeller
200
180
160
140
Material Viscosity
120
Power (W)
100
300 cp
80
100 cp
60
0 cp
40
20
0
0
50
100
150
200
250
300
350
400
450
500
Agitator RPM
UL Motor with 12 in. (30 cm) Diameter Impeller
400
350
300
Material Viscosity
250
Power (W)
200
300 cp
150
100 cp
100
0 cp
50
0
0
50
100
150
200
250
300
350
400
450
500
Agitator RPM
20
3A4553F
Power Usage Charts
ATEX Motor with 4 in. (10 cm) Diameter Impeller
100
90
80
70
Material Viscosity
60
Power (W)
50
300 cp
40
100 cp
30
0 cp
20
10
0
0
50
100
150
200
250
300
350
400
450
500
Agitator RPM
ATEX Motor with 8 in. (20 cm) Diameter Impeller
400
350
300
Material Viscosity
250
Power (W)
200
300 cp
150
100 cp
100
0 cp
50
0
0
50
100
150
200
250
300
350
400
450
500
Agitator RPM
ATEX Motor with 12 in. (30 cm) Diameter Impeller
400
350
300
Material Viscosity
250
Power (W)
200
300 cp
150
100 cp
100
0 cp
50
0
0
50
100
150
200
250
300
350
400
450
500
Agitator RPM
3A4553F
21
Technical Specifications
Technical Specifications
Electric Direct Drive Agitators
Motor Power
Motor Hazardous Location Approvals
Motor Electrical Requirements
Maximum Recommended Agitator Shaft Speed
Minimum Recommended Motor Speed**
Weight (Motor, Bearing Housing, Shaft, Blade)
UL: 3/4 hp;
ATEX: 0.37 kW
UL: Explosion Proof Class 1 Group C&D
Class 2 Group F&G T3C
ATEX/IECEx : Ex II 2G Ex d IIB T4 Gb (see
declarations included with motors)
UL: 230/460 VAC, 60 Hz, 3 Phase
ATEX/IECEx: 230/400 VAC, 50 Hz, 3 Phase
500 rpm*
2 hz, 58 rpm (UL), 2 hz, 56 rpm (ATEX/IECEx)
55–65 lb. (25–30 kg)
Wetted Parts
300 series SST
Maximum Allowable Process Fluid Temperature
194° F (90° C)
Recommended Maximum Material Viscosity
Noise Data (Sound Pressure Level)
Ambient and Operating Temperature Range (limited
by motor)
300 cP
Less than 75 dBA
32° F to 104° F (0° C to 40° C)
* See Finding the Proper Agitator Speed, page 10 for instructions on calculating agitator speed.
** The minimum recommended speed is based on an operating environment temperature of 72° F (22° C). Higher
environmental temperatures may require higher speeds for adequate motor cooling.
22
3A4553F
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and
bearing its name to be free from defects in material and workmanship on the date of sale to the original
purchaser for use. With the exception of any special, extended, or limited warranty published by
Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the
equipment determined by Graco to be defective. This warranty applies only when the equipment is
installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any
malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion,
inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco
component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the
incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied
by Graco, or the improper design, manufacture, installation, operation or maintenance of structures,
accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an
authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified,
Graco will repair or replace free of charge any defective parts. The equipment will be returned to
the original purchaser transportation prepaid. If inspection of the equipment does not disclose any
defect in material or workmanship, repairs will be made at a reasonable charge, which charges may
include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above.
The buyer agrees that no other remedy (including, but not limited to, incidental or consequential
damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential
loss) shall be available. Any action for breach of warranty must be brought within two (2) years of
the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH
ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED
BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches,
hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with
reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting
from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or
other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of
Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or
indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction
du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les
procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
To place an order, contact your Graco Distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original Instructions. This manual contains English. MM 3A4553
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2019, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision F, August 2019

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
