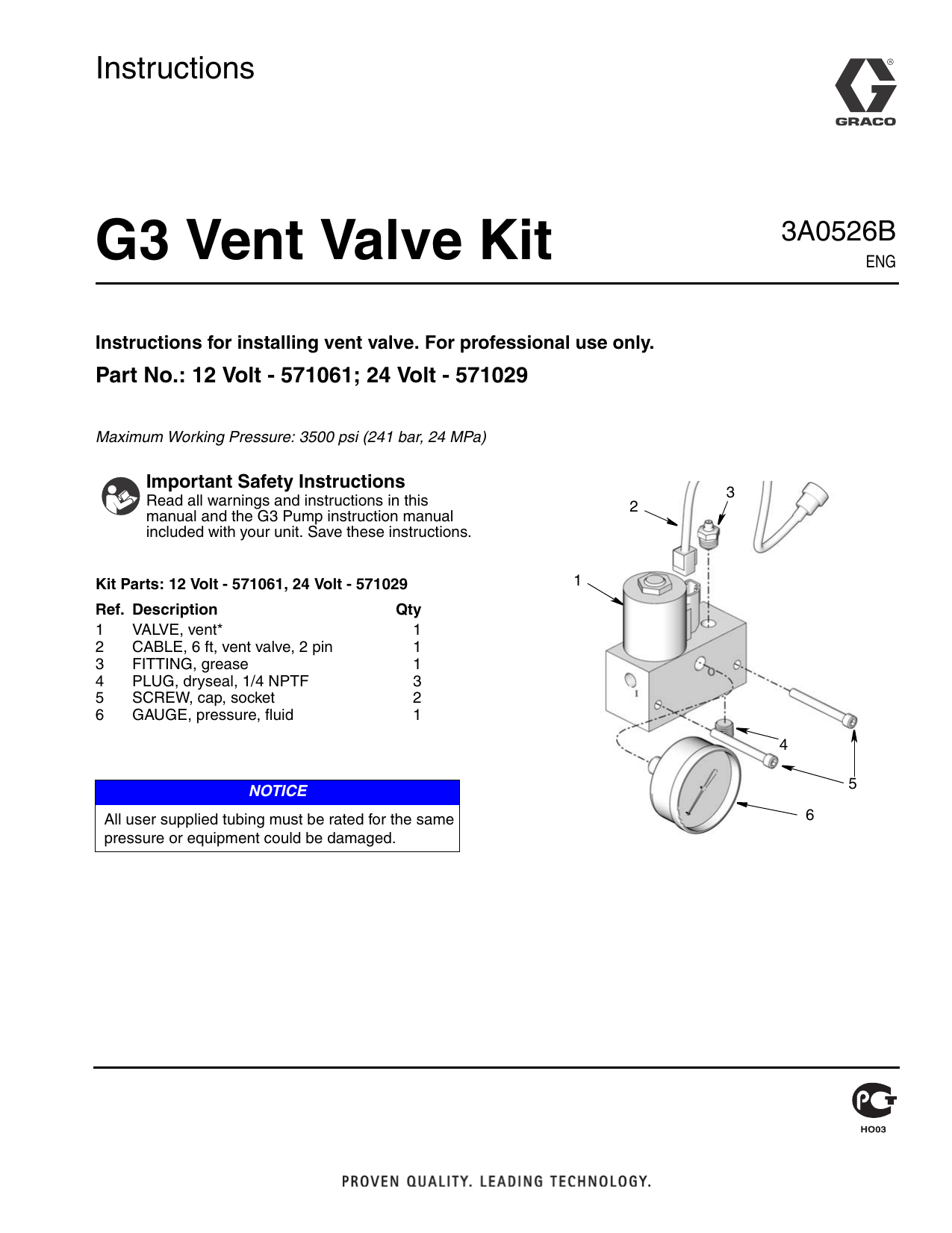

Graco 3A0526B G3 Vent Valve Kit Instructions

Instructions
G3 Vent Valve Kit
3A0526B
ENG
Instructions for installing vent valve. For professional use only.
Part No.: 12 Volt - 571061; 24 Volt - 571029
Maximum Working Pressure: 3500 psi (241 bar, 24 MPa)
Important Safety Instructions
Read all warnings and instructions in this
manual and the G3 Pump instruction manual
included with your unit. Save these instructions.
Kit Parts: 12 Volt - 571061, 24 Volt - 571029
Ref.
1
2
3
4
5
6
Description
VALVE, vent*
CABLE, 6 ft, vent valve, 2 pin
FITTING, grease
PLUG, dryseal, 1/4 NPTF
SCREW, cap, socket
GAUGE, pressure, fluid
2
3
1
Qty
1
1
1
3
2
1
4
5
NOTICE
All user supplied tubing must be rated for the same
pressure or equipment could be damaged.
6
Instructions
Instructions
Pressure Relief
3. Mount vent valve block (1) to a fixed surface near
the G3 pump using mounting holes (a) and two
socket screws (5).
1
SKIN INJECTION HAZARD
High-pressure fluid from dispense device, hose leaks, or
ruptured components will pierce skin. This may look like
just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
Follow Pressure Relief Procedure in this manual, when
you stop dispensing and before cleaning, checking, or
servicing equipment.
Relieve pressure in system by using two wrenches
working in opposite directions on pump element and
pump element fitting to only loosen fitting.
a
FIG. 2: Mounting Dimension a = 3.25 inches (8.255
cm). Thread 1/4 - 20 UNC-2A
4. Connect end of cable (2) to the G3 (FIG. 3).
NOTE: When loosening pump element fitting, do NOT
loosen pump element. Loosening pump element will
change the output volume.
NOTE: Verify correct port on G3 label is selected.
Locate symbol shown in FIG. 3 on G3 label to select
correct port.
Vent Valve
Symbol
2
FIG. 3
FIG. 1
Installation
Reference numbers used in these instructions correspond to parts included in Kit and are provided on page
1. Parts identified with an alpha character are user provided or already installed components.
1. Disconnect power source.
2. If unit has already been in service, relieve pressure.
2
3A0526B
Instructions
5. Connect cable connector (2) to solenoid valve (1)
(FIG. 4).
8. Use a wrench to loosen plug (h) from return location. Remove plug from port (FIG. 7).
2
1
h
FIG. 7
9. Apply thread sealant (user supplied) to threads (j) of
a tube fitting (k).
FIG. 4
6. Connect inlet tube (b) to pump element fitting (c)
and inlet fitting (d) to manifold port (stamped with an
“I”) (FIG. 5). Wrench tighten only.
d
c
NOTE: Although the example shown in FIG. 8 shows
a 90° elbow fitting, this is only shown for reference.
The user may use what ever fitting best suits their
installation.
10. Install tube fitting (k) in open port.
b
FIG. 5
j
7. Connect main tube (e) to any manifold outlet (f)
(stamped with an “O”) and injector inlet (g) (FIG. 6).
k
FIG. 8
11. Wrench tighten fitting (k) then torque to 50 in. lbs
(5.6 N•m).
f
e
g
FIG. 6
3A0526B
3
12. Install vent tube (m) between vent port (n) and fitting
(k) (FIG. 9).
13. The kit includes the following additional parts:
•
•
k
•
Zerk Grease Fitting (optional) (4)
Plugs (must be installed in any open outlet port)
(5)
Pressure Gauge (optional) (7)
Install any of these parts in the remaining outlet
ports on the manifold block.
m
n
FIG. 9
NOTE: Any port not used by a pressure gauge (7) or
zerk grease fitting (4) MUST have a plug (5)
installed in the opening.
Retrofitting Existing
Installations
NOTE: These instructions assume grease is already
loaded in injector valves.
Installation
1. Disconnect power source.
2. Relieve pressure, page 2.
3. Remove existing plumbing installed between pump
element (c) (FIG. 5) and injector inlet (g) (FIG. 6).
4. Continue installation following Installation Instructions, Steps 3 - 13, on pages 2 - 4.
