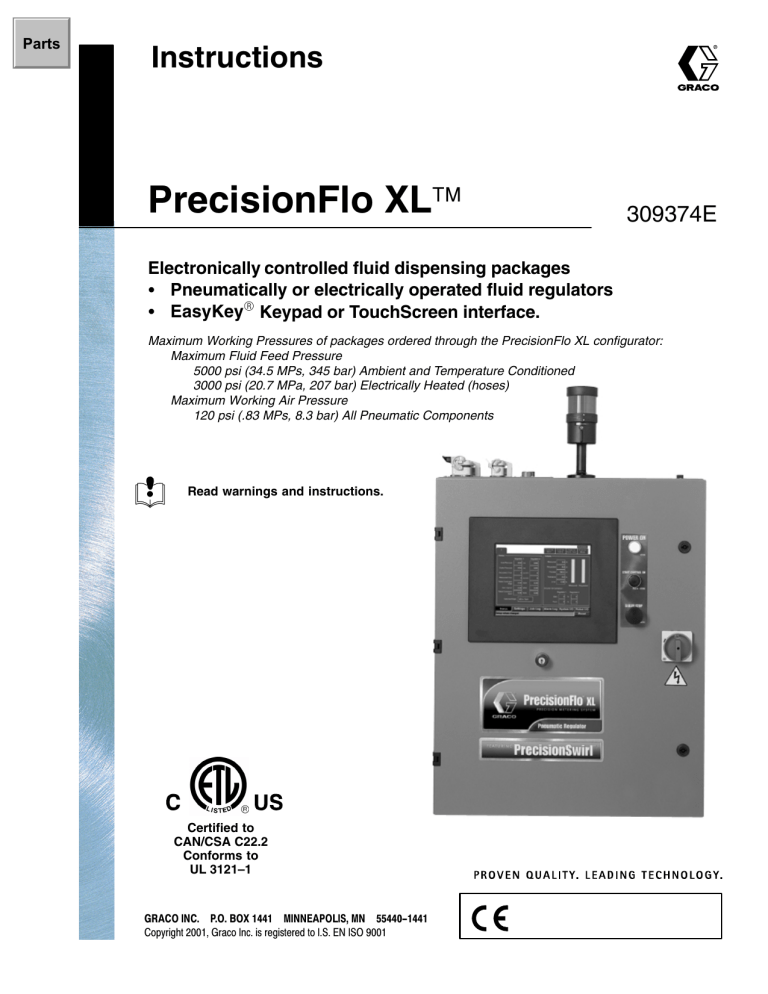

Graco 309374E PrecisionFlo XL Owner's Manual

Parts
Instructions
PrecisionFlo XL
309374E
Electronically controlled fluid dispensing packages
S Pneumatically or electrically operated fluid regulators
S EasyKeyR Keypad or TouchScreen interface.
Maximum Working Pressures of packages ordered through the PrecisionFlo XL configurator:
Maximum Fluid Feed Pressure
5000 psi (34.5 MPs, 345 bar) Ambient and Temperature Conditioned
3000 psi (20.7 MPa, 207 bar) Electrically Heated (hoses)
Maximum Working Air Pressure
120 psi (.83 MPs, 8.3 bar) All Pneumatic Components
Read warnings and instructions.
Certified to
CAN/CSA C22.2
Conforms to
UL 3121–1
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 2001, Graco Inc. is registered to I.S. EN ISO 9001
Warnings
Table of Contents
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Typical PrecisionFlo XL Configuration . . . . . . . . . . 9
Sound Deadener Package . . . . . . . . . . . . . . . . . . 10
Pneumatic Regulator Package . . . . . . . . . . . . . . . 11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before Beginning Installation . . . . . . . . . . . . . . . . 12
Mounting Control Unit . . . . . . . . . . . . . . . . . . . . . . 13
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . 15
Grounding Control Unit . . . . . . . . . . . . . . . . . . . . . 15
Connecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . 16
Checking Ground Continuity . . . . . . . . . . . . . . . . . 17
Connecting Fluid and Air Lines . . . . . . . . . . . . . . 18
Connecting to Power Source . . . . . . . . . . . . . . . . 19
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . 20
Safety Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . 20
PrecisionFlo XL User Interface . . . . . . . . . . . . . . 21
Starting the System . . . . . . . . . . . . . . . . . . . . . . . . 23
Control Unit Buttons, Switches and Indicators . 24
Loading Material . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Robot Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Control Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Shutting Down the System . . . . . . . . . . . . . . . . . . 29
Configuring Software . . . . . . . . . . . . . . . . . . . . . . . . . 30
Setting Flow Meter K–Factors . . . . . . . . . . . . . . . 31
Calibrating Pressure . . . . . . . . . . . . . . . . . . . . . . . 32
Flow Rate Calibration . . . . . . . . . . . . . . . . . . . . . . 33
Other Software Settings . . . . . . . . . . . . . . . . . . . . 34
On/Off Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Verifying FLow Meter Calibration . . . . . . . . . . . . . . 38
Verification and Calibration . . . . . . . . . . . . . . . . . . 38
Communicating with PrecisionFlo XL . . . . . . . . . 39
PrecisionFlo XL Module Operation . . . . . . . . . . . . 40
PrecisionFlo XL EasyKey Interface . . . . . . . . . . . . 41
PrecisionFlo XL TouchScreen Interface . . . . . . . . 57
PrecisionFlo XL Remote Screen Interface . . . . . . 86
Robot I/O Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Discrete Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Input and Output Signals . . . . . . . . . . . . . . . . . . . . 97
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Typical Dispense Cycle . . . . . . . . . . . . . . . . . . . . 101
Typical Job Cycle . . . . . . . . . . . . . . . . . . . . . . . . . 102
Fault Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Volume Reporting . . . . . . . . . . . . . . . . . . . . . . . . . 105
Flow Rate Calculation . . . . . . . . . . . . . . . . . . . . . 107
Flow Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Volume Compensation . . . . . . . . . . . . . . . . . . . . 108
2
309374
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flow Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dispense Valves . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Component Paths . . . . . . . . . . . . . . .
Fluid Module #1 . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Module #2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting and Fault Recovery . . . . . . . . .
Frequently Asked Questions . . . . . . . . . . . . . . . . .
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standard Hoses . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid Module Components . . . . . . . . . . . . . . . . .
Dispensing Devices . . . . . . . . . . . . . . . . . . . . . . .
Filtering Accessories . . . . . . . . . . . . . . . . . . . . . .
PrecisionFLo XL Remote Control Box . . . . . . . .
Adding Local Stations to a Remote Box . . . . . .
Adding Swirl Capability to an
Existing Control Box . . . . . . . . . . . . . . . . . . . . . . . .
Temperature Control . . . . . . . . . . . . . . . . . . . . . . . .
Temperature-Conditioned Package
(St. Clair Systems) . . . . . . . . . . . . . . . . . . . . . . . .
Electric Heat Package . . . . . . . . . . . . . . . . . . . . .
Fluid Plate Electric Heat Kits . . . . . . . . . . . . . . .
Coriolis Flow Meter Kit . . . . . . . . . . . . . . . . . . . . . .
Coriolis Flow Meter Settings . . . . . . . . . . . . . . . . .
Appendix A
Ethernet and FTP – TouchScreen Only . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix B
TouchScreen and Remote Screen
Configuration and Calibration . . . . . . . . . . . . . . . .
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . .
PC/104 Board Configurations . . . . . . . . . . . . . . .
Configuration Mode . . . . . . . . . . . . . . . . . . . . . . .
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . .
Graco Phone Numbers . . . . . . . . . . . . . . . . . . . . . .
109
109
109
110
110
111
112
113
113
114
116
121
125
128
128
130
130
131
131
132
133
134
136
136
137
139
141
144
145
145
145
145
145
146
151
151
152
153
156
156
Warnings
Warnings
Warning Symbol
Caution Symbol
WARNING
CAUTION
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INJECTION HAZARD
Spray from the dispensing device, hose leaks, or ruptured components can inject fluid into your body
and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on
the skin can also cause serious injury.
Fluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate medical attention.
Do not point the dispensing device at anyone or at any part of the body.
Do not put hand or fingers over the front of the dispensing device.
Do not stop or deflect fluid leaks with your hand, body, glove, or rag.
Follow the Pressure Relief Procedure on page 20 whenever you are instructed to: relieve pressure; stop dispensing; clean, check, or service the equipment; or install or clean a spray tip or
nozzle.
Tighten all the fluid connections before operating the equipment.
Check the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.
Permanently coupled hoses cannot be repaired; replace the entire hose.
Always wear eye protection and protective clothing when installing, operating, or servicing this
dispensing equipment.
TOXIC FLUID HAZARD
Hazardous fluids or toxic fumes can cause serious injury or death if splashed in the eyes or on the
skin, swallowed, or inhaled.
Know the specific hazards of the fluid you are using. Read the fluid manufacturer’s warnings.
Follow the fluid manufacturer’s recommendations.
Provide fresh air ventilation to avoid the buildup of vapors from the fluid being dispensed.
Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
Wear the appropriate protective clothing, gloves, eyewear, and respirator.
309374
3
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
INSTRUCTIONS
Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and
result in serious injury.
This equipment is for professional use only.
Read all instruction manuals, warnings, tags, and labels before operating the equipment.
Use the equipment only for its intended purpose. If you are uncertain about usage, call the
distributor closest to you. See the Graco Phone Number on page 156 for information.
Only use the PrecisionFlo XL fluid modules with the PrecisionFlo XL control unit.
Only use a dispensing device appropriate for the fluid and application method, and capable of
operating at the highest possible fluid supply pressure the module may experience.
Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
Check the equipment daily. Repair or replace worn or damaged parts immediately.
Do not disassemble the PrecisionFlo XL metering valve motor. The motor contains powerful
magnets, which could attract metal objects and create a hazardous condition if the motor end
plates are removed. Contact your Graco distributor for motor service.
Do not exceed the maximum working pressure of the lowest rated system component.
Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not
expose Graco ambient hoses to temperatures above 180F (82C) or below –40F (–40C).
Do not use the hoses to pull the equipment.
Use only fluids that are compatible with the equipment wetted parts. See the Technical Data
sections of all the equipment manuals. Read the fluid manufacturer’s warnings.
Comply with all applicable local, state and national fire, electrical and other safety regulations.
Do not touch the metal heat sink on the metering valve when the surface is hot.
Do not cover the PrecisionFlo XL linear metering valve; the motor needs air ventilation for
cooling.
Do not attempt to modify the programming of the module. Any modification of the programming
could result in serious injury or damage to the module.
MOVING PARTS HAZARD
Moving parts, such as the fluid needle, can pinch fingers.
Do not operate the equipment with the guard removed.
Keep clear of any moving parts when starting or operating the equipment.
4
309374
Warnings
WARNING
FIRE, EXPLOSION, AND ELECTRIC SHOCK HAZARD
Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition and
result in fire or explosion and serious injury.
Ground the equipment and the object being sprayed. See Grounding the Control Assembly on
page 15.
If there is any static sparking or you feel an electric shock while using the equipment, stop dispensing immediately. Do not use the equipment until you have identified and corrected the problem.
Make sure all electrical work is performed by a qualified electrician only.
Have any checks, installation, or service to electrical equipment performed by a qualified electrician
only.
Make sure all electrical equipment is installed and operated in compliance with applicable codes.
Do not install the PrecisionFlo XL module in a hazardous area, as defined in Article 500 of the
National Electrical Code (USA).
Turn off power to the PrecisionFlo XL module before disconnecting any cables connected to the
control unit or other components.
Disconnect electrical power at the main switch before servicing the equipment.
Keep the dispensing area free of debris, including solvent, rags, and gasoline.
Before operating the equipment, extinguish all open flames or pilot lights in the dispense area.
Do not smoke in the dispensing area.
Disconnect the electrical cables from the PrecisionFlo XL metering valve before servicing the
valve.
Keep liquids away from the electrical components
309374
5
Model Identification
Model Identification
PrecisionFlo XL
Model Number Identification
Graco’s PrecisionFlo XL is an electronically controlled
fluid regulating package designed to meter and dispense adhesives and sealants. Your equipment was
likely ordered as a configured package to fit your
application. The configuration was picked from the
categories in the table on page 7.
On your control unit, there is an ID plate with a model
number on it. Use the table on page 7 for explanations of each code letter and to define what equipment
was ordered as part of the configured package from
Graco. Where applicable, reference is given to other
instruction forms in your package binder.
Typical Model Number
XL-DCode
A
B
C
D
E
F
G
H
Example: XL–D–1–2–1–2–2–4–2–3–2–1–N–N–2–1–E
6
309374
J
K
LA
LB
M
N
P
Model Identification
Table 1: Model Code Information
Model
Product Description
Form Number
XL–E
PrecisionFlo Fluid Module
N/A
Code A
PrecisionFlo XL Package
309374
2
Electrical Enclosure Only
309374
N
Enclosure
Back plane Only
309374/309364
Rotary switch power disconnect
309374/309364
2
Knife switch power disconnect
309374/309364
Cables
1
All cables included
309374/309364
2
No cables included
N/A
Code D
User Interface
N
None – To be linked to another
N/A
1
Standard User Interface
309374
2
Advanced User Interface
309374
3
Remote Mounted Advanced User Interface
309374
Code E
Product
Description
Form
Accy.
– Listed in Accessories section
of Number
manual.
Dual Pneumatic Regulators
(2 Fluid Plates)
6
Low Viscosity (1/2” reg)
308647
7
Med/High Viscosity (3/4” reg)
307517
Code J
1
Code C
Model
Configuration
1
Code B
N/A – Not applicable
Flow Meter
N
None – pressure regulation only
N/A
1
Spur: G3000
308778
2
Helical: SRZ–40
308968
3
Non-intrusive Mass Flow – mounted
remotely
309374
Code K
Dispense Valve / Applicator
N
None
N/A
1
AutoPlus SAE (compact) –
stream/spray
308813
2
Endure (snuff back) –
stream/extrude/swirl
309376
3
1K Valve – 45 degree outlet
308876
Code LA
PrecisionSwirl Options (tool mount
only)
Primary Voltage (single phase)
309374/309364
1
110–120 Volts
309374/309364
N
None
N/A
2
220–240 Volts
309374/309364
1
Narrow Pattern (widths from
0.187–0.5”)
310554
3
400–480 Volts
309374/309364
2
Wide Pattern (widths from 0.5–2.5”)
310554
Code F
Robot I/O Interface Options
Code LB
1
24 VDC
309374/309364
2
120 V
309374/309364
3
DeviceNet
309374/309364
4
InterBus
309374/309364
5
ProfiBus
309374/309364
6
ControlNet
309374/309364
Code G
Temperature Control
N
None – Ambient
N/A
1
Temperature Conditioned (50 Hz)
Heat and Cool
St. Clair Manual
2
Temperature Conditioned (50 Hz)
Heat Only
St. Clair Manual
3
Temperature Conditioned (60 Hz)
Heat and Cool
St. Clair Manual
4
Temperature Conditioned (60 Hz)
Heat Only
St. Clair Manual
5
Electrically Heated (50/60 Hz)
309374/309364
Code H
Fluid Module
Electric Regulator / Linear Motor
1
Low Viscosity (PVC)
308601
2
Med/High Viscosity (Hem)
308601
3
Med/High Viscosity–Integrated Regulator (Hem)
308601
Pneumatic Regulator
4
Low Viscosity (1/2” reg)
308647
5
Med/High Viscosity (3/4” reg)
307517
Orbiter Extension Cable Options
N
None
N/A
1
Extension Cable, 6’ (233125)
309374 Accy.
2
Extension Cable, 9’ (233124)
309374 Accy.
3
Extension Cable, 15’ (233123)
309374 Accy.
Code M
Supply Hose
N
None
1
10’ (1” ID)
309374 Accy.
2
20’ (1” ID)
309374 Accy.
Code N
Dispense Hose
N
None
1
6’ x 1/2” ID
309374 Accy.
2
6’ x 5/8” ID
309374 Accy.
3
10’ x 1/2” ID
309374 Accy.
4
10’ x 5/8” ID
309374 Accy.
Code P
Language
E
English
F
French
G
German
I
Italian
J
Japanese
K
Korean
P
Portuguese
S
Spanish
309374
7
Overview
Overview
What This Manual Includes
PrecisionFlo XL Definitions
This manual provides detailed information on the
PrecisionFlo XL control unit and operation of the
PrecisionFlo XL system only. Specific information on
the fluid module or material conditioning systems, for
example, is contained in other instruction forms supplied with each component, as part of the PrecisionFlo
XL system.
Refer to pages 9–11.
Component Description
Control Unit
The PrecisionFlo XL control unit
contains the electronics used to control the fluid module and PrecisionSwirl Orbiter if used.
PrecisionFlo
XL System
The control unit, fluid module, and all
cables and sensors used to measure
and control the fluid application.
Controller
An external electronic (robotic) system having some control interaction
via electronic signals with the PrecisionFlo XL system.
Instruction Manual Conventions
Reference numbers (10) and letters (A) in parentheses
in this manual refer to the numbers and letters in the
illustrations.
Unless otherwise specified, the step-by-step procedures in this manual must be performed in numerical
order. Procedures that contain a list preceded by
bullets can be performed in any order.
Abbreviations and Acronyms
Abb.:
Stands For:
COM
common
FM
flow meter
GND
ground
MP
motor power
msec
milliseconds
MS
motor signal (pressure sensor)
OP
operations cable
psi
pounds per square inch
PVC
Poly Vinyl Chloride
PWM
pulse width modulation
SPC
Statistical Process Control
V
volts
VAC
volts AC
VDC
volts DC
8
309374
TouchScreen TouchScreen and EasyKey are the
and EasyKey two types of interfaces used to set
up, display, operate and monitor the
PrecisionFlo XL system.
Fluid Module The fluid module includes
components that control and monitor
fluid dispensing, such as a fluid
metering valve, flow meter, and
regulator.
Typical PrecisionFlo XL Configuration
Typical PrecisionFlo XL Configuration
Fig. 1 shows the major components in a typical PrecisionFlo XL installation.
9
6
4
1
2
8
3
5
7
Fig. 1
No.
1
2
3
4
5
6
7
8
9
––
Description
Control Unit
Fluid Module
Applicator/Dispense Gun
User Interface
Sealer Robot
Robot Digital Interface Cable (RDR)
Fluid Supply System
Fluid Supply Header
Robot Analog Cable (RAR)
Filter Module (not shown)
Sound Deadener Package with Dual Flow Meters and Swirl Orbiters
309374
9
10
309374
Process Fluid
Supply Pumps
In
Out
Air inlet
Air Inlet
Air signals
to gun
Regulator-type Fluid Module
Air signals
to gun
Operation
Cables
Dual Non-Intrusive Flow Meters
Power
Control Unit with EasyKey
Interface (rotary disconnect
switch shown)
Robot Digital
Robot Analog
In
Out
TI1415A
Tool Mount Swirl Orbiters
Swirl Cable
Swirl Cable
Typical PrecisionFlo XL Configuration
Sound Deadener Package with Dual Flow Meters and Swirl Orbiters
Process Fluid
from Feed Pumps
Power
AIR
Regulator-type Fluid Module
Operation Cable
Feed Hose
Control Unit with TouchScreen
Interface (knife disconnect
switch shown)
Robot Digital
Robot Analog
Air Signals
Gun
233670 Compact
Valve with
244930 Manifold
for streaming
309374
TI1416A
244910 EnDure Valve
for extruding/streaming
higher flow/higher viscosity sealants
Dispense Hose
Typical PrecisionFlo XL Configuration
Pneumatic Regulator Package for Extrusion or Streaming
11
Installation
Installation
Overview
The basic steps to install a Graco PrecisionFlo XL system are shown below. See the separate component manuals
listed for detailed information.
Manual
Installation Steps
1. Mount XL control unit
309374, pg. 13
pg. 15
2. Ground XL control unit.
3. Mount fluid plate.
309375
4. Mount applicator.
*
5. Ground applicator.
6. Connect cables between the XL control unit and:
309364
– plus –
a. Junction box of the fluid module(s).
309375
b. Robot or cell controller.
c.
309374, pg. 16
309364
Swirl Orbiters (if installed).
310558
d. Metering valve with linear motor (if installed).
309384
7. Check ground continuity.
309374, pg. 17
8. Connect air and fluid lines.
309374, pg. 18
a. Connect fluid lines between fluid module(s) and applicator(s). Connect fluid supply
line (and air if needed) to module.
309375
*
b. Connect other fluid and air lines to additional system components as instructed in
their manuals.
*
9. Connect control unit to power source.
*
309374, pg. 19
A number of applicators can be used with the system. Refer to the manual for your applicator.
Before Beginning Installation
Have all system and component documentation
available during installation.
See component manuals for specific data on component requirements.
Electrical schematics are in manual 309364. A copy
of control schematics is inside the control enclosure.
12
309374
Be sure all accessories are adequately sized and
pressure-rated to meet system requirements.
Use the Graco PrecisionFlo XL control unit only
with the PrecisionFlo XL fluid module.
Installation
Mounting Control Unit
WARNING
ELECTROCUTION HAZARD
Installing and servicing this equipment
requires access to parts which could
cause an electric shock or other serious
injury. Have only qualified electricians access the
control unit enclosure.
WARNING
EQUIPMENT MISUSE HAZARD
The PrecisionFlo XL control unit weighs
approximately 110 lbs (50 kg) and
should never be moved or lifted by one
person. Use adequate personnel and support
devices when mounting, moving, or handling the
control unit to prevent equipment damage or personal injury.
If your PrecisionFlo XL is equipped with integrated
temperature-conditioning, it is on a floor stand
frame. Bolt this stand securely to the floor to avoid
tipping.
24”
610 mm
1. Select a location for the PrecisionFlo XL control
unit that allows adequate space for installation,
service, and use of the equipment. See Fig. 2. If
you are using the remote display and the
Precision-Flo XL control unit witll be mounted
away from the operator, the robot controller must
be wired to the “Remote Start” and “Remote Stop”
functions. These are normally controlled by the
push buttons on the PrecisionFlo XL control unit.
See pages 89 and 94.
Mount the control unit so that the disconnect
handle is readily accessible and located
54–67 in. (1.4–1.7 m) above the floor.
For best viewing, the control display should be
60–64 in. (1.5–1.6 m) from the floor.
Ensure all fluid lines, cables, and hoses easily
reach the components they will be connected
to.
Ensure there is sufficient clearance around the
control unit to run fluid lines and cables to other
components.
Ensure there is safe and easy access to an
appropriate electrical power source. The National Electric Code requires 3 ft. (0.91 m) of
open space in front of the assembly enclosure.
Ensure the mounting surface can support the
weight of the control unit and the cables attached to it.
2. Secure the PrecisionFlo XL control unit with four
3/8 in. bolts through the 0.44 in. (11 mm) diameter
holes in the mounting tabs.
20”
508 mm
22.5”
572 mm
18.5”
470 mm
16”
406 mm
Control Unit
Back View
Remote Display
Back View
28.5”
724 mm
17.5”
445 mm
31.5”
800 mm
Fig. 2
309374
13
Installation
Temperature Control Packages
See page 136 for additional information on the optional Temperature Control Package.
Temperature-Conditioned Package
24”
610 mm
24.5”
622 mm
Heat Only
26”
660 mm
12.8”
325 mm
Heat/Cool
36”
914 mm
60.5”
1.54 m
72”
1.83 m
Fig. 4
TI1484A
Fig. 3
Temperature conditioned units are free-standing but
must be bolted to the floor.
Electric Heat Package
14
TI1484A
309374
Electric heat units have the two control boxes integrated onto a subframe. The frame assembly must be
mounted with the electrical disconnect 54-67” (1.4-1.7
m) from the floor.
Installation
Electrical Connections
Follow these precautions when grounding, connecting
cables, connecting to a power source or making other
electrical connections.
WARNING
FIRE, EXPLOSION, AND ELECTRIC
SHOCK HAZARD
To reduce the risk of fire, explosion, or
electric shock:
Grounding Control Unit
CAUTION
To avoid control voltage differences, ensure that the
robot and PrecisionFlo XL equipment are grounded
to the same point.
Connect a ground wire from the ground point in the
PrecisionFlo XL control enclosure to a true earth
ground. See Fig. 5. A 10 AWG, 25 ft. (7.6 m) long
ground wire with clamp, Part No. 222011, is supplied.
NOTE: The PrecisionFlo XL fluid module is grounded
to the control unit, using cables provided with the module.
The PrecisionFlo XL control unit must
be electrically connected to a true
earth ground; the ground in the electrical system may not be sufficient.
All wires used for grounding must be
12 AWG minimum.
A qualified electrician must complete all grounding and wiring connections.
Refer to your local code for the requirements for
a “true earth ground” in your area.
Also read and follow the warnings on pages
3–5.
CAUTION
If power and grounding connections are not done
properly, the equipment will be damaged and the
warranty voided.
Ground
Terminal
Fig. 5
309374
15
Installation
Connecting Cables
Swirl Cable(s)
(optional)
Robot I/O
(digital & analog cables
or network cable)
Motor Power
(linear motor only)
Operations Cable(s)
PrecisionFlo XL
Control Unit
Robot
Controller
Fig. 6
CAUTION
Route cables carefully. Avoid pinching and premature
wear due to excessive flexing or rubbing. Cable life is
directly related to how well they are supported.
NOTE: See page 128 for cable part numbers and
lengths. Descriptions of the cables follow steps 1–3,
below.
Connect the cables as instructed below.
1. Connect digital and analog cables or a network
cable from the robot/cell controller to the PrecisionFlo XL control unit.
2. Connect the operation cable(s) from the fluid
module(s) to the mating connectors on the PrecisionFlo XL.
3. Connect cables from any installed options to the
appropriate connectors on the PrecisionFlo XL.
(See the instruction forms associated with those
options for detailed information.)
16
309374
NOTE: Digital and analog cables are not terminated
on the robot end. The installer will need to configure
the proper connectors for the robot/cell controller being
used. Refer to PrecisionFlo XL I/O Interface on page
89 and also on form 309364 for schematics.
Interface Cables
Digital and Analog Cables — If your model is configured with discrete I/O, digital and analog robot I/O
cables were likely supplied as part of your package.
The Digital cable is larger than the analog cable and it
communicates I/O commands between the PrecisionFlo XL and a robot or cell controller. The Analog cable
communicates speed commands between the controllers.
Network Cable — If Network I/O is used, one network
cable communicates both the robot digital I/O and
analog speed commands between the PrecisionFlo XL
and a robot or cell controller. This cable is not supplied
by Graco.
Installation
Fluid Module Cables
ÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Ref No.
Operations Cable — This cable carries signals between the fluid module(s) and PrecisionFlo XL. The
applicator solenoid, V/P valve, pressure transducer
and flow meter signals are carried through this cable.
There is one cable per fluid module.
4
5
13
–
17
18
Motor Power Cable — This cable supplies power to
the linear motor (when used) from the PrecisionFlo XL.
The motor requires a higher DC voltage signal that
cannot be combined with signals in the Operations
Cable.
Description
External Interface Cable (Robot Digital)
External Interface Cable (Robot Analog)
Operations Cable Connector
Motor Power Cable Connector (not on this
configuration)
Remote Display Connector/Ethernet
Connection (TouchScreen option only)
Swirl Cable Connector (optional)
Checking Ground
Continuity
WARNING
Swirl Cable — This cable connects between the
PrecisionFlo XL and the PrecisionSwirl extension cable
if a PrecisionSwirl Orbiter is installed. The cable provides power to the orbiter and carries orbiter speed
information back to the PrecisionFlo XL.
5
13
FIRE, EXPLOSION, AND ELECTRIC
SHOCK HAZARD
To reduce the risk of fire, explosion, or
electric shock, the resistance between
the supply unit components and true
earth ground must be less than 0.25
ohms.
17
Have a qualified electrician check the resistance
between:
4
Fig. 7
18
Control Unit – Top View
TI1555A
true earth ground and the panel ground lug
the application device and the robot
the fluid module and the robot
the metering valve and the robot
each supply system component and true earth
ground.
The resistance must be less than 0.25 ohms. If the
resistance is greater than 0.25 ohms, a different
ground site may be required. Do not operate the
system until the problem is corrected.
309374
17
Installation
Connecting Fluid and
Air Lines
CAUTION
Route all fluid and air lines carefully. Avoid pinching
and premature wear due to excessive flexing or rubbing. Hose life is directly related to how well they are
supported.
Follow the instructions in your separate component
manuals to connect air and fluid lines. General guidelines are provided below.
If you are using two fluid control plates and two
guns, be sure each device is clearly labeled 1 or 2.
Connect a fluid line to the flow meter fluid inlet or
regulator inlet if your system does not have a flow
meter.
If using a remote mount coriolis-type flow meter:
–
The flow meter must be mounted stationary. It
cannot move on the robot.
–
Connect a fluid line from the flow meter to the
regulator inlet. The hose should be as short as
practical.
–
Connect 120 VAC power to the flow meter.
–
Connect the meter signal to the fluid module.
The PrecisionFlo XL fluid module should be
installed on the robot or in another appropriate
place, as close as practical to the dispense valve.
Connect an air supply line to the 1/4 npt inlet port
on the fluid module(s) air supply inlet.
Connect a fluid line between the fluid module outlet
and the dispense device.
Connect 4 mm or 5/32 in. OD air lines from the
applicator’s solenoid valve to the applicator.
18
309374
Installation
Connecting to Power
Source
With Temperature Conditioning
Option G–1 (50 Hz) Heat/Cool
WARNING
ELECTRIC SHOCK HAZARD
Do not connect the PrecisionFlo XL control unit to a power source unless you
are a trained electrician.
Have a qualified electrician connect the PrecisionFlo
XL control assembly to a grounded electrical source
that has the required service ratings, as shown in the
Power Requirement tables below.
VAC:
N/A
200 – 240
400 – 480
Phase:
N/A
1
1
Hz:
N/A
50
50
Full Load
Amps.
N/A
25.1
12.6
With Temperature Conditioning
Option G–2 (50 Hz) Heat Only
VAC:
N/A
200 – 240
400 – 480
Phase:
N/A
1
1
Hz:
N/A
50
50
Full Load
Amps.
N/A
18.8
9.5
To connect control unit to power source:
1. Remove a hole plug to use one of the pre-cut
enclosure holes or, if necessary for your installation, create an opening in the control assembly
enclosure. Protect interior components from metal
chips when cutting or drilling.
2. Using the appropriate gauge wire, connect electrical power to the disconnect inside the control
enclosure.
3. Use NEMA 4 cord grip to seal the area where
wires enter the enclosure.
Power Requirements:
Without Heat or Temp. Conditioning
Option G–N
VAC:
90 – 120
Phase:
1
1
1
Hz:
50/60
50/60
50/60
Full Load
Amps.
8
4.2
2.1
With Temperature Conditioning
Option G–3 (60 Hz) Heat/Cool
VAC:
N/A
200 – 240
400 – 480
Phase:
N/A
1
1
Hz:
N/A
60
60
Full Load
Amps.
N/A
25.1
12.6
With Temperature Conditioning
Option G–4 (60 Hz) Heat Only
VAC:
N/A
200 – 240
400 – 480
Phase:
N/A
1
1
Hz:
N/A
60
60
Full Load
Amps.
N/A
18.8
9.5
With Electric Heat
Option G–5
200 – 240* 400 – 480*
* When ordered with transformer
VAC:
N/A
200 – 240
400 – 480
Phase:
N/A
1
1
Hz:
N/A
50/60
50/60
Full Load
Amps.
N/A
18.8
9.5
309374
19
Operation
Operation
Pressure Relief Procedure
Manual
Actuator
To Dispense
Valve
WARNING
Dispense Valve
Air Solenoid
The PrecisionFlo XL module pressure
must be manually relieved to prevent the
module from starting or spraying accidentally. To reduce the risk of serious injury,
including fluid injection, splashing in the eyes or on
the skin, or injury from moving parts, always follow
the Pressure Relief Procedure whenever you:
are instructed to relieve the pressure
check, adjust, or service any of the system
equipment
shut off the pump or dispense device
or install or clean the spray tip
This procedure describes how to relieve pressure for
the PrecisionFlo XL system.
TI1422A
Fig. 8
If you have followed the steps above and still suspect
that a valve, hose, or dispense nozzle is clogged or
pressure has not been fully relieved, very slowly remove the dispense tip, clean the orifice, and continue
relieving pressure.
1. Shut off the fluid supply to the fluid module.
2. Shut off power and air to the fluid supply systems.
3. Place a waste container beneath the fluid drain
valve, which is located at the filter. Place a waste
container beneath the dispense device.
4. Slowly open the drain valve, located at each filter,
to relieve fluid pressure. Close valve when pressure gauge reads zero.
5. In manual dispense mode, touch and hold the Dispense Gun 1 key
, which will open the regulator
and the dispensing device, until the fluid stops
flowing from them. Repeat for Gun 2 if installed.
Refer to page 25 for procedures on dispensing in
manual mode.
6. If the dispense device cannot be actuated from the
control unit, refer to Fig. 8 and perform the following steps to open the dispense device and relieve
fluid pressure:
a. Manually actuate the plunger on the solenoid,
that opens the dispense device, to relieve fluid
pressure.
If this does not remove the obstruction, very slowly
loosen the hose end coupling and relieve pressure
gradually, then loosen the coupling completely. Clear
the valves or hose. Do not pressurize the system until
the blockage is cleared.
Safety Reminder
Follow the precautions below and the warnings that
begin on page 3.
WARNING
FLUID INJECTION HAZARD
Wear eye protection and protective
clothing when installing, operating, or
servicing the system.
COMPONENT RUPTURE HAZARD
Never exceed the maximum air or fluid
working pressure rating of the lowest
rated component in the system.
Do not pressurize the system or dispense until you
have verified the system is ready and it is safe to
do so.
Ensure all hose connections are secure.
b. Continue actuating the plunger until all pressure is purged from the system between the
needle and the dispense device before proceeding to the next step.
20
309374
MOVING PARTS HAZARD
Ensure all personnel are clear of moving
parts before operating equipment.
Operation
PrecisionFlo XL User
Interface
Procedures for operating and configuring the system
depend on the type of interface used. Where procedures differ, the name of the user interface, along with
its icon, heads the procedure:
There are two types of user interface available with the
PrecisionFlo XL control unit:
EasyKey Interface
EasyKey User Interface
TouchScreen User Interface
For screen-captures of the screens and your selection
options, see page 41 for the EasyKey interface and
page 57 for the TouchScreen interface.
TouchScreen Interface
EasyKey User Interface Overview
EasyKey
TM
1
2
3
4
5
6
7
8
9
.
0
Number Keys
Dispense Gun 1
Enter Key
Dispense Gun 2
Fault Reset
Auto/Manual
Screen Navigation Keys
Data Field Navigation Keys
Fig. 9
Key Groups
Action Keys
There are three groups of keys on the PrecisionFlo XL
user interface.
Dispense Gun 1 — is used for functions related to
the primary regulator and dispense gun, including
Manual Dispense, Autotune, and Flow Calibration.
Action Keys — perform an action when they are
pressed. Dispense Gun 1, Dispense Gun 2, Fault
Reset, and Auto/Manual. See Action Keys at right.
Dispense Gun 2 — is used for functions related to
the secondary regulator and dispense gun, including Manual Dispense, Autotune, and Flow Calibration.
Numeric Entry Keys — are used to enter variable
data into the controller.
Fault Reset — is used to reset a fault generated
on the control once the fault has been corrected.
Navigation Keys — are used to navigate between
and within the different user screens.
Auto/Manual — is used to change the mode of
operation between Automatic and Manual.
309374
21
Operation
TouchScreen User Interface Overview
Fig. 10
The TouchScreen interface allows you to make selections by touching the screen. Use your index finger to
move the TouchScreen cursor to any location on the
screen. The cursor appears in the form of an arrow ( ).
22
309374
A keypad appears when you touch a data field that
requires you enter numerical information.
Operation
Initial Startup
3. Turn on the main electrical disconnect (2) to supply
power to the PrecisionFlo XL module. See Fig. 12.
The user interface becomes active, showing first a
diagnostic message and then the first screen. The
Power On indicator light (3) turns on.
Read and understand Operation
section of this manual
Startup system
4. Check Interface Signals: If this is a new installation, power each of the system inputs and verify
that the input is being received.
Check interface
signals
With the TouchScreen interface, select the Module I/O tab, or the Robot I/O tab, to view the status of all inputs and outputs. With the EasyKey
interface, check the status of LED lights on the
robot I/O board, using the table on page 106.
Load material
Verify flow meter
K–factors
Configure software
Hardware task
Software task
5. Turn on material supply system.
6. Press and hold the Master Start button (1) for two
seconds to turn on power to the PrecisionFlo XL
drive circuitry. The Control On indicator light (4)
turns on.
End Initial Startup
3
Fig. 11
1, 4
Starting the System
7
Initial Startup
1. Make sure you have installed and made all the
proper connections to and from the PrecisionFlo
XL control assembly enclosure. Make sure fittings
are tight.
2
8
2. Read and understand the Operation and Software
Configuration sections of this manual.
3. Continue startup with step 2 below.
Standard Startup
NOTE: See Tables 2 and 3, page 24, for information
on the PrecisionFlo XL control unit buttons, switches,
and indicator lights.
Fig. 12
1. Carefully inspect the entire system for signs of
leakage or wear. Replace or repair any worn or
leaking components before operating the system.
Restarting the Module
2. Turn on air and electrical power to the system.
TI1552
If the module is on, but the Control On indicator (4) on
the control assembly is not lit, press the Master Start
button (1) on the control unit.
309374
23
Operation
Control Unit Buttons, Switches and Indicators
Table 2—PrecisionFlo XL Buttons/Switches
Ref
Button/Switch
What it Does
1
Master Start button
Turns on power to PrecisionFlo’s fluid modules after power is
applied to the module.
Engages the Plate Control Relay (PCR) and signals the
external controller that the power has been applied to the
module.
Lights Control On light (4).
2
Main Electrical Power (Disconnect) Switch
Turns on power to system.
Lights Power On light (3).
7
Sealer Stop button
Disengages the Plate Control Relay (PCR).
Signals the external controller that a SEALER STOP
condition is in effect.
Turns off Control On light (4).
Disables all air solenoids and I/P regulators.
8
Run/Setup Mode Key Switch
Turn key switch counter-clockwise to set control unit to Run
Mode. When the key is in Run mode or removed, you can
operate and monitor the system.
Turn key switch clockwise to set control unit to Setup Mode
(for software configuration). The key cannot be removed
while turned to Setup Mode.
Table 3—PrecisionFlo XL Indicators
Ref
3
4
5
6
24
Indicator
Indicator
light is
Meaning
Power On/
Gro nd Connected
Ground
light
On
Power is on to the PrecisionFlo XL assembly.
Off
Power is off.
Control On light
On
PCR is engaged and the PrecisionFlo XL Control Assembly is
ready for operation.
Off
PrecisionFlo XL control assembly is not ready for operation.
On
Display is on when power is applied to the control assembly.
Off
Display is off when power is removed from the control assembly.
Off
Light is off when control assembly does not have a fault condition.
On
Light turns on when an alarm condition is present.
Flashing
Light flashes when a warning condition is present.
Flashing
Light flashes when in manual mode.
User Display
Main Fault light
309374
Operation
EasyKey Interface
Loading Material
Before you can configure the software, you must load
material into the supply system.
1. If this is a new installation, follow the Initial Startup procedure. Otherwise, follow the Standard
Startup procedure. See page 23.
2. Turn on fluid supply pressure to the fluid module.
3. Place the dispense device(s) over a waste
container.
4. Set the control unit to Manual mode. See Operation Modes, below.
5. Manually dispense fluid until clean, air-free fluid
flows from Dispense Gun 1. See Manually Dispensing Fluid, page 26. If two dispensing devices
are installed, repeat the process for Gun 2.
Operation Modes
The PrecisionFlo XL system has two operating modes:
Automatic dispense mode — enables the
PrecisionFlo XL module to begin dispensing when it
receives a command from the robot.
Manual dispense mode — enables the PrecisionFlo XL module to begin dispensing when you press
Dispense Gun 1 or Gun 2 on the EasyKey or
TouchScreen interface. Dispensing continues for as
long as the Dispense Gun 1 or 2 button is pressed.
To select the Operation Mode and to operate in manual dispense mode, see the following specific instructions for your interface.
Refer to Theory of Operation section, page 99 for
more information on Operation Modes.
NOTE: Refer to Keypad Overview on page 41 for key
locations.
Setting Operation Mode
On the keypad, perform the following steps:
1. With the key switch set to run mode [refer to page
24], press the right arrow key until the Overview screen appears.
2. The dispense mode is indicated on this screen,
either Auto or Manual. The red beacon will flash in
Manual mode.
3. To change the mode, press the Auto/Manual key
.
Manually Dispensing Fluid
Make sure the Control On indicator is lit. If it is not,
push the Master Start button (1, Fig. 12) to turn on
power to the PrecisionFlo XL fluid module(s).
On the keypad, perform the following steps:
1. Place the system in manual dispense mode. Refer
to Setting Operation Mode, above.
2. Press the Dispense Gun 1 key
key
or Gun 2
, depending on which dispense device you
want to actuate.
a. Press the key and verify that the dispense
device opens.
b. Continue to press the key as long as needed
to load material or dispense.
3. Repeat step 2 for Gun 2
, if applicable.
309374
25
Operation
TouchScreen Interface
a. Touch the Setup and Values buttons.
b. Touch the Manual Gun data cell. The numeric
keypad appears.
Setting Operation Mode
The Dispense Mode indicator is at the top right-hand
corner of every screen. To toggle between Manual and
Automatic modes touch the Dispense Mode button just
below the indicator.
Manually Dispensing Fluid
Make sure the Control On indicator is lit. If it is not,
push the Master Start button (1, Fig. 12) to turn on
power to the PrecisionFlo XL fluid module(s).
On the TouchScreen, perform the following steps:
1. Place the system in manual dispense mode. Refer
to Setting Operation Mode, above.
2. Before dispensing in Manual mode, set Manual
Gun flow rate value.
26
309374
c.
Enter the new value and touch Accept.
NOTE: The Manual Gun flow rate scale of 0 to 100%
is equivalent to 0 to 10 volts. For example, 50% equals
5 volts. The Manual Gun flow rate, in conjunction with
the PSI/Volt setting establishes the system target pressure or flow rate, depending on whether the Control
Mode is set to Pressure or Flow.
3. To start dispensing from Gun 1, touch and hold
Dispense Gun 1 button. Dispensing continues as
long as you continue to touch Dispense Gun 1.
4. To stop dispensing, release the Dispense Gun 1
button.
If two guns are being used, repeat steps 3 and 4
using the Dispense Gun 2 button.
5. Touch Dispense Mode to toggle to Automatic
dispense mode.
Operation
Robot Modes
The PrecisionFlo XL system has two robot modes:
Digital mode — enables the PrecisionFlo XL
system to dispense at preset rates in the control
unit. The rates are set on the screen and selected
through the robot I/O interface.
Analog mode — enables the PrecisionFlo XL
system to dispense at a rate proportional to a 0–10
VDC analog input signal from the robot.
3. To change the mode, press the down arrow key until the cursor is over the mode cell.
4. Press Enter and use the up and down arrow keys,
or , to change values.
5. Press Enter again to store the change.
TouchScreen Interface
Setting Robot Mode
Refer to Theory of Operation section, page 99 for
more information on Robot Modes.
EasyKey Interface
Setting Robot Mode
On the keypad, perform the following steps:
1. With the system in setup mode (key switch clockwise), touch the Setup and Modes buttons.
2. Locate Robot Mode data cell. The robot mode is
indicated as either Digital or Analog.
3. Toggle between analog and digital by touching
Robot Mode.
1. With the system in setup mode (key switch clockwise), press the right arrow key until the
Setup1–Modes screen appears.
If the robot command signal is analog, use
Analog.
2. The robot mode is indicated on this screen, either
Digital or Analog.
If the robot does not have an analog output, use
Digital.
309374
27
Operation
Control Modes
The PrecisionFlo XL module has two fluid dispensing
control modes:
Pressure control — regulator outlet pressure is
controlled to the requested value. Use Pressure
Mode when a constant pressure is required for a
spray application. This mode must be used if the
system does not include a flow meter.
Flow control — the control unit measures the flow
rate of material being dispensed and the regulator
outlet pressure is varied to control the fluid flow rate
to the requested value. Use Flow Mode when a
constant bead size is required.
Refer to Theory of Operation section, page 99 for
more information on Control Modes.
EasyKey Interface
2. The control mode is indicated on this screen,
either Pressure or Flow.
3. To change the mode, press the down arrow key until the cursor is over the mode cell.
4. Press Enter and use the up and down arrow keys,
or , to change values.
5. Press Enter again to store the change.
TouchScreen Interface
Setting the Control Mode
1. With the system in setup mode (key switch clockwise), touch the Setup and Modes buttons.
Setting the Control Mode
2. Locate Control Mode data cell. The control mode
is indicated as either Pressure or Flow.
1. With the system in setup mode (key switch clockwise), press the right arrow key until the
Setup1–Modes screen appears.
3. Toggle between pressure and flow modes by
touching Control Mode.
28
309374
Operation
Shutting Down the System
1. Shut off the material supply to the fluid module.
7
2. Follow the Pressure Relief Procedure on
page 20.
2
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 20.
3. Turn off the PrecisionFlo XL system’s compressed
air supply.
4. Press the Sealer Stop button (7). See Fig. 13.
5. Turn off the main electrical disconnect (2).
TI1484A
Fig. 13
309374
29
Configuring Software
Configuring Software
After you have loaded material into the dispensing
system, configure the PrecisionFlo XL software.
Figure 14 shows the major configuration steps.
Configure Software
Calibrate
pressure
NOTE: The PrecisionFlo XL system compensates for
temperature, flow, or pressure fluctuations. However, if
you change hardware on the dispensing system or
change the type of material being dispensed, you must
reconfigure the PrecisionFlo XL software.
To configure the PrecisionFlo XL software, perform the
following procedure. When you have completed this
procedure, the module is ready for operation.
1. Calibrate pressure for the system. See page 32.
Verify flow
meter K-factor
2. Verify the flow meter K–Factor(s). See page 31.
3. Calibrate the flow rate for the application. See
page 33.
Calibrate flow
rate
Set user and
system variables
Set dispense
on/off delays
Set swirl speed
(if applicable)
Hardware task
Software task
Fig. 14
30
309374
End Software
Configuration
4. Verify other controller preset values. See page 35
for more information.
5. The PrecisionFlo XL User Interface section on
pages 41–56 gives detailed operating instructions
for the display keypad and each screen.
Configuring Software
TouchScreen Interface
Setting Flow Meter
K–Factors
The accuracy of the PrecisionFlo XL volume reporting
depends on precise adjustment of the K-factor(s). The
control unit uses the K-factor(s) to calculate the volume dispensed. If the set value is not correct, the
system still delivers accurate and repeatable flow
rates; however, the reported value may not be correct.
See page 38 for additional K-factor information.
Set Flow Meter K-Factor
On the TouchScreen, perform the following steps:
1. With the system in setup mode, touch the Setup
and Dispense buttons.
2. Touch the Flow Meter K-factor data cell. Enter the
4-digit K-factor value. See Table 4 for values.
Table 4—Flow Meter K-Factors
3. Touch Accept.
Part No.
Description
K–Factor
Pulses/Liter
239716
G3000 Gear Meters
8400
617418
SRZ–40 Helical Meter
3500
4. If there are two flow meters in the system, touch
the second Flow Meter K-factor data cell and enter
the correct value.
198381
63MP–15 Coriolis
2000
5. Touch Accept.
NOTE: Factory configured packages have the K–factor(s) preset.
EasyKey Interface
Set Flow Meter K-Factor
On the keypad, perform the following steps:
1. With the system in setup mode, press the right
arrow key until the Setup –Dispense screen
appears.
2. Key in the 4-digit K-factor value and press Enter.
See Table 4 for values.
3. If there are two flow meters in the system, press
the down arrow key until the cursor is over the
second K–factor value.
4. Key in the correct value and press Enter.
309374
31
Configuring Software
Calibrating Pressure
The PrecisionFlo XL system uses variables (Kp and
Ki) in the software calculations to accurately and
precisely control the fluid pressure and flow rate. The
control unit calculates Kp and Ki automatically during
pressure calibration. These values are different with
every material.
NOTE: The system must be loaded with material before calibrating pressure. The nozzle or tip should be
installed on the dispense device.
Before Calibrating
EasyKey Interface
Calibrate Pressure
On the keypad, perform the following steps:
1. Press the right arrow key until the Calibration–
Pressure screen appears.
2. Press the Dispense Gun 1 key
. The system
will dispense material for 15-30 seconds and
gather the required information.
3. If two fluid modules are installed, repeat the pressure calibration for the second module by pressing
.
the Dispense Gun 2 key
1. Verify that the system is in setup mode.
TouchScreen Interface
2. Verify that dispense device(s) are placed over a
material waste container.
3. Verify that the fluid module(s) air supplies are on.
Calibrate Pressure
On the TouchScreen, perform the following steps:
1. Touch the Calibration and Pressure buttons.
2. Touch Pressure Tune Regulator 1 button. The
system will dispense material for 15-30 seconds
and gather the required information.
3. If two fluid modules are installed, repeat the pressure calibration for the second module by touching
the Pressure Tune Regulator 2 button.
Manually Adjusting Kp
If automatic pressure calibration does not result in
porper system pressure control, you can change the
Kp value manually:
Increase Kp if the regulator outlet pressure does
not closely follow the desired pressure. Continue to
increase the Kp value by 10% increments until the
proper pressure control is achieved.
Decrease Kp if the regulator outlet pressure ascillates rapidly above and below the commanded
pressure. Continue to decrease the Kp value by
10% increments until the outlet pressure is stable.
32
309374
Configuring Software
Table 5—Maximum Flow Rate Values (cc/min)
Flow Rate Calibration
You only calibrate flow rate if you are operating in
Flow Mode. If your system does not have a flow
meter or you are operating in Pressure Mode, you do
not calibrate the flow rate.
Round Equivalent Bead Diameter (mm)
Max. Robot
Speed (mm/sec)
2
3
5
7
9
50
10
21
59
115
191
100
19
42
118
231
382
Each application may have different flow rate requirements. Flow rate calibration verifies and calibrates the
maximum flow rate of the system.
200
38
85
236
462
763
300
57
127
353
693
1145
400
75
170
471
924
1527
At the start of the flow rate calibration procedure, you
need to enter the maximum flow rate required by the
application. When you actuate the dispensing device
during calibration, the control unit:
500
94
212
589
1155 1909
600
113
254
707
1385 2290
700
132
297
825
1616 2672
800
151
340
943
1847 3054
900
170
382
160
2078 3435
1000
189
424
1178 2309 3817
How Flow Rate Calibration Works
1. Determines current flow rate.
2. Calculates the outlet pressure required to obtain
the flow rate value you entered.
3. Calculates a linear ratio of the robot analog input
voltage to the desired flow rate. Refer to Fig. 15.
4. Adjusts outlet pressure to maintain the desired
flow rate.
Setting Inlet Pressure
The inlet pressure reading should be in the range of
300 psi (2.1 MPa, 21 bar) to 500 psi (2.1 MPa, 21 bar)
above the outlet pressure reading under your highest
flow condition.
Flow mode: Analog voltage to flow rate ratio
Max.
Flow
Rate
Flow Rate
(cc/minute)
Excessive inlet pressure will cause accelerated wear
on the regulating valve and the pump feed system.
Feed System Pressure Drop
0
0
Robot Flow Command
Volts (Vdc)
10
Fig. 15
Flow Rate Guide
Use the values in Table 5 as a guide to determine the
maximum flow rate to enter during flow rate calibration,
or enter the desired bead size and maximum robot
speed on the Flow Rate Calibration screen and PrecisionFlo XL will calculate the maximum flow rate for
you.
During material flow, your inlet pressure reading drops.
The amount the pressure drops is the amount of
pressure lost between the feed pump and the regulator
inlet. With high viscosity fluids or long line lengths, this
pressure drop can be thousands of psi (hundreds of
bar). This means that the static pump pressure is set
much higher than the regulator needs at its inlet. To
prevent excessive control regulator wear or surging, a
mastic fluid pressure regulator is recommended on the
feed line close to the control regulator. The mastic
regulator will suppress the static feed pressure at the
control regulator inlet.
309374
33
Configuring Software
Calibrating Flow Rate
TouchScreen Interface
Before Calibrating
1. Verify that the system is in setup mode.
2. Verify that dispense device(s) are placed over a
material waste container.
3. Verify that the fluid module(s) air supplies are on.
Calibrate Flow Rate
On the keypad, perform the following steps:
1. Press the right arrow key until the Calibration–
Flow screen appears.
2. Key in the maximum flow rate desired in cc/min. If
this value is not known, you can enter the maximum robot speed in mm/s and the desired bead
diameter. The system will calculate the maximum
flow rate required.
. The system
will begin dispensing material and calibrating fluid
flow. This will take from 10 to 30 seconds.
4. If two fluid modules are installed, repeat the flow
rate calibration for the second module by pressing
the Dispense Gun 2 key
.
34
309374
On the TouchScreen, perform the following steps:
1. Touch Calibration and Flow buttons.
2. Touch Calibrate Regulator 1 button. The system
will begin dispensing material and calibrating fluid
flow. This will take from 10 to 30 seconds.
EasyKey Interface
3. Press the Dispense Gun 1 key
Calibrate Flow
3. If two fluid modules are installed, repeat the flow
rate calibration for the second module by touching
the Calibrate Regulator 2 button.
Other Software Settings
There are various software settings that are preset at
the factory, based on the system configuration that
was ordered. A quick check of these variables is
recommended. See Tables 6 and 7.
The user interface screens are listed beginning on
page 42 to guide you through this process.
For screen-captures of the screens and your selection
options, see page 41 for the EasyKey interface and
page 57 for the TouchScreen interface.
Configuring Software
Setting User Variables
The following variables and presets should be verified prior to calibration and path programming and/or operation in
automatic mode. All of the screens as well as additional screen information can be viewed in the User Interface
section.
There are additional variables that should be set after the path programming is completed, they include; High/Low
pressure settings and Style (volume) information.
Table 6—PrecisionFlo XL User Variables and Presets
Values in italics are factory defaults.
Screen
Variable / Preset
Values
Comments
Setup1 – Modes
Robot Mode
Digital or Analog
Speed command, digital presets, or robot
analog
Control Mode
Pressure or Flow
Pressure control to control on pressure,
Flow to control on volume. Must have flow
meter to control on volume.
Swirl Mode
Manual or Auto
In manual mode, the XL controller controls
speed, 0–100% (0–10 VDC). In auto mode,
a second analog input (0–10 VDC) controls
the swirl speed. Only applicable to systems
using PrecisionSwirl orbiter.
Robot Interface
Discrete or Serial
Discrete for systems using hard–wired 120
VAC or 24 VDC I/O. Serial for systems using
network I/O.
Flow Scale 1
50 – 150%, 100%
Scales the flow output signal to increase or
decrease the bead size/volume on gun 1.
Flow Scale 2
50 – 150%, 100%
Scales the flow output signal to increase or
decrease the bead size/volume on gun 2.
Swirl Manual
0 – 100%, 50%
Sets the PrecisionSwirl orbiter speed when
the Swirl mode is set to Manual.
Swirl Auto
50 – 150%, 100%
Scales the PrecisionSwirl speed signal to
increase or decrease the Swirl speed when
the Swirl mode is set to Auto.
Job End Mode
Timer or Robot I/O
Determines if the end of the cycle is
determined by an input from the robot
interface or from an internally derived timer.
Language
Many
Set the desired language.
Pressure Units
psi or bar
Set the desired pressure units.
Low Flow Rate
0 – 100%, 25%
Speed setting number 1 if using discrete
speed signals rather than analog.
Med Flow Rate
0 – 100%, 50%
Speed setting number 2 if using discrete
speed signals rather than analog.
High Flow Rate
0 – 100%, 75%
Speed setting number 3 if using discrete
speed signals rather than analog.
Manual Gun Flow
Rate
0 – 100%, 50%
Speed setting for Manual Dispense.
Job End Delay
0 – 999 sec, 4 sec
Delay time for job complete if Job End Mode
is set to Timer.
Setup1 – Config
Setup2 – Values
Setup2 – Set
Clock
Year, Month, Day,
Hour, Minute
Set the Time and Date.
Setup2 – Temp
Cont
Set the proper temperature set point and High/Low limits for the temperature zones being
used. Set any unused temperature zones to Off.
309374
35
Configuring Software
Other System Variables
After the calibration and robot path programming is complete and the desired bead profiles have been
achieved, verify that the following variables are set.
Table 7—PrecisionFlo XL System Variables
Screen
Variable / Preset
Values
Comments
Setup2 – Styles
Volume
0 – 9999 cc, 100 cc
Set the volume set point for each of the 32
styles being used.
Setup1 – Modes
Tolerance
0 – 99.9%, 10%
Set the volume tolerance for each of the 32
styles being used.
Faults – Level
Set the User configurable faults to Alarms or Warnings. More information on the faults
can be found in the User Interface section.
An Alarm will cause the fault signal to activate and the system ready signal to drop out.
This is something considered by the user to be a major fault, one which causes the
system to stop dispensing.
A Warning will cause the fault signal to activate and the system ready to stay on. This
is something considered by the user to be a minor fault, one which will warn the user
but will continue dispensing even if the bead profile is degraded.
36
309374
Configuring Software
On/Off Delays
The PrecisionFlo XL regulator (or metering valve) can
physically respond faster than the dispense device and
its solenoid. As a result, the regulator can supply
material to the dispense device before the device has
time to open. Supplying material to a closed device
can create trapped-pressure.
At the end of a cycle, the dispense device can shut off
before the pressure has dissipated. This can cause a
dispense of an excess of material at the beginning of a
cycle.
To eliminate these two problems, you can change the
delay time associated with the opening of the regulator/metering valve and/or the closing of the dispense
device (Table 8).
In general, your outlet pressure on the screen during
“no flow” should be close to the outlet pressure during
dispense. If your dispense hose to the gun is creating
too much pressure drop during flow, you may want the
no flow reading to be lower. High trapped pressures
shorten the dispense device life.
Table 8—On/Off Delay Variables
Variable:
Sets the Amount of Time:
Gun ON
Sets time from Dispense Gun
High to Gun Open command
Regulator ON
Sets time from Dispense Gun
High to Regulator ON
Gun OFF
Sets time from Dispense Gun
Low to Gun Close command
Regulator OFF
Sets time from Dispense Gun
Low to Regulator OFF
Fig. 16 and Table 9 show delay ON and OFF timing.
C
DISPENSE
SIGNAL
A
PrecisionFlo XL
Regulator
Gun Open
Command
D
B
Gun Actually
Open
Fig. 16
Table 9 — Delay On/Off Timing
A
Regulator ON delay
The user sets the regulator ON delay timing.
B
Gun ON delay
Usually set to zero. Can be used to change the starting point of a
bead.
C Gun OFF Delay
Usually set to zero. Higher values will lower the trapped pressure.
D Regulator OFF delay The user sets the regulator OFF delay timing. Zero or small values
will lower the trapped pressure.
309374
37
Verifying Flow Meter Calibration
Verifying Flow Meter Calibration
Verification and Calibration
Most sealant and adhesive materials are compressible.
Since the flow meter is measuring the material under
high pressure, the actual volume of material dispensed
may vary slightly from the measured volume, due to
this compressibility. If the K-factor is not correct, the
displayed volume will not be accurate.
Follow this procedure to calibrate the flow meter(s)
during initial setup and on a routine basis to check for
flow meter wear.
Method 1. Using a gram scale
1. Obtain a beaker, 500 cc or larger, and measure
the mass of the empty beaker.
5. Calculate the new flow meter K-factor:
K–Factor (new) =
displayed volume (cc) x K–Factor (old)
measured volume (cc)
6. Enter new K-factor.
7. Go to step 1 and verify the new K-factor.
Method 2. Without using a gram scale, visual
measurement
1. Obtain a beaker, 500 cc or larger with measurement increments.
2. Manually dispense material into the beaker. Hold
the beaker so that the stream of material is submerged in the captured material. This is to minimize air entrapment in the container.
2. Manually dispense material into the beaker. Hold
the beaker so that the stream of material is submerged in the captured material. This is to minimize air entrapment in the container.
3. Record the volume dispensed on the Run screen
and the flow meter K-factor from the Setup screen.
3. Record the volume dispensed on the Run screen
and the flow meter K-factor from the Setup screen.
5. Calculate the new flow meter K-factor:
4. Settle the material into the beaker and view the
actual volume dispensed.
K–Factor (new) =
4. Calculate the actual volume dispensed:
fluid mass (g)
density (g/cc)
38
309374
displayed volume (cc) x K–Factor (old)
dispensed volume (cc)
6. Enter new K-factor.
= volume
7. Go to step 1 and verify new K-factor.
Communicating with PrecisionFlo XL
Communicating with PrecisionFlo XL
Communication with the PrecisionFlo XL is carried out
through the Graco Shell program (included). This is a
text based menu program that you can use to perform
the following tasks:
Upgrade software
Display software versions
Download job and alarm logs
Backup and restore setup parameters
Restore the factory defaults
a. Install Control Application Software
b. Display Software Versions
c. Return to Main Menu
Enter Selection [a–c]:
Upgrading Software
NOTE: To upgrade the controller software, you must
first obtain the latest version of pfloxl.rec. Contact
your Graco distributor for details.
Select option “a”. Make sure the key switch is turned to
Setup mode. The following text will be displayed.
Are you sure?
You can access the Graco Shell program via the
programming port on the side of the control box. Plug
one end of the programming cable (233657) into the
RJ45 (phone jack style) on the control box and the
other end of the cable into the serial (COM port) of a
laptop computer.
The laptop computer used to interface to the Graco
Shell must be running some type of terminal emulation
software. Some examples are HyperTerminal or Tera
Term. Graco recommends using Tera Term which can
be downloaded from http://hp.vector.co.jp/authors/
VA002416/teraterm.html. The following communications parameters must be used (these are the default
parameters in Tera Term).
Enter yes to continue:
Type “yes”. The following text will be shown.
HyperTerminal:
Go to (Menu Transfer –>
Send File) and select OS file.
Tera Term:
Go to (File –> Send File)
and select OS file.
Once file is transferred, menu 1 will be
shown.
Select Send File from the File menu in Tera Term.
Then select the pfloxl.rec from the selection box
window (you will need to browse to the appropriate
directory).
The file will begin to download to the controller, which
will take approximately five to ten minutes. When the
download is complete, a new menu will appear on the
screen. The software upgrade is now complete.
Displaying Versions
Setting
Value
Port
COM 1 or COM 2
Baud Rate
9600
Data
8 Bit
Parity
None
Stop
1 bit
Return to Main Menu
Flow Control
None
Select option “e”. The main menu will be shown.
Once the programming cable is connected and the
communications software is running, the user can
activate the Graco Shell by pressing the Enter key on
the keyboard. The main menu will be displayed.
Welcome to the Graco Control Application Menu
Build date: Jul 06 2001 15:45:38 (debug build)
a. Software Update and Version Information
b. Data Transfer
c. Restore settings to factory defaults
Enter Selection [a–c]:
Select “a” for the following options.
Select option “d”. Text similar to this will be shown.
Boot Code version: 1.5, checksum=192345d,
built:n 25 2001 17:05:01
Control Application version: 1.1, checksum=3d38fe9, built:Jul 09 2001 11:21:58
Welcome to the Graco Control Application Menu
Build date: Jul 06 2001 15:45:38 (debug build)
a. Software Update and Version Information
b. Data Transfer
c. Restore settings to factory defaults
Enter Selection [a–c]:
If option “b” is selected, the following menu will be
displayed.
a. Transfer job log file
b. Transfer alarm log file
c. Transfer setup values to laptop
d. Restore setup values from laptop
e. Return to Main Menu
Enter Selection [a–e]:
309374
39
PrecisionFlo XL Module Operation
PrecisionFlo XL Module Operation
Download Job Log, Alarm Log, or Setup Values
Select option “a”, “b”, or “c”. The following text will be
displayed.
Tera Term Instructions:
1. Go to the File –> Transfer –> XMODEM –>
Receive... Menu
. 2. Select the 1K and Binary Option
. 3. Specify the file name and directory to
store the setup values
. 4. Click the Open button.
HyperTerminal Instructions:
1. Go to the Transfer –> Receive... menu
. 2. Select the Y–Modem protocol
. 3. Specify the directory to store the setup
file
. 4. Click the Receive button. The setup values will be stored in a file named PFloXLSetUpData.dat in the directory specified in #3
above.
(Type Ctrl–X several times to cancel the transfer)
Select Transfer and XMODEM and Receive from the
File Menu in Tera Term. Click on the 1K and Binary
options at the bottom of the selection window. Then
select a filename, directory, and click on the open
button. The download will take from 1 to 5 minutes.
When the download is complete, confirmation will
appear and a new menu will appear on the screen.
Restoring Setup values
Select option “d”. The following text will be displayed.
Tera Term Instructions:
1. Go to the File –> Transfer –> XMODEM –>
Send... Menu
. 2. Select the 1K Option
. 3. Select the file which contains the setup
values to restore
. 4. Click the Open button.
HyperTerminal Instructions:
1. Go to the Transfer –> Send... menu
. 2. Select the Y–Modem protocol
. 3. Select the file (PFloXLSetUpData.dat)
which contains the setup values
to restore
. 4. Click the Send button.
(Type Ctrl–X several times to cancel the transfer)
40
309374
Select Transfer and XMODEM and Send from the File
Menu in Tera Term. Click on the 1K option at the
bottom of the selection window. Then select a filename, directory, and click on the open button. This
operation will only work if the key switch is turned to
Setup mode. The download will take from 1 to 5 minutes. When the download is complete, confirmation will
appear and a new menu will appear on the screen.
Return to Main Menu
Select option “e”. The main menu will be shown.
Welcome to the Graco Control Application Menu
Build date: Jul 06 2001 15:45:38 (debug build)
a. Software Update and Version Information
b. Data Transfer
c. Restore settings to factory defaults
Enter Selection [a–c]:
Restoring Defaults
Select option “c” and the following message will appear.
Are you sure?
Enter yes to continue:
Type “yes”. Make sure that the key switch is turned to
the Setup mode.
When the operation is complete, the main menu will
appear again.
PrecisionFlo XL EasyKey Interface
PrecisionFlo XL EasyKey Interface
EasyKey Keypad Overview
EasyKey
1
TM
2
1
2
3
4
5
6
7
8
9
.
0
Number Keys
Dispense Gun 1
Enter Key
Dispense Gun 2
Fault Reset
Screen Navigation Keys
Auto/Manual
Data Field Navigation Keys
Fig. 17
There are three groups of buttons on the PrecisionFlo
XL user interface.
Dispense Gun 2—Used for functions related to the
secondary regulator and dispense gun, including
Manual Dispense, Autotune, and Flow Calibration.
Action Keys—These keys perform an action when
they are pressed. Dispense Gun 1, Dispense Gun
2, Fault Reset, and Auto/Manual.
Fault Reset—Used to reset a fault generated on
the controller once the fault has been corrected.
Button Groups
Numeric Entry Keys—These keys are used to
enter variable data into the controller.
Navigation Keys—These keys are used to navigate between and within the different user screens.
Action Keys
Dispense Gun 1—Used for functions related to the
primary regulator and dispense gun, including
Manual Dispense, Autotune, and Flow Calibration.
Auto/Manual—Used to change the mode of operation between Automatic and Manual.
NOTE: The key switch under the display is used to
enable the setup mode. When the key is in the vertical
position or removed, you can operate and monitor the
system. The key cannot be removed while turned to
the 2-o’clock position for setup.
309374
41
PrecisionFlo XL EasyKey Interface
Screen Overview
Overview Screen
The purpose of this screen is to display an overview of the process parameters. The Reg 2 column will only be
shown for dual regulator systems.
21:45
REG 1
Inlet Pressure:
Outlet Pressure
Actual Flow Rate:
Flow Scale:
Robot Command:
Dispense Mode:
Control Mode:
Robot Mode:
Overview
Job Data
Jan–04–2001
REG 2
XXXX
XXXX
XXXX
XXX
X.X
XXXX psi
XXXX psi
XXXX cc/min
XXX %
X.X V
Auto
Pressure
Analog
Job Log
Alarm Log
No Active Alarms
Table 10—Overview Screen Values
Description
Possible Values
Default Value
Inlet Pressure Reg 1 and 2
0–9999 psi
N/A
Outlet Pressure Reg 1 and 2
0–9999 psi
N/A
Actual Flow Rate Reg 1 and 2
0–9999 cc/min
N/A
Flow Scale
50–150%
N/A
Robot Command
0–9.9 V
N/A
Dispense Mode
Auto or Manual
N/A
Control Mode
Pressure or Flow Rate
N/A
Robot Mode
Analog or Digital
N/A
42
309374
PrecisionFlo XL EasyKey Interface
Job Data Screen
The purpose of this screen is to display job information for the last job completed.
Style: XXXXXXXXX
Comp. Reg 1:
Zero XXXX%
Peak XXXX%
Comp. Reg 2:
Zero XXXX%
Peak XXXX%
Volume:
Measured
Requested
Process
Tolerance
Error
Overview
Zone Temp
1 XXX C
2 XXX C
3 XXX C
4 XXX C
XXX.X cc
XXX.X cc
XXX.X cc
XX.X %
XX.X %
Job Data
Job Log
Alarm Log
No Active Alarms
Fig. 18
Table 11—Job Data Screen Values
Description
Possible Values
Default Value
Style
Purge, 1–31
N/A
Zero Compensation Reg 1
–20 to 199%
N/A
Zero Compensation Reg 2
–20 to 199%
N/A
Peak Compensation Reg 1
25 to 400%
N/A
Peak Compensation Reg 2
25 to 400%
N/A
Measured Volume
0 to 9999 cc
N/A
Requested Volume
0 to 9999 cc
N/A
Process Volume
0 to 9999 cc
N/A
Tolerance
–99.9 to 99.9%
N/A
Error
–99.9 to 99.9%
N/A
Temperature Zone 1
0 to 999 F
N/A
Temperature Zone 2
0 to 999 F
N/A
Temperature Zone 3
0 to 999 F
N/A
Temperature Zone 4
0 to 999 F
N/A
NOTES:
When a single zone temperature conditioning system is used, only one zone appears on this screen. If no
temperature system is used, no zones appear; if four-zone electric heat, all four zones appear.
309374
43
PrecisionFlo XL EasyKey Interface
Job Log Screen
The purpose of this screen is to display a summary of the most recent jobs. The most recent eight jobs are initially
displayed on the screen. Pressing the down arrow, , on the keypad brings up the previous eight jobs. The up
arrow on the keypad, , scrolls back first eight. The user can scroll through the last 100 jobs using this screen. The
last 1000 jobs are available by downloading the data through the serial port.
Time
Meas.
Req.
Proc.
1
15:15
132.7
140.6
132.7
–5.6
2
13:11
150.0
150.0
150.0
4.
3
10:05
158.2
160.5
139.2
–1.4
4
07:17
158.2
160.5
139.2
–1.4
5
02:27
158.2
160.5
139.2
–1.4
6
23:59
158.2
160.5
139.2
–1.4
7
22:10
158.2
160.5
139.2
–1.4
8
20:15
158.2
160.5
139.2
–1.4
Overview
Job Data
Job Log
%Error
Alarm Log
No Active Alarms
Fig. 19
NOTES:
The first column displays an index number, not a job number. Item 1 is always the most recent job.
The date is also stored with the log data. The date is not shown because of space limitations, but is accessible
by downloading the data through the serial port.
44
309374
PrecisionFlo XL EasyKey Interface
Alarm Log Screen
The purpose of this screen is to display a summary of the most recent alarms. The most recent eight alarms are
initially displayed on the screen. Pressing the down arrow, , on the keypad brings up the previous eight alarms.
The up arrow on the keypad, , scrolls back to the first eight. The user can scroll through the last 100 alarms using
this screen. Thelast 1000 alarms are available by downloading the data through the serial port.
Date
Time
Description
1
Jan-03-01
15:15
Inlet Pressure Low
2
Jan-03-01
13:11
Swirl Speed Error
3
Jan-03-01
10:05
High Volume on Last Job
4
Jan-03-01
07:17
No Flow on Last Job
5
Jan-03-01
02:27
Outlet Pressure Low
6
Jan-03-01
23:59
Temperature Conditioner
7
Jan-03-01
22:10
Calibration Failure
8
Jan-03-01
20:15
High Volume on Last Job
Overview
Job Data
Job Log
Alarm Log
No Active Alarms
Fig. 20
309374
45
PrecisionFlo XL EasyKey Interface
Setup 1—Modes Screen
Robot Mode:
Digital
Control Mode:
Pressure
Swirl Mode:
Manual
Robot Interface:
Discrete
Flow Scale Reg #1
XXX%
Swirl Auto XXX%
Flow Scale Reg #2
XXX%
Swirl Manual XXX%
Modes
Setup 1
Dispense
Setup 2
Config
Calibration
Faults
No Active Alarms
Fig. 21
Table 12—Modes Screen Values
Description
Possible Values
Default Value
Robot Mode
Analog or Digital
Digital
Control Mode
Pressure or Flow
Pressure
Swirl Mode
Manual or Auto
Manual
Robot Interface
Discrete or Anybus
Discrete
Flow Scale
50 to 150%
100%
Swirl Manual Scaling
0 to 100%
50%
Swirl Auto Scaling
50 to 150%
100%
46
309374
PrecisionFlo XL EasyKey Interface
Setup 1—Dispense Screen
The purpose of this screen is to set parameters related to the dispense cycle.
Reg 1
Reg 2
Flow Meter K-Factor XXXXX
* Flow Average
XXXXX /L
XX
XX
pulses
Pressure Mode
XXX
XXX
psi/v
Gun on Delay
XXX
XXX
msec
Regulator on Delay
XXX
XXX
msec
Gun off Delay
XXX
XXX
msec
Regulator off Delay
XXX
XXX
msec
Modes
Setup 1
Dispense
Setup 2
Config
Calibration
Faults
No Active Alarms
Fig. 22
Table 13—Dispense Screen Values
Possible Values
Description
Default Value
Flow Meter K–Factor
1 to 99999 pulses/liter
1000
Flow Average
1 to 32 pulses
5
Pressure Mode
0 to 999 psi/v
0
Gun On Delay
0 to 999 msec
0
Reg On Delay
0 to 999 msec
0
Gun Off Delay
0 to 999 msec
0
Reg Off Delay
0 to 999 msec
0
NOTES:
This screen always shows two regulator values. If a single regulator system has been selected on the setup >
configuration screen, only the regulator 1 values can be edited, regulator 2 values will remain at the system
defaults.
Parameters that are set as part of the Autotune process are identified with an asterisk (*).
309374
47
PrecisionFlo XL EasyKey Interface
Setup 1—Configuration Screen
The purpose of this screen is to allow users to configure a number of general parameters.
Job End Mode
Robot I/O
Language
English
Pressure Units
bar
Temp. Control
None
Number of Regulators
Two
Number of Swirls
Zero
Number of Flowmeters
Zero
Modes
Setup 1
Dispense
Setup 2
Config
Calibration
Faults
No Active Alarms
Fig. 23
Table 14—Configuration Screen Values
Description
Possible Values
Default Value
Job End Mode
Timer or Robot I/O
Robot I/O
Language
English, Spanish, French, German,
Italian, Portuguese, Japanese, or
Korean
English
Pressure Units
psi or bar
psi
Temperature Control
None, Temp Cond., or Elec. Heat
None
Number of Regulators (guns)
1 or 2
1
Number of Swirls
0, 1, or 2
0
Number of Flow Meters
0, 1, or 2
1
NOTE: Selecting the number of regulators limits which fields can be edited in setup and which fields are visible in
run. All fields are always viewable in setup.
48
309374
PrecisionFlo XL EasyKey Interface
Setup 2—Setup Screen
The purpose of this screen is to allow users to set up style parameters. When this screen is selected, the first
volume field will be highlighted. When the user tabs past the last tolerance field, the next eight styles will be displayed and the first volume field will be highlighted. Style 0 is dedicated to the purge style. There is a maximum of
32 styles.
Style #
Volume (cc)
Tolerance (%)
Purge (0)
XXX.X
XX.X
1
XXX.X
XX.X
2
XXX.X
XX.X
3
XXX.X
XX.X
4
XXX.X
XX.X
5
XXX.X
XX.X
7
XXX.X
XX.X
Styles
Values
Set Clock
Setup 1
Setup 2
Calibration
⇑
⇓
Temp Cont
Faults
No Active Alarms
Fig. 24
Table 15—Setup Screen Values
Description
Possible Values
Default Value
Volume
0 to 9999 cc
100
Tolerance
0 to 99.9%
10%
309374
49
PrecisionFlo XL EasyKey Interface
Setup 2—Values Screen
Low Flow Rate
XXX%
Medium Flow Rate
XXX%
High Flow Rate
XXX%
Manual Gun Flow Rate XXX%
Job End Delay Time
XXX sec
Styles
Values
Set Clock
Setup 1
Setup 2
Calibration
Temp Cont
Faults
No Active Alarms
Fig. 25
Table 16—Values Screen Values
Description
Possible Values
Default Value
Low Flow Rate
0 to 100%
25
Medium Flow Rate
0 to 100%
50
High Flow Rate
0 to 100%
75
Manual Flow Rate
0 to 100%
50
Job End Delay Time
1 to 999 sec
4
50
309374
PrecisionFlo XL EasyKey Interface
Setup 2—Set Clock Screen
The purpose of this screen is to set parameters for time and date. The date is entered in MM–DD–YYYY format.
Time is entered in HH:MM format.
21:45
Jan-04-2001
Year
XXXX
Month
XX
Day
XX
Hour
XX
Minute
XX
Styles
Values
Set Clock
Setup 1
Setup 2
Calibration
Temp Cont
Faults
No Active Alarms
Fig. 26
309374
51
PrecisionFlo XL EasyKey Interface
Setup 2—Temperature Control Screen
Zone
1
2
3
4
On
On
Off
On
Autotune
Fld Plate
Disp Vlv
Reg
Set Point
XXX
XXX
XXX
XXX
High Lim
XXX
XXX
XXX
XXX
Low Lim
XXX
XXX
XXX
XXX
On/Off
PID
Temp Units: Celsius
Styles
Values
Set Clock
Setup 1
Setup 2
Calibration
Temp Cont
Faults
No Active Alarms
Fig. 27
Table 17—Temperature Control Screen Values
Description
Possible Values
Default Value
On/Off—Enable/Disable Temperature Zones
On/Off
Off
PID—Close Window
*The PID field will display “Autotune”
if there is an Autotune in progress.
After completion of the Autotune
process, the field will change to
“Done.”
Hose, Fluid Plate, Dispense Valve,
Regulator, Autotune, Done
Fluid Plate
Set Point
0–999 F
100 F
High Lim
0–999 F
200 F
Low Lim
0–999 F
40 F
Setting a device sets the proper PID
values for that device.
*If you select AutoTune for any zone and press Enter, the AutoTune process for that zone begins. The control will
heat and monitor that device to automatically determine the correct PID values. This process takes from 5 to 40
minutes and should be started from ambient temperature. When complete, the field displays “Done”
NOTES:
If set points are entered in Celsius and the readout is later changed to Fahrenheit, the set points are automatically converted.
If “Temperature Conditioning” was selected on int Setup 1, Config screen, default PID values are automatically
set for zone 1. If these values are changed, they will revert back to the default values at the next power up.
52
309374
PrecisionFlo XL EasyKey Interface
Calibration—Pressure Screen
Dispense Mode: Manual
Reg 1
Reg 2
Inlet Voltage at 0 psi
X.XX
X.XX
Outlet Voltage at 0 psi
Fig. 28
V
X.XX
X.XX
Inlet Press at 5 V
XXXX
XXXX
psi
Outlet Press at 5 V
XXXX
XXXX
psi
* Kp
XXX
XXX
* Ki
XXX
XXX
Actual Inlet Press
XXXX
XXXX
psi
Actual Outlet Press
XXXX
XXXX
psi
Pressure
Flow Rate
Setup 1
Setup 2
Calibration
V
Faults
No Active Alarms
Table 18—Pressure Screen Values
Description
Possible Values
Default Value
Inlet Voltage at 0 psi (0 bar)
0–5.00 V
1.00
Outlet Voltage at 0 psi (0 bar)
0–5.00 V
1.00
Inlet Pressure at 5 V
0–5000 psi 3500
Outlet Pressure at 5 V
0–5000 psi 3500
*Kp
0–999
160
*Ki
0–999
8
Actual Inlet Pressure
0–5000 psi
N/A
Actual Outlet Pressure
0–5000 psi
N/A
* Set by the AutoTune process
These values can be adjusted to calibrate the pressure transducers on the inlet and outlet of the fluid control
regulator
These pressures should match the pressure range switch positions on the transducer amplifier card in the fluid
plate junction box (see fig. 77).
NOTE: To calibrate pressure, push the Gun 1 or Gun 2 button on the keypad while on this screen.
309374
53
PrecisionFlo XL EasyKey Interface
Calibration—Flow Rate Screen
Dispense Mode: Manual
Reg 1
Reg 2
Max Robot Speed
XXX
XXX
mm/sec
Bead Diameter
XX.X
XXX.
mm
Max Flow Limit
XXXX
XXXX
cc/mm
XXXX
XXXX
psi
Outlet Press
XXXX
XXXX
psi
Flow Rate
XXXX
XXXX
cc/min
Max Flow Rate
XXXX
XXXX
cc/min
* Flow Cal Pressure
Pressure
Flow Rate
Setup 1
Setup 2
Calibration
Faults
No Active Alarms
Fig. 29
Table 19—Flow Rate Screen Values
Description
Possible Values
Default Value
Max Robot Speed
0–999 mm/sec
500
Bead Diameter
0–99.9 mm
5
Max Flow Limit
0–9999 cc/min
1000
*Flow Cal Pressure
0–5000 psi
0
Outlet Pressure
0–5000 psi
N/A
Flow Rate
0–9999 cc/min
N/A
Max Flow Rate
0–9999 cc/min
N/A
*Set by the Autotune process.
NOTE: To do a flow rate calibration, push the Gun 1 or Gun 2 button on the keypad while on this screen.
54
309374
PrecisionFlo XL EasyKey Interface
Faults—Action Screen
The purpose of this screen is to set the alarms to be either warnings or alarms. An alarm will stop the system, but a
warning will not. When this screen is selected, the top fault field is highlighted. The fault warning/alarm status can
then be toggled by pressing the Enter key.
Warning
Inlet Pressure Low
Warning
Inlet Pressure High
Warning
Outlet Pressure Low
Warning
Outlet Pressure High
Warning
Swirl Speed Error
Warning
Temp Control Outside Limits
Alarm
No Flow
Alarm
Low Volume on Last Job
Warning
High Volume on Last Job
Level
Parameters
Settings
Styles
Calibration
Faults
No Active Alarms
Fig. 30
309374
55
PrecisionFlo XL EasyKey Interface
Faults—Parameters Screen
# Jobs with High Volume to Fault
XXX
# Jobs with Low Volume to Fault
XXX
Time with No Flow to Fault
XXX sec
Pressure Limits
Inlet Lo
Inlet Hi
Outlet Lo Outlet Hi
Reg 1
XXXX
XXXX
XXXX
XXXX
Reg 2
XXXX
XXXX
XXXX
XXXX
Level
Parameters
Settings
Styles
Calibration
Faults
No Active Alarms
Fig. 31
Table 20—Parameters Screen Values
Description
Possible Values
Default Value
# Jobs to hi vol fault
0–999
1
# Jobs to lo vol fault
0–999
1
Time w/o flow to fault
0–999 sec
1
Inlet Pressure low limit
0–5000 psi
0
Inlet Pressure high limit
0–5000 psi
3500
Outlet Pressure low limit
0–5000 psi
0
Outlet Pressure high limit
0–5000 psi
3500
56
309374
PrecisionFlo XL TouchScreen Interface
PrecisionFlo XL TouchScreen Interface
Setup Mode– Navigation Bar and Fault Status Bar
Fig. 32
Run Mode– Navigation Bar and Fault Status Bar
Fig. 33
Numeric Pop-Up Keypad
Fig. 34
Alpha-Numeric Pop-Up Keypad
16-character limit
309374
57
PrecisionFlo XL TouchScreen Interface
Setup Screens
Setup – Modes Screen
Fig. 36
Table 21—Setup Modes Screen Values
Description
Possible Values
Operational Modes
Robot Mode
Analog/Digital
Control Mode
Pressure/Flow
Swirl Mode
Automatic/Manual
Robot Interface
Serial/Discrete
Global Adjustments
Flow Scale Reg #1
50–150
Flow Scale Reg #2
50-150
Swirl Auto
50-150
Swirl Manual
0-100
Totalizer
Resettable Total
Grand Total
Clear Totalizer
58
309374
Reset to zero
PrecisionFlo XL TouchScreen Interface
Setup – Dispense Screen
Fig. 37
Table 22—Setup Dispense Screen Values
Description
Possible Values
Default Value
Flow Meter K Factor (pulses/Lt)
0-99,999
Set at factory for specific system
Flow Average (pulses)
0-99
Sets automatically at flow calibration
Pressure Mode (PSI/V)
0-999
Sets automatically at flow calibration
Gun On Delay (ms)
0-999
0
Regulator On Delay (ms)
0-999
0
Gun Off Delay (ms)
0-999
0
Regulator Off Delay (ms)
0-999
0
309374
59
PrecisionFlo XL TouchScreen Interface
Setup – Styles Screen
Fig. 38
Table 23—Setup Styles Screen Values
Description
Possible Values
Style Bit & Name
Enter style names using pop-up alphanumeric keypad
Volume (cc)
0-99,999
Tolerance (%)
0-99.9
60
309374
PrecisionFlo XL TouchScreen Interface
Setup – Values Screen
Fig. 39
Table 24—Setup Values Screen Values
Description
Possible Values
Default Value
*Low Speed Bit (Default) (%)
0-100%
25%
Medium Speed Bit (%)
0-100%
50%
High Speed Bit (%)
0-100%
75%
Manual Gun (%)
0-100%
50%
Job End Delay Time (sec)
1-999
4 sec
*Analog mode flow signals less than 1 volt will default to this value.
309374
61
PrecisionFlo XL TouchScreen Interface
Setup – Trend Screen
Fig. 40
Table 25—Setup Trend Screen Values
Description
Possible Values
Signals (Select signals to display)
Inlet Pressure Regulator 1/Regulator 2
Outlet Pressure Regulator 1/Regulator 2
Desired Pressure Regulator 1/Regulator 2
Requested Flow Regulator 1/Regulator 2
Flow Rate Regulator 1/Regulator 2
Robot Command Flow Reg 1Reg 2
Swirl Speed Regulator 1/Regulator 2
Robot Command Swirl Reg 1/Reg 2
Zero Compensation Reg 1/Reg 2
Peak Compensation Reg 1/Reg 2
Actual Temperature Zone 1/Zone 2/Zone 3/Zone 4
This screen is used to analyze system performance much as you would with an oscilloscope. Select the signal(s) to
monitor and enter the number of seconds to display across the window. Smaller numbers will make the display
scroll faster (valid range is 3 to 120 seconds). The two values at the left edge of the window can be used to change
the range of values displayed. Touch the Start/Stop button to begin trending.
62
309374
PrecisionFlo XL TouchScreen Interface
Setup – SPC Screen
Fig. 41
Table 26—Setup SPC Screen Values
Description
Possible Values
Style
As entered on Setup Styles screen (Fig. 38)
Number of jobs
1-65,000
Tolerance
Reads the tolerance value set for the corresponding
style name on the Setup Styles screen.
The Statistical Process Control (SPC) screen is used to monitor quality in a manufacturing process. Select the style
name and the number of jobs to check and the screen will show a bar graph of performance accuracy and repeatability. This is the same information shown on the Job Log screen displayed in graph format.
309374
63
PrecisionFlo XL TouchScreen Interface
Config – General Screen (1 regulator)
Fig. 42
Config – General Screen (2 regulators)
Fig. 43
64
309374
PrecisionFlo XL TouchScreen Interface
Table 27—Config General Screen Values (1 regulator)
Description
Possible Values
Default
Job End Mode
Robot I/O/Timer
Timer
Language
English/French/German/Italian/
Japanese/Korean/Portugese/
Spanish
English
Pressure Units
bar/PSI
PSI
Temperature Control
None/Electric Heat/Temperature
Conditioning
None
Number of Regulators
One/Two
One
Number of Swirls
None/One/Two
None
Number of Flow Meters
None/One/Two
One
309374
65
PrecisionFlo XL TouchScreen Interface
Config – Temperature Screen
Fig. 44
Table 28—Config Temperature Screen Values
Description
Possible Values
Zones 1 – 4
On/Off
PID—Close Window
*The PID field will display “Autotune” if there is an Autotune in progress. After completion of the Autotune process, the field will change to “Done.”
Autotune/Dispense Valve/Fluid Plate/Hose/Regulator/
Done
Set Point
60.0–176.0F/x.x–x.x C
Tolerance
2.0–50.0F/x.x–x.x C
Temperature
Displays actual temperature reading
Temperature Units
Fehrenheit/Celsius
Setting a device sets the proper PID values for that device.
*If you select AutoTune for any zone and press Enter, the AutoTune process for that zone begins. The control will
heat and monitor that device to automaticall determine the correct PID values. This process takes from 5 to 40 minutes and should be started from ambient temperature. When complete, the field displays “Done”
NOTES:
If set points are entered in Celsius and the readout is later changed to Fahrenheit, the set points are automatically converted.
If “Temperature Conditioning” was selected on int Setup 1, Config screen, default PID values are automatically
set for zone 1. If these values are changed, they will revert back to the default values at the next power up.
66
309374
PrecisionFlo XL TouchScreen Interface
Config – Set Clock Screen
Fig. 45
Table 29—Config Set Clock Screen Values
Description
Possible Values
Time Zone
Eastern/Central/Mountain/Pacific/Alaska/Hawaii/Samoa
Year
2000–2038
Month
1–12
Day
1–31
Hour
1–24
Minute
0–23
Second
0–59
309374
67
PrecisionFlo XL TouchScreen Interface
Config – IP Configuration Screen
Fig. 46
See Appendix A: Ethernet and FTP for an explanation of how to use this screen.
68
309374
PrecisionFlo XL TouchScreen Interface
Config – Backup Screen
Fig. 47
Table 30—Config Backup Screen Values
Description
Possible Values
Load
Any previously saved setup file
Save As
Enter file name using pop-up alpha-numeric keypad
Load Factory Defaults
Reloads the factory set parameters
Use this screen to save your current setup parameters to a retrievable file on the hard drive of your PC or to retrieve a previously saved setup file. You can also reload the factory default setup.
309374
69
PrecisionFlo XL TouchScreen Interface
Logs – Job Log Screen
Fig. 48
Table 31—Logs Job Log Screen Values
Description
Job Number
Date
Time
Style
Volume
Meas.
Req.
Process
% Error
70
309374
PrecisionFlo XL TouchScreen Interface
Logs – Alarm Log Screen
Fig. 49
Table 32—Logs Alarm Log Screen Values
Description
Fault Number
Date
Time
Fault Code
Description
Status
Reset Fault #
309374
71
PrecisionFlo XL TouchScreen Interface
Calibration – Pressure Screen
Fig. 50
Table 33—Calibration Pressure Screen Values
Description
Possible Values
*Inlet Voltage at 0 Pressure
0.0–2.0 V
*Outlet Voltage at 0 Pressure
0.0–2.0 V
Inlet Pressure at 5 V
0.0–344.83 bar/0.0–5000 PSI
Outlet Pressure at 5 V
0.0–344.83 bar/0.0–5000 PSI
Kp
0.0–999.0
Ki
0.0–999.0
Actual Inlet Pressure
Actual Outlet Pressure
*
These values can be adjusted to calibrate the inlet and outlet regulator pressure transducers.
These pressures should match the pressure range switch positions on the transducer amplifier card in the fluid
plate junction box (see fig. 77).
72
309374
PrecisionFlo XL TouchScreen Interface
Calibration – Flow Screen
Fig. 51
Table 34—Calibration Flow Screen Values
Description
Possible Values
Maximum Robot Speed
0.0–999.0 mm/s
Bead Diameter
0.0–99.9 mm
Maximum Flow Limit
0.0–5000.0 cc/min
Flow Calibration Pressure
Actual
Outlet Pressure
Actual
Actual Flow Rate
Actual
Maximum Flow Rate
Actual
309374
73
PrecisionFlo XL TouchScreen Interface
Faults – Level 1 Screen
Fig. 52
Table 35—Faults Level 1 Screen Values
Description
Possible Values
Default Value
1. Dispenser stop
Always Alarm
Alarm
2. Drive Fault 1
Always Alarm
Alarm
3. Spare
None
4. Motor Over Temp 1
Always Alarm
5. Spare
None
6. High Volume on Last Job
Alarm/Warning
Warning
7. Setup values changed
Alarm/Warning
Warning
8. Low Volume on Last Job
Alarm/Warning
Warning
9. Spare
None
10. No Flow 1
Alarm/Warning
Warning
11. No Flow 2
Alarm/Warning
Warning
12. High Outlet Pressure 1
Alarm/Warning
Warning
13. High Outlet Pressure 2
Alarm/Warning
Warning
14. Low Outlet Pressure 1
Alarm/Warning
Warning
15. Low Outlet Pressure 2
Alarm/Warning
Warning
16. High Inlet Pressure 1
Alarm/Warning
Warning
74
309374
Alarm
PrecisionFlo XL TouchScreen Interface
Faults – Level 2 Screen
Fig. 53
Table 36—Faults Level 2 Screen Values
Description
Possible Values
Default Value
17. High Inlet Pressure 2
Alarm/Warning
Warning
18. Low Inlet Pressure 1
Alarm/Warning
Warning
19. Low Inlet Pressure 2
Alarm/Warning
Warning
20. OP Cable Open 1
Always Alarm
Alarm
21. OP Cable Open 2
Always Alarm
Alarm
22. Swirl Fault 1
Alarm/Warning
Warning
23. Swirl Fault 2
Alarm/Warning
Warning
24. Temperature Not Within Limits
Alarm/Warning
Warning
25. Flow Calibration Error
Alarm/Warning
Warning
26. Volume Compensation Limit 1
Alarm/Warning
Warning
27. Volume Compensation Limit 2
Alarm/Warning
Warning
28. Computed Target
Alarm/Warning
Warning
29. Closed Gun Flow 1
Alarm
Alarm
30. Closed Gun Flow 2
Alarm
Alarm
31. Spare
None
32. Spare
None
309374
75
PrecisionFlo XL TouchScreen Interface
Faults – Parameters Screen
Fig. 54
Table 37—Faults Parameters Screen Values
Description
Possible Values
Volume Fault Buffering
Number of Jobs with High
Volume to Fault
0–999
Number of Jobs with Low
Volume to Fault
0–999
Time with No Flow to Fault
1–999
Pressure Limits
76
Inlet Pressure Low Limit
0.0–344.83 bar/0.0–5000 PSI
Inlet Pressure High Limit
0.0–344.83 bar/0.0–5000 PSI
Outlet Pressure Low Limit
0.0–344.83 bar/0.0–5000 PSI
Outlet Pressure High Limit
0.0–344.83 bar/0.0–5000 PSI
309374
PrecisionFlo XL TouchScreen Interface
Help – About Screen
Fig. 55
309374
77
PrecisionFlo XL TouchScreen Interface
Run Screens
Status Screen (1 regulator)
Fig. 56
Status Screen (2 regulators)
Fig. 57
78
309374
PrecisionFlo XL TouchScreen Interface
Table 38—Status Screen Values
Description
Possible Values
Status
Inlet Pressure Reg 1 and 2
0–9999 psi
Outlet Pressure Reg 1 and 2
0–9999 psi
Requested Flow Reg 1 and 2
0–9999 cc/min
Measured Flow Reg 1 and 2
0–9999 cc/min
Robot Command Flow
0–9.9 V
Swirl Speed
Robot Command Swirl
Selected Style
Volume
Measured
Requested
Process
Tolerance
Error
Volume Compensation
Zero
Peak
309374
79
PrecisionFlo XL TouchScreen Interface
Settings Screen
Fig. 58
Table 39—Settings Screen Values
Description
Possible Values
Default Value
Robot Mode
Analog/Digital
Digital
Control Mode
Pressure/Flow
Pressure
Swirl Mode
Manual/Automatic
Manual
Robot Interface
Discrete/Serial
Serial
Swirl Auto %
50 to 150%
100%
Swirl Manual %
0 to 100%
50%
Flow Scale Regulator #1 (%)
50 to 150%
100%
Flow Scale Regulator #2 (%)
50 to 150%
100%
Low Speed Bit (%) (default)
0 to 100%
25
Medium Speed Bit (%)
0 to 100%
50
High Speed Bit (%)
0 to 100%
75
Manual Gun Flow Rate (%)
0 to 100%
50
Job End Delay Time (sec)
1 to 999 sec
4
Mode
Totalizer
Resettable Total
Grand Total
Scale
*
Digital Settings
*When there are 2 regulators
80
309374
PrecisionFlo XL TouchScreen Interface
Job Log Screen
Fig. 59
309374
81
PrecisionFlo XL TouchScreen Interface
Alarm Log Screen
Fig. 60
82
309374
PrecisionFlo XL TouchScreen Interface
System I/O – Input Screen
Fig. 61
System I/O – Output Screen
Fig. 62
309374
83
PrecisionFlo XL TouchScreen Interface
Robot I/O – Input Screen
Fig. 63
Robot I/O – Output Screen
Fig. 64
84
309374
PrecisionFlo XL TouchScreen Interface
Notes
309374
85
PrecisionFlo XL Remote Screen Interface
PrecisionFlo XL Remote Screen Interface
This section is applicable only if your system is configured to control one or more local stations from a single
remote TouchScreen. You can control up to 12 local
stations from the remote TouchScreen.
Setting Up Local Stations
Before you can communicate with the local stations,
you must enter the Ethernet physical address for each
active station. The physical address is found on the
sticker affixed to the Ethernet driver chip on the
PC/104 board (see Fig. 65). Write down the physical
address and station number for each local station you
will be using.
When your system is configured with a remote TouchScreen, the screen shown in Fig.66 appears when you
enter setup mode (key switch clockwise). To enter the
physical address for each local node, perform the
following steps.
1. With the system in setup mode, touch the physical
address field for the station you want to enter the
address for (Fig. 66).
2. The address entry keypad (Fig. 67) appears.
Touch the keys to enter the 12-character physical
address.
NOTE: Be sure to enter the physical address of the
local station and not the station that you are configuring (remote station). The physical address of the local
station is 12 characters with no spaces. Be sure to
enter these numbers correctly so the remote TouchScreen can communicate with the PrecisionFlo XL.
Rotary switch
to set station
number
CompactFlash
Ethernet
Driver Chip
(physical address)
Terminal Block #1
Fig. 65
86
309374
Terminal Block
(wires are jumpered here)
Ethernet Port
PrecisionFlo XL Remote Screen Interface
Go to
Station 1
Physical Address Field
(Station 1)
NOTE: The numbers
shown on this sample
screen are for reference only. You will enter the actual addresses found on the Ethernet chip on the local
stations.
Fig. 66
Fig. 67
309374
87
PrecisionFlo XL Remote Screen Interface
Operating from a Remote TouchScreen
When the PrecisionFlo XL key switch is turned to run
mode, the screen shown in Fig. 68 appears. Touch the
station number of a configured station to view and
control functions on that station. The button is dark for
an enabled station number. A station is enabled when
it is correctly configured and is communicating properly
with the remote station. If a station button should be
enabled is not, check the network cable connections,
make sure that the station is turned on, and verify that
the physical address has been entered correctly.
When operating with a remote TouchScreen, the run
screens are the same as with an integrated TouchScreen except that a small icon at the top of each
screen indicates which local station you are controlling.
Touching this icon returns you to the home screen so
you can navigate to another local station. (See Fig.69).
Fig. 68
Run Screen Local
Station indicator
Fig. 69
88
309374
Return to
Home Screen
Robot I/O Interface
Robot I/O Interface
Table 40—Robot Interface Analog Inputs to the PrecisionFlo XL
Refer to page 98 for more information on analog signals.
Signal Name
Wire
Board ID Cable
Signal Description
Analog Flow Command 1
3280
J1–21
RAR–1
Robot speed command for Fluid Control plate 1.
J1–10
RAR–2
Robot speed command 1 common.
J1–22
RAR–3
Robot speed command for Fluid Control plate 2.
J1–12
RAR–4
Robot speed command 2 common.
Analog Common
Analog Flow Command 2
3290
Analog Common
Swirl Speed Command 1
3220
J1–17
RAR–5
Swirl speed command for orbiter 1.
Analog Common
3110
J1–7
RAR–6
Swirl speed 1 common.
Swirl Speed Command 2
3230
J1–18
RAR–7
Swirl speed command for orbiter 2.
J1–8
RAR–8
Swirl speed 2 common.
Analog Common
309374
89
Robot I/O Interface
Table 41—Robot Interface Digital Inputs to the PrecisionFlo XL
Your controller must have either a 24 VDC or 120 VAC I/O card to receive this input. See page 98 for more information on digital inputs.
Signal Name
Wire
Board ID
Cable
Signal Description
Dispense Gun 1
8170
J4–13
RDR–A1
When this signal is applied, Dispense Gun 1 opens.
Dispense Gun 2
8180
J4–14
RDR–A2
When this signal is applied, Dispense Gun 2 opens.
Request Volume
8190
J4–15
RDR–A3
This signal requests that the volume move to the data
bits. The signal must remain on HIGH until the bits are
read.
Fault Reset
8200
J4–16
RDR–A4
This signal acknowledges/resets a fault in the controller.
Initiate Style
8210
J4–17
RDR–A5
This signal takes information on the style bits and uses
the number for the next job. The signal must remain on
HIGH for 50 msec prior to start of job.
Job Complete /
Measure Volume
8220
J4–18
RDR–A6
When this signal is HIGH and robot I/O is selected for
the job end, the dispense job is ended and volume is
calculated.
Swirl Enable 1
8230
J4–19
RDR–A7
When this signal is applied, the PrecisionSwirl 1 orbits.
Swirl Enable 2
8240
J4–20
RDR–A8
When this signal is applied, the PrecisionSwirl 2 orbits.
Style 1
8250
J4–21
RDR–A9
Style bit #1
Style 2
8260
J4–22
RDR–A10 Style bit #2
Style 4
8270
J4–23
RDR–A11 Style bit #4
Style 8
8280
J4–24
RDR–A12 Style bit #8
Style 16
8670
J5–13
RDR–A13 Style bit #16
Low Speed
8680
J5–14
RDR–A14 When this signal is HIGH and digital robot mode is
selected, the PrecisionFlo XL will default to a preset Low
Speed setting in the controller.
Med Speed
8690
J5–15
RDR–A15 When this signal is HIGH and digital robot mode is
selected, the PrecisionFlo XL will default to a preset
Medium Speed setting in the controller.
High Speed
8700
J5–16
RDR–A16 When this signal is HIGH and digital robot mode is
selected, the PrecisionFlo XL will default to a preset
High Speed setting in the controller.
Remote Start
8710
J5–17
RDR–B1
When HIGH, this signal starts the controller. The signal
is normally LOW.
Remote Stop
8720
J5–18
RDR–B2
When LOW, the controller will stop. The signal is normally HIGH.
Remote Temp
Enable
8730
J5–19
RDR–B3
HIGH signal enables the temperature control.
Spare 1
8740
J5–20
RDR–B4
Spare
Spare 2
8750
J5–21
RDR–B5
Spare
Spare 3
8760
J5–22
RDR–B6
Spare
Spare 4
8770
J5–23
RDR–B7
Spare
Spare 5
8780
J5–24
RDR–B8
Spare
90
309374
Robot I/O Interface
Table 42—Robot Interface Digital Outputs from the PrecisionFlo XL
See page 98 for more information on digital outputs.
Signal Name
Wire
Board ID Cable
Signal Description
L1
2190
J1–1
RDR–B9
Interface power (24 VDC or 120 VAC, depending on board).
L2
2131
J4–1
RDR–B10 Interface neutral (24 VDC common or 120 VAC neutral).
Dispenser
Ready
7170
J1–13
RDR–C1
This signal is HIGH when system is Ready.
Volume on Data
7180
J1–14
RDR–C2
This signal is HIGH when data bits contain volume data.
Fault on Data
7190
J1–15
RDR–C3
This signal is HIGH when a fault exists in the controller and
data bits contain fault code data.
Auto Mode
7200
J1–16
RDR–C4
This signal is HIGH when the controller is in automatic mode.
Cycle Complete
7210
J1–17
RDR–C5
This output signal is HIGH when system is not dispensing.
In Cycle
7220
J1–18
RDR–C6
This output signal is HIGH when system is dispensing.
Data 1*
7230
J1–19
RDR–C7
These signals pass volume and fault information.
Data 2*
7240
J1–20
RDR–C8
These signals pass volume and fault information.
Data 4*
7250
J1–21
RDR–C9
These signals pass volume and fault information.
Data 8*
7260
J1–22
RDR–C10 These signals pass volume and fault information.
Data 16*
7270
J1–23
RDR–C11 These signals pass volume and fault information.
Data 32*
7280
J1–24
RDR–C12 These signals pass volume and fault information.
Data 64*
7680
J3–13
RDR–C13 These signals pass volume and fault information.
Data 128*
7690
J3–14
RDR–C14 These signals pass volume and fault information.
Data 256*
7700
J3–15
RDR–C15 These signals pass volume and fault information.
Data 512*
7710
J3–16
RDR–C16 These signals pass volume and fault information.
Data 1024*
7720
J3–17
RDR–D1
These signals pass volume and fault information.
Data 2048*
7730
J3–18
RDR–D2
These signals pass volume and fault information.
Data 4096*
7740
J3–19
RDR–D3
These signals pass volume and fault information.
Data 8192*
7750
J3–20
RDR–D4
These signals pass volume and fault information.
Data 16384*
7760
J3–21
RDR–D5
These signals pass volume and fault information.
Data 32768*
7770
J3–22
RDR–D6
These signals pass volume and fault information.
Spare 1
7780
J3–23
RDR–D7
Spare
Sealer Stop to
Robot
2680
N/A
RDR–D15 Contact used to detect PrecisionFlo E–Stop.
Sealer Stop to
Robot
2681
N/A
RDR–D16 Contact used to detect PrecisionFlo E–Stop.
*See the following page for fault codes.
309374
91
Robot I/O Interface
Table 43—Fault Codes
Bit Description
Fault
Code
Fault Description
Level
Dispenser Stop
1
MCR/PCR is not energized
Alarm
Drive Fault 1
2
Linear motor amplifier board fault
Alarm
Spare
3
Spare
–
Motor Over Temp 1
4
Linear motor above 90 degrees C or sensor open
Alarm
Spare
5
Spare
–
High Volume
6
Actual Volume > Requested Volume + (Requested
Volume x % Tolerance)
Alarm or Warning
Setup Values
Changed
7
Setup values were changed
Alarm or Warning
Low Volume
8
Actual Volume < Requested Volume – (Requested
Volume x % Tolerance)
Alarm or Warning
Spare
9
Spare
–
No Flow 1
10
No flow meter pulses detected with regulator 1 dispensing
Alarm or Warning
No Flow 2
11
No flow meter pulses detected with regulator 2 dispensing
Alarm or Warning
High Outlet Pressure
1
12
Outlet Pressure 1 > Maximum Outlet Pressure 1 for
one second
Alarm or Warning
High Outlet Pressure
2
13
Outlet Pressure 2 > Maximum Outlet Pressure 2 for
one second
Alarm or Warning
Low Outlet Pressure 1
14
Outlet Pressure 1 < Minimum Outlet Pressure 1 for
one second
Alarm or Warning
Low Outlet Pressure 2
15
Outlet Pressure 2 < Minimum Outlet Pressure 2 for
one second
Alarm or Warning
High Inlet Pressure 1
16
Inlet Pressure 1 > Maximum Inlet Pressure 1 for one
second
Alarm or Warning
High Inlet Pressure 2
17
Inlet Pressure 2 > Maximum Inlet Pressure 2 for one
second
Alarm or Warning
Low Inlet Pressure 1
18
Inlet Pressure 1 < Minimum Inlet Pressure 1 for one
second
Alarm or Warning
Low Inlet Pressure 2
19
Inlet Pressure 2 < Minimum Inlet Pressure 2 for one
second
Alarm or Warning
OP Cable Open 1
20
Operations cable to regulator 1 fluid plate disconnected
Alarm
OP Cable Open 2
21
Operations cable to regulator 2 fluid plate disconnected
Alarm
Swirl Fault 1
22
Swirl 1 orbiter not rotating within speed range
Alarm or Warning
Swirl Fault 2
23
Swirl 2 orbiter not rotating within speed range
Alarm or Warning
Temp Not Within Limits
24
Temp conditioner zone out of set range
Alarm or Warning
Flow Calibration Error
25
Flow calibration could not be completed with current
settings
Warning
92
309374
Robot I/O Interface
Table 43—Fault Codes
Bit Description
Fault
Code
Fault Description
Level
Volume Comp Limit 1
26
Regulator 1 peak volume compensation reached 25%
or 400% limit
Alarm or Warning
Volume Comp Limit 2
27
Regulator 2 peak volume compensation reached 25%
or 400% limit
Alarm or Warning
Computed Target
28
Requested volume outside of range from process
volume
Alarm or Warning
Closed Gun Flow 1
29
Flow 1 > 1000 cc/min for 10 samples with gun 1
closed
Alarm
Closed Gun Flow 2
30
Flow 2 > 1000 cc/min for 10 samples with gun 2
closed
Alarm
309374
93
94
309374
J3
Data 32
Data 16
Data 8
Data 4
Data 2
Data 1
In Cycle
Cycle Complete
Auto Mode
Fault On Data
Volume On Data
Dispenser Ready
J4
Spare 2
Spare 1
Data 32768
Data 16384
Data 8192
Data 4096
Data 2048
Data 1024
Data 512
Data 256
Data 128
Data 64
J5
Style 8
Style 4
Style 2
Style 1 Swirl
Swirl Enable 2
Swirl Enable 1
Job Complete
Initiate Style
Fault Reset
Request Volume
Dispense Gun 2
Dispense Gun 1
Spare 5
Spare 4
Spare 3
Spare 2
Spare 1
Remote Temp Start
Remote Stop
Remote Start
High Speed
Med Speed
Low SPeed
Style 16
Robot I/O Interface
Discrete Signals
Robot I/O Board shown
(inside PrecisionFlo XL control unit)
J1
Fig. 70
Note: The transparent circuit board cover over the discrete I/O board in the control box, identifies the location of the
LEDs.
Robot I/O Interface
Table 44—Anybus I/O to the PrecisionFlo XL (16 bytes of data from Cell Controller to PrecisionFlo XL)
For more information regarding the device networks, visit the website www.anybus.com.
Node
Address
PrecisionFlo XL
Variable
GM–RS4 Spec
N10:O01
N10:O02
N10:O03
N10:O04
N10:O05
N10:O06
N10:O07
N10:O08
N10:O09
N10:O10
N10:O11
N10:O12
N10:O13
N10:O14
N10:O15
style 1
style 2
style 4
style 8
style 16
style 32
reserved
style_strobe
gun_1_on
gun_2_on
gun_3_on
gun_4_on
gun_5_on
reserved
dispense_complete
N10:O16
N10:O17
N10:O18
N10:O19
Style Bit 1
Style Bit 2
Style Bit 4
Style Bit 8
Style Bit 16
–
–
Initiate Style
Dispense Gun 1
Dispense Gun 2
Swirl Enable 1
Swirl Enable 2
–
–
Job Complete/Measure
Volume
Remote Start
Request Volume
Fault Reset
Remote Stop
N10:O20
N10:O21
N10:O22
N10:O23
N10:O24
N10:O25
N10:O26
N10:O27
N10:O28
N10:O29
N10:O30
N10:O31
N10:O32
N10:O33–48
N10:O49–64
N10:O65–80
–
–
–
–
–
–
–
–
–
–
–
–
–
Analog Flow Command 1
Analog Flow Command 2
Swirl Speed Command 1
pre_press_shotmeter
reload_shotmeter
de_press_shotmeter
reserved
supply_air_enable
air_knife_enable
tip_to_position1
tip_to_position2
index_felt
initiate_drip_check
reserved
ok_to_purge1
ok_to_purge2
material_flow_command
dispense_bead_command
Byte 11–12 N10:O81–96
Swirl Speed Command 2
Byte 13
N10:O97
N10:O98
N10:O99
N10:O100
N10:O101
spare_4
spare_3
spare_2
spare_1
Remote Temp Enable
remote_temp_en
N10:O102
N10:O103
N10:O104
High Speed
Medium Speed
Low Speed
–
–
high_speed
medium_speed
low_speed
spare_byte_1
spare_word_1
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5–6
Byte 7–8
Byte 9–10
Byte 14
Byte 15–16
remote_start
reserved
reserved
reserved
Comments
This bit must be set to 1 if this signal is
not used
Low 10 bits for gun 1 analog command
Low 10 bits for gun 2 analog command
Low 10 bits Swirl 1 speed command (6
to 24 krpm)
Low 10 bits Swirl 2 speed command (6
to 24 krpm)
This bit must be set to 1 if this signal is
not used
309374
95
Robot I/O Interface
Table 45—PrecisionFlo XL I/O to Cell Controller
Node
Address
Byte 1
N10I01
N10I02
N10I03
N10I04
N10I05
N10I06
N10I07
N10I08
Byte 2
N10I09
N10I10
N10I11
N10I12
N10I13
N10I14
N10I15
N10I16
Byte 3
N10I17
N10I18
N10I19
N10I20
N10I21
N10I22
N10I23
N10I24
Byte 4
N10I25
N10I26
N10I27
N10I28
N10I29
N10I30
N10I31
N10I32
Byte 5–6
N10I33–48
Byte 7–8
N10I49–64
Byte 9–10 N10I65–80
Byte 11–12 N10I81–96
Byte 13–14 N10I97–112
Byte 15–16 N10I113–128
96
309374
PrecisionFlo XL
Variable
GM–RS4 Spec
Dispenser Ready
In Cycle
Volume on Data
Major Fault
Minor Fault
–
Automatic Mode
Manual Mode
–
–
Cycle Complete
Fault on Data
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
16 Bit Pflo XL Data Bus
Actual Swirl speed 1
Actual Swirl speed 2
spare_word_1
spare_word_2
spare_word_3
dispense_ready
dispense_in_process
volume_ok
major_fault
minor_fault
remote_start_in_process
automatic_mode
manual_mode
de_pressurized
drum_empty
reserved
reserved
shotmeter_full
shotmeter_empty
shotmeter_pressurized
reserved
reserved
felt_index_complete
drip_check_complete
clear_check_passed
black_check_passed
reserved
reserved
purge_request
reserved
reserved
reserved
reserved
reserved
reserved
reserved
reserved
–
–
–
–
–
–
Comments
Used for fault code and volume reporting
Unsigned 16 bit integer; 0 to 24,000 RPM
Unsigned 16 bit integer; 0 to 24,000 RPM
Theory of Operation
Theory of Operation
Input and Output Signals
Fault Reset
Terminology
Initiate Style
For the purpose of this document a digital signal is
said to be SET when voltage is present (or above the
minimum threshold). A signal is said to be RESET
when the signal voltage is not present (below minimum
threshold). Devices are referred to as SET when they
are in their energized or active state.
Digital Inputs
Dispense Gun 1
This is the Dispense Signal. The PrecisionFlo XL unit
will attempt to dispense at either the commanded
flowrate or commanded pressure while this signal is
SET, dependent on mode.
This signal is used to clear a fault using the robot I/O.
This input can be used to start a new dispense job.
Job Complete/Measure Volume
This input can be used to signal a job end.
Style Bits 1, 2, 4, 8, 16
These inputs are read at the start of a job to determine
the selected style.
Low, Medium, High Speed
These are the digital robot flow commands.
Swirl Enable 1
This is the input signal to enable the optional swirl
orbiter 1.
Dispense Gun 2
Swirl 2
This signal is used either independently or in conjuction with Dispense Gun 1 when a second dispense
valve is added to the system. For purposes of Dispense Cycle timing, operating both or either are considered a single dispense signal. For dispensing operations, an additional calibration point is added for
Dispense Gun 2.
This is the input signal to enable the optional swirl
orbiter 2.
Remote Start
When HIGH, this signal starts the controller. The signal
is normally LOW.
Remote Stop
Request Volume
This signal is used to request the PrecisionFlo XL
system to put the last logged volume on the data bus.
The PrecisionFlo XL will SET the Volume on data
signal when the data bus is ready to be read.
When LOW, the controller will stop. The signal is
normally HIGH.
Remote Temp Enable
HIGH signal enables the temperature control.
309374
97
Theory of Operation
Digital Outputs
L1
Data Bits 1, 2, 4, 8, 16, 32, 64, 128, 256, 512,1024,
2048, 4096, 8192, 16384, 32768
Interface neutralr (24 VDC or 120 VAC neutral).
These bits should be read as a binary number. Data
bits represent binary bits 0-9 respectively. All bits
remain RESET until either a fault occurs (value represents the fault code) or a Volume Request sequence is
initiated (value represents the volume in cubic
centimeters).
Dispenser Ready
Sealer Stop to Robot
This signal will be SET under the following conditions:
Contact used to detect PrecisionFlo E–Stop.
1. System is in automatic mode.
Analog Signals
2. System does not have an active ALARM (Warnings have no effect).
Robot Analog
Interface power (24 VDC or 120 VAC, depending on
board).
L2
Volume On Data
This signal is used in conjuction with Request Volume
to indicate the data bus is ready to be read.
NOTE: This signal does not indicate a valid job or
part.
Fault on Data
This bit is RESET under the following conditions:
1. System is in automatic mode.
The robot analog signal inputs represent flow or pressure requests. The voltage must be between 0 and 10
volts DC. The 0-10 volt signal is interpreted as a
relative 0-100% flow or pressure command signal. The
system must be in Analog Mode for this input to be
active.
Swirl Analog
This analog signal is used by the optional swirl controls
when the Swirl Mode is set to Automatic. 0-10V represents a 0 to 100% (6,600 to 24,000 RPM) Swirl Speed
command.
2. No Faults (alarms or warnings) are active.
Auto Mode
NOTE: The minimum actual speed of the swirl motor
is 6,600 RPM.
This signal indicates if the PrecisionFlo XL system is in
automatic mode.
Interlocks
Temperature Fault
In Cycle
In Cycle signal is set at the beginning of a dispense
cycle. It is reset at the end of the dispense cycle. The
dispense cycle can end in two ways, depending on
how the Job End mode is set:
If the Job End mode is set to Robot I/O, dispense
cycle ends when the job complete signal is received
from the Robot I/O.
If the Job End mode is set to Timer, dispense cycle
ends when the Job End delay timer expires.
This interlock should be wired to a set of normally
open “Dry Contacts” in the temperature controller. The
contacts should be SET when the temperature control
system is operational and at temperature. If this signal
is not used, it must be jumpered.
NOTE: This signal is always a 24 VDC signal and
should be wired as shown in the electrical schematic,
manual 309364.
Remote Stop
Cycle Complete
Cycle Complete signal is reset at the beginning of a
dispense cycle. It is set after the dispense cycle ends
and no faults are present. If a fault is present at the
end of a dispense cycle, the cycle complete signal is
not set until the fault is cleared.
98
309374
This signal needs to be set by a robot controller to
access the PrecisionFlo XL to function.When not set,
this signal is the same as pressing the Stop button on
the front of the controller. If this signal is not used it
must be jumpered as shown in the electrical schematic, form no. 309364.
Theory of Operation
Operation Modes
Dispense Modes:
Manual Mode
Automatic Mode
When in Manual mode, the PrecisionFlo XL control
remains in a ready state and reacts only to input from
the user interface. The PrecisionFlo XL control ignores
robotic controller signals when in Manual mode.
When in Automatic mode, the PrecisionFlo XL control
remains in a ready state, indicated by the DISPENSER
READY signal, and reacts to inputs such as DISPENSE
and VOLUME REQUEST signals from the robot.
When a fault is detected, the PrecisionFlo XL control
sets the FAULT ON DATA signal HIGH, and may set
the DISPENSER READY signal LOW. Fault detection
can also occur during manual dispensing. (See Fault
Handling on page 103.)
During dispensing, the PrecisionFlo XL control performs
a variety of functions in the background. These functions include fault monitoring, real-time volume compensation, measuring volume (per job), and continuous
calculations to maintain the pressure and flow control
loops.
Control Modes:
Pressure
Flow
The robot I/O or Manual dispense command and the
psi/volt setting are used to set a pressure target. The
regulator adjusts to maintain this pressure.
The robot I/O command for manual dispense establishes a Flow Rate target. A pressure setpoint is determined from the calibration results and the volume
compensation values. The regulator adjusts to maintain
the pressure setpoint, volume compensation will adjust
the pressure setpoint to achieve the desired flow rate.
Robot I/O Modes:
Analog
Digital
0-10 VDC signal from the robot is used to determine the
pressure or flow command. A 10 volt command in Flow
Control Mode will establish a flow rate command equal
to the value entered during the flow calibration procedure.
Three digital I/O signals (High, Medium, Low speed) are
used to set three discrete commands. 0–100% is
equivalent to 0–10 volt analog command. If no digital
I/O signal is given, the system defaults to the Low
speed value.
309374
99
Theory of Operation
Swirl Modes:
Automatic
Manual
– Analog input is used to set swirl speed
– Manual setting of swirl speed by the “Swirl Manual”
variable on the settings screen. 0–100% sets
0–100% of swirl speed
– Robot I/O for activating swirl orbiter
– Robot Analog Swirl signal scaled by “Swirl Auto”
setting. A swirl auto value of 50% would give a 5 V
command to the swirl controller with a 10 V robot
analog swirl signal
– Swirl enable from robot I/O or PrecisionFlo XL
Manual dispense
– PrecisionFlo manual dispense will activate swirl
enable.
The PCR must be set (green light on) to enable the swirl controller
The swirl circuit board(s) and wiring are optional and only installed in models ordered with swirl capability.
The swirl fault is selectable as an Alarm or a Warning.
A swirl fault is generated if a swirl enable command is given to the swirl controller and the swirl orbiter does not
orbit at the desired speed.
100
309374
Theory of Operation
Typical Dispense Cycle
The In Cycle signal is set at the beginning of a dispense cycle, which starts with a Dispense Gun signal or Initiate
Style signal from the robot. The style bits from the robot are read at the beginning of the job.
Using Timer for Job End
If the Job End mode is set to Timer, the dispense cycle ends when the Job End delay timer expires and there are
no faults present. The Cycle Complete signal is reset at the end of the dispense cycle.
DISPENSE GUN
A
IN CYCLE
CYCLE COMPLETE
A = Dispense Done delay time, default is 5 seconds
Fig. 71
Using Robot I/O for Job End
If the Job End mode is set to Robot I/O, the dispense cycle ends when the Job Complete signal is received from
the Robot I/O. This is the recommended method to end a job, as an unexpected production stoppage in the middle
of the dispense will not give a false Job End signal.
DISPENSE GUN
A
INITIATE STYLE
IN CYCLE
A
JOB COMPLETE
A = Minimum pulse width is 150 milliseconds
Fig. 72
309374
101
Theory of Operation
Typical Job Cycle
1. Robotic system controller verifies that the
DISPENSER READY signal is HIGH.
2. Robotic system goes into cycle.
3. Robotic system controller places the style information on the style data bus.
4. PrecisionFlo XL control reads the style bits from
the data bus. (Style Bits 0–5)
Style bit data must be valid a minimum of 15 msec
before DISPENSE or INITIATE STYLE is raised,
and must remain valid for a minimum of 130 msec
afterward (Fig. 73).
5. PrecisionFlo XL control waits for DISPENSE signal
from the robotic system to start dispensing.
6. Robotic system controller requests material to be
dispensed by setting the DISPENSE signal HIGH.
7. PrecisionFlo XL control activates the closer solenoid, retracting the closer pneumatic cylinder. (This
only occurs on models with the electric fluid
regulator.)
8. Dispense gun opens after the GUN ON DELAY,
immediately if the delay is set to zero.
9. PrecisionFlo XL control checks if a REGULATION
ON DELAY has been set by the user.
If the delay has been set, the PrecisionFlo XL control waits until the delay has expired, then begins
regulating material to the gun.
If the delay has not been set, the PrecisionFlo XL
control immediately begins regulating material to
the gun.
13. PrecisionFlo XL control monitors operating parameters to detect and report any faults that may
occur. (see Fault Handling on page 103.)
14. Robot sets the DISPENSE line LOW, indicating
that no material is required during this portion of
the program. (Robot can cycle the DISPENSE
signal HIGH and LOW throughout a cycle if required. Volume measurement will still occur.)
15. The regulator closes after the REGULATOR OFF
DELAY expires.
16. The PrecisionFlo XL control checks if a GUN OFF
DELAY has been set by the user.
If the delay has been set, the PrecisionFlo XL control waits until the delay has expired, then closes
the dispense gun solenoid, which closes the gun.
If the delay has not been set, the PrecisionFlo XL
control immediately closes the dispense gun solenoid, which closes the gun.
17. PrecisionFlo XL control deactivates closer, which
closes the needle 2 seconds after the gun solenoid
is deactivated. (This only occurs on models with
the electric fluid regulator.)
18. PrecisionFlo XL control stops measuring volume
after the DISPENSE DONE DELAY timer expires
or the JOB COMPLETE robot I/O signal is
received.
19. PrecisionFlo XL control updates the Status screen
and the Data table.
20. PrecisionFlo XL control waits to be polled for
volume dispensed. (See Volume Reporting on
page 105.)
Dispense/
Initiate Style
10. PrecisionFlo XL control regulates output based on
the FLOW COMMAND input signal from the robot.
15
msec
X
11. PrecisionFlo XL control measures the volume
dispensed continuously.
Style Bit Data
12. PrecisionFlo XL control continuously monitors fluid
pressures, and the flow rate as measured by the
flow meter, and makes adjustments for changes in
operating conditions.
Fig. 73
102
309374
130 msec
Y
Theory of Operation
Fault codes are reported using the FAULT ON DATA
signal and the data bus. Fault codes can be either:
Fault Reporting
Alarms, which cause the PrecisionFlo XL DISPENSER READY signal to go LOW or,
>
Fault On Data
>1 msec
Fault Code Data
Fig. 74
Fault code data is valid for a minimum of 1 msec
before FAULT ON DATA goes HIGH. Fault code data
remains valid, and the FAULT ON DATA remains
HIGH, until a FAULT RESET is received from the
robotic controller, or the fault is cleared using the
display.
Warnings, which keep the PrecisionFlo XL DISPENSER READY signal HIGH.
NOTE: Both volume and fault data are available on the
I/O interface. Volume and fault data share I/O points,
Data 1 – Data 32768. See Table 42, page 91. If the
VOLUME ON DATA output is on, the outputs contain
volume data. If the FAULT ON DATA output is on, the
outputs contain fault data.
The robot can read a fault code any time during the
cycle. If several faults are present at the same time,
the highest priority fault code is sent to the data bus.
At the end of the dispense cycle the data bus is used
for volume reporting, if requested by the robotic controller. Once volume reporting has been completed, the
fault code is placed back on the data bus.
Each Fault is recorded on the user interface. The fault
data is also available on the I/O interface until the fault
is cleared.
Refer to the Troubleshooting and Fault Recovery
section page 116 for fault code causes, descriptions,
and solutions for the various faults.
309374
103
Theory of Operation
Fault On Data Output
The data outputs represent binary values. To determine the fault, add the data together and compare it against
Table 43—Fault Codes, page 92.
Example 1:
Output OFF:
Output ON:
32768
16384
8192
4096
2048
1024
512
256
128
64
32
16
8
4
2
1
Data
Value
State
Total Volume = 1 + 4 +16 = 21, which represents a “Op Cable 2 Open” fault.
Typical Fault Reporting Procedure
1. A problem occurs in the PrecisionFlo XL control.
2. The PrecisionFlo XL control analyzes the problem
indication and determines if the fault is an alarm or
a warning.
3. If the fault is an alarm:
a. PrecisionFlo XL control sets the DISPENSER
READY signal LOW.
b. PrecisionFlo XL control places the fault code
on the data bus and sets the FAULT ON DATA
signal HIGH.
The robot can detect the fault strobe signal and
read the fault data immediately or at the end of the
cycle (see steps 4 and 5).
If the fault is a Warning, normal operation continues to the end of the cycle. A Warning should be
cleared using the TouchScreen or FAULT RESET.
104
309374
4. On completion of the cycle, if volume information
is requested, the PrecisionFlo XL control uses the
data bus to transfer the volume data. (See Figure 75, Volume Reporting on page 105.) During
volume transfer, the FAULT ON DATA signal is
LOW.
5. When the cycle is completed and any volume
information has been transferred, the PrecisionFlo
XL control places the fault code on the data bus
and FAULT ON DATA changes to HIGH.
Theory of Operation
Volume Reporting
Both volume and fault data are available on the I/O
interface. Volume and fault data share I/O points, Data
1 – Data 32768. See Table 42, page 91. If the VOLUME ON DATA output is on, the outputs contain
volume data. If the FAULT ON DATA output is on, the
outputs contain fault data.
The volume data recorded for each job is stored on the
user interface. The volume data for the last job completed only is available on the I/O interface. When a
new job begins, the volume data is overwritten on the
I/O interface. It is recommended you only gather data
after a job is complete. If you request data during a
job, the volume reported is only the amount dispensed
up to the point of the request.
A
Volume Request
C
B
Volume On Data
Volume Data
Fig. 75
Table 46 — Volume Data Timing Limits
Minimum Time
(msec)
Maximum Time
(msec)
A
VOLUME REQUEST rises
–
–
B
VOLUME REQUEST rises to Volume On Data rises
0
100
C
VOLUME REQUEST drops to VOLUME On Data drops
0
100
309374
105
Theory of Operation
Volume On Data Output
The data outputs represent binary values. To calculate volume, add the volumes together.
Example 1:
Output OFF:
Output ON:
256
512
1024
2048
4096
8192
16384
32768
256
512
1024
2048
4096
8192
16384
32768
128
64
32
16
8
4
2
1
Data
Value
State
Total Volume = 1 + 2 + 8 + 64 + 2048 = 2123 cc
Example 2:
Output ON:
Output OFF:
128
64
32
16
8
4
2
1
Data
Value
State
Total Volume = 1 + 16 + 32 = 49 cc
Typical Volume Reporting Procedure
6. Robotic controller reads the data.
1. Robotic controller sets DISPENSE to LOW and
DISPENSE DONE DELAY expires or a JOB
COMPLETE signal from the robot ends a dispense
job.
7. Robotic controller sets the VOLUME REQUEST
signal LOW to indicate volume data has been
read.
2. The PrecisionFlo XL control stops measuring
volume dispensed. An entry is made to the data
log which records the volume dispensed. On
installations with two flow meters, this is the combined volume of both flow meters.
3. Robot controller sets the VOLUME REQUEST
signal HIGH.
8. PrecisionFlo XL control sets the VOLUME ON
DATA signal to LOW.
9. After volume is reported, if a fault was detected
during the cycle, the PrecisionFlo XL control
places the fault code on the data bus. (See Fault
Reporting on page 103.)
4. PrecisionFlo XL control places the 16 bits of
volume information on the data bus.
5. PrecisionFlo XL control sets the VOLUME ON
DATA signal HIGH.
106
309374
10. When the robot sets the DISPENSE line high to
begin the next cycle, the PrecisionFlo XL control
discards previously stored volume data.
Theory of Operation
Flow Rate Calculation
The flow average value is calculated by the system
based on the K-factor and the flow rate entered during
flow calibration.
4 pulses
(flow average)
The time is measured for the number of flow meter
pulses in the flow average variable to occur and the
flow rate is calculated.
Example: Flow Average = 4 pulses
Flow Rate = 400 cc/min
K-factor = 3500 pulses/liter = 3.5 pulses/cc
This gives a pulse rate of 23.3 pulses/second or 43 milliseconds/pulse. A new flow
rate is measured approximately every 171
milli-seconds.
If the time measured with the same parameters (3500
pulses/liter, 4 pulses flow average) is 180 milliseconds,
the flow rate calculation would be 380 cc/minute.
Flow Calibration
In order to control the flow rate of a material, the system must determine the pressure required at the regulator outlet to achieve a desired flow rate (Fig. 76).The calibration procedure provides the pressure required to obtain the
maximum desired flow rate (10 VDC flow command.)
1000
100%
800
80%
600
60%
The flow calibration procedure
determines this point. This is the
initial pressure/flow peak setting
(100%)
Pressure (psi)
400
40%
200
20%
0
0%
Default medium speed bit
setting (50%)
0
2
4
6
8
10 –10%
This is the
Flow Command (VDC)
initial pressure/
flow offset setting 10 VDC = flow rate entered on flow calibration screen
(0%)
Fig. 76
309374
107
Theory of Operation
Volume Compensation
Endpoint
Adjustment
Volume compensation is used when the PrecisionFlo
XL system is operated in flow control mode. The
system measures the actual flow rate and adjusts the
pressure/flow relationship (as determined during flow
calibration) to achieve the desired flow.
Flow Command
< Medium
Speed Point
Flow Command
> Medium
Speed Point
Flow rate < desired flow rate
Flow rate > desired flow rate
Increase offset
Increase peak
Decrease offset
Decrease peak
When flow calibration is completed, the resulting
pressure value is divided by 100 to obtain a 1% value.
The initial offset is set to 0%, the initial peak is set to
100% (see Flow Calibration on page 107).
Each time a new flow rate measurement has been
completed, the actual flow rate is compared to the
requested flow rate. The flow rate command from the
robot (analog or digital) is also compared to the flow
rate defined by the digital medium speed bit. The
medium speed bit should be set to the average value
of the minimum and maximum robot commands when
using Analog for Robot mode.
108
309374
The volume compensation routine moves the end
points of a straight line which defines the pressure/flow
relationship of the system.
The end point of the pressure/flow line (offset or peak)
is moved the 1% value determined at the end of the
flow calibration routine. The magnitude of the flow rate
error does not affect the size of the adjustment.
The maximum adjustment range of the peak point is
25 to 400% of the original value from calibration. If the
25% or 400% limits are reached, a Volume Comp Limit
fault is generated.
Maintenance
Maintenance
The following is a list of recommended maintenance procedures and frequencies to operate your equipment safely.
The maintenance is divided between mechanical and electrical tasks. Maintenance must be performed by trained
personnel per this schedule to assure safety and reliability of the equipment.
Mechanical
Operator
Task
Daily
Maintenance Person
Weekly
Monthly
3–6
months
or
125,000
cycles
6–12
months
or
250,000
cycles
18–24
months
or
500,000
cycles
36–48
months
or
1,000,000
cycles
Inspect system for leaks
Depressurize fluid, after
operation
Remove heat from system,
after operation
Check hoses for wear
Check/tighten fluid
connections
Check/tighten air
connections
Replace PrecisionSwirl
Bellows
Lubricate dispense valves*
Rebuild regulator
Rebuild dispense valve
Check/replace PrecisionFlo
Bellows
Replace V/P air filter
Replace Solenoid
Replace V/P valve
* Applies to EnDure and UltraLite 1K model valves
Electrical
Task
Daily
Weekly
Monthly
6 months 12 months
Calibrate flow meter*
Check cables for wear
Verify cable connections
Verify resistance of electric heaters
Verify operation of “System Stop” button
* Weekly calibration is recommended for applications using abrasive materials.
309374
109
Troubleshooting
Troubleshooting
Fluid Modules
Problem
Cause(s)
Possible Solution(s)
No outlet pressure
Air pressure low
Verify air pressure is above 60 psi
(0.4 MPa, 4 bar)
No “Gun On” signal from robot
Check input from robot
No output signal from system I/O
board
Check signal from system I/O board,
verify that a signal is being sent
(1–5 VDC)
No air signal to air diaphragm
Check for loose/disconnected/worn
operations cable; tighten/replace as
required
Check for loose/disconnected DIN
connector to V/P valve; tighten
False signal being sent to control
Check outlet pressure sensor output; verify that it corresponds to zero
pressure; replace sensor and/or amplifier
Motor power cable open
(linear motor only)
Check for loose/disconnected/worn
motor power cable; tighten/replace
as required
Check air filter on V/P valve inlet
High outlet pressure
Needle/seat is worn
Rebuild regulator; replace needle/
seat
Air leaks from fluid module
Loose air connections
Check air connections; tighten if
necessary
Worn gaskets
Check/replace gaskets on V/P and
solenoid valve
Temperature controller turned off
Verify Zone #2 is on through the
user interface
Loose electrical connections
Verify connection between inlet hose
and fluid module connector
Fluid module heater does not heat
Verify connections between inlet
hose and main enclosure
Blown fuse
Check/verify fuse in Electric heat
box
Broken heater element
Check/verify heater resistance
Broken sensor
Check/verify sensor resistance
Failed solid state relay
Check power through relay
#SSR405
Material leaks from shaft seal (linear
motor only)
Worn shaft seal(s)
Rebuild regulator; replace shaft
seals
Sluggish open (linear motor only)
Air pressure low to closer
Verify air pressure is above 60 psi
(0.4 MPa, 4 bar)
110
309374
Troubleshooting
Flow Meter
Problem
Cause(s)
Possible Solution(s)
No flow measurement
Flow meter pick-up sensor loose
(except non-intrusive)
Tighten flow meter pick-up sensor
Flow too low
Verify flow rate is above minimum
for the flow meter selected
Loose wiring
Verify wiring connections from flow
meter to junction box
Worn/damaged flow meter pick-up
sensor
Replace pick-up sensor
Flow meter not calibrated
Calibrate flow meter
Flow meter cable shield wire not
connected
Verify shielding to ground
System not grounded properly
Verify system ground
Noisy power source
Verify clean power supply power to
main enclosure
Inaccurate setup information (nonintrusive only)
Verify setup information and parameters
Flow meter not calibrated
Calibrate flow meter
Flow meter is worn
Replace flow meter
Inaccurate setup information (nonintrusive only)
Verify setup information and parameters
Vibrations to flow meter (non-intrusive only)
Verify flow meter mounting is stable
and vibration-free
False measurement
Flow reported is not correct or
i co siste t
inconsistent
309374
111
Troubleshooting
Dispense Valves
Problem
Cause(s)
Possible Solution(s)
Valve not opening
Air not getting to open port
Verify air pressure solenoid
No “Gun On” signal from robot
Check input from robot
No output from system I/O board
Check output from system I/O
board; verify that it is on
Air not getting to close port (except
A toPl s valve)
AutoPlus
l e)
Verify air pressure to solenoid
Valve not shutting off
Verify solenoid operation
Verify air line routing and connections
“Gun On” signal from robot is on
Check input from robot
Check output from system I/O
board; verify that it is on
Sluggish open/close
Spring is not functional (AutoPlus
only)
Check spring in the air cylinder;
verify integrity
Air pressure low
Verify air pressure is above 60 psi
(0.4 MPa, 4 bar)
Needle/seat worn
Rebuild valve; replace needle/seat
Pressurized material past the valve
sh t off is esc
shut-off
escaping
pi g
Reduce running pressure
Reduce nozzle length
Increase nozzle orifice size
Material leaks from back of valve
Shaft seal is worn
Rebuild valve; replace seals
Air leaks from dispense valve
Loose air connections
Check air connections; tighten if
necessary
Worn piston o-ring
Rebuild valve; replace piston o-ring
Worn o-ring(s)
Rebuild valve/manifold; replace
o-rings
Loose water connections
Verify connections; tighten and/or
replace fittings as necessary
Temperature controller turned off
Verify zone #4 is on through the
user interface
Loose electrical connections
Verify connection between outlet
hose and valve connector
Water leaks from dispense valve or
manifold assembly
y
Dispense valve does not heat
Verify connection between outlet
hose and main enclosure through
extension cord
112
309374
Blown fuse
Check/verify fuse in Electric Heat
box
Broken heat cartridge
Check/verify heater resistance
Broken sensor
Check/verify sensor resistance
Failed solid state relay
Check power through relay
#SSR422
Troubleshooting
Electrical Component Paths
(Refer to 309364 Schematic Manual)
Fluid Module #1
Use the following table to troubleshoot wiring to Fluid Module #1:
Component
Description
Component
ID
J–Box Wire
Cable / Pin
Enclosure
Wire
Board / Connector
Gun Solenoid
Mod le #1
Module
+24 VDC
DIN / Pin 1
4180/Red
OP1–C
4180
J3–13
COM
DIN / Pin 2
4031/Wht
OP1–B
4031
J3–1
GND
DIN / Pin 3
GND/Blk
OP1–D
GND
GND
+24 VDC
DIN / Pin 1
4210/Red
OP1–E
4210
J3–15
COM
DIN / Pin 2
4031/Wht
OP1–B
4031
J3–1
GND
DIN / Pin 3
GND/Blk
OP1–D
GND
GND
SIG +
Green
AMP/J1–F
OP1–L
3190
J1–14
SIG –
White
AMP/J1–E
OP1–K
3040
J1–2
EXCIT +
Red
AMP/J1–G
Not connected to main enclosure
EXCIT –
Black
AMP/J1–H
Not connected to main enclosure
SIG +
Green
AMP/J1–B
OP1–J
3180
J1–13
SIG –
White
AMP/J1–A
OP1–K
3040
J1–2
EXCIT +
Red
AMP/J1–C
Not connected to main enclosure
EXCIT –
Black
AMP/J1–D
Not connected to main enclosure
+24 VDC
DIN / Pin 1
2210
OP1–A
2210
2210
1–5 VDC SIG
DIN / Pin 2
4630
OP1–E
4630
J4–9
COM
DIN / Pin 3
4031
OP1–F
4031
J4–1
+ 24 VDC
2210
OP1–A
2210
2210
SIG –
5530
OP1–P
5530
J7–1
SIG +
5640
OP1–N
5640
J7–12
Closer
Sole oid
Solenoid
Pressure
Se sor IIn
Sensor
Module #1
Pressure
Se sor O
Sensor
Outt
Module #1
V/P Valve
Mod le #1
Module
Flow Meter
Mod le #1
Module
KEY
Component — External component wired into module’s junction box.
Cable/Pin — Pin number on the operations cable. The
operations cable connects the module’s junction box to
the main electrical enclosure.
Description — Type of signal
Component ID — Where it originates from on the
component.
J–Box Wire — Wire number or terminal location in the
module’s junction box.
Enclosure Wire — The wire number inside of the
main electrical enclosure.
Board/Connector — Where the wire terminates inside
of the main electrical enclosure.
309374
113
Troubleshooting
Fluid Module #2
Use the following table to troubleshoot wiring to Fluid Module #2:
NOTE: There is no closer solenoid on Fluid Module #2; the PrecisionFlo XL controls will only control a single Linear
Motor Module.
Component
Description
Component
ID
J–Box Wire
Cable / Pin
Enclosure
Wire
Board / Connector
Gun Solenoid
Mod le #2
Module
+24 VDC
DIN / Pin 1
4190/Red
OP2–C
4190
J3–14
COM
DIN / Pin 2
4031/Wht
OP2–B
4031
J3–1
GND
DIN / Pin 3
GND/Blk
OP2–D
GND
GND
SIG +
Green
AMP/J1–F
OP2–L
3210
J1–16
SIG –
White
AMP/J1–E
OP2–K
3070
J1–4
EXCIT +
Red
AMP/J1–G
Not connected to main enclosure
EXCIT –
Black
AMP/J1–H
Not connected to main enclosure
SIG +
Green
AMP/J1–B
OP2–J
3200
J1–15
SIG –
White
AMP/J1–A
OP2–K
3070
J1–4
EXCIT +
Red
AMP/J1–C
Not connected to main enclosure
EXCIT –
Black
AMP/J1–D
Not connected to main enclosure
+ 24 VDC
DIN / Pin 1
2210
OP2–A
2210
2210
1–5 VDC SIG
DIN / Pin 2
4640
OP2–E
4640
J4–10
COM
DIN / Pin 3
4031
OP2–F
4031
J4–2
+ 24 VDC
2210
OP1–A
2210
2210
SIG –
5550
OP1–P
5550
J7–3
SIG +
5540
OP1–N
5540
J7–2
Input
Tr sd cer
Transducer
Module #2
Output
Tr sd cer
Transducer
Module #2
V/P Valve
Mod le #1
Module
Flow Meter
Mod le #1
Module
114
309374
Troubleshooting
Fluid Module
Approximate
LED Location
Max. Inlet Pressure Range Switch:
Set appropriate fluid working pressure
(1500, 3000, or 5000 psi)
orange tab
on housing
Max. Outlet Pressure Range Switch:
Set appropriate fluid working pressure
(1500, 3000, or 5000 psi).
Inlet Pressure
Outlet Pressure
V/P on Pneumatic
Regulator Solenoid 2 on
Electric Regulator
OP Cable
Pin Layout
Solenoid 1
Cable Sensing
Flow Meter Connection
OP Cable
Connector
V/P or
SOL. 2
Terminal Block
Layout
SOL. 1
FLOW
METER
TI1556A
Fig. 77
309374
115
Troubleshooting and Fault Recovery
Troubleshooting and Fault Recovery
The following table describes the valid fault codes
used by the PrecisionFlo XL module, possible causes,
and solutions. PrecisionFlo XL module displays warnings and alarms on the user interface and alarms via
the control unit fault light. See Theory of Operation –
Fault Reporting on page 103 for detailed information
on how fault codes are communicated.
Resetting Control Unit After a Fault
If a fault has occurred, you should clear (reset) the
fault before restarting the PrecisionFlo XL control unit.
To reset the fault:
EasyKey Interface
NOTE:
Press the Fault Reset key
Alarms set the dispenser ready signal LOW.
on the keypad.
TouchScreen Interface
Warnings do not set the dispenser ready signal
LOW.
Touch Reset on the TouchScreen to clear the fault or
use remote Fault Reset of the robot I/O.
Table 47 — Fault Code Table
Fault Fault Name
Code
Fault
Description
Causes
Solutions
The following faults are always Alarms
1
Dispenser
Stop
There is no electrical power
to the PCR or servo drive.
Control assembly not activated at
start up.
Press MASTER START .
SEALER STOP push button pressed.
2
4
116
Drive Fault 1
Motor Over
Temp
309374
CONTROL ON light not lit, control
assembly is off.
Apply power to PrecisionFlo XL
module, then press MASTER
START.
Remote stop signal not connected in
robot controller.
Connect signal in robot controller or jumper signal as shown
on page 90.
Servo circuit condition at
Servo drive failure.
servo drive’s output,
o tp t or hardware failure occurred on the Motor short.
drive.
Replace servo drive
PrecisionFlo metering valve
linear motor temperature
sensor has
h s exceeded 90 C
(194 F).
Servo drive short.
Check for continuity between +
and – outputs of servo drive
Servo motor short.
Insure that motor coil resistance is between 10 and 13
ohms.
Excessive current to motor over period of time.
Monitor command signal outlet
pressure to determine operating range.
Dirty motor heat sink.
Clean motor surface.
Poor motor ventilation.
Increase air flow around motor.
Failed transducer.
Check transducer operation
and grounding; replace if required.
Motor power (MP) cable disconnected or damaged.
Check for proper connection of
MP cable. Replace if damaged.
Check that motor coil resistance is 10–13 ohms.
Troubleshooting and Fault Recovery
Table 47 — Fault Code Table (continued)
Fault Fault Name
Code
Fault
Description
20
Control senses an open cir- Operation 1 cable disconnected.
cuit in the Operation 1 cable.
OP Cable 1
Open
Causes
Operation 1 cable failed.
21
29
30
OP Cable 2
Open
Control senses an open cir- Operation 2 cable disconnected.
cuit in the Operation 2 cable.
Solutions
Verify cables are properly connected.
Replace Operation 1 cable.
Verify cables are properly connected.
Operation 2 cable failed.
Replace Operation 2 cable.
Improper system configuration.
If system only has one regulator, verify configuration in Set–
Config screen is set to one
regulator.
Closed Gun
Flow 1
System reading flow meter
pulses
p lses from Flow Meter 1
with Gun 1 closed.
Burst hose downstream of flow meter. Check hose; replace if needed
Closed Gun
Flow 2
System reading flow meter
pulses
p lses from Flow Meter 2
with Gun 2 closed.
Burst hose downstream of flow meter. Check hose; replace if needed.
Flow meter providing false pulses.
Flow meter providing false pulses.
Replace flow meter sensor
(G3000 and SRZ–40) or calibrate meter (coriolis).
Replace flow meter sensor
(G3000 and SRZ–40) or calibrate meter (coriolis).
Remaining faults are selectable by the user as Alarms or Warnings (Setup " Alarms/Warnings screen)
6
High Volume
M teri l dis
Material
dispensed
ensed during
the last dispense cycle was
above
bove the amount
mo nt estabest b
lished by request and above
the allowable (entered)
tolerance.
M teri l viscosity is outside flow comMaterial
com
pensation window.
Verify m
material
teri l ch
characteristics,
r cteristics,
recalibrate if necessary.
PrecisionFlo XL regulator is not regulating properly.
Check regulator, repair if necessary.
Incorrect style volume or tolerance
when using Pressure mode.
Enter correct values or set the
tolerance to 0% to disable this
fault.
7
Setup Values
Ch
nged
Changed
Setup change notification
When the Key Switch was turned
from Setup
etu to Run mode, the control
detected a change from previous
setup data value(s).
No action necessary if
ch
nges were desired.
changes
8
Low Volume
Material dispensed during
the last dispense cycle was
below the amount established by request
req est and
nd below
the allowable (entered) tolerance.
Partially plugged tip or supply system Error is o
tem.
outside
tside flow compensation window.
Clean tip and/or supply system
tem.
Insufficient flow to PrecisionFlo XL
metering valve inlet. Error is outside
flow compensation window.
Increase flow rate to PrecisionFlo XL metering valve inlet.
Material viscosity is outside flow compensation window.
Verify material characteristics,
recalibrate if necessary.
PrecisionFlo XL regulator is not regulating properly.
Check regulator, repair if necessary.
Incorrect style volume or tolerance
when using Pressure mode.
Enter correct values or set the
tolerance to 0% to disable this
fault.
No material supply.
Replace drum or turn on
pumps.
Tip plugged.
Clean/replace tip.
No air pressure to solenoid valves.
Turn on air to solenoid valves.
No flow meter signal.
Check cable and sensor.
10
No Flow 1
No material was dispensed
when a Dispense Gun 1 signal was activated.
Material was dispensed
when a Dispense Gun 1 signal was activated, but no
flow was read.
309374
117
Troubleshooting and Fault Recovery
Table 47 — Fault Code Table (continued)
Fault Fault Name
Code
11
12
13
14
15
16
118
No Flow 2
High Outlet
Press re 1
Pressure
High Outlet
Press re 2
Pressure
Low Outlet
Press re 1
Pressure
Low Outlet
Press re 2
Pressure
High Inlet
Press re 1
Pressure
309374
Fault
Description
Causes
Solutions
No material was dispensed
when a Dispense Gun 2 signal was activated.
No material supply.
Replace drum or turn on
pumps.
Tip plugged.
Clean/replace tip.
No air pressure to solenoid valves.
Turn on air to solenoid valves.
Material was dispensed
when a Dispense Gun 1 signal was activated, but no
flow was read.
No flow meter signal.
Check cable and sensor.
Output pressure to the
PrecisionFlo XL regulator
reg lator 1
is above the upper limit set
for operation
operation. If this fa
faultlt occurred while doing a pressure calibration, pressure
c libr tion could
calibration
co ld not determine optimum values and
default values were used.
Incorrect limit set.
Verify limit is set correctly.
Dispense hose/device plugged.
Clean/replace hose/device.
Failed transducer.
Check transducer, replace if
failed.
Regulator is not closing completely
when it should.
Repair regulator.
Output pressure to the
PrecisionFlo XL regulator
reg lator 2
is above the upper limit set
for operation
operation. If this fa
faultlt occurred while doing a pressure calibration, pressure
c libr tion could
calibration
co ld not determine optimum values and
default values were used.
Incorrect limit set.
Verify limit is set correctly.
Dispense hose/device plugged.
Clean/replace hose/device.
Failed transducer.
Check transducer, replace if
failed.
Regulator is not closing completely
when it should.
Repair regulator.
Output pressure of the
PrecisionFlo XL regulator
reg l tor 1
is below the limit set for o
operation. If this fault occurred
while doing a pressure calibration system press
ibration,
pressure
re
was too low ((<500 psi
[3 4 MP
[3.4
MPa, 34 b
bar]] att th
the regulator outlet) to com
complete
lete the
calibration.
Incorrect limit set.
Verify limit is set correctly.
No or insufficient material flow.
Increase material flow rate.
Dispense valve needle is stuck
closed.
Dislodge and inspect needle.
Dispense valve leaking.
Repair dispense valve.
No power to motor.
Apply power to motor.
Pump wink passed through outlet.
Recalibrate PrecisionFlo XL or
increase pump pressure.
Failed transducer.
Check transducer, replace if
failed.
Incorrect limit set.
Verify limit is set correctly.
No or insufficient material flow.
Increase material flow rate.
Dispense valve needle is stuck
closed.
Dislodge and inspect needle.
Dispense valve leaking.
Repair dispense valve.
No power to motor.
Apply power to motor.
Pump wink passed through outlet.
Recalibrate PrecisionFlo XL or
increase pump pressure.
Failed transducer.
Check transducer, replace if
failed.
Incorrect limit set.
Verify limit is set correctly.
Material supply pressure is too high.
Decrease material supply pressure.
Failed transducer.
Check transducer, replace if
failed.
Output pressure of the
PrecisionFlo XL regulator
reg l tor 2
is below the limit set for o
operation. If this fault occurred
while doing a pressure calibration system press
ibration,
pressure
re
was too low ((<500 psi
[3 4 MP
[3.4
MPa, 34 b
bar]] att th
the regulator outlet) to com
complete
lete the
calibration.
Input pressure to the
PrecisionFlo XL regulator
reg l tor 1
is above the upper limit set
for o
eration.
operation.
Troubleshooting and Fault Recovery
Table 47 — Fault Code Table (continued)
Fault Fault Name
Code
17
22
23
24
25
High Inlet
Press re 2
Pressure
Swirl Fault 1
Swirl Fault 2
Temperature
Not Within
Limits
Flow
Calibration
Error
Fault
Description
Causes
Solutions
Input pressure to the
PrecisionFlo XL regulator
reg l tor 2
is above the upper limit set
for o
eration.
operation.
Incorrect limit set.
Verify limit is set correctly.
Material supply pressure is too high.
Decrease material supply pressure.
Failed transducer.
Check transducer, replace if
failed.
Swirl orbiter failure.
Inspect swirl orbiter system.
No swirl orbiter used and signal not
jumpered to +24 VDC
See schematic in manual
309364.
Number of orbiters set in the system
configuration screen is incorrect.
Set correct number of orbiters
in system configuration.
Swirl orbiter cable failed.
Replace cable.
Swirl orbiter failure.
Inspect swirl orbiter system.
No swirl orbiter used and signal not
jumpered to +24 VDC
See schematic in manual
309364.
Number of orbiters set in the system
configuration screen is incorrect.
Set correct number of orbiters
in system configuration.
Swirl orbiter cable failed.
Replace cable.
Swirl orbiter 1 did not reach
sspeed
eed set
oint when swirl
setpoint
was enabled.
Swirl orbiter 2 did not reach
sspeed
eed set
oint when swirl
setpoint
was enabled.
Temperature conditioning
Conditioning system is turned off.
fault signal is low. This warn
warning tells the PrecisionFlo XL Over/under temperature fault.
that the temperature condig unit is not operating
g
tioning
properly.
l
No temperature conditioning unit and
signal not jumpered to +24 V.
Turn conditioning system on.
System was not able to
com
lete a flow calibration
complete
Lower calibration flow setpoint.
Flow setpoint higher than the flow
rate the system can deliver.
Inspect temperature conditioning system.
See schematic in manual
309364.
Increase dispense valve tip
size or dispense hose diameter.
Increase supply pressure.
A dispense command in flow mode
was received without a valid flow
calibration being performed.
26
Volume Comp
Com
Limit 1
Pe k vvalue
Peak
lue of flow com
comFluid supply
su ly too low to achieve
chieve dede
pensation for regulator 1 has sired flow rate.
re ched the 25% or 400%
reached
Regulator is not able to close comlimit.
pletely.
Major change to fluid or fluid system
downstream of the regulator.
Perform a flow calibration.
Incre se fluid supply
Increase
su ly pressure
ressure
or check for clogged filter.
Repair regulator.
Check fluid viscosity.
Check hoses and tips for problems.
lems
Perform a new calibration if
necessary.
309374
119
Troubleshooting and Fault Recovery
Table 47 — Fault Code Table (continued)
Fault Fault Name
Code
27
Volume Comp
Com
Limit 2
Fault
Description
Causes
Pe k vvalue
Peak
lue of flow com
comFluid supply
su ly too low to achieve
chieve dede
pensation for regulator 2 has sired flow rate.
re ched the 25% or 400%
reached
Regulator is not able to close comlimit.
pletely.
Major change to fluid or fluid system
downstream of the regulator.
28
120
Computed
Vol me
Volume
309374
The requested volume difEntered process target incorrectly .
fers from the entered pro
process target by more than the Entered tolerance incorrectly.
entered tolerance for style
Requested volume incorrect.
req ested
requested.
Robot analog problem.
Solutions
Incre se fluid supply
Increase
su ly pressure
ressure
or check for clogged filter.
Repair regulator.
Verify material characteristics.
Check hoses and
nd tips
ti s for probrob
lems.
Recalibrate if necessary.
Enter correct process target.
Enter correct tolerance.
Check robot program.
Verify robot analog is correct.
Frequently Asked Questions
Frequently Asked Questions
Q: What is the difference between running in Pressure Mode versus Flow Mode?
A: In Pressure Mode, the control will maintain a specific pressure at the fluid regulator outlet. If the viscosity of
the fluid changes or the nozzle becomes restricted, that pressure will result in a different flow rate. If you have a
flow meter installed, it can still monitor the job volume for faults. Pressure mode is sometimes desirable for
spray applications to maintain a specific spray pattern.
In Flow Mode, the fluid regulator is still reacting to the fluid pressure for quick adjustment, but the control also
monitors the flow meter. If the flow rate does not agree with the flow command, the pressure target is adjusted.
This method gives you the quick response of a pressure transducer, while maintaining the rate accuracy of a
flow meter.
Q: How do I adjust the flow rate up or down without changing my robot commands?
A: There is an adjustment called Flow Scale, which appears on the EasyKey Overview screen or on the
TouchScreen Settings screen. This can be set from 50–150% of command flow. To change the Flow Scale, turn
the key switch to the right to enter Setup mode. The Setup modes screen allows you to change the Flow Scale
percentage. To change to the new setting, press the Enter key on the EasyKey interface or press the up or
down arrows on the TouchScreen interface The new value will be stored when you turn the key switch back to
Run mode.
Q: Why do I get a warning for “Volume Comp Limit”?
A: Something has changed since you calibrated your regulator. The control has changed the regulator pressure
set point too far away from the calibration point. This happens in Flow Mode when the control is monitoring the
flow meter and trying to maintain the proper flow rate. The cause is some factor that has changed the pressure,
downstream of the regulator, at the desired flow rate. This might be a plugged nozzle or a fluid viscosity
change. The viscosity difference could be caused by a change in temperature or a new batch of material. If the
pressure needs to increase to maintain the desired flow rate, but the fluid regulator is already fully open, the
volume compensation continues to increase the desired pressure target until the limit is reached. The fluid feed
pressure at the regulator inlet needs to be increased. If the fluid and equipment are all right, you need to
recalibrate to your flow target.
Q: How is a fluid control regulator calibration performed?
A: There are two steps: Pressure Calibration and Flow Calibration. You must always do a Pressure Calibration for
each regulator. If you are using a flow meter and will run in Flow mode, you must also do a Flow Calibration
after the Pressure Calibration is complete. To calibrate pressure and flow, see page 1.
Q: How do I determine my maximum flow limit for Flow Calibration?
A: The maximum flow limit entered on the Flow Calibration screen will be the target flow rate at a 10 volt analog
flow command signal. This should be the highest rate at which you will dispense. The maximum limit can be
entered as cc/min on line three, or if your process calls for a specific bead diameter, enter that diameter on line
two, along with your maximum robot tip speed on line one. The PrecisionFlo control unit calculates the
maximum flow rate automatically. The Max Flow Rate line at the bottom of the screen shows the highest flow
rate that the regulator could attain during its fluid control regulator calibration.
Q: How do I know if the fluid control regulator calibration was successful?
A: On the TouchScreen display, calibration was successful if the red calibration status bar at the bottom turns
green. On the EasyKey display, calibration was successful if there is no error message in the alarm bar at the
bottom of the screen.
309374
121
Frequently Asked Questions
Q: Why will my fluid control regulator not calibrate in the Pressure screen?
A: You may not have enough fluid pressure downstream of the regulator — at least 500 psi (3.5 MPa, 34.5 bar) is
required. Try a smaller nozzle on the dispense valve.
Q: Why will my fluid control regulator not calibrate in the Flow screen?
A: You might not have selected a flow meter in the Config–General screen. You may not have been able to reach
the maximum flow rate you entered. To reach a higher flow rate, you can increase the feed pressure or
increase the dispense valve nozzle size.
Q: Why will my dispense valve not operate?
A: The valve will not dispense in Flow Mode if the flow calibration has failed. Calibrate the flow rate as instructed
on page 1.
Q: Does Pressure Mode use a flow meter?
A: Running in Pressure Mode does not require a flow meter. However, without a flow meter, you cannot monitor
the job volume limits or log the job volumes. The number of flow meters installed must be selected on the
Config–General screen.
Q: Why is the psi/volt setting important?
A: The psi/volt setting is important if you are only running in the Pressure Mode. This is what sets the relationship
between the robot analog signal and the desired pressure. For example, a psi/volt setting of 200 will produce
1000 psi (7 MPa, 70 bar) outlet pressure at an analog signal of 5 volts. The psi/volt setting is calculated and
set automatically if you have a flow meter installed and do a flow calibration to your maximum desired flow rate.
The psi/volt setting is 10% of the Flow Calibration maximum pressure.
Q: Why are the digital speed settings important if I am running off of a 0–10 volt analog signal
from a robot?
A: 1.) Low Flow Rate setting: If the analog signal drops below 1 volt, the PrecisionFlo XL control will default to
the Low Flow Rate setting. If you are working through a wide analog range, this setting could be very useful to
you.
2.) Medium Flow Rate setting: This setting affects how well the flow compensation works across the middle to
upper flow range. The Medium Flow Range percent setting should be set to your average robot analog signal.
For example: If you run between 5–8 volts, the average is 6.5 volts or a 65% setting.
3. High Flow Rate setting: This setting has no effect when you are running in the analog robot mode.
Q: How can I verify that my I/O interface wiring is correct before loading and running the dispense equipment?
A: With the TouchScreen interface, select the Module I/O tab, or the Robot I/O tab, to view the status of all inputs
and outputs. With the EasyKey interface, check the status of LED lights on the robot I/O board, using the table
on page 106.
Q: How do I know my flow and volume measurements are accurate?
A: Calibrate the flow meter as instructed on page 38. This is strongly recommended as many sealants are
compressible, and the flow meter measures the fluid while it is under pressure. Calibrating the meter makes it
accurate for your fluid at ambient pressure. Periodic calibration is also important to monitor your meter for wear.
122
309374
Frequently Asked Questions
Q: Can I have the robot control turn on the PrecisionFlo XL temperature control at a preset time
to warm up the system before shift start?
A: Yes. There is an input for Remote Temp Enable. This input at J5–19 is normally jumpered high but can be
controlled by the robot. Remove the jumper and connect the proper robot interface wires.
Q: I have flow, but how do I know if my fluid regulator is working?
A: If a fluid regulator fails, it can no longer hold back fluid pressure. If the outlet pressure climbs up to equalize
with the inlet pressure when you stop dispensing, the regulator has lost the ability to shutoff or fully regulate
flow. If you have pressure limits set, you will get an Outlet Pressure High alarm. If you have job volume limits
set, you will get a High Volume On Last Job alarm.
Q: Is there a way to put the fluid plate control regulator in a bypass mode, to still operate the dispense valve when I have a problem?
A: With the air operated regulators, you can move the air tube that feeds the E/P valve directly to the fluid
regulator air inlet. Turn off the air supply before moving tubes. With the electric regulators, it is best to remove
the fluid seat from the regulator housing or bypass the regulator with a hose and valve.
Q: How do I download job logs or alarm logs from the PrecisionFlo XL control?
A: There is an external phone-style connection on the right side of the control enclosure. You need a PC or laptop
computer with terminal emulation software and part number 233657 accessory cable kit. If you have the
TouchScreen interface, you can also communicate via ethernet connection. See Communicating with
PrecisionFlo XL, page 39.
Q: Will I lose any of my Setup parameters or logged information if power is lost?
A: No. All setup parameters, job logs, and alarm logs are saved to flash memory and do not need any power. This
is non-volatile memory, similar to the cards used with digital cameras. There also is no battery to replace.
Q: Can I cause an error or system problem while looking at screens when production is running?
A: If the key switch is turned to the left or removed, which means the system is in Run mode, you view the four
monitor screens, but you cannot change any parameters. You can still select Manual or Automatic mode on the
user interface, which would stop the robot initiated dispensing.
Q: Can I change my Setup values while the machine is running?
A: Yes. If you turn the key switch to Setup mode, you have complete control of the system. Changes to control
modes, pressure values, time delays, alarms, etc. become effective when you press Enter and the changes are
saved to memory when the key switch is turned back to Run mode.
Q: How can I get out of Setup without saving the changes I have entered?
A: You can turn the power off before turning the key switch back to Run mode. When you turn the power back on,
the changes will not be there. However, you would not want to turn off the power during production.
Q: What is the difference between Swirl Mode Manual, and Swirl Mode Auto?
A: In Manual Swirl Mode you are setting the swirl speed as a percentage. 0% equals 6600 rpm and 100% equals
24000 rpm. In Auto Swirl Mode, the 50–150% you set applies that factor to the robot swirl analog signal. At
100% setting, a 5 volt signal equals a 50% swirl speed signal. At 150%, a 5 volt signal equals a 75% swirl
speed signal. This gives the operator the ability to adjust the robot swirl command from the dispenser control
station. The actual command to the swirl motor will always be capped at 10 volts or 24000 rpm.
309374
123
Frequently Asked Questions
Q: How do I set my pressures?
A: First, set the dispense pressure. A dispense valve hose and nozzle should be used, which will maintain at
least 500 psi (3.5 MPa, 34.5 bar) back pressure at the fluid control regulator outlet at your lowest flow rate
setting.
Second, set the feed pressure. Once you are running, back down the feed pressure to a point where the
regulator inlet pressure stays at least 500 psi (3.5 MPa, 34.5 bar) greater than the regulator outlet pressure,
when dispensing at your maximum flow rate. If you will have multiple valves open at the same time, being fed
by the same feed pump, do this check with all of those valves open. Excessive feed pressure will cause
excessive wear.
Q: What is the recovery procedure if the TouchScreen or EasyKey panel lock-up?
A: The process can continue to run. When you are not dispensing, cycle the power to reboot the display.
124
309374
Technical Data
Technical Data
PrecisionFlo XL
*Minimum Flow Rates . . . . . . . . . . . . 50 cc/minute with G3000 meter
100 cc/minute with SRZ 40 flow meter with 1/2” pneumatic or electric regulator
100 cc/minute with coriolis meter or mastic regulator
*Maximum Flow Rates . . . . . . . . . . . 2000 cc/minute with G3000 meter
3000 cc/minute with SRZ 40 meter
4000 cc/minute with coriolis meter
Maximum Fluid Working Pressure
Feed Pressure to Fluid Panel . . 5000 psi (34.5 MPa, 345 bar)
With Electric Heated Hoses . . . 3000 psi (21 MPa, 210 bar)
At Regulator Outlet . . . . . . . . . . 3500 psi (24.0 MPa, 241 bar)
Minimum Fluid Working Pressure
At Regulator Outlet . . . . . . . . . . 500 psi (3.5 MPa, 34.5 bar)
Minimum Back Pressure
Between Regulator Outlet
and Dispense Nozzle . . . . . . . . . 500 psi (3.5 MPa, 34.5 bar)
Air Supply Pressure Range . . . . . . . 60–120 psi (414–828 kPa, 4.1–8.3 bar)
Filtration required
Fluid Filtration Required . . . . . . . . . . 30 mesh (500 micron) minimum
*Viscosity Range of Fluids . . . . . . . . 5000 to 50000 cps with G3000 meter
10000 to 500000 cps with SRZ 40 meter
2000 to 500000 cps with coriolis meter
*Minimum Dispensed Shot Size . . . 10 cc with G3000 meter
25 cc with SRZ 40 meter
100 cc with coriolis meter
Wetted Parts
Meters and Fluid Panels . . . . . . 303, 304, 17–4 stainless steel; tungsten carbide (with nickel binder), PTFE ,
Plated carbon steel, Polymite
Power Requirements . . . . . . . . . . . . See page 19
Power Supply Voltage Range
120 VAC nominal . . . . . . . . . . . . 85–164 VAC, 50–60 Hz., single phase
220 VAC nominal . . . . . . . . . . . . 200–240 VAC, 50–60 Hz., single phase
440 VAC nominal . . . . . . . . . . . . 400–480 VAC, 50–60 Hz., single phase
Operating Temperature Range
Controller . . . . . . . . . . . . . . . . . . . 40–122
F (4–50
C)
Fluid Panel . . . . . . . . . . . . . . . . . . 40–185
F (4–85
C)
Operating Humidity Range . . . . . . . . 0–90% non-condensing
* Flow rates and viscosities are general estimates. Flow rates drop as viscosity increases. Fluids are expected to
shear under pressure. New applications or fluids should always be tested to determine proper line sizes and
equipment selections.
See your Graco Authorized distributor for other capabilities
Polymite is a registered trademark for Parker Seals.
PTFE
309374
125
Technical Data
Regulator Plates
Mounting dimensions and parts breakdowns for the Air-Operated Regulator Fluid Plates are in Manual 309375.
Cartridge Regulator
Mastic Regulator
Electric Regulator
Regulator Manual
308647
307517
309382
Weight – No Flow Meter
25.5 lbs (11.6 kg)
33 lbs (15 kg)
32.25 lbs (14.6 kg)
Weight – W/G3000
30 lbs (13.6 kg)
N/A
38.25 lbs (17.4 kg)
Weight – W/SRZ–40
40 lbs (18 kg)
48 lbs (22 kg)
47.25 lbs (21.5 kg)
Fluid Port Inlet
1/2” npt(f)
3/4” npt(f)
1/2” npt(f)
Fluid Port Outlet
1/2” npt(f)
3/4” npt(f)
3/8” npt(f)
Maximum Inlet Pressure
3500 psi (24 MPa, 241
bar)
3500 psi (24 MPa, 241
bar)
5000 psi (34 MPa, 340
bar)
Maximum Working Pressure*
5000 psi (34 MPa, 340
bar)
5000 psi (34 MPa, 340
bar)
3500 psi (24 MPa, 241
bar)
Air Supply
1/4” npt(f)
1/4” npt(f)
1/4” npt(f)
Maximum Air Pressure
120 psi (0.8 MPa, 8.2 bar)
120 psi (0.8 MPa, 8.2 bar)
120 psi (0.8 MPa, 8.2 bar)
Minimum Air Pressure
60 psi (0.4 MPa, 4.1 bar)
60 psi (0.4 MPa, 4.1 bar)
60 psi (0.4 MPa, 4.1 bar)
Maximum Operating Temperature
185 F (85 C)
185 F (85 C)
176 F (80 C)
Minimum Flow Rate –
G3000
50 cc/min
N/A
50 cc/min
Minimum Flow Rate –
SRZ–40
100 cc/min
100 cc/min
100 cc/min
Minimum Flow Rate – Coriolis
100 cc/min
100 cc/min
100 cc/min
*Maximum system pressure depends on dispense valve.
Sound Pressure Levels (dBa) (measured at 1 meter from unit)
Input Fluid Pressures
1500 psi (10.5 MPa, 105 bar)
4000 psi (28 MPa, 276 bar)
79.0 dB(A)
86.6 dB(A)
Sound Power Levels (dBa) (tested in accordance with ISO 9614–2)
Input Fluid Pressures
1500 psi (10.5 MPa, 105 bar)
4000 psi (28 MPa, 276 bar)
75.7 dB(A)
86.3 dB(A)
Sound levels were taken using a streaming valve, which results in the highest sound levels of the various dispense
techniques offered.
126
309374
Technical Data
Dispense Valves
AutoPlus Valve
EnDure Valve
1K Valve
Ambient Part Numbers
236670 Valve
244930 Manifold
244910
243482
Temperature Conditioned
Part Numbers
236670 Valve
244930 Manifold**
244910***
N/A
Electric Heat (240 V) Part
Numbers
N/A
244962
N/A
Instruction Form
308813
309376
308876
Wetted Materials
Stainless steel, Carbide,
UHMW Polyethylene, Delrin PEEK, Chemically resistant fluoroelastomer,
Stainless steel, Carbide,
Aluminum, Parker Polymite , Ethylene Propylene,
Delrin , PTFE , Viton
Stainless steel, Carbide,
Parker Polymite , Ethylene Propylene, Delrin ,
PTFE
PTFE
Weight
35 oz* (1.0 kg)
71 oz* (2.0 kg)
32 oz* (0.9 kg)
Fluid Port Inlet
3/8” npt(f) on manifold
1/2” npt(f)
3/8” npt(f)
Fluid Port Outlet
7/8–14 with tip nut
5/8–18 and nut with 1/8
npt(f)
3/4–16 JIC 45
Maximum Inlet Pressure
5000 psi (34 MPa, 340
bar)
5000 psi (34 MPa, 340
bar)
4000 psi (28 MPa, 276
bar)
Maximum Working Pressure
4000 psi (28 MPa, 276
bar)
3500 psi (24 MPa, 241
bar)
2000 psi downstream (14
MPa, 138 bar)
Air to open
1/8” npt(f)
18/” npt(f)
1/8” npt(f)
Air to close
N/A
1/8” npt(f)
18/” npt(f)
Spring to close
Yes
Yes
No
Maximum Air Pressure
120 psi (0.8 MPa, 8.2 bar)
120 psi (0.8 MPa, 8.2 bar)
120 psi (0.8 MPa, 8.2 bar)
Minimum Air Pressure
60 psi (0.4 MPa, 4.1 bar)
60 psi (0.4 MPa, 4.1 bar)
60 psi (fluid pressure/30)
(0.4 MPa, 4.1 bar)
Maximum Operating Temperature
140 F (60 C)
200 F (121 C)
200 F (121 C)
Sensor Properties (Electric N/A
Heat)
100 Ω Platinum RTD, 108
Ω @ 70 F (21 C) pins 3
and 4
N/A
Heater Properties (Electric
Heat)
200 Watts, 288 Ω +/– 29
Ω pins 1 and 2
N/A
N/A
*Weights with inlet manifolds
**233670 bare valve is used with the 244930 valve inlet manifold, which has one 1/4 npt water inlet, two 1/8 npt
water outlets, and one 1/8 npt water port for an RTD sensor. The same valve and manifold are used for ambient or
temperature conditioned applications. Valve and manifold are ordered separately.
***244910 valve with valve inlet manifold has one 1/4 npt water inlet, four 1/8 npt water outlets, and one 1/8 npt
water port for an RTD sensor. Replacement valve only is 244535. The same valve and manifold are used for ambient or temperature conditioned applications.
309374
127
Parts
Parts
Part No. 244994 – Instruction Manual Binder
Control Unit
Refer to the drawing on page 129.
Miscellaneous Control Parts
Control Boards
Ref. Part No. Description
No.
1
244355
2
3
4
5
244670
244667
244668
244665
6
7
8
9
10
11
12
244666
198050
198051
198052
198053
233675
244993
BOARD, PrecisionSwirl (SW1 or
SW2)
BOARD, Motor Amplifier (AMP)
BOARD, Robot I/O, 24 VDC (RIO)
BOARD, Robot I/O, 120 VAC (RIO)
BOARD, Expandable Control Board
(ECB)
BOARD, System I/O (SIO)
BOARD, DeviceNet
BOARD, Profibus
BOARD, Interbus
BOARD, ControlNet
CARD, PC104 (TouchScreen)
BOARD, Display (EasyKey)
Control Board Covers
Ref. Part No. Description
No.
21
22
23
24
25
26
27
28
198251
198248
198286
198250
198258
198249
198288
116782
COVER, PrecisionSwirl board
COVER, motor amp board
COVER, Robot I/O board, 24 VDC
COVER, Robot I/O board, 120 VAC
COVER, ECB board
COVER, I/O board
COVER, display board
STAND-OFF, cover support
Ref.
No.
Part No.
Description
31
32
33
34
35
116653
116728
115940
196975
244808
36
37
38
39
40
41
42
197408
115388
198529
233696
233697
197981
198065
SWITCH, key
KEY, spare
RELAY
POWER SUPPLY, 24 VDC
USER INTERFACE, EasyKey,
Complete
USER INTERFACE, TouchScreen
TRANSFORMER
DISPLAY ONLY (no board)
KIT, display software chip, display
KIT, software chip, main board
BEACON
KEYPAD MEMBRANE
Cables (not shown) on standard packages
Part No.
Description
198296
617706
617870
198459
198460
233125
CABLE, Operations, 60’ (18.3 m)
CABLE, Motor Power, 60’ (18.3 m)
CABLE, PrecisionSwirl, 55’ (16.7 m)
CABLE, Robot Digital, 40’ (12 m)
CABLE, Robot Analog, 40’ (12 m)
CABLE, PrecisionSwirl Extension, 6’ (1.8
m)
CABLE, PrecisionSwirl Extension, 9’ (2.7
m)
CABLE, PrecisionSwirl Extension, 15’
(4.6 m)
CABLE KIT, use to connect PrecisionFlo
XL control to a computer for job downloads and software updates.
233124
233123
233657
Fuses
Where Used
Main Control
Ref. No. With Input
Voltage
51
52
53
54
55
56
57
58
110–120
110–120
220–240
220–240
400–480
400–480
200–240
400–480
*Schematics in document 309364.
128
309374
VAC
VAC
VAC
VAC
VAC
VAC
VAC
VAC
Schematic*
Fuse No.
Graco
Part No.
Fuse
Designation
FU 2080
FU 2081
FU 2080
FU 2081
FU 2080
FU 2081
FU 216
FU 216
116505
116505
116506
116506
116520
116520
116505
116505
LPJ–8SP
LPJ–8SP
LPJ–5SP
LPJ–5SP
LPJ–3SP
LPJ–3SP
LPJ–8SP
LPJ–8SP
Amp
Rating
8
8
5
5
3
3
8
8
Qty.
1
1
1
1
1
1
1
1
Parts
41
12, 27, 38, 39, 42
35 or 36
1, 21
34
SW1
1, 21
or
2, 22
3, 23
or
4, 24
37
AMP or
SW2
5, 25,
40
RIO Board
57 or 58
7, 8,
9, or
10
ECB
Board
SIO Board
6, 26
11
33
51, 52, 53,
54, 55, or 56
31, 32
TI1552
#11 – PC104 card mounts the ECB board (5) if the
Touch Screen is used or if there is a remote display.
#7, 8, 9, or 10 Network I/O cards. If one is used, it is
mounted on the right side of the ECB board (5). If a
network I/O card is used you will not have a Robot I/O
(RIO) board.
If one swirl card is installed, the board (SW1) will
always be in the top position. If an electric regulator is
used, the AMP board (2) will always be in the position
second from the top. If the electric regulator is not
used, a second swirl board (SW2) may be added in the
second position.
309374
129
Parts
Standard Hoses
Size
Core
Material
Temp.
Rating
Coupling Size
Coupling
Material
Bend
Radius
Dispense* 116760
.50” ID x 6’
Neoprene 4000 psi
212 F
7/8–14 37 (f)
Steel
3.5”
Dispense* 116762
.62” ID x 6’
Neoprene 3625 psi
212 F
1-1/16–12 37 (f) Steel
4.0”
Dispense* 116761
.50” ID x 10’
Neoprene 4000 psi
212 F
7/8–14 37 (f)
Steel
3.5”
Dispense* 116763
.62” ID x 10’
Neoprene 3625 psi
212 F
1-1/16–12 37 (f) Steel
4.0”
Feed
C12383
1.0” ID x10’
Neoprene 5510 psi
212 F
1 npt (m)
Steel
12”
Feed
C12218
1.0” ID x 20’
Neoprene 5000 psi
212 F
1 npt (m)
Steel
12”
Co-Axial
Feed
116749
1.0” ID x10’
Synthetic
Rubber
5500 psi
212 F
1 npt (f)
Steel
12”
Co-Axial
Feed
116748
1.0” ID x 20’
Synthetic
Rubber
5000 psi
212 F
1 npt (f)
Steel
12”
Type
Part No.
Working
Pressure
*Abrasion resistant for automated use.
Fluid Module Components
Pneumatic Regulators
Electric Regulators
Part No.
Description
Manual
No.
Part No.
Description
Manual
No.
244734
Cartridge Regulator
308647
244920
308601
238748
Fluid Section Repair Cartridge
Electric Regulator,
Low Flow
238747
Fluid Diaphragm Repair Kit
233681
Fluid Section Repair Kit
244920
Fluid Section Spare
244740
Mastic Regulator
233131
Fluid Section Repair Kit
244921
Electric Regulator,
High Flow
233680
Fluid Section Repair Kit
244921
Fluid Section Spare
Common Pneumatic
Regulator Repair Parts
198082
Pressure Sensor
244669
Pressure Sensor Amplifier
Board
551348
Solenoid Valve
195942
C50239
130
307517
Flow Meters
Part No.
Description
Regulator (V/P)
617418
Hose Swivel 5000 psi 1/2”
npt(f) both ends
SRZ–40 Helical Meter
with sensor
196840
Sensor
239716
G3000 Spur Gear Meter
with sensor
239719
Meter Only
239717
Sensor
309374
308601
Manual
No.
Parts
Dispensing Devices
Dispense Valves
Valve Model
AutoPlus
EnDureValve
1K Valve
Valve Part No.
233670
244535
243482
Manual No.
308813
309376
308876
Repair Kit Part No.
N/A
245195
570268
Shaft/Needle Part No.
239807
197507
626068
Seat Part No.
233671
N/A
N/A
Inlet Gasket Part No.
189970
N/A
N/A
Seat Gasket Part No.
192443
N/A
N/A
PrecisionSwirl Orbiters
Manual No. 310558
Part No.
Description
Part No.
Description
243402
Orbiter, Narrow Pattern
196008
Bellows, 12-pack
243403
Orbiter, Wide Pattern
241569
Bearing Tool Repair Kit
Orbiter Repair Parts and Accessories
233125
Extension Cable, 6’
243437
Tube/Bearing Repair Kit, Narrow Pattern
233124
Extension Cable, 9’
918620
Tube/Bearing Repair Kit, Wide Pattern
233123
Extension Cable, 15’
241479
Motor Kit
617870
Primary Cable, 55’
Filtering Accessories
Part
Number
Description
C59725
Dual Filter Bank with inlet/outlet fluid gauges, isolation ball valves, drain valves, and 30 mesh elements. 1-1/4” npt(f) inlet and 1-1/4” npt(f) outlet with 1” npt(f) bushing
C59547
Single Filter Kit with inlet/outlet fluid gauges, isolation ball valves, drain valve and 30 mesh element.
1” npt(f) inlet and outlet
Accessory Cables in Non-Standard Lengths
Part Number
Description
Length
198730
Swirl cable from box
110 ft (33.5 m)
198731
OP cable from box to fluid plate
20 ft (6.1 m)
198732
OP cable from box to fluid plate
125 ft (38 m)
198733
RDR cable, digital from robot control
20 ft (6.1 m)
198734
RDR cable, digital from robot control
125 ft (38 m)
198735
RAR cable, analog from robot control
20 ft (6.1 m)
198736
RAR cable, analog from robot control
125 ft (38 m)
198737
Motor cable from box to fluid plate
20 ft (6.1 m)
198738
Motor cable from box to fluid plate
125 ft (38 m)
309374
131
PrecisionFlo XL Remote Control Box
PrecisionFlo XL Remote Control Box
20.00”
18.50”
Key Switch
116653
RJ45 Bulkhead
198165
17.50”
16.00”
TouchScreen
197408
Fig. 78
132
309374
TI1666A
TI1666A
Adding Local Stations to a Remote Box
Adding Local Stations to a Remote Box
The top of your remote screen box has 11 plugged
holes that can be opened to add additional local stations. To add stations to a remote box, perform the
following steps:
3. Connect RJ45 modular cable to connector and
plug the other end into the next available Ethernet
port.
1. Loosen wing nut from inside box and remove the
hole plug.
4. Repeat steps 1 through 3 for each local station you
wish to connect.
2. Insert bulkhead connector in hole and tighten
connector nut.
NOTE: Ports 16MDI–X and 16MD are never used.
Ethernet Switch
116945
RJ45 Flash
117162
Ethernet ports
PC/104 Flash
233738
PC/104
Board
116930
64MB RAM
116931
Filter
197996
TI1667A
Power Supply
116512
Fuse x2
116209
Fig. 79
309374
133
Adding Swirl Capability to an Existing Control Box
Adding Swirl Capability to an Existing
Control Box
Connection harnesses are available for adding swirl
capability to existing PrecisionFlo XL control boxes. If
your box is controlling one or two pneumatic regulatortype fluid plates, you can have one or two swirl control
boards. If your box is controlling an electric regulator
fluid plate, you will have an AMP board mounted in the
second position down, and can add a swirl control
board in the top position. Verify that you have space
open for the board(s) by referring to the layout on page
129. Swirl boards can be installed one above the other
in the upper left section of the control box if there are
empty spaces.
Part No.
Description
Qty
233732
HARNESS, position 1
1
233735
HARNESS, position 2 (Use only
of you are adding a second
board to position 2.)
1
244355
CONTROL BOARD, swirl
1 or 2
198251
BOARD COVER, swirl
1 or 2
166782
STAND-OFF, cover mount
4 or 8
Notes for Figures 80 and 81:
How to install a swirl board
1. Add connector hole in the sheet metal on top of
the box. A template is supplied with the harness
kit. Metal chips must be contained and removed
without allowing them to fall into the box.
1. All wire ends are terminated with appropriate size
ferrule and tagged with appropriate wire I.D.
2. Wires are bundled together where appropriate.
2. Install the Swirl 1 or Swirl 2 harness kit. These kits
include prewired connectors with terminated and
labeled wires.
3. Install the Swirl card(s) by snapping them onto the
DIN rail.
3. Connectors shown are supplied. Connections in
dashed boxes are field wiring.
4. Plug on the board connectors.
5. Connect seven wires to other connectors on the
SIO board.
4. A template for mounting the external Amphenol
connector is included.
6. Connect two wires to the 24 VDC power supply
7. Install cover spacers and cover(s).
134
309374
5. Refer to schematics in manual 309364 for detailed
information.
Adding Swirl Capability to an Existing Control Box
Swirl 1 Upgrade
J4–13
J4–5
J1–19
J1–5
J3–18
J3–6
J2–15
To SIO board
connectors
M
L
Amphenol External Connector Swirl 1
K
J
H G F
E D C B
A
9280
9270
9260
9250
9240
9070
9060
9050
To 24 volt
power supply
PS219
Fig. 80
Swirl 2 Upgrade
J4–14
J4–6
J1–20
J1–6
J3–19
J3–7
J2–17
To SIO board
connectors
M
L
Amphenol External Connector Swirl 2
K
J
H G F
E D C B
A
9810
9800
9790
9780
9770
9580
9570
9560
To 24 volt
power supply
PS219
Fig. 81
309374
135
Temperature Control
Temperature Control
Temperature-Conditioned Package (St. Clair Systems)
The water-circulation, temperature-conditioning equipment is manufactured and supplied specifically for the PrecisionFlo XL by St. Clair Systems of Romeo, Michigan. Their complete instruction manual is included with each unit.
St. Clair Systems can be contacted by phone at (810) 336–0700 and by email at stclairsys.com.
Combinations and Capabilities
Temperature-Conditioning Components
The temperature-conditioning control comes fully
integrated with the PrecisionFlo XL control unit.
Part No.
Description
116824
Heat Zone Controller Module
Either Heat Only or Heating and Cooling is available.
198457
RTD Sensor
198458
RTD Sensor Cable, 6’ Whip
A single 240 VAC or 480 VAC only power drop
controls both panels.
198490
RTD Main Cable, 70’ (21.3m)
Temperature-Conditioning Jackets
The temperature-conditioning control panel is
self-contained, but all of the temperature control
functions are accessed through the PrecisionFlo XL
user interface, including temperature set point,
alarms, and PID values.
The unit includes 1 zone of heat control.
To activate temperature control remotely, remove
Remote Temp. Activate jumper and use your own
switch.
Remote Temp. Activate: RDR–B3, Wire
8730, Connector J5–19, normally jumpered to
704 RIO J1–3.
Part No.
Description
116770
Jacket for 6’ dispense hoses (1/2” and
5/8” ID)
116769
Jacket for 10’ dispense hoses (1/2” and
5/8” ID)
233639
Jacket for G3000 flow meter
233659
Jacket for SRZ40 flow meter
198667
Jacket for electric regulator head
198447
Jacket for 1/2” pneumatic regulator
198448
Jacket for 3/4” pneumatic regulator
198749
Insulation only jacket for orbiter
Fuses for Temperature-Conditioning Control
Where Used
Temperature
C
Conditioning
Control
With Input
Voltage
Schematic*
Fuse No.
Graco
Part No.
Fuse
Designation
Amp
Rating
220–240 VAC
400–480 VAC
100 FU1
100 FU1
116820
116219
LPJ–25SP
LPJ–15SP
25
15
2
2
220–240 VAC
100 FU2
116505
LPJ–182SP
8
2
400–480 VAC
100 FU2
116217
LPJ–15SP
15
1
All
108 FU
116222
LPJ–12SP
12
1
All
109 FU
116819
LPJ–6SP
6
1
Qty.
*Schematics in St. Clair instruction manual.
Co-Axial Water Jacketed Feed Hoses
Core Material
Working
Pressure
Temp.
Rating
Coupling
Size
Coupling
Material
Bend
Radius
1.0” ID x 10’
Synthetic Rubber
5000 psi
212 F
1 npt (f)
Steel
12”
116748
1.0” ID x 20’
136
309374
Synthetic Rubber
5000 psi
212 F
1 npt (f)
Steel
12”
Part No.
Size
116749
Temperature Control
Electric Heat Control Components
Electric Heat Package
Combinations and Capabilities
Ref.
No.
Part No.
Description
The electric heat control comes fully integrated with
the PrecisionFlo XL control unit.
101
116503
Two Zone Controller Module
102
116201
Control Relay, 12 V coil
103
116204
Zone Relay, (order 4)
104
233589
Transformer for heat
105
116502
Control Module
A single 240 VAC or 480 VAC only power drop
controls both panels.
The electric heat panel is self-contained, but all of
the temperature control functions are accessed
through the PrecisionFlo XL user interface, including temperature set point, alarms, and PID values.
105
101
The unit is standard with up to 4 zones of heat
control; unused zones can be turned off.
Heat zones on the electric heat option are set up as
follows:
Zone
Connector Number
1
2
Description
Maximum
Wattage
1
Feed Hose
1250
2
Fluid Plate
750
3
Dispense Hose
750
4
Dispense Valve
400
This control package is compatible with any of Graco’s
Therm-O-Flow Plus 240 volt heated hoses and accessories.
103
104
102 115 116 117 118 119
TI1552
Fuses for Electric Heat Control
Where Used
Ref. No. With Input
Voltage
Electric Heat
C
Control
115
116
117
118
119
200–240 VAC
400–480 VAC
200–240 VAC
400–440 VAC
All
All
All
All
All
Schematic*
Fuse No.
Graco
Part No.
Fuse
Designation
FU 3040
FU 3040
FU 3041
FU 3041
FU 338
FU 403
FU 405
FU 420
FU 422
116822
116821
116822
116821
116211
116208
116212
116212
116823
LPJ–20SP
LPJ–10SP
LPJ–20SP
LPJ–10SP
FNQ–R–1
FNQ–R–6
FNQ–R–3-1/2
FNQ–R–3-1/2
FNQ–R–2
Amp
Rating
Qty.
20
10
20
10
1
6
3-1/2
3-1/2
2
1
1
1
1
1
1
1
1
1
*Schematics in document 309364.
309374
137
Temperature Control
240 V Electrically Heated Hoses
Part No.
Size
Core
Material
Working
Pressure
Temp.
Rating
Coupling Size
Type
Dispense
Dispense
Dispense
Dispense
Feed
Feed
115875
115903
115876
115880
115885
115887
.50” ID x 6’
.62” ID x 6’
.50” ID x 10’
.62” ID x10’
.87” ID x 10’
.87” ID x 20’
PTFE
PTFE
PTFE
PTFE
PTFE
PTFE
3000 psi
3000 psi
3000 psi
3000 psi
3000 psi
3000 psi
400
400
400
400
400
400
7/8–14 37 (f)
1-1/16–12 37 (f)
7/8–14 37 (f)
1-1/16–12 37 (f)
1-5/16–12 37 (f)
1-5/16–12 37 (f)
138
309374
F
F
F
F
F
F
Coupling
Material
Wattage
Stainless
Stainless
Stainless
Stainless
Stainless
Stainless
300
300
500
500
500
1000
Temperature Control
Fluid Plate Electric Heat Kits
Mounting Fluid Module
Best heat control is obtained by mounting the fluid module horizontal or vertical, with fluid components toward the
floor. If the fluid components are toward the ceiling, the heater/sensor assembly should be reversed.
22
11
13
9
10
1
7, 8
6, 21
2
12
4
14 15 16
5
19
3
20
Electrical Schematic Diagram
Heater
18
Sensor
(not used)
(not used)
(not used)
17
TI1482A
309374
139
Temperature Control
Fluid Plate Electric Heat Kits
The heat kits are designed to be used with the PrecisionFlo XL optional heat control. The kit should only be connected to output connector No. 1, Zone No. 2. Refer to the drawing on page 139.
Heat Type: radiant
Watts: 720
VAC: 240
Maximum Temperature: 180 F (82
Part No. 233692
For Pneumatic Controlled Fluid Modules
(Part Nos. – 198245, 198246, 198247)
Part No. 233693
For Electric Servo Controlled Fluid Modules
(Part Nos. – 233652, 233653, 233654, 233672, 233673)
Kit 233692
Ref. No.
Description
Part No.
Qty.
Part No.
Qty.
1
ENCLOSURE, heat shield
198633
1
198750
1
2
HEATER, electric
198233
1
198233
1
3
COVER, heat, enclosure
198635
1
198751
1
4
COVER, heat, enclosure
198634
1
198752
1
5
SCREW, 1/4-20, quick disconnect
116779
4
116779
4
6
SCREW, cap, skt, button head
111831
8
111831
8
7
WASHER, lock
100016
8
100016
8
8
NUT, hex mscr
100015
4
100015
4
9
BRACKET
198528
1
198528
1
10
SCREW, cap, hex head
100157
2
100270
2
11
BRACKET, sensor
198588
1
198753
1
12
CORD, flex, valve 1K
116675
1
116675
2
13
SENSOR, temperature
C32255
1
C32255
1
14
BUSHING, strain relief
116673
1
116673
1
15
CONNECTOR, cable coupler hood
116637
2
116637
2
16
INSERT, male
115860
1
115860
1
17
CONTACT, connector
116640
6
116640
6
18
CONNECTOR, male, crimp
115862
1
115862
1
19
LABEL, heated surface
C14005
1
C14005
1
20
SPACER
116778
4
116778
4
21
WASHER, plain
–
–
110755
9
–
–
105672
1
22
140
Kit 233693
SCREW, set
309374
C)
Coriolis Flow Meter Kit
Coriolis Flow Meter Kit
1
9
8
4, 5
7
3
1/2–14 npt (2)
2
6
Ref. No.
Part No.
Description
Qty.
1
198381
METER, flow, Coriolis #15
1
2
197173
PLATE, flow meter
1
3
197175
BRACKET, riser, flow meter
2
4
116301
SCREW, hex head , 1/4–20
4
5
100016
WASHER, lock, 1/4
4
6
109212
SCREW, cap, 3/8–16 x.75 SHCS
4
7
197176
CLAMP, pipe, 2.5 in.
2
8
197199
CABLE, 15 ft. , pulse signal only
1
9
197200
BUSHING, strain relief
1
309374
141
Coriolis Flow Meter Kit
FUSE: POWER SUPPLY 85–230VAC + 10% 1 A SLOW–ACTING / 250V;
5.2 X 20 mm
1
2
20
21
28
POWER SUPPLY AND SIGNAL CABLE
TERMINAL CONNECTION: ”HART” INTERFACE (CURRENT OUTPUT)
3
SHLD
GROUND CONNECTION (GROUND WIRE)
L1
FOR 120 VAC
N
1 BLK
2 WHT
20 (+) RED
21 (–) BLK
28
SHLD
PULSE/FREQUENCY OUTPUT
GROUND CONNECTION (GROUND WIRE)
Fig. 82
PrecisionFlo XL Fluid
Plate Junction Box
Flow Meter
L1
Neutral
1
2
120 VAC
Field-Wired
by user
Ground
White
20
21
Black
5640/5540
28
Shield
this end
5530/5550
244343 Flow Meter Installation Wiring
Fig. 83
142
309374
TI1425A
Coriolis Flow Meter Kit
Install the Flow Meter
Install the flow meter in the fluid feed line as close to
the flow regulator as practical. The flow meter must be
stationary and solidly mounted. Refer to E & H Promass 63 manual, pages 11–16, for full information.
14. When prompted for an access code, enter 63.
15. Set the following values in the “Systems–Units”
group:
Parameter
Value
Connect the Signal Cable
Mass Flow Unit
g/min
A 15’ (3 m) cable is provided to connect the flow meter
signal to the fluid plate junction box. See the wiring
schematic in Fig. 83.
Mass Unit
g
Volume Flow Unit
cm3/min
Volume Unit
cm3
Connect Power to the Transmitter
Gallons/Barrel
US 42 Gal/Ba
6. Loosen the screws of the safety grip.
Density Unit
g/cc
Temperature Unit
F
Nom. Diam. Unit
Inch
7. Unscrew the cover of the terminal compartment.
8. Connect the 120 VAC power supply to terminals
1(L1) and 2(N) and the ground terminal. This
wiring must be provided by the user.
9. Turn the power supply on.
Set the K–Factor in the PrecisionFlo XL
Refer to Setting Flow Meter K-factors, page 31,
Verification and Calibration, page 38 and EasyKey
dispense setup on page 47, and TouchScreen dispense setup on page 59. The meter is factory set for
2000 pulses/L.
Commission the Meter
Calibration should be performed at least once when
the system is being commissioned.
16. Adjust the dispense system so that static pressure
of the supply hose (not the display pressure on the
PrecisionFlo) is 1500 +/– 500 psi.
17. Make sure the applicator is closed and there are
no leaks.
18. Navigate the flow meter menu to “System
Parameter.”
Test Procedure
Setting flow meter parameters –
10. Enter the operating matrix by pressing the E key.
11. Navigate through the menus using the +/– keys as
necessary.
12. Toggle to the “Systems–Units” group.
13. Select this group by pressing the E key.
19. Choose “Zeropoint Adjust.”
20. Choose “Start” (remember, password is 63).
21. Go back to the main screen by pushing E for three
seconds.
To ensure calibration was done correctly, dispense
material into a cup and compare the actual measured
volume to the displayed volume. Adjust the K factor if
necessary. Refer to page 38 for instructions.
309374
143
Coriolis Flow Meter Settings
Coriolis Flow Meter Settings
Group
Parameter
Value
Current Output 1
Assign Output
Volume Flow
Puls/Freq. Output
Assign Output
Volume
Operation Mode
Pulse
Pulse Value
0.5 cm3/P
Pulse Width
0.05 s
Output Signal
Active/Positive
Failsafe Mode
Fallback Value
Balance
Off
Simulation Freq.
Off
Nominal Freq.
0
Relay 1 Function
Failure
Relay 2 Function
Limit Mass Flow
Relay 2 On–Value
99999 g/min
Relay 2 Off–Value
99999 g/min
Pickup Delay 2
0s
Dropout Delay 2
0s
Batching
Batch Variable
Off
Density Function
Dens. Adj. Value
1.6209 g/cc
Density Adjust
Cancel
Relays
Display
Communication
Processing Para
System Parameter
Sensor Data
144
309374
Calc Density
Off
Volume Flow Meas
Volume Flow
Assign Line 1
Volume Flow
Assign Line 2
Totalizer 1
Display Damping
1s
Format Flow
X.XXXX
Language
English
Protocol
OFF
Bus Address
0
Tag Number
Reinach
Low Flow Cutoff
50 g/min
Noise Suppression
0
Measuring Mode
Unidirectional
Flow Direction
Forward
EPD Threshold
0.2 g/cc
Density Filter
Low
Self Checking
Smart +
Pres. Pulse Suppr.
0s
Select Zeropoint
Zeropoint 1
Pos. Zero Return
Off
Alarm Delay
0s
K–Factor
1.9690
Zeropoint
–192
Nominal Diameter
1/2 inch
Sensor Coef.
Cancel
Appendix A
Appendix A
Ethernet and FTP
TouchScreen Only
Overview
NOTE: Ethernet and FTP communication can only be
used with systems with a TouchScreen user interface.
EasyKey user interface must use serial communication.
Alarm and data log files can be transferred from the
PrecisionFlo XL directly to another computer. This
appendix describes how to connect a laptop computer
to the PrecisionFlo XL and transfer its alarm and data
logs to the laptop. A nearby workstation or desktop
computer could be used in place of the laptop.
Before You Start
This appendix is written for users with basic PC and
Microsoft Windows knowledge, as well as familiarity
with networking concepts. You should understand how
Ethernet, TCP/IP, and FTP work to carry out the
following procedures.
Because networking multiple computers together
requires proper setup and configuration of these
computers, you may need to contact your IS department (or equivalent) for assistance. You will need an IP
address assigned to the PrecisionFlo XL by your
system administrator.
Ethernet
Ethernet is a common type of communications network. An Ethernet network uses a star or bus topology
and supports multiple types of cabling media.
PrecisionFlo XL Ethernet specifications
The PrecisionFlo XL conforms to IEEE Standard
802.3, a widely used specification that was established
to standardize Ethernet networks.
The PrecisionFlo XL uses 10/100 Mbps Ethernet
twisted pair cables that use RJ45 connectors. Most
commonly used in office settings, these cables can be
used for runs up to 100 meters. They are generally
used in networks with a star topology, which requires
the use of a network hub. No termination resistors are
required. These cables are also known as Category 5
communication cables or CAT 5 cable.
The CAT 5 cable supports 10 Mbps or 100 Mbps
communication rates. A short length of either of these
cables, with connectors installed on both ends, is
commonly called a patch cable.
TCP/IP
TCP/IP stands for Transmission Control Protocol/Internet Protocol. It is a suite of communication protocols
widely used in Ethernet networks. One of its main
functions is to route packets of information from one
computer to another. This is accomplished by assigning every computer on the network a unique IP address, which has the format nnn.nnn.nnn.nnn, where
‘nnn’ is a number between 1 and 254. While the specifics are beyond the scope of this manual, in general,
the address is made up of two parts. One part designates the network itself, the other part uniquely identifies the computer (also called a ‘host’) on the network.
On a computer network where two or more computers
are communicating using TCP/IP, all computers involved must have addresses that have the same
network identifier but unique host identifiers.
PrecisionFlo XL TCP/IP specifications
The default address used on the PrecisionFlo XL is
192.111.223.110. The network portion of the address is
192.111.223 and the host portion is 110. Any other
computer connected to the same physical network as
the PrecisionFlo XL must use an address like
192.111.223.nnn, where nnn is any number between 1
and 254, except 110.
Your company may have specific IP address standards
or regulations. Contact your IS department (or equivalent) to find out what IP address you should use. To
change the IP address of the PrecisionFlo XL, navigate to the IP Address Setup screen on the TouchScreen. Change the IP address to the address recommended by your IS department.
309374
145
Ethernet and FTP
FTP
FTP stands for File Transfer Protocol. It is a popular
communications protocol designed specifically to
transfer files between computers.
What is Needed?
To properly set up communications, you need to
configure the laptop network settings and make the
physical network connection. The PrecisionFlo XL is
fully configured at the factory and no software configuration or modification is required. Network settings and
physical connection are described below.
Network Settings on the Laptop
Companies have varying policies on who is allowed to
modify parameters such as network settings. Check
with your IS department for approval before proceeding. The procedure shown illustrates the steps for
Windows 98; other Windows platforms are similar.
Fig. 84
1. In Windows 98, click on Start→Settings→Control
Panel.
2. When the Control Panel appears, double-click on
the Network icon.
3. A dialog box appears. In the list displayed at the
top, there should be a line representing the physical network card (also called network adapter)
installed on your computer. For example, “Network
of Xircom CreditCard 10/100+Modem 56” (see
Fig. 84).
Further down in the same list, there should be
another line that indicates the TCP/IP protocol is
installed. For example, “TCP/IP→ Network of Xircom CreditCard 10/100+Modem” (see Fig. 85).
4. Select the “TCP/IP → Network of …” line and click
on Properties.
146
309374
Fig. 85
Ethernet and FTP
5. Another dialog box appears; select the IP Address
tab. Select “Specify an IP address” and fill in the
blanks as shown in Fig. 86.
If you prefer, the last number of the IP address can
be something different (see previous explanation
of TCP/IP). The rest of the tabs on this dialog box
can be left as they are.
6. Click OK to close this dialog box.
7. Click OK to close the first dialog box.
8. A message from Windows appears, stating that
you need to reboot for the changes to take effect.
Reboot the computer.
NOTE: If a network card or the TCP/IP protocol has
not been installed, consult the documentation that
came with your network card for installation instructions.
Physical Connection to PrecisionFlo XL
There are two common ways to connect to the PrecisionFlo XL. The first way is to use a CAT 5 crossover
cable to directly connect the PrecisionFlo XL computer
to the laptop. The second way is to use a network hub
and CAT 5 patch cables.
Direct Computer Connection
Connect one end of a CAT 5 crossover cable to the
PrecisionFlo XL RJ45 port and the other cable end to
the laptop RJ45 port.
Network Hub Connection
Fig. 86
Connect a CAT 5 patch cable to the laptop RJ45 port
and the other cable end to an available hub port.
Connect a CAT 5 patch cable from the hub to the
PrecisionFlo XL RJ45 port. Apply power to the hub.
309374
147
Ethernet and FTP
Testing Communication
If it’s not set up right, you’ll see something like this:
Anybody Home?
Pinging 192.111.223.110 with 32 bytes of data:
A quick test to try when everything is powered up and
plugged in is the ping test. The ping test uses a utility
built into Windows called ping.exe. Ping.exe sends an
“Are you there?” message to another node on the
network. If the message gets to the other node and it’s
up and running, it will return the message to the sender. To try this, open a DOS window and type:
c:\ping 192.111.223.110
Use the appropriate IP address if you have changed it
from the default. If the laptop is configured correctly
and the physical connections are okay, you will see
something like:
Pinging 192.111.223.110 with 32 bytes of data:
Reply from
TTL=255
Reply from
TTL=255
Reply from
TTL=255
Reply from
TTL=255
timed
timed
timed
timed
out.
out.
out.
out.
Ping statistics for 192.111.223.110:
Packets: Sent = 4, Received = 4, Lost = 0
(0% loss),
Approximate round trip times in milli–seconds:
Minimum = 0ms, Maximum = 1ms, Average = 0ms
If you receive the latter message, do not continue the
test. If the ping test fails, FTP will also fail. There are
various possible causes for ping test failure. Some
things to check are:
1. Check the physical network connections.
192.111.223.110: bytes=32 time=1ms
192.111.223.110: bytes=32 time<10ms
192.111.223.110: bytes=32 time=1ms
192.111.223.110: bytes=32 time<10ms
Ping statistics for 192.111.223.110:
Packets: Sent = 4, Received = 4, Lost = 0
(0% loss),
Approximate round trip times in milli–seconds:
Minimum = 0ms, Maximum = 1ms, Average = 0ms
148
Request
Request
Request
Request
309374
2. The green link LED on the laptop’s external network card connector should be on.
3. Try pinging the laptop from the laptop. That is, on
the laptop, type “ping <IP address>”, where <IP
address> is the laptop IP address. If this fails, the
network configuration is incorrect.
4. Check the laptop IP address settings.
Two very common causes of problems are invalid
laptop network settings or a faulty cable.
Ethernet and FTP
Transferring Files
The laptop must have an FTP client software package
installed on it. There are several FTP packages available. A default Windows installation includes an FTP
client called ftp.exe. To help make the ftp.exe utility
easier to use, follow the instructions below to create a
batch file to automate ftp.exe to do the necessary FTP
commands for you.
1. Create the two following text files:
getlogs.bat:
ftp –s:logs.txt %1
logs.txt:
pfloftp
pfloftp
prompt
ascii
mget *.log
bye
NOTE: Be sure to enter the text exactly as shown
above. A single typo will cause the operation, below, to
fail.
2. Create a directory to use for file transfer. For the
purposes of this example, this directory is called
c:\graco.
3. Move the getlogs.bat and logs.txt files created
above into the file transfer directory.
4. Open a DOS window and change working directories to c:\graco. At the command prompt, run the
batch file:
c:\getlogs 192.111.223.110<Enter>
The .bat file will invoke the FTP utility, pass the IP
address entered on the command line to it, and execute the commands listed in the logs.txt file. The
commands will instruct the FTP utility to fetch a copy
of all the alarm and data logs from the PrecisionFlo XL
and put them in the current directory on the laptop.
The commands in logs.txt will fetch a copy of the log
files from the PrecisionFlo XL. The original files will still
reside on the PrecisionFlo XL and will not be deleted.
309374
149
Ethernet and FTP
Notes
150
309374
Appendix B
Appendix B
TouchScreen and Remote Screen
Configuration and Calibration
Before You Start
NOTE: The TouchScreen comes from the factory
preconfigured and calibrated. You will need to follow
this procedure if you replace your TouchScreen or the
CompactFlash memory for the TouchScreen. This
procedure also applies if you configure a remote
TouchScreen to one or more PrecisionFlo XL stations.
In order to configure the TouchScreen, you must first
understand a few things about the hardware. A TouchScreen consists of two main components: the actual
screen and the PC/104 board, where the CompactFlash memory resides.
The screen component is typically mounted in the
PrecisionFlo XL control unit. The screen is comparable
to a monitor on a personal computer (PC). The PC/104
component is the circuit board that contains the processor for the TouchScreen and is comparable to the
central processing unit (CPU) on a PC.
When you configure a TouchScreen, you are actually
configuring the PC/104 board (Fig. 87). The parameters that you configure are stored in the CompactFlash
memory on the PC/104 board. For this reason, if you
change your screen, PC/104 board, or CompactFlash
memory, you may need to reconfigure your TouchScreen interface.
PC/104 Board
Fig. 87
309374
151
TouchScreen and Remote Screen Configuration and Calibration
PC/104 Board
Configurations
There are the three types of PC/104 board configuration.
1. Standalone (default) – A standalone Touchscreen
(Fig. 88) is the most common configuration. This is
a PC/104 board mounted in the PrecisionFlo XL
control unit. This PC/104 board is not communicating with any remote screens. It is displaying information on the screen mounted on the outside of
the control unit.
2. Local – A local PC/104 configuration (Fig. 89) is
used in conjunction with a remote screen. The
local station is the PC/104 board that is mounted in
the PrecisionFlo XL control unit. This control unit
typically does not have a screen mounted on it.
This PC/104 board will communicate with the
remote station via the Ethernet connection on the
PrecisionFlo XL control unit. Up to 12 stations can
be networked to a remote station. These stations
are connected to the remote station with usersupplied CAT 5 (Ethernet) patch cables.
Local Station
CAT 5
patch cable
Standalone Station
Fig. 89
3. Remote – The remote PC/104 board is located in
the remote control unit (Fig. 90). This PC/104
board displays information on the screen mounted
on the outside of the remote unit. It is communicating with the local station via the Ethernet connection on the remote unit.
Fig. 88
CAT 5 patch cables
Local Stations
Remote Station
TI1666A
Fig. 90
152
309374
TouchScreen and Remote Screen Configuration and Calibration
Configuration Mode
To enter Configuration mode, turn off power to the
system, jumper wires together in the control unit, then
turn power back on. To return to normal Operating
mode, turn off power, remove the jumper wires and
turn power back on.
The following table shows the jumper options on the
main control unit. These terminals are located on a
connector mounted near the base of the PC/104
board.
Function
Terminal Block #
Configuration Mode Bit
1
Data Bit 0
3
Data Bit 1
4
Jumper Bit (GND)
6
To enable a specific bit, run a jumper wire from its
corresponding terminal block number to the Jumper Bit
(terminal block #6). The following table shows jumpers
that must be added in order to go into the different
configuration modes. (See Fig. 91.)
Desired Operation
Jumpers
Standalone station
Config Mode (1–6),
Data 1 (4–6)
Local station
Config Mode (1–6),
Data 0 (3–6)
Remote station
Config Mode (1–6),
Data 0 (3–6),
Data 1 (4–6)
Calibration Only
Config Mode (1–6)
Rotary switch
to set station
number
CompactFlash
Ethernet
Driver Chip
(physical address)
Terminal Block #1
Fig. 91
Terminal Block
(wires are jumpered here)
Ethernet Port
309374
153
TouchScreen and Remote Screen Configuration and Calibration
Setting up a standalone station
To set up a standalone station, attach the appropriate
jumpers from the jumper table on page 153, then turn
on power to the system. As the system reboots, you
will notice messages on the screen as the unit configures itself, then the system goes to TouchScreen
calibration.
To calibrate the TouchScreen:
Calibration aligns the internal circuitry of the PC/104
board with the TouchScreen, so that when you touch
an element on the screen, the board correctly interprets which function you wish to accomplish. When
calibrating, be careful not to lean on the TouchScreen
or contact it with anything other than the tool you are
using to touch with (touching with a small, blunt instrument such as the eraser on a pencil works the best).
Fig. 92
154
309374
NOTE: If you should accidentally touch the screen
while you are calibrating it, you must repeat the configuration process.
Touch the targets that appear on the screen. Fig. 92
shows all the target points. When you are calibrating
the TouchScreen only one target is visible at a time.
The Current Position field shows the screen coordinates of the target position currently displayed. When
calibration is complete, the system tells you that it is
now okay to turn off the unit. Remove the jumpers,
turn power back on, and you are ready to operate as a
standalone station.
TouchScreen and Remote Screen Configuration and Calibration
Setting up local stations
Since there is no screen on a local station, you will
have no indication that configuration is taking place or
when it is complete. Attach the appropriate jumpers
from the jumper table on page 153, turn on power to
the system, and wait at least 2 minutes. Then, turn
power off, remove the jumpers, turn power back on
and you are ready to operate as a local station. If this
local station is going to be part of a PrecisionFlo XL
network, you must also set it’s station number on the
Expandable Control Board (ECB). See Fig. 91 for the
location of the rotary switch used to set the station
number. This switch should be in one of the settings on
the table below before you power up the system with
the jumpers. Any other setting for the rotary switch will
result in the system being set up as station 1. Be sure
that each station number is used only once. Network
problems will result if the same number is assigned to
more than one station.
NOTE: Changing the setting on the rotary switch is
only effective when the configuration jumpers are in
place while turning on the PrecisionFlo XL. If you
change the setting on the rotary switch without setting
the jumpers and cycling power to the system, the
station number will not change.
Rotary Switch
Setting
Station
Number
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
A
10
B
11
C
12
Setting up a remote station
To set up a remote station, attach the appropriate
jumpers from the jumper table on page 153, then turn
on power to the system. As the system reboots, you
will notice messages on the screen as the unit configures itself. After this, the system goes into TouchScreen calibration. See instructions on how to calibrate
the TouchScreen on page 154. When configuration is
complete, the system will tell you that it is now okay to
turn off the unit. Remove the jumpers, cycle power on
the system, and you are ready to operate as a remote
station.
309374
155
TouchScreen and Remote Screen Configuration and Calibration
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the
exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of
sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment
is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD
BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches,
hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making
any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Phone Numbers
TO PLACE AN ORDER, contact your Graco distributor, or call one of the following numbers
to identify the distributor closest to you:
1–800–367–4023 Toll Free
612–623–6921
612–378–3505 Fax
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Offices: Minneapolis, Detroit
International Offices: Belgium, Korea, Hong Kong, Japan
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
www.graco.com
PRINTED IN USA 309374 Revised October 2001
156
309374

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
