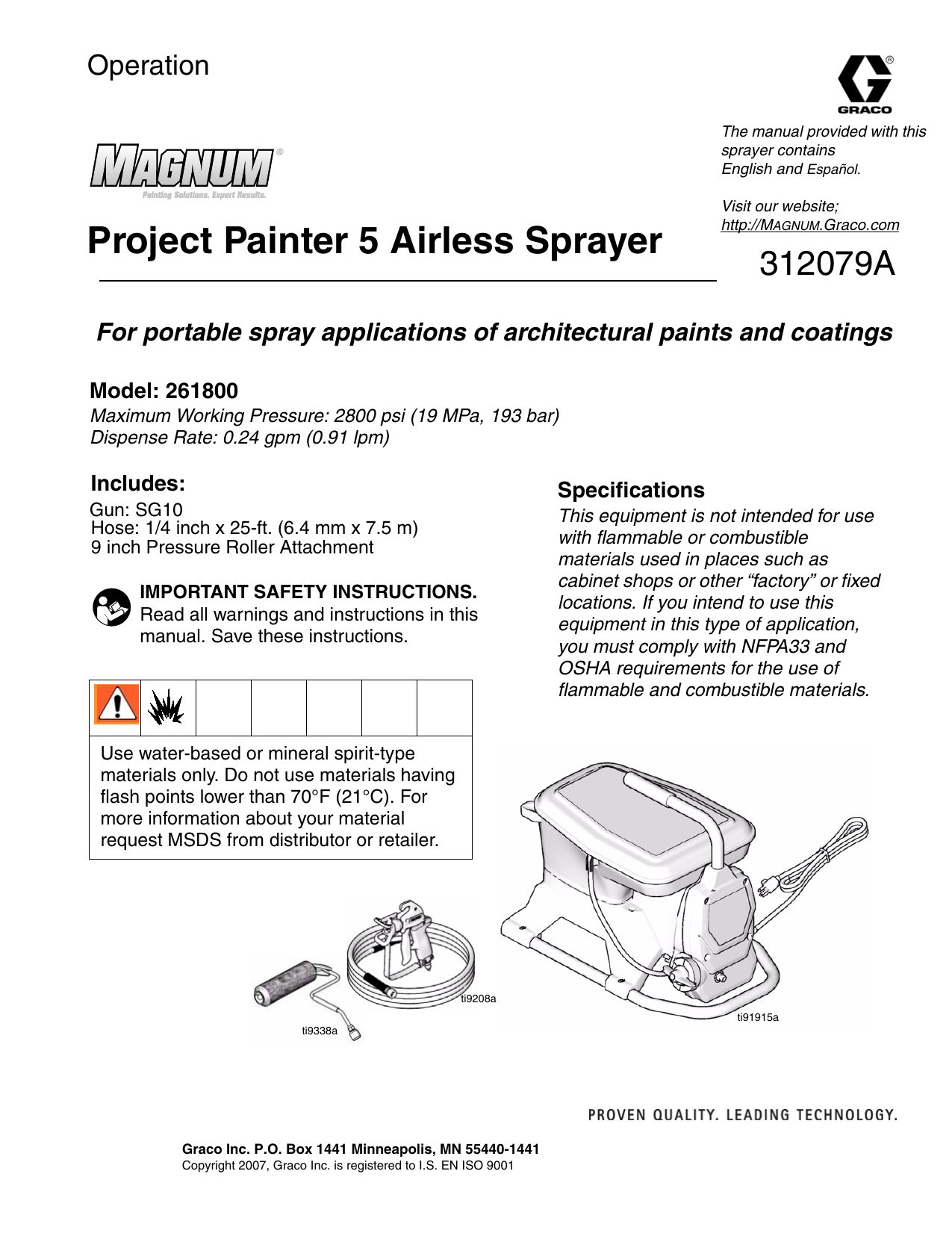

Graco 312079A Magnum Project Painter 5 Airless Sprayers Owner's Manual

Operation
The manual provided with this
sprayer contains
English and Español.
Project Painter 5 Airless Sprayer
Visit our website;
http://MAGNUM.Graco.com
312079A
For portable spray applications of architectural paints and coatings
Model: 261800
Maximum Working Pressure: 2800 psi (19 MPa, 193 bar)
Dispense Rate: 0.24 gpm (0.91 lpm)
Includes:
Specifications
Gun: SG10
Hose: 1/4 inch x 25-ft. (6.4 mm x 7.5 m)
9 inch Pressure Roller Attachment
This equipment is not intended for use
with flammable or combustible
materials used in places such as
cabinet shops or other “factory” or fixed
locations. If you intend to use this
equipment in this type of application,
you must comply with NFPA33 and
OSHA requirements for the use of
flammable and combustible materials.
IMPORTANT SAFETY INSTRUCTIONS.
Read all warnings and instructions in this
manual. Save these instructions.
Use water-based or mineral spirit-type
materials only. Do not use materials having
flash points lower than 70°F (21°C). For
more information about your material
request MSDS from distributor or retailer.
ti9208a
ti91915a
ti9338a
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2007, Graco Inc. is registered to I.S. EN ISO 9001
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer
to procedure-specific risks. Refer back to these warnings. Additional, product specific warnings
may be found throughout the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode.
To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric
lamps, and plastic drop cloths (potential static arc).
• Sprayer generates sparks. When flammable liquid is used in or near the sprayer or
for flushing or cleaning, keep sprayer at least 20 feet (6 m) away from explosive
vapors.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes
are present.
• Ground equipment and conductive objects in work area. Read Grounding instructions.
• If there is static sparking or you feel a shock, stop operation immediately. Do not
use equipment until you identify and correct the problem.
• Keep a fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on sprayer and extension cords.
• Do not expose to rain. Store indoors.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get
immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and
before cleaning, checking, or servicing equipment.
2
312079A
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest
rated system component. Read Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. Read
Technical Data in all equipment manuals. Read fluid and solvent manufacturer’s
warnings. For complete information about your material, request MSDS from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with
genuine Graco replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your Graco distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and
hot surfaces.
• Do not kink or overbend hoses or use hoses to pull equipment.
• Comply with all applicable safety regulations.
• Keep children and animals away from work area.
• Do not operate the unity when fatigued or under the influence of drugs or alcohol.
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such solvents in pressurized aluminum equipment. Such
use can cause serious chemical reaction and equipment rupture, and result in death,
serious injury, and property damage.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on
skin, inhaled, or swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in
the operating area of the equipment to help protect you from serious injury, including
eye injury, inhalation of toxic fumes, burns, and hearing loss. This equipment includes
but is not limited to:
• Protective eye wear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing protection
312079A
3
Installation
Installation
•
•
Grounding and Electric
Requirements
50 ft (15.0 m) 16 AWG (1.0 mm2)
100 ft (30.0 m) 14 AWG (1.5 mm2)
Smaller gauge or longer extension cords may
reduce sprayer performance.
Spray gun: ground through connection to a properly grounded fluid hose and pump.
Sprayer must be grounded. Grounding reduces
the risk of static and electric shock by providing an
escape wire for electrical current due to static build
up or in the event of a short circuit.
•
The 120 Vac
sprayers require a
120 Vac, 60 Hz,
15A circuit with a
grounding
receptacle.
Fluid supply container: follow local code.
Solvent pails used when flushing: follow local
code. Use only conductive metal pails, placed on a
grounded surface such as concrete. Do not place
the pail on a nonconductive surface, such as paper
or cardboard, which interrupts grounding continuity.
Grounding the metal pail: connect a ground wire
to the pail by clamping one end to pail and other
end to ground such as a water pipe.
WLD
•
Never use an outlet
that is not grounded
or an adapter.
•
Do not use the sprayer if the
electrical cord has a
damaged ground prong.
•
Only use an extension cord
with an undamaged 3-prong
plug.
Maintaining grounding
continuity when flushing or relieving pressure: hold metal part of
the spray gun firmly to the
side of a grounded metal
pail, then trigger the gun.
ti9207a
Thermal Overload
WLD
Recommended extension cords for use with
this sprayer:
Motor has a thermal overload switch to shut itself
down if overheated. If unit overheats, allow approximately 45 minutes for unit to cool. Once cool,
switch will close and unit will restart.
To reduce the risk of injury from motor starting
unexpectedly when it cools, always turn power
switch OFF if motor shuts down.
4
312079A
Component Identification
Component Identification
Project Painter 5
A
AllControl™
•
•
•
•
•
•
STORAGE: for long term or overnight shutdown and storage.
OFF: turns motor off for short term shutdown and
relieves system pressure.
PRIME/CLEAN PUMP: turns on motor and directs fluid
to prime tube.
ROLL: directs low pressure fluid to roller (when used)
PRIME/CLEAN GUN & HOSE: directs fluid to gun and
hose.
LOW SPRAY to HIGH SPRAY: directs fluid to spray gun.
B
Pump fluid outlet fitting
Threaded connection for paint hose.
C
Suction tube
Draws fluid from paint pail or hopper into pump.
D
Prime tube (with diffuser)
Drains fluid in system during priming and pressure relief.
E
Inlet screen
Prevents debris from entering pump.
E1
Inlet screen handle
Aids in the installation and removal of the inlet screen.
F
Hopper cover
Prevents debris from entering hopper.
G
Pour spouts
Directs paint out of hopper and back into paint container.
H
Hopper
2.5 gal. (9.5 L) capacity hopper that holds paint.
J
Tip holder
Storage for 2 spray tips.
K
Hopper handle
Press and turn handle to allow access to hopper and paint
tray.
L
Paint tray
Built in paint tray to rest roller attachment when not in use.
M
Disposable hopper liner
Fits directly in hopper and is disposable for simple cleanup.
N
Practice Spray Board
Instructs user on how to perform basic spraying techniques
and provides surface to practice techniques prior to spraying
surfaces.
P
Power Flush™ attachment
Connects garden hose to suction tube for power flushing
water-base fluids.
R
Paint hose
Transports high-pressure fluid from pump to spray gun.
S
Airless spray gun
Dispenses fluid.
T
Tip guard
Reduces risk of fluid injection injury.
U
Reversible spray tip
•
•
Atomizes fluid being sprayed, forms spray pattern and
controls fluid flow according to hole size.
When reversed, unclogs plugged tips without disassembly.
V
Gun fluid filter
Filters fluid entering spray gun to reduce tip clogs.
W
Roller attachment
Attaches to spray gun for pressure rolling directly on
surfaces.
X
Gun trigger safety lever (page 7)
Prevents accidental triggering of spray gun.
312079A
5
Component Identification
G
E1
F
G
M
E
ti9305a
L
D
ti9533a
K
ti9374a
S
T
H
U
X
ti9301a
J
ti9306a
A
B
R
P
ti9208a
ti9168a
W
ti9724a
V
ti9338a
N
ti9257a
C
ti9294a
Bottom view and position for direct immersion mode
6
312079A
Getting Started
Getting Started
Pressure Relief Procedure
Trigger Lock
Follow this Pressure Relief Procedure when you
stop spraying and before cleaning, checking, servicing, or transporting equipment.
Always engage the trigger lock when you stop
spraying to prevent the gun from being triggered
accidentally by hand or if dropped or bumped.
1. Set AllControl to OFF.
Unplug sprayer.
ti8923a
Locked
ti8922a
Unlocked
ti9168a
2. Hold gun firmly to the side of a pail. Trigger the
gun to relieve pressure.
3. Engage trigger lock. See Trigger Lock, page 7.
If you suspect the spray tip or hose is clogged or
that pressure has not been fully relieved after following the previous steps, VERY SLOWLY loosen
tip guard retaining nut or hose end coupling to
relieve pressure gradually, then loosen completely.
Clear hose or tip obstruction. Read Unclogging
Spray Tip, page 14.
312079A
7
Getting Started
AllControl™ Settings
OFF - turns motor off for short
term shutdown and relieves
system pressure
STORAGE - long term and
overnight shutdown and storage
PRIME/CLEAN PUMP - turns
motor on and directs fluid to
prime tube
HI SPRAY - uses high pressure
to direct fluid to spray gun
ROLL - directs low pressure
fluid to roller (when used)
SETTING INDICATOR selects function
LOW SPRAY - uses low pressure
to direct fluid to spray gun
PRIME/CLEAN GUN & HOSE directs fluid to gun and hose
Setup
Project Painter 5 can be used as either a hopper or
direct immersion sprayer.
3. Set AllControl to OFF. Engage
gun trigger lock.
Hopper Method (Primary Spray Method)
ti9168a
1. Stand sprayer upright
to verify the suction
tube is securely and
properly connected to
fitting (a) and hopper
elbow (b). If they are
not, connect suction
tube and tighten
securely.
4. Unscrew tip and guard
assembly from gun.
a
ti9204a
b
2. Return sprayer to horizontal position.
ti9294a
5. Uncoil hose and connect
one end to gun. Use two
wrenches to tighten
securely.
ti9203a
8
312079A
Getting Started
Priming and Flushing Storage Fluid
(Hopper Method)
6. Connect other end of hose
a
to sprayer (a). Use two
wrenches to tighten
securely.
ti9375a
If hose is already connected, make sure connections are tight.
7. Push down on bend of
handle and pivot 90°.
Remove cover.
Before you use your sprayer for the first time or
begin a new spraying project, you need to prime
the sprayer and flush the storage fluid out of the
sprayer.
Oil- or Water-based Materials
•
When spraying water-based materials,
flush the system thoroughly with water.
•
When spraying oil-based materials, flush
the system thoroughly with mineral spirits
or compatible, oil-based flushing solvent.
•
To spray water-based materials after
spraying oil-based materials, flush the
system thoroughly with water first. The
water flowing out of prime tube should be
clear and solvent-free before you begin
spraying the water-based material.
•
To spray oil-based materials after
spraying water-based materials, flush the
system thoroughly with mineral spirits or a
compatible oil-based flushing solvent first.
The solvent flowing out of the prime tube
should not contain any water.
•
When flushing with solvents, ground gun.
Read Grounding and Electric
Requirements, page 4.
•
To avoid fluid splashing back on your skin
or into your eyes, always aim gun at inside
wall of pail.
ti9291a
ti9290a
8. Unclip drain tube from
side of hopper and place
in waste pail.
ti9829a
9. Install liner (c) in
hopper (optional).
d
c
10. Use inlet screen
handle (d) to install
inlet screen into
opening in bottom of
hopper.
NOTE: If using a liner, be sure liner is in place
before you install inlet screen. The inlet screen
will hold the liner in place and help prevent
paint from seeping between the liner and the
hopper for easier cleanup.
312079A
1. Make sure AllControl is set to
OFF and sprayer is unplugged.
ti9168a
9
Getting Started
9. When paint comes out of
drain tube, turn AllControl to
OFF.
2. Fill hopper with water or
compatible flushing solvent.
ti9168a
ti9377a
10. Clip drain tube to side of
hopper.
3. Plug sprayer in a grounded outlet.
4. Turn AllControl to
PRIME/CLEAN PUMP.
11. Point gun into waste pail.
ti9169a
5. When sprayer starts
pumping, water or
flushing solvent and air
bubbles will be purged
from the system. Allow
fluid to drain out of prime
tube, into waste pail, until
all fluid has drained out of
hopper. Pour out any
remaining fluid.
ti9374a
12. Unlock gun trigger lock.
13. Pull and hold gun trigger.
ti8922a
ti9376a
14. Set AllControl to
PRIME/CLEAN GUN &
HOSE.
ti9171a
6. Turn AllControl to OFF.
ti9168a
7. Fill hopper with paint.
15. Continue to trigger into waste pail until you see
only paint coming out of gun.
16. Release trigger. Engage
trigger lock.
ti8923a
ti9529a
17. If spraying, install tip and guard on gun, page
13 and see Spraying Techniques, page 14.
8. Turn AllControl to
PRIME/CLEAN PUMP.
If rolling, roller setup and Rolling Techniques,
begin on page 18.
ti9169a
10
312079A
Getting Started
Direct Immersion Setup (Alternate Spray
Method)
1. Set AllControl to OFF.
7. Unscrew suction tube
fitting from hopper elbow
(b).
ti9168a
2. Push down on bend of handle and pivot 90°.
Remove cover.
b
ti9379a
8. Install inlet screen into
end of suction tube.
ti9824a
ti9290a
ti9291a
9. Engage gun trigger lock.
3. Use inlet screen handle to
unscrew and remove inlet
screen from hopper.
ti8923a
ti9302a
10. Unscrew tip and guard
assembly from gun.
4. Unclip drain tube from side
of hopper.
ti9204a
ti9828a
5. Replace hopper cover and return handle to
locked position.
6. Stand sprayer upright in
immersion spray position.
11. Uncoil hose and connect
one end to gun. Use two
wrenches to tighten
securely.
ti9203a
ti9294a
12. Connect other end of hose
to sprayer. Use two
wrenches to tighten
securely.
ti9375a
If hose is already connected, make sure connections are tight.
312079A
11
Getting Started
Priming and Flushing Storage Fluid (Direct
Immersion Method)
Before you use your sprayer for the first time or
begin a new spraying project, you need to prime
the sprayer and flush the storage fluid out of the
sprayer.
4. Plug sprayer in grounded
outlet.
Oil- or Water-based Materials
•
When spraying water-based materials,
flush the system thoroughly with water.
•
When spraying oil-based materials, flush
the system thoroughly with mineral spirits
or compatible, oil-based flushing solvent.
•
•
3. Submerge suction tube in
flushing solvent.
To spray water-based materials after
spraying oil-based materials, flush the
system thoroughly with water first. The
water flowing out of prime tube should be
clear and solvent-free before you begin
spraying the water-based material.
To spray oil-based materials after
spraying water-based materials, flush the
system thoroughly with mineral spirits or a
compatible oil-based flushing solvent first.
The solvent flowing out of the prime tube
should not contain any water.
•
When flushing with solvents, ground gun.
Read Grounding and Electric
Requirements, page 4.
•
To avoid fluid splashing back on your skin
or into your eyes, always aim gun at inside
wall of pail.
1. Verify AllControl is set to OFF
and sprayer is unplugged.
ti9827a
5. Set AllControl™ to
PRIME/CLEAN PUMP.
ti9169a
6. When sprayer starts pumping,
flushing solvent and air bubbles will be purged
from system. Allow fluid to pump out of prime
tube, into waste pail, for 30 to 60 seconds.
7. Turn AllControl to OFF.
ti9168a
8. Transfer suction tube to paint pail and
submerge in paint.
9. Turn AllControl to
PRIME/CLEAN PUMP.
ti9169a
10. When paint is pumping out of prime tube:
a. point gun into waste pail.
b. unlock gun trigger lock.
ti9168a
2. Place prime tube in waste
pail.
c. pull and hold gun trigger.
ti8922a
ti9825a
12
312079A
Getting Started
d. set AllControl to
PRIME/CLEAN GUN &
HOSE.
Install Tip and Guard
ti9171a
1. Engage trigger lock.
11. Continue to trigger into waste pail until you see
only paint coming out of gun.
12. Release trigger. Engage
trigger lock.
ti8923a
2. Verify tip and guard parts are assembled in
order as shown below.
ti8923a
retaining nut
black rubber gasket and
metal seat
13. Transfer drain tube to paint pail and clip prime
tube to suction tube.
• Motor stopping indicates pump and hose
are primed with paint.
• If motor continues to run the sprayer is
not properly primed. To reprime repeat
step 6.
guard
ti8911a
tip
Use tip to align seat
in guard.
Tip must be pushed
all the way into guard
14. If spraying, install tip and guard on gun, page
13 and see Spraying Techniques, page 14.
If rolling, roller setup and Rolling Techniques,
begin on page 18.
TIA
ti9574a
3. Screw tip and guard assembly on gun. Tighten retaining
nut.
ti9255a
312079A
13
Getting Started
Spraying Techniques
Unclogging Spray Tip
Preventing Excessive Tip Wear
•
Spray should be atomized (evenly distributed,
no gaps at edges). Start at low pressure setting, increase pressure a little at a time until you
see a good spray pattern, without tails.
•
Spray at lowest pressure that atomizes paint.
•
If maximum sprayer pressure is not enough for
a good spray pattern, tip is too worn. See
Reversible Spray Tip Selection Chart, page 16.
To avoid fluid splashback:
•
Tip must be pushed all the way into guard.
•
Never pull gun trigger when arrow-shaped handle is between SPRAY and UNCLOG positions.
1. To UNCLOG tip obstruction,
engage trigger lock.
ti8923a
TAILS GAPS
AT EDGES
GOOD
SPRAY PATTERN
2. Point arrow-shaped handle
backward to UNCLOG position.
TIA
PRESSURE
TOO LOW
ti9048a
3. Aim gun at piece of scrap or cardboard.
If tails persist when spraying at the highest
pressure, a smaller tip is needed or the
material may need to be thinned.
4. Unlock trigger lock. Pull trigger
to clear clog.
to8922a
Adjusting Pressure
Align setting indicator on AllControl with function,
page 8.
•
ti9049a
LOW SPRAY provides the
lowest pressure for
spraying.
ti9172a
•
5. When obstruction is cleared,
lock trigger lock and rotate
arrow-shaped handle back to
SPRAY position.
Point the arrow-shaped handle on the spray tip forward to SPRAY and backward to UNCLOG
obstructions.
HIGH SPRAY increases
pressure.
ti9175a
14
312079A
Getting Started
Choosing the Correct Tip for the Job
Consider coating and surface to be sprayed. Make sure you use best tip hole size for that coating and best
fan width for that surface.
Tip Selection
Selecting Tip Hole Size
•
Tip hole size controls flow rate - the amount of
paint that comes out of the gun.
HINTS:
•
•
•
Use larger tip hole sizes with thicker coatings
and smaller tip hole sizes with thinner coatings.
Maximum tip hole sizes supported by sprayer is
0.015 in. (0.38 mm).
Tips wear with use and need periodic replacement.
•
Tips come in a variety of hole sizes for spraying
a range of fluids. Your sprayer includes an
0.015 in (0.38 mm) tip for use in most spraying
applications. Use the following table to determine the range of recommended tip hole sizes
for each fluid type. If you need a tip other than
the one supplied, see the Reversible Tip Selection Chart on page 16.
HINTS:
•
•
As you spray, the tip wears and enlarges. Starting with a tip hole size smaller than the maximum will allow you to spray within the rated flow
capacity of the sprayer.
Maximum tip hole sizes supported by sprayer is
0.015 in. (0.38 mm).
Coatings
Enamels
Primers
Interior
paints
0.011 in. (0.28 mm)
Stains
✔
0.013 in. (0.33 mm)
✔
✔
✔
✔
✔
✔
✔
Tip Hole Size
0.015 in. (0.38 mm)
Exterior
paints
✔
Fan Width
Fan width is the size of the spray pattern, which determines the area covered with each stroke. Narrower
fans deliver a thicker coat, and wider fans deliver a thinner coat.
HINTS:
• Select a fan width best suited to the surface
being sprayed.
•
Wider fans allow provide better coverage on
broad, open surfaces.
•
Narrower fans provide better control on
small, confined surfaces.
312079A
15
Getting Started
Understanding Tip Number
The last three digits of tip number (i.e.: 221413)
contain information about hole size and fan width
on surface when gun is held 12 in. (30.5 cm) from
surface being sprayed.
First digit when doubled
= approximate
fan width
TIA
413 tip has
8-10 in.
fan width
413 tip has a
0.013 in.
hole size
Last two digits = tip hole size in thousands of an inch
Reversible Tip Selection Chart
Tip
Part
No.
Fan Width 12 in.
(305 mm) from
surface
Hole Size
221311
6 - 8 in.
(152 - 203 mm)
0.011 in.
(0.28 mm)
221411
8 - 10 in.
(203 - 254 mm)
0.011 in.
(0.28 mm)
221313
6 - 8 in.
(152 - 203 mm)
0.013 in.
(0.33 mm)
221413
8 - 10 in.
(203 - 254 mm)
0.013 in.
(0.33 mm)
221415
8 - 10 in.
(203 - 254 mm)
0.015 in.
(0.38 mm)
221515
10 - 12 in.
(254 - 305 mm)
0.015 in.
(0.38 mm)
Example: For an 8 to 10 in. (203 to 254 mm) fan
width and 0.013 (0.33 mm) hole size, order Part
No. 221413.
16
312079A
Getting Started With Basic Techniques
Getting Started With Basic Techniques
Use the Practice Spray Board to practice these basic spraying techniques before you begin spraying the
surface.
•
Hold gun 12 in. (30 cm) from surface and aim
straight at surface. Tilting gun to direct spray
angle causes an uneven finish.
12 in.
(30 cm)
even
finish
thick
TIA
Flex wrist to keep gun pointed straight. Fanning
gun to direct spray at angle causes uneven
finish.
even finish
Pull trigger after starting stroke. Release trigger
before end of stroke. Gun must be moving when
trigger is pulled and released.
uneven
finish
thin
•
Triggering Gun
thin
thick
thin
TIA
Aiming Gun
Aim tip of gun at bottom edge of previous stroke,
overlapping each stroke by half.
TIA
TIA
312079A
17
Rolling
Rolling
Setup
•
•
Before assembling roller, follow Priming
instructions, beginning on page 9 for Hopper
Method or page 12 for Immersion Method.
After priming, only paint should come out of
spray gun. Water in hose line will cause paint to
run.
1. Set AllControl to lowest
ROLL setting.
2. If installed, remove tip and
guard assembly from gun.
ti9170a
5. Unlock gun trigger safety. Trigger gun. Roll surface until paint
is fully dispersed on roller. This
may take a minute.
ti8922a
•
Trigger gun briefly only when you need
more paint.
•
For best operating pressure set AllControl
to the lowest ROLLER setting which
provides an even paint supply to the roller.
6. Increase pressure only if triggering gun does
not supply enough paint for your rolling speed.
7. Whenever you stop painting, relieve pressure,
page 7 and elevate roller end of extension tube
to prevent paint from draining out.
3. Make sure gasket is in
place in bottom of roller
frame.
ti9339a
8. Flush the pump, gun and pressure roller immediately after each use to prevent paint from drying in the pressure roller and damaging it. See
Shutdown and Cleaning, beginning on page 20.
4. Rest roller on flat surface
and align gun with roller.
Tighten nut with wrench
while keeping gun and
roller aligned.
ti9650a
18
312079A
Rolling
Rolling Techniques
Ceilings, Walls and Woodwork
1. Rolling vertically, roll
out the letter “M”.
1. Ceilings: Using a paint
brush, apply a starting row
of paint approximately the
width of your paint brush
where the walls and
ceiling meet.
tiFig5
tiFig2
2. Cross roll,
horizontally, to
spread paint.
tiFig3
2. With the roller apply paint
to the ceiling, working the
short way of the room and
applying as wide a strip as
possible.
1. Walls and Woodwork:
Using a brush, paint
woodwork first. Apply a
starting row of paint
approximately the width of
the paint brush around the
woodwork and where the
walls meet the ceiling.
3. Finish with light, vertical
strokes until the entire area
has been covered evenly.
tiFig6
tiFig7
tiFig4
2. With the roller, apply
paint to the walls,
following the Rolling
Techniques on page 19.
tiFig8
312079A
19
Shutdown & Cleaning - After Hopper Method Applications
Shutdown & Cleaning - After Hopper Method
Applications
•
•
For short term shutdown periods (overnight to
one week) refer to Short Term Storage, page
29.
For flushing after spraying oil-based coatings,
use compatible oil-based flushing fluid or mineral spirits.
•
For flushing after spraying water-based coatings, use water.
•
If you are using water-based materials, you
have the option of following the cleanup procedure described below, or for faster cleanup,
Power Flush, starting on page 22.
6. Turn AllControl to
PRIME/CLEAN PUMP to
remove excess paint in
hopper.
ti9168a
7. If you used a liner, carefully remove liner from
hopper and dispose of it in a proper trash
container.
8. Fill a bucket with water or
cleaning solvent and pour it
into hopper.
1. Relieve pressure, page 7.
2. If you used a spray gun, remove tip and guard
assembly from gun and place in flushing fluid.
If you used a roller, leave roller assembly
attached to gun.
3. Pour unused paint out of
hopper and back into original
container.
ti9377a
9. Plug sprayer in grounded outlet.
10. Set AllControl to
PRIME/CLEAN PUMP.
Circulate fluid for at least a
minute.
ti9169a
ti9292a
4. Place drain tube in waste
pail.
11. Turn AllControl to OFF.
12.
a. If you used a spray gun
only, continue with Step
11.
ti9376a
5. Use inlet screen handle
to remove inlet screen
from hopper. Place it in a
bucket of clean water or
cleaning solvent.
ti9168a
b. If you used a roller follow Cleaning Roller
instructions beginning on page 28.
Step 13 is for returning paint in hose back to
paint pail. One 25-ft (7.5 m) hose holds
approximately 1-pint (1.5-liter) of paint.
ti9378a
20
312079A
Shutdown & Cleaning - After Hopper Method Applications
17. Follow Long Term Storage instructions, page
29.
13. To preserve paint in hose:
a. Add enough water or
cleaning solvent to refill
hopper. Point gun into
paint pail.
18. Clip drain tube to hopper.
19. Use a soft brush to clean paint and debris off
strainer. Install strainer in hopper.
ti8922a
b. Unlock gun trigger lock.
c. Pull and hold gun trigger.
d. Turn AllControl to
PRIME/CLEAN GUN &
HOSE.
ti9171a
Continue to hold gun trigger until you see
paint diluted with flushing fluid starting to
come out of gun.
14. While continuing to
trigger gun, quickly move
gun to redirect spray into
waste pail. Continue
triggering gun into waste
pail until flushing fluid
dispensed from gun is
relatively clear and all the
flushing fluid has drained
from hopper.
20. Clean gun fluid filter (d) with water or
flushing solvent
and a brush every
time you flush the
system. Replace
gun filter if damaged.
d
ti9257a
21. Clean tip and guard with
water or flushing solvent.
A soft brush can be used
to loosen and remove
dried on material if
needed.
ti9671a
ti9745a
22. Use a soft cloth to wipe
off hopper, cover, and
hose. Install hopper
cover.
ti9226a
15. Stop triggering gun. Engage
trigger lock.
ti8923a
CAUTION
Do not immerse hopper. Water or cleaning
solvents will damage the internal sprayer
components.
16. Turn AllControl to OFF.
ti9168a
312079A
21
Shutdown & Cleaning - After Hopper Method Applications
Power Flush
Power flushing is a faster method of flushing. It can
only be used after spraying water-based coatings.
8. Screw power flush attachment to
garden hose.
ti9761a
1. Relieve pressure, page 7.
2. If you used a spray gun, remove tip and guard
assembly from gun and place in flushing fluid.
9. Thread hose extender into
hopper inlet.
If you used a roller, leave roller assembly
attached to gun.
3. Pour unused paint out
of hopper and back
into original container.
ti9762a
10. Connect Power Flush
attachment to hose extender.
ti9743a
ti9292a
4. Place drain tube in
waste pail.
11. Turn water on and open
valve.
ti9744a
12. Turn AllControl to
PRIME/CLEAN PUMP. Let
water flow out of drain tube,
into waste pail for 30
seconds.
ti9376a
5. Use inlet screen handle
to remove inlet screen
from hopper. Place in
bucket of clean water or
cleaning solvent.
ti9169a
13. Turn AllControl to OFF.
14.
ti9378a
6. Turn AllControl to
PRIME/CLEAN PUMP to
remove excess paint in
hopper.
a. If you used a spray gun
only, continue with Step
14.
ti9168a
b. If you used a roller follow Cleaning Roller
instructions beginning on page 28.
ti9168a
7. If you used a liner, carefully remove liner from
hopper and dispose of liner in a proper trash
container.
22
Step 15 is for returning paint in hose back to
paint pail. One 25-ft (7.5-m) hose holds
approximately 1-pint (0.5-liter) of paint.
312079A
Shutdown & Cleaning - After Hopper Method Applications
19. Close Power Flush
attachment.
15. To preserve paint in hose:
a. Point gun into paint pail.
b. Unlock gun trigger lock.
c. Pull and hold gun trigger.
CLOSED
TIA
ti8922a
20. Remove hose extender
and Power Flush
attachment from
hopper.
d. Turn AllControl to
PRIME/CLEAN GUN
AND HOSE.
ti9747a
ti9171a
e. Continue to hold gun trigger until you see
paint, diluted with water starting to come
out of gun.
16. While continuing to
trigger gun, quickly
move gun to redirect
spray into waste pail.
Continue triggering
gun into waste pail until
water coming out of
gun is relatively clear,
approximately 1-2
minutes.
21. Follow Long Term Storage instructions,
page 29.
22. Clip drain tube to hopper.
23. Use a soft brush to clean paint and debris off
strainer and install strainer in hopper.
ti9745a
17. Stop triggering gun. Engage
trigger lock.
ti8923a
24. Clean gun fluid filter (d)
with water or flushing
solvent and a brush every
time you flush the system.
Replace gun filter if
damaged.
d
ti9257a
25. Clean tip and guard with
water or flushing solvent.
A soft brush can be used
to loosen and remove
dried on material if
needed.
ti9671a
26. Wipe paint off outside of
gun using a soft cloth moistened with water or
flushing solvent.
18. Set AllControl™ to OFF.
ti9168a
27. Use a soft cloth to wipe
off hopper, cover, and
hose. Install hopper
cover.
ti9126a
312079A
23
Shutdown & Cleaning - After Direct Immersion Method Applications
Shutdown & Cleaning - After Direct Immersion Method
Applications
Pail Flushing
•
For short term shutdown periods (overnight to one week) refer to Short Term
Storage, page 29.
•
For flushing after spraying oil-based coatings, use compatible oil-based flushing
fluid or mineral spirits.
•
For flushing after spraying water-based
coatings, use water.
•
If you are using water-based materials, you
have the option of following the cleanup
procedure described below, or for faster
cleanup, Power Flush, starting on page 26.
5. Place waste and
paint pail side by
side.
ti9726a
6. Submerge suction tube
in water or flushing
solvent.
ti9827a
7. Place prime tube in waste
pail.
1. Relieve pressure, page 7.
ti9825a
2. If you used a spray gun, remove tip and guard
assembly from gun and place in flushing fluid.
8. Set AllControl to
PRIME/CLEAN PUMP.
If you used a roller, leave roller assembly
attached to gun.
ti9169a
3. Lift suction tube and prime tube from paint pail.
Let them drain into paint for a while.
4. Separate prime tube
(smaller) from suction tube
(larger).
9. Flush until approximately 1/3 of the flushing
fluid is emptied from the pail.
10. Turn AllControl to OFF.
11.
TIA
a. If you used a spray
gun only, continue
Pail Flushing, Step 12.
ti9168a
b. If you used a roller follow Cleaning Roller
instructions beginning on page 28.
24
312079A
Shutdown & Cleaning - After Direct Immersion Method Applications
Step 12 is for returning paint in hose back to
paint pail. One 25-ft (7.5 m) hose holds
approximately 1-pint (0.5-liter) of paint.
14. Stop triggering gun. Engage
trigger lock.
ti8923a
12. To preserve paint in hose:
a. Point gun into paint pail.
15. Turn AllControl to OFF.
b. Unlock gun trigger lock.
ti8922a
c. Pull and hold gun trigger.
16. Follow Long Term Storage instructions,
page 29.
ti9168a
17. Clip drain tube to hopper.
d. Turn AllControl to
PRIME/CLEAN GUN &
HOSE.
18. Use a soft brush to clean paint and debris off
strainer. Install strainer in hopper.
ti9171a
Continue to hold gun trigger until you see
paint diluted with flushing fluid starting to
come out of gun.
19. Clean gun fluid filter (d) with
water or flushing solvent
and a brush every time you
flush the system. Replace
gun filter if damaged.
d
13. While continuing to
trigger gun, quickly move
gun to redirect spray into
waste pail. Continue
triggering gun into waste
pail until flushing fluid
dispensed from gun is
relatively clear.
ti9257a
ti9745a
20. Clean tip and guard with
water or flushing solvent.
A soft brush can be used
to loosen and remove
dried on material if
needed.
ti9671a
21. Wipe paint off outside of gun using a soft cloth
moistened with water or flushing solvent.
22. Use a soft cloth to wipe off hopper, cover, and
hose.
312079A
25
Shutdown & Cleaning - After Direct Immersion Method Applications
Power Flush
Power flushing is a faster method of flushing. It can
only be used after spraying water-based coatings.
9. Unscrew inlet screen from
suction tube. Place inlet screen
in waste pail.
1. Relieve pressure, page 7.
2. If you used a spray gun, remove tip and guard
assembly from gun and place in flushing fluid.
If you used a roller, leave roller assembly
attached to gun.
TIA
10. Connect suction tube to Power
Flush attachment. Leave prime
tube in waste pail.
3. Place waste and paint
pails side by side.
ti9726a
TIA
4. Lift suction tube and prime tube from paint pail.
Let them drain into paint for a while.
11. Open lever on Power Flush
attachment.
5. Place suction and prime tubes in waste pail.
6. Screw power flush
attachment to garden hose.
Close valve.
OPEN
TIA
ti9413a
12. Turn AllControl to
PRIME/CLEAN PUMP.
7. Turn on water. Open valve.
Rinse paint off suction tube,
prime tube and inlet screen.
8. Turn lever to close power
flush attachment.
ti9169a
ti9727a
13. Circulate water through sprayer, into waste pail
for 20 seconds.
14. Turn AllControl to OFF.
ti9168a
26
312079A
Shutdown & Cleaning - After Direct Immersion Method Applications
Step 15 is for returning paint in hose back to
paint pail. One 25-ft (7.5-m) hose holds
approximately 1-pint (0.5-liter) of paint.
19. Turn off garden hose. Close
Power Flush attachment.
ti9413a
15. To preserve paint in hose:
a. Point gun into paint pail.
20. Unscrew Power Flush
attachment from suction tube.
b. Unlock gun trigger lock.
ti8922a
c. Pull and hold gun trigger.
21. Use a soft brush to clean paint
and debris off strainer and install
strainer in hopper.
d. Turn AllControl to
PRIME/CLEAN GUN &
HOSE.
ti9171a
e. Continue to hold gun trigger until you see
paint diluted with water starting to come out
of gun.
16. While continuing to trigger
gun, quickly move gun to
redirect spray into waste
pail. Continue triggering
gun into waste pail until
water coming out of gun is
relatively clear.
TIA
22. Follow Long Term Storage instructions, page
29.
23. Clean gun fluid filter (d) with
water or flushing solvent
and a brush every time you
flush the system. Replace
gun filter if damaged.
d
ti9257a
24. Clean tip and guard with
water or flushing solvent.
A soft brush can be used
to loosen and remove
dried on material if
needed.
ti9745a
17. Stop triggering gun. Engage
trigger lock.
ti9671a
ti8923a
18. Turn AllControl to OFF.
25. Wipe paint off outside of gun using a soft cloth
moistened with water or flushing solvent.
26. Use a soft cloth to wipe off hopper, cover and
hose.
ti9168a
312079A
27
Shutdown & Cleaning - After Direct Immersion Method Applications
Cleaning Roller
5.
a. Turn AllControl to the LOW Spray range on
the dial to begin pumping paint in hose
back into paint pail.
b. When water or cleaning solvent comes out
of roller frame, release trigger.
1. Relieve Pressure, page 7.
2. Remove roller cover (a) and core (b) from roller
frame (c) as follows:
a. Using your thumb, press clip (d) to release
roller.
b. Remove cap (e) from core (b). It may be
necessary to use a screwdriver to remove
cap from core.
6. Move roller frame to waste pail. Trigger gun to
flush hose, roller frame and gun into waste pail.
7. Continue until remaining flushing fluid is gone
from hopper. If necessary, add additional water
or flushing solvent to hopper to sufficiently
clean hose, roller frame and gun.
8. Stop triggering gun. Engage
trigger lock.
c. Remove roller cover (a) from core (b).
3. Clean roller cover, cap and core with water or
for oil-based materials, a compatible cleaning
solvent.
9. Follow Long Term Storage instructions, page
29.
a
e
b
d
c
ti8923a
Insert screwdriver
in slot to remove
cap from core
10. Clean gun fluid filter (d)
with water or flushing
solvent and a brush every
time you flush the system.
Replace gun filter if
damaged.
d
ti9257a
11. Wipe paint off outside of gun and roller frame
using a soft cloth moistened with water or
flushing solvent.
4. Place roller frame in paint pail. Be sure holes in
roller frame are facing inside paint pail.
Step 5 is for returning paint in hose back to
paint pail.
28
312079A
Storage
Storage
Short Term Storage
Long Term Storage
(up to 2 days)
(more than 2 days)
1. Turn AllControl to OFF. Pause 2-3 seconds to
allow pressure to be relieved, then turn to
STORAGE.
Pause
2-3 Seconds
•
Always circulate Pump Armor storage fluid
through system after cleaning. Water left
in sprayer will corrode and ruin pump.
•
Follow Shutdown and Cleaning
instructions starting on page 20 or 23.
1. HOPPER METHOD: Place prime tube in waste
pail. Pour 8 oz. of Pump Armor into hopper.
ti9168a
ti9174a
IMMERSION METHOD: Place suction tube in
Pump Armor storage fluid bottle and prime tube
in waste pail.
2. Engage trigger lock.
OR
ti8923a
TIA
Hopper Method
Immersion Method
2. Set AllControl to
PRIME/CLEAN PUMP.
3. Leave gun attached to hose.
4. Remove tip and guard and
clean with water or flushing
solvent. A soft brush can be
used to loosen and remove
dried on material if needed.
ti9169a
ti9671a
3. When storage fluid comes out
of prime tube (5-10 seconds)
turn AllControl to OFF.
ti9168a
5. Wipe paint off outside of gun using a soft cloth
moistened with water or flushing solvent.
4. Wait 2-3 seconds to allow
pressure to be relieved, then
turn AllControl to STORAGE.
ti9174
312079A
29
Storage
Stowing Sprayer
Be sure to turn AllControl to OFF and pause 2
- 3 seconds before turning to STORAGE to
relieve pressure in the system.
CAUTION
•
Before storing sprayer make sure all water is
drained out of sprayer and hoses.
•
Do not allow water to freeze in sprayer or hose.
•
Do not store sprayer under pressure.
1. Use inlet screen handle to
install inlet screen into
hopper.
2. Coil hose and leave it connected to sprayer.
3. If not already secured to
hopper, clip prime tube
to side of hopper.
ti9306a
4. Replace cover on
hopper and return
handle to normal
position.
NOTE: Handle does
not lock cover down.
5. Store sprayer indoors.
30
312079A
Troubleshooting
Troubleshooting
Check everything in this Troubleshooting Table before you bring the sprayer to a Graco/MAGNUM authorized service center.
Problem
Cause
Power is on and sprayer is plugged
AllControl is set at zero pressure.
in, but motor does not run, and pump
does not cycle.
Motor or control is damaged.
Solution
Turn AllControl clockwise to increase
pressure setting.
Take sprayer to Graco/MAGNUM
authorized service center.
Electric outlet is not providing power. •
•
Try a different outlet or plug in
something that you know is working to test outlet.
Reset building circuit breaker or
replace fuse.
Extension cord is damaged.
Replace extension cord. Read
Grounding and Electric Requirements, page 4.
Sprayer electric cord is damaged.
Check for broken insulation or wires.
Replace electric cord if damaged.
Paint is frozen or hardened in pump.
Unplug sprayer from outlet. If frozen
do NOT try to start sprayer until it is
completely thawed or you may damage the motor, control board and/or
drivetrain.
Make sure AllControl is OFF. Place
sprayer in a warm area for several
hours. Then plug in and turn AllControl to Prime/Clean to see if motor will
start.
If paint is hardened in sprayer, pump
packings, valves, drivetrain or pressure switch may need to be replaced.
Take sprayer to Graco/MAGNUM
authorized service center.
System is already pressurized.
Pump does not prime.
312079A
Turn AllControl to OFF, pause 2-3
seconds and then turn AllControl to
STORAGE to relieve pressure.
AllControl not set to correct function. Turn AllControl to PRIME/CLEAN
PRIME position.
Inlet screen is clogged.
Clean debris off inlet screen.
Pump valve check balls or seat are
dirty.
Remove fittings. Clean or replace ball
and seat.
31
Troubleshooting
Problem
Pump does not prime.
Cause
Solution
In Immersion Mode suction tube is
not immersed
Make sure suction tube is immersed
in paint.
Suction tube is leaking.
Tighten suction tube connection.
Inspect for cracks or vacuum leaks.
Pump does not prime with fluid.
Remove suction tube from paint.
Prime pump with water or solvent-based flushing fluid.
Spray gun stopped spraying.
Spray tip is clogged.
Unclog spray tip, page 14.
Pump cycles but does not build up
pressure.
Pump is not primed.
Prime pump.
Pump cycles, but paint only dribbles
or spurts when spray gun is triggered.
Spray pattern is inconsistent or is
leaving stripes.
Inlet screen is clogged.
Clean debris off inlet screen.
In Immersion Mode suction tube is
not immersed in paint.
Make sure suction tube is immersed
in paint.
Hopper or paint pail is empty.
Refill hopper or paint pail. Reprime
sprayer.
Suction tube is leaking.
Tighten suction tube connection.
Inspect for cracks or vacuum leaks. If
cracked or damaged, replace suction
tube.
Pressure is set too low.
Slowly turn AllControl to Hi Spray to
increase pressure setting.
Spray tip is clogged.
Unclog spray tip, page 14.
Spray gun fluid filter is clogged.
Clean or replace gun fluid filter.
Spray tip is too large or worn.
Replace tip.
Pressure is set too low.
Slowly turn AllControl to HI SPRAY to
increase pressure setting.
Spray tip is worn beyond capability of Replace spray tip.
sprayer.
Paint is too thick.
Thin paint slightly with compatible
solvent or water.
Pressure is set at maximum but can- Spray tip is too large for sprayer.
Select smaller spray tip.
not achieve a good spray pattern.
Spray tip is worn beyond capability of Replace spray tip.
sprayer.
Extension cord is too long or not
heavy enough gauge.
When paint is sprayed, it runs down
the wall or sags.
Replace extension cord. Grounding
and Electrical Requirements, page 4.
Spray gun fluid filter is clogged.
Clean or replace spray gun fluid filter.
Inlet screen is clogged.
Clean debris off inlet screen.
Coat is going on too thick.
Move gun faster.
Choose a tip with smaller hole size.
Choose tip with wider fan.
Make sure gun is far enough from
surface.
When paint is sprayed, coat is not
covering.
Coat is going on too thin.
Move gun slower.
Choose tip with larger hole size.
Choose tip with narrower fan.
32
312079A
Troubleshooting
Problem
Cause
Solution
When paint is sprayed, coat is not
covering.
Coat is going on too thin.
Make sure gun is close enough to
surface.
Motor is hot and runs intermittently.
This is NOT a thermal overload condition. Motor automatically shuts off
due to excessive heat. Damage can
occur if cause is not corrected.
Thermal Overload, page 4.
Vent holes in enclosure are plugged
or sprayer is covered.
Keep vent holes clear of obstructions
and overspray and keep sprayer
open to air.
Extension cord is too long or not a
heavy enough gauge.
Replace extension cord. Read
Grounding and Electrical Requirements, page 4.
Unregulated electrical generator
being used has excessive voltage.
Use electrical generator with a proper
voltage regulator. Sprayer requires
120VAC, 60 Hz, 1500-Watt generator.
Decrease pressure setting or
Sprayer was operated at high pressure with very small tip which causes increase tip size.
frequent motor starts and excessive
heat build up.
Building circuit breaker opens after
Too many appliances are plugged in
sprayer operates for 5 to 10 minutes. on same circuit.
Free up circuit (unplug things), or use
a less busy circuit.
Sprayer electrical cord is damaged.
Check broken insulation or wires.
Replace electrical cord if damaged.
Extension cord is damaged or too
long or not a heavy enough gauge.
•
Plug in something that you know
is working to test extension cord.
•
Replace extension cord.
Cannot trigger spray gun.
Spray gun trigger safety is locked.
Rotate trigger safety lever to unlock
position, page 7.
Spray comes out of spray gun in two
thick streams.
Reversible spray tip is in UNCLOG
position.
Rotate arrow-shaped handle on
spray tip so it points forward in
SPRAY position, page 14.
Paint is coming out of from inside
sprayer.
AllControl is worn.
Take sprayer to Graco/MAGNUM
authorized service center.
Paint leaks down outside of sprayer.
Pump packings are worn.
Replace pump packings.
312079A
33
Maintenance and Service
Maintenance and Service
CAUTION
Protect the internal drive parts of this sprayer
from water. Openings in shroud allow cooling of
mechanical parts and electronics inside. If water
gets into these openings, the sprayer could malfunction or be permanently damaged.
Caring for Sprayer
Keep sprayer and all
accessories clean and in
good working order.
Paint Hoses
Check hose for damage every time you spray. Do
not attempt to repair hose if hose jacket or fittings
are damaged. Wrench tighten, using two
wrenches.
Tips
•
Always clean tips with
compatible solvent and
brush after spraying.
•
Tips may require
replacement after 15 gallons (57 liters) or they
may last through 60 gallons (227 liters) depending on abrasiveness of paint.
To avoid overheating
motor, keep vent holes in
shroud clear for air flow.
Do not cover sprayer while spraying.
•
WLD
Do not spray with worn tip.
Pump Packings
When pump packings wear, paint will begin to leak
down outside of pump. Replace pump packings at
first sign of leaking or additional damage could
occur. Get a pump repair kit and install according
to instruction on kit packaging. Consult a
Graco/MAGNUM authorized service center.
34
312079A
Technical Data
Technical Data
Working pressure range
Electric motor
Operating horsepower
Maximum delivery (with
tip)
Paint hose
Maximum tip hole size
Weight:
Sprayer only
Sprayer, hose & gun
Roller
Dimensions:
Length
Width
Height
Power cord
Fluid inlet fitting
Fluid outlet fitting
Inlet screen
Wetted parts, pump &
hose
Wetted parts, gun
Generator requirement
Electrical power
requirement
Storage temperature
range ◆❖
Operating temperature
range ✔
0-2800 psi (0-19 MPa, 0 -193 bar)
6.3 AMP (open frame, universal)
3/8
0.24 gpm (0.91 lpm)
1/4 in. x 25 ft
(6.4 mm x 7.5 m)
0.015 in. (0.38 mm)
20 lbs. (9.0 Kg)
23 lbs. (10.5 Kg)
1 lb. (0.5 Kg)
22.5 in. (57 cm)
14 in. (35.6 cm)
16.5 in. (41.9 cm)
18 AWG, 3-wire, 6 ft (1.8 m)
3/4 in. internal thread (standard garden hose thread)
1/4 NPSM external thread
35 mesh (450 micron)
stainless steel, brass, ultra-high molecular weight polyethylene (UHMWPE),
carbide, nylon, aluminum, PVC, polypropylene, fluroelastomer
SG10: plated steel, nylon, aluminum, tungsten carbide, stainless steel, brass,
fluroelastomer
1500 Watt minimum
120VAC, 60 Hz, 1 phase, 15A
-30° to 160°F (-35° to 71°C)
40° to 115°F (4° to 46°C)
◆ When pump is stored with non-freezing fluid. Pump damage will occur if water or latex paint
freezes in pump.
❖ Damage to plastic parts may result if impact occurs in low temperature conditions.
✔ Changes in paint viscosity at very low or very high temperatures can affect sprayer performance.
312079A
35
Graco Standard Warranty
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from
defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special,
extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace
any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed,
operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused
by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering,
or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the
incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper
design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by
Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor
for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts.
The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose
any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts,
labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no
other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or
property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within
two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS
SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors,
switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable
assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying
equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach
of contract, breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal
proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les
parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et
procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les
procédures concernées.
TO PLACE AN ORDER or to identify the nearest Graco/MAGNUM distributor, contact us at
1-888-541-9788
All written and visual data contained in this document reflects the latest product information available at the time of
publication. Graco reserves the right to make changes at any time without notice.
MM 312079
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
www.graco.com
3/2007
36
312079A

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
