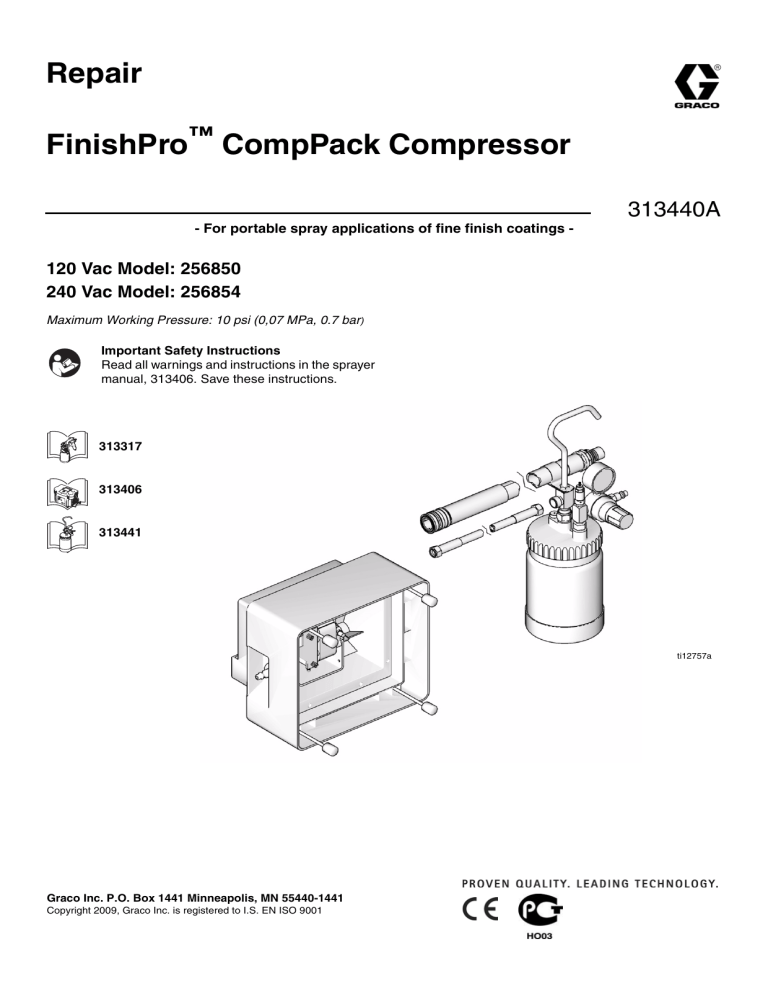

Repair
FinishPro™ CompPack Compressor
313440A
- For portable spray applications of fine finish coatings -
120 Vac Model: 256850
240 Vac Model: 256854
Maximum Working Pressure: 10 psi (0,07 MPa, 0.7 bar)
Important Safety Instructions
Read all warnings and instructions in the sprayer
manual, 313406. Save these instructions.
313317
313406
313441
ti12757a
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2009, Graco Inc. is registered to I.S. EN ISO 9001
Setup
Setup
Spray Gun with Optional Remote Cup
CompPack Installation
For references (1) - (99), see Parts, manual 313406. For
reference numbers(101) - (199) see Parts, page 7.
C
A
B
1. Turn off and unplug sprayer.
2. Loosen four screws (18), remove hose wrap (35), filter retainer (17), pre-filter (20) and main filter (21).
ti12798a
The optional remote cup comes with two 5-ft hoses.
1. Connect the 5-ft hoses to their matching 30-ft sprayer
hoses.
2. Convert spray gun from siphon cup operation to
remote cup operation. See Convert Gun from
Siphon Cup to Optional Remote Cup.
35
21
3. Connect air hose (A) to sprayer.
Hand tighten.
20
17
ti13061a
18
3. Install CompPack (A) on sprayer.
ti13082a
4. Connect air hose (A) from
sprayer to inlet fitting of spray gun.
A
ti12797a
35
21
20
17
ti12857a
105
4. Install main filter (21), pre-filter (20), filter retainer (17)
and hose wrap (35) with four screws (105).
5. Connect air hose (B) between
CompPack outlet and remote cup
air inlet.
6. Connect fluid supply hose (C) from
remote cup fluid outlet to spray
gun fluid inlet.
ti13151a
ti13149a
2
313440A
Setup
2. Unplug sprayer.
7. Fill cup 3/4 full. Install cover.
Screw remote cup cover to secure
it to remote cup.
3. Turn out pressure relief knob (113) one turn. Wait
until pressure is completely relieved before removing
cover. Close knob.
8. Refer to spray gun manual 313317
for spraying instructions.
Operation Tips
ti13152a
Convert Gun from Siphon Cup to Optional
Remote Cup
Sparks can be expected during normal operation of
motor. These sparks can ignite fumes from flammable
liquids, dust particles, and other flammable substances in the spray area.
• Use additional hose if necessary, and ensure the
sprayer is operated in clean, dry, well ventilated
area.
• Never use sprayer inside spray booth.
1. Remove air pressure tube
from air stem.
2. Remove siphon cup cover
from gun
3. Remove air stem from gun.
4. Apply medium strength
thread locker to set screw.
Install set screw into gun
flush with gun body.
•
Turn sprayer On a few minutes before spraying to
allow warm-up.
•
Ensure sprayer filter is clean before operating. Clean
filter, page 7, manual 313406.
•
To adjust spray gun pattern, see HVLP EDGE Gun
manual 313317.
•
To get proper adhesion, ensure surface is completely
clean.
•
If the remote cup is accidentally tipped over or held at
too great of an angle, fluid may leak into air regulator
and cause damage. Take precautions to avoid this. If
fluid does get into regulator, clean immediately.
•
Only hand-tighten remote cup cover. Excessive tightening may damage cover gasket.
•
Always spray with the least amount of pressure
required to provide the desired spray pattern and rate
of application, typically 10 psi. Spraying at pressures
higher than necessary wastes paint and can result in
an orange peel finish.
•
Lightly coat cover threads with petroleum jelly.
ti12915a
5. Connect fluid supply hose.
Note: To convert from remote cup to siphon cup, reverse
these instructions.
Connect to Electric Supply
Plug sprayer power cord into grounded outlet. Grounding
and Electric Requirements, page 4, manual 313406.
Pressure Relief Procedure
WARNING
The optional remote cup remains pressurized
until pressure is manually relieved. To reduce
the risk of serious injury from pressurized fluid
or accidental spray from gun, always relieve
pressure in the remote cup before loosening
or removing the cover. Also, relieve pressure
if the fluid nozzle clogs; and before cleaning,
checking or servicing equipment.
1. Turn off sprayer.
313440A
3
Repair
Repair
Compressor Removal
4. Disconnect three spade connectors (B) from back of
inlet plug (102).
For references (1) - (99), see Parts, manual 313406. For
reference numbers(101) - (199) see Parts, page 7.
5. Remove three screws (104) from compressor box
(112) and remove compressor (111).
111
To avoid injury, including electric shock turn off sprayer
and unplug power cord before performing any repair
procedures.
1. Remove four thumbscrews (105) hose wrap (35),
remove filter retainer (17), prefilter (20), main filter
(16) and filter gaskets (19).
107
112
109
B
2. Remove CompPack Compressor (A).
102
A
104
Compressor Installation
1. Install compressor (111) in compressor box (112)
with three screws (104).
35
21
2. Connect three spade connectors (B) to back of inlet
plug (102).
3. Install air tube (107) on quick connector (109) barb fitting.
20
17
ti12857a
105
3. Remove air tube (107) from quick connector (109)
barb fitting.
4
4. Install CompPack Compressor (A).
5. Install main filter (21), pre-filter (20), filter retainer (17)
and hose wrap (35) with four screws (105).
313440A
Wiring Diagram
Wiring Diagram
W
G
BK
ti13144a
313440A
5
Technical Data
Technical Data
120 Vac, 60 Hz
CompPack
Ampere
Watts
Weight lb
(kg)
Sound
Power*
Sound
Pressure*
1.5
80
5 (2,7)
79.2 dBa
67.2 dBa
Ampere
Watts
Weight lb
(kg)
Sound
Power*
Sound
Pressure*
0,8
80
5 (2,7)
79.2 dBa
67.2 dBa
230 Vac, 50 Hz
CompPack
* Sound Power and Sound Pressure are measured at
1 meter per ISO 3744
6
313440A
Parts Drawing
Parts Drawing
Models: 256850, 256854
105
111
108
112
107
116
115
109
102
117
114
101
104
ti12908a
Parts List
Models: 256850, 256854
Ref
101
102
104
105
107
108
109
111
Part
101936
114064
116431
122165
15W250
192789
15X246
112
113
114
15W166
15W167
15V920
257099
277960
115
116
117
15W228
15H176
117317
313440A
Description
Qty
NUT, jam, hex
1
PLUG, inlet
1
SCREW, mach, slot hex wash hd
3
SCREW, compressor pack captive
4
TUBE, air
1
GASKET, filter
2
FITTING, connector, quick
1
COMPRESSOR, HVLP
120V
1
240V
1
BOX, compressor
1
KIT, accessory, plug, conversion
1
CUP, 1 qt complete,
1
See manual 313441
CONDUCTOR, electrical
1
SCREW, mach, slot hex wash hd
1
SCREW, plastite, pan head
2
7
