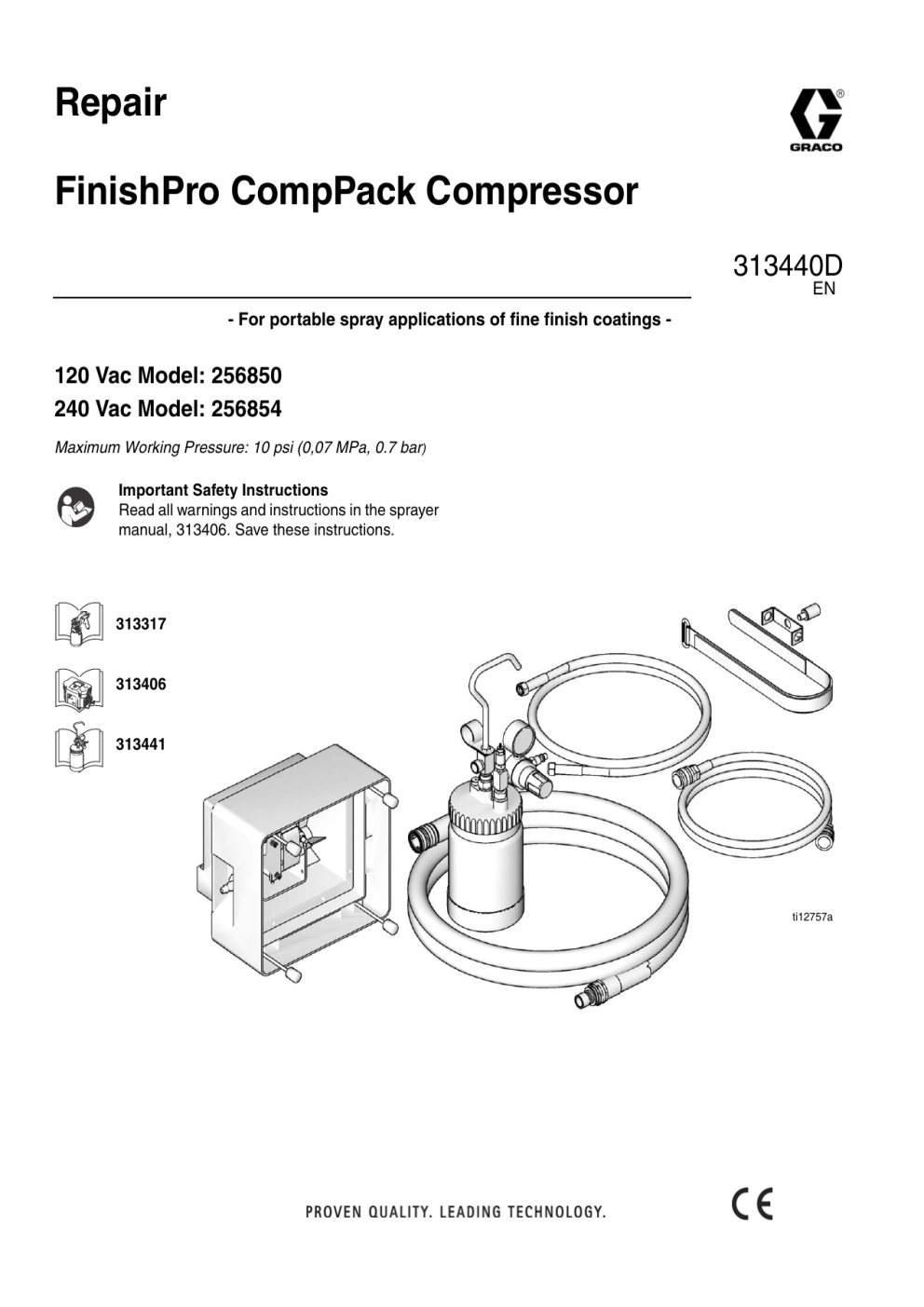

Graco 313440D - FinishPro CompPack Compressor, Repair Owner's Manual

Repair
FinishPro CompPack Compressor
313440D
EN
- For portable spray applications of fine finish coatings -
120 Vac Model: 256850
240 Vac Model: 256854
Maximum Working Pressure: 10 psi (0,07 MPa, 0.7 bar)
Important Safety Instructions
Read all warnings and instructions in the sprayer
manual, 313406. Save these instructions.
313317
313406
313441
ti12757a
Setup
Setup
4. Install main filter (21), pre-filter (20), filter retainer (17)
and hose wrap (35) with four screws (105).
CompPack Installation
Spray Gun with Optional Remote Cup
For references (1) - (99), see Parts, manual 313406. For
reference numbers(101) - (199) see Parts, page 7.
1. Turn off and unplug sprayer.
C
A
2. Loosen four screws (18), remove hose wrap (35), filter retainer (17), pre-filter (20) and main filter (21).
B
ti12798a
The optional remote cup comes with two 5-ft hoses.
1. Connect the 5-ft hoses to their matching 30-ft sprayer
hoses.
35
2. Convert spray gun from siphon cup operation to
remote cup operation. See Convert Gun from
Siphon Cup to Optional Remote Cup.
21
20
17
ti13061a
18
3. Connect air hose (A) to sprayer.
Hand tighten.
3. Install CompPack (A) on sprayer.
A
ti13082a
4. Connect air hose (A) from
sprayer to inlet fitting of spray gun.
35
ti12797a
5. Connect air hose (B) between
CompPack outlet and remote cup
air inlet.
21
20
17
ti12857a
2
105
313440D
Setup
Pressure Relief Procedure
6. Connect fluid supply hose (C) from
remote cup fluid outlet to spray
gun fluid inlet.
WARNING
The optional remote cup remains pressurized
until pressure is manually relieved. To reduce
the risk of serious injury from pressurized fluid
or accidental spray from gun, always relieve
pressure in the remote cup before loosening
or removing the cover. Also, relieve pressure
if the fluid nozzle clogs; and before cleaning,
checking or servicing equipment.
ti13151a
ti13149a
7. Fill cup 3/4 full. Install cover.
Screw remote cup cover to secure
it to remote cup.
1. Turn off sprayer.
2. Unplug sprayer.
3. Turn out pressure relief knob (113) one turn. Wait
until pressure is completely relieved before removing
cover. Close knob.
8. Refer to spray gun manual 313317
for spraying instructions.
Operation Tips
ti13152a
Convert Gun from Siphon Cup to Optional
Remote Cup
1. Remove air pressure tube
from air stem.
Sparks can be expected during normal operation of
motor. These sparks can ignite fumes from flammable
liquids, dust particles, and other flammable substances in the spray area.
• Use additional hose if necessary, and ensure the
sprayer is operated in clean, dry, well ventilated
area.
• Never use sprayer inside spray booth.
2. Remove siphon cup cover
from gun
3. Remove air stem from gun.
4. Apply medium strength
thread locker to set screw.
Install set screw into gun
flush with gun body.
•
Turn sprayer On a few minutes before spraying to
allow warm-up.
5. Connect fluid supply hose.
•
Ensure sprayer filter is clean before operating. Clean
filter, page 7, manual 313406.
Note: To convert from remote cup to siphon cup, reverse
these instructions.
•
To adjust spray gun pattern, see HVLP EDGE Gun
manual 313317.
Connect to Electric Supply
•
To get proper adhesion, ensure surface is completely
clean.
•
If the remote cup is accidentally tipped over or held at
too great of an angle, fluid may leak into air regulator
and cause damage. Take precautions to avoid this. If
fluid does get into regulator, clean immediately.
•
Only hand-tighten remote cup cover. Excessive tightening may damage cover gasket.
•
Always spray with the least amount of pressure
required to provide the desired spray pattern and rate
of application, typically 10 psi. Spraying at pressures
higher than necessary wastes paint and can result in
an orange peel finish.
•
Lightly coat cover threads with petroleum jelly.
ti12915a
Plug sprayer power cord into grounded outlet. Grounding
and Electric Requirements, page 4, manual 313406.
313440D
3
Repair
Repair
Compressor Removal
4. Disconnect three spade connectors (B) from back of
inlet plug (102).
For references (1) - (99), see Parts, manual 313406. For
reference numbers(101) - (199) see Parts, page 7.
5. Remove three screws (104) from compressor box
(112) and remove compressor (111).
111
To avoid injury, including electric shock turn off sprayer
and unplug power cord before performing any repair
procedures.
1. Remove four thumbscrews (105) hose wrap (35),
remove filter retainer (17), prefilter (20), main filter
(16) and filter gaskets (19).
107
112
109
B
2. Remove CompPack Compressor (A).
102
A
104
Compressor Installation
1. Install compressor (111) in compressor box (112)
with three screws (104).
35
21
2. Connect three spade connectors (B) to back of inlet
plug (102).
3. Install air tube (107) on quick connector (109) barb fitting.
20
17
ti12857a
105
3. Remove air tube (107) from quick connector (109)
barb fitting.
4
4. Install CompPack Compressor (A).
5. Install main filter (21), pre-filter (20), filter retainer (17)
and hose wrap (35) with four screws (105).
313440D
Wiring Diagram
Wiring Diagram
W
G
BK
ti13144a
313440D
5
Technical Data
Technical Data
120 Vac, 60 Hz
CompPack
Ampere
Watts
Weight lb
(kg)
Sound
Power*
Sound
Pressure*
1.5
80
5 (2,7)
79.2 dBa
67.2 dBa
Ampere
Watts
Weight lb
(kg)
Sound
Power*
Sound
Pressure*
0,8
80
5 (2,7)
79.2 dBa
67.2 dBa
230 Vac, 50 Hz
CompPack
* Sound Power and Sound Pressure are measured at
1 meter per ISO 3744
6
313440D
Parts Drawing
Parts Drawing
Models: 256850, 256854
101
102
103
104
ti12908b
Parts List
Models: 256850, 256854
Ref
101
102
103
104
Part
15Y858
15Y859
257098
240488
256959
313440D
Description
KIT, compressor box HVLP, 120V
KIT, compressor box HVLP, 240V
KIT CUP, 1 qt complete
COMPRESSOR, hose
STRAP, remote, cup
Qty
1
1
1
1
1
7
Graco Standard Warranty
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material
and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by
Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco
component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures,
accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures,
accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the
claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the
original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made
at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY
GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their
manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the
furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of
Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de
ou en rapport, directement ou indirectement, avec les procédures concernées.
ADDITIONAL WARRANTY COVERAGE
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty Program”.
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 313440
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2009 Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised September 2012
8
313440D
