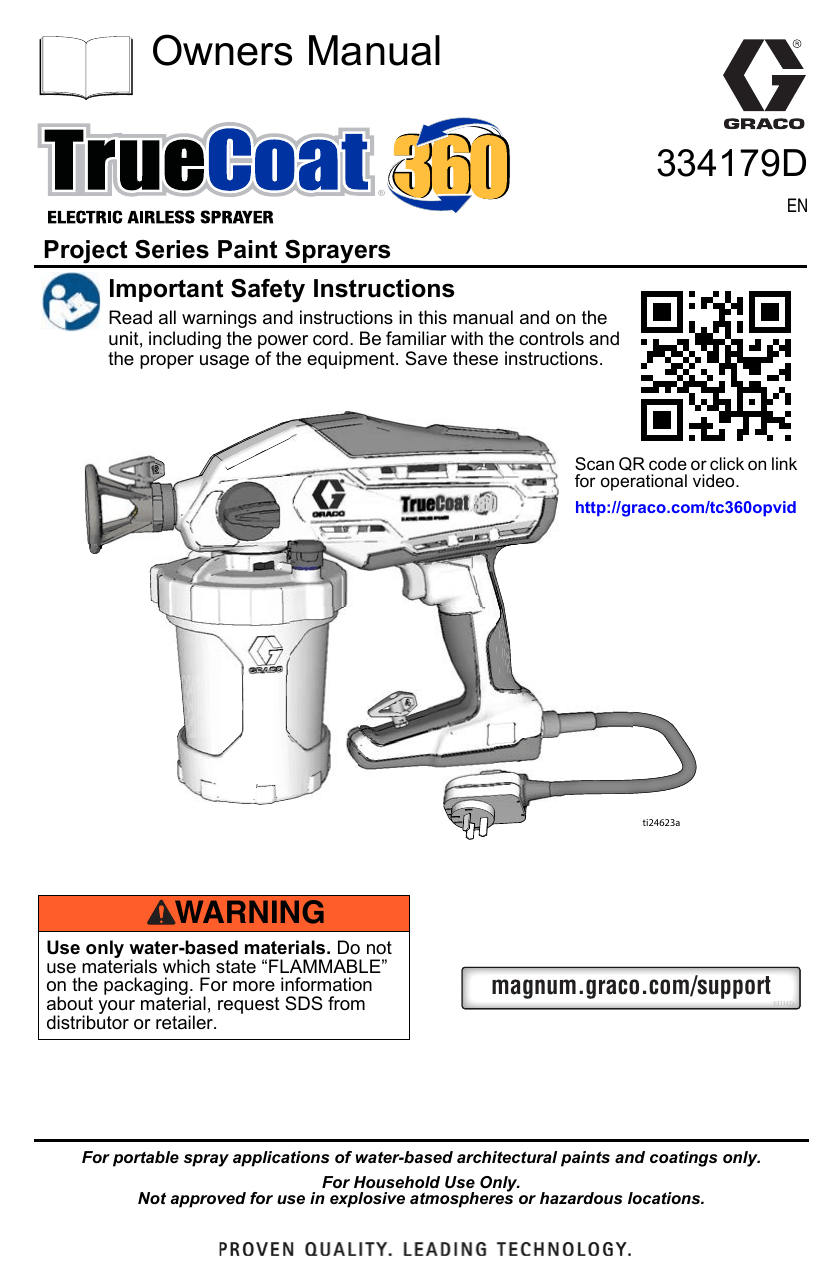

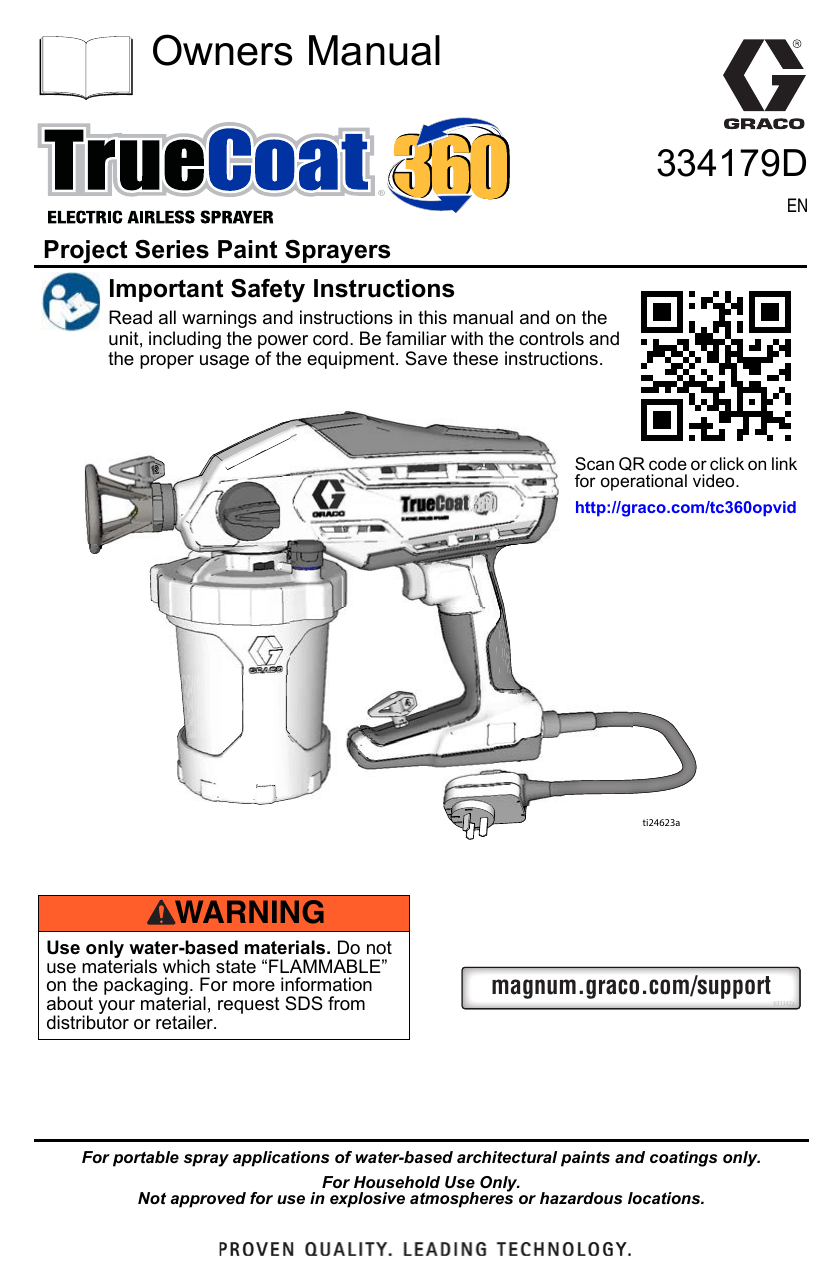

Graco 334179D -TrueCoat 360 Electric airless Sprayer Project Series Paint Sprayers Owner's Manual

Owners Manual
334179D
EN
Project Series Paint Sprayers
Important Safety Instructions
Read all warnings and instructions in this manual and on the
unit, including the power cord. Be familiar with the controls and
the proper usage of the equipment. Save these instructions.
Scan QR code or click on link
for operational video.
http://graco.com/tc360opvid
ti24623a
WARNING
Use only water-based materials. Do not
use materials which state “FLAMMABLE”
on the packaging. For more information
about your material, request SDS from
distributor or retailer.
magnum.graco.com/support
For portable spray applications of water-based architectural paints and coatings only.
For Household Use Only.
Not approved for use in explosive atmospheres or hazardous locations.
ti31342a
Contents
Contents
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Power Tool Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Sprayer Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Starting a New Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Refilling FlexLiner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
How to Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Dual Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Variable Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Spray Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Triggering Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning VacuValve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Common Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installing Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Unclogging Spray Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Flushing a New Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Models 16Y391, 16Y392, 17N427, 17N428 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Model 17F329, 17N429 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Graco Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Model
Name
16Y391
TrueCoat 360
17N427
16Y392
TrueCoat 360 DSP
17N428
17F329
TrueCoat 360 VSP
17N429
2
Voltage
230V
120V
230V
120V
230V
120V
Tip
Size
Description
Maximum Working
Pressure
0.015
Single Speed 1500 psi (10.3 MPa, 103 bar)
0.015
Dual Speed
Premium
0.015
Variable
Speed
Premium
900-1500 psi (6.2 MPa, 62
bar - 10.3 MPa, 103 bar)
500-1500 psi
(3.5 MPa, 34.5 bar 10.3 MPa, 103 bar)
334179D
Important User Information
Important User Information
Thank You for Your Purchase!
Before using your sprayer read this Owners Manual for complete instructions on proper use and
safety warnings.
Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc.
This sprayer is designed to provide superior spray performance with water-based
architectural paints and coatings. This user information is intended to help you understand
the types of materials that can be used with your sprayer.
Please read the information on the material container label to determine if it can be used
with your sprayer. Ask for a Safety Data Sheet (SDS) from your supplier. The container
label and SDS will explain the contents of the material and the specific precautions
related to it.
Paints, coatings and clean-up materials generally fit
into one of the following 2 basic categories:
WATER-BASED: The container label should indicate that the material can be
cleaned up with soap and water. Your sprayer is compatible with this type of
material. Your sprayer is NOT compatible with harsh cleaners such as
chlorine bleach.
FLAMMABLE: This type of material contains flammable solvents such as
xylene, toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol,
and turpentine. The container label should indicate that this material is
FLAMMABLE. This type of material is NOT compatible with your sprayer
and CANNOT be used.
334179D
3
General Power Tool Safety Information
General Power Tool Safety Information
WARNING
WARNING
Read all safety warnings and all
instructions.
Personal Safety
• Stay alert, watch what you are doing
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for
future reference.
The term “power tool” in the warnings refers to
your mains-operated (corded) power tool.
•
Work Area Safety
• Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive
•
atmospheres, such as in the presence
of flammable liquids, gases or dust.
Power tools create sparks which may
ignite the dust or fumes.
Keep children and bystanders away
while operating a power tool.
Distractions can cause you to lose control.
•
•
Electrical Safety
• Power tool plugs must match the outlet.
•
•
•
•
•
4
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce risk
of electric shock.
Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric
shock.
•
•
•
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the
influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger
on the switch or energizing power tools that
have the switch on invites accidents.
Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
334179D
General Power Tool Safety Information
WARNING
Power Tool Use and Care
• Do not force the power tool. Use the
•
•
•
•
•
correct power tool for your application.
The correct power tool will do the job better
and safer at the rate for which it was
designed.
Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired.
Disconnect the plug from the power
source before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures
reduce the risk of starting the power toll
accidentally.
Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tool's operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
Use the power tool, accessories etc. in
accordance with these instructions,
taking into account the working
conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
Service
• Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
334179D
5
Sprayer Safety Information
Sprayer Safety Information
The following warnings are for the setup, use, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to
procedure-specific risks. When these symbols appear in the body of this manual or on warning
labels, refer back to these Warnings. Product-specific hazard symbols and warnings not
covered in this section may appear throughout the body of this manual where applicable.
WARNING
WARNING
GROUNDING INSTRUCTIONS
•
•
•
•
•
•
•
•
6
This product must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This product is
equipped with a cord having a
grounding wire with an appropriate
grounding plug. The plug must be
plugged into an outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
Improper installation of the grounding plug
is able to result in a risk of electric shock.
When repair or replacement of the cord or
plug is required, do not connect the
grounding wire to either flat blade terminal.
The wire with insulation having an outer
surface that is green with or without yellow
stripes is the grounding wire.
Check with a qualified electrician or
serviceman when the grounding
instructions are not completely
understood, or when in doubt as to
whether the product is properly grounded.
Do not modify the plug provided; if it does
not fit the outlet, have the proper outlet
installed by a qualified electrician.
This product is for use on a nominal 120V
or 230V circuit and has a grounding plug
similar to the plug illustrated in the figures.
Only connect the product to an outlet
having the same configuration as the plug.
Do not use an adapter with this product.
Extension Cords:
• Use only a 3-wire extension
•
cord that has a grounding plug
and a grounding receptacle
that accepts the plug on the
product.
An undersized cord results in a
drop in line voltage and loss of
power and overheating.When
in doubt use the next heavier
gauge. The smaller the gauge
number the heavier the cord.
• When using the sprayer outdoors, use an
extension cord suitable for outdoor use.
• Make sure your extension cord is not
damaged. When using an extension cord,
be sure to use a cord heavy enough to carry
the current that your sprayer draws. See
chart for appropriate sizes and lengths:
Extension Cord
Conductor Size
AWG (American
Wire Gauge)
18
Length
Metric
Maximum
1.0 mm2
15 m (50 ft)
16
1.5 mm
2
30 m (100 ft)
14
2.5 mm2
61 m (200 ft)
334179D
Sprayer Safety Information
WARNING
WARNING
FIRE AND EXPLOSION
HAZARD
SKIN INJECTION HAZARD
High-pressure spray is able to
inject toxins into the body and
cause serious bodily injury. In
the event that injection occurs,
get immediate surgical
treatment.
Flammable fumes, such as
solvent and paint fumes, in work
area can ignite or explode. To
help prevent fire and explosion:
• Sprayer generates sparks. Do
•
•
•
not spray or flush with flammable
liquids.
Use only water-based materials.
Keep spray area well-ventilated.
Keep a good supply of fresh air
moving through the area.
Do not spray or clean with
flammable liquids.
• Paint or solvent flowing through the
•
•
•
•
•
•
•
•
•
equipment is able to result in static
electricity. Static electricity creates a risk of
fire or explosion in the presence of paint or
solvent fumes.
Keep sprayer at least 10 in. (25 cm) away
from objects while spraying or flushing.
Verify all containers and collection
systems are grounded to prevent static
discharge.
Connect to a grounded outlet and use
grounded extension cords. Do not use a 3
to 2 adapter.
Do not use paints or solvents containing
halogenated hydrocarbons.
Do not smoke in the spray area.
Do not operate light switches, engines, or
similar spark producing products in the
spray area.
Keep area clean and free of paint or
solvent containers, rags, and other
flammable materials.
Know the contents of the paints and
solvents being sprayed. Read all Material
Safety Data Sheets (SDS) and container
labels provided with the paints and
solvents. Follow the paint and solvents
manufacturer’s safety instructions.
Fire extinguisher equipment shall be
present and working.
334179D
• Do not aim the sprayer at, or spray any
person or animal.
• Keep hands and other body parts away
•
•
•
•
•
•
•
•
•
from the discharge. For example, do not try
to stop leaks with any part of the body.
Disconnect power when not spraying.
Always use the spray tip guard. Do not
spray without spray tip guard in place.
Use caution when cleaning and changing
spray tips. In the case where the spray tip
clogs while spraying, follow the Pressure
Relief Procedure, page 17 for relieving
the pressure before removing the spray tip
to clean.
Do not leave the unit energized or under
pressure while unattended. When the unit
is not in use, unplug the sprayer and follow
the Pressure Relief Procedure, page 17.
Check parts for signs of damage. Replace
any damaged parts.
This system is capable of producing 2000
psi. Use replacement parts or accessories
that are rated a minimum of 2000 psi.
Do not carry the unit with a finger on the
trigger.
Verify that all connections are secure
before operating the unit.
Know how to stop the unit and bleed
pressure quickly. Be thoroughly familiar
with the controls.
7
Sprayer Safety Information
WARNING
WARNING
ELECTRIC SHOCK HAZARD
PRESSURIZED ALUMINUM
PARTS HAZARD
This equipment must be grounded.
Improper grounding, setup, or usage
of the system can cause electric
shock.
Use of fluids that are incompatible
with aluminum in pressurized
equipment can cause serious
chemical reaction and equipment
rupture. Failure to follow this warning
can result in death, serious injury, or
property damage.
• Turn off and disconnect power cord before
servicing equipment.
• Connect only to grounded electrical
outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on power
• Do not use 1,1,1-trichloroethane,
and extension cords.
• Do not expose to rain or wet conditions.
Store indoors.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious
injury.
• Always wear appropriate gloves, eye
•
•
•
•
•
•
•
protection, and a respirator or mask when
painting.
Do not operate or spray near children.
Keep children away from equipment at all
times.
Do not overreach or stand on an unstable
support. Keep effective footing and
balance at all times.
Stay alert and watch what you are doing.
Do not operate the unit when fatigued or
under the influence of drugs or alcohol.
Use only in dry locations. Do not expose to
water or rain.
Use in well-lit areas.
Do not spray outdoors on windy days.
•
•
methylene chloride, other halogenated
hydrocarbon solvents or fluids containing
such solvents.
Do not use chlorine bleach.
Many other fluids may contain chemicals
that can react with aluminum. Contact your
material supplier for compatibility.
PERSONAL PROTECTIVE
EQUIPMENT
Wear appropriate protective equipment when
in the work area to help prevent serious
injury, including eye injury, hearing loss,
inhalation of toxic fumes, and burns. This
protective equipment includes but is not
limited to:
• Protective eye wear, and hearing
protection.
• Respirators, protective clothing, and
gloves as recommended by the fluid and
solvent manufacturer.
TOXIC FLUID OR FUMES
HAZARD
Toxic fluids or fumes can cause
serious injury or death if splashed in
the eyes or on skin, inhaled, or
swallowed.
• Read SDS’s to know the specific hazards
of the fluids you are using.
• Store hazardous fluid in approved
containers, and dispose of it according to
applicable guidelines.
8
334179D
Component Identification
Component Identification
P
R
N
A
B
M
C
J
D
L
F
Prime Pump
E
S
G
Spray
T
H
K
ti26060a
A
B
C
D
E
F
G
H
J
K
Cup Cover
FlexLiner
Cup Support
VacuValve Cap
VacuValve Air Hole
VacuValve Reservoir
Strainer
Spray Tip Holder
Prime Pump/Spray Knob
Power Cord
334179D
L
M
N
P
R
S
T
Sprayer Trigger
Dual Speed Control, HIGH/LOW
Switch (DS and DSP models only)
Spray Tip, Black (12-inch pattern)
Spray Tip, Gray (4-inch pattern)
Spray Tip Guard
Variable Speed Control (VSP models
only)
Kickstand
Paint Strainer
9
Start Up
Start Up
Use only water-based materials. Do not
use materials which state “FLAMMABLE”
on the packaging. For more information
about your material, request SDS from
distributor or retailer.
Keep spray area well-ventilated. Keep
a good supply of fresh air moving through
the area.
Previously opened paint may contain dried
paint or other debris. To avoid priming
problems and tip clogs it is advisable to strain
the paint before using. Two paint strainers
are included with the sprayer. Paint strainers
are available where paint is sold. Stretch a
paint strainer over a clean pail and pour the
paint through the strainer to capture any dried
paint and debris before spraying.
1.
Install FlexLiner in the cup support.
NOTICE
Your sprayer is NOT compatible with harsh
cleaners such as chlorine bleach. Using
these cleaners will cause damage to the
sprayer.
Starting a New Job
If you are using the sprayer for the very first
time, see Flushing a New Sprayer, page 24.
Strain the Paint
ti23361a
2.
ti26894a
10
Fill FlexLiner with material. Securely
tighten cup cover onto cup support.
Tighten so the arrow on the cup cover is
within range of the indicator on the cup
support.
ti24279a
334179D
Start Up
3.
Align VacuValve on cup cover with
Prime Pump/Spray knob. Push cup
assembly onto sprayer and twist
clockwise to lock.
ti23345a
6.
Stop squeezing the FlexLiner and snap
the VacuValve cap closed. You will hear
the cap click when it is closed properly.
ti23258b
4.
The VacuValve is an important part of
your new sprayer. It is used to evacuate
the air out of the FlexLiner. Open
VacuValve cap.
ti23355a
7.
Plug sprayer into power source.
8.
Turn Prime Pump/Spray knob down to
Prime Pump position. To fill sprayer with
fluid, point sprayer into a waste area and
hold the trigger in for 5–10 seconds.
ti23343a
5.
Tilt the sprayer so the VacuValve is the
highest point, causing any air in the
FlexLiner to rise to the VacuValve.
Gently squeeze the FlexLiner to
evacuate all air through the VacuValve
air hole. Once you see material enter the
VacuValve reservoir, all air should be
evacuated from the FlexLiner.
Prime Pump
ti23285a
334179D
11
Start Up
If sprayer does not spray, try one of
the steps below:
•
Make certain there is only one FlexLiner
in cup support. It is possible for two liners
to nest tightly together and appear as
only one.
•
Make certain the cup cover is properly
threaded to the cup support. If threads
are visible below the cup cover when
tight, then the cover is cross-threaded.
Fully remove the cup cover and reinstall
to the cup support so no threads are
visible when tight.
ti23354a
9.
Turn Prime Pump/Spray knob forward to
spray position.
Spray
ti24454a
ti23288a
10. Make certain spray tip is in the spray
position.
•
Repeat steps 2 – 6 on pages 10 – 11 to
ensure all the air is evacuated from the
FlexLiner.
•
Make certain the Prime Pump/Spray
knob is in the Spray position.
Spray
SPRAY
UNCLOG
ti23290a
11. You are now ready to spray.
NOTE: For best results; to evacuate all
material from the FlexLiner when the material
is nearly gone, gently squeeze the bottom of
the FlexLiner to push the last of the material
up to the cup lid.
12
ti23288a
•
If sprayer still does not spray, perform
steps 10 and 11 on page 25. If material
sprays while upside down there is air in
the cup. Repeat steps above.
•
Replace VacuValve cap. Extra
VacuValve caps came with your sprayer.
334179D
Start Up
Refilling FlexLiner
If sprayer runs out of paint simply separate
the cup support from the cup cover/sprayer
and refill the FlexLiner.
1.
Unplug sprayer from power source.
2.
Separate the cup support from the cup
cover/sprayer. Set the sprayer upside
down on a flat surface. This will keep the
wet paint in the cup cover.
ti23369a
3.
334179D
Follow steps 2 - 11 in Starting a New
Job, page 10 procedure.
13
How to Spray
How to Spray
Take a few moments prior to spraying and
review these simple tips to ensure your
spraying project is a success.
•
Dual Speed Control
To reduce overspray, always start at
lowest speed setting and increase speed
to the minimum setting that results in an
acceptable spray pattern.
(Not available on all units)
Spray Techniques
The dual speed control feature allows you to
slow down or speed up when spraying.
Use a piece of scrap cardboard to practice
these basic spraying techniques before you
begin spraying the surface.
•
•
•
•
Turn the dual speed control to LOW to
slow down the speed of application when
first learning to spray or when spraying
small items that require more control.
The LOW setting delivers more control
and will reduce overspray when spraying
thinner materials such as stain.
Turn the dual speed control to HIGH
when you want to get to job done fast and
when spraying large surfaces.
To reduce overspray, always spray at
lowest speed that results in an
acceptable spray pattern.
•
Hold sprayer 10 in. (25 cm) from surface
and aim straight at surface. Tilting the
sprayer to direct the spray angle causes
an uneven finish.
•
Flex wrist to keep sprayer pointed
straight. Fanning sprayer to direct spray
at angle causes uneven finish.
NOTE: How fast you move the sprayer will
affect spray application. If material is
pulsating, you are moving too fast. If material
drips, you are moving too slow. See
Replacement Parts, page 28.
Variable Speed Control
(Not available on all units)
The variable speed control feature allows you
infinite speed control to slow down or speed
up to best suit your material and project.
•
Turn the variable speed control to lower
speed settings to slow down the speed of
application when first learning to spray or
when spraying small items that require
more control.
•
The lower speed settings deliver more
control and will reduce overspray when
spraying thinner materials such as stain.
•
Turn the variable speed control to higher
speed settings when you want to get the
job done fast and when spraying large
surfaces.
EVEN
FINISH
(25 cm)
10 in.
THICK
UNEVEN
FINISH
THIN
ti23374a
14
334179D
How to Spray
EVEN FINISH
ti23376a
Aiming Sprayer
THIN
THICK
THIN
Aim sprayer at bottom edge of previous
stroke, overlapping each stroke by half.
ti23375a
Triggering Sprayer
Pull trigger after starting stroke. Release
trigger before end of stroke. Sprayer must be
moving when trigger is pulled and released.
ti23378a
Rotating the spray tip guard changes the
pattern to either the vertical or horizontal
orientations.
When spraying vertical corners turn spray tip
guard to the horizontal orientation and move
sprayer up and down.
334179D
15
How to Spray
Spray Pattern Quality
If you see pulsations in the pattern, try the
following;
A good spray pattern is evenly distributed as
it hits the surface. If tails persist, material may
need to be thinned. If material needs to be
thinned
follow
manufacturers
recommendations.
•
On the dual speed models turn the dual
speed control to HIGH
•
On the variable speed models turn the
variable speed control to higher setting
•
•
•
Slow down your speed of movement
GOOD PATTERN
Hold sprayer farther away from surface
Switch to black (12") spray tip
Spray Pattern is Pulsating
TAILS
TAILS
BAD PATTERN
16
ti23382a
334179D
Cleanup
Cleanup
1.
Disconnect power (unplug power cord).
2.
Turn Prime Pump/Spray Knob down to
PRIME PUMP position to relieve
pressure.
Use only water-based materials. Do not
use materials which state “FLAMMABLE”
on the packaging. For more information
about your material, request SDS from
distributor or retailer.
Prime Pump
Clean in a well-ventilated area. Keep a
good supply of fresh air moving through
the area.
To avoid serious injury or damage to
equipment, do not expose the sprayer
electronics to cleaning fluids. Keep
sprayer at least 10 in. (25 cm) above the
rim of the container when cleaning.
ti23285a
Cleaning Sprayer
Cleaning your sprayer properly and after every
spray job is of the utmost importance! Proper
care and maintenance will make your paint
sprayer last and work for you trouble free.
1.
Turn Prime Pump/Spray knob to Prime
Pump to relieve pressure.
2.
Separate the cup support with FlexLiner
from the cup cover/sprayer.
ti23408a
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
This sprayer builds up an internal
pressure of 2000 psi (14 MPa, 138 bar)
during use. Follow this Pressure Relief
Procedure whenever you stop spraying
and before cleaning, checking, servicing,
or transporting equipment to prevent
serious injury.
334179D
ti23385a
17
Cleanup
3.
Set the sprayer upside down on a flat
surface. This will keep the wet paint in
the cup cover. Return excess material to
original container. Hold the FlexLiner in
place when pouring.
8.
Make certain the Prime Pump/Spray
knob is in the Prime Pump position
(pointed down). On models with a dual
speed control switch, set speed control
to HIGH. On variable speed models set
speed control to 10.
ti23384a
ti23387a
4.
You can either dispose of the used
FlexLiner and install a new FlexLiner or
clean a used FlexLiner.
5.
To clean the sprayer, fill FlexLiner
approximately half-full with water.
6.
Securely tighten cup cover onto cup
support.
9.
Turn the sprayer upside down and point
the sprayer into a waste pail. Pull the
trigger for ten seconds.
ti23388a
10. Turn Prime Pump/Spray knob forward to
SPRAY position. Reverse spray tip to
UNCLOG position.
ti23383a
7.
18
To clean the cup cover and strainer,
secure the cup assembly to the sprayer
and shake the entire sprayer for ten
seconds.
11. While holding the sprayer upside down
point the sprayer into a waste pail. Pull
the trigger for five seconds. Release the
trigger.
12. If second spray tip was used, remove
cleaned spray tip from spray tip guard
and install second spray tip. See
Installing Spray Tips, page 22. Repeat
steps 10 and 11 to clean second spray
tip.
334179D
Cleanup
15. Remove spray tip and strainer, see
Remove Spray Tip, page 22. Clean with
soap and water. A soft brush can be
used to loosen and remove dried
material if needed.
ti23389a
13. Remove cup assembly and discard used
fluid. Dispose of used cleaning fluid
properly.
ti23404a
16. Use a soft cloth to clean the cup support
and cup cover.
14. Replace cleaning fluid and repeat steps
1- 13 until spray output is clean.
IMPORTANT! For best results, do not spray
more than one cup of water through the tip
while cleaning. If more flushing is needed,
remove the tip from the sprayer to avoid
excessive wear.
NOTICE
The spray tip guard is permanently
attached to the sprayer. Removal for
cleaning is not necessary and will result in
damage to the sprayer.
ti23372a
ti31003a
334179D
19
Cleanup
Cleaning VacuValve
The VacuValve is an important part of your
sprayer and it should be cleaned after every
use.
1.
Remove VacuValve cap from cup cover
and clean it.
2.
Clean VacuValve reservoir in lid.
3.
Clean VacuValve air hole. If VacuValve
air hole becomes clogged, use a paper
clip to clean the hole.
20
ti23406a
334179D
Storage
Storage
NOTICE
Failure to store sprayer with Pump Armor
will result in operational problems the next
time you spray. Always circulate Pump
Armor through the sprayer after cleaning.
Water left in the sprayer will corrode
and damage the pump.
ti23707b
Pump Armor fluid protects the sprayer while
in storage. It helps protect sprayer against
freezing and corrosion when not in use.
7.
With sprayer upside-down attach cup
support with FlexLiner to sprayer.
1.
Clean the sprayer and cup assembly.
See Cleanup, page 17.
8.
2.
Turn Prime Pump/Spray knob down to
the Prime Pump position. Remove cup
support and FlexLiner. Make certain that
VacuValve cap is closed.
Holding sprayer upside-down over a
waste container, pull sprayer trigger for
three seconds.
Prime Pump
ti23285a
3.
Separate the cup support with FlexLiner
from the cup cover/sprayer. Set the
sprayer upside down on a flat surface.
4.
Remove strainer from pump opening.
5.
With the sprayer upside-down pour
approximately 2 oz. (60 ml) Pump Armor
into pump opening.
6.
Install strainer into pump opening.
334179D
ti23388a
9.
Turn Prime Pump/Spray knob forward to
spray position. Remove cup assembly
and pour any remaining Pump Armour
back into Pump Armor bottle. Replace
child-resistant cap and tighten securely
for storage.
10. Store sprayer indoors in a cool, dry
place. Store in an upright position
only. Never store sprayer with material
in the cup.
21
Common Procedures
Common Procedures
Installing Spray Tips
3.
Pull the spray tip straight out of the spray
tip guard.
Install Spray Tip
1.
While holding the spray tip 90 degrees
from either the SPRAY or UNCLOG
position, align spray tip locking tab with
the locking tab slot in the spray tip guard.
2.
Push the spray tip all the way into the
spray tip guard.
3.
Rotate the spray tip to the SPRAY
position.
Do not put your hand in front of the spray
tip.
Two spray tips are available for use with this
sprayer. The black tip produces a 12-inch
wide spray pattern. The gray tip produces a
4-inch wide spray pattern.
Either spray tip may be used to spray
materials that are recommended to be
strayed with a 0.015 tip size. See material
container
for
spray
tip
size
recommendations.
LOCKING TAB SLOT
LOCKING
TAB
NOTE: Make certain spray tip locking tab is
pushed all the way into the slot in the spray tip
guard. You should not be able to remove the
spray tip from the spray tip guard when it is in
the Spray or Unclog positions.
NOTE: If the locking tab slot in the spray tip
guard is blocked, preventing installation of
the spray tip, rotate the spray tip guard until it
is visually aligned with the internal hole, then
install the spray tip.
NOTICE
ROTATE
SPRAY TIP
The spray tip guard is permanently
attached to the sprayer. Removal for
cleaning is not necessary and will result in
damage to the sprayer.
REMOVE
SPRAY TIP
ti23563a
ti31003a
Remove Spray Tip
1.
Perform Pressure Relief Procedure,
page 17.
•
Spray tips wear with use and abrasive
paint and need periodic replacement.
2.
Rotate the spray tip 90 degrees from
either the SPRAY or UNCLOG position.
•
If the spray pattern is poor, you may have
a worn spray tip. Replace spray tip. See
Spray Pattern Diagnostics, page 32.
22
334179D
Common Procedures
4.
NOTICE
Spray tips must be cleaned or stored in
appropriate cleaning fluid (water or Pump
Armor) immediately after use to ensure
material is not allowed to dry in spray tip.
Failure to do so will result in damage to the
spray tip. See Cleanup, page 17.
Dual speed models:
Move speed control switch to HIGH
setting.
Unclogging Spray Tip
ti23359a
5.
In the event that particles or debris clog the
spray tip, this sprayer is designed with a
reversible spray tip that quickly and easily
clears the particles without disassembling the
sprayer.
1.
Perform Pressure Relief Procedure,
page 17.
2.
To unclog spray tip, turn Prime
Pump/Spray knob down to Prime Pump
position.
Variable speed models:
Set speed control to 10.
10
ti25737a
6.
Prime Pump
Aim sprayer at waste area, turn Prime
Pump/Spray knob forward to spray
position. Pull trigger to clear clog.
Spray
ti23285a
3.
ti23288a
Reverse spray tip to UNCLOG position.
ti23290a
SPRAY
334179D
UNCLOG
7.
Turn Prime Pump/Spray knob down to
Prime position. Rotate spray tip back to
SPRAY position. Turn Prime
Pump/Spray knob forward to SPRAY
position, and resume spraying.
8.
If spray tip is still clogged, you may have
to repeat steps 2 - 7, or replace with new
spray tip assembly. See Installing
Spray Tips, page 22.
23
Common Procedures
Flushing a New Sprayer
This sprayer arrives from the factory with a
small amount of test material in the system.
It is important that you flush this material
from the sprayer before using it for the
first time.
1.
Remove cup assembly from the sprayer
by turning counter clockwise and pulling
down.
ti23361a
4.
Fill FlexLiner with water.
ti23249b
2.
Unscrew cup cover from the cup support.
ti23383a
5.
Securely tighten cup cover onto cup
support. Tighten so the arrow on the cup
cover is within range of the indicator on
the cup support.
ti23676a
3.
Make certain FlexLiner is in the cup
support.
ti24279a
24
334179D
Common Procedures
6.
Align VacuValve on cup cover with
Prime Pump/Spray knob. Push cup
assembly onto sprayer and twist to lock.
ti23258b
ti23389a
7.
Plug sprayer into power source.
8.
Make certain the Prime Pump/Spray
knob is in the Prime Pump position
(pointed down). On models with a dual
speed control switch, set speed control
to HIGH. On variable speed models set
speed control to 10.
9.
Turn the sprayer upside down and point
the sprayer into a waste pail. Pull the
trigger for three seconds.
10. Turn Prime Pump/Spray knob forward to
SPRAY position. Rotate spray tip 180
degrees to UNCLOG position.
11. While holding the sprayer upside down
point the sprayer into a waste pail. Pull
the trigger for three seconds.
IMPORTANT! For best results, do not spray
more than one cup of water through the tip
while cleaning. If more flushing is needed,
remove the tip from the sprayer to avoid
excessive wear.
12. Sprayer is now flushed and ready for
use. See Start Up, page 10.
IMPORTANT! The motor has a built-in feature
to protect itself from overuse. If the motor
stops, the thermal switch has tripped.
Do not return sprayer to store. The motor
will operate normally after cooling for 20-30
minutes.
ti23388a
334179D
25
Replacement Parts
Replacement Parts
Models 16Y391, 16Y392, 17N427, 17N428
13b
8
12
13a
19
10
9
9
1
6
2
24
3
18
16a
17
15
22
7
8
16
19
20
14
26
ti24627a
26
334179D
Replacement Parts
Parts List- Models 16Y391, 16Y392, 17N427, 17N428
If you have this
model sprayer
Ref.
1
2
3
6
7
8
9
10
12
13a
13b
14
15
16
16a
17
18
19
20
22
23 
24
All models
All models
All models
All models
All models
All models
All models
All models
16Y391
17N427
16Y392
17N428
16Y392, 17N428
16Y391
All models
All models
All models
All models
All models
All models
16Y391
16Y392
All models
All models
All models
Order
Part
Number
Description
17B415
16Y425
16W849
17A402
17A221
119236
17A223
16X880
Complete pump assembly includes 2, 3, 6, 7, 8
O-ring
Filter, pump inlet
Prime Pump/Spray valve
Kit, Prime Pump/Spray knob includes qty. 1 of ref. 8
Screw, T-15 (torque 8-10 in-lb / 0.9-1.1 N•m)
Spray tips, (black/12-inch pattern, gray/4-inch pattern)
Reciprocator assembly
Control, electronic includes motor, air duct, power cord and
switch
17B913 Single speed, 230 V (not shown)
17A224 Single speed, 120 V (not shown)
17B914 Dual speed, 230 V
17B653 Dual speed, 120 V
16X868 Switch, dual speed control
16X869 Plug
16W846 Support, cup
17A226 Kit, FlexLiner (3-pack)
17B636 Cover, cup includes 16a, 17, 18
17M395 Spacer
17M821 O-ring
16X806 VacuValve cap, (2 included)
17A227 Kit, enclosure blue includes qty. 13 of ref. 8
17A649 Kit, enclosure gray includes qty. 13 of ref. 8
16Y680 Label, USA
16Y678 Label, control
17A470 Label, warning and model number, side (not shown)
Label, brand
16Y677 TrueCoat 360
17A493 TrueCoat 360 DSP
17A199 Label, warning, cord, SPA/POR (not shown)
17A200 Label, warning, cord, CHI/KOR (not shown)
17C468 Case, storage
17F518 Kit, 42 oz. cup (not shown)
16Y391
16Y392
25  All models
All models
26
16Y392
All models
All models
129795 Paint strainer, (two included), not shown
--243104 Pump Armor, not shipped with sprayer 32 oz (not shown)
 Replacement Danger and Warning labels, tags, and cards are available at no cost.
334179D
27
Replacement Parts
Replacement Parts
Model 17F329, 17N429
27
13
29
8
19
12
10
9
9
1
24
6
8
19
2
18
15
3
22
7
16a
20
17
16
28
14
26
28
ti26108a
334179D
Replacement Parts
Parts List- Model 17F329, 17N429
If you have this
model sprayer
Ref.
1
2
3
6
7
8
9
10
12
Order
Part
Number
Description
All models
All models
All models
All models
All models
All models
All models
All models
17B415
16Y425
16W849
17A402
17A221
119236
17A223
16X880
13
14
15
16
Complete pump assembly includes 2, 3, 6, 7, 8
O-ring
Filter, pump inlet
Prime Pump/Spray valve
Kit, Prime Pump/Spray knob includes qty. 1 of ref. 8
Screw, T-15 (torque 8-10 in-lb / 0.9-1.1 N•m)
Spray tips, (black/12-inch pattern, gray/4-inch pattern)
Reciprocator assembly
Control, electronic includes motor, air duct, power cord
and switch Variable speed
17F329
17F631 230 V
17N429
17F068 120 V
17F329, 17N429 17D844 Adapter, variable speed control
17F329
17D850 Support, cup, 42 oz.
17F329
17F005 Kit, 42 oz., FlexLiner (3-pack)
All models
17B636 Cover, cup includes 16a, 17, 18
16a
All models
17M395
17
18
19
20
22
23 
24
25 
All models
All models
17F329
All models
All models
All models
17F329
All models
17M821
16X806
17A649
16Y680
16Y678
17A470
17F154
Spacer
O-ring
VacuValve cap, (two included)
Kit, enclosure gray includes qty. 13 of ref. 8
Label, USA
Label, control
Label, warning and model number, side (not shown)
Label, brand, TrueCoat 360 VSP
Label, warning, cord (not shown)
17A199 Spanish, Portuguese
17A200 Chinese, Korean
26
17F329
17C468 Case, storage
27
17F329
17F069 Kit, enclosure, variable speed includes sight glass,
includes 13, 29, qty. 2 of ref 8
28
17F329
17F364 Kickstand
29
17F329
17D843 Sight glass
All models
17F518 Kit, 42 oz. cup includes 14, 15, 28
All models
129795 Paint strainer, (two included), not shown
--243104 Pump Armor, not shipped with sprayer 32 oz (not shown)
 Replacement Danger and Warning labels, tags, and cards are available at no cost.
334179D
29
Troubleshooting
Troubleshooting
Check everything in this Troubleshooting
Table before you bring the sprayer to an
authorized service center.
magnum.graco.com/support
ti31342a
Sprayer Diagnostics
Problem
Cause
Solution
Sprayer makes no sound Power supply.
when trigger is pulled
Motor has overheated.
Verify power to sprayer.
Wait 20-30 minutes for motor to
cool.
Electronic control failure.
Replace electronic control.
Sprayer makes sound but Sprayer is not primed.
Prime the pump. See Starting a
no material is sprayed
New Job, page 10.
when trigger is pulled
Make certain there is only one
FlexLiner in the cup support.
Make certain the cup cover is
properly threaded to the cup
support. If threads are visible
below the cup cover when tight,
fully remove and reinstall to the
cup support so no threads are
visible when tight.
Make certain the cup cover is
tightened to cup support so the
arrow on cup cover is within
range of indicator on cup
support.
Make certain the cup assembly is
properly locked on the sprayer.
Make certain all the air is out of
the FlexLiner and the VacuValve
is properly closed.
Clean VacuValve reservoir and
air hole. See Cleaning
VacuValve, page 20.
Clean Sprayer. See Cleanup,
page 17.
Prime Pump/Spray knob is in PRIME Turn Prime Pump/Spray knob
PUMP position.
forward to SPRAY position.
Spray tip is not in SPRAY position. Turn spray tip to SPRAY
position.
Spray tip is clogged.
See Unclogging Spray Tip,
page 23.
30
334179D
Troubleshooting
Problem
Cause
Solution
On models with a dual speed
control switch, set speed control
switch to HIGH. On variable
speed models, increase speed
until unit sprays.
No or low material in material cup.
Refill FlexLiner with material and
prime the pump. See Refilling
FlexLiner, page 13.
See Unclogging Spray Tip,
Sprayer sprays with poor Spray tip is partially clogged.
page 23.
results
Spray tip is not in correct position
Rotate spray tip to SPRAY
position.
Incorrect spray tip for application of Install different size spray tip.
material.
See Installing Spray Tips, page
22.
Spray tip is worn or damaged
Replace spray tip. See
Installing Spray Tips, page 22.
Material being sprayed is aerated
Do NOT shake material. Stir the
because it was shaken.
material or check the
manufacturer’s recommendation
for the material being sprayed.
Material being sprayed is too cold to Warm material.
spray.
Paint leaks from sprayer Pump has reached its maximum life. Replace pump.
trigger area.
Make certain that there is only
Paint leaks out of the cup Cup not properly seated.
one FlexLiner in cup support.
threads.
Make certain the cup cover is
properly threaded to the cup
support. If threads are visible
below the cup support when
tight, fully remove the cup cover
and reinstall to the cup support
so no threads are visible when
tight.
Make certain the cup cover is
tightened to the cup support so
the arrow on the cup cover is
within range of the indicator on
the cup support.
Avoid flexing or pushing on the
cup support when you evacuate
the air out of the FlexLiner.
Avoid pulling down on the
FlexLiner when you evacuate the
air out of the FlexLiner.
Make certain there is no damage
to the FlexLiner lip or the cup
cover gasket.
Make certain that the FlexLiner
lip and cup cover gasket is free of
debris and dried paint.
Replace FlexLiner.
Sprayer makes sound
but no material is
sprayed when trigger is
pulled (contd)
334179D
Speed control switch is set too low.
31
Troubleshooting
Spray Pattern Diagnostics
Problem
Cause
Spray pattern is pulsating:
Operator is moving too
fast while spraying.
Spray tip is clogged.
Material difficult to
atomize.
Spray pattern has tails:
Speed control switch is set
too low.
ti15526a
Material may need to be
thinned.
Incorrect spray tip for
application of material.
Spray pattern has
dripping/sagging:
Material not compatible
with sprayer.
Spray tip is worn or
damaged.
Operator is moving too
slowly while spraying.
Sprayer is too close to
target surface.
Holding trigger while
changing spray direction.
Speed control switch is set
too high.
Spray tip is worn or
damaged.
32
Solution
Slow speed of movement.
Unclog spray tip or clean spray
tip see Unclogging Spray Tip,
page 23.
On models with dual speed
control switch, set speed control
to HIGH. On variable speed
models, increase speed until
desired pattern is achieved.
Hold sprayer farther away from
surface.
Switch to black (12”) spray tip.
See Installing Spray Tips,
page 22.
On models with a dual speed
control switch, set speed control
to HIGH. On variable speed
models, increase speed until
desired pattern is achieved.
Thin material follow paint
manufacturer’s
recommendations.
Install different size spray tip.
See Installing Spray Tips,
page 22.
Switch material.
Replace spray tip. See
Installing Spray Tips, page 22.
Move sprayer faster while
spraying.
Move sprayer away from
surface 10 in. (25 cm)
Release trigger when changing
directions.
On models with a dual speed
control switch, set speed control
to LOW. On variable speed
models, decrease speed until
desired pattern is achieved.
Replace spray tip. See
Installing Spray Tips, page 22.
334179D
Troubleshooting
Problem
Cause
Spray pattern is too narrow:
ti15523a
ti15523a
Sprayer is too close to
target surface.
Incorrect spray tip for
application of material.
Spray tip is worn or
damaged.
Sprayer is too far away
from target surface.
Incorrect spray tip for
application of material.
Spray pattern is too wide:
Solution
Move sprayer away from
surface 10 in. (25 cm)
Install different size spray tip.
See Installing Spray Tips,
page 22.
Replace spray tip. See
Installing Spray Tips, page 22.
Move sprayer closer to surface.
Install different size spray tip.
See Installing Spray Tips,
page 22.
ti15527a
ti15527a
Spray pattern “spits” at the end or
beginning:
ti15525a
ti15525a
Spray tip continues to drip or ooze
material after trigger is released:
Excess material has
accumulated on spray tip
guard assembly or spray
tip is partially clogged.
Spray tip not inserted
completely into spray tip
guard.
Spray tip is worn.
Spray tip is worn.
Clean spray tip guard. See
Unclogging Spray Tip, page
23.
See Installing Spray Tips,
page 22.
Replace spray tip. See
Installing Spray Tips, page 22.
Replace spray tip. See
Installing Spray Tips, page 22.
See Installing Spray Tips,
page 22.
Spray tip not inserted
completely into spray tip
guard.
If above solutions do not solve the problem, replace the
pump assembly.
ti15552a
334179D
33
Technical Data
Technical Data
Hand-Held Sprayer
U.S.
Max Working Pressure
Maximum Amperage
Weight
TrueCoat 360, 360 DS/DSP
TrueCoat 360 VSP
Dimensions:
Length
Width
Height 360, 360 DS/DSP
Height 360 VSP
Storage Temperature Range 
Operating Temperature Range 
Storage Humidity Range
Sound Pressure Level (Per ISO 3744)
Sound Power Level (Per ISO 3744) #
Vibration Level (Measured in accordance
with EN60745-1)
Power Cord
Electrical Power Requirement
17N427, 17N428, 17N429
16Y391, 16Y392, 17F329
Duty Cycle
Maximum tip orifice
1500 psi
3.5 lb (18 in.cord)
3.75 lb (18 in.cord)
Metric
10.3 MPa, 103 bar
1.2 Amps
1.6 kg (45 cm cord)
1.7 kg (45 cm cord)
12.50 in.
31.75 cm
5.25 in.
13.34 cm
9.75 in.
24.77 cm
11.8 in.
29.97 cm
32° to 113° F
0° to 45° C
40° to 90° F
4° to 32° C
0% to 95% relative humidity, non-condensing
75.8 dB(A) uncertainty K= 3 dB(A)
86.8 dB(A) uncertainty K= 3 dB(A)
3.41 ft/s2
1.04 m/s2
(uncertainty k=4.9 ft/s2 (uncertainty K=1.5 m/s2
18 AWG, 3-wire, 18 in.2 1.0 mm2, 3-wire, 45 cm
110 - 120Vac, 60 Hz, 15A, 1 phase
220 - 240Vac, 50 Hz, 10A, 1 phase
50%
0.015 in.
0.38mm
 Pump damage will occur if fluid freezes in pump.
 Damage to plastic parts may result if impact occurs in low temperature conditions.
 Changes in paint viscosity at very low or very high temperatures can affect sprayer performance.
# Wear hearing protection.
The vibration value has been measured in accordance with a standard test method and may
be used for comparing against electric tools and for preliminary assessment of exposure.
VIBRATION HAZARD: The vibration value during actual use of the sprayer
can differ from the declared value depending on the ways in which the tool
is used. To protect the operator from hand-arm vibration injury, identify
safety measures that are based on an estimation of exposure the actual
conditions of use. Take into account all parts of the operating cycle such as
the times when the tool is switched off, in addition to the trigger time.
34
334179D
Graco Limited Warranty
Graco Limited Warranty
Graco warrants to the original purchaser that this product will be free from defects in material and
workmanship for one (1) year from the date of purchase when operated and maintained in accordance
with Graco's written recommendations and instructions. This product is designed and intended for
personal, non-income producing, household purposes only. This warranty is void if the product is used
for any other purposes, including but not limited to commercial, institutional, industrial, agricultural, rental
or income producing purposes. This warranty does not cover general wear and tear or any malfunction,
damage or wear caused by misapplication, abrasion, corrosion, inadequate or improper maintenance,
abuse, negligence, misuse, accident, tampering, substitution of non-Graco component parts, or
alterations, service or repairs by anyone other than a Graco authorized service center, or any use,
maintenance or repairs not specifically described in Graco's written recommendations and instructions.
In addition, this warranty specifically excludes general wear and tear of the pump, valves, needle
assembly and spray tips.
This warranty is conditioned upon the prepaid return of the product claimed to be defective and proof of
purchase to a Graco authorized service center for verification of the claimed defect. To find a Graco
authorized service center, please call 1-888-541-9788 or visit us online at www.graco.com. If the claimed
defect is verified, Graco will repair or replace the product free of charge. The product will be returned to
the original purchaser transportation prepaid. If inspection of the product does not disclose any defect in
material or workmanship, repairs will be made at a reasonable charge to you, which charges may include
the costs of parts, labor and transportation. Repair or replacement of the product under this warranty will
not interrupt or extend the warranty period or create a new warranty period.
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSES
IS LIMITED TO ONE (1) YEAR FROM THE DATE OF PURCHASE. SOME STATES AND PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU.
To the extent permitted by law, Graco's sole obligation and buyer's sole remedy for any breach of
warranty shall be as set forth above. IN NO EVENT WILL GRACO BE LIABLE FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE SALE OR USE
OF THIS PRODUCT. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or
indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du
présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés,
donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures
concernées.
334179D
35
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call 1-888-541-9788 to identify the nearest
distributor.
All written and visual data contained in this document reflects the latest product information available at
the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 334179
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2014, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision D, April 2017
