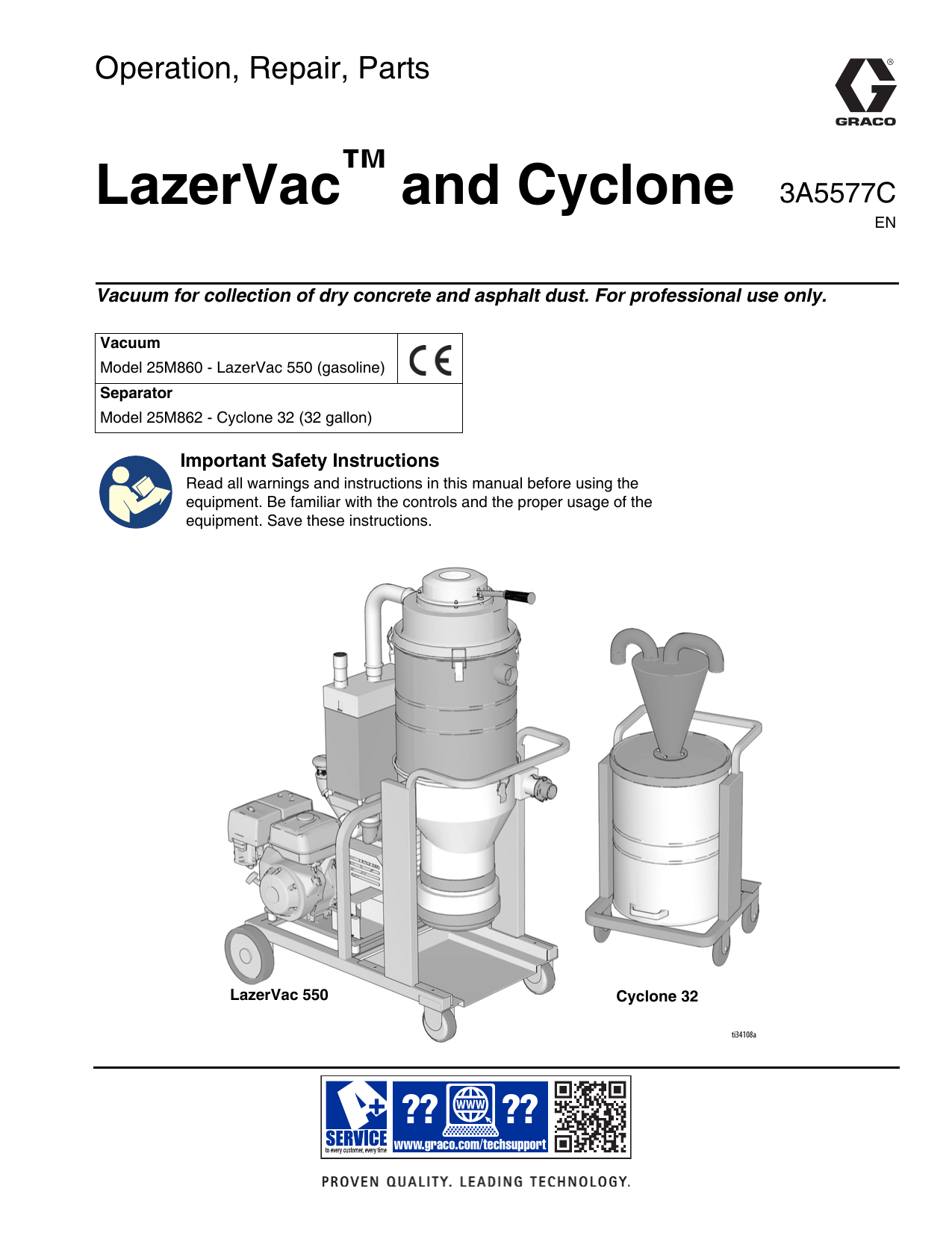

Graco 3A5577C, LazerVac and Cyclone Owner's Manual

Operation, Repair, Parts
LazerVac™ and Cyclone
3A5577C
Vacuum for collection of dry concrete and asphalt dust. For professional use only.
Vacuum
Model 25M860 - LazerVac 550 (gasoline)
Separator
Model 25M862 - Cyclone 32 (32 gallon)
Important Safety Instructions
Read all warnings and instructions in this manual before using the
equipment. Be familiar with the controls and the proper usage of the
equipment. Save these instructions.
LazerVac 550
Cyclone 32
??
??
www.graco.com/techsupport
EN
Contents
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Battery Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Emptying Collection Tanks and Bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Shutdown and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Maintenance and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Main Assembly Diagram (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Main Assembly Parts (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Accessories Diagram (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Accessories Parts List (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Lid and Vacuum Release Assembly Diagram (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Lid and Vacuum Release Assembly Parts List (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Filter Bag Assembly Diagram (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Filter Bag Assembly Parts List (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Air Filter Assembly Diagram (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Air Filter Assembly Parts List (LazerVac 550) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cyclone 32 Assembly and Accessories Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cyclone 32 Assembly and Accessories Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2
3A5577C
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation
point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these
symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard
symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
WARNING
DUST HAZARD
Grinding concrete and other surfaces can create dust that contains hazardous substances.
To reduce the risk of serious injury:
• Control the dust to meet all applicable workplace regulations.
• Wear a properly fit-tested and government approved respirator suitable for the dust conditions when
emptying collection tank or performing maintenance.
• Do not use without dust bag and filters in place.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not leave the work area while equipment is energized. Turn off all equipment when equipment
is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
• Maintain a safe operating distance from other people in the work area.
ENTANGLEMENT HAZARD
Rotating parts can cut or amputate fingers and other body parts.
• Keep clear of rotating parts.
• Do not operate equipment with protective guards or covers removed.
• Do not wear loose clothing, jewelry or long hair while operating equipment.
• Disconnect battery before checking, moving, or servicing the equipment.
BURN HAZARD
Blower, diffuser and engine can become very hot during operation. To avoid severe burns, do not
touch hot equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, inhalation of dust or chemicals, and
hearing loss. This equipment includes but is not limited to:
• Protective eye wear.
• Hearing protection.
• Properly fit-tested and government approved respirator suitable for the dust conditions.
3A5577C
3
Warnings
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes in work area can ignite or explode. To help prevent fire and explosion:
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they
may be present.
• Use equipment only in well ventilated area.
• Do not fill fuel tank while engine is running or hot; shut off engine and let it cool. Fuel is flammable
and can ignite or explode if spilled on hot surface.
• Keep work area free of debris, including solvent, rags and gasoline.
• Keep a fire extinguisher in work area.
CARBON MONOXIDE HAZARD
Exhaust contains poisonous carbon monoxide, which is colorless and odorless. Breathing carbon
monoxide can cause death.
• Do not operate in an enclosed area.
BATTERY HAZARD
Lead-acid batteries produce explosive gases and contain sulfuric acid that can cause severe burns. To
avoid sparks and injury when handling or working with a lead-acid battery:
• Read and follow the battery manufacturer’s warnings.
• Exercise caution when working with metallic tools or conductors to prevent short circuits and sparks.
• Keep all sparks, flames, and cigarettes away from batteries.
• Always wear protective eyewear and protective equipment for face, hands, and body.
• If you have direct contact with battery fluid, flush with water and consult a physician immediately.
• Installation and maintenance must be performed by knowledgeable personnel only.
CALIFORNIA PROPOSITION 65
The engine exhaust from this product contains a chemical known to the State of California to cause
cancer, birth defects or other reproductive harm.
This product contains a chemical known to the State of California to cause cancer, birth defects or
other reproductive harm. Wash hands after handling.
4
3A5577C
Battery Disposal
Battery Disposal
Do not place batteries in the trash. Recycle batteries according to local regulations. In the USA and Canada call
1-800-822-8837 to find recycling location or go to www.call2recycle.org.
3A5577C
5
Component Identification
Component Identification
LazerVac 550
Cyclone 32
Parts List
Component
Component
6
A
Air Filter Housing
L
Vacuum Outlet
B
Diffuser
M
Main Housing (contains Filter Bags)
C
Engine Choke, Fuel Valve, and Throttle Control
N
Separator Lid
D
Engine
O
E
Electric Start Key
Long Vacuum Hose (to connect the LazerVac or
Cyclone to the GrindLazer)
F
Vacuum Dust Collection Bag
P
Short Vacuum Hose (to connect the LazerVac to
the Cyclone)
G
Battery
R
Blower
H
Velcro® Belt (to secure Vacuum Dust Collection
Bag)
S
Vacuum Release Handle
J
Vacuum Hookup
T
Dust Collection Tank (Dust Bag Holder is inside
tank, not shown)
K
Vacuum Inlet
V
Relief Valve (protects air filters from damage)
3A5577C
Setup
Setup
1. Install dust collection bags onto vacuum and into
separator.
a. Slide the Vacuum Dust Collection Bag onto the
Continuous Dust Bag Adapter. Install the bag
assembly onto the bottom of the Main Housing
of the LazerVac. Wrap the Velcro Belt around
the top of the bag to ensure an air tight seal.
Pull enough bag down to rest on the bottom of
the vacuum cart, then tie a cable tie around the
bottom of the bag.
b. If using a Cyclone separator, remove the
Separator Lid and insert the Dust Bag into the
tank. Insert the Dust Bag Holder into the bag.
Wrap the bag around the lip of the tank and
reinstall the Separator Lid onto the tank.
2. Connect hoses.
If using a Cyclone separator:
• Connect one end of the Short Vacuum Hose to the
inlet of the LazerVac. Connect the other end of the
Short Vacuum Hose to the outlet of the Cyclone
separator.
•
Connect one end of the Long Vacuum Hose to the
inlet of the Cyclone separator. Connect the other
end of the Long Vacuum Hose to the vacuum
hookup on the GrindLazer.
If not using a Cyclone separator:
• Connect one end of the Long Vacuum Hose to the
inlet of the LazerVac. Connect the other end of the
Long Vacuum Hose to the vacuum hookup on the
GrindLazer.
NOTE: Use the Y-Connector to connect 2 hoses to the
vacuum or separator, if desired.
3A5577C
7
Operation
Operation
4. Turn the Electric Start Key to START.
1. Slide the Fuel Valve on the engine to ON.
2. Slide the Engine Choke to closed.
5. After the engine warms up, move Engine Choke to
open and adjust the Throttle Control to the desired
speed.
6. LazerVac is now ready for dust collection from the
GrindLazer.
7. To help ensure proper dust collection, momentarily
pull down on the Vacuum Release Handle every 10
minutes of operation while the LazerVac engine is
running. This helps clean the Filter Bags from
accumulated dust and debris, and transfers them to
the Vacuum Dust Collection Bag.
3. Adjust the Throttle Control to 1/3 speed setting.
8
3A5577C
Operation
Emptying Collection Tanks and
Bags
DUST HAZARD
Grinding concrete and other surfaces can create dust
that contains hazardous substances. To reduce the
risk of serious injury:
• Respirator must be worn when emptying or
cleaning Dust Collection Tanks or bags.
• Follow local ordinances and regulations for
disposal.
LazerVac
1. When Vacuum Collection Bag has collected
approximately 45 lbs (20 kg) of dust, the bag should
be replaced. Momentarily pull down on the Vacuum
Release Handle, then turn the LazerVac off.
2. Pull down on the continuous bag to expose 6 - 12”
(15 - 30 cm) of new, unused bag.
3. Use a cable tie to tie off the top of the bag. Fasten
another cable tie 2” (5 cm) cable tie above the first
cable tie.
4. Wearing a respirator, cut the bag between the two
cable ties.
Cyclone Separator
1. When Dust Collection Tank is full, turn off vacuum.
Wearing a respirator, remove the Separator Lid and
the Dust Bag Holder from the tank.
2. Gather and secure the top of the collection bag. Lift
and remove the collection bag, tie up and then
dispose. Follow local ordinances and regulations for
disposal.
5. Dispose of the dust bag. Follow local ordinances
and regulations for disposal.
6. Pull down on the new bag attached to the vacuum
until the bottom of the bag rests on the bottom of the
vacuum cart. Ensure the bottom of the bag is tied off
firmly with the cable tie.
3. Insert new bag into collection tank and reinstall the
Dust Bag Holder and Separator Lid onto the tank.
3A5577C
9
Shutdown and Storage
Shutdown and Storage
Shutdown
Storage
1. While the engine is running, momentarily pull down
on the Vacuum Release Handle.
Slide Fuel Valve on the engine to OFF. Store indoors.
NOTICE
Do not store in a location with high temperatures or
excessive humidity, in order to prevent damage to
your LazerVac components.
2. Move Throttle Control to the minimum setting.
3. Turn the Electric Start Key to OFF.
10
3A5577C
Maintenance and Repair
Maintenance and Repair
Weekly
Inspect seals for damage. If damaged, replace seal.
Ensure seals are installed correctly and properly sealed.
To reduce the risk of serious injury:
• Respirator must be worn during all maintenance
and repair.
• Follow local ordinances and regulations for
disposal of dust.
• Disconnect spark plug wire and black cable from
battery before maintenance.
Maintenance
The following steps should be performed to help
maintain proper operation and sustain the life of the
LazerVac.
Daily
•
•
•
•
Prior to use, inspect all hoses for holes. Repair or
replace damaged hoses.
To help maintain performance and dust control,
replace bag filters and/or air filters when:
- Filters have tears or are clogged.
- Airborne dust is visible when using the
LazerVac.
- Airborne dust exits the Diffuser when using the
LazerVac.
Check belt tension for slipping and/or excessive
wear. Tighten or replace belt if needed.
Verify that the Relief Valve does not open when the
engine is running. If the Relief Valve opens, clean or
replace the air filters.
Repair
Filter Bag Replacement
1. Unlatch the Drum Latches from the Main Housing in
order to access the Filter Bags. Lift off the Housing
Lid.
2. Untie knots from the top of the Filter Bags.
DUST HAZARD
Vacuum performance will deteriorate if the drive belt
has excessive wear or is not properly tensioned.
3A5577C
11
Maintenance and Repair
3. Press wire form at the bottom of the Filter Bag.
7. Press wire and insert new Filter Bag into hole.
8. Ensure seals are installed correctly and properly
sealed when reassembling the Main Housing.
4. Separate filter from hole by lifting up on the Filter
Bag.
V-Belt Replacement and Tensioning
Follow these instructions to install a new V-Belt, or to
re-tension current belts.
1. Loosen the four bolts (labeled “A”) that secure the
Blower to the mounting plate.
5. Remove old Filter Bag from the vacuum.
6. Insert new Filter Bag and tie a knot from the new
Filter Bag onto the top wire rack.
12
3A5577C
Maintenance and Repair
2. Loosen the two bolts (labeled “B”) and remove Belt
Guard.
5. Ensure pulleys are aligned after tensioning. If they
are not aligned, release the belt tension, loosen the
Engine Pulley set screws and align the pulleys.
Check alignment after tensioning the V-Belt.
6. When the V-Belt is properly aligned and tensioned,
tighten the four bolts (labeled “A”) to secure the
Blower to the mounting plate. Reassemble the Belt
Guard with the two bolts (labeled “B” in step 2).
3. To install a new V-Belt, use a 3/4” hex wrench on
“C” to move the Blower Pulley closer to the Engine
Pulley. Replace the belt.
4. To tension the belt, use a 3/4” hex wrench on “C” to
move the Blower Pulley away from the Engine
Pulley. Keep tightening the belt until the belt deflects
approximately 1/8” (3mm) when squeezed by hand.
3A5577C
13
Parts
Parts
Main Assembly Diagram (LazerVac 550)
14
3A5577C
Parts
Main Assembly Parts (LazerVac 550)
Ref
Part Number
1
see page 17
2
Description
Qty
Lid and Vacuum Release Plunger
1
17X196
Main Body Seal
1
3
17X197
Main Body Seal Ring
1
4
17X198
Filter Housing/Main Body
1
5
see page 18
Filter Bag Assembly
1
6
17X199
Coupler Hose
1
7
see page 19
Filter Housing Assembly
1
8
17X200
Main Frame
1
9*
17X154
Velcro Belt
1
10*
17W295
Vacuum Dust Collection Bag (Continuous, 20 meters)
1
17X925
Blower Pulley, 3”
1
17X927
Bushing, Blower Pulley
1
12
17X202
Belt Guard
1
13
17X924
V-Belt
1
17W966
Engine Pulley, 5”
1
17X926
Bushing, Engine Pulley
1
15
17W422
13 hp Honda Engine
1
16
17X204
Vacuum Gauge
1
17
17X205
Drum Latch
7
18
17W132
Warning Label, Multiple, Icons
1
19
194126
Warning, Fire and Explosion
1
20
16D646
Warning, Hot Surface
3
21
16C394
Warning, Entanglement
2
22
17X930
Continuous Dust Bag Adapter
1
24
N/A
Cable Ties (to tie off bag)
N/A
25
17X928
Blower
1
26
17Y255
Exhaust Diffuser
1
27
115753
33 Amp-Hour Sealed Battery (not shown)
1
11
14
 Replacement warning, safety labels, tags, and cards are available at no cost.
* LazerVac 550 is shipped with one spare each of items 9 and 10.
3A5577C
15
Parts
Accessories Diagram (LazerVac 550)
Accessories Parts List (LazerVac 550)
Part Number
Description
Qty
17X156
Long Vacuum Hose, Standard, 2” (includes item 19)
1
17X704
Long Vacuum Hose, Heavy Duty, High Temp, 2”
1
10
17X158
Vacuum Extension (set of 2)
1
11
17X162
Vacuum Large Brush
1
12
17X161
Vacuum Small Brush
1
13
17X160
Vacuum Floor Nozzle
1
14
17X159
Vacuum Elbow
1
18
17X163
Y-Connector
1
19
17X164
2” Hose Connector for Standard Hose (LazerVac is shipped with 2 extra connectors)
4
17X693
Short Vacuum Hose, Standard, 2” (includes item 19)
1
17W154
Short Vacuum Hose, Heavy Duty, High Temp, 2”
1
9
20
16
3A5577C
Parts
Lid and Vacuum Release Assembly Diagram (LazerVac 550)
Lid and Vacuum Release Assembly Parts List (LazerVac 550)
Part Number
Description
Qty
1
17X220
Vacuum Release Handle Assembly
1
8
17X227
Lower Lid
1
9
17X168
1/4-20 Acorn Nut
4
10
17W228
1/4” Lock Washer
4
11
17X174
1/4-20 Coupling Nut
4
12
17W259
1/4-20 Hex Nut
4
13
17X233
1/4-20x1 1/4 Hex Head Bolt
4
3A5577C
17
Parts
Filter Bag Assembly Diagram (LazerVac 550)
Filter Bag Assembly Parts List (LazerVac 550)
Part Number
Description
Qty
1
17X235
Filter Funnel Base
1
2
17X236
Filter Seal
1
3
17X237
Filter Base Plate
1
4
17X238
Filter Bag (set of 7)
1
10
17X244
Wire Net and Spring Kit
1
18
3A5577C
Parts
Air Filter Assembly Diagram (LazerVac 550)
Air Filter Assembly Parts List (LazerVac 550)
Part Number
Description
Qty
1
17X245
Filter Main Casing
1
2
17X246
Filter Casing Lid
1
3
17Y254
Air Filter, set of 2
1
4
17X248
Relief Valve
1
3A5577C
19
Parts
Cyclone 32 Assembly and Accessories Diagram
20
3A5577C
Parts
Cyclone 32 Assembly and Accessories Parts List
Part Number
Description
Qty
1
17X206
Lid Funnel
1
4
17X209
Lid Base
1
8
17X196
Cyclone Ring, Metal
1
9
17X197
Cyclone Seal, Rubber
1
10
17X215
Dust Bag Holder
1
11
17X216
Dust Bag (35” x 47”) (set of 20)
1
12
17X217
Separator Main Frame
1
24*
17X693
Short Vacuum Hose, Standard 2” (to connect to LazerVac)
1
* 2” Heavy Duty, High Temperature Hose Available (P/N 17W154)
3A5577C
21
Technical Data
Technical Data
LazerVac 550 (25M860), 13 HP Gasoline
Air Flow (full throttle, without hose) - 295 cfm (501 m3 /hour)
Air Flow (full throttle, with 2” x 30’ hose, no Y-Connector) - 216 cfm (367 m3 /hour)
Vacuum Pressure (no flow) - 148” H20 (276 mm Hg, 0.37 bar)
Maximum Air Power (without hose) - 2045 Air-Watts
Filtration - 99.3% at 0.3 μm particle size
Dimensions/Weight (unpackaged)
US
Height
72 in.
Length
48 in.
Width
35 in.
Weight
575 lb
All trademarks or registered trademarks are the property of their respective owners.
22
Metric
183 cm
122 cm
89 cm
260 kg
3A5577C
Graco Standard Warranty
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs
will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
3A5577C
23
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A5577
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2018, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision C, January 2019

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
