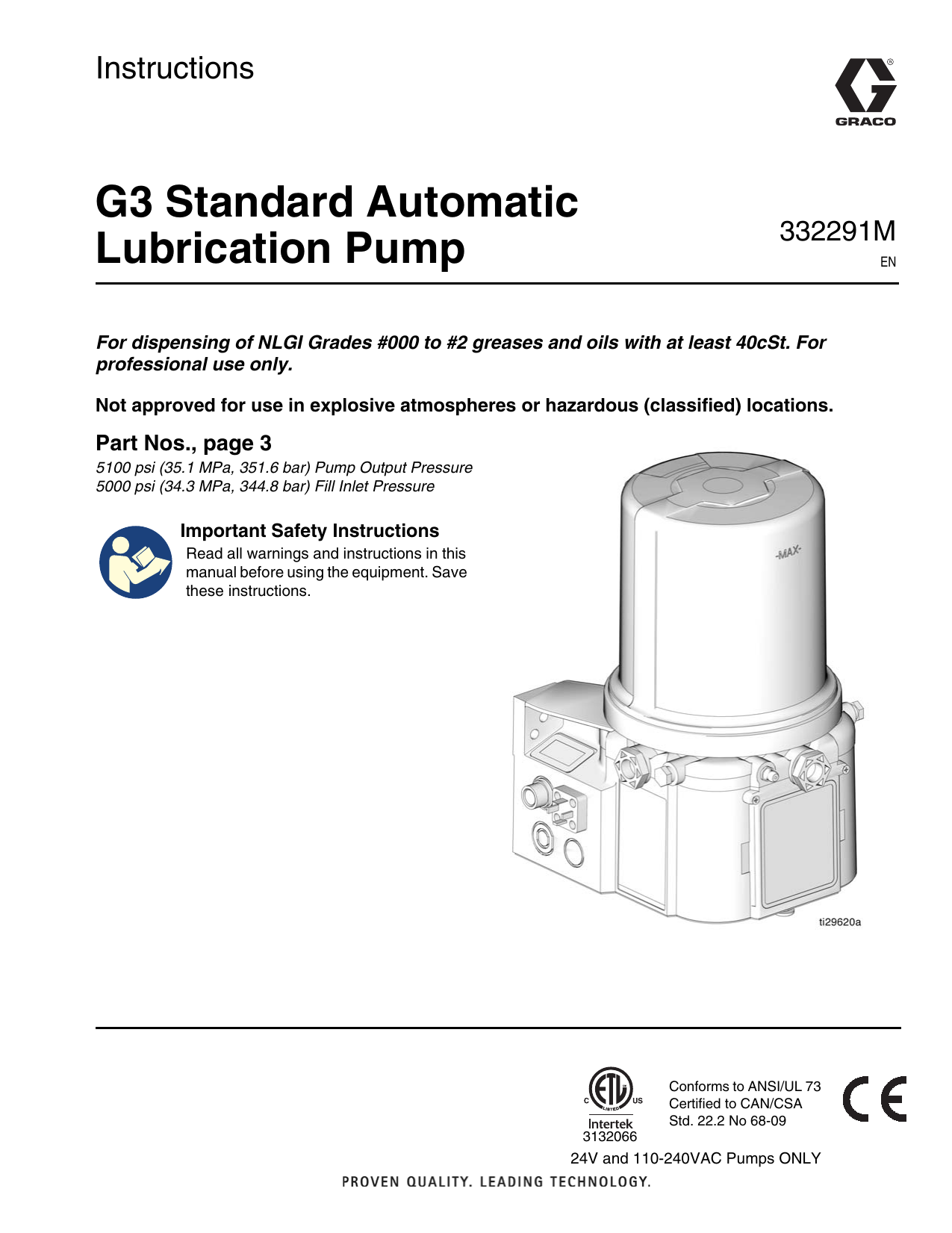

Graco 332291M, G3 Standard Automatic Lubrication Pump Instructions

Instructions
G3 Standard Automatic
Lubrication Pump
332291M
EN
For dispensing of NLGI Grades #000 to #2 greases and oils with at least 40cSt. For
professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Part Nos., page 3
5100 psi (35.1 MPa, 351.6 bar) Pump Output Pressure
5000 psi (34.3 MPa, 344.8 bar) Fill Inlet Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment. Save
these instructions.

Conforms to ANSI/UL 73 
Certified to CAN/CSA 
Std. 22.2 No 68-09
3132066
24V and 110-240VAC Pumps ONLY
Contents
Part / Model Numbers ................................................. 3
2 Liter Models . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4 Liter Models . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
8 Liter Models . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
12 Liter Models . . . . . . . . . . . . . . . . . . . . . . . . . . 3
16 Liter Models . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Understanding the Model Number . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Component Identification ............................... 8
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . 9
Series Progressive Divider Valve .................. 9
Injector Installations ....................................... 9
Typical Installation - With Remote Fill Manifold 10
Optional Installation - Without Remote Fill 
Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Choose an Installation Location . . . . . . . . . . . . 12
System Configuration and Wiring . . . . . . . . . . . 12
Grounding .................................................... 12
Fuses ........................................................... 13
Recommendations for Using Pump in 
Harsh Environments .............................. 13
Wire and Installation Diagrams .................... 13
Power DIN AC - 15 foot ............................... 13
Power DIN DC - 15 foot ............................... 14
Power CPC DC - 15 foot ............................. 14
Power CPC DC - With Low Level ................ 15
Low Level Outputs ....................................... 15
Part No. 124333: Cable Pin Out (M12) ........ 16
Wire Colors (FIG. 13) ................................... 16
Part No. 124300: Field Wireable Pin 
Out (M12) .............................................. 16
Wire Colors (FIG. 14) ................................... 16
Part No. 124594: 4 Pin Eurofast Male Field
Wireable Connector (FIG. 15) ................ 17
2
Part No. 124595: 5 Pin Eurofast Male Field
Wireable Connector (FIG. 16) ............... 17
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Pressure Relief Procedure . . . . . . . . . . . . . . . . 18
Connect to Auxiliary Fightings . . . . . . . . . . . . . . 18
Pressure Relief Valves ................................ 18
Set Pump Outlet Volume . . . . . . . . . . . . . . . . . . 19
Load Pump with Grease . . . . . . . . . . . . . . . . . . 19
Models Without a Follower Plate ................ 20
Models with Top Fill .................................... 20
Models With a Follower Plate ..................... 21
Auto-Fill Shut Off . . . . . . . . . . . . . . . . . . . . . . . . 22
Load Grease ............................................... 22
Change Grease ........................................... 22
Remote Fill with Remote Fill Manifold ......... 22
Remote Fill without Remote Fill Manifold .... 23
Fill the Oil Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Prime the Pump . . . . . . . . . . . . . . . . . . . . . . . . . 25
Pump Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Low Level Output Option ............................ 26
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . . 28
End of Product Life . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Parts - 2 Liter Models . . . . . . . . . . . . . . . . . . . . . . . . 31
Parts - 4 Liter and Larger Models . . . . . . . . . . . . . . 32
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Pressure Relief Valves ................................ 34
Installation and Repair Kits ......................... 35
Reservoir Conversion Kits .......................... 35
Fuses .......................................................... 35
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Mounting Pattern . . . . . . . . . . . . . . . . . . . . . . . . 37
Notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Technical Specifications . . . . . . . . . . . . . . . . . . . . . 39
California Proposition 65 .......................................... 39
332291M
Part / Model Numbers
The Part Number is a six-digit unique number that is only used to order the G3 Pump. Directly related to this six digit
Part Number is the configured Graco Model Number. This configured number identifies the distinct features of a specific G3 Pump. To help you understand each component that makes up the Model Number see Understanding the
Model Number, page 4. The tables below shows the relationship between each Part Number and its related Model
Number.
2 Liter Models
Part
Numbers
96G000
96G001
96G002
96G003
96G005
96G006
96G007
96G008
96G050
96G059
96G182
96G239
96G243
8 Liter Models
Part
Numbers
Model Number
G3-G-12NC-2L0000-00C00000
G3-G-24NC-2L0000-00C00000
G3-G-ACNC-2L0000-0D000000
G3-G-12NC-2L0A00-L0C00000
G3-G-24NC-2L0A00-L0C00000
G3-G-24NC-2LFA00-L0C00000
G3-G-ACNC-2L0A00-LD000000
G3-G-ACNC-2LFA00-LD00000
G3-A-24NC-2L0A00-L0C00000
G3-A-ACNC-2L0A00-LD000000
G3-G-24NC-2L0A00-0D00L000
G3-G-24NC-2L0A06-00C00000
G3-G-24NC-2L0A00-0D00L000
X
X
X
X
X
X
X
X
X
X
X
4 Liter Models
Part
Numbers
96G038
96G040
96G042
96G044
96G048
96G051
96G053
96G055
96G060
96G062
96G173
96G179
96G184
96G210
96G180
96G202
96G204
96G238
332291M
Model Number
G3-G-12NC-4L0L00-00C00000
G3-G-24NC-4L0000-00C00000
G3-G-ACNC-4L0000-0D000000
G3-G-12NC-4L0A00-L0C00000
G3-G-24NC-4L0A00-L0C00000
G3-A-24NC-4L0A00-L0C00000
G3-G-24NC-4LFA00-L0C00000
G3-G-ACNC-4L0A00-LD000000
G3-A-ACNC-4L0A00-LD000000
G3-G-ACNC-4LFA00-LD000000
G3-G-ACNC-4LFA00-0D00L000
G3-G-ACNC-4LFA00-0D00L000
G3-G-24NC-4L0A00-0D00L000
G3-G-24NC-4LAA00-0D00L000
G3-G-24NC-4L0A02-L0C00000
G3-G-ACNC-4L0A00-0D00L000
G3-G-24NC-4LFA00-0D00L000
G3-G-24NC-4L0A06-00C00000
Model Number
96G039
96G041
G3-G-12NC-8L0000-00C00000
G3-G-24NC-8L0000-00C00000
96G043
G3-G-ACNC-8L0000-0D000000
96G045
G3-G-12NC-8L0A00-L0C00000
96G049
G3-G-24NC-8L0A00-L0C00000
96G052
G3-A-24NC-8L0A00-L0C00000
96G056
96G061
96G187
96G189
96G192
G3-G-ACNC-8L0A00-LD000000
G3-A-ACNC-8L0A00-LD000000
G3-G-ACNC-8LFA00-0D00L000
G3-G-24NC-8L0A00-0D00L000
G3-G-24NC-8LFA00-L0C00000
96G198
G3-G-24NC-8L0A06-0C000000
96G207
96G213
96G217
96G205
96G233
96G262
G3-G-ACNC-8LAA00-LD000000
G3-G-24NC-8LAA00-0D00L000
G3-G-24NC-8LAA06-00C00000
G3-G-24NC-8LFA00-0D00L000
G3-G-12NC-8L0A00-0D00L000
G3-G-24NC-8LLA06-00C00000
X
X
X
X
X
X
X
X
X
X
X
X
X
X
12 Liter Models
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Part
Numbers
96G057
96G171
96G199
96G240
Model Number
G3-G-ACNC-120A00-LD000000
G3-G-24NC-120000-00C00000
G3-G-24NC-120A00-L0C00000
G3-G-24NC-120A00-0D00L000
X
X
X
X
16 Liter Models
Part
Numbers
96G058
96G172
96G220
96G230
96G237
96G241
Model Number
G3-G-ACNC-160A00-LD000000
G3-G-24NC-160000-00C00000
G3-G-24NC-160A00-L0C00000
G3-G-12NC-160A00-0D00000
G3-G-ACNC-16AA00-LD000000
G3-G-24NC-160A00-0D00L000
X
X
X
X
X
3
Understanding the Model Number
Use the Code Sample provided below to identify each component’s location in the Model Number. The options for
each component that make up the code are provided on the lists below.
NOTE: Other pump configurations are available that are not documented in this manual. Contact Graco Customer
Service or your local Graco distributor for assistance.
G
3
-
Code Sample:
a
b
Code a: Pump Fluid Type
•
•
G = Grease
A = Oil
12 = 12 Volts DC
24 = 24 Volts DC
AC = 100 - 240 Volts AC
NC = No Controller
Code dd: Reservoir Capacity (Liters)
•
•
•
•
•
-
d
d
e
f
0
g
0
g
-
h
i
0
0
k m n
j
0
p
0
q
Code f: Low Level Option
A = External Low Level
0 = No Low Level monitoring
Code gg: Options
Code cc: Operation Control
•
N C
c c
•
•
Code bb: Power Source
•
•
•
b
2L = 2 Liters
4L = 4 Liters
8L = 8 Liters
12 = 12 Liters
16 = 16 Liters
•
•
00 = No Options
06 = Low Level in CPC
Code h, i, j, k, m, n, p, q
NOTE: Codes g - p relate to a specific location on the
G3 pump. See FIG. 1 for these locations.
•
•
•
•
C = CPC
D = DIN
L = Low Level
0 = Not populated


Code e: Reservoir Feature
•
•
•
•
F = Follower Plate Installed
0 = No Follower Plate
A = Auto-Fill Shut Off
L = Top Fill
i
n
h
j
q
k
m
p
FIG. 1
4
332291M
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks.
When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this
manual where applicable.
WARNING
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause
electric shock.
•
•
•
Turn off and disconnect power at main switch before disconnecting any cables and before servicing
or installing equipment.
Connect only to grounded power source.
All electrical wiring must be done by a qualified electrician and comply with all local codes and
regulations.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•
•
•
•
•
•
•
•
•
•
•
•
332291M
Do not operate the unit when fatigued or under the influence of drugs or alcohol.
Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Specifications in all equipment manuals.
Use fluids and solvents that are compatible with equipment wetted parts. See Technical
Specifications in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For
complete information about your material, request Safety Data Sheets (SDSs) from distributor or
retailer.
Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
Make sure all equipment is rated and approved for the environment in which you are using it.
Use equipment only for its intended purpose. Call your distributor for information.
Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
Do not kink or over bend hoses or use hoses to pull equipment.
Keep children and animals away from work area.
Comply with all applicable safety regulations.
5
Warnings
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
•
•
•
•
•
•
Do not point dispensing device at anyone or at any part of the body.
Do not put your hand over the fluid outlet.
Do not stop or deflect leaks with your hand, body, glove, or rag.
Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or
servicing equipment.
Tighten all fluid connections before operating the equipment.
Check hoses and couplings daily. Replace worn or damaged parts immediately.
PRESSURIZED EQUIPMENT HAZARD
Over-pressurization can result in equipment rupture and serious injury.
•
•
A pressure relief valve is required at each pump outlet.
Follow the Pressure Relief Procedure in this manual before servicing.
PLASTIC PARTS CLEANING SOLVENT HAZARD
Many cleaning solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.
•
•
6
Use only compatible solvents to clean plastic structural or pressure-containing parts.
See Technical Specifications in all equipment manuals for materials of construction. Consult the
solvent manufacturer for information and recommendations about compatibility.
332291M
Warnings
WARNING
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
•
•
•
Keep clear of moving parts.
Do not operate equipment with protective guards or covers removed.
Equipment can start without warning. Before checking, moving, or servicing equipment, follow the
Pressure Relief Procedure and disconnect all power sources.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not
limited to:
•
•
332291M
Protective eyewear, and hearing protection.
Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
7
Installation
Installation
Component Identification
Oil Models
Top Fill Models
M
Grease Models
A
P
Auto-Fill Shut Off Models
Grease Models with
Follower Plate
N
E
L
K
H
D
F
J
96GXXX
G3-G-24NC-2L0A00-L0C00000
I
B
FIG. 2
Key:
A
B
C
D
E
F
G
8
Reservoir
Adjustable Pump Element (1 included. Can accommodate
3 total)
Pressure Relief Valve (Not included (not shown) / required
for each outlet - Available from Graco. See Parts, page
34.)
Zerk Inlet Fill Fitting (1 included / grease models only)
Pump Outlet Plug (2 included)
Volume Control Spacers (2 included. More spacers = less
output volume per stroke) (also see FIG. 18, page 19)
Fuse (DC models only - Not included, not shown.
Available from Graco. See Parts, page 34.)
H
I
J
K
L
M
N
P
Power / Sensor Panel (both sides; only one side shown)
Part Number / Model Number example only shown, (see
page 4, Understanding the Model Number, for details)
Power Cord (DIN shown)
Follower Plate (grease models only / not available on all
grease models)
Vent Hole for Follower Plate (grease models only / not
available on all grease models)
Fill cap (oil models only)
Auto-Fill Shut Off
Top Fill Lid
332291M
Installation
Typical Installation
Series Progressive Divider Valve
B
C
D
E
A
F
FIG. 3
Injector Installations
H
B
E
C
D
A
F
G
FIG. 4
Key
A
B
C
D
E
Connected to fused power source
Pressure relief valve (Not included/ required for each outlet - user supplied. See Parts, page 34)
Supply Hose (user supplied)
Series progressive divider valves (Divider Installations)
- Injectors (Injector Installations)
To lube points
332291M
F
G
H
- Proximity Switch (Divider Installations)
- Pressure switch (Injector Installations)
Vent valve (Not included / available from Graco. See
Parts, page 35.)
Return to reservoir
9
Installation
Typical Installation - With Remote Fill Manifold
The installation shown is only a guide for selecting and installing system components. Contact your Graco distributor
for assistance in planning a system to suit your needs.
R
N
B
F
H
C
J
D
T
S
Q
P
M
K
A
E
L
FIG. 5
Key:
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
G3 Pump
Auto-Fill Shut Off Valve
Auto-Fill Inlet
G3 Reservoir
Remote Fill Reservoir
Remote Fill Pump
Supply Hose (user supplied)
Air Supply to Refill Pump
Supply Hose (user supplied)
Pressure Relief Valve
Drain Hose
Fill Coupler/Inlet (quick disconnect)
Fill Manifold
Fill Manifold Outlet
Fill Manifold Vent Port
Pressure Gauge
Pressure Regulator and Gauge
Pressure Relief Knob

 To relieve the stall pressure in the fill line a fill manifold (N)
must be installed in the system.
10
332291M
Installation
Optional Installation - Without Remote Fill Manifold
The installation shown is only a guide for selecting and installing system components. Contact your Graco distributor
for assistance in planning a system to suit your needs.

NOTE: The remote filling station pump stalls (dead-heads) when the reservoir is full. If the pump does not stall
(dead-head) there is a leak in the system.
H
B
F
S
U
J
C
V
D
Y
L
A
L1
E
L2
W
FIG. 6
Key:
A
B
C
D
E
F
H
J
L
S
U
V
W
Y
G3 Pump
Auto-Fill Shut Off Valve
Auto-Fill Inlet
G3 Reservoir
Remote Fill Reservoir
Remote Fill Pump
Relief Valve
Supply Hose (user supplied)
Drain Tube
L1 Option - To reservoir
L2 Option - To overflow container
Pressure Regulator and Gauge
Pressure Relief Valve
Quick Disconnect
Overflow Container
Supply Hose Pressure Relief Valve
 To relieve the stall pressure in the fill line a ball valve (Y)
must be installed in the system.
332291M
11
Installation
Choose an Installation Location
AUTOMATIC SYSTEM ACTIVATION HAZARD
12
•
Select a location that will adequately support
the weight of the G3 Pump and lubricant, as
well as all plumbing and electrical connections.
•
Refer to the mounting hole layouts provided in
the Mounting Pattern section of this manual,
page 37. No other installation configuration
should be used.
In high vibration environments, additional isolation at mounting point is necessary. See table
below.
•
AC pumps are not recommended when high
vibration or shock is present.
Part No
571159
125910
127665
132187
The system is equipped with an automatic timer that
activates the pump lubrication system when power is
connected or when exiting the programming function.
Unexpected activation of the system could result in
serious injury, including skin injection and amputation.
Before you install or remove the lubrication pump
from the system, disconnect and isolate all power
supplies and relieve all pressure.
•
Description
Reservoir bracket and strap
L-Bracket for pump
USP to G-Series mounting bracket
Isolator mounting kit
System Configuration and
Wiring
Grounding
The equipment must be grounded to reduce the risk
of static sparking and electric shock. Electric or static
sparking can cause fumes to ignite or explode.
Improper grounding can cause electric shock.
Grounding provides an escape wire for the electric
current.
•
Use designated mounting holes and provided
configurations only.
•
Always mount the G3 oil models upright.
•
Mount top fill G3 pump models so that there is a
a minimum clearance of four inches (4.0 in.)
(10.2 cm) above the reservoir to allow for lid
removal and filling.
•
If the G3 grease model is going to be operated
in a tilted or inverted position for any period of
time, you must use a model that includes a follower plate, otherwise the G3 must be mounted
upright. Refer to your model number to confirm
if a follower plate was installed on your pump.
See page 4, Understanding the Model Number to identify this character in your model number.
If the product is permanently connected, it must be:
•
it must be rated for the product electrical specifications.
•
Use the three fasteners (included) to secure the
G3 to the mounting surface.
•
it must be an approved, 3-wire grounding type
attachment plug.
•
Some installations may require an additional
reservoir support bracket. See table below for
bracket information.
•
it must be plugged into an outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
•
when repair or replacement of the power cord or
plug is required, do not connect the grounding wire
to either flat blade terminal.
Improper installation of the grounding conductor may
result in a risk of electric shock. This product must be
installed by a qualified electrician in compliance with
all state and local codes and regulations.
•
installed by a qualified electrician or serviceman.
•
connected to a grounded, permanent wiring system.
If an attachment plug is required in the end use 
application:
332291M
Installation
Fuses
Wire and Installation Diagrams
The following table identifies the wiring and installation
diagrams for the cables included with the pump.
NOTICE
Fuses (user supplied) are required on all DC models. To avoid equipment damage:
•
•
Diagram
Page
Never operate G3 Pump DC models without a
fuse installed.
Power DIN AC
13
A fuse of the correct voltage must be installed in
line with the power entry to the system.
Power DIN DC
14
Power CPC DC
14
Low Level Outputs
15
Fuse Kits are available from Graco. The following Table
identifies the correct fuse to use for the input voltage
and the corresponding Graco Kit number.
Input Voltage
12 VDC
24 VDC
Fuse Value
7.5 A
4A
Graco Kit No.
571039
571040

Power DIN AC - 15 foot
Recommendations for Using Pump in
Harsh Environments
•
Use pump with CPC style power cable.
•
If using a DIN style power or alarm harness with a
right angle mating connector, make sure the connector does not exit the unit in the UP direction.
•
Symbol
Pin and Related Wire Color (FIG. 7)
Use a corrosion preventative electrical grease on all
contacts.
Pin
Pin Name
Color
1
2
3
Line
Neutral
Not Used
Ground
Black
White
Not Used
Green
4
FIG. 7
332291M
13
Installation

Power DIN DC - 15 foot
Pin and Related Wire Color (FIG. 8)

Power CPC DC - 15 foot
Pin and Related Wire Color (FIG. 9)
Pin
Pin Name
Color
Pin
Pin Name
Color
1
2
3
-VDC
+VDC
Not Used
Not Used
Black
White
Not Used
Green
1
2
3
4
5
6
7
Not Used
-VDC
+VDC
Not Used
Not Used
Not Used
Not Used
Not Used
Black
White
Not Used
Not Used
Not Used
Green
4
FIG. 8
FIG. 9
14
332291M
Installation
Power CPC DC - With Low
Level
Pin and Related Wire Color (FIG. 10)
Pin
Pin Name
Color
1
2
3
4
5
6
7
Not Used
-VDC
+VDC
LL N.O.
LL COM
Not Used
Not Used
Not Used
Black
Red
White
Orange
Not Used
Green

Low Level Outputs
See Low Level Output Option, page 26 for functional
description. See Technical Specifications, page 39 for
ratings.
Pins (FIG. 11)
Pin
Pin Name
1
2
3
4
Not Used
Not Used
LL N.O.
LL COM
FIG. 11
Pins (FIG. 12)
Pin
Pin Name
1
2
3
4
LL N.O.
Not Used
LL COM
Not Used
FIG. 10
FIG. 12
332291M
15
Installation
Part No. 124333: Cable Pin Out (M12)
Part No. 124300: Field Wireable Pin Out
(M12)
Wire Colors (FIG. 13)
Item No.
Color
Wire Colors (FIG. 14)
1
2
3
4
Brown
White
Blue
Black
Item No.
1
2
3
4
Color
Brown
White
Blue
Black
FIG. 14
FIG. 13
16
332291M
Installation
Part No. 124594: 4 Pin Eurofast Male Field
Wireable Connector (FIG. 15)
FIG. 15
Part No. 124595: 5 Pin Eurofast Male Field
Wireable Connector (FIG. 16)
FIG. 16
332291M
17
Setup
Setup
Connect to Auxiliary Fightings
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
NOTICE
Do not attach unsupported equipment to auxiliary fittings such as fill ports and pump element. Attaching
unsupported equipment to these fitting can result in
irreparable housing damage.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop dispensing and before
cleaning, checking, or servicing the equipment.
Relieve pressure at the pump element using two
wrenches working in opposite directions on the pump
element and pump element fitting to slowly loosen fitting
only until fitting is loose and no more lubricant or air is
leaking from fitting. Repeat for each pump element
installed (FIG. 17).
NOTE: When loosening pump element fitting, do not
loosen pump element. Loosening pump element will
change the output volume.
•
Always use two wrenches working in opposite
directions when connecting anything to pump element or auxiliary fittings. See FIG. 17 for an example.
•
Torque pump element fittings to 50 in. lbs (5.6
N•m).
•
When connecting pump element into housing
torque to 50 in. lbs (5.6 N•m).
Pressure Relief Valves
To prevent over-pressurization, which can result in
equipment rupture and serious injury, a pressure
relief valve appropriate for the lubrication system
must be installed close to every pump outlet to alleviate unintended pressure rises in the system and protect the G3 pump from damage.
•
Only use a pressure relief valve that is rated for
no more than the working pressure of any component installed in the system. See Technical
Data, page 32.
•
Install a pressure relief valve close to every pump
outlet; before any auxiliary fitting.
NOTE: A pressure relief valve can be purchased from
Graco. See Parts, page 34.
FIG. 17
18
332291M
Setup
Set Pump Outlet Volume
No. Spacers
2
1
0
NOTE:
• Only use Graco supplied spacers to control output
volume.
•
4. Tighten the pump element fitting. Torque fitting to 50
in. lbs. (5.6 N•m).
•
The amount of dispensed volume varies depending
upon external conditions, such as lubricant
temperature and back pressure from downstream
connections.
•
Use of these volume adjustments in conjunction
with setting the ON time of the pump allows for
control of the output volume.
•
Use these volume adjustments as a starting point
and adjust as needed to ensure the desired
lubrication dispense.
It may be necessary to repeat this outlet volume
setup procedure after the pump is operating to
re-adjust the volume of dispensed fluids.
1. Follow the Pressure Relief Procedure, page 18,
before making any adjustments to the pump volume.
2. Use a wrench to turn the pump element counterclockwise to loosen. Do not remove the entire pump
element. Only back the pump element out enough
to allow a spacer to be slid on or off. (FIG. 18).
Output Volume / Minute
cubic inches
cubic cm
0.12
2
0.18
3
0.25
4
Load Pump with Grease
To ensure optimal performance from the G3 pump:
•
Only use NLGI #000 - #2 greases appropriate for
the application, automatic dispensing, and the
temperature. Consult with the machine and lube
manufacturer for details.
•
The reservoir can be filled using a hand operated
pump, a pneumatic pump, or an electric transfer
pump.
FIG. 18
•
Do not overfill the reservoir.
3. If needed, remove or insert spacers to achieve the
required pump output volume. A tool may be
needed to facilitate removal.
•
Do not operate the G3 pump without a reservoir
attached.
The pump volume control is set using no spacers,
one (1) or two (2) spacers (FIG. 18).
NOTICE
•
Always clean the fitting (D) (FIG. 19) with a clean
dry cloth prior to filling the reservoir. Dirt and/or
debris can damage the pump and/or the lubrication system.
•
When changing greases, always use compatible
fluids or greases.
•
Use care when filling the reservoir with a pneumatic or an electric transfer pump, to not pressurize and break the reservoir.
Do not use more than two (2) spacers to adjust the
output volume.
332291M
19
Setup
Models Without a Follower Plate
Models with Top Fill
1. Connect the fill hose to the Zerk Inlet Fill Fitting (FIG.
19).
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and
other body parts.
•
•
•
Keep clear of moving parts.
Do not operate equipment with lid removed.
Disconnect power before removing lid.
1. Disconnect the power from the equipment.
D
NOTE: If battery disconnect is not available, remove the
power cord (FIG. 20).
FIG. 19
2. For higher viscosity fluids, start the pump to rotate
the stirring paddle during fill to prevent air pockets
from forming in the grease. Do not exceed a 30 minute run time.

For models using an external controller, start the
pump operation per your controller specifications.
3. Fill the reservoir with NLGI grease.
NOTE: The vent port located in rear of reservoir, should
not be used as an overfill port/indicator.

4. Remove the fill hose.
FIG. 20
2. Clean the top of the lid and the area around the top
of the reservoir to ensure that no debris falls into the
reservoir when the lid is removed.
3. Turn the lid counterclockwise to remove.
4. Place the lid in a clean area to avoid debris getting
into the inside of the lid or threads.
5. Fill the reservoir with new clean grease.
6. Make sure that no contaminants enter the reservoir.
20
332291M
Setup
NOTICE
Any debris or dirt accidentally introduced into the reservoir should be removed immediately. Do not allow
the pump to operate until any debris or dirt are
removed.
3. Fill the reservoir with grease until the seal of the
follower plate breaches the vent hole and the
majority of air is expelled from the reservoir.
NOTE: The vent port, located in rear of reservoir, should
not be used as an overfill port/indicator.
Operating the pump with debris or dirt in the reservoir,
may damage the pump, down stream equipment, and
bearings.
7. Clean the threads on the reservoir and the lid.
8. Replace the lid on the reservoir, turning clockwise
(approximately 1 3/4 turns).
9. Reconnect the power to the equipment.
Vent Hole
Models With a Follower Plate
1. Connect the fill hose to the inlet fitting (FIG. 19).
2. For higher viscosity fluids, start the pump to rotate
the stirring paddle during filling to prevent air
pockets from forming in the grease. Do not exceed a
30 minute run time.
For models using an external controller, start the
pump operation per your controller specifications.
332291M
FIG. 21
4. Turn off the air supply (H) to the refill pump (F).
5. Remove the fill hose.
21
Setup
Auto-Fill Shut Off
The Auto-Fill Shut Off is used for refilling the G3
reservoir in an automatic lubrication system. As fluid is
added to the reservoir, the plate valve is pushed up to
the top of the reservoir, pushing the valve pin and
closing the inlet fluid path.
COMPONENT RUPTURE HAZARD
The maximum working pressure of each component
in the system may not be the same. To reduce the
risk of over-pressurizing any component in the system, be sure you know the maximum working pressure of each component. Never exceed the maximum
working pressure of the lowest rated component in
the system. Over-pressurizing any component can
result in rupture, fire, explosion, property damage and
serious injury.
When the fluid refilling path closes, the refilling line
pressurizes and brings the refilling pump to a
pressurized stall condition.
NOTE: The operator must monitor the system while
filling the reservoir to prevent overfilling.
Load Grease
Regulate input pressure to the remote fill pump so
that no fluid line, component or accessory is over
pressurized.
To ensure optimal performance from the G3 pump:
•
Only use NLGI #000 - #2 greases appropriate for
the application, automatic dispensing, and the
temperature. Consult with the machine and lube
manufacturer for details.
Remote Fill with Remote Fill Manifold
•
Do not overfill the reservoir.

•
Do not operate the G3 pump without a reservoir
attached.
The fill valve is used to relieve pressure in the refill line
and to reset the Auto Fill Shut Off. See Fill Valve instruction manual 333393. Graco fill valve, part no. 77X542 is
available. Contact your local Graco distributor.
NOTICE
Use care when filling the reservoir with a pneumatic or
an electric transfer pump, to not pressurize and break
the reservoir.
Change Grease
The reference letters used in the following instructions
refer to FIG. 5, pages 10.
1. Pull out and hold the Pressure Relief Knob (T) long
enough to relieve line pressure between Fill Manifold (N) and Auto-Fill Shut Off Valve (B).
2. Verify that the Auto-Fill Shut Off (B) pin is down,
indicating it is reset (FIG. 22).
When changing greases, always use compatible fluids
or greases.
The remote filling station pump stalls (dead-heads)
when the reservoir is full, causing the supply system
pressure to rise to the maximum output pressure
of the filling station pump. To help prevent equipment
damage or serious injury caused by pressurized fluid,
such as skin injection or injury from splashing fluid,
always use a remote filling station pump with a maximum output pressure of 5100 psi (35.1 MPa, 
351.6 bar) and use supply hoses with a minimum
pressure rating of 5100 psi (35.1 MPa, 351.6 bar).
22
pin
down
FIG. 22
332291M
Setup
3. Remove yellow Dust Cover from Fill Coupler (M).
10. Replace yellow Dust Cover over Fill Coupler (M).
4. Connect the Supply Hose (J) between the Remote
Filling Station Pump (F) and the Fill Coupler port
marked with an “I”.
Remote Fill without Remote Fill Manifold
The reference letters used in the following instructions
refer to the FIG. 6, pages 11.
5. Start the Remote Filling Station Pump (F).
6. When the G3 Reservoir (D) is filled:
•
the Remote Filling Station Pump (F) stalls
(dead-heads),
•
the Auto-Fill Shut Off (B) pin pops up as shown
in FIG. 23,
•
the Pressure Gauge (R) rises to the fill pump’s
set pressure.
NOTE: If the pump does not stall (dead-head) there is a
leak in the system.
pin
up
1. A supply hose pressure relief valve (Y) and overflow
container (W) (for collecting excess fluid that drains
during pressure relief) must be installed in an easily
accessible location between the remote filling station pump (F) and the Auto-Fill Shut Off (B). This
pressure relief valve is used to relieve pressure in
the refill line and to reset the Auto-Fill Shut Off. See
Typical Installation, starting on page 10. 

A Pressure Relief Kit: 247902 is available from
Graco. Contact your distributor or Graco Customer
Service for additional information about this kit.
2. Connect Supply Hose (J) at Quick Connect (V).
3. Turn on remote filling station pump (F) and fill the
G3 reservoir (D) until the indicator pin on the
Auto-Fill Valve pushes up as shown in FIG. 24. The
pressure in the refill pump (F) builds and the pump
stalls.
pin
up
FIG. 23
7. Turn off the Remote Filling Station Pump (F).
NO
8. Pull out and hold the Pressure Relief Knob (T) long
enough to relieve line pressure between Fill Manifold (N) and Auto-Fill Shut Off Valve (B) and
between Remote Filling Station Pump (F) and Fill
Manifold (N).
NOTE: The length of time it takes to vent varies depending on the system design and installation. In some
installations it may be necessary to repeat Step 8 to
ensure pressure is relieved.
9. Disconnect Supply Hose (J) at Fill Coupler (M).
332291M
FIG. 24
4. Turn off the air supply (H) to pump (F).
5. Relieve remote filling station pump pressure using
the following Remote Filling Station Pressure Relief
procedure.
23
Setup
Remote Filling Station Pressure Relief
The reference letters used in the following instructions
refer to the FIG. 6, page 11.
The following Pressure Relief Procedure is only
used with the Auto-Fill Shut Off Valve to relieve
remote filling station and lubricant supply line
pressure.
t
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop dispensing and before
cleaning, checking, or servicing the equipment.
a. To relieve pressure between the Refill Pump (F)
and Auto-Fill Shut Off (B), open the Supply
Hose Pressure Relief Valve (Y) (FIG. 25). Pressure will be released and excess fluid will drain
out of the drain tube (L) and into the lubrication
overflow container (W).
Y
L
W
FIG. 25:
b. Close Supply Hose Pressure Relief Valve (Y)
when all pressure has been relieved.
6. Disconnect the supply hose (J) from Quick Connect
(V).
24
332291M
Setup
Fill the Oil Unit
•
Only use oil appropriate for your application, automatic dispensing, and the equipment’s operating
temperature. Consult with machine and lube manufacturer for details.
•
The reservoir can be filled using a hand operated
pump, pneumatic pump or electric transfer pump.
•
Do not overfill (FIG. 26).
•
Do not operate G3 without reservoir attached.
•
Only use oils with viscosity at least 40 cSt.
a
b
FIG. 27
2. Only run pump until air-free lubricant is dispensed
out of element fitting (FIG. 28).
FIG. 26
1. Remove fill cap (a).
2. Pour oil into reservoir to max fill line (b).
3. Replace fill cap. Hand tighten cap, securely.
Prime the Pump
NOTE: It is not necessary to prime pump every time
pump is filled with lubricant.
Pump only requires priming the first time it is used or if it
is allowed to run dry.
1. Loosen pump element fitting (FIG. 27).
FIG. 28
NOTE: When loosening pump element fitting, do not
loosen pump element. Loosening pump element will
change the output volume.
332291M
3. Tighten pump element fitting using two wrenches
working in opposite directions (FIG. 27).
25
Pump Operation
Pump Operation
The G3 Pump can be controlled using an external, user
supplied, power source and controller.
Refer to System Configuration and Wiring, page 12
for required fusing and wiring information.
NOTE:
•
When using an external power source and controller, Pump ON (Run) Time should be set for no longer than 30 minutes.
•
In most cases, Pump OFF (Rest) Time should be
twice as long as Pump ON (Run) time. If alternative
ON / OFF times are required, contact Graco Customer Service for assistance.
Low Level Output Option
Some G3 pumps without controllers include a Low Level
Output Option. It can be configured with an M12 connector in code location “G” or with a DIN connector in
code location “K”. (See Understanding the Model
Number, page 4.) The low level signal is monitored
across PINS 3 and 4. For PIN 3 and 4 locations and wiring information the Low Level Outputs diagram, page
15.
NOTE: A low level warning is triggered when the controller detects PINS 3 and 4 have momentarily closed.
Grease Pumps
When the grease level has reached a low warning level,
PINS 3 and 4 momentarily close (1 time per paddle revolution) sending the signal that the fluid has reached a
low level to the controller.
To ensure that a low level condition has been met, 3 or
more low level triggers must be detected within 1 minute
or less.
See FIG. 29 for an illustration of a typical Low Level Output response to low grease level.
Typical Low Level Output Response with Low Level Fluid in Grease Models
200 ms
Closed
Contact
Position
Open
3s
FIG. 29
26
332291M
Pump Operation
Oil Pumps
When the oil level has reached a low warning level,
PINS 3 and 4 close, sending the signal to the controller
that the fluid has reached a low level.
To ensure that a low level condition has been met, the
low level trigger must be detected for 10 continuous seconds.
See FIG. 30 for an illustration of a typical Low Level Output response to low oil level.
Typical Low Level Output Response with Low Level Fluid in Oil Models
Closed
Contact
Position
Open
FIG. 30
332291M
27
Recycling and Disposal
Recycling and Disposal
End of Product Life
At the end of the product’s useful life, dismantle and
recycle it in a responsible manner.
•
Perform the Pressure Relief Procedure, page 18.
•
Drain and dispose of fluids according to applicable
regulations. Refer to the material manufacturer’s
Safety Data Sheet.
•
Remove motors, batteries, circuit boards, LCDs
(liquid crystal displays), and other electronic
components. Recycle according to applicable
regulations. 
Do not dispose of batteries or electronic
components with household or commercial waste.

Deliver remaining product to a recycling facility.
28
332291M
Troubleshooting
Troubleshooting
Problem
Unit does not power on
Cause
Incorrect/loose wiring
Tripped external fuse due to internal
component failure
Unit does not power on (DC models
only)
Solution
Refer to Installation instructions,
page 8.
Contact Graco Customer Service.
Tripped external fuse due to pumping Replace lubricant with pumpable
non-cold weather lubricant in cold
lubricant, rated for environmental
weather -13°F (-25°C)
conditions and application.
Replace fuse.
Unit does not power on (AC models
only)
Tripped internal power supply fuse
due to power supply failure
Reservoir retaining tabs are cracked
or broken
Contact Graco Customer Service.
Replace reservoir.
Lubricant leaks past seal located on
the bottom of the reservoir
Reservoir is being pressurized during Ensure vent hole is not plugged.
filling
If problem persists, contact Graco
Customer Service or your local
Graco distributor for assistance.
Unit not pumping during ON cycle,
but external controller functions
Failed motor
Replace unit.
Air is trapped in the reservoir
between the follower plate and lubricant
Add grease following Load Pump
with Grease instructions, page 19.
Ensure air is purged.
Pump takes several minutes before it Pumping non-cold weather lubricant
begins pumping at the highest pump in cold weather -13°F (-25°C)
volume setting (no stroke adjust
spacers installed)
Add 1 stroke adjust spacer and
adjust lube cycle time to accommodate the difference in pump volume
per stroke.
In an Injector System without sensor Vent valve time needs to be configfeedback, unit does not vent properly ured
Adjust external vent valve control
time.
After wiring and installing equipment, Pump wired backwards
pump is not working (DC models
only)
Rewire pump. See Wire and Installation Diagrams, page 13
Follower plate is not going down
332291M
29
Maintenance
Maintenance
Frequency
Component
Required Maintenance
Daily and at refill
Fill Fittings
Keep all fittings clean using a clean
dry cloth. Dirt and/or debris can damage pump and/or lubrication system.
Daily
G3 Pump Unit and Reservoir
Keep pump unit and reservoir clean
using a clean dry cloth.
Monthly
External Wiring Harness
Verify external harnesses are secure.
30
332291M
Parts - 2 Liter Models
Parts - 2 Liter Models
40b
Follower Plate Models
Low Level Grease Models
45
43
40a
44
35
42
57
27 1
41
16
36
60 23
13
15
Low Level Oil Models
12
14
67
18
3 37
21
66
1
1 Torque
2 Torque
33
3 Torque
17 3
3
42
332291M
31
Parts - 4 Liter and Larger Models
Parts - 4 Liter and Larger Models
1 Torque to 4 in. lbs (0.45 N.m)
4L Top Fill Reservoir
2 Torque to 30 in. lbs (3.4 N.m)
Follower Plate Models
3 Torque to 50 in. lbs (5.6 N.m)
43
40a
44
75
41
42
Auto-Fill Shut Off Models
82
36
83
40b
81
61
85
84
40c
Low Level Grease Models
56
45
62
35
13
14
87
36
57
12
88
18
74
27 1
60
16
1
89 37 3
15
Low Level Oil Models
67
21
45
23
33
73
17 3
72
3
42
32
66
332291M
Parts
Parts
Ref
Part
1
Qty
Ref
BASE, three pump housing
1
40a
40b
Description
Part
Description
Qty
40c
24B702 RESERVOIR, 4 Liter, grease,
included in Kit 571183
16G020 RESERVOIR, 4 Liter, oil, included
in kit 571182
17F484 RESERVOIR, 4 Liter, G3 AFSO
1
1
41
278139
SEAL, follower plate, 2 Liter models
1
16F472
SEAL, follower plate, 4 Liter models
2
3
278142
COVER, bottom, with seal
1
4
115477
SCREW, mach, torx pan hd
9
12
127079
1
13
132524
14
RECT-RING, included in kit
571042, 571069, 571179
O-RING, included in Kit 571042,
571044, 571045, 571069, 571179
PLATE, ricer
1
42
PLATE, follower
1
15
BEARING, ball
1
43
ROD, follower plate
1
16
PADDLE, stirring, 2 Liter models
without follower plate, included in
Kit 571044,
PADDLE, stirring, 4 Liter or larger
models without follower plate
PADDLE, stirring, 2 Liter models
with follower plate, included in Kit
571045
PADDLE, stirring, 4 Liter and larger
models with follower plate
PUMP, element, included in Kit
571041
SPACER, stroke adjust, included in
Kit 571041
PLUG, pump, 3/4-16
1
44
SPRING, compression
1
17
18
16F368
21
278296
2
45† 24D838 BAFFLE, low level, 2 Liter
1
1
24E246 BAFFLE, low level, 4 Liter
1
1
24F836
BAFFLE, low level, 8 Liter
1
24F923
BAFFLE, low level, 12 Liter
1
1
24F924
BAFFLE, low level, 16 Liter
1
1
24F836
BAFFLE, low level, 8 Liter, AFSO
1
56
127144
SEAL, oval
1
57
117156
BEARING, sleeve
1
196548
LABEL, electric shock (not shown)
1
16D984 WASHER, low level models
278135
2
2
23 278942
PADDLE, low level
1
27
123025
SCREW, M6
1
58

60
33

35
16A579
LABEL, safety
1
61
WIPER, stirring, models without follower plate, included in Kit 571044
WIPER, stirring, models with follower plate, included in Kit 571045
LABEL, brand
1
36
37
40a
40b
123741
FITTING, zerk, grease, not included
on oil models
24E984 RESERVOIR, 2 Liter, grease,
included in Kit 571042, 571069
16G021 RESERVOIR, 2 Liter, oil, included
in Kit 571179
332291M
1
2
RESERVOIR, mid-section (see quantity
by size / model below)
8 Liter models
1
12 Liter models
2
16 Liter models
3
ADAPTER, reservoir, 4 Liter models and larger
NUT, oil
1
1
1
62
1
66
1
1
67
278134
24N806 FLOAT, oil models
1
1
72
PLATE, baffle, low level
1
73
SCREW, machine
2
33
Parts
Ref
Part
74
75

81
Description
SPRING, plate, valve, reset
15H108 LABEL, safety, pinch
Qty
1
1
VALVE, AFSO
1
82
BOLT, mounting
1
83
PACKING, o-ring
1
84
PACKING, o-ring
1
85
SEAL, upper, reservoir
1
87
SEAL, lower, reservoir
1
88
SPACER, seal, base
1
89
PLATE, valve
1
200 127783
CABLE,15 ft (4.5 m), SOOW
w/7pos, 3 pin, 90 deg (See Wiring
Diagram, page 14)
16U790 CABLE, DIN, to flying leads (See
Wiring Diagram, page 13)
201 124300 CABLE, M12, 15 ft., 4 wire, straight
male to flying leads (See Wire and
Installation Diagrams, page 13)
124333 CABLE, M12, 15 ft., 4 wire, straight
male to female (See Wiring Diagram, page 16)
202 124301 CONNECTOR, Eurofast, fem,
straight, 4 Pin
124594 CONNECTOR, Eurofast, 4 Pin (see
Wire and Installation Diagrams,
page 13)
124595 CONNECTOR, Eurofast, 5 Pin (see
Wire and Installation Diagrams,
page 13)
1
1
1
1
1
Important Information regarding Pressure Relief
Valve 16C807.
 Pressure Relief Valve 16C807 can only be used
on the G3 Pump. It is not intended for use with any
other products.
The pressure relief valve uses a
pressure adjustment screw (a) to
set the pressure release point. It
is not intended as a way to
relieve pressure during normal
operation, but as a protective
measure in the event there is an
unintended pressure increase in
the system. Do not use this pressure relief valve a means of
relieving pressure in day-to-day,
normal cycle operation.
Part
1
563156
563157
563158
563159
563160
563161
34
b
ti15644
a = adjustment screw
b = locking nut
NOTE: Turning adjustment screw (a) clockwise
increases pressure.
16C807

 Also order Ref 27, Part No. 123025 and Ref 60, Part
No. 16D984
a
The pressure adjustment screw
will require periodic adjustments.
Whenever the valve is set/adjusted (after the set point is
found) it is important to ensure that the valve is not bottomed out and there is at least 1/2 turn of adjustment
remaining. This is determined by turning the screw (a)
1/2 turn and then back turning it out again.
1
Replacement safety labels, tags, and cards are
available at no cost.
† Also order Ref. 57, Part No. 117156 when ordering
this part.
Pressure Relief Valves
Description
Qty
VALVE, pressure relief, 500-3500 psi
(3.44 MPa, 34.4 bar - 24.1 MPa, 241
bar), Set pressure 3000 psi + 10%
(20.68 MPa, 206.8 bar + 10%)
Included in Kit 571028
VALVE, pressure relief, 750 psi (5.17
MPa, 51.71 bar)
VALVE, pressure relief, 1000 psi (6.89
MPa, 68.95 bar)
VALVE, pressure relief, 1500 psi
(10.34 MPa, 103.42 bar)
VALVE, pressure relief, 2000 psi
(13.78 MPa, 137.89 bar)
VALVE, pressure relief, 2500 psi
(17.23 MPa, 172.36 bar)
VALVE, pressure relief, 3000 psi
(20.68 MPa, 206.84 bar)
1
1
1
1
1
1
1
332291M
Parts
Installation and Repair Kits
Kit No.
Description
571026
571063
KIT, output union, 3 pump
KIT, output union, 2 pump
KIT, return to reservoir NPT,
includes pressure relief valve
16C807
KIT, return to reservoir BSPP,
includes pressure relief valve
16C807
KIT, vent valve, 12 volt DC, NO,
NPT DEU
KIT, vent valve, 24 volt DC, NO,
NPT DEU
KIT, vent valve, 115 VAC, NO, NPT,
DIN
KIT, vent valve, 230 VAC
KIT, cover with “G” label
KIT, pump element, includes Ref
17, 18, 33
KIT, repair, 2 liter reservoir,
includes Ref 13, 36, 40
KIT, repair, 2 liter reservoir, for
models with follower plate, includes
Ref 13, 36, 40
KIT, replacement, paddle, 2 liter, for
models without follower plate,
includes Ref 13, 16, 35, 57
KIT, replacement, paddle, 2 liter, for
models with follower plate, includes
Ref 13, 16, 35,40a, 42, 57
KIT, replacement, paddle, 4-16 liter,
for models without follower plate,
includes Ref 13, 16, 35, 57
KIT, replacement, paddle, 4 liter, for
models with follower plate, includes
Ref 13, 16, 35, 57
KIT, output adapter, NPT
KIT, output, adapter, BSPP
KIT, fill, zerk, leakproof
KIT, repair, reservoir oil, 2 liter models, includes Ref 13, 36, 40b
KIT, repair, reservoir, oil 4 liter models, includes Ref 13, 36, 40b
KIT, repair, reservoir, grease, 4 liter
models, includes Ref 13, 36, 40b
RING, fixing, for CPC connector
FILLER CAP
571028
571071
24M478
24M479
24M480
24N182
571036
571041
571042
571069
571044
571045
571046
571047
571058
571070
571060
571179
571182
571183
127685
16G022
332291M
Reservoir Conversion Kits
Manual
Number
3A0523
3A0525
Kit No.
Description
571155
571156
571157
571158
571229
KIT, reservoir conversion, 4 Liter
KIT, reservoir conversion, 8 Liter
KIT, reservoir conversion, 12 Liter
KIT, reservoir conversion, 16 Liter
KIT, reservoir conversion, 4L Top
Fill
Manual
Number
3A1260
3A8295
Fuses
Part
3A0526
Description
Qty
571039 FUSE, 7.5 A for 12 volt DC
1
571040 FUSE, 4A for 24 volt DC
1
NA
3A0533
3A0534
3A0535
3A0522
NA
3A0534
NA
NA
35
Parts
Dimensions
Model
2L
4L
4L Top Fill
8L
8L Top Fill
12L
12L Top Fill
16L
16L Top Fill
36
Height
Depth
Width
Inches
cm
Inches
cm
Inches
cm
13.25
14.50
15.50
18.50
19.50
23.00
24.00
27.50
28.50
33.65
36.83
39.38
47.00
49.53
58.42
60.96
69.85
72.39
8.00
9.25
9.25
9.25
9.25
9.25
9.25
9.25
9.25
20.32
23.50
23.50
23.50
23.50
23.50
23.50
23.50
23.50
9.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
10.00
22.86
25.40
25.40
25.40
25.40
25.40
25.40
25.40
25.40
332291M
Parts
Mounting Pattern

(For correct mounting configuration, choose either Option 1 or Option 2). See P/N 126916 template.
Option 1
0.367inch
9.3 mm
7.087 inch
180.0 mm
2x Ø 0.366 inch
9.3 mm
1.180 inch
30.0 mm
3.268 inch
83.0 mm
3.544 inch
90.0 mm
Option 2
0.722 inch
18.3 mm
6.378 inch
162.0 mm
2x Ø 0.366 inch
9.3 mm
0.708 inch
18.0 mm
3.740 inch
95.0 mm
3.189 inch
81.0 mm
FIG. 31
332291M
37
Notes:
Notes:
38
332291M
Technical Specifications
Technical Specifications
G3 Standard Automatic Lubrication Pump
Pump output pressure
Fill inlet pressure
Power
100 - 240 VAC
12 VDC
24 VDC
Outputs - Low Level (Dry Contact)
Contact rating
Switch rating
Switching current
Carry current
Fluid
Grease Models
Oil Models
Pumps
Pump Outlet
Reservoir Size
IP Rating
Ambient Temps
Noise (dBa)
Maximum sound pressure
Weight (Dry - includes power cord and plug)
Without follower plate
With follower plate
Wetted Parts
US
5100 psi
5000 psi
Metric
35.1 MPa, 351.6 bar
34.4 MPa, 344.7 bar
88 - 264 VAC; 0.8 A current, 90 VA Power, 47/63 Hz, Single phase,
inrush/locked rotor, max 40 A (1ms)
9 - 16 VDC; 5A current, 60 W, inrush/locked rotor 12 A
18 - 32 VDC; 2.5 A current, 60 W, inrush/locked rotor 6 A
10 W Maximum
30 VDC Maximum
0.5 A Maximum
1.2 A Maximum
Grease NLGI #000 - #2
At least 40 cSt oil
Up to 3
1/4-18 NPSF, Mates with 1/4-18 npt male fittings
2, 4, 8, 12, 16 Liters
IP69K
-40°F - 158°F
-40°C - 70°C
<70dBa
13.3 lb.
6.03 kg
14.2 lb.
6.44 kg
nylon 6/6 (PA), amorphous polyamide, T5004-060, zinc plated steel,
carbon steel, alloy steel, stainless steel, nitrile rubber (buna-N),
bronze, nickel plated alnico, chemically lubricated acetal, aluminum,
PTFE
All trademarks or registered trademarks are the property of their respective owners.
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.
332291M
39
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 332291
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2013, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision M, January 2021

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
