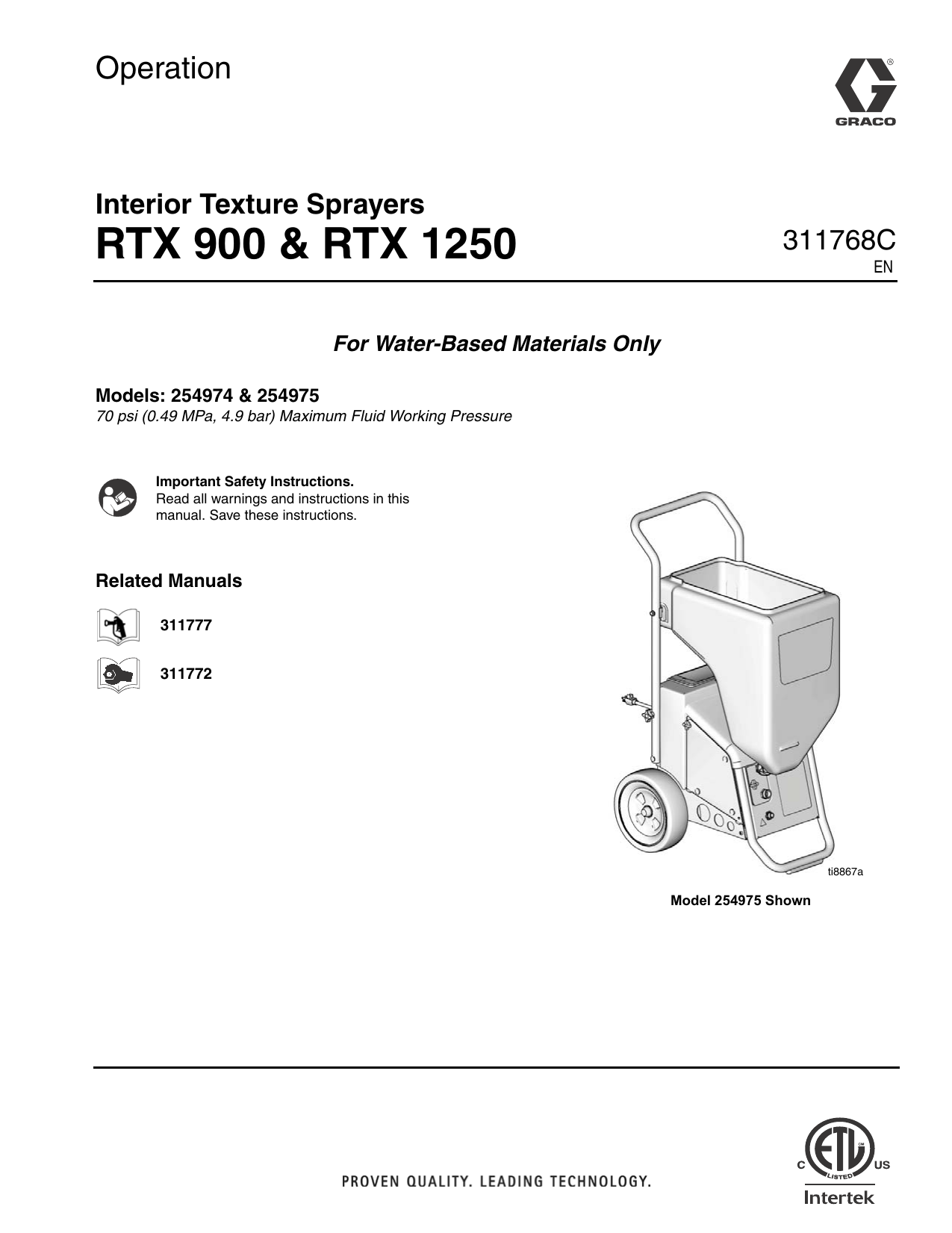

Graco 311768C - RTX 900 & RTX 1250 Interior Texture Sprayers Owner's Manual

Operation
Interior Texture Sprayers
RTX 900 & RTX 1250
311768C
EN
For Water-Based Materials Only
Models: 254974 & 254975
70 psi (0.49 MPa, 4.9 bar) Maximum Fluid Working Pressure
Important Safety Instructions.
Read all warnings and instructions in this
manual. Save these instructions.
Related Manuals
311777
311772
ti8867a
Model 254975 Shown
Warnings
Warnings
The following are general warnings related to the setup, use, grounding, maintenance and repair of this equipment.
Additional, more specific warnings may be found throughout the body of this manual where applicable. Symbols
appearing in the body of the manual refer to these general warnings. When these symbols appear through the manual, refer back to these pages for a description of the specific hazard.
Warnings
Fire and Explosion Hazard
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in
fire or explosion and serious injury.
•
The system is for use with water-based materials only. Only use fluids compatible with the equipment.
Refer to Technical Data of all equipment manuals. Read fluid and solvent manufacturers warnings.
•
Ground the equipment. See Grounding and Electrical Requirements, page 6.
•
If there is any static sparking or you feel an electric shock while using this equipment, stop spraying
immediately. Do not use the equipment until you identify and correct the problem.
•
Keep work area free of debris, including solvent, rags and gasoline.
•
Comply with all applicable state and national fire, electrical and safety regulations.
Equipment Misuse Hazard
Equipment misuse can cause equipment to rupture, malfunction, or start unexpectedly and cause serious
injury.
2
•
Before operating this equipment, read all manuals, tags, and labels including material labels and
instructions.
•
Do not expose system to rain. Always store system indoors.
•
Do not alter or modify equipment.
•
Do not spray cementitious materials.
•
Do not exceed maximum working pressure of lowest rated component in your system.
•
Check equipment daily. Repair or replace worn or damaged parts immediately.
•
To reduce risk of serious injury, including electric shock and splashing fluid in eyes, follow Pressure
Relief Procedure on page 6 before servicing the unit.
•
Do not use hoses to pull equipment.
•
Route hoses away from traffic areas, sharp edges, moving parts and hot surfaces.
•
Do not expose Graco hoses to temperatures above 130 °F (55 °C) or below -35 °F (-37 °C). Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state and
national guidelines.
•
Never directly inhale compressed air. Compressed air may contain toxic vapors.
Warnings
Warnings
Burn Hazard
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns,
do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
Electric Shock Hazard
To reduce the risk of electric shock:
•
Be sure sprayer is adequately grounded through electrical outlet.
•
Use only 3-wire, extension cords.
•
Make sure ground prongs are intact on sprayer and extension cords. Improper installation of grounding
plug will result in a risk of electrical shock, fire or explosion that could cause serious injury or death.
•
Do not operate with cover removed.
•
Turn off sprayer. Follow Pressure Relief Procedure, page 6, and unplug unit, before removing any
parts.
Pressurized Equipment Hazard
Fluid from gun, leaks or ruptured components can splash in the eyes or on skin and cause serious injury.
•
Follow Pressure Relief Procedure, page 6 when you stop spraying and before cleaning, checking or
servicing.
•
Do not point spray gun at anyone; put hand, fingers or rag over nozzle, or stop or deflect leaks with your
hand, body, glove, or rag.
•
Wear protective clothing, gloves, and eyewear.
Cleaning Solvent Hazard with Plastic Parts
Use only compatible water-based solvents to clean plastic structural or pressure-containing parts. Many
solvents can degrade plastic parts to the point where they could fail. Such failure could cause serious injury
or property damage. See Technical Data on page 16 of this instruction manual and in all other equipment
manuals. Read fluid and solvent manufacturer’s warnings.
Personal Protective Equipment
You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes,
burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing Protection
3
Warnings
CAUTION
• Water or material remaining in unit when temperatures are below freezing can damage motor
and/or delay pump startup. Do not allow unit to freeze.
• Before adding material or starting unit in cold weather, run warm water through pump.
To ensure water and material are completely drained out of unit:
ti9016a
1. Remove material line from sprayer.
2. Tip sprayer up as shown.
Before adding material to the hopper, install the burp guard. When only a small amount of
material remains in the hopper, the burp guard prevents material from shooting out when the
unit is turned off. This material could splash in the operator’s eyes or on skin, or into the air.
ti9010a
4
Component Identification
Component Identification
Model 254975 Shown
A
H
U
bb
J
cc
V
B
S
T
W
K
C
Y
L
D
M
P
N
R
E
ti8939a
F
G
Item
Component
Item
Component
A
Handle
N
Burp Guard
B
Toolbox
P
Material/Air Hose
C
Power Cord (120V, 25 ft)
Q
Accessories Bag
D
Side Pump Access Panel (RTX 1250 Only)
R
Material Thickness Gauge
E
RotoFlex™ II Pump (inside)
S
Nozzle
F
Pump Hose Outlet
T
Hose Plug
G
Air Hose Outlet
U
Touch-Up Hopper (3/4 gallon)
H
Material Flow Gauge
V
Gun Plug
J
Material Flow Control
W
Hopper Gun
K
ON/OFF Switch
Y
Air Control
L
Selector Switch
bb
Gun Plug Clip
M
Material Hopper - 10 gallon, RTX 900
Material Hopper - 12 gallon, RTX 1250
cc
Hopper Clamp
5
Preparation
Preparation
Pressure Relief Procedure
To reduce risk of injury, follow this procedure
whenever you see this symbol throughout this
manual, Also, perform this procedure whenever
you:
•
Stop spraying
•
Check or repair any part of this system
•
Install or clean spray nozzle
Check with a qualified electrician or serviceman if
grounding instructions are not completely understood,
or if in doubt as to whether the product is properly
grounded. Do not modify plug provided; if it will not fit
the outlet, have proper outlet installed by a qualified
electrician.
Air hose fittings can get hot! Allow sprayer to cool
down 15 minutes before removing air hose.
120V AC Systems
1. Turn Power Switch OFF.
•
This equipment requires a
120V AC, 60 Hz, 15A circuit
with a grounding receptacle.
Do not use an adapter with
this product.
ti2810a
Extension Cords
ti9221a
•
Use only an extension cord with an undamaged,
3-prong plug.
•
For 25 to 50 ft (7.6 to 15.2 m) cords, use 3-wire, 14
AWG (1.5 mm2) minimum.
•
For up to 100 ft. (30.48 m) cord, use 3-wire, 12 AWG
(2.5 mm2) minimum.
2. Trigger gun into material hopper.
ti9084a
3. Open gun air valve.
Auxiliary Air Compressor
Do not use an auxiliary air compressor with this spray
system.
Generator Requirements
3500 W (3.5 kW) minimum.
ti8711a
Grounding and Electrical Requirements
This sprayer must be grounded. Grounding reduces the
risk of electrical shock by providing an escape wire for
the electrical current. The sprayer cord includes a
grounding wire with an appropriate grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
6
Hose Size and Length
The system comes with a hose set consisting of a 3/4 in.
ID x 25 ft (25 mm x 7.6 m) material hose and a 3/8 in-ID
air hose.
Do not use more than 25 ft (7.6 m) of material hose.
Setup
Setup
Important
•
If you are going to stop spraying for more than 5 minutes, turn sprayer off to prevent shortened pump hose life.
•
Do not allow material to dry inside pump, hoses, gun or spray system.
4. Connect material hose to gun.
Texture Spraying (material supplied from
unit)
ti8705a
When using material
supplied from unit, insert
the Gun Plug in the top of
the gun. Hose plug must
be removed from bottom
of gun.
5. Make sure burp guard is installed, Caution, page 3.
ti8701a
1. Connect air hose and material hose to sprayer air
and material hose outlets.
ti9010a
6. Install spray nozzle. See Recommended Nozzle
Selection Chart, Page 11.
ti9216a
2. Open air valve.
ti8528a
3. Connect air hose to gun.
ti8534a
ti8706a
7. Fill material hopper with 1 gallon of water.
ti9215a
8. Turn hopper gun/spray gun selector switch to
SPRAY GUN.
ti9219a
7
Setup
Touch Up Hopper Attachment
9. Turn power switch ON.
CAUTION
Failure to change selector switch to Hopper Gun when
using hopper gun will damage pump hose.
ti9222a
The Hose Plug must be
securely fastened to bottom
of gun when using the
Touch Up Hopper. Gun plug
must be removed from top
of gun.
10. Close gun air valve.
ti8701a
ti8712a
11. Point gun into waste bucket and pull trigger to pump
water through the system. Continue to trigger gun
until material hopper is empty.
1. Connect air hose to sprayer.
2. Connect air hose to gun.
ti9084a
12. Add pre-mixed texture mix to material hopper. See
Mixing Material, page 10.
13. Continue to trigger gun and spray into waste bucket
until a steady stream of material sprays out of gun.
ti8534a
3. Slide hopper on top of gun, and tighten clamp.
4. Install spray nozzle. Page 11.
14. Release trigger. To achieve uniform spray pattern,
adjust air valve and flow adjustment nut on gun. If
you do not achieve the desired pattern, change nozzles, page 11.
ti8535a
5. Fill Touch-up hopper with pre-mixed texture. See
Mixing Material, page 10.
ti8532a
ti2559a
Fluid flow will be restricted if the material hose is
kinked.
8
Setup
6. Turn hopper gun/spray gun selector switch to HOPPER GUN.
ti9220a
7. Open gun air valve.
ti8528a
8. Turn power switch ON.
ti9222a
9. To achieve uniform spray pattern, adjust air valve
and flow adjustment nut on gun. If you do not
achieve the desired spray pattern, change nozzles
(see page 11).
ti8532a
9
Mixing Material
Mixing Material
Correct material mixture is essential. The pump
will not operate if the mixture is too thick.
Mix the material in a separate container before
pouring it into hopper.
5. Observe the ball on the material. When the material
is thin enough to spray the ball will sink completely
into the mixture.
READY
ADD WATER
Use Material Thickness Gauge to determine mixture is thin enough to spray.
*The Material Thickness Gauge will only determine if the material is thin enough to pass through
the pump. For some applications or for higher
speed spraying, your mixture may need to be thinner.
Dry Mix - 40 lb (18 kg) bag
For best results, do not use partial bags of material.
ti2498a
6. If the ball does not sink completely into the mixture
within 10 seconds, add more water, agitate and try
test again.
Premix
1. Slowly add approximately 2 to 4 qts (1.9 to 3.8 liters)
of water to a 5 gallon (18.9 liter) bucket of premix.
1. Carefully mix texture material and water according
to manufacturer instructions on bag.
ti2493a
ti2496a
ti2496a
2. Agitate to mix, using a half-inch, variable speed drill
with mixing paddle, to a smooth, lump-free consistency.
2. Agitate to mix, using a half-inch, variable speed drill
with a mixing paddle, to a smooth, lump-free consistency.
3. After texture material is thoroughly mixed, gently set
ball end of Material Thickness Gauge on surface of
mixture.
For an accurate test, be sure gauge is completely
dry and clean every time it is used.
4. Observe the ball in material. When the material is
thin enough to spray the ball will sink completely into
the mixture.
ti2497a
READY
ADD WATER
3. Allow ceiling texture to set for at least 15 minutes.
Then remix prior to use.
4. After texture material is thoroughly mixed, gently set
ball end of Material Thickness Gauge on surface of
mixture.
For an accurate test, be sure gauge is completely
dry and clean every time it is used.
10
ti2498a
5. If the ball does not sink completely into the mixture
within 10 seconds, add more water, agitate and try
test again.
Spray Techniques
Spray Techniques
Recommended Nozzle Selection Chart
To Get Less Material
Application
Nozzle Size2
Air Volume1
Try one or a combination of these methods:
Simulated
Acoustic
6 mm, white
medium to
high
•
Open air valve.
•
Turn gun flow adjustment nut to decrease flow,
counter-clockwise.
medium to
high
low to
medium
low
•
Use smaller nozzle.
(fine to medium)
8 mm, gray
(coarse)
Orange peel
Splatter
coat
Knockdown
4 mm, beige,
6 mm, white
6 mm, white
8 mm, gray
8 mm, gray
12 mm, black
To Get More Material
Try any one or a combination of these methods:
•
Close air valve.
•
Turn gun flow adjustment nut to increase flow,
clockwise.
•
Use thinner material mixture.
Adjusting the System
•
Use a larger nozzle.
Sufficient fluid output (volume and pressure) and good
atomization is a balance of atomozing air, material
thickness/material flow and nozzle selection. Achieving
the correct balance for your application requires
experimentation to achieve desired results. Keep in
mind these important points when adjusting gun:
Preventing Material Surge at Gun Trigger
1Control
air volume with gun air valve.
2
For more material volume try a larger nozzle.
•
•
Select proper nozzle for your application. See
Nozzle Selection Chart. Remember, the larger the
nozzle, the heavier the pattern.
Start sprayer with gun air flow valve completely
open. If needed, slowly close gun air flow until you
get a good spray pattern. Use minimum amount of
air at spray gun to achieve proper spray pattern and
to minimize bounce back.
+ Test spray pattern on cardboard. Hold gun 18 to
24 in. (45.7 to 60.9 cm) from surface. Use this
spraying distance for most applications.
•
Air and material flow adjustments are made at the
gun on all units. RTX 1250 units have a material
flow control selector knob (L).
+ Opening air valve increases air flow through gun,
which decreases texture material flow through
pump.
Pressure will build up in the system when you stop
triggering the gun. To prevent material surge at initial
gun triggering:
•
Point gun away from surface you are spraying when
you first pull trigger.
•
When you first start to spray, hold the gun away from
the surface and gradually work your way closer to it.
•
Keep gun moving.
•
After you begin spraying, trigger the gun as little as
possible.
For Continuous Spraying
Use trigger lock to hold trigger open and reduce fatigue.
Check Material Consistency Periodically
Check and thin material as needed to maintain proper
consistency. The material may thicken as it sits and slow
down production. Agitate periodically.
+ Closing air valve decreases air flow through gun,
which increases texture material flow through pump.
11
Shutdown and Cleanup
Shutdown and Cleanup
Keep pump and hose clean when switching between simulated acoustic, knockdown and orange peel
applications. A dirty pump can release particles of texture into the finish.
CAUTION
•
To increase pump life, turn power off when not spraying.
•
Before removing material hose be sure pressure is relieved and material is not in hose.
•
To keep unit in good operating condition, always clean it thoroughly and prepare it properly for storage.
7. Spray inside material hopper to circulate water
through gun and hose. While circulating water, use
gun to clean material hopper.
Texture Spraying
(8-10 gallon Material Hopper)
When you have finished spraying:
1. Open gun air valve.
ti9084a
8. Partially open gun air valve to use air to achieve better cleaning results.
9. Spray water into a waste bucket to empty material
hopper.
ti8528a
2. Make sure hopper gun/spray gun selection switch is
turned to SPRAY GUN.
A soft brush can be used to loosen dried on
material.
10. Turn power switch OFF.
11. Open gun air valve. Relieve Pressure, page 6.
ti9219a
3. Turn power switch ON.
ti9222a
4. Close gun air valve.
5. Trigger gun into bucket until most of texture mix is
pumped out.
6. Fill material hopper with 2-4 gallons of clean water.
12
CAUTION
If water freezes in unit damage may occur. In cold
weather store system where it will not freeze.
Shutdown and Cleanup
Removing Material Hopper From Sprayer:
5. Turn power switch ON.
The material hopper can be removed for cleaning. To
remove material hopper:
1. Loosen bottom fitting.
ti9222a
6. Open gun air valve.
ti8871a
2. Lift material hopper straight up, off unit.
ti8528a
7. Trigger gun to blow air through tip, clearing out any
remaining material.
ti8876a
8. Remove hopper from gun and finish cleaning all
components. A soft brush may be used to help
loosen any dried on material from surface.
Be sure to keep air passages in needle clean and
free of material.
3. Plug opening on bottom of material hopper with your
hand.
4. Take hopper to cleaning area.
To improve working condition for future use, after cleaning, apply a few drops of light oil to:
To Reassemble:
•
Air hose quick disconnect
1. Place material hopper on sprayer, aligning fitting to
sprayer.
•
Material hose connections
2. Hand tighten fitting.
•
Flow adjustment on gun
Touch-up Hopper Attachment
Transporting the Sprayer
When you have finished spraying, perform the following
steps:
The handle and hopper can be removed from the
sprayer for storage or transporting.
1. Shut off compressor. Disconnect air line from gun.
To remove hopper from sprayer, follow the procedure
described on page 13.
2. Drain material into a bucket until most of the texture
material is out of hopper.
To remove the handle:
1. Loosen two (2) wing-nut screws on either side of
handle.
2. Spread handle apart and remove.
ti8699a
3. Fill hopper with clean water. Remove nozzle from
gun and allow water to flow through and out of gun.
The handle is only to be used to push or pull the
sprayer.
4. Flush until gun is clean
13
Troubleshooting
Troubleshooting
Problem
Sprayer won’t run
Pump won’t pump material
Cause
Power switch not on
Turn switch on.
No power at wall outlet
Check outlet by plugging in another
appliance. If appliance does not
work, try another outlet.
Wrong size generator
Use a 3500 watt or larger generator.
Refer to Generator Requirements,
page 6.
Breaker tripped
Reset breaker.
Air lock
Open air valve on gun.
Selector switch in wrong position
Move selector switch to correct position for application.
Mix too thick
Add water to thin material. Use Material Thickness Gauge.
Loose fittings
Check and retighten all fittings.
Plugged gun
Relieve Pressure, page 6. Remove
gun from hose. Clean gun.
Pump hose worn out
Replace hose. Recommended hose
replacement - once every year.
Pump cold
Move pump to warm room and allow
it to warm up or run hot water through
sprayer.
Material runs out of bottom of sprayer Pump hose worn out
Loose fittings
No air from compressor
14
Solution
Replace hose.
Check and retighten all fittings.
Gun air valve closed
Open gun air valve.
Low voltage
Check extension cord length and
gauge. Replace if different than recommended. Refer to Grounding and
Electrical Requirements, page 6.
Gun needle plugged
Clean needle and retry.
Worn compressor
Replace compressor. Contact a qualified Graco Service Center.
Lines not connected
Check all quick disconnect connections to gun and hoses.
Damaged hose
Replace hose.
Troubleshooting
Problem
Speed of application slow or slower
Intermittent flow/sputtering
Cause
Solution
Material too thick
Thin material.
Nozzle too small
Change nozzles to a larger size. See
Recommended Nozzle Selection
Chart, page 11.
Too much air being used.
Partially close gun air valve to reduce
air flow.
Pump hose worn
Replace hose.
Plugged or dirty gun
Relieve Pressure, page 6. Clean
gun.
Kinked hose
Unkink hose.
Gun adjustment set too low
Increase flow adjustment with flow
adjustment nut.
Too many items on same circuit
Unplug other items from circuit.
Extension cord too long or wrong
gauge
Use a different extension cord. Refer
to Grounding and Electric Requirements, page 6.
Hopper connection not tight
Check gasket. TIghten connection.
Debris in system
Clean system.
Quick disconnect does not stay connected.
Dirty or corroded fitting
Clean thoroughly. Soak in oil. Apply a
few drops of light oil.
Gun will not shut off
Worn nozzle or needle.
Relieve Pressure, page 6. Replace
worn parts.
Debris in needle passage
Relieve Pressure, page 6. Clean.
Fluid leaking at Flow Adjustment Nut Damaged seal.
Relieve Pressure, page 6. Replace
seal.
Fluid leaking out of either plug
Missing or damaged o-rings
Relieve Pressure, page 6. Replace
o-rings.
Gun damaged
Replace gun.
Needle adjustment won’t adjust
Dirty threads
Clean threads.
Nozzle not on gun
Put nozzle on gun.
15
Technical Data
Technical Data
Main unit power requirements
Maximum fluid working pressure
Maximum air working pressure
Compressor specifications
Compressor air displacement
Generator required
Electric Motor
Power Cord
Material hopper capacity
120 Vac, 60 Hz, 15A, 1 phase
70 psi, (4.9 bar)
50 psi, (3.5 bar)
Universal motor thermally protected, oil-less
4.0 scfm at 45 psi
3500W minimum
Universal AC 14 Amp 1.5 Hp
16 AWG, 3-wire, 25 ft
Model 254974: 8 gallons
Model 254975: 10 gallons
Gun material hopper: 3/4 gallon
Maximum delivery with texture
RTX 900 - 0.9 gpm (3.4 lpm)
RTX 1250 - 1.25 gpm (4.7 lpm)
Dimensions: RTX 900
Length
Width
Height
23 in. (584 mm) with handle
18 in. (456 mm)
40 in. (1016 mm)
Weight (includes hose and gun)
60 lb (27.2 kg)
Dimensions: RTX 1250
Length
Width
Height
24 in. (609 mm) with handle
20 in. (508 mm)
41 in. (1041 mm)
Weight (includes hose and gun)
65 lb (29.5 kg)
Wetted parts
Sound data
brass, aluminum, plastic
Sound pressure level*
Sound power level**
Storage Temperature Range
Operating Temperature Range
Gun:
Maximum Working Pressure
Air Maximum Working Pressure
CFM Rating
Weight
83.2 dB(A)
97.5 dB(A)
35°F - 160°F (1.6°C - 71°C)
40°F - 115°F (4°C - 46°C)
*Measured while spraying at 1 m.
**Measured per ISO-3744
16
70 psi (4.9 bar)
100 psi (6.895 bar)
3.5 - 11 CFM
1.1 lb (500 g)
Graco Warranty
Graco Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from
defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special,
extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace
any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed,
operated and maintained in accordance with Graco’s written recommendations.
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from
defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With
the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the
date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the
equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused
by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering,
or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the
incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper
design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by
Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor
for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts.
The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose
any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts,
labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no
other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or
property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within
two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS
SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors,
switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable
assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying
equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach
of contract, breach of warranty, the negligence of Graco, or otherwise.
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
17
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 311768
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2007, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised September 2012

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
