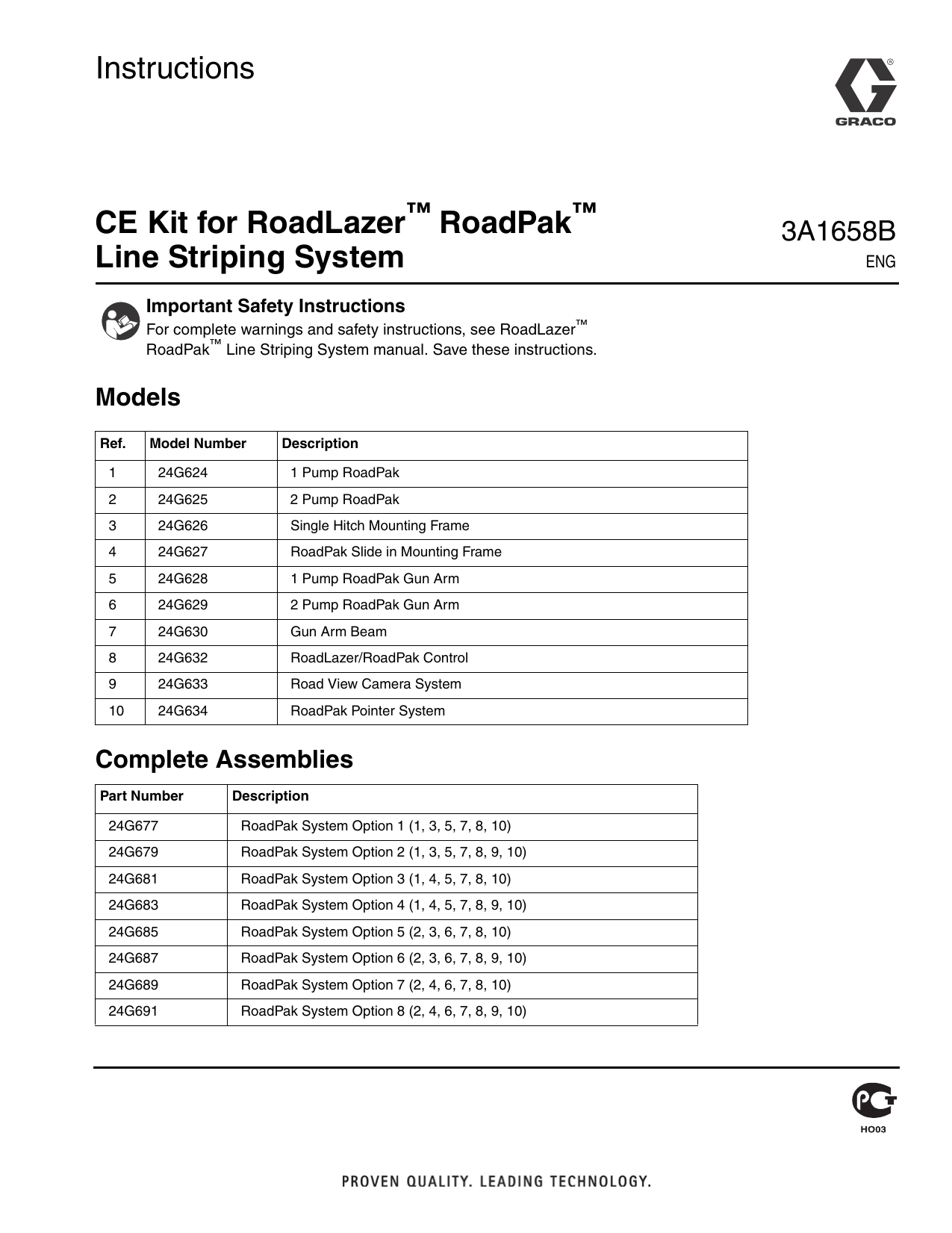

Graco 3A1658B - CE Kit for RoakLazer RoadPak Line Striping System Instructions

Instructions
CE Kit for RoadLazer™ RoadPak™
Line Striping System
Important Safety Instructions
For complete warnings and safety instructions, see RoadLazer™
RoadPak™ Line Striping System manual. Save these instructions.
Models
Ref.
Model Number
Description
1
24G624
1 Pump RoadPak
2
24G625
2 Pump RoadPak
3
24G626
Single Hitch Mounting Frame
4
24G627
RoadPak Slide in Mounting Frame
5
24G628
1 Pump RoadPak Gun Arm
6
24G629
2 Pump RoadPak Gun Arm
7
24G630
Gun Arm Beam
8
24G632
RoadLazer/RoadPak Control
9
24G633
Road View Camera System
10
24G634
RoadPak Pointer System
Complete Assemblies
Part Number
Description
24G677
RoadPak System Option 1 (1, 3, 5, 7, 8, 10)
24G679
RoadPak System Option 2 (1, 3, 5, 7, 8, 9, 10)
24G681
RoadPak System Option 3 (1, 4, 5, 7, 8, 10)
24G683
RoadPak System Option 4 (1, 4, 5, 7, 8, 9, 10)
24G685
RoadPak System Option 5 (2, 3, 6, 7, 8, 10)
24G687
RoadPak System Option 6 (2, 3, 6, 7, 8, 9, 10)
24G689
RoadPak System Option 7 (2, 4, 6, 7, 8, 10)
24G691
RoadPak System Option 8 (2, 4, 6, 7, 8, 9, 10)
3A1658B
ENG
To comply with CE directives, the
hydraulic pump shield must be installed.
Installation of Pump Shield
1. Install pump shield into pump.
2. Use provided fasteners to secure in place.
Pump Shield
ti17065a
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A1658
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2010, Graco Inc. is registered to ISO 9001
www.graco.com
Revised 05/2011
