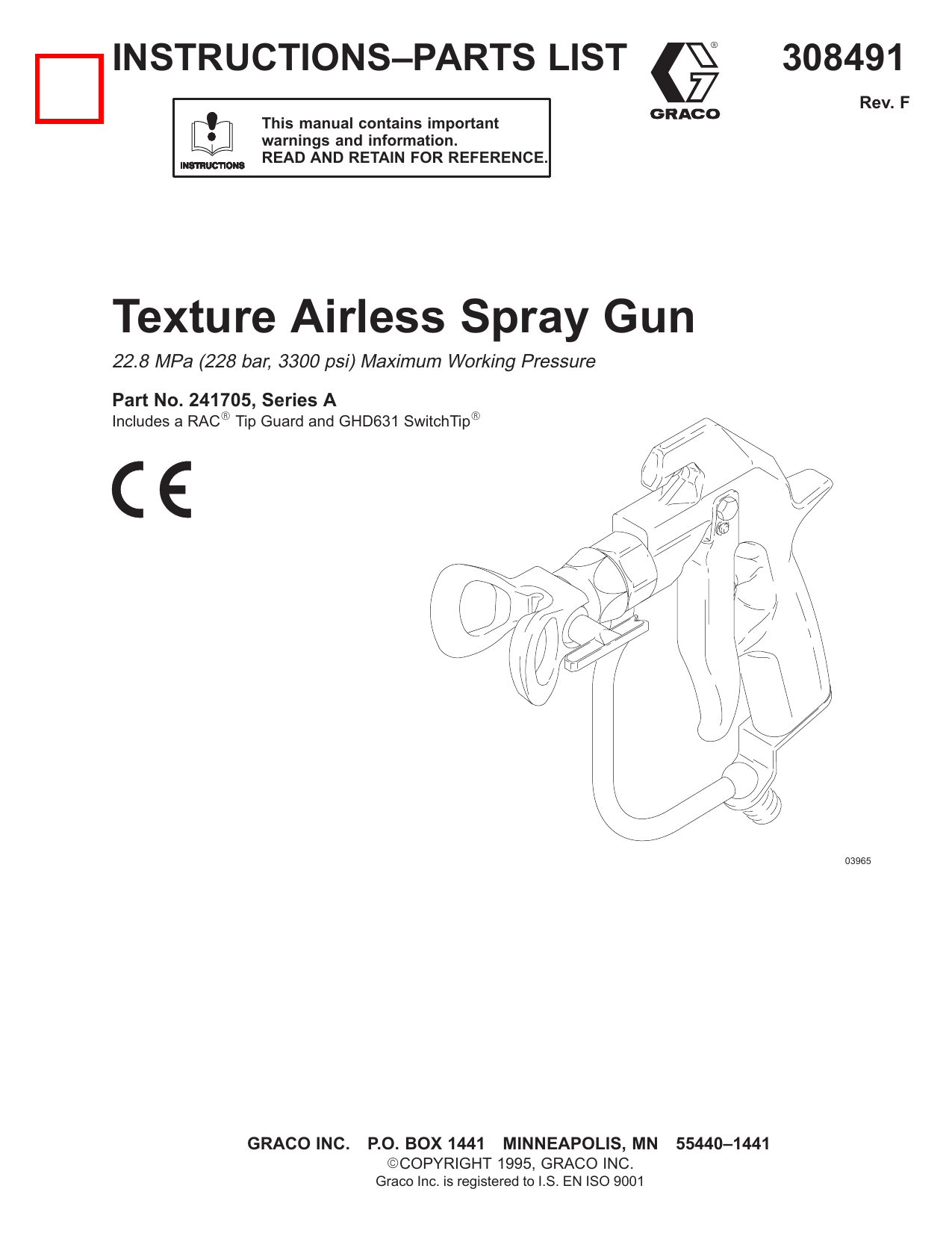

Graco 308491F Texture Airless Spray Gun Owner's Manual

INSTRUCTIONS–PARTS LIST
308491
Rev. F
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE.
Texture Airless Spray Gun
22.8 MPa (228 bar, 3300 psi) Maximum Working Pressure
Part No. 241705, Series A
Includes a RACR Tip Guard and GHD631 SwitchTipR
03965
GRACO INC.
P.O. BOX 1441
MINNEAPOLIS, MN
ECOPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
55440–1441
Notes
2
308491
Table of Contents
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation/Operation . . . . . . . . . . . . . . . . . . . . . . 6
System Requirements . . . . . . . . . . . . . . . . . . . 6
Ground the System . . . . . . . . . . . . . . . . . . . . . . 6
How to Use the Gun Trigger Safety . . . . . . . . 6
Pressure Relief Procedure . . . . . . . . . . . . . . . . 6
How to Use the Gun . . . . . . . . . . . . . . . . . . . . . 7
How to Adjust the Spray Pattern . . . . . . . . . . . 7
Care of the Spray Tip and Tip Guard . . . . . . . 8
How to Flush the Gun . . . . . . . . . . . . . . . . . . . . 9
How to Check the Gun Diffuser Operation . 10
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Graco Phone Numbers . . . . . . . . . . . . . . . . . . . . 16
The Graco Warranty and Disclaimers . . . . . . . 16
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
corresponding instructions.
WARNING
WARNING
INJECTION HAZARD
Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin
can also cause serious injury.
D Fluid injected into the skin may look like just a cut, but it is a serious injury. Get immediate medical attention.
D Do not point the spray gun at anyone or any part of the body.
D Do not put hand or fingers over the spray tip.
D Do not stop or deflect fluid leaks with your hand, body, glove or rag.
D Do not “blow back” fluid; this is not an air spray system.
D Always have the tip guard and the trigger guard on the spray gun when spraying.
D Check the gun diffuser operation weekly. Refer to the gun manual.
D Be sure the gun trigger safety operates before spraying the gun.
D Lock the gun trigger safety when you stop spraying.
D Follow the Pressure Relief Procedure on page 6 if the spray tip clogs and before cleaning,
checking or servicing the equipment.
D Tighten all fluid connections before each use.
D Check the hoses, tubes and couplings daily. Replace worn or damaged parts immediately. Permanently coupled hoses cannot be repaired.
D Handle and route hoses and tubes carefully. Keep hoses and tubes away from moving parts and
hot surfaces. Do not use the hoses to pull equipment. Do not expose Graco hoses to temperatures above 180_F (82_C) or below –40_F (–40_C).
FIRE AND EXPLOSION HAZARD
Improper grounding, poor air ventilation, open flames or sparks can cause a hazardous condition
and result in a fire or explosion and serious injury.
D Ground the equipment and the object being sprayed. See Ground the System on page 6.
D If there is any static sparking while using the equipment, stop spraying immediately. Identify
and correct the problem.
D Provide fresh air ventilation to avoid the buildup of flammable vapors from solvent or the fluid being sprayed.
D Do not smoke in the spray area.
D Extinguish all open flames or pilot lights in the spray area.
D Do not turn on or off any light switch in the spray area.
D Electrically disconnect all equipment in the spray area.
D Keep the spray area free of debris, including solvent, rags and gasoline.
D Do not operate a gasoline engine in the spray area.
WARNING
WARNING
EQUIPMENT MISUSE HAZARD
INSTRUCTIONS
Equipment misuse can cause the equipment to rupture, malfunction or start unexpectedly and result
in serious injury.
This equipment is for professional use only.
Read all instruction manuals, tags, and labels before operating the equipment.
Use the equipment only for its intended purpose. If you are in doubt about this, call your Graco
distributor.
Do not alter or modify this equipment.
Check equipment daily. Repair or replace worn or damaged parts immediately.
Do not exceed the maximum working pressure of the lowest rated system component. Refer to
the Technical Data on page 16 for the maximum working pressure of this equipment.
Do not move or lift pressurized equipment.
Use fluids or solvents which are compatible with equipment wetted parts. Refer to the Technical
Data section on page 16 and all equipment manuals. Read the fluid and solvent manufacturer’s
warnings.
Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment. Such use could result in a
chemical reaction, with the possibility of explosion.
Fluid hoses must have spring guards on both ends to protect them from rupture caused by kinks
or bends at or close to the couplings.
Comply with all applicable local, state and national fire, electrical and other safety regulations.
TOXIC FLUID HAZARD
Improper handling of hazardous fluids or inhaling toxic fumes can cause extremely serious injury,
even death, due to splashing in the eyes, ingestion, or bodily contamination.
Know the specific hazards of the fluid you are using.
Store hazardous fluid in an approved container. Dispose hazardous fluid according to all local,
state and national guidelines.
Wear appropriate clothing, gloves, eyewear and respirator.
RECOIL HAZARD
Due to the high pressure fluid emitted, a strong recoil action may occur when you trigger this gun. If
you are unprepared, your hand could be forced back toward your body or you could lose your balance and fall, resulting in serious injury.
308491
5
Installation/Operation
System Requirements
WARNING
Keep the wallet-sized warning card provided with
this gun with the operator at all times. The card
contains important treatment information should an
injection injury occur. Additional cards are available
at no charge from Graco Inc.
Pressure Relief Procedure
WARNING
To reduce the risk of serious injury, including fluid
injection, splashing fluid or solvent in the eyes or
on the skin, follow this procedure when you are
instructed to relieve pressure, when you stop
spraying, shut off the pump, check or service any
system equipment, or install, clean or change spray
tips.
1. Lock the gun trigger safety.
1. The pressure drain valve assists in relieving fluid
pressure in the displacement pump, hose and gun;
triggering the gun to relieve pressure may not be
sufficient.
2. Strain the fluid you are spraying if it contains
particles which could clog the spray tip.
2. Shut off the power to the pump.
3. Unlock the gun trigger safety.
4. Hold a metal part of the gun firmly to a grounded
metal pail. Trigger the gun to relieve pressure.
5. Lock the gun trigger safety.
Ground the System
WARNING
To reduce the risk of static sparking, ground the
pump and all other equipment used or located in
the spray area. Check your local electrical code for
detailed grounding instructions for your area and
type of equipment. Also follow the grounding
instructions provided in your pump or sprayer
manual. The gun obtains grounding through connection to a properly grounded fluid hose and pump
or sprayer. Also read FIRE OR EXPLOSION HAZARD on page 4.
6. Open the drain valve, having a container ready to
catch the drainage. Observe the pressure gauge.
The gauge reads 0 psi/bar when fully drained.
Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray tip or hose is completely
clogged or that pressure has not been fully relieved,
very slowly loosen the tip guard retaining nut or hose
end coupling and relieve pressure gradually. Clean the
tip or hose obstruction.
1
Gun trigger safety shown locked
2
Gun trigger safety shown unlocked
1
How to Use the Gun Trigger Safety
1. To lock the gun trigger safety, turn the safety to a
right angle with the gun body. See Fig. 1.
2. To unlock the gun trigger safety, push the safety
out and turn it parallel with the gun body.
See Fig. 1.
6
308491
2
Fig. 1
03966
Installation/Operation
6. If adjusting the pressure does not give a good
spray pattern, relieve pressure and then try
another tip size.
How to Operate the Gun
WARNING
To reduce the risk of component rupture, and serious injury, including fluid injection, do not exceed
the gun’s 3300 psi (228 bar, 22.8 MPa) Maximum
Working Pressure or the maximum working pressure of lowest rated component in the system.
7. Use a full-open, full-close trigger action. Hold the
gun about 14 in. (350 mm) from and at right angles
to the work surface. Don’t swing the gun in an arc.
Practice to find the best length and speed of
stroke.
How to Adjust the Spray Pattern
1. To adjust the spray pattern direction, relieve pressure. Loosen the tip guard retaining nut (B). Turn
the tip guard/tip groove horizontally (C) for a horizontal pattern and vertically (A) for a vertical
pattern. Tighten the nut. See Fig. 3.
8
A
30
Fig.
2
2. The spray tip orifice and spray angle determines
the coverage and size of pattern. When more
coverage is needed, use a larger spray tip rather
than increasing fluid pressure.
CAUTION
04731
1. Connect an electrically conductive fluid hose (A) to
the gun inlet. See Fig. 2.
Openings in the tip guard reduce paint buildup on
the guard while spraying. Damage to the sharp
edges of the openings causes paint to collect at
that area. Never hang the gun by the tip guard.
2. With no tip installed, start the pump. Flush the
pump according to the instructions supplied with it.
Use the lowest pressure possible. Prime the
system with the material.
B
A
3. Relieve pressure.
C
4. Install the SwitchTip (8) and tip guard (30). Follow
the instructions in the manual, supplied.
See Fig. 2.
5. Start the pump. Trigger the gun onto test paper.
Adjust the fluid pressure until the spray is
completely atomized. Use the lowest pressure
necessary to get the desired results. Higher pressure may not improve the spray pattern and will
cause premature tip and pump wear.
03968
Fig. 3
308491
7
Installation/Operation
Care of the Spray Tip and Tip Guard
WARNING
To reduce the risk of fluid injection or splashing in
the eyes or on the skin, do not hold a hand, body
or rag in front of the spray tip when cleaning or
checking a clogged tip. Point the gun toward the
ground or into a waste container when checking to
see if the spray tip is cleared.
Do not try to “blow back” paint; this is not an air
spray gun.
Do not wipe fluid buildup off the gun or spray tip
until pressure is relieved.
If the spray tip clogs while spraying
1. Stop spraying immediately.
2. Lock the gun trigger safety. Rotate the RAC IV tip
handle back 180 . See Fig. 4.
3. Unlock the gun trigger safety. Trigger the gun into
a pail or onto the ground to remove the clog.
4. Lock the gun trigger safety. Rotate the tip handle
to the spraying position. See Fig. 4.
5. If the tip is still clogged, engage the gun trigger
safety, shut off the sprayer and disconnect the
power source, and open the pressure drain valve
to relieve pressure. Clean the spray tip as shown
in manual 308644, supplied with the RAC IV.
CAUTION
Cleaning during the day
Never soak the entire gun in solvent. Prolonged
exposure to solvent can ruin the packings.
WARNING
INJECTION HAZARD
To reduce the risk of serious injury,
whenever you are instructed to relieve
pressure, follow the Pressure Relief
Procedure on page 6.
Spraying position shown.
Turn handle 180 and
trigger gun to clear clog.
1. Relieve pressure.
2. Clean the front of the tip frequently during the day
to help reduce buildup. Also clean the tip and tip
guard at the end of each work day. Use a solventsoaked brush to clean the spray tip.
Fig. 4
03965
Installation/Operation
How to Flush the Gun
WARNING
To reduce the risk of serious injury, including
splashing fluid in the eyes or on the skin, or static
electric discharge when flushing:
Be sure the entire system, including flushing
pails, are properly grounded.
Remove the tip guard and spray tip.
Maintain metal to metal contact between the
gun and the flushing pail.
Use the lowest possible pressure.
ÄÄÄ
ÄÄÄ
ÄÄÄ
Always flush the pump and gun before the fluid being
sprayed can dry in it.
NOTE: This procedure requires a grounded pail of
compatible solvent.
1. Relieve pressure.
2. Remove the tip guard and spray tip. Soak and
clean the parts.
3. Remove the pump intake from the original pail.
4. Put the pump intake in a grounded pail of compatible solvent.
5. Start the pump at its lowest pressure.
6. Trigger the gun into the original pail. When solvent
appears, release the trigger.
7. Now trigger the gun into the solvent pail. Circulate
the fluid until the system is thoroughly flushed.
8. Relieve pressure.
Installation/Operation
How to Check the Gun Diffuser Operation
The Standard Needle and Seat Kit, 237398, has the
number 090 stamped on the needle and seat. The seat
does have a diffuser.
The optional Non–diffused Needle and Seat Kit,
237260, has the number 125 stamped on the needle
and seat. The seat does not have a diffuser.
WARNING
INJECTION HAZARD
To reduce the risk of serious injury,
whenever you are instructed to relieve
pressure, follow the Pressure Relief
Procedure on page 6.
1. Relieve pressure.
2. Remove the tip guard and spray tip.
3. Start the sprayer and adjust it to the lowest
pressure.
WARNING
The diffuser, located in the valve seat, creates an
irregular spray pattern when the gun is sprayed
without a tip guard, such as during cleaning. This
reduces the risk of an injection injury.
If you are using the optional Kit 237260, you must
take extra precautions to keep your hands and
body away from the nozzle of the gun.
4. Aim the gun into a grounded metal pail while holding it firmly to the pail. Trigger the gun. If the fluid
emitted is not diffused into an irregular stream,
replace the entire needle kit immediately. See Fig.
5.
1
ÄÄÄÄÄ
ÄÄÄÄÄ
ÄÄÄÄÄ
ÄÄÄÄÄ
ÄÄÄÄÄ
Always have the tip guard in place during regular
spraying operations.
Check the diffuser operation weekly. The gun diffuser/
seat (2a) breaks up spray and reduces the risk of fluid
injection when the tip is not installed. Perform the test
below. If it fails, replace the entire Needle and Seat Kit.
Diffuser/seats and needles are not sold separately;
using old parts with new ones will result in leakage.
Irregular spray pattern
2a
1
Fig.
5
04735
Service
WARNING
To reduce the risk of serious injury from fluid injection or splashing, always follow the Pressure
Relief Procedure on page 6 before servicing the
gun.
Repair Notes
2a
2b
03969
Fig. 7
The needle and seat are available only as a kit which
includes items 2a to 2e.
The Standard Needle and Seat Kit, 237398, has the
number 090 stamped on the needle and seat.
3. Unscrew the valve seat (2a). Remove the gasket
(2b). See Fig. 7.
A Non–diffused Needle and Seat Kit, 237260, has the
number 125 stamped on the needle and seat. It is recommended only for use with mastics, sealers and
other high viscosity materials which have fillers that
cannot pass through the standard seat’s diffuser.
28
18
29
27
Use high quality, general purpose grease where
grease is indicated.
Disassembly
NOTE: If replacing only the needle and seat, Step 4
and 5 are not required. However, removing them
allows you to clean the gun more thoroughly.
25
04732
Fig. 8
1. Relieve pressure.
21
4. Remove one e–clip (27). Push out the pin (18).
Remove the screw (29), pivot pin (28), and trigger
(25). See Fig. 8.
30
A
Fig.
6
04731
2. Disconnect the fluid hose (A). Remove the tip
guard (30). Unscrew the spring screw (21) about
1/4 in. (7 mm) to release spring tension.
See Fig. 6.
Fig. 9
24
5. Remove the screws (24). See Fig. 9.
04733
Service
1
2d
2c
2e
22
Fig. 12
15
8. Remove the needle (2c). Unscrew the seal retainer
(2d). Remove the seal (2e). See Fig. 12.
04736
Fig. 10
03974
Cleaning
Clean all parts and cavities thoroughly with a compatible solvent. Dry with a rag or compressed air. Replace
any parts that are worn or damage.
6. Loosen the setscrew (15). Pull the fluid housing (22)
away from the gun body (1). See Fig. 10.
Reassembly
1
Torque to 30–40 in-lb (3.4–4.5 N.m)
2
Lips of seal must face into housing
3
Grease inner cavity of housing
16
17
Fig. 11
04734
7. While supporting the spring guide (16) to prevent
bending the needle, loosen the setscrews (17).
Remove the spring guide (16). See Fig. 11.
12
308491
Fig. 13
1
2d
2
2e
3
22
03975
1. Lightly grease the inner cavities of the fluid housing (22). Install the small seal (2e) so the lips face
into the fluid housing cavity. Install the seal retainer
(2d) and torque to 30–40 in-lb (3.4–4.5 N.m). See
Fig. 13.
Service
1
2c
19
Grease this side
20
1
22
1
03676
Fig. 14
2. Lightly grease the small end of the needle (2c) and
then guide it into the large end of the fluid housing
(22).
1
Grease the threads
2
Torque to
20–25 ft–lb
(27–34 N.m)
2a
2b
03979
Fig. 17
5. If the spring (19) was removed, grease the spring
adjuster (20) and place the spring. Drop this assembly into the gun body (1). See Fig. 17.
1
Torque to 30–40 in–lb
(3.4–4.5 N.m)
2
Fill cavity with petroleum
jelly
1
22
22
03977
Fig. 15
3. Place the gasket (2b) on the valve seat (2a).
Grease the threads of the valve seat (2a). Screw
the valve seat into the fluid housing (22). Torque to
20–25 ft–lb (27–34 N.m). See Fig. 15.
1
Seat against needle stem
2
Apply light strength Loctite ;
Torque alternately and evenly to
25–30 in–lb (2.8–3.4 N.m)
3
Fill cavity with
petroleum jelly
Fig. 16
15
2
04736
Fig. 18
6. Push the fluid housing (22) onto the gun body (1)
until fully seated. Tighten the setscrew (15) to
30–40 in–lb (3.4–4.5 N.m). Fill the setscrew cavity
with petroleum jelly. See Fig. 18.
16
1
3
17
2
3
04729
4. Install the spring guide (16) and seat it against the
needle. Loosely thread both setscrews (17) into
the spring guide, then alternately and evenly tighten
the setscrews to 10–15 in-lb (1.1–1.6 N.m). Fill
the setscrew cavities with petroleum jelly.
Fig. 19
7. Install the screws (24). See Fig. 19.
24
04733
Service
Test the Gun Before Regular Use
28
A
B,16
18
1. Lock the gun trigger safety. Connect a hose to the
gun. Start and prime the pump.
29
27
2. Release the gun trigger safety. Trigger the gun into
a waste container. Release the trigger to be sure
the gun immediately stops spraying and that there
are no leaks.
25
04732
Fig. 20
8. Position the trigger (25) on the gun body. Insert the
pivot pin (28) into the top hole (A) and secure with
the screw (29) on the other side. Place an e–clip
(27) on one end of the trigger pin (18). Slide the
pin through lower trigger holes and through the slot
(B) in the spring guide (16) (turn the spring guide
to align, as needed). Install the other e–clip (27).
See Fig. 20.
1
Turn in until screw
stops
Fig. 21
21
3. If the gun has a diffuser, check the diffuser using
the procedure on page 10.
4. Install the tip guard (30) before regular use.
See Fig. 22.
1
30
03980
Fig. 22
03965
9. If it was removed, install the spring tension screw
(21) at the rear of the gun. Then, turn the screw in
until it stops. See Fig. 21.
Accessories
Air Atomizer Kit 237477
Converts the Texture Spray Gun 241705 to air spray.
Kit includes air atomizer head with retaining ring, 1/4
and 3/8 air nozzles, 3/16 and 1/4 material tips, gasket,
two air control valves, RAC IV tip (235), air hose and
two air tubes.
Ball Valve Kit 237679
Replacement air on/off valve for the Air Atomizer Kit
237477.
Needle Valve Kit 237678
Replacement air control valve for the Air Atomizer Kit
237477.
Air Hose Replacement Kit 237489
Replacement air hose (3/8 x 50 ft) for the Air Atomizer
Kit 237477.
Air Atomizer Head Kit 237681
Replacement housing assembly for the Air Atomizer
Kit 237477.
Parts
Part No. 241705, Series A
Texture Airless Spray Gun
28
21
15
20
27
16
2e
19
18
2d
29
22
1
2b
2c
27
17
2a
30
25
36
24
8
Ref.
No. Part No.
1
2
2a
2b
2c
2d
2e
8
15
16
17
18
19
20
21
22
24
25
27
237680
237260
GHD631
102207
189960
112729
189958
102924
189990
110637
237694
112774
189974
112410
Description
TEXTURE GUN BODY
NEEDLE AND SEAT KIT
(parts not sold separately)
.VALVE SEAT
.GASKET
.NEEDLE
.SEAL RETAINER
.SEAL
SwitchTip, size 631
SETSCREW, 1/4–20
SPRING GUIDE
SETSCREW, soc hd
TRIGGER PIN
SPRING
SPRING ADJUSTER
ADJUSTING SCREW
FLUID HOUSING
SCREW, 1/4–20
GUN TRIGGER
E–CLIP
Qty.
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
2
1
2
04730
Ref.
No. Part No.
Description
28
29
30
34
35
36
PIVOT PIN
SCREW, hex washer hd, 10–24
KIT, TIP GUARD
WARNING SHEET not shown
WARNING CARD not shown
WASHER, flat
187965
203953
222674
187346
222385
112789
Qty.
1
1
1
1
1
2
Replacement Danger and Warning labels, tags and
cards are available at no cost.
Optional Non–Diffused
Needle and Seat Kit 237260
Use in place of Ref. No. 2, above.
Stamped with the number 125
[fluid orifice size is 0.125 in. (3.2 mm)]
Recommended only for use with mastics, sealers and
other high viscosity materials which have fillers that
cannot pass through the standard seat’s diffuser.
308491
15
Technical Data
Dimensions
Fluid orifice size . . . . . . . . . . . . . . . . . 0.090 in. (2.3 mm)
Inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4 npt (m)
Fluid tube inside diameter . . . . . . . . . . 0.245” (6.2 mm)
Sound Data:
Sound Pressure Level . . . . . . . . . . . . . . . . . 84 dB(A)*
Sound Power Level . . . . . . . . . . . . . . . . . . . 93 dB(A)*
*Measured while spraying waterbase paint through a
.031 tip at 3,000 psi (207 bar, 20.7 MPa).
Per ISO 3744.
Wetted parts . . . . . . . . . . . . . . . . . . . . Tungsten carbide,
17–4PH passivated stainless steel,
polypropylene, polyethylene
Loctite is a registered trademark of the Loctite Corporation.
Maximum working pressure . . . . . . . . . . . . . . 22.8 MPa
(228 bar, 3300 psi)
Weight includes tip and tip guard . . . . . . . . . 25.7 oz (729 gr)
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.25” (210 mm)
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0” (203 mm)
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor
closest to you: 1–800–690–2894 Toll Free
The Graco Warranty and Disclaimers
WARRANTY
Graco warrants all equipment manufactured by it and bearing its name to be free from defects in material and workmanship on
the date of sale by an authorized Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this
warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for, any malfunction, damage or wear caused by faulty installation,
misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility with Graco
equipment of structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor
for verification of the claim. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any
defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts,
labor and transportation.
DISCLAIMERS AND LIMITATIONS
The terms of this warranty constitute purchaser’s sole and exclusive remedy and are in lieu of any other warranties (express or
implied), including warranty of merchantability or warranty of fitness for a particular purpose, and of any non–contractual
liabilities, including product liabilities, based on negligence or strict liability. Every form of liability for direct, special or consequential damages or loss is expressly excluded and denied. In no case shall Graco’s liability exceed the amount of the purchase price.
Any action for breach of warranty must be brought within two (2) years of the date of sale.
EQUIPMENT NOT COVERED BY GRACO WARRANTY
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose, with
respect to accessories, equipment, materials, or components sold but not manufactured by Graco. These items sold, but not
manufactured by Graco (such as electric motor, switches, hose, etc.) are subject to the warranty, if any, of their manufacturer.
Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Offices: Minneapolis, Detroit
Foreign Offices: Belgium, England, Korea, France, Germany, Hong Kong, Japan
GRACO INC.
P.O. BOX 1441
MINNEAPOLIS, MN
55440–1441
http://www.graco.com
16
308491
PRINTED IN USA 308491 January 1995, Revised March 1999

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
