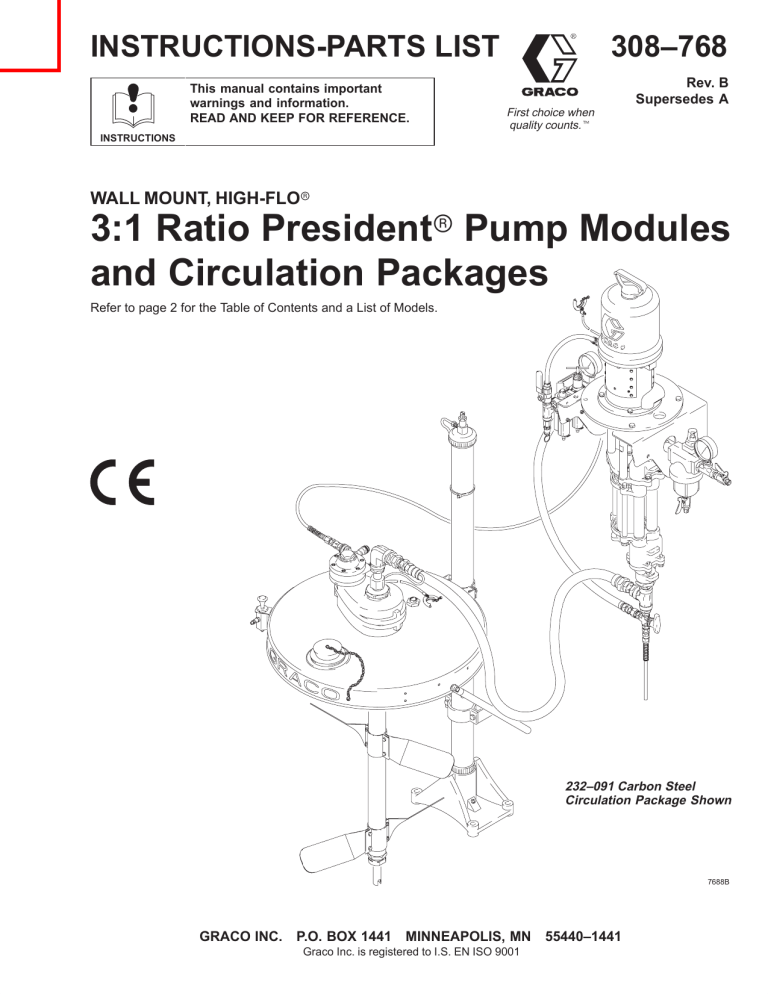

Graco 308768B WALL MOUNT, HIGH-FLO 3:1 RATIO PRESIDENT PUMP MODULDES AND CIRCULATION PACKAGES Owner's Manual

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
308–768
Rev. B
Supersedes A
First choice when
quality counts.t
INSTRUCTIONS
WALL MOUNT, HIGH-FLOr
3:1 Ratio Presidentr Pump Modules
and Circulation Packages
Refer to page 2 for the Table of Contents and a List of Models.
232–091 Carbon Steel
Circulation Package Shown
7688B
GRACO INC.
P.O. BOX 1441
MINNEAPOLIS, MN
Graco Inc. is registered to I.S. EN ISO 9001
55440–1441
Table of Contents
List of Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Hole Layouts . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Toll-Free Graco Phone Number . . . . . . . . . . . . . . . . .
24
26
27
28
28
List of Models
Part No.
Series Description
Ratio
Maximum Fluid
Working Pressure
Maximum Air
Input Pressure
Circulation Packages
232–089
A
Includes stainless steel pump module
232–081, elevator, sst drum cover, and
back-geared agitator
3:1
300 psi
(2.1 MPa, 21 bar)
100 psi
(0.7 MPa, 7 bar)
232–091
A
Includes carbon steel pump module
232–079, elevator, sst drum cover, and
back-geared agitator
3:1
300 psi
(2.1 MPa, 21 bar)
100 psi
(0.7 MPa, 7 bar)
Pump Modules
232–078
A
Stainless steel pump with wall bracket,
air controls, back pressure regulator, and
stainless steel fluid filter
3:1
300 psi
(2.1 MPa, 21 bar)
100 psi
(0.7 MPa, 7 bar)
232–079
A
Carbon steel pump with wall bracket,
air controls, back pressure regulator, and
Graco Red Alert carbon steel fluid filter
3:1
300 psi
(2.1 MPa, 21 bar)
100 psi
(0.7 MPa, 7 bar)
232–081
A
Stainless steel pump with wall bracket,
air controls, back pressure regulator, and
stainless steel fluid filter
3:1
300 psi
(2.1 MPa, 21 bar)
100 psi
(0.7 MPa, 7 bar)
2
308-768
Symbols
Warning Symbol
Caution Symbol
WARNING
CAUTION
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
INSTRUCTIONS
D This equipment is for professional use only.
D Read all instruction manuals, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco
distributor.
D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
D Check equipment daily. Repair or replace worn or damaged parts immediately.
D Do not exceed the maximum working pressure stated on the equipment or in the Technical Data
for your equipment. Do not exceed the maximum working pressure of the lowest rated component
in your system.
D Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Technical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
D Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 180_F (82_C) or below –40_F (–40_C).
D Wear hearing protection when operating this equipment.
D Do not lift pressurized equipment.
D Comply with all applicable local, state, and national fire, electrical, and safety regulations.
WARNING
PRESSURIZED EQUIPMENT HAZARD
Spray from the gun, hose leaks, or ruptured components can splash fluid in the eyes or on the skin
and cause serious injury.
Do not point the gun at anyone or at any part of the body.
Do not stop or deflect leaks with your hand, body, glove or rag.
Follow the Pressure Relief Procedure on page 12 whenever you: are instructed to relieve pressure; stop spraying; clean, check, or service the equipment; and install or clean the spray tip.
Tighten all fluid connections before operating the equipment.
Check the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.
Permanently coupled hoses cannot be repaired; replace the entire hose.
MOVING PARTS HAZARD
Moving parts, such as the air motor piston, elevator, and agitator blades, can pinch or amputate your
fingers.
Keep clear of all moving parts when starting or operating the pump.
Keep your hands away from the elevator, pump support, drum cover, and the lip of the drum while
the elevator is operating or is charged with air.
Always shut off the agitator and disconnect the air line before you remove the agitator from the
drum or check or repair any part of the agitator.
Before servicing the equipment, follow the Pressure Relief Procedure on page 12 to prevent the
equipment from starting unexpectedly.
4
308-768
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
Ground the equipment and the object being sprayed. Refer to Grounding on page 11.
If there is any static sparking or you feel an electric shock while using this equipment, stop spraying immediately. Do not use the equipment until you identify and correct the problem.
Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
Keep the spray area free of debris, including solvent, rags, and gasoline.
Electrically disconnect all equipment in the spray area.
Extinguish all open flames or pilot lights in the spray area.
Do not smoke in the spray area.
Do not turn on or off any light switch in the spray area while operating or if fumes are present.
Do not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
Know the specific hazards of the fluid you are using.
Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
308-768
5
Installation
General Information
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawing.
NOTE: Always use Genuine Graco Parts and Accessories, available from your Graco distributor. Refer to
Product Data Sheet 305–896. If you supply your own
accessories, be sure they are adequately sized and
pressure-rated for your system.
Prepare the Operator
All persons who operate the equipment must be
trained in the safe, efficient operation of all system
components as well as the proper handling of all fluids.
All operators must thoroughly read all instruction
manuals, tags, and labels before operating the equipment.
The following manuals are included with this equipment:
308–793, 3:1 President Pump
306–982, President Air Motor
307–273, 307–282, or 308–819, Fluid Filter
307–068, Fluid Ball Valves
308–401, Back Pressure Regulator
These manuals are included only with Circulation
Packages 232–089 and 232–091:
308–769, Supply Module
306–287, Elevator
308–466, Drum Cover
308–609, Back-Geared Agitator
Prepare the Site
If you are installing Packages 232–089 or 232–091,
select a site with at least 9 ft (2.8 m) overhead clearance for the elevator when fully raised.
Ensure that the wall is strong enough to support the
weight of the pump and accessories, fluid, hoses, and
stress caused during pump operation.
Ensure that you have an adequate compressed air
supply. Refer to the performance chart on page 25 to
find the air consumption.
Refer to Fig. 1 on page 9. Bring a compressed air
supply line (A) from the air compressor to the pump
location. Be sure all air hoses are properly sized and
pressure-rated for your system. Use only electrically
conductive hoses. The air hose should have a 3/8
npt(m) thread.
Install a bleed-type shutoff valve (B) in the air line to
isolate the air line components for servicing. Install a
moisture trap and drain valve (C) to help remove
moisture and contaminants from the compressed air
supply.
Keep the site clear of any obstacles or debris that
could interfere with the operator’s movement.
Have a grounded, metal pail available for use when
flushing the system.
Installation
Supplied Components
Refer to Fig. 1 on page 9.
WARNING
A red-handled bleed-type master air valve (11h)
and a fluid drain valve (D) are supplied. These
components help reduce the risk of serious injury,
including splashing of fluid in the eyes or on the
skin, and injury from moving parts if you are adjusting or repairing the pump.
The bleed-type master air valve relieves air trapped
between this valve and the pump after the air is
shut off. Trapped air can cause the pump to cycle
unexpectedly. Locate the valve close to the pump.
The fluid drain valve assists in relieving fluid pressure in the displacement pump, hose, and gun.
Triggering the gun to relieve pressure may not be
sufficient.
The red-handled bleed-type master air valve
(11h) is required in your system to relieve air
trapped between it and the air motor when the
valve is closed (see the WARNING above). Be sure
the bleed valve is easily accessible from the pump,
and is located downstream from the pump air
filter/regulator (11a).
The pump air filter/regulator (11a) controls pump
speed and outlet pressure by adjusting the air
pressure to the pump. It includes an air filter with a
40 micron polypropylene element, to remove harmful dirt and moisture from the compressed air
supply. Locate close to the pump, but upstream
from the bleed-type master air valve (11h).
The air line lubricator (11b) provides automatic
lubrication of the air motor.
The air relief valve (11j) opens automatically to
prevent overpressurization of the pump.
Fluid is supplied to the pump through the suction
hose (16) and tube (50 or 109). On Circulation
Packages 232–089 and 232–091, the suction tube
(109) is installed in the shaft of the agitator (102).
See Fig. 1.
The fluid filter (5) includes a 60 mesh (250 micron) stainless steel element to filter particles from
the fluid as it leaves the pump.
The fluid drain valve (D), is mounted in the bottom of the fluid filter bowl, and is required in your
system to relieve fluid pressure in the hose and gun
(see the WARNING at left).
The back pressure regulator (12) controls back
pressure to the gun and maintains proper circulation pressure.
The back-geared agitator (102) keeps the fluid in
suspension and also includes a suction tube (109)
to draw fluid from a 55 gallon drum. Included with
Circulation Packages 232–089 and 232–091 only.
The air-operated elevator (150) allows you to
raise the drum cover and agitator from an empty
drum, replace the drum, and lower the agitator into
the new drum. Included with Circulation Packages
232–089 and 232–091 only.
Conversion Modules
Supply Module 239–857
NOTE: Module 239–857 is included in Circulation
Packages 232–089 and 232–091. Refer to page 10 for
installation instructions.
Part No. 239–857 Supply Module is available to convert a pump module to a circulation package. The
supply module includes an elevator, stainless steel
drum cover, back-geared agitator with suction tube,
and connecting hardware. Instructions are included.
Heater Modules 239–850 (120V), 239–851 (240V),
and 239–852 (220/240V)
Three Heater Modules are available to convert a pump
module or a circulation package to a heated system.
Each module includes a heater configured to the
desired voltage, and mounting hardware. Instructions
are included.
Surge Tank Module 239–858
Part No. 239–858 Surge Tank Module is available as
an accessory for pump modules, circulation packages,
or heated packages. The module includes a surge
tank, stand, and connecting hardware. Instructions are
included.
Installation
Installing the Pump Module
The pump module consists of the pump mounted on
the pump bracket, the air controls, back pressure
regulator, hoses, and plumbing.
NOTE: Refer to Fig. 1 on page 9, and to the Dimension drawing on page 26 and the Mounting Hole Layouts on page 27.
1. Ensure that the wall is strong enough to support
the weight of the pump and accessories, fluid,
hoses, and stress caused during pump operation.
2. Position the bracket mounting plate (37) on the
wall so the edge with the hook is facing up. Mount
the plate so the top edge is 4 to 5 ft (1.2 to 1.5 m)
above the floor. Check that the plate is level. Mark
two holes on the wall, using the plate as a template. Drill two holes and attach the plate with 1/2
in. bolts and washers.
3. Using two people, hang the pump module on the
bracket mounting plate (37). Have one person hold
the module in place while the other checks that the
pump bracket (22) is level. Mark four holes on the
wall, using the pump bracket as a template. Remove the pump module.
4. Drill four holes in the wall.
WARNING
The pump bracket (22) must be bolted to the wall
with four bolts. Do not simply hang the pump
bracket on the bracket mounting plate (37).
5. Lift the pump module back into position, hang it on
the bracket mounting plate (37), and bolt the pump
bracket (22) to the wall. Use 1/2 in. bolts and
washers to mount the pump module to the wall.
Use bolts that are long enough to keep the pump
bracket (22) from vibrating during operation.
Installation
B
G
A
Detail of Air Controls
11a
11b
40
C
11h
F
100
11k
37
11d
22
2
159
11c
4
5
11
15
11j
12
105
150
108
D
1
101
14
24
E
102
21
114
19
232–091 Carbon Steel
Circulation Package Shown
16
109
3
1
Ensure that there is 9 ft (2.8 m) overhead clearance
for the elevator when fully raised.
2
Mount the pump module so the top of the bracket is
4 to 5 ft (1.2 to 1.5 m) above the floor.
3
4
The suction hose is 6 ft (1.8 m) long. Do not stretch
the hose tight; let it hang as shown, to assist fluid
flow into the pump.
See Detail of Air Controls in upper left corner.
7704B
Fig. 1
308-768
9
Installation
Installing the 239–857 Supply Module
(Circulation Packages 232–089 and
232–091 only)
NOTE: Refer to Fig. 1 on page 9, and to the Dimension drawing on page 26 and the Mounting Hole Layouts on page 27.
1. Ensure that there is at least 9 ft (2.8 m) overhead
clearance for the elevator (150) when fully raised.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 12.
8. Bring the coiled hose (105) up through the large
hole in the back pressure regulator’s bracket (24).
9. Screw the adapter (159) at the end of the coiled
hose (105) into the tee (11k).
10. Slide the pipe adapter (11d) into the quick connector (11c), close, and tighten the captive screw.
Using the Quick Connectors
To open a quick connector (11c), loosen the captive
screw (S) and open the connector. Slide the desired
component into the connector, close, and tighten the
screw. See Fig. 2.
S
2. If you are converting an existing pump module to a
circulation package, relieve the pressure. Remove
the suction tube (50) from the pump module. See
the Parts Drawing on page 20. This tube is not
used in a circulation package.
3. Locate the elevator (150) so the pump module’s
suction hose (16) will reach the swivel (101) at the
top of the agitator (102). The suction hose is 6 ft
(1.8 m) long. Do not stretch the hose tight; let it
hang as shown in Fig. 1, to assist fluid flow into the
pump.
4. See page 27. Using the elevator base as a template, mark the floor. Drill four holes in the floor for
1/2 in. bolts. Make sure the bolts are long enough
to prevent the elevator from tipping.
5. Connect the suction hose (16) to the swivel outlet
(101) of the agitator (102). Connect the suction
hose ground wire to the ground lug on the agitator
as shown on page 11.
6. Loosen the captive screw and open the quick
connector (11c) on the air filter/regulator/lubricator
assembly (11). Refer to Using the Quick Connectors, at right.
7. Slide the pipe adapter (11d) out of the quick connector. Remove and discard the pipe plug (11m)
from the bottom port of the tee (11k).
10
308-768
11c
06278
Fig. 2
Connect the Fluid Lines
Connect a 1 to 3 ft (0.3–0.9 m) hose (E) to the ball
valve (15) at the outlet of the fluid filter (5), to isolate
the pump module from the main fluid line. Connect the
other end of the hose to the main fluid line (F).
Connect the fluid return line (G) to the ball valve (14) at
the inlet of the back pressure regulator (12). The return
hose (21) connects the back pressure regulator to the
3-way recirculation valve (19). As an option, the return
hose may be connected to the return line fitting (155)
on the drum cover (114).
Connect the Air Line
Connect the main air supply line (A) to the tee (11k) of
the air filter/regulator/lubricator assembly (11).
Installation
5. Agitator: use the ground wire and clamp (108,
supplied). See Fig. 4. Loosen the grounding lug
locknut (W) and washer (X). Insert one end of the
ground wire (108) into the slot in lug (Z) and
tighten the locknut securely. Connect the ground
clamp to a true earth ground.
Grounding
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 5.
108
W
X
1. Pump: use the ground wire and clamp (40, supplied). See Fig. 3. Loosen the grounding lug locknut (W) and washer (X). Insert one end of the
ground wire (40) into the slot in lug (Z) and tighten
the locknut securely. Connect the ground clamp to
a true earth ground.
Z
Z
16
0720
Fig. 4
6. Suction hose: attach the hose (16) ground wire to
the ground lug on the agitator. See Fig. 4. If you
are not using an agitator, attach the wire to the
fluid supply container.
40
7. Fluid supply container: follow your local code.
8. Object being sprayed: follow your local code.
X
W
0720
Fig. 3
2. Air and fluid hoses: use only electrically conductive
hoses.
3. Air compressor: follow manufacturer’s recommendations.
4. Spray gun: ground through connection to a properly grounded fluid hose and pump.
9. Solvent pails used when flushing: follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the
pail on a nonconductive surface, such as paper or
cardboard, which interrupts the grounding continuity.
10. To maintain grounding continuity when flushing or
relieving pressure, hold a metal part of the spray
gun firmly to the side of a grounded metal pail,
then trigger the gun.
308-768
11
Operation
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying accidentally. To reduce the risk of an injury from accidental spray from the gun, splashing fluid, or
moving parts, follow the Pressure Relief Procedure whenever you:
D
D
D
D
are instructed to relieve the pressure,
stop spraying,
check or service any of the system equipment,
or install or clean the spray nozzle.
1. Close the red-handled bleed-type master air valve
(11h, required in your system). See Fig. 5 on page
15.
2. Place the drain hose (42) into a waste container.
Turn the 3-way recirculation valve (19) to the drain
position.
3. Trigger the gun at the last gun station to relieve
fluid pressure. Maintain firm metal-to-metal contact
between the gun and a grounded waste pail.
Repeat for all gun stations.
4. Open the drain valve (D) to relieve fluid pressure
which may be trapped in the pump or hose.
12
308-768
If you suspect that pressure is not fully relieved after
following the steps above, wrap a fitting near the pump
outlet with a rag, and slowly and carefully loosen the
fitting to relieve pressure. Be careful to protect your
eyes from splashing.
Packing Nut
Before starting, fill the packing nut (H) 1/3 full with
Graco Throat Seal Liquid (TSL) or compatible solvent.
See Fig. 5 on page 15.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure at left.
The packing nut is torqued at the factory and is ready
for operation. If it becomes loose and there is leaking
from the throat packings, relieve pressure, then torque
the nut to 34–40 NSm (25–30 ft-lb). Do this whenever
necessary. Do not overtighten the packing nut.
Flush the Pump Before First Use
The pump is tested with lightweight oil, which is left in
to protect the pump parts. If the fluid you are using
may be contaminated by the oil, flush it out with a
compatible solvent. See Flushing on page 16.
Operation
Starting and Adjusting the Pump
9. One at a time, open any other guns in the system
to purge air from the lines.
1. Open all fluid shutoff valves (14, 15). Refer to Fig.
1 on page 9, and to Fig. 5.
2. Open the back pressure regulator (12). Turn the
3-way recirculation valve (19) to the circulation
position.
3. Open the spray gun at the last gun station and
keep it open while starting the pump.
4. Open the bleed-type master air valves (11h, B).
5. Slowly open the air filter/regulator (11a) until the
pump starts. The air filter/regulator controls the
pump speed and fluid outlet pressure.
6. Adjust the fluid pressure to the lowest setting
necessary to get the desired results. Higher pressures may not improve the spray pattern and will
cause premature component wear. Use the air
filter/regulator (11a) and the back pressure regulator (12) to adjust the pump speed and fluid pressure until the spray is completely atomized. Refer
to the back pressure valve manual (supplied) for
adjustment procedures.
7. To adjust the spray pattern, follow the complete
instructions in your gun manual.
8. When you have achieved the desired spray pattern, release the gun trigger. The pump will continue to cycle as long as air is supplied and the back
pressure regulator (12) is open.
NOTE: In a circulating system, the pump will continue
to cycle as long as air is supplied and the back pressure regulator is open. In a direct supply system, the
pump starts when the gun is opened, and stops when
the gun is closed.
WARNING
COMPONENT RUPTURE HAZARD
To reduce the risk of overpressurizing
your system, which could cause
component rupture and serious injury,
never exceed the specified maximum air input
pressure to the pump (see Technical Data on
page 24).
CAUTION
Do not allow the pump to run dry. It will quickly
accelerate to a high speed, causing damage. If your
pump is running too fast, stop it immediately and
check the fluid supply. If the container is empty and
air has been pumped into the lines, refill the container and prime the pump and the lines, or flush and
leave it filled with a compatible solvent. Eliminate all
air from the fluid system.
308-768
13
Operation
Elevator Operation
1. To raise the elevator (150), connect the quick
coupler (124) on the end of the coiled hose (105)
to the male fitting (J) on the air control valve (K).
Pull up the air control valve button to raise the
elevator to its full height.
3. Slowly open the needle valve (L) to start the
agitator (102). Use the valve to adjust the speed.
Do not operate the agitator too fast. If the fluid
foams or a vortex forms on the fluid surface,
reduce the speed of the agitator.
4. Refer to manual 308–609 for further agitator
operating instructions.
WARNING
MOVING PARTS HAZARD
Moving parts can pinch or amputate your
fingers. When raising or lowering the
elevator, keep your fingers and hands
away from the elevator (150), cover support (125),
drum cover (114), and lip of the drum.
Shutdown
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 12.
Do not remove the quick coupler (124) from the
male fitting (J) until the elevator is completely
lowered.
1. Lower the elevator (150).
2. Position a full drum under the drum cover (114).
2. Shut off the agitator (102).
3. To lower the elevator (150), press down the air
control valve (K) button. Lower the elevator until
the cover (114) rests properly on the lip of the
drum. Disconnect the quick coupler (124) from the
male fitting (J).
4. Refer to manual 306–287 for further elevator
operating instructions.
Agitator Operation
3. Relieve the pressure.
For overnight shutdown, stop the pump at the bottom
of its stroke to prevent fluid from drying on the exposed displacement rod and damaging the throat
packings. Relieve the pressure.
Always flush the pump before the fluid dries on the
displacement rod. See Flushing on page 16.
1. Close the agitator’s needle valve (L).
2. Connect the quick coupler (124) on the end of the
coiled hose (105) to the male fitting (M) on the
agitator (102).
14
308-768
NOTE: When changing fluid containers with the hose
and gun already primed, open the drain valve (D) to
help prime the pump and vent air before it enters the
hose. Close the drain valve when all air is eliminated.
Operation
1
Torque packing nut (H) to 34–40 N m (25–30 ft-lb).
Packing nut is partially hidden.
2
Items 12 and 14 are partially hidden.
2
12, 14
11a
11h
232–091 Carbon Steel
Circulation Package Shown
15
150
105
124
1
M
H
5
L
D
21
K
114
19
42
J
102
125
7688B
Fig. 5
308-768
15
Maintenance
Preventive Maintenance Schedule
The operating conditions of your particular system
determine how often maintenance is required. Establish a preventive maintenance schedule by recording
when and what kind of maintenance is needed, and
then determine a regular schedule for checking your
system.
Flushing
WARNING
FIRE AND EXPLOSION HAZARD
Before flushing, read the section FIRE
AND EXPLOSION HAZARD on page
5. Be sure the entire system and flushing pails are properly grounded. Refer to
Grounding on page 11.
Flush the pump:
Before the first use
When changing colors or fluids
3. Remove the filter element from the fluid filter (5).
Reinstall the filter bowl.
4. Open the back pressure regulator (12). Set the
3-way recirculation valve (19) to the circulation
position.
5. Place the suction tube (50) in a container of solvent, or lower the agitator (102) into a container of
solvent. Start the agitator and run it slowly.
6. Hold a metal part of the gun firmly to the side of a
grounded metal pail.
7. Start the pump. Always use the lowest possible
fluid pressure when flushing.
8. Trigger the gun. Flush the system until clear
solvent flows from the gun.
9. Release the gun trigger and lock the trigger safety.
The pump will continue to cycle as long as air is
supplied and the back pressure regulator (12) is
open.
10. Direct the drain hose (42) into a waste container.
Set the 3-way recirculation valve (19) to the drain
position. Continue flushing until clear fluid comes
from the hose.
Before fluid can dry or settle out in a dormant pump
(check the pot life of catalyzed fluids)
11. Relieve the pressure.
Before storing the pump.
12. Clean the air cap, spray tip, and fluid filter element
separately, then reinstall them.
Flush with a fluid that is compatible with the fluid you
are pumping and with the wetted parts in your system.
Check with your fluid manufacturer or supplier for
recommended flushing fluids and flushing frequency.
CAUTION
If you have a carbon steel pump, never leave water
or water-base fluid in the pump overnight. If you are
pumping water-base fluid, flush with water first, then
with a rust inhibitor such as mineral spirits. Relieve
the pressure, but leave the rust inhibitor in the pump
to protect the parts from corrosion.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 12.
1. Relieve the pressure.
2. Remove the air cap and spray tip from the gun.
See the gun manual.
16
308-768
Air Filter Service
Repair Kits are available. Refer to page 17.
Every day, drain contaminants from the bowl before
reaching the baffle level by opening the drain (P) at the
bottom of the bowl (N).
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 12.
Clean the air filter regularly to maximize filtering efficiency and to avoid excessive pressure drop. Fully
relieve pressure to remove the bowl (N).
Clean the filter element (211) and bowl using household soap and water or denatured alcohol. Use compressed air to blow out the filter body. Blow the filter
element out from the inside.
Clean the sight glass (209) thoroughly. Do not leave
solvent residue in the sight glass as it may attack or
weaken the glass. If the sight glass appears damaged,
replace it immediately.
Maintenance
Model 113–765
Air Filter/Regulator Shown
1
1
1
Repair Kit 239–383 (includes items 201 to
207). For Part No. 113–765 Air
Filter/Regulator.
Kit parts are marked with an asterisk (201*). Individual
parts are not available separately.
Lubricate with no. 2
lithium-base grease.
201*
Ref.
No.
Part No.
Description
201*
202*
203*
204*
205*
206*
207*
N/A
N/A
N/A
N/A
N/A
N/A
N/A
DIAPHRAGM
VALVE ASSEMBLY
O-RING, valve
SPRING, valve
O-RING, center post
O-RING, bowl assembly
GASKET, drain
Qty.
1
1
1
1
1
1
1
Sight Glass Kit 239–385 (includes items
206 to 210). For Part No. 113–765 Air
Filter/Regulator.
Kit parts are marked with a symbol (208{). Individual
parts are not available separately.
202*
203*
1
204*
1
205*
1
Ref.
No.
Part No.
Description
206{
208{
209{
210{
N/A
N/A
N/A
N/A
O-RING, bowl assembly
SCREW
LENS, sight glass
SEAL, lens
Qty.
1
2
1
1
Filter Element Kit 239–384 (includes item
211). For Part No. 113–765 Air
Filter/Regulator.
Kit parts are marked with a symbol (211}). Individual
parts are not available separately.
211}
206*{
Ref.
No.
Part No.
Description
211}
N/A
ELEMENT, 40 micron; polypropylene
Qty.
1
1
210{
N
209{
208{
P
207*
1
308-768
17
Parts
Part No. 232–089, Series A, stainless steel package
Part No. 232–091, Series A, carbon steel package (shown)
159 (Ref)
105 (Ref)
159
105
124
104
103
150
101
100
107
102
109
B
108
155 (Ref)
134
155
125
B
114
102 (Ref)
109 (Ref)
7686B
18
308-768
Parts
Part No. 232–089, Series A, stainless steel package
Part No. 232–091, Series A, carbon steel package
NOTE: Part numbers vary by package. To find the part number used in your package, read down the chart to find
the desired ref. no., then read left to right to find the part number for your package.
Package
Ref.
Ref
No.
Description
232–089
SST Package
100
MODULE, pump; sst; includes items shown on page 20
232–081
MODULE, pump; cst; includes items shown on page 20
232–091
Qty
CST Package
1
232–079
1
101
SWIVEL; sst; 3/4 npt (m x f)
112–268
112–268
1
102
AGITATOR, back-geared; see manual 308–609
238–157
238–157
1
103
BUSHING; sst; 1” npt(m) x 3/4 npt(f)
502–851
502–851
1
104
ELBOW, 90 ; sst; 1” npt (fbe)
500–251
500–251
1
105
HOSE, air; nylon; 1/4 in. (6 mm) ID; 1/4 npt (mbe); 50 ft (15.2 m) long
205–600
205–600
1
107
STRAP, tie
103–546
103–546
3
108
GROUND WIRE AND CLAMP
237–569
237–569
1
109
RISER TUBE KIT; see manual 308–609
238–250
238–250
1
114
COVER, drum; sst; see manual 308–466
238–283
238–283
1
124
COUPLER, quick disconnect, female
208–536
208–536
1
125
ASSEMBLY, cover support; see manual 306–287
237–578
237–578
1
134
KIT, air control, elevator; see manual 306–287
237–579
237–579
1
150
ELEVATOR, drum; see manual 306–287
204–385
204–385
1
155
KIT, return tube
238–884
238–884
1
159
ADAPTER; 3/8 npt(m) x 1/4 npt(f)
159–841
159–841
1
Parts
Part No. 232–078, Series A, stainless steel pump module
Part No. 232–079, Series A, carbon steel pump module (shown)
Part No. 232–081, Series A, stainless steel pump module
20
14
12
31
21 (Ref)
40
24
A
10 (Ref)
11e
11g
11k
29
11a
C
11d
37
11m
11f
38
A
11h
22
31
32
33
10
5
9
11d
11k
11c 11b
39
47
32
46
11n
1
33
11j
48
18
45
3 23
50
2
15
4
16
Fluid Filter Detail for
Model 232–081
5
B
B
6
47
46
Fluid Filter Detail for
Model 232–078
7
C
8
51
16
27
18
5
18
15
45
48
15
19
21
41
26
42
7685B
20
308-768
Parts
Part No. 232–078, Series A, stainless steel pump module
Part No. 232–079, Series A, carbon steel pump module (shown)
Part No. 232–081, Series A, stainless steel pump module
NOTE: Part numbers vary by module. To find the part number used in your module, read down the chart to find the
desired ref. no., then read left to right to find the part number for your module.
Module
Ref.
Ref
No.
Description
232–078
SST Module
1
PUMP, President; 3:1 ratio; sst; see manual 308–793
239–854
PUMP, President; 3:1 ratio; cst; see manual 308–793
232–079
CST Module
232–081
SST Module
Qty
239–854
1
239–855
1
2
NIPPLE, reducing; sst; 1” x 1/2 npt
503–086
503–086
503–086
1
3
ELBOW, 90 ; sst; 1/2 npt(fbe)
500–947
500–947
500–947
1
4
NIPPLE, reducing; sst; 1/2 npt x 3/8 npt
111–874
192–593
192–593
NIPPLE, reducing; sst; 3/4 npt x 1/2 npt
5
FLUID FILTER, includes drain valve and gauge; sst;
see manual 307–273
FLUID FILTER; sst; see manual 307–282
1
239–853
1
1
213–058
FLUID FILTER; sst; see manual 308–819
1
240–221
1
6
BUSHING; sst; 1–1/2” npt(m) x 3/4 npt(f)
114–188
114–188
114–188
1
7
NIPPLE; sst; 3/4 npt
510–073
510–073
510–073
1
8
TEE; sst; 3/4 npt(f) run x 3/4 npt(f) branch
113–833
113–833
113–833
1
9
ELBOW, tube fitting, 90 ; 1/2 npt(m) x 1/2 in. (13 mm) OD tube
114–110
114–110
114–110
1
10
HOSE; polyurethane; 0.328 in. (8 mm) ID; 13 in. (330 mm) long
Purchase
locally
239–849
11a
AIR FILTER/REGULATOR/LUBRICATOR; see page 17;
includes items 11a to 11m
. AIR FILTER/REGULATOR
Purchase
locally
239–849
1
11
Purchase
locally
239–849
113–765
113–765
113–765
1
11b
. LUBRICATOR
114–005
114–005
114–005
1
11c
. CONNECTOR, quick
113–763
113–763
113–763
3
11d
. ADAPTER, pipe; 3/8 npt(f)
113–767
113–767
113–767
2
11e
. ELBOW, 45 ; 1/8 npt (m x f)
113–630
113–630
113–760
1
11f
. GAUGE, air
113–911
113–911
113–911
1
11g
. ADAPTER, tube fitting; 1/2 npt(m) x 1/2 in. (13 mm) OD tube
114–129
114–129
114–129
1
11h
. VALVE, ball, bleed-type; 3/8 npt (m x f)
113–333
113–333
113–333
1
11j
. VALVE, relief; 110 psi (7.6 bar, 0.76 MPa)
113–498
113–498
113–498
1
11k
. TEE; 3/8 npt(f) run x 3/8 npt(m) branch
113–777
113–777
113–777
2
11m
. PLUG; 3/8 npt
101–754
101–754
101–754
1
11n
. ADAPTER; 3/8 npt(m) x 1/4 npt(f)
159–841
159–841
159–841
1
12
REGULATOR, back pressure; see manual 308–401
236–770
236–770
236–770
1
14
VALVE, ball; sst; 3/8 npt(fbe); see manual 307–068
237–532
237–532
237–532
1
15
VALVE, ball; sst; 1/4 npt(m) x 3/8 npsm(m); see manual 307–068
237–529
237–533
237–533
VALVE, ball; sst; 3/8 npt(m) x 3/8 npsm(m); see manual 307–068
1
1
1
NOTE: The Parts List is continued on page 22.
308-768
21
Parts
Part No. 232–078, Series A, stainless steel pump module
Part No. 232–079, Series A, carbon steel pump module
Part No. 232–081, Series A, stainless steel pump module
NOTE: Part numbers vary by module. To find the part number used in your module, read down the chart to find the
desired ref. no., then read left to right to find the part number for your module.
Module
Ref.
Ref
No.
16
18
Description
HOSE, suction, with ground wire; nylon;
3/4 npt(mbe) sst couplings; 1/2 in. (13 mm) ID; 6 ft (1.8 m) long
BUSHING; sst; 3/4 npt(m) x 3/8 npt(f)
232–078
SST Module
232–079
CST Module
232–081
SST Module
Qty
221–171
221–171
221–171
1
500–352
500–352
2
500–352
BUSHING; sst; 3/4 npt(m) x 3/8 npt(f)
1
19
VALVE, recirculation, 3-way; sst; 3/8 npt(m)
114–189
114–189
114–189
1
20
SWIVEL, 90 ; sst; 3/8 npt(m) x 3/8 npsm(f)
207–123
207–123
207–123
1
21
114–198
114–198
114–198
1
22
HOSE, fluid return; nylon; 3/8 npt(mbe) sst couplings;
1/4” (6 mm) ID; 6 ft (1.8 m) long
BRACKET, pump
192–584
192–584
192–584
1
23
UNION, swivel; 1/2 npt(m) x 1/2 npsm(f); sst
114–190
114–190
114–190
1
24
BRACKET, back pressure regulator
192–586
192–586
192–586
1
26
COUPLING, hose, with spring guard; sst; 3/8 npsm(f)
111–914
111–914
111–914
1
27
SWIVEL; 3/4 npt (m x f); sst
112–268
112–268
112–268
1
29
SCREW, cap, socket hd; 1/4–20; 1/2 in. (13 mm) long
101–550
101–550
101–550
2
31
SCREW, cap, hex head; 3/8–16 x 1 in. (25 mm) long
102–471
102–471
102–471
5
32
LOCKWASHER, spring; 3/8
112–922
112–922
112–922
5
33
NUT, hex; 3/8–16
112–913
112–913
112–913
5
37
PLATE, mounting, bracket
192–589
192–589
192–589
1
38
SCREW, machine, socket, flat head; M5 x 0.8; 16 mm long
113–768
113–768
113–768
6
39
NUT, hex, with nylon insert; M5 x 0.8
105–332
105–332
105–332
6
40
GROUND WIRE AND CLAMP
237–569
237–569
237–569
1
41
SWIVEL, straight; 3/8 npt(f) x 3/8 npsm(f)
207–152
207–152
207–152
1
42
TUBE, drain; nylon; 1/4 in. (6 mm) ID; 8 in. (203 mm) long
Purchase
locally
TEE; sst; 3/8 npt(f) x 3/8 npt(m) run; 3/8 npt(f) branch
Purchase
locally
108–673
1
45
Purchase
locally
108–673
46
BUSHING; sst; 3/8 npt(m) x 1/4 npt(f)
168–160
168–160
1
47
GAUGE, fluid pressure; sst; 0–300 psi (0–21 bar, 0–2.1 MPa)
187–876
187–876
1
48
VALVE, ball; sst; 1/4 npt(m) x 3/8 npsm(m); see manual 307–068
237–529
VALVE, ball; sst; 3/8 npt(m) x 3/8 npsm(m); see manual 307–068
1
1
237–533
1
49
THROAT SEAL LIQUID; 1 pint (0.5 liter); not shown
206–994
206–994
206–994
1
50
TUBE, suction, 90 ; sst; 3/4 npt(f) x 3/4 npsm(m)
188–867
188–867
188–867
1
51
ADAPTER; sst; 1/8 npt(m) x 3/8 npt(f)
108–415
1
22
308-768
Manual Change Summary
Assembly Changed
Part
Status
Ref.
No.
Part No.
Name
All Models
Old
New
Added
11j
11j
11n
113–769
113–498
159–841
Relief Valve
Relief Valve
Adapter
308-768
23
Technical Data
Part No. 232–078, Series A, stainless steel pump module
Part No. 232–079, Series A, carbon steel pump module
Part No. 232–081, Series A, stainless steel pump module
Part No. 232–089, Series A, stainless steel package
Part No. 232–091, Series A, carbon steel package
Category
Data
Maximum fluid working pressure
300 psi (2.1 MPa, 21 bar)
Maximum air input pressure
100 psi (0.7 MPa, 7 bar)
Ratio
3:1
Maximum operating temperature
Models 232–078, 232–079, and 232–091: 180 F (82 C)
Models 232–081 and 232–089: 150 F (66 C)
Weight
Stainless steel models: 114 lb (52.7 kg)
Carbon steel models: 112 lb (51.8 kg)
Wetted parts
Pump: See pump manual 308–793.
Fluid Filter: See filter manual 307–273, 307–282, or 308–819.
Back Pressure Regulator: See back pressure regulator manual 308–401.
Back-Geared Agitator: See agitator manual 308–609.
Fluid Hoses: Nylon
Sound Pressure Levels (dBa)
(measured at 1 meter from unit)
Input Air Pressures at 15 cycles per minute
Air Motor
40 psi (0.28 MPa, 2.8 bar)
70 psi (0.48 MPa, 4.8 bar)
100 psi (0.7 MPa, 7 bar)
President
73.6 dB(A)
78.3 dB(A)
80.9 dB(A)
Sound Power Levels (dBa)
(tested in accordance with ISO 9614–2)
Input Air Pressures at 15 cycles per minute
Air Motor
40 psi (0.28 MPa, 2.8 bar)
70 psi (0.48 MPa, 4.8 bar)
100 psi (0.7 MPa, 7 bar)
President
87.4 dB(A)
92.1 dB(A)
94.6 dB(A)
24
308-768
Technical Data
Fluid Outlet Pressure Chart
MPa, BAR PSI
2.8, 28 400
12
25
CPM
37
49
61
73
86
A
B
C
To find Outlet Pressure (MPa/bar/psi) at a specific
delivery (liter/min or gpm) and operating air pressure
(MPa/bar/psi):
1. Locate desired delivery along bottom of chart.
2. Read vertical line up to intersection with
selected fluid outlet pressure curve (black
curves). Curve slopes from left to right.
Follow left to scale and read outlet pressure.
2.1, 21 300
A
1.7, 17 250
1.4, 14 200
B
1.05, 10.5 150
0.7, 7 100
0.35, 3.5
C
50
0
2
4
6
8
10
12
14
GPM 0
l/min
8
15 23
30 38
46 54
PUMP DELIVERY (Test Fluid: No. 10 Motor Oil)
Air Consumption Chart
m3/min CFM
1.96 70
AIR CONSUMPTION
PUMP OUTLET PRESSURE
2.45, 24.5 350
0.7 MPa, 7 bar (100 psi) air pressure
0.49 MPa, 4.9 bar (70 psi) air pressure
0.28 MPa, 2.8 bar (40 psi) air pressure
1.68
60
1.40
50
1.12
40
0.84
30
0.56
20
0.28
10
12
25
CPM
37
49
61
73
86
A
B
C
A
B
0.7 MPa, 7 bar (100 psi) air pressure
0.49 MPa, 4.9 bar (70 psi) air pressure
0.28 MPa, 2.8 bar (40 psi) air pressure
To find Pump Air Consumption (m3/min or
CFM/min) at a specific delivery (liter/min or gpm)
and operating air pressure (MPa/bar/psi):
1. Locate desired delivery along bottom of chart.
2. Read vertical line up to intersection with
selected air consumption curve (dashes).
Curve slopes from right to left. Follow left to
scale and read air consumption.
C
0
2
4
6
8
10
12
14
GPM 0
l/min
8
15 23
30 38
46 54
PUMP DELIVERY (Test Fluid: No. 10 Motor Oil)
308-768
25
Dimensions
1
Ensure that there is 9 ft (2.8 m) overhead clearance
for the elevator when fully raised.
2
Mount the pump module so the top of the bracket is
4 to 5 ft (1.2 to 1.5 m) above the floor.
3
The suction hose is 6 ft (1.8 m) long. Do not stretch
the hose tight; let it hang as shown, to assist fluid
flow into the pump.
232–091 Carbon Steel
Circulation Package Shown
2
1
3
7688B
26
308-768
Mounting Hole Layout
1
Check that the bracket is level before bolting it to the wall.
2
Mount the bracket so the top edge is 4 to 5 ft (1.2 to 1.5 m) above the floor.
1
2
1.0 in. (25.4 mm)
5.0 in.
(127 mm)
4.0 in.
(101.6 mm)
10.0 in.
(254 mm)
7687A
5.5 in.
(140 mm)
8.88 in.
(225.9 mm)
0.56 in. (14.2 mm) Holes
308-768
27
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited
warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment
determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–367–4023 Toll Free
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Offices: Minneapolis, Detroit, Los Angeles
Foreign Offices: Belgium, Canada, England, Korea, France, Germany, Hong Kong, Japan
GRACO INC.
P.O. BOX 1441
MINNEAPOLIS, MN
55440–1441
http://www.graco.com
1998–1997 Graco Inc. 308–768 Rev. B March 1998 PRINTED IN U.S.A.
28
308-768
3X8–768
Rev. C
Supersedes Rev. B
Parts Change Notice
Some parts in Rev. B of manual 308–768 have changed but have not yet been changed in the
instruction manual. Please note the changes below and mark them in your manual or keep this
sheet with your manual.
Assembly No.
Model 232–081
Pump Module
and Model
232–089
Circulation
Package
Series
Letter
Change
Part That
Changed
Ref
No.
Part Description
Description of Change
–
240–221
5
Fluid Filter
Replaced by Part No. 241–136 Fluid
Filter. See manual 308–918.
237–533
48
Ball Valve
Replaced by Part No. 237–529 Ball
Valve; sst; 1/4 npt(m) x 3/8 npsm(m);
see manual 307–068
108–415
51
Adapter
Deleted.
All written and visual data contained in this document reflects the latest product information available at the
time of publication. Graco reserves the right to make changes at any time without notice.
September 29, 1998

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
