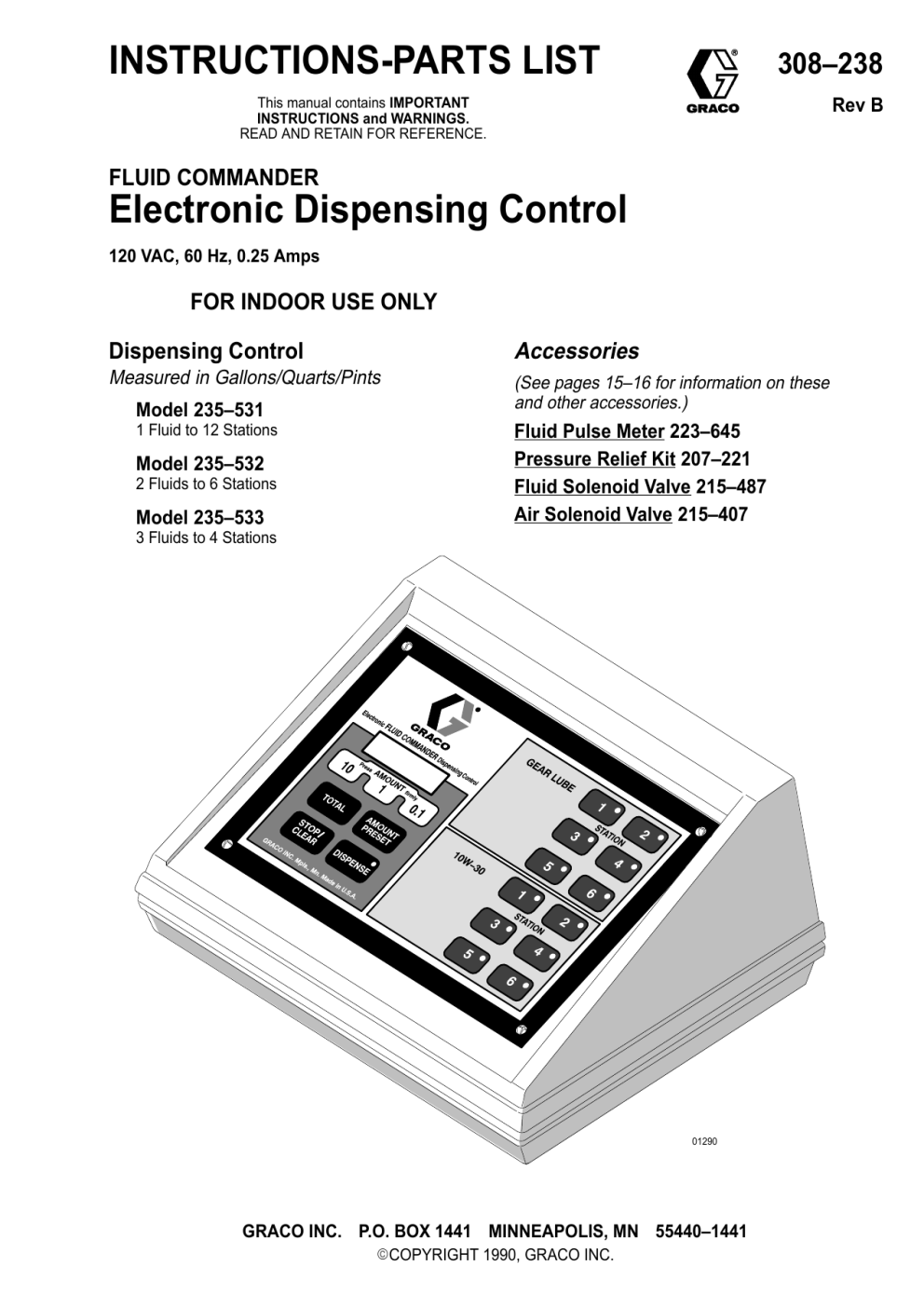

Graco 308238B FLUID COMMANDER Electronic Dispensing Control Owner's Manual

INSTRUCTIONS-PARTS LIST
308–238
This manual contains IMPORTANT
INSTRUCTIONS and WARNINGS.
READ AND RETAIN FOR REFERENCE.
Rev B
FLUID COMMANDER
Electronic Dispensing Control
120 VAC, 60 Hz, 0.25 Amps
FOR INDOOR USE ONLY
Dispensing Control
Accessories
Measured in Gallons/Quarts/Pints
(See pages 15–16 for information on these
and other accessories.)
Model 235–531
1 Fluid to 12 Stations
Model 235–532
2 Fluids to 6 Stations
Model 235–533
Fluid Pulse Meter 223–645
Pressure Relief Kit 207–221
Fluid Solenoid Valve 215–487
Air Solenoid Valve 215–407
3 Fluids to 4 Stations
01290
GRACO INC.
P.O. BOX 1441 MINNEAPOLIS, MN
COPYRIGHT 1990, GRACO INC.
55440–1441
TYPICAL INSTALLATION
KEY
A
B
C
D
E
F
G
H
J
K
L
M
Control
Pressure Relief Kit , P/N 207–221,
1–1/2 npt (m x f), 900 psi Max WPR,
Supply Tank
Air Shutoff Valve, Bleed type
Air Filter
Air Solenoid Valve, P/N 215–407
Air Regulator, P/N 202–156
Pump
Flexible Hose (3 to 6 ft long)
Check Valve, P/N 111–620
Fluid Filter, P/N 223–179
Pulse Meter, P/N 223–645
N
P
Q
R
S
Fluid Shutoff Valve, P/N 108–458, 1/2”
Fluid Solenoid Valve, P/N 215–487
Hose Reel
Ready Light , P/N 218–588
Dispense Valve
See pages 15–16 to order Accessories.
N
FLUID SOLENOID
SIGNAL LINE
P
Q
D
E
F
G
H
R
J (3 to 6 ft long)
K
L
M
S
PULSE UNIT
SIGNAL LINE
AIR SOLENOID
SIGNAL LINE
B
C
A
0912
Fig 1
NOTE: The Electronic Dispensing Control is referred
to as “the control” in this manual.
How the Fluid Commander system works
The operator programs the control by selecting the
appropriate fluid and station and setting the quantity to
be dispensed. When the operator depresses DISPENSE key, the control energizes the respective air
and fluid solenoid valves. As the fluid is dispensed by
the service person, the pulse meter sends pulses to
the control in proportion to the amount flowing through
it. When the number of pulses counted by the control
is equivalent to the preset quantity, the air and fluid
solenoid valves shut off. Refer to OPERATION for
more detailed information on using the system.
308–238
About the Typical Installation
The TYPICAL INSTALLATION is only a guide for a
basic system, showing just one fluid. Your Graco sales
representative can help you design a system to suit
your needs.
WARNING
A Pressure Relief Kit is required in your system
to reduce the risk of serious bodily injury such as
splashing fluid in the eyes or on the skin, which
can occur if excessive system pressure ruptures
the lines and components. Install the kit as
shown in the Typical Installation Drawing. Order
Graco Part No. 207–221. See page 7.
INSTALLATION
WARNING
Be sure that all accessory items and system components can withstand the pressures developed.
The maximum fluid working pressure of the Fluid
Commander System is 1500 psi (103 bar). NEVER exceed the maximum working pressure of the
lowest rated accessory (valve, pipe, fitting, hose,
etc.) in your system.
2. Connect the electrical wiring
The wire gauge to be used should be determined by
the length of the run:
18 AWG up to 500 ft. (152 m)
16 AWG up to 1000 ft. (305 m)
Page 4 shows the recommended wiring schematic
using Graco supplied cables, valves and pulsers.
CAUTION
NOTE: The accessories mentioned in this manual are
shown on pages 15 and 16.
1. Mount the control
Place the control on a desktop or mount it on a wall,
and locate it at least 18 in. (441 mm) off the floor.
WARNING
To reduce the risk of fire or explosion and serious
bodily injury including electric shock:
If you do not use the Graco recommended air and
fluid valves, verify that the valves DO NOT
exceed 1 amp of supply current when operated
with 24 V DC.
Page 5 shows the alternative wiring schematic using
customer-supplied cables with Graco-supplied valves
and pulsers.
Page 6 shows where the wires connect at the rear of
the control, depending on the number of fluids you are
using. Fig 2, below, shows how to make the electrical
connections at the control using the supplied probe.
CAUTION
D The control and all electrical products
described in this manual must be installed in
a non–hazardous location.
D All electrical products must be wired by a qualified electrician, following all Local, State
and National codes.
D Connect only to a grounded outlet.
To ensure correct polarity of the electrical supply,
use only the power supply cord supplied with the
control. Any other power supply cord may permanently damage the control.
3. Apply labels to the control
After determining the fluids to be dispensed, apply the
appropriate labels within the raised area next to the
station pads. See Fig 3, page 7.
WIRE
Strip back 1/4” insulation
PROBE
(supplied with control)
The probe functions much like a can opener.
Hook the bottom of the probe under the lip of
the terminal strip and raise the probe handle
so the top of the probe enters the slot and
presses down the connector. Install the wire
firmly and release the probe.
01291
Fig 2
308–238
3
INSTALLATION – Recommended Wiring Schematic
Typical for three fluids to four stations
Example uses Graco supplied cables, valves and pulsers. See Accessories, pages 15–16.
Recommended Wiring for Fluid Solenoid Valves
STATION FLUID SOLENOID VALVES
P/N 215–487
STA. 1
12 CABLES P/N 235–513 (10 FT)
1
2
3
4
13
STA. 2
STA. 3
STA. 4
12 CABLES WITH
PRECONNECTED ENDS
RED OR WHITE
RED OR WHITE
RED OR WHITE
RED OR WHITE
BLACK
BLACK
FLUID
ONE
BLACK
BLACK
BLACK
(1 FOOT)
STA. 1
STA. 2
STA. 3
STA. 4
WIRE NUT
5
6
7
8
14
RED OR WHITE
RED OR WHITE
RED OR WHITE
RED OR WHITE
BLACK
BLACK
FLUID
TWO
BLACK
BLACK
BLACK
(1 FOOT)
STA. 1
9
10
11
12
15
16
STA. 2
STA. 3
FLUID
THREE
RED OR WHITE
RED OR WHITE
RED OR WHITE
RED OR WHITE
BLACK
STA. 4
BLACK
BLACK
BLACK
BLACK
(1 FOOT)
Recommended Wiring for Fluid Pulsers and Air Solenoid Valves
FLUID 1 PULSER
P/N 223–645
6 CABLES P/N 235–513 (10 FT)
1
2
3
4
5
6
7
8
9
10
11
12
FLUID 3 PULSER
P/N 223–645
6 CABLES WITH
PRECONNECTED ENDS
RED OR WHITE
BLACK
RED OR WHITE
BLACK
RED OR WHITE
BLACK
RED OR WHITE
BLACK
RED OR WHITE
BLACK
RED OR WHITE
BLACK
FLUID 3 AIR SOLENOID
P/N 215–407
4
FLUID 2 PULSER
P/N 223–645
308–238
FLUID 2 AIR SOLENOID
P/N 215–407
FLUID 1 AIR SOLENOID
P/N 215–407
INSTALLATION – Alternate Wiring Schematic
Typical for three fluids to four stations.
Example uses customer-supplied wires. Valves and pulsers supplied by Graco. See Accessories, pages 15–16.
Alternate Wiring for Fluid Solenoid Valves
STATION FLUID SOLENOID VALVES
P/N 215–487
STA. 1
STA. 2
STA. 3
STA. 4
WIRE NUT
1
2
3
4
13
FLUID
ONE
STA. 1
STA. 2
STA. 3
STA. 4
FLUID
TWO
5
6
7
8
14
STA. 1
STA. 2
STA. 3
STA. 4
FLUID
THREE
9
10
11
12
15
16
Alternate Wiring for Fluid Pulsers and Air Solenoids
FLUID 1 PULSER
P/N 223–645
FLUID 2 PULSER
P/N 223–645
FLUID 3 PULSER
P/N 223–645
WIRE NUT
1
2
3
4
5
6
7
8
9
10
11
12
RED
RED
BLACK
BLACK
RED
RED
BLACK
RED
RED
BLACK
FLUID 3 AIR SOLENOID
P/N 215–407
FLUID 2 AIR SOLENOID
P/N 215–407
FLUID 1 AIR SOLENOID
P/N 215–407
308–238
5
INSTALLATION – Wiring at Control
Three Fluids To Four Stations
STATION FLUID SOLENOID VALVES
FLUID 1
FLUID 2
FLUID 3
FLUID SOLENOID SUPPLY
(positions 13–16)
1
2
3
4
Station Numbers
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
AIR SOLENOID SUPPLY
+ = RED or WHITE
– = BLACK
+
–
FLUID 1
+
–
+
FLUID 2
–
FLUID 1
FLUID 2
FLUID 3
PULSE UNITS
FLUID 3
AIR SOLENOID VALVES
Two Fluids To Six Stations
STATION FLUID SOLENOID VALVES
FLUID 1
FLUID 2
FLUID SOLENOID SUPPLY
(positions 13–16)
1
2
3
4
Station Numbers
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
AIR SOLENOID SUPPLY
+ = RED or WHITE
– = BLACK
+
–
FLUID 1
+
–
FLUID 1
FLUID 2
FLUID 2
PULSE UNITS
AIR SOLENOID VALVES
One Fluid To Twelve Stations
STATION FLUID SOLENOID VALVES
FLUID 1
FLUID SOLENOID SUPPLY
(positions 13–16)
1
2
3
Station Numbers
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
AIR SOLENOID SUPPLY
+ = RED or WHITE
– = BLACK
+
–
FLUID 1
PULSE UNITS
6
308–238
FLUID 1
AIR SOLENOID VALVE
OPERATION
CAUTION
Do not leave the control in the dispense mode
without dispensing for longer than 1 hour. Overheating may occur.
Press DISPENSE. The digital display shows all zeros
and the DISPENSE light blinks. As the order is dispensed, the display counts up and the fluid to the reel
is shut off when the preset amount is delivered.
1. Program the security code and set the
units of measurement
4. To check the preset amount during
dispense
A four digit security code is required to activate the
control after turning it on. This prevents unauthorized
use of the system.
Press and hold AMOUNT PRESET. The order continues
to be delivered unless you stop or clear it.
The control is factory-set to dispense in quarts. Refer
to the instructions on the last page of this manual to
change the units of measurement. Tear out the page
and keep it in a secure place.
5. To stop the dispense and check the
preset amount
2.
Activate the control
Turn on the switch at rear of the control. During powerup, all display segments must show and all station and
dispense lights must be on and steady for 3 to 4
seconds. Then the display shows four dashes. Enter
your security code.
3.
Enter the order
Press the station number key for the appropriate fluid.
The light on the key will come on.
Press the white keys firmly to enter the amount. For
example, to enter 25.4 units, press the 10 twice, the 1
five times and the 0.1 four times. If you make a mistake, press STOP/CLEAR and enter the total amount
again.
NOTE: Holding in an amount key will cause the digit to
change continually until the key is released.
Press STOP/CLEAR and then press and hold AMOUNT
PRESET to verify the original order. Press DISPENSE to
continue the order.
6.
To stop or clear an order
Press STOP/CLEAR twice to cancel and clear the order.
NOTE: The control delivers just one fluid to one station at a time. During delivery, all pads on the
control are inactivated except AMOUNT PRESET and STOP/CLEAR.
7. To find the total units delivered for
each fluid
Press any station key for one fluid. Press and hold TOTAL to read the amount. Repeat for the other fluids.
APPLY APPROPRIATE
FLUID IDENTIFICATION LABEL
STATION
LIGHT
GEAR LUBE
DISPLAY
Showing all
display
segments
STATION
PTS
QTS
GAL
STATION
KEY
SAE 5W–30
Press AMOUNT firmly
STATION
AMOUNT
KEYS
HYDRAULIC
STATION
DISPENSE
LIGHT
Fig 3
LOWER
RIGHT STATION
KEY
KEYPAD FOR THREE FLUIDS TO FOUR STATIONS
308–238
7
MAINTENANCE – Control
NOTE: The control is not user repairable.
If power is cut off
1. Each control has a built-in backup battery for its
memory. When power is restored, reactivate the
control by entering the security code. The total
amounts dispensed will still be in the memory. If
power was cut off during a dispense cycle, the
control will show the fluid, station and amount already dispensed. Just press DISPENSE to continue.
2. The ON/OFF switch is also a 0.40 Amp circuit
breaker. If the system shuts off unexpectedly,
switch it off and on again. If the problem continues,
first determine if it is caused by problems with the
hard wiring. If the problem seems to be with the
control, return it to Graco for repair.
To clean the control
Spray mild household cleaner (only) on a soft cloth and
wipe the control clean. Do not allow the cleaner or any
other fluid to seep under the front panel.
The control is not user-repairable.
Service is available only at Graco-authorized service
centers. DO NOT open the control or attempt to make
any repairs yourself.
MAINTENANCE – Pulse Meter, P/N 223–645
WARNING
To reduce the risk of serious injury, including
electric shock or splashing fluid in the eyes or on
the skin, always follow this procedure before
servicing any part of the Fluid Commander
system and before checking for loose or shorted
wires.
1. Turn off the control and unplug it.
2. Shut off the power to the pump(s).
3. Relieve fluid pressure.
CAUTION
To avoid damaging the electronic components of
the pulse meter module (1) :
2. Disconnect the cable from the pulse module,
taking note of the wiring polarity.
3. Remove the screws. Lift off the pulse module.
4. Install a new pulse module (1). Align the notches
on the underside of the pulse module with the cutaways in the top of the metering unit. Use the new
screws and torque them oppositely and evenly to
10–12 in–lb (1.2–1.4 N.m). See Fig 4.
5. Connect the pulse module wires to the cable,
observing the original wiring polarity.
To replace the metering unit
1. Follow the WARNING, left. Also observe the
CAUTION, left.
1. Do not lay anything on the pulse module.
2. Remove the screws. Lift off the pulse module.
2. Be sure the open side of the pulse module
faces up if you lay it down.
3. Remove the old metering unit.
3. Do not twist or force parts. Align parts properly as instructed.
4. Install a new metering unit (2). Align the notches
on the underside of the pulse module with the cutaways in the top of the metering unit. Use the new
screws and torque them oppositely and evenly to
10–12 in-lb (1.2–1.4 N.m). See Fig 4.
To replace the complete pulse meter
1. Follow the WARNING, above. Also observe the
CAUTION, above.
2. Disconnect the cable from the pulse module,
taking note of the wiring polarity.
REPLACEMENT SCREWS
INCLUDED WITH ITEMS 1 AND 2
TORQUE OPPOSITELY
AND EVENLY TO
10–12 in-lb (1.2–1.4 N.m)
3. Remove the old pulse meter and install the new
one, observing the original wiring polarity.
To replace the electronic pulse module
1. Follow the WARNING, above. Also observe the
CAUTION, above.
308–238
8
Fig 4
1
2
MAINTENANCE – Fluid Solenoid Valve, P/N 215–487
WARNING
To reduce the risk of serious injury, including
electric shock, turn off the control and disconnect
the power supply cord from the outlet before
checking for loose or shorted wires and before
servicing the solenoid valves.
NOTE: Dispense fluid at the dispensing valve
controlled by the cleaned or replaced solenoid
valve until all air is purged from the
system.
NUT
OPERATOR
The solenoid valve is normally closed; foreign matter
could hold the valve open, preventing it from stopping
the fluid flow. If that happens, stop the pump, open the
dispensing valve controled by the solenoid valve to
relieve line pressure, and close the shutoff valve ahead
of the solenoid valve.
111–451
Replacement
Screen
To clean the solenoid valve
1. Unscrew the nut, remove the operator and unscrew the piston from the body. See Fig 5.
BODY
2. Clean the parts and the seat in the body. Blow air
into the body to clear the fluid passageways.
3. Reassemble the valve and dispense fluid to see if
the held–open condition has been corrected. If it
has not, replace the solenoid valve.
Fig 5
308–238
9
TROUBLESHOOTING
NOTE: A volt–ohm meter is required.
Step 1
TURN ON/OFF SWITCH TO ON
Enter security code.
YES
Does control do power-up
sequence as described in
Step 2, page 7?
NO
Check power outlet;
Is it powered?
NO
Is security code accepted?
NO
Verify security
code or enter
new code.
YES
Restore power
to outlet.
YES
YES
Is code
accepted now?
Connect power
cord.
NO
Is cord plugged into outlet
and into back of control?
YES
NO
Control is ready.
Control may be
defective; Call
Graco service rep.
Go to Step 2.
10
308–238
Go to Step 1.
Control has failed; Call
Graco service rep.
TROUBLESHOOTING
Step 2
SELECT STATION AND/OR FLUID
YES
Press STOP/CLEAR key
twice.
NO
Does display show all zeros?
Does station indicator light?
Switch pad may
be defective.
NO
Switch pad or
light may be
defective.
Try selecting another station.
YES
Does the station indicator light?
NO
YES
Press the one control
preset key.
Control may be defective;
Call Graco service rep.
NO
Does the display show 1.00?
YES
Press the dispense key.
Does the display go to all zeros
and the dispense light flash?
NO
YES
Control is ready to
dispense; Go to Step 3
308–238
11
TROUBLESHOOTING
Step 3
TRY TO DISPENSE FLUID FROM STATION
Does fluid flow?
NO
Check the following before preceeding:
D Is air connected to pump?
YES
Does fluid flow at expected rate?
D Does air have enough pressure?
NO
D Is there oil in pump tank?
See page 13
YES
Does fluid stop when present amount is
complete?
D Is air shutof valve open?
B
NO
D Are you at the correct station?
D Is dispense nozzle open?
C
D Is valve wiring correct?
See page 14
YES
D Is the oil shut off valve open?
D Is valve current less than 1 amp at 24 V DC?
Control is operational.
If after checking for problems listed above and fluid
will still not flow, proceed with troubleshooting.
Press STOP/CLEAR key twice to stop dispense.
Use a voltmeter set to DC volts, 25V or
more. Measure from position 16 on station
terminal strip to 2 on pulser input strip.
Does the meter read 24V 1 volt with
position 16 being positive?
NO
Solenoid supply may be shorted, overheated or
damaged.
YES
Turn control off for 5 minutes.
Select station that is non-operational. Enter a
preset amount. Do not press dispense key.
Turn on control. Enter security code.
Use a voltmeter and measure from position
16 to non-operational fluid valve position.
Use a voltmeter to measure from position 16 on
station terminal strip to 2 on pulser input strip.
A
See page 11
YES
Does the meter read 24V 1 volt with position 16
being positive?
NO
Control has failed. Call Graco service rep.
12
308–238
TROUBLESHOOTING
Step 3 continued
A
From page 10
Is meter reading less than one volt?
NO
Make sure pulser low wire ( – or black) is
not commoned with the valve drive supply.
YES
Press dispense key.
Measure voltage again. Is meter reading
24V 2 volts?
NO
D
See page 14
YES
Disconnect cable at fluid valve. Measure voltage
at cable connector. Is voltage 24V 1 volt?
NO
YES
YES
Checking wiring between fluid valve
and control.
Oil valve may be defective or air valve
is not open.
Disconnect cable at air valve. Measure voltage
at cable connector. Is voltage 24V 1 volt?
YES
Valve may be defective. If pressure gauge is
installed after valve, verify that valve is open
by observing pressure into pump. Temporarily
install gauge if there isn’t one there.
If pressure to pump is OK, then valve is
functional.
NO
Do you have the correct cable?
NO
If there is more than one air valve, do
you have the correct one?
NO
YES
Check wiring between air valve and
control.
B
From page 12
Check fluid filter and clean if necessary.
To determine if pulse meter is blocked or the
station oil valve is bad, select a different
station but with same fluid. If still no fluid
flow, pulse meter is blocked or jammed with
debris. Replace pulse meter.
Check fluid filter on fluid valve and clean
if necessary.
Check dispense nozzle; make sure it is fully
open.
308–238
13
TROUBLESHOOTING
C
From page 12
Using voltmeter set to DC volts, measure
voltage from location 16 to location of fluid
valve in question on the fluid valve terminal.
Measure voltage from location 16 to location 7, 9 or 11 on air solenoid terminal.
NO
Control has failed.
Call Graco service rep.
Is voltage less than 1 volt on either valve?
YES
Control is OK, air or oil or both are stuck
open.
D
From page 13
Press STOP/CLEAR key. Remove valve
wire from terminal. Press dispense key to
activate dispense mode.
Measure voltage again. Is meter
reading 24V 2 volts?
NO
Control has failed.
Call Graco service rep.
YES
Use ohmmeter and measure valve coil resistance by connecting meter across the valve
wires. Coil must have a resistance of 25
ohms or more. If resistance is less, replace
valve.
NOTE: If ready light is connected, remove
light blub to make measurement.
Disconnect cable at valve end.
Connect valve wire to valve terminal.
Measure voltage again. Is meter
reading 24V 2 volts?
YES
Valve is shorted; replace it.
14
308–238
NO
Cable is shorted; replace it.
ACCESSORIES
REPLACEMENT PROBE
110–968
PRESSURE RELIEF KIT
For installating wires at rear of the control.
FLUID CHECK VALVE
900 psi (62 bar) MAXIMUM WORKING PRESSURE
Relieves fluid line pressure when it exceeds 900
psi (62 bar).
111–620
1500 psi (103 bar) MAXIMUM WORKING PRESSURE
1/2 npt(fbe)
PRECONNECTED CABLES
235–513
235–514
215–481
235–515
10 ft. 18 AWG, connectors one end
50 ft. 18 AWG, connectors both ends
100 ft. 18 AWG, connectors both ends
250 ft. 18 AWG, connectors both ends
PULSE METER
207–221
Kit 207–221 includes:
1
2
3
4
167–453
102–527
156–849
205–169
5
157–350
6
167–452
TEE, pipe, 1/2 npt(m)
RELIEF VALVE
NIPPLE, 3/8 npt
HOSE, nylon, 3/8” ID, cpld
3/8 npsm (fbe); 3” (0.9 m) long
ADAPTER, 3/8 npt(m) x
1/4 npt(m)
ADAPTER, hose, 1–1/2” npt(mxf)
1
1
1
1
1
1
1
223–645
For Gallon/Quart/Pint
2
TECHNICAL DATA
Electrical
Input Voltage . . . . . . . . . . . . . . . . . . 15 V Maximum
Current Loop Output . . . . . . . . . . . 4 milliamps OFF
10 milliamps ON
Hydraulic
Flow . . . . . . . . . . . . . . . . . . . . . . . 12 gpm Maximum
(45.6 Liter/min Maximum)
Max. Operating Pressure . . . . . 1500 psi (103 bar)
Inlet/Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 npt
Wiring gauge
required . . . . . . . . 18 AWG up to 1000 ft. (305 m)
3
4
6
5
Pulse Meter 223–645 includes:
1
2
223–655
222–661
ELECTRONIC PULSE MODULE
METERING UNIT
1
1
REPLACEMENT SCREWS
INCLUDED WITH
ITEMS 1 AND 2
TORQUE OPPOSITELY
AND EVENLY TO
10–12 IN–LB (1.2–1.4 N.m)
1
2
308–238
15
ACCESSORIES
AIR SOLENOID VALVE
215–407
FLUID SOLENOID VALVE
215–487
TECHNICAL DATA
TECHNICAL DATA
Type . . . . . . . . . 3 way solenoid operated air valve,
normally closed
Electrical Rating . . . . . . . . . . . 24 V DC, 0.25 amps
Coil Insulation . . . . . . . General purpose, Class A
Encapsulated – Continuous Duty
Leads . . . . . . . . . . . . . . . . . . 18 AWG x 12.0 in. long
Inlet/Outlet . . . . . . . . . . . . . . . . . Adapted to 1/2 npt
Wiring Gauge Required for
Length of Run . . . . . . . . . . 18 AWG up to 500 ft.
16 AWG up to 1000 ft.
Type . . . . . . . . . . . . . . . . . . . . 2 way normally closed
Electrical Rating . . . . . . . . . . . . 28 V DC, 0.46 amp
NOTE: provides minimum current draw
when operated at 24 V DC
Coil Insulation . . . . . . . . . . . . . . . . . . . . . . . Class H
Leads . . . . . . . . . . . . . . . . . . . 18 AWG x 18 in. long
Maximum Working Pressure . . 3000 psi (207 bar)
Inlet/Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 npt
Minimum Actuation Volts Required . . . . . . . . . . 20
Wiring Gauge Required for
Length of Run . . . . . . . . . . 18 AWG up to 500 ft.
16 AWG up to 1000 ft.
3
OUT
2
1
IN
IN
SHELF
FEET OF CONTROL
UNIT FIT IN THESE
HOLES
186–472
9.25”
(234.95mm)
3.25”
(82.55 mm)
10.0” (254 mm)
16
308–238
TECHNICAL DATA
Fluid System Maximum Operating Pressure . . . . . . . . . . . . . . . . . . 1500 psi (103 bar)
Power Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110/120 volt, 60 Hz
Units of Measurement
Totalizing . . . . . . . . . . . . . . . . . . . . Gallons to 19999
Dispensing . . . . . . . . . . . . . . . 0.01 increments up to
199.99 Pints, Quarts, or Gallons
Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.40 amp
Power Supply Cord . . . . . . . . . . . . . . . . . . . . . . . 7.5 ft (2.3 m), 18 AWG, 3 conductor,
molded vinyl plugs, 125 VAC, 10 amps
Control Power Output . . . . . . . . . . 24 VDC nominal @ 1.0 amp maximum to any (1)
fluid valve and any (1) air valve simultaneously
Backup Battery . . . . . . . . Lithium, 3.6 volt, 1.0 amp hour capacity (not replaceable)
Operating Temperature Range* . . . . . . . . . . . . . . . . . . . . . . . . +32 – 100_F (0 – 38_C)
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . -20 – +150_F (-28 – + 65_C)
Control Dimensions
Length . . . . . . . . . . . . . . . . . . . . . . . . . 8 in. (203 mm)
Width . . . . . . . . . . . . . . . . . . . . . . . . . 10 in. (245 mm)
Height . . . . . . . . . . . . . . . . . . . . . . . . . 4 in. (102 mm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 lb (2.0 kg)
*If control is operated at higher ambient temperatures, periods of no flow must be more
frequent and longer to prevent overheating.
IMPORTANT PHONE NUMBERS
TO PLACE AN ORDER, contact your Graco distributor, or call this number to
identify the distributor closest to you:
1–800–328–0211 Toll Free
FOR TECHNICAL ASSISTANCE, service repair information or assistance regarding the application of Graco equipment: 1–800–543–0339 Toll Free
THE GRACO WARRANTY AND DISCLAIMERS
WARRANTY
Graco warrants all equipment manufactured by it and bearing its name to be free from defects in material and workmanship on the date
of sale by an authorized Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for, any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco
component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility with Graco equipment of
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claim. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment
will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material
or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor and transportation.
DISCLAIMERS AND LIMITATIONS
THE TERMS OF THIS WARRANTY CONSTITUTE PURCHASER’S SOLE AND EXCLUSIVE REMEDY AND ARE IN LIEU OF ANY
OTHER WARRANTIES (EXPRESS OR IMPLIED), INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, AND OF ANY NON–CONTRACTUAL LIABILITIES, INCLUDING PRODUCT LIABILITIES,
BASED ON NEGLIGENCE OR STRICT LIABILITY. EVERY FORM OF LIABILITY FOR DIRECT, SPECIAL OR CONSEQUENTIAL
DAMAGES OR LOSS IS EXPRESSLY EXCLUDED AND DENIED. IN NO CASE SHALL GRACO’S LIABILITY EXCEED THE
AMOUNT OF THE PURCHASE PRICE. ANY ACTION FOR BREACH OF WARRANTY MUST BE BROUGHT WITHIN TWO (2)
YEARS OF THE DATE OF SALE.
EQUIPMENT NOT COVERED BY GRACO WARRANTY
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WITH RESPECT TO ACCESSORIES, EQUIPMENT, MATERIALS, OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motor, switches, hose, etc.) are
subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for
breach of these warranties.
Factory Branches: Atlanta, Chicago, Dallas, Detroit, Los Angeles, Mt.Arlington (N.J.)
Subsidiary and Affiliate Companies: Canada; England; Korea; Switzerland; France; Germany; Hong Kong; Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
PRINTED IN U.S.A.
308–238 6/92 Revised 8/92
308–238
17
NOTES
18
308–238
NOTES
308–238
19
PROGRAMMING SECURITY CODE AND
CHANGING MEASUREMENT UNITS
For the Fluid Commander Dispensing Control
TEAR OUT THIS SHEET ALONG THE DOTTED LINE
and keep it in a secure place after initially entering
the security code and setting the measurement units.
TO PROGRAM YOUR SECURITY CODE
TO CHANGE MEASUREMENT UNITS
1. Turn on the control.
(Gallon, Quart or Pint only – controls measured in liters
cannot be changed)
1. Turn on the control.
3. The display shows P P P P.
4. Enter any four station key numbers; this is your
security code.
5. Enter the same four numbers again to activate the
control.
6. Record the sequence of numbers and keep in a
secure place.
2. When the display shows – – – – press the following keys: DISPENSE, TOTAL, most lower right station
key, and TOTAL.
3. The display shows L1 and the station lights for the
first fluid glow.
4. Press the 0.1 key to change the measurement
units.
5. Press any station key for the next fluid, and press
the 0.1 key to change units.
6. Press TOTAL to end.
7. Enter your security code to activate the control.
20
308–238
2. When the display shows – – – – press the following keys: DISPENSE, TOTAL, most lower right station
key, and 0.1 key.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
