GENUINE GRACO PARTS AND ACCESSORIES

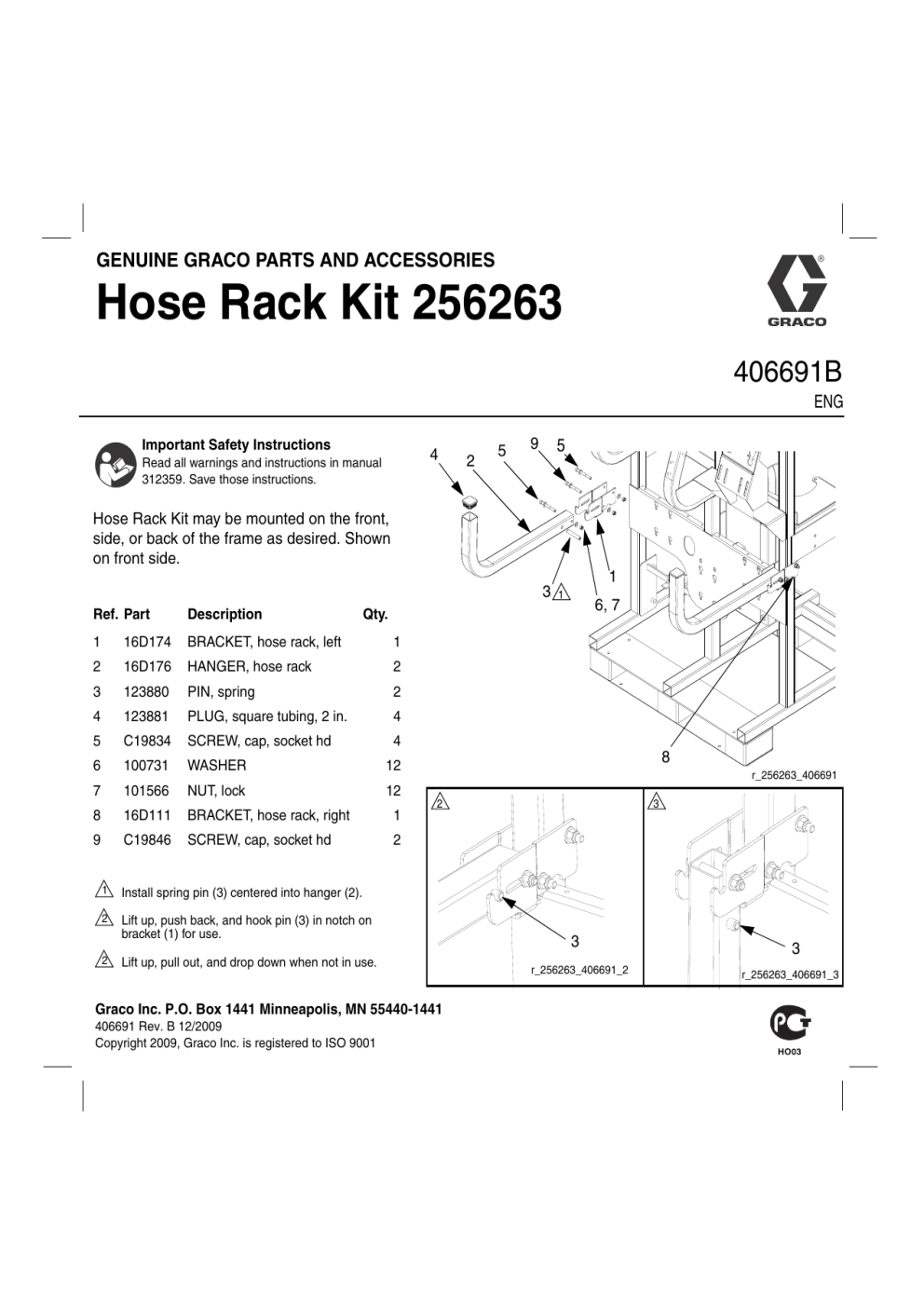

Hose Rack Kit 256263
406691B
ENG
Important Safety Instructions
4
Read all warnings and instructions in manual
312359. Save those instructions.
2
5
9
5
Hose Rack Kit may be mounted on the front,
side, or back of the frame as desired. Shown
on front side.
3
Ref. Part
Description
1
1
6, 7
Qty.
1
16D174
BRACKET, hose rack, left
1
2
16D176
HANGER, hose rack
2
3
123880
PIN, spring
2
4
123881
PLUG, square tubing, 2 in.
4
5
C19834
SCREW, cap, socket hd
6
100731
WASHER
12
7
101566
NUT, lock
12
8
16D111
BRACKET, hose rack, right
1
9
C19846
SCREW, cap, socket hd
2
1
Install spring pin (3) centered into hanger (2).
2
Lift up, push back, and hook pin (3) in notch on
bracket (1) for use.
2
Lift up, pull out, and drop down when not in use.
4
8
r_256263_406691
2
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
406691 Rev. B 12/2009
Copyright 2009, Graco Inc. is registered to ISO 9001
3
3
r_256263_406691_2
3
r_256263_406691_3
