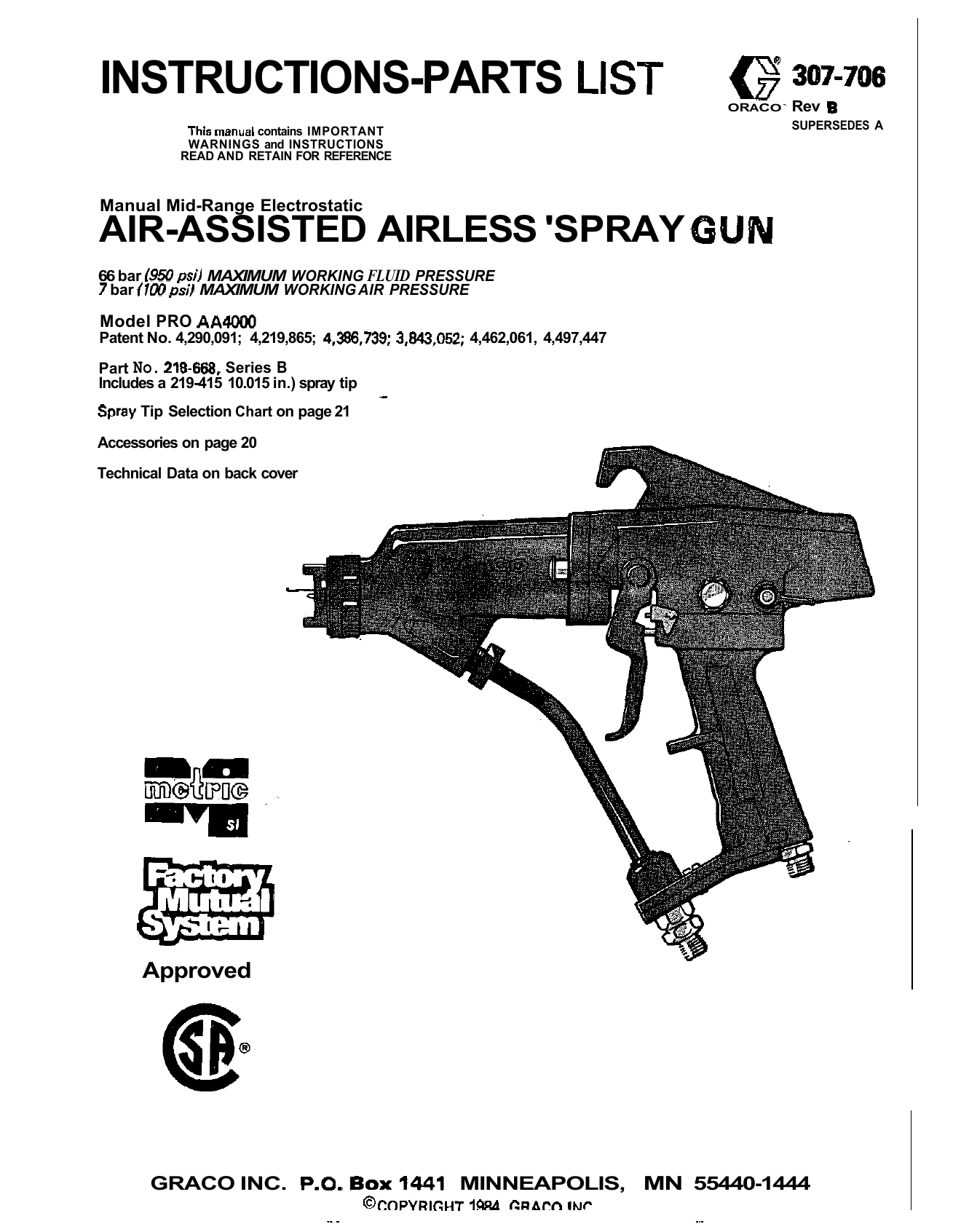

Graco 307706B Mid-Range Electrostatic AIR-ASSISTED AIRLESS SPRAY GUN Owner's Manual

INSTRUCTIONS-PARTS LIST
307-786
ORACO
'
Rev B
SUPERSEDES A
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
Manual Mid-Range Electrostatic
AIR-ASSISTED AIRLESS 'SPRAY GUN
66 bar (950psil MAXIMUM WORKING FLUID PRESSURE
7 bar (100 psil MAXIMUM WORKING AIR PRESSURE
Model PRO AA4000
Patent No. 4,290,091; 4,219,865; 4,386.739; 3,843,052; 4,462,061, 4,497,447
Part No. 218-668, Series B
Includes a 219-415 10.015 in.) spray tip
Spray Tip Selection Chart on page 21
-
Accessories on page 20
Technical Data on back cover
L
@gq
-lL
Approved
GRACO INC. P.0. BOX 1441 MINNEAPOLIS, MN 55440-1444
@COPYRIGHT 1 W CF)ACtl INP
~~
~
~~
TABLE OF CONTENTS
...........................................................
......................
.....................................
...............................
..................................
....................................................
..........................
................................
...................................................
............................
................................
........................
.....................................
......................
............
.................................................
........................................
................................................
.........................................
........................................................
........................................................
.......................................................
.............................................
.............................................
...................................................
..........................
......
...................................
..............................
........................
...........................
..............................
..................................
.......................
...............................................
................................
................................................
.......................
............................
.....................................
TERMS
1
HOW THE ELECTROSTATIC AIR-ASSISTED
AIRLESS SPRAY GUN WORKS.
1
WARNINGS
Fluid Injection Hazard
2
Equipment Misuse Hazard
2
Fire or Explosion Hazard
3
Grounding
3
Flushing and Cleaning Safety
3
Ventilate the Spray Booth
3
Hose Safety
3
INSTALLATION
Typical Installation Drawing
4
Ventilate the Spray Booth
5
Check the Electrical Grounding
5
Connect the Air Line
..5
Connect the Fluid Line
5
Warning Sign
6
OPERATION
Operation Checklist
6
Filter the Fluid
6
Install the Spray Tip & Adjust the Spray Pattern.6
Spraying Operation
7
Cleaning
7
Flushing
7
8
SERVICE...
Troubleshooting
8
Electrical Tests
11
Gun Repair
12
Electrode Wire Replacement
12
Ball Seat Housing & Resistor Replacement
12
Gun Housing Removal
13
Fluid Needle Replacement
14
Power Cartridge Replacement
15
Turbine Alternator Removal
15
Fan Air Valve Replacement
16
Air Valve Replacement
16
ES ON-OFF Valve Replacement
17
Muffler, Check Valve and Inlet Filter
17
Replacement
PARTS DRAWING b LIST
18
ACCESSORIES
SPRAY TIP SELECTION CHART
21
TECHNICAL DATA
Back Cover
Back Cover
WARRANTY
TERMS
Be sure you read and understand each of these terms
.
before reading the rest of the manual.
FOR YOUR SAFETY Alerts user to read the additional safety
warnings on the page indicated.
WARNlNGAlerts user to avoid or correct conditions which
FLUID INJECTION INJURY A serious injury, which mayappear to be a simple cut, caused by high pressure injection of
fluid directly into the body.
could cause bodily injury.
CAUTION Alerts user to avoid or correct conditions which
could cause damage to or destruction of equipment.
ES ON-OFF VALVE An on/off switch located near the rear of
the gun, above the gun handle, which turns the electrostatic
power on or off.
PRESSURE RELIEF PROCEDURE A safety procedure for
relieving air and fluid pressure in the system.
HOW THE ELECTROSTATIC (ES) AIR-ASSISTED AIRLESS SPRAY
This gun combines electrostatic air spray and airless
spraying concepts. The air has three functions: (1) to
drive the turbine, (2) to help atomize the paint "tails",
and (3) to help control the pattern sizs.
The spray tip shapes the fluid into a fan pattern, similar
to a conventional airless spray tip, but at a lower
pressure. Air from the air cap further atomizes the fluid
and pushes the paint tails into the pattern. The fan adjusting knob controls the width of the pattern.
The turbine generates power which the power cartridge
converts to a high voltage current. The high voltage
current charges the gun's ionizing electrode.
Fluid is electrostatically charged as it passes the gun's
ionizing electrode. The charged fluid is attracted to the
grounded work piece, wrapping around and evenly
coating all surfaces.
GUN WORKS
mxmci
1
....
SERIOUS BODILY INJURY, EXPLOSION, FIRE, OR ELECTRIC
SHOCK CAN OCCUR IFTHE PRECAUTIONS BELOW ARE MOT
FOLLOWED.
READ AND UNDERSTAND ALL INSTRUCTION MANUALS,
TAGS, AND WARNING LABELS BEFORE OPERATING EQUIPMENT.
ELECTROSTATIC EQUIPMENT SHALL ONLY BE USED BY TRAINED
PERSONNEL WHO SHALL BE FULLY CONVERSANT WITH THE REQUIREMENTS STATED WITHIN THIS INSTRUCTION MANUAL.
FLUID INJECTION HAZARD
i~
General Safety
This equipment generates very high fluid pressure. Spray from
the gun, leaks or ruptured components can inject fluid
through your skin and into your body and cause extremely
serious bodily injury, including the need for amputation. Also,
fluid injected or splashed into the eyes can.cause serious
damage.
NEVER point the spray gun a t anyone or at any PSK of the
body. NEVER put hand or fingers over the spray tip. NEVER
try to ”blow back“ paint; this is NOT an air spray system.
ALWAYS follow the Pressure Relief Procedure. a t right,
before cleaning or removing the spray tip mor servicing any
system equipment.
NEVER try to stop or deflect leaks with your hand or body.
Be sure equipment safety devices are operating properly
before each use.
Spray Gun Safety Devices
Be sure all gun safety devices are operating properly before
each use. Do not remove or modify any part of the gun; thls
can cause a malfunction and result in serious bodily injury.
Safely Latch
Whenever you stop spraying, even for a moment. always set
the gun safety latch in the closed or “locked“ position, making
the gun inoperative by depressing the safety latch on the left
or right of trigger. See the illustration below. Failure to set the
safety latch can result in accidental triggering of the gun.
To disengage the latch, push it toward the trigger and up.
11
SAFETY LATCH
SHOWN IN CLOSED
OR “LOCK”
SAFETY LATCH
SHOWN I N OPEN
POSITION
Medical Treatment
If any fluid appears to penetrate your skin, get
EMERGENCY MEDICAL CARE AT ONCE.
DO NOT TREAT AS A SIMPLE CUT.
Tell the doctor exactly what fluid was injected. For treatment
instructions, have your doctor call the
NATIONAL POISON CENTER NETWORK
(412)681-6669
Pressure Relief Procedure
To reduce the risk of serious bodily injury, including injection
or injury from moving parts or electric shock, always follow
this procedure when shutting off the system, when checking
or servicing any part of the spray system. when installing,
cleaning or changing spray tips, and whenever you stop spraymg.
1. Engage the gun safety latch.
2. Turn the ES ON-OFF valve lever t o OFF.
3. Turn off air and fluid supply t o the gun.
4. Disengage the gun safety latch.
5. Trigger the gun into a grounded metal waste container to
relieve fluid pressure.
6. Engage the gun safety latch.
7. Open the pump drain valve, having a grounded metal waste
container ready to catch the drainage.
8. Leave the pump drain valve open until you are ready to
spray again.
If you suspect that the tip or hose is~completelyclogged, or
that pressure has not been fully relieved after following the
steps above, VERY SLOWLY loosen the air cap retainer or
hose end coupling and relieve pressure gradually, then loosen
completely. Now clear the tip or hose.
EOUlPMEAlT MISUSE HAZARDE
Diffuser
The gun diffuser breaks up spray and reduces the risk of injection when the spray tip is not installed. To check diffuser
operation, follow the Pressure Relief Procedure. at right,
and then remove the spray tip. Aim the gun into a gtounded
metal pail. With the ES ON-OFFvalve leverturned t o OFF, and
uslng the lowest possible pressure, trigger the gun. If the fluid
emitted is not diffused into an irregular stream, replace the diffuser immediately.
Spray Tip Safety
Use extreme caution when cleaning or changing spray tips. If
the spray tip clogs while spraying, engage the gun safety latch
immediately. ALWAYS follow the Pressure Relief Procedure and then remove the spray tip to clean it.
NEVER wipe off build-up around the spray tip until pressure is
fully relieved and the gun safety latch is engaged.
7
zn7.7m
General Safety
Any misuse of the spray equipment or accessories. such as
overpressurizing, modifying parts, using incompatible
chemicals and fluids, or using worn or damaged parts, can
cause them to rupture and result in injection or other serious
bodily injury, fire, explosion or propew damage.
NEVER alter or modify any part of this equipment; doing so
could cause it t o malfunction.
CHECK all spray equipment regularly and repair or replace
worn or damaged parts immediately.
This gun has a maximum working pressure of 66 bar
1950 psi). Never exceed the maximum working pressure of the
gun or any other component or accessory used in the system.
FIRE OR EXPLOSlON HAZARD
All parts of the electrostatic spray system must be properly
grounded to reduce the risk of static electricity discharge.
Static electricity is created by the high velocity flow of fluid
through the pump and hose and the spray gun‘s internal
power supply. Ungrounded objects can become electrically
charged and sparking may occur. Sparks can ignite fumes
from solvents, fluid being sprayed, dust particles and other
flammable substances, which can cause a fire or explosion
and result in serious bodily injury and property damage.
If you experience any sparking or feel even a slight shock,
STOP SPRAYING IMMEDIATELY. Check for proper grounding of the entire system. Be sure you have corrected the problem before starting t o spray again.
Groundlng
Following are the minimum requirements for grounding a
basic electrostatic system. Your system may include other
equipment or objects which must also be grounded. Always
check your local electrical code for detailed grounding instructions. Be sure your system is connected to a true earth
ground.
1. Pump: ground by using a ground wire &d clamp as
described in your separate pump instruction manual.
2. Air compressors and hydraulic power supplies: ground
according t o the manufacturer‘s recommendations.
3. Pro AA4ow gun: obtain grounding through connection t o
a properly grounded air supply hose. Use only the GRACO
ELECTRICALLY CONDUCTIVE AIR SUPPLY HOSE; see
page 20 t o order. Connect the air hose ground wire to a
true earth ground.
4. Object being sprayed: keep work piece hangers clean and
grounded at all times. Contact points must be sharp points
or knife edges.
5. A l l electricallv conductive objects in the spray area must be
properly grounded.
6. Allpersons entering the spray area: shoes must have conductive soles, such as leather, or personal grounding.~straps
.~
.
must be worn. Rubber or plastic soles are not conductive.
The operator must not wear gloves which Insulatethe hand
from the spray gun. See page 5 for how t o modify the
glove.
The floor of the spray area must be electrically conductive
and grounded. 00 not cover the floor with cardboard or
any non-conductive material which would interrupt
grounding continuity.
8. Flammableliquidsin thesprayarea must be kept in approved, grounded containers. Do not store more than the quantity needed for one shift.
9. A l l solvent pails: use only grounded metal pails, which are
conductive. Do not place the pail on any non-conductive
surface, such as cardboard or paper, which would interrupt
grounding continuity.
Flushing and Cleaning Safety
To reduce the risk of an injection injury, static sparking, or
splashing, always follow the Pressure Relief Procedure on
page 2 and remove the spray tip before flushing. Use lowest
possible pressure and use a grounded metal waste container.
Be sure the
ES valve lever is OFF during flushing.
N N E R use solvents having a flash point of less than 2 1 T
(70°F) t o clean the gun. NEVER use solvents having a flash
point of less than 38OC (1OOOF) t o clean the spray system.
ALWAYS remove a11 solvent from the system before reactivating the spray gun.
Use only non-sparking tools to clean residue from the booth
and hangem.
Ventilate t h e Spray Booth
To prevent hazardous concentrations of toxic and/or flamrnable vapors, spray only in a properly ventilated spray booth.
N N E R operate the spray gun unless the ventilating fans are
operating.
HOSE SAFETY
Highly pressurized fluid contained in the hose can be very
dangerous. Ifthe hose develops a leak, split or rupture due to
any kind of wear, damage or misuse, the high pressure spray
emitted from it can cause an injection injury or other serious
bodily injury or property damage.
TIGHTEN all fluid connections securely before each use. High
Pressure fluid can dislodge a loose coupling or allow high
pressure spray t o be emitted from the coupling.
NEVER use a damaged hose. Before each use, check entire
hose for cuts, leaks, abrasion, bulging cover, or damage or
movement of the hose couplings. If any of these conditions
exist, replace the hose immediately. DO NOT try to recouple
high pressure hose or mend it with tape or any other device. A
repaired hose cannot contain the high pressure fluid.
HANDLE AND ROUTE HOSES CAREFULLY. Do not pull on
hoses to move equipment. Do not use fluids or solvents which
are not compatible with the inner tube and cover of the hose.
DO NOT expose the hose to temperataures above 82%
IlBOOF) or below -40°C I-40°FI.
United States Government safety standards have been adopted under the Occupational Safety and Health Act. Thesestandards-particularly the General Standards, Part 1910.107 and any other appropriate regulations-should be consulted in connection with the installation, operation and maintenance of electrostatic spray painting equipment.
. ..
INSTALLATION
TYPICAL INSTALLATION
!
Alr Supply To Gun Must Be Interlocked
With Spray Booth Exhaust Fan
KEY
A Main Air Supply Line
B Ventilation Fan Interlock Solenoid Valve
C Main Air Supply Shutoff Valve (bleed-type)
D Air 8 Water Separator
E Pump Air Supply Shutoff Valve (bleed-iype)
F Air Line Oiler
0 Air Pressure Regulator
H Air-Assisted Airless Pump
J Pump Ground Wire
K Fluid Filter
L
Fluid Supply Line Shutoff Valve
M Fluid Pressure Regulator
The Typical Installation shown above is a guide for
selecting and installing equipment for an electrostatic
air-assisted airless spray system. It is not an actual
system design. Contact your Graco representative for
custom-designed systems information.
N
0
P
Q
R
S
T
U
V
CC
DD
Fluid Supply Line
Air Filter
Air Supply Line Shutoff Valve (bleed-type)
Spray Gun Ground Wire
Grounded Air Supply Hose
Electrostatic Spray Gun
ES "ON-OFF" Valve Lever
Air Line Drain Valve
Warning Sign'
Gun Air Inlet
Gun Fluid Inlet
The pump you use should have a maximum working
pressure of 66 bar (950 psi). If the pump you are using
has a higher maximum working pressure, you must use
a regulator to limit the pressure to 66 bar (950 psi).
Graco's 1O:l Ratio Monark Pump, Part No. 217-523.
may be used in this system. See Accessories.
WARNING
InStalling and servicing this equipment requires access to parts which may cause electric shock or other serious
bodily injury. Do not install or service this equipment unless you are qualified.
Be sure your installation complies with National, State and Local codes for the installation of electrical apparatus in
a Class I, Group D, Divisions 1 and 2 Hazardous Location.
Ventilate the Spray Booth
Connect the Air Line
WARNING
Check and follow all of the National, State and
Local codes regarding air exhaust velocity
requirements.
Check and follow all local safety and fire codes.
To reduce the risk of electric shock or other
serious bodily injury, the Air Supply Hose must
be electrically connected to a true earth ground.
Use Only Graco Electrically Conductive Air
Supply Hose. This hose, and the gun, have
special threads which prevent using any other
type of hose with the gun. See the Accessories
section for ordering the hose.
1.
CheckandfollowOSHAstandard 1910-1071b)(5)(iI.
NOTE:
High velocity exhaust will decrease the
operating efficiency of the electrostatic
system. Air exhaust velocity of 31-46 linear
metersiminute 1100-150 fttmin) should be
sufficient.
Check the Electrical Grounding
_.
WARNING
Proper electrical grounding of every part of your
system is essential. For your safety, read the
warning section FIRE OR EXPLOSION
HAZARD on page 3. Then ground the system as
1.
WARNING
L
concentrations of toxic
and/or flammable vapors, spray only in a properly
ventilated spray booth. NEVER operate the
spray gun unless the ventilation fens are
operating.
Modify the operator's glove, if used, so that the
operator's hand will not be insulated from the spray
gun handle. See Fig 1.
76 mm (3 in.)
SQUARE CUTOUT
or
Connect the air supply hose (R) between the air
supply line and the gun's air inlet (CC). Connect the
ground wire to a true earth ground. Refer to the
Typical Installation.
2. Install an air filter (01and an air and water separator
(Dl on the air line to ensure a dry, clean air supply to
the gun. Dirt and moisture can ruin the appearance
of your finished work piece and can cause the gun
to malfunction. See the Typical Installation.
3.
Also install an air regulator (G) to control air
pressure to the gun. See the Typical Installation.
Connect the Fluid Line
1. Blow out the fluid line with air and flush it with solvent before connecting it to the gun. Use solvent
which is compatible with the fluid to be sprayed.
2. Install a fluid regulator (M) on the fluid line to control fluid pressure to the gun.
3.
Connect the fluid line to the 1/4-18.6(m) gun fluid
: ; k iDD). See the Typical Installation.
Warning Signs
1. A warning sign, in English, is supplied with the gun.
Mount this sign in the spray area where it can easily
be seen and read by all operators. This sign is also
available in Spanish, French and German. See the
Accessories section on page 20.
KEY
AA Megohmmeter
B B Gun Handle
PP True Eanh Ground
''4
y A A
Fig 1
2. Have a qualified electrician check the electrical
grounding continuity of the spray gun and air hose.
a.
NOTE:
With the air hose connected and properly
grounded use a megohmmeter (AA) to
measure the resistance between the gun handle
(BE1 and a true earth ground (PPI, using an applied voltage of 500 volts minimum to loo0
volts maximum. See Fig 2.
If the air hose is not grounded, you will get e
false reading.
b. If the resistance is greater than 2 megohms,
check the tightness of the ground connections,
and be sure the air supply hose ground wire is
connected to a true earth ground. If the
resistance is still greater than 2 megohms,
replace the air supply hose.
Fig 2
".
""
c
WARNING
For Your Safety, always follow the Pressure
Relief Procedure on page 2 when shutting off
VERTICALSPRAY PAlTERN
HORIZONTALSPRAY PAlTERN
the system, when you stop spraying, and before
checking, servicing, installing, cleaning or chang-
Operating Checklist
Check the following list daily, before starting to operate
the system, to help assure you of safe efficient
operation.
-1.
Fig 3
Be sure all operators are properly trained in the
safe operation of an air-assisted airless electrostatic spray system.
2.
Be sure all operators have been trained on how
to properly and completely relieve system
-.
pressure.
-3.
Be sure the system is thoroughly grounded. See
FIRE OR EXPLOSION HAZARD-on page 3,
and Check the Electrical Grounding on page
5.
-4.
Be sure the operator is properly grounded and
that his glove, if used, is modified so that he is
not isolated from ground. Refer to Fig 1, page 5.
-5.
Be sure ventilation fans are operating properly.
-6.
Keep the work piece hangers clean, with sharp
points or knife edges.
-7.
Be sure all refuse is removed from the spray
booth.
-8.
Be sure all flammable liquids in the spray booth
are in approved, grounded containers.
Filter the Fluid
Filter the fluid to be sprayed to remove coarse particles.
and sediment which could clog the spray tip. See Fig 6.
Install the Spray Tip b Adjust the Spray Pattern
1. Select the appropriate spray tip for your application
from the Spray Tip Selection Chart on page 21. The
fluid output and fan width depend on the size of the
spray tip, the fluid viscosity, and the fluid pressure.
2.
Place the tip (13) in the air cap (12),aligning the tab
of the tip with the groove in the air cap. Be careful
not to damage the electrode wire (GG). Place the
air cap assembly on the gun and screw on the retaining ring (11) firmly. The air cap and spray tip
position determines the direction of the spray paltern. See Fig 3.
3. Adjust the fluid pressure. Turn on the fluid to about
21 bar (300 psi). Trigger the gun to check the
atomization; don't be concerned about the pattsrn shape yat. Increase the fluid pressure just to
the point that any further increase in fluid pressure
does not significantly improve fluid atomization.
DO NOT exceed 66 bar 1950 psi1 fluid pressure.
4. Turn on the ES ON-OFF valve lever (TI to ON. See
Fig 5.
C
9nT -me
NO AIR
TOO LITTLE AIR
RIGHTAMOUNT
OF AIR
KEY
11
Ring Nut
12
Air Cap
13
Spray Tip
44
ES Indicator Lights
T
ES ONlOFF Valve Lever
EE
Fan Adjusting Knob
GO Electrode Wire
Fig 5
5.
Be sure the fan adjusting knob (EE) is fully closed
(turned all the way counterclockwise).
6. Set the atomizing air pressure to 3.1 bar (45 psi).
NOTE:
A minimum of 2.8 bar (40psi) air pressure to
the gun is required to drive the turbine fast
enough for maximum electrostatic effect.
7 . Check the spray pattern, then adjust the air
pressure until all the tails are completely atomized
and pulled into the spray pattern. Refer to Fig 4.
For a narrower pattern, try turning the fan adjusting
knob (€E) clockwise. If the pattern is still not narrow enough, increase the air line pressure slightly or
use a different size tip.
i
Spraying Operation
This gun has a built-in lead and lag operation. The gun
begins emitting air before the fluid is discharged. When
you release the trigger, the fluid stops before the air
flow stops. This helps prevent fluid buildup on the air
cap.
3. Clean the spray tip and air cap daily. Replace the
spray tip and air cap if they are damaged.
a.
b. Soak the tip and air cap in solvent and scrub
with a soft brush.
When spraying, the ES indicator lights (44) should
glow, indicating electrostatic charge. See Fig 5.
Cleaning
WARNING
For Your Safety, always follow the Pressure
Relief Procedure on page 2 when shutting off
the system, when you stop spraying and before
checking, servicing, installing, cleaning or chang
1.
c.
4.
KEY
26
Check the electrode wire. Straighten it if it is bent,
and replace it if it is broken or damaged. See page
12 for replacing the electrode wire.
CAUTION
Do not use metal tools to clean the air cap holes.
Do not use a cleaning method which may allow
solvents into the gun passages.
b. Remove the filter (26)and clean thoroughly in a
compatible non-conductive solvent.
26
Use a soft brush or other soft tool to clean the
air cap passages, taking care not to scratch any
surfaces.
A damaged electrode wire or scratches in the air
cap holes can distort the spray pattern.
Clean the fluid filter (261 daily. See Fig 6.
a. Unscrew and remove the fluid inlet-fitting 125).
c.
Remove the air cap and spray tip.
NEVER IMMERSE THE GUN IN SOLVENT.
Reinstall the filter and inlet fitting. Do not overtighten the inlet fitting, which could distort the
filter.
Point the gun down while cleaning to prevent dirty
solvent from running back into the gun air
passages. Clogged air passages cause poor
atomization and excessive current demands.
Clean all parts with a non-conductive solvent
which is compatible with the fluid being sprayed.
Ccxhctive solvents can cause the gun to
malfunction.
Fluid Inlet Fitting
Fiuid Filler
I
W
Flushing
For Your Safety, always follow the Pressure
Relief Procedure on page 2 when shutting off
the system, when you stop spraying and before
checking, servicing, installing, cleaning or changing any part in the system.
1.
~-
Be sure the ES valve lever is turned OFF during
flushing.
2. Disconnect and plug the fluid supply line.
Fig 6
2. Clean the outside of the gun dairy with a soft cloth
dampened in a compatible solvent.
3. Connect the solvent supply to the gun.
4.
Run solvent through the gun.
5. Disconnect the solvent supply.
6.
. ..
Reconnect the fluid supply line.
7. Trigger the gun until it is clean of solvent.
(
II
SERVICE
i‘
WARNING
1
. .
Installing and servicing this equipment requires access to parts which may cause electric shock or other serious
bodily injury. Do not install or service this equipment unless you are qualified.
Before servicing the tip or gun, and before disassemblingthe gun, ALWAYS turn the ES ON-OFF valve lever to
OFF, turn off air and fluid supply to gun and trigger the spray gun to relieve the system pressures.
NOTE:
Check all possible remedies in the Troubleshooting Charts before disassembling gun.
’RAY PATTERN TROUBLESHOC
PROBLEM:
IMPROPER
SPRAY PATTERN
NO CHART
CAUSEInsufficient fluid in tank
Air in paint supply line
Irregular pattern
Material build up or spray tip
partially plugged
Air horn holes on defective side
of pattern partially or totally
plugged
I
I
SOLUTION
Fill tank.
Check, tighten siphon hose
connections, bleed air from
paint line.
I
Clean spray tip.
Clean air horn holes with solvent and soft brush.
Pattern pushed to one side, same
side of air caD aets dirtv
Air horn holes partially or totally
plugged
Clean air horn holes with solvent and soft brush.
Tails in pattern
Air to gun is too low
Increase air.
Fluid pressure too low
Increase fluid pressure.
SEE GUN OPERATION TROUBLESHOOTING ON PAGE 9.
SEE ELECTRICAL TROUBLESHOOTING ON PAGE 10.
.. .
GUN OPERATION TROUBLESHOOTING CHART
I
I
PROBLEM
CAUSE
SOLUTION
Air leakage from front of gun.
Air valve not seating properly.
Clean, service.
Air stem packing too tight.
Loosen packing.
~
~
Fluid leakage from front'of gun.
"Orange Peel" finish.
Excessive spray fog.
No fluid sprays from gun.
"
LOOSBor worn fluid seat.
Tighten or replace fluid Seat andlor
electrode.
LOOSBfluid tip.
Tighten.
Insufficient air pressure.
Increase, use least air pressure needed for good results.
Fluid poorly mixed or filtered.
Remix or refilter fluid.
Improper thinner being used.
Use proper thinner.
Too much air pressure.
Reduce, use least air pressure needed
for good results.
Fluid thinned too much.
Properly thin fluid.
Fluid low.
Check, add if necessary.
Broken fluid needle shaft.
Replace needle.
Dirty or clogged fluid tip.
Clean fluid tip.
Damaged fluid tip.
Check, replace fluid tip.
Exhaust air flow insufficient or not directed
properly.
Check for proper CFM, check baffles
and direction of air flow.
Improper distance between gun and work
piece.
Adjust distance to
18-12 in.J.
_.
,.
Equipment covered with paint.
~
SEE ELECTRICAL TROUBLESHOOTING ON PAGE 10.
20-30 mm
ELECTRICAL TROUBLESHOOTING CHART
PROBLEM
CAUSE
SOLUTION
Poor wrap-around.
*ES ON-OFF valve in OFF position.
Turn valve to ON.
*Turbine alternator not operating
(no audible whine).
Check air supply to gun. Turn ES
ON-OFF valve to on. Check for dirt
or moisture in turbine.
Improper distance between gun and
workpiece.
Adjust spraying distance to 20-30
mm W'-12"J.
Pans poorly grounded.
Clean workpiece hangers. Check for
proper ground on conveyor or
track.
High booth exhaust velocity.
Reduce, within code limits.
Too high atomizing air pressure.
Reduce air pressure.
*Too low fluid resistivity.
..
Check fluid resistivity with paint
meter and probe lrefer to instruction manual 307-263).
'Faulty gun resistance.
Check gun resistance. See page 11.
'Faulty resistor stud resistance.
Check resistor stud resistance. See
page 11.
'Faulty power supply resistance.
Check power supply resistance. See
page 11.
*Faulty needle electrode assembly.
Replace needle electrode assembly.
"Faultv turbine alternator.
Be sure plug is in place on back of
turbine alternator housing; Remove
and test turbine alternator; See Service Section: Replace turbine alternator if necessary.
Operator not properly grounded,
Be sure floor is properly grounded.
Wear shoes with non-insulating
soles. If gloves are worn, be sure to
modify as described in Operation
section.
Gun not properly grounded.
Be sure Graco air supply hose is being used and is properly grounded.
Workpiece not properly grounded.
Clean workpiece hangers. Check for
proper ground on conveyor or
track.
~-
_.
Dperator gets mild shock.
>perator gets mild shock when
ouching workpiece.
"ES indicator lights not "ON" w h e n gun is triggered.
rn
1n7.7m
ELECTRICAL TESTS
The performance of the spray gun is directly affected by
the condition of the electrical components contained inside the gun. The electrical tests below can be used to
determine the condition of the power supply (3) and the
ball seat housing and resistor (14). as well as the continuity of the electrical path between the components.
WARNING
ALWAYS remove the gun from the work site
before testing to reduce the risk of serious bodily
injury resulting from fire or explosion caused by
Test the Gun Resistance
Use a megohmmeter (AA) to measure the resistance
between the end of the gun electrode wire ( + and the
air inlet on the gun handle ( 4 using an applied voltage of
500 volts. See Fig 7.
The,resistance should be 124-152 megohms. If the
resistance is outside the specified range, proceed to the
next test. If the resistance is correct, refer to Electrical
Troubleshooting Chart for other possible causes of poor
performance.
Test the Power Supply Resistance
Remove the power cartridge (RR) from the gun handle
(32).See page 13.
KEY
Gun Handle
Megohmmeter
Electrode Wire
AA
GO
Fig 7
KEY
3b
Contact Pin
Megohmmeter
Center Prong
Power Canridge
AA
HH
RR
Remove the turbine alternator (1) from the power
supply (3). See Fig 20, page 15.
Use a megohmmeter (AA) to measure the resistance
between the center prong (HH)in the power supply ( 4
and the contact spring ( + ) (3b) on the other end of the
power supply, using an applied voltage of 500 volts. See
Fig 8.
The resistance should be 104-122 megohms. If the
resistance is outside the specified range, the power supply is defective and must be replaced. See page 14. If
the resistance of the power supply is correct, proceed to
the next test.
Fig 6
KEY
9
AA
GO
JJ
KK
Gun Housing
Megohmmeter
Electrode Wire
Conductive
Rod
Contact
Test Resistance of Resistor
Insert a conductive rod (JJ) into the rear of the gun
housing (9) (which you removed in a previous test) and
press it against the contact (KK) which is molded into
the front of the gun housing. See Fig 9.
Use a megohmmeter (AA) to measure the resistance
beween the conductive rod (JJ)and the gun electrode
wire IGG) using an applied voltage of 500 volts.
GO
Fig 9
The resistance should be 20-30 megohms. If the
resistance is correct, refer t o the Electrical
Troubleshooting Chart for other possible causes of poor
performance, or contact your nearest authorized service
agency.
KEY
14
Ball Seat Housing
AA Megohmmeter
JJ
Conductive Rod
11 Resistor
If the resistance is outside the specified range, remove
the electrode wire (GG). See Electrode Wire Replacement, page 12. Measure the resistance between the
conductive rod (JJ)and the resistor (LL) in the outside
diameter of the ball seat housing (14). See Fig 10.
SEE DETAIL BE
The resistance should be 20-30 megohms. If the
resistance is correct, the electrode wire (GG) is defective and the electrode wire must be replaced. If the
resistance is still outside the specified range, the resistor
is defective and the ball seat housing (14) must be
replaced. See page 12.
w
l
Gun Repair
WARNING
WARNING
Installing and servicing this equipment requires
access to parts which may cause electric shock or
other serious bodily injury. Do not install or service
CAUTION
ALWAYS remove the gun from the work site for
service or repair. The service or repair area must
be kept clean to prevent contaminating the parts
with dirt.
If the plastic parts of the gun must be held securely, ALWAYS clamp them in padded vice jaws to
prevent'damage to the parts.
ALWAYS lubricate the rings and seals with petroleum jelly to prevent damage during installation.
1. Flush the gun. See page 7.
-.
2.
Disconnect the fluid supply hose from the gun inlet
fitting (DD). See the Typical Installation page 4.
3.
Disconnect the air supply line from the gun,air inlet
fitting (CC).See the Typical Installation page 4.
Electrode Wire Replacement (See Fig 11)
Unscrew the ring nut (111. Remove the air cap (12) and
spray tip (13).
Always follow the Pressure Relief Procedure,
on page 2, before servicing any part of the gun or
system to reduce the risk of serious bodily injury
including injection or injury from moving parts or
electric shock.
3. Turn off the air and fluid supply to the gun.
4; Disengage the gun safety latch.
5. Trigger the gun into a grounded metal waste
container to relieve fluid pressure.
6. Engage the gun safety latch.
7. Open the pump drain valve, having a grounded
metal waste container ready to catch the
drainage.
8. Leave the pump drain valve open until you are
ready .to spray again.
!
If you suspect that the tip or hose is completely
clogged, or that pressure has not been fully relieved, VERY SLOWLY loosen the air cap retainer or
hose end coupling and relieve pressure gradually,
then loosen completely. Now clear the tip or hose
obstruction.
!
KEY
14
Ball Seat Housing
63d Wrench
Use a needle nose pliers to gently pull the electrode wire
(GG)out the back of the spray tip. Install the long end of
i
the new wire in the hole closest to the tab of the tip. Push
the wire in, aligning the short end of the wire with the
other hole in the tip. Pull on the front of the wire to seat
it. A box of 10 electrodes is included in the tool kit (63).
KEY
Fig 11
Ball Seat Housing b Resistor Replacement
(See Fig 12)
Unscrew the ring nut (11). Remove the air cap (12) and
spray tip (13).
Insert the special wrench ( a d ) in the front of the gun.
While triggering the gun, unscrew the ball seat housing
114) and remove it.
If you are replacing the fluid needle assembly. do not
reassemble the gun. If no further service is required, install the new housing in the reverse order of
disassembly. Torque the ball seat housing to 1.1 N.m
(10 in-lb).
12 .m7-7fM
I
1. Engage the gun safety latch.
2. Turn the ES ON-OFF valve lever to OFF.
Fig 12
Gun Housing Removal (See Figures 13, 14 Et 15)
Remove the ring nut, air cap, and spray tip. Unscrew
the fluid tube connector (FF) at the bottom of the fluid
tube (ZO), then pull the tube out of the inlet.
If you are replacing the needle, insert the special wrench
(63b) in the front of the gun. Whiletriggering the gun, unscrew the ball seat housing (14) and remove it. See Fig 12.
KEY
4
9
32
RR
Gasket
Gun Housing
Gun Handle
Power Canridae
Remove the trigger screws (36) and the trigger (19).
Remove the ES indicator lights (44). Then using the
wrench ( 6 3 ) . supplied, loosen and remove the two
socket head capscrews (45) from the gun.
Hold the gun handle (32)with one hand and pull the gun
housing (9)straight up to remove it.
CAUTION
To avoid damaging the power cartridge, always
pull the gun housing (9) straight up. If necessary.
gently move the gun housing from side to side to
Leave the gasket (4) in the gun handle 132) if you are not
replacing it. Perform whatever seriice is necessary,
then reinstall the gun housing as follows.
Gun Housing Reassembly
If the needle assembly was removed, reinstall it as described on page 14. Be sure the gasket 14) is in place on the
gun handle (32).Place the gun housing (9)over the power cartridge (RR) and position it onto the gun handle (32).
Install the two socket head capscrews (45)and tighten
with the wrench (63f).Push the ES indicator lights (44)
into place over the capscrews (45).
Insert the fluid tube (20) into the fluid inlet fitting making sure the washer (16) is in place, and tighten the fluid
tube connector (FF).
Fig 14
KEY
19
Trigger
36
Screw
44
ES Indicator Lights
630
Pressing Tool
If the ball seat housing (14) was removed, insert the
) the front of the gun and gently
pressing tool ( 6 3 ~in
push the needle back. Then slide the trigger (19) into
place and install. the
screws (36). Remove the tool.
.
Reinstall the ball seat housing (see page 12). air cap,
spray tip and ring nut.
Fig 13
.
.
Fig 16
M7.7r-m
11
Fluid Needle Replacement (See Fig 16 & 17)
Remove the gun housing (9)as instructed on page 13. If
the power supply (3) comes out, carefully press it back
into the handle.
Insert the narrow end of the pressing tool (Wc) through
the front of the gun to push the needle back, then
remove the nut (21) and the adjustment nut (17a). Press
the needle assembly 17) out the front of the gun as far as
you can with a finger, or by pressing it against a flat surface. Then use the wrench ( E l f ) to finish pushing it out.
KEY
7
16
17s
20
21
63f
FF
WARMING
For your safety, check to be sure the gun safety
latch works properly each time after you change
the needle. See FLUID INJECTION HAZARD,
page 2.
1. Engage the trigger safety latch to the right,
then try to trigger the gun. Look behind the
trigger to be sure it is nor engaging the nut
(17a). Then engage the latch to the left and
check again. See Fig 18.
,-17a
Needle Assembly
Washer
Adjustment Nut
Fluid Tube
Nut
Wrench
Connector
Fig 18
Fig 16
1
6
w4
Remove the nut (17al from the new needle assembly,
then install the new needle assembly through the front of
the gun. Insert the narrow end of the pressing tool (63c)
into the front of the gun and press to seat the needle.
Reinstall the new adjustment nut (17a). hex end first,
onto the needle. Use the pressing tool Lac) to press on
the needle from the front of the gun, then screw the adjusting nut all the way to the 6ottom of the threads.
Remove the tool.
Using the wrench (63d). screw the other nut (21) firmly
against the adjustment nut to "lock" them together.
Reassemble the gun as described in Gun Housing
Reassembly on page 13.
Fig 17
14 307-706
2. Disengage the trigger safety latch, and trigger
the gun gently to see if you can feel the "lead
and lag" operation, which means the air will
come on before the fluid does, and the fluid
shuts off before the air does.
3. If the gun fails either of these tests. Remove the
trigger and the ball seat housing. Back the nuts
away from the bottom of the threads.
Reassemble and check tests 1 and 2 above.
Also check in front of the trigger to make sure
the needle still moves. If it fails any of these
tests now, the needle assembly is out of
tolerance and must be replaced.
CAUTION
Turbine Alternator Removal (See Fig 20)
Remove the power cartridge (RR) from the gun handle
as instructed a t left.
DO NOT USE solvents to clean the power cartridge cavity in the gun handle 132). Solvents will
damage the electrical components in the power
cartridge.
Carefully twist the turbine alternator (1) counterclockwise and pull it off of the power supply just until it is
disengaged from the coupling ("I. Then continue to
slowly pull the turbine alternator away from the power
supply, disconnecting the 3-wire Connector (NN).
Power Cartridge Replacement (See Fig 19)
The power cartridge (RR) is fragile. Use care when
handling it to avoid damaging it.
All O-rings (la, &, 3c) and the conductive spring
(3b) must be in place when reassembling the gun,
or it will malfunction.
Remove the gun housing (9). See page 13. Remove the
gasket (4) from the gun handle (32).
Grasp the power cartridge with your hand and use e
gentle rocking motion to free it from the gun handle
(32).Then pull the power cartridge IRR) straight out of
the handle.
"
CAUTION
Be sure the power cartridge cavity in the handle
(32)is very clean and dry. Moisture and other contaminants may damage the electronic circuitry.
Inspect the power cartridge cavity in the handle (32)for
dirt and moisture. Clean the cavity with e clean, dry rag,
if necessary. Don't use solvent.
Lightly lubricate the O-rings (la. 3a. 3c) on the new
power cartridge with petroleum idly.
Use an ohmmeter to test the coil in the turbine alternator (1). Measure the resistance between the two
outer terminals of tha 3-wire connector INN). Tt
resistance should be 3-5 ohms. If the reading varies
from this value, replace the alternator.
Measure the resistance batwean each outer terminal of
the 3-wire connector and the turbine alternator housing
(1). The resistance should be infinite. If the resistance is
not infinite, replace the alternator.
Partially connect the 3"dire connector (NN) onto the
prongs inside the power supply (3). Use a small
screwdriver to push the connector onto the prongs until
it is seated. Slide the turbine alternator (1) onto the
power supply, being sure to align the coupling between
the power supply and the turbine alternator housing.
Then twist the turbine alternator clockwise to lock the
coupling.
Install the power cartridge IRR) in the gun handle. As
instructed a t left.
Insert the new power cartridge (1) in the gun handle. Fig
19 shows the alignment of the power cartridge in the
gun handle.
Install the gasket (4) in the gun handle. Install the gun
housing in the handle. See page 13.
KEY
32
RR
P
Gun Handle
Power CaRridge
1
la
3
b
3b
Turbine Alternator
0-Rings
Power Supply
0-Ring
Spring
MM Coualino
Fig 19
Fan Air Valve Replacement (See Fig 21)
Turn the fan air knob (EE) fully clockwise.
Place a wrench on the flats of the air valve housing (47)
and remove it from the handle (32).
Remove the retaining ring (39). Rotate the air adjusting
screw (48) clockwise until it is disengaged from the
valve housing threads. Pull the adjusting screw out of
the valve housing.
. ..
Clean all parts and inspect for wear or damage. If
replacing the seal (40).unscrew it counterclockwise and
remove it from the adjusting screw.
Apply thread locking compound, such as Locktite No.
609. to the small threads on the end of the adjusting
screw (48)and install a new seal (40). Remember, the
screw has a left hand thread.
Remove the old O-ring (46) from the screw (48).
Lubricate the new O-ring and the threads of the screw
(48)with petroleum jelly. Screw the screw into the air
valve housing (47).
Install the retaining ring (39) on the adjusting screw
(48). Back the, adjusting screw.out of the valve housing
(471 until it bottoms out against the retaining ring 139).
Apply PTFE tape to the threads of the valve housing
(47) and install in the gun handle (32).Torque the housing to 1.1-1.4 N.m (10-12 in-lb).
. .. ..
Fig 21
KEY
32
Air Valve Replacement (See Fig 2 2 )
Use a screwdriver to remove the retainer (571, spring
( 5 5 ) and air valve (54).
Use wrench (63b)to unscrew and remove the guide ( 5 2 )
and the packing ( 5 3 ) from the front of the gun handle
(32).
is compatible with the fluid being sprayed, such as
Xylol or mineral spirits. Using conductive solvents
can cause the aun to malfunction.
Apply PTFE tape to the threads of the guide ( 5 2 ) . Install the packing and guide in the front of the gun
handle. Tighten the guide finger tight.
Install a new air valve ( 5 4 ) and spring ( 5 5 ) in the back of
the gun handle. Apply petroleum jelly to the threads of
the retainer (57) and the O-ring (56). Install the retainer
in the back of the gun handle and tighten with a
screwdriver.
Tighten the guide into the front of the gun handle.
Squeeze the trigger and tighten the guide just until the
valve (54) will not return when the trigger is released.
Then loosen the guide just enough so the valve stem
returns freely when the gun is triggered and released.
52
53
55
57
Wb
:... . ....
Gun Handle
Guide
Packing
Spring
Retainer
Wrench
. ..
!
ES ON-OFF Valve Removal and Repair (See Fig 2 3 )
Loosen and remove the nut (49).Remove the lever 151)
and the wave washer (50). Push on the end of the valve
stem to’force the valve out of the gun handle. If the valve
is hard to remove, insert the hex head wrench (Be)in the
hex end of the valve and turn to loosen the valve.
Clean and inspect parts for wear or damage, replacing
parts as necessary.
Lubricate the O-rings (37) and valve ( 3 8 1 with Petroleum
jelly. Install the regulator disc (2) in the valve so the
beveled face of the disc faces in toward the valve.
Install the valve with the regulator disc and O-rings into
the gun handle so the larger opening of the valve
cylinder faces toward the front of the gun handle.
Install the spring washer (50). lever (51) and nut (49)on
the valve stem. Torque the nut to 0.225 N m (2 in-lbl.
Muffler, Check Valve and Inlet Filter Replacement
(See Fig 24)
Unscrew and remove the fluid inlet fitting (25).
..
.. ,.
Fig 23
. .
..
Remove the screw (22). Be sure the flats.of the adapter
(24) and the flats of the air inlet fitting (32a) are properly
aligned with the bracket (28). then remove the bracket
from the gun handle (32).
Pull the muffler (33)out of the gun handle and install a
new muffler in its place.
Insert a 3.18 mm (0.125 in.) rod into the hole in the retainer ( 2 9 ) and pry the retainer out of the bracket (28).
BE READY TO CATCH the ball (31) and spring (30)
which will come out when the retainer is removed.
Install a new ball and spring in the bracket (28). Snap
the retainer ( 2 9 ) back into the bracket (28).
Attach the bracket (28) to the gun handle with the
screw (22) and nut (27).
Install a new filter (26)in the adapter (24). Reinstall the
fluid fitting (251. There wi//be a small space between the
hexes of the fitting and adapter; do not overtighten
them.
KEY
20
Fluid Tube
P
Screw
24
Adapter
26
Fluid Inlet Fming
26
Fluid Filter
27
Nut
28
Bracket
29
Retainer
30
Spring
31
Ball
32
Gun Handle
P, Air Inlet Fining
33
Muffler
79
FF
Screw
Fluid Tube Connector
!
i
Part No. 218668. Series B
Model PRO AA4000
i!
r 37
\L
4
0
"17
Ref No. 63
Tool Kit
Includes items 63a-63f
2OaJ
=-_/
28
Ref
24
1
26
I APPLY LOCKTITE"
1
PARTS LIST
Part No. 218-668. Series B
REF PART
NO. NO.
1
217-591
la
2
3
*107-106
'107-107
218-041
3a
'106-555
176-504
"177-156
,179-387
179-790
180-684
218-695
218-715
"219-415
3b
3c
4
5
9
11
12
13
13a
14
17
164-769
218-686
"218-697
17a
19
176-938
181-183
216-713
x)a
21
'164769
105-689
100-036
20
22
24
25
26
27
28
29
30
31
32
32a
33
34
37
180-728
180-706
205-264
100-179
180-622
180-621
180-046
101.435
218-716
179-400
180-623
104-765
'103-648
DESCRIPTION
ALTERNATOR
Includes replaceable item l a
.O-RING
REGULATOR, disc
POWER SUPPLY, ES 175 KVI
Includes replaceable item 3a. 36, 3c
.O-RING
.SPRING
.O-RING
GASKET, housing
LABEL, warning
HOUSING, gun
NUT, retaining, air cap
AIR CAP
SPRAY TIP, lO.015")
Includes item 13a
.WASHER
HOUSING, ball seat, includes resistor
NEEDLE, fluid
Includes item 17a
.NUT, adjustment (front)
TRIGGER
TUBE, fluid
Includes item 20a
.WASHER
NUT, mach. hex; M4x0.7"
SCREW, mach, slotted pan head;
No. 10-24 UNC-2a x 0.5"
ADAPTER, filter
CONNECTOR, fluid
FILTER, tip
NUT, hex, mscr; No. 10-24 UNC-2a
BRACKET
RETAINER
SPRING, compression
BALL, bearing
HANDLE, gun
Includes item 32a
.FITTING. air inlet
MUFFLER
PLUG, pipe; hdls; 1/6-27 n p i
PACKING, O-ring. Viton
QTY
1
2
1
1
1
1
1
1
1
1
1
1
1
,
REF PART
NO. NO.
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
52
53
54
1
1
57
1
1
1
2
1
1
1
1
1
1
1
1
1
1
55
56
58
62
63
63a
63b
63C
63d
63s
63
63Ll
72
QN
DESCRIPTION
179-401 VALVE, air
105-681 RING, retaining, external
SEAL. valve. Acetal
BALL: 3716" diameter
.. . SPRING, compression
180-763 RESTRICTOR
21a179 LIGHT, sensor
107-100 CAPSCREW, hex socket head;
M5 x 12.0"
'103-557 PACKING, O-ring; Viton
180-713 HOUSING, valve, air
1Rn-71A
." . . . SCREW, adjusting
102-310 NUT, hex; No. 10-32 with nylon cap
102-268 WASHER, wave
179-402 LEVER, valve
180-735 GUIDE, stem
*106-901 PACKING Needle, PTFE
215-890 VALVE^
.. .- . _,air
-..
107-029 SPRING, compression
*103-338 PACKING, O-ring; Viton
179-391 RETAINER, spring
180-060 SIGN, warning (English1 (not shown)
180-209 COVER. aun h o t shown1
210-696 K\T, toolIncludes items 63a-63a
105.749
." . ~.
.BRUSH. cleaning
177-732 .TOOL. wrench
181-095 .TOOL, pressing
108-182 .TOOL. wrench, ball seat housing
107-158 .WRENCH. stud
107-460 .WRENCH, barrel
ll.0 75:
~.ELECTRODES, box of 10
180-YM SCREW, M 5 x 0 . 9 '
~~
~~~~
~
~
1
1
1
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
2
"Recommended "tool box" spare parts. Keep on hand fo
reduce down time.
1
1
2
Order parts b y name and series letter of the assembly for
which you are ordering.
SERVICE INFORMATION NOTE: CSA certified and
Factory Mutual System approved; advanced Series to 8 .
. ..
I.
/:
,..
L..
...
..
*Included in Repair Kif 218-752.
1
1
,.
. .
Repair Kit 218-752
Must be purchased separately
Includes:
Ref No.
la
2
3a
3c
13a
20a
37
46
53
56
Qtv
21
1
. .~
1
1
2
2
1
1
1
.m7-7ffi
ACCESSORIES (Must be purchased separately1
The accessories in this section have not been
tested by Factory Mutual.
101 MONARK PUMP 217-523
950 psi (66bad MAXIMUM WORKING PRESSURE
WALL BRACKET 206-220
CART 206-210
PAINT RESISTANCE METER 722-886
Used with 722-860 measure resistance of paint. See
instruction manual 307-263. (Not for use in hazardous
areas.)
PUMP SUCTION HOSE 214-960
PAIL SUCTION TUBE 165-767
DRUM SUCTION TUBE 206-266
FLUID FILTERS
3000psi (207bad MAXIMUM WORKING PRESSURE
214570 with carbon steel bowl and support.
218-029 with aluminum bowl and support.
"
STAINLESS STEEL SCREENS
(so
167-024 595 micron (30mesh1
167-025 260 micron
mesh)
167-026 149 micron 1100 mesh1
167-027 74 micron (200 mesh)
HIGH VOLUME AIR REGULATOR 206-199
0-9 bar (0-125psi) Regulated Pressure
14 bar (200psi) Steel Pressure Gauge.
See instruction manual 306-972.
PAINT PROBE 722-860
Used with 722-886 paint resistance meter to measure
resistance of paint. See instruction manual 307-263.
[Not for use in hazardous areas.)
AIR PRESSURE REGULATOR 104267
3W psi (20barJ MAXIMUM WORKING PRESSURE
AIR PRESSURE GAUGE 101-180
0-200 psi (0-14bar) range
..
AIR LINE FILTER
250 psi (17.5 bad MAXIMUM WORKING PRESSURE
FILTER DRAIN VALVE 210-654
5CiXI psi 1350 barJ MAXIMUM WORKING PRESSURE
AIR LINE OILER
FLUID SHUTOFF VALVE 210-657
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
214-847 318 npt(f)
214-848 1 /2 npt(f)
FLUID PRESSURE REGULATOR 217-576
1 0 psi 170 bad MAXIMUM WORKING PRESSURE
ELECTRODE WIRES 218-751
BOX of 10 replacement electrode wires for the spray
tip.
PARTS TO CONVERT STANDARO FLUID
PRESSURE~EGULATOR
206-661
TO lo00 psi (70bar) WORKING PRESSURE
GUN COVERS 218-374
Package of M disposable gun covers.
XXW psi (350 bad MAXIMUM WORKING PRESSURE
~
~~~~
~
""
COMPRESSION SPRING 501-511
*FLUID PRESSURE GAUGE 101-696
0-loo0psi (0-70 bar) range
230-987 ELECTROSTATIC SYSTEM
Includes items:
218-668 Manual E/S Air-Airless Spray Gun
218-101 Grounded Air Supply Hose (25')
214-698 Static Free Fluid Hose (25')
106-148 Air Filter
PROAA4000 1O:l MONARK CART SYSTEM 230-984
Includes system 230-987
PROAA4000 1O:l MONARK PAIL SYSTEM 230-985
Includes system 230-987
PROAA4000 1O:l MONARK WALL MOUNT
SYSTEM 230-988
Includes system 230-987
.~
..
MEGOHMMETER 218-979
500 Volt output; 0.01-2Mx)megohms
....
ACCESSORIES (Must be purchased separately)
The accessories in this section have been tested
by Factory Mutual.
WARNING
Never operate your equipment at a working
pressure rating that is higher than the lowest rated
component in your system. Lower rated components may not be able to withstand the
pressure developed by the pump and may rupture,
causing serious bodily injury or property damage.
GROUNDED AIR SUPPLY HOSE
7 bar llW psi) MAXIMUM WORKING PRESSURE
6.35 mm (0.25 in.) ID. 114 NPSM(FBE)
218-100 5 m (15 ftLAir Supply Hose Assembly
218-101 8 m (25 f t ) Air Supply Hose Assembly
218-102 11 m (36 f t ) Air Supply Hose Assembly
218-103 15 m ( 5 0 f t ) Air Supply Hose Assembly
STATIC FREE FLUID HOSE
3000psi (207 bar) MAXIMUM WORKING PRESSURE
Part
No.
I
ID
Length
Thread
Size
114 npsm(f)
114 npt(mxf1
114 npsmlfl
214698 3/16 i4.8 mmj 25 ft i7.6 mi
114 npsm(f)
214697 3/16'(4.8mm) 50 ft (15.2m) 114 npsm(f)
214638 114 16.4 mm) 14 in (356mm 114 npsm(f)
214635 114" 16.4mm) 2 ft (610mml 114 npsmlfl
214636 114" (6.4mm) 3 ft 1914 mml 114 npsmlfl x
114 nptlml
214-629 114" 16.4 mml 15 ft (4.6ml
114 npsm(f)
210-540 114" 16.4 mml 25 ft (7.6ml
114 npsmlf)
210541 114" 16.4mml 50 ft (15.2ml 114 npsmlfl
-"
WARNING SIGNS
180-060 Warnina Sian (Enalish)
180-061 Warning Sign (French)
180-062 Warning Sign (German)
180-063 Warning Sign (Spanish)
SPRAY TIP SELECTION CHART
Inches
"Light to
Medium
'Heavy
Orifice Fan Width Viscosity Viscosity
at 1 2
fl ozlmin fl ozlmin
Pan
Size
linchesl 1 3 0 0 mm) (literslminl(literslminl Numbe
0.009
4-61100-150)
6-8 1150-200)
8-10 12nn-2m1
0.011
0.013
0.015
0.017
0.019
.
4-61100-150)
6-8 1150-200)
8-10 1200-250)
10-12 1250-300)
12-14 1300-350)
219-209
219-309
7.0
(0.2)
10.0
(0.3)
'
219-211
219-311
219-411
219-511
219-611
.
13.0
6-8(150-2OOl (0.41
8-101200-250)
10-12 m3-300)
12-14 (300-3501
219-213
219-313
219-413
219-513
219-813
17.0
(0.5)
4-6 1100-150) 22.0
6-81150-200) (0.7)
8-101200-250)
10-12 1250-300)
12-14 (300-350)
6-8 1150-200)
28.0
8-10(200-250) (0.8)
10-12 (250-300)
12-14 (300-350)
14-16 1 3 5 0 - 4 0 0 1
27.0
(0.8)
719.MQ
4-6 (100-1501
4-6 (100-150)
6-8 (150"Ol
a10 (200-250)
10-12(250.300)
12-14 1300350l
"Light to
Medium
*Heavy
Orifice Fan Width Viscosity Viscosity
Size
at 1 2
fl ozlmin flozlmin
(inches1 1 3 0 0 mml (literslmin) (literslmin) Number
Inches
17.0
(0.5)
21.0
(0.6)
219-215
219-315
219-415
219-515
219-615
219-217
219-317
219-417
219-517
219-617
219-319
219-419
219-519
219-619
219-719
0.023
0.025
8-10 (200-250) 40.0
10-12(250-300) 11.21
12-14 (300-350)
14-16 (350-400)
16-18 1400-460)
8-10(200-250)
50.0
10-12(250-3001 (1.5)
12-14 (300-350)
14-16 (350-400)
16-18 1 4 0 0 - 4 6 0 )
*Fluid Output a t 600 psi 141 bar).
34.0
10.97)
42.0
(1 2 )
219-421
219-521
219-621
219-721
219-821
219-423
219-523
219-623
219-723
219-823
219-425
219-525
219-625
. 219-725
219-825
~
The fluid output (Ql at other pressures 1Pl can be calculated
by this formula:
Q = (0,041)
[QT) 1
c),
Where QT = Fluid output (fl ozlminl from the above table for
the selected orifice size.
NOTE: Other tips are available on special work order. Allow
4 to 6 weeks for delivery. Maximum orifice size is
0.025'.
TECHNICAL DATA
Weight: 0.87 Kg (1.90 Ib)
Gun length:310 rnm (12.25 in.)
Operating voltage range : 0-75 Kv
Operating fluid pressure: 0-66 bar 10-950 psi)
Operating air pressure: 0-7 bar (0-100 psi1
Fluid inlet: 1/418.61ml
Air inlet: 114 n p s m h ) L.H.
THE GRACO WARRANTY AND DISCLAIMERS
WARRANTY
Gram warrants ell equipment manufactured by it and bearing 'ts
name to be free from defects in material and workmanship Ion the
date of sale by an au'thorized Graco distributor to the original purchaser for use). As purchaser's sole remedy for breach of this warranty, Greco will, for e period of twelve months from the date of sale,
repair or replace eny pen of the equipment proven defective. This
warranty applies only when the equipment is installed. operated end
maintained in accordance with Graco's written recommendations.
Thii warranty does not cover, and Graco shall not be liable for, eny
malfunction, damage or wear caused by f a u b installation, misep-
plication, abrasion. corrosion, inadequate or improper maintenance,
negligence. accident, tempering. or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or
wear caused by the incompatibility with Graco equipment of structures, accessories, equipment or materials not supplied by Graco, or
the improper design, manufacture, installation. operation or
maintenance of structures, accessories, equipment or materials not
supplied by Graco.
This warranty is conditionedupon the prepaid return of the equipment
clalmed to be defective for examination by Graco to verify the claimed
defect. If the claimed defect is verified. Greco will reoair or reolace
free of charge any defective pans. The kuipment will'be returnedto
the original purchaser transportation prepaid. If inspection of the
equipment does not disclose any defect in materiel or workmanship.
repairs will be made at a reasonable charge, which charges may inciude thelhe costs of perts. labor and tr6nsponation.
~~~
~~~
DISCLAIMERS AND LIMITATIONS
TERMS OF THIS WARRANTY CONSTITUTE PURCHASERS
THE
EQUIPMENT NOT COVERED BY GRACO WARRANTY
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITYAND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO ACCESSORIES, EOUIPMENT, MATERIALS, OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured bv Greco lsuch as electric motor. switches. hose.. etc.1.
. ars
. ~subjeci toihe warranty. if any, of their manufacturir. Graco will provide
purcheser with reasonable asaistence in making any claim for breech
of theso warranties.
~
~
~~~
Factory B.anches:Atlanta, Dallas. Detroit. Los Angeles. West Caldwell IN.J.1
Subsldisry and Affiliate Compan1es:Canada; England: Switzerland; France; Germsny; Hong Kong: Japan
GRACO INC.
P. 0. BOX 1441 MINNEAPOLIS. MN 55440-1444
PFdNTFn IN 1I~S.A.
M7-7m 17-
Ravirad &PE
..:. .
.~ .
... ....

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
