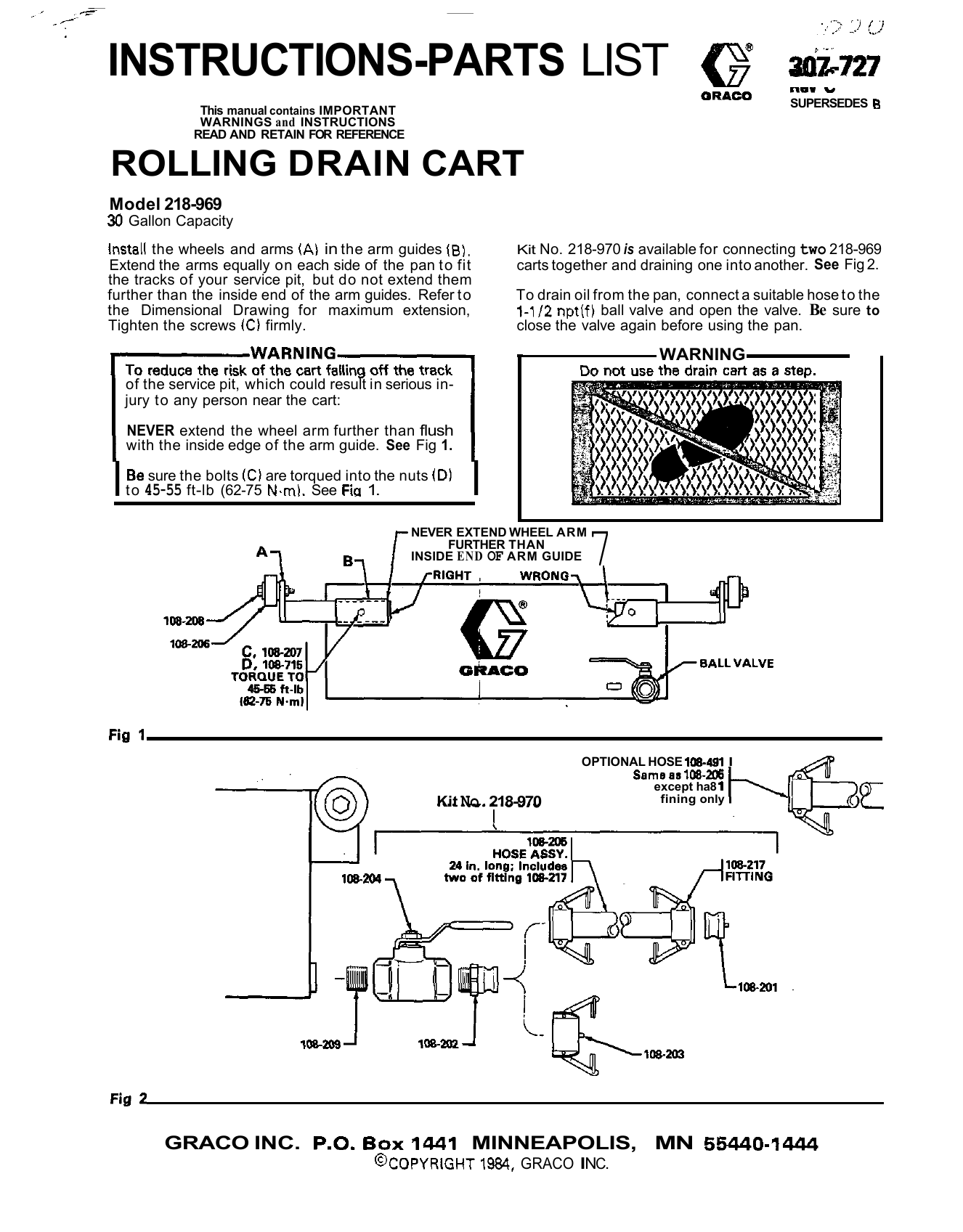

Graco 307727C ROLLING DRAIN CART Owner's Manual

INSTRUCTIONS-PARTS LIST
3i7-727
QRACO
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
P-.,
P
m--
"
SUPERSEDES B
ROLLING DRAIN CART
Model 218-969
30 Gallon Capacity
Install the wheels and arms (A) in the arm guides 18).
Extend the arms equally on each side of the pan t o fit
the tracks of your service pit, but do not extend them
further than the inside end of the arm guides. Refer t o
the Dimensional Drawing for maximum extension,
Tighten the screws IC) firmly.
Kit No. 218-970 is available for connecting two 218-969
carts together and draining one into another. See Fig 2.
To drain oil from the pan, connect a suitable hose t o the
1-112 nptlf) ball valve and open the valve. Be sure to
close the valve again before using the pan.
WARNING
of the service pit, which could result in serious injury t o any person near the cart:
NEVER extend the wheel arm further than flush
with the inside edge of the arm guide. See Fig 1.
I
Be sure the bolts (C) are torqued into the nuts (D)
t o 45-55 ft-lb (62-75 N m l . See Fig 1.
B-l
c
I
NEVER EXTEND WHEEL ARM
FURTHER THAN
INSIDE END OF ARM GUIDE
Kit No. 218-970
7
OPTIONAL HOSE 1W-491 I
Ssrnsas 108206
except ha8 1
fining only
A
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1444
@COPYRIGHT 1984, GRACO INC.
DIMENSIONAL DRAWING
Weight: 130 Ib 159 Kg1
Depth: M" I610 mm)
G
--P
1
-
IIW m m l MAXIMUM EXTENSION
SERVICE INFORMATION NOTE:
HOW TO ORDER REPLACEMENT PARTS
Added torque note t o bolt and nut (Cand D).
1. To be sure you receive the correct replacement parts,
kit or accessories, always give all of the information
requested in the chart below.
,roved dimensioning.
2. Check the parts list to identify the correct part number;
do not use the ref. no. when ordering.
3. Order all parts from your nearest Graco distributor.
6 digit
PART
NUMBER
QTY
PART DESCRIPTION
I
I
THE GRACO WARRANTY AND DISCLAIMERS
WARRANTY
Graco warrants all equipment manufacturedby it and bearing its name to be free from defects in material and workmanship Ion the date of sale
by an authorized Graco distributor to the original purchaser for usel. As purchaser's mie remedy for breach of this warranty, Graco will. for a
period of twelve months from the date of d e , repair or replace any part of the equipment proven defective. This warranty applies onlywhen the
Equipment is installed, operated end maintained in accordance with Graco's written recommendations.
This warranty does not cover, and Graco shall not be liable for, any malfunction, damage or wear caused by faulty installation, misapplication,
abrasion, corrosion. inadequate or improper maintenance. negligence, accident, tampering. or substitution of non-Gram component parts. Nor
shall Graco be liable for malfunction, damage or wear caused by the incompatibility with Graco equipment of structures. accessories. equipment o r materials not supplied by Graco. or the improper design, manufacture, installation. operation or maintenance of structures, accessortes. equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective for examination by Graco to verify the claimed
defect. \f the ciaimed detect is ver%ed. Graco will repair or replace free of charge any defective paits. The equipment wiii be returned to the
original purchaw transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be
made at a reasonable charge, which charges may include the the costs of parts, labor and transportation.
DISCLAIMERS AND LIMITATIONS
THE TERMS OFTHIS WARRANTY CONSTiTUTE PURCHASER'S 50LE AN0 EXCLUSIVE REMEDY AND ARE IN LIEU OF ANY OTHER WARRANTIES iEXPRESS OR IMPLIEOI. INCLUDiNG WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE, AND OF ANY NON-CONTRACTUAL LIABILITIES, iNCLUOlNG PRODUCT LIABILITiES, BASED ON NEGLIGENCE OR STRICT
LIABILITY. EVERY FORM OF LIABILITY FOR DIRECT, SPECIAL OR CONSEOUENTIAL DAMAGES OR LOSS IS EXPRESSLY EXCLUDED AND
DENIED. IN NO CASE SHALL GRACOS LIABILITY EXCEED THE AMOUNT OF THE PURCHASE PRICE. ANY ACTION FOR BREACH OF
WARRANTY MUST BE BROUGHT WITHIN T W O (2) YEARS OF THE DATE OF SALE.
EQUIPMENT NOT COVERED BY GRACO WARRANTY
GRACO MAKES NO WARRANTY, AN0 DiSCLAiMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AN0 FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO ACCESSORIES, EQUIPMENT. MATERIALS. OR COMPONENTS SOLO BUT NOT MANUFACTUREO BY GRACO. These items soid, but not manufacturedby Graco lsuch as electric motor, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties,
Factory Brenches:Atlanta. Dallas. Detroit. Los Angeles. West Caldwell 1N.J.l
Subsidiary and Affiliate Companie8:Canada: England: Switzerland: France: Germany: Hong Kong; Japan
GRACO INC.
P. 0. Box 1441 MINNEAPOLIS, MN 55440-1444
PRINTED I N us.,% 3
0
7
m12-84 Revised 10.86
