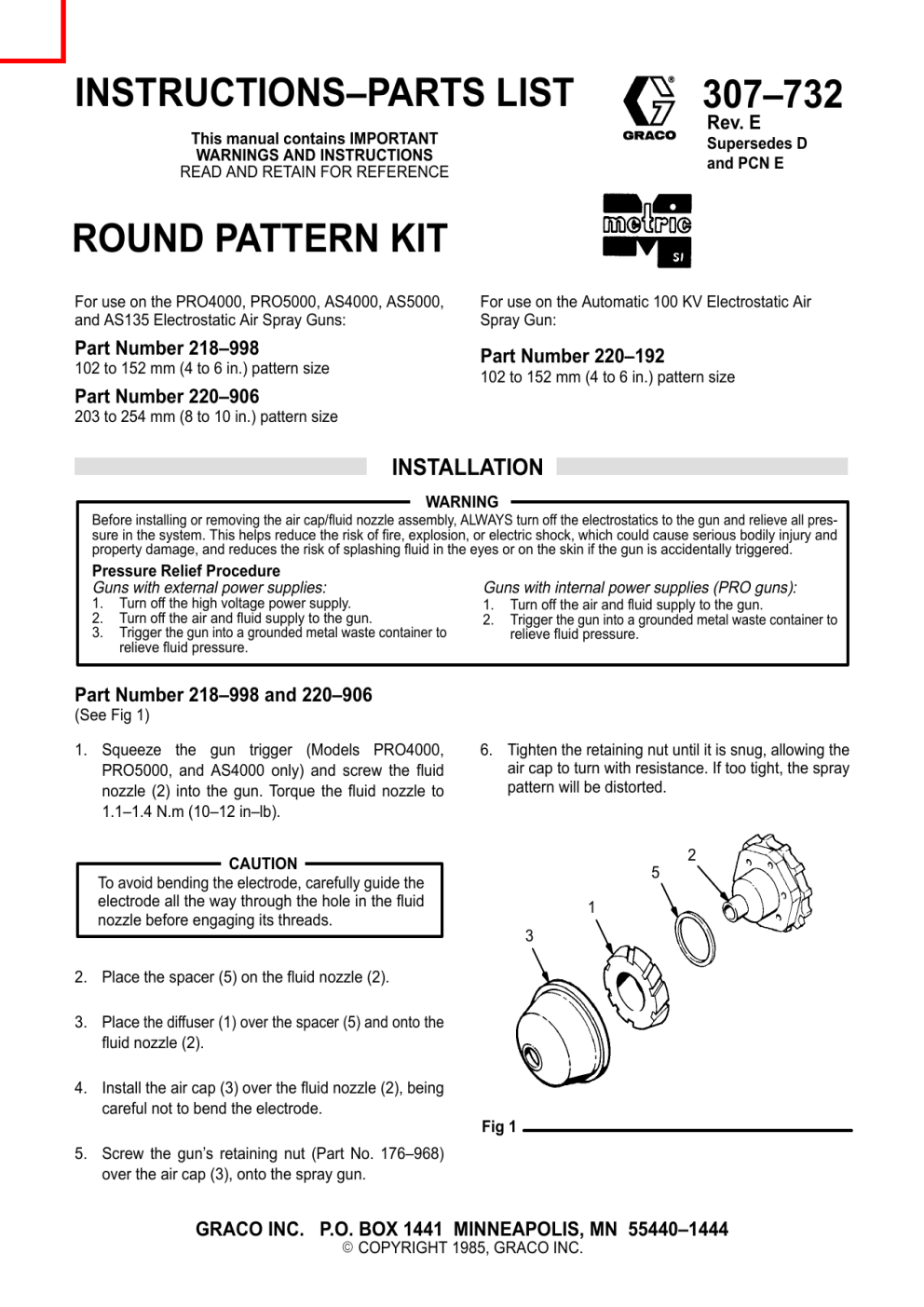

Graco 307732E Round Pattern Kit Owner's Manual

INSTRUCTIONS–PARTS LIST
307–732
Rev. E
This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
Supersedes D
and PCN E
ROUND PATTERN KIT
For use on the PRO4000, PRO5000, AS4000, AS5000,
and AS135 Electrostatic Air Spray Guns:
Part Number 218–998
For use on the Automatic 100 KV Electrostatic Air
Spray Gun:
Part Number 220–192
102 to 152 mm (4 to 6 in.) pattern size
102 to 152 mm (4 to 6 in.) pattern size
Part Number 220–906
203 to 254 mm (8 to 10 in.) pattern size
INSTALLATION
WARNING
Before installing or removing the air cap/fluid nozzle assembly, ALWAYS turn off the electrostatics to the gun and relieve all pressure in the system. This helps reduce the risk of fire, explosion, or electric shock, which could cause serious bodily injury and
property damage, and reduces the risk of splashing fluid in the eyes or on the skin if the gun is accidentally triggered.
Pressure Relief Procedure
Guns with external power supplies:
1.
2.
3.
Guns with internal power supplies (PRO guns):
Turn off the high voltage power supply.
Turn off the air and fluid supply to the gun.
Trigger the gun into a grounded metal waste container to
relieve fluid pressure.
1.
2.
Turn off the air and fluid supply to the gun.
Trigger the gun into a grounded metal waste container to
relieve fluid pressure.
Part Number 218–998 and 220–906
(See Fig 1)
1. Squeeze the gun trigger (Models PRO4000,
PRO5000, and AS4000 only) and screw the fluid
nozzle (2) into the gun. Torque the fluid nozzle to
1.1–1.4 N.m (10–12 in–lb).
6. Tighten the retaining nut until it is snug, allowing the
air cap to turn with resistance. If too tight, the spray
pattern will be distorted.
2
CAUTION
To avoid bending the electrode, carefully guide the
electrode all the way through the hole in the fluid
nozzle before engaging its threads.
5
1
3
2. Place the spacer (5) on the fluid nozzle (2).
3. Place the diffuser (1) over the spacer (5) and onto the
fluid nozzle (2).
4. Install the air cap (3) over the fluid nozzle (2), being
careful not to bend the electrode.
Fig 1
5. Screw the gun’s retaining nut (Part No. 176–968)
over the air cap (3), onto the spray gun.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1444
COPYRIGHT 1985, GRACO INC.
INSTALLATION
Part Number 220–192 (See Fig 2)
1. Install the fluid nozzle assembly (101) on the spray
gun. Torque the fluid nozzle to 1.1–1.4 N.m
(10–12 in–lb).
101a
101b
102
CAUTION
To avoid bending the electrode, carefully guide the
electrode all the way through the hole in the fluid
nozzle before engaging its threads.
101
2. Install air cap (102) over the nozzle assembly (101).
3. Screw the gun’s retaining nut (Part No. 176–387)
over the air cap (102), onto the spray gun, being
careful not to bend the electrode. Tighten the retaining nut until snug.
Fig 2
CLEANING
1. Remove air cap/fluid nozzle assembly from the gun.
WARNING
Before installing or removing the air cap/fluid nozzle assembly, ALWAYS turn off electrostatics to
the gun and relieve all pressure in system by following the Pressure Relief Procedure Warning
on the front cover. This helps reduce the risk of
fire, explosion, or electric shock, which could
cause serious bodily injury and property damage,
and reduces the risk of splashing fluid in the eyes
or on the skin if the gun is accidentally triggered.
2. Wash and soak the fluid nozzle in solvent. Use a soft
bristle brush to clean the air cap, fluid nozzle, and
front of the gun.
CAUTION
NEVER use metal instruments to clean holes in
the air cap and nozzle. Metal instruments can
damage the electrode and holes in the air cap and
fluid nozzle, resulting in distortion of spray pattern.
PARTS DRAWINGS AND LISTS
Part Number 218–998
102 to 152 mm (4 to 6 in.) Pattern Size
2
REF
NO.
PART NO.
DESCRIPTION
1
2
3
5
181–237
218–997
181–236
183–378
DIFFUSER
NOZZLE, fluid
AIR CAP
SPACER
1
1
1
1
Part Number 220–906
203 to 254 mm (8 to 10 in.) Pattern Size
REF
NO.
PART NO.
DESCRIPTION
1
2
3
5
181–237
220–944
183–377
183–378
DIFFUSER
NOZZLE, fluid
AIR CAP
SPACER
5
QTY
QTY
1
1
1
1
1
3
PARTS DRAWINGS AND LISTS
Part Number 220–192
102 to 152 mm (4 to 6 in.) Pattern Size
101a
101b
102
REF
NO.
PART NO.
DESCRIPTION
101
220–191
NOZZLE ASSY
Includes items 101a & 101b
.NOZZLE, fluid
.INSERT, fluid nozzle
AIR CAP
101a 181–517
101b 181–239
102 181–236
QTY
1
1
1
1
101
ROUND PATTERN AIR SPRAY PERFORMANCE CHARTS
Part Number 218–998 and 220–906
Fluid Pressure
BAR PSI
Air Pressure
BAR PSI
M
H
80
40
2.5
5
35
70
L
2.0
30
60
4
25
50
1.5
3
20
1.0
40
15
30
2
10
20
0.5
1
5
5
10
15
200
20
400
25
600
30
35 oz/min
800
5
1000 cc/min
0.1
10
0.2
Fluid Flow Rate
L
M
H
0.3
f3/min
15
0.4
0.5
m3/min
Air Flow Rate
= Light Viscosity; 18 sec #2 Zahn
= Medium Viscosity; 30 sec #2 Zahn
= Heavy Viscosity; 30 sec #3 Zahn
Pattern shape (at 305 mm [12’’]): Round
Air consumption: 0.24 m3/min at 2.1 bar
(8.8 CFM at 30 psi)
Part Number 220–192
Air Pressure
BAR PSI
Fluid Pressure
BAR PSI
H
80
80
5
5
70
70
M
4
60
4
50
50
3
3
40
40
2
60
30
2
L
30
20
20
1
1
10
10
5
10
200
15
400
Fluid Flow Rate
20
600
25
5
oz/min
800 cc/min
0.1
10
0.2
0.3
f3/min
15
0.4
0.5
m3/min
Air Flow Rate
SERVICE INFORMATION
Listed below by the assembly changed are DELETED
parts.
ASSEMBLY
CHANGED
218–998 &
220–906 Kit
PART
STATUS
REF PART
NO. NO.
DELETED 4
NAME
108–282 Washers
HOW TO ORDER REPLACEMENT PARTS
1.To be sure you receive the correct replacement
parts, kits or accessories, always give all of the information requested in the chart below.
2. Check the parts list to identify the correct part number; do not use the ref. no. when ordering.
3. Order all parts from your nearest Graco distributor.
6 digit
Part
Number
Qty
Part Description
Factory Branches: Atlanta, Dallas, Detroit, Los Angeles, West Caldwell (N.J.)
Subsidiary and Affiliate Companies: Canada; England; Switzerland; France; Germany; Hong Kong; Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1444
PRINTED IN U.S.A. 307–732 4–85 Revised 6–88
