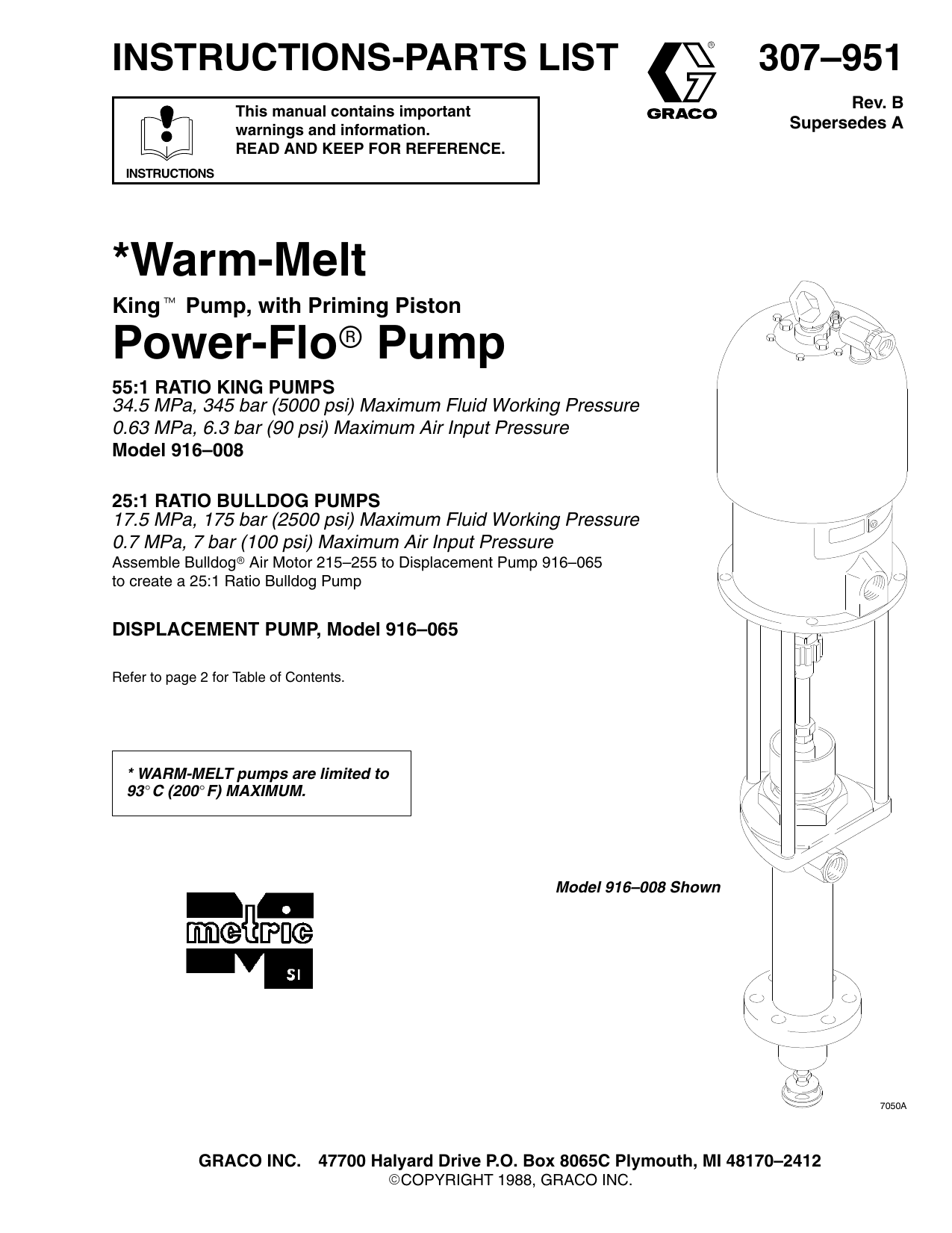

INSTRUCTIONS-PARTS LIST
This manual contains important warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
*Warm-Melt
King Pump, with Priming Piston
Power-Flo Pump
55:1 RATIO KING PUMPS
34.5 MPa, 345 bar (5000 psi) Maximum Fluid Working Pressure
0.63 MPa, 6.3 bar (90 psi) Maximum Air Input Pressure
Model 916–008
25:1 RATIO BULLDOG PUMPS
17.5 MPa, 175 bar (2500 psi) Maximum Fluid Working Pressure
0.7 MPa, 7 bar (100 psi) Maximum Air Input Pressure
Assemble Bulldog Air Motor 215–255 to Displacement Pump 916–065 to create a 25:1 Ratio Bulldog Pump
DISPLACEMENT PUMP, Model 916–065
Refer to page 2 for Table of Contents.
* W ARM-MELT pumps are limited to
93 C (200 F) MAXIMUM.
Model 916–008 Shown
307–951
Rev. B
Supersedes A
GRACO INC. 47700 Halyard Drive P.O. Box 8065C Plymouth, MI 48170–2412
COPYRIGHT 1988, GRACO INC.
Table of Contents
Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warnings
Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation
Service
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement Pump Service . . . . . . . . . . . . . . . . .
10
11
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Back Cover
3
6
2
3
7
Terms
Be sure you read and understand each of these terms before reading the rest of the manual.
PRESSURE RELIEF PROCEDURE A safety procedure for relieving air and fluid pressure in the system.
FLUID INJECTION INJURY A serious injury, which may appear to be a simple cut, caused by the high pressure injection of fluid directly into the body.
NOTE Gives additional explanation of a procedure or helpful hints.
FLUID Any chemical, such as paint, water, sealant, stain, lacquer, solvents, etc., which is used in the spray or dispensing equipment.
GUN TRIGGER SAFETY A device on the spray gun or dispensing valve which can be locked to prevent dispensing fluid through the gun or valve.
WARM MATERIAL Material not exceeding the pump’s rated temperature of 93 C (200 F).
Warning Symbol
WARNING his symbol alerts you to the possibility of serious injury or death if you do not follow the instructions.
Symbols
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to or destruction of equipment if you do not follow the instructions.
INSTRUCTIONS
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
This equipment is for professional use only.
The WARM-MELT pump is rated not to exceed 93 C (200 F).
The WARM-MELT pump is limited to an air pressure operating range of 20–80 psi (3–6 bar).
Read all instruction manuals, tags, and labels before operating the equipment.
Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor.
Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
Check equipment daily. Repair or replace worn or damaged parts immediately.
Do not exceed the maximum working pressure stated on the equipment or in the Technical Data for your equipment. Do not exceed the maximum working pressure of the lowest rated component in your system.
Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
Do not use hoses to pull equipment.
Handle heated hoses with care. Avoid tight bend radiuses, binding, twisting, sharp edges, and corners. Use proper hose hangers and balancers for hose routing.
Wear hearing protection when operating this equipment.
Do not lift pressurized equipment.
Comply with all applicable local, state, and national fire, electrical, and safety regulations.
WARNING
INJECTION HAZARD
Spray and extrusion from the spray gun/dispense valve, hose leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury.
Fluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate medical attention.
Do not point the gun/valve at anyone or at any part of the body.
Do not put your hand or fingers over the spray tip/nozzle.
Do not stop or deflect leaks with your hand, body, glove or rag.
Do not “blow back” fluid; this is not an air spray system.
Always have the tip guard and the trigger guard on the gun when spraying.
Check the gun diffuser operation weekly. Refer to the gun manual.
Be sure the gun/valve trigger safety operates before spraying.
Lock the gun/valve trigger safety when you stop spraying.
Follow the Pressure Relief Procedure on page 7 whenever you: are instructed to relieve pressure; stop spraying/dispensing; clean, check, or service the equipment; and install or clean the spray tip/nozzle.
Tighten all fluid connections before operating the equipment.
Check the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.
Permanently coupled hoses cannot be repaired; replace the entire hose.
MOVING PARTS HAZARD
Moving parts, such as the priming piston and the air motor piston, can pinch or amputate your fingers.
Keep clear of all moving parts when starting or operating the pump.
Keep hands and fingers away from the priming piston during operation and whenever the pump is charged with air.
Before servicing the equipment, follow the Pressure Relief Procedure on page 7 to prevent the equipment from starting unexpectedly.
4 307-951
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury.
Ground the equipment and the object being sprayed. Refer to Grounding on page 6.
If there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing/dispensing immediately. Do not use the equipment until you identify and correct the problem.
Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid being sprayed/dispensed.
Keep the spray/dispense area free of debris, including solvent, rags, and gasoline.
Electrically disconnect all equipment in the spray/dispense area.
Extinguish all open flames or pilot lights in the spray/dispense area.
Do not smoke in the spray/dispense area.
Do not turn on or off any light switch in the spray/dispense area while operating or if fumes are present.
Do not operate a gasoline engine in the spray/dispense area.
HOT FLUID AND HOT SURFACE HAZARD
Bodily contact with hot fluid and hot surfaces can cause severe burns. Obtain medical assistance immediately.
The WARM-MELT pump and associated equipment is designed to be heated to a maximum of
93 C (200 F). Any or all components may be heated to their maximum temperature. Take extreme care to avoid touching any of them. If bodily contact is made with any component, severe burns may result. Obtain medical assistance immediately .
Warm melt materials are typically formulated to a heavy, sticky, mastic-type composition which must be pumped at elevated temperatures not to exceed 93 C (200 F). While pumping these materials at elevated temperatures, extreme care must be taken to avoid bodily contact with the heated material. If bodily contact does occur, do not wipe the material, as this can spread the material and cause additional burns. Cool the burn area with water and obtain medical assistance immediately.
Always wear protective eyewear, gloves, and clothing.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, or swallowed.
Know the specific hazards of the fluid you are using.
Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state and national guidelines.
Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and solvent manufacturer.
Grounding
Installation
4.
Spray gun/dispense valve: ground through connection to a properly grounded fluid hose and pump.
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the system as explained below. Also read the section FIRE AND EXPLOSION
HAZARD on page 5.
5.
Object being sprayed: follow your local code.
6.
Fluid supply container: follow your local code.
7.
All solvent pails used when flushing: follow your local code. Use only metal pails, which are conductive, placed on a grounded surface. Do not place the pail on a nonconductive surface, such as paper or cardboard, which interrupts the grounding continuity.
1.
Pump: use a ground wire and clamp. See Fig. 1.
Loosen the grounding lug locknut (W) and washer
(X). Insert one end of a 1.5 mm (12 ga) minimum ground wire (Y) into the slot in lug (Z) and tighten the locknut securely. Connect the other end of the wire to a true earth ground.
8.
To maintain grounding continuity when flushing or relieving pressure, always hold a metal part of the gun/valve firmly to the side of a grounded metal pail, then trigger the gun/valve.
System Accessories
W
Y
X
Z
WARNING
Two accessories are required in your system: a bleed-type master air valve and a fluid drain valve.
These accessories help reduce the risk of serious injury, including fluid injection and splashing of fluid in the eyes or on the skin, and injury from moving parts if you are adjusting or repairing the pump.
0864
Fig. 1
2.
Air and fluid hoses: use only electrically conductive hoses with a maximum of 150 m (500 ft) combined hose length, to ensure grounding continuity.
The bleed-type master air valve relieves air trapped between this valve and the pump after the air is shut off. Trapped air can cause the pump to cycle unexpectedly. Locate the valve close to the pump.
3.
Air compressor: follow the air compressor manufacturer’s recommendations.
The fluid drain valve assists in relieving fluid pressure in the displacement pump, hose, and gun.
Triggering the gun to relieve pressure may not be sufficient.
6 307-951
Operation
Flush the Pump Pressure Relief Procedure
WARNING
INJECTION HAZARD
The system pressure must be manually relieved to prevent the system from starting or spraying accidentally. Fluid under high pressure can be injected through the skin and cause serious injury. To reduce the risk of an injury from injection, splashing fluid, or moving parts, follow the Pressure Relief Procedure whenever you: are instructed to relieve the pressure, stop spraying/dispensing, check or service any of the system equipment, or install or clean the spray tip/nozzle.
The pump is tested with lightweight oil, which is left in to protect the pump parts. If the fluid you are using may be contaminated by the oil, flush it out with a compatible solvent.
WARNING
FIRE AND EXPLOSION HAZARD
Before flushing, read the section FIRE
AND EXPLOSION HAZARD on page
5. Be sure the entire system and flushing pails are properly grounded. Refer to
Grounding on page 6.
WARNING
To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the
Pressure Relief Procedure at left.
1. Lock the gun/valve trigger safety.
2. Shut off the air supply to the pump.
3. Close the bleed-type master air valve (required in your system).
4. Unlock the gun/valve trigger safety.
5. Hold a metal part of the gun/valve firmly to the side of a grounded metal pail, and trigger the gun/valve to relieve pressure.
6. Lock the gun/valve trigger safety.
7. Open the drain valve and/or the pump bleeder valve (required in your system), having a container ready to catch the drainage.
8. Leave the drain valve open until you are ready to spray/dispense again.
If you suspect that the spray tip/nozzle or hose is com pletely clogged, or that pressure has not been fully re lieved after following the steps above, very slowly loosen the tip guard retaining nut or hose end coupling and relieve pressure gradually, then loosen completely.
Now clear the tip/nozzle or hose.
1.
Relieve the pressure.
2. Remove the spray tip/nozzle from the gun/valve.
3. Hold a metal part of the gun/valve firmly to the side of a grounded metal pail.
4. Start the pump. Always use the lowest possible fluid pressure when flushing.
5. Trigger the gun/valve.
6. Flush the system until clear solvent flows from the gun/valve.
7.
Relieve the pressure.
Operation
Start and Adjust the Pump
Fill the packing nut (101) 1/2 full with Graco Throat
Seal Liquid (TSL).
Be sure the main pump air regulator is closed. Then open the bleed-type master air valve. Hold a metal part of the gun/valve firmly to the side of a grounded metal pail and hold the trigger open. Now slowly open the air regulator until the pump starts.
NOTE: The system must be up to operating temperature.
Cycle the pump slowly until all air is pushed out and the pump and hoses are fully primed. Release the gun/ valve trigger and lock the trigger safety. The pump will stall against pressure when the trigger is released.
WARNING
MOVING PARTS HAZARD
Keep hands and fingers away from the priming piston (119) during operation and whenever the pump is charged with air. The priming piston extends beyond the intake cylinder (117) to pull material into the pump and can amputate a hand or finger caught between it and the intake cylinder. Follow the Pressure Relief
Procedure on page 7, before checking, clearing, or cleaning the priming piston.
If the pump fails to prime properly, open the bleeder valve (139) slightly. Use the bleed hole (A) as a priming valve until the fluid appears at the hole. See Fig. 2.
Close the bleeder valve.
119
WARNING
INJECTION HAZARD
To reduce the risk of fluid injection, do not use your hand or fingers to cover the bleed hole (A) on the underside of the bleeder valve body (139) when priming the pump.
A
101
139
7051A
Fig. 2
With the pump and lines primed, and with adequate air pressure and volume supplied, the pump will start and stop as you open and close the gun/valve.
NOTE: All electrical and heat requirements must be met.
Use the air regulator to control the pump speed and the fluid pressure. Always use the lowest air pressure necessary to get the desired results. Higher pressures cause premature tip/nozzle and pump wear.
WARNING
COMPONENT RUPTURE HAZARD
To reduce the risk of overpressurizing your system, which could cause component rupture and serious injury, never exceed the Maximum Incoming Air Pressure to the pump.
8 307-951
Operation
Keep the wet-cup (101) one-half full with TSL. No adjustment is necessary to the packing nut due to the packing design.
Shutdown and Care of the Pump
Never allow the pump to run dry of the fluid being pumped. A dry pump will quickly accelerate to a high speed, possibly damaging itself. A pump runaway valve, which shuts off the air supply to the pump if the pump accelerates beyond the preset speed, is available. (See your authorized Graco dealer.)
WARNING
To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 7.
For overnight shutdown, stop the pump at the bottom of the stroke to prevent fluid from drying on the exposed displacement rod and damaging the throat packings. Relieve the pressure. Follow all heat shutdown procedures.
If your pump accelerates quickly, or is running too fast, stop it immediately and check the fluid supply. If the supply container is empty and air has been pumped into the lines, refill the container and prime the pump and the lines with fluid, or flush and leave it filled with a compatible material.
Always flush the pump before the material sets up on the displacement rod. First, flush with a compatible material. Relieve the pressure, but leave the compatible flush material in the pump to protect the parts from corrosion.
Service/Troubleshooting
WARNING
To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 7.
1.
Relieve the pressure.
2. Check all possible problems and causes before disassembling the pump.
PROBLEM CAUSE
Displacement pump not up to proper operating temperature.
Obstructed fluid hose or gun/valve.
SOLUTION
Pump fails to operate.
Restricted line or inadequate air supply. Clear; see technical data on electrical solenoid interface.
Insufficient air pressure; closed or clogged air valves, etc.
Open, clear.
Check heat on pump. Check electrical requirements.
Fluid dried on the displacement rod.
Clear; auxiliary equipment not up to run temperature.
Clean; see SERVICE.
Pump operates, but output low on both strokes.
Dirty or worn air motor parts.
Air motor icing.
Clean; service (see 307–304 or 307–741).
Check air line moisture content; should have 40 F
(4 C) dew point.
Restricted line or inadequate air supply. Clear; see technical data on electrical solenoid interface.
Insufficient air pressure; closed or clogged air valves, etc.
Obstructed fluid hose or gun/valve.
Bleeder valve is open.
Air is leaking into the supply drum.
Fluid is too heavy for pump priming.
Open, clear.
Clear*.
Close the valve.
Check the inductor or ram plate seal.
Use the bleeder valve (see page 8); use inductor or ram unit.
Clear; service.
Worn throat packings in the displacement pump.
Air motor icing.
Pump operates, but output low on downstroke.
Fluid too heavy for pump priming.
Check air line moisture content; should have 40 F
(4 C) dew point.
Use the bleeder valve (see page 8); use inductor or ram unit.
Pump operates, but output low on upstroke.
Held open or worn priming piston.
Air motor icing.
Held open or worn priming piston.
Clear; service.
Check air line moisture content; should have 40 F
(4 C) dew point.
Clear; service.
Air motor icing.
Check air line moisture content; should have 40 F
(4 C) dew point.
THE TROUBLESHOOTING CHAR T IS CONTINUED ON PAGE 1 1.
* Follow the Pressure Relief Procedure on page 7 and disconnect the fluid line. If the pump starts again when the air is turned on, the fluid hose, etc., is clogged.
Service/Troubleshooting
PROBLEM
Erratic or accelerated pump speed.
CAUSE
Exhausted fluid supply.
SOLUTION
Refill and prime.
Fluid is too heavy for pump priming.
Held open or worn piston valve or packings
Held open or worn priming piston.
Worn throat packings in the displacement pump.
Air motor icing.
Use the bleeder valve (see page 8); use inductor or ram unit; check temperature.
Clear; service.
Clear; service.
Clear; service.
Check air line moisture content; should have 40 F
(4 C) dew point.
Displacement Pump Service
WARNING
To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 7.
(See the Parts Drawing on page 14 unless otherwise noted.)
5. Push the displacement rod (108) down so that the priming piston (119) clears the intake cylinder
(117).
6. Use two wrenches to oppositely turn and loosen the hex nuts (120) on the piston rod (122).
7. Remove the valve plate (118), valve guide (121), and the priming piston (119).
1. Flush the pump with compatible solvent, if possible. Relieve the pressure.
2. Disconnect the hoses and heat jacket, remove the pump from its mounting, and clamp it in a vise.
Unscrew the coupling nut (9) and the tie rod locknuts (3). Remove the cotter pin (1), loosen the jam nut (5), and unscrew the connecting rod (11) from the displacement rod (108). Pull the motor away from the displacement pump.
8. Remove the intake cylinder (117).
9. Holding onto the piston rod (122), pull the displacement rod (108) through the pump housing (109).
10. Remove the cotter pin (126) and unthread the piston rod (122) from the piston adapter (130). Inspect the piston rod for scoring and wear.
NOTE: If you are using a repair kit to service the pump, use all the new parts even if the old ones look good. The old parts will not seal properly with the new parts, and the pump will leak. See the parts list pages for the repair kit for your pump.
3. Place the pump housing (109) in a padded jaw vise with the outlet (107) against one jaw.
11. Remove the packing nut (114) from the intake cylinder’s packing housing (138) and remove the vpackings (112) and gland (123). Remove the rod guide (113).
12. Using a vise and wrench, oppositely turn and loosen the piston adapter (130) from the piston coupler
(110), making sure not to drop the piston sleeve
(132).
13. Remove the piston sleeve rings (131) from the piston sleeve (132).
4. Remove the wet-cup (101), wet-cup packing nut
(136), and the packing nut (140). Remove the packings from between the packing nuts.
14. Inspect the mating surfaces on the piston between the piston adapter (130) and the piston sleeve
(132) for scoring or wear.
Displacement Pump Service
15. Inspect the outer surface of the displacement rod
(108), the inner surface of the pump cylinder (111), and the piston rod (122) for scoring and wear. Replace these parts, if necessary. If the rod is worn, the packings will not seal properly and the pump will leak. If the cylinder is worn, the pump will not stall against pressure.
2
Lips of v-packings must face up.
114
16. Clean all the parts in a compatible solvent. Inspect them and replace them as necessary.
17. Place an o-ring (125) on the packing nut (140).
Screw the packing nut into the pump housing
(109). Tighten securely.
NOTE: Lubricate the parts with a lightweight oil before assembling.
18. Install the male gland (106) into the packing nut
(140) and then insert the v-packings, starting with a white (137), then a red (127), alternating them until a total of 6 v-packings have been installed (3 of each). The lips of the v-packings must face down. Reinstall the female gland. See Fig. 3.
1 Lips of v-packings must face down.
105
*137
1
Fig. 3
*112
2
138
123
127*
1
106
7052A
7054A
Fig. 4
21. Apply sealant to the end of the piston coupler (110) and piston adapter (130). Thread the piston coupler into the displacement rod (108). Add the piston sleeve (132) onto the piston adapter (130) and thread into the piston coupler (110). Lock the piston adapter into a vise and tighten the displacement rod (108) to both the piston coupler (110) and the piston adapter (130). Torque to 81–102 N m
(60–70 ft-lb). Thread the piston rod into the piston adapter (130) and lock in place with the cotter pin
(126). Add the o-ring (125) and the rod guide (113) onto the piston rod (122). Then slide the intake valve assembly, nut first, onto the piston rod.
Torque the valve packing nut (114) onto the valve housing (138) and torque to 34–47 N m (25–35 ft-lb). Install the piston sleeve rings (131) onto the piston sleeve (132). Make sure the angled side of the rings are in the up position. Stagger the ring scarf cut openings 180 apart. See Fig. 5.
3
Tapered side faces up.
Stagger scarf cuts
180 apart.
3
132 131*
3
19. Loosely install the wet-cup packing nut (136) into the packing nut (140). Install the wet-cup (101) into the wet-cup packing nut (136).
20. Place the female gland (123) into the intake valve housing (138). Place four v-packings (112) into the intake valve housing with the lips facing up, then install the packing nut (114). Set this intake valve assembly aside until the next step. See Fig. 4.
Fig. 5
7053A
Displacement Pump Service
22. Slide the pump cylinder (111) onto the displacement rod and piston assembly, being careful not to damage the piston rings. Remove from the vise and set the pump cylinder assembly aside.
23. Place the pump housing (109) into the vise. Install a new o-ring (125) into the pump housing. Lubricate the pump cylinder assembly (111) and slide it into the pump housing, guiding the displacement rod carefully through the throat packings. Place a new o-ring (125) and the rod guide (113) into the pump housing (109).
Throat Packing Periodic Replacement
CAUTION
When pumping abrasive fluid, periodic replacement of the throat packings, in addition to the regular pump packing replacement, is essential. Abrasive fluids cause the throat packings to wear more quickly, and costly damage to the displacement rod may result from scoring.
24. Place a new o-ring (124) around the top of the intake cylinder (117) and screw the cylinder into the pump housing (109). Place a new o-ring (129) on the bottom of the intake cylinder (117).
25. Thread the nut (120) onto the bottom of the piston rod. Install the valve plate (118), valve guide (121), priming piston (119), and the other nut (120).
26. Holding both nuts (120) with wrenches, torque the bottom nut to 54–81 N m (40–60 ft-lb).
27. Torque the wet-cup nut (136) to 54–81 N m (40–60 ft-lb).
28. Reconnect the displacement pump to the air motor. Refill the wet-cup (101). Reconnect the ground wire to the air motor if it was disconnected during service.
Check the throat packings weekly until you determine how frequently you need to change the packings to reduce displacement rod scoring. Good packings should not have any cracks, breaks, or worn spots.
Order three packings (part no. 617–012) and three packings (part no. 617–013). To change the throat packings:
1. Unscrew the coupling nut (9). Remove the cotter pin (1), loosen the jam nut (5), and unscrew the connecting rod (11).
2. Remove the wet-cup (101). Unscrew the packing nut (140) from the pump housing (109). Unscrew the wet-cup nut (136) from the packing nut (140).
3. Remove the glands and the packings and clean all parts. Grease the new packings. Install the male gland (106) into the packing nut (140) and then insert the v-packings, starting with a white (137), then a red (127), alternating them until a total of 6 v-packings have been installed (3 of each). The lips of the v-packings must face down. Reinstall the female gland (105). See Fig. 3.
4. Loosely screw the wet-cup packing nut (136) into the packing nut (140). Make sure the o-ring (125) is first placed into the pump housing (109) and then screw the packing nut (140) into the pump housing (109). Tighten the packing nut (140) securely. Then tighten the wet-cup packing nut to set the packings.
5. Make sure the o-ring (102) is in place in the wetcup packing nut (136). Install the wet-cup (101) into the wet-cup packing nut (136).
Parts
5
101
*102
136
1
8
1
9
7
Model 916–008
55:1 RATIO KING PUMP
5/55 gallon drum size
11
10
105
2
*127
106
137*
2
15
140
125*
135 3
134
3
139
139a 139b
139c
122
*125
111
128*
107 3
109
*125
113
114
108
1
2
3
4
5
6
7
Torque to 54–81 N.m (40–60 ft-lb).
Lips of v-packings must face down.
Torque to 420–480 N.m (310–340 ft–lb)
Apply sealant to threads.
Tapered side faces up. Stagger scarf cuts 180 apart.
Torque to 81–102 N.m (60–70 ft–lb).
Lips of v-packings must face up.
7
*112
123
138
14 307-951
*129
120
118
121
119
120
1
110 4
132
131*
5
130 4 6
*124
126*
117
7049A
Displacement Pump Packing Repair Kit
916–045
Consists of the following:
127
128
129
131
137
102
112
124
125
126
5
7
1
3
8
9
10
11
14
Model 916–008
55:1 RATIO KING PUMP
5/55 gallon drum size
Includes items 1–15
Ref
No.
15
Ref
No.
Part
No.
100–103 PIN, cotter
101–712 NUT, lock; 5/8–11 with nylon insert
101–936 NUT, jam hex; 3/4–10 thread
158–674 O-RING; buna-N
168–211 NUT, connecting rod; 3/4–10 thread 1
168–210 NUT, shoulder; 1–1/4”–12 thread 1
1
1
2
3
617–016
617–017
ROD, tie
ROD, connecting
916–065 DISPLACEMENT PUMP; see separate parts list
220–106 AIR MOTOR, KING; see 307–741 for parts
3
1
1
1
Part
No.
Description
Qty
106–258 1
617–014 4
106–260 1
106–259 3
100–103 1
617–012 3
107–083 1
518–786 1
617–011 2
617–013 3
Parts
Qty
Displacement Pump 916–065
Ref
No.
Part
No.
Description Qty
101 178–098 WET-CUP
102* 106–258 O-RING, Viton
105
106
107
108
109
110
111
186–142
186–141
GLAND, female
GLAND, male
1
1
1
1
1
1
178–080 ADAPTER, outlet; M39(m)x1” npt(f) 1
185–030 ROD, displacement
178–126 HOUSING, pump
617–010 COUPLER, piston
185–379 CYLINDER, pump
1
1
112* 617–014 V-PACKING, red
113
114
117
118
119
120
178–086 GUIDE, rod
183–755 NUT, packing
916–076
178–162
178–090
106–257
CYLINDER, valve, intake
PLATE, valve, check
PISTON, priming
NUT, machine, hex; M16
121
122
123
178–109 GUIDE, valve
185–378 ROD, piston
186–143 GLAND, female
124* 106–260 O-RING;
125* 106–259 O-RING;
PTFE
PTFE
126* 100–103 PIN, cotter
1
1
1
1
3
1
1
1
2
1
1
4
1
127* 617–012 V-PACKING, red
128* 107–083 O-RING; Viton
129* 518–786 O-RING; Viton
130 617–008 ADAPTER, piston
131* 617–011 RING, piston
132
134
617–009
178–081
SLEEVE, piston
PLATE, tie
135
136
138
139
178–079 NUT, cylinder; M80
178–149 NUT, packing, wet–cup
137* 617–013 V-PACKING, white
178–125 HOUSING, valve, intake
206–256 BLEEDER VALVE ASSEMBLY; includes items 139a–139c
139a 102–039 .PIN, spring
139b 165–702 .BODY, bleeder valve
139c 165–703 .PLUG, bleeder valve
140
141
180–394
172–477
NUT, packing
TAG, instruction (not shown)
2
1
1
1
1
3
1
3
1
1
1
1
1
1
1
1
1
* These parts are included in the pump repair kit 916–045.
Keep these spare parts on hand for periodic cartridge throat packing repair if pumping abrasive fluid.
Replacement Danger and W arning labels, tags and cards are available at no cost.
The Graco Warranty and Disclaimers
WARRANTY
Graco warrants all equipment listed in this manual which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PUR-
POSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two
(2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS, OR COMPONENTS
SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.) are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
For Sales to Canadian Customers:
Except as expressly stated herein, Graco makes no representations, warranties or conditions, express, implied or collateral, concerning any goods or services sold, and GRACO SHALL NOT BE LIABLE IN ANY MANNER FOR any other representation, warranty or condition of any kind, whether arising by operation of law or otherwise, including but not limited to, WARRANTIES OF
MERCHANTABLE QUALITY OR FITNESS FOR A PARTICULAR PURPOSE.
LIMITATION OF LIABILITY
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or for the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.
Sales Offices: Atlanta, Detroit, Los Angeles
Foreign Offices: Belgium, Canada, England, Korea, Switzerland, France, Germany, Hong Kong, Japan
GRACO INC. 47700 Halyard Drive P.O. Box 8065C Plymouth, MI 48170–2412
PRINTED IN U.S.A. 307–951 November 1988 Revised January 1997
16 307-951

Public link updated
The public link to your chat has been updated.
Advertisement
