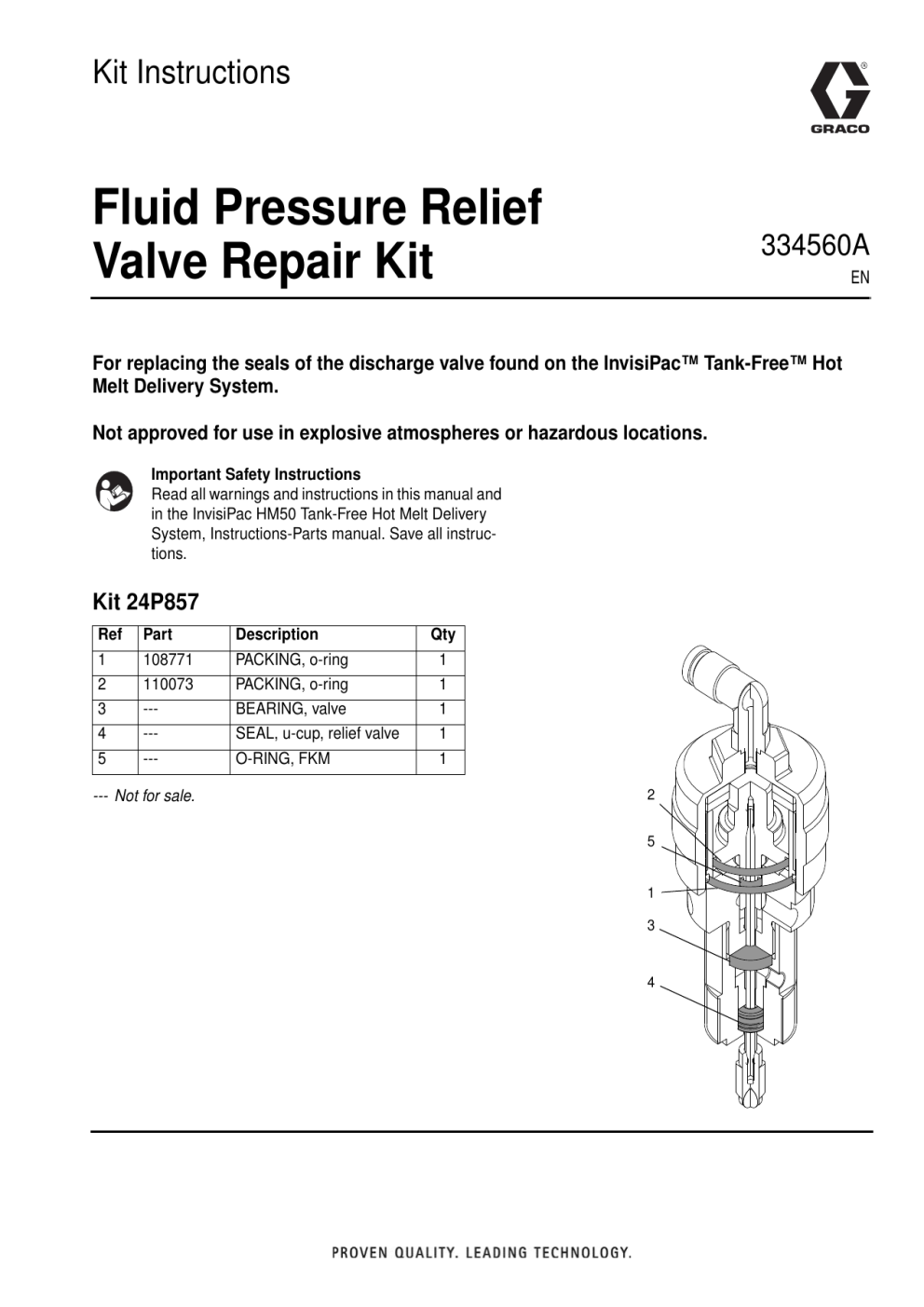

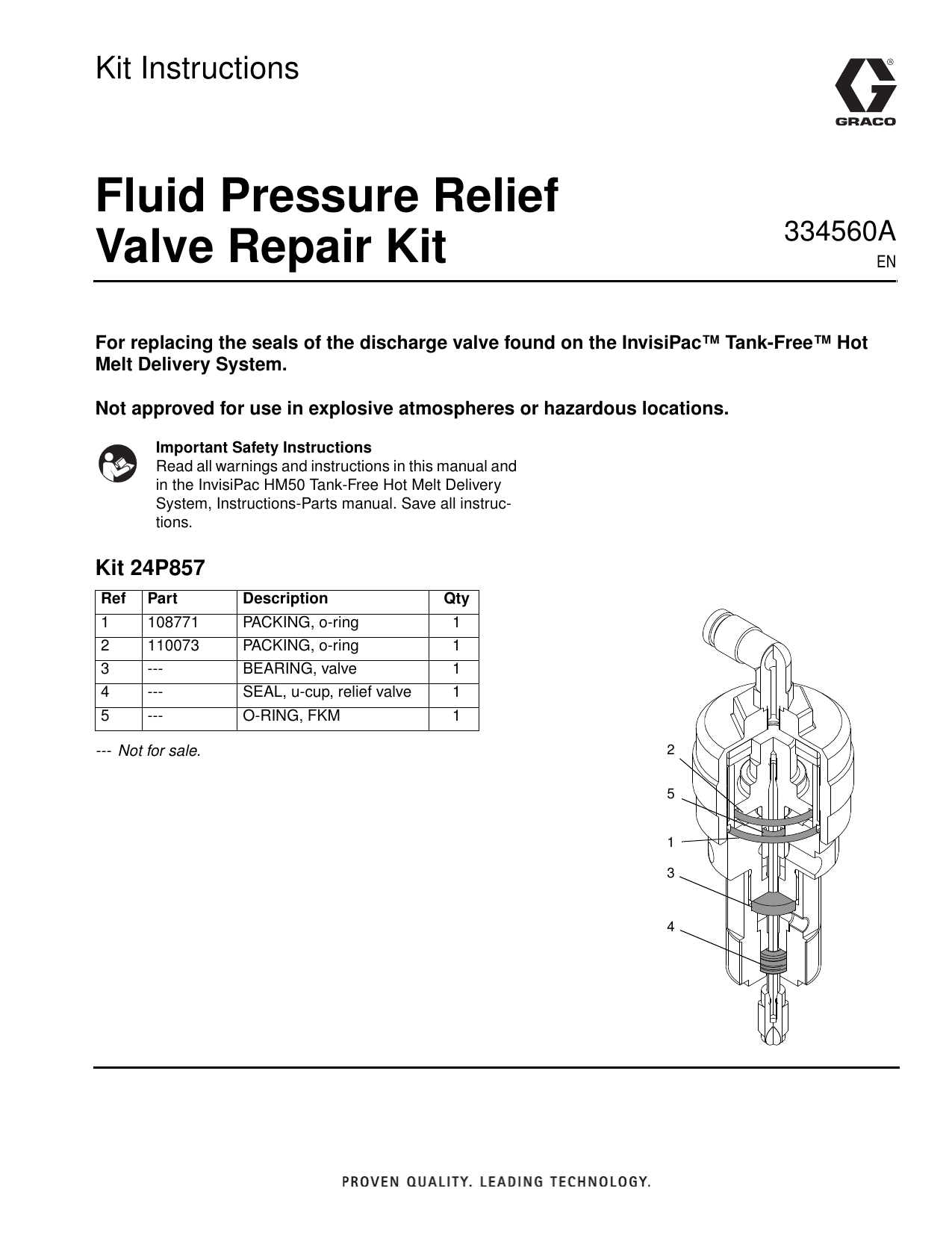

Graco 334560A - Fluid Pressure Relief Valve Repair Kit, Kit Instructions

Kit Instructions
Fluid Pressure Relief
Valve Repair Kit
334560A
EN
For replacing the seals of the discharge valve found on the InvisiPac™ Tank-Free™ Hot
Melt Delivery System.
Not approved for use in explosive atmospheres or hazardous locations.
Important Safety Instructions
Read all warnings and instructions in this manual and
in the InvisiPac HM50 Tank-Free Hot Melt Delivery
System, Instructions-Parts manual. Save all instructions.
Kit 24P857
Ref
Part
Description
1
108771
PACKING, o-ring
1
2
110073
PACKING, o-ring
1
3
---
BEARING, valve
1
4
---
SEAL, u-cup, relief valve
1
5
---
O-RING, FKM
1
--- Not for sale.
Qty
2
5
1
3
4
NOTE: Lubricate all o-rings, seals and
internal bores prior to installation.
3
4
2
5
Torque 5 ± 1 in-lb
(0.6 ± 0.1 N•m)
1
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 334560
