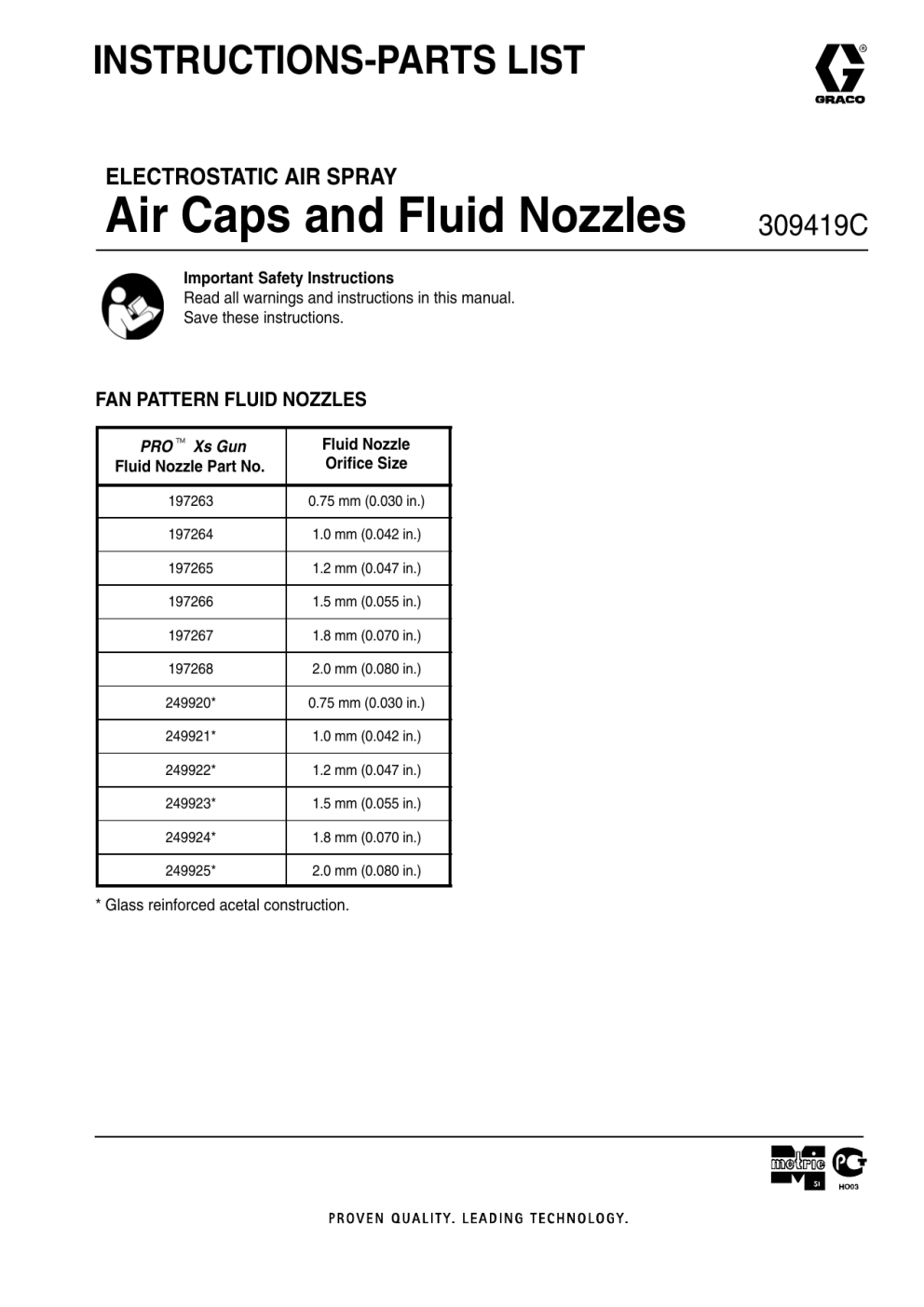

INSTRUCTIONS-PARTS LIST
ELECTROSTATIC AIR SPRAY
Air Caps and Fluid Nozzles
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
FAN PATTERN FLUID NOZZLES
PROt Xs Gun
Fluid Nozzle Part No.
Fluid Nozzle
Orifice Size
197263
0.75 mm (0.030 in.)
197264
1.0 mm (0.042 in.)
197265
1.2 mm (0.047 in.)
197266
1.5 mm (0.055 in.)
197267
1.8 mm (0.070 in.)
197268
2.0 mm (0.080 in.)
249920*
0.75 mm (0.030 in.)
249921*
1.0 mm (0.042 in.)
249922*
1.2 mm (0.047 in.)
249923*
1.5 mm (0.055 in.)
249924*
1.8 mm (0.070 in.)
249925*
2.0 mm (0.080 in.)
* Glass reinforced acetal construction.
309419C
Air Caps
FAN PATTERN AIR CAPS (All Models)
Air Cap
Part
No.
Pattern
Shape
Pattern Length
with Wide Pattern Kit*
[without Wide Pattern Kit*]
24A438
Round End
381–432 mm (15–17 in.)
[330–381 mm (13–15 in.)]
Light to medium viscosity.
Up to 600 cc/min (20 oz/min).
24A279
Round End
356–406 mm (14–16 in.)
[330–381 mm (13–15 in.)]
Medium to high viscosity.
Up to 600 cc/min (20 oz/min).
24A376{
Tapered
End
432–483 mm (17–19 in.)
[330–381 mm (13–15 in.)]
Light to medium viscosity.
Up to 600 cc/min (20 oz/min).
24A274
Tapered
End
305–356 mm (12–14 in.)
[330–381 mm (13–15 in.)]
Light to medium viscosity.
Up to 600 cc/min (20 oz/min).
24A439
Tapered
End
279–330 mm (11–13 in.)
[254–305 mm (10–12 in.)]
Medium to high viscosity and high solids.
Up to 600 cc/min (20 oz/min).
24A275
Tapered
End
356–406 mm (14 –16 in.)
[297–348 mm (12–14 in.)]
Light to medium viscosity and high solids.
Aerospace coatings.
Up to 750 cc/min (25 oz/min).
* Wide Pattern Kit – Part No. 24A431
{ Also available in the following colors:
24A276 – blue
24A277 – red
24A278 – green
Recommended Fluids & Production Rates
NOTE: All air cap pattern shapes and lengths were
measured under the following conditions:
Distance to Target: 254 mm (10 in.)
Inlet Air Pressure: 3.4 bar (34 kPa, 50 psi)
Fan air: adjusted for maximum width with manual gun.
Fluid Flow Rate: 300 cc/min. (10 oz./min.)
Pattern shape and length are material–dependent.
ROUND PATTERN KITS
Light to Medium Viscosity. Light to Medium Production.
PROt Xs Gun
Kit Part No.
2
(Manual No.)
Pattern
Diameter
245217
(309447)
102 to 152 mm
(4 to 6 in.)
245219
(309447)
203 to 254 mm
(8 to 10 in.)
277851
(313223)
Adjustable
309419
WARNING
Always turn off the power, air, and fluid supply to the gun, and trigger the gun to relieve system pressure before
installing or removing the air cap/fluid nozzle assembly. This will help reduce the risk of serious injury, including
splashing in the eyes or on the skin, or electric shock.
NOTE: Refer to your air spray gun instruction manual to install the air cap and fluid nozzle. If you do not have a
copy of the manual, copies are available at no charge from Graco Inc.
Terms
Viscosity
Fan Pattern Production Rate
Light: 20 centipoise at 21_C (70_F)
Medium: 70 centipoise at 21_C (70_F)
Heavy: 160, 260 centipoise at 21_C (70_F)
High Solids: Over 360 centipoise at 21_C (70_F)
Centipoise = centistokes x fluid specific gravity.
Light Production:
Fluid flow of up to 200 cc/min.
(7 oz./min.)
Medium Production: Fluid flow of up to 400 cc/min.
(14 oz./min.)
High Production:
Fluid flow of up to 600 cc/min.
(20 oz./min.)
Round Pattern Production Rate
Light Production:
NOTE: Refer to the Viscosity Conversion Chart on
the back cover to convert to other units of measurement.
Fluid flow of up to 150 cc/min.
(5 oz./min.)
Medium Production: Fluid flow of up to 200 cc/min.
(7 oz./min.)
How to Use the Fluid Nozzle Graphs
KEY
260 Centipoise Fluid
160 Centipoise Fluid
70 Centipoise Fluid
20 Centipoise Fluid
Use the procedure below to select the proper fluid
nozzle for your application.
1. For each of the fluid nozzle graphs, find the point
on the graph corresponding to your desired fluid
flow rate and viscosity. Mark the point on each
graph with a pencil.
2. The thick vertical line in each graph represents the
target flow rate for that nozzle size. Find the graph
that has the marked point closest to the thick
vertical line. This is the recommended nozzle size
for your application. Significantly exceeding the
target flow rate may result in lower spray performance due to excessive fluid viscosity.
3. From the marked point, move across to the vertical
scale to find the required fluid pressure. If the
required pressure is too high, then use the next
largest nozzle size. If the fluid pressure is too low
(< 0.35 bar, 3.5 kPa, 5 psi), then use the next
smallest nozzle size.
309419
3
Fluid Nozzle Performance Graphs
Fluid pressures are measured at the spray gun inlet.
ORIFICE SIZE: 0.75 mm (0.030 in.)
Bar/PSI
50
3.0
50
45
3.0
2.0
35
30
25
1.5
1.0
20
15
2.5
2.0
5
oz./min.
35
30
25
1.5
1.0
10
0.5
45
40
FLUID PRESSURE
FLUID PRESSURE
40
2.5
ORIFICE SIZE: 1.2 mm (0.047 in.)
Bar/PSI
20
15
10
0.5
0
1
2
cc/min.
60
3
4
5
120
6
7
180
8
9 10
240
5
oz./min.
0
5
cc/min.
300
10
200
FLUID FLOW
45
3.0
35
30
25
1.5
1.0
20
15
2.5
2.0
5
oz./min.
cc/min.
45
35
30
25
1.5
1.0
10
0.5
800
40
FLUID PRESSURE
FLUID PRESSURE
2.0
600
30
50
40
2.5
25
ORIFICE SIZE: 1.5 mm (0.059 in.)
Bar/PSI
50
3.0
400
20
FLUID FLOW
ORIFICE SIZE: 1.0 mm (0.040 in.)
Bar/PSI
15
20
15
10
0.5
0
5
10
200
15
400
20
25
600
FLUID FLOW
Performance Graphs are continued on page 5.
4 309419
30
800
5
oz./min.
cc/min.
0
5
10
200
15
400
FLUID FLOW
20
600
25
30
800
Fluid Nozzle Performance Graphs
Fluid pressures are measured at the spray gun inlet.
ORIFICE SIZE: 1.8 mm (0.070 in.)
Bar/PSI
50
20
1.4
45
3.0
18
1.2
16
FLUID PRESSURE
FLUID PRESSURE
40
2.5
35
30
2.0
25
1.5
20
15
1.0
1.0
14
12
0.8
10
0.6
8
6
0.4
10
0.5
5
oz./min.
ORIFICE SIZE: 2.0 mm (0.080 in.)
Bar/PSI
4
0.2
0
cc/min.
5
10
200
15
400
20
600
25
30
800
2
oz./min.
0
5
cc/min.
FLUID FLOW
10
200
15
400
20
25
600
30
800
FLUID FLOW
Viscosity Conversion Chart
Light
Medium
Heavy
High
Solids
Poise
0.2
0.7
2.6
3.6
Zahn 1
37
Centipoise
20
70
260
360
Zahn 2
18
Measurement
Parlin 7
32
Parlin 10
13
20
Heavy
High
Solids
Zahn 3
30
41
Zahn 4
21
28
Zahn 5
13
18
286
1060
1465
30.05
105.6
149
9.4
34.65
47.75
35
124.5
171.5
Measurement
Fisher 1
30
Fisher 2
15
33
Sears Craftsman Cup
Ford Cup 3
12
36
Redwood No. 1 Sec.
Ford Cup 4
10
28
68
35
58
62
370
1280
1730
Krebs Units KU
Saybolt Universal
SSU
100
Shell 2
40
Shell 3
15
Shell 4
Light
Saybolt Furol Sec.
30
23
98
Redwood No. 2 Sec.
Engler Degrees
Medium
2.9
48
22
309419
5
Air Cap Comparison
Air Cap
Part No.
Air Cap
Color
Pattern
Shape
Transfer
Efficiency
Atomization
Cleanliness
24A438
Grey
Round End
Better
Best
Good
24A279
Grey
Round End
Better
Better
Good
24A376*
Grey
Tapered End
Best
Better
Better
24A276*
Blue
Tapered End
Best
Better
Better
24A377*
Red
Tapered End
Best
Better
Better
24A378*
Green
Tapered End
Best
Better
Better
24A274
Grey
Tapered End
Good
Good
Best
24A439
Grey
Tapered End
Good
Best
Better
24A275
Grey
Tapered End
Best
Good
Best
* Identical except color
Air Cap Compatibility Chart
6
309419
Part No.
Recommended
Replacement
197477
24A438
197478
24A376
197479
24A274
197480
24A279
197481
24A439
Air Consumption Charts
20
20
15
10
5
0
1520253035404550556065707580
Wall Pressure (psi)
24A376, 24A276,
24A277, 24A278
25
15
10
5
10
5
Wall Pressure (psi)
5/16 in. x 50 ft hose
Test Conditions
24A274
D Fan valve adjusted full open
25
D PRO Xs4 Gun
20
15
0
1520253035404550556065707580
5/16 in. x 25 ft hose
Air Consuption (SCFM)
Air Consuption (SCFM)
24A279
25
Air Consuption (SCFM)
Air Consuption (SCFM)
24A438
25
0
1520253035404550556065707580
20
15
10
5
0
1520253035404550556065707580
Wall Pressure (psi)
Wall Pressure (psi)
24A275
25
25
20
20
Air Consuption (SCFM)
Air Consuption (SCFM)
24A439
15
10
5
0
1520253035404550556065707580
Wall Pressure (psi)
15
10
5
0
1520253035404550556065707580
Wall Pressure (psi)
309419
7
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–328–0211 Toll Free
612–623–6921
612–378–3505 Fax
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
This manual contains English. MM 309419
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Copyright 2001, Graco Inc. is registered to I.S. EN ISO 9001
www.graco.com
Revised 11/2008
8
309419

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
