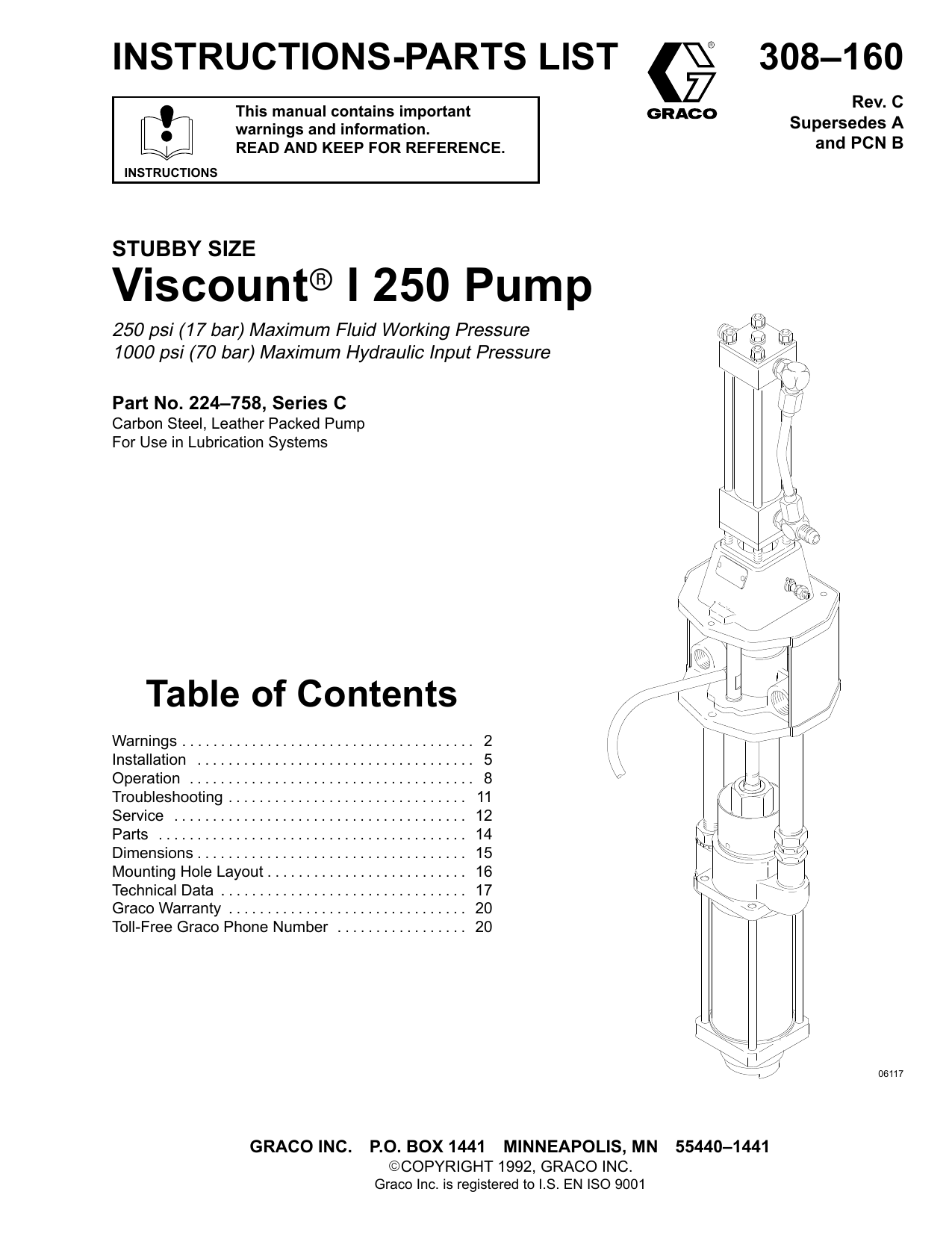

Graco 308160C Stubby Size Viscount I 250 Pump Owner's Manual

INSTRUCTIONS-PARTS LIST
308–160
Rev. C
Supersedes A
and PCN B
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
STUBBY SIZE
Viscount I 250 Pump
250 psi (17 bar) Maximum Fluid Working Pressure
1000 psi (70 bar) Maximum Hydraulic Input Pressure
Part No. 224–758, Series C
Carbon Steel, Leather Packed Pump
For Use in Lubrication Systems
Table of Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting Hole Layout . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Graco Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Toll-Free Graco Phone Number . . . . . . . . . . . . . . . . . 20
06117
GRACO INC.
P.O. BOX 1441 MINNEAPOLIS, MN
COPYRIGHT 1992, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
55440–1441
Symbols
Warning Symbol
Caution Symbol
CAUTION
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
INSTRUCTIONS
D This equipment is for professional use only.
D Read all instruction manuals, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
D Do not alter or modify this equipment.
D Check equipment daily. Repair or replace worn or damaged parts immediately.
D Do not exceed the maximum working pressure of the lowest rated system component. Refer to the
Technical Data on page 17 for the maximum working pressure of this equipment.
D Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Technical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
D Do not use hoses to pull equipment.
D Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82_C (180_F) or below –40_C (–40_F).
D Wear hearing protection when operating this equipment.
D Do not lift pressurized equipment.
D Comply with all applicable local, state, and national fire, electrical, and safety regulations.
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
Ground the equipment and the object being sprayed. Refer to Grounding on page 5.
If there is any static sparking or you feel an electric shock while using this equipment, stop spraying immediately. Do not use the equipment until you identify and correct the problem.
Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
Keep the spray area free of debris, including solvent, rags, and gasoline.
Electrically disconnect all equipment in the spray area.
Extinguish all open flames or pilot lights in the spray area.
Do not smoke in the spray area.
Do not turn on or off any light switch in the spray area while operating or if fumes are present.
Do not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
Know the specific hazards of the fluid you are using.
Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers.
Keep clear of all moving parts when starting or operating the pump.
Before servicing the equipment, follow the Pressure Relief Procedure on page 8 to prevent the
equipment from starting unexpectedly.
Notes
4
308-160
Installation
General Information
Z
X
W
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawing.
NOTE: Always use Genuine Graco Parts and Accessories, available from your Graco distributor. If you
supply your own accessories, be sure they are adequately sized and pressure rated for your system.
Y
Fig. 1
2. Hydraulic and fluid hoses: use only electrically
conductive hoses.
Fig. 2 is only a guide for selecting and installing system components and accessories. Contact your Graco
distributor for assistance in designing a system to suit
your particular needs.
Prepare the Operator
3. Air compressor: follow manufacturer’s recommendations.
4. Dispensing valve: ground through connection to a
properly grounded fluid hose and pump.
5. Fluid supply container: follow your local code.
6. Object being lubricated: follow your local code.
All persons who operate the equipment must be
trained in the safe, efficient operation of all system
components as well as the proper handling of all fluids.
All operators must thoroughly read all instruction
manuals, tags, and labels before operating the equipment.
7. Solvent pails used when flushing: follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the
pail on a nonconductive surface, such as paper or
cardboard, which interrupts the grounding continuity.
8. To maintain grounding continuity when flushing or
relieving pressure, hold a metal part of the dispensing valve firmly to the side of a grounded
metal pail, then trigger the valve.
Grounding
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 3.
1. Pump: order Part No. 237–569 Ground Wire and
Clamp. See Fig. 1. Loosen the grounding lug
locknut (W) and washer (X). Insert one end of the
ground wire (Y) into the slot in lug (Z) and tighten
the locknut securely. Connect the other end of the
wire to a true earth ground.
Mounting the Pump
Mount the pump to suit the type of installation planned.
The pump dimensions and mounting hole layout are
shown on page 15.
CAUTION
To avoid leaking hydraulic fluid into the fluid supply,
never mount the pump directly over the supply
container. Always use siphon feed.
If the pump is mounted on the wall or on a stand,
connect a suction line to the pump’s 1–1/2” npt(f) fluid
inlet and place the other end of the line in the fluid
container.
308-160
5
Installation
KEY
A
B
C
D
E
F
G
H
J
Pump
Wall Bracket
Hydraulic Supply Line
Hydraulic Return Line
Drain Line (from pressure reducing valve)
Pressure Gauge
Flow Control Valve
Pressure Reducing Valve
Accumulator
R
Drain Line (from motor drip pan)
Fluid Drain Valve (required)
Electrically Conductive Fluid Supply Hose
Drum Suction Kit
Hydraulic Supply Line Shutoff Valve
Hydraulic Return Line Shutoff Valve
Hydraulic Return Line Filter
Ground Wire (required; see page 5 for installation instructions)
K
L
M
N
P
R
S
Y
Y P F
H
A
J
D
Hydraulic Power Supply
M
C
L
N
G
B
E
S
55 Gallon
(200 Liter)
Drum
K
Drainage Container
06121
Fig. 2
Installation
Available Accessories (must be
purchased separately)
D A pressure reducing valve (H) with a drain line
(E) running directly into the hydraulic return line (D).
Filters
D An accumulator (J) to reduce the hammering
effect caused by the motor reversing direction.
Be sure your hydraulic power supply is equipped with a
suction filter to the hydraulic pump and a system return
line filter (S) of 10 micron size.
On the hydraulic return line (D), install the following
accessories in the order shown in Fig. 2, using adapters as necessary.
Carefully follow the manufacturer’s recommendations
on reservoir and filter cleaning, and periodic changes
of hydraulic fluid. Use only Graco approved hydraulic
oil. Order Part No. 169–236, 5 gallon (19 liter) or
207–428, 1 gallon (3.8 liter).
D A shutoff valve (R) to isolate the pump for servicing.
Hydraulic Line Accessories
Hydraulic Motor Drip Pan
CAUTION
It is very important to keep the hydraulic supply
system clean at all times. Be sure that all hydraulic
fluid lines are absolutely clean. Blow out the lines
with air and flush thoroughly with solvent before
connecting to the hydraulic motor, to avoid introducing harmful contaminants into the motor.
Do not exceed 3 gpm (11.4 liter/min) hydraulic oil
volume to the motor, to avoid pump stalling.
For optimum pump performance, keep the temperature of the hydraulic oil below 130_F (54_C).
The hydraulic motor has a 3/4–16(m) 37_ flared hydraulic oil supply fitting, and a 7/8–14(m) 37_ flared
hydraulic oil return fitting. Use a minimum 1/2 in. (13
mm) ID hydraulic supply line, and a minimum 5/8 in.
(16 mm) return line.
On the hydraulic supply line (C), install the following
accessories in the order shown in Fig. 2, using adapters as necessary.
D A shutoff valve (P) to isolate the pump for servicing.
D A fluid pressure gauge (F) to monitor hydraulic oil
pressure to the motor and to avoid overpressurizing
the motor or displacement pump, and a pressure
and temperature-compensated flow control
valve (G) to prevent the motor from running too
fast and possibly damaging itself.
D A filter (S) of 10 micron size.
Connect the drain line (K) to the barbed hose fitting on
the motor base. Without twisting or kinking the tube,
direct it downward into a waste container. Trim the
tube as necessary so it always stays above the level of
oil collected in the container. Empty the container as
necessary.
Fluid Line Accessories
Install the following accessories in the order shown in
Fig. 2, using adapters as necessary.
WARNING
A fluid drain valve (L) is required in your system to
help reduce the risk of serious injury, including
splashing of fluid in the eyes or on the skin.
The fluid drain valve assists in relieving fluid pressure in the displacement pump, hose, and dispense valve. Triggering the valve to relieve pressure may not be sufficient.
D The fluid drain valve (L) is required in your system to relieve fluid pressure in the hose and dispense valve (see the WARNING above).
D Connect a suction tube kit (N) to the pump’s
1–1/2” npt(f) fluid inlet.
Fluid Supply Hose
Be sure the fluid supply hose (M) is properly sized and
pressure-rated for your system. Use only electrically
conductive hoses.
308-160
7
Operation
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or dispensing
accidentally. To reduce the risk of an injury from
accidental spray from the dispense valve, splashing fluid, or moving parts, follow the Pressure
Relief Procedure whenever you:
are instructed to relieve the pressure,
stop dispensing,
check or service any of the system equipment,
or install or clean the dispense valve nozzle.
Check the tightness of the packing nut/wet-cup (U)
periodically. The nut should be tight enough to prevent
leakage. Torque the nut to 20–24 ft-lb (27–33 N.m); do
not overtighten or you may damage the packings.
Relieve pressure before adjusting the nut. See Fig. 3.
Fill the packing nut/wet-cup 1/2 full with a compatible
solvent. Keep the cup filled at all times to help prevent
the fluid you are pumping from drying on the exposed
displacement rod and damaging the throat packings.
Flush the Pump Before First Use
The pump is tested with lightweight oil, which is left in
to protect the pump parts. If the fluid you are using
may be contaminated by the oil, flush it out with a
compatible solvent. See Flushing on page 10.
1. Lock the dispense valve trigger safety.
2. Shut off the hydraulic power supply.
3. Close the supply line shutoff valve (P), then the
return line shutoff valve (R).
4. Unlock the dispense valve trigger safety.
5. Hold a metal part of the dispense valve firmly to
the side of a grounded metal pail, and trigger the
valve to relieve pressure.
6. Lock the dispense valve trigger safety.
7. Open the drain valve (L, required in your system),
having a container ready to catch the drainage.
8. Leave the drain valve open until you are ready to
dispense again.
U
If you suspect that the dispense nozzle or hose is
completely clogged, or that pressure has not been fully
relieved after following the steps above, very slowly
loosen the hose end coupling and relieve pressure
gradually, then loosen completely. Now clear the
nozzle or hose.
Packing Nut
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure above.
06117
Fig. 3
Operation
Prime the Pump
1. See Fig. 2. Connect the suction kit (N) to the
pump’s fluid inlet, and place the tube into the fluid
supply.
2. Check the hydraulic fluid level before each use,
and add fluid as necessary.
3. Close the supply line shutoff valve (P) and the
return line shutoff valve (R).
4. Start the hydraulic power supply.
5. Hold a metal part of the dispense valve (if used)
firmly to the side of a grounded metal pail and hold
the trigger open.
6. Open the return line shutoff valve (R) first, then
slowly open the supply line shutoff valve (P).
7. Run the pump slowly until all air is pushed out and
the system is fully primed. Always use the lowest
pressure necessary to get the desired results.
Higher pressures cause premature pump wear.
8. Release the dispense valve trigger and lock the
trigger safety. With adequate hydraulic volume
supplied to the motor, the pump will start and stop
as you open and close the dispense valve.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
9. Relieve the pressure. Install the nozzle in the
dispense valve, as explained in the dispense valve
manual.
WARNING
COMPONENT RUPTURE HAZARD
To reduce the risk of overpressurizing
your system, which could cause component rupture and serious injury, never
exceed 1000 psi (70 bar) maximum hydraulic input
pressure or 3 gpm (11.4 liter/min) hydraulic input to
the pump, or 250 psi (17 bar) maximum fluid
working pressure (see Technical Data on page ).
To prevent overpressurizing the hydraulic motor or
its seals, always shut off the supply line valve (P)
first, then shut off the return line valve (R).
CAUTION
Do not allow the hydraulic oil temperature to exceed
130F (54C). The pump seals will wear faster and
leakage may occur if the pump is operated at higher
oil temperatures.
10. Use the fluid pressure gauge (F) and pressurereducing valve (H) to control pump outlet pressure
and pump speed. Always use the lowest hydraulic
flow and pressure necessary to get the desired
results. Higher pressure causes premature pump
wear.
CAUTION
Do not allow the pump to run dry. It will quickly
accelerate to a high speed, causing damage. If your
pump is running too fast, stop it immediately and
check the fluid supply. If the container is empty and
air has been pumped into the lines, refill the container and prime the pump and the lines, or flush and
leave it filled with a compatible solvent. Eliminate all
air from the fluid system.
308-160
9
Maintenance
Shutdown and Care of the Pump
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
For overnight shutdown, stop the pump at the bottom
of its stroke to prevent fluid from drying on the exposed displacement rod and damaging the throat
packings. Relieve the pressure.
CAUTION
Never leave water or water-base fluid in the pump
overnight. If you are pumping water-base fluid, flush
with water first, then with a rust inhibitor such as
mineral spirits. Relieve the pressure, but leave the
rust inhibitor in the pump to protect the parts from
corrosion.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
Always flush the pump before the fluid dries on the
displacement rod. See Flushing below.
1. Relieve the pressure.
Flushing
2. Hold a metal part of the dispense valve firmly to
the side of a grounded metal pail.
WARNING
FIRE AND EXPLOSION HAZARD
Before flushing, read the section FIRE
AND EXPLOSION HAZARD on page
3. Be sure the entire system and flushing pails are properly grounded. Refer to
Grounding on page 5.
Flush the pump:
Before the first use
When changing fluids
3. Start the pump. Always use the lowest possible
fluid pressure when flushing.
4. Trigger the dispense valve.
5. Flush the system until clear solvent flows from the
dispense valve.
6. Relieve the pressure.
Corrosion Protection for Carbon Steel
Pumps
CAUTION
Water, or even moist air, can cause your pump to
corrode. To help prevent corrosion, never leave the
pump filled with water or air. Follow the instructions
under Flushing, at left.
Before storing the pump.
Fluid Piston and Intake Valve Adjustment
Flush with a fluid that is compatible with the fluid you
are pumping and with the wetted parts in your system.
Check with your fluid manufacturer or supplier for
recommended flushing fluids and flushing frequency.
The fluid piston and intake valves are factory set for
pumping medium viscosity fluids. See the separate
displacement pump manual, 307–983, for adjustment
procedures to pump lighter or heavier viscosity fluids.
Troubleshooting
1. Relieve the pressure.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
Problem
Pump fails to operate.
2. Check all possible problems and solutions before
disassembling pump.
Cause
Solution
Restricted line or inadequate hydraulic supply.
Clear; increase hydraulic supply.
Dirty or damaged hydraulic motor.
Service motor (see 307–654).
Clogged fluid hose, valve, or nozzle.
Clear.*
Restricted line or inadequate hydraulic supply.
Clear; increase hydraulic supply.
Exhausted fluid supply.
Refill; reprime or flush.
Clogged fluid hose, valve, or nozzle.
Clear.*
Loose packing nut or worn throat
packings.
Tighten packing nut (see page 8);
replace throat packings.
Piston and intake valves need adjustment.
Adjust; see manual 307–983.
Pump operates but output is low on
downstroke.
Held open or worn intake valve.
Clear; service. See manual
307–983.
Pump operates but output is low on
upstroke.
Held open or worn fluid piston valve
or packings.
Clear; service. See manual
307–983.
Erratic or accelerated operation.
Exhausted fluid supply.
Refill; reprime or flush.
Piston and intake valves need adjustment.
Adjust; see manual 307–983.
Held open or worn intake valve.
Clear; service. See manual
307–983.
Held open or worn fluid piston valve
or packings.
Clear; service. See manual
307–983.
Pump operates but output is low on
both strokes.
* To determine if the fluid hose or gun is obstructed, follow the Pressure Relief Procedure on page 8. Disconnect the fluid hose and place a container at the pump fluid outlet to catch any fluid. Turn on the hydraulic power
just enough to start the pump. If the pump starts when the hydraulic power is turned on, the obstruction is in the
fluid hose or gun.
Service
Disconnecting the Displacement Pump
Reconnecting the Displacement Pump
NOTE: For displacement pump repair instructions,
refer to the separate displacement pump manual
307–983, supplied.
1. Position the displacement pump on the mounting
tubes (21, 25). Thread the upper locknut (23b)
onto the return mounting tube (25) a couple of
turns. Tighten the swivel union (S) securely onto
the supply mounting tube (21). See Fig. 4.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 8.
1. Flush the pump if possible. Stop the pump at the
bottom of its stroke. Relieve the pressure.
2. Disconnect all hoses and remove the pump from
its mounting.
3. Plug all hydraulic connections to avoid contamination.
4. Unscrew the coupling nut (32) from the displacement rod (R). Remove the coupling collars (33).
See Fig. 4.
5. Unscrew the lower locknut (23a) and lockwasher
(7) from the return mounting tube (25).
6. Unscrew the swivel union (S) from the supply
mounting tube (21).
CAUTION
If you are removing the mounting tubes, wrench the
tubes close to the motor base to prevent thread
damage in the base. Use thread sealant on the male
threads when reinstalling.
2. Butt the connecting rod (20) and displacement rod
(R) together; if necessary, adjust the locknuts (23)
on the return mounting tube (25) to align the rods.
3. Position the coupling collars (33) so they engage
with the connecting rod (20) and displacement rod
(R). Lower the coupling nut (32) over the coupling
collars and screw it securely onto the displacement
rod.
4. Tighten the locknuts (23) securely.
5. Remount the pump and connect all hoses.
6. Turn on the hydraulic power to the motor and run
the pump slowly. Adjust the locknuts (23) on the
return mounting tube (25) as necessary until the
pump operates smoothly at minimum hydraulic
pressure to the motor, and a No. 60 (0.040 in.
diameter) drill bit passes freely between the bearing (31) and the connecting rod (20), all around the
rod. Tighten the locknuts securely. See the Detail
in Fig. 4.
7. Reconnect the ground wire if it was disconnected
during repair.
8. Fill the packing nut/wet-cup 1/2 full of compatible
solvent.
Service
1
Torque to 65–75 ft-lb (88–102 N.m).
2
Use thread sealant when reinstalling.
32
2
20
25
2
21
1
33
23b
24b
R
S
24a
23a
06119
Detail A:
Checking Pump Alignment
3
20
Press fit flush with bottom
surface of base (18).
18
3
31
0.040 in. (1.016 mm)
06122
Fig. 4
Parts
Model 224–758, Series C
Viscount I 250 Pump, Stubby Size
9
10
8
32
11
13
14
20
15
12
25
7
29
21
27
30
20 (Ref)
23
33
24
28
17
26
22
31
16
18
24
23
4
5
19
14
308-160
06118
Parts
Model 224–758, Series C
Viscount I 250 Pump, Stubby Size
Ref
No.
Part
No.
4
5
7
8
054–104
103–875
100–133
217–222
9
107–195
10
106–470
11
217–221
12
107–197
13
14
15
16
17
18
19
20
104–582
104–029
179–882
168–221
107–226
179–883
102–021
191–738
21
190–178
22
224–756
23
160–026
24
25
162–648
181–120
26
27
28
29
30
31
32
33
107–196
100–103
179–881
106–292
180–095
100–039
190–065
190–066
Description
Qty
TUBE
6 ft
ADAPTER, hose, barbed; 1/8 npt 1
LOCKWASHER; 3/8” size
4
VISCOUNT RECIPROCATOR
See manual 307–654 for parts
1
ADAPTER, str. thd.; 7/8–14 unf–2a;
37 flare x 3/4–16 unf–2a
1
ELBOW, 90; str. thd. for
1/2” (13 mm) diameter tube
1
TUBE, fluid; cpld 3/4–16 unf–2a;
37 flare
1
TEE, run, str.; 3/4–16 unf–2a;
37 flare x 3/4–16 unf–2a
1
WASHER, tab
1
CLAMP, grounding
1
BASE, motor, hydraulic
1
ROD, tie; 5–3/4” (146 mm)
3
CUP, suction
1
BASE, adapter, hydraulic motor
1
LOCKNUT; 3/8” size
3
ROD, connecting;
10.94” (228 mm) long
1
TUBE, supply;
6.75” (171.5 mm) long
1
PUMP, displacement
See 307–983 for parts
1
NUT, special lock;
3/4 garden hose thread
2
LOCKWASHER, ext shakeproof 2
TUBE, return;
12.812” (325.4 mm) long
1
O-RING; buna-N
1
PIN, cotter
1
TUBE
1
NUT, hex; 3/8” size
4
SHIELD
1
BEARING, sleeve
1
NUT, coupling
1
COLLAR, coupling
2
Ref
No.
Part
No.
Description
Qty
Dimensions
7/8–14 unf–2a(m)
37 Flare Hydraulic
Return Adapter
3/4–16 unf–2a(m)
37 Flare Hydraulic
Supply Adapter
B
A
C
1–1/2 npt(f) Fluid Inlet
06117
308-160
15
Model No.
A
B
C
224–758
40 in.
(1016 mm)
20 in.
(508 mm)
20 in.
(508 mm)
Mounting Hole
Layout
0.375”
(9.52 mm)
diameter
4.508”
(114.5 mm)
2.254”
(57.25 mm)
3.188”
(80.97 mm)
1” npt(f)
outlet
3/4 npt(f)
return
3.625”
(92.07 mm)
4.0”
(102 mm)
Stroke
1.87” (47 mm) end
of displacement rod
at bottom of stroke
06120
Manual
Change Summary
Assembly
Changed
Part
Status
Ref.
No.
Part No.
Name
Model
224–758, to
Series C
Added
32
190–065
Coupling Nut
Added
33
190–066
Collars
Old
New
20
20
218–792
191–738
Conn. Rod
Conn. Rod
Technical Data
Category
Data
Maximum fluid working pressure
250 psi (17.5 bar)
Maximum hydraulic input pressure
1000 psi (70 bar)
Pump cycles per 1 gallon (3.8 liters)
6
Fluid flow at 60 cycles per minute
10 gpm (38 liters/min)
Fluid inlet size
1–1/2 npt(f)
Fluid outlet size
1 in. npt(f)
Hydraulic oil inlet size
3/4 unf–2a
Weight
48 lb (22 kg)
Maximum pump operating temperature
180F (82C)
Wetted parts
Supply and Return Tubes: Nickel-plated carbon steel
Displacement Pump: Refer to manual 307–983
KEY:
Fluid Outlet Pressure – Black Curves
Hydraulic Oil Consumption – Gray Curve
cycles per min
psi 300
21
bar
A
B
C
12
24
36
1000 psi (70 bar) hydraulicpressure
750 psi (53 bar) hydraulicpressure
500 psi (35 bar) hydraulicpressure
48
60
gpm (hyd. oil)
liters/min
A
250
17.5
200
14
5.0
19.0
4.0
15.2
B
Hydraulic Oil
Consumption
150
10.5
3.0
11.4
C
2.0
7.6
100
7
50
3.5
1.0
3.8
0
gpm
liters/min
0
2
4
6
8
7.6
15.2
22.8
30.4
10
38.0
FLUID FLOW (TEST FLUID: NO 10 MOTOR OIL)
To find Fluid Outlet Pressure (bar/psi) at a specific fluid flow (lpm/
gpm) and operating hydraulic pressure (bar/psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet
pressure curve (black). Follow left to scale and read fluid outlet
pressure.
To find Pump Hydraulic Oil Consumption (gpm or liters/min) at a
specific fluid flow (lpm/gpm) and operating hydraulic pressure (bar/
psi):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with hydraulic oil consumption curve (gray). Follow right to scale and read hydraulic oil
consumption.
308-160
17
Notes
Notes
308-160
19
Graco Warranty and Limitation of Liability
WARRANTY
Graco warrants all equipment listed in this manual which is manufactured by Graco and bearing its name to be free from defects
in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. Graco will,
for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear
caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident,
tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by
the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor
for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective
parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not
disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the
costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no
other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two
(2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS, OR COMPONENTS
SOLD BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors,
switches, hose, etc.) are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
For Sales to Canadian Customers:
Except as expressly stated herein, Graco makers no representations, warranties or conditions, express, implied or collateral, concerning any goods or services sold, and GRACO SHALL NOT BE LIABLE IN ANY MANNER FOR any other representation,
warranty or condition of any kind, whether arising by operation of law or otherwise, including but not limited to, WARRANTIES OF
MERCHANTABLE QUALITY OR FITNESS FOR A PARTICULAR PURPOSE.
LIMITATION OF LIABILITY
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or for the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of
contract, breach of warranty, the negligence of Graco, or otherwise.
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–367–4023 Toll Free
Sales Offices: Atlanta, Chicago, Detroit, Los Angeles
Foreign Offices: Belgium, Canada, England, Korea, Switzerland, France, Germany, Hong Kong, Japan
GRACO INC.
P.O. BOX 1441 MINNEAPOLIS, MN
55440–1441
PRINTED IN U.S.A. 308–160 January 1992 Revised April 1996

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
