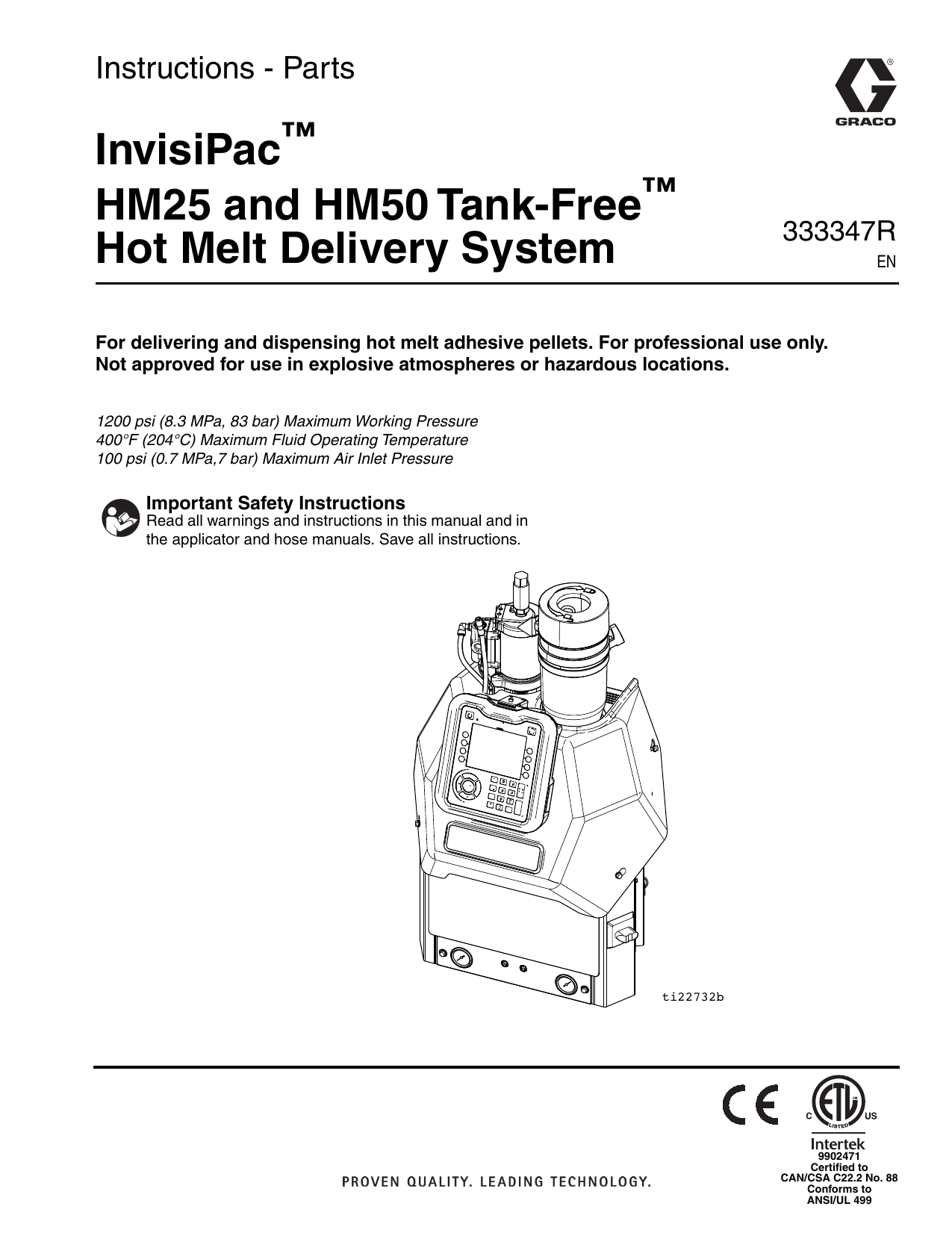

Graco 333347R - InvisiPac HM25 and HM50 Tank-Free Hot Melt Delivery System Instructions

Instructions - Parts
InvisiPac™
HM25 and HM50 Tank-Free™
Hot Melt Delivery System
333347R
EN
For delivering and dispensing hot melt adhesive pellets. For professional use only.
Not approved for use in explosive atmospheres or hazardous locations.
1200 psi (8.3 MPa, 83 bar) Maximum Working Pressure
400°F (204°C) Maximum Fluid Operating Temperature
100 psi (0.7 MPa,7 bar) Maximum Air Inlet Pressure
Important Safety Instructions
Read all warnings and instructions in this manual and in
the applicator and hose manuals. Save all instructions.
ti22732b
9902471
Certified to
CAN/CSA C22.2 No. 88
Conforms to
ANSI/UL 499
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Component Identification . . . . . . . . . . . . . . . . . . . 12
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Attach Components . . . . . . . . . . . . . . . . . . . . . 17
Recommended Air Setup . . . . . . . . . . . . . . . . . 21
Connect Electrical Cord . . . . . . . . . . . . . . . . . . 22
208V Electrical Circuits . . . . . . . . . . . . . . . . . . . 23
Select ADM Settings . . . . . . . . . . . . . . . . . . . . . 23
Applicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PLC Connection . . . . . . . . . . . . . . . . . . . . . . . . 26
Material Tracking . . . . . . . . . . . . . . . . . . . . . . . . 28
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Initial Startup and Prime . . . . . . . . . . . . . . . . . . 32
Manual Refill . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Automatic Refill . . . . . . . . . . . . . . . . . . . . . . . . . 35
Dispense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Pressure Relief Procedure . . . . . . . . . . . . . . . . 37
Drain the System . . . . . . . . . . . . . . . . . . . . . . . . 38
Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Operation Tips to Minimize Charring . . . . . . . . . 40
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Replace Outlet Filter . . . . . . . . . . . . . . . . . . . . . 41
Replace Inlet Filter . . . . . . . . . . . . . . . . . . . . . . 41
Replace Funnel Filter . . . . . . . . . . . . . . . . . . . . 42
Filter Maintenance Guidelines* . . . . . . . . . . . . . 43
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
ADM Error Code Table . . . . . . . . . . . . . . . . . . . 44
MZLP Troubleshooting . . . . . . . . . . . . . . . . . . . 59
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Melter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Multi-Zone Low Power Temperature Control Module
(MZLP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Air Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Air Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
2
Transformer Fan . . . . . . . . . . . . . . . . . . . . . . . . 80
Software Update Procedure . . . . . . . . . . . . . . . 81
Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . 82
Incoming Power . . . . . . . . . . . . . . . . . . . . . . . . . 82
Cable Identification . . . . . . . . . . . . . . . . . . . . . . 82
Air Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Preventive Maintenance Kits . . . . . . . . . . . . . . 107
Complete Maintenance Kits . . . . . . . . . . . . . . . 107
Non-Graco Applicator Adapter Cables . . . . . . 108
Air Adjustment Lock, 24R084 . . . . . . . . . . . . . 109
Feed Sensor Dedicated Air Kit, 17F699 . . . . . 109
System Stand, 24R088 . . . . . . . . . . . . . . . . . . 110
Caster for Stand, 120302 . . . . . . . . . . . . . . . . 110
Adapter Plate, 24R083 . . . . . . . . . . . . . . . . . . 110
Air Reservoir Kit, 16W366 . . . . . . . . . . . . . . . . 112
ADM Extension Kits . . . . . . . . . . . . . . . . . . . . . 117
ADM Remote Mount Bracket, 24A326 . . . . . . . 117
Air Metric Fitting Kit, 24W637 . . . . . . . . . . . . . 118
Strain Relief Bushing Kit, 24X190 . . . . . . . . . . 118
Hose Straps (4 Pack), 240296 . . . . . . . . . . . . . 118
Pressure Gauge Replacement Kit, 24U635 . . 118
400VAC and 480VAC Transformer Kits . . . . . . 119
Adapter Cable . . . . . . . . . . . . . . . . . . . . . . . . . 119
Appendix A - ADM . . . . . . . . . . . . . . . . . . . . . . . . 120
General Operation . . . . . . . . . . . . . . . . . . . . . . 120
Icon Identification . . . . . . . . . . . . . . . . . . . . . . . 120
Appendix B - USB Downloading, Uploading . . . 126
Download Procedure . . . . . . . . . . . . . . . . . . . . 126
Accessing Files . . . . . . . . . . . . . . . . . . . . . . . . 126
Upload Procedure . . . . . . . . . . . . . . . . . . . . . . 126
USB Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
System Settings File . . . . . . . . . . . . . . . . . . . . 127
System Language File . . . . . . . . . . . . . . . . . . . 128
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Graco Extended Warranty . . . . . . . . . . . . . . . . . . 136
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . 136
333347R
Related Manuals
Related Manuals
Manuals are available at www.graco.com. Component
manuals in English:
Part
Description
334629
334627
3A4937
3A2805
332072
333348
333349
334784
335010
InvisiPac Advanced Feed System
InvisiPac GM100 Plug-Free Hot Melt Applicator
InvisiPac HM25c Feed System
InvisiPac GS35 Hot Melt Applicator Instructions - Parts
InvisiPac Heated Hose Instructions - Parts
MZLP Fuse Kit, Instructions
InvisiPac 480V Transformer Upgrade Kit, Instructions-Parts
InvisiPac Pattern Controller, Operations-Repair-Parts
Dedicated Feed Sensor Air Kit
Required Tools
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Standard allen wrench set
Metric allen wrench set
Various sizes of crescent wrenches
11/16 in. wrench
3/8 in. ratchet
3/8 in. socket
5/16 in. driver
7/16 in. socket
7/8 in. deep well socket
1 in. socket
13 mm socket
10 mm socket
1/2 in. ratchet
Side cutter
Phillips head screwdriver
Flat head screwdriver
Multimeter
Tubing cutter
333347R
3
Models
Models
Feed Systems
Part
Usage
25C193
For use in standard pellet feed applications
WL
17D749
For use in chicklet feed applications
WLD
24N957
For use in standard pellet feed applications
with separate feed bin or bulk container
WLD
4
333347R
Models
200-240 VAC, 350-415 VAC HM50 Models
System
Channels
Voltage
Description
˓ Type
Max Amps
• 1-Phase
24T918
24Y114*
24T919
24Y115*
24T920
2
4
6
200-240
VAC
1˓ / PE
32A
200-240
VAC ˂
• 2 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
3˓ / PE
27A
300-415
VAC Y
3˓ / Neutral / PE
•
•
•
•
•
200-240
VAC
1˓ / PE
40A
200-240
VAC ˂
• 2 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
3˓ / PE
27A
300-415
VAC Y
3˓ / Neutral / PE
•
•
•
•
•
200-240
VAC
1˓ / PE
40A
200-240
VAC ˂
• 2 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
3˓ / PE
40A
300-415
VAC Y
3˓ / Neutral / PE
•
•
•
•
•
3 wire and PE
50/60 Hz
3-Phase with Neutral
350-415 VAC Line to Line
200-240 VAC Line to Neutral
16A
• 3 wire, Neutral, and PE
• 50/60 Hz
• 1-Phase
3 wire and PE
50/60 Hz
3-Phase with Neutral
350-415 VAC Line to Line
200-240 VAC Line to Neutral
16A
• 3 wire, Neutral, and PE
• 50/60 Hz
• 1-Phase
3 wire and PE
50/60 Hz
3-Phase with Neutral
350-415 VAC Line to Line
200-240 VAC Line to Neutral
30A
• 3 wire, Neutral, and PE
• 50/60 Hz
* System comes with internal PC-8 pattern controller installed. To upgrade to PC-8e, order kit PN 17F712.
333347R
5
Models
200-240 VAC, 350-415 VAC HM25 Models
System
Channels
Voltage
˓ Type
Description
Max Amps
• 1-Phase
24V423
24Y102*
24V424
24Y103*
24V425
2
4
6
200-240
VAC
1˓ / PE
32A
200-240
VAC ˂
• 2 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
3˓ / PE
27A
300-415
VAC Y
3˓ / Neutral / PE
•
•
•
•
•
200-240
VAC
1˓ / PE
40A
200-240
VAC ˂
• 2 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
3˓ / PE
27A
300-415
VAC Y
3˓ / Neutral / PE
•
•
•
•
•
200-240
VAC
1˓ / PE
40A
200-240
VAC ˂
• 2 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
3˓ / PE
40A
300-415
VAC Y
3˓ / Neutral / PE
•
•
•
•
•
3 wire and PE
50/60 Hz
3-Phase with Neutral
350-415 VAC Line to Line
200-240 VAC Line to Neutral
16A
• 3 wire, Neutral, and PE
• 50/60 Hz
• 1-Phase
3 wire and PE
50/60 Hz
3-Phase with Neutral
350-415 VAC Line to Line
200-240 VAC Line to Neutral
16A
• 3 wire, Neutral, and PE
• 50/60 Hz
• 1-Phase
3 wire and PE
50/60 Hz
3-Phase with Neutral
350-415 VAC Line to Line
200-240 VAC Line to Neutral
30A
• 3 wire, Neutral, and PE
• 50/60 Hz
* System comes with internal PC-8 pattern controller installed. To upgrade to PC-8e, order kit PN 17F712.
6
333347R
Models
400 VAC Transformer HM25 Models
System
Channels
Voltage
24V246
24Y104*
2
335-400
VAC
24V427
24Y105*
4
24V428
6
˓ Type
Description
• 3-Phase without Neutral
Max Amps
3˓ / PE
• 3wire and PE
• 50/60 Hz
• 3-Phase without Neutral
17A
335-400
VAC
3˓ / PE
• 3 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
17A
335-400
VAC
3˓ /PE
• 3 wire and PE
• 50/60 Hz
17A
400 VAC Transformer HM50 Models
System
Channels
Voltage
˓ Type
Description
Max Amps
• 3-Phase without Neutral
24V198
24Y116*
2
335-400
VAC
3˓ / PE
17A
24V199
24Y117*
• 3wire and PE
• 50/60 Hz
• 3-Phase without Neutral
4
335-400
VAC
3˓ / PE
• 3 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
17A
24V200
6
335-400
VAC
3˓ /PE
• 3 wire and PE
• 50/60 Hz
17A
* System comes with internal PC-8 pattern controller installed. To upgrade to PC-8e, order kit PN 17F712.
333347R
7
Models
480 VAC Transformer HM25 Models
System
Channels
Voltage
24V429
24Y106*
2
400-480
VAC
24V430
24Y107*
4
24V431
6
˓ Type
Description
• 3-Phase without Neutral
Max Amps
3˓ / PE
• 3wire and PE
• 50/60 Hz
• 3-Phase without Neutral
14A
400-480
VAC
3˓ / PE
• 3 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
14A
400-480
VAC
3˓ /PE
• 3 wire and PE
• 50/60 Hz
14A
480 VAC Transformer HM50 Models
System
Channels
Voltage
˓ Type
Description
Max Amps
• 3-Phase without Neutral
24V201
24Y118*
2
400-480
VAC
3˓ / PE
14A
24V202
24Y119*
• 3wire and PE
• 50/60 Hz
• 3-Phase without Neutral
4
400-480
VAC
3˓ / PE
• 3 wire and PE
• 50/60 Hz
• 3-Phase without Neutral
14A
24V203
6
400-480
VAC
3˓ /PE
• 3 wire and PE
• 50/60 Hz
14A
* System comes with internal PC-8 pattern controller installed. To upgrade to PC-8e, order kit PN 17F712.
8
333347R
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power at main switch before disconnecting any cables and before servicing
or installing equipment.
• Connect only to grounded power source.
• All electrical wiring must be done by a qualified electrician and comply with all local codes and
regulations.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns:
• Do not touch hot fluid or equipment.
+
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or
servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure and disconnect all power sources.
333347R
9
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Do not use solvent-based adhesives that can create an explosive atmosphere when processed.
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
10
333347R
Warnings
WARNING
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is
not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical
reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility.
333347R
11
Component Identification
Component Identification
A
AD
H
B
F
E
C
ti23594b
D
Key:
A
B
C
D
E
F
H
J
L
M
N
P
R
S
AC
AD
Advanced Display Module (ADM)
Electrical Enclosure
Pump Air Pressure Regulator
Pump Air Pressure Gauge
Vacuum Transfer Air Pressure Regulator
Vacuum Transfer Air Pressure Gauge
Main Power Switch
System Air Inlet
Air Motor and Pump
Incoming Power Strain Relief
Heated Fluid Manifold (Melter)
Multi-Zone Low Power Temperature Control Module (MZLP)
Fluid Outlets for connection to Heated Hoses (numbered 1-6)
Customer I/O Cable (optional)
Drain Port
Transformer (optional)
L
G3
N
R
M
AC
P
S
WLD
J
FIG. 1
12
333347R
Component Identification
Heated Fluid Manifold
AB
Y
U
R
AA
T
X
W1
W2
WLD
NOTE: System shown with plastic and metal shrouds removed.
FIG. 2
Key:
T
U
W1
W2
X
Y
Z
AA
Electrical Enclosure Front Access Door
Melter
Drain Port
Drain Tray
Inlet Filter (Low Pressure - Before Pump)
Outlet Filter (High Pressure - After Pump)
Adhesive Pellets Level Sensor (not shown; inside funnel)
Power and RTD Harness Connection to Heated Hose and
Applicator (harness connects from system to heated hose
then from heated hose to applicator)
AB Inlet Funnel Screen
333347R
13
Component Identification
Electrical Enclosure
AC
P
WLD
AF
AG
FIG. 3
Key:
P
Multi-Zone Low Power Temperature Control Module
(MZLP)
AC Incoming Power Connection
AF Chassis Ground
AG Automatic Wiring Board (AWB)
14
333347R
Component Identification
Advanced Display Module (ADM)
User Interface
NOTICE
BK
To prevent damage to soft key buttons, do not press
the buttons with sharp objects such as pens, plastic
cards, or fingernails.
BL
NOTE: See 400VAC and 480VAC Transformer Kits
on page 119 for complete ADM operation details.
BB
BC
BM
BR
BP
BN
FIG. 5
BA
BD
BE
BF
Key:
BK Part Number Identification Label
BL USB Interface
BM CAN Cable Connection (Power Supply and Communication)
BN Module Status LEDs
BP (Not used)
BR Software Token Access Panel
BH
BG
TI12362a1
FIG. 4
B
Key
BA
BB
BC
BD
BE
BF
BG
BH
Function
Heating system and pump enable/disable
System status indicator (LED)
Stop all system processes
Defined by icon next to softkey
Abort current operation
Accept change, acknowledge error, select item,
toggle selected item
Toggle between Operation and Setup screens
Navigate within a screen or to a new screen
333347R
15
Component Identification
Screen Components
FIG. 6: Main Screen Components
Operating Mode
Description
Component Status
•
System Off
The system doesn’t have power.
Inactive
The heating system and pumps are
disabled.
Warm Up
The system is heating the material to
the set temperature.
Active
The system is ready to dispense
material.
16
•
•
•
•
•
•
•
•
•
•
•
No System Status Indicator LED on the
ADM
No heat
Pump is off
Yellow system status indicator LED on the
ADM
No heat
Pump is off
Flashing green system status indicator LED
on the ADM
Heat is increasing to setpoint temperature
Pump is off
Solid green system status indicator LED on
the ADM
Heat is at setpoint temperature
Pump is on
333347R
Setup
Setup
Grounding
The equipment must be grounded to reduce the risk of
static sparking and electric shock. Electric or static
sparking can cause fumes to ignite or explode.
Improper grounding can cause electric shock. Grounding provides an escape wire for the electric current.
Attach Components
To reduce the risk of electric shock, do not connect
electrical cord until after this Attach Components
procedure is complete.
NOTE: Only systems with transformers are supplied
with a lifting strap.
The InvisiPac system is equipped with a ground terminal. A qualified electrician must ground the system using
this terminal. See Connect Electrical Cord on page 22.
Location
Ambient temperature must be 32-120°F (0-49°C).
The supplied vacuum transfer hose length is 10 ft (3 m).
The maximum vacuum transfer hose length available is
30 ft (9.1 m). The adhesive pellets container must be
located within reach of the vacuum transfer hose and no
more than 30 ft (9.1 m) away.
NOTICE
To prevent strain on electrical or mechanical
connections around the pump assembly, loop the
strap around the tie rods as shown.
1. Use supplied lifting strap 127735, to transport systems with transformers. Wrap strap around all three
pump tie rods and loop the strap back through itself
in the Choker Configuration. See strap for details.
See FIG. 7, page 17.
The applicator(s) must be located no more than 25 ft
(7.6 m) from the melter.
Place the base system on a surface that is eye-level for
easiest operation. Use System Stand, 24R088, to
install system at eye-level. See page 110.
If installing the system in place of a non-Graco hot melt
system, purchase Adapter Plate, 24R083. See
page 110.
To make repairing the system easier, locate the system
so that all sides are easily accessible and have sufficient
lighting.
WLD
FIG. 7: Lifting Strap
333347R
17
Setup
2. Place the base system in the desired operating
location and orientation. See Location, page 17.
•
b.
The bottom of the electrical enclosure has holes for
securing the InvisiPac system to a surface. The
holes are accessible through the bottom access
doors in the three rear walls of the electrical enclosure.
•
To install the InvisiPac system in place of a
non-Graco hot melt system, purchase Adapter
Plate, 24R083. See installation instructions on
page 110.
•
Rotate the funnel inlet (G3) and re-tighten the
band clamp (81).
G3
G4
G2
To raise the system to eye-level, purchase System
Stand, 24R088. See installation instructions on
page 110.
NOTE: Supplied vacuum transfer hose must reach from
the system to the adhesive pellets container. Supplied
heated hose must reach from system to applicator(s).
FIG. 8
4. Insert 1.3 in. (33 mm) OD clear vacuum transfer
hose (G2) into vacuum transfer funnel (G3) inlet and
secure with supplied hose clamp. The hose clamp
should be placed over the cutouts in the funnel inlet
where it can firmly hold the transfer hose. See FIG.
8.
3. Adjust the funnel inlet:
G3
23
WLD
81
5. Connect the long supplied 3/8 in. OD air line (G4) to
the 3/8 in. push-to-connect fitting on the air line from
the system. See FIG. 8.
NOTE: When routing the vacuum transfer hose, ensure
there are no tight coils, turns, or dips in the vacuum
hose. These will inhibit optimal functioning of the vacuum transfer system.
92
WLD
a. Remove plug (23) and insert the provided 5/16
in. nut driver (92) through the access hole in the
back of the system. Loosen the band clamp (81)
two turns.
18
NOTE: Maximum vacuum hose length is 30 ft (9.1 m).
Use horizontal hose routing as much as possible. The
vacuum hose must not rise more than 10 ft (3.0 m),
measured from the vacuum inlet. Any vertical rise will
lower the maximum flow rate of the vacuum transfer
system.
333347R
Setup
6. Install heated hoses, see FIG. 9:
f.
To reduce the risk of fire and explosion, only use
Graco heated hoses with the InvisiPac system. Use of
non-Graco hoses will void agency approvals.
N
Applicator
Install hose onto hydraulic fitting (68) with male
electrical connector side toward the system.
Use 11/16 in. wrench to tighten hose onto
hydraulic fitting (68).
g. Locate MZLP (AA) connector marked with same
number as the hose fluid outlet port. Remove
that connector cover then install connector from
heated hose. See FIG. 9.
h. Repeat the procedure for the remaining channels. Use the bottom melter ports first to ease
installation.
247
i.
68
W1
AA
W2
ti23298a
FIG. 9
a. Place a rag on the drain tray (W2) attached to
the melter. Residual oil may be in the system
from the factory. See FIG. 9.
b.
Use a 1/4 in. allen wrench to remove the drain
port plug (W1). See FIG. 9.
NOTE: A 1/4 in. allen wrench is shipped loose with the
system.
c. When fluid stops draining, re-install drain port
plug (W1) then remove rag. See FIG. 9.
d. Remove plug (247) from the lowest numbered
outlet on the melter. Do not use the drain
plug (W1). See FIG. 9.
NOTE: In the following step, the o-ring side of the
hydraulic fitting (68) faces the system. See FIG. 9.
e. Install the supplied hydraulic fitting (68) with an
o-ring into the open port and tighten with an
11/16 in. wrench or socket.
Install cap on any unused MZLP electrical connectors.
NOTE: Fluid outlet port 1 must be used and electrical
connector from that hose must be connected to MZLP
connector 1. The system will not operate unless a hose
is connected to MZLP connector 1. If a hose is not connected to connector 1, “Invalid Sensor - hose/gun” faults
will result. If the melter must be run without a hose/applicator electrically attached to MZLP connector, use
Overtemperature Jumper, 16Y727, page 118.
7. Install applicator(s), see FIG. 9:
NOTE: Use of a Graco applicator is not required with
this system. However, all applicators attached to the
system must be rated for 1200 psi (8.3 MPa, 83 bar),
400°F (204°C), have an RTD type sensor, and use no
more than 400W at 240 VAC.
a. Connect heated hose fluid outlet to applicator
fluid inlet. Use 11/16 in. wrench to tighten. See
FIG. 9.
b.
For Graco applicators, attach applicator electrical connector to heated hose electrical connector. See FIG. 9.
c.
For non-Graco applicators, attach applicator
electrical connector to adapter harness 16T916,
16T917, or 16Y828 then attach adapter harness
connector to heated hose connector. See
Non-Graco Applicator Adapter Cables on
page 108 to determine which adapter cable to
use with your applicator.
d. Repeat for any additional applicators.
333347R
19
Setup
8. If necessary, set up the pattern controller (not
included) to control opening and closing of the applicator. See pattern controller manual.
11. Close the ball valve.
NOTE: The system controls applicator heating only. A
separate pattern controller must be set up to open and
close the applicator.
9. Install the supplied air inlet bleeding ball valve and
air filter kit (Graco Part No. 24R707) at the 1/4 NPT
female system air inlet (J). See FIG. 10.
NOTE: Elbows and riser tube provided with inlet air kit
are optional and may be used as desired.
WLE
FIG. 11
12. Attach a 3/8 in. minimum air supply line to air filter.
See FIG. 11.
J
WLE
FIG. 10
NOTE: The system must have a bleed-type ball valve
that bleeds pressure downstream when closed. Otherwise, the supplied air will need to be disconnected from
the system whenever the pressure is relieved.
NOTE: The system must use an air filter with a minimum flow rate of 30 scfm.
10. If using the same air for the applicator(s), make sure
to install the tee in the air line before the ball valve.
There should not be anything between the ball valve
and the system. See applicator manual for applicator air pressure requirements, and use a regulator
before the gun to decrease the air pressure, if necessary.
20
NOTE: Air supply pressure must be between 80 psi
(550 kPa, 5.5 bar) and 100 psi (690 kPa, 6.9 bar). Recommended pressure is 100 psi (690 kPa, 6.9 bar). If air
pressure is expected to drop below 80 psi (0.5 MPa,
5 bar), there is an air reservoir kit that allows the system
to operate down to 60 psi (0.4 MPa, 4 bar). See Air
Reservoir Kit, 16W366, on page 112.
13. To lock access to the air pressure adjustments, purchase Air Adjustment Lock, 24R084. See installation instructions on page 109.
14. To install a light tower that illuminates red when a
system error occurs, purchase Light Tower Kit,
24R226. See installation instructions on page 111.
15. To upgrade a 2 channel system to a 4 channel system, purchase 4 Channel Upgrade Kit, 24V528.
See installation instructions on page 113.
16. To upgrade a 4 channel system to a 6 channel system, purchase 6 Channel Upgrade Kit, 24V529.
See installation instructions on page 115.
17. Install MZLP electrical connector caps on all unused
channels.
333347R
Setup
Recommended Air Setup
No dips in vacuum
transfer hose
Main Air Line
Air in:
Less than 50 ft (15.2 m): 3/8 in.
More than 50 ft (15.2 m): 1/2 in.
80-100 psi
(5.5-6.8 bar, 0.55-0.68 MPa)
30 scfm capacity
Ensure funneled air
is connected
Air Filter / Ball Valve
at System Air Inlet
(Graco Kit 24R707
included)
Vacuum
Pump
Vacuum:
40-80 psi
(2.8-5.5 bar,
0.28-0.55 MPa)
Pump
20-100 psi
WLD
Regulator set to 70 psi
(4.8 bar, 0.48 MPa)
Air to applicators
FIG. 12
If plant air pressure is >90 psi, add air regulator kit to the
24H420 to the air supplying the hopper shaker. Regulate
the shaker air according to the vacuum feed pressure
according to the table below.
NOTE: Using vacuum feed air pressure higher than necessary may cause the melter to over fill and interrupt production.
Vacuum Feed air Max air pressure
pressure
to hopper
40 psi (2.8 bar)
60 psi (4.1 bar)
50 psi (6.4 bar)
75 psi (5.2 bar)
60 psi (4.1 bar)
90 psi (6.2 bar)
70 psi (4.8 bar)
105 psi (7.2 bar)
80 psi (5.5 bar)
120 psi (8.3 bar)
333347R
21
Setup
Connect Electrical Cord
NOTE: See Grounding section on page 17.
5. Attach insulated ferrules to the end of each wire.
106
Improper wiring may cause electric shock or other
serious injury if work is not performed properly. Have a
qualified electrician perform any electrical work. Be
sure your installation complies with all National, State
and Local safety and fire codes.
Y
X
To reduce the risk of electric shock, perform the entire
Attach Components procedure beginning on
page 17 prior to connecting electrical cord.
WLD
AF
NOTE: The installed strain relief bushing (106) fits a
0.708-1.260 in. (18-32 mm) OD electrical cord. See FIG.
13. If needed, use a wrench to tighten the strain relief
bushing until it is snug on the cable.
FIG. 13
NOTE: Tubing 17F777 and 17F779 is included for
smaller diameter electrical cord. Place around the
power cord and secure in the strain relief brushing
(106).
7. Connect power wires as shown in FIG. 14. Not all
models use all 4 wires.
6. Connect ground wire to chassis ground (AF). See
FIG. 13.
The accessory strain relief bushing kit 24X190 is available for smaller (0.512-1.024 in, 13-26 mm) OD electrical cords. See Accessories, page 106.
For 208V Electrical Circuits, see page 23.
1. Turn main power switch OFF.
2. Disconnect cable from ADM, push cable through
plastic shroud, then remove plastic shroud from system.
3. Remove electrical enclosure access door (T). See
FIG. 2 on page 13.
4. Insert electrical cord through electrical enclosure
strain relief bushing (106). See FIG. 13.
a. Alternate electrical cord routing: using conduit,
run electrical cord from access port (X) through
hole (Y). Conduit is required when routing wires
near compressed air components.
FIG. 14
8. Use zip ties to secure the electrical cord to the
tie-downs located on the top of the inside of the
electrical enclosure.
9. Tighten screw-terminals to at least 10 in-lb
(1.1 N•m).
10. Install electrical enclosure door.
11. Perform Select ADM Settings on page 23 prior to
turning on heat.
22
333347R
Setup
208V Electrical Circuits
For 208V electrical supply, a qualified electrician can
install a 208V to 240V step-up transformer to improve
startup times.
NOTE: The supported RTD types are Ni, 100 ohm; Ni,
120 ohm; NiFe, 604 ohm; Pt, 100 ohm (385), Pt,
100 ohm (392); and Pt, 1000 ohm. An “Auto” selection is
available but should only be used when the specific
RTD type cannot be identified. Using the “Auto” RTD
setting may result in inaccurate temperatures.
Transformer Sizing
Minimum transformer rating can be calculated by taking
transformer output voltage times the ADM breaker setting.
Single Phase, 20A ADM Breaker Setting Example:
240 volts x 20 amps = 4800 watts
To prevent fire and explosion, a qualified electrician
must determine the proper circuit breaker size to use
for the power supplied to the system.
4. On the System 3 screen:
Three Phase, 20A ADM Breaker Setting Example:
240 volts x 20 amps x SQRT(3) = 8315 watts
Select ADM Settings
NOTE: See Appendix A - ADM on page 120 for
detailed ADM information, including general operation.
1. Turn main power switch ON
.
2. When the ADM is finished starting up, press
to switch from the Operation screens to the Setup
screens. Use
,
,
, and
to navigate
between screens.
3. On the System 2 screen:
a. Enter the main circuit breaker size used. This is
the circuit breaker installed external to the system for the system power supply.
NOTE: The InvisiPac system limits the amount of power
it pulls based on the input circuit breaker size. This
impacts the startup times because it affects the heating
energy used to warm up the materials.
5. On the Advanced 1 screen, set the system date and
time.
a. Check the box in the “Installed” column for each
channel that has a heated hose and applicator
installed.
b.
Select the RTD type used on each installed
applicator. See applicator manual.
NOTE: An incorrect RTD setting will cause the system
to be incapable of maintaining the temperature setting.
333347R
23
Setup
6. On the Advanced 2 screen, set the temperature and
mass units.
9. Press
to switch from the Setup screens to the
Operation screens. Use
,
,
, and
to
navigate between screens.
10. On the Targets screen, use
next to
and
, shown
, to adjust system melter setting.
Also, the desired temperature setting can be typed
in using the numeric keypad.
7. To setup the optional Schedule function, see
Schedule on page 36.
NOTE: The Schedule function enables the system to
automatically enable and disable heating at specified
times so that the system is already up to temperature
when a shift begins.
8. If desired, set any remaining settings in the Setup
screens before going on to the next steps that use
the Operation screens. These are not required for
system operation but include useful functions. See
Appendix A - ADM, beginning on page 120, for
detailed information about each setup item.
24
333347R
Setup
11. On the Targets screen, adjust heated hose and
applicator temperature settings:
NOTE: Alternatively, use the physical up and down
arrow push-buttons on the ADM keypad until
is
next to the temperature setting to change then use the
numeric keypad to enter the desired temperature.
NOTE: InvisiPac is a high powered tank-free system
that delivers heat faster than traditional tank systems.
Tanks are often run at a lower temperature than the
application temperature to avoid excessive adhesive
degradation since a large volume of adhesive sits at
temperature.
a. Press
b.
Use
NOTICE
Set melter, hose, and gun to the same setpoint
temperature for best performance. Do not set the
hose temperature higher than the melter. Running
the hose at a setpoint higher than the melter is
unnecessary in this tank-free system and could
lead to adhesive degradation in the hose. Short
adhesive residence time in the melter eliminates
the need to set the melter at a lower setpoint than
other zones.See Operation Tips to Minimize Char-
to select the channel.
and
, shown next to
, to
ring, page 40.
adjust applicator temperature setting to the
desired setting for that channel.
Applicators
NOTE: If a higher applicator temperature is desired,
adjust all zones to the higher temperature or adjust only
the applicator in small increments.
NOTE: Alternatively, use the physical up and down
Applicator heating is controlled by the InvisiPac system.
A pattern controller is required to control the opening
and closing of applicators. If using an InvisiPac Pattern
Controller, refer to manual 334784 - InvisiPac Pattern
Controller for details on wiring and setup.
arrow push-buttons on the ADM keypad until
is
next to the temperature setting to change then use the
numeric keypad to enter the desired temperature.
c.
Use
and
, shown next to
,
to adjust heated hose temperature setting to the
desired setting for that channel.
333347R
25
Setup
PLC Connection
A PLC can control and monitor all items shown in the
dropdown menus on the System 1 screen in the Setup
screens.
NOTE: The InvisiPac system ships with two screw-terminal connectors that plug into MZLP connectors H1
and H2. Connectors are located in a bag on the inside of
the electrical enclosure front access door. To replace
the connectors, order kit 24P176.
1. On the System 1 screen (in the Setup screens)
select the function of each input on MZLP connector
H1 and each output on MZLP connector H2.
2. Turn main power switch OFF.
3. Remove electrical enclosure front access door.
4. Route I/O cable through strain relief in electrical
enclosure. See Customer I/O Cable (S) in FIG. 1 on
page 12.
5. Remove power from PLC.
Customer Input Dropdown Options
Option
Description
Disable
Not used.
Heater On/Off
Turn on or off the heating system and
pump.
Channel 1, 2, 3,
4, 5, or 6
Enable/Disable
Enable or disable hose and applicator
heating for that individual channel.
6. Connect the PLC to connectors H1 and H2.
NOTE: Each connector has four signals. The MZLP
board specifies the input range for each signal. See the
following table for pin assignments.
J1
J2
F10 F9
F8 F7
F4 F3
F2
F6
F1
F5
Customer Output Dropdown Options
Option
Description
Disable
Not used.
System Ready
Indicates when the system is up to temperature and the pump is stalled at
pressure.
Error (Alarm)
Indicates when there is an active alarm.
An active alarm will disable the heating
system and pump.
J7
J6
J5
J3
WLD
Error (Deviation/Advisory)
Maintenance Due
Indicates when there is an active deviation or advisory. An active deviation or
advisory will NOT disable the heating
system and pump.
Indicates when the maintenance total
has reached the preset notification
value.
NOTE: All outputs are normally open when power is
OFF. For Error (Alarm) output, the contacts open when
an alarm occurs. For all others, contacts close.
FIG. 15: MZLP Board
H1 - Customer Input
H2 - Customer Output
Signal
Pin
Signal
Pin
1
1, 2
1
1, 2
2
3, 4
2
3, 4
3
5, 6
3
5, 6
4
7, 8
4
7, 8
Inputs: High: 10-30 Vdc, Low: 0-5 Vdc. Inputs function
without concern for polarity. Applying “high” voltage will
turn the heaters on and enable channels. Removing
voltage will turn the heaters off and disable channels.
Outputs: 0-250 Vac, 0-30 Vdc, 2A Maximum.
26
333347R
Setup
PLC Connection Block Diagrams
The following block diagrams show how to connect customer inputs and outputs to the InvisiPac MZLP. For convenience, each InvisiPac ships with connector kit 24P176. If a connector is lost or damaged, order kit 24P176 for
replacements.
MZLP Customer In
Customer Output
Vin (no polarity)
30 VDC Max
FIG. 16: Customer Input
MZLP Customer Out
Customer In
250 VAC, 0-30 VDC, 2A Max
To Customer Input
FIG. 17: Customer Output
333347R
27
Setup
Material Tracking
The material tracking function allows the user to track
product counts and material usage for long term data
collection.
Viewing the Log
In order to view the log, navigate to the Home screen
and press the material log softkey
(see below).
Different system Types will have different data show in
the material log. The chart below outlines what data is
shown for each system type.
System Type Date Cycles
InvisiPac
X
X
InvisiPac w/
ADM Unit
X
Counter
InvisiPac w/
Pattern ConX
troller
X
X
X
X
X
X*
*See Material Tracking Coverage for Pattern Controller
Systems.
To exit the log, press the screen exit softkey
Once inside the log (see below), use the up/down arrow
keys to view previous data. The log stores up to 200
rows of date including the following:
Item
Date
Cycles
Material Used
Program
Products
Material per Product
28
Icon
N/A
N/A
333347R
.
Setup
Material Tracking Coverage for Pattern
Controller Systems
Material Used
Line Configuration
Diagram
(
)
Products per Line Material per Product
(
)
(
)
Single Line
X
X
X
Multi-Unit Line
X
X
X*
Multi-Line
X
X
**
* Products on both parts of the line must be the same
in order to generate accurate material per product
data.
** Accurate material per product data cannot be generated for multi-line configurations (assumes different
products).
333347R
29
Setup
Calibration
3. To calibrate using the purge method:
a. Obtain a scale and a container.
b.
Reset the calibration weight totalizer by press-
ing and holding the reset softkey
Perform the following steps to calibrate the material
tracking function:
1. Navigate to the Material Tracking Screen (Screen 4
of the System chapter).
2. To calibrate using the tape and scrape method:
a. Obtain a scale.
b.
c.
Place tape on a product(s) in locations where
material is dispensed.
Run normal production (un-taped products) until
a value appears in the grams per product label
(this could take several minutes of production).
.
c. Tare scale with empty container and purge at
least 1 lb. of material into the container.
d. Weigh container with material.
e. Adjust the specific gravity setting until the
weight displayed in the totalizer matches the
value measured by the scale using the following
formula:
New SG Value = Current SG Value x Measured Weight /
Displayed Weight
d. Run taped product(s) through line and allow
material to cool and harden on the tape.
e. Scrape all material from product and place on
scale.
f.
Adjust the specific gravity setting until the grams
per product displayed matches the value measured by the scale using the following formula:
New SG Value = Current SG Value x Measured Grams
per Product / Displayed Grams per Product
30
333347R
Setup
Material Alerts
Reset Material Target
This feature can be used to monitor material usage
based on a target material per unit value. If material
alerts are enabled the system will record an event every
time the system deviates over 20% from the target. The
material alert information can be seen in the bottom left
corner of the material log (see image below).
To reset the material target value, press the reset mate-
Enable/Disable material Alerts
To enable/disable material alerts, select/deselect the
Enable Material Alerts setting on the Material Tracking
Screen (Screen 4 of the System chapter).
333347R
rial target softkey
. An hourglass will appear
indicating that the system is learning the new target
(current machine output).
NOTE: The material target will be automatically reset
whenever a Pattern Controller setting is changed (e.g.
switch from solid bead to stitched bead).
31
Operation
Operation
Initial Startup and Prime
Heating and dispensing hot melt adhesive may create
potentially harmful vapors. Read material manufacturer’s warnings and material MSDS to know specific
hazards and precautions. Ventilation of the work area
may be required.
NOTE: See Appendix A - ADM on page 120 for
detailed ADM information.
NOTICE
To prevent damage to soft key buttons, do not press
the buttons with sharp objects such as pens, plastic
cards, or fingernails.
NOTE: See Appendix B - USB Downloading, Uploading on page 126 for detailed USB information.
Overview
NOTE: All setup procedures must be completed prior to
initial startup. See Setup on page 17.
NOTE: PSA-type adhesive pellets will not work in the
InvisiPac system.
1. Direct the applicator into an appropriate waste
container.
2. Fill adhesive pellets container with hot melt adhesive pellets.
3. Turn main power switch ON
.
4. Open system air inlet ball valve.
The system includes a vacuum transfer system that
pulls the adhesive pellets into the system as needed.
Once melted, the adhesive enters the pump where it is
pumped into the heated hoses then to the heated applicators. The applicator then briefly opens to dispense the
desired quantity of adhesive.
WLE
Even though the system rises to operating temperature
quickly, there is a Schedule function in the ADM that
eliminates waiting for the system to heat up. The Schedule function automatically enables the heating system at
the user-specified times so the system is ready to dispense when a shift begins. The Schedule function also
disables the heating system at user-specified times to
ensure the heating system is disabled when not being
used.
32
333347R
Operation
5. Use pump air pressure regulator (C) to adjust pump
air pressure to 0.
9. On new systems only: After the melter has reached
250°F (121°C) and the funnel is filled with pellets,
set the melter temperature back to the desired operating temperature. See Select ADM Settings on
page 23 for instructions.
10. Use separate pattern controller to open the applicators and keep them open.
NOTICE
E
C
FIG. 18
6. Use vacuum transfer air pressure regulator (E) to
adjust vacuum transfer air pressure setting to
40-100 psi (280-690 kPa, 2.8-6.9 bar). Recommended setting is 60 psi (414 kPa, 4.1 bar). See
FIG. 18.
NOTE: Vacuum transfer will not begin operating until
pump reaches operating temperature.
In the following step, to prevent damage to the pump
due to pump cavitation, do not supply more than 20 psi
(140 kPa, 1.4 bar) air pressure to the pump until the
system is fully primed.
11. With the applicators open and the system up to temperature, slowly increase pump air pressure until
the pump begins to run very slowly. Approximately
20 psi (140 kPa, 1.4 bar) should be sufficient.
NOTE: Operation may be erratic below 20 psi (140 kPa,
1.4 bar).
12. Continue running the pump until clean, air-free
material is dispensed from each applicator.
To prevent fire and explosion, never exceed the cleaning fluid’s rated temperature. If the system was just
flushed, residual cleaning fluid is still in the system
until the system is primed with adhesive. Do not raise
temperature above cleaning fluid rated temperature
until system is primed with adhesive.
NOTE: A new system may have residual oil due to testing at the factory prior to shipping. To prevent smoking,
make sure to perform the following step.
13. When each applicator is fully primed, adjust pump to
desired pressure setting:
a. Adjust pump pressure to between 20-100 psi
(140-690 kPa, 1.4-6.9 bar).
b.
Use separate pattern controller to repeatedly
open and close each applicator while inspecting
the dispense pattern.
c.
Repeat until desired dispense pattern is
achieved.
7. On new systems only: temporarily adjust the melter
temperature to 250°F (121°C). See Select ADM
Settings on page 23 for instructions.
8. Press
to enable the heaters and pump.
NOTE: When system is up to temperature, the pump will
be activated automatically, but will not start because
there is no air pressure supplied to the pump.
NOTE: When the melter is up to temperature, the
auto-fill function will initiate to fill the funnel with pellets.
333347R
33
Operation
Manual Refill
4. Fill the funnel with adhesive pellets.
NOTE: Use Automatic Refill whenever possible. The
system uses Automatic Refill by default and must be
manually changed to Manual Refill. Only use Manual
Refill if the Automatic Refill system is not functioning
properly and cannot be fixed in a timely manner. Perform service to automatic feed system as soon as possible to limit debris buildup on feed funnel.
It is recommended to maintain a minimum flow rate of
1.5 lb/hour to prevent material from melting within the
feed cap and funnel. If production rate is below
1.5 lb/hour or system sits at temperature without dispensing for extended periods of time, use manual refilling with caution. System flow rate can be monitored by
enabling the Diagnostic screen.
1. On the System 3 screen (in the Setup screens),
select “Manual” from the Refill mode dropdown.
2. Remove the two bolts from the funnel bracket, then
remove the top portion of the funnel.
WLD
FIG. 20
5. Refill the funnel as needed to maintain the required
dispense rate.
6. When finished dispensing for the day, dispense into
a waste container until the material level is down to
the melter core. See FIG. 21.
NOTE: This will lower the adhesive level within the funnel cap to the correct level to prevent any issues upon
startup the following production day.
WLD
FIG. 21
WLD
FIG. 19
3. Disconnect the sensor cable and sensor cooling air.
34
333347R
Operation
Automatic Refill
Dispense
The system uses automatic refill by default. If the automatic refill system is malfunctioning and cannot immediately be fixed, Manual Refill can be used.
To use automatic refill:
1. On the System 3 screen (in the Setup screens),
select “Automatic” from the Refill mode dropdown.
2. Verify shaker and tube are connected to the system.
See Attach Components on page 17.
3. Verify shaker inlet (K) is at the bottom of the adhesive pellets container that is filled with hot melt
adhesive pellets. See FIG. 1 on page 12.
NOTE: The shaker inlet must be completely covered in
adhesive pellets in order for it to effectively pull pellets
into the tube.
4. If not already set, use vacuum transfer air pressure
regulator (E) to adjust vacuum transfer air pressure
setting to 40-100 psi (280-690 kPa, 2.8-6.9 bar).
Recommended setting is 60 psi (414 kPa, 4.1 bar).
NOTE: Only hot melt adhesive pellets can be used in
the InvisiPac system.
1. If the system is empty or has air in the lines, perform
Initial Startup and Prime procedure on page 32.
2. If main power switch is OFF, turn main power switch
ON
.
NOTE: The main power switch should be left ON at all
times when using the Schedule function.
3. Prepare for dispensing:
a. Verify air inlet ball valve (J) is open. See FIG. 1
on page 12.
b.
Check pressure gauges (D, F) to verify vacuum
transfer and pump air pressures are set as
desired. See FIG. 1 on page 12.
c.
If using Automatic Refill, see Automatic Refill
on page 35.
d. If using Manual Refill, see Manual Refill on
page 34.
E
e. Verify applicators are closed.
FIG. 22
4. Press
NOTE: The system will automatically transfer the pellets
to the system as necessary.
to enable the heaters and pump.
NOTE: If using the Schedule function, the heaters and
pump will be enabled automatically at the set time. You
will not need to press
if using the Schedule func-
tion unless you wish to enable the heating system
before the set time.
NOTE: When system is up to temperature, the pump will
begin running automatically. It will stall at pressure
unless an applicator is open. Material will be dispensed
whenever an applicator is open after the system is up to
temperature.
5. When the system is up to temperature, use separate pattern controller to open and close the applicators as desired to dispense material.
333347R
35
Operation
NOTE: While operating the system, the actual temperatures of the hose, applicator, and system melter are displayed on the Home screen.
Shutdown
Press
The Schedule function allows the user to specify times
when the system will automatically turn ON and OFF the
heaters and pump.
Set Schedule Times
to disable the heaters and pump. The
screen will say “Inactive”. If using the Schedule function,
the heaters and pump will be disabled automatically at
the set time. You will not need to press
Schedule
if using the
Schedule function unless you wish to disable the heating system before the set time. If the heaters were manually disabled, the Schedule function will automatically
enable them at the next set time.
NOTE: Times are set using a 24-hour clock. Several on
and off times can be set each day.
1. On the Schedule screen (in the Setup screens), set
the ON times for each day of the week.
2. Set the OFF times for each day of the week.
Enable Schedule Function
The Schedule function is automatically enabled when
values are entered in the Schedule screen. To disable a
scheduled event, navigate to the event and press
The event will appear gray on the screen when it is disabled. To re-enable an event, navigate to the event and
press
. The event will appear red (system off) or
green (system on). If no events are needed, turn the
main power switch OFF to prevent system from automatically enabling and disabling the heaters.
Do not turn the main power switch OFF if using the
Schedule function.
How to Use the Schedule Function
At the end of the work day leave main power switch ON
. The Schedule function will automatically enable
and disable the heaters and pump at the specified
times.
36
333347R
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief Procedure when you stop spraying and before cleaning,
checking, or servicing the equipment.
1. Turn main power switch OFF
.
2. Close the inlet air supply ball valve.
NOTE: Manually verify the pressure is relieved by opening the applicator and ensuring no adhesive is dispensed.
333347R
37
Operation
Drain the System
11. Disconnect hose from melter outlet.
12. Wait until system stops draining or at most 10 minutes.
NOTE: The system must be drained prior to flushing
and prior to some maintenance and repair procedures.
1. On the System 3 screen (in the Setup screens),
change the Refill Setting to “Manual”.
NOTE: There will be some residual adhesive in the system.
13. When done performing the procedure that required
draining the system, set Refill Setting back to “Auto”
on the System 3 screen.
Flush
To prevent fire and explosion, use the adhesive manufacturer’s recommended cleaning fluid.
2. If the heating system is disabled, press
to
enable the heaters and pump.
3. Decrease pump air pressure to 0.
4. Close system air inlet ball valve.
5. Disconnect hose from applicator inlet then place
hose outlet in a waste container. Repeat for all
hoses. Keep hose to applicator electrical connector
connected.
6. Open applicator to allow residual fluid in applicator
to drain.
• Never exceed the cleaning fluid’s rated
temperature
• Never flush your system or clean any aluminum
components with halogenated hydrocarbon
cleaning solutions.
To prevent severe burns, wear protective clothing.
NOTE: This procedure describes how to flush one hose
at a time for maximum effectiveness.
See the hot melt adhesive technical data sheet or
MSDS for the recommended cleaning fluid. Contact the
hot melt supplier if the technical data sheet or MSDS is
not available.
1. Perform Drain the System on page 38.
2. If the heating system is enabled, press
7. When system is at operating temperature, slowly
increase pump air pressure until fluid begins flowing
into the waste container.
NOTE: It may take several minutes to empty the system. When there is no melter fluid at the pump, the
pump will begin to cycle faster.
8. When the pump begins to cycle faster, close the
system air inlet ball valve.
9. Press
to dis-
able the heaters and pump.
3. Loosen upper hose clamp securing funnel assembly
to air motor bracket then remove funnel assembly
from system. Keep 1.3 in. (33 mm) clear tube and
funnel cap attached to funnel.
4. Loosen clamp then remove plastic melter cap. Keep
fill sensor attached to cap.
to disable the heaters and pump.
10. Remove melter drain plug (W1). See FIG. 2 on page
13.
38
333347R
Operation
5. On the System 3 screen (in the Setup screens), verify the Refill Setting is set to “Manual”.
12. If heating system is disabled, press
to enable
the heaters and pump.
13. Wait for the melter temperature to reach the hot
melt cleaning fluid manufacturer’s recommended
temperature.
NOTE: The pump will not run because the system air
inlet ball valve is closed.
14. Once the required melter temperature is reached,
let the hot melt cleaning fluid “soak” in the melter at
temperature for the duration specified by the hot
melt cleaning fluid manufacturer.
To prevent fire and explosion, never exceed the cleaning fluid’s rated temperature.
6. Change the melter, heated hoses, and applicators
temperature settings to the high temperature hot
melt cleaning fluid manufacturer’s recommended
temperature.
7. Verify the system air inlet ball valve is closed and
pump air pressure is set to 0.
8. Allow the system to heat or cool to the cleaning fluid
manufacturer’s recommended temperature.
9. Fill melter with high temperature rated hot melt
cleaning fluid. See hot melt adhesive material supplier for recommended hot melt cleaning fluids.
Fluid level should be 1/2 in. (12.7 mm) from the top
of the melter.
NOTE: “Soaking” is important to ensure the best possible cleaning.
15. After the hot melt cleaning fluid has “soaked” for the
specified amount of time, open the system air inlet
ball valve. Slowly increase the pump air pressure
until pump begins to cycle to begin pumping the hot
melt cleaning fluid and adhesive mixture out through
the hose into the waste container.
16. Once the pump begins to cycle faster, close the system air inlet ball valve to stop the pump.
17. Repeat steps 7 through 16 until clean, adhesive-free hot melt cleaning fluid is dispensed from
the detached hose.
NOTE: Now the melter and the disconnected hose are
thoroughly flushed.
18. Reattach the hose to the applicator manifold.
19. Repeat steps 7 through 18 for each additional
installed hose, leaving a different hose disconnected from the applicator manifold each time.
20. Remove and replace filter(s) in all applicator manifolds. See applicator manual.
21. Replace Outlet Filter. See page 41.
WLD
10. Disconnect one hose from its applicator manifold.
NOTE: Keep all applicators closed throughout this procedure.
11. Route the disconnected hose to a waste container.
333347R
22. Turn main power switch OFF.
23. Place waste container below drain tray (W2) then
remove drain plug (W1) and wait for system to finish
draining. See FIG. 2 on page 13.
24. Allow the system and fluid to cool then perform any
required maintenance procedures beginning on
page 41.
39
Operation
25. Install fill cap onto melter rubber housing. Re-tighten
upper clamp to 25 in-lbs.
26. Slide funnel assembly through air motor bracket
then tighten clamp.
27. On the System 3 screen (in the Setup screens), set
the Refill Setting to “Auto”.
Operation Tips to Minimize
Charring
Set the Pump Idle Time to System Inactive function
on the System 3 screen to lowest value that will not
interfere with normal operation. This feature automatically disables the heating system if the pump is idle for
longer than the preset amount of time. Disabling the
heating system minimizes adhesive degradation and
limits char formation.
When possible, utilize the Schedule function, see
page 36, to automatically enable and disable the heating system in accordance with your production schedule. This will ensure adhesive spends as little time at
temperature as possible. Less time at high temperature
ultimately means less adhesive degradation and less
char.
NOTICE
To prevent fire and explosion, never exceed the cleaning fluid’s rated temperature. Residual cleaning fluid is
still in the system until the system is primed with adhesive.
28. Perform Initial Startup and Prime on page 32.
40
Set melter, hose, and gun to the same setpoint
temperature for best performance. Do not set the
hose temperature higher than the melter. Running
the hose at a setpoint higher than the melter is
unnecessary in this tank-free system and could
lead to adhesive degradation in the hose. Short
adhesive residence time in the melter eliminates
the need to set the melter at a lower setpoint than
other zones.
333347R
Maintenance
Maintenance
6. Insert allen wrench through the outlet filter cap to lift
outlet filter (236) out of the system.
7. Discard outlet filter assembly.
Replace Outlet Filter
The outlet filter is designed to prevent small contaminants from entering the hoses and applicators. Inspect
filter regularly. Replace the filter after flushing and when
you change the adhesive used in the system.
8. Place o-rings (232, 237) provided with new outlet filter onto new outlet filter (236).
9. Place new outlet filter with o-rings into housing.
Tighten with 1 in. socket.
10. Install small metal shroud (28) over outlet filter then
tighten two screws (8).
Replace Inlet Filter
236
232
To avoid severe burns, wear protective gloves and
clothing that will insulate your hands and body from
the hot surfaces and material.
237
The inlet filter is designed to prevent large items from
entering the system. The inlet filter can only be replaced
with the system empty.
1. Close the system air inlet ball valve.
8
28
WLD
FIG. 23
1. If the system is not up to temperature, press
to
enable the heaters and pump then wait for system
to reach operating temperature.
To avoid severe burns, wear protective gloves and
clothing that will insulate your hands and body from
the hot surfaces and material.
2. Perform Pressure Relief Procedure, page 37 but
do not allow system to cool. Adhesive must be a
fluid to perform this procedure.
3. Turn main power switch OFF.
4. Loosen two screws (8) then slide the small metal
shroud (28) on the back of the system up to remove.
See FIG. 23.
5. Use a 1 in. socket to unscrew outlet filter (236).
333347R
NOTE: Some adhesives have different melting points.
The first temperature tried should be approximately half
of the dispensing temperature. If dispensing at 400°F
(204°C), first try 200°F (93°C) then increase in 20°F
(11°C) increments. If dispensing at 250°F (121°C), first
try 125°F (52°C) then increase in 20°F (11°C) increments.
NOTE: To ensure the adhesive is a gel, not a liquid, do
not remove inlet filter cap (215) when the temperature is
above the desired temperature. If the temperature is too
low, the adhesive viscosity may be too high to remove
the inlet filter (213). See FIG. 24, page 42.
2. If the melter is below the desired temperature and
heating system is disabled, press
to enable
the heaters.
If the melter is above the desired temperature and
heating system is enabled, press
to disable
the heaters.
3. Wait until melter temperature is the desired temperature.
41
Maintenance
4. When the melter temperature is the desired temperature, turn main power switch OFF.
9. Slide new screen (213) into melter base
manifold (201).
5. Disconnect cable from ADM, push cable through
plastic shroud, then remove plastic shroud from system.
10. Install filter cap (215) then use a 1 in. socket to
tighten.
6. Place a piece of cardboard beneath the inlet filter
cap (215) to route fluid away from system into a
waste container in the event the adhesive is a fluid.
7. Use 1 in. socket to remove inlet filter cap (215).
11. Feed ADM cable through plastic shroud (29) then
install shroud onto system. Connect cable to
ADM (30).
Replace Funnel Filter
706
705
213
215
201
WLD
WLD
FIG. 24
FIG. 25
8. If the adhesive is a thin enough gel to remove the
inlet filter: Use an o-ring pick or small allen wrench
to remove filter screen (213) from system.
Otherwise:
Disassembly (see FIG. 25):
1. Turn main power switch OFF.
a. Install inlet filter cap (215).
2. Rotate funnel cap (706) and remove. Lift out funnel
filter (705).
b.
Reassembly (see FIG. 25):
Install shroud and ADM.
c. Turn main power switch ON.
1. Insert filter (705) in funnel assembly. Tighten funnel
cap (706) on funnel.
d. Once ADM software finishes starting up,
press
to enable the heaters.
e. Wait for temperature to rise 20°F (11°C) beyond
previous temperature.
f.
42
Go to step 4.
333347R
Maintenance
Filter Maintenance Guidelines*
Environmental Classification
Component
Pump Outlet Filter
Applicator Manifold Filter
System Air Inlet Filter
Applicator Solenoid Mufflers
Feed funnel filter
Feed funnel inspection/cleanout
Part Number
24W595
24P802
24X967
24P282#
24X037%
24V506
N/A
Ref
Clean
Moderate
Dusty
236
16 +
64
Replace filter Replace filter Replace filter
every four
every two
104+ every six
months
months
months
NA
705
NA
* These recommendations are service level guidelines - actual service levels required in your factory will vary based
on environmental and operating conditions. High or low volume adhesive usage, as well as adhesives that contain a
powdered release agent or are otherwise dusty, will have an impact on the frequency of filter maintenance. To establish a preventative maintenance cycle tailored to your environment, Graco recommends inspecting filters every 4
weeks after installation and replacing when necessary. Document replacement intervals and use this as your preventative maintenance schedule moving forward.
+ See appropriate applicator manual for part reference drawing.
#Standard on GS35 applicators.
%Optional upgrade to GM100 applicators.
333347R
43
Troubleshooting
Troubleshooting
To avoid injury due to unexpected machine operation
initiated by a remote controller, disconnect the customer I/O cable from the system prior to troubleshooting.
ADM Error Code Table
When an error occurs, press
nance screen and press
to acknowledge the error. If a Maintenance error occurs, navigate to the Mainteto clear the error.
The last digit of the error code indicates the melter, applicator (gun), or hose to which the error applies. The “_”
(underscore) character indicates the code applies to multiple items.
Last Digit in Code
0
1
2
3
4
5
6
7
8
9
A
B
C
Code Relates to:
Melter
Applicator (Gun) 1
Hose 1
Applicator (Gun) 2
Hose 2
Applicator (Gun) 3
Hose 3
Applicator (Gun) 4
Hose 4
Applicator (Gun) 5
Hose 5
Applicator (Gun) 6
Hose 6
An alarm will disable the heating system and pump. A deviation or advisory will not disable the heating system and
pump.
Code
A1D0
Description
Low Current
Melter
Type
Advisory
Cause
Melter current is less than 500mA.
A1D_
Low Current
Gun X
Advisory
Applicator current is less than 500mA.
A1D_
Low Current
Hose X
High Fan Current, Transformer
Advisory
Deviation
Hose current is less than 500mA.
A3MF
44
Transformer fan is greater than
600mA.
Solution
Check heater resistance and resistance to
ground. Replace heater(s). See Replace Heater
Rod, page 69.
Verify applicator heater has a minimum wattage
of 90 Watts at 240 VAC. Check heater resistance
and resistance to ground. Replace heater.
Check heater resistance and resistance to
ground. Replace hose.
Replace transformer fan.
333347R
Troubleshooting
Code
A4D0
Description
High Current
Melter
High Current
Hose X
High Current
Gun X
Unexpected
Current
Type
Alarm
Cause
Band heater or rod heater.
Alarm
Hose power wires.
Alarm
Heater rods in applicator manifold.
Alarm
Unexpected current flow to melter.
A7D_
Unexpected
Current, Gun X
Alarm
Unexpected current flow to applicator
X.
A7D_
Unexpected
Current, Hose X
Alarm
Unexpected current flow to hose X.
A8D0
No Current
Melter
Alarm
Power not getting to melter.
A8D_
No Current
Hose X
Alarm
Power not getting to hose.
A8D_
No Current Gun
X
Alarm
Power not getting to applicator.
A8MF
No Fan Current,
Transformer
Deviation
Power not getting to transformer fan.
A4D_
A4D_
A7D0
333347R
Solution
Measure resistance to ground between heater
leads. Should be a high reading. Replace heater.
Check heater resistance and resistance to
ground. Replace heated hose.
Check heater resistance and resistance to
ground. Replace applicator manifold.
Check heater resistance and resistance to
ground. Replace faulty heater(s). See Replace
Heater Rod, page 69.
Replace MZLP.
Check heater resistance and resistance to
ground. Replace applicator manifold.
Replace MZLP.
Check heater resistance and resistance to
ground. Replace hose.
Replace MZLP.
Check fuses F1 and F2 on MZLP with daughter
board.
Check J1 is plugged into MZLP with daughter
board and J3 on AWB.
System needs a hose connected to Channel 1 or
use the optional Overtemperature Jumper,
16Y727.
Check fuses F5 and F6 (channels 1, 3, 5) or F9
and F10 (channels 2, 4, 6) on MZLP that the
error hose is connected to.
Check that electrical connector on the heated
hose is plugged into the MZLP.
Check continuity of pins C and D on electrical
connector at MZLP end of heated hose. See
heated hose manual for impedance measurements. Replace hose if readings are too high.
If system only uses one hose and applicator, the
heated hose electrical connector must be
plugged into channel 1 of the MZLP.
Check fuses F3 and F4 (channels 1, 3, 5) or F7
and F8 (channels 2, 4, 6) on MZLP that controls
the error channel.
Check that electrical plug on hose is plugged into
back of MZLP and applicator is plugged into
hose.
Check continuity of hose pin A gun end to J on
MZLP connector end of hose and pin C on gun
end to pin A on the MZLP end of the hose. Reading should be 0-1 ohm. Replace hose if measurement is outside this range.
If system only uses one hose and applicator,
electrical connector of the heated hose must be
plugged into channel 1 of the MZLP.
Verify that fan power cable is plugged into J7 on
the AWB.
Verify transformer fan is free of obstructions and
can spin freely.
45
Troubleshooting
Code
CAC_
1=MZLP 1
2=MZLP 2
3=MZLP 3
Description
Comm Error
Module
Type
Alarm
Cause
System not responding to ADM.
CACX
Missing DB
Alarm
System not acknowledging the daughter board.
DADX
Pump Runaway
Alarm
Pump is trying to feed adhesive, no
adhesive to feed.
DDDX
Pump Diving
Deviation
Worn or damaged pump seals
Pump is trying to feed adhesive, no
adhesive to feed.
Worn or damaged pump seals
No signal from air motor sensor.
DE0X
Cycle Switch
Error
Alarm
L0FX
Manual Fill
Mode
Level Sensor
Error
Advisory
Alarm
L6FX
System set to manual fill mode.
No signal from the level sensor.
No air to fill cap.
Plugged orifice in fill cap below fill sensor.
46
Solution
Dial not set correct on MZLP. Set to 1 on board
with daughter board. Set to 2 on MZLP without
the daughter board in center of electrical enclosure. Set to 3 on MZLP without daughter board
on left of electrical enclosure.
System is not properly loaded with correct software. Perform Software Update Procedure on
page 81.
Bad connection between daughter board and
MZLP board. Loosen daughter board, re-seat,
then secure.
Daughter board is not plugged into MZLP1. Plug
daughter board into MZLP with dial set to 1.
Replace MZLP daughter board.
Storage bin out of adhesive. Refill adhesive.
Level sensor may be over heating. Verify air is
being delivered from tube (35).
Melter at incorrect temperature, too low. Check
setpoint and set to manufacturer’s recommendation.
Plugged vacuum transfer hose or funnel. Clear
plugged hose or funnel.
Inspect pump seals. Repair if necessary.
Storage bin out of adhesive pellets. Refill with
pellets.
Level sensor may be over heating. Verify air is
being delivered from tube (35).
Melter at incorrect temperature, too low. Check
melter temperature setting and set to manufacturer’s recommendation.
Plugged vacuum transfer hose or funnel. Clear
plugged hose or funnel.
Dispense rate too high. See technical ratings of
system.
Inspect pump seals. Repair if necessary.
Check wiring on J16 of the daughter board. See
Electrical Schematics on page 82.
Loose cycle switch bolt. Tighten cycle switch bolt.
Replace cycle switch.
Change to auto fill mode. See Setup Screen System 2.
Check for sensor LED illumination.
Check that sensor cable is plugged into sensor.
Check connector at J14 of the daughter board.
Remove fill cap and verify there is nothing blocking fill (level) sensor line of sight.
Replace fill (level) sensor.
Check system incoming air pressure is 80-100
psi.
Check for sensor cooling air coming from 5/32 in.
air line, flow should be 30-60 SCFH.
Remove fill cap and remove object plugging the
orifice.
333347R
Troubleshooting
Code
L8FX
Description
Refill timeout
Type
Alarm
Cause
Melter did not receive enough adhesive
pellets for flow rate.
M8MF
High Temp Runaway, Transformer
Deviation
At the current rate of temp rise, the
transformer will over heat in 15 minutes
or less.
MMUX
USB Log Full
MNDX
Pump Maintenance Due
Low Temperature, Melter
Advisory
Advisory
Deviation
USB logs full. Data loss will occur if not
downloaded.
Cycles are greater than user set maintenance interval.
Melter temperature dropped to
15°F(-9°C) below setpoint.
T2D0
Solution
Inspect storage bin for bridging and blocking.
Storage bin out of adhesive. Refill adhesive.
Plugged inlet feed hose or funnel. Clear plugged
hose or funnel.
Low air pressure on feed regulator. Check regulator. See Setup, page 17 for air pressure regulations.
Dirty or plugged funnel filter. Replace filter.
Verify that fan power cable is plugged into J7 on
the AWB.
Verify transformer fan is free of obstructions and
can spin freely.
Replace transformer.
Download USB data. See Appendix B - USB
Downloading, Uploading on page 126.
Perform maintenance and reset “Due” counter to
0 at the Setup Maintenance screen.
Verify system is operating within meltrate specifications. Consider incoming voltage and breaker
setting.
Verify that the fill system (vacuum) is operating
correctly. If the level of material in the melter gets
too low and a large amount of cold material
enters the melter, can cause the temperature to
drop significantly.
With the system on and not dispensing verify that
the temperature is properly controlled to the setpoint. If system cannot control temperature, verify the RTD is seated inside the melter.
Replace RTD if RTD was seated properly and
system cannot control temperature
T2D_
Low Temperature, Gun X
Deviation
Applicator temperature dropped to
15°F(-9°C) below setpoint.
T2D_
Low Temperature, Hose X
Deviation
Hose temperature dropped to
15°F(-9°C) below setpoint.
T4C_
High MZLP PCB
Temp
Alarm
MZLP board is overheating.
333347R
Check heater resistance and resistance to
ground. Replace heater(s).
With the system on and not dispensing verify that
the temperature is properly controlled to the setpoint. If system cannot control temperature,
replace applicator RTD. See applicator manual.
Check heater resistance and resistance to
ground. Replace heater.
Dispense rate too high for applicator to maintain
setpoint. Consider applicator power and voltage.
With the system on and not dispensing verify that
the temperature is properly controlled to the setpoint. If system cannot control temperature,
replace hose.
Check heater resistance and resistance to
ground. Replace hose.
Ambient temperature must be under 120°F.
Replace MZLP board.
47
Troubleshooting
Code
T4D0
Description
High Temp
Melter
Type
Alarm
Cause
Solution
Melter continues to raise above the set- Check that RTD is seated in melter correctly.
point.
Check that overtemperature switch is plugged in
and check switch resistance. The switch resistance should be near 0 Below 400°F (204°C).
Check melter heaters’ resistance to ground.
Replace heater if a heater is shorted to ground.
T4D_
High Temp
Hose
Alarm
Hose continues to raise above the setpoint.
T4D_
High Temp Gun
Alarm
Applicator assembly continues to raise
above the setpoint.
T4MX
High Temperature, Transformer
Alarm
T6D0
Sensor Error
Melter
Alarm
T6D_
Sensor Error
Hose
Alarm
T6D_
Sensor Error
Gun
Alarm
T6MX
Thermistor Sensor Error, Transformer
Alarm
T8D_
No Temp Rise in
Gun (all zones)
Alarm
Turn system on without dispensing. Verify temperature is properly controlled to the setpoint. If
setpoint is not maintained, replace RTD. If heat
continues to rise past setpoint, replace MZLP.
Turn on system without dispensing. Check if
hose can maintain setpoint temperature. If the
hoses’ RTD readings are unstable, replace hose.
If hose continually heats past setpoint, replace
the MZLP.
Turn on system without dispensing. Check if
applicator can maintain setpoint temperature. If
the applicator’s RTD readings are unstable,
replace the applicator RTD.
Check the applicator heater’s resistance to
ground if the RTD readings are stable but the
applicator’s temperature continues to rise. If the
heater is shorted to ground, replace the applicator’s heater. If heater is not shorted to ground,
replace MZLP.
Thermistor reading greater than 212°F Verify transformer fan is operating correctly and
(100°C).
free of obstructions.
Replace transformer.
No reading from RTD.
Verify connector J5 on MZLP board is securely
connected.
Replace melter RTD. See Replace Band Heater
Temperature Sensor, page 68.
No reading from RTD.
Hose electrical connector not plugged into MZLP.
Replace hose.
No reading from RTD.
Hose electrical connector not plugged into MZLP
or applicator electrical connector not plugged into
heated hose.
Replace applicator RTD.
No reading from transformer thermistor Verify that sensor wire is plugged into J7 on
sensor.
AWB.
Replace transformer.
Temperature reading does not change. Check fuses F3 and F4 (channels 1, 3, 5) or F7
and F8 (channels 2, 4, 6) on MZLP that error
channel is connected to.
Replace applicator manifold heater rods.
NOTE: Heater rods in the applicator manifold
can also cause the no current error.
Check resistance of hose wiring. See hose manual for proper resistance range.
48
333347R
Troubleshooting
Code
T8D_
T8D0
Description
Type
No Temp Rise in Alarm
Hose (all zones)
No Temp Rise in
Melter (all
zones)
Alarm
Cause
Temperature reading does not change.
Temperature reading does not change.
V1I_
Low Can Voltage
Alarm
Bad or overloaded power supply.
V1MW
Low Line Voltage
Deviation
Incoming line to line voltage has
dropped below 175V.
V4I_
High Can Voltage
High Line Voltage
Invalid Power
Type
Alarm
Bad or overloaded power supply.
Alarm
V8M_
No line voltage
Alarm
Incoming line to line voltage has
increased above 265V.
During startup incoming line to line
power was either below 175V or above
265 V.
Incoming line voltage is less than
100 VAC.
WJDX
Pump Solenoid
Error
Alarm
No voltage draw from air solenoid for
air motor.
WKFX
Fill Solenoid
Error
Alarm
No voltage draw from air solenoid for
fill.
WSUX
USB Invalid
Configuration
Deviation
A valid configuration file can't be found
for the USB.
V4MW
V6MW
Alarm
ADM: not functioning properly.
333347R
Solution
Check fuses F5 and F6 (channels 1, 3, 5) or F9
and F10 (channels 2, 4, 6) on the MZLP that controls the error channel.
Check resistance of hose wiring. See hose manual for proper resistance range.
NOTE: Heater wires in the hose can also cause
the no current error.
Check fuses F1 and F2 on MZLP with daughter
board.
Check that RTD is installed in the melter.
Check J1 is properly plugged into the MZLP with
daughter board and in J3 on AWB.
Check heater resistance and compare to reference table. See Check Heater Rod Resistance,
page 58.
Replace melter heater.
NOTE: Heater rods in the melter can also cause
the no current error.
Verify power supply voltage is 24 VDC. If voltage
is low, disconnect the screw terminals +V and -V
on the power supply and re-check voltage reading. If voltage is correct, then disconnect J8 and
J9 from AWB and re-check voltage. If still low
replace AWB. If correct, plug in J9 and recheck
voltage. If low, replace ADM. If correct, plug in
J8. If low, replace MZLP. If voltage is still low,
replace power supply.
Verify incoming power is correct gauge for current draw and verify incoming power lines are
securely attached to disconnect.
Verify power supply voltage is 24 VDC. If voltage
is high, replace power supply unit.
For 3 phase with neutral have qualified electrician verify neutral wire.
Verify incoming power is wired to the disconnect
correctly.
Measure incoming power with system
unplugged. If line voltage is less than 100 VAC,
contact qualified electrician to correct the low
voltage.
Check connector is properly connected to J13 of
the daughter board.
Replace air manifold.
Check connector at J13 of the daughter board.
Replace air solenoids. See page 76.
System is not properly loaded with correct software. Perform Software Update Procedure on
page 81. Retry USB download.
Replace ADM.
49
Troubleshooting
Mechanical and Electrical Troubleshooting
Problem
Cause
Solution
Refill Timeout
Error
The system was unable
to refill in less than 30
seconds.
Check hopper for adequate material and material blocking.
Verify the vacuum transfer system air pressure is 40-80 psi (60 psi recommended) and that air is flowing to the feed wand while attempting to
refill.
Restart system. If the error persists after attempting another refill and
unit is needed immediately for production, place system into the manual refill mode. See Manual Refill on page 34.
Check funnel filter. If plugged, see Replace Funnel Filter on page 42.
The InvisiPac
system takes a
long time to
refill adhesive.
Glue level in hopper is
low.
Check hopper for adequate material and material blocking.
Vacuum flow is
restricted.
Verify the vacuum transfer system air pressure is 40-80 psi (60 psi recommended) and that air is flowing to the feed wand while attempting to
refill.
Check funnel filter. If plugged, see Replace Funnel Filter on page 42.
Vacuum transfer not working
Air to vacuum assembly missing.
Verify the vacuum transfer system air pressure is 40-80 psi (60 psi recommended)
Air at system air gauge
but not to air to shaker.
Check that air line is connected or not pinched.
Air is at shaker but
there is no feed.
Plugged shaker unit, remove from system and remove plug.
Adhesive pellets in storage
bin not covering shaker
head.
Shaker unit not vibrating.
Verify shaker is vibrating during material loading. If not, the ball in the
shaker assembly is stuck. Remove shaker housing and separate to
clean raceway and ball inside.
Materials are blocking
in the hopper. Some
adhesive materials are
prone to blocking. High
ambient temperature
and high humidity can
increase the likelihood
of blocking.
Some materials may require agitation periodically to breakup bridging.
Fill Solenoid
Error
Failure of the fill solenoid or fill solenoid wiring.
Verify wiring between J13 and the refill solenoid is not damaged.
50
Restart system. If the error persists after attempting another refill and
unit is needed immediately for production, place system into the manual refill mode. See Manual Refill on page 34.
333347R
Troubleshooting
Problem
Cause
Solution
Level Sensor
Error
Failure of the level sensor (20) or sensor
cable 16T108 (J14 to
level sensor (20)).
Check sensor cable J14 to level sensor (20).
Enable Diagnostic screen on ADM then check sensor readings on the
Diagnostic screen. Sensor readings should be about 4.3V if melter is
completely empty (melter passage holes are visible). The normal operating range is 3.8 to 4.3V. If the sensor is reading more than 4.2V the
system should be requesting additional material.
Restart system. If the error persists after attempting another refill and
unit is needed immediately for production, place system into the manual refill mode. See Manual Refill on page 34.
The InvisiPac
system expels
adhesive pellets dust when
refilling.
Some adhesives are
very dusty due to the
anti-blocking agents
used or because the
adhesive manufacturing process has created small adhesive
shavings. Feed inlet
cap filter may have
become clogged.
Replace Funnel Filter, see page 42.
The InvisiPac
system will not
stall, pump
continues to
move even if
the applicators
are all closed.
Fluid leak.
Verify that no external leakage is present.
The system
will not dispense material.
System is not up to
temperature.
Verify that the system is active.
Incorrect temperature
set points entered into
ADM.
Verify the temperature settings are correct.
Air motor is not receiving compressed air or
air pressure too low.
Verify that the pump air pressure is set above 20 psi. Check the Pump
Air Solenoid Operation, page 58.
Feed pump not feeding adhesive.
Repair or replace air control assembly as necessary.
Timing control for applicators not working.
InvisiPac system does not control the timing of the applicators. This is
a separate control that needs to be adjusted. Consult control manufacturer or qualified electrician.
Cycle switch or cycle
switch wiring failure.
Check the wiring between the air motor cycle switch and J16.
Repair/replace as required.
Loose or missing fastener (26).
Ensure fastener (26) is tight. See InvisiPac Systems section beginning on page 89 for part identification.
Cycle Switch
Error
333347R
NOTE: Feed cap filter maintenance should be performed at regular
service intervals. It is recommended that the feed cap filter be
inspected at a minimum of every 1200 lb dispensed, however with
some adhesives the frequency may need to be increased significantly
to maintain desired system cleanliness.
Inspect and test the pressure relief valve.
Perform Flush Pressure Relief Valve, page 58.
If system is still unable to stall, the pump or pressure relief valve may
need to be repaired.
Repair or replace pump assembly as necessary.
51
Troubleshooting
Problem
Cause
Solution
USB Log Full
The InvisiPac system
will display this notification when the USB data
logs reach 90% full.
To prevent data loss, download system data. See Appendix B - USB
Downloading, Uploading on page 126.
The InvisiPac
system is displaying pump
runaway or
pump diving.
This error generally
This can occur if the melt rate for the system is exceeded, resulting in
occurs when the pump
air entrapment within the incoming adhesive material and lower than
cavitates due to
desired material temperature.
improper material load1. Verify that the InvisiPac system is not exceeding (11 cpm- HM25,
ing.
22 cpm - HM50) by enabling the diagnostic screen.
2. If the cycle rate is below (11 cpm- HM25, 22 cpm - HM50)and the
system is still running away increase the InvisiPac system temperature in small increments over the current set point.
3. If the pump continues to runaway or dive continue increasing temperature in small increments. Do not exceed maximum temperature
for the material being dispensed.
NOTE: If air has become trapped in the pump, it can be purged by following the Pressure Relief Procedure, page 37.
NOTE: Some materials are more difficult to melt than others and it may
be impossible to process them at the published melt rate. The InvisiPac
system was tested to achieve continuous published melt rates when
dispensing standard EVA packaging grade adhesives in pellet form
with an InvisiPac system temperature of 350°F and hose and applicator temperatures of 350°F.
Level sensor blocked,
reading level incorrect.
Clean feed cap by fill sensor, make sure there are no adhesive pellets
blocking the sensor hole.
The system is not supplying enough air to the
ultrasonic sensor venturi.
Ensure supplied Air Filter Kit 24R707 is installed on system air inlet.
Perform a reverse pressure flush of the sensor venture orifice:
1. Disconnect incoming air from InvisiPac system air inlet (108).
2. Disconnect air tube poush-connect union (91) from ultrasonic sensor air tube (35).
3. Plumb 80-100 psi (550-690 kPa, 5.5-6.9 bar) to outlet end o air tube
union (91).
4. Ensure air is flowing out of the InvisiPac system air inlet (108).
5. Reconnect ultrasonic sensor air tube (35) to air tube union (91).
52
333347R
Troubleshooting
Problem
Cause
Solution
Unable to
achieve published melt rate
at the desired
adhesive temperature.
1. If the cycle rate is below (11 cpm - HM25, 22 cpm - HM50) and the
The InvisiPac system
system is still running away increase the InvisiPac system
monitors temperature
temperature in small increments over the current set point, leave
within aluminum mass
hoses and applicators at desired set point.
of melter (202). As melt
rates exceed 20 lb/hr a
2. If the pump continues to runaway or dive continue increasing temsystem temperature
perature in small increments. Do not exceed maximum temperature
offset may be required.
for the material being dispensed.
NOTE: A 50 amp breaker is required in order to maximize startup and
flow rate performance. Set the breaker size used in the Setup screens.
NOTE: Some materials are more difficult to melt than others, therefore
it may be impossible to process them at the published melt rate. The
InvisiPac system was tested to achieve continuous the published melt
rates when dispensing standard EVA packaging grade adhesives in
pellet form with an InvisiPac system temperature of 350°F and hose
and applicator temperatures of 350°F.
ADM not displaying when
system turned
on
Main breaker
tripping
333347R
Main power circuit
breaker off or power
cord unplugged.
Turn main circuit breaker on or plug in power cord.
Cable on ADM
unplugged.
Reconnect ADM cable.
Connector on AWB
board not plugged in.
ADM cable should be plugged into J9 of the AWB board.
Bad 24VDC power supply.
Check output on power supply should measure 24VDC, if no voltage
reading replace power supply.
ADM not functioning
properly.
Replace ADM.
Wrong setting in ADM
breaker setup.
Wrong breaker setting on ADM in the breaker setting in the setup
screen.
Internal short to ground
in system.
Unplug or disconnect power and measure between each leg of the
power to ground. There should be an open resistance reading.
Too small of a circuit
breaker in main power
panel.
Consult qualified electrician for proper size circuit breaker.
53
Troubleshooting
Problem
Cause
Solution
Slow start-up
time or system
takes longer
than 10 minutes to startup
Wrong setting in ADM
breaker setup.
Wrong breaker setting on ADM in the breaker setting in the setup
screen.
Low incoming voltage.
Incoming voltage should be 200-240VAC for a 230 volt unit and 380400 VAC for a 400 volt unit.
Heater rod in melter
and gun manifold.
Measure and check heater rods in melter or applicator. See applicator manual. See Check Heater Rod Resistance, page 58.
Heated hose.
Measure heater wires in hose, pins C and D. See repair section for
each hose resistance.
Insufficient power supplied to system. Depending on hose and
applicator combinations,
along with minimal supply power, startup time
will vary.
Connect system to a power supply capable of maximum power per system
specification. All changes must be performed by a qualified electrician. See
Models on page 4 for full-power rating. See Startup Time, page 131, for
startup times under varying conditions.
Incorrect RTD setting in
system.
1. Verify melter, hose, and applicator temperatures are all with in the
same range of the room ambient.
No adhesive or
little adhesive
being dispensed
2. If the applicator temperature is either much higher or much lower
than the melter temperature then the RTD setting is not correct for
the RTD being used. Select correct RTD setting in the setup screen
system 2 before beginning.
NOTE: Failure to have the correct RTD value will cause the applicator to either
under-heat or over-heat. Setting for RTD in the ADM screens is higher than
actual RTD value. Consult manufacturer for actual RTD value.
System indicates no errors
and correct
temperature
however applicator is over
the temperature setpoint
54
Incorrect RTD setting in 1. Verify melter, hose, and applicator temperatures are all within the
same range of the room ambient.
system.
2. If the applicator temperature is either much higher or much lower
than the melter temperature then the RTD setting is not correct for
the RTD being used. Select correct RTD setting in the setup screen
system 2 before beginning.
NOTE: Failure to have the correct RTD value will cause the applicator
to either under-heat or over-heat. Setting for RTD in the ADM screens
is lower than actual RTD value. Consult manufacturer for actual RTD
value.
333347R
Troubleshooting
Problem
Cause
Solution
No adhesive or
incorrect
amount of
adhesive output when all
dispense modules are triggered
Plugged applicator
manifold filter.
Replace applicator manifold filter. Graco applicator manifold filter in
bottom of manifold or inline filter on other applicators.
Clogged hose.
Flush or replace hose.
Solenoid valve.
Check that correct voltage is input into solenoid valve. If voltage is correct, replace solenoid.
No signal from control
to solenoid.
If no voltage is present at solenoid, check control cable and pattern
controller. Replace component.
Solenoid mufflers
plugged.
Replace solenoid mufflers.
No air to air solenoid.
Re-establish air supply to solenoid.
Plugged system outlet
filter.
Replace Outlet Filter. See page 41.
If multiple applicators
are triggered simultaneously, maximum
pump rate may be
exceeded.
Stagger applicator opening to reduce the maximum required flow rate
to below maximum pump rate.
Plugged tip on dispense module.
Replace tip on dispense module.
Dispense module in
closed/partial open
position.
Replace dispense module.
Plugged applicator
manifold filter (single
dispense module applicator).
Replace applicator manifold filter. Graco applicator manifold filter in
bottom of manifold or inline filter on other manifolds.
Clogged hose
Flush or replace hose.
Solenoid valve
Check that correct voltage is input into solenoid valve. If voltage is correct, replace solenoid.
No signal from control
to solenoid
If no voltage is present at solenoid, check control cable and pattern
controller. Replace component.
Plugged solenoid mufflers
Replace solenoid mufflers.
No air to solenoid
Re-establish air supply to solenoid.
Plugged system outlet
filter.
Replace Outlet Filter. See page 41.
If multiple applicators
are triggered simultaneously, maximum
pump rate may be
exceeded.
Stagger applicator opening to reduce the maximum required flow rate
to below maximum pump rate.
No adhesive or
incorrect
amount of
adhesive out of
one/some of
the dispense
modules when
triggered
333347R
55
Troubleshooting
Problem
Cause
Solution
Adhesive flowing out of
one/some
applicators
when not triggered
Failed valve in the open
position.
Replace dispense module.
Adhesive pressure too
high.
Reduce air pressure to air motor.
Heat rod failure in applicator manifold.
Check resistance on heater rods. Repair applicator manifold if heater rods
measure open.
Loose cable connection
at system or manifold.
Check cable connections on both ends of the hose.
RTD failure.
Check resistance on the RTD, if out of normal range replace RTD.
Incorrect RTD setting in
the ADM setup.
Set correct RTD value in the ADM setup screen. Consult manufacturer for correct RTD value.
Thermal cutoff is tripped.
Measure resistance of the thermal cutoff at room temperature. If open,
replace.
Dispense module is
loose on the manifold.
Tighten screws on loose dispense module.
Dispense module o-ring
failed.
Replace o-rings on the back of the leaking dispense module.
Failed dispense module,
adhesive leaking out
middle of dispense module.
Replace dispense module.
Hose loose.
Tighten hose.
Fuse blown in F1 and F2.
Check heater rods for a short or a short between the rod wires and ground.
Cable to over-temperature switch off or broken.
Check connection of cable to over-temperature switch both to main board and
to switch. If connection good, look for break in wire.
Over-temperature switch
tripped.
Measure over-temperature switch resistance. It should read close to 0 ohms
when at room temperature. If open, replace over-temperature switch. Make
sure main system power is off when making measurement.
No air being supplied to
air motor.
Check incoming air supply. air motor is disabled until system reaches “Active”
state. When “Active”, the pump air solenoid should supply air to the air motor.
Air solenoid not enabling
the air motor.
Check solenoid voltage, if 24VDC present at air solenoid replace air solenoid.
Air present at air motor
but it will not work.
Replace air motor.
No power to unit.
Check main power breaker is turned on.
Check that power plug is connected.
Applicator will
not heat.
Adhesive leaking from manifold or dispense
module.
No melter heat.
Air motor will
not function.
System not turning on.
56
333347R
Troubleshooting
Problem
Cause
Solution
Static shock
when touching
shaker or adhesive bin.
Ground wire not in place
on shaker assembly.
Some adhesives, flow
rates, and ambient conditions can cause excessive
static buildup on the
shaker tube.
Attach a ground wire from the shaft of the shaker unit to a true earth ground.
Order shaker grounding kit 24R708.
Adhesive not
dispensing at the
correct time.
Dispense modules opening at the wrong time.
InvisiPac system does not control the opening and closing of the applicators.
The separate controller needs to be adjusted. Consult pattern control manufacturer or qualified electrician.
Pump and vacuum feed system cycle on and
off before temperature setpoint
is achieved.
Solenoid connector is
installed into the light
tower plug on the MZLP
daughter board
Move solenoid connector from J12 (light tower) to J13 (solenoid valves) on the
daughter board on the MZLP.
333347R
57
Troubleshooting
Flush Pressure Relief Valve
Check the Pump Air Solenoid Operation
Perform this procedure when directed in the Troubleshooting table.
Perform this procedure when directed in the Troubleshooting table.
1. With the system active at the required adhesive
temperature, set the air motor air pressure to 20 psi
(140 kPa, 1.4 bar).
NOTE: System must be up to operating temperature for
pump solenoid to trigger on.
1. If the heating system and pump is disabled,
2. Remove the air line (36) from the pressure relief
valve.
press
to enable the heaters and pump.
2. Wait for system to reach the temperature setpoints.
3. Set pump air pressure to 20 psi (140 kPa, 1.4 bar).
4. Remove the 3/8 in. OD air line from the air motor.
5. Verify that air is flowing through the air line.
6. If air is not flowing, check the wiring between J13
and the pump solenoid.
Check Heater Rod Resistance
36
Use the table to determine if heater elements need to be
replaced.
HM25
WLD
FIG. 26
3. Plug air line and allow the air motor to cycle.
4. Re-connect air line to relief valve and check whether
the system will stall.
HM50
Ref. Element Wattage Ohms Wattage Ohms
Band
208
1250
41-51
2000
26-32
Heater
500
103-127 1500
34-42
209 Melter
Rod
34-42
1000
52-64
210 Base Rod 1500
34-42
1000
52-64
271 Pump Rod 1500
5. If system still does not stall, purge ten pump cycles
of material through one applicator.
6. Repeat this entire procedure until no additional air is
expelled from the applicator.
58
333347R
Troubleshooting
Red
Yellow
Green
MZLP Troubleshooting
7 89
56
J3
234
01
MZLP
ti20348a
FIG. 28: MZLP Diagnostic LED Location
WLD
FIG. 27: MZLP LED Signals
NOTE: The MZLP LED is located on the inside of the
electrical enclosure. To view, remove the electrical
enclosure front access door.
Signal
Description
Green On
MZLP is powered up and input
voltage is within operating conditions.
Yellow On
Internal communication in process
Red Solid
MZLP failure. See troubleshooting table.
Red Flashing
Software update in process or
missing software.
333347R
59
Repair
Repair
NOTE: Some procedures require special tools. Read
through each procedure prior to beginning it to ensure
you have the required tools to complete the entire procedure. Order any required tools and have them on
hand prior to beginning the procedure.
Disassembly (see FIG. 29):
1. Flush the system. See page 38.
2. Close the bleed-type ball valve installed at the system air inlet to relieve all air pressure in the system.
NOTICE
3. Turn main power switch OFF.
When performing any procedure that requires
removal of seals or other soft parts, do not leave a
system that has not been flushed disassembled for
more than 30 minutes to prevent the adhesive from
hardening. Hardened adhesive will damage the seals
and other soft parts during installation.
4. Remove plastic shroud (27).
5. Remove vacuum transfer inlet funnel.
6. Remove air lines from relief valve (245) and air
motor (218).
7. Remove four nuts (3) securing melter shield (27) in
place then remove melter shield.
Pump
8. Remove air motor assembly:
Replace Throat Seal, Throat Bearing, Piston Rod,
Piston Seal, and Piston Bearing
a. Remove retaining ring (239).
b.
Remove dowel pin (238).
c.
Remove three screws (240).
218
9. Use a flat head screwdriver and a rubber mallet to
break loose the retaining nut (235).
240
27
223
226
222
239
235
233
234
10. Use channel lock pliers to remove the retaining
nut (235).
11. Insert an allen wrench through the hole in the top of
the piston rod (223) to lift the piston rod (223) up out
of the manifold. This will also pull out the throat
u-cup (234) and throat bearing (233).
238
224
225
12. Remove piston valve (222) from piston rod (223).
13. Remove and discard piston u-cup (225) and
bearing (226).
245
3
Reassembly (see FIG. 29):
1. Assemble piston rod:
a. Install new piston u-cup (225) onto piston
rod (223) with the lips facing the rod.
b.
WLD
Install piston bearing (226) onto piston rod (223)
with grooved end towards the center of the piston rod.
FIG. 29
60
333347R
Repair
c.
Install piston valve (222) onto piston rod (223).
Torque to 24-30 ft-lb (33-41 N•m).
throat bearing (233) into place and seat the throat
u-cup.
2. To protect the seals from the sharp threads, place
seal installation tool 15B661 into the throat bore.
See FIG. 30.
235
15B661
233
203
ti20877a
ti21144a
FIG. 30
FIG. 32
3. Push the piston rod assembly (223) into the melter
outlet manifold (203).
4. Grease the throat u-cup (234) and slide the u-cup
over the piston rod (223) with the lips facing down.
5. Place a 7/8 in. deep-well socket (3/8 in. drive) over
the piston rod (223) then use a rubber mallet to gently tap throat u-cup (234) into place. See FIG. 31.
7. Remove seal installation tool.
8. Install retaining nut (235). See FIG. 30.
9. Install air motor assembly (see FIG. 29):
a. Install three screws (240).
b. With retaining ring around piston rod, install
dowel pin (238).
c.
Install retaining ring (239) over dowel pin.
10. Use nuts (3) to install melter shield (27).
11. Connect air lines to relief valve and air motor.
12. Install plastic shroud (27).
234
ti21047a
FIG. 31
6. Slide throat bearing (233) over the piston rod (223).
Use socket and tap with a rubber mallet to press
333347R
61
Repair
Reassembly (see FIG. 33):
Replace Pump Inlet Housing Checks
1. Install new o-ring (231), o-ring (229), seat (228),
and ball (227) then use a 1/2 in. drive ratchet
without a socket to install and tighten foot
valve (230) onto melter.
2. Replace cross over tube (269 using new o-rings
(270). Angled ring faces the melter base.
3. Apply anaerobic thread sealant on threads of four
bolts (246) and connect pump to melter outlet.
Torque to 12-18 ft-lb (16-24 N•m).
270 269
203
246
227
228
229
231
230
WLD
WLE
FIG. 33
Disassembly (see FIG. 33):
1. Flush the system. See page 38.
2. Close the bleed-type ball valve installed at the system air inlet to relieve all air pressure in the system.
3. Turn main power switch OFF.
4. Remove four bolts (246) and pump manifold (203)
from melter outlet.
5. Remove cross over tube (269) and discard o-rings
(270).
6. Use a 1/2 in. drive ratchet without a socket to
remove foot valve (230) from bottom of melter outlet
manifold (203).
7. Remove and discard seat (228), ball (227),
o-ring (229), and o-ring (231).
62
333347R
Repair
Replace Pump Cylinder Seals and Piston Seals
7. Remove air motor assembly. See FIG. 29 on
page 60:
a. Remove retaining ring (239).
218
b.
Remove dowel pin (238).
c.
Remove three screws (240).
8. Use a flat head screwdriver and a rubber mallet to
break loose the retaining nut (235).
9. Use channel lock pliers to remove the retaining
nut (235).
235
233
234
239
233
224
226
222
10. Insert an allen wrench through the hole in the top of
the piston rod (223) to lift the piston rod (223) up out
of the manifold. This will also pull out the throat
u-cup (234) and throat bearing (233).
11. Replace Pump Inlet Housing Checks. See page
62.
12. Use a 1/2 in. drive ratchet without a socket to
remove foot valve (230) from bottom of melter outlet
manifold (203). See FIG. 34, page 63.
203
13. Insert cylinder tool (1301) into bottom of melter outlet manifold (203). Use a rubber mallet to gently
remove cylinder (216).
217
216
217
230
WLD
FIG. 34
1301
Disassembly (see FIG. 29):
1. Flush the system. See page 38.
203
2. Close the bleed-type ball valve installed at the system air inlet to relieve all air pressure in the system.
217
3. Turn main power switch OFF.
216
4. Remove plastic shroud (27). See FIG. 29 on
page 60.
5. Remove air lines from relief valve (245) and air
motor (218) See FIG. 29 on page 60.
6. Remove nuts (3) securing melter shield (27) in
place then remove melter shield. See FIG. 29 on
page 60.
333347R
217
ti20880a
FIG. 35
14. Remove and discard cylinder seals (217). See FIG.
35.
63
Repair
Reassembly:
1. Apply grease to seals (217) then install new cylinder
seals (217) onto cylinder (216). See FIG. 35.
1303
217
216
217
1302
203
ti21049a
FIG. 36
2. Place female cylinder installation tool (1302) into
melter outlet manifold (203) to protect seals from
sharp threads. See FIG. 36.
3. Use male cylinder installation tool (1303) to press
cylinder (216) into melter outlet manifold (203). If
necessary, use rubber mallet tap into place. See
FIG. 36.
4. Use a 1/2 in. drive ratchet without a socket to install
and tighten foot valve (230) into bottom of melter
outlet manifold (203). See FIG. 34, page 63.
5. Perform Replace Pump Inlet Housing Checks on
page 62.
6. Perform Reassembly portion of the Replace Throat
Seal, Throat Bearing, Piston Rod, Piston Seal,
and Piston Bearing procedure which starts on
page 60.
64
333347R
Repair
Melter
6. Remove screws (8) then remove electrical enclosure front access door (10).
Remove Melter Assembly
7. Disconnect heater rod wires from J4 connector on
AWB board.
8. Remove the air tube (36) from the relief valve (245).
Pull the air tube from the metal shroud (27).
FF
9. Remove nuts (3) on the back metal shroud (27)
then remove shroud.
10. Remove fabric melter insulator (53).
30
81
11. Loosen screw (AA) then remove sensor (125). See
FIG. 40, page 68.
53
29
12. Loosen hose clamp (81) then remove funnel (FF).
13. Remove wire connectors from the over-temperature
switch (251).
218
203
75
14. Remove insulators (53, 75) from the melter
assembly (5).
251
3
5
15. Disconnect the fill sensor cable from the fill
sensor (20). See Replace Fill Sensor, page 73.
8
245
16. Disconnect the pump cycle sensor cable from the
air motor.
10
WLD
17. Remove the air tube from the air motor (218).
18. Loosen screw (AA) then remove sensor (125). See
FIG. 39 on page 67.
1
3
27
36
19. Disconnect ground screw (87) and ring terminal (88)
from melter assembly.
FIG. 37
NOTE: This only needs to be done when replacing
items that require access to the bottom of the melter
assembly.
1. Perform Drain the System procedure on page 38
then wait for system to cool.
87
2. Close the bleed type ball valve at the system air
inlet.
88
3. Turn main power switch OFF.
WLD
FIG. 38
20. Remove electrical enclosure front access door (10).
4. Disconnect all heated hoses from the melter outlet
manifold.
5. Remove cable from ADM (30) then slide forward the
shroud (29) and remove it from the system.
333347R
65
Repair
21. Remove all heater wires from the following terminals. Pull wires up through the rubber grommet on
the top of the electrical enclosure (1).
5. Group the 4 sets of heater wires together and run
them through the grommet on the top of the electrical enclosure (1). Connect wires as noted below.
Item
Wire Marking Wire Marking
1
2
Item
Wire Marking Wire Marking
1
2
Band Heater (208)
J4-1
J4-2
Band Heater (208)
J4-1
J4-2
Melter Heater Rod
(209)
J4-5
J4-6
Melter Heater Rod (209) J4-5
J4-6
Base Heater Rod (210)
J4-7
J4-8
Base Heater Rod (210) J4-7
J4-8
Pump Heater Rod (271) J4-3
J4-4
Pump Heater Rod (271) J4-3
J4-4
6. Connect air tube to air motor (218).
22. Remove four nuts (3) then remove melter assembly
from system. Save any loose insulators for reassembly.
7. Connect fill sensor cable to the fill sensor (20).
23. Remove bolts (259), insulators (249), washers
(268), and melter assembly from base (257).
9. Install funnel (FF) then tighten clamp (81).
Install Melter Assembly
1. Route melter heater rod (209) wire through large
hole in the melter base (257) then through small
hole in side of melter base (257).
2. With the 10 insulators (4) in place on the melter
assembly, place melter assembly on melter
base (257).
8. Connect pump cycle sensor cable to air motor.
10. Install temperature sensor (125) into melter then
tighten screw (AA) on band heater. See FIG. 39 on
page 67.
11. Install insulators (53,75) onto the melter
assembly (5).
12. Connect ground wire ring terminal (87) and ground
screw (88) to melter assembly (5).
13. Connect wire connectors to the over-temperature
switch (251). See FIG. 41 on page 69.
14. Use nuts (3) to install metal shroud (27).
NOTICE
To prevent crushing the soft insulators (4), do not
overtighten the 4 bolts (259) in the following step.
Torque to 5-11ft-lb (7-15 N•m).
15. Pull the relief valve air tube (36) through the metal
housing then attach air tube to relief valve (245).
16. Install front access door (10) onto electrical
enclosure (1).
3. Use 4 bolts (259) to secure washers (268) and
melter assembly to melter base (257).
17. Feed ADM cable through shroud then install shroud
and connect cable to ADM.
4. Use four nuts (3) to secure melter assembly to system.
18. Reconnect all heated hoses to the melter outlet
manifold (203).
19. Turn main power switch ON.
20. Open system air inlet ball valve.
66
333347R
Repair
Replace Band Heater
7. Loosen screw (AA) then remove sensor (125).
8. Locate the J4-1 and J4-2 wires in AWB board and
remove wires.
8
9. Pull wires up through grommet (63) on top of the
electrical enclosure (1). Clip any wire ties that hold
the wires in place.
F
10. Continue loosing screw (AA) then slide band
heater (208) up to remove.
80
Reassembly (see FIG. 39):
53
208
1. Install band heater (208) on the melter with the
opening and screw facing the front of the system in
alignment with the sensor port.
2. Install sensor (125).
AA
125
3. Slide band heater up then tighten screw (AA).
NOTE: Band heater should be oriented to hold sensor in
place when tightened. It should not bend the sensor.
4. Route band heater wires through grommet (63) in
the top of the electrical enclosure (1).
1
63
10
WLD
FIG. 39
Disassembly (see FIG. 39):
1. Once the fluid level is low enough, close the
bleed-type ball valve installed at the system air inlet.
2. Turn main power switch OFF.
3. Disconnect cable from ADM (30) then remove
shroud (29).
4. Remove front access door (10) from electrical
enclosure (1).
5. Connect wires to AWB board as marked. Wires
should be marked as shown in the following table.
Item
Wire
Marking 1
Wire
Marking 2
Band Heater (208)
J4-1
J4-2
6. Install electrical enclosure access door (10). See
FIG. 39.
7. Use clamp (80) and screws (8) to install funnel
assembly (F) on melter assembly. Ensure rubber
housing is fully seated on melter or incorrect refilling
may occur. Tighten band clamps to 25 in-lbs.
8. Install fabric melter insulator (53).
9. Feed ADM cable through shroud then install shroud
and connect cable to ADM.
10. Open system air inlet ball valve.
5. Remove fabric melter insulators (53).
11. Turn main power switch ON.
6. While system is still near operating temperature,
loosen clamp (80) and then remove screws (8) and
funnel assembly (F). When removing rubber housing from melter, separate rubber from melter by
pressing on inside surface.
333347R
67
Repair
Replace Band Heater Temperature Sensor
Reassembly (see FIG. 40):
1. Route new harness wires through grommet (63) in
the top of the electrical enclosure.
2. Connect wire connectors to over-temperature
switch (251). See FIG. 41 on page 69.
53
3. Place band heater temperature sensor (125) in
melter.
4. Tighten screw (AA).
NOTE: Screw should lightly squeeze the temperature
sensor to hold it in place. It should not bend the sensor.
5. Connect new harness to MZLP connector labeled
J5.
80
40
AA
125
10
WLD
FIG. 40
Disassembly (see FIG. 40):
1. Close the bleed-type ball valve installed at the
system air inlet to relieve all air pressure in the
system.
6. Install electrical enclosure access door (10). See
FIG. 39 on page 67.
7. Install fabric melter insulator (53).
8. Use nuts (3) to install metal shroud (27). See FIG.
37, page 65.
9. Route relief valve air tube through the metal shroud
then attach to the relief valve.
2. Turn main power switch OFF.
10. Feed ADM cable through shroud then install shroud
and connect cable to ADM.
3. Disconnect cable from ADM then remove shroud.
11. Turn main power switch ON.
4. Remove air tube (36) from relief valve. Pull the air
tube through the metal shroud (27).
12. Open system air inlet ball valve.
5. Remove nuts (3) then remove metal shroud (27).
See FIG. 37, page 65.
6. Remove fabric melter insulator (53).
7. Loosen screw (AA) then remove sensor (125).
8. Remove electrical enclosure access door (10).
9. Disconnect the temperature sensor cable from
MZLP connector labeled J5. See FIG. 40.
NOTE: This connector also includes the over-temperature switch wires.
10. Disconnect wire connectors from over-temperature
switch (251). See FIG. 41 on page 69.
11. Pull cable out of the electrical enclosure then discard sensor (125) and wires.
68
333347R
Repair
Replace Heater Over-Temperature Switch
5. Feed ADM cable through shroud then install shroud
and connect cable to ADM.
6. Open system air inlet ball valve.
7. Turn main power switch ON.
251
Replace Heater Rod
255
206
ti21052a
271
FIG. 41
Disassembly (see FIG. 41):
1. Close the bleed-type ball valve installed at the
system air inlet to relieve all air pressure in the
system.
2. Turn main power switch OFF.
206
210
3. Disconnect cable from ADM then remove shroud.
4. Remove air tube (36) from relief valve. Pull the air
tube through the metal shroud (27). See FIG. 43,
page 70.
5. Use 7/16 in. socket to remove nuts (3) then remove
metal shroud (27).
209
206
6. Disconnect the wire connectors from the over-temperature switch (251).
209
WLD
7. Remove the screws (255) securing the over-temperature switch (251) to the melter assembly (5),
then remove the switch.
FIG. 42
Disassembly (see FIG. 42):
Re-assembly (see FIG. 41):
1. Use the two screws (255) to secure the new
over-temperature switch (251) to the melter.
2. Connect wire connectors to new over-temperature
switch.
3. Use 7/16 in. socket to install nuts (3) to secure
metal shroud (27).
4. Route relief valve air tube (36) through the metal
shroud then attach to the relief valve.
333347R
NOTE: This procedure is for replacing any of the above
heater rods.
1. Turn main power switch OFF.
2. If replacing the melter heater rod (209), Remove
Melter Assembly. See page 65.
3. Disconnect cable from ADM then remove
shroud (29).
69
Repair
4. If removing the pump heater rod (271):
a. Remove the air tube (36) from the relief
valve (245). Pull the air tube through the metal
shroud (27).
b.
7. Feed ADM cable through plastic shroud then install
plastic shroud and connect cable to ADM.
Replace Fluid Pressure Relief Valve
Remove nuts (3) then remove shroud (27).
5. Remove electrical enclosure front access door (10).
See FIG. 39, page 67.
27
6. Disconnect heater rod wires from terminal blocks
described in the following table.
Item
Wire Marking 1 Wire Marking 2
Band Heater (208)
J4-1
J4-2
Melter Heater Rod (209) J4-5
J4-6
Base Heater Rod (210)
J4-7
J4-8
Pump Heater Rod (271) J4-3
J4-4
3
36
7. Pull heater rod wires up through the grommet in the
top of the electrical enclosure (1).
244
245
8. Remove heater rod retaining ring (206) then remove
and discard heater rod (209, 210, 271).
Reassembly (see FIG. 42):
1. Route new heater rod cable through grommet (63)
in top of electrical enclosure then connect new
heater rod wires to terminal blocks as described in
the previous table.
NOTICE
To prevent damaging the heater rod, do not use
thermal grease in the following step.
2. Install heater rod then install heater rod retaining
ring (206). See FIG. 42.
3. Install electrical enclosure access door (10). See
FIG. 39, page 67.
4. If replacing the melter heater rod (209), Install
Melter Assembly. See page 65.
5. If replacing pump heater rod (271), feed ADM cable
through shroud then install shroud and connect
cable to ADM.
6. If installing the pump heater rod (250), install the
metal shroud (27):
a. Place metal shroud on system.
70
b.
Install and tighten nuts (3).
c.
Pull the air tube through the metal shroud (27)
then connect the air tube (36) to the relief
valve (245).
ti20757a
FIG. 43
1. Drain the System. See page 38.
2. Close the system air inlet ball valve.
3. Turn main power switch OFF.
4. Remove the air tube (36) from the relief valve (245).
Pull the air tube through the metal shroud (27). See
FIG. 43.
5. Remove nuts (3) then remove shroud (27).
6. Use crescent wrench to remove melter fluid pressure relief valve (245). See FIG. 43.
7. Use an o-ring pick to remove o-ring (244).
8. Install o-ring (244) into manifold.
NOTICE
To prevent damage to o-ring, ensure o-ring is seated
properly prior to moving to next step.
9. Thread new fluid pressure relief valve (245) into
manifold. See FIG. 43. Once hand-tight, use crescent wrench to tighten.
10. Use nuts (3) to install metal shroud.
11. Connect air tube to pressure relief valve.
12. Feed ADM cable through plastic shroud then install
shroud and connect cable to ADM.
333347R
Repair
Multi-Zone Low Power Temperature Control Module (MZLP)
Replace MZLP Fuse
Fuse
Part
24V510 MZLP Fuses
MZLP Identification
F1, F2
250VAC, 25A, fast acting, white, 0.25 in x 1.2 in
F3-F10
250VAC, 8A, fast acting
Fuse Kits
24V510
Kit
MZLP
Description
24V289
24V510
Includes standard clear fuses.
24X480
Includes ceramic fuses used for
food industries.
1. Turn main power switch OFF.
2. Remove electrical enclosure front access door (10).
Key
A
F1 and F2 fuses are physically larger than F3-F10
B
Yellow sticker on relay
C
Marked 24V133
NOTICE
Using an improper tool, such as screw drivers or
pliers may break glass on fuse.
C
F8 F7
NOTE: F1 and F2 are white ceramic and indicate 25A
on the barrel.
J1
J2
F10 F9
3. Use a proper non-conductive fuse puller tool to
remove the blown fuse.
F4 F3
F2
F6
F1
A
NOTE: F3-F10 are clear glass and indicate 8A on the
barrel.
B
4. Install electrical enclosure front access door (10).
F5
J7
J6
J5
J3
WLD
FIG. 44: MZLP ID and Fuse Locations
NOTICE
To prevent system damage, always use fast acting
fuses. Fast acting fuses are required for short-circuit
protection.
333347R
71
Repair
2. Apply channel label stickers to new MZLP. See FIG.
45.
Replace MZLP
3. Use four screws (114) to install MZLP (112) to electrical enclosure (1).
Disassembly:
4. Reconnect cables to MZLP (112).
1. Turn main power switch OFF.
2. Remove electrical enclosure front access door (10).
3. Disconnect heated hose electrical connectors from
outside of MZLP (112).
4. Note location of each cable, then unplug all cables
from the MZLP (112) that will be replaced. See FIG.
45.
5. Remove four screws (114) securing MZLP (112) to
electrical enclosure (1) then carefully remove MZLP
from electrical enclosure. See FIG. 45.
NOTE: Do not force the electrical connection. Minimal
force is required to seat the connector. If resistance is
felt, stop and verify the connector orientation.
NOTE: If unable to determine connector location, see
Electrical Schematics on page 82.
5. Install electrical enclosure front access door (10).
6. Connect heated hose electrical connectors to new
MZLP.
NOTE: MZLP may need updated software. See Software Update Procedure on page 81.
Replace MZLP Daughter Card
MZLP
#1
Disassembly:
MZLP
#3
112
114
MZLP
#2
FIG. 45
6. Replace MZLP. See FIG. 45 for MZLP #1, MZLP #2,
and MZLP #3 identification.
1. Turn main power switch OFF.
2. Remove electrical enclosure front access door (10).
3. Note location of each cable then unplug all cables
from MZLP daughter card (112a).
4. Remove four mounting screws (112b) from daughter card (112a) and set aside.
112b
a. To replace MZLP #1, remove the daughter card
and standoffs, and re-install them on the new
MZLP #1.
112a
b. To replace MZLP #3, remove the jumper (135)
from MZLP #3 J5 connector and reinstall it on
the new MZLP #3 J5 connector.
ti20342a
112
Rotary Switch
Reassembly:
1. Set MZLP rotary switch to “1” on MZLP with
daughter card. Set MZLP rotary switch to “2” or “3”
on MZLP without daughter card, based on location.
See FIG. 46 for rotary switch location.
72
FIG. 46
5. Unplug daughter card (112a) from the MZLP
#1 (112).
333347R
Repair
Reassembly:
1. Plug new daughter card (112a) into the MZLP (112).
2. Use screws (112b) to secure daughter card to
MZLP (112).
3. Gently pull up on cable while unscrewing fill sensor
connector then remove fill sensor cable from fill
sensor (20).
4. Loosen fill sensor jam nut then remove fill
sensor (20) from sensor housing (73).
3. Connect cables to new daughter card (112a).
Reassembly (see FIG. 47):
NOTE: Do not force the electrical connection. Minimal
force is required to seat the connector. If resistance is
felt, stop and verify the connector orientation.
1. Thread new fill sensor (20) into sensor housing (73).
Bottom out the sensor in the sensor housing then
back out 1/2 turn.
NOTE: If unable to determine connector location, see
Electrical Schematics on page 82.
2. Tighten jam nut on fill sensor (20).
3. Connect fill sensor cable to new fill sensor (20).
4. Install electrical enclosure front access door (10).
4. Replace filter element and cover (68).
System
Replace ADM
Replace Fill Sensor
58
68
30
CC
ti20763a
20
FIG. 48
1. Turn main power switch OFF.
73
2. Disconnect cable (CC) from bottom of ADM (30).
See FIG. 48.
3. Remove ADM from bracket (58).
4. Install new ADM into bracket.
WLD
5. Connect cable to bottom of new ADM.
FIG. 47
Disassembly (see FIG. 47):
NOTE: ADM may need updated software. See Software Update Procedure on page 81.
1. Turn main power switch OFF.
2. Remove filter cover (68) and filter element.
333347R
73
Repair
Replace AWB
Reassembly:
1. Use two screws (144) to secure power supply
bracket (145) to new AWB (143). See FIG. 49.
2. Mount power supply (146) to power supply bracket
(145). See FIG. 49.
131
3. Connect connector (labeled AWB-J1) on power supply harness (147) to J1 on AWB (143). See Electrical Schematics, page 82.
144
145
4. Use two screws (131) to install AWB (143) to electrical enclosure (1). See FIG. 49.
146
5. Reconnect cables to AWB (143).
NOTE: Do not force the electrical connection. Minimal
force is required to seat the connector. If resistance is
felt, stop and verify the connector orientation.
145
131
FIG. 49: AWB and Power Supply
NOTE: If unable to determine the connector location,
see Electrical Schematics, page 82.
Disassembly:
6. Install electrical enclosure front access door (10).
1. Turn main power switch OFF.
2. Note location of each cable, then unplug all cables
from the AWB. See Electrical Schematics, page
82.
3. Remove 2 screws (131) securing AWB (143) to
electrical enclosure (1) then carefully remove AWB.
4. Remove power supply (146) from power supply
bracket (145) by releasing mounting tab on the side
of the power supply. See FIG. 49.
5. Remove two screws (144) securing power supply
bracket (145) to AWB (143) and remove power supply bracket. See FIG. 49.
74
333347R
Repair
Replace Power Supply
Replace Power Supply Harness
Disassembly:
Disassembly:
1. Turn main power switch OFF.
1. Turn main power switch OFF.
2. Remove electrical enclosure front access door (10).
2. Remove electrical enclosure front access door (10).
3. Remove power supply (146) from power supply
bracket (145) by releasing mounting tab on the side
of the power supply. See FIG. 49.
3. Disconnect screw terminal connections between
power supply (146) and power supply harness (147)
according to the following table.
4. Disconnect screw terminal connections between
power supply (146) and power supply harness (147)
according to the following table. See FIG. 49.
Power Supply
Connection
V+
VGND
L
N
Harness Label
V+
VGND
L
N
Power Supply
Connection
V+
VGND
L
N
Harness Label
V+
VGND
L
N
4. Unplug power supply harness (147) from J1 on
AWB (143). See Electrical Schematics, page 82.
Reassembly:
Reassembly:
1. Make connections between power supply harness
(147) and new power supply (146) according to the
following table:
2. Reattach power supply (146) to power supply
bracket (145). See FIG. 49.
1. Make connections between power supply harness
(147) and new power supply (146).
2. Connect connector (labeled AWB-J1) on power supply harness (147) to J1 on AWB (143). See Electrical Schematics, page 82.
3. Install electrical enclosure front access door (10).
3. Install electrical enclosure front access door (10).
333347R
75
Repair
Air Controls
405
402
8
9
Replace Air Control Solenoids
NOTE: In order to replace the air control solenoids, the
system must be tipped back to access underneath the
electrical enclosure.
Disassembly (see FIG. 50):
1. Turn main power switch OFF.
1
2. Disconnect plug from power outlet or turn off circuit
breaker for incoming power.
WLD
3. Close the bleed-type ball valve installed at the system air inlet to relieve all air pressure in the system.
FF
FIG. 50
4. Remove front access panel (10) from electrical
enclosure (1).
5. Remove the transformer assembly; for 480V systems only (see FIG. 51):
a. Disconnect transformer wires from J2 connector
on AWB board and the main power switch.
b.
142
140
Remove three screws (142) and InvisiPac system off of transformer assembly (140).
6. Use 3/8 in. socket to remove two screws (8).
7. Note location of each air line connection.
WLD
FIG. 51
Reassembly (see FIG. 50):
8. Insert hands through access holes (FF), see FIG.
50, in bottom of electrical enclosure then disconnect
air lines from air control solenoids (402).
9. Disconnect air control solenoids cable from MZLP
daughter board connector J13. Pull wire out of the
electrical enclosure.
10. Remove two screws (405) securing solenoids (402)
to air control assembly (9) then remove air control
solenoids.
1. Use two screws (405) to secure new
solenoids (402) to air control assembly (409).
2. Feed the new solenoid cable into the electrical
enclosure and attach cable to MZLP daughter board
connector J13.
3. Insert hands through access holes (FF), see FIG.
50, in bottom of electrical enclosure then connect air
lines to air control solenoids (402).
4. Slide air control assembly (9) into place then use
two screws (8) to secure to electrical enclosure (1).
5. For 480V systems, install transformer assembly
(140) with screws (142) and reconnect transformer
wires to J2 connector on AWB board and the main
power switch.
6. Install electrical enclosure front access door.
76
333347R
Repair
Replace Air Control Gauge
NOTICE
8
403a
403c
In the following step, do not overtighten the two
nuts (403a). Overtightening may cause the gauge to
break.
403
9
4. Orient gauge as desired then tighten two
nuts (403a) to secure gauge (403) in place.
5. Slide air control assembly (9) into place then use
two screws (8) secure to electrical enclosure.
Air Motor
Replace Pilot Valve
403b
C
WLD
511
FIG. 52
218
Disassembly (see FIG. 52):
1. Turn main power switch OFF.
2. Close the bleed-type ball valve installed at the system air inlet to relieve all air pressure in the system.
3. Remove two screws (8) then slide air control
assembly (9) out from electrical enclosure (1) so the
back of the gauges are exposed.
4. Remove two nuts (403a) securing gauge (403) in
place then remove bracket (403c).
5. Place one small crescent wrench on the brass part
of the gauge then use a second small crescent
wrench to remove the air fitting (403b).
6. Remove air gauge from panel.
Reassembly (see FIG. 52):
1. Slide new air gauge into panel and slide the bracket
onto the back of the gauge. Install air fitting onto the
gauge by hand, do not tighten yet.
WLD
FIG. 53: Top Pilot Valve
1. Close the bleed-type ball valve installed at the
system air inlet to relieve all air pressure in the
system.
2. Turn main power switch OFF.
3. Replace top pilot valve (511):
a. Use crescent wrench to remove rod cover (C).
b.
Use 10 mm socket to remove air motor pilot
valve (511) from air motor (218).
c.
Lubricate with grease and install new air motor
pilot valve (511).
2. Install bracket (403c) then install two nuts (403a)
finger tight.
3. Place one small crescent wrench on the brass part
of the gauge then use a second small crescent
wrench to tighten the air fitting (403b).
d. Torque pilot valve to 95-105 in-lb (10.7-11.9
N•m).
4. Replace bottom pilot valve (511):
333347R
77
Repair
2. Turn main power switch OFF.
29
218
3. Loosen clamp on air motor bracket (528) then
remove funnel assembly (61).
6
4. Loosen upper hose clamp on rubber housing then
remove fill cap.
5. Dispense until the fluid level in the melter is at or
below the honeycomb grid.
511
NOTE: If a screw or air valve seal is dropped during this
procedure it could fall into the melter. Melter fluid level
must be below honeycomb grid before moving to next
step.
6. Once the fluid level is low enough, close the
bleed-type ball valve installed at the system air inlet.
WLD
7. Disconnect air hose and cable from the air motor.
FIG. 54: Bottom Pilot Valve
a. Remove cover (29) and insulation (6).
8. Use 10 mm socket to remove four screws (509)
securing air valve (512) to air motor (218).
b.
Use 10 mm socket to remove air motor pilot
valve (511) from air motor (218).
9. Remove air valve (512) and seal (507) then discard.
Lubricate with grease and install new air motor
pilot valve (511).
1. Lubricate with grease then place new air valve
seal (507) onto air valve (512).
c.
d. Torque pilot valve to 95-105 in-lb (10.7-11.9
N•m).
e. Replace insulation (6) and cover (29).
Reassembly (see FIG. 55):
2. Carefully place new air valve (512) against air motor
then thread in the four screws (509). Ensure the air
valve seal (507) stays in place by applying constant
pressure against the air motor.
3. Use 10 mm socket to torque screws (509) to
95-105 in-lb (10.7-11.9 N•m).
Replace Air Valve
218
4. Install fill cap then tighten upper hose clamp on rubber housing.
507
512
5. Connect air hose and cable to the air motor.
509
FIG. 55
Disassembly (see FIG. 55):
1. Close the bleed-type ball valve installed at the
system air inlet to relieve all air pressure in the
system.
78
333347R
Repair
Remove Air Motor
8
74
218
82
239
27
238
220
7. If replacing a damaged air motor with a new fully
assembled air motor:
a. Remove three screws (211) securing air motor
tie rods (220) to base plate (219).
b.
Remove tie rods (220) from air motor (218).
Install Air Motor
240
See FIG. 56.
219
1. If replacing a damaged air motor with a new fully
assembled air motor:
a. Install tie rods (220) onto air motor (218).
211
b.
3
Install three screws (211) securing air motor tie
rods (220) to base plate (219).
2. Connect air motor assembly to system:
a. Install three screws (240), two screws (8),
screws (74), and bracket (82) to secure air
motor assembly to system.
b.
Install dowel pin (238).
c.
Install retaining ring (239) over dowel pin (238).
WLD
FIG. 56
1. Close the bleed-type ball valve installed at the
system air inlet to relieve all air pressure in the
system.
2. Turn main power switch OFF.
3. Disconnect air line (36) from pressure relief
valve (245) then pull through metal shroud (27). See
FIG. 43 on page 70.
3. Use four nuts (3) to install melter shield (27).
4. Reconnect air supply line to air motor (218).
5. Reconnect air line (36) to pressure relief
valve (245). See FIG. 43 on page 70.
4. Remove three nuts (3) securing metal shroud (27)
in place then remove metal shroud (27).
5. Disconnect air supply line from air motor (218).
6. Remove air motor assembly:
a. Slide retaining ring (239) down.
b.
Remove dowel pin (238).
c.
Remove three screws (240).
d. Remove screws (8), screws (74), and bracket
(82).
333347R
79
Repair
Transformer Fan
6. Cut three zip ties on corrugated tube (167) and two
zip ties (161) on fan grill (154).
7. Remove four nuts (158), rear fan grill (170), and fan
(155).
Replace Fan
Install Fan
1
1. Mount new fan (155), rear fan grill (170), and nuts
(158) on grill (154) with the arrow pointing toward
the grill (154).
2. Tie down fan wires onto tie down locations on grill
(154) using cable ties (161).
158
black (-)
167
154
red (+)
161
161(x3)
151
157
WLE
FIG. 57
WLE
1. Turn main power switch OFF.
FIG. 59
2. Disconnect plug from power outlet or turn off circuit
breaker for incoming power.
3. Remove front access panel (10) from electrical
enclosure (1).
4. Remove connector from J7 connector on AWB
board. Remove red (+) and black (-) wires from connector.
J7
1
3. Route fan wires with transformer wires into the electrical enclosure (1). Connect red and black fan wires
to J7 connector. Reconnect J7 connector to AWB
board. See FIG. 58.
4. Reinstall corrugated tube (167) on fan and transformer wires. See FIG. 57.
NOTE: To prevent fan errors on ADM, remove excess
slack and ensure cabling and zip ties do not contact fan
blades.
5. Reinstall fan grill (154) and front access panel (10).
(+)
red
(-)
black
WLD
Front access panel (10) not shown.
FIG. 58
5. Remove screws (157) and fan grill (154). Pull two
fan wires down into the transformer enclosure.
80
333347R
Repair
Software Update Procedure
When software is updated on the ADM the software is
then automatically updated on all connected GCA components. A status screen is shown while software is
updating to indicate progress.
NOTE: When the screen turns on, the following screens
appear:
First:
Software is checking
which GCA modules
will take the available
updates.
1. Turn system main power switch OFF.
Second:
Status of the update
with approximate time
until completion.
2. Remove ADM from bracket.
3. Remove token access panel.
Third:
Updates are complete.
Icon indicates update
success/failure. See
the following Icon
table.
Icon
Description
r_24P860_3B9900_3a
Update successful.
FIG. 60: Remove Access Panel
Update unsuccessful.
4. Insert and press InvisiPac software upgrade token
(T, part no. 24R324) firmly into slot.
Update complete, no changes necessary.
NOTE: There is no preferred orientation of token.
Update was successful/complete but one or more
GCA modules did not have a CAN boot loader so
software was not updated on that module.
7. Remove token (T).
8. Replace token access panel.
T
9. Press
r_24P860_3B9900_4a
FIG. 61: Insert Token
5. Install ADM into bracket.
6. Turn system main power switch ON.
NOTICE
A status is shown while software is updating to
indicate progress. To prevent corrupting the software
load, do not remove token until the status screen
disappears.
333347R
to continue to InvisiPac operation
screens.
10. Navigate to System screen. Verify the following
pages. Reference screens on page 130.
a. System Screen Page 1, Customer I/O is set correctly.
b.
System Screen Page 2, Channel and RTD
types are set correctly.
c.
System Screen Page 3, System Type, Pump
Idle Time, Power Type, Circuit Breaker Size,
and Refill Settings.
81
Electrical Schematics
Electrical Schematics
To prevent electric shock and system damage, all
electrical work must be performed by a qualified electrician.
Incoming Power
Ref
147
148
181
182
184
185
208
NOTICE
To prevent severe system damage, ensure main power
leads are installed correctly. See Connect Electrical
Cord on page 22.
209
24R034
210
Cable Identification
Use the table to identify cables and other system components in the electrical schematics.
Part
----24X521
128180
128183
128182
24V522
24R039
25M208
25C445
25C448
271
25C446
25C447
Ref
9
Part
---
Description
Manifold, air assembly
20
24R041 Sensor, ultrasonic
25
24R885 Switch, reed assembly
30
86
87
90
103
112
24P860
127666
------24V288
118
121
123
124
125
24V510
16T087
127768
16T103
24R040
ADM
Cable, Extension
WIRE, ground
Plug, Phoenix, 8pin
Harness, MZLP #1 AWB
Module, MZLP with daughter
board
Module, MZLP
Cable Board
Cable, CAN,
Cable Pump
Sensor, RTD, 1M Harness
126
129
16T108
----16W035
------24V816
126453
Cable Ultrasonic
Harness, MZLP 2, AWB
Harness, MZLP 2/3, AWB
Connector Jumper
Harness, MZLP #1 AWB
Harness, Disc AWB
Transformer
AWB
Power Supply
135
136
138
140
143
146
82
251 126780
1201 16T102
Description
Harness Power Supply AWB
Cable, Board, Samtec
Module, PC-8 Internal
Power Supply, 120W
Harness, Power, PC-8
Cable, Communication
Band heater, HM50
Band heater, HM25
Heater Rod (1500 W), HM50,
Melt
Heater Rod (500 W), HM25,
Melt
Heater Rod (1000 W), HM50,
Base
Heater Rod (1500 W), HM25,
Base
Heater Rod (1000 W), HM50,
Pump
Heater Rod (1500 W), HM25,
Pump
SWITCH, OT
Light Tower
333347R
Electrical Schematics
Systems Without Internal Pattern Controller
Review Connect Electrical
Cord section, Figure 16
143
140
138
AWB
J2
W1
L1
L2
L3
W1
W2
W2
W3
W4
ADM
J9
1
2
3
4
5
W3
W4
GND
30
1
2
3
4
5
1
2
3
4
5
123
1
2
3
4
5
GND
J7
GB1
TRANSFORMER
OPTION
208
BAND
210
PUMP
209
MELTER
TEMP
TEMP
TEMP
FAN FAN +
TEMP
FAN FAN +
90
210
1
2
3
4
5
6
7
8
BASE
J4
J5
L1
L2
L3
GND
1
2
3
4
5
L1
L2
L3
GND
87
147
N
L
+
1
2
3
4
5
148
L1
L2
L3
GND
136
1
2
103
J3
1
2
146
112
MZTCM 1
112A
1201
OPTIONAL LIGHT TOWER
9
AIR SOLENOID
FILL SENSOR
86
20
TO MZTCM #2,
4 and 6 CHANNEL OPTION
J1
N
L
+
GND
N
L
DC OK
DC OK
-V
-V
+V
+V
129
J8
1
2
3
4
5
6
7
8
J6
GROUND
STUD
L1
L2
L3
GND
126
1
2
3
4
J12
1
2
3
4
1
2
3
4
J13
1
2
3
4
J14
1
2
3
4
J15
1
2
3
4
5
J16
1
2
3
4
1
2
3
4
5
MOTOR CYCLE SWITCH
25
1
2
3
4
124
125
J5
MELTER OT SWITCH
AND MELTER RTD
251
TO MZTCM #2,
4 AND 6 CHANNEL OPTIONS
121
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
J3
1
2
3
4
5
J1
1
2
1
2
J2
L1
L2
L3
GND
L1
L2
L3
GND
J6
1
2
3
4
5
1
2
3
4
5
J8
A
B
C
D
E
F
G
H
J
K
L
J9
A
B
C
D
E
F
G
H
J
K
L
PLC Connection Wiring
MZTCM 1
Customer Inputs
(10-30VDC from PLC)
PLC 1
PLC 2
HOSE /
APPLICATOR
WIRING,
PLC 3
PLC 4
Customer Outputs
(dry contact to PLC)
PLC 1
PLC 2
PLC 3
PLC 4
ti30568a
333347R
H1
1
2
3
4
5
6
7
8
H2
1
2
3
4
5
6
7
8
83
Electrical Schematics
Systems With Internal Pattern Controller
Review Connect Electrical
Cord section, Figure 16
140
138
J2
W1
L1
L2
L3
143
30
AWB
ADM
W1
W2
W2
W3
W4
1
2
3
4
5
W3
W4
GND
J9
208
210
BAND
PUMP
209
TEMP
TEMP
FAN FAN +
TEMP
FAN FAN +
90
210
MELTER
TEMP
1
2
3
4
5
6
7
8
BASE
J4
J5
L1
L2
L3
GND
1
2
3
4
5
L1
L2
L3
GND
87
184
GROUND
STUD
PE
+
N
L
+
1
2
112A
M12
1201
OPTIONAL
LIGHT TOWER
185
9
AIR SOLENOID
FILL SENSOR
86
126
MOTOR
CYCLE SWITCH
25
124
1
2
3
4
1
2
3
4
J12
1
2
3
4
1
2
3
4
J13
1
2
3
4
J14
1
2
3
4
J15
1
2
3
4
1
2
3
4
5
125
MELTER OT
SWITCH
251
MELTER RTD
84
1
2
3
4
5
148
L1
L2
L3
GND
136
1
2
103
J3
112
MZLP 1
P4
20
TO MZTCM #2,
4 and 6 CHANNEL OPTION
GND
N
L
-V
-V
+V
+V
TO
MZLP 1-J3
OR
MZLP 2-J3
129
J1
N
L
+
182
PE
+
L1
L2
L3
GND
J8
1
2
3
4
5
6
7
8
J6
ti30567a
1
2
3
4
5
J7
TRANSFORMER
OPTION
P1
1
2
3
4
5
123
GND
GB1
181
PC-8
1
2
3
4
5
To MZLP #2, 4, and 6
Channel Option, see
page 117 and 11.
To MZLP #2 or Pattern
Control Board, see page 88.
1
2
3
4
5
J5
1
2
3
4
5
6
1
2
3
4
5
6
J3
1
2
3
4
5
J1
1
2
1
2
J2
L1
L2
L3
GND
L1
L2
L3
GND
J6
J16
1
2
3
4
5
1
2
3
4
5
PLC Connection Wiring
J8
A
B
C
D
E
F
G
H
J
K
L
J9
A
B
C
D
E
F
G
H
J
K
L
MZTCM 1
Customer Inputs
(10-30VDC from PLC)
PLC 1
PLC 2
PLC 3
HOSE /
APPLICATOR
WIRING,
PLC 4
Customer Outputs
(dry contact to PLC)
PLC 1
PLC 2
PLC 3
PLC 4
H1
1
2
3
4
5
6
7
8
H2
1
2
3
4
5
6
7
8
333347R
Electrical Schematics
400 VAC Transformer Option
480 VAC Transformer Option
333347R
85
Electrical Schematics
Typical Hose / Applicator Wiring
86
333347R
Electrical Schematics
2nd and 3rd MZLP Options
135
1
2
3
4
5
6
J5
1
2
3
4
5
6
118
118
MZLP3
MZLP 2
J3
1
2
3
4
5
1
2
3
4
5
121
1
2
3
4
5
112
MZLP 1
J3
J6
1
2
3
4
5
1
2
3
4
5
J3
1
2
3
4
5
121
1
2
3
4
5
1
2
3
4
5
Internal PC-8 Options
One MZLP
333347R
87
Line Air Inlet
88
Level Air Sensor
Level Sensor
Restrictor
Under Control Box
Safety Pop Off Valve
Refill Gauge
Refill Control Solenoid
Air Control Manifold
Air Motor Control Solenoid
Air Motor Gauge
Feed Wand
Air Motor
Pressure Relief
Valve
Optional Ramp Up/Down
Controller
Air Schematic
Air Schematic
NOTE: Install an optional ramp up/down controller to
limit air to the air motor and slow down the system dispense rate.
333347R
Parts
Parts
InvisiPac Systems
System Parts, Page 1 of 3
1
Apply door gaskets (11) to door (10) per layout diagram.
2
Apply pipe sealant to all non-swiveling pipe threads.
3
Bottom sensor (20) out then back off 1/2 turn.
4
Lubricate all seals and o-rings with water resistant grease.
5
Torque to 5-11 ft-lb (7-15 N•m).
6
Torque to 8-10 in-lb (0.9-1.1 N•m).
83
24
53
25
94
19
18
6
26
75
8
28
23
13
43
6
38
31
38
58
23
30
8
39
27
3
8
44
29
43
64
1
11
10
8, 14
WLG
43
333347R
89
Parts
System Parts, Page 2 of 3
68
8
67
125
69
74
66
82
5
86
20
8
49
7
72
73
74
42
41
3
40
69
88
3
5
63
62
87
69
89
1
61
54
4
85
81
8
79
63
80
WLE
9
43
8
90
333347R
Parts
System Parts, Page 3 of 3
34
48 in.
(1219 mm)
57
35
48 in.
(1219 mm)
34
16 in.
(406.4 mm)
86
91
34
48 in.
(1219 mm)
49
35
48 in.
(1219 mm)
34
8 in.
(203 mm)
78
32
77
76
34
2 in.
(50.8 mm)
24
39
WLD
55
333347R
36
13 in.
330.2 mm)
91
Parts
System Parts
Quantities
24V202
24V199
24T920
24V203
24V200
24V423
24V429
24V426
24V424
24V430
24V427
24V425
24V431
24V428
6 Channel
24T919
HM25
4 Channel
24V198
2 Channel
24V201
6 Channel
24T918
2 Channel
HM50
4 Channel
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
115942
NUT, hex, flange head
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
4
167002
INSULATOR, heat
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Ref
1
5
Part
---
Description
ENCLOSURE, electrical
24V169
SYSTEM, melter, HM25
24V542
6✓
---
SYSTEM, melter/pump,
HM50
GUARD, insulated
6✠
---
INSULATOR, wrap
1
1
1
1
1
1
1
1
1
7
---
TRAY, drip
1
1
1
1
1
1
1
1
1
8†
113161
SCREW, flange, hex hd
17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17
9
---
MANIFOLD, air, assembly
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10
---
DOOR, front
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
11
---
FOAM, border, door
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
13✿
24P615 FITTING, straight, hydraulic
2
2
2
4
4
4
6
6
6
2
2
2
4
4
4
6
6
6
14
16V153
WASHER, retaining
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
15✖
114271
STRAP, retaining
8
8
8
16 16 16 24 24 24
8
8
8
16 16 16 24 24 24
18✿
126961
FITTING, 45 elbow, hydraulic 2
2
2
4
4
4
6
6
6
2
2
2
4
4
4
6
6
6
19✿
116793
FITTING
2
2
2
4
4
4
6
6
6
2
2
2
4
4
4
6
6
6
20
24R041
SENSOR, ultrasonic
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
21✖
101976
TOOL, allen, wrench
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
23
114606
PLUG, hole
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
24
120753
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
25◆
---
FITTING, push to connect
elbow
SWITCH, reed assy
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
26◆
---
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
27
28
29
1
1
1
1
1
1
1
1
1
---
SCREW, pan head, #8-32 x
1.5"
BRACKET, back HM50
---
BRACKET, back
---
COVER, filter
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
---
COVER, melter HM50
---
COVER, system, HM25
30❄
24P860
MODULE, ADM
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
31
117017
WASHER
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
32
---
FITTING, tee, reducer
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
34
---
HOSE, nylon, wpr 250 psi
35
598095
TUBE, 5/32 OD, nylon
36
---
TUBE, ptfe, 1/4 in. OD
38
117126
SCREW, shcs; m5x16
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
39
---
GROMMET, 1/4 ID
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
40
---
BUSHING, strain relief
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
41
---
GROMMET, tube
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
42
---
GROMMET, tube
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
43▲
16Y781
LABEL, safety
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
92
8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10 8.10
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10 1.10
333347R
Parts
Quantities
24V426
24V424
24V430
24V427
24V425
24V431
24V428
6 Channel
24V429
2 Channel
HM25
4 Channel
24V423
24V200
24V203
6 Channel
24T920
24V199
24V202
24T919
24V198
Part
Description
16U007 LABEL, InvisiPac, HM25
24V201
Ref
44
24T918
2 Channel
HM50
4 Channel
1
1
1
1
1
1
1
1
1
---
LABEL, InvisiPac HM50
1
1
1
1
1
1
1
1
1
45
---
LABEL
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
47✖
24P859
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
48✖
24P176
