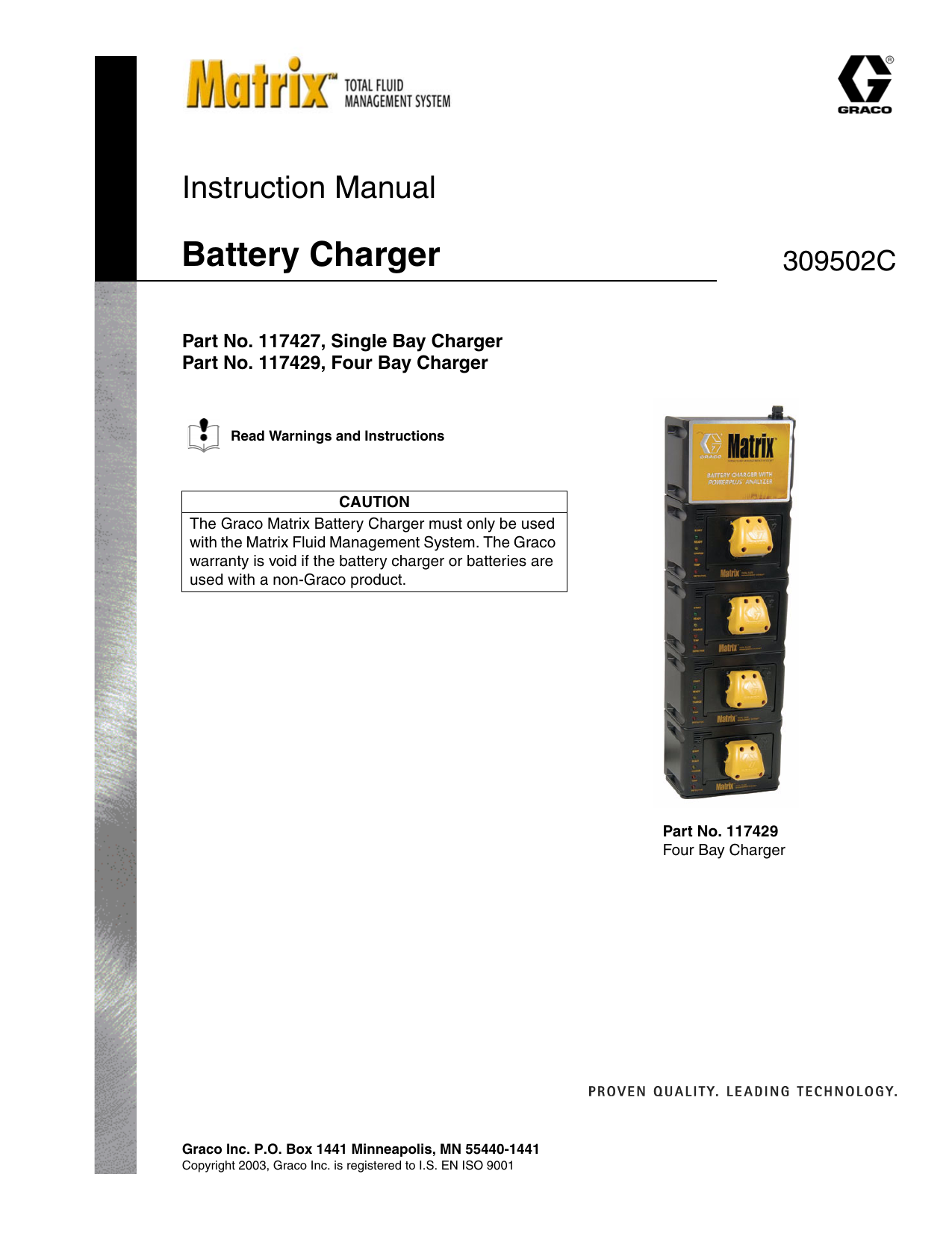

Graco 309502C Matrix Battery Charger Owner's Manual

Instruction Manual
Battery Charger
309502C
Part No. 117427, Single Bay Charger
Part No. 117429, Four Bay Charger
Read Warnings and Instructions
CAUTION
The Graco Matrix Battery Charger must only be used
with the Matrix Fluid Management System. The Graco
warranty is void if the battery charger or batteries are
used with a non-Graco product.
Part No. 117429
Four Bay Charger
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2003, Graco Inc. is registered to I.S. EN ISO 9001
Manual Conventions
Contents
Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Charging Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
New Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Used Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Recharging a “Dead” Battery . . . . . . . . . . . . . . . . 5
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mounting Hole Dimensions . . . . . . . . . . . . . . . . . . 9
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . 10
Graco Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . 10
Manual Conventions
Warning
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
Caution
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in property damage or
destruction of equipment.
Note
A note indicates additional helpful information.
2
309502C
Warnings
Warnings
The following warnings include general safety information for this equipment and its application. More specific warnings are included in the text where appropriate.
WARNING
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be
aware that flammable fumes can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground equipment.
• Use only grounded hoses.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
BATTERY SAFETY
The battery may leak, explode, cause burns, or cause an explosion if mishandled:
• You must use the battery type specified for use with the equipment.
• Sparking can occur when changing batteries. Only replace the battery in a non-hazardous location,
away from flammable fluids or fumes.
• Handle and dispose of battery properly - do not short circuit, charge, force over discharge, disassemble, crush, penetrate, incinerate, or heat the battery to a temperature exceeding 185° F (85° C).
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your Graco distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not use hoses to pull equipment.
• For professional use only.
• Comply with all applicable safety regulations.
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on sprayer and extension cords.
309502C
3
Installation
Installation
Descriptions
•
Part No. 117427 - is free
standing and can be placed
on most horizontal flat surfaces or wall mounted.
•
Part No. 117429 - is
designed to be wall mounted,
but it can also be free standing
and placed on most horizontal
flat surfaces. This model is
expandable to a five or six bay
charger by ordering
extender(s), part no. 117435,
below.
•
Part No.117435 - is an extender for four bay Battery
Charger 117429 ONLY. Adding one or a maximum
of two extenders can expand Part No. 117429 from
a four bay charger into a five or six bay unit. See
Battery Charger Extender Instruction Manual
(309499).
Wall Mounting
The chargers can be wall mounted using wall anchors
(not supplied). See Dimensions, page 11.
Charging Batteries
WARNING
Initial Battery Charging
CAUTION
All Matrix batteries receive an initial charge at the factor. Batteries ordered by Graco Matrix distributors
should be used with six months from receiving. If battery inventory is stored beyond the six month time
frame (either in the distributor or end user’s inventory)
the batteries must be re-initialized using either of two
methods:
• Three Day Initial Charging
• Single Day Initial Charging
If batteries are not fully initialized, irreparable cell
damage can result.
Three Day Initial Charging
The three day initial charging process is done using one
or more 4-bay chargers based on the number of batteries that must be re-initialized. All batteries in inventory
over six months must be re-initialized. If batteries are
not fully initialized, irreparable cell damage can result.
Completely follow the process to assure proper battery
initialization. The complete process will take approximately 3 days to accomplish.
The orange “Temp” light (A) may come on during
the charging process. See FIG. 2. Do not remove
the batteries from the adapter cups. The Temp
light indicates that power is not being supplied to
the batter(s) causing the to overheat. Overheating
reduces the life of the battery cells. This is a normal operating process of the charger.
Battery Chargers
Batteries may leak, explode, cause burns or cause an
explosion if mishandled. Read BATTERY SAFETY,
page 3.
Single Bay
Four Bay
FIG. 1
4
309502C
Charging Batteries
1. Plug in charger(s).
Single Day Initial Charging
2. Insert battery(s) – yellow “Charge” light (B) begins
blinking. See FIG. 2.
The single day initial charging process is done using
one or more 4-bay chargers based on the number of
batteries that must re-initialized. All batteries in inventory over six months must be re-initialized. If batteries
are not fully initialized, irreparable cell damage can
result.
3. Charge until green “Ready” light (C) is blinking – this
first charge may take up to 24 hours.
4. Remove the battery(s), then reinsert them in the
charger cup(s).
5. Charge until green “Ready” light (C) is blinking – this
second charge may take up to 24 hours.
6. Remove the battery(s), then reinsert them in the
charger cup(s).
Follow the process below to assure proper battery initialization. This process will takes about 1 day to accomplish. You will need to purchase a programmable timer
for this method. Graco recommends using a Intermatic
DT-17, 7 day digital time. It sells for about $20 at Home
Depot. Instructions to program the timer is on the
Matrix Full Line Training CD (324050).
7. Charge until green “Ready” light (C) is blinking – this
third charge may take up to 2 hours.
The orange “Temp” light (A) may come on during
the charging process. See FIG. 2. Do not remove
the batteries from the adapter cups. The Temp
light indicates that power is not being supplied to
the batter(s) causing the to overheat. Overheating
reduces the life of the battery cells. This is a normal operating process of the charger.
8. Remove the battery(s), then reinsert them into
charger cup(s).
9. Charge until green “Ready” light (C) is blinking
again – this fourth charge may take up to 1 hour.
The battery(s) are now fully charged.
After the fourth charge is complete the battery(s)
can be left in the charger(s) indefinitely without
damage.
Initial charging procedure
1. Plug in charger(s) to a common power supply strip.
2. Plug the power strip into the digital timer
3. Insert battery(s) - yellow “Charge” light will begin
blinking
4. Program the digital timer using the sequence listed
below:
C
B
•
•
•
•
12 hours “ON”, then 15 minutes “OFF”
4 hours “ON”, then 15 minutes “OFF”
4 hours “ON”, then 15 minutes “OFF”
2 hours “ON”, then off (the battery(s) are now
fully initialized and can be removed from the
charger for use)
A
FIG. 2
309502C
5
Charging Batteries
Recharging “In-Use” Batteries
Recharging a “Dead” Battery
1. Insert discharged batteries into the adapter cups.
The charger indicator lights will signal the condition
of the battery. See Diagnostics on page 7 for a
description of the lights.
A battery that is completely discharged has no voltage
across the contacts and acts like an open circuit, preventing the charger from operating. If you insert the battery into the adapter cup and NO lights appear, the
battery might be completely “dead” but still rechargeable.
2. Several seconds after the battery is inserted, the
yellow “Charge” light begins blinking as the battery
charges. See FIG. 3.
3. The green blinking “Ready” light comes on when
charging is complete.
4. Batteries can be removed and used or left in the
charger, which automatically switches to the “Maintenance Mode”. Maintenance mode is a state of
periodic pulse charging to maintain the full charge
without damaging the battery or charger.
Batteries may be left on the charger indefinitely
without damage to the battery.
1. Insert the battery into the charger.
2. Press and hold the black “Start” button for 1-2 minutes, or until the yellow “Charge” light flickers. See
FIG. 3. The light indicates that charge pulses have
been accepted and the charge cycle has begun.
3. Release the button and follow the progress of the
charging cycle using the test lights.
WARNING
To reduce the risk of electric shock, only use Graco
batteries with the Graco charger. Do not insert a foreign object into the adapter cup.
MVC
FIG. 3
6
309502C
Diagnostics
Diagnostics
Appearance
Description
No lights
Check the battery charger fuse.
Verify that the battery and charger contacts are clean and in good shape.
Attempt the Recharging a “Dead” Battery on page 6. If after 4 - 5 attempts this
process does not work, the battery is spent and cannot be recharged. Remove the
battery and dispose of it properly.
Yellow “Charging” light flickers
Normal charging process.
Green “Ready” light blinks
Indicates a full charge. Use the battery or leave it in the charger. The automatic
“Maintenance Mode” holds the batteries at full charge.
Orange “Temperature” light
comes on
No action required. Indicates that the charger has automatically shut down
because of battery temperature. When battery cools, normal charging resumes.
If light keeps coming on, a faulty battery is indicated. Remove the battery and dispose of it properly.
Red “Defective Battery” light
Battery is internally shorted and automatic recovery process is being attempted.
stays on and yellow “Charging” Wait either for the red “Defective Battery” light to go out or the yellow “Charging”
light to stop flickering.
light blinks
Red “Defective Battery” light
stays on - no other lights on
Battery has high internal impedance. Remove then reinsert the battery and restart.
If light stays on after 4-5 attempts, the battery is spent and cannot be recharged.
Properly dispose of faulty battery.
Battery lasts only 7 days after
initial charge
Normal operation. Batteries typically last up to 7 days after the initial battery
charge. When batteries are placed in the meter, the “sleep mode” still draws power
from the batteries. If you are not planning to use or charge batteries within the 7
day period, leaving the battery in the charger is advised.
Short battery life
An outstanding work order in the system may be attempting to communicate with
meters with inadequate battery charge, thus consuming battery power from the
remaining meters in the facility. Replace dead meter batteries with completely
charged batteries, and avoid allowing batteries to go dead. Keep spare batteries
readily available in chargers at all times.
Battery charger green “Ready”
light flashes 5 times for each
yellow “Charge” light flash after
a completely dead battery is
installed for only 20 minutes.
Normal operation. Even though the green “Ready” light is flashing, the battery is
not completely charged yet (see Recharging a “Dead” Battery, above). Note that
the green “Ready” light must blink 20 times before the yellow “Charge” light blinks
once.
309502C
7
Parts
Parts
Part No. 117427 Single Charger
Part No. 117429 Multiple Charger
Part No. 117310 Battery
(sold separately)
101
Part No. 117427 Single Charger
CAUTION
Do not use transformer 117430 (for the single-adapter
cup charger) to power transceiver. This will damage
the device’s board and require you to replace the
device.
8
Includes:
Ref.
No.
101
Part No. Description
117430 Transformer, power supply
309502C
Qty.
1
Notes
Notes
309502C
9
Technical Data
Technical Data
Weights
Single Bay Charger
2.12 lbs (0.96 kg)
Four Bay Charger
6.63 lbs (4.38 kg)
Battery
0.64 lbs (0.29 kg)
Battery
Voltage
9.6 VDC, NiMH only
Charge Type
fast charge with pulse conditioning
Charging Time
1-2 hours based on battery state of charge
Power Source (four-bay charger)
120 VAC
Power Source (single-bay charger)
120 VAC to 24 VDC plug in transformer
Operating Temperature Range
32°F to 122°F (0° to 50°C)
Storage Humidity Range
0%-95% relative humidity, non-condensing
Storage Temperature Range
-40°F to 185°F (-40° to 85°C)
10
309502C
Dimensions
Dimensions
Part No. 117427 Single Charger
Part No. 117429 Multiple Charger
21.56”
3.0”
7.0”
4.56”
7.0”
4.56”
2-13/16
Mounting Hole Dimensions
2-13/16
Single Charger
Multiple Charger
Both the single-bay charger and multiple-bay
charger can be wall mounted using screws
and wall anchors.
Both chargers also have rubber feet for horizontal surface mounting.
TI3776
309502C
11
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship
on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by
Graco, Graco will, for a period of twenty-four months from the date of sale, repair or replace any part of the equipment determined
by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with
Graco's written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused
by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering,
or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the
incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper
design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by
Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts.
The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose
any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts,
labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco's sole obligation and buyer's sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no
other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or
property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within
two (2) years of the date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not
manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer.
Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal
proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les
parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et
procédures judiciaires exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les
procedures concernées.
Graco Phone Numbers
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Sales Office: Minneapolis
International Offices: Belgium, Korea, Hong Kong, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
www.graco.com
Printed in USA 309502C
Rev. 1/2005

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
