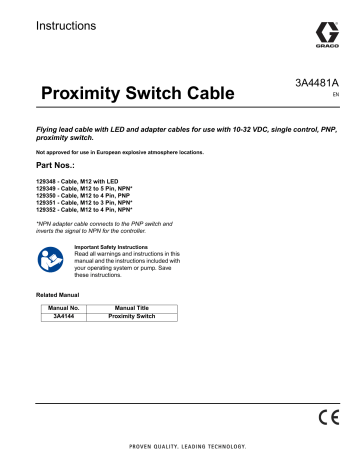

Graco 3A4481A, Proximity Switch Cable Instructions

Instructions
Proximity Switch Cable
3A4481A
EN
Flying lead cable with LED and adapter cables for use with 10-32 VDC, single control, PNP,
proximity switch.
Not approved for use in European explosive atmosphere locations.
Part Nos.:
129348 - Cable, M12 with LED
129349 - Cable, M12 to 5 Pin, NPN*
129350 - Cable, M12 to 4 Pin, PNP
129351 - Cable, M12 to 3 Pin, NPN*
129352 - Cable, M12 to 4 Pin, NPN*
*NPN adapter cable connects to the PNP switch and
inverts the signal to NPN for the controller.
Important Safety Instructions
Read all warnings and instructions in this
manual and the instructions included with
your operating system or pump. Save
these instructions.
Related Manual
Manual No.
3A4144
Manual Title
Proximity Switch
Installation
Installation
Model 129348
NOTE:
Before installing the proximity switch cable, install the
proximity switch. See the Proximity Switch instruction
manual (provided with the proximity switch) for these
instructions.
Instructions
1.
Disconnect power.
2.
Connect flying leads. Refer to FIG. 2.
3.
Connect the M12 connector to the proximity switch.
4.
Re-connect the main power. Test installation to verify the
proximity switch is operating correctly.
Adapter Cable - 129348
FIG. 1
Connector 1
Connector 2
Polarity
M12
Flying Leads
PNP
Cable
Length
16 ft.
FIG. 2
2
3A4481A
Installation
Models 129349-129352
NOTE:
•
Before installing the proximity switch cable, install the
proximity switch. See the Proximity Switch instruction
manual (provided with the proximity switch) for these
instructions.
•
Verify that the existing wiring configuration matches the
adapter.
•
NPN cable adapters require a 10-32 VDC power supply.
•
For adapter cable 129350 only (FIG. 6), skip steps 2-4.
•
Cable pinouts are provided for trouble shooting purposes.
FIG. 3
3.
Apply the blue shrink wrap (included in the kit) around the
wire so there is no green visible.
4.
Connect the shrink wrapped wire (now blue) to a 10-32
VDC power source.
Instructions
1.
Disconnect power.
Step 2 and 4 only apply to cable kits 129349, 129351 and
129352.
2.
Disconnect the green wire with a yellow stripe (that is
currently connected to the controller), from the controller.
(FIG. 3)
Instructions for cable kit 129350 begin with Step 5. The following steps apply to all kit models.
5.
Connect the adapter cable to the existing BH-mini connection first.
6.
Connect the M12 connector to the proximity switch.
7.
Re-connect the main power. Test installation to verify the
proximity switch is operating correctly.
Adapter Cable - 129349 to 129352
FIG. 4
3A4481A
3
Installation
Model 129349
FIG. 5
Connector 1
Connector 2
Straight 5 Pin
M12
Polarity
NPN
Cable
Length
12 in.
Model - 129350
FIG. 6
Connector 1
Straight 4 Pin
4
Connector 2
M12
Polarity
PNP
Cable
Length
12 in.
3A4481A
Installation
Connector - 129351
FIG. 7
Connector 1
Connector 2
Straight 3 Pin
M12
Polarity
NPN
Cable
Length
12 in.
Connector - 129352
FIG. 8
Connector 1
Connector 2
Polarity
Cable
Length
Straight 4 Pin
M12
NPN
12 in.
3A4481A
5
Graco Information
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A4481
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2016, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revision A, September 2016
