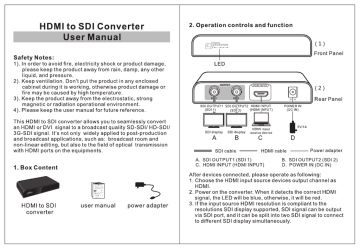

 HDMI to SDI Converter
User Manual
Safety Notes:
1). In order to avoid fire, electricity shock or product damage,
please keep the product away from rain, damp, any other
liquid, and pressure.
2). Keep ventilation. Don't put the product in any enclosed
cabinet during it is working, otherwise product damage or
fire may be caused by high temperature.
3). Keep the product away from the electrostatic, strong
magnetic or radiation operational environment.
4). Please keep the user manual for future reference.
This HDMI to SDI converter allows you to seamlessly convert
an HDMI or DVI signal to a broadcast quality SD-SDI/ HD-SDI/
3G-SDl signal. It’s not only widely applied to post-production
and broadcast applications, such as: broadcast room and
non-linear editing, but also to the field of optical transmission
with HDMI ports on the equipments.
user manual power adapter
1. Box Content
HDMI to SDI
converter
2. Operation controls and function
[=
) (1)
Front Panel
LED
OUTPUT
a |“
| (—/
si s 2 DdIN Rear Panel
SDI OUTPUT1 SDIOUTPUT2 HDMI INPUT POWER IN
(SDI 1) (SDI'2) (HDMI INPUT) (DC IN)
LA input 5V/1A
SDI display SDIdisplay source device
A B C D
mus SDJ cable HDMI cable Power adapter
A. SDI OUTPUT1 (SDI 1)
C. HDMI INPUT (HDMI INPUT)
B. SDIOUTPUT2 (SDI 2)
D. POWER IN (DC IN)
After devices connected, please operate as following:
1. Choose the HDMI input source devices output channel as
HDMI.
2. Power on the converter. When it detects the correct HDMI
signal, the LED will be blue, otherwise, it will be red.
3. Ifthe input source HDMI resolution is compliant to the
resolutions SDI display supported, SDI signal can be output
via SDI port, and it can be split into two SDI signal to connect
to different SDI display simultaneously.
3. FAQ
Q1: No signal output after connecting as required.
A1: 1) Check if the HDMI input source devices output channel
is HDMI.
2) Check if the HDMI resolution is compliant to the
resolutions SDI display supported. (For example: HDMI
resolution 480p may not be identified by the SDI display
or there may be no SDI out.
3) Check whether the SDI ports of converter and SDI
display are connected well.
4. Technical Parameter
Power adapter
DC 5V1A, Applicable for voltage from
5V---368V; DC 12V/1A is recommended.
[email protected]/[email protected]/[email protected]/
Consumption
НОМ Input |[email protected]/[email protected]/[email protected]/
resolutions |[email protected]@[email protected]@[email protected]
[email protected]/[email protected]/[email protected]/
SDI Out [email protected]/[email protected]/[email protected]/
resolutions |[email protected]@[email protected]@[email protected]
SDI format | SD-SDI/HD-SDI/3G-SDI
Impedance 750
Power <600MA (DC5V)
Dimension
130*80*23.5mm
Operating
Temperature
0°C ~60°C
Disclaimer
The product name and brand name may be registered trade mark of
related manufacturers. TM and ® may be omitted on the user manual.
The pictures on the user manual are just for reference, and there may
be some slight difference with the real products.
We reserve the rights to make changes without further notice to a
product or system described herein to improve reliability, function
or design.
