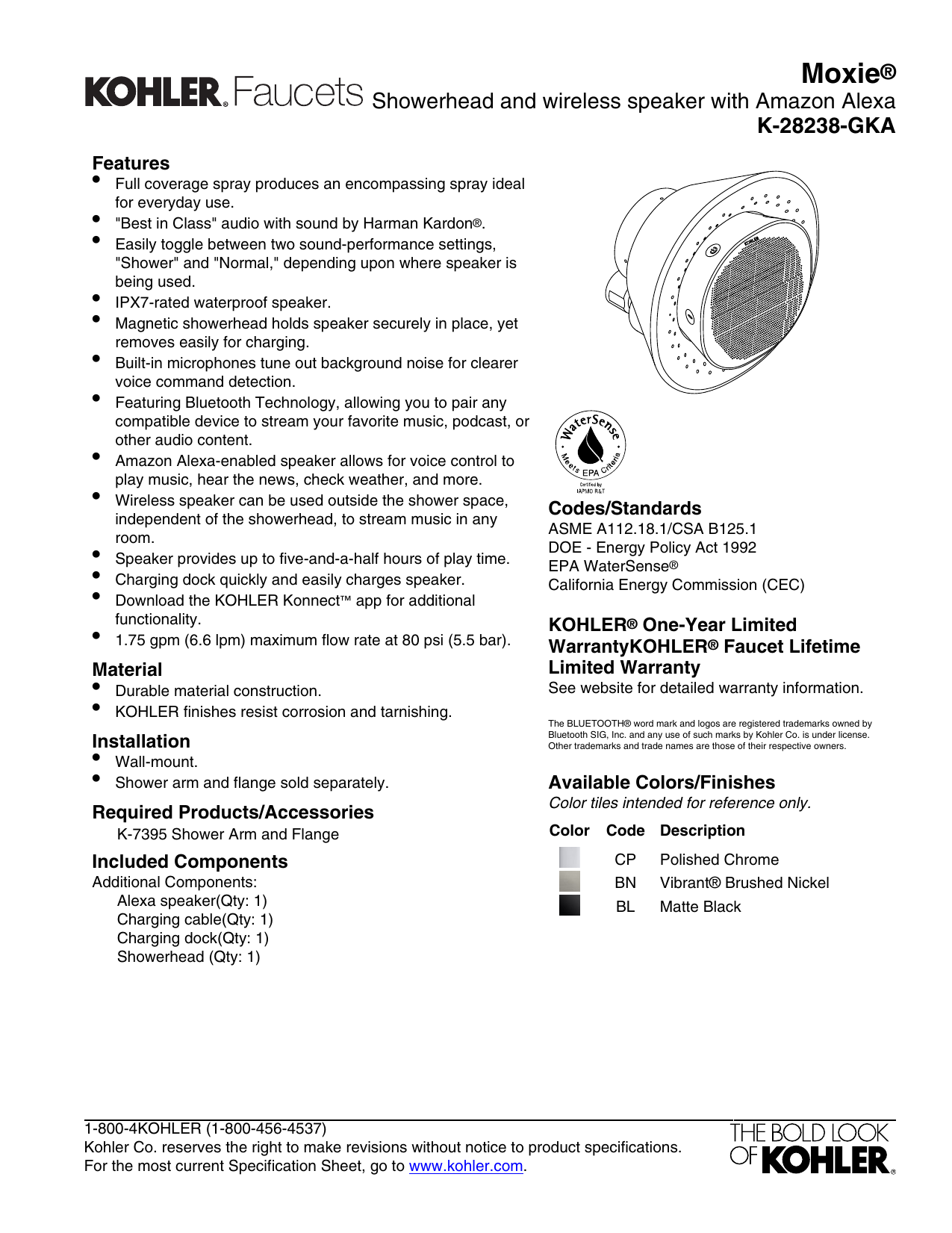

Kohler K-28238-GKA-BL Moxie 1-Spray Patterns Specification

Moxie®
Showerhead and wireless speaker with Amazon Alexa
K-28238-GKA
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Full coverage spray produces an encompassing spray ideal
for everyday use.
"Best in Class" audio with sound by Harman Kardon®.
Easily toggle between two sound-performance settings,
"Shower" and "Normal," depending upon where speaker is
being used.
IPX7-rated waterproof speaker.
Magnetic showerhead holds speaker securely in place, yet
removes easily for charging.
Built-in microphones tune out background noise for clearer
voice command detection.
Featuring Bluetooth Technology, allowing you to pair any
compatible device to stream your favorite music, podcast, or
other audio content.
Amazon Alexa-enabled speaker allows for voice control to
play music, hear the news, check weather, and more.
Wireless speaker can be used outside the shower space,
independent of the showerhead, to stream music in any
room.
Speaker provides up to five-and-a-half hours of play time.
Charging dock quickly and easily charges speaker.
Download the KOHLER Konnect™ app for additional
functionality.
1.75 gpm (6.6 lpm) maximum flow rate at 80 psi (5.5 bar).
Material
•
•
Durable material construction.
KOHLER finishes resist corrosion and tarnishing.
Installation
•
•
Wall-mount.
Shower arm and flange sold separately.
Required Products/Accessories
K-7395 Shower Arm and Flange
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense®
California Energy Commission (CEC)
KOHLER® One-Year Limited
WarrantyKOHLER® Faucet Lifetime
Limited Warranty
See website for detailed warranty information.
The BLUETOOTH® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Kohler Co. is under license.
Other trademarks and trade names are those of their respective owners.
Available Colors/Finishes
Color tiles intended for reference only.
Color
Code Description
Included Components
CP
Polished Chrome
Additional Components:
Alexa speaker(Qty: 1)
Charging cable(Qty: 1)
Charging dock(Qty: 1)
Showerhead (Qty: 1)
BN
Vibrant® Brushed Nickel
BL
Matte Black
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
Moxie®
Showerhead and wireless speaker with Amazon Alexa
K-28238-GKA
1/2"-14
NPT
1-7/8"
(48 mm)
5-3/4"
(146 mm)
5"
(127 mm)
5"
(127 mm)
5-3/4"
(146 mm)
4-1/8"
(105 mm)
Technical Information
All product dimensions are nominal.
Power source:
Battery - DC, not included
Electrical component Speaker: 10 W
rating:
Amplifier channels: 1 at 10 W per channel
Charge voltage:
USB 5 V
Charge time:
3 hours
Usage time:
5 hours
Bluetooth® range:
32.8 ft (0.8 m)
Bluetooth® version: 5.0
Max. Ambient temp: 140°F (60°C)
Signal to noise ratio: >70 dB
Notes
Install this product in accordance with the
installation instructions.
Follow local building electrical codes.
A Bluetooth ® wireless device is required to
stream music.
For use with automatic compensating valves
rated at 1.50 gal/min (5.7 L./min) or less.
Showerhead/Body Spray:
Rated maximum
flow:
Pressure:
1.75 gal/min (6.6 l/min)
80 psi (5.5 bar)
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
