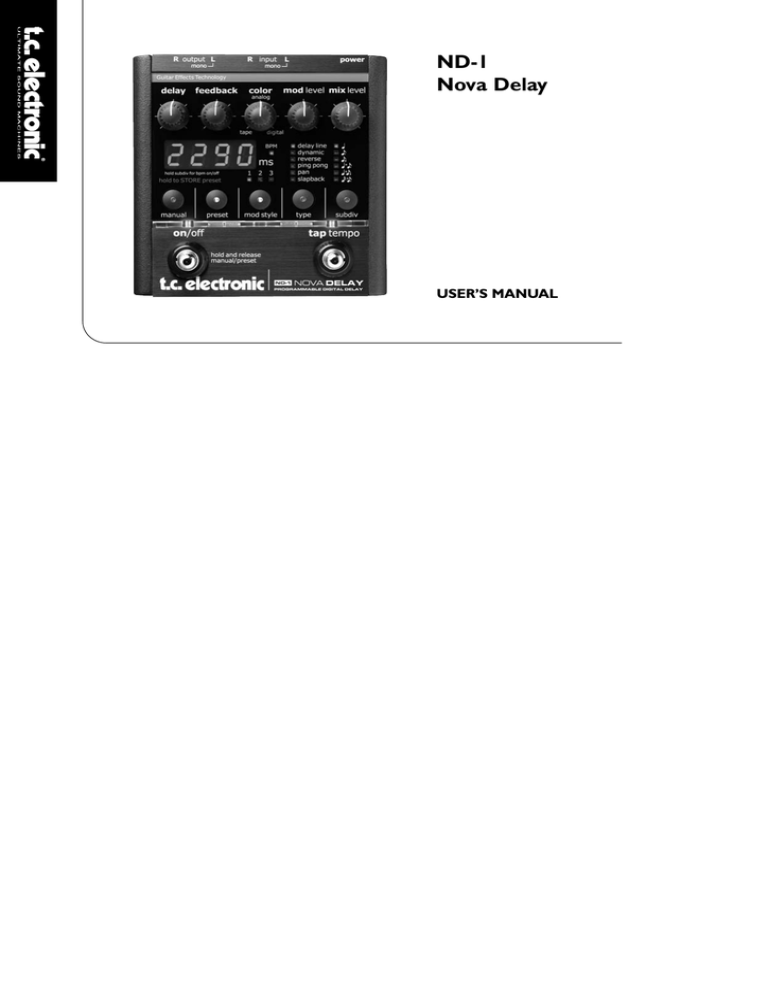

ND-1 Nova Delay

ND-1

Nova Delay

USER’S MANUAL

INTRODUCTION

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

SETUP EXAMPLES

Mono/Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Send/Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Selectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Preset Store function . . . . . . . . . . . . . . . . . . . . . . . .11

Input Level Calibration . . . . . . . . . . . . . . . . . . . . . . .13

Delay Spill-over . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

TABLE OF CONTENTS

ADDITIONAL FEATURES

Tap Tempo modes . . . . . . . . . . . . . . . . . . . . . . . . . .15

Cool Features via ON/OFF and TAP TEMPO switches . . . . . . . . . . . . . . . . . . . .15

Preset Range Limitation . . . . . . . . . . . . . . . . . . . . . .16

Delay Time in BPM or milliseconds . . . . . . . . . . . . .16

APPENDIX

Technical specifications . . . . . . . . . . . . . . . . . . . . . .17

Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

TC Electronic, Sindalsvej 34, DK-8240 Risskov – [email protected]

English Version

Manual revision 1.0 – SW – V 1.0

Prod. No: E60507012

3

INTRODUCTION

Nova - Your tone is everything

The sensation of weight, the grandiose design and overall build quality instinctively tell you these aren’t just ordinary stompboxes. They’re so much more – the essence of your tone!

Built upon the legacy and knowledge of TC’s worldrenowned effects processors the Nova pedals raise the bar for guitar effect pedals and redefine what it means to be

“state-of-the-art”. The ND-1 Nova Delay offer uncompromised studio quality effects in a compact floorbased design.

With 6 different stereo delay types and the option to store up to 9 presets customizable by an array of style parameters ranging from vintage tape to digital delay this pedal easily serves all delay requirements of modern guitar players who want to create unique sounds.

The ND-1 Nova Delay pedal features 6 different delay types: Delay Line, Dynamic, Reverse, Ping-Pong, Pan and

Slap-back.

Three different types of modulation (light, medium and heavy) can be applied to any of the delay types. The modulation is applied to the delay repeats only which

4

makes the Nova Delay unique compared to setups where a delay pedal is used in conjunction with a chorus pedal.

The all-new Audio Tapping™ technology enables you to set the tempo of the delay by playing a rhythm into the pedal while holding down the TAP TEMPO switch.

Nova Delay Features:

• 6 studio-quality delay types

• Up to 9 storable user presets plus manual mode

• Easy switching between modes and presets

• Audio Tapping™ - audio-generated tap tempo

• True delay spill-over

• Easy color control

- from tape style over analog to digital

Amp INPUT

Amp INPUT

Combo amp

R

output mono

L

Guitar Effects Technology

delay feedback

R

input mono

L

mod level

power level

hold subdiv for bpm on/off hold to STORE preset tape digital

BPM

1 ms

2 3 delay line dynamic reverse ping pong pan slapback

3

+

+

+

3

manual

on/off preset mod style hold and release manual/preset type subdiv

tap tempo

SETUP EXAMPLE - MONO/STEREO

This setup illustrates how to use the Nova Delay pedal in a mono setup (one amp only) or stereo setup (two amps). Effects as reverb or delay are usually placed as the last effects before the amplifier. Therefore, - place all drive and modulation effects prior to the Nova Delay pedal.

If you use the amp/amps to create overdrive see the “SEND/RETURN example on the following page.

POWER SUPPLY

Combo amp

5

6

SETUP EXAMPLE - SEND/RETURN

Input

Combo amp

R

output mono

L

Guitar Effects Technology

delay feedback

R

input mono

L

mod level

power level

hold subdiv for bpm on/off hold to STORE preset tape digital

BPM

1 ms

2 3 delay line dynamic reverse ping pong pan slapback

3

+

+

3

+

manual

on/off preset mod style hold and release manual/preset type subdiv

tap tempo

POWER SUPPLY

This example illustrates how to connect your

Nova Delay pedal as a send/return effect in an effects loop. This is the correct placement of the Nova if you use the pre-amp section of the amp for overdrive sounds.

Expand this setup to stereo by connecting the Nova pedal right output to the return of a second amp.

R

output mono

L

Guitar Effects Technology

delay

R

input mono

L power feedback color

mod level analog

mix level hold subdiv for bpm on/off hold to STORE preset tape digital

BPM ms

1 2 3 delay line dynamic reverse ping pong pan slapback

3

+

+

3

+

manual

on/off preset mod style hold and release manual/preset type subdiv

tap tempo

NOVA DELAY

PROGRAMMABLE DIGITAL DELAY

OVERVIEW

7

8

OPERATION

Connections

1 - Power

The Nova Delay require 12V DC 300 mA. Use the power supply provided in the product box or a power supply with similar specifications.

2 - Inputs

1/4” mono jack connections for signal input. Use left input for mono signal or use both left and right inputs for connecting a stereo signal.

3 - Outputs

1/4” mono jack connections for signal output. Use left output for mono or both outputs for stereo.

Switches

4 - On/Off

This switch has two functions.

Press and release immediately for standard on/off function.

Hold and release for 2 seconds to switch between manual and preset modes.

5 - Tap Tempo & Audio Tap Tempo

The delay time is always calculated using the current global tempo and the selected subdivision.

The global tempo can be entered in different ways:

as dialed using the DELAY knob

as tapped by tapping the TAP TEMPO switch

as tapped using the Audio Tap Tempo TM feature

Audio Tapping:

Audio tapping is entered by holding down the TAP

TEMPO switch and feeding audio to the input e.g. by hitting guitar strings.

See also the example in the chapter describing

“Subdivision”.

Example - Tap Tempo using the TAP TEMPO switch

• Tap 1/4 notes on the TAP TEMPO switch.

The TAP TEMPO LED will indicate the tapped tempo.

This can be done in both “off” and “on” mode.

Example - Tap tempo by audio

• Press and hold the TAP TEMPO switch. When the outputs are muted, play steady short 1/4 notes on your instrument. The TAP TEMPO LED will indicate the tapped tempo.

• Release the switch again.

That’s it - you have now entered the global tempo by audio.

OPERATION

Knobs

6 - Delay

Adjusts the delay time. When the DELAY knob is in 12 o’clock position the delay time is not altered.

Turn counter-clockwise to reduce the delay time and clockwise to increase the delay time. The maximum delay time vary depending on the selected delay type.

Delay Type

Delay Line

Dynamic

Reverse

Ping Pong

Pan

Slapback

Max Delay Time

2290ms

2290ms

1000ms

2290ms

2290ms

300ms

7 - Feedback

The FEEDBACK knob sets the amount of delay returned to the input of the delay line. The higher the setting the more repeats.

8 - Color

Full control and perfect replica of the source signal may be the advantage of a digital delay. However, the delay repeats may at times blend much better if the high-end frequencies of the repeats are colored.

9

OPERATION

The complex Nova Delay color filter allows for shaping of the delay repeats in styles ranging from tape drive over analog to digital.

9 - Mod/Level

In addition to the coloration of the delay repeats controlled by the COLOR knob, you may also add more or less pitch modulation to the delay repeats.

Pitch modulation on delay repeats is typically known from older tape-echoes. Three styles of modulation can be selected pressing the MOD STYLE button.

10 - Mix Level

Sets the overall mix between the dry signal and the delay repeats.

Selectors

11 - Manual - In manual mode the pedal plays exactly according to the position of the controls.

12 - Preset - In preset mode the pedal plays according to the recalled preset. Therefore, if you come from manual mode the position of the knobs may not match the currently recalled values.

• Press PRESET once to enter preset mode.

The current preset number is shown. E.g. “P1”

• Press again immediately after to scroll through the presets: P1, P2, P3......P9, P1, P2 etc.*

When going from manual mode to preset mode, the position of the knobs probably does not match the current values.

* It is also possible to scroll through presets using the

TAP TEMPO and ON/OFF switches. Please refer to the manual section “Additional Features”

10

Preset Store function:

To edit and store a preset:

• Scroll through the 9 preset locations P1 to P9 by pressing PRESET several times.

• Edit the preset.

• Press and hold the PRESET button until LEDs 1, 2 and 3 blink rapidly one after the other. The preset is now stored at the current location.

When you store a preset from manual mode, this preset will overwrite the preset that was recalled the last time you were in preset mode.

When storing a preset from manual mode, all parameters are stored according to the position of the knobs and LEDs. When storing a preset from preset mode only the edited parameters are stored.

13 - Mod Style

Three different styles of modulation on the delay repeats can be selected. The level of the modulation is adjusted using the Mod Level knob.

OPERATION

14 - Type

Delay Line: Standard high quality delay line.

Dynamic: The Dynamic Delay is a feature that was initially introduced in the legendary TC 2290. It allows the dynamics of the input level to reduce the delay output level while you play and increase the delay level when you stop playing. The result can be a clear and undisturbed source signal while you play and a significant delay level when pausing.

For optimal performance of the dynamic delay the Nova Delay should be calibrated according to the input signal. Please refer to the step-bystep guide on calibrating the input sensitivity.

Reverse: The Reverse delay is a great effect when a more mysterious, exotic delay style is required. The input signal is sampled and played in reverse.

With a long delay time (e.g. 1000 ms), try setting the MIX knob at 100% and the FEEDBACK knob at 0. This will give you a true feeling of playing

“backwards”

11

OPERATION

PingPong:

The PingPong delay causes the delay to alternate between the left and right channels, resulting in a very nice stereo feel.

Pan:

In Pan mode the delay repeats shift between left and right output channels. The time it takes to pan the delay repeats depends on the set delay time.

The pan-position shifts from 100% left to 100% right in

5 repeats.

Slap-Back:

Slap-back is the characteristic short delay type. Use delay times from 80 to 140 ms and go back 50 years in time or use even shorter delays with a minimum of feedback to cover the funky sound from the late seventies to the early eighties.

Try adding one of the modulation styles on a slap-back delay.

15 - Subdiv - Subdivision

The subdivision options relate to the tapped tempo.

Tap the tempo in quarter notes and then select the subdivision of your choice.

In the following a few suggestions are added. Take these as an inspiration, then be innovative and find your own.

Quarter note - Delay repeats play quarter notes according to the tapped tempo. E.g. tap quarter notes at tempo 120 BPM. The delay time of the repeats is now 120 BPM or 500 ms.

Dotted eight note - A subdivision type often used when the delay repeats add to the actual guitar rhythm. Try playing quarter notes with the delay level set relatively high.

Eight note triplets - Excellent for fifties style rhythm in 6/8 where you play only on the fourth beat.

12

CALIBRATING THE INPUT SENSITIVITY

Dual Delay mode

With dual delay mode it is possible to have different subdivisions for left and right outputs. Three combinations are available.

Left output: Quarter notes

Right output: Dotted eights

Left output: Quarter notes

Right output: Eight note triplets

Left output: Sixteen notes

Right output: Dotted eights

If only left output is connected and dual delay mode is used, then left and right delay outputs are summed.

Subdivision example

Tap 500 ms (120 BPM measured in 1/4 notes) with the

Subdivision set to 1/8.

The delay time is now recalculated to 250 ms.

Input Level Calibration

Your Nova Delay pedal is per default set up to work well right out the box - just as any other stomp box pedal. However, you can optimize the performance of the Nova Delay pedals AD/DA converters by calibrating the input sensitivity. Follow this step-by-step guide:

• Calibration of the input sensitivity should be done to the max. expected input level. Therefore begin by turning on boosters etc. that are placed prior to the Nova Delay pedal in the signal chain.

• Press and hold the MANUAL button until the 6 delay type LEDs are lit.

• Play with your loudest* sound for a few seconds and watch some of the 6 LEDs turn off one by one.

How many that are turned off, depend on the output of your guitar. When no further changes seem to appear, the pedal is calibrated.

• Press any key to exit.

• The pedal is now calibrated

* By your “loudest” sound we mean the sound with the highest dynamic content. This is most likely a clean sound as overdrive sounds per nature are compressed.

13

DELAY SPILL-OVER

To mute the outputs of the Nova pedal while calibrating you can press and hold the TAP

TEMPO switch.

Delay Spill-over

The Nova Delay features true delay spill-over. With true delay spill-over, delay repeats will continue when changing to manual or preset mode, when changing to a different preset and also when going to bypass mode.

This feature gives numerous musical possibilities. As an example you may switch from a long delay with a high level of feedback to a short slap-back type and still hear the long delay repeats ring out across your new delay setting.

Delay spill-over can be set individually for manual mode and for all individual presets:

• Select manual or preset mode.

• If preset mode is selected, then recall the preset for

14

which you would like to enable or disable delay spill-over.

• Press and hold “MOD STYLE” to toggle between delay spill-over modes.

- In delay spill-over mode - LEDs 1, 2 and 3 will flash slowly one at a time.

- In delay mute mode (no spill-over) - LEDs 1, 2 and 3 will rapidly flash one time each.

These indications are also given when changing between manual and preset modes.

Tap Tempo Modes

The Nova Delay always has one global tempo. This tempo is either tapped in via the TAP TEMPO switch, audio tap or dialed in via the DELAY knob.

Manual mode

In manual mode it is always the global tempo that applies.

Preset mode

When switching from manual mode to preset mode you can set up whether it is the delay time stored in the preset or the global tempo, that should apply.

As explained earlier the actual delay time also depends on the selected sub-division.

To switch between using the stored delay time or the global tempo when entering preset mode:

• Go to preset mode by pressing PRESET.

• Press and hold “TYPE” for 1 second.

- Steady PRESET key LED indicates that you are using the global tempo.

ADDITIONAL FEATURES

- Flashing PRESET key LED indicates that you are using the stored delay time.

Cool Features via ON/OFF and

TAP TEMPO switches

Tap tempo and on/off are the main functions assigned to the ON/OFF and TAP/TEMPO switches. However, several other features can be accessed using these switches thus giving you even more control at the tip of your feet.

See current preset number

What is the current preset-number? As explained earlier you can press the PRESET button to see the current preset number. You can also see the current preset number following this procedure:

• Press TAP TEMPO once immediately followed by pressing the ON/OFF switch.

15

ADDITIONAL FEATURES

Change presets

You may step between the 9 presets (1-9) by pressing the PRESET button several times. However, you can also step between presets following this procedure:

• Press TAP TEMPO once and tap the ON/OFF switch repeatedly to step between presets 1-9.

As opposed to stepping through presets using the PRESET button, you can change the preset also from manual mode when using this method. The advantage using this method is that the preset will not be recalled/activated until you go to preset mode.

Preset Range Limitation

Assuming that you never use more than 3 presets, you may prefer not to step through all nine presets 1-9 when going from e.g. preset #3 to #2.

(#3, #4, #5, #6, #7, #8., #9, #1, #2)

Assume that you want to use only presets 1, 2 and 3.

• Press and hold MANUAL until calibration mode is entered.

16

• Turn MOD LEVEL and select P3.

• Press any key to exit the menu.

You are now only able to toggle through presets 1, 2 and 3.

To return to using all 9 presets: Follow the procedure described above and select P9 instead of P3.

Note that limiting the range of presets to scroll through will NOT delete presets located outside the selected range.

Delay Time in BPM or Milliseconds

The delay time can be displayed in either milliseconds or BPM (beats per minute).

To alternate between BPM and ms, press and hold the

SUBDIV button.

TECHNICAL SPECIFICATIONS

Analog Inputs

Connectors:

Input type

Impedance:

Max. Input Level:

¼” phone jacks w. mono-sense

Single ended

1 MOhm

16 dBu @ 12V supply

Environment

Operating Temperature:

Storage Temperature:

Humidity:

32° F to 122° F (0° C to 50° C)

-22° F to 167° F (-30° C to 70° C)

Max. 90 % non-condensing

Analog Outputs

Connectors:

Max. Output Level:

Output type

Impedance

Sense input impedance

Overall data

D to A Conversion

A to A delay

Dynamic range

THD

Frequency Response

Crosstalk

EMC

Complies with:

¼” phone jacks w. mono-sense

16 dBu @ 12V supply

Balanced/Single ended w. ground sense

0 Ohm

225 ohm

24 bit, 128 x oversampling bitstream

1.65 ms

106/98 dB, 20 Hz to 20 KHz

@ Input level 16/-2 dBu, not A-Weighted

< -90 dB (0.0032%) @ 1 kHz, I/O Level

16 dBu, Load > 2400 Ohm

+0.1/-0.2 dB, 20 Hz to 20 KHz

< -100 dB, 20 H z to 7 KHz, < -94 dB,

7 kHz to 20 KHz

EN 55103-1 and EN 55103-2 FCC part 15,

Class B, CISPR 22, Class B

General

Finish:

Dimensions:

Weight:

Mains Voltage

Power Consumption

Warranty Parts and labor

Anodized aluminum front Plated and painted steel endcaps

130 x130 x 55mm

765 g

100 to 240 VAC, 50 to 60 Hz

(auto-select) AC wall adapter.

AC adapter supplies 12VDC minimum 0.3A to pedal.

<5 W

1 year

Due to continuous development, these specifications are subject to change without notice.

17

PRESETS

The Nova Delay is delivered with the following presets in locations P1 to P9. When storing your own favorite settings, these presets will be overwritten.

Preset #1 - Dynamic

Delay time

Feedback

Color

Mod level

Mix

30%

80%

0%

25%

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Global

On

#0

Dynamic

Preset #4 - Slap

Delay time

Feedback

Color

Mod level

Mix

120

0%

50%

0%

30%

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Preset

Off

#0

Slapback

Preset #2 - Tape

Delay time

Feedback

350ms

40%

Color

Mod level

Mix

0%

100%

40%

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Preset

Off

#3

Delay Line

Preset #5 - PingPong

Delay time

Feedback

Color

-

63%

75%

Mod level

Mix

50%

20%

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Global

On

#1

PingPong

Preset # 3 - UToo

Delay time

Feedback

Color

Mod level

Mix

0%

100%

100%

50%

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Global

On

#3

Delay Line

Preset #6 - Mod Pan

Delay time

Feedback

2290ms

80%

Color

Mod level

Mix

100%

100%

50%

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Preset

On

#3

Pan

18

Preset # 7 - Analog Solo

Delay time -

Feedback

Color

Mod level

Mix

15%

50%

75%

28%

Preset # 8 - Spacey

Delay time

Feedback

Color

527ms

38%

100%

Mod level

Mix

100%

50%

Preset #9 - Reverse

Delay time

Feedback

1000ms

0%

Color

Mod level

Mix

100%

0%

100%

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Preset

On

#2

Delay Line

Tap Tempo

Spill-over

Mod Style

Type

Sub-div

Global

On

#2

Dynamic

Preset

Off

#0

Reverse

PRESETS

19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
