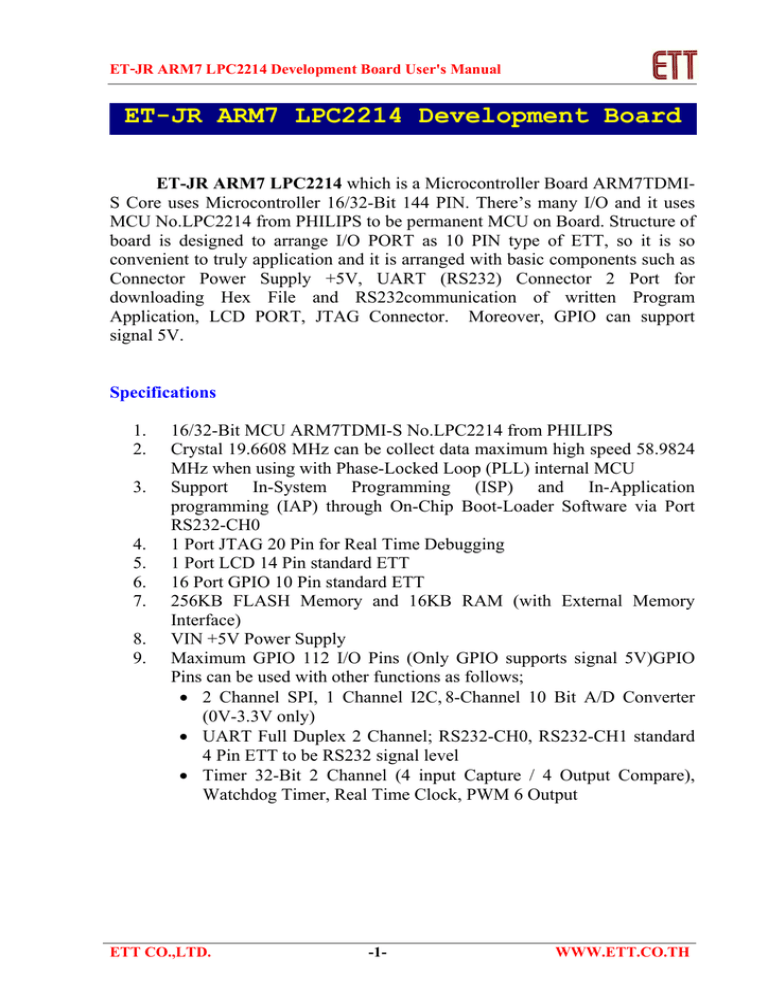

ET-JR ARM7 LPC2214 Development Board User`s Manual

ET-JR ARM7 LPC2214 Development Board User`s Manual
ET-JR ARM7 LPC2214 Development Board User's Manual
ET-JR ARM7 LPC2214 Development Board
ET-JR ARM7 LPC2214 which is a Microcontroller Board ARM7TDMIS Core uses Microcontroller 16/32-Bit 144 PIN. There’s many I/O and it uses
MCU No.LPC2214 from PHILIPS to be permanent MCU on Board. Structure of
board is designed to arrange I/O PORT as 10 PIN type of ETT, so it is so
convenient to truly application and it is arranged with basic components such as
Connector Power Supply +5V, UART (RS232) Connector 2 Port for
downloading Hex File and RS232communication of written Program
Application, LCD PORT, JTAG Connector. Moreover, GPIO can support
signal 5V.
Specifications
1.
2.
3.
4.
5.
6.
7.
8.
9.
16/32-Bit MCU ARM7TDMI-S No.LPC2214 from PHILIPS
Crystal 19.6608 MHz can be collect data maximum high speed 58.9824
MHz when using with Phase-Locked Loop (PLL) internal MCU
Support In-System Programming (ISP) and In-Application
programming (IAP) through On-Chip Boot-Loader Software via Port
RS232-CH0
1 Port JTAG 20 Pin for Real Time Debugging
1 Port LCD 14 Pin standard ETT
16 Port GPIO 10 Pin standard ETT
256KB FLASH Memory and 16KB RAM (with External Memory
Interface)
VIN +5V Power Supply
Maximum GPIO 112 I/O Pins (Only GPIO supports signal 5V)GPIO
Pins can be used with other functions as follows;
• 2 Channel SPI, 1 Channel I2C, 8-Channel 10 Bit A/D Converter
(0V-3.3V only)
• UART Full Duplex 2 Channel; RS232-CH0, RS232-CH1 standard
4 Pin ETT to be RS232 signal level
• Timer 32-Bit 2 Channel (4 input Capture / 4 Output Compare),
Watchdog Timer, Real Time Clock, PWM 6 Output
ETT CO.,LTD.
-1-
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
Structure of Board ET-JR ARM7 LPC2214
1
3
2
16
18
15
4
17
19
14
5
21
20
13
6
22
12
7
10
11
9
8
23
24
25
29
ETT CO.,LTD.
28
27
-2-
26
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
•
No. 6, 3, 14 and 10 is GPIO that is divided into 4 Ports as in the picture (only GPIO
can support signal 3.3V and 5V).
•
No. 2, 7 and 9 is GPIO that is divided into 3 Port as in the picture (only GPIO can
support signal 3.3V and 5V).
•
No. 1, 17, 13 and 12 is GPIO2 that is divided into 4 Port as in the picture (only GPIO
can support signal 3.3V and 5V).
ETT CO.,LTD.
-3-
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
•
No. 4, 5, 8 and 11 is GPIO3 that is divided into 4 Port as in the picture (only GPIO can
support signal 3.3V and 5V).
•
No. 24 and 25 is Port Communication RS232-CH0 and RS232-CH1 respectively.
•
No. 23 is Jumper for Enable or Disable RS232-CH1.
•
No.18 and 19 is Switch LOAD (BSL) and RESET respectively.
ETT CO.,LTD.
-4-
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
•
No. 15 and 16 is LCD Connector 14PIN and VR10K to contrast the brightness of LCD
Monitor respectively.
•
No. 20 is Crystal 19.6608 MHz.
•
No. 21 is MCU ARM7TDMI-S LPC2214 from Philips.
•
No. 22 is Jumper for selecting internal Memory or external Memory to Boot. For this
Board, we set as 11 that use internal Flash Memory to be default value.
ETT CO.,LTD.
-5-
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
•
No. 26 is Jumper for selecting RUN Mode or Debugging Mode.
•
No. 27 is JTAG Connector 20PIN to Interface with JTAG Debugger.
•
No. 28 is red LED to display operation of Power Supply.
•
No. 29 is connecting point of +5V Power Supply for board and GND.
ETT CO.,LTD.
-6-
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
Download Hex File into MCU of Board
To download Hex file into Flash memory of MCU internal Board, we use program
LPC2000 Flash utility V2.3.3 from Philips. It connects with MCU through Serial Port of
computer PC and we can download this program free without any charge from website
www.semiconductors.philips.com
Procedure to Download Hex File into MCU
1.
Interface Cable RS232 from RS232 Serial Port Communication of PC with
Board (RS232-CH0)
2.
Set Jumper RUN/DEB to be on RUN Mode side
3.
Power Supply +5V into Board and see red LED (PWR) must be status ON
4.
Run Program LPC2000 Flash Utility of Philips and it will display results as
in the picture below
5.
Start setting default values of Program into Board ET-JR ARM7 LPC2214
from ETT; in this case, user should set default values as in the picture
below;
1) Must select Com Port to be corresponding with Com Port number that is truly
usage (in this example uses COM1)
2) Set Baud Rate between 4800 - 38400 (these values are tested, so user can use
them without any problem)or using standard speed that is 9600
3) We can not select MCU in Device blank because program will display number
of LPC2214 by self (depend on permanent MCU of board) when it can be
connected with Board successfully.
4) Set Crystal Oscillator to be corresponding with truly usage internal Board with
KHz unit and not use greater than 5 digits. In this case, we set it as 19.6608
MHz or 19660.
ETT CO.,LTD.
-7-
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
5) Click “Read device ID” button to connect with CPU and it will display
message to access into Boot Mode as in the picture below.
6) Press Switch RESET and LOAD (BSL)on Board ET-JR ARM7 LPC2214 to
Reset MCU to run in Boot Loader Mode as in the procedure below;
ƒ Press Switch LOAD (BSL) for a while
ƒ Press Switch RESET but we remain pressing Switch LOAD (BSL)
ƒ Let Switch RESET but we remain pressing Switch LOAD (BSL)
ƒ Finally, let Switch LOAD (BSL)and then click “OK”
7) When it can connect with CPU successfully, it will display detail of Part ID
and Boot Loader ID as in the picture below.
ETT CO.,LTD.
-8-
WWW.ETT.CO.TH
ET-JR ARM7 LPC2214 Development Board User's Manual
8) Then select HEX File that we want programming into MCU
9) Click “Upload to Flash” and program LPC2000 starts downloading data into
MCU instantly. We can see Status “Uploading to LPC2000 RAM and
Copying to Flash Memory” as in the picture below. We must wait for this
proceeding completely and we can see Status “File Upload Successfully
Completed”
10) When the operation of program completely, must press Switch RESET on
Board and MCU starts running follow downloaded program instantly.
-----------------------------------------------------------------------------------------------------------------
ETT CO., LTD
1112/96-98 Sukhumvit Rd., Phrakanong, Bangkok 10110 THAILAND
Tel : (662) 712-1120 Fax : (662) 3917216
E-Mail : [email protected]
Website : www.ett.co.th, www.etteam.com
ETT CO.,LTD.
-9-
WWW.ETT.CO.TH
