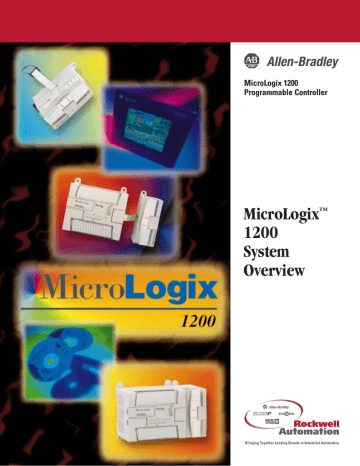

MicroLogix 1200

Programmable Controller

MicroLogix

1200

System

Overview

Take Control

Experience Complete

Satisfaction With

Allen-Bradley Products

Since 1903, Rockwell Automation's

Allen-Bradley has earned a worldwide reputation as the most trusted brand name in industrial automation. It's a reputation built on a very simple strategy: providing customers with products of uncompromising quality and reliability. The MicroLogix 1200 family of controllers demonstrates that commitment to high standards of product dependability, technological innovation, and performance.

More importantly, because your absolute satisfaction is important to us, we back our products with the highest levels of customer service and support in the industry. Your local Rockwell Automation representative is your source for expert sales and order support, as well as:

• Product technical training

• Warranty support

• Service agreements

MicroLogix 1200

Processors:

High Functionality in a Compact,

Cost-Effective Package

Some micro-PLCs force you to trade off between product size and functionality.

Many applications requiring dedicated control also have rigorous space requirements. You may, however, want the freedom to expand your I/O as your application grows. Whatever the solution, though, it must be cost-effective.

With the MicroLogix 1200 family of micro-controllers, you can finally have the ideal blend of functionality and compact size, at a price that is more reasonable than you might expect.

The Footprint is Small, but the Functionality is Big

In 1994, we introduced the MicroLogix 1000, a miniature controller offering task-specific dedicated control at a very low price. Later came the MicroLogix 1500 with expansion

I/O to suit complex, ever-growing applications.

Now there is the MicroLogix 1200, bringing together the best of both products.

The MicroLogix 1200 controllers are truly micro in size. With a footprint as small as

3.54" x 4.33" (90mm x 110mm), they are ideal for control projects where panel space is a challenge. Make no mistake, though — small size does not mean small functionality.

These tiny packages are filled with an abundance of features designed to accommodate a broad range of applications.

Expansion I/O

The MicroLogix 1200 makes use of discrete and analog expansion I/O modules (providing up to 88 points) for a lot of application flexibility.

Removable I/O labels with a writeon area make for easy field device identification to reduce valuable troubleshooting and maintenance time. Finally, finger-safe terminal blocks make for safe operation by meeting global safety standards.

Compatible Instructions

Sets and Programming

Software

Because it is part of the

MicroLogix/SLC family, the

MicroLogix 1200 features an instruction set that is compatible with other MicroLogix controllers as well as SLC 500 controllers.

That means that programs written for the MicroLogix 1000,

MicroLogix 1500 or SLC 500 can be easily scaled for the

MicroLogix 1200.

Likewise, the MicroLogix 1200 is compatible with Rockwell

Software RSLogix 500 programming software, a feature-rich Windows ® based package used to program a host of Allen-Bradley controllers.

The result of this compatibility — reduced time spent training personnel and developing applications due to software familiarity and program reusability.

Large Non-Volatile Memory

Similar to the MicroLogix 1500, the MicroLogix

1200 boasts a large 6K memory, with 4K words available for user programs and configurable

2K words for user data. This feature of the

MicroLogix 1200 expands application coverage by allowing data elements to be selected according to individual application requirements.

MicroLogix 1200 Features

Other features of the MicroLogix 1200 include:

• Real time clock & memory modules

• Communication features:

• Built-in RS-232C port supporting DF1 full and half-duplex protocols and

DH485 protocol

• New embedded Modbus RTU slave protocol

• Direct connectivity to either DeviceNet or

DH485 network interfaces

• 20 kHz High Speed Counter with eight modes of operation and direct control of outputs (independent of program scan)

• Built-in analog trim potentiometers

Table of Contents

4

Table of Contents

Refer to the MicroLogix Selector Guide on the back cover of this publication for assistance in selecting the correct

MicroLogix Programmable Controller for your application.

Inside… Page

MicroLogix 1200 System . . . . . . . . . . . . . . . . . . . . 5

Expansion I/O Modules . . . . . . . . . . . . . . . . . . . . . 8

Communication Choices . . . . . . . . . . . . . . . . . . . . 12

Network Interface Devices . . . . . . . . . . . . . . . . . . 15

Programming Software . . . . . . . . . . . . . . . . . . . . . 18

Programming Instructions . . . . . . . . . . . . . . . . . . . 20

Operator Interface Devices . . . . . . . . . . . . . . . . . . 21

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

User Documentation . . . . . . . . . . . . . . . . . . . . . . . 23

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

MicroLogix 1200 System

MicroLogix 1200 System

The MicroLogix 1200 programmable controllers are integrated packages of processor, power supply and embedded inputs and outputs. The 24-point and 40point controllers provide the computing power to solve a variety of applications utilizing the proven MicroLogix family and SLC family architecture.

The MicroLogix 1200’s modular, rackless design provides for lower system cost and reduced parts inventory. Expansion I/O modules allow for greater application flexibility.

Memory modules allow user programs to be uploaded, downloaded and easily transported. Real-Time Clock (RTC) capabilities allow time scheduling of control.

A flash upgradeable operating system makes it easy to upgrade operating systems without having to replace hardware. Your controller can be updated with latest firmware via a Web site download of

ControlFlash software.

The MicroLogix 1200 controllers also utilize Rockwell Software RSLogix 500

™ programming software and feature a common instruction set to the

MicroLogix 1000, MicroLogix 1500 and

SLC families of controllers.

Features:

High-performance I/O expansion through MicroLogix 1200

Expansion I/O. Up to six expansion I/O modules per

MicroLogix 1200 controller (depending on power budget)

Advanced communications options, from peer-to-peer to

SCADA/RTU networks.

6K user memory (4K program, 2K data)

Data file download protection, saving critical user data from being overwritten during logic transfers

Real-time clock and memory modules

32-bit signed integer math

Built-in PID capabilities

20 kHz high-speed counter, featuring eight modes of operation. Outputs can be controlled when counter reaches programmed high or low preset levels.

Four interrupt inputs for high-speed processing

Four latching inputs to capture microsecond pulses to be processed during normal program scan.

Two analog trim potentiometers built into the controller. A

3/4 turn adjusts an integer between 0 and 250.

Removable terminal blocks on 40-point controllers, allows for pre-wiring of the controller and saves installation time.

Removable label with write-on area for easy field device identification, saving valuable maintenance time.

Finger-safe terminal blocks, meeting global safety standards.

Regulatory agency certifications pending

5

MicroLogix 1200 System

Controller Specifications

General Specifications

6

Description

Dimensions

Number of I/O

1762-L24AWA 1762-L24BWA

Height: 90 mm

104 mm (with DIN latch open)

Width: 110 mm

Depth: 87 mm

14 inputs

10 outputs

85/265V ac

14 inputs

10 outputs

85/265V ac Line Power

Power Supply

Power Supply Maximum

Inrush

User Power Output

Input Circuit Type

120V ac

240 V ac

120V ac = 25 A for 8 ms

240V ac = 40 A for 4 ms none

120V ac

24V dc at 250 mA

24V dc sink/source

Relay Output Circuit Type Relay

Operating Temperature +0°C to +55°C (+32°F to +131°F) ambient

Storage Temperature -40°C to +85°C (-40°F to +185°F) ambient

Operating Humidity

Agency Certification

5% to 95% relative humidity (non-condensing)

Regulatory agency certifications pending

1762-L40AWA 1762-L40BWA

Height: 90 mm

104 mm (with DIN latch open)

Width: 160 mm

Depth: 87 mm

24 inputs

16 outputs

85/265V ac

24 inputs

16 outputs

85/265V ac none

120V ac

Relay

24V dc at 400 mA

24V dc sink/source

Relay

For complete specifications on the MicroLogix 1200 controllers, refer to Appendix A of the MicroLogix 1200

Programmable Controllers User Manual, publication 1762-UM001A-US-P (available February 2000). To purchase this manual or download a free electronic version, visit us at http://www.theautomationbookstore.com

. Or, for fast access to related publications, visit the MicroLogix Internet site http://www.ab.com/micrologix . Electronic versions of our manuals are available for you to search and download.

MicroLogix 1200 System

Input Specifications

Description 1762-L24AWA

1762-L40AWA

79 to 132V ac On-State Voltage Range

Off-State Voltage Range

Operating Frequency

0 to 20V ac

47 Hz to 63 Hz

On-State Current: 5.0 mA at 79V dc (min.)

12 mA at 120V dc (nom.)

6.0 mA at 132V dc (max.)

Off-State Leakage Current

Nominal Impedance

2.5 mA max.

12K

at 50 Hz

10K

at 60 Hz

Inrush Current (max.) at 120V ac 250 mA

1762-L24BWA and 1762-L40BWA

Inputs 0 through 3 Inputs 4 and higher

14 to 26.4V dc at 55°C (131°F)

14 to 30.0V dc at 30°C (86°F)

10 to 26.4V dc at 55°C (131°F)

10 to 30.0V dc at 30°C (86°F)

0 to 5V dc

0 Hz to 20 kHz

2.5 mA at 14V dc (min.)

8.8 mA at 24V dc (nom.)

12.0 mA at 30V dc (max.)

1.5 mA min.

2.5K

0 Hz to 1 kHz

(scan time dependent)

2.0 mA at 10V dc (min.)

8.5 mA at 24V dc (nom.)

12.0 mA at 30V dc (max.)

2.6K

Not Applicable

7

Relay Contact Rating Table 1762-L24AWA, -L24BWA, -L40AWA, -L40BWA

Maximum Volts

240V ac

120V ac

125V dc

Amperes

Make

7.5A

15A

0.22A

(1)

1.2A

Break

0.75A

1.5A

Amperes Continuous Volt-amperes

2.5A

2.5A

Make

1800 VA

1800 VA

1.0A

Break

180 VA

180 VA

24V dc 2.0A

(1) For dc voltage applications, the make/break ampere rating for relay contacts can be determined by dividing 28 VA by the applied dc voltage. For example, 28 VA/48V dc =

0.58A. For dc voltage applications less than 48V, the make/break ratings for relay contacts cannot exceed 2A.

Output Specifications - Maximum Continuous Current

Specification

Current per Common

Current per Controller at 150V ac max at 240V ac max

(1) 15A above 40°C (104°F)

(2) 24A above 40°C (104°F)

1762-L24AWA, 1762-L24BWA

8A

25A

(1)

20A

(1)

1762-L40AWA, 1762-L40BWA

8A

30A

(2)

20A

Expansion I/O Modules

8

Expansion I/O Modules

MicroLogix 1200 I/O expansion modules provide superior functionality at a low cost. With a variety of modules, they complement and extend the capabilities of the MicroLogix 1200 controllers by maximizing flexibility of the I/O count and type.

MicroLogix 1200 I/O has a modular, rackless design. Elimination of the I/O rack from the system enhances cost savings and reduces replacement parts inventory.

The MicroLogix I/O package design allows modules to be either DIN rail or panel mounted. The DIN latches and screw mounting holes are an integral part of the package design.

Features:

Rackless design, eliminating added system costs and inventory

Small footprint, shrinking panel space requirements

Integral highperformance I/O bus

Software keying to prevent incorrect positioning within the system

Feature-rich I/O functionality addresses a wide range of applications

AC/DC relay, 24V dc, and 120V ac voltages

Available modules include:

1762-IA8

1762-IQ8

1762-OW8

1762-IF2OF2

8 point 120V ac Input Module

8 point 24V dc Sinking/Sourcing Input Module

8 point ac/dc Relay Output Module

2 channel Inputs/2 channel Outputs Analog Module

For complete information on the MicroLogix 1200 I/O modules, refer to the MicroLogix 1200 Programmable Controllers User Manual, publication 1762-UM001A-US-P. To purchase this manual or download a free electronic version, visit us at http://www.theautomationbookstore.com

. Or, for fast access to related publications, visit the MicroLogix Internet site http://www.ab.com/micrologix

. Electronic versions of our manuals are available for you to search and download.

Expansion I/O Modules

Expansion I/O Modules

Common Specifications

Specification

Dimensions

Operating Temperature

Operating Humidity

Operating Altitude

Noise Immunity

Radiated and Conducted Emissions

Electrical /EMC:

ESD Immunity (IEC1000-4-2)

Radiated Immunity (IEC1000-4-3)

Fast Transient Burst (IEC1000-4-4)

Surge Immunity (IEC1000-4-5)

Conducted Immunity (IEC1000-4-6)

Value

90 mm (height) x 87 mm (depth) x 40 mm (width) height including mounting tabs is 110 mm

3.543 in. (height) x 3.425 in. (depth) x 1.575 in. (width) height including mounting tabs is 4.33 in.

0°C to +55°C (-32°F to +131°F)

5% to 95% non-condensing

2000 meters (6561 feet)

NEMA standard ICS 2-230

EN50081-2 Class A

The module has passed testing at the following levels:

4 kV contact, 8 kV air, 4 kV indirect

10 V/m, 80 to 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier

2 kV, 5 kHz

2 kV common mode, 1 kV differential mode

10V, 0.15 to 80 MHz

(1)

(1) Conducted Immunity frequency range may be 150 kHz to 30 MHz if the Radiated Immunity frequency range is 30 MHz to 1000 MHz.

Input Specifications

Specification

Voltage Category

Operating Voltage Range

Number of Inputs

Bus Current Draw (max.)

Heat Dissipation (max.)

Signal Delay (max.)

Off-State Voltage (max.)

Off-State Leakage Current (max.)

On-State Voltage (min.)

On-State Current

Inrush Current (max.)

Nominal Impedance

1762-IA8

100/120V ac

79V ac to 132V ac at 47 Hz to 63 Hz

8

50 mA at 5V dc (0.25W)

2.0 Total Watts

On Delay: 20.0 ms

Off Delay: 20.0 ms

20V ac

2.5 mA

79V ac (min.) 132V ac (max.)

5.0 mA (min.) at 79V ac 47 Hz

12.0 mA (nominal) at 120V ac 60 Hz

16.0 mA (max.) at 132V ac 63 Hz

250 mA

12K

at 50 Hz

10K

at 60 Hz

6

1762-IQ8

24V dc (sink/source)

(1)

10 to 26.4V dc at 55°C (131°F)

10 to 30V dc at 30°C (86°F)

8

50 mA at 5V dc (0.25W)

3.7 Total Watts

On Delay: 8.0 ms

Off Delay: 8.0 ms

5V dc

1.5 mA

10V dc

2.0 mA min. at 10V dc

8.0 mA nominal at 24V dc

12.0 mA max. at 30V dc

Not Applicable

3K

Power Supply Distance Rating 6

(1) Sinking/Sourcing Inputs - Sourcing/sinking describes the current flow between the I/O module and the field device. Sourcing I/O circuits supply (source) current to sinking field devices. Sinking I/O circuits are driven by a current sourcing field device. Field devices connected to the negative side (DC Common) of the field power supply are sinking field devices. Field devices connected to the positive side (+V) of the field supply are sourcing field devices.

9

Expansion I/O Modules

10

Output Specifications

Specification

Voltage Category

Operating Voltage Range

Number of Outputs

Bus Current Draw (max.)

Heat Dissipation (max.)

Signal Delay (max.) - resistive load

Off-State Leakage (max.)

On-State Current (min.)

Continuous Current per Point (max.)

Continuous Current per Common (max.)

Continuous Current per Module (max.)

Power Supply Distance Rating

(1) See Relay Contact Rating Table on page page 7.

1762-OW8

AC/DC normally open relay

5 to 265V ac

5 to 125V dc

8

80 mA at 5V dc (0.40W)

90 mA at 24V dc (2.16W)

2.9 Total Watts

On Delay: 10 ms

Off Delay: 10 ms

0 mA

10 mA at 5V dc

2.5A

(1)

8A

16A

6

Analog I/O Module

The 1762-IF2OF2 analog combination input/output module converts and digitally stores analog data for use by the MicroLogix 1200 controllers. The module supports connections from any combination of up to two voltage or current analog sensors. The two output channels provide two single-ended analog output channels, each individually configurable for voltage or current. This provides application flexibility, reduces stock inventory and lessens the learning curve.

MicroLogix 1200 I/O’s analog module provides 12-bit resolution, making it an excellent choice for applications that monitor and control small changes in the analog value.

The MicroLogix 1200 analog module provides the following input/ output types/ranges:

0 to 10V dc

0 to 20 mA

4 to 20 mA

Expansion I/O Modules

Analog Specifications

Specification

Analog Normal Operating Range

Resolution

(1)

Repeatability

(2)

Input and Output Group to Backplane

Isolation

Value

Voltage: 0 to 10V

Current: 4 to 20 mA

12 bits

±0.1% (max.)

30V ac/30V dc rated working voltage

(3)

(IEC Class 2 reinforced insulation)

±0.1% type test: 500V ac or 707V dc for 1 minute

(1) Unipolar, over the full scale analog range.

(2) Repeatability is the ability of the input module to register the same reading in successive measurements for the same input signal.

(3) Rated working voltage is the maximum continuous voltage that can be applied at the input terminal, including the input signal and the value that floats above ground potential

(for example, 10V dc input signal and 20V dc potential above ground).

11

Analog Input Specifications

Specification

Number of Inputs

Non-linearity (in percent full scale)

Input Impedance

Channel Diagnostics

Value

2 differential (unipolar)

±0.1%

Voltage Terminal: 200K

Current Terminal: 250

Over-or under-range or open-circuit condition by bit reporting for analog inputs.

Analog Output Specifications

Specification

Number of Outputs

Resistive Load on Current Output

Load Range on Voltage Output

Non-linearity (in percent full scale)

Open and Short-Circuit Protection

Output Overvoltage Protection

Value

2 single-ended (unipolar)

0 to 500

(includes wire resistance)

> 1K

±0.5% (max.)

Yes

Yes

Communication Choices

12

Communication Choices

All MicroLogix 1200 programmable controllers provide several communication options to fit into a variety of applications.

The DF1 Full-Duplex protocol allows the

MicroLogix 1200 to communicate directly with another device, such as a personal computer or an operator interface device.

The DF1 Full-Duplex protocol (also referred to as DF1 point-to-point protocol) is useful where RS-232 point-topoint communication is required.

The DH485 multi-drop communication capability allows you to network up to 32

MicroLogix or SLC 500 controllers,

Human/Machine Interface (HMI) devices and/or personal computers using peer-topeer messaging.

And, the MicroLogix 1200 can communicate on a DeviceNet network as well. DeviceNet digitally links push buttons, sensors, actuators, PLCs and other industrial devices on an open network.

MicroLogix 1200 controllers also support

DF1 Half-Duplex Slave communications for use in SCADA systems as a Remote

Terminal Unit (RTU). This open network protocol enables MicroLogix controllers to communicate as responder (slave) nodes on DF1 master/slave networks. DF1 supports up to 254 responder devices with a single master.

Additionally, the MicroLogix 1200 supports Modbus Slave, a SCADA/RTU protocol.

MicroLogix

1200

WorkStation

DC

Drive

MicroLogix

1000

Filter

MicroLogix

1200

SLC

Controller

MicroLogix

1500

Flex I/O

Radio/Phone Modem

SCADA Master

MicroLogix

1500

MicroLogix

1200

Variable

Frequency Drive

System

MicroLogix

1000

Reliance AC Motor

Features:

Standard RS-232 port

300, 600, 1200, 4800, 9600, 19,200, and 38,400 baud rates

RTS/CTS Hardware handshake signals

Connection to DH485 and DeviceNet networks through

1761-NET-AIC and 1761-NET-DNI, respectively

Connection to modems for remote communications

ASCII messaging provides dial-out capability

The MicroLogix 1200 allows you to choose the network that best meets your needs.

Use this network If your application requires:

Connection of low

level multi-vendor devices directly to plant floor controllers

Data sharing between 64 devices

Better diagnostics for improved data collection and fault detection

Less wiring and reduced start-up time than traditional, hard-wired systems

Plant-wide and cell-level data sharing with program maintenance

Data sharing between 32 controllers

Program upload, download, and monitoring to all controllers

Compatibility with multiple Allen-Bradley HMI devices

Connection to dial-up modems for remote program maintenance or data collection

Connection to leased-line or radio modems for use in

SCADA systems

Remote Terminal Unit (RTU) functions

Connection to modems for remote data collection in a SCADA system

Remote Terminal Unit (RTU) functions

DeviceNet via the

1761-NET-DNI

DH485 via the

1761-NET-AIC

DF1 Full-Duplex

DF1 Half-Duplex

Slave

Modbus RTU Slave

Communication Choices

Local Messages

The MicroLogix 1200 is capable of communicating using local or remote messages. With a local message, all devices are accessible without a separate device acting as a bridge. Different types of electrical interfaces may be required to connect to the network, but the network is still classified as a local network. Remote messages use a remote network, where devices are accessible only by passing or routing through a device.

Example 1 - Local DH485 Network with AIC+ (1761-NET-AIC) Interface

DH485 Network

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

SLC 5/04

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

A-B

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

PanelView

PanelView 550

13

The following four examples represent different types of local and remote networks.

MicroLogix 1000 MicroLogix 1200 MicroLogix 1500

Personal

Computer

Example 2 - Local DeviceNet Network with DeviceNet Interface (1761-NET-DNI)

DeviceNet Network

DNI

DANGER DANGER

DNI

DNI SLC 5/03

DANGER

DANGER

Master

DNI

MicroLogix 1000 MicroLogix 1200 MicroLogix 1500

DNI SLC 5/03

DANGER

DANGER

DNI

Personal

Computer

14

Communication Choices

Example 3 - Local DF1 Half-Duplex Network

Rockwell Software WINtelligent

LINX, RSLinx 2.0 (or higher),

SLC 5/03, SLC 5/04, and SLC 5/05, or PLC-5 processors configured for

DF1 Half-Duplex Master.

RS-232

(DF1 Half-Duplex Protocol)

Modem

MicroLogix

1000 (Slave)

MicroLogix

1200 (Slave)

MicroLogix

1500 (Slave)

SLC 5/03 (Slave) SLC 5/04 with 1747-KE

Interface Module (Slave)

NOTE

It is recommended that isolation (1761-NET-AIC) be provided between the controller and the modem when using a non-isolated port.

Example 4 - Remote Messaging

DH485 Network

AIC+

TX

TERM

COM

SHLD

CHS GND

TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

MicroLogix 1000

DH+ Network

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

SLC 5/04

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

AIC+

MicroLogix 1200

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

AIC+

MicroLogix 1500

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

AIC+

TERM

TX

COM

SHLD

CHS GND

TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

A-B PanelView

PanelView 550

SLC 5/04

SLC 5/04 PLC-5

Network Interface Devices

Network Interface

Devices

The Micrologix 1200 Programmable

Controller’s list of impressive hardware, memory, and processing features makes this family of controllers an ideal choice for applications with up to 88 I/O. And, with the DeviceNet Interface, you can connect MicroLogix Programmable

Controllers and other DF1 compatible devices to a DeviceNet network.

Additionally, with the 1761-NET-DNI

DeviceNet Interface and 1761-NET-AIC

Advanced Interface Converter (AIC+), you can connect MicroLogix Programmable

Controllers to DH485 and DeviceNet networks.

For detailed information on using the network interface modules, refer to the

DeviceNet

Interface User Manual, publication 1761-6.5, and the AIC+

Advanced Interface Converter User Manual, publication 1761-6.4. To purchase these manuals or download a free electronic version, visit us at http://www.theautomationbookstore.com

.

For fast access to related publications, visit the MicroLogix Internet site http://www.ab.com/micrologix . Electronic versions of our manuals are available for you to search and download.

1761-NET-DNI DeviceNet Interface Module

Highlights of the DeviceNet Interface’s capabilities are:

Peer-to-peer messaging between Allen-Bradley controllers and other devices using the DF1 Full-Duplex protocol

Programming and on-line monitoring over the DeviceNet network

With a DNI connected to a modem, you can dial in to any other DNI-controller combination on DeviceNet

Other DeviceNet products can send explicit (Get or Set) messages with the DNI at any time

The controller can initiate an explicit message to any UCMM

(Unconnected Message Manager) compatible device on

DeviceNet

15

DeviceNet

DNI

DANGER DANGER

DNI SLC 5/03

DANGER

DNI

Master

DNI

DANGER

DNI SLC 5/03

DANGER

DANGER

DNI

Personal

Computer

MicroLogix

1000

MicroLogix

1200

MicroLogix

1500

MicroLogix micro-PLCs extend the benefits of distributed control to the device level of your process with the addition of DeviceNet functionality.

DeviceNet digitally links push buttons, sensors, actuators, PLCs and other industrial devices. It reduces the installation and maintenance costs of multiple discrete wires with a single cable that handles both communications and power distribution.

The 1761-NET-DNI Series B Interface

(DNI) brings the fast response, low cost and reliability of open DeviceNet connectivity to all MicroLogix controllers and most other Allen-Bradley controllers.

MicroLogix on DeviceNet lets you take advantage of the latest advances in communications. DeviceNet uses producer/consumer technology which significantly reduces the amount of traffic on the network, thus improving efficiency and data throughput. As a result, information gets across the network quicker.

Network Interface Devices

16

Advanced Slave I/O Functionality

Through the DNI, MicroLogix controllers can function as cost-effective DeviceNet slave nodes. The DNI presents to

DeviceNet up to 64 words of data (32 inputs, 32 outputs, configurable). The DNI can either poll or accept data sent from the MicroLogix controller to keep its mapped I/O data up-to-date with the actual data in the controller, while the DNI handles all DeviceNet communications.

All local I/O remains under the MicroLogix controller’s direct control, yet can be visible to the DeviceNet master.

Using standard messaging commands, you can easily read or write data to other controllers as shown in the network diagram on page 15.

Inputs

Outputs

Status

Timers

Counters

Integers

Mapping of integer blocks to

DNI I/O words done with

DeviceNet Manager software

DNI Data

DeviceNet Outputs

Master’s Outputs

0

Split point adjustable

1

2

3

Explicit Data

4 to

16

DeviceNet Inputs

Master’s Inputs

Split point adjustable

0

1

2

Explicit Data

3 to

40

Mapping of integer files performed in ladder logic

Simple, Reliable Peer-to-Peer Messaging

The DNI brings brand-new functionality to DeviceNet by enabling peer-to-peer messaging between devices that use the

DF1 Full-Duplex protocol.

The DNI takes the DF1 Full-Duplex commands, wraps them in the DeviceNet protocol and sends them to the target

DNI. The target DNI removes the DeviceNet information and passes the DF1 command to the end device.

This capability works between controllers, PCs and controllers, and for program up/downloading. I/O and data messages are prioritized, which minimizes I/O determinism problems typically encountered on networks that support I/O and messaging simultaneously.

Enable Your Control Strategy Now

Helpful information and free DNI configuration software are also available at http://www.ab.com/micrologix . For more on the DeviceNet standard, visit http://www.odva.org

.

DeviceNet Interface Series B (1761-NET-DNI) Specifications

Description

24V dc Power Source Requirements

Current Draw

Internal Isolation

Operating Ambient Temperature

Storage Temperature

Agency Certification

DeviceNet

Specifications

11 to 25V dc

200 to 250 mA

400 mA maximum inrush current (30 msec, max.)

500V dc

0 to +60°C (+32 to +140°F)

-40 to +85°C (-40 to +175°F)

UL 1604

C-UL C22.2 No. 213

Class 1, Division 2, Groups A, B, C, D

CE compliant for all applicable directives

ODVA conformance 2.0-A12 maximum number of nodes = 64 maximum length = 500m at 125K baud or 100m at 500K baud

Network Interface Devices

AIC+ Advanced Interface Converter

The AIC+ is a networking device from Allen-Bradley that provides DH485 network access from any DH485 compatible device that has a RS-232 port, including all MicroLogix controllers, SLC 5/03 and 5/04, and PanelView 550 and 900. In addition, the device provides isolation between all ports for a more stable network and protection for connected devices. The unit is DIN rail or panel mountable and is industrially hardened.

The Advanced Interface Converter provides a simple, cost-effective solution for connecting

RS-232 devices to a DH485 network. The AIC+ also provides:

Two isolated RS-232 connections - one 9-pin D-shell and one 8-pin mini DIN

An RS-485 6-pin Phoenix connection

Power acceptance via the 8-pin mini DIN from a MicroLogix controller or an external power connection

Compatibility with existing SLC DH485 networks that use 1747-AICs

Auto baud rate capability for ease of system set-up

Diagnostic LEDs for network activity

Some typical applications include:

Connecting a personal computer to a

DH485 network

Connecting MicroLogix controllers to a DH485 network

Linking SLC 5/03 or SLC 5/04 processors using DF1 Half-Duplex master/slave protocol. This allows you to connect remote islands of automation to a master controller to upload diagnostic and status information.

DH485 Network

TERM

COM

SHLD

CHS GND

TX TX

AIC+

TX PWR

DC SOURCE

CABLE

EXTERNAL

MicroLogix

1000

Advanced Interface Converter (1761-NET-AIC) Specifications

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

SLC 5/04

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

MicroLogix

1200

Description

24V dc Power Source Requirement

Current Draw

Internal Isolation

Operating Ambient Temperature

Storage Temperature

Agency Certification

DH485, DF1, or user Network

Specifications

20.4 - 28.8V dc

120 mA

200 mA maximum inrush current

500V dc

0 to +60°C (+32 to +140°F)

-40 to +85°C (-40 to +175°F)

UL 1604

C-UL C22.2 No. 213

Class 1, Division 2, Groups A, B, C, D

CE compliant for all applicable directives maximum number of nodes = 32 per multidrop network maximum length = 1,219m (4,000 ft.) per multidrop network maximum number of “ganged” multidrop networks = 2

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

A-B

AIC+

TERM

COM

SHLD

CHS GND

TX TX

TX PWR

DC SOURCE

CABLE

EXTERNAL

MicroLogix

1500

PanelView

PanelView 550

Personal

Computer

17

Programming Software

18

Programming Software

The following sections describe programming options available for the

MicroLogix 1200 controllers. With

RSLogix 500™ Programming Software, you can create, modify, and monitor application programs used by the

MicroLogix 1000, MicroLogix 1500, and

SLC 500 Programmable Controller families.

RSLogix 500 Programming

Software

The RSLogix 500 ladder logic programming package helps you maximize performance, save project development time, and improve productivity. This product has been developed to operate on Microsoft’s 32-bit,

Windows

®

95, Windows

®

98, and Windows NT™ operating systems. Supporting SLC 500 and MicroLogix families of processors,

RSLogix 500 was the first PLC programming software to offer unbeatable productivity with an industry-leading user interface.

Flexible, Easy-to-Use Editors

Flexible program editors let you create application programs without worrying about getting the syntax correct as you create your program.

A Project Verifier builds a list of errors that you can navigate to make corrections at your convenience.

Drag-and-drop editing lets you quickly move or copy instructions from rung to rung within a project, rungs from one subroutine or project to another, or data table elements from one data file to another.

Context menus for common software tools are quickly accessible by clicking the right mouse button on addresses, symbols, instructions, rungs, or other application objects. This convenience provides you with all the necessary functionality to accomplish a task within a single menu.

Programming Software

Point-and-Click I/O Configuration

The easy-to-use I/O Configurator lets you click or drag-and-drop a module from an all-inclusive list to assign it a slot in your configuration. Advanced configuration, required for specialty and analog modules, is easily accessible.

Convenient forms speed entry of configuration data. An I/O auto configuration feature is also available.

Point-and-Click I/O Configuration

Powerful Database Editor

Use the Symbol Group Editor to build and classify groups of symbols so that you can easily select portions of your recorded documentation to be used from project to project.

Use the Symbol Picker list to easily address instructions in your ladder logic by clicking addresses or symbols to assign them to your ladder instructions.

Powerful Database Editor

Diagnostics and Troubleshooting Tools

Simultaneously examine the status of bits, timers, counters, inputs, and outputs all in one window with the Custom Data Monitor. Each application project you create can have its own Custom Data Monitor window.

Easily review status bit settings specific to your application programming including Scan Time information, Math Register information, Interrupt settings and more with the tabbed Status displays.

Diagnostics and Troubleshooting Tool

Selection Chart

Catalog Number

9324-RL0300ENE

(1) (2)

Description

RSLogix 500 Programming for the MicroLogix families and SLC 500 on CD-ROM. Includes RSLinx Lite.

9324-RL0100ENE

(1) (2)

RSLogix 500 Starter Programming for the MicroLogix families and SLC 500 on CD-ROM. This package is a functionally limited version of RSLogix 500.

Programming Cables

See page22 for information on MicroLogix 1200 programming cables.

(1) To use RSLogix 500 programming software, your system must be a Pentium 100 MHz or higher, Windows® 95, Windows® 98, or Windows NT™.

(2) Also available in French, German, Italian, Spanish and Portuguese.

19

Programming Instructions

20

Programming

Instructions

The following table shows the MicroLogix

1200 instruction set listed within their functional groups.

Functional Group Description

Relay-Type (Bit) The relay-type (bit) instructions monitor and control the status of bits.

XIC, XIO, OTE, OTL, OTU, OSR, ONS, OSF

Timer and Counter The timer and counter instructions control operations based on time or the number of events.

TON, TOF, RTO, CTU, CTD, RES

Compare The compare instructions compare values by using a specific compare operation.

EQU, NEQ, LES, LEQ, GRT, GEQ, MEQ, LIM

Math

Conversion

The math instructions perform arithmetic operations.

ADD, SUB, MUL, DIV, NEG, CLR, SQR, SCL, SCP

The conversion instructions multiplex and de-multiplex data and perform conversions between binary and decimal values.

DCD, ENC, TOD, FRD

Logical

Move

File

The logical instructions perform bit-wise logical operations on words.

AND, OR, XOR, NOT

The move instructions modify and move words.

MOV, MVM

The file instructions perform operations on file data.

COP, FLL, BSL, BSR, FFL, FFU, LFL, LFU

Sequencer

Program Control

Sequencer instructions are used to control automatic assembly machines that have consistent and repeatable operations. SQC, SQO, SQL

The program flow instructions change the flow of ladder program execution.

JMP, LBL, JSR, SBR, RET, SUS, TND, MCR, END

Input and Output The input and output instructions allow you to selectively update data without waiting for the input and output scans.

IIM, IOM, REF

User Interrupt The user interrupt instructions allow you to interrupt your program based on defined events.

STS, INT, UID, UIE, UIF

Process Control The process control instruction provides closed-loop control.

PID

Communications The communication instructions read or write data to another station.

MSG, SVC

High-Speed Counter The high-speed counter instructions configure, control and monitor the controller’s hardware counter.

HSL, RAC

ASCII The ASCII instructions use the communication channel for receiving or transmitting data and manipulate string data.

ACL, AWA, AWT, AIC

Operator Interface Devices

Operator Interface

Devices

Operator interface devices provide you with powerful plant floor control and data monitoring capabilities.

MicroView™ Operator Interface

The MicroView Operator Interface is a featurepacked, cost-effective operator interface designed for data monitoring, data display, data entry, and recipe download. This device features a 2-line x

16-character display window.

DTAM™ Micro Operator Interface

The DTAM Micro Operator interface provides another operator interface to the MicroLogix line.

DTAM Micro is a low-cost operator interface. This device features a 2line x 20-character display window.

Up to 244 application screens can be stored in memory.

DTAM Plus Operator Interface

The DTAM Plus Operator Interface provides a highly functional operator interface for the MicroLogix 1200 family of processors. This device features a 4-line x 20-character display window for viewing data table information and operator prompts. Display screens are created using an Offline Development software Package.

21

PanelView™ Operator Terminals

PanelView Operator Terminals provide operator interface capabilities in space saving, flat panel designs or 14-inch CRTs.

These electronic operator interfaces feature pixel graphics and high-performance functionality in color and monochrome flat panel displays, as well as Super VGA CRTs with optimum viewing angles and resolution. PanelView terminals provide extensive diagnostic information to operators during fault conditions through message windows, alarm windows, and simple graphics.

22

Accessories

Accessories

Real-Time Clock (1762-RTC)

Optional real-time clock module allows for time/date scheduling applications to be easily solved.

Memory Modules (1762-MM1, 1762-MM1RTC)

Memory backup and real-time clock/memory module

User Program and Data Back-up

Program Compare

Data File Protection

Memory Module Write Protection

Removal/Insertion Under Power

Cables

Use the communication cables listed below with MicroLogix 1200 controllers. Cables come in several lengths and connector styles to provide connectivity to the MicroLogix family of products.

Catalog

Number

Cable Type

1761-CBL-AM00 8-pin DIN to 8-pin DIN

Description

This 45 cm (17.7 in.) cable is used to connect the MicroLogix controller to port 2 of the 1761-

NET-AIC

1761-CBL-HM02 8-pin DIN to 8-pin DIN

1761-CBL-AP00

1761-CBL-PM02

9-pin D-shell to 8-pin DIN

9-pin D-shell to 8-pin DIN

This 2m (6.56 ft) cable is used to connect the

MicroLogix 1200 Programmable Controller to the HHP or to connect any MicroLogix

Programmable Controller to port 2 of the 1761-

NET-AIC

This 45cm (17.7 in.) cable is used to connect a

MicroLogix controller to port 1 of the 1761-NET-

AIC.

This 2m (6.56 ft) cable is used to connect the

MicroLogix Programmable Controller to an IBM compatible PC or to connect an IBM compatible

PC to port 2 of the 1761-NET-AIC

NOTE

Series C or later cables are required for use with

MicroLogix 1200 controllers.

User Documentation

User Documentation

For an introduction to micro PLC’s refer to the MicroMentor™,

Publication 1761-MMB. The MicroMentor book includes illustrations, sample applications you can put to immediate use, stepby-step strategies, and worksheets.

Additionally, MicroLogix 1200 user documentation presents information according to the tasks you perform and the programming environment you use. Refer to the table below for information on MicroLogix 1200 and related publications.

See this Document

MicroLogix™ 1200 Programmable Controllers Installation

Instructions

MicroLogix™ 1200 Programmable Controllers User

Manual

Publication

Number

1762-IN006A-US-P

1762-UM001A-US-P

MicroLogix™ 1200 and MicroLogix™ 1500 Instruction Set

Reference Manual

1762-RM001A-US-P

1762-IN001A-US-P MicroLogix™ 1200 Real-Time Clock and Memory Module

Installation Instructions

AIC+ Advanced Interface Converter and DeviceNet

Interface Installation instructions

1761-5.11

AIC+ Advanced Interface Converter User Manual

DeviceNet™ Interface User Manual

1761-6.4

1761-6.5

DTAM™ Micro Operator Interface Module User Manual 2707-803

MicroView™ Operator Interface Module User Manual 2707-805

DataDisc™ CD-ROM Information Library 1795-CDRS and

1795-CDRL

23

For assistance selecting the correct MicroLogix Programmable

Controller for your application, see the MicroLogix selector guide on the back of this publication. If you would like a system overview for the MicroLogix 1000 or MicroLogix 1500 controllers, refer to the following table.

See this Document

MicroLogix™ 1000 System Overview

MicroLogix™ 1500 System Overview

Publication

Number

1761-SO001A-US-P

1764-SO001A-US-P

To purchase a manual or download a free electronic version, visit us at http://www.theautomationbookstore.com

. Or, for fast access to

Bulletin 1761, 1762, and 1764 publications, visit the MicroLogix

Internet site http://www.ab.com/micrologix . Electronic versions of our manuals are available for you to search and download.

24

Dimensions

Dimensions

Dimensions Drawings

C

A

B

1762-L40AWA, 1762-L40BWA

C

A

B

1762-L24AWA, 1762-L24BWA

Dimension 1762-

L24AWA

A

1762-

L24BWA

90 mm (3.5 in.)

B

C

110 mm (4.33 in.)

87 mm (3.43 in.)

1762-

L40AWA

1762-

L40BWA

90 mm (3.5 in.)

160 mm (6.30 in.)

87 mm (3.43 in.)

MicroLogix 1200 I/O System

14.5

(0.57)

40.4

(1.59)

100

(3.94)

90

(3.54)

40.4

(1.59)

Notes:

Notes:

25

26

Notes:

Notes:

Notes:

Notes:

27

Memory

Up to 1K

Up to 6K

Up to 7K

Up to 12K

EEPROM Back-up

Battery Back-up

Back-up Memory Module

I/O

Up to 32

Up to 88 (using 1762 I/O)

Up to 156 (using 1769 I/O)

Added Functionality

Analog (Embedded)

Analog (Expansion)

Trim Potentiometers

PID

High Speed Counters

Real Time Clock

Motion Capabilities (Pulse Width

Modulated and Pulse Train Outputs)

Data Access Tool

Data Logging (50k bytes)

Programming Software

Windows - RSLogix 500

DOS - A.I. 500

Communications

RS-232 Ports

DeviceNet (1761-NET-DNI)

DH485 (1761-NET-AIC)

SCADA RTU - DF1 Half-Duplex Slave

SCADA RTU - Modbus RTU Slave

ASCII - Write only

ASCII - Read/Write

Operating Power

120/240V ac

24V dc

UL, CSA or C-UL, CE, Class I Div.2

MicroLogix 1000

1761

1

1

MicroLogix 1200

1762

2

1

1

1

*

*

MicroLogix 1500

1764-LSP 1764-LRP

2

2

2

MicroLogix, DataHighway Plus, DTAM, DTAM Micro, RSLogix 500, RSLinx and PanelView are trademarks of Rockwell Automation.

PHOTOSWITCH is a registered trademark of Rockwell Automation. DeviceNet is a trademark of Open DeviceNet Vendor Association.

Windows 95 is a registered trademark of Microsoft Corporation. Windows NT is a trademark of Microsoft Corporation

1

2

2

2

2

Publication 1762-SO001A-U-P — November 1999

© 1999 Rockwell International Corporation. All rights reserved. Printed in USA.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
