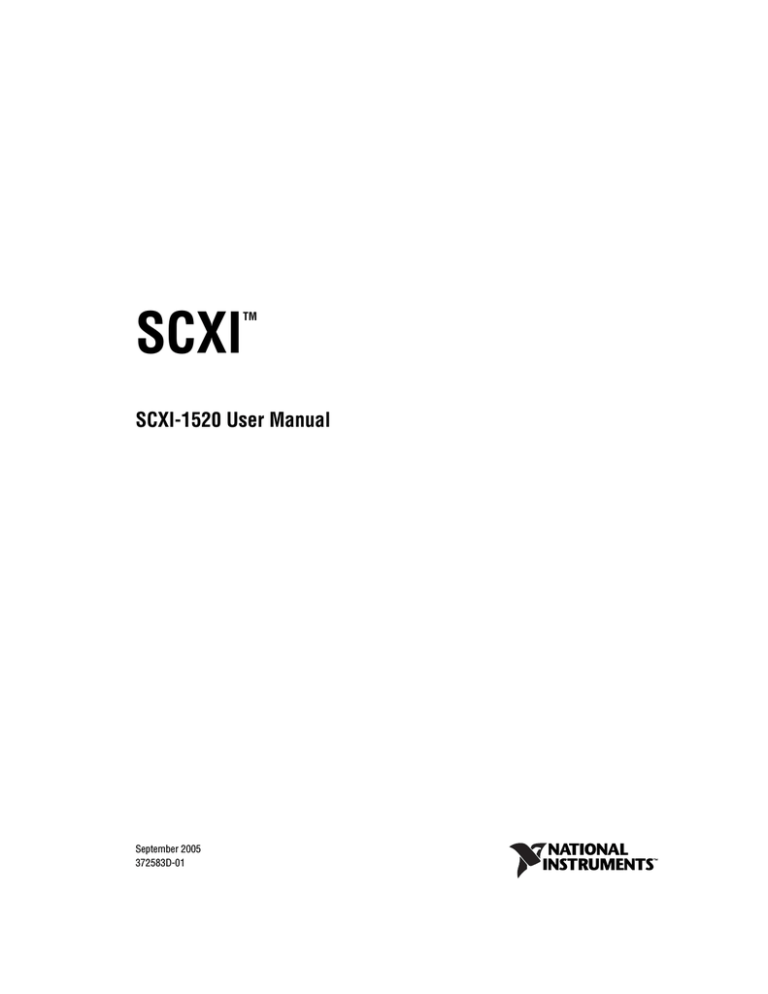

SCXI-1520 User Manual

SCXI TM

SCXI-1520 User Manual

SCXI-1520 User Manual

September 2005

372583D-01

Support

Worldwide Technical Support and Product Information

ni.com

National Instruments Corporate Headquarters

11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: 512 683 0100

Worldwide Offices

Australia 1800 300 800, Austria 43 0 662 45 79 90 0, Belgium 32 0 2 757 00 20, Brazil 55 11 3262 3599,

Canada 800 433 3488, China 86 21 6555 7838, Czech Republic 420 224 235 774, Denmark 45 45 76 26 00,

Finland 385 0 9 725 725 11, France 33 0 1 48 14 24 24, Germany 49 0 89 741 31 30, India 91 80 51190000,

Israel 972 0 3 6393737, Italy 39 02 413091, Japan 81 3 5472 2970, Korea 82 02 3451 3400,

Lebanon 961 0 1 33 28 28, Malaysia 1800 887710, Mexico 01 800 010 0793, Netherlands 31 0 348 433 466,

New Zealand 0800 553 322, Norway 47 0 66 90 76 60, Poland 48 22 3390150, Portugal 351 210 311 210,

Russia 7 095 783 68 51, Singapore 1800 226 5886, Slovenia 386 3 425 4200, South Africa 27 0 11 805 8197,

Spain 34 91 640 0085, Sweden 46 0 8 587 895 00, Switzerland 41 56 200 51 51, Taiwan 886 02 2377 2222,

Thailand 662 278 6777, United Kingdom 44 0 1635 523545

For further support information, refer to the Technical Support Information document. To comment on National

Instruments documentation, refer to the National Instruments Web site at ni.com/info and enter the info code feedback

.

© 2001–2005 National Instruments Corporation. All rights reserved.

Important Information

Warranty

The SCXI-1520 is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period. This warranty includes parts and labor.

The media on which you receive National Instruments software are warranted not to fail to execute programming instructions, due to defects in materials and workmanship, for a period of 90 days from date of shipment, as evidenced by receipts or other documentation. National

Instruments will, at its option, repair or replace software media that do not execute programming instructions if National Instruments receives notice of such defects during the warranty period. National Instruments does not warrant that the operation of the software shall be uninterrupted or error free.

A Return Material Authorization (RMA) number must be obtained from the factory and clearly marked on the outside of the package before any equipment will be accepted for warranty work. National Instruments will pay the shipping costs of returning to the owner parts which are covered by warranty.

National Instruments believes that the information in this document is accurate. The document has been carefully reviewed for technical accuracy. In the event that technical or typographical errors exist, National Instruments reserves the right to make changes to subsequent editions of this document without prior notice to holders of this edition. The reader should consult National Instruments if errors are suspected.

In no event shall National Instruments be liable for any damages arising out of or related to this document or the information contained in it.

E

XCEPT AS SPECIFIED HEREIN

, N

ATIONAL

I

NSTRUMENTS MAKES NO WARRANTIES

,

EXPRESS OR IMPLIED

,

AND SPECIFICALLY DISCLAIMS ANY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

. C

USTOMER

S RIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART OF

N

ATIONAL

I

NSTRUMENTS SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER

. N

ATIONAL

I

NSTRUMENTS WILL NOT BE LIABLE FOR

DAMAGES RESULTING FROM LOSS OF DATA

,

PROFITS

,

USE OF PRODUCTS

,

OR INCIDENTAL OR CONSEQUENTIAL DAMAGES

,

EVEN IF ADVISED OF THE POSSIBILITY

THEREOF

. This limitation of the liability of National Instruments will apply regardless of the form of action, whether in contract or tort, including negligence. Any action against National Instruments must be brought within one year after the cause of action accrues. National Instruments shall not be liable for any delay in performance due to causes beyond its reasonable control. The warranty provided herein does not cover damages, defects, malfunctions, or service failures caused by owner’s failure to follow the National Instruments installation, operation, or maintenance instructions; owner’s modification of the product; owner’s abuse, misuse, or negligent acts; and power failure or surges, fire, flood, accident, actions of third parties, or other events outside reasonable control.

Copyright

Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including photocopying, recording, storing in an information retrieval system, or translating, in whole or in part, without the prior written consent of National

Instruments Corporation.

Trademarks

National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal

for more information about National Instruments trademarks.

Other product and company names mentioned herein are trademarks or trade names of their respective companies.

Patents

For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt

file on your CD, or ni.com/patents

.

WARNING REGARDING USE OF NATIONAL INSTRUMENTS PRODUCTS

(1) NATIONAL INSTRUMENTS PRODUCTS ARE NOT DESIGNED WITH COMPONENTS AND TESTING FOR A LEVEL OF

RELIABILITY SUITABLE FOR USE IN OR IN CONNECTION WITH SURGICAL IMPLANTS OR AS CRITICAL COMPONENTS IN

ANY LIFE SUPPORT SYSTEMS WHOSE FAILURE TO PERFORM CAN REASONABLY BE EXPECTED TO CAUSE SIGNIFICANT

INJURY TO A HUMAN.

(2) IN ANY APPLICATION, INCLUDING THE ABOVE, RELIABILITY OF OPERATION OF THE SOFTWARE PRODUCTS CAN BE

IMPAIRED BY ADVERSE FACTORS, INCLUDING BUT NOT LIMITED TO FLUCTUATIONS IN ELECTRICAL POWER SUPPLY,

COMPUTER HARDWARE MALFUNCTIONS, COMPUTER OPERATING SYSTEM SOFTWARE FITNESS, FITNESS OF COMPILERS

AND DEVELOPMENT SOFTWARE USED TO DEVELOP AN APPLICATION, INSTALLATION ERRORS, SOFTWARE AND

HARDWARE COMPATIBILITY PROBLEMS, MALFUNCTIONS OR FAILURES OF ELECTRONIC MONITORING OR CONTROL

DEVICES, TRANSIENT FAILURES OF ELECTRONIC SYSTEMS (HARDWARE AND/OR SOFTWARE), UNANTICIPATED USES OR

MISUSES, OR ERRORS ON THE PART OF THE USER OR APPLICATIONS DESIGNER (ADVERSE FACTORS SUCH AS THESE ARE

HEREAFTER COLLECTIVELY TERMED “SYSTEM FAILURES”). ANY APPLICATION WHERE A SYSTEM FAILURE WOULD

CREATE A RISK OF HARM TO PROPERTY OR PERSONS (INCLUDING THE RISK OF BODILY INJURY AND DEATH) SHOULD

NOT BE RELIANT SOLELY UPON ONE FORM OF ELECTRONIC SYSTEM DUE TO THE RISK OF SYSTEM FAILURE. TO AVOID

DAMAGE, INJURY, OR DEATH, THE USER OR APPLICATION DESIGNER MUST TAKE REASONABLY PRUDENT STEPS TO

PROTECT AGAINST SYSTEM FAILURES, INCLUDING BUT NOT LIMITED TO BACK-UP OR SHUT DOWN MECHANISMS.

BECAUSE EACH END-USER SYSTEM IS CUSTOMIZED AND DIFFERS FROM NATIONAL INSTRUMENTS' TESTING

PLATFORMS AND BECAUSE A USER OR APPLICATION DESIGNER MAY USE NATIONAL INSTRUMENTS PRODUCTS IN

COMBINATION WITH OTHER PRODUCTS IN A MANNER NOT EVALUATED OR CONTEMPLATED BY NATIONAL

INSTRUMENTS, THE USER OR APPLICATION DESIGNER IS ULTIMATELY RESPONSIBLE FOR VERIFYING AND VALIDATING

THE SUITABILITY OF NATIONAL INSTRUMENTS PRODUCTS WHENEVER NATIONAL INSTRUMENTS PRODUCTS ARE

INCORPORATED IN A SYSTEM OR APPLICATION, INCLUDING, WITHOUT LIMITATION, THE APPROPRIATE DESIGN,

PROCESS AND SAFETY LEVEL OF SUCH SYSTEM OR APPLICATION.

Conventions

<>

» bold

italic

monospace

monospace bold

monospace italic

The following conventions are used in this manual:

Angle brackets that contain numbers separated by an ellipsis represent a range of values associated with a bit or signal name—for example,

AO <3..0>.

The » symbol leads you through nested menu items and dialog box options to a final action. The sequence File»Page Setup»Options directs you to pull down the File menu, select the Page Setup item, and select Options from the last dialog box.

This icon denotes a note, which alerts you to important information.

This icon denotes a caution, which advises you of precautions to take to avoid injury, data loss, or a system crash.

When this symbol is marked on a product, refer to the Read Me First: Safety and Radio-Frequency

Interference

for information about precautions to take.

Bold text denotes items that you must select or click in the software, such as menu items and dialog box options. Bold text also denotes parameter names.

Italic text denotes variables, emphasis, a cross reference, or an introduction to a key concept. Italic text also denotes text that is a placeholder for a word or value that you must supply.

Text in this font denotes text or characters that you should enter from the keyboard, sections of code, programming examples, and syntax examples.

This font is also used for the proper names of disk drives, paths, directories, programs, subprograms, subroutines, device names, functions, operations, variables, filenames, and extensions.

Bold text in this font denotes the messages and responses that the computer automatically prints to the screen. This font also emphasizes lines of code that are different from the other examples.

Italic text in this font denotes text that is a placeholder for a word or value that you must supply.

Contents

Chapter 1

About the SCXI-1520

What You Need to Get Started ......................................................................................1-2

National Instruments Documentation ............................................................................1-4

Installing Application Software, NI-DAQ, and the E/M Series DAQ Device ..............1-5

Installing the SCXI-1520 Module into the SCXI Chassis...............................1-5

Connecting the SCXI-1520 in an SCXI Chassis to an E/M Series

DAQ Device for Multiplexed Scanning .......................................................1-5

Connecting the SCXI-1520 in a PXI/SCXI Combination Chassis to an E/M Series DAQ Device for Multiplexed Scanning ...........................1-6

Verifying the SCXI-1520 Installation in Software ........................................................1-6

Installing SCXI Using NI-DAQmx in Software .............................................1-6

Manually Adding Modules in NI-DAQmx .....................................................1-6

Installing SCXI Using Traditional NI-DAQ (Legacy) in Software ................1-6

Manually Adding Modules in Traditional NI-DAQ (Legacy) ........................1-6

Verifying and Self-Testing the Installation .....................................................1-7

Troubleshooting the Self-Test Verification ...................................................................1-7

Troubleshooting in NI-DAQmx ......................................................................1-7

Troubleshooting in Traditional NI-DAQ (Legacy) .........................................1-9

Chapter 2

Connecting Signals

Connecting Bridge Sensor Signals ................................................................................2-1

Quarter-Bridge Type I .....................................................................................2-1

Quarter-Bridge Type II....................................................................................2-2

Half-Bridge Type I ..........................................................................................2-4

Half-Bridge Type II.........................................................................................2-5

Full-Bridge Type I...........................................................................................2-6

Full-Bridge Type II..........................................................................................2-7

Full-Bridge Type III ........................................................................................2-8

Remote Sense ..................................................................................................2-9

Pin Assignments ............................................................................................................2-10

SCXI-1520 User Manual

© National Instruments Corporation

v

Contents

Chapter 3

Configuring and Testing

SCXI-1520 Software-Configurable Settings ................................................................. 3-1

Common Software-Configurable Settings ...................................................... 3-1

Bridge Configuration ........................................................................ 3-1

Excitation Level................................................................................ 3-2

Filter Bandwidth ............................................................................... 3-2

Gain/Input Range.............................................................................. 3-3

Null Potentiometers .......................................................................... 3-4

Shunt Calibration Switches .............................................................. 3-4

Modes of Operation .......................................................................... 3-4

Simultaneous Sample and Hold........................................................ 3-5

Configurable Settings in MAX...................................................................................... 3-5

NI-DAQmx ..................................................................................................... 3-5

Creating a Strain Global Channel or Task........................................ 3-7

Creating a Custom Voltage with Excitation Global

Channel or Task ............................................................................. 3-8

Traditional NI-DAQ (Legacy) ........................................................................ 3-9

Configuring Module Property Pages in

Traditional NI-DAQ (Legacy) ....................................................... 3-10

Creating a Strain Virtual Channel .................................................... 3-10

Calibrating a Strain Virtual Channel ................................................ 3-11

Verifying the Signal ...................................................................................................... 3-12

Verifying the Signal in NI-DAQmx Using a Task or Global Channel ........... 3-12

Verifying the Signal in Traditional NI-DAQ (Legacy) .................................. 3-13

Verifying the Signal Using Channel Strings .................................... 3-13

Verifying the Signal Using Strain Virtual Channel.......................... 3-14

Using the Strain Calibration Wizard in NI-DAQmx ..................................................... 3-14

Chapter 4

Theory of Operation

Strain-Gauge Theory ..................................................................................................... 4-1

Wheatstone Bridges ........................................................................................ 4-1

Strain Gauges .................................................................................................. 4-2

Acronyms, Formulas, and Variable Definitions ............................................. 4-3

Software Scaling and Equations ..................................................................... 4-4

Quarter-Bridge Type I..................................................................................... 4-4

Quarter-Bridge Type II ................................................................................... 4-6

Half-Bridge Type I.......................................................................................... 4-9

Half-Bridge Type II ........................................................................................ 4-11

Full-Bridge Type I .......................................................................................... 4-13

SCXI-1520 User Manual

vi ni.com

Contents

Full-Bridge Type II..........................................................................................4-15

Full-Bridge Type III ........................................................................................4-17

SCXI-1520 Theory of Operation ...................................................................................4-19

Bridge Configuration and Completion ............................................................4-22

Excitation.........................................................................................................4-23

Remote Sense ....................................................................................4-24

Gain .................................................................................................................4-25

Filter Bandwidth and Cutoff Frequency..........................................................4-26

Offset Null Compensation...............................................................................4-26

Shunt Calibration.............................................................................................4-28

Simultaneous Sample and Hold.......................................................................4-29

Maximum Simultaneous Sample and Hold Sample Rate

Using NI-DAQmx ..........................................................................4-31

Multiplexed Mode ..............................................................4-31

Maximum SS/H Sample Rates in Parallel Mode................4-32

Maximum Simultaneous Sample and Hold Using

Traditional NI-DAQ (Legacy) .......................................................4-33

Multiplexed Mode ..............................................................4-33

Modes of Operation.........................................................................................4-34

Theory of Multiplexed Mode Operation ...........................................4-35

Theory of Parallel Mode Operation ..................................................4-36

Chapter 5

Using the SCXI-1520

Developing Your Application in NI-DAQmx ...............................................................5-1

Typical Program Flowchart.............................................................................5-1

General Discussion of Typical Flowchart .......................................................5-3

Creating a Task Using DAQ Assistant or Programmatically ...........5-3

Adjusting Timing and Triggering .....................................................5-3

Configuring Channel Properties........................................................5-4

Performing Offset Null Compensation .............................................5-6

Performing Shunt Calibration ...........................................................5-7

Acquiring, Analyzing, and Presenting ..............................................5-7

Completing the Application ..............................................................5-8

Developing an Application Using LabVIEW..................................................5-8

Using a DAQmx Channel Property Node in LabVIEW ...................5-10

Specifying Channel Strings in NI-DAQmx.....................................................5-11

Text Based ADEs..............................................................................5-13

LabWindows/CVI...............................................................5-13

Measurement Studio (Visual Basic, .NET, and C#)........................................5-13

Programmable NI-DAQmx Properties..............................................5-15

© National Instruments Corporation

vii

SCXI-1520 User Manual

Contents

Developing Your Application in Traditional NI-DAQ (Legacy).................................. 5-17

Traditional NI-DAQ (Legacy) in LabVIEW .................................................. 5-18

Typical Program Flow ...................................................................... 5-19

Configuring the SCXI-1520 Settings Using Traditional

NI-DAQ (Legacy) in LabVIEW .................................................................. 5-21

Performing Offset Null Compensation Using Traditional

NI-DAQ (Legacy) in LabVIEW .................................................................. 5-23

Performing Shunt Calibration Using Traditional NI-DAQ (Legacy) in LabVIEW ................................................................................................. 5-25

Configure, Start Acquisition, and Take Readings Using

Traditional NI-DAQ (Legacy) in LabVIEW................................................ 5-26

Converting Scaling Using Traditional NI-DAQ (Legacy) in LabVIEW ........ 5-26

Analyze and Display Using Traditional NI-DAQ (Legacy) in LabVIEW ..... 5-27

Traditional NI-DAQ (Legacy) in Text-Based ADEs ...................................... 5-27

Low-Level DAQ Functions ............................................................................ 5-28

Configuring System Settings Using Traditional NI-DAQ (Legacy) C API ... 5-30

Configuring Module Settings Using Traditional NI-DAQ (Legacy) C API... 5-31

Performing Offset Null Compensation Using Traditional

NI-DAQ (Legacy) C API ............................................................................. 5-33

Performing Shunt Calibration Using Traditional

NI-DAQ (Legacy) C API ............................................................................. 5-33

Performing Acquisition Using Traditional NI-DAQ (Legacy) C API............ 5-34

Performing Scaling, Analysis, and Display .................................................... 5-34

Other Application Documentation and Material ........................................................... 5-35

Traditional NI-DAQ (Legacy) CVI Examples................................................ 5-35

Traditional NI-DAQ (Legacy) Measurement Studio Examples ..................... 5-35

Calibrating the Strain System........................................................................................ 5-36

Calibrating the SCXI-1520 ............................................................................. 5-36

Internal Calibration Procedure.......................................................... 5-36

Internal Calibration Using LabVIEW............................................... 5-37

Internal Calibration Using a C-Based ADE ..................................... 5-37

External Calibration.......................................................................... 5-37

Calibrating the System .................................................................................... 5-38

Offset Null Compensation ................................................................ 5-38

Shunt Calibration .............................................................................. 5-38

Appendix A

Specifications

Appendix B

Using SCXI Channel Strings with Traditional NI-DAQ (Legacy) 7.0 or Later

SCXI-1520 User Manual

viii ni.com

Contents

Appendix C

Removing the SCXI-1520

Appendix D

Common Questions

Glossary

Index

Figures

Figure 2-1.

Quarter-Bridge I Circuit Diagram .........................................................2-2

Figure 2-2.

Quarter-Bridge II Circuit Diagram........................................................2-3

Figure 2-3.

Half-Bridge Type I Circuit Diagram .....................................................2-4

Figure 2-4.

Half-Bridge Type II Circuit Diagram....................................................2-5

Figure 2-5.

Full-Bridge Type I Circuit Diagram......................................................2-6

Figure 2-6.

Full-Bridge Type II Circuit Diagram ....................................................2-7

Figure 2-7.

Full-Bridge Type III Circuit Diagram ...................................................2-8

Figure 2-8.

Remote-Sense Circuit Diagram.............................................................2-9

Figure 4-1.

Basic Wheatstone Bridge Circuit Diagram ...........................................4-1

Figure 4-2.

Quarter-Bridge Type I Measuring Axial and Bending Strain ...............4-4

Figure 4-3.

Quarter-Bridge I Circuit Diagram .........................................................4-5

Figure 4-4.

Quarter-Bridge Type II Measuring Axial and Bending Strain..............4-7

Figure 4-5.

Quarter-Bridge II Circuit Diagram........................................................4-7

Figure 4-6.

Half-Bridge Type I Measuring Axial and Bending Strain ....................4-9

Figure 4-7.

Half-Bridge Type I Circuit Diagram .....................................................4-9

Figure 4-8.

Half-Bridge Type II Rejecting Axial and Measuring

Bending Strain .......................................................................................4-11

Figure 4-9.

Half-Bridge Type II Circuit Diagram....................................................4-11

Figure 4-10.

Full-Bridge Type I Rejecting Axial and Measuring

Bending Strain .......................................................................................4-13

Figure 4-11.

Full-Bridge Type I Circuit Diagram......................................................4-13

Figure 4-12.

Full-Bridge Type II Rejecting Axial and Measuring

Bending Strain .......................................................................................4-15

Figure 4-13.

Full-Bridge Type II Circuit Diagram ....................................................4-15

Figure 4-14.

Full-Bridge Type III Measuring Axial and Rejecting

Bending Strain .......................................................................................4-17

Figure 4-15.

Full-Bridge Type III Circuit Diagram ...................................................4-17

Figure 4-16.

Block Diagram of SCXI-1314/SCXI-1520 Combination .....................4-20

Figure 4-17.

Signal During Simultaneous Sample-and-Hold Sampling ....................4-30

© National Instruments Corporation

ix

SCXI-1520 User Manual

Contents

Figure 5-1.

Typical Program Flowchart .................................................................. 5-2

Figure 5-2.

LabVIEW Channel Property Node with Filtering Enabled at 10 kHz and SS/H Disabled................................................................ 5-11

Figure 5-3.

Typical SCXI-1520 Program Flow with

Traditional NI-DAQ (Legacy) .............................................................. 5-20

Figure 5-4.

Using the AI Parameter VI to Set Up the SCXI-1520 .......................... 5-23

Figure 5-5.

Offset Null and Shunt Calibration Flowchart ....................................... 5-29

Figure C-1.

Removing the SCXI-1520..................................................................... C-2

Tables

Table 1-1.

Accessories Available for the SCXI-1520 ............................................ 1-3

Table 2-1.

Table 2-2.

Table 2-3.

Table 3-1.

Table 4-1.

Table 4-2.

Table 4-3.

Table 4-4.

Table 4-5.

Table 5-1.

Table 5-2.

Table 5-3.

Table 5-4.

Table 5-5.

Table 5-6.

Table D-1.

Front Signal Pin Assignments .............................................................. 2-11

Rear Signal Pin Assignments................................................................ 2-13

SCXI-1520 Communication Signals..................................................... 2-14

Excitation Voltage for Configuration and Gauge Resistances ............. 3-2

Strain-Gauge Configurations ................................................................ 4-2

Control Codes for Coarse and Fine Offset Null Potentiometers........... 4-27

NI-DAQmx Values Used to Determine Maximum Sample Rate in Multiplexed Mode............................................................................. 4-32

NI-DAQmx Values Used to Determine Maximum Sample Rate in Parallel Mode .................................................................................... 4-33

Traditional NI-DAQ (Legacy) Values Used to Determine

Maximum Sample Rate in Multiplexed Mode...................................... 4-34

NI-DAQmx Properties .......................................................................... 5-4

Programming a Task in LabVIEW ....................................................... 5-8

NI-DAQmx Properties .......................................................................... 5-15

Settings for Configuring the SCXI-1520 Through the AI Parameter ... 5-21

Configuration Functions ....................................................................... 5-30

NI-DAQ Functions Used to Configure SCXI-1520.............................. 5-32

Digital Signals on the SCXI-1520 ....................................................... D-2

SCXI-1520 User Manual

x ni.com

1

About the SCXI-1520

The SCXI-1520 module is an eight-channel module for interfacing to strain-gauge bridges and other Wheatstone-bridge based sensors.

Note

Descriptions in this chapter explicitly refer to the first channel (channel 0); however, the same descriptions are applicable to channels <1..7>.

You can configure all settings on a per channel basis in software.

The SCXI-1520 is configured using Measurement & Automation Explorer

(MAX) or through NI-DAQmx property nodes.

With the SCXI-1520 and the accessory SCXI-1314 terminal block, you can do the following:

• Connect sensors of all bridge configurations, including quarter-, half-, and full-bridge

• Set the DC voltage excitation between 0 and 10 V (increments dependent upon the driver software)

• Programmatically offset null bridge circuits connected to the

SCXI-1520

• Set the analog input lowpass filter cut-off frequency to 10 Hz, 100 Hz,

1 kHz, 10 kHz, or bypass

• Set the analog input gain between 1 and 1000 at any one of 49 settings

• Implement shunt calibration using two independent circuits

• Connect the bridge for remote-sense voltage excitation

© National Instruments Corporation

1-1

SCXI-1520 User Manual

Chapter 1 About the SCXI-1520

What You Need to Get Started

To set up and use the SCXI-1520, you need the following:

Hardware

– SCXI-1520 module

– One of the following terminal blocks:

• SCXI-1314 terminal block

• SCXI-1314T terminal block

– SCXI or PXI/SCXI combo chassis

– E/M Series DAQ device

– Computer, if using an SCXI chassis

– Cabling, cable adapter, and sensors as required for your application

Software

– NI-DAQ 7.0 or later

– Application software, such as LabVIEW, LabWindows

/CVI

,

Measurement Studio, or other programming environments

Documentation

– Read Me First: Safety and Radio-Frequency Interference

– DAQ Getting Started Guide

– SCXI Quick Start Guide

– SCXI-1520 User Manual

– Documentation for your hardware

– Documentation for your software

SCXI-1520 User Manual

1-2 ni.com

Chapter 1 About the SCXI-1520

The optional accessories listed in Table 1-1 are available for the

SCXI-1520.

Table 1-1. Accessories Available for the SCXI-1520

Accessory

SCXI-1314

Description

Screw terminal block—Mounts on the front of the SCXI-1520 module.

It includes connections and sockets for two shunt calibration resistors and a quarter-bridge completion resistor per channel.

SCXI-1314T

††

RJ-50 terminal block—Mounts on the front of the SCXI-1520 module.

It features eight RJ-50 10-position/10-conductor (10p10c) modular plugs for connection to hardware TEDS smart sensors.

SCXI-1310

Connector and shell assembly—The SCXI-1310 provides 96 eyelet-type terminals for easy hook-and-solder signal connection and custom mass termination connectivity.

TBX-96

DIN-rail mounted terminal block with 96 generic screw terminals.

One of the following cables is required to connect the TBX-96 to an

SCXI module:

• SH96-96 shielded cable, 1 m

• R96-96 unshielded ribbon cable, 1 m

You must wire a shunt resistor between the pins that correspond to the SCA on the SCXI-1314 and the appropriate legs of

the bridge sensor. Refer to Chapter 4,

Theory of Operation

, for more information.

††

The SCXI-1314T only supports SCA. It does not support SCB. There are no quarter-bridge completion resistors in the

SCXI-1314T. If you are connecting a quarter-bridge sensor to an SCXI-1520 using an SCXI-1314T, you must place an

external resistor between the pins that correspond to PX– and SX+ on the terminals. Refer to Chapter 2,

Connecting Signals

, for more information.

There are no quarter-bridge completion resistors in the SCXI-1310 or TBX-96. If you are connecting a quarter-bridge sensor to an SCXI-1520 using an SCXI-1310 or TBX-96, you must place an external resistor between the pins that

correspond to PX– and SX+ on the terminals. Refer to Chapter 2,

Connecting Signals

, for more information.

© National Instruments Corporation

1-3

SCXI-1520 User Manual

Chapter 1 About the SCXI-1520

National Instruments Documentation

The

SCXI-1520 User Manual

is one piece of the documentation set for data

acquisition (DAQ) systems. You could have any of several types of manuals depending on the hardware and software in the system. Use the manuals you have as follows:

Getting Started with SCXI—This is the first manual you should read.

It gives an overview of the SCXI system and contains the most commonly needed information for the modules, chassis, and software.

• SCXI or PXI/SCXI chassis manual—Read this manual for maintenance information on the chassis and for installation instructions.

• The DAQ Getting Started Guide—This document has information on installing NI-DAQ and the E/M Series DAQ device. Install these before you install the SCXI module.

• The SCXI Quick Start Guide—This document contains a quick overview for setting up an SCXI chassis, installing SCXI modules and terminal blocks, and attaching sensors. It also describes setting up the

SCXI system in MAX.

• The SCXI hardware user manuals—Read these manuals for detailed information about signal connections and module configuration. They also explain, in greater detail, how the module works and contain application hints.

• Accessory installation guides or manuals—Read the terminal block and cable assembly installation guides. They explain how to physically connect the relevant pieces of the system. Consult these guides when you are making the connections.

• The E/M Series DAQ device documentation—This documentation has detailed information about the DAQ device that plugs into or is connected to the computer. Use this documentation for hardware installation and configuration instructions, specification information about the DAQ device, and application hints.

• Software documentation—You may have both application software and NI-DAQ software documentation. National Instruments (NI) application software includes LabVIEW, LabWindows/CVI, and

Measurement Studio. After you set up the hardware system, use either your application software documentation or the NI-DAQ documentation to help you write your application. If you have a large, complex system, it is worthwhile to look through the software documentation before you configure the hardware.

SCXI-1520 User Manual

1-4 ni.com

Chapter 1 About the SCXI-1520

• One or more of the following help files for software information:

Start»Programs»National Instruments»NI-DAQ»

NI-DAQmx Help

Start»Programs»National Instruments»NI-DAQ»

Traditional NI-DAQ User Manual

Start»Programs»National Instruments»NI-DAQ»

Traditional NI-DAQ Function Reference Help

• NI strain-gauge application notes or tutorials—NI has additional material about strain gauges and strain measurements available at ni.com/support

.

You can download NI documents from ni.com/manuals

. To download the latest version of NI-DAQ, click Download Software at ni.com

.

Installing Application Software, NI-DAQ, and the E/M

Series DAQ Device

Refer to the DAQ Getting Started Guide packaged with the NI-DAQ software to install your application software, NI-DAQ driver software, and the DAQ device to which you will connect the SCXI-1520. NI-DAQ 7.0 or later is required to configure and program the SCXI-1520 module. If you do not have NI-DAQ 7.0 or later, you can either contact a NI sales representative to request it on a CD or download the latest NI-DAQ version from ni.com

.

Note

Refer to the Read Me First: Radio-Frequency Interference document before removing equipment covers or connecting or disconnecting any signal wires.

Installing the SCXI-1520 Module into the SCXI Chassis

Refer to the SCXI Quick Start Guide to install your SCXI-1520 module.

Connecting the SCXI-1520 in an SCXI Chassis to an E/M Series

DAQ Device for Multiplexed Scanning

Refer to the SCXI Quick Start Guide to install the cable adapter and connect the SCXI modules to the DAQ device.

If you have already installed the appropriate software, refer to Chapter 3,

Configuring and Testing

, to configure the SCXI-1520 module(s).

© National Instruments Corporation

1-5

SCXI-1520 User Manual

Chapter 1 About the SCXI-1520

Connecting the SCXI-1520 in a PXI/SCXI Combination Chassis to an

E/M Series DAQ Device for Multiplexed Scanning

Refer to the SCXI Quick Start Guide to connect the SCXI modules to the

DAQ device.

If you have already installed the appropriate software, refer to Chapter 3,

Configuring and Testing

, to configure the SCXI-1520 module(s).

Verifying the SCXI-1520 Installation in Software

Refer to the SCXI Quick Start Guide for information on verifying the SCXI installation.

Installing SCXI Using NI-DAQmx in Software

Refer to the SCXI Quick Start Guide for information on installing modules using NI-DAQmx in software.

Manually Adding Modules in NI-DAQmx

If you did not auto-detect the SCXI modules, you must manually add each of the modules. Refer to the SCXI Quick Start Guide to manually add modules.

Note

NI recommends auto-detecting modules for the first time configuration of the chassis.

Installing SCXI Using Traditional NI-DAQ (Legacy) in Software

Refer to the SCXI Quick Start Guide for information on installing modules using Traditional NI-DAQ (Legacy) in software.

Manually Adding Modules in Traditional NI-DAQ (Legacy)

If you did not auto-detect the SCXI modules, you must manually add each of the modules. Refer to the SCXI Quick Start Guide to manually add modules.

Note

NI recommends auto-detecting modules for the first time configuration of the chassis.

SCXI-1520 User Manual

1-6 ni.com

Chapter 1 About the SCXI-1520

Verifying and Self-Testing the Installation

The verification procedure for the SCXI chassis is the same for both

NI-DAQmx and Traditional NI-DAQ (Legacy). To test the successful installation for the SCXI chassis, refer to the SCXI Quick Start Guide.

Verify that the chassis is powered on and correctly connected to an

E/M Series DAQ device.

After verifying and self-testing the installation, the SCXI system should operate properly with your ADE software. If the test did not complete

successfully, refer to Chapter 3,

Configuring and Testing

, for

troubleshooting steps.

Troubleshooting the Self-Test Verification

If the Self-Test Verification did not verify the chassis configuration, complete the steps in this section to troubleshoot the SCXI configuration.

Troubleshooting in NI-DAQmx

• If you get a Verify SCXI Chassis message box showing the SCXI chassis model number, Chassis ID: x, and one or more messages stating Slot Number: x Configuration has module: SCXI-XXXX or 1520, hardware in chassis is: Empty, take the following troubleshooting actions:

– Make sure the SCXI chassis is powered on.

– Make sure all SCXI modules are properly installed in the chassis.

Refer to the SCXI Quick Start Guide for proper installation instructions.

– Make sure the cable between the SCXI chassis and E/M Series

DAQ device is properly connected.

– Inspect the cable connectors for bent pins.

– Make sure you are using the correct NI cable assembly.

– Test the DAQ device to verify it is working properly. Refer to the

DAQ device help file for more information.

© National Instruments Corporation

1-7

SCXI-1520 User Manual

Chapter 1 About the SCXI-1520

• If you get a Verify SCXI Chassis message box showing the SCXI chassis model number, Chassis ID: x, and the message Slot

Number: x Configuration has module: SCXI-XXXX or 1520,

hardware in chassis is: SCXI-YYYY, 1520, or Empty, complete the

following troubleshooting steps to correct the error.

1.

Expand the list of NI-DAQmx devices by clicking the + next to

NI-DAQmx Devices.

2.

Right-click the SCXI chassis and click Properties to load the chassis configurator.

3.

Under the Modules tab, ensure that the cabled module is listed in the correct slot.

4.

If the cabled module is not listed in the correct slot, complete the following troubleshooting steps: a.

If the cabled module is not listed in the correct slot and the slot is empty, click the drop-down listbox next to the correct slot and select the cabled module. Configure the cabled module following the steps listed in the SCXI Quick Start

Guide. Click OK.

b.

If another module appears where the cabled module should be, click the drop-down listbox next to the correct slot and select the cabled module. A message box appears asking you to confirm the module replacement. Click OK. Configure the cabled module following the steps listed in the SCXI Quick

Start Guide. Click OK.

• Ensure that you have the highest priority SCXI module cabled to the

E/M Series DAQ device. Refer to the SCXI Quick Start Guide to find out which SCXI module in the chassis should be cabled to the DAQ device.

• After checking the preceding items, return to the

Troubleshooting the

Self-Test Verification

section and retest the SCXI chassis.

If these measures do not successfully configure the SCXI system, contact

NI. Refer to the Technical Support Information document for contact information.

SCXI-1520 User Manual

1-8 ni.com

Chapter 1 About the SCXI-1520

Troubleshooting in Traditional NI-DAQ (Legacy)

• If you get the message

Unable to test chassis at this time

, you have not designated at least one module as connected to a E Series

DAQ device. Refer to the

Traditional NI-DAQ (Legacy)

section of

Chapter 3,

Configuring and Testing

, and change the configuration of the cabled module in the system from Connected to: None to

Connected to: Device x.

• If you get the message

Failed to find

followed by the module codes and the message

Unable to communicate with chassis

, take the following troubleshooting actions:

– Make sure the SCXI chassis is powered on.

– Make sure the cable between the SCXI chassis and E Series DAQ device is properly connected.

– Inspect the cable connectors for bent pins.

– Make sure you are using the correct NI cable assembly.

– Test the DAQ device to verify it is working properly. Refer to the

DAQ device help file for more information.

• If you get the message

Failed to find

, followed by module codes and the message

Instead found: module with ID 0Xxx

, refer to the

Traditional NI-DAQ (Legacy)

section of Chapter 3,

Configuring and Testing

, and make sure the correct module is in the specified slot.

Delete the incorrect module as described in Appendix C,

Removing the

SCXI-1520,

and add the correct module as described in the

Traditional

NI-DAQ (Legacy)

section of Chapter 3,

Configuring and Testing

.

• If you get the message

Failed to find

, followed by a module code and the message

Slot x is empty

, make sure the configured module is installed in the specified slot. If not, install the module by following

the instructions in the

Installing the SCXI-1520 Module into the SCXI

Chassis

section. If the module is installed in the correct slot, power off

the chassis, remove the module as specified in Appendix C,

Removing the SCXI-1520

, and verify that no connector pins are bent on the rear

signal connector. Reinstall the module as described in the

Installing the

SCXI-1520 Module into the SCXI Chassis

section, ensuring the module is fully inserted and properly aligned in the slot.

• After checking the preceding items, return to the

Troubleshooting the

Self-Test Verification

section and retest the SCXI chassis.

If these measures do not successfully configure the SCXI system, contact

NI. Refer to the Technical Support Information document for contact information.

© National Instruments Corporation

1-9

SCXI-1520 User Manual

2

Connecting Signals

This chapter describes how to connect Wheatstone bridge sensors to the

SCXI-1520 in quarter-, half-, and full-bridge configurations and for remote sensing. It also provides the front and rear signal pin assignments of the module.

Connecting Bridge Sensor Signals

This section discusses how to connect the signals of supported strain-gauge configuration types as well as full-bridge sensors such as load, force, torque, and pressure sensors. It also discusses connecting leads for remote

sensing and shunt calibration. Refer to Chapter 4,

Theory of Operation

, for

a discussion of strain-gauge concepts. Refer to the SCXI-1314 Installation

Guide for more signal connection information.

Notes

The circuits in this section illustrate circuits using the SCXI-1314 terminal block.

If you are using the SCXI-1314T terminal block, refer to the SCXI-1314T TEDS Bridge

Sensor Terminal Block Installation Guide for the permitted circuit configuration diagrams.

Refer to Figure 2-5 and use its wiring diagram for full-bridge sensors such as load, force,

torque, and pressure sensors.

Quarter-Bridge Type I

This section provides information for connecting the quarter-bridge

strain-gauge configuration type I. Figure 2-1 shows the quarter-bridge

type I circuit wiring diagram.

Note

S– is left unwired.

© National Instruments Corporation

2-1

SCXI-1520 User Manual

Chapter 2 Connecting Signals

Transducer

R

L

SCXI-1520 Set Bridge

Configuration to

Quarter Bridge

S+

SCXI-1314

V

CH

+

R

4

(gauge)

R

L

+

R

L

P+

R

1

QTR

+

V

EX

You must connect the shunt calibration wires externally using the terminal block screw connections.

P–

SCA

SCA

R

3

R

S

R

2

Shunt

Cal A

Figure 2-1. Quarter-Bridge I Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

• R

3

is the quarter-bridge completion resistor.

• R

4

is the active element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

Note

The value of the quarter-bridge completion resistor, R

3

, must equal the nominal resistance of the strain gauge. NI recommends using a 0.1% precision resistor.

Quarter-Bridge Type II

This section provides information for connecting the quarter-bridge

strain-gauge configuration type II. Figure 2-2 shows the quarter-bridge

type II circuit wiring diagram.

Note

The quarter-bridge type II configuration is often confused with the more commonly used half-bridge type I configuration. In the half-bridge type I configuration, the R

3

SCXI-1520 User Manual

2-2 ni.com

Chapter 2 Connecting Signals

element is active and bonded to the strain specimen to measure Poisson's ratio, while in the quarter-bridge type II configuration, the R

3

element does not actively measure strain, but is in close thermal contact with the strain specimen. In quarter-bridge type II configuration, the R

3

element is not bonded to the specimen. Typically it is either physically close to the specimen or mounted on the same type material at the same temperature, but is not under strain.

Transducer

R

L

SCXI-1520

Set Bridge

Configuration to

Quarter Bridge

S+

SCXI-1314

V

CH

+

R

L

R

4

(gauge)

R

3

(dummy)

R

L

R

L

P+

P–

SCA

SCA

R

L

R

S

R

1

R

2

Shunt

Cal A

+

V

EX

Figure 2-2. Quarter-Bridge II Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

• R

3

is the quarter-bridge temperature-sensing element (dummy gauge).

• R

4

is the active element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

Note

S– and QTR are left unwired.

© National Instruments Corporation

2-3

SCXI-1520 User Manual

Chapter 2 Connecting Signals

Half-Bridge Type I

This section provides information for connecting the half-bridge

strain-gauge configuration type I. Figure 2-3 shows the half-bridge type I

circuit wiring diagram.

Note

S– is left unwired.

Transducer

R

L S+

SCXI-1314

SCXI-1520 Set Bridge

Configuration to Half Bridge

V

CH

+

R

L

P+

R

4

(gauge)

R

3

(gauge)

+

– v

R

1

R

2

+

V

EX

R

L

R

L

R

L

P–

SCA

SCA

Shunt

Cal A

R

S

Figure 2-3. Half-Bridge Type I Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

• R

3

is the active element measuring compression from Poisson effect (–

νε).

• R

4

is the active element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

Note

As shown in Figure 2-4, for greatest calibration accuracy, use separate wires

between the bridge and the SCA terminals. Do not directly connect S+ or P– to the

SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

SCXI-1520 User Manual

2-4 ni.com

Chapter 2 Connecting Signals

Half-Bridge Type II

This section provides information for connecting the half-bridge

strain-gauge configuration type II. Figure 2-4 shows the half-bridge type II

circuit wiring diagram.

Note

S– is left unwired.

Transducer

R

L

SCXI-1520 Set Bridge

Configuration to

Half Bridge

R

4

(gauge)

R

3

(gauge)

S+

SCXI-1314

R

L

+

V out

+

R

L

R

L

P+

P–

SCA

R

1

V out

R

2

V

CH

+

+

V

EX

Shunt

Cal A

SCA

R

L

R

S

Figure 2-4. Half-Bridge Type II Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

• R

3

is the active element measuring compressive strain (–

ε).

• R

4

is the active element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

Note

As shown in Figure 2-3, for greatest calibration accuracy, use separate wires

between the bridge and the SCA terminals. Do not directly connect S+ or P– to the

SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

© National Instruments Corporation

2-5

SCXI-1520 User Manual

Chapter 2 Connecting Signals

Full-Bridge Type I

This section provides information for connecting the full-bridge

strain-gauge configuration type I. Figure 2-5 shows the full-bridge type I

circuit wiring diagram.

Transducer

S+

SCXI-1314

S–

P+

SCXI-1520

Set Bridge

Configuration to

Full Bridge

V

CH

+

+

R

4

CH+

V

EX

+

R

3

V

EX

R

1

CH–

+

R

2

R

L

R

L

R

L

R

L

P–

SCA

SCA

R

S

Shunt

Cal A

+

Figure 2-5. Full-Bridge Type I Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

is an active element measuring compressive strain (–

ε).

• R

2

is an active element measuring tensile strain (+

ε).

• R

3

is an active element measuring compressive strain (–

ε).

• R

4

is an active element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

Note

As shown in Figure 2-5, for greatest calibration accuracy, use separate wires

between the bridge and the SCA terminals. Do not directly connect S+ or P– to the

SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

SCXI-1520 User Manual

2-6 ni.com

Chapter 2 Connecting Signals

Full-Bridge Type II

This section provides information for connecting the full-bridge

strain-gauge configuration type II. Figure 2-6 shows the full-bridge type II

circuit wiring diagram.

Transducer

S+

S–

SCXI-1314

P+

SCXI-1520

Set Bridge

Configuration to

Full Bridge

V

CH

+

+

R

4

V

EX

+

R

3

V

EX

R

L

R

1

– v

+ v

R

2

R

L

R

L

R

L

P–

SCA

SCA

R

S

Shunt

Cal A

+

Figure 2-6. Full-Bridge Type II Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

is an active element measuring compressive Poisson effect (–

νε).

• R

2

is an active element measuring tensile Poisson effect (+

νε).

• R

3

is an active element measuring compressive strain (–

ε).

• R

4

is an active element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

Note

As shown in Figure 2-6, for greatest calibration accuracy, use separate wires

between the bridge and the SCA terminals. Do not directly connect S+ or P– to the

SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

© National Instruments Corporation

2-7

SCXI-1520 User Manual

Chapter 2 Connecting Signals

Full-Bridge Type III

This section provides information for connecting the full-bridge strain-gauge configuration type I. The full-bridge type III only measures

axial strain. Figure 2-7 shows the full-bridge type III circuit wiring

diagram.

Transducer

S+

S–

SCXI-1314

P+

SCXI-1520 Set Bridge

Configuration to

Full Bridge

V

CH

+

+

R

4

V

EX

+

R

1

– v

– v

R

3

V

EX

R

L

R

L

+

R

2

P–

SCA

SCA

R

S

Shunt

Cal A

+

Figure 2-7. Full-Bridge Type III Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

is an active element measuring compressive Poisson effect (–

νε).

• R

2

is an active element measuring tensile strain (+

ε).

• R

3

is an active element measuring compressive Poisson effect (–

νε).

• R

4

is an active element measuring the tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

Note

As shown in Figure 2-7, for greatest calibration accuracy, use separate wires

between the bridge and the SCA terminals. Do not directly connect S+ or P– to the

SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

SCXI-1520 User Manual

2-8 ni.com

Chapter 2 Connecting Signals

Remote Sense

Note

NI recommends using remote sense if your application requires the improved

accuracy. Refer to Chapter 4,

Theory of Operation

, for more information about using

remote sense.

Wire the SCXI-1520 for remote sense as shown in Figure 2-8.

Transducer

Run Separate Wires

Between Remote-Sense

Terminals and Bridge

R

1

V

EX

+

R

4

R

2

V

EX

R

3

SCXI-1314 SCXI-1520

RS+

P+

P–

RS–

+

Feedback

Figure 2-8. Remote-Sense Circuit Diagram

Note

If you use remote sense, set R

L

to zero in the equations for measured strain (

ε).

© National Instruments Corporation

2-9

SCXI-1520 User Manual

Chapter 2 Connecting Signals

Pin Assignments

The pin assignments for the SCXI-1520 front signal connector are shown

in Table 2-1. The front signal connector is a special 96-pin DIN C male

connector through which you make all signal connections. The terminal assignments are as follows:

• SX+ and SX– are for analog input

• RSX+ and RSX– are for remote sense

• PX+ and PX– are for excitation output

• SCAX are for shunt calibration circuit A

• SCBX are for shunt calibration circuit B where X is the channel number.

The negative terminals are listed in Column B and the positive terminals are listed in Column C. The pins labeled RSVD are reserved. Do not make any connections to the RSVD pins.

SCXI-1520 User Manual

2-10 ni.com

Chapter 2 Connecting Signals

3

2

5

4

1

10

9

8

7

6

14

13

12

11

19

18

17

16

15

23

22

21

20

28

27

26

25

24

32

31

30

29

Front Connector Diagram

Column

A B C

Table 2-1. Front Signal Pin Assignments

7

6

9

8

5

12

11

10

2

1

4

3

16

15

14

13

21

20

19

18

17

Pin Number

32

31

30

29

24

23

22

28

27

26

25

RSVD

RSVD

RSVD

RSVD

SCB6

SCB6

SCB7

SCB7

SCB3

RSVD

RSVD

RSVD

RSVD

SCB4

SCB4

SCB5

SCB5

RSVD

RSVD

RSVD

RSVD

Column A

SCB0

SCB0

SCB1

SCB1

RSVD

RSVD

RSVD

RSVD

SCB2

SCB2

SCB3

S5–

RS5–

P5–

SCA5

S6–

RS6–

P6–

SCA6

SCA2

S3–

RS3–

P3–

SCA3

S4–

RS4–

P4–

SCA4

S7–

RS7–

P7–

SCA7

Column B

S0–

RS0–

P0–

SCA0

S1–

RS1–

P1–

SCA1

S2–

RS2–

P2–

S5+

RS5+

P5+

SCA5

S6+

RS6+

P6+

SCA6

SCA2

S3+

RS3+

P3+

SCA3

S4+

RS4+

P4+

SCA4

S7+

RS7+

P7+

SCA7

Column C

S0+

RS0+

P0+

SCA0

S1+

RS1+

P1+

SCA1

S2+

RS2+

P2+

© National Instruments Corporation

2-11

SCXI-1520 User Manual

Chapter 2 Connecting Signals

The rear signal connector is a 50-pin male cable connector used for analog signal connectivity and communication between the SCXI-1520 and the connected E/M Series DAQ device. The rear signal connector is shown in

Table 2-2. The rear signal connector allows the DAQ device to access all

eight differential analog output signals from the SCXI-1520. The positive terminal of each analog output is named CHX+ and the negative terminal

CHX–.

SCXI-1520 User Manual

2-12 ni.com

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

39 40

41 42

43 44

45 46

47 48

49 50

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

Rear Connector

Diagram

Chapter 2 Connecting Signals

Table 2-2. Rear Signal Pin Assignments

Signal Name

CH 0 +

CH 1 +

CH 2 +

CH 3 +

CH 4 +

CH 5 +

CH 6 +

CH 7 +

SER DAT IN

DAQ D*/A

SLOT 0 SEL*

DIG GND

SER CLK

24

26

28

30

16

18

20

22

Pin Number

2

4

6

8

10

12

14

40

42

44

46

32

34

36

38

48

50

23

25

27

29

15

17

19

21

Pin Number

1

3

5

11

13

7

9

39

41

43

45

31

33

35

37

47

49

Signal Name

CH 0 –

CH 1 –

CH 2 –

CH 3 –

CH 4 –

CH 5 –

CH 6 –

CH 7 –

DIG GND

SER DAT OUT

AI HOLD COMP, AI HOLD

SYNC

© National Instruments Corporation

2-13

SCXI-1520 User Manual

Chapter 2 Connecting Signals

Pin

24, 33

25

26

In parallel output mode, channel 0 is selected at the output multiplexer and is connected to CH 0. The seven other channels are directly connected to

CH 1 through CH 7, respectively, on the rear connector.

In multiplexed mode, the CH 0 signal pair is used for sending all eight channels of the SCXI-1520, and analog signals from other modules, to the connected E/M Series DAQ device. If the module is cabled directly to the

DAQ device, the other analog channels of the DAQ device are unavailable for general-purpose analog input because they are connected to the

SCXI-1520 amplifier outputs. This means that connecting an SCXI-1180 module to the 50-pin breakout connector of the SCXI-1349, or other cable adapter assembly, may cause interference and incorrect measurements when the DAQ device is cabled to the SCXI-1520.

SCXI

Signal Name

DIG GND

SER DAT IN

SER DAT OUT

The communication signals between the DAQ device and the SCXI system

are listed in Table 2-3. If the DAQ device is connected to the SCXI-1520,

these digital lines are unavailable for general-purpose digital I/O.

Table 2-3. SCXI-1520 Communication Signals

NI-DAQmx

Device Signal

Name

D GND

Traditional NI-DAQ

(Legacy) Device

Signal Name

DGND

Direction

P0.0

P0.4

DIO0

DIO4

Input

Output

Description

Digital ground—these pins supply the reference for

E/M Series DAQ device digital signals and are connected to the module digital ground.

Serial data in—this signal taps into the

SCXIbus MOSI line to send serial input data to a module or Slot 0.

Serial data out—this signal taps into the

SCXIbus MISO line to accept serial output data from a module.

SCXI-1520 User Manual

2-14 ni.com

Chapter 2 Connecting Signals

Pin

27

29

36

37

46

SCXI

Signal Name

DAQ D*/A

Table 2-3. SCXI-1520 Communication Signals (Continued)

NI-DAQmx

Device Signal

Name

P0.1

Traditional NI-DAQ

(Legacy) Device

Signal Name

DIO1

Direction

Input

SLOT0SEL*

SCANCLK

SER CLK

HOLD TRIG

P0.2

AI HOLD COMP,

AI HOLD

EXTSTROBE*

PFI 7/

AI SAMP CLK,

AI SAMP

DIO2

SCANCLK

EXTSTROBE*

PFI7/

START SCAN

Input

Input

Input

Input

Description

Board data/address line—this signal taps into the SCXIbus D*/A line to indicate to the module whether the incoming serial stream is data or address information.

Slot 0 select—this signal taps into the

SCXIbus INTR* line to indicate whether the information on MOSI is being sent to a module or Slot 0.

Scan clock—a rising edge indicates to the scanned SCXI module that the E/M Series

DAQ device has taken a sample and causes the module to advance channels.

Serial clock—this signal taps into the

SCXIbus SPICLK line to clock the data on the

MOSI and MISO lines.

Hold trigger—this signal is used by the

MIO to set the track-and-hold state of the module.

© National Instruments Corporation

2-15

SCXI-1520 User Manual

3

Configuring and Testing

This chapter discusses configuring the SCXI-1520 in MAX for use with either NI-DAQmx or Traditional NI-DAQ (Legacy), creating and testing a virtual channel, global channel, and/or task.

SCXI-1520 Software-Configurable Settings

This section describes how to set the bridge configuration, voltage excitation level, filter bandwidth, and gain/input signal range, as well as how to use configuration utilities in MAX to programmatically perform offset null compensation and shunt calibration. It also describes how to perform configuration of these settings for the SCXI-1520 in NI-DAQmx and Traditional NI-DAQ (Legacy). For more information on the relationship between the settings and the measurements, and how to

configure settings in your application, refer to Chapter 4,

Theory of

Operation

.

Common Software-Configurable Settings

This section describes the most frequently used software-configurable

settings for the SCXI-1520. Refer to Chapter 4,

Theory of Operation

, for a complete list of software-configurable settings.

Bridge Configuration

Bridge configuration is a software-configurable setting that allows you to connect quarter-, half-, or full-bridge configuration Wheatstone bridge sensors easily. When quarter- or half-bridge configuration is selected,

Terminal SX– (where X is a particular channel) is disconnected from the front signal connector and internally connected to a half-bridge completion network. Implementing quarter-bridge completion also involves making field wiring connections to the quarter-bridge completion resistor (QTR) in the terminal block.

SCXI-1520 User Manual

© National Instruments Corporation

3-1

Chapter 3 Configuring and Testing

Excitation Level

Excitation level is a software-configurable setting that allows you to set the voltage excitation level available on PX+ and PX– (where X is a particular channel). You can choose voltage excitation settings between 0 and 10 V.

To prevent the module from overheating, do not set the excitation voltage greater than

(resistance connected between the excitation terminals)

× (29.0 mA)

Note

You need not include the loading effect of the internal half-bridge completion resistors in the above calculation. When using internal quarter-bridge completion you must include the nominal gauge resistance as well as the quarter-bridge completion resistance

(R

3

+ R

4

).

Table 3-1 shows the maximum allowable excitation voltages for standard

bridge configurations and resistances.

Configuration/

Sensor

Quarter- or

Half-Bridge

Table 3-1. Excitation Voltage for Configuration and Gauge Resistances

Full-Bridge or

Full-Bridge Sensor

Resistance

120

350

1000

120

350

1000

NI-DAQmx Excitation

Voltage Range

≤6.96 V

0 to 10 V

0 to 10 V

≤3.48 V

0 to 10 V

0 to 10 V

Traditional NI-DAQ

(Legacy) Excitation

Voltage Range

0 to 6.875 V

0 to 10 V

0 to 10 V

0 to 3.125 V

0 to 10 V

0 to 10 V

Filter Bandwidth

Filter bandwidth is a software-configurable setting that allows you to select a lowpass filter cutoff frequency. You can choose 10 Hz, 100 Hz, 1 kHz,

10 kHz, or filter-bypass mode. If your application requires other cutoff

frequencies, refer to Chapter 4,

Theory of Operation

.

SCXI-1520 User Manual

3-2 ni.com

Chapter 3 Configuring and Testing

Gain/Input Range

Gain/input range is a software-configurable setting that allows you to choose the appropriate amplification to fully utilize the range of the

E/M Series DAQ device. In most applications NI-DAQ chooses and sets the gain for you determined by the input range. This feature is described in

Chapter 4,

Theory of Operation

. Otherwise, you should determine the appropriate gain using the input signal voltage range and the full-scale limits of the SCXI-1520 output signal. For common strain-gauge configurations where the Gauge Factor is 2.0, the maximum input signal

(in microvolts) is:

quarter bridge

=

(max strain) (excitation voltage)

×

(0.5

µV/V/µε)

half bridge

=

(max strain) (excitation voltage)

×

(1.0

µV/V/µε)

full bridge

=

(max strain) (excitation voltage)

×

(2.0

µV/V/µε)

When you have determined the input signal voltage you can use the following equation to determine the appropriate gain:

gain

SCXI-1520 output voltage range

(

input signal voltage

)

) × (

10 V

)

If you are using a bridge-based sensor, use the manufacturer-specified sensitivity (usually expressed in the units of millivolts per volt) to determine the maximum input signal. The maximum input signal is:

(max input signal voltage)

=

(sensor full-scale input)

×

(maximum input)

For example, if you have a 0 to 500 psi pressure sensor with 3.0 mV/V sensitivity, an excitation voltage of 10 V, and a maximum pressure of

200 psi, the maximum signal is:

12 mV

=

( ) (

10 V

(

×

500 psi

)

) × (

200 psi

)

If you are using a DAQ device that has a maximum analog input range of

±10 V and you have a maximum input to the SCXI-1520 of +12 mV, set the gain to the setting closest to

833

=

12 mV

© National Instruments Corporation

3-3

SCXI-1520 User Manual

Chapter 3 Configuring and Testing

but less than 833. A larger gain setting saturates the DAQ device input for a 12 mV signal. In this example, the closest lesser gain setting for the

SCXI-1520 is 750.

Null Potentiometers

Coarse and fine null potentiometers are software-configurable settings that allow you to remove unwanted offset voltage. In most cases, you do not explicitly set the null potentiometers, but instead allow driver software to automatically adjust them for you. However, if you want to explicitly set the null potentiometers, you can write an application program that adjusts

the null potentiometers settings. Refer to Chapter 4,

Theory of Operation

, for more information.

Shunt Calibration Switches

Shunt calibration switches A and B are software control settings that allow you to engage or disengage the shunt calibration resistors in order to perform gain calibration. In most cases, you do not explicitly control the shunt calibration switches, but instead allow driver software to automatically adjust them for you during the automated shunt calibration procedure. However, if you want to explicitly control the calibration switches, you can write an application program that controls the shunt

calibration switches. Refer to Chapter 4,

Theory of Operation

, for more

information.

Note

The gain adjustment is done for you automatically if you have performed shunt calibration using the NI-DAQ driver. Refer to the

Traditional NI-DAQ (Legacy)

section

and the

NI-DAQmx

section for more information about how to perform shunt calibration

using the driver.

Modes of Operation

The SCXI-1520 can operate in multiplexed mode or parallel mode. Using

NI-DAQmx, you can operate the SCXI-1520 in either multiplexed or parallel mode. In Traditional NI-DAQ (Legacy), only multiplexed mode is

supported. Refer to the

Strain-Gauge Theory

section of Chapter 4,

Theory of Operation

, for more information on multiplexed and parallel mode operation.

SCXI-1520 User Manual

3-4 ni.com

Chapter 3 Configuring and Testing

Simultaneous Sample and Hold

When it is critical to measure two or more signals at the same instant in time, simultaneous sample and hold (SS/H) is required. Typical applications that might require SS/H include vibration measurements and phase difference measurements. In NI-DAQmx, you can disable this setting through your application if you require scan rates beyond the maximum allowable with SS/H engaged. NI recommends leaving SS/H engaged.

Note

You cannot change the simultaneous sampling mode in MAX. You must use an ADE such as LabVIEW or LabWindows/CVI to configure the setting using NI-DAQmx Channel

Property Node. Refer to your ADE help file for more information.

Configurable Settings in MAX

Note

If you are not using an NI ADE, using an NI ADE prior to version 7.0, or are using an unlicensed copy of an NI ADE, additional dialog boxes from the NI License Manager appear allowing you to create a task or global channel in unlicensed mode. These messages continue to appear until you install version 7.0 or later of an NI ADE.

This section describes where you can access each software-configurable setting for modification in MAX. The location of the settings varies depending on the version of NI-DAQ you use. Refer to either the

NI-DAQmx section or the

Traditional NI-DAQ (Legacy)

section. You also can refer to the DAQ Getting Started Guide and the SCXI Quick Start Guide for more information on installing and configuring the hardware. You also can use the DAQ Assistant to graphically configure common measurement tasks, channels, or scales.

NI-DAQmx

In NI-DAQmx, you can configure software settings such as bridge configuration, voltage excitation level, filter bandwidth, gain/input signal range, and calibration settings in the following two ways:

• Task or global channel in MAX

• Functions in your application

Note

All software-configurable settings are not configurable both ways. This section only

discusses settings in MAX. Refer to Chapter 4,

Theory of Operation

, for information on using functions in your application.

© National Instruments Corporation

3-5

SCXI-1520 User Manual

Chapter 3 Configuring and Testing

These sections describe settings that you can change in MAX and where they are located. Strain and custom voltage with excitation are the most commonly used NI-DAQmx Task or NI-DAQmx Global Channel types with the SCXI-1520. Use the Custom Voltage with Excitation

NI-DAQmx task or global channel when measuring load, force, torque,

pressure, or other bridge-based sensors:

• Bridge configuration—configure using the settings tab of NI-DAQmx

Task or NI-DAQmx Global Channel and functions in your

application. Channel properties override module properties.

The default bridge configuration for NI-DAQmx is full bridge.

• Voltage excitation—configure using either NI-DAQmx Task or

NI-DAQmx Global Channel. You also can set the voltage excitation

level through your application. In NI-DAQmx, you can choose from contiguous voltages between 0 and 10 V. The default voltage excitation in NI-DAQmx is 0 V.

• Filter bandwidth—configure the Device tab using either NI-DAQmx

Task or NI-DAQmx Global Channel. You also can set the value

through your application. The default filter cut-off frequency in

NI-DAQmx is 10 kHz.

• Input signal range—configure the input signal range using either

NI-DAQmx Task or NI-DAQmx Global Channel. When you set the

minimum and maximum range of NI-DAQmx Task or NI-DAQmx

Global Channel, the driver selects the best gain for the measurement.

You also can set it through your application. The default gain setting in

NI-DAQmx is 1.0. This setting corresponds to an input range of ±10 V.

• Calibration settings—null potentiometer settings and control shunt calibration switches only using Strain NI-DAQmx Task, Strain

NI-DAQmx Global Channel, or your application. The Custom

Voltage with Excitation NI-DAQmx Task or NI-DAQmx Global

Channel cannot adjust calibration settings in MAX. Adjust calibration

settings in your application. The default configuration settings set the null potentiometers at their midpoint, 62 for the coarse potentiometer and 2,047 for the fine potentiometer. The default state of the shunt calibration switches is open. This state leaves the shunt calibration resistor disconnected from the circuit.

• Modes of operation—configure only using chassis installation in

software. Refer to Chapter 1,

About the SCXI-1520

, for more

information on chassis installation. The default setting in NI-DAQmx is multiplexed.

SCXI-1520 User Manual

3-6 ni.com

Chapter 3 Configuring and Testing

• Simultaneous sample-and-hold settings—configure only using your application. The default setting in NI-DAQmx engages SS/H.

Note

Refer to Chapter 4,

Theory of Operation

, for information on configuring the settings

for your application using Traditional NI-DAQ (Legacy).

Creating a Strain Global Channel or Task

To create a new NI-DAQmx strain global task or channel, complete the following steps:

1.

Double-click Measurement & Automation on the desktop.

2.

Right-click Data Neighborhood and select Create New.

3.

Select NI-DAQmx Task or NI-DAQmx Global Channel, and click

Next.

4.

Select Analog Input.

5.

Select Strain.

6.

If you are creating a task, you can select a range of channels by holding down the <Shift> key while selecting the channels. You can select multiple individual channels by holding down the <Ctrl> key while selecting channels. If you are creating a channel, you can only select one channel. Click Next.

7.

Name the task or channel and click Finish.

8.

In the Channel List box, select the channel(s) you want to configure.

You can select a range of channels by holding down the <Shift> key while selecting the channels. You can select multiple individual channels by holding down the <Ctrl> key while selecting channels.

9.

Enter the specific values for your application in the Settings tab.

Context help information for each setting is provided on the right side of the screen.

10. Click the Device tab and select the autozero mode and lowpass filter cutoff frequency.

11. Ensure that you have selected the strain channel(s) you wish to calibrate in the Channel List box. Click Calibration to calibrate the strain channel(s).

12. On the screen that appears choose to enable offset nulling and/or shunt calibration. Enter the shunt calibration resistor information. Click

Next.

© National Instruments Corporation

3-7

SCXI-1520 User Manual

Chapter 3 Configuring and Testing

13. Measure and Calibrate displays information specific to the strain channel(s). Click Measure to acquire a signal from the strain channel(s) and Reset Data to reset the values to default. Click

Calibrate to calibrate the strain channel(s). When you have completed

calibrating the strain channel(s), click Finish.

14. If you are creating a task and want to set timing or triggering controls, enter the values in the Task Timing and Task Triggering tabs.

Creating a Custom Voltage with Excitation Global

Channel or Task

Use the Custom Voltage with Excitation NI-DAQmx Task or Global

Channel when measuring load, force, torque, pressure, or other

bridge-based sensors. To create an NI-DAQmx Custom Voltage with

Excitation Task or NI-DAQmx Global Channel, complete the following

steps:

1.

Double-click Measurement & Automation on the desktop.

2.

Right-click Data Neighborhood and select Create New.

3.

Select NI-DAQmx Global Channel or NI-DAQmx Task, and click

Next.

4.

Select Analog Input then select Custom Voltage with Excitation.

5.

If you are creating a channel, you can select only one channel. If you are creating a task, select the channels to add to the task. You can select a range of channels by holding down the <Shift> key while selecting the channels. You can select multiple individual channels by holding down the <Ctrl> key while selecting channels. Click Next.

6.

Select the name of the task or channel, and click Finish.

7.

In the Channel List box, select the channel(s) you want to configure.

You can select a range of channels by holding down the <Shift> key while selecting the channels. You can select multiple individual channels by holding down the <Ctrl> key while selecting channels.

8.

Enter the specific values for your application in the Settings tab.

Context help information for each setting is provided on the right side of the screen.

9.

Click the Device tab and select the autozero mode and lowpass filter cutoff frequency.

10. If you are applying custom scaling, select the Create New drop-down and follow the onscreen wizard.

11. If you are creating a task and want to set timing or triggering controls, enter the values in the Task Timing and Task Triggering tabs.

SCXI-1520 User Manual

3-8 ni.com

Chapter 3 Configuring and Testing

Traditional NI-DAQ (Legacy)

In Traditional NI-DAQ (Legacy), you can configure software settings, such as bridge configuration, voltage excitation level, filter bandwidth, gain/input signal range, and calibration settings, in the following three ways:

• module property pages in MAX

• virtual channels properties in MAX

• functions in your ADE

Note

All software-configurable settings are not configurable in all three ways. This

section only discusses settings in MAX. Refer to Chapter 4,

Theory of Operation

, for information on using functions in your application.

Most of these settings are available in module properties and/or using virtual channels:

• Bridge configuration—configure using module properties, virtual channels properties, and functions in your application. Virtual channel properties override module properties. The default bridge configuration for Traditional NI-DAQ (Legacy) is quarter bridge.

• Voltage excitation—configure using module properties or virtual channel properties. Virtual channel properties override module properties settings. You also can set excitation through your application. You can choose one of 17 voltage settings between 0 and

10 V. The default voltage excitation level for Traditional NI-DAQ

(Legacy) is 2.5 V.

• Filter bandwidth—configure only using module properties. You also can set bandwidth through your application. The default filter bandwidth level for Traditional NI-DAQ (Legacy) is 10 Hz.

• Gain/input signal range—configure gain using module properties.

When you set the minimum and maximum range of the virtual channel, the driver selects the best gain. The default gain setting for Traditional NI-DAQ (Legacy) is 100.

• Calibration settings—configure null potentiometer settings and control shunt calibration switches only using strain virtual channel or using your application. The default configuration settings set the null potentiometers at their midpoint, 62 for the coarse potentiometer and

2,047 for the fine potentiometer. The default state of the shunt calibration switches is open. This state leaves the shunt calibration resistor disconnected from the circuit.

© National Instruments Corporation

3-9

SCXI-1520 User Manual

Chapter 3 Configuring and Testing

• Modes of operation—configure only using module properties. The default setting in Traditional NI-DAQ (Legacy) is multiplexed mode.

Parallel mode is not supported in Traditional NI-DAQ (Legacy).

• Simultaneous sample-and-hold settings—can modify this setting only using NI-DAQmx.

Note

Refer to Chapter 4,

Theory of Operation

, for information on configuring the settings for your application using Traditional NI-DAQ (Legacy).

Configuring Module Property Pages in Traditional

NI-DAQ (Legacy)

1.

Right-click the SCXI-1520 module you want to configure and select

Properties. Click General.

2.

If the module you are configuring is connected to an E Series DAQ device, select that device by using Connected to. If you want this DAQ device to control the chassis, confirm there is a check in the This

device will control the chassis checkbox. If the module you are

configuring is not connected to an DAQ device, select None.

3.

Click the Channel tab. Select the appropriate gain, filter, voltage excitation, and bridge configuration setting for each channel. If you want to configure all the channels at the same time, select the Channel drop-down menu, scroll to the bottom, and select All Channels. Refer

to the

SCXI-1520 Software-Configurable Settings

section for a

detailed description of each setting. Click Apply.

4.

Click Accessory. Select the accessory you connected to the module.

When configuration is complete, click OK.

The Traditional NI-DAQ (Legacy) chassis and SCXI-1520 should now be configured properly. If you need to change the module configuration,

right-click the module and repeat steps 1 through 4. Test the system

following the steps in the

Troubleshooting the Self-Test Verification

section of Chapter 1,

About the SCXI-1520

.

Creating a Strain Virtual Channel

To create a strain virtual channel, complete the following steps:

1.

Right-click Data Neighborhood and select Create New.

2.

Select Traditional NI-DAQ Virtual Channel and click Finish.

3.

Click Add Channel.

SCXI-1520 User Manual

3-10 ni.com

Chapter 3 Configuring and Testing

4.

Select Analog Input from the drop-down menu and click Next.

5.

Enter the Channel Name and Channel Description, and click Next.

6.

Select Strain Gauge from the drop-down menu and click Next.

7.

Enter the following information: a.

Bridge type from the drop-down menu

b.

V init in volts

c.

Lead Resistance in

Ω d.

Nominal Gauge in

Ω e.

Gauge Factor

f.

Range min in

µε g.

Range max in

µε

8.

Click Next.

9.

Enter the following information: a.

What DAQ hardware will be used? from the drop-down menu

b.

What channel on your DAQ hardware? from the drop-down

menu c.

Which analog input mode will be used? from the drop-down

menu d.

What is the Excitation Voltage’s source and value? from the

drop-down menu e.

Voltage in volts

10. Click Finish.

Calibrating a Strain Virtual Channel

To calibrate a strain virtual channel, complete the following steps:

1.

Right-click the virtual channel you want to calibrate and select

Properties.

2.

Click Calibration.

3.

Select the Engineering Units from the drop-down menu.

4.

Enter the Calibration Data and click Update.

5.

Make the selections in Shunt Cal Circuit A and Operation, and click Start.

6.

After the calibration is completed, click Exit.

© National Instruments Corporation

3-11

SCXI-1520 User Manual

Chapter 3 Configuring and Testing

Verifying the Signal

This section describes how to take measurements using test panels in order to verify signal, and configuring and installing a system in NI-DAQmx and

Traditional NI-DAQ (Legacy).

Verifying the Signal in NI-DAQmx Using a Task or Global Channel

You can verify the signals on the SCXI-1520 using NI-DAQmx by completing the following steps:

1.

Expand the list of tasks and virtual channels by clicking the + next to

Data Neighborhood.

2.

Click the + next to NI-DAQmx Tasks to expand the list of tasks.

3.

Click the task.

4.

Add or remove channels, if applicable, in the Channel List. Click the

Add Channels button, shown at left, and select the type of channel you want to add.

a.

In the window that appears, expand the list of channels by clicking the + next to the module of interest.

b.

Select the channel(s) you want to verify. You can select a block of channels by holding down the <Shift> key or multiple channels by holding down the <Ctrl> key. Click OK.

5.

Enter the appropriate information on the Settings tab.

6.

Click the Device tab and enter the appropriate information on the

Device tab.

7.

Click the Test button to open the test panel.

8.

Click the Start button, if necessary.

9.

After you have completed verifying the channels, close the test panel window.

You have now verified the SCXI-1520 configuration and signal connection.

Note

For more information on how to further configure the SCXI-1520, or how to use

LabVIEW to configure the module and take measurements, refer to Chapter 4,

Theory of

Operation

.

SCXI-1520 User Manual

3-12 ni.com

Chapter 3 Configuring and Testing

Verifying the Signal in Traditional NI-DAQ (Legacy)

This section discusses how to verify the signal in Traditional NI-DAQ

(Legacy) using channel strings and virtual channels.

Verifying the Signal Using Channel Strings

The format of the channel string is as follows: obx !

scy !

mdz !

channel

where

• obx is the onboard E Series DAQ device channel, with x representing a particular channel where the multiplexed channels are sent. This value is 0 for DAQ device channel 0 in a single-chassis system. In a multichassis or remote chassis system, the DAQ device channel x corresponds to chassis number n – 1, where DAQ device channel x is used for scanning the nth chassis in the system.

• scy is the SCXI chassis ID, where y is the number you chose when configuring the chassis.

• mdz is the slot position where the module is located, with z being the particular slot number. The slots in a chassis are numbered from left to right, starting with 1.

channel is the channel that is sampled from module z.

Use the format obx ! scy ! mdz !

n to verify the signal, where n is a single input channel.

Complete the following steps to use channel strings in verifying the signal:

1.

Expand the list of tasks and virtual channels by clicking the + next to

Devices and Interfaces.

2.

Click the + next to Traditional NI-DAQ Devices to expand the device list.

3.

Right-click the appropriate E Series DAQ device.

4.

Click Test Panels.

5.

Enter the channel string.

6.

Enter the input limits.

7.

Select the Data Mode.

8.

Select the Y Scale Mode.

Refer to the LabVIEW Measurements Manual for more information and for proper formatting of channel strings for different uses.

© National Instruments Corporation

3-13

SCXI-1520 User Manual

Chapter 3 Configuring and Testing

Verifying the Signal Using Strain Virtual Channel

If you have already created a virtual channel, complete the following steps to verify the signal:

1.

Right-click the strain virtual channel you want to verify and select

Test.

2.

In Channel Names, select the channel you want to verify.

3.

When you have completed verifying the channel, click Close.

Using the Strain Calibration Wizard in NI-DAQmx

When using NI-DAQmx, you can perform an automated strain calibration on one or more channels in your task using the Strain Calibration Wizard in MAX.

Note

All channels must be strain channels to use the Strain Calibration Wizard.

Complete the following steps to perform calibration using the Calibration

Wizard:

1.

Expand the list of devices by clicking the + next to Data

Neighborhood.

2.

Click the + next to NI-DAQmx Tasks to expand the list of tasks.

3.

Select the strain task you previously created.

4.

Click the Device tab.

5.

Select the Auto Zero Mode and Lowpass Filter Cutoff Frequency from the dropdown lists.

6.

Click the Calibration button and follow the onscreen instructions.

SCXI-1520 User Manual

3-14 ni.com

4

Theory of Operation

This chapter discusses strain-gauge concepts and the theory of operational measurement concepts.

Strain-Gauge Theory

This section discusses how to arrange, connect, and scale signals from bridge-based sensors, especially strain gauges.

Wheatstone Bridges

All strain-gauge configurations are based on the concept of a Wheatstone bridge. A Wheatstone bridge is a network of four resistive legs. One or

more of these legs can be active sensing elements. Figure 4-1 shows a

Wheatstone bridge circuit diagram.

R

1

V

EX

+

R

4

– V

CH

+

R

2

R

3

Figure 4-1. Basic Wheatstone Bridge Circuit Diagram

The Wheatstone bridge is the electrical equivalent of two parallel voltage divider circuits. R

1

and R

2

compose one voltage divider circuit, and R

4

and

R

3

compose the second voltage divider circuit. The output of a Wheatstone bridge is measured between the middle nodes of the two voltage dividers.

© National Instruments Corporation

4-1

SCXI-1520 User Manual

Chapter 4 Theory of Operation

A physical phenomena, such as a change in strain or temperature applied to a specimen, changes the resistance of the sensing elements in the

Wheatstone bridge. The Wheatstone bridge configuration is used to help measure the small variations in resistance that the sensing elements produce corresponding to a physical changes in the specimen.

Strain Gauges

Strain-gauge configurations are arranged as Wheatstone bridges. The gauge is the collection of all of the active elements of the Wheatstone bridge. There are three types of strain-gauge configurations: quarter-, half-, and full-bridge. The number of active element legs in the Wheatstone

bridge determines the kind of bridge configuration. Table 4-1 shows the

number of active elements in each configuration.

Table 4-1. Strain-Gauge Configurations

Configuration

Quarter-bridge

Half-bridge

Full-bridge

Number of Active Elements

1

2

4

Each of these configurations is subdivided into multiple configuration types. The orientation of the active elements and the kind of strain measured determines the configuration type. NI supports seven configuration types in software. However, with custom software scaling you can use all Wheatstone bridge configuration types with any

NI hardware product that supports the gauge configuration type.

The supported strain-gauge configuration types measure axial strain, bending strain, or both. While you can use some similar configuration types to measure torsional strain, NI software scaling does not support these configuration types. It is possible to use NI products to measure torsional strain, but to properly scale these configuration types you must create a custom scale in MAX or perform scaling in your software application.

This document discusses all of the mechanical, electrical, and scaling considerations of each strain-gauge configuration type supported by NI.

SCXI-1520 User Manual

4-2 ni.com

Chapter 4 Theory of Operation

Acronyms, Formulas, and Variable Definitions

In the figures and equations in this document, the acronyms, formulas, and variables are defined as follows:

ε is the measured strain (+ε is tensile strain and –ε is compressive strain).

ε

S

is the simulated strain.

GF is the Gauge Factor, which should be specified by the gauge manufacturer.

R g

is the nominal gauge resistance, which should be specified by the gauge manufacturer.

R

L

is the lead resistance. If lead lengths are long, R

L

can significantly impact measurement accuracy.

R s

is the shunt calibration resistor value.

U is the ratio of expected signal voltage to excitation voltage with the shunt calibration circuit engaged. Parameter U appears in the equations for simulated strain and is defined by the following equation:

U

=

4R

s

R

+

g

2R

g

ν is the Poisson’s ratio, defined as the negative ratio of transverse strain to axial strain (longitudinal) strain. Poisson’s ratio is a material property of the specimen you are measuring.

V

CH

is the measured voltage of the signal.

V

EX

is the excitation voltage.

V r

is the voltage ratio that is used in the voltage to strain conversion equations and is defined by the following equation:

V r

=

V

( strained

V

EX

CH

(unstrained)

© National Instruments Corporation

4-3

SCXI-1520 User Manual

Chapter 4 Theory of Operation

Software Scaling and Equations

After you have acquired the voltage signal V

CH

, you can scale this voltage to the appropriate strain units in software. This is done automatically for you in NI-DAQmx using a strain task or strain channel and in Traditional

NI-DAQ (Legacy) using the strain virtual channel. You also can scale the voltages manually in your application using the voltage-to-strain conversion equations provided in this document for each configuration type.

Finally, there are voltage-to-strain conversion functions included in

LabVIEW, NI-DAQmx, and Traditional NI-DAQ (Legacy). In LabVIEW, the conversion function, Convert Strain Gauge Reading VI, is in the Data

Acquisition»Signal Conditioning subpalette. The prototypes for the

NI-DAQ functions,

Strain_Convert

and

Strain_Buf_Convert

, are in the header file convert.h

for C/C++, and convert.bas

for Visual Basic.

Refer to the Traditional NI-DAQ User Manual and the LabVIEW

Measurements Manual for more information.

The names given the strain-gauge types in these sections directly correspond to bridge selections in MAX and the LabVIEW Convert Strain

Gauge Reading VI.

Quarter-Bridge Type I

This section provides information for the quarter-bridge strain-gauge configuration type I. The quarter-bridge type I measures either axial or

bending strain. Figure 4-2 shows how to position a strain-gauge resistor in

an axial and bending configurations. Figure 4-3 shows the quarter-bridge

type I circuit wiring diagram.

R

4

(+ ) R

4

(+ )

SCXI-1520 User Manual

Axial Bending

Figure 4-2. Quarter-Bridge Type I Measuring Axial and Bending Strain

4-4 ni.com

Chapter 4 Theory of Operation

A quarter-bridge type I has the following characteristics:

• A single active strain-gauge element is mounted in the principle direction of axial or bending strain.

• A passive quarter-bridge completion resistor (dummy resistor) is required in addition to half-bridge completion.

• Temperature variation in specimen decreases the accuracy of the measurements.

• Sensitivity at 1000

µε is ∼ 0.5 mV out

/V

EX

input.

Note

S– is left unwired.

V

EX

+

R

L

R

1

V

CH

+

R

2

R

3

R

L

R

L

R

4

(+ )

Figure 4-3. Quarter-Bridge I Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

• R

3

is the quarter-bridge completion resistor (dummy resistor).

• R

4

is the active strain-gauge element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

To convert voltage readings to strain units use the following equation:

strain

ε

=

V

r

GF 1 2V

r

)

×

1

+

R

Rg

 where

R g

is the nominal gauge resistance of the sensor.

R

L

is the lead resistance.

GF is the Gauge Factor.

© National Instruments Corporation

4-5

SCXI-1520 User Manual

Chapter 4 Theory of Operation

To simulate the effect on strain of applying a shunt resistor across R

3

, use the following equation:

ε

s

=

(

GF 1 4U

)

Notes

The value of the quarter-bridge completion resistor (dummy resistor) must equal the nominal resistance of the strain gauge. NI recommends using a 0.1% precision resistor.

To minimize temperature drift errors, the strain gauge must have a self-temperature-compensation (STC) number that corresponds to the thermal expansion coefficient of the material under test. STC gauges have a temperature sensitivity that counteracts the thermal expansion coefficient of the test specimen. The STC number approximately equals the thermally induced change in strain with change in temperature and is expressed in units of microstrain per degree Fahrenheit. For example, if the test specimen is aluminum, use a gauge with an STC number of 13.0. If the test specimen is steel, use a gauge with an STC number of 6.0.

To minimize temperature drift errors in the wiring, use the three-wire connection shown in

Figure 4-3. The wires connected to terminals S+ and QTR carry the same current and are

on opposite sides of the same element of the bridge. Therefore, any temperature-related changes in voltage drop across R

L

caused by temperature variation of the leads cancel out, leaving V

CH

unchanged. The voltage drop across the lead resistance on a quarter-bridge type I configuration is uncompensated in hardware. It is important to accurately determine the gauge lead resistance and enter it in MAX or in the application software equation so the software can compensate for the voltage drop.

You can neglect lead resistance (R lead length is very short (

L

) of the wiring if shunt calibration is performed or if

∼ <10 ft), depending on the wire gauge. For example 10 ft of

24-AWG copper wire has a lead resistance of 0.25

Ω.

Quarter-Bridge Type II

This section provides information for the quarter-bridge strain-gauge configuration type II. The quarter-bridge type II measures either axial or

bending strain. Figure 4-4 shows how to position a strain-gauge resistor in an axial and bending configurations. Figure 4-5 shows the quarter-bridge

type II circuit wiring diagram.

SCXI-1520 User Manual

4-6 ni.com

Chapter 4 Theory of Operation

R

4

(+ )

Axial

R

4

(+ )

Bending

R

3

R

3

Figure 4-4. Quarter-Bridge Type II Measuring Axial and Bending Strain

A quarter-bridge type II has the following characteristics:

• One active strain-gauge element and one passive, temperature-sensing quarter-bridge element (dummy gauge). The active element is mounted in the direction of axial or bending strain. The dummy gauge is mounted in close thermal contact with the strain specimen but not bonded to the specimen, and is usually mounted transverse

(perpendicular) to the principle axis of strain.

• This configuration is often confused with the half-bridge type I configuration, with the difference being that in the half-bridge type I configuration the R

3

element is active and bonded to the strain specimen to measure the effect of Poisson’s ratio.

• Completion resistors provide half-bridge completion.

• Compensates for temperature.

• Sensitivity at 1000

µε is ∼ 0.5 mV out

/V

EX

input.

Note

S– and QTR are left unwired.

V

EX

+

R

1

V

CH

+

R

2

R

L

R

L

R

L

R

4

(+ )

R

3

Figure 4-5. Quarter-Bridge II Circuit Diagram

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

© National Instruments Corporation

4-7

SCXI-1520 User Manual

Chapter 4 Theory of Operation

• R

3

is the quarter-bridge temperature-sensing element (dummy gauge).

• R

4

is the active strain-gauge element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

To convert voltage readings to strain units use the following equation:

strain

ε

=

V

r

GF 1 2V

r

)

×

1

+

R

Rg

 where

R g

is the nominal gauge resistance.

R

L

is the lead resistance.

GF is the Gauge Factor.

To simulate the effect on strain of applying a shunt resistor across R

3

, use the following equation:

ε

s

=

(

GF 1 4U

)

Notes

The dummy gauge element must always be unstrained and mounted to the same type of material as the active gauge, but not strained. The dummy gauge temperature must closely track the temperature of the active gauge.

Gauges need not have a STC number corresponding to the material type of the test specimen.

As shown in Figure 4-5, for greatest calibration accuracy, use separate wires between the

bridge and the SCA terminals. Do not directly connect S+ or P– to the SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

You can neglect lead resistance (R

L

) of the wiring if shunt calibration is performed or if lead length is very short (

∼ <10 ft), depending on the wire gauge. For example, 10 ft of

24-AWG copper wire has a lead resistance of 0.25

Ω.

The nominal value of R

3

is equal to R

g

.

SCXI-1520 User Manual

4-8 ni.com

Chapter 4 Theory of Operation

Half-Bridge Type I

This section provides information for the half-bridge strain-gauge configuration type I. The half-bridge type I measures either axial or

bending strain. Figure 4-6 shows how to position strain-gauge resistors in an axial and bending configurations. Figure 4-7 shows the half-bridge

type I circuit wiring diagram.

R

4

(+ )

Axial

R

4

(+ )

Bending

R

3

(– )

R

3

(– )

Figure 4-6. Half-Bridge Type I Measuring Axial and Bending Strain

A half-bridge type I has the following characteristics:

• Two active strain-gauge elements. One is mounted in the direction of axial strain, the other acts as a Poisson gauge and is mounted transverse (perpendicular) to the principal axis of strain.

• Completion resistors provide half-bridge completion.

• Sensitive to both axial and bending strain.

• Compensates for temperature.

• Compensates for the aggregate effect on the principle strain measurement due to the Poisson’s ratio of the specimen material.

• Sensitivity at 1000

µε is ∼ 0.65 mV out

/V

EX

input.

Note

S– is left unwired.

© National Instruments Corporation

V

EX

+

R

1

V

CH

+

R

2

R

L

R

L

R

L

R

4

(+ )

R

3

(– )

Figure 4-7. Half-Bridge Type I Circuit Diagram

4-9

SCXI-1520 User Manual

Chapter 4 Theory of Operation

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

• R

3

is the active strain-gauge element measuring compression from

Poisson effect (–

νε).

• R

4

is the active strain-gauge element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

To convert voltage readings to strain units use the following equation:

strain

ε

=

[

4V

r

) 2V

r

( ) ]

×

1

+

R

R g

 where

R g

is the nominal gauge resistance.

R

L

is the lead resistance.

ν is the Poisson’s ratio.

GF is the Gauge Factor.

To simulate the effect on strain of applying a shunt resistor across R

3

, use the following equation:

ε

s

=

[

4U

(

) ]

Notes

In half-bridge type I, R

4

is mounted along the principal axis of the stress field and R

3

is mounted transverse to the axis of the stress field. Use this configuration in applications where no stress exists along the axis of the transverse strain gauge.

Strain gauges need not have a particular STC number.

As shown in Figure 4-9, for greatest calibration accuracy, use separate wires between the

bridge and the SCA terminals. Do not directly connect S+ or P– to the SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

You can neglect lead resistance (R lead length is very short (

L

) of the wiring if shunt calibration is performed or if

∼ <10 ft), depending on the wire gauge. For example 10 ft of

24-AWG copper wire has a lead resistance of 0.25

Ω.

The nominal values of R

3

and R

4

equal R

g

.

SCXI-1520 User Manual

4-10 ni.com

Chapter 4 Theory of Operation

Half-Bridge Type II

This section provides information for the half-bridge strain-gauge configuration type II. The half-bridge type II only measures bending strain.

Figure 4-8 shows how to position strain-gauge resistors in an axial configuration. Figure 4-9 shows the half-bridge type II circuit wiring

diagram.

R

4

Axial

R

4

(+ )

Bending

R

3

R

3

(– )

Figure 4-8. Half-Bridge Type II Rejecting Axial and Measuring Bending Strain

A half-bridge type II configuration has the following characteristics:

• Two active strain-gauge elements. One is mounted in the direction of bending strain on one side of the strain specimen (top), the other is mounted in the direction of bending strain on the opposite side

(bottom).

• Completion resistors provide half-bridge completion.

• Sensitive to bending strain.

• Rejects axial strain.

• Compensates for temperature.

• Sensitivity at 1000

µε is ∼ 1 mV out

/V

EX

input.

Note

S– is left unwired.

© National Instruments Corporation

V

EX

+

R

1

V

CH

+

R

2

R

L

R

L

R

L

R

4

(+ )

R

3

(– )

Figure 4-9. Half-Bridge Type II Circuit Diagram

4-11

SCXI-1520 User Manual

Chapter 4 Theory of Operation

The following symbols apply to the circuit diagram and equations:

• R

1

and R

2

are half-bridge completion resistors.

• R

3

is the active strain-gauge element measuring compressive strain (–

ε).

• R

4

is the active strain-gauge element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

To convert voltage readings to strain units use the following equation:

strain

ε

=

V

GF r

×

1

+

R

------

g

 where

R g

is the nominal gauge resistance.

R

L

is the lead resistance.

GF is the Gauge Factor.

To simulate the effect on strain of applying a shunt resistor across R

3

, use the following equation:

ε

s

=

GF

Notes

Half-bridge type II requires one strain gauge to undergo tensile strain while the other strain gauge undergoes compressive strain of the same magnitude. This configuration is often used to measure bending strain where the strain gauges are mounted on opposite sides of a beam.

The strain gauges need not have a particular STC number.

As shown in Figure 4-7, for greatest calibration accuracy, use separate wires between the

bridge and the SCA terminals. Do not directly connect S+ or P– to the SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

You can neglect lead resistance (R lead length is very short (

L

) of the wiring if shunt calibration is performed or if

∼ <10 ft), depending on the wire gauge. For example 10 ft of

24-AWG copper wire has a lead resistance of 0.25

Ω.

The nominal values of R

3

and R

4

equal R

g

.

SCXI-1520 User Manual

4-12 ni.com

Chapter 4 Theory of Operation

Full-Bridge Type I

This section provides information for the full-bridge strain-gauge configuration type I. The full-bridge type I only measures bending strain.

Figure 4-10 shows how to position strain-gauge resistors in a bending configuration. Figure 4-11 shows the full-bridge type I circuit wiring

diagram.

R

2

R

1

R

2

(+ )

R

1

(– )

R

4

R

3

Axial

R

4

(+ )

R

3

(– )

Bending

Figure 4-10. Full-Bridge Type I Rejecting Axial and Measuring Bending Strain

A full-bridge type I configuration has the following characteristics:

• Four active strain-gauge elements. Two are mounted in the direction of bending strain on one side of the strain specimen (top), the other two are mounted in the direction of bending strain on the opposite side

(bottom).

• Highly sensitive to bending strain.

• Rejects axial strain.

• Compensates for temperature.

• Compensates for lead resistance.

• Sensitivity at 1000

µε is ∼ 2.0 mV out

/V

EX

input.

+

V

EX

R

1

(– )

V

CH

+

R

4

(+ )

R

2

(+ )

R

3

(– )

Figure 4-11. Full-Bridge Type I Circuit Diagram

© National Instruments Corporation

4-13

SCXI-1520 User Manual

Chapter 4 Theory of Operation

The following symbols apply to the circuit diagram and equations:

• R

1

is an active strain-gauge element measuring compressive strain (–

ε).

• R

2

is an active strain-gauge element measuring tensile strain (+

ε).

• R

3

is an active strain-gauge element measuring compressive strain (–

ε).

• R

4

is an active strain-gauge element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

To convert voltage readings to strain units use the following equation:

strain

ε

=

V

GF r

where

GF is the Gauge Factor.

To simulate the effect on strain of applying a shunt resistor across R

3

, use the following equation:

ε

s

=

GF

Notes

Strain gauges need not have a particular STC number.

As shown in Figure 4-11, for greatest calibration accuracy, use separate wires between the

bridge and the SCA terminals. Do not directly connect S+ or P– to the SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

The nominal values of R

1

, R

2

, R

3

, and R

4

equal R

g

.

SCXI-1520 User Manual

4-14 ni.com

Chapter 4 Theory of Operation

Full-Bridge Type II

This section provides information for the full-bridge type II strain-gauge configuration. The full-bridge type II only measures bending strain.

Figure 4-12 shows how to position strain-gauge resistors in a bending configuration. Figure 4-13 shows the full-bridge type II circuit wiring

diagram.

R

4

R

1

R

4

(+ )

R

1

(– )

R

3

R

3

(– )

Axial R

2

(+ ) Bending

R

2

Figure 4-12. Full-Bridge Type II Rejecting Axial and Measuring Bending Strain

A full-bridge type II configuration has the following characteristics:

• Four active strain-gauge elements. Two are mounted in the direction of bending strain with one on one side of the strain specimen (top) and the other on the opposite side (bottom). The other two act together as a

Poisson gauge and are mounted transverse (perpendicular) to the principal axis of strain with one on one side of the strain specimen

(top) and the other on the opposite side (bottom).

• Rejects axial strain.

• Compensates for temperature.

• Compensates for the aggregate effect on the principle strain measurement due to the Poisson’s ratio of the specimen material.

• Compensates for lead resistance.

• Sensitivity at 1000

µε is ∼ 1.3 mV out

/V

EX

input.

V

EX

+

R

1

(– )

V

CH

+

R

4

(+ )

R

2

(+ ) R

3

(– )

Figure 4-13. Full-Bridge Type II Circuit Diagram

© National Instruments Corporation

4-15

SCXI-1520 User Manual

Chapter 4 Theory of Operation

The following symbols apply to the circuit diagram and equations:

• R

1

is an active strain-gauge element measuring compressive Poisson effect (–

νε).

• R

2

is an active strain-gauge element measuring tensile Poisson effect (+

νε).

• R

3

is an active strain-gauge element measuring compressive strain (–

ε).

• R

4

is an active strain-gauge element measuring tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

To convert voltage readings to strain units use the following equation:

strain

ε

=

V

r

) where

GF is the Gauge Factor.

ν is the Poisson’s ratio.

To simulate the effect on strain of applying a shunt resistor across R

3

, use the following equation:

ε

s

=

(

2U

GF 1 v

Notes

Full-bridge type II is sometimes used for strain measurement of bending beams.

R

3 and R

4

are positioned along the beam axis and on opposite sides of the beam, and R and R

2

are positioned transverse to the beam axis and on opposite sides of the beam.

1

Strain gauges need not have a particular STC number.

As shown in Figure 4-13, for greatest calibration accuracy, use separate wires between the

bridge and the SCA terminals. Do not directly connect S+ or P– to the SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

The nominal values of R

1

, R

2

, R

3

, and R

4

equal R

g

.

SCXI-1520 User Manual

4-16 ni.com

Chapter 4 Theory of Operation

Full-Bridge Type III

This section provides information for the full-bridge strain-gauge configuration type III. The full-bridge type III only measures axial strain.

Figure 4-14 shows how to position strain-gauge resistors in an axial configuration. Figure 4-15 shows the full-bridge type III circuit wiring

diagram.

R

2

R

2

(+ )

R

1

(– )

R

1

R

4

(+ )

R

4

R

3

(– )

Axial Bending

R

3

Figure 4-14. Full-Bridge Type III Measuring Axial and Rejecting Bending Strain

A full-bridge type III configuration has the following characteristics:

• Four active strain-gauge elements. Two are mounted in the direction of axial strain with one on one side of the strain specimen (top), the other on the opposite side (bottom). The other two act together as a Poisson gauge and are mounted transverse (perpendicular) to the principal axis of strain with one on one side of the strain specimen (top) and the other on the opposite side (bottom).

• Compensates for temperature.

• Rejects bending strain.

• Compensates for the aggregate effect on the principle strain measurement due to the Poisson’s ratio of the specimen material.

• Compensates for lead resistance.

• Sensitivity at 1000

µε is ∼ 1.3 mV out

/V

EX

input.

V

EX

+

R

1

(– )

V

CH

+

R

4

(+ )

R

2

(+ ) R

3

(– )

Figure 4-15. Full-Bridge Type III Circuit Diagram

© National Instruments Corporation

4-17

SCXI-1520 User Manual

Chapter 4 Theory of Operation

The following symbols apply to the circuit diagram and equations:

• R

1

is an active strain-gauge element measuring compressive Poisson effect (–

νε).

• R

2

is an active strain-gauge element measuring tensile strain (+

ε).

• R

3

is an active strain-gauge element measuring compressive Poisson effect (–

νε).

• R

4

is an active strain-gauge element measuring the tensile strain (+

ε).

V

EX

is the excitation voltage.

R

L

is the lead resistance.

V

CH

is the measured voltage.

To convert voltage readings to strain units use the following equation:

strain

ε

=

V

r r

( ) ] where

GF is the Gauge Factor.

ν is the Poisson’s ratio.

To simulate the effect on strain of applying a shunt resistor across R

3

, use the following equation:

ε

s

=

[

4U

(

) ]

Notes

Full-bridge type III is sometimes used for axial strain measurement. R

2 are positioned along the beam axis and on opposite sides of the beam, and R

1

and R

3

are positioned transverse to the beam axis and on opposite sides of the beam.

and R

4

Strain gauges need not have a particular STC number.

As shown in Figure 4-15, for greatest calibration accuracy, use separate wires between the

bridge and the SCA terminals. Do not directly connect S+ or P– to the SCA terminals inside the SCXI-1314 terminal block unless the strain-gauge cable length is very short.

The nominal values of R

1

, R

2

, R

3

, and R

4

equal R

g

.

SCXI-1520 User Manual

4-18 ni.com

Chapter 4 Theory of Operation

SCXI-1520 Theory of Operation

This section includes a brief overview and a detailed discussion of the

circuit features of the module. Refer to Figure 4-16 while reading this

section.

© National Instruments Corporation

4-19

SCXI-1520 User Manual

Chapter 4 Theory of Operation

Rear Signal Connector SCXIbus Connector

SCXI-1520 User Manual

Figure 4-16. Block Diagram of SCXI-1314/SCXI-1520 Combination

4-20 ni.com

Chapter 4 Theory of Operation

The analog input signal from the strain gauge or bridge sensor connects to

SX+ and SX– of the terminal block. The signal passes through the terminal

block to an electronic four-position switch in the module. Figure 4-16

shows the switching stage that controls the input of to the signal conditioning circuitry and the E/M Series DAQ device.

In the switching stage there are four positions. In the first position where

SX+ and SX– inputs connect directly to an instrumentation amplifier. This position is for full-bridge connections or general-purpose analog input. The second position connects the negative input to the internal voltage divider between the excitation terminals. The internal voltage divider functions as bridge completion for quarter- and half-bridge configurations. The third switch position connects the amplifier input to a calibration voltage source inside the module for gain calibration, and the fourth position grounds both inputs for offset calibration.

The instrumentation amplifier stage presents a very high input impedance to external signals and passes only the differential signal. The offset null compensation circuitry adjusts the signal voltage by a specified offset after an offset null calibration is performed.

The signal from the instrumentation amplifier stage passes through a lowpass filter stage, a variable gain stage, another lowpass filter stage, and finally a simultaneous sample-and-hold stage before reaching the output multiplexer for multiplex mode operation. The signals S1± through S7± are also directly routed to the rear signal connector for parallel mode operation.

You can set the cutoff frequencies of the lowpass filter stage to one of five settings.You also can bypass the filters for a maximum bandwidth of

20 kHz.

The variable gain stage allows you to set the gain at many discrete settings between 1 and 50. These settings, along with the 1 or 20 setting of the instrumentation amplifier, permit the SCXI-1520 to have 49 gain settings between 1 and 1000.

The simultaneous sample-and-hold stage uses track-and-hold circuitry to perform simultaneous sampling for all channels. When enabled, track-and-hold circuitry holds the signal at the beginning of a scan, and reverts back to track mode at the end of a scan.

The signal then passes from the simultaneous sample-and-hold stage to the multiplexer stage. The modes of operation are determined by the multiplexer stage. If configured for multiplexed mode operation, the multiplexer selects the conditioned analog signal from one of the

© National Instruments Corporation

4-21

SCXI-1520 User Manual

Chapter 4 Theory of Operation

eight channels for routing. The signal is routed to the E/M Series DAQ device channel 0 if the SCXI-1520 is the cabled module and/or to the SCXI backplane through the SCXIbus connector. If configured for parallel mode operation, the signals are routed through the rear signal connector to the digitizing DAQ device.

The multiplexer stage is controlled by the digital interface and control circuitry. The digital interface and control circuitry stores the scan list, controls the multiplexer, and allows flexible scanning (random scanning).

Two other circuitry stages that are not directly in the signal path are excitation circuitry and shunt calibration switches. The excitation stage is stable output with a controlled feedback loop called remote sense. The remote sense signal is connected to the analog multiplexer. You can scan remote sense when configured in multiplexed mode operation.

The shunt calibration switches are controlled by the digital interface and control circuity. You must connect the SCX terminals to the bridge for shunt calibration to function correctly. When the switch is closed, a socketed shunt calibration resistor in the SCXI-1314 connects across a leg of a

Wheatstone bridge.

For more detailed information about the operation of any of these circuitry

stages, refer to the Bridge Configuration and Completion section, the

Excitation

section, the

Gain

section, the

Filter Bandwidth and Cutoff

Frequency

section, the

Offset Null Compensation

section, the

Shunt

Calibration

section, the

Simultaneous Sample and Hold

section, and the

Modes of Operation

section.

Bridge Configuration and Completion

You can configure the SCXI-1520 for use with Wheatstone bridge sensors that require bridge completion. Bridge completion is necessary for quarter- or half-bridge sensors. You can set the SCXI-1520 for quarter-, half-, or full-bridge configuration to match the configuration completion requirements of each sensor. When quarter- or half-bridge configuration is selected, Terminal SX– (where X is a particular channel) is disconnected from the front signal connector and internally connected to a half-bridge completion network. When quarter-bridge configuration is selected, a socketed quarter-bridge completion resistor in the terminal block is internally connected between PX– and the QTR terminal. You then field wire the quarter-bridge sensor between PX+ and QTR. Make sure that the value of the precision quarter-bridge completion resistor matches the nominal gauge resistance of the quarter-bridge sensor. The quarter-bridge completion resistor is socketed for easy replacement.

SCXI-1520 User Manual

4-22 ni.com

Chapter 4 Theory of Operation

Note

When using the SCXI-1520 and SCXI-1314 configured for quarter-bridge completion, do not wire the sensor or any signal to SX–.

Refer to the

Configurable Settings in MAX

section of Chapter 3,

Configuring and Testing

, for more information about programmatically setting bridge completion in MAX. For more information about programmatically setting bridge completion in NI-DAQmx and Traditional

NI-DAQ (Legacy), refer to the

Developing Your Application in NI-DAQmx

section or the

Developing Your Application in Traditional NI-DAQ

(Legacy)

section, respectively, of Chapter 5,

Using the SCXI-1520

.

Excitation

The SCXI-1520 provides DC excitation voltage for a Wheatstone bridge sensor. For half- and full-bridge applications, the excitation voltage is available at terminal block connections PX+ and PX–. For quarter-bridge applications, PX– is not used; instead, wire to terminals PX+ and QTRX.

Terminal QTRX internally connects to PX–.

Excitation voltage originates from two output buffers dedicated to each channel. Since each channel is controlled independently, a short circuit across the excitation terminals of one channel has no effect on the excitation of another channel. The output buffers have negative feedback connections at the terminal block remote-sense terminals, RSX+ and RSX–.

You can run separate wires from the bridge to these terminals so that the amplifiers obtain feedback directly from the bridge, thereby forcing bridge voltage to equal the desired setting.

Excitation voltage originates from two excitation output buffers per channel. One output buffer generates the positive excitation voltage, and the other output buffer generates the negative excitation voltage. Since each channel is controlled independently, a short circuit across the excitation terminals of one channel has no effect on the excitation of another channel.

PX+ is always positive with respect to ground, and PX– is always negative with respect to ground. The inverting amplifier –X1 forces the voltage at

PX– to equal the negative of the voltage at PX+. For example, if you set the module output for +5 V, PX+ is at +2.5 V with respect to ground, and PX– is at –2.5 V with respect to ground. The excitation setting originates from an internal digital-to-analog converter (DAC). You can set the excitation voltage in a near-continuous range using NI-DAQmx and between 0 V and

10 V in 0.625 V increments using Traditional NI-DAQ (Legacy). You can power a 350

Ω full-bridge at 10 V without exceeding the maximum power rating of the excitation source. The excitation outputs are protected with

© National Instruments Corporation

4-23

SCXI-1520 User Manual

Chapter 4 Theory of Operation

surge suppressors that prevent either excitation output terminal from exceeding 6 V with respect to chassis ground.

Note

Chassis ground is at the same potential as earth ground when the chassis is plugged into a standard 3-prong AC outlet. If PX– is connected to earth ground, the excitation source does not function properly.

Refer to the

Configurable Settings in MAX

section of Chapter 3,

Configuring and Testing

, for more information about programmatically

setting the excitation level in MAX. For more information about programmatically setting the excitation level in NI-DAQmx and Traditional

NI-DAQ (Legacy), refer to the

Developing Your Application in NI-DAQmx

section or the

Developing Your Application in Traditional NI-DAQ

(Legacy)

section, respectively, of Chapter 5,

Using the SCXI-1520

.

Remote Sense

The excitation output buffers have negative feedback connections at the terminal block remote-sense terminals, RSX+ and RSX–. You can run separate wires from the bridge to these terminals so that the amplifiers obtain feedback directly from the bridge, forcing bridge voltage to exactly equal the desired setting. This removes unwanted DC offset in the signal and compensates for changes in lead resistance caused by temperature variation in the lead wires.

The SCXI-1520 excitation output circuits set the output voltage by monitoring the remote-sense terminals. Therefore, the SCXI-1520 corrects for a voltage (I

× R) drop in the excitation leads between the module and the bridge, even if lead resistance changes with temperature.

You can scan the remote sense terminals. The output multiplexer has input connections to the RSX+ and RSX– terminals. You can scan these terminals for monitoring and scaling purposes, even if the remote-sense terminals are

not connected. Refer to Chapter 5,

Using the SCXI-1520

, and Appendix B,

Using SCXI Channel Strings with Traditional NI-DAQ (Legacy) 7.0 or Later

, for more information.

Wire the SCXI-1520 for remote sense as shown in Figure 2-8,

Remote-Sense Circuit Diagram

. There are no configuration settings you

need to change in the software.

Note

If you use remote sense, set R

L

to zero in the MAX configuration of the channel and in your application equations for measured strain (

ε).

SCXI-1520 User Manual

4-24 ni.com

Chapter 4 Theory of Operation

If you leave the remote-sense terminal unconnected, internal 1 k

Ω resistors provide feedback to the buffers from the PX+ and PX– terminals. Therefore, you need not install a jumper wire between RSX+ and PX+, or RSX– and

PX–. However, NI recommends performing a shunt calibration to compensate for the voltage drop across lead resistance.

Note

NI recommends that you connect remote sense wires to the sensor directly for optimal performance.

If you are not connecting remote sense and not performing shunt calibration, you must scale the measurements to compensate for the excitation voltage drop across the lead resistance. You should use the following gain adjustment factor:

Gain Adjusting Factor

=

1

+

2R

R g

This gain adjust factor is used in your application to compensate for the voltage drop across the leads as follows:

V meas

×

Gain Adjusting Factor

Gain

The SCXI-1520 has multiple gain stages to provide optimal overall signal gains appropriate for fully utilizing the range of the digitizing E/M Series

DAQ device. The first gain stage (the instrumentation amplifier stage) provides gains of either 1 or 20. The second gain stage provides many discrete settings between 1 and 50. Together these two gain stages combine for 49 overall gain settings with overall gains between 1 and 1000.

For overall module gain settings equal to or greater than 20, the gain of the first stage is set to 20 so that the noise and offset drift of later stages is small in comparison to this stage. The instrumentation amplifier stage uses operational amplifiers with very low temperature drift and noise characteristics. If overall module gain is less than 20, the first stage is set to 1 and the appropriate second stage gain is applied.

In normal operation of the SCXI-1520, you need not set the gain since

NI-DAQ sets the gain based on the range of your virtual channel, task, or global channel, or the input limits set in LabVIEW.

In NI-DAQmx the default setting is 1.0 and in Traditional NI-DAQ

(Legacy) the default gain setting is 100.00.

© National Instruments Corporation

4-25

SCXI-1520 User Manual

Chapter 4 Theory of Operation

Refer to the

Configurable Settings in MAX

section of Chapter 3,

Configuring and Testing

, for more information about programmatically

setting gain using range settings in MAX. For more information about programmatically setting gain using range settings in NI-DAQmx and

Traditional NI-DAQ (Legacy), refer to the

Developing Your Application in

NI-DAQmx

section or the

Developing Your Application in Traditional

NI-DAQ (Legacy)

section, respectively, of Chapter 5,

Using the

SCXI-1520

.

Filter Bandwidth and Cutoff Frequency

The SCXI-1520 provides two filtering stages with an overall response of a four-pole Butterworth filter. You can control the cutoff frequency of the filter through software. You can choose 10 Hz, 100 Hz, 1 kHz, 10 kHz, or filter-bypass mode. For additional flexibility in cutoff frequency settings and for greater suppression, NI recommends combining the hardware filtering provided by the SCXI-1520 with digital filtering. NI recommends using the Advanced Analysis functions of LabVIEW, LabWindows/CVI, or Measurement Studio. By combining hardware anti-aliasing with digital filtering, you can choose any cutoff frequency.

The Advanced Analysis functions are only available in LabVIEW Full or

Professional Development Systems, and LabWindows/CVI Base or Full

Development Systems.

Refer to the

Configurable Settings in MAX

section of Chapter 3,

Configuring and Testing

, for more information about programmatically

setting the cutoff frequency of the filter in MAX. For more information about programmatically setting the cutoff frequency of the filter in

NI-DAQmx and Traditional NI-DAQ (Legacy), refer to the

Developing

Your Application in NI-DAQmx

section or the

Developing Your

Application in Traditional NI-DAQ (Legacy)

section, respectively, of

Chapter 5,

Using the SCXI-1520

.

Offset Null Compensation

The SCXI-1520 provides offset null compensation to adjust signal voltages to proper levels when the strain gauge or bridge sensor is at rest

(unstrained). For most sensors offset null compensation is used to remove an initial voltage offset from the Wheatstone bridge. Many strain-gauge signal conditioning devices use a manually adjusted multi-turn screw potentiometer for offset null compensation. In the SCXI-1520, offset null compensation is performed electronically using software-controlled electronic potentiometers.

SCXI-1520 User Manual

4-26 ni.com

Chapter 4 Theory of Operation

Two offset null potentiometers are used, one for coarse adjustments and the other for fine adjustments. The sum of the two potentiometer signals is added to the analog input path to adjust the signal voltage to remove the offset, which nulls the strain-gauge channel. The voltage input to the potentiometers is a voltage proportional to the excitation voltage setting.

Therefore, if the excitation voltage changes by a small amount due to changes such as temperature and sensor loading, the correction signal produced by the offset null potentiometers changes by the same amount and the offset null is maintained.

Offset Null

Potentiometer

Coarse

Fine

The offset null potentiometers are controlled digitally using control codes.

The control codes of the offset null potentiometers are set in software using integer values. The coarse potentiometer ranges from 0 to 127 and the fine potentiometer from 0 to 4095. The span of correction (the voltage nulling range) for each potentiometer depends on the channel gain setting.

Table 4-2 summarizes the nulling range and scale of the control codes.

Table 4-2. Control Codes for Coarse and Fine Offset Null Potentiometers

Range

(Integer Values)

0 to 127

0 to 4095

Mid-Scale

62

2047

Module

Channel Gain

Settings

≥20

<20

≥20

<20

Approximate

Correction

Span at Analog

Input

V

EX

/10

2

× V

EX

V

EX

/364

V

EX

/18

In most cases, you do not explicitly set the offset null potentiometers, but instead allow the NI-DAQ driver software to automatically adjust them for you. You can do this either through MAX or in your application.

Refer to the

Configurable Settings in MAX

section of Chapter 3,

Configuring and Testing

, for more information about programmatically performing offset null compensation in MAX. For more information about programmatically performing offset null compensation in NI-DAQmx and

Traditional NI-DAQ (Legacy), refer to the

Developing Your Application in

NI-DAQmx

section or the

Developing Your Application in Traditional

NI-DAQ (Legacy)

section, respectively, of Chapter 5,

Using the

SCXI-1520

.

© National Instruments Corporation

4-27

SCXI-1520 User Manual

Chapter 4 Theory of Operation

Shunt Calibration

Shunt calibration is a process used to obtain a gain adjust factor, which is used to correct for system gain error and discrepancies between nominal

Gauge Factor and actual Gauge Factor of the strain gauge.

The gain adjust factor is derived using theoretical (simulated) signal levels that should result from engaging a shunt resistor across one leg of a bridge sensor and the measured signal levels with the shunt resistor actually engaged.

Use the following formula to calculate the gain adjust factor:

gain adjust factor

=

measured signal level with shunt resistor engaged

The gain adjust factor is then multiplied by each future measurement to obtain highly accurate measurements that are adjusted for any gain errors or any discrepancies in the nominal Gauge Factor. Refer to the

Configurable Settings in MAX

section of Chapter 3,

Configuring and

Testing

, for more information about performing shunt calibration automatically in global channels using NI-DAQmx in MAX or strain virtual channels using Traditional NI-DAQ (Legacy) and tasks. For more information about programmatically performing shunt calibration switches in NI-DAQmx and Traditional NI-DAQ (Legacy), refer to the

Developing

Your Application in NI-DAQmx

section or the

Developing Your

Application in Traditional NI-DAQ (Legacy)

section, respectively,

of Chapter 5,

Using the SCXI-1520

.

The SCXI-1520 has two independent shunt calibration circuits available for each channel at terminal sets SCAX and SCBX on the terminal block. Each shunt calibration circuit consists of a resistor in series with a switch. The

SCXI-1520 shunt calibration switch is a long-life solid-state switch. The electronic switch is galvanically isolated from ground; therefore, you can connect the switch across any external bridge element.

Notes

You can control an individual shunt calibration switch or combination of multiple shunt calibration switches using NI-DAQ software. The shunt calibration resistors in series with each switch are housed in the SCXI-1314 terminal block. The shunt calibration resistors are socketed for easy replacement. The resistors are RN-55 style (standard 1/4 W)

SCXI-1520 User Manual

4-28 ni.com

Chapter 4 Theory of Operation

precision resistors. For resistor replacement instructions, refer to the SCXI-1314 Universal

Strain Terminal Block Installation Guide.

Perform an offset null compensation just before you perform a shunt calibration.

Performing a shunt calibration before an offset null compensation causes improper gain adjustment because the offset signal voltage is compensated multiple times.

Simultaneous Sample and Hold

Simultaneous sample and hold (SS/H) signal conditioning allows multiplexing MIO DAQ devices to return synchronized samples of all channels with negligible skew time between channels. SS/H signal conditioning is performed on the SCXI-1520 with track-and-hold (T/H) circuitry. The outputs of the T/H amplifiers follow their inputs, also called

tracking the inputs, until they receive a hold signal from the DAQ device.

All channels with T/H circuitry hold their signal at the same time, even if they are on different SCXI modules. The DAQ device then digitizes the signal of each channel, giving you simultaneous sampling between channels since no time elapsed between the holding of each signal. All signals are then released and the T/H circuitry output returns to tracking the input signal. For accurate measurements, you can use the SS/H equations to calculate the maximum sample rate when scanning SCXI systems with

at least one SS/H module in the scan list. Figure 4-17 shows and example

of a signal during a SS/H sampling.

© National Instruments Corporation

4-29

SCXI-1520 User Manual

Chapter 4 Theory of Operation

Volts

CH 0

CH 1

CH 2

Time

Hold

Line

SCXI-1520 User Manual

Convert

1 2 3

1 – HoldTime

2 – Max [Min Settle Time of MIO, Min Settle Time of SCXI]

3 – TrackTime

Figure 4-17. Signal During Simultaneous Sample-and-Hold Sampling

It is possible to enable and disable SS/H programmatically in NI-DAQmx, although NI recommends that you leave SS/H enabled for most applications. Disabling SS/H for one module disables this feature for all modules in all chassis that are controlled by the same DAQ device. You should only disable SS/H if your application does not require simultaneous sampling and requires higher acquisition rates than are possible with SS/H enabled. Refer to the

Developing Your Application in NI-DAQmx

section

of Chapter 5,

Using the SCXI-1520

, for more information about

4-30 ni.com

Chapter 4 Theory of Operation

programmatically enabling and disabling SS/H using NI-DAQmx in your application.

Maximum Simultaneous Sample and Hold Sample

Rate Using NI-DAQmx

When using NI-DAQmx you can use the SCXI-1520 in multiplexed or parallel mode.

Multiplexed Mode

Use the following formula to calculate the maximum SS/H sample rate in multiplexed mode:

SR

=

×

[Maximum of either (MST

MIO

) or (MST

SCXI

where

SR is sample rate—frequency of acquisition of all channels

HT is hold time—the time between holding all the SS/H channels and the first A/D conversion

NoC is number of channels—the total number of channels being sampled in the scan list (SS/H or not)

MST

MIO

is minimum settle time of MIO—inverse of maximum sample rate of the MIO (also minimum interchannel delay)

MST

SCXI

is minimum settle time of SCXI—inverse of maximum multiplex rate of SCXI (1

÷ 333 k = 3 µs for 12-bit MIO, 1 ÷ 1000 k = 10 µs for

16-bit MIO)

TT is track time—the minimum time between the last AD conversion of the current scan and engaging the hold signal of SS/H channels of next scan

Table 4-3 shows some example values used to determine the SR using the

general equation.

© National Instruments Corporation

4-31

SCXI-1520 User Manual

Chapter 4 Theory of Operation

Table 4-3. NI-DAQmx Values Used to Determine Maximum Sample Rate in Multiplexed Mode

MIO

Device

NI

6070E

NI

6023E

NI 6221

(68-Pin)

NI 6289

Device

Accuracy

(Bits)

12

12

16

18

Device

Max

Sample

Rate

(S/s)

1250000

200000

250000

625000

(

HT

µs)

3

3

3

3

NoC

8

32

8

32

8

32

8

MST

(

µs)

0.8

0.8

5

5

4

MIO

4

1.6

MST

(

3

3

3

3

3

3

3

SCXI

µs)†

TT

(

µs)†

7

7

7

7

7

7

7

Default

NI-DAQmx

SR

(Multiplexed)

(Hz)

32258

9709

22222

6061

26316

7463

32258

DAQmx

SR

Required for

Maximum

Accuracy

(Hz)‡

32258

9709

22222

6061

5181

1486

5181

32 1.6

3 7 9709 1486

† These are the default values used by DAQmx, but these might not be the desired values for your application.

‡ For DAQ boards with a 16 bit or higher ADC, 20

µs was used for MST

SCXI

and 50

µs for TT.

Note: To use a MST

SCXI

value that is different than the 3

µs default, you must explicitly set the AI Convert Clock Rate in

DAQmx. Refer to your ADE help file for details on setting the AI Convert Clock Rate property.

Maximum SS/H Sample Rates in Parallel Mode

Use the following formula to calculate the maximum SS/H sample rate in parallel mode:

SR

=

1

×

MIO

where

SR is sample rate—frequency of acquisition of all channels

HT is hold time—the time between holding all the SS/H channels and the first A/D conversion

NoC is number of channels—the total number of channels being sampled in the scan list (SS/H or not)

MST

MIO

is minimum settle time of MIO—inverse of maximum sample rate of the MIO (also minimum interchannel delay)

SCXI-1520 User Manual

4-32 ni.com

Chapter 4 Theory of Operation

TT is track time—the minimum time between the last AD conversion of the current scan and engaging the hold signal of SS/H channels of next scan

Table 4-4 shows some example values used to determine the SR using the

general equation.

Table 4-4. NI-DAQmx Values Used to Determine Maximum Sample Rate in Parallel Mode

MIO

Device

NI 6070E

NI 6023E

NI 6221

(68-Pin)

Device

Accuracy

(Bits)

12

12

16

Device

Max

Sample

Rate (S/s)

1250000

200000

250000

(

HT

µs)

3

3

3

NoC

8

8

8

MST

(

5

4

MIO

µs)

0.8

(

TT

µs)†

7

7

7

Default

NI-DAQmx

SR (Parallel)

(Hz)

64103

22222

26316

DAQmx SR

Required for

Maximum

Accuracy

(Hz)‡

64103

22222

12346

NI 6254

NI 6289

16

18

1000000

625000 3

3

3

3

8

16

8

16

1

1

1.6

1.6

7

7

7

7

58824

40000

47170

29412

† These are the default values used by DAQmx, but these might not be the desired values for your application.

‡ For DAQ boards with a 16 bit or higher ADC, 20

µs was used for MST

SCXI

and 50

µs for TT.

16667

14706

15576

12987

Maximum Simultaneous Sample and Hold Using

Traditional NI-DAQ (Legacy)

When using Traditional NI-DAQ (Legacy), you can only use the

SCXI-1520 in multiplexed mode. To use parallel mode, you must use

NI-DAQmx.

Multiplexed Mode

Use the following formula to calculate the maximum SS/H sample rate in multiplexed mode:

SR

= ---------------------------------------------------------------------------------------------------------------------------------------------------------------

MIO

2

+

MST

SCXI

2

or HT

) TT where

SR is sample rate—frequency of acquisition of all channels

© National Instruments Corporation

4-33

SCXI-1520 User Manual

Chapter 4 Theory of Operation

HT is hold time—the time between holding all the SS/H channels and the first A/D conversion

NoC is number of channels—the total number of channels being sampled in the scan list (SS/H or not)

MST

MIO

is minimum settle time of MIO—inverse of maximum sample rate of the MIO (also minimum interchannel delay)

MST

SCXI

is minimum settle time of SCXI—inverse of maximum multiplex rate of SCXI (1

÷ 333 k = 3 µs for 12-bit MIO, 1 ÷ 1000 k = 10 µs for

16-bit MIO)

TT is track time—the minimum time between the last AD conversion of the current scan and engaging the hold signal of SS/H channels of next scan

Table 4-5 shows some example values used to determine the SR using the

general equation.

Table 4-5. Traditional NI-DAQ (Legacy) Values Used to Determine Maximum Sample Rate in Multiplexed Mode

MIO

Device

NI 6070E

NI 6070E

NI 6023E

NI 6023E

NI 6052E

NI 6052E

NI 6032E

NI 6032E

Device

Accuracy

(Bits)

12

Device Maximum

Sample Rate (S/s)

1250000

12

12

12

16

1250000

200000

200000

333333

16

16

16

333333

100000

100000

3

3

3

3

HT

(µs)

3

3

3

3

32

8

32

8

32

NoC

8

32

8

MST

MIO

(µs)

1

MST

SCXI

(µs)

3

TT

(µs)

7

3

10

10

5

3

1

5

3

3

3

10

10

10

10

7

7

7

7

7

7

7

Maximum SR

Traditional NI-DAQ

(Legacy)

Multiplexed

30961

9243

18640

5166

11047

2932

8324

2176

Modes of Operation

The SCXI-1520 provides two modes of operation for passing the conditioned signals to the digitizing DAQ device—multiplexed mode and parallel mode.

SCXI-1520 User Manual

4-34 ni.com

Chapter 4 Theory of Operation

Theory of Multiplexed Mode Operation

In multiplexed mode, all input channels of an SCXI module are multiplexed into a single analog input channel of the DAQ device.

Multiplexed mode operation is ideal for high channel count systems.

Multiplexed mode is typically used for performing scanning operations with the SCXI-1520. The power of SCXI multiplexed mode scanning is its ability to route many input channels to a single channel of the DAQ device.

The multiplexing operation of the analog input signals is performed entirely by multiplexers in the SCXI modules, not inside the DAQ device or SCXI chassis. In multiplexed mode, the SCXI-1520 scanned channels are kept by the NI-DAQ driver in a scan list. Immediately prior to a multiplexed scanning operation, the SCXI chassis is programmed with a module scan list that controls which module sends its output to the

SCXIbus during a scan through the cabled SCXI module.

The list can contain channels in any physical order and the multiplexer can sequence the channel selection from the scan list in any order. The ordering of scanned channels need not be sequential. Channels can occur multiple times in a single scan list. The scan list can contain an arbitrary number of channels for each module entry in the scan list, limited to a total of

512 channels per DAQ device. This is referred to as flexible scanning

(random scanning). Not all SCXI modules provide flexible scanning.

The module includes first-in first-out (FIFO) memory for storing the channel scan list defined in your application code. NI-DAQ drivers load the

FIFO based on the channel assignments you make in your application. You need not explicitly program the module FIFO as this is done automatically for you by the NI-DAQ driver.

When you configure a module for multiplexed mode operation, the routing of multiplexed signals to the DAQ device depends on which module in the

SCXI system is cabled to the DAQ device. There are several possible scenarios for routing signals from the multiplexed modules to the DAQ device.

If the scanned SCXI-1520 module is not directly cabled to the DAQ device, the module sends its signals through the SCXIbus to the cabled module.

The cabled module, whose routing is controlled by the SCXI chassis, routes the SCXIbus signals to the DAQ device through the CH 0 pin on its rear signal connector.

© National Instruments Corporation

4-35

SCXI-1520 User Manual

Chapter 4 Theory of Operation

If the DAQ device scans the cabled module, the module routes its input signals through the CH 0 pin on its rear signal connector to the DAQ device CH 0.

Multiplexed mode scanning acquisition rates have limitations that are determined based on the hardware in the system, the mode of operation, and SS/H. Refer to the

Simultaneous Sample and Hold

section for

equations that can help you determine maximum acquisition rates with SS/H enabled. If SS/H is disabled and the system is configured for multiplexed mode operation, the maximum sampling rate is determined by the slower of the maximum sample rate of the DAQ device and the maximum multiplexing rate of SCXI. The maximum multiplexing rate of SCXI is 333 kHz. If the DAQ device can sample more quickly than

333 kHz, then the maximum multiplexing rate of SCXI is the limiting factor. If the DAQ device can sample at 333 kS/s, then the DAQ device’s sample rate is the limiting factor on the maximum acquisition rate of the system in multiplexed mode operation.

Theory of Parallel Mode Operation

Parallel mode is ideal for high speed acquisitions. In parallel mode, the eight conditioned analog output signals at the rear signal connector of the

SCXI-1520, shown in Figure 4-16, are connected directly to the eight

analog input channels on the DAQ device. When the SCXI-1520 operates in parallel mode, the DAQ device performs multiplexed scans of the

SCXI-1520 parallel outputs. The SCXI-1520 module does not multiplex the channels.

Traditional NI-DAQ (Legacy) driver software can only control the

SCXI-1520 module in multiplexed mode. NI-DAQmx can operate the

SCXI-1520 in both multiplexed and parallel mode.

In parallel mode, SCXI-1520 channels 0 through 7 conditioned outputs are passed directly to DAQ device channels 0 through 7. The DAQ device channels should be configured for differential input mode.

Scanning remote-sense channels is not possible when operating the

SCXI-1520 in parallel mode operation. This is because RSX+ and RSX– terminals are not connected to the 50-pin rear signal connector of the

SCXI-1520 as shown in Figure 4-16, but instead are only connected

internally to the analog multiplexer. The NI-DAQmx driver can still scan the remote sense channel to utilize for strain task and channel calibration and scaling in MAX. However, during operation in your application you cannot monitor the remote-sense channels if the SCXI-1520 is operating in parallel mode.

SCXI-1520 User Manual

4-36 ni.com

Chapter 4 Theory of Operation

Note

The remote-sense hardware control loop still functions regardless of the mode of operation correcting the excitation voltage level at all times, even though you cannot always scan the remote-sense channels.

When SS/H is enabled, the parallel output signals are held while the channels are scanned by the DAQ device. The T/H circuit of each channel is in hold mode during this time. This appears as glitches on the parallel outputs as the SCXI-1520 is sampled by the digitizing DAQ device. Due to these signal events, NI recommends that you not scan the SCXI-1520 channels with a DAQ device while simultaneously measuring their parallel outputs with any other analog input device, such as an oscilloscope, unless you disable SS\H.

It is possible to enable and disable SS/H programmatically in NI-DAQmx, although NI recommends that you leave SS/H enabled for most applications. Disabling SS/H for one module disables this feature for all modules in all chassis that are controlled by the same DAQ device. SS/H should only be disabled if your application does not require simultaneous sampling and requires higher acquisition rates than are possible with SS/H enabled. Refer to the

Developing Your Application in NI-DAQmx

section of Chapter 5,

Using the SCXI-1520

, for more information about

programmatically enabling and disabling SS/H using NI-DAQmx in your application.

For more information about programmatically performing offset null compensation in NI-DAQmx and Traditional NI-DAQ (Legacy), refer to the

Developing Your Application in NI-DAQmx

section or the

Developing

Your Application in Traditional NI-DAQ (Legacy)

section, respectively, of

Chapter 5,

Using the SCXI-1520

.

Parallel mode operation acquisition rates have limitations that are determined based on the DAQ device you are using and SS/H. Refer to the

Simultaneous Sample and Hold

section for equations that can help you

determine maximum acquisition rates with SS/H enabled. If SS/H is disabled and the system is configured for parallel mode operation, the maximum sampling rate is determined by the maximum sample rate of the

DAQ device. The 333 kHz maximum SCXI multiplexing rate is not a limitation in parallel mode operation. Therefore, if the DAQ device can sample more quickly than 333 kHz, the SCXI-1520 configured for parallel mode operation is not the limiting factor.

© National Instruments Corporation

4-37

SCXI-1520 User Manual

5

Using the SCXI-1520

This chapter makes suggestions for developing your application and provides basic information regarding calibration.

Developing Your Application in NI-DAQmx

Note

If you are not using an NI ADE, using an NI ADE prior to version 7.0, or are using an unlicensed copy of an NI ADE, additional dialog boxes from the NI License Manager appear allowing you to create a task or global channel in unlicensed mode. These messages continue to appear until you install version 7.0 or later of an NI ADE.

This section describes how to configure and use NI-DAQmx to control the

SCXI-1520 in LabVIEW, LabWindows/CVI, and Measurement Studio.

These ADEs provide greater flexibility and access to more settings than

MAX, but you can use ADEs in conjunction with MAX to quickly create a customized application.

Typical Program Flowchart

Figure 5-1 shows a typical program flowchart for creating a task to

configure channels, take a measurement, analyze the data, present the data, stop the measurement, and clear the task.

© National Instruments Corporation

5-1

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Create Task in

DAQ Assistant or MAX

Further Configure

Channels?

Yes

No

Configure Channels

Yes

Create Task Using

DAQ Assistant?

No

Yes

Create Another

Channel?

No

Create a Task

Programmatically

Create Strain or Custom

Voltage with Excitation Channel

No

Hardware

Timing/Triggering?

Yes

Adjust Timing Settings

Perform

Offset

Null?

No

Yes

Bridge Null

Operation

Start Measurement

No

Perform

Shunt

Calibration?

Yes

Shunt Calibration

Operation

Read Measurement

Yes

Analyze Data?

Process

Data

Yes

No

Display Data?

Graphical

Display Tools

No

Yes

Continue Sampling?

No

Stop Measurement

SCXI-1520 User Manual

Clear Task

Figure 5-1. Typical Program Flowchart

5-2 ni.com

Chapter 5 Using the SCXI-1520

General Discussion of Typical Flowchart

The following sections briefly discuss some considerations for a few of the

steps in Figure 5-1. These sections are meant to give an overview of some

of the options and features available when programming with NI-DAQmx.

Creating a Task Using DAQ Assistant or

Programmatically

When creating an application, you must first decide whether to create the appropriate task using the DAQ Assistant or programmatically in the ADE.

Developing your application using DAQ Assistant gives you the ability to configure most settings such as measurement type, selection of channels, bridge configuration, excitation voltage, signal input limits, task timing, and task triggering. You can access the DAQ Assistant through MAX or your NI ADE. Choosing to use the DAQ Assistant can simplify the development of your application. NI recommends creating tasks using the

DAQ Assistant for ease of use, when using a sensor that requires complex scaling, or when many properties differ between channels in the same task.

If you are using an ADE other than an NI ADE, or if you want to explicitly create and configure a task for a certain type of acquisition, you can programmatically create the task from your ADE using functions or VIs.

If you create a task using the DAQ Assistant, you can still further configure the individual properties of the task programmatically with functions or property nodes in your ADE. NI recommends creating a task programmatically if you need explicit control of programmatically adjustable properties of the DAQ system.

Programmatically adjusting properties for a task created in the DAQ

Assistant overrides the original, or default, settings only for that session.

The changes are not automatically saved to the task configuration. The next time you load the task, the task uses the settings originally configured in the

DAQ Assistant. Refer to the NI-DAQmx Help for information on programmatically saving tasks.

Adjusting Timing and Triggering

There are several timing properties that you can configure through the

DAQ Assistant or programmatically using function calls or property nodes.

If you create a task in the DAQ Assistant, you can still modify the timing properties of the task programmatically in your application.

© National Instruments Corporation

5-3

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

When programmatically adjusting timing settings, you can set the task to acquire continuously, acquire a buffer of samples, or acquire one point at a time. For continuous acquisition, you must use a While Loop around the acquisition components even if you configured the task for continuous acquisition using MAX or the DAQ Assistant. For continuous and buffered acquisitions, you can set the acquisition rate and the number of samples to read in the DAQ Assistant or programmatically in your application. By default, the clock settings are automatically set by an internal clock based on the requested sample rate. You also can select advanced features such as clock settings that specify an external clock source, internal routing of the clock source, or select the active edge of the clock signal.

Configuring Channel Properties

All ADEs used to configure the SCXI-1520 access an underlying set of

NI-DAQmx properties. Table 5-1 shows some of these properties. You can use Table 5-1 to determine what kind of properties you need to set to

configure the module for your application. For a complete list of

NI-DAQmx properties, refer to your ADE help file.

Note

You cannot adjust some properties while a task is running. For these properties, you

must stop the task, make the adjustment, and re-start the application. Figure 5-1 assumes

all properties are configured before the task is started.

Property

Analog Input»General Properties»

Advanced»Range»High

Table 5-1. NI-DAQmx Properties

Short Name

AI.Rng.High

Analog Input»General Properties»

Advanced»Range»Low

AI.Rng.Low

Analog Input»General Properties»

Filter»Analog Lowpass»Enable

AI.Lowpass.Enable

Description

Specifies the upper limit of the input range.

Specifies the lower limit of the input range.

Enables the lowpass filter of the channel.

SCXI-1520 User Manual

5-4 ni.com

Chapter 5 Using the SCXI-1520

Analog Input»General Properties»

Filter»Analog Lowpass»Cutoff

Frequency

Property

Table 5-1. NI-DAQmx Properties (Continued)

Analog Input»General Properties»

Signal Conditioning»Bridge»

Configuration

Analog Input»General Properties»

Signal Conditioning»Bridge»

Shunt Cal»Shunt Cal Enable

Short Name

AI.Lowpass.CutoffFreq

AI.Bridge.Cfg

AI.Bridge.ShuntCal.Enable

Description

Specifies in hertz the frequency corresponding to the

–3 dB cutoff of the filter. You can specify

10, 100, 1000, or

10000.

Specifies the sensor

Wheatstone bridge type.

Specifies whether to place the shunt calibration resistor across one arm of the bridge.

Specifies which calibration switch(es) to enable.

Specifies the amount of excitation in volts.

Analog Input»General Properties»

Signal Conditioning»Bridge»

Shunt Cal»Shunt Cal Select

Analog Input»General Properties»

Signal Conditioning»Excitation»

Value

Analog Input»Strain»Strain Gage»

Configuration

AI.Bridge.ShuntCal.Select

AI.Excit.Val

AI.StrainGage.Cfg

Analog Input»General Properties»

Signal Conditioning»Bridge»

Nominal Resistance

Analog Input»Strain»Strain Gage»

Gage Factor

AI.Bridge.NomResistance

AI.StrainGage.GageFactor

Analog Input»Strain»Strain Gage»

Poisson Ratio

AI.StrainGage.PoissonRatio

Specifies the strain-gauge configuration type.

Specifies in ohms the resistance of the bridge in an unloaded condition.

Specifies the sensitivity of the strain gauge.

Specifies the ratio of lateral strain to axial strain in the specimen material.

© National Instruments Corporation

5-5

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Property

Analog Input»General Properties»

Signal Conditioning»Bridge»

Initial Bridge Voltage

Analog Input»General Properties»

Signal Conditioning»Bridge»

Balance»Coarse Potentiometer

Property

Analog Input»General Properties»

Signal Conditioning»Bridge»

Balance»Fine Potentiometer

Property

Analog Input»General Properties»

Signal Conditioning»Excitation»

Source

Table 5-1. NI-DAQmx Properties (Continued)

Analog Input»General Properties»

Advanced»Sample and Hold Enable

Short Name

AI.Bridge.InitialVoltage

AI.Bridge.Balance.CoarsePot

Specifies by how much to compensate for offset in the signal.

This value can be between 0 and 127.

AI.Bridge.Balance.FinePot

Specifies by how much to compensate for offset in the signal.

This value can be between 0 and 4095.

AI.Excit.Src

AI.SampAndHold.Enable

Description

Specifies in volts the output voltage of the bridge in the unloaded condition.

Specifies the source of excitation.

Specifies whether to enable the sample-and-hold circuitry of the device.

Note

This is not a complete list of NI-DAQmx properties and does not include every property you may need to configure your application. It is a representative sample of important properties to configure for strain and Wheatstone bridge measurements. For a complete list of NI-DAQmx properties and more information about NI-DAQmx properties, refer to your ADE help file.

Performing Offset Null Compensation

The SCXI-1520 provides offset null compensation circuitry to adjust signal voltages to proper levels when the strain gauge or bridge sensor is at rest

(unstrained). For most sensors, offset null compensation removes an initial voltage offset from the Wheatstone bridge. If you are measuring strain, you can use a strain task or global channel to perform offset null compensation.

The offset null compensation can be performed during the configuration of the global channel(s) or programmatically using the DAQmx Offset Null function (in LabVIEW, use

Daqmx Perform Bridge Offset Nulling

SCXI-1520 User Manual

5-6 ni.com

Chapter 5 Using the SCXI-1520

Calibration.vi

; in CVI, use the

DAQmxPerformBridgeOffsetNullingCal

function). Refer to the

Creating a Strain Global Channel or Task

section of Chapter 3,

Configuring and Testing

, for information about offset null compensation when in MAX. If you are not measuring strain or would like to adjust the offset to an arbitrary voltage, you can manually adjust the coarse and fine potentiometer settings using properties.

For more information about offset null compensation, refer to the

Offset

Null Compensation

section of Chapter 4,

Theory of Operation

.

Performing Shunt Calibration

Shunt calibration is a process used to obtain a gain adjust factor, which corrects for system gain error and discrepancies between the nominal gauge factor and actual gauge factor of the strain gauge. If you are measuring strain, you can use a strain task or global channel to perform shunt calibration. The shunt calibration is performed during the configuration of

the global channel(s). Refer to the

Creating a Strain Global Channel or

Task

section of Chapter 3,

Configuring and Testing

, for information about shunt calibration in MAX.

To manually perform shunt calibration, refer to the

Shunt Calibration

section of Chapter 4,

Theory of Operation

.

Acquiring, Analyzing, and Presenting

After configuring the task and channels, you can start the acquisition, read measurements, analyze the data returned, and display it according to the needs of your application. Typical methods of analysis include digital filtering, averaging data, performing harmonic analysis, applying a custom scale, or adjusting measurements mathematically.

Some custom scaling applications require the actual excitation voltage applied to the bridge instead of the nominal excitation voltage output by the

SCXI-1520. You can scan the remote sense pins RSX+ and RSX– with the

DAQmx physical channels

DevX/_pPosX

and

DevX/_pNegX

to find the actual excitation voltage. Take the difference of the two physical channels to determine the actual excitation applied to the bridge and use this value in the scaling equation.

Note

If RSX+ and RSX– are not wired to the bridge where PX+ and PX– connect, _ pPosX and

_pNegX

only measure the internal excitation. Measuring this voltage does not correct for the voltage drop in the excitation leads.

© National Instruments Corporation

5-7

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

NI provides powerful analysis toolsets for each NI ADE to help you perform advanced analysis on the data without requiring you to have a programming background. After you acquire the data and perform any required analysis, it is useful to display the data in a graphical form or log it to a file. NI ADEs provide easy-to-use tools for graphical display, such as charts, graphs, slide controls, and gauge indicators. NI ADEs have tools that allow you to easily save the data to files such as spread sheets for easy viewing, ASCII files for universality, or binary files for smaller file sizes.

Completing the Application

After you have completed the measurement, analysis, and presentation of the data, it is important to stop and clear the task. This releases any memory used by the task and frees up the DAQ hardware for use in another task.

Note

In LabVIEW, tasks are automatically cleared.

Developing an Application Using LabVIEW

This section describes in more detail the steps shown in the typical program

flowchart in Figure 5-1, such as how to create a task in LabVIEW and

configure the channels of the SCXI-1520. If you need more information or for further instructions, select Help»VI, Function, & How-To Help from the LabVIEW menu bar.

Note

Except where otherwise stated, the VIs in Table 5-2 are located on the Functions»

All Functions»NI Measurements»DAQmx - Data Acquisition subpalette and

accompanying subpalettes in LabVIEW.

Table 5-2. Programming a Task in LabVIEW

Flowchart Step VI or Program Step

Create Task in DAQ Assistant Create a

DAQmx Task Name Constant

located on the

Controls»All Controls»I/O»DAQmx Name Controls

subpalette, right-click it, and select

New Task (DAQ

Assistant)

.

Create a Task

Programmatically

(optional)

DAQmx Create Task.vi

—This VI is optional if you created and configured your task using the DAQ Assistant. However, if you use it in LabVIEW, any changes you make to the task will not be saved to a task in MAX.

SCXI-1520 User Manual

5-8 ni.com

Chapter 5 Using the SCXI-1520

Configure Channels

(optional)

Perform Offset Null

Compensation

Start Measurement

Read Measurement

Analyze Data

Table 5-2. Programming a Task in LabVIEW (Continued)

Flowchart Step

Create AI Strain Channel

(optional) or

Create AI Custom Voltage with Excitation Channel

(optional)

Adjust Timing Settings

(optional)

Perform Shunt Calibration

VI or Program Step

DAQmx Create Virtual Channel.vi

(AI Voltage by default, to change to a strain gauge channel, click AI Voltage and select

Analog Input»Strain»Strain Gage.)—This VI is optional if

you created and configured your task and channels using the

DAQ Assistant. Any channels created with this VI are not saved in the DAQ Assistant. They are only available for the present session of the task in LabVIEW.

DAQmx Timing.vi

(Sample Clock by default)—This VI is optional if you created and configured your task using the DAQ

Assistant. Any timing settings modified with this VI are not saved in the DAQ Assistant. They are only available for the present session.

DAQmx Channel Property Node, refer to the

Using a DAQmx

Channel Property Node in LabVIEW

section for more information. This step is optional if you created and fully configured the channels using the DAQ Assistant. Any channel modifications made with a channel property node are not saved in the task in the DAQ Assistant. They are only available for the present session.

Daqmx Perform Bridge Offset Nulling

Calibration.vi

or you can perform offset null compensation when you create and configure your channels using the DAQ

Assistant. Refer to the

Creating a Strain Global Channel or Task

section of Chapter 3,

Configuring and Testing

, for information

about offset null compensation in MAX.

You can perform shunt calibration when you create and configure your channels using the DAQ Assistant. Refer to the

Creating a

Strain Global Channel or Task

section of Chapter 3,

Configuring and Testing

, for information about shunt calibration in MAX.

DAQmx Start Task.vi

DAQmx Read.vi

Some examples of data analysis include filtering, scaling, harmonic analysis, or level checking. Some data analysis tools are located on the Functions»Signal Analysis subpalette and on the Functions»All Functions»Analyze subpalette.

© National Instruments Corporation

5-9

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Flowchart Step

Display Data

Continue Sampling

Stop Measurement

Clear Task

Table 5-2. Programming a Task in LabVIEW (Continued)

VI or Program Step

You can use graphical tools such as charts, gauges, and graphs to display your data. Some display tools are located on the

Controls»Numeric Indicators subpalette and Controls»

All Controls»Graph subpalette.

For continuous sampling, use a While Loop. If you are using hardware timing, you also need to set the

DAQmx Timing.vi

sample mode to Continuous Samples. To do this, right-click the terminal of the

DAQmx Timing.vi

labeled sample mode and click Create»Constant. Click the box that appears and select

Continuous Samples.

DAQmx Stop Task.vi

(This VI is optional, clearing the task automatically stops the task.)

DAQmx Clear Task.vi

Using a DAQmx Channel Property Node in LabVIEW

Note

With the SCXI-1520, you must use property nodes to disable SS/H.

You can use property nodes in LabVIEW to manually configure the channels. To create a LabVIEW property node, complete the following steps:

1.

Launch LabVIEW.

2.

Create the property node in a new VI or in an existing VI.

3.

Open the block diagram view.

4.

From the Functions toolbox, select All Functions»

NI Measurements»DAQmx - Data Acquisition, and select

DAQmx

Channel Property Node

.

5.

Configure your channels. The initial ActiveChan item allows you to specify exactly what channel(s) you want to configure. If you want to configure several channels with different properties, separate the lists of properties with another Active Channels box and assign the appropriate channel to each list of properties.

Note

If you do not use Active Channels, the properties are set on all of the channels in the task.

SCXI-1520 User Manual

5-10 ni.com

Chapter 5 Using the SCXI-1520

6.

Right-click ActiveChan, select Add Element, and left-click in the new ActiveChan box. Navigate through the menus, and select the property you wish to define.

7.

Change the property to read or write to either get the property or write a new value. Right-click the property, go to Change To, and select

Write, Read, or Default Value.

8.

After you have added the property to the property node, right-click the terminal to change the attributes of the property, add a control, constant, or indicator.

Figure 5-2. LabVIEW Channel Property Node with Filtering Enabled at 10 kHz and

SS/H Disabled

9.

To add another property to the property node, right-click an existing property and left-click Add Element. To change the new property, left-click it and select the property you wish to define.

Note

Refer to the LabVIEW Help for information about property nodes and specific

NI-DAQmx properties.

Specifying Channel Strings in NI-DAQmx

Use the channel input of DAQmx Create Channel to specify the

SCXI-1520 channels. The input control/constant has a pull-down menu showing all available external channels. You can right-click the physical channel input, select I/O Name Filtering, and check Internal Channels.

This allows you to select the SCXI-1520 excitation channels. The strings take one of the following forms:

• single device identifier/channel number—for example

SC1Mod1/ch0

• multiple, noncontinuous channels—for example

SC1Mod1/ch0,

SC1Mod1/ch4

© National Instruments Corporation

5-11

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

• multiple continuous channels—for example

SC1Mod1/ch0:4

(channels 0 through 4)

• positive or negative excitation on a particular SCXI-1520 channel—for example

SC1Mod1/_pPos0

,

SC1Mod1/_pNeg0

When you have a task containing SCXI-1520 channels, you can set the properties of the channels programmatically using the DAQmx Channel

Property Node.

Follow the general programming flowchart or open an example to build a basic strain virtual channel. You can use property nodes in LabVIEW to control, configure, and customize the NI-DAQmx task and SCXI-1520.

To create a LabVIEW property node, complete the following steps:

1.

Launch LabVIEW.

2.

Create the property node in a new Virtual Instrument (VI) or in an existing VI.

3.

Open the block diagram view.

4.

From the Functions tool bar, select NI Measurements,

DAQmx - Data Acquisition, and select the type of property node you

wish to configure.

5.

The ActiveChan item allows you to specify what channel(s) you want to configure. If you want to configure several channels with different properties, separate the lists of properties with another Active

Channels box, and assign the appropriate channel to each list of

properties.

6.

Right-click ActiveChan and select Add Element. Left-click the new

ActiveChan box. Navigate through the menus and select the property

you wish to define.

7.

You must change the property to read or write to either get the property or write a new value. Right-click the property, go to Change To, and select Write, Read, or Default Value.

8.

After you have added the property to the property node, right-click the terminal to change the attributes of the property, add a control, constant, or indicator.

9.

To add another property to the property node, right-click an existing property and left-click Add Element. To change the new property, left-click it and select the property you wish to define.

Note

Refer to the LabVIEW Help for information about property nodes and specific

NI-DAQmx properties.

SCXI-1520 User Manual

5-12 ni.com

Chapter 5 Using the SCXI-1520

Text Based ADEs

You can use text based ADEs such as LabWindows/CVI, Measurement

Studio, Visual Basic, .NET, and C# to create code for using the

SCXI-1520.

LabWindows/CVI

LabWindows/CVI works with the DAQ Assistant in MAX to generate code for a strain task. You can then use the appropriate function call to modify the task. To create a configurable channel or task in

LabWindows/CVI, complete the following steps:

1.

Launch LabWindows/CVI.

2.

Open a new or existing project.

3.

From the menu bar, select Tools»Create/Edit DAQmx Tasks.

4.

Choose Create New Task In MAX or Create New Task In Project to load the DAQ Assistant.

5.

Configure the NI-DAQmx strain task following the instructions in the

Creating a Strain Global Channel or Task

section of Chapter 3,

Configuring and Testing

.

6.

The DAQ Assistant creates the code for the task based on the parameters you define in MAX and the device defaults. To change a property of the channel programmatically, use the

DAQmxSetChanAttribute

function.

Note

Refer to the NI LabWindows/CVI Help for more information on creating NI-DAQmx tasks in LabWindows/CVI and NI-DAQmx property information.

Measurement Studio (Visual Basic, .NET, and C#)

When creating a strain task in Visual Basic .NET and C#, follow the

general programming flow in Figure 5-1. You can then use the appropriate

function calls to modify the task. This example creates a new task and configures an NI-DAQmx strain channel on the SCXI-1520. You can use the same functions for Visual Basic .NET and C#.

In this example, an analog input channel object is used since reading the voltage from a Wheatstone bridge configuration is an analog input operation. The following text is a function prototype example: void AIChannelCollection.CreateStrainGageChannel(

System.String physicalChannelName,

System.String nameToAssignChannel,

System.Double minVal,

© National Instruments Corporation

5-13

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

System.Double maxVal,

AIStrainGageConfiguration strainGageConfiguration,

AIExcitationSource excitationSource,

System.Double excitationValue,

System.Double gageFactor,

System.Double initialBridgeVoltage,

System.Double normalGageResist,

System.Double poissonRatio,

System.Double leadWireResist,

AIStrainUnits units);

To actually create and configure the channel, you would enter something resembling the following example code:

Task myTask = new

NationalInstruments.DAQmx.Task(“myTaskName”);

MyTask.CreateStrainGageChannel (

“SC1Mod1/ai0”, // System.String physicalChannelName

“strain0”, // System.String nameToAssignChannel

-0.001, // System.Double minVal

0.001, // System.Double maxVal

AIStrainGageConfiguration.FullBridgeIII, //

AIStrainGageConfiguration strainGageConfiguration

AIExcitationSource.Internal, // AIExcitationSource

excitationSource

3.3, // System.Double excitationValue

2.0, // System.Double gageFactor

0.0, // System.Double initialBridgeVoltage

120.0, // System.Double normalGageResist

0.3, // System.Double poissonRatio

0.0, // System.Double leadWireResist

AIStrainUnits.Strain); // AIStrainUnits units

// setting attributes after the channel is created

AIChannel myChannel = myTask.AIChannels[“strain0”]; myChannel.LowpassCutoffFrequency = 10.0; myChannel.LowpassEnable = true; myChannel.AutoZeroMode = AIAutoZeroMode.Once;

You can change any of the properties at a later time. For example, to change the filter settings of myChannel

, enter the following lines:

AIChannel myChannel = myTask.AIChannels[“strain 0”]; myChannel.LowpassCutoffFrequency = 10.0; myChannel.LowpassEnable = true;

SCXI-1520 User Manual

5-14 ni.com

Chapter 5 Using the SCXI-1520

Modify the example code above or the code from one of the shipping examples as needed to suit your application. Refer to the

Other Application

Documentation and Material

section for the location of program examples.

Notes

You can create and configure the strain task in MAX and load it into your application with the function call

NationalInstruments.DAQmx.DaqSystem.Local.LoadTask

Refer to the NI Measurement Studio Help for more information on creating NI-DAQmx tasks in LabWindows/CVI and NI-DAQmx property information.

Programmable NI-DAQmx Properties

All of the different ADEs that configure the SCXI-1520 access an

underlying set of NI-DAQmx properties. Table 5-3 provides a list of some

of the properties that configure the SCXI-1520. You can use this list to determine what kind of properties you need to set to configure the device for your application. For a complete list of NI-DAQmx properties, refer to your ADE help file.

Analog Input»General Properties»

Signal Conditioning»Bridge»

Configuration

Analog Input»General Properties»

Signal Conditioning»Bridge»

Shunt Cal»Shunt Cal Enable

Table 5-3. NI-DAQmx Properties

Property

Analog Input»General Properties»

Advanced»Range»High

Analog Input»General Properties»

Advanced»Range»Low

Analog Input»General Properties»

Advanced»Sample and Hold Enable

Short Name

AI.Rng.High

AI.Rng.Low

Description

Specifies the upper limit of the input range on the digitizer device.

Specifies the lower limit of the input range on the digitizer device.

AI.SampAndHold.Enable

AI.Bridge.Cfg

Specifies whether to enable the sample-and-hold circuitry of the device.

Specifies whether the sensor is a type of

Wheatstone bridge.

AI.Bridge.ShuntCal.Enable

Specifies whether to place the shunt calibration resistor across one arm of the bridge.

© National Instruments Corporation

5-15

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Property

Table 5-3. NI-DAQmx Properties (Continued)

Short Name

AI.Bridge.ShuntCal.Select

Analog Input»General Properties»

Signal Conditioning»Bridge»

Shunt Cal»Shunt Cal Select

Analog Input»General Properties»

Signal Conditioning»Excitation»

Source

Analog Input»General Properties»

Signal Conditioning»Excitation»

Value

Analog Input»Strain»Strain Gage»

Configuration

AI.Excit.Src

AI.Excit.Val

Analog Input»General Properties»

Signal Conditioning»Bridge»

Nominal Resistance

Analog Input»Strain»Strain Gage»

Gage Factor

Analog Input»Strain»Strain Gage»

Poisson Ratio

Analog Input»General Properties»

Signal Conditioning»Bridge»

Initial Bridge Voltage

Analog Input»Strain»Units

Analog Input»General Properties»

Advanced»Gain and Offset»

Gain Value

Description

Specifies which calibration switch(es) to enable.

Specifies the source of excitation.

Specifies the amount of excitation in volts.

AI.StrainGage.Cfg

AI.Bridge.NomResistance

AI.StrainGage.GageFactor

Specifies the sensitivity of the strain gauge.

AI.StrainGage.PoissonRatio

Specifies the ratio of lateral strain to axial strain in the specimen material.

AI.Bridge.InitialVoltage

Specifies the strain-gauge configuration type.

Specifies in ohms the resistance of the bridge in an unloaded condition.

AI.Strain.Units

Specifies in volts the output voltage of the bridge in the unloaded condition.

Specifies the units to use to return strain measurements from the channel.

AI.Gain

Specifies a gain factor to apply to the signal conditioning portion of the channel.

SCXI-1520 User Manual

5-16 ni.com

Chapter 5 Using the SCXI-1520

Property

Table 5-3. NI-DAQmx Properties (Continued)

Short Name

AI.AutoZeroMode

Analog Input»General Properties»

Advanced»High Accuracy Settings»

Auto Zero Mode

Analog Input»Measurement Type

AI.MeasType

Description

Specifies when to measure ground.

NI-DAQmx then subtracts the voltage either on every sample or only once, depending on the setting.

Indicates the measurement to take with the analog input channel.

Note

This is not a complete list of NI-DAQmx properties and does not include every property you may need to configure your application. It is a representative sample of important properties to configure for strain and Wheatstone bridge measurements. For a complete list of NI-DAQmx properties and more information on NI-DAQmx properties, refer to your ADE help file.

Developing Your Application in Traditional NI-DAQ

(Legacy)

Note

If you are not using an NI ADE, using an NI ADE prior to version 7.0, or are using an unlicensed copy of an NI ADE, additional dialog boxes from the NI License Manager appear allowing you to create a task or global channel in unlicensed mode. These messages continue to appear until you install version 7.0 or later of an NI ADE.

This section describes how to configure and use Traditional NI-DAQ

(Legacy) to control the SCXI-1520 in LabVIEW, LabWindows/CVI,

Measurement Studio, and other text-based ADEs. These NI ADEs provide greater flexibility and access to more settings than MAX, but you can use

ADEs in conjunction with MAX to quickly create a customized application.

© National Instruments Corporation

5-17

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Traditional NI-DAQ (Legacy) in LabVIEW

LabVIEW is a graphical programming environment for test and measurement application development with built-in easy to use tools for data acquisition, analysis, and display. You can use functional graphical blocks called subVIs to easily create a custom application that fully utilizes the SCXI-1520 programmable functionality. Traditional NI-DAQ

(Legacy) provides several standard data acquisition subVIs as well as subVIs specifically for use with the SCXI-1520.

For applications using Traditional NI-DAQ (Legacy) in LabVIEW, there are two typical methods of addressing SCXI-1520 channels—virtual channels (specifically strain virtual channels) and SCXI channel strings.

Depending on the needs of your application, you choose one of these channel-addressing methods to use in your LabVIEW application.

The strain virtual channel provides scaling for strain gauges, provides an easy interface for offset null compensation and shunt calibration, and allows you to select any name for the SCXI-1520 strain channel that you choose without additional code. When you use virtual channels, the maximum number of channels per E Series DAQ device is 512 in multichassis systems. NI recommends using the strain virtual channel

for ease of use. Refer to Appendix B,

Using SCXI Channel Strings with

Traditional NI-DAQ (Legacy) 7.0 or Later

, for more information on how to

create a strain virtual channel.

The SCXI channel string allows you to combine large numbers of channels into fewer scan list entries, to measure the signal voltage level directly for custom scaling, and to dynamically perform an offset null compensation in your application. NI recommends using SCXI channel strings for more advanced applications. In LabVIEW, an array of these channel strings configures multiple modules for scanning. When using SCXI channel strings, you can scan up to 3,072 channels in a multichassis system using a

single DAQ device. Refer to Appendix B,

Using SCXI Channel Strings with Traditional NI-DAQ (Legacy) 7.0 or Later

, for more information

about using SCXI channel strings.

Note

You cannot mix virtual channels with the SCXI channel strings within the same channel string array.

To use virtual channels, enter the name of a virtual channel into the analog input channel string. If using multiple virtual channels, enter them in a different index in the channel string array, or separate them using a comma.

SCXI-1520 User Manual

5-18 ni.com

Chapter 5 Using the SCXI-1520

Since you can randomly scan analog input virtual channels, you can enter the virtual channels you want to scan in any order or repeatedly in a channel string array.

Typical Program Flow

After you have determined how you want to address the channels and whether you want to configure the SCXI-1520 in MAX or LabVIEW, you can design your application using a typical program flow such as the one

shown in Figure 5-3.

© National Instruments Corporation

5-19

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Virtual Channel

Use

Virtual Channel or SCXI Channel

String

SCXI Channel String

Configure

Acquisition Settings

Create Virtual

Channel in MAX

Configure

Mode Properties

SCXI-1520 User Manual

Perform

Offset Null?

Yes

No

SCXI Strain Null.vi

Perform Shunt

Calibration?

Yes

No

Shunt Calibration

Procedure

Start Acquisition

Take Measurements

Continue

Sampling?

No

Scale, Analyze, and Display

Yes

Clear Acquisition

Error Handling

Figure 5-3. Typical SCXI-1520 Program Flow with Traditional NI-DAQ (Legacy)

5-20 ni.com

Chapter 5 Using the SCXI-1520

Configuring the SCXI-1520 Settings Using Traditional NI-DAQ (Legacy) in LabVIEW

You can configure SCXI-1520 settings, perform offset null compensation, and perform shunt calibration in MAX using the strain virtual channel.

To configure and control the SCXI-1520 from LabVIEW, use the

AI Parameter VI. You can find AI Parameter VI in the function subpalette

Data Acquisition»Analog Input»Advanced Analog Input.

A parameter changed by the AI Parameter VI takes effect in hardware when

AI Start VI is called, not when AI Parameter VI is called. The AI parameter

VI merely changes the configuration in the driver memory. When called, the AI Start VI reads the configuration settings in the driver memory and then sends the actual control information to the SCXI-1520 module. A setting established through AI Parameter VI is only valid for the LabVIEW session and does not change the setting in MAX.

Software-

Configurable

Setting

Excitation

Level

AI Parameter VI

Parameter

Name

SCXI DC

Voltage

Excitation

Value

17

Filter

Bandwidth

Bridge Type

Coarse

Potentiometer

Fine

Potentiometer

You can use the AI Parameter VI to configure the SCXI-1520 settings

shown in Table 5-4.

Table 5-4. Settings for Configuring the SCXI-1520 Through the AI Parameter

Allowable Settings

(Float In, Boolean In, or Value In)

Filter Setting

SCXI

Connection

Type

SCXI Coarse

Potentiometer

SCXI Fine

Potentiometer

14

19

24

23

Data Type

Float In (dbl)

Float In (dbl)

Value In (u16)

Float In (dbl)

Float In (dbl)

Values

0.000, 0.625, 1.125, 1.875,

2.500, 3.125, 3.750, 5.375,

5.000, 5.625, 6.125, 6.875,

7.500, 8.125, 8.750, 9.375,

10.00

0.0 (disable filter), 10.0,

100.0, 1000.0, 10000.0

9 = Quarter Bridge

10 = Half Bridge

11 = Full Bridge

Any integer between 0 and

127, with 62 at mid-scale

Any integer between 0 and

4095, with 2048 at mid-scale

© National Instruments Corporation

5-21

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Table 5-4. Settings for Configuring the SCXI-1520 Through the AI Parameter (Continued)

Allowable Settings

(Float In, Boolean In, or Value In)

Software-

Configurable

Setting

Shunt A

Enable

Shunt B

Enable

AI Parameter VI

Parameter

Name Value

SCXI Shunt A

Enabled

SCXI Shunt B

Enabled

25

26

Data Type Values

Boolean In (T/F) TRUE turns switch ON

FALSE turns switch OFF

Boolean In (T/F) TRUE turns switch ON

FALSE turns switch OFF

An example of using the AI Parameter VI to control an SCXI-1520 is

shown in Figure 5-4.

SCXI-1520 User Manual

5-22 ni.com

Chapter 5 Using the SCXI-1520

Figure 5-4. Using the AI Parameter VI to Set Up the SCXI-1520

Performing Offset Null Compensation Using Traditional NI-DAQ

(Legacy) in LabVIEW

The SCXI-1520 provides offset null compensation to adjust signal voltages to remove an initial signal voltage offset from the Wheatstone bridge sensor. If you are measuring strain, you can use the strain virtual channel in Traditional NI-DAQ (Legacy) to perform offset null compensation, shunt calibration, and to properly scale strain measurements. The offset null compensation and shunt calibration are performed during

configuration of the strain virtual channel. Refer to Appendix B,

Using

SCXI Channel Strings with Traditional NI-DAQ (Legacy) 7.0 or Later

,

for more information about creating a strain virtual channel in MAX.

© National Instruments Corporation

5-23

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

After you have created a strain virtual channel, simply use a DAQ channel control or constant to select the strain virtual channel from a list of all the virtual channels you have configured in MAX. You can find the DAQ channel constant in the function subpalette Data Acquisition»Analog

Input. You can find the DAQ channel control in the control subpalette I/O.

If you are using a strain virtual channel, you cannot perform offset null compensation dynamically in your application. If you need to dynamically perform an offset null compensation in your application, you must use

SCXI channel strings. For more information about using SCXI channel

strings with the SCXI-1520, refer to Appendix B,

Using SCXI Channel

Strings with Traditional NI-DAQ (Legacy) 7.0 or Later

. If you are

measuring any other kind of bridge sensor such as a load cell, pressure sensor, or torque sensor and require the measurement to be displayed in units of interest for the sensor, you cannot use the strain virtual channel.

This is because the scaling provided by the strain virtual channel returns measurements in units of microstrain (

µε) rather than the units of interest for the sensor. If you require alternative scaling, you can either use an analog input voltage virtual channel with a custom scale configured in

MAX, or SCXI channel strings and provide scaling in your LabVIEW application.

To perform an offset null compensation for bridge sensors such as strain gauges, load cells, pressure sensors, or torque sensors dynamically in your

LabVIEW application, use the SCXI Strain Null VI. You can find the SCXI

Strain Null VI in the function subpalette Data Acquisition»Analog

Input»Calibration and Configuration. The SCXI Strain Null VI only

performs offset null compensation for SCXI channel strings, not virtual channels.

If you want to explicitly set the potentiometers, you can write an application program that adjusts the settings of many channels simultaneously or restores a particular null setting between sessions without performing a nulling operation each time. To explicitly set or get the control codes of the potentiometers in Traditional NI-DAQ (Legacy), use the LabVIEW AI Parameter VI. An example of using the AI Parameter

VI to control an SCXI-1520 is shown in Figure 5-4.

For more information and example programs for setting the offset null potentiometers, go to ni.com/info

and use these info codes: rd1520

, rdnull

, and rdxi15

.

SCXI-1520 User Manual

5-24 ni.com

Chapter 5 Using the SCXI-1520

Performing Shunt Calibration Using Traditional NI-DAQ (Legacy) in LabVIEW

Shunt calibration is a process used to obtain a gain adjust factor, which corrects system gain error and discrepancies between nominal Gauge

Factor and actual Gauge Factor of the strain gauge. If you are measuring strain, you can use the strain virtual channel in Traditional NI-DAQ

(Legacy) to perform offset null compensation, shunt calibration, and to properly scale strain measurements. The offset null compensation and shunt calibration are performed during configuration of the strain virtual

channel. Refer to Appendix B,

Using SCXI Channel Strings with

Traditional NI-DAQ (Legacy) 7.0 or Later

, for more information about creating a strain virtual channel in MAX.

Refer to the

Shunt Calibration

section of Chapter 4,

Theory of Operation

, for more information on the process and calculations required for shunt calibration in your application. To perform shunt calibration for bridge sensors such as strain gauges, load cells, pressure sensors, or torque sensors dynamically in your LabVIEW application, use the AI Parameter VI to programmatically engage and disengage the shunt calibration. As with all settings that are controlled by the AI Parameter VI, the switch settings take effect when the next AI Start VI is encountered in your software, not at the time the AI Parameter VI is called. Either insert a 500 ms delay in your code or discard the first 500 ms of data after the switches are closed since the filters in the SCXI-1520 are not fully stabilized until 500 ms have elapsed. You can find the AI Parameter VI in the function subpalette

Data Acquisition»Analog Input»Advanced Analog Input. An example

of using the AI Parameter VI to control an SCXI-1520 is shown in

Figure 5-4.

NI recommends acquiring a buffer of 1000 samples of a channel with the shunt resistors engaged, then using the average of this buffer in the shunt calibration calculations. After you have measured a buffer of data with the shunt resistors engaged, you can calculate the gain adjust factor to use to adjust measurements on that channel. If you are performing shunt calibration on a strain gauge, you can use the equations for simulated strain found in the

Strain-Gauge Theory

section of Chapter 4,

Theory of

Operation

, for the shunt calibration calculations. After you have

determined the correct gain adjust factor, multiply each measurement in your application by the gain adjust factor for maximum absolute accuracy.

© National Instruments Corporation

5-25

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Configure, Start Acquisition, and Take Readings Using Traditional

NI-DAQ (Legacy) in LabVIEW

After you have performed an offset null compensation, shunt calibration, and configured the SCXI-1520 settings for your application, you can use the intermediate analog input functions AI Config VI, AI Start VI, AI Read

VI, and AI Clear VI to create your data acquisition application. You can find the intermediate data acquisition Traditional NI-DAQ (Legacy) functions in the function subpalettes Data Acquisition»Analog Input.

NI recommends using the intermediate analog input functions for most

SCXI-1520 applications. For more information about using the intermediate data acquisition Traditional NI-DAQ (Legacy) functions, refer to the LabVIEW Measurements Manual. You also can use the

LabVIEW Help for more detailed information about the various inputs and outputs of these functions.

Converting Scaling Using Traditional NI-DAQ (Legacy) in LabVIEW

The names given the strain-gauge types in Chapter 4,

Theory of Operation

,

in Figure 4-3,

Quarter-Bridge I Circuit Diagram

, Figure 4-5,

Quarter-Bridge II Circuit Diagram

, Figure 4-7,

Half-Bridge Type I Circuit

Diagram

, Figure 4-9,

Half-Bridge Type II Circuit Diagram

, Figure 4-11,

Full-Bridge Type I Circuit Diagram

, Figure 4-13,

Full-Bridge Type II

Circuit Diagram

, and Figure 4-15,

Full-Bridge Type III Circuit Diagram

,

directly correspond to bridge selections in MAX and the LabVIEW

Convert Strain Gauge Reading VI. You find this VI on the function subpalette Data Acquisition»Signal Conditioning. Using this VI, you wire the SCXI-1520 analog input reading to V

SG

, the initial analog input reading with the system unstrained to V

init

, and the excitation voltage to V

EX

.

If you are measuring strain, you can use the strain virtual channel in

Traditional NI-DAQ (Legacy) to perform offset null compensation, shunt calibration, and to properly scale strain measurements. If you are measuring any other kind of bridge sensor such as load cell, pressure sensor, or torque sensor, and the measurement must be displayed in units of interest for the sensor, you cannot use the strain virtual channel. This is because the scaling provided by the strain virtual channel returns measurements in units of microstrain (

µε) rather than the units of interest for the sensor. If you require alternative scaling, you can either use an analog input voltage virtual channel with a custom scale configured in

MAX or SCXI channel strings, and provide scaling in your LabVIEW application.

SCXI-1520 User Manual

5-26 ni.com

Chapter 5 Using the SCXI-1520

If you are using SCXI channel strings, you can easily convert the

SCXI-1520 voltage signal measurements in your application into scaled units of interest such as strain, pounds, or newtons. LabVIEW has some common conversion scaling functions such as the Convert Strain Gauge

Reading VI in the function subpalette Data Acquisition»Analog Input»

Signal Conditioning.

You also can use an Expression Node or Formula Node to convert voltage signal measurements into whatever units your application requires. You can find an Expression Node in the function subpalette Numeric. You can find

Formula Nodes in the Function subpalettes Analyze»Mathematics»

Formula. For more information about using the Expression Node or

Formula Node, refer to the LabVIEW User Manual. You also can use the

LabVIEW Help for more detailed information about how to use these nodes to perform mathematical calculations such as scaling conversions.

Analyze and Display Using Traditional NI-DAQ (Legacy) in LabVIEW

In LabVIEW, you can easily analyze SCXI-1520 measurements with a variety of powerful analysis functions that you can find in the function subpalettes Analyze»Waveform Conditioning and Analyze»Signal

Processing. You can perform post acquisition processing such as

waveform comparisons, harmonic analysis, and digital filtering. For more information about these VIs, refer to the LabVIEW Analysis Concepts manual. You also can use the LabVIEW Help for more detailed information about how to use the analysis VIs.

In LabVIEW, you also can easily display SCXI-1520 measurements with a variety of graphical waveform graphs, numeric slides, gauges, and other indicators. You can find useful graphical controls and indicators for user interaction with your application in the controls subpalettes. For more information about these VIs, refer to the LabVIEW User Manual. You also can use the LabVIEW Help for more detailed information about how to use graphical controls and indicators in your application.

Traditional NI-DAQ (Legacy) in Text-Based ADEs

NI text-based ADEs, such as LabWindows/CVI, Measurement Studio for

Microsoft Visual Basic, and Measurement Studio for Microsoft Visual

C++, offer help in the development of test and measurement applications.

These ADEs provide easy data acquisition, data analysis, graphical display, and data logging tools. Refer to the ADE user manual for more information about how to use these features.

© National Instruments Corporation

5-27

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

The high-level data acquisition tools provided in LabWindows/CVI and

Measurement Studio allow you to easily use virtual channels configured in

MAX, providing easy configuration and programming of the data acquisition systems. However, some of the more advanced features of the

SCXI-1520 are not accessible through this easy-to-use API. For more advanced features or for more explicit control of the programmatic attributes, use the low-level DAQ functions provided in the Traditional

NI-DAQ (Legacy) C API. Refer to the ADE user documentation for more information about how to use the high-level data acquisition tools that are provided in your NI ADE.

For more advanced SCXI-1520 applications, or if you are using an ADE other than an NI ADE, you can use the Traditional NI-DAQ (Legacy) C API to call functions from the DAQ driver dynamically linked library (dll). The

Low-Level DAQ Functions section outlines the steps for programming with

the low-level DAQ function calls. If you are using LabWindows/CVI or

Measurement Studio, you also can write advanced applications using the same low-level DAQ functions guidelines.

Low-Level DAQ Functions

Notes

If you are a new SCXI-1520 user, NI recommends that you use the NI-DAQmx API rather than the Traditional NI-DAQ (Legacy) C API. NI-DAQmx is the second generation data acquisition driver optimized for ease of use and improved performance.

You can find a complete example using Traditional NI-DAQ (Legacy) C API functions to perform an offset null compensation and shunt calibration with the SCXI-1520 at ni.com/info

using the code rdscaq

. Use this example program as a guide when developing your Traditional NI-DAQ (Legacy) C API application.

You can design your SCXI-1520 application using a typical offset null

compensation and offset null program flow shown in Figure 5-5, which has

the following basic steps:

1.

Configure the system settings for the offset null compensation operation.

2.

Perform offset null compensation.

3.

Configure settings for the shunt calibration operation.

4.

Perform shunt calibration.

5.

Configure the settings for acquisition.

6.

Perform the acquisition.

7.

Convert the scaling.

SCXI-1520 User Manual

5-28 ni.com

Chapter 5 Using the SCXI-1520

8.

Analyze and display the data.

9.

Clear the acquisition.

Reset Hardware

Perform

Offset Null?

Yes

No

Perform Offset Null

Compensation

Configure

Acquisition Settings

Configure

Module Settings

© National Instruments Corporation

No

Perform Shunt

Calibration?

Yes

Acquire and Calculate

Gain Adjust Factor

Perform

Acquisition?

Yes

Acquire

Continue

Sampling?

Yes

No

Analyze

Present

Clear and Complete

Acquisition

Figure 5-5. Offset Null and Shunt Calibration Flowchart

Configure

Acquisition Settings

Configure

Module Settings

Engage

Shunts

Configure

Acquisition Settings

Configure

Module Settings

5-29

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Configuring System Settings Using Traditional NI-DAQ (Legacy) C API

Start the configuration of the acquisition by ensuring that the SCXI-1520 module and SCXI chassis are in their default states, and that the driver software configuration matches the states the actual physical hardware configuration. After setting the hardware and software to the defaults of the module(s), you can configure any module settings that vary from the default configuration settings. You also should configure the acquisition

parameters using the functions in Table 5-5. For additional information

such as the function prototypes, parameters, and usage instructions for each function, refer to the Traditional NI-DAQ Function Reference Help installed by default in Start»Programs»National Instruments»NI-DAQ.

Function

SCXI_Reset

SCXI_Load_Config

SCXI_Track_Hold_Setup

Table 5-5. Configuration Functions

Description

Resets the hardware such as the specified module to its default state.

You also can use

SCXI_Reset

to reset the SCXI chassis Slot 0 scanning circuitry or reset the entire chassis.

The SCXI-1520 default conditions are:

• Channels configured for full-bridge connection

• Gain set at 1.0

• 10 Hz lowpass filter

• Excitation set at 0 volts

• Shunt switches disabled

• Potentiometers mid-ranged

Loads the SCXI chassis configuration information you established in MAX. Sets the software states of the chassis and the modules present to their default states. This function makes no changes to the hardware state of the SCXI chassis or modules. It is possible to programmatically change the configuration you established in

MAX using the

SCXI_Set_Config

function.

Establishes the T/H behavior of an SS/H module and sets up the module for either a single-channel operation or an interval-scanning operation.

SCXI-1520 User Manual

5-30 ni.com

Chapter 5 Using the SCXI-1520

Function

SCXI_SCAN_Setup

SCXI_MuxCtr_Setup

Table 5-5. Configuration Functions (Continued)

Description

Initializes multiplexing circuitry for a scanned data acquisition operation. Initialization includes storing a table of the channel sequence and gain setting for each channel to be digitized (MIO and

AI devices only). You cannot repeat channels or use nonsequential channels when using the

SCXI_SCAN_Setup

function.

Programs the E Series DAQ device with the correct number of channels multiplexed per scan. This number must match the total number of channels programmed in

SCXI_SCAN_Setup

.

Note

NI strongly recommends monitoring the built-in error status of each NI-DAQ function. The NI-DAQ C API provides the

NIDAQErrorHandler

function, which ensures that a specified NI-DAQ function executed properly, and assists in handling error messages and reporting.

Configuring Module Settings Using Traditional NI-DAQ (Legacy) C API

After configuring the hardware for acquisition, you must load the various channel attributes such as filter, gain, bridge configuration, and excitation appropriate for your application explicitly using the NI-DAQ function calls

shown in Table 5-6. For more information regarding each setting, refer to

the Traditional NI-DAQ Function Reference Help installed by default in

Start»Programs»National Instruments»NI-DAQ.

© National Instruments Corporation

5-31

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Channel

Setting

Gain

Bandwidth

Excitation

Voltage

Table 5-6. NI-DAQ Functions Used to Configure SCXI-1520

NI-DAQ Function to Use

SCXI_Set_Gain

SCXI_Configure_Filter

SCXI_Set_Excitation f64

Significant

Parameters

gain

(gain setting) i16 filterMode

(filter configuration mode) f64 freq

(filter cutoff frequency if filterMode = 1) i16 excitationType

(type of excitation to set) f32 excitationValue

(new value for the specified excitation parameter)

Possible

Parameters Values

1, 1.15, 1.3, 1.5, 1.8,

2, 2.2, 2.4, 2.7, 3.1,

3.6, 4.2, 5.6, 6.5, 7.5,

8.7, 10, 11.5, 13, 15,

18, 20, 22, 24, 27,

31, 36, 42, 56, 65,

75, 87, 100, 115,

130, 150, 180, 200,

220, 240, 270, 310,

360, 420, 560, 650,

750, 870, 1000

0—Bypass the filter

1—Set filter cutoff frequency to freq

10.0, 100.0, 1000.0,

10,000.0 Hz

2—DC voltage specified in units of volts

0, 0.625, 1.25, 1.875,

2.5, 3.125, 3.75,

4.375, 5.0, 5.625,

6.25, 6.875, 7.5,

8.125, 8.75, 9.375,

10.0

SCXI-1520 User Manual

5-32 ni.com

Chapter 5 Using the SCXI-1520

Channel

Setting

Bridge

Configuration

Shunt

Calibration

Table 5-6. NI-DAQ Functions Used to Configure SCXI-1520 (Continued)

NI-DAQ Function to Use

SCXI_Configure_Connection

SCXI_Calibrate_Setup i16

Significant

Parameters

connectionType

(type of sensor connected to the specified channel) i16

CalOp

(calibration operation to be performed)

Possible

Parameters Values

4—Quarter bridge

5—Half bridge

6—Full bridge

0—turn off shunts

4—turn on shunt A on all channels

5—turn on shunt B on all channels

Performing Offset Null Compensation Using Traditional NI-DAQ

(Legacy) C API

After configuring the system settings and module properties, you can perform an offset null compensation programmatically using

SCXI_Strain_Null

. This function takes measurements and adjusts the coarse and fine offset null potentiometers to minimize or eliminate any electrical offset for a channel. You can repeat this process for each channel by calling the

SCXI_Strain_Null

function in a loop. You can use the resulting imbalance in your application as a software correction factor by determining the residual voltage from the imbalance, and subtracting this residual offset from each future measurement. For more information regarding the operation of

SCXI_Strain_Null

, refer to the Traditional

NI-DAQ Function Reference Help installed by default in Start»

Programs»National Instruments»NI-DAQ.

Performing Shunt Calibration Using Traditional NI-DAQ (Legacy) C API

After performing an offset null compensation, you can perform a shunt calibration programmatically. This process is described in the

Shunt

Calibration

section of Chapter 4,

Theory of Operation

. You can use

SCXI_Calibrate_Setup

with the parameter

CalOp

set to

4

to engage

SCA, set to

5

to engage SCB, and set to

0

to disengage the shunt resistor of both switches. After you engage a shunt resistor across an element of the bridge sensor, wait until the voltage settles, then take a buffer of samples and average them. Determine what the resultant voltage offset should be.

Calculate a gain adjust factor by dividing the ideal or simulated output by the measured output and then use the gain adjust factor by multiplying each

© National Instruments Corporation

5-33

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

future measurement by the gain adjust factor. Remember to disengage the shunt switches before continuing your application. For more information regarding the operation of

SCXI_Calibrate_Setup

, refer to the

Traditional NI-DAQ Function Reference Help installed by default in

Start»Programs»National Instruments»NI-DAQ.

Performing Acquisition Using Traditional NI-DAQ (Legacy) C API

There are several NI-DAQ functions you can use to take measurements.

Usually in SCXI the preference is to take multiple samples from multiple channels using the

SCAN_Op

function.

SCAN_Op

performs a synchronous, multiple-channel scanned data acquisition operation.

SCAN_Op

does not return until Traditional NI-DAQ (Legacy) acquires all the data or an acquisition error occurs (MIO, AI, and DSA devices only). For this reason, it is sometimes useful to use

SCAN_Op

in conjunction with the function

Timeout_Config

, which establishes a timeout limit synchronous functions to ensure that these functions eventually return control to your application. After acquiring data using

SCAN_Op

, the resultant data is not organized by channel, so you should demultiplex the data using

SCAN_Demux

.

SCAN_Demux

rearranges, or demultiplexes, data acquired by a

SCAN_Op

into row-major order, meaning each row of the array holding the data corresponds to a scanned channel for easier access by C applications. BASIC applications need not call

SCAN_Demux

to rearrange two-dimensional arrays since these arrays are accessed in column-major order. For more information regarding each acquisition function, refer to the Traditional NI-DAQ Function Reference Help installed by default in

Start»Programs»National Instruments»NI-DAQ.

Performing Scaling, Analysis, and Display

After acquiring raw voltage data from the acquisition functions, most applications require adjustment by device calibration constants for accuracy, scaling measured voltage, analysis, and graphical display.

The SCXI-1520 has stored software calibration constants loaded on the module EEPROM that are used to achieve the absolute accuracy specifications.

SCXI_Scale

scales an array of binary data acquired from an SCXI channel to voltage using the stored software calibration constants when it scales the data. You must call

SCAN_Demux

before

SCXI_Scale

if you have multiple channels in the scan. For more information regarding

SCXI_Scale

, refer to the Traditional NI-DAQ Function Reference Help installed by default in Start»Programs»National Instruments»NI-DAQ.

SCXI-1520 User Manual

5-34 ni.com

Chapter 5 Using the SCXI-1520

After you have adjusted the measurement by the appropriate calibration constants using

SCXI_Scale

, you can use a function from the NI conversion library convert.h

to convert a voltage or voltage buffer from a strain gauge to units of strain. NI-ADEs also provide many powerful analysis functions to perform digital filtering, harmonic analysis, averaging, and complex mathematics on measurements.

After performing scaling and analysis on the acquired data, you can display the measurements in several ways. You can use any built-in GUI tools in your ADE. NI ADEs provide many graphical controls and indicators such as charts, graphs, gauges, slides, and plots that you can use to display the data. There is also a built-in function, found in nidaqex.h

, called

NIDAQPlotWaveform

, that you can use to generate a simple plot of the data.

Other Application Documentation and Material

Refer to the ADE manual and the DAQ analog input examples that come with your application software for more detailed information on programming the SCXI modules for scanning in multiplexed mode.

Traditional NI-DAQ (Legacy) CVI Examples

Many example programs ship with NI-DAQ. For more example information on how to create tasks and channels, refer to the example programs. By default, the example programs are installed in

C:\Program

Files\NationalInstruments\CVI 7.0\Samples

. More examples are installed by default in

C:\Program Files\National

Instruments\NI-DAQ\Examples

.

Traditional NI-DAQ (Legacy) Measurement Studio Examples

Many example programs ship with NI-DAQ. For more example information on how to create tasks and channels, refer to the example programs. By default, the example programs are installed in

C:\Program

Files\NationalInstruments\Measurement Studio 7.0

. More examples are installed by default in

C:\Program Files\National

Instruments\NI-DAQ\Examples

.

© National Instruments Corporation

5-35

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Calibrating the Strain System

There are two types of calibration important to verifying the accuracy of a strain measurement system. Device calibration ensures the accuracy of the

SCXI-1520. System calibration involves removing potential error-causing variables such as offset and verifying the accuracy of the strain element through shunt calibration.

Calibrating the SCXI-1520

The SCXI-1520 is shipped with a calibration certificate and is calibrated at

the factory to the specifications described in Appendix A,

Specifications

.

Calibration constants are stored inside the calibration EEPROM and provide software correction values your application development software uses to correct the measurements for offset errors in the module.

To obtain the highest level of accuracy, you should periodically perform an internal calibration. You can initiate an internal calibration using

NI software.

For more information on calibrating the SCXI-1520, download the

SCXI-1520 Calibration Procedure from ni.com/calibration

.

Internal Calibration Procedure

The SCXI-1520 incorporates internal calibration paths that allow routing channel inputs to ground or to an onboard reference voltage. NI software disconnects the channel inputs from the front signal connector and reconnects the inputs to ground or to an onboard reference when performing an internal calibration. You need not change any input connections for an internal calibration.

SCXI-1520 User Manual

5-36 ni.com

Chapter 5 Using the SCXI-1520

Internal Calibration Using LabVIEW

Note

NI recommends that you internally calibrate the DAQ device before you internally calibrate the SCXI-1520.

For internal calibration using LabVIEW, complete the following steps using the LabVIEW SCXI Calibrate VI found in LabVIEW at

NI Measurements»Data Acquisition»Calibration and Configuration:

1.

Enter the DAQ device and the SCXI channel string for the channel you want to calibrate.

2.

Select internal calibration as the calibration operation you are going to perform.

The driver software takes a few seconds to perform the calibration. After completion, the module has new calibration constants stored for all gain settings. You must repeat the procedure to calibrate other channels in the module.

Internal Calibration Using a C-Based ADE

For internal calibration using a C-based ADE, complete the following steps using the NI-DAQ function,

SCXI_Calibrate

:

1.

Enter the DAQ device, DAQ channel, module slot, and module channel.

2.

Select internal calibration (0) as the operation you are going to perform.

The SCXI-1520 takes a few seconds to perform the calibration. After completion, the module has new calibration constants stored for all gain settings. You must repeat the procedure to calibrate other channels in the module.

External Calibration

For instructions on how to perform an external calibration on the

SCXI-1520, refer to the SCXI-1520 Calibration Procedure available by going to ni.com/calibration

and clicking Manual Calibration

Procedures. NI recommends you perform an external calibration once

a year.

© National Instruments Corporation

5-37

SCXI-1520 User Manual

Chapter 5 Using the SCXI-1520

Calibrating the System

You should perform offset null compensation or shunt calibration on transducers in the system to improve accuracy. This is considered system, or end-to-end, calibration.

Offset Null Compensation

Performing an offset null compensation removes offset in the measurement system. Factors such as imperfections in the strain gauge, electrical offset in the measurement system, signal leads with significant lead resistance,

as well as other system variables can create offset. Refer to the

Offset Null

Compensation

section of Chapter 4,

Theory of Operation

, for information

about how to perform offset null compensation.

Shunt Calibration

Performing shunt calibration removes gain or amplitude errors in the measurement system. Factors such as non-ideal gauges, incorrect strain gauge factor, temperature fluctuations, as well as other system variables can create these errors. Refer to the

Shunt Calibration

section of Chapter 4,

Theory of Operation

, for information about how to perform shunt

calibration.

SCXI-1520 User Manual

5-38 ni.com

A

Specifications

Analog Input

This appendix lists the specifications for the SCXI-1520 modules. These specifications are typical at 25 °C unless otherwise noted.

Number of channels ............................... 8

Voltage gain settings .............................. X1 to X1000 with the following gain settings: 1; 1.15; 1.3; 1.5;

1.8; 2; 2.2; 2.4; 2.7; 3.1; 3.6; 4.2;

5.6; 6.5; 7.5; 8.7; 10; 11.5; 13; 15;

18; 20; 22; 24; 27; 31; 36; 42; 56;

65; 75; 87; 100; 115; 130; 150;

180; 200; 220; 240; 270; 310;

360; 420; 560; 650; 750; 870;

1000

Input coupling ........................................ DC

Overvoltage protection........................... ±35 V powered on,

±25 V powered off

Inputs protected...................................... <0..7>

Transfer

Nonlinearity ........................................... Better than 0.02% of FSR

Gain error ............................................... ±0.35% of setting at RSC,

±0.1% of the value returned by driver software

Offset error

Gain

≥20 ......................................... 150 µV max

Gain <20 ......................................... 3 mV max

© National Instruments Corporation

A-1

SCXI-1520 User Manual

Appendix A Specifications

SCXI-1520 User Manual

A-2 ni.com

Appendix A Specifications

© National Instruments Corporation

A-3

SCXI-1520 User Manual

Appendix A Specifications

Amplifier

Input impedance (DC) ............................ >1 G

Input impedance (DC) powered off........5.8 k

Ω min

Input bias current ....................................±20 nA max

Input offset current .................................±20 nA max

CMRR (DC to 60 Hz, full-bridge setting)

Gain

≥20 ..........................................>85 dB

Gain <20 ..........................................>60 dB

Dynamic

Minimum scan interval (per channel, any gain in multiplexed mode)

±0.0125% accuracy .........................3

µs

±0.006% accuracy ...........................10

µs

±0.0015% accuracy .........................20

µs

Noise RTI, gain = 200, 0.1 to 10 Hz.......2.0

µV pp

Spot noise RTI, gain = 200, 1000 Hz .....16 nV/

Hz

Filter

Lowpass filter type .................................4-pole Butterworth

(24 dB/octave rolloff)

Lowpass filter settings ............................10 Hz, 100 Hz, 1 kHz,

10 kHz, or bypass

Bandwidth, filter bypassed .....................–3 dB at 20 kHz

Simultaneous Sample and Hold

Acquisition time

Settle to 0.012%...............................7

µs

Settle to 0.003%...............................10

µs

Settle to 0.0015%.............................50

µs

Hold mode settling time .........................1

µs typ

Interchannel skew ...................................200 ns typ

SCXI-1520 User Manual

A-4 ni.com

Appendix A Specifications

Intermodule skew ................................... 200 ns typ

Droop rate .............................................. 30 mV/s typ, 100 mV/s max

Stability

Recommended warm-up time ................ 15 minutes

Gain drift ................................................ ±40 ppm of reading/°C max

Offset drift

Gain

≥20 ......................................... ±2 µV/°C typ, ±5 µV/°C max

Gain <20 ......................................... ±10 µV/°C typ, ±25 µV/°C max

Offset Null Compensation

Range ..................................................... ±4% of excitation voltage,

20,000 counts of resolution

(±80,000 µ

ε offset null compensation range, 4 µ

ε resolution for quarter-bridge,

GF = 2.0)

Excitation

Type ....................................................... Constant voltage

Settings................................................... 0.0 to 10.0 V in 0.625 V increments

Error ....................................................... ±20 mV ±0.3% of nominal setting

±0.1% of value returned by driver software

Maximum operating current in all ranges ............................................ 29 mA

Short-circuit protection .......................... Yes

Regulation .............................................. No load to 120

Ω load

With remote sense........................... ±0.003%

Without remote sense...................... ±0.08%

Temperature drift ................................... ±0.005%/°C, ±30 µV/°C max

© National Instruments Corporation

A-5

SCXI-1520 User Manual

Appendix A Specifications

Noise, DC to 10 kHz...............................200 µV pp

Remote sense ..........................................Error less than ±0.02% per ohm of lead resistance, both leads

Protection................................................Surge arrestors in parallel with excitation terminals, shunt to ground

Bridge Completion

Half-bridge..............................................Two

precision resistors,

5 k

Ω each, 0.1% ratio matching

Quarter-bridge ........................................Socketed resistor inside the

SCXI-1314 terminal block

1

Shunt Calibration

Type ........................................................Two independent points

Resistor ...................................................Socketed inside the SCXI-1314 terminal block

2

Switch resistance ....................................32

Ω typ

50 Ω max

Switch off leakage ..................................<1 nA

Switch break-down voltage ....................±60 VDC

Power Consumption

V+ ...........................................................18.5 to 25 VDC, +170 mA max

V– ...........................................................–18.5 to –25 VDC, –170 mA max

+5 V ........................................................+4.75 to 5.25 VDC, 50 mA max

1

Half-bridge completion is performed inside the module and configured under software control. The quarter-bridge completion resistor is in the SCXI-1314 terminal block and is socketed. Resistors shipped with the SCXI-1314 are 120

Ω and

350

Ω (default value) RN-55 style (standard 1/4 W size). The tolerance is ±0.1% and the temperature coefficient is

10 ppm/°C max.

2

Shunt calibration resistors are in the SCXI-1314 terminal block and are socketed. Resistors shipped with the SCXI-1314 are 100 k

Ω RN-55 style (standard 1/8 W size). The tolerance is ±0.1% and the temperature coefficient is 10 ppm/°C max.

SCXI-1520 User Manual

A-6 ni.com

Appendix A Specifications

Physical

Dimensions............................................. 3.0

× 17.2 × 20.3 cm

(1.2

× 6.9 × 8.0 in.)

Weight .................................................... 750 g (1 lb 10.4 oz)

Maximum Working Voltage

Maximum working voltage refers to the signal voltage plus the common-mode voltage.

Channel-to-earth..................................... Either the SX+ or SX– input should remain within ±10 V of ground. Both inputs should be within ±10 V of one another,

Measurement Category I

Channel-to-channel ................................ Either the SX+ or SX– input should remain within ±10 V of ground. Both inputs should be within ±10 V of one another,

Measurement Category I

Caution

Do not use for measurements within Categories II, III, or IV.

Environmental

Operating temperature............................ 0 to 50 °C

Storage temperature ............................... –20 to 70 °C

Humidity ................................................ 10 to 90% RH, noncondensing

Maximum altitude .................................. 2,000 m

Pollution Degree (indoor use only) ........ 2

© National Instruments Corporation

A-7

SCXI-1520 User Manual

Appendix A Specifications

Safety

The SCXI-1520 is designed to meet the requirements of the following standards of safety for electrical equipment for measurement, control, and laboratory use:

• IEC 61010-1, EN 61010-1

• UL 61010-1

• CAN/CSA-C22.2 No. 61010-1

Note

For UL and other safety certifications, refer to the product label or visit ni.com/certification

, search by model number or product line, and click the appropriate link in the Certification column.

Electromagnetic Compatibility

Emissions................................................EN 55011 Class A at 10 m

FCC Part 15A above 1 GHz

Immunity ................................................EN 61326:1997 + A2:2001,

Table 1

EMC/EMI ...............................................CE, C-Tick, and FCC Part 15

(Class A) Compliant

Note

For EMC compliance, operate this device with shielded cabling.

CE Compliance

The SCXI-1520 meets the essential requirements of applicable European

Directives, as amended for CE marking, as follows:

Low-Voltage Directive (safety)..............73/23/EEC

Electromagnetic Compatibility

Directive (EMC) .....................................89/336/EEC

Note

Refer to the Declaration of Conformity (DoC) for this product for any additional regulatory compliance information. To obtain the DoC for this product, visit ni.com/certification

, search by model number or product line, and click the appropriate link in the Certification column.

SCXI-1520 User Manual

A-8 ni.com

B

Using SCXI Channel Strings with

Traditional NI-DAQ (Legacy) 7.0 or Later

Note

This appendix is not applicable if you use the virtual channels to configure and measure the SCXI channels. Virtual channels are configured using MAX. If you use virtual channels, you address the SCXI channels by specifying the channel name(s) in the channel string input.

When using LabVIEW, Measure, and Visual Basic, the SCXI channel string determines which SCXI channels are scanned and the scanning sequence. The SCXI channel string allows you to take measurements from several channels on one module with only one channel string entry. An array of these channel string entries configures multiple modules for scanning. When the application program runs, the channel string is used for programming the channel information into the SCXI system.

The format of the channel string is as follows: obx ! scy ! mdz ! channels where obx

is the onboard E Series DAQ device channel, with

x

representing a particular channel where the multiplexed channels are sent. This value is 0 for DAQ device channel 0 in a single-chassis system. In a multichassis or remote chassis system, the DAQ device channel

x

corresponds to chassis number

n

– 1, where DAQ device channel

x

is used for scanning the nth chassis in the system.

scy

is the SCXI chassis ID, where

y

is the number you chose when configuring the chassis.

mdz

is the slot position where the module is located, with

z

being the particular slot number. The slots in a chassis are numbered from left to right starting with 1.

© National Instruments Corporation

B-1

SCXI-1520 User Manual

Appendix B Using SCXI Channel Strings with Traditional NI-DAQ (Legacy) 7.0 or Later channels

is the list of channels that are scanned for module

z

. It can have several formats:

• obx ! scy ! mdz ! nx

, where

nx

is a single input channel.

• obx ! scy ! mdz ! (n0, n2)

, where

n0, n2

are individual input channels that are not necessarily sequential.

• obx ! scy ! mdz ! n0:n3

, where

n0

and

n3

represent an ascending sequential list of input channels, inclusive.

• obx ! scy ! mdz ! (n0, n2, n3:n4, n1, n5, n2)

, where

n0

,

n2

, and

n5

represent single channels, not necessarily sequential, and

n3

and

n4

represent the endpoints of an ascending sequential list of channels, inclusive. In this case, channels

n1

and

n2

are explicitly repeated in the channel list.

Notes

Using parentheses surrounding multiple channels in a channel string is important for correct scanning operation of the SCXI channels.

In a single-chassis system, the obx !

specifier is optional and causes the gains on the module and E Series DAQ device to be automatically set to fit the input limits parameter.

When this specifier is omitted, the default gain on the DAQ device, usually the lowest gain, is used, but the SCXI-1520 gain is adjusted to fit the input limits. NI recommends using the obx !

specifier.

Repeating channels or having channels out of sequence in a scan list is not supported on all SCXI modules. Refer to the manual of each module for information on this feature, which is referred to as flexible scanning or random scanning.

For more information about using SCXI channel string, refer to the

LabVIEW Measurements Manual and SCXI-1520 shipping examples.

Special SCXI-1520 Channel Strings

There are two special channel strings you can use with the SCXI-1520 to acquire signals from alternative locations rather than the signal inputs on the channels: the remote-sense and calibration ground channel strings. This section describes the use of these channels.

Remote-Sense Channel String

You can scan the remote-sense terminals to monitor the excitation voltage while simultaneously acquiring data from analog input channels. This is useful for scaling the measurements by exactly the excitation voltage that

SCXI-1520 User Manual

B-2 ni.com

Appendix B Using SCXI Channel Strings with Traditional NI-DAQ (Legacy) 7.0 or Later

is applied to the bridge sensor. To scan the positive remote-sense terminal of the nth channel, use the channel string obx ! scy ! mdz ! p_pos(n)

To scan the negative remote-sense terminal of the nth channel, use the channel string obx ! scy ! mdz ! p_neg(n)

Note

To measure the total excitation voltage across the bridge, you must take the difference between p_pos(n)

and p_neg(n)

.

(nth channel bridge excitation voltage) = (reading from p_pos(n)

) – (reading from p_neg(n)

)

Note

If no wires are connected to the remote-sense terminals RS+ and RS–, the voltages measured are the voltages on excitation output terminals P+ and P–. Internal 1 k

Ω resistors connect RS+ to P+ and RS– to P–.

Calibration Ground Channel String

The SCXI-1520 has a special calibration feature that enables LabVIEW to ground the module amplifier inputs so that you can read the amplifier offset. For the other SCXI analog input modules, you must physically wire the terminals to ground. The measured amplifier offset is for the entire signal path including the SCXI module and the E Series DAQ device.

To read the grounded amplifier on the SCXI-1520 use the standard SCXI string syntax in the channels array with calgndz substituted for the channel number, where

z

is the appropriate SCXI channel needing grounding.

For example, use the SCXI channel string ob0 ! sc1 ! md1 ! calgnd0 to read the grounded channel 0 signal of the module in Slot 1 of SCXI chassis 1. The resulting measurement should be very close to 0 V. The AI

Start VI grounds the amplifier before starting the acquisition. The AI Clear

VI removes the grounds from the amplifier after the acquisition completes.

You can specify a range of channels also. The string calgnd0:7 grounds the amplifier inputs for channels 0 through 7 and reads the offset for each amplifier.

Use the SCXI Calibrate VI, available on the Functions»Data Acquisition»

Calibration and Configuration palette, to automatically perform a self

calibration and modify the scaling constants on the module to adjust for any

amplifier offset. Refer to the

Calibrating the Strain System

section of

Chapter 5,

Using the SCXI-1520

, for more information about how to use

SCXI Calibrate VI with the SCXI-1520.

© National Instruments Corporation

B-3

SCXI-1520 User Manual

C

Removing the SCXI-1520

This appendix explains how to remove the SCXI-1520 from MAX and an

SCXI chassis.

Removing the SCXI-1520 from MAX

To remove a module from MAX, complete the following steps after launching MAX:

1.

Expand Devices and Interfaces.

2.

Expand the list of installed chassis by clicking the + next to

NI-DAQmx and/or Traditional NI-DAQ Devices.

3.

Expand the list of installed modules by clicking the + next to the appropriate chassis.

4.

Right-click the module or chassis you want to delete and click Delete.

5.

A confirmation window opens. Click Yes to continue deleting the module or chassis or No to cancel this action.

Note

Deleting the SCXI chassis deletes all modules in the chassis. All configuration information for these modules is also lost.

The SCXI chassis and/or SCXI module(s) should now be removed from the list of installed devices in MAX.

Removing the SCXI-1520 from a Chassis

Consult the documentation for the chassis and accessories for additional instructions and precautions. To remove the SCXI-1520 module from a

chassis, complete the following steps while referring to Figure C-1:

Note

Figure C-1 shows an SCXI chassis, but the same steps are applicable to a PXI/SCXI

combination chassis.

1.

Power off the chassis. Do not remove the SCXI-1520 module from a chassis that is powered on.

© National Instruments Corporation

C-1

SCXI-1520 User Manual

Appendix C Removing the SCXI-1520

2.

If the SCXI-1520 is the module cabled to the E/M Series DAQ device, disconnect the cable.

3.

Remove any terminal block that connects to the SCXI-1520.

4.

Rotate the thumbscrews that secure the SCXI-1520 to the chassis counterclockwise until they are loose, but do not completely remove the thumbscrews.

Remove the SCXI-1520 by pulling steadily on both thumbscrews until the module slides completely out.

7

5

SCXI

M

AIN

FR

AM

E

5

4

3

2

1

6

®

1

SC

XI

11

00

4

2

3

1 Cable

2 SCXI Module Thumbscrews

3 SCXI-1520

4 Strain-Gauge or Wheatstone-Bridge Based Transducer

5 Terminal Block

6 SCXI Chassis Power Switch

7 SCXI Chassis

Figure C-1. Removing the SCXI-1520

SCXI-1520 User Manual

C-2 ni.com

D

Common Questions

This appendix lists common questions related to the use of the SCXI-1520.

Which version of NI-DAQ works with the SCXI-1520, and how do I get the most current version of NI-DAQ?

You must have NI-DAQ 7.0 or later. Visit the NI Web site at ni.com

and select Download Software»Drivers and Updates»Search Drivers and

Updates. Enter the keyword

NI-DAQ

to find the latest version of NI-DAQ for your operating system.

I have gone over the

Verifying and Self-Testing the Installation

section of

Chapter 1,

About the SCXI-1520

, yet I still cannot correctly test and

verify that my SCXI-1520 is working. What should I do now?

Unfortunately, there is always the chance that one or more components in the system are not operating correctly. You may have to call or email a technical support representative. The technical support representative often suggests additional troubleshooting measures. If requesting technical support by phone, have the system nearby so you can try these measures immediately. NI contact information is listed in the Technical Support

Information document.

In NI-DAQmx, can I use channels of different measurement types in the same task?

Yes, you can set up your channels programmatically or through the DAQ

Assistant.

Will MAX allow me to configure two SCXI-1520 modules that are in the same chassis, in multiplexed mode, with two different

E/M Series DAQ devices?

No.

SCXI-1520 User Manual

© National Instruments Corporation

D-1

Appendix D Common Questions

If the SCXI-1520 module is not cabled directly to a E/M Series DAQ device, can I measure conditioned signals for channels 0 through 7 at the rear connector, for example using a scope, DMM, or custom acquisition system?

NI does not support or recommend this usage. In multiplexed mode simultaneous sample and hold would cause glitches in the scope and would likely average glitches in the DMM, giving inaccurate measurements.

Can I use the unused analog input channels of the E/M Series DAQ device if I am directly cabled to the SCXI-1520, for example with the

SCXI-1180 feedthrough?

No. E/M Series DAQ device channels 1 through 7 connect to the conditioned analog outputs of SCXI-1520 channels 1 through 7.

Can I configure the SCXI-1520 for use in parallel mode?

You can configure the SCXI-1520 for parallel mode using NI-DAQmx.

Refer to Chapter 4,

Theory of Operation

, for more information.

You cannot configure the SCXI-1520 for parallel mode using Traditional

NI-DAQ (Legacy).

Which digital lines are unavailable on the E/M Series DAQ device if it is cabled to an SCXI-1520 module?

Table D-1 shows the digital lines that are used by the SCXI-1520 for

communication and scanning. These lines are unavailable for general-purpose digital I/O if the SCXI-1520 is connected to the

E/M Series DAQ device.

E/M Series DAQ

Device Signal

Name

DIO0

DIO4

DIO1

DIO2

SCANCLK

NI-DAQmx SCXI

Signal Name

P0.0

P0.4

P0.1

P0.2

AI HOLD COMP,

AI HOLD

Table D-1. Digital Signals on the SCXI-1520

Traditional

NI-DAQ (Legacy)

SCXI Signal Name

SER DAT IN

SER DAT OUT

DAQ D*/A

SLOT0SEL*

SCAN CLK

50-Pin

Connector

25

26

27

29

36

68-Pin

Connector

52

19

17

49

46

Direction

Output

Input

Output

Output

Output

SCXI-1520 User Manual

D-2 ni.com

Appendix D Common Questions

Table D-1. Digital Signals on the SCXI-1520 (Continued)

E/M Series DAQ

Device Signal

Name

PFI 7/ AI SAMP

CLK

NI-DAQmx SCXI

Signal Name

PFI 7/

AI SAMP CLK,

AI SAMP

Traditional

NI-DAQ (Legacy)

SCXI Signal Name

HOLD TRIG

EXTSTROBE* EXTSTROBE*

With respect to the E/M Series DAQ device.

SER CLK

50-Pin

Connector

46

37

68-Pin

Connector

38

45

Direction

Input

Input

In LabVIEW, can I use different input limits for the same SCXI-1520 channel if I repeat the channel in the SCXI channel string array?

No. The SCXI-1520 cannot dynamically change the gain settings during scanning. Therefore, group channels with similar input ranges together in the channel string array. Make sure that repeated channels in different indices of the channel string array have the same input limits in the corresponding input limits array.

In LabVIEW, can I use a VI to change my SCXI-1520 configuration settings?

Yes. You can use the AI Parameter VI to change all the SCXI-1520 configuration settings. You also can change the configuration settings in

NI-DAQmx using NI-DAQmx Tasks. Refer to Chapter 5,

Using the

SCXI-1520

, for more information.

Some SCXI modules permit flexible scanning. Does the SCXI-1520 module permit flexible scanning?

Yes. Flexible scanning is described in Chapter 3,

Configuring and Testing

, but you cannot use flexible scanning when you are using C and Traditional

NI-DAQ (Legacy). When using C, you can scan only consecutive channels using traditional SCXI channel programming. Refer to the NI-DAQ

Function Reference Help for more details on SCXI scanning.

Are there any cabling restrictions when using an SCXI-1520 module with a plug-in E/M Series DAQ device?

Yes. If a chassis contains an SCXI-1520, SCXI-1530/1531, or SCXI-1140 module, at least one of these modules must be the cabled module. A cabled module is the module connected directly to the E/M Series DAQ device.

This ensures that a timing signal is available for use by all simultaneous-sampling SCXI modules in the chassis.

© National Instruments Corporation

D-3

SCXI-1520 User Manual

Appendix D Common Questions

Can I use the SCXI-1520 with a version of NI-DAQ that works under the Macintosh Operating System (Mac OS)?

No, as of NI-DAQ 6.6.1. Check the release notes of later versions of

NI-DAQ at ni.com

for updates.

Is a register-level programming manual available for the SCXI-1520?

NI does not support register-level programming for the SCXI-1520.

What is the power-on state of the SCXI-1520 multiplexer, analog bus switches, and configuration settings?

The multiplexer, analog bus switches, and configuration settings are not in a known state immediately after power on. All hardware settings are programmed automatically when beginning an acquisition in LabVIEW or a test panel in MAX.

Which accessories can I use to connect signals to the front of the

SCXI-1520 module?

Refer to Chapter 1,

About the SCXI-1520

, for more information.

How do I control the gain, excitation voltage, filter setting, bridge configuration, potentiometer settings, and shunt calibration switches from LabVIEW?

The gain of each SCXI-1520 channel is automatically set based on the channel limits used in setting up the acquisition. You usually use the

LabVIEW AI Config VI to set the channel limits. If the channel limits are not explicitly set, the SCXI-1520 defaults to the gain setting entered when

the module was configured using MAX. Refer to Chapter 3,

Configuring and Testing

, for more information.

Although excitation voltage, filter setting, and bridge configuration are usually set using MAX, you also can control or change these settings programmatically using AI Parameter VI in LabVIEW.

Although you usually use the SCXI Strain Null VI to adjust the electronic potentiometers for offset nulling the analog inputs to zero, you also can manually set or retrieve the potentiometer settings using the

AI Parameter VI.

The shunt calibration switches are exclusively controlled using the

AI Parameter VI.

SCXI-1520 User Manual

D-4 ni.com

Appendix D Common Questions

How do I control the gain, excitation voltage, filter setting, bridge configuration, potentiometer settings, and shunt calibration switches in C-based application environments?

You must use the NI-DAQ functions listed in Table 5-6,

NI-DAQ Functions

Used to Configure SCXI-1520

.

For an SCXI-1520 channel to take a voltage measurement from a sensor that is not in a bridge configuration, are there any special considerations?

You should set the excitation voltage to zero and the bridge configuration to full bridge. This is because the SCXI-1520 input offset correction constants stored in the EEPROM are obtained with the excitation voltage set to zero. With the excitation voltage not at zero, error voltages from the auto-nulling circuits can increase offset error beyond the limits given in the specifications.

What should I take into consideration when I take measurements from sensors with external excitation?

Set the SCXI-1520 internal excitation to the closest value to match the external excitation level. If you want to perform offset null compensation, you must set the excitation level to a value other than zero.

If I am powering my bridge-based transducers with an external voltage source, what voltage setting should I set on the SCXI-1520?

Use the closest corresponding value allowed by the SCXI-1520.

Do the SCXI-1314 or SCXI-1314T terminal blocks contain a CJC temperature sensor?

No.

Are there any user-serviceable parts inside the SCXI-1520?

No. There are no fuses, multiturn potentiometers, DIP switches, slide switches, socketed resistors, or jumpers inside the module. Disassembly of the module for any reason can void its warranty and nullify its calibration.

Can I use remote sense when powering a Wheatstone-bridge based transducer with an external source?

No. Remote sense uses a feedback loop and this feedback loop would be erratic since the SCXI-1520 cannot control the level of the external source.

© National Instruments Corporation

D-5

SCXI-1520 User Manual

Appendix D Common Questions

How do I perform external triggering using the SCXI-1520?

For analog triggering, use your data acquisition device analog triggering functionality through pin PFI 0. Verify that your E/M Series DAQ device supports analog triggering. For more information about analog triggering with the SCXI-1520, refer to the Analog Hardware Triggering using SCXI

KnowledgeBase by going to ni.com/info

and using the info code rdahtu

.

For digital triggering, use your data acquisition device digital triggering functionality through pin PFI 0. All E/M Series DAQ devices support digital triggering. For more information about digital triggering with the

SCXI-1520, refer to the DAQ device help file for more information.

Can I measure TEDS load cells with the SCXI-1520?

You can use the SCXI-1314T terminal block to read TEDS load cells. Refer to ni.com

for more information about TEDS sensors and accessories.

SCXI-1520 User Manual

D-6 ni.com

Glossary

Symbol

p n

µ m k

M

G

T

Prefix

pico nano micro milli kilo mega giga tera

Numbers/Symbols

±

<

>

/

°

ε

ε s

υ

%

+

– percent positive of, or plus negative of, or minus plus or minus less than greater than per degree strain simulated strain

Poisson’s ratio

Value

10 –12

10 –9

10 – 6

10 –3

10

3

10 6

10 9

10 12

© National Instruments Corporation

G-1

SCXI-1520 User Manual

Glossary

+5V (signal)

A

A

A/D absolute accuracy ohms

+5 VDC source signal

Amperes

Analog-to-Digital

The maximum difference between the measured value from a data acquisition device and the true voltage applied to the input, typically specified as ± voltage.

acquisition time

ADC

The time required by a sample-and-hold system to switch from hold mode back to tracking a signal.

Analog-to-Digital Converter—An electronic device, often an integrated circuit, that converts an analog voltage to a digital number.

ADE Application Development Environment, such as LabVIEW,

LabWindows/CVI, Visual Basic, C, and C++.

analog input AI

AI HOLD Scan clock signal used to increment to the next channel after each

E/M Series DAQ device analog-to-digital conversion.

AI HOLD COMP See AI HOLD.

AI SAMP

See HOLD TRIG .

AI SAMP CLK amp amplification

ANSI

See HOLD TRIG .

amplifier

A type of signal conditioning that improves accuracy in the resulting digitized signal by increasing signal amplitude relative to noise.

American National Standards Institute

SCXI-1520 User Manual

G-2 ni.com

Glossary

B

bandwidth bias current bipolar bit bridge completion resistors

Butterworth filter

The range of frequencies present in a signal, or the range of frequencies to which a measuring device can respond.

The small input current flowing into or out of the input terminals of an amplifier.

A voltage range spanning both negative and positive voltages.

one binary digit, either 0 or 1

Fixed-valued resistors used to complete a Wheatstone bridge when fewer than four of the bridge elements are working strain gauges.

A lowpass filter whose characteristics are optimized for maximum flatness in the passband.

C

C

CE

CFR

CH channel chassis

CLK

CMRR

CMV common-mode noise

Celsius

European emissions control standard

Code of Federal Regulations channel

Pin or wire lead to which you apply, or from which you read, an analog or digital signal. Analog signals can be single-ended or differential. For digital signals, channels are grouped to form ports.

The enclosure that houses, powers, and controls SCXI modules.

clock input signal

Common-Mode Rejection Ratio—A measure of the ability of a differential amplifier to reject interference from a common-mode signal, usually expressed in decibels (dB).

See common-mode voltage .

Noise that appears on both inputs of a differential amplifier.

© National Instruments Corporation

G-3

SCXI-1520 User Manual

Glossary

common-mode voltage Voltage that appears on both inputs of a differential amplifier.

compressive strain Strain that results from an object being compressed; has a negative value.

current excitation cutoff frequency

A source that supplies the current needed by a sensor for its proper operation.

The frequency that defines the upper end of the passband of a lowpass filter.

D

D/A

D*/A

D GND

DAC

DAQ

DAQ D*/A

DAQ device dB

DC device

Digital-to-Analog

Data/Address

See DGND

.

D/A converter—An electronic device, often an integrated circuit, that converts a digital number into a corresponding analog voltage or current.

data acquisition—(1) Collecting and measuring electrical signals from sensors, transducers, and test probes or fixtures and processing the measurement data using a computer; (2) Collecting and measuring the same kinds of electrical signals with A/D and/or DIO boards plugged into a computer, and possibly generating control signals with D/A and/or DIO boards in the same computer.

The data acquisition board data/address line signal used to indicate whether the SER DAT IN pulse train transmitted to the SCXI chassis contains data or address information.

A data acquisition device.

decibel—The unit for expressing a logarithmic measure of the ratio of two signal levels: dB = 20log

10

V1/V2, for signals in volts.

Direct Current

A plug-in data acquisition board, module, card, or pad that can contain multiple channels and conversion devices.

SCXI-1520 User Manual

G-4 ni.com

Glossary

DIFF differential amplifier

DIO drivers/driver software droop rate differential input configuration

An amplifier with two input terminals, neither of which are connected to a ground reference, whose voltage difference is amplified.

differential input

DGND

The two-terminal input to a differential amplifier.

digital ground signal

DIG GND See DGND.

DIN Deutsche Industrie Norme (German Industrial Standard)

Digital Input/Output

Software that controls a specific hardware device, such as an E/M Series

DAQ device.

The rate that a sample-and-hold circuit in hold mode deviates from the true hold value, expressed in millivolts per second.

E

EEPROM

EMC

EMI excitation

EXTCLK external trigger

EXTSTROBE*

Electrically Erasable Programmable Read-Only Memory—ROM that can be erased with an electrical signal and reprogrammed. Some SCXI modules contain an EEPROM to store measurement-correction coefficients.

ElectroMagnetic Compliance

ElectroMagnetic Interference

Supplying a voltage or current source to energize an active sensor or circuit.

external clock signal

A voltage pulse from an external source that causes a DAQ operation to begin.

See SER CLK .

© National Instruments Corporation

G-5

SCXI-1520 User Manual

Glossary

F

F

FIFO filtering flexible scanning

FSR full bridge

(1) Fahrenheit—a temperature measurement scale;

(2) farad—a measurement unit of capacitance.

First-In First-Out memory buffer

A type of signal conditioning that allows you to remove unwanted frequency components from the signal you are trying to measure.

The hardware capability to sequence through channels in a scan list in any order.

Full-Scale Range

A Wheatstone bridge in which all four elements are active strain gauges.

G

gain gain accuracy

The factor by which a signal is amplified, sometimes expressed in decibels.

A measure of deviation of the gain of an amplifier from the ideal gain.

gain error See gain accuracy.

Gauge Factor For a given strain gauge, is the fractional resistance change relative to the strain that caused the resistance change. Thus, Gauge Factor is a measure of strain-gauge sensitivity.

GF See Gauge Factor.

H

half bridge hold mode settling time hold step

A Wheatstone bridge consisting of two active strain gauges and two passive fixed-valued resistors.

The time it takes for a sample-and-hold circuit to switch from sampling mode to hold mode and settle within a given percentage at the true hold value.

The difference in the true hold value and the measured hold value in a sample-and-hold circuit.

SCXI-1520 User Manual

G-6 ni.com

Glossary

HOLD TRIG

Hz hold trigger

Hertz—Cycles per second of a periodic signal.

I

I/O Input/Output—The transfer of data to/from a computer system involving communications channels, operator interface devices, and/or data acquisition and control interfaces.

ICD See interchannel delay.

ID identifier in.

indirect scanning input bias current input damage level input impedance inch or inches

The measurement that occurs when a signal passes on the SCXIbus from the scanned SCXI module to the cabled SCXI module.

The current that flows into the inputs of a circuit.

The highest voltage level that you can apply to the module without damaging it.

The measured resistance and capacitance between the input terminals of a circuit.

input offset current The difference between the bias current flowing out of the input terminals

SX+ and SX–; ideally, is zero so that no error voltage is generated across the input due to differences in bias current.

A very accurate differential amplifier with a high input impedance.

instrumentation amplifier interchannel delay interchannel skew intermodule skew

Amount of time that passes between sampling consecutive channels. The interchannel delay must be short enough to allow sampling of all the channels in the channel list, within the scan interval.

The largest difference in hold mode settling time between two sample-and-hold circuits on the same module.

The largest difference in hold mode settling time between two sample-and-hold circuits on different modules.

© National Instruments Corporation

G-7

SCXI-1520 User Manual

Glossary

L

line resistance lowpass filter

M

m

M max microstrain min

MIO

MIO device

MISO

MOSI multiplex

The small, but nonzero, resistance of a lead wire that varies with the lead length and ambient temperature; can cause measurement error if the lead wire carries excitation current.

A filter that passes signals below a cutoff frequency while blocking signals above that frequency.

meters

(1) Mega, The standard metric prefix for 1 million or 10

6

, when used with units of measure such as volts and hertz;

(2) mega, The prefix for 1,048,576, or 2

20

, when used with B to quantify data or computer memory.

maximum

The unit of strain measurement usually denoted by

µε; one µε represents a deformation of 10

–6

, or 0.0001%.

(1) minutes

(2) minimum

Multifunction I/O

Refers to the multifunction I/O E/M Series DAQ devices that have MIO or

60XX in their names.

Master-In-Slave-Out signal

Master-Out-Slave-In signal

To route one of many input signals to a single output.

SCXI-1520 User Manual

G-8 ni.com

Glossary

multiplexed mode mux

An SCXI operating mode in which analog input channels are multiplexed into one module output so that the cabled E/M Series DAQ device has access to the module’s multiplexed output as well as the outputs of all other multiplexed modules in the chassis.

multiplexer—A switching device with multiple inputs that sequentially connects each of its inputs to its single output, typically at high speeds, in order to measure several signals with a single analog-to-digital converter.

N

NC

NI-DAQ noise nonlinearity

Not Connected (signal)

The driver software needed in order to use NI E/M Series DAQ devices and

SCXI components.

An undesirable electrical signal—Noise comes from external sources such as AC power lines, motors, generators, transformers, fluorescent lights, soldering irons, CRT displays, computers, electrical storms, welders, radio transmitters, and internal sources such as semiconductors, resistors, and capacitors. Noise corrupts signals you are trying to measure.

For an amplifier, a measure of the maximum output deviation from an ideal linear response in units of percent relative to full scale. The ideal linear response is taken to be a straight line on a plot of measured output voltage to measured input voltage with the ends of the line connecting the extremes of the plot at the full-scale limits.

O

offset error offset null compensation overvoltage protection

The output of a system with a zero-volt input.

The provision in strain-gauge signal conditioning hardware to remove the unwanted offset voltage present at the output of a strain-gauge bridge when no strain is applied.

Maximum voltage that does not cause hardware damage.

© National Instruments Corporation

G-9

SCXI-1520 User Manual

Glossary

P

parallel mode pp ppm psi

PX–

PX+

PXI passband

PFI

Poisson’s ratio pole port

A type of SCXI operating mode in which the module sends each of its output channels directly to a separate analog input channel of the

E/M Series DAQ device connected to the module.

The range of input frequencies that are passed to the filter output without attenuation.

See HOLD TRIG .

The negative ratio of transverse strain to longitudinal (axial) strain.

A term used to describe the quality of a lowpass filter. In general, the more poles a lowpass filter has, the better it attenuates frequencies beyond the cutoff frequency.

(1) A digital port consisting of multiple I/O lines on a E/M Series DAQ device;

(2) a serial or parallel interface connector on a PC.

peak to peak parts per million pounds per square inch a negative excitation output terminal a positive excitation output terminal

PCI eXtensions for Instrumentation—An open specification that builds on the CompactPCI specification by adding instrumentation-specific features.

Q

QTR quarter bridge quarter-bridge completion resistor

Terminal for connection to a quarter-bridge completion resistor.

A Wheatstone bridge consisting of one active strain gauge and three passive fixed-valued resistors.

The bridge completion resistor in series with the active strain gauge in a quarter-bridge configuration; the quarter-bridge completion resistor must have the same nominal resistance value as the strain gauge.

SCXI-1520 User Manual

G-10 ni.com

S

s

S

R

remote sense

R g

R

L

RMA rms rolloff

R

S

RS–

RS+

RSC

RSVD

RTI

RTO

RTSI

RTSI bus

Glossary

The method of compensating for voltage drops in bridge excitation leads by remotely measuring the voltage applied to the bridge.

gauge resistance line resistance

Return Material Authorization root mean square—The square root of the average value of the square of the instantaneous signal amplitude; a measure of signal amplitude.

The ratio that a system attenuates signals in the stopband with respect to the passband, usually defined in decibels per octave.

shunt-calibration resistance remote-sense terminal, negative input remote-sense terminal, positive input

Rear Signal Connector reserved bit, pin, or signal

Referred To Input—Calculates a specification relative to the input range.

Referred To Output

Real-Time System Integration

Real-Time System Integration bus—The NI timing bus that connects an

E/M Series DAQ device directly, by means of connectors on top of the devices, for precise synchronization of functions.

seconds samples

© National Instruments Corporation

G-11

SCXI-1520 User Manual

Glossary

S/s sample sample and hold sample rate

SCA scan scan interval accuracy scan rate

SCB

SCXI

SCXIbus sensor

SER CLK

SER DAT IN

SER DAT OUT settling time

Samples per second—Used to express the rate at which an E/M Series DAQ device samples an analog signal.

An instantaneous measurement of a signal, normally using an analog-to-digital converter in an E/M Series DAQ device.

A circuit with a sample mode where the output tracks the input and a hold mode where the output remains at the last known input before switching modes.

The number of samples a system takes over a given time period, usually expressed in samples per second.

Shunt Calibration terminal, circuit A

One or more analog samples taken at the same time, or nearly the same time. Typically, the number of input samples in a scan is equal to the number of channels in the input group. For example, one scan acquires one new sample from every analog input channel in the group.

The minimum interchannel delay needed to achieve a given accuracy.

The number of scans a system takes during a given time period, usually expressed in scans per second.

Shunt Calibration terminal, circuit B

Signal Conditioning eXtensions for Instrumentation

Located in the rear of an SCXI chassis, the SCXIbus is the backplane that connects modules in the same chassis to each other.

A device that converts a physical phenomenon into an electrical signal.

Serial clock signal used to synchronize digital data transfers over the

SER DAT IN and SER DAT OUT lines.

serial data input signal serial data output signal

The amount of time required for a voltage to reach its final value within specified accuracy limits.

SCXI-1520 User Manual

G-12 ni.com

Glossary

shunt calibration signal conditioning simulated strain simultaneous sample and hold

Slot 0

SLOT0SEL

SPICLK spot noise

STC strain gauge strain

SX

SX+

SYNC system noise

The method of calibrating the gain of a strain-gauge data acquisition channel by placing a resistor of known value in parallel with a bridge element.

The manipulation of signals to prepare them for digitizing.

A strain measurement where the change in bridge output voltage is not caused by deformation of the specimen being measured; rather, it is caused by temporarily connecting a known resistance in parallel with one of the bridge elements while all the strain gauges in the bridge remain unstrained.

A series of sample-and-hold circuits that are connected in a matter so as to switch modes in unison.

Refers to the power supply and control circuitry in the SCXI chassis.

Slot 0 select signal serial peripheral interface clock signal

The rms noise voltage or rms noise current in a frequency band 1 Hz wide at the specified frequency.

self-temperature compensating strain gauge—Has a resistive temperature coefficient that counteracts the thermal expansion coefficient of the material to which the gauge is bonded; thus, makes the system insensitive to changes in temperature.

The fractional deformation of a body under an applied force; is usually given in the units of microstrain, where one microstrain represents a deformation of 10

–6

, or 0.0001%.

negative signal input terminal for channel X positive signal input terminal for channel X

Synchronization pulse for scanning (only used with modules featuring simultaneous sample and hold).

A measure of the amount of noise seen by an analog circuit or an ADC when the analog inputs are grounded.

© National Instruments Corporation

G-13

SCXI-1520 User Manual

Glossary

U

UL unipolar

V

V

VDC

VI

T

TEDS tensile strain track-and-hold

TRIG0

TTL typ

Transducer Electronic Data Sheets

Strain that results from an object being stretched; has a positive value.

See simultaneous sample and hold

.

trigger 0

Transistor-Transistor Logic typical

Underwriters Laboratory

A voltage range that only spans positive voltages.

virtual channels voltage excitation

V r

V rms volts volts, direct current

Virtual Instrument—(1) A combination of hardware and/or software elements, typically used with a PC, that has the functionality of a classic stand-alone instrument;

(2) A LabVIEW software module (VI), which consists of a front panel user interface and a block diagram program.

Channel names that can be defined outside the application and used without having to perform scaling operations.

A source that supplies the voltage needed by a sensor for its proper operation.

V

CH

V

EX

STRAINED

V

----------

V

EX

UNSTRAINED volts, root mean square

SCXI-1520 User Manual

G-14 ni.com

Glossary

W

W

Wheatstone bridge working voltage watts

A circuit arrangement consisting of four resistive elements in a diamond pattern; with excitation voltage applied across two opposing terminals, small resistance changes in the elements are easily detected by measuring voltage changes across the remaining two terminals.

The highest voltage with respect to ground that should be applied to an input terminal during normal use, normally well under the breakdown voltage for safety margin. Includes both the signal and common-mode voltages.

© National Instruments Corporation

G-15

SCXI-1520 User Manual

Index

A

amplifier specifications, A-4

analog input, specifications, A-1

analog triggering, D-6

B

block diagram, 4-20

bridge completion specifications, A-6

bridge configuration

full-bridge configuration I, 2-6, 4-13

full-bridge configuration II, 2-7, 4-15

full-bridge configuration III, 2-8, 4-17

half-bridge configuration I, 2-4, 4-9

half-bridge configuration II, 2-5, 4-11

overview, 3-1, 4-22

quarter-bridge configuration I, 2-1, 4-4

quarter-bridge configuration II, 2-2, 4-6

questions about, D-4

C

calibration internal calibration

overview, 5-36 procedure for, 5-36

using C-based ADE, 5-37 using LabVIEW, 5-37

shunt calibration

questions about, D-4

specifications, A-6

theory of operation, 4-28

C-based environment

configuration questions, D-5

internal calibration of SCXI-1520, 5-37

common questions, D-1

configuration

troubleshooting self-test verification, 1-7

configuration settings

excitation level, 3-2

filter bandwidth, 3-2, 4-26

gain, 3-3, 4-25

null potentiometers, 3-4

connecting SCXI-1520 to DAQ device. See

DAQ devices

conventions used in the manual, iv

D

DAQ devices

cabling restrictions with plug-in E/M Series

DAQ devices, D-3

connecting to SCXI-1520 for multiplexed scanning

in PXI combination chassis, 1-6

in SCXI chassis, 1-5

unavailable digital lines, D-2 digital settings, unavailable with DAQ device connected (table), D-2

digital triggering, D-6

documentation

conventions used in the manual, iv

dynamic specifications, A-4

E

electromagnetic compatibility specifications, A-8

environmental specifications, A-7

excitation

maximum allowable voltages (table), 3-2

questions about, D-4

setting excitation voltage level, 3-2

© National Instruments Corporation

I-1

SCXI-1520 User Manual

Index

specifications, A-5

theory of operation, 4-23

external triggering, D-6

F

filters

bandwidth configuration, 3-2, 4-26

questions about, D-4

specifications, A-4

front connector, pin assignments (table), 2-11

full-bridge configuration I, 2-6, 4-13

full-bridge configuration II, 2-7, 4-15

full-bridge configuration III, 2-8, 4-17

G

gain

configuration, 3-3, 4-25

questions about, D-4

H

half-bridge configuration I, 2-4, 4-9

half-bridge configuration II, 2-5, 4-11

I

installation connecting to DAQ device for multiplexed scanning

in PXI combination chassis, 1-6

in SCXI chassis, 1-5 into SCXI chassis, 1-5

removing SCXI-1520

from Measurement & Automation

Explorer, C-1 from SCXI chassis, C-1

internal calibration. See calibration

L

LabVIEW software

internal calibration of SCXI-1520, 5-37

questions about, D-3

M

Macintosh operating system, D-4

maximum working voltage specifications, A-7

Measurement & Automation Explorer

removing SCXI-1520, C-1

self-test verification

troubleshooting, 1-7

measurements

calibrating SCXI-1520, 5-36

pin assignments, terminal assignments, 2-10

strain gauge connections

full-bridge configuration I, 2-6, 4-13

full-bridge configuration II, 2-7, 4-15

full-bridge configuration III, 2-8,

4-17

half-bridge configuration I, 2-4, 4-9

half-bridge configuration II, 2-5,

4-11

quarter-bridge configuration I, 2-6,

4-13

quarter-bridge configuration II, 2-7,

4-15

remote sense, 2-9

multiplexed mode operation connecting to SCXI-1520 for DAQ device

in PXI combination, 1-6

in SCXI chassis, 1-5

questions about, D-3

SCXI-1520 User Manual

I-2 ni.com

N

NI-DAQ software, D-1, D-4

null compensation

specifications, A-5

theory of operation, 4-26

null potentiometers

coarse and fine control codes (table), 4-27

configuring, 3-4

questions about, D-4

O

operation of SCXI-1520. See theory of

operation

P

physical specifications, A-7

pin assignments

front connector (table), 2-11

terminal assignments, 2-10

potentiometers. See null potentiometers

power requirements (from SCXI backplane), A-6

power-up state of SCXI-1520, D-4

PXI combination chassis, 1-6

Q

quarter-bridge configuration I, 2-1, 4-4

quarter-bridge configuration II, 2-2, 4-6

questions and answers, D-1

R

random scanning, D-3

regulatory compliance specifications, A-8

remote sense, 2-9

Index

removing SCXI-1520

from Measurement & Automation

Explorer, C-1 from SCXI chassis, C-1

S

safety specifications, A-8

SCXI chassis

connecting SCXI-1520 to DAQ device, 1-5

removing SCXI-1520, C-1

SCXI-1200, D-2

SCXI-1310 connector and shell assembly, 1-3

SCXI-1314 terminal block, 1-3, D-5

SCXI-1314T terminal block, 1-3, D-6

SCXI-1520

block diagram, 4-20

calibration, 5-36

common questions, D-1

configuration settings, 3-1

digital signals (table), D-2

specifications, A-1

taking measurements. See measurements

theory of operation

excitation, 4-23

null compensation, 4-26

shunt calibration, 4-28

SCXI-1600, D-2

self-test verification

troubleshooting, 1-7, D-1

shunt calibration

questions about, D-4

specifications, A-6

theory of operation, 4-28

signal connections

digital signals (table), D-2

front connector, pin assignments

(table), 2-11

software, NI-DAQ version required, D-1

© National Instruments Corporation

I-3

SCXI-1520 User Manual

Index

specifications

amplifier, A-4

analog input, A-1

bridge completion, A-6

dynamic, A-4

electromagnetic compatibility, A-8

environmental, A-7

excitation, A-5

filter, A-4

maximum working voltage, A-7

null compensation, A-5

physical, A-7

power requirements (from SCXI backplane), A-6

regulatory compliance, A-8 safety, A-8

shunt calibration, A-6

stability, A-5

track-and-hold, A-4

transfer, A-1

stability specifications, A-5

strain gauge connections

full-bridge configuration I, 2-6, 4-13

full-bridge configuration II, 2-7, 4-15

full-bridge configuration III, 2-8, 4-17

half-bridge configuration I, 2-4, 4-9

half-bridge configuration II, 2-5, 4-11

quarter-bridge configuration I, 2-1, 4-4

quarter-bridge configuration II, 2-2, 4-6

questions about, D-5

remote sense, 2-9

T

taking measurements. See measurements

TBX-96 terminal block, 1-3

TEDS, D-6

theory of operation

block diagram, 4-20

excitation, 4-23

null compensation, 4-26

shunt calibration, 4-28

track-and-hold specifications, A-4

transfer specifications, A-1

triggering

analog, D-6 digital, D-6 external, D-6

troubleshooting

incorrect test and verification, D-1 questions and answers, D-1

self-test verification, 1-7

V

verifying and self-testing the configuration

troubleshooting, 1-7, D-1

SCXI-1520 User Manual

I-4 ni.com
