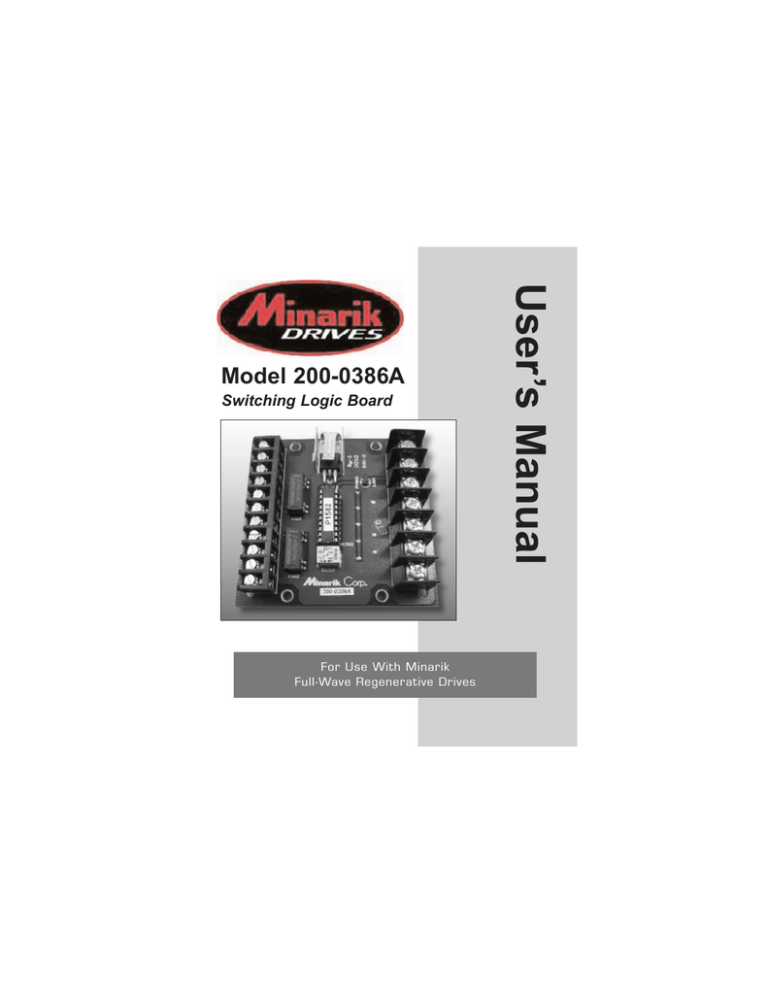

Model 200-0386A
Switching Logic Board
For Use With Minarik
Full-Wave Regenerative Drives
Copyright © 2002 by
Minarik Corporation
All rights reserved. No part of this manual may be reproduced or transmitted in any form without written permission from Minarik Corporation. The information and technical data in this manual are subject to change without notice. Minarik
Corporation and its Divisions make no warranty of any kind with respect to this material, including, but not limited to, the implied warranties of its merchantability and fitness for a given purpose. Minarik Corporation and its Divisions assume no responsibility for any errors that may appear in this manual and make no commitment to update or keep current the information in this manual.
KC030204
Printed in the United States of America.
Safety Warnings
• Have a qualified electrical maintenance technician install, adjust, and service this equipment. Follow the National
Electrical Code and all other applicable electrical and safety codes, including the provisions of the Occupational
Safety and Health Act (OSHA) when installing equipment.
• Reduce the chance of an electrical fire, shock, or explosion by proper grounding, over current protection, thermal protection, and enclosure. Follow sound maintenance procedures.
• It is possible for a drive to run at full speed as a result of a component failure. Install a master switch in the AC line for stopping the drive in an emergency.
• When the switching logic board is connected to a variable speed regenerative drive it is isolated from earth ground.
Circuit potentials are at 115 VAC or 230 VAC above earth ground. Avoid direct contact with the printed circuit board or with circuit elements to prevent the risk of serious injury or fatality. Use a non-metallic screwdriver for any necessary adjustments.
i
ii
Contents
Safety Warnings
Specifications 1
Dimensions 2 i
General Information
Installation
Mounting the Logic Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Screw terminal block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Speed adjust potentiometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shielding Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Modes of Operation 10
Pushbutton switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Limit switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
DIP switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Pushbutton operation: FORWARD/STOP/REVERSE . . . . . . . . . . . . . . . .12
Pushbutton operation: RUN/STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Pushbutton operation: jog FORWARD/jog REVERSE . . . . . . . . . . . . . . .14
Pushbutton operation: jog RUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Limit switch operation: no automatic reversing . . . . . . . . . . . . . . . . . . . . .16
Limit switch operation: FORWARD/STOP/REVERSE, 1 Cycle . . . . . . . . .17
Limit switch operation: automatic cycling . . . . . . . . . . . . . . . . . . . . . . . . .18
Foot pedal operation: FORWARD/STOP/REVERSE . . . . . . . . . . . . . . . .20
Foot pedal operation: RUN/STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3
4
Connection to Minarik Regenerative Drives
Unconditional Warranty
22 inside back cover
Illustrations
Figure 1. Model 200-0386A Switching Logic Board Layout and Dimensions
Figure 2. Screw Terminal Block
Figure 3. Speed Adjust Potentiometer
Figure 4. Single Speed Potentiometer Connections
Figure 5. Two Speed Potentiometer Connection
Figure 6. Pushbutton Operation: FWD/STOP/REV
Figure 7. Pushbutton Operation: RUN/STOP
Figure 8. Pushbutton Operation: jog Forward/jog Reverse
Figure 9. Pushbutton Operation: jog RUN
Figure 10. Limit switch operation: no automatic reversing
Figure 11. Limit Switch Operation: FWD/STOP/REV, 1 cycle
Figure 12. Limit Switch Operation: automatic cycling
Figure 13. Foot pedal operation: FORWARD/STOP/REVERSE
Figure 14 Foot pedal operation: RUN/STOP
Figure 15. Connection diagram: Switching Logic Board (200-0386A) to
RG100UC/RG200UC
Figure 16. Connection diagram: Switching Logic Board (200-0386A) to
RG300UA/RG310UA/RG400UA
Figure 17. Connection diagram: Switching Logic Board (200-0386A) to
RG500UA/RG510UA
22
23
15
16
17
19
20
21
8
12
13
14
6
7
2
5
24 iii
iv
Illustrations (cont.)
Figure 18. Connection diagram: Switching Logic Board (200-0386A) to RG5500U
Figure 19. Connection diagram: Switching Logic Board (200-0386A) to MRG30U/MMRG31U/MMRG40U
Figure 20. Connection diagram: Switching Logic Board (200-0386A) to MMRGD03/MMRGD10
Figure 21. Connection diagram: Switching Logic Board (200-0386A) to RG60U
Figure 22. TTL Logic Input
Figure 23. NPN Open Collector Input
Figure 24. Contact Input
27
28
29
30
31
25
26
Specifications
Input Power
Acceptable Input Devices
Number of Switching Modes
Speed adjust potentiometer
Maximum Reference Voltage to Drive
Ambient Operating Temperature Range
Weight
+15 VDC @ 20 mA
-15 VDC @ 1.5 mA
Dry Contacts
Current-Sinking Open Collectors
TTL Logic Devices
Four (4)
10 K Ohms
±15 VDC
10°C - 40°C
0.2 lbs
1
Note: This switching logic board is specifically designed to operate with Minarik control models RG100UC, RG200UC, RG300U, RG400U, RG500U,
RG5500U, and RG60U. Consult factory before attempting to use with other models.
2
Dimensions
Figure 1. Model 200-0386A Switching Logic Board Layout and Dimensions
General Information
Caution
Regenerative braking imposes very high stress on the rotating components of the drive train. It is very important that these deceleration forces be considered before selecting a drive system that applies regenerative braking to a gearmotor or other gearbox.
3
Minarik Corporation’s model 200-0386A provides the logic interface between the regenerative drive and pushbutton stations, foot switches, or programmable controls. It accepts dry contact mechanical closures, current-sinking open collectors, and TTL logic devices.
The limit switch logic board has four operating modes, which can be configured nine different ways. Select the one that fits your application and follow the wiring and DIP switch instructions for that configuration.
The speed adjust potentiometer (10K ohms, 2 watts) is wired through the logic board (200-0386A) module, rather than directly to the regenerative drive. Use either one potentiometer for both forward and reverse speeds (Figure 4, page 7) or if different speeds are required in each direction – one potentiometer for forward and one potentiometer for reverse speed settings (Figure 5, page 8).
4
Installation
Mounting the Logic Board
Logic board components are sensitive to electrostatic fields.
Avoid contact with the circuit board directly.
Protect the logic board from dirt, moisture, and accidental contact. Provide sufficient room for access to the terminal block.
Mount the logic board away from other heat sources. Operate within the specified ambient operating temperature range.
The operating temperature range for the 200-0386A is 10°C through 40° C.
Prevent loose connections by avoiding excessive vibration of the logic board.
Mount the logic board in either a horizontal or vertical plane using the four 0.19 inch [5 mm] mounting holes located on the board.
Installation
Wiring
Screw terminal block
Connections to Minarik’s 200-0386A logic board are made to a screw terminal block. There are two screw terminal blocks on the board. The large one is shown in Figure 2. The smaller screw terminal block has a similar connection style to the one shown.
Using a screwdriver, turn the terminal block screw counterclockwise to open the wire clamp. Insert stripped wire into the wire clamp. Turn the terminal block screw clockwise to clamp the wire.
5
Figure 2. Screw Terminal Block
6 Installation
Speed adjust potentiometer
Warning
Be sure that the potentiometer tabs do not make contact with the potentiometer enclosure. Grounding the input will cause damage to the regenerative drive.
Install the circular insulating disk between the panel and the
10K ohm speed adjust pot. Mount the speed adjust pot through a 0.38 inch (10mm) hole with the hardware provided
(Figure 3). Twist the speed adjust pot wire to avoid picking up unwanted electrical noise. If potentiometer leads are longer than 18 inch (457mm), use shielded cable. Logic lines of this length act as an antenna and can pick up noise from the drive components, noise from other devices or other ground wires, or voltage from power lines that can cause erratic operation. The 200-0386A does not include this pot.
Installation
It may be necessary to earth ground the shielded cable. If noise is produced by devices other that the drive, ground the shield at the drive end. If noise is generated by a device on the drive, ground the shield at the end away from the drive.
Do not ground both ends of the shield.
The following diagrams show the potentiometer connections to terminal block 2 (TB2).
Use Figure 4 when a single speed is desired in both the forward and reverse directions.
Use Figure 5 when one speed is desired in the forward direction, and a different speed is desired in the reverse direction.
7
Figure 3. Speed Adjust Potentiometer
Figure 4. Single Speed Potentiometer Connections
8 Installation
Figure 5. Two Speed Potentiometer Connection
Installation
Shielding Guidelines
Warning
Under no circumstances should power and logic leads be bundled together. Induced voltage can cause unpredicatble behavior in any electronic device, including motor controls.
9
As a general rule, Minarik recommends shielding of all conductors.
If it is not practical to shield power conductors, Minarik recommends shielding all logic-level leads. If shielding logic leads is not practical, the user should twist all logic leads with themselves to minimize induced noise.
It may be necessary to earth ground the shielded cable. If noise is produced by devices other than the drive, ground the shielf at the drive end. If noise is generated by a device on the drive, ground the sheild at the end away from the drive.
Do not ground both ends of the shield.
If the drive continues to pick up noise after grounding the shield, it may be necessary to add AC line filtering devices, or to mount the drive in a less noisy environment.
10
Modes of Operation
The limit switch logic board has four (4) different modes of operation which can be configured into nine (9) difference connections. They are as follows:
1) FORWARD/STOP/REVERSE
• Pushbutton Operation
• Limit Switch Operation
• Foot Pedal Operation
2) RUN/STOP
• Pushbutton Operation
• Foot Pedal Operation
• Limit Switch Operation (no automatic reversing)
3) jog FORWARD/jog REVERSE
• Pushbutton Operation
4) jog RUN
• Pushbutton Operation
• Limit Switch Operation
Modes of Operation 11
Pushbutton switches
Pushbutton switches are momentary operated type. RUN,
FWD, and REV switches are normally open. STOP switches are normally closed.
Limit switches
Limit switches are single pole, single throw, normally closed.
Foot pedals
Foot pedals are single pole, single throw, normally open.
DIP switches
Use a small screwdriver to change DIP switch settings. The arrow on the dip switch box indicates the ON position.
12 Modes of Operation
Pushbutton operation: FORWARD/STOP/REVERSE
In this mode the appropriate pushbutton initiates travel. The motor is reversed by pressing the opposite direction pushbutton. The stop pushbutton will regeneratively brake the motor.
Modes of Operation 13
Pushbutton operation: RUN/STOP
In this mode the RUN pushbutton is actuated to start the motor. The motor will continue to run until the STOP pushbutton is depressed. This mode does not allow reversing. If the motor runs in the wrong direction, shut down the system and reverse the armature connections to the regenerative drive.
Figure 6. Pushbutton Operation: FWD/STOP/REV Figure 7. Pushbutton Operation: RUN/STOP
14 Modes of Operation
Pushbutton operation: jog FORWARD/jog REVERSE
In this mode the motor turns only when the forward or reverse pushbutton is being depressed. To reverse the motor, first release the activated pushbutton to regeneratively brake the motor. Then push the opposite direction pushbutton.
Modes of Operation 15
Pushbutton operation: jog RUN
In this mode the motor turns only as long as the RUN pushbutton is depressed. When the pushbutton is released the drive will regeneratively brake the motor. If the motor runs in the wrong direction, shut down the system and reverse the armature connections to the regenerative drive.
Figure 8. Pushbutton Operation: jog Forward/jog Reverse
Figure 9. Pushbutton Operation: jog RUN
16 Modes of Operation
Limit switch operation: no automatic reversing
In this mode activating the appropriate pushbutton will initiate travel. The motor will regeneratively brake when the corresponding limit switch is actuated (opened) or when the
STOP pushbutton is depressed. If travel is interrupted by
STOP before the limit switch is reached, it can be resumed by pressing the appropriate direction pushbutton.
Modes of Operation
Limit switch operation: FORWARD/STOP/REVERSE,
1 Cycle
17
In this single-cycle mode the motor automatically returns to the REV limit switch location. It normally begins at that site with the actuation of the FWD pushbutton. If the starting position is not at the FWD limit switch, press FWD to complete the balance of the automatic FWD/STOP/REV cycle or press REV to complete the REV portion of the cycle.
Figure 10. Limit switch operation: no automatic reversing
Figure 11. Limit Switch Operation: FWD/STOP/REV, 1 cycle
18 Modes of Operation
Limit switch operation: automatic cycling
In this mode the motor will continuously cycle the load between the FWD and REV limit switches. To stop the cycling process, press the STOP pushbutton. Re-starting the cycle is dependent upon the position of the machine when stopped:
• If stopping occurs with the FWD limit switch activated, the
REV pushbutton must be pressed to re-start.
• If stopping occurs with the REV limit switch activated, the
FWD pushbutton must be pressed to re-start the cycle.
• If stopping occurs between the FWD and REV limit switches, either pushbutton may be pressed to re-start the cycle.
Modes of Operation 19
Figure 12. Limit Switch Operation: automatic cycling
20 Modes of Operation
Foot pedal operation: FORWARD/STOP/REVERSE
In this mode the motor runs as long as a pedal is depressed.
When the pedal is released the drive will regeneratively brake the motor. When reversing the direction of travel it is necessary to release one pedal before depressing the other.
Modes of Operation 21
Foot pedal operation: RUN/STOP
In this mode the motor runs as long as the pedal is depressed. Release the pedal and the drive will regeneratively brake the motor. If the motor runs in the wrong direction, shut down the system and reverse the armature connections to the regenerative drive.
Figure 13. Foot pedal operation:
FORWARD/STOP/REVERSE
Figure 14 Foot pedal operation: RUN/STOP
22
Connection to Minarik
Regenerative Drives
Connection to Minarik Regenerative Drives 23
200-0386A
RG100UC/RG200UC
Figure 15. Connection diagram: Switching Logic Board
(200-0386A) to RG100UC/RG200UC
200-0386A
RG300UA/RG310UA/
RG400UA
Figure 16. Connection diagram: Switching Logic Board
(200-0386A) to RG300UA/RG310UA/RG400UA
24
200-0386A
Connection to Minarik Regenerative Drives
RG500UA/RG510UA
Connection to Minarik Regenerative Drives 25
200-0386A
RG5500U
Figure 17. Connection diagram: Switching Logic Board
(200-0386A) to RG500UA/RG510UA Figure 18. Connection diagram: Switching Logic Board
(200-0386A) to RG5500U
26 Connections to Minarik Regenerative Drives
MMRG30U/MMRG31U/
MMRG40U
200-0386A
200-0386A
Connections to Minarik Regenerative Drives 27
MMRGD03/MMRGD10
Figure 19. Connection diagram: Switching Logic Board
(200-0386A) to MRG30U/MMRG31U/MMRG40U
Figure 20. Connection diagram: Switching Logic Board
(200-0386A) to MMRGD03/MMRGD10
28 Connections to Minarik Regenerative Drives Connections to Minarik Regenerative Drives 29
200-0386A RG60U
Figure 21. Connection diagram: Switching Logic Board
(200-0386A) to RG60U
30 Connections to Minarik Regenerative Drives
BASE CURRENT
LIMITING RESISTORS
FWD PB
N.O.
+BASE VOLTAGE
REV PB
N.O.
+BASE VOLTAGE
+BASE VOLTAGE
STOP PB
N.C.
COMMON
R
R
R
FWD LS
N.C.
REV LS
N.C.
TB502
TB501
1
5
6
2
3
4
7
200-0386A
SWITCHING
LOGIC BOARD
TB502
9
8
11
10
14
13
12
CW
JUMPERS
15
14
13
18
17
16
12
11
10
9
8
(RB1/COM)
(+15)
(S2)
(-15)
JUMPER
REV
CW
FWD
SINGLE SPEED
FOR FWD & REV
CONNECTIONS SHOWN
CW
INDEPENDENT
FWD & REV SPEED
CONNECTIONS SHOWN
CAUTION!
NPN TRANSISTOR SUPPLY VOLTAGE
MUST BE ISOLATED FROM THE AC LINE.
Figure 23. NPN Open Collector Input
Connections to Minarik Regenerative Drives 31
Figure 24. Contact Input
32
NOTES
Unconditional Warranty
A. Warranty
Minarik Corporation (referred to as "the Corporation") warrants that its products will be free from defects in workmanship and material for twelve (12) months or 3,000 hours, whichever comes first, from date of manufacture thereof. Within this warranty period, the Corporation will repair or replace, at its sole discretion, such products that are returned to Minarik Drives, 14300 De La Tour Drive, South Beloit, IL 61080,
USA.
This warranty applies only to standard catalog products, and does not apply to specials. Any returns for special controls will be evaluated on a case-by-case basis.
The Corporation is not responsible for removal, installation, or any other incidental expenses incurred in shipping the product to and from the repair point.
B. Disclaimer
The provisions of Paragraph A are the Corporation's sole obligation and exclude all other warranties of merchantability for use, express or implied. The Corporation further disclaims any responsibility whatsoever to the customer or to any other person for injury to the person or damage or loss of property of value caused by any product that has been subject to misuse, negligence, or accident, or misapplied or modified by unauthorized persons or improperly installed.
C. Limitations of Liability
In the event of any claim for breach of any of the Corporation's obligations, whether express or implied, and particularly of any other claim or breech of warranty contained in Paragraph A, or of any other warranties, express or implied, or claim of liability that might, despite Paragraph B, be decided against the Corporation by lawful authority, the Corporation shall under no circumstances be liable for any consequential damages, losses, or expense arising in connection with the use of, or inability to use, the Corporation's product for any purpose whatsoever.
An adjustment made under warranty does not void the warranty, nor does it imply an extension of the original 12-month warranty period. Products serviced and/or parts replaced on a no-charge basis during the warranty period carry the unexpired portion of the original warranty only.
If for any reason any of the foregoing provisions shall be ineffective, the
Corporation's liability for damages arising out of its manufacture or sale of equipment, or use thereof, whether such liability is based on warranty, contract, negligence, strict liability in tort, or otherwise, shall not in any event exceed the full purchase price of such equipment.
Any action against the Corporation based upon any liability or obligation arising hereunder or under any law applicable to the sale of equipment or the use thereof, must be commenced within one year after the cause of such action arises.
MINARIK DRIVES
14300 De La Tour Drive
South Beloit, IL 61080
Phone: (800) MINARIK or (815) 624-5959
Fax: (815) 624-6960 www.minarikdrives.com
Document number 250–0222, Revision 3
Printed in the U.S.A – 03/04
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 2 Mounting the Logic Board
- 3 Wiring
- 3 Screw terminal block
- 4 Speed adjust potentiometer
- 7 Shielding Guidelines
- 9 Pushbutton switches
- 9 Limit switches
- 9 Foot pedals
- 9 DIP switches
- 10 Pushbutton operation: FORWARD/STOP/REVERSE
- 11 Pushbutton operation: RUN/STOP
- 12 Pushbutton operation: jog FORWARD/jog REVERSE
- 13 Pushbutton operation: jog RUN
- 14 Limit switch operation: no automatic reversing
- 15 Limit switch operation: FORWARD/STOP/REVERSE, 1 Cycle
- 16 Limit switch operation: automatic cycling
- 18 Foot pedal operation: FORWARD/STOP/REVERSE
- 19 Foot pedal operation: RUN/STOP
