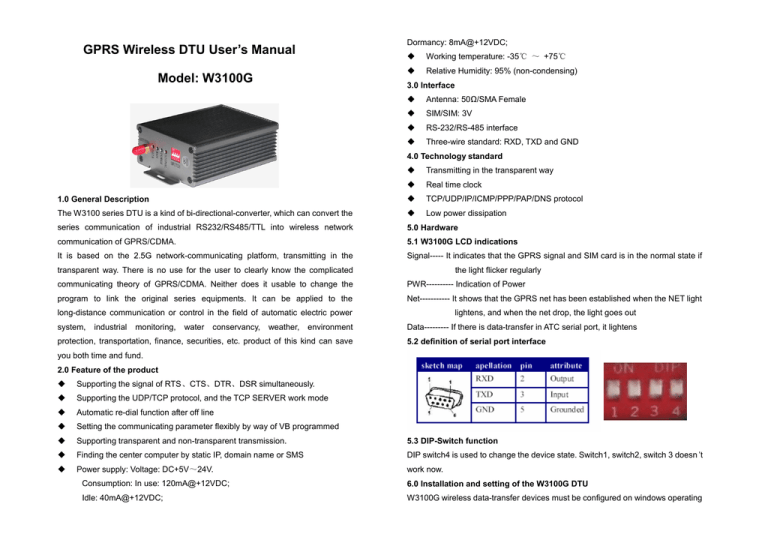

GPRS Wireless DTU User`s Manual Model: W3100G

GPRS Wireless DTU User`s Manual Model: W3100G
Dormancy: [email protected]+12VDC;
GPRS Wireless DTU User’s Manual
Model: W3100G
u
Working temperature: -35℃ ~ +75℃
u
Relative Humidity: 95% (non-condensing)
3.0 Interface
u
Antenna: 50Ω/SMA Female
u
SIM/SIM: 3V
u
RS-232/RS-485 interface
u
Three-wire standard: RXD, TXD and GND
4.0 Technology standard
u
Transmitting in the transparent way
u
Real time clock
1.0 General Description
u
TCP/UDP/IP/ICMP/PPP/PAP/DNS protocol
The W3100 series DTU is a kind of bi-directional-converter, which can convert the
u
Low power dissipation
series communication of industrial RS232/RS485/TTL into wireless network
5.0 Hardware
communication of GPRS/CDMA.
5.1 W3100G LCD indications
It is based on the 2.5G network-communicating platform, transmitting in the
Signal----- It indicates that the GPRS signal and SIM card is in the normal state if
transparent way. There is no use for the user to clearly know the complicated
the light flicker regularly
communicating theory of GPRS/CDMA. Neither does it usable to change the
PWR---------- Indication of Power
program to link the original series equipments. It can be applied to the
Net----------- It shows that the GPRS net has been established when the NET light
long-distance communication or control in the field of automatic electric power
system,
industrial
monitoring,
water
conservancy,
weather,
environment
protection, transportation, finance, securities, etc. product of this kind can save
lightens, and when the net drop, the light goes out
Data--------- If there is data-transfer in ATC serial port, it lightens
5.2 definition of serial port interface
you both time and fund.
2.0 Feature of the product
u
Supporting the signal of RTS、CTS、DTR、DSR simultaneously.
u
Supporting the UDP/TCP protocol, and the TCP SERVER work mode
u
Automatic re-dial function after off line
u
Setting the communicating parameter flexibly by way of VB programmed
u
Supporting transparent and non-transparent transmission.
5.3 DIP-Switch function
u
Finding the center computer by static IP, domain name or SMS
DIP switch4 is used to change the device state. Switch1, switch2, switch 3 doesn ’t
u
Power supply: Voltage: DC+5V~24V.
work now.
Consumption: In use: [email protected]+12VDC;
6.0 Installation and setting of the W3100G DTU
Idle: [email protected]+12VDC;
W3100G wireless data-transfer devices must be configured on windows operating
system
6.1 installations
6.11SIM card
Press the yellow button, then put the SIM card in the pedestal.
6.12 Connecting the antenna with the DTU.
6.13 Use the RS232 cross -Through cable to connect the serial port of the DUT
with the serial port of the computer, in order to configuring the W3100G.
6.2 setting
Figure6-3
Before starting to configure the DTU, please put all the switches down
Connecting to the pc with communication wire, which our company provides.
ID: defined by user (it can still be RTU’s number)
Setting as follow:
Dialer number, User name, Password is default the communication company will
1.
provide.
Open the software DTU V2.5 SETUP set it up. As figure 6-1:
Buffer: setting by user (256,512,1024…);
Time (ms): defined by user
Work Module: user can choose UDP, TCP CLIENT, and TCP SEVER.
If user will choose IP communication, user can apply for a static IP address, fill in
the Remote IP1; and user computer must be opened a port which can be defined
by user in LAN for W3100, fill in the Remote port1. If you want to send the data to
another sever, you can choose Remote IP2 and Remote port2.
Figure 6-1
2.
If users don’t have static IP, you can use dynamic IP to test the W3100.
Choose the SET menu as figure 6-2
User can still choose DNS communication. But user must apply for a domain
name from provider; it can be free domain name. After applying, check the Allow
DNS, and fill in the relevant option.
Other options are default.
4,Save the configuration, and then put the Switch 4 on.
7.0 Typical application
Figure 6-2
Search device: choose the right COM port number same as your pc COM.and
other parameters just same as your devices.
3.
Choose the READ menu as figure 6-3
