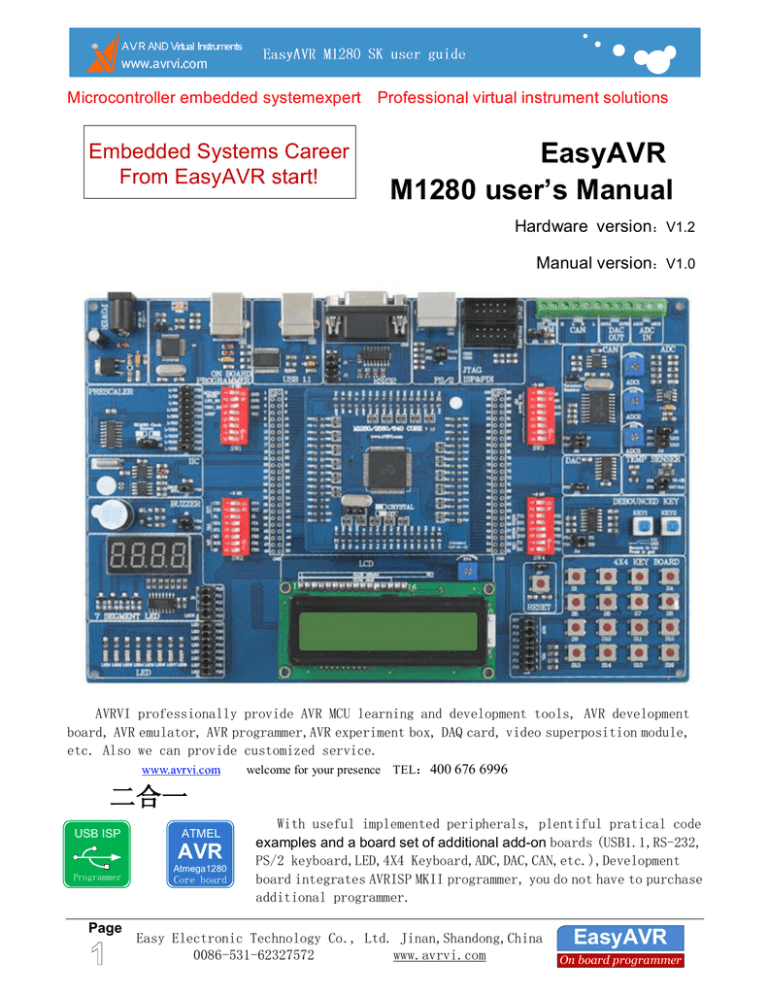

EN EasyAVR M1280 SK说明书

Microcontroller embedded systemexpert Professional virtual instrument solutions

Embedded Systems Career

From EasyAVR start!

EasyAVR

M1280 user

’s Manual

Hardware version :V1.2

Manual version :V1.0

AVRVI professionally provide AVR MCU learning and development tools, AVR development board, AVR emulator, AVR programmer,AVR experiment box, DAQ card, video superposition module, etc. Also we can provide customized service.

www.avrvi.com

H

welcome for your presence TEL

:400 676 6996

二合一

USB ISP

Programmer

ATMEL

AVR

Atmega1280

Core board

With useful implemented peripherals, plentiful pratical code examples and a board set of additional add-on boards (USB1.1,RS-232,

PS/2 keyboard,LED,4X4 Keyboard,ADC,DAC,CAN,etc.),Development board integrates AVRISP MKII programmer, you do not have to purchase additional programmer.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

Contents

1. Product introduction .................................................................................................................................................................... 3

1.1 Introduction ....................................................................................................................................................................... 3

1.2 Significant features ............................................................................................................................................................ 3

1.3 On-board resource list ....................................................................................................................................................... 3

1.4 System requirements ......................................................................................................................................................... 4

2. System self-test ........................................................................................................................................................................... 5

2.1 Check up list of articles ..................................................................................................................................................... 5

2.2 Quick Start......................................................................................................................................................................... 5

2.3 System self-test process .................................................................................................................................................... 5

3. Configuration DIP switches and jumpers .................................................................................................................................... 7

4. Driver Install ............................................................................................................................................................................... 9

4.1 Onboard AVRISP mKII programmer driver installation ................................................................................................... 9

4.2 USB1.1 driver Installation............................................................................................................................................... 10

5. Software Install ......................................................................................................................................................................... 12

5.1 Install ICCAVR ............................................................................................................................................................... 12

5.2 Install AVRstudio ............................................................................................................................................................ 12

6. Use on-board AVRISP MKII for program ................................................................................................................................. 14

6.1 Connect hardware ............................................................................................................................................................ 14

6.2 Use AVRstudio ISP download ......................................................................................................................................... 14

7.Hardware resource ............................................................................................................................................................... 16

7.1 Power Supply .................................................................................................................................................................. 16

7.3 Atmega1280 core board .................................................................................................................................................. 17

7.4 USB1.1 Communication Interface .................................................................................................................................. 20

7.5 RS232 serial communication port ................................................................................................................................... 21

7.6 74HC4060 Variable Frequence ....................................................................................................................................... 22

7.7 Calendar clock DS1337 ................................................................................................................................................... 23

7.8 IIC bus EEPROM AT24c01 ............................................................................................................................................ 23

7.9 One active passive buzzer ............................................................................................................................................... 24

7.10 7-segment LED display ................................................................................................................................................. 25

7.11 8 separate LED .............................................................................................................................................................. 26

7.12 1602 LCD interface ....................................................................................................................................................... 27

7.13 12864 LCD interface ..................................................................................................................................................... 28

7.14 Crystal oscillator and reset ............................................................................................................................................ 29

7.15 4X4 Keyboard ............................................................................................................................................................... 30

7 .16 74HC00 Hardware debounce circuitry ......................................................................................................................... 31

7 .17 MCP4922 DA Circuit ................................................................................................................................................ 32

7 .18 Analog Temperature Sensors TC1047A ....................................................................................................................... 33

7 .19 Digital Temperature Sensors TC72 .............................................................................................................................. 34

7 .20 AD voltage adjustment potentiometer ....................................................................................................................... 35

7.21 LM358 signal conditioning ........................................................................................................................................... 36

7.22 CAN Information Transmission .................................................................................................................................... 37

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.23 PWM output .................................................................................................................................................................. 38

7.24 100Pin MCU DIRECT PORT ACCESS ....................................................................................................................... 39

7.25 External programming interfaces .................................................................................................................................. 40

7.26 PS / 2 (Keyboard) connector ......................................................................................................................................... 41

8.Material resources ................................................................................................................................................................... 42

8.1 CD content ...................................................................................................................................................................... 42

8.2 Experimental contents ..................................................................................................................................................... 43

8.3 Expand board available ................................................................................................................................................... 45

9. Service and support ................................................................................................................................................................... 46

Technical support: ................................................................................................................................................................. 46

Warranty terms: ..................................................................................................................................................................... 46

Copyright : ............................................................................................................................................................................ 46

Trademarks: ........................................................................................................................................................................... 46

1. Product introduction

1.1 Introduction

EasyAVR M1280 SK is AVR learning and development tools designed by AVRVI. To Atmega1280 as the core, it intergrated AVRISP MKII programmer, and only an extra computer is needed for user to begin the study.

1.2 Significant features

Intergrated common resource: LED, KEY, 7-segment LED display,LCD,RS232,CAN,DAC,PS/2 interface.

Intergrated AVRISP MKII programmer.

Intergrated signal conditioning circuit, input 0~10V, rail-to-rail signal conditioning.

The development board will be separate from the base board and core board. Core board can be easily replaced by other chip core board, such as ATMEGA2560, ATMEGA640, ATXMEGA128A1

.

1.3 On-board resource list

1. 5V power supply interface, input 7~9V with inside positive

2. On-board AVRISP MKII USB interface

3. On-board external ISP, JTAG Programming interface

4. Atmega1280 chip, rich on-chip resource

5. USB1.1 communication interface

6. RS232 serial communication interface

7. 74HC4060 Variable Frequence

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

8. 4X4 Keyboard

9. 4in1 7-segment LED display drived by HC595

10. 8 separate LED

11. 1 active buzzer, also can be accessed by passive buzzer

12. Calendar clock DS1337

13. 1 IIC bus EEPROM AT24C01

14. Analog Temperature Sensors TC1047A

15. SPI bus digital Temperature Sensor TC72

16. Hardware debounce circuitry

17. CAN bus circuit

18. Digital-analog conversion circuit constituted by the MCP4922

19. PS / 2 (Keyboard)connector

20. Crystal oscillator and reset circuit

21. Optional active crystal oscillator circuit

22. AD voltage adjustment potentiometer

23. Potentiometer voltage reference and voltage under test adjust

24. 4 8-bit DIP switch

25. 100Pin MCU pins marking all the external terminal

26. 12864 LCD Interface

27. 1602 LCD Interface

28. Standard nylon terminal block KF396

29. Transparent non-slip silicone pad

1.4 System requirements

To conduct system development, the minimum requirments on your computer

1. At least 80M of space for the installation of AVR studio and ICCAVR

2. Windows 98/2000/ME/XP or higher

3. Baud rate to 115200 of the RS232 communication interface (serial port), if not, you can use the USB-serial cable

4. USB interface used for communication, or 7~ 9 V DC power supply, 500mA, with positive inside

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

2.

System self-test

2.1 Check up list of articles

Check the packing materials, the list is as follows

1. EasyAVR development board (on-board AVRISP MKII programmer)

2. 9V DC power supply

3. USB communication cable

4. Development board manual

5. CD-ROM with schematic, development software, example program inside

2.2 Quick Start

EasyAVR M1280 SK board is rich in resources, and the core board chip is Atmega1280-16AU or ATmega1280-8AU. All jumpers are in their factory default position, and self-test program has been load in.

To Start the self-test, you only need to connect the serial cable and power cable, complete default jumper connection and hardware resources will be described in later chapters.

After installing the drivers, you can also use USB cable to complete this function . At this time, you need to connect CN3 with usb cable,and turn DIP switch SW4 7,8 on, the other off, and default is3,4 on .

2.3 System self-test process

1.

1. Insert CD into drive, open the serial debugging assistant picture.

in Software directory . You will see the following

Note: You will need to select correct serial port number to connect to development board.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

2. Maintain jumpers in default position, use a serial cable to connect PC and development board COM port.

3. Use board matched 9V power (positive inside) to supply the core board . Diagram as follow.

4. You can also use USB to complete the self-test . Use USB cable connect to the computer, and pay attention to turn SW4

78 on, the other off.

Once the power supply successful, you can see the power indicator lighted and self-test output from serial debugging assistant, and, of course, at the same time, you can see part of the operation status from on-board LED and LED display.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

3. Configuration DIP switches and jumpers

SWITCHES: SW1、SW2、SW3、SW4

JUMPERS: J1、J2、…… J22

Jumpers,like switches,can break or establish a connection between two points. Beneath the plastic cover of the jumper is a metal contact,which makes a connection when the jumper is placed between two disconnected pins.

For example,the jumpers J6 and J8

J6: Jumpers are used as a selector between two possible connections using a three pin connector. the middle connector can be connected to the left or right pin,depending on the jumper's position.

J8: The jumpers j6 is used to connect or disconnect BUZZER to the PB4 and PB5 pins. A connection is made when the jumper is placed between contacts.

This development board has been carefully designed . Then the all onboard resources are using ordinary pin jumper, so that this pin will not generate conflict when the core board is replaced by other core board.The board has four 8-bit DIP switches, each has a detailed annota- tion, DIP switch appropriated for the right to open, detail use of each road will be descript below.

Ø SW1(1) : MCP4922 SHDN Digital-analog converter chip MCP4922 sleep mode control n MCP4922 using the sleep mode, this position is On n MCP4922 MCP4922 sleep mode when not in use,this position is Off

Ø SW1(2) : LED_en, LED enable, On when use, Off when not

Ø SW1(3) : 7SEG_en,LED display enable, On when use, Off when not

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

Ø SW1(4) : AREF, connect AREF to AVCC, On when use AVCC as reference voltage, Off when not

Ø SW2(1~3) : 1602 LCD and 12864 LCD control n All off when not in use n When using the 1602,1~3 is On; On when use, Off when not n When using the LCD12864,1 is On,2,3 is Off; On when use, Off when not

Ø SW2(4、5) : SCL and SDA of TWI, On when use AT24C01 and DS1337, On when use, Off when not

Ø SW2(6~8) :MISO,MOSI,SCK of SPI, On when use 7segment LED, MCP4922,CAN,TC72, Off when not

Ø SW3(1~4) : programming using the onboard AVRISP MKII programmer, On when use, Off when not

Ø SW4(3、4) : RS232-1, On when use, Off when not

Ø SW4(5、6) : RS232-2, On when use, Off when not

Ø SW4(7、8) : Use USB1.1 communication, On when use, Off when not

Ø two-way ADC and PWM ports, two-way DAC, two-way CAN ports.

Ø All the PORT pins lead out on the board

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

4. Driver Install

The development board requires two driver installation. One for USB1.1 communication interface (this USB interface is the CN3) driver; Another is the on-board programmer AVRISP MkII driver installation (this USB interface is the CN4).

As illustrated:

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

4.2 USB1.1 driver Installation

The development board using most stability and most expensive USB-serial chip FT232, driver install in two ways:

1. Use the driver ftdi_ft232_drive.exe, double-click the installation, and then insert the device, take note development board need additional power supply from USB cable or core board, then automatically complete the installation.

2. Plug-in equipment, according to the wizard, select the .INF file, search for the installation, need to install twice. Drivers can be downloaded from the company's Web site, and also be obtained from the CD-ROM.

After installation is complete, you can find the device in the Device Manager, as shown in the COM4 in the following picture, if you installed other drivers, it may appear different, it will be OK as long as the COM port can be displayed normally.

Note if the port number is not COM4 or less, please change to COM4 within.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

5. Software Install

Software program files is in CD-ROM corresponding directory, double-click the icon below, according to the prompts to complete the installation.

5.1 Install ICCAVR

Directly run iccv7avrV7.22Setup.exe file, the installation interface is as follows:

Note: In order to develop convenient and avoid unnecessary path trouble, please set icc7avr installation path to

D:\icc7avr install the interface as shown below.

5.2 Install AVRstudio

Installation AVRstudio, double-click to run aStudio4.14b589.exe, in accordance with the default installation.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

Note:

In this interface, select the "Instal / upgraade Jungo USB Driver" (to install USB drivers), as shown bellow:

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

6. Use on-board AVRISP MKII for program

Note that the following steps in the basis of the drives installed already, driver installation, please see Part IV.

6.1 Connect hardware

Use USB cable connect EasyAVR to computer, use power to supply the board, as shown.

Note that keep the DIP SW3 1~4 Off, and 34 Off, After power, SW3 1~4 On.

6.2 Use AVRstudio ISP download

Open AVR studio interface, click on the following map icon, or point the menu Tools-> Program AVR-> Connect

Select AVRISP MKII, COM port you are connected to (the port shown above after install the driver) or Auto, and then click

Connect.

In the pop-up interface for programming verification, modify fuse, lock bits and other operations, please refer to AVRstudio software instructions.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

We wrote a detailed description of each experiments and have generated a good HEX file in the OUTPUT directory, you only need is to modulate DIP swithes according to the readme.txt, download pre-compiled HEX file can view effect of each of the examples.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.Hardware resource

7.1 Power Supply

The Atmega1280 AVR development board using the 9V power supply, using universal regulator chip 78M05 as voltage regulator, this circuit has very good universality and reference value.

7.2 On-board AVRISP MKII programmer

Integrated USB AVRISP MKII is a unique feather of EasyAVR M1280 development board, you do not need to buy additional programming devices and emulators, just an extra computer, you can begin your learn and develop.

The microcontroller is connected to the onboard AVRISP MKII Programmer through the switches 1,2,3,and 4 on sw3;

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

VCC

D-

D+

GND

USB

On Board

Programmer

SCK

MOSI

MISO

RST

SW3

PB1

PB2

PB3

RST

PG5

PE0/RXD0

PE1/TXD0

PE2

PE3

PE4/INT4

PE5/INT5

PE6/INT6

PE7/INT7

VCC

GND

PH0/RXD2

PH1/TXD2

PH2

PH3

PH4

PH5

PH6

PB0/SS

PB1/SCK

PB2/MOSI

PB3/MISO

PB4

PB5

PB6

ATmega1280

VCC

PA3

PA4

PA5

PJ0

GND

VCC

PC7

PC6

PC5

PC4

PC3

PC2

PA6

PA7

PG2

PJ6

PJ5

PJ4

PJ3

PJ2

PJ1

PC1

PC0

PG1

PG0

Programmer

7.3 Atmega1280 core board

The core of the system Atmega1280 is a very classic 8-bit microcontrollers in ATMEL's AVR MCUs, which with a

128-Kbyte programmable Flash, 8-Kbyte SRAM, 4 Kbyte EEPROM, 16-channel 10-bit A / D converter, support JTAG on-line emulation, ISP download, flexible SPI, USART, TWI interface, built-in watchdog, the external circuit design is simple, just power can work, ideally suited for small and medium sized electronic product design.

The development board will be separate from the base board and core board. Core board can be easily replaced by other chip core board, such as ATMEGA2560, ATMEGA640, ATXMEGA128A1.

Note: Please correct plug core board when used, to avoid burn out the core board.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

ATmega1280

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.4 USB1.1 Communication Interface

FT232 is the most stable of the USB-serial chip rate of USB1.1, adaptive USB2.0 interface, the largest communications baud rate up to 115200, the development of the module used for both board USB1.1 programmer simulator and user’s program communication, through DIP SW4 7,8; to control.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.5 RS232 serial communication port

RS232 is a standard communication interface, if not RS232 communication, not to say MCU, the development board use the MAX232 as interface chip, use two way. It use jumpers J2 and J3 and SW4 to control.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.6 74HC4060 Variable Frequence

74HC4060 chip frequency clock can be provided on the ATMEGA1280 (ATMEGA1280 pin 9 output clock, through its fuse bit "CLKO" enable output) and the DS1337 output clock (DS1337 output clock frequency can be set) in frequency, J6 jumper cap on the left is choice the ATMEGA1280 output clock frequency; inserted on the right is the DS1337 output clock frequency; J5 is used to connect the sub-frequency clock signal and the INT3 (PD3) of MCU.

VCC

PG5

PE0/RXD0

PE1/TXD0

PE2

PE3

PE4/INT4

PE5/INT5

PE6/INT6

PE7/INT7

VCC

GND

PH0/RXD2

PH1/TXD2

PH2

PH3

PH4

PH5

PH6

PB0/SS

PB1/SCK

PB2/MOSI

PB3/MISO

PB4

PB5

PB6

ATmega1280

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PG1

PG0

PA3

PA4

PA5

PA6

PA7

PG2

PJ6

PJ5

PJ4

PJ3

PJ2

PJ1

PJ0

GND

VCC

PD1

PD0

SDA

SCL

INT3

1/16

1/32

1/64

1/128

1/256

1/512

1/2048

1/4096

1/8192

1/16384

J5

Q4

Q5

Q6

Q7

Q8

Q9

Q10

Q12

Q13

Q14

PE7

Q12

Q13

Q14

Q6

Q5

Q7

Q4

3

4

5

6

1

2

7

8

12

11

10

9

16

15

14

13

Q10

Q8

Q9

INTB/SQW

J6

SW2

1

2

3

4

J6:74HC4060 Clock Source select

Left: Select MCU Clock

Right: Select DS1337 Clock

8

7

6

5

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.7 Calendar clock DS1337

DS1337 connected to SDA and SCL bus of ATmega1280 through the TWI bus, the bus has two pull-up resistor, SW2 45 to control on and off.

The crystal used for the DS1337 providing 32.768Khz clock, DS1337 can be used for accurate electronic clock designs.

Principles and connecting as following diagram.

DS1337's INTA connection PD2 by jumper J 7, please shorted J7 when you use the INTA.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.9 One active passive buzzer

Buzzer used to generate sound signals, active buzzer through the DC voltage control, resulting in a single voice, passive buzzer through a certain frequency PWM control, can produce sounds of various frequencies and bands and even play music.

EasyAVR circuit design can either use active and passive buzzer. Buzzer connected with the microcontroller through the jumper

J8. The product uses two MCU pins control, so it can Produce Polyphonic sound. Please shorted J8 when used.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.10 7-segment LED display

7-segment LED display is commonly used in human-computer display device, commonly used in digital display in device, here through the SPI driver, in order to save IO port, bit selection connect to PL0123, code selection through the jumper J9 connect to SPI (PB123), SW1(3) enable. Data latch signal input LKCK through the jumper J10 connect to PK3.

LKCK PK3

J10

10K

7SEG_EN

15

16

11

12

10

13

14

9

2

1

3

4

8

7

6

5

VCC

SW1

100R

×8

A B C

D

8050 8050

8050

8050

MOSI

SCK

MISO

SW2

PB2

PB1

PB3

PG5

PE0/RXD0

PE1/TXD0

PE2

PE3

PE4/INT4

PE5/INT5

PE6/INT6

PE7/INT7

VCC

GND

PH0/RXD2

PH1/TXD2

PH2

PH3

PH4

PH5

PH6

PB0/SS

PB1/SCK

PB2/MOSI

PB3/MISO

PB4

PB5

PB6

ATmega1280

PJ4

PJ3

PJ2

PJ1

PJ0

GND

VCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PG1

PG0

PA3

PA4

PA5

PA6

PA7

PG2

PJ6

PJ5

D

C

B

A

J9

PL0

PL1

PL2

PL3

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.11 8 separate LED

LED is the most common human-machine display device used to indicate a variety of states, eight LED through the jumper

J11 connect to Atmega1280 PH port and through current- limiting resistor connect to DIP switch LED_EN to control whether to connect to GND.

Need to use the LED, Shorted jumper J11 and On SW1 LED_EN .

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.12 1602 LCD interface

LCD is very commonly used in display device, contains graphic LCD and character LCD, common are 1602 character LCD and 12864 graphic LCD.

EasyAVR left standard LCD interface can be directly inserted 1602 or 12864 LCD, and is equipped with the appropriate examples. 1602 only 16 pins, Plug-in close to the pin 1 side. Shorted jumper J12 and J13 and the DIP switch SW2 123 to On when use 1602, at the same time RV4 adjusted to a minimum.

Potentiometer RV4 used to adjust the contrast, please read LCD data sheet carefully, part of the LCD can not adjust the contrast, can not shorted SW1 3 , otherwise it will burn LCD.

PG5

PE0/RXD0

PE1/TXD0

PE2

PE3

PE4/INT4

PE5/INT5

PE6/INT6

PE7/INT7

VCC

GND

PH0/RXD2

PH1/TXD2

PH2

PH3

PH4

PH5

PH6

PB0/SS

PB1/SCK

PB2/MOSI

PB3/MISO

PB4

PB5

PB6

ATmega1280

VCC

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PG1

PG0

PA3

PA4

PA5

PA6

PA7

PG2

PJ6

PJ5

PJ4

PJ3

PJ2

PJ1

PJ0

GND

VCC

1

VCC

VCC

VCC

ON DP

1 2 3 4 5 6 7 8

1K

20

LCD contrast

1K

1 16

O RS

/W E D

LCD1602

www.avrvi.com

EasyAVR

LCD 1602

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.13 12864 LCD interface

EasyAVR left standard LCD interface can be directly inserted 1602 or 12864 LCD, and is equipped with the appropriate examples. Use 12864 exactly 20 feet, one on one connection.

Shorted jumper J12 and J13 and SW2 12 On when use 12864, at the same time RV4 adjusted to maxim- um.

The first leg is used to connect SW2 potentiometer RV4 to adjust contrast, please read LCD data sheet carefully, part of the

LCD can not adjust the contrast, then can not shorten, otherwise it will burn LCD.

O RS

/W E D

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.14 Crystal oscillator and reset

AVR Microcontroller own internal RC clock, but in order to assure communication’s accuracy (such as RS232 communication), often using an external crystal oscillator, the development board designed with regular crystal interface and the active crystal interface, the default plug a 7.3728M crystal, if needed the customers can solder their own active crystal.

Standard RC reset circuit reset, with buttons down reset pin voltage(When used to the reset circuit,please shorted the jumper

J17).

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.15 4X4 Keyboard

Key is the most basic human input interface, commonly used to switch funtion in equipment, EasyAVR M1280 is designed

4X4 Keyboard, connected to the PJ port by jumper J24.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7 .16 74HC00 Hardware debounce circuitry

In the closed button and disconnect process, because of the mechanical characteristics of switches, resulting generation button jitter. If the button does not eliminate the mechanical jitter, key state possible will be read error. Debounced divided into hardware debounced and software debounced . This product using 74HC00 way to remove jitter. KEY1 and KEY2 correspond to the PE4 (INT4) and PE5 (INT5). please shorted the jumper J14 to connect the PE4 and PE5 when you use it.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7 .17 MCP4922 DA

Circuit

MCP4922 is a device with two-way DA output, using the SPI control, MCP4922 chip select connected PK6 by jumper J15;

MCP4922 voltage output by standard nylon terminal block KF396; please shorted jumper J15 when you use the MCP4922.

MCP4922 sleep mode control by switch 1 on SW1.

MOSI

SCK

SW2

PB2

PB1

SHDN

PG5

PE0/RXD0

PE1/TXD0

PE2

PE3

PE4/INT4

PE5/INT5

PE6/INT6

PE7/INT7

VCC

GND

PH0/RXD2

PH1/TXD2

PH2

PH3

PH4

PH5

PH6

PB0/SS

PB1/ SCK

PB2/MOSI

PB3/MISO

PB4

PB5

PB6

ATmega1280

VCC

PK6

J15

MCP4922_CS

PA3

PA4

PA5

PJ1

PJ0

GND

VCC

PC7

PC6

PC5

PC4

PA6

PA7

PG2

PJ6

PJ5

PJ4

PJ3

PJ2

PC3

PC2

PC1

PC0

PG1

PG0

1

2

3

6

7

4

5

14

13

12

11

10

9

8

OUTA

OUTB

10K

CN12

SW1

DAC

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7 .18 Analog Temperature Sensors TC1047A

TC1047A analog temperature sensor output the temperature value to the ADC0 (PF0) by jumper J16. TC1047A can be enabled using J16's PF0—1047 Out.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7 .19 Digital Temperature Sensors TC72

TC72 digital temperature sensor is a SPI device, TC72 temperature value output to the microcontroller through the

SPI,TC72 can be enabled using J16's PK5-TC72-CE.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7 .20 AD voltage adjustment potentiometer

Development board designed an adjustable potentiometer (RV1/ADC1) through the resistor divider to obtain changes in voltage, used for ADC conver- sion and experiment. AREF through SW1 4 connected to the AVCC, to use the AVCC as a reference voltage source.The jumpers group J19's PF1-ADC1 should be shorted when you use the ADC1.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.21 LM358 signal conditioning

EasyAVR M1280 use LMV358 to do rail-to-rail signal conditioning gain circuit, input range 0-10V, signal gain 0.1-1000, potentiometer ADC2 and ADC3 respec- tively adjust gain of ADC2 and ADC3; ADC2 and ADC3 use standard socket interface

KF396 and more convenient to use; Please shorting the jumpers group J19's ADC2-PF2 and ADC3- PF3 when use, open the analog reference voltage AREF at the same time, that is On the SW1 AREF-VCC.

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.22 CAN Information Transmission

Controller–area network (CAN or CAN-bus) is a vehicle bus standard designed to allow microcontrollers and devices to communicate with each other within a vehicle without a host computer.

CAN is a message based protocol, designed specifically for automotive applications but now also used in other areas such as industrial automation and medical equipment.

Development of the CAN-bus started originally in 1983 at Robert Bosch GmbH.[1] The protocol was officially released in

1986 at the Society of Automotive Engineers (SAE) congress in Detroit, Michigan. The first CAN controller chips, produced by

Intel and Philips, came on the market in 1987. Bosch published the CAN 2.0 specification in 1991.

CAN is one of five protocols used in the OBD-II vehicle diagnostics standard. The OBD standard is mandatory for all cars and light trucks sold in the United States since 1996, and the EOBD standard, mandatory for all petrol vehicles sold in the

European Union since 2001 and all diesel vehicles since 2004.[2]

The jumper J20 used to connect or disconnect 120ohm resistance. The jumpers group J21 used to connect or disconnect

MCP2515's CS and MCP2515's INT to the PK7 and PE6,respectively.

The product designed have Two-way CAN output.

CAN output use standard socket interface KF396 and more convenient to use.

Please shorting the jumper J21 and On the SW2 6 7 8 when you use the CAN.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.23 PWM output

AVR chip has PWM function which is short for "Pulse Width Modulation". It is the use of digital output of the microprocessor to control analog circuits in a very effective technology, widely used in from the measurement, communica- tions to power control and conversion and many areas.

EasyAVR connect Atmega1280 PWM pins PB7 to the external connector pins through J22 to control external devices, very useful, as illustrated.

VCC

OUT

GND

CN14

PWM

10K

PWM

J22

PB7

0.1uF

PG5

PE0/RXD0

PE1/TXD0

PE2

PE3

PE4/INT4

PE5/INT5

PE6/INT6

PE7/INT7

VCC

GND

PH0/RXD2

PH1/TXD2

PH2

PH3

PH4

PH5

PH6

PB0/SS

PB1/SCK

PB2/MOSI

PB3/MISO

PB4

PB5

PB6

ATmega1280

PC7

PC6

PC5

PC4

PC3

PC2

PC1

PC0

PG1

PG0

PA3

PA4

PA5

PA6

PA7

PG2

PJ6

PJ5

PJ4

PJ3

PJ2

PJ1

PJ0

GND

VCC

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.24 100Pin MCU DIRECT PORT ACCESS

All microcontroller input/output pins can be accessed via connectors placed along the right and left side of the core board.

There have 2 groups,each group have 50 pins.

To enable you can quickly view the pin number corresponding to the pin's name, please refer to the part of 7.3.

PL4

PL6

PD0

PD2

PD4

PD6

PH1

PH3

PH5

PB0

PB2

PB4

PB6

PG5

PE1

PE3

PE5

PE7

GND

PH7

PG4

VCC

XTAL2

PL0

PL2

PB1

PB3

PB5

PB7

PG3

RESET

GND

XTAL1

PL1

PL3

PL5

PL7

PD1

PD3

PD5

PD7

PE0

PE2

PE4

PE6

VCC

PH0

PH2

PH4

PH6

CN5

MCU PIN

GND

PF0

PF2

PF4

PF6

PK0

PK2

PK4

PK6

GND

PJ7

PA1

PA3

PA5

PA7

PJ6

PJ4

PJ2

PJ0

VCC

PC6

PC4

PC2

PC0

PG0

CN6

PG2

PJ5

PJ3

PJ1

GND

PK7

VCC

PA0

PA2

PA4

PA6

AVCC

AREF

PF1

PF3

PF5

PF7

PK1

PK3

PK5

PC7

PC5

PC3

PC1

PG1

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

7.25

External programming interfaces

This product is equipped with a standard JTAG and ISP programming interface Block CN15 and CN16, when used, please connect PC and develepment board use the programmer (To ensure the programmer quality, we recommend using our company's programmers) .

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

7.26 PS / 2 (Keyboard) connector

The PS/2 connector allows direct connection between EasyAVR and devices that use PS/2 communication, such as PC, keyboard or mouse.For example,the microcontroller can be connected to a keyboard to capture pressed kers or it can be connected to a PC to act as a keyboard.CLK and DATA lines are used for data tansfer. In this case,they are conneted to pins

PE7 and PK1 respectively. Please shorting the jumper J1 when use PS/2.

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

8.Material resources

8.1 CD content

File list Description:

1. CD-ROM description.txt

2.democode / readme.txt

How to get start and the copyright statement

3.AVR books

AVR MCU e-book

4.AVR teach

Original AVR MCU Tutorial

5.Datasheet

EasyAVR M1280 SK matched devices manual

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

6. Democode

Development board supporting routines and description

7.protel_libs protel Package Library

8. Schematics

Development board schematics and jumper configuration pictures

9.Software

Development software, ICC GCC CVAVR AVRstudio, etc

8.2 Experimental contents

Analog-digital conversion (AD):

Single-channel AD acquisition, 7-segment LED display display the results

Dual-channel time-sharing the collection, 7-segment LED display display the results

TC1047A output the temperature value to the AD function module.,7-segment LED display display the results

74HC4060:

The DS1337 output the 32.768 KHZ clock signal frequency as the 74HC4060 clock source to trigger Interrupt, to achieve the flashing LED.

Buzzer:

Key detection, buzzer tweet

Keyboard:

Key detection, buzzer tweet

Key detection, 7-segment LED display display the results

LED:

Light water program

DS1337 Timing, LED blink once when the time is 10s.

The DS1337 output the 32.768 KHZ clock signal frequency as the 74HC4060 clock source to trigger Interrupt, to achieve the flashing LED.

74HC00 debounce circuit, press KEY1 or KEY2, the corresponding LED flashes once.

Timer:

Timer T1 to achieve 1 second timing, 7-segment LED display display the results

7-segment LED:

Timer T1 to achieve 1 second timing, 7-segment LED display display the results

TC1047A test temperature, 7-segment LED display display the results

TC72 test temperature, 7-segment LED display display the results

Single-channel AD acquisition, 7-segment LED display display the results

Dual-channel time-sharing the collection, 7-segment LED display display the results

Key detection, 7-segment LED display display the results

Calendar clock DS1337

7-segment LED display display the results

TC1047A:

TC1047A test temperature, 7-segment LED display display the results

TC72:

TC72 test temperature, 7-segment LED display display the results

SPI:

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

Using SPI drive SPI device 74HC595, to achieve display of 7-segment LED display

Using SPI drive SPI device TC72,Read temperature value and by using 7-segment LED display

Using SPI drive SPI device MCP4922,To achieve digital-analog converter, and output continuous voltage.

TWI:

Using TWI drive TWI device 24C01

Using TWI drive TWI device DS1337

24C01:

24C01 read and write, look at the results of the use of JTAG

DS1337:

Calendar clock DS1337, 7-segment LED display time display

DS1337 timing, LED blink once when the time is 10s

DS1337 output the 32.768 KHZ as the clock souce of 74HC4060

ST7920(LCD128*64):

ST7920 drived LCD128 * 64 serial mode display

4X4 keyboard:

Using numerical code tube display the value for the button is pressed.

74HC00 debounce circuitry:

74HC00 debounce circuit, press KEY1 or KEY2, the corresponding LED flashes once.

MCP4922:

Using SPI drive SPI device MCP4922,To achieve digital-analog converter, and output continuous voltage.

CAN:

Data exchange between the two CAN devices.

PS / 2 (Keyboard) connector:

Using the LCD1602 displar the corresponding ASCII code of PS / 2 keyboard button is pressed.

USART:

Communication with the PC using the uart,and observe the received data using the serial port debugging software.

Note: In order to better use of the development board supporting package, to avoid the path problem

Ø Please put the package in :D:\avrvi\AVRVi_m1280_Starter_Kit and remove the read-only attribute

Ø ICC installation directory:D:\icc7avr

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

8.3 Expand board available

Based on this board, you can also study in-depth through a variety of modules

1. LCD Module

2. ENC28J60 network module

3. CP2200 network module

4.Wireless communication module (nrf905 nrf2401 nrf1100 and many other models)

5. VS1003 mp3 development board

6. Intelligent Vehicle Development Platform

7. OSD video overlay Development Board

8. GSM GPRS Development Module

9. ... ...

Page

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

0086-531-62327572 www.avrvi.com

EasyAVR

On board programmer

9. Service and support

Technical support:

AVRVi Website:

H http://www.avrvi.com

H

H http://www.avrvi.net

H

AVRVi Forum:

H http://bbs.avrvi.com

H

AVRVi Shop:

H http://shop.avrvi.com

H

Technical Support E-mail:

H [email protected]

H

Technical Support Online: MSN

H [email protected]

H

Technical Support TEL:

0086-531-62327572

Fax:0086-531-80879869

This product sevice whole of the country and can also contact the local office directly.

Access to technical support, please provide the following information:

1. Information of the purchaser.

2. A detailed version of the software You are using, you can see it in Help menu.

3. A detailed description of the problem or failure.

Warranty terms:

1. Time: a month exchange, one-year warranty.

2. Free Warranty: proper use of quality issues arising under the free warranty

3. Charge Warranty: Non-proper use of quality problems arise in the context, depending on the extent of damage to charge for the maintenance fee.

4. If it has generated between the freight, freight borne by the client side.

Thank you for choosing AVRVI products, please carefully read the instructions before use.

Copyright :

This manual belongs to AVRVI company. No part of this manual, including the product and software described in it, may be reproduced, transmitted, transcribed, or translate into any other language in any form or by any means. AVRVI assume no responsibility for any errors which may appear in this manual nor does it make a commitment to update the information herein. AVRVI retains the right to make change to these manual at any time, without notice.

Trademarks:

All product name referenced herein are trademarks of their respective companies.

Version History:

2010-07-13 V1.0

EasyAVR

Easy Electronic Technology Co., Ltd. Jinan,Shandong,China

On board programmer

0086-531-62327572 www.avrvi.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
