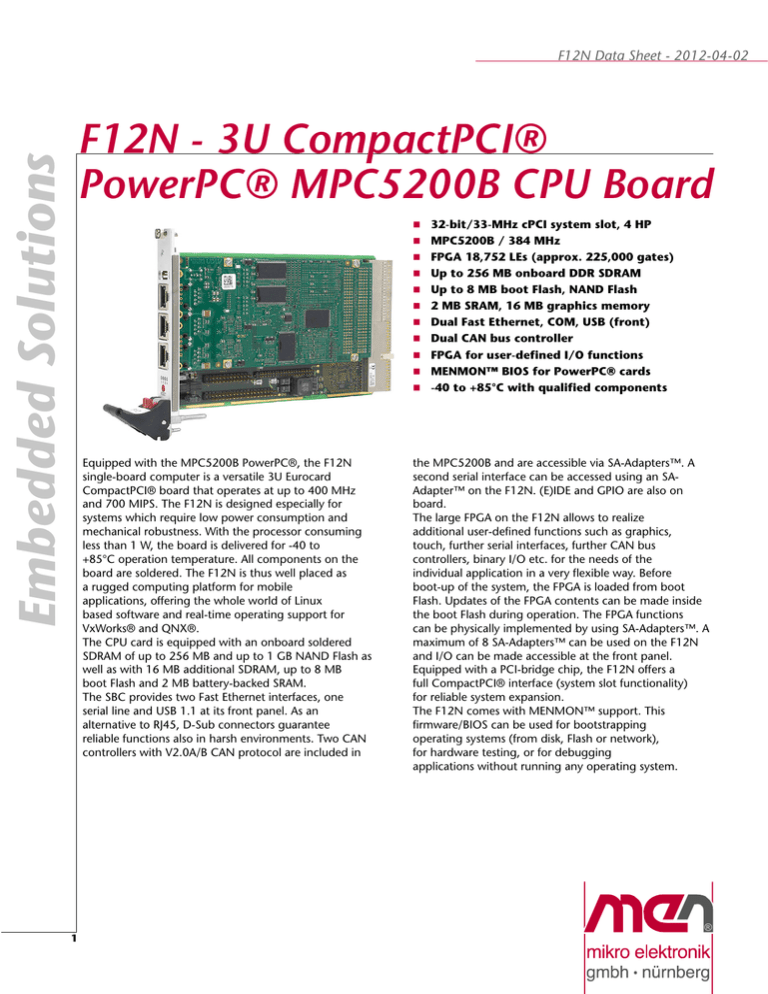

F12N
F12N Data Sheet - 2012-04-02
Embedded Solutions
F12N - 3U CompactPCI®
PowerPC® MPC5200B CPU Board
n
n
n
n
n
n
n
n
n
n
n
Equipped with the MPC5200B PowerPC®, the F12N
single-board computer is a versatile 3U Eurocard
CompactPCI® board that operates at up to 400 MHz
and 700 MIPS. The F12N is designed especially for
systems which require low power consumption and
mechanical robustness. With the processor consuming
less than 1 W, the board is delivered for -40 to
+85°C operation temperature. All components on the
board are soldered. The F12N is thus well placed as
a rugged computing platform for mobile
applications, offering the whole world of Linux
based software and real-time operating support for
VxWorks® and QNX®.
The CPU card is equipped with an onboard soldered
SDRAM of up to 256 MB and up to 1 GB NAND Flash as
well as with 16 MB additional SDRAM, up to 8 MB
boot Flash and 2 MB battery-backed SRAM.
The SBC provides two Fast Ethernet interfaces, one
serial line and USB 1.1 at its front panel. As an
alternative to RJ45, D-Sub connectors guarantee
reliable functions also in harsh environments. Two CAN
controllers with V2.0A/B CAN protocol are included in
1
32-bit/33-MHz cPCI system slot, 4 HP
MPC5200B / 384 MHz
FPGA 18,752 LEs (approx. 225,000 gates)
Up to 256 MB onboard DDR SDRAM
Up to 8 MB boot Flash, NAND Flash
2 MB SRAM, 16 MB graphics memory
Dual Fast Ethernet, COM, USB (front)
Dual CAN bus controller
FPGA for user-defined I/O functions
MENMON™ BIOS for PowerPC® cards
-40 to +85°C with qualified components
the MPC5200B and are accessible via SA-Adapters™. A
second serial interface can be accessed using an SAAdapter™ on the F12N. (E)IDE and GPIO are also on
board.
The large FPGA on the F12N allows to realize
additional user-defined functions such as graphics,
touch, further serial interfaces, further CAN bus
controllers, binary I/O etc. for the needs of the
individual application in a very flexible way. Before
boot-up of the system, the FPGA is loaded from boot
Flash. Updates of the FPGA contents can be made inside
the boot Flash during operation. The FPGA functions
can be physically implemented by using SA-Adapters™. A
maximum of 8 SA-Adapters™ can be used on the F12N
and I/O can be made accessible at the front panel.
Equipped with a PCI-bridge chip, the F12N offers a
full CompactPCI® interface (system slot functionality)
for reliable system expansion.
The F12N comes with MENMON™ support. This
firmware/BIOS can be used for bootstrapping
operating systems (from disk, Flash or network),
for hardware testing, or for debugging
applications without running any operating system.
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
Technical Data
CPU
n PowerPC®
o MPC5200B
o Up to 400MHz
o
n
Memory
n 2x16KB L1 data and instruction cache integrated in MPC5200
n Up to 256MB SDRAM system memory
o Soldered
o DDR
o 64MHz memory bus frequency
n Up to 1GB soldered NAND Flash (and more), FPGA-controlled
n 16MB additional SDRAM, FPGA-controlled, e.g. for video
data and NAND Flash firmware
n Up to 8MB boot Flash
n 2MB GoldCap-backed SRAM, or: 128KB non-volatile FRAM
n Serial EEPROM 8kbits for factory settings
Mass Storage
n Parallel IDE (PATA)
o One IDE port via 44-pin onboard connector
o FPGA-controlled
o PIO mode 0 support
n Up to 1GB soldered ATA NAND Flash (and more),
FPGA-controlled
I/O
n USB
o One USB 1.1 port
o Series A connector at front panel
o OHCI implementation
o Data rates up to 12Mbit/s
n Ethernet
o Two 10/100Base-T Ethernet channels
o One channel FPGA-controlled
o Two RJ45 or one D-Sub connector at front panel
n One RS232 UART (COM1)
o RJ45 or D-Sub connector at front panel
o Data rates up to 115.2kbit/s
o 512-byte transmit/receive buffer
o Handshake lines: CTS, RTS
n One UART (COM10)
o Accessible via I/O connector
o Physical interface at front panel using SA-Adapter™
via 10-pin ribbon cable on I/O connector
o RS232..RS485, isolated or not: for free use in system
(e. g. cable to front)
o Data rates up to 115.2kbit/s
o 16-byte transmit/receive buffer
o Handshake lines: CTS, RTS; DCD, DSR, DTR; RI
n CAN bus
o Two CAN bus channels
2
2.0 A/B CAN protocol
Data rates up to 1 Mbit/s
o Connection via onboard connectors
o External transceivers using SA-Adapters™
GPIO
o 36 GPIO lines
o FPGA-controlled
o Connection via onboard I/O connector
Further I/O depending on FPGA configuration
o
n
Front Connections (Standard)
n One USB 1.1 (Series A)
n Two Ethernet (RJ45)
n One RS232 UART (RJ45)
FPGA
n Standard factory FPGA configuration:
o Main bus interface
o 16Z070_IDEDISK - IDE controller for NAND Flash
o 16Z043_SDRAM - Additional SDRAM controller (16MB)
o 16Z023_IDENHS - IDE controller (PIO mode 0;
non-hot-swap)
o 16Z087_ETH - Ethernet controller (10/100Base-T)
o 16Z025_UART - UART controller (controls COM10)
o 16Z034_GPIO - GPIO controller (40 lines, 5 IP cores)
n The FPGA offers the possibility to add customized I/O
functionality. See FPGA.
Miscellaneous
n Real-time clock with GoldCap backup
n Power supervision and watchdog
n Reset button, GPIO-controlled
n Three user LEDs, GPIO-controlled; 1 FPGA power status LED
CompactPCI® Bus
n Compliance with CompactPCI® Core Specification PICMG 2.0
R3.0
n System slot
n 32-bit/32-MHz PCI-to-PCI bridge
n V(I/O): +3.3V or +5V (Universal Board)
Electrical Specifications
n Supply voltage/power consumption, CompactPCI® standard
version:
o +5V (-3%/+5%), 10mA max.
o +3.3V (-3%/+5%), 1A typ.
n Supply voltage/power consumption, stand-alone version:
o +5V (-3%/+5%), 800mA typ.
o Uses 5V only
n MTBF: 277,234h @ 40°C according to IEC/TR 62380 (RDF 2000)
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
Technical Data
Mechanical Specifications
n Dimensions: conforming to CompactPCI® specification for
3U boards
n Weight: 250g
Environmental Specifications
n Temperature range (operation):
o -40..+85°C (qualified components)
o Airflow: min. 10m³/h
n Temperature range (storage): -40..+85°C
n Relative humidity (operation): max. 95% non-condensing
n Relative humidity (storage): max. 95% non-condensing
n Altitude: -300m to + 3,000m
n Shock: 15g/11ms
n Bump: 10g/16ms
n Vibration (sinusoidal): 2g/10..150Hz
n Conformal coating on request
Safety
n PCB manufactured with a flammability rating of 94V-0 by
UL recognized manufacturers
EMC
n Tested according to EN 55022 (radio disturbance),
IEC1000-4-2 (ESD) and IEC1000-4-4 (burst)
BIOS
n MENMON™
Software Support
n VxWorks®
n Linux (ELinOS)
n QNX®
n MSCAN/Layer2 support: MEN Driver Interface System (MDIS™
for all supported operating systems)
n For more information on supported operating system
versions and drivers see Software.
3
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
Diagram
4
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
Configuration & Options
Standard Configurations
Article No.
CPU Type
Clock
System RAM
NAND Flash
Boot Flash
Additional
SDRAM
SRAM
02F012N00
MPC5200B
384 MHz
256 MB
1 GB
2 MB
16 MB
2 MB
Options
CPU
n MPC5200B, 384 MHz
Memory
n System RAM
o 32 MB, 64 MB, 128 MB or 256 MB
n NAND Flash
o 0 MB up to maximum available
n Boot Flash
o 2 MB, 4 MB or 8 MB
n Additional SDRAM
o 0 MB or 16 MB
n SRAM
o 0 MB or 2 MB
n 128 KB non-volatile FRAM instead of SRAM
I/O
n Up to 8 additional I/O functions through SA-Adapters™
o Mostly implemented in onboard FPGA
o RS232, RS422/485, binary I/O, keyboard/mouse, CAN...
o One-piece 3U front panels for different SA-Adapter™
combinations
n Front connections
o D-Sub connectors for Ethernet and COM/USB
n Second Ethernet channel at front through FPGA
Busless
n Also available as busless version (with external 5V
supply)
Cooling Concept
n Also available with conduction cooling in MEN CCA frame
Please note that some of these options may only be
available for large volumes. Please ask our sales staff
for more information.
5
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
FPGA
Flexible Configuration
n Customized I/O functions can be added to the FPGA.
n It depends on the board type, pin counts and number of
logic elements which IP cores make sense and/or can be
implemented. Please contact MEN for information on
feasibility.
n You can find more information on our web page "User I/O
in FPGA"
FPGA Capabilities
n FPGA Altera® Cyclone® II EP2C20
o 18,752 logic elements
o 239,616 total RAM bits
n Connection
o Available pin count: 47 pins
o Functions available via onboard I/O connector
o SA-Adapters™ can be used to realize the physical lines.
6
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
Ordering Information
Standard F12N Models
02F012N00
MPC5200B/384MHz, 256MB SDRAM, 1GB NAND
Flash, 2MB SRAM, 16MB additional SDRAM, 2MB
boot Flash, -40..+85°C qualified
SA-Adapters
You can find a more detailed overview of possible carrier
board/SA-Adapter™ combinations along with software
support in our option matrix (PDF).
Linux BSP (MEN) for EM1, EM1A, EM1N, EK6,
EK6N, F12, F12N and PP1 under ELinOS 5.0
(rpm for direct installation in ELinOS)
This product is designed to work under ELinOS Embedded
Linux by Sysgo. For more information and product support
please contact www.sysgo.com.
13Z015-06
MDIS5™ low-level driver sources (MEN) for
16Z029_CAN (MSCAN/Layer2)
13Z017-06
MDIS5™ low-level driver sources (MEN) for
16Z034_GPIO and 16Z037_GPIO
08SA01-00
RS232, not optically isolated, 0..+60°C
08SA02-00
RS422/485, half duplex, optically isolated,
0..+60°C
13Z025-90
Linux native driver (MEN) for 16Z025_UART,
16Z057_UART and 16Z125_UART
08SA02-07
RS422/485, full duplex, optically isolated,
-40..+85°C screened
13Z077-90
Linux native driver (MEN) for 16Z077_ETH
and 16Z087_ETH
08SA03-01
RS232, optically isolated, -40..+85°C
screened
08SA08-01
CAN ISO high-speed, optically isolated,
-40..+85°C screened
Systems & Card Cages
MEN delivers turn-key systems completely installed
(hardware, operating system, accessories), wired and
tested. Different rack sizes, power supplies and
backplanes on request.For details please contact your
local sales representative.
0701-0046
CompactPCI® 19" 4U/24HP desktop system for
3U cards, 3-slot 3U CompactPCI® backplane,
system slot right, 1U fan tray with 1 fan,
8 HP space for 1 pluggable PSU
0701-0056
CompactPCI® 19" 4U/84HP rack-mount
enclosure for 3U cards (vertical), 4+4-slot
3U CompactPCI® / CompactPCI® Serial hybrid
backplane, prepared for rear I/O, 250W
power supply wide range 90..264VAC on rear,
1U fan tray with 2 fans included, 0..+60°C
Miscellaneous Accessories
7
10EM01-90
Software: VxWorks
This product is designed to work under VxWorks®. For
details regarding supported/unsupported board functions
please refer to the corresponding software data sheets.
10EM01-60
VxWorks® BSP (MEN) for EM1, EM1A, EM1N,
EK6, EK6N, F12N and F12
13Z015-06
MDIS5™ low-level driver sources (MEN) for
16Z029_CAN (MSCAN/Layer2)
13Z017-06
MDIS5™ low-level driver sources (MEN) for
16Z034_GPIO and 16Z037_GPIO
13Z025-60
VxWorks® native driver (MEN) for
16Z025_UART, 16Z057_UART and 16Z125_UART
Software: QNX
This product is designed to work under QNX®. For details
regarding supported/unsupported board functions please
refer to the corresponding software data sheets.
10EM01-40
QNX® 6.3 SP3 BSP (MEN) for EM1, EM1A, EM1N,
EK6, EK6N, F12 and F12N
10EM01-41
QNX® 6.4.1 BSP (MEN) for EM1, EM1A, EM1N,
EK6, EK6N, F12 and F12N
05F006-00
RS232 interface cable RJ45 to 9-pin D-Sub
(1 COM to 1 COM), 2m
10EM01-42
QNX® 6.5.0 BSP (MEN) for EM1, EM1A, EM1N,
EK6, EK6N, F12 and F12N
05F500-00
Kit (cables and front panel for 3 D-Subs)
for connection of 2 CAN (type SA8) and 1
COM (type SA1..SA4) to F12N - SA-Adapters™
to be ordered separately
13Z015-06
MDIS5™ low-level driver sources (MEN) for
16Z029_CAN (MSCAN/Layer2)
13Z017-06
MDIS5™ low-level driver sources (MEN) for
16Z034_GPIO and 16Z037_GPIO
Software: Linux
13Z025-40
This product is designed to work under Linux. See below
for potentially available separate software packages from
MEN.
QNX® 6.3 native driver (MEN) for
16Z025_UART and 16Z125_UART
13Z025-41
QNX® 6.4 native driver (MEN) for
16Z025_UART and 16Z125_UART
13Z025-42
QNX® 6.5 native driver (MEN) for
16Z025_UART and 16Z125_UART
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
Ordering Information
13Z087-40
QNX® native driver (MEN) for 16Z087_ETH
Software: Firmware/BIOS
MENMON™ is MEN's firmware/BIOS for PowerPC® platforms.
14EM01-00
MENMON™ (Firmware) for EM1, EM1A, EM1N, F12
and F12N (object code)
For operating systems not mentioned here contact MEN
sales.
Documentation
Compare Chart 3U CompactPCI® / PlusIO CPU cards Download
Compare Chart 3U CompactPCI® / PlusIO peripheral cards
Download
20F012NER
F12N Errata
20F012N00
F12N User Manual
21MENM-00
MENMON™ User Manual
21Z025-90
16Z025_UART and 16Z125_UART under Linux
User Manual
22Z025-ER
16Z025_UART Errata
22Z087-ER
16Z087_ETH Errata
For the most up-to-date ordering information and direct
links to other data sheets and downloads, see the F12N
online data sheet under » www.men.de.
8
®
F12N Data Sheet - 2012-04-02
Embedded Solutions
Contact Information
Germany
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone +49-911-99 33 5-0
Fax +49-911-99 33 5-901
E-mail [email protected]
www.men.de
France
MEN Mikro Elektronik SA
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone +33 (0) 450-955-312
Fax +33 (0) 450-955-211
E-mail [email protected]r
www.men-france.fr
USA
MEN Micro, Inc.
24 North Main Street
Ambler, PA 19002
Phone (215) 542-9575
Fax (215) 542-9577
E-mail [email protected]
www.menmicro.com
The date of issue stated in this data sheet refers to the Technical Data only. Changes in ordering information given herein do not affect the date of issue.
All brand or product names are trademarks or registered trademarks of their respective holders.
MEN is not responsible for the results of any actions taken on the basis of information in the publication, nor for any error in or omission from the publication.
MEN expressly disclaims all and any liability and responsibility to any person, whether a reader of the publication or not, in respect of anything, and of the
consequences of anything, done or omitted to be done by any such person in reliance, whether wholly or partially, on the whole or any part of the contents of the publication.
The correct function of MEN products in mission-critical and life-critical applications is limited to the environmental specification given for each product in the technical
user manual.The correct function of MEN products under extended environmental conditions is limited to the individual requirement specification and subsequent
validation documents for each product for the applicable use case and has to be agreed upon in writing by MEN and the customer.Should the customer purchase or use
MEN products for any unintended or unauthorized application, the customer shall indemnify and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors
harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim or personal injury or death associated
with such unintended or unauthorized use, even if such claim alleges that MEN was negligent regarding the design or manufacture of the part.
In no case is MEN liable for the correct function of the technical installation where MEN products are a part of.
Copyright © 2012 MEN Mikro Elektronik GmbH. All rights reserved.
9
®
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
