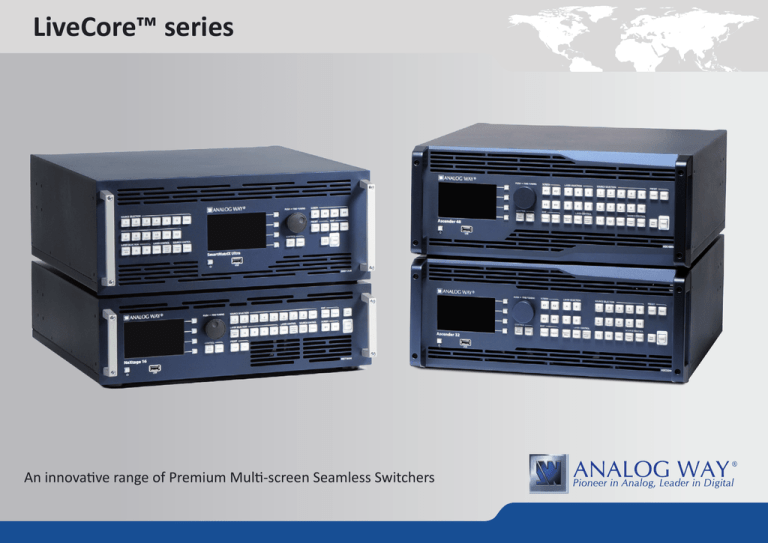

LiveCore™ series
An innovative range of Premium Multi-screen Seamless Switchers
Ready for flawless visual experiences
Conceived and designed after careful analysis of the creative needs of live events professionals,
Analog Way’s new LiveCore™ series combines high processing capabilities with smart functionalities
to produce impressive shows.
Here are their main strengths:
 Ruggedized and heavy-duty design to fit with the most demanding applications
 Versatile connectivity to be ready for any configuration
 State-of-the-art processing to create impressive visual shows
 Operator-friendly and intuitive User Interface to ensure flawless control of presentations
 Communicative architecture for advanced collaborative operation and remote services.
Connect with us on www.analogway.com or follow us
2
Rugged and heavy-duty design
Built on Analog Way's long history in live events and field operations, the LiveCore™ series was designed to
deliver optimized uptimes and durability.
Robust mechanical framework
The LiveCore™-based systems' reinforced metal chassis offers rigidity and strong shock resistance. Its innovative
construction provides excellent protection to both internal hardware and rear connectors. Front and rear rackrail
mounts are available for durable and stable integration.
Field Proven Reliability for NeXtage 16!
After a 2175 mile race at the 2013 "Rallye Aïcha des Gazelles Morocco", the NeXtage 16 perfectly
withstood the most extreme conditions of transport: vibrations, bumps, dust, heat, etc.
Advanced cooling system
High quality standards
The body of the LiveCore™-based processors were
Designed and produced in Western Europe, the
designed to optimize air circulation and components'
LiveCore™ series is made of carefully qualified high
cooling. The hardware was oversized to prevent
grade components and subassemblies.
heating, and fitted with a remote temperature
It complies with the latest international safety and
monitoring system.
environmental regulations, including UL and CE
certifications.
3
Versatile connectivity
To fit a variety of applications, the LiveCore™ platform offers versatile connectivity and an extensive set of formats.
Extensive choice of input plugs
Versatile outputs
Through its included SFP (small form-factor pluggable) Cage, the Ascender 48
can receive a large choice of Video SFP optical modules per output.
Optical link is immune to environmental signal noise.
Detachable optical modules greatly simplify installation and maintenance.
The Ascender 48 can output a variety of formats, including Analog HD-TV
and Computer format up to 2560x1600 or ultra-HD/4K.
Ascender 48 can switch between any input plug with up to 42 sources
connected simultaneously.
The device can handle any source from composite video, up to dual link
2560x1600.
Test patterns help identify both inputs and outputs for easy management of
elements.
4
Ascender 48, Ascender 32 & SmartMatriX Ultra
12 seamless inputs and 42 input plugs:
4 outputs with 5 output plugs:
- 6 x HDMI
- Universal Analog (HD15 & DVI-A)
- 9 x DVI-I (3 DVI Dual Link included)
- DVI-I (DVI Dual Link available on
- 3 x DisplayPort (4-Lanes)
outputs #1 & #3)
- 12 x 3G/HD/SD-SDI
- 3G/HD/SD-SDI
- 12 x Universal Analog (6 x HD15 & 6 x
- Video Optical SFP module cage.
DVI-A)
1 Preview with 4 output plugs:
- Dual Link DVI-I (DVI-I)
- Universal Analog (HD15)
- 3G/HD/SD-SDI (2 x BNC)
- Analog SDTV (4 x BNC: YUV, RGBS, YC
& Comp)
NeXtage 16
8 seamless inputs and 28 input plugs:
2 outputs with 5 output plugs:
- 4 x HDMI
- Universal Analog (HD15 & DVI-A)
- 6 x DVI-I (2 DVI Dual Link included)
- DVI-I (DVI Dual Link available on
- 2 x DisplayPort (4-Lanes)
output #1)
- 8 x 3G/HD/SD-SDI
- 3G/HD/SD-SDI
- 8 x Universal Analog (4 x HD15 & 4 x
- Video Optical SFP module cage.
DVI-A)
1 Preview with 4 output plugs:
- Dual Link DVI-I (DVI-I)
- Universal Analog (HD15)
- 3G/HD/SD-SDI (2 x BNC)
- Analog SDTV (4 x BNC: YUV, RGBS, YC
& Comp)
5
Advanced output capabilities for safe monitoring
Independent monitoring output
In addition to its main outputs, the LiveCore™ series features an independent Dual-Link output for monitoring purposes.
This specific output offers versatile display options, ensuring safe monitoring and flawless show control.
 Full Preview
 Live Mosaic
In this configuration, the LiveCore™-based systems offer a full Preview
The Mosaic Preview allows visualization of up to 12 input sources on
of the content displayed on the Program. All PIPs remain available on
the screen. All images are live and can be labelled through Web Remote
the Preview no matter the display system used. Based on this Preview,
Control Software. Additional information on each source is also available
operators can see all their sources and create complex presets with total
directly on the different live pictures.
peace of mind.
6
 Recording
The independent output can also be used to record a specific input, or
record the show live on a specific output if previewing is not necessary.
 Monitoring
The monitoring mode mixes the full Preview and the live Mosaic displays.
A variety of display configurations is available so that operators can arrange
and customize the elements of their shows as wanted.
Confidence monitor
One of the outputs of the LiveCore™-based units can be used as a Confidence monitor
for the speaker. With different display possibilities, this monitor can show the Program
and the sources. This option will be valuable to speakers to easily keep their presentation
flow under control.
7
Creative display configurations for impressive presentations
Because the creativity of show producers has no limit, staging companies must be ready for a variety of presentations and events.
On top of its versatile connectivity, the LiveCore™ platform offers powerful operating modes enabling the management of a great variety of display layouts
to answer the needs of most presentations.
Mixer configuration
Multi-screen configuration: mixer mode
Used as a Mixer, the NeXtage 16 can display one native background and
Used as a mixer, SmartMatriX Ultra can display one native background and
up to 4 true-seamless layers. This mode allows a real Preview output
up to 2 true-seamless layers per output.
which can have a format & rate different from the Program.
This mode allows the management of four independent screens in a true
A/B mix mode with a live preview of all screens.
8
Hard Edge configuration
4K Display
Wide display presentations can be achieved through Hard Edge mode. This
The SmartMatriX Ultra, Ascender 32 & Ascender 48 allow the display of
mode is of interest for wide applications using LED walls.
up to 4K Resolution using video projectors or flat screens.
In this case, images are configured edge to edge, with no overlapping area.
The connectivity can be done in 4 x 3G-SDI or 4 x DVI-D.
Hard edge can be operated vertically or horizontally. In this mode, the
Preview is displayed on the monitoring output. The Preview can show the
whole Hard Edge Screen.
With the Monitoring/Preview
Output the Program (Screen
#1) Picture is recomposed ever
if the Picture is in Hard-Edge
Mode
9
Used as mixers, Ascender 32 & Ascender 48 can display one native
Soft Edge config. with one output used as
Confidence monitor
background and up to 4 or 6 true-seamless layers per output.
The NeXtage 16, Ascender 32 and Ascender 48 allow creation of wide
This mode allows a management of three independent screens in a true
displays through Soft Edge Blending. With Ascender 32 & Ascender 48,
A/B mix mode with a live preview of all screens.
wide screen projections are possible with capability to have one or several
Multi-screen configuration: Soft Edge
outputs declared as a Confidence monitor.
10
Associative modularity
Additive modularity
For even more impressive shows, 2, 3 or 4 units of NeXtage 16 can be lin-
For even more impressive presentations, 2 units of SmartMatriX Ultra,
ked together. In this configuration, wide displays can be achieved, either
Ascender 32 or Ascender 48 can be linked together. In this configuration,
horizontally, vertically, or both.
inputs and outputs are shared and added resulting in impressive 24x8 scaled
To control several units of NeXtage 16 together, Analog Way’s new Event
seamless matrix systems + 2 mosaic previews. The wide displays can be
Controller VertigeTM is required, enabling outstanding visual effects and
achieved, either horizontally, vertically, or both.
transitions.
11
State-of-the-art processing
The new LiveCore™ platform is the heart of Analog Way’s new generation of high-end AV processors.
The LiveCoreTM platform was designed to provide state-of-the-art imaging and real time processing.
 The LiveCoreTM platform
(*) All video processing is firmware based and carried out by the Processing unit. User-interfacing, network communication
and other non-time critical processes are supported by the platform’s PC-based Communication module.
12
Optimized layer management
 The LiveCore™ series features an independent native background for live or still images, allowing additional layering capability.
 In order to offer higher creativity, all seamless layers are considered as uniform layers, meaning any source can be fully resized.
Background Layer
Background Layer
2 sources
4 sources
2+1: SmartMatriX Ultra
4+1: NeXtage 16 & Ascender 32
Background Layer
6 sources
6+1: Ascender 48
U
p to 50 frames and 50 logos can be stored in the LiveCore™-based systems' memory via a USB plug. Management of pictures is accomplished via a unique
thumbnail library. Frames and logos have the same properties as other layers: they are fully resizable and can support all settings and layer transitions. The
LiveCore™ platform offers up to 4 seamless logos/frames.
Format
Upload
Download
Transparency support
BMP
Yes
Yes
N/A
JPEG
Yes
Yes
N/A
TIFF
Yes
Yes
Yes
GIF*
Yes
Yes
Yes
PNG
Yes
Yes
Yes
ICO
Yes
Yes
Yes
* Animated Gif not supported
13
Display configurations
The outputs are considered as separate screens and can display up to 2, 4 or 6 true-seamless layers + native background.
In Hard Edge or Soft Edge Blend configuration, the outputs are also considered as one screen, continuing the capability to display 2, 4 or 6 true-seamless layers
+ 1 native background.
Display configurations with 4 outputs (Ascender 48)
Output #1
Display configurations with 2 outputs
(NeXtage 16)
Output #1
1
2
7
3
4
5
Output #2
5
2
3
4
Screen 1 - Program
6
7
8
1
2
Screen 2 - Program
4
5
6
Screen 1 - Program
1
2
3
4
Screen 1 - Program
1
P4
P3
P2
9
10
8
9
11
3
Soft Edge/Hard Edge Screen 1
16
17
11
Screen 3 - Program
12
Soft Edge/Hard Edge Screen 2
1
2
7
3
4
5
6
1
2
3
4
5
1
8
2
9
310
11
23
24
Screen 4 - Program
15
16
17
18
Screen 3 - Program
12
Soft Edge/Hard Edge Screen 2
6
Soft Edge/Hard Edge Screen 1
14
22
18
13
14
10
21
P1
Preview
4
Output #4
19
20
12
Soft Edge/Hard Edge Screen 1
2
Output #3
13
14
15
Screen 2 - Program
7
3
8
6
Screen 1 - Program
1
Output #2
Powerful processing capabilities and stunning visual effects
 L iveCore™ platform's Scalers allow the display of all inputs and layers in real
time on Program, Preview and Monitoring/Mosaic outputs.
 T he system offers a true A/B mix such as dedicated video mixers do. Inputs
New outstanding effect
Flying Curve
Effects
Transitions
B
A
can be perfectly mixed and switched without any restriction. Control through
the T-Bar remains available all the time, for transitions from A to B and B
to A.
 T hanks to its outstanding effects, the LiveCore™ series is the ideal range to
easily create stunning presentations. New menus are available to manage
effects. Layers being uniform and independent, each of them can have
specific effects applied to it: size, type of transition, time of the transition,
Faders: Capability to proceed on a specific layer
Mirror: Capability to manage a mirror effect between two layers
etc.
Timing
A
variety of stunning effects can be achieved using functionalities embedded
in the machine to make the process straightforward. As an example, the
new "Background Cut" function allows automatic and instant calculation of
complex slice-cut transition effects.
Strobe: Capability to apply a stroboscopic effect per layer
Speed
 In order to provide cutting edge imaging in a live environment, the LiveCore™
platform uses Analog Way's latest high performance algorithms, including
a fully redesigned deinterlacing process and stunning new chroma key. Very
low latency remains the cornerstone of this latest generation of processing.
Timing: Capability to manage specific timing for each layer
Speed: Capability to manage specific speed for each layer
15
User-friendly and intuitive Graphic Interface
Analog Way worked extensively on the LiveCore™ series' control interface to make it as
easy as possible to set up and operate.
Through its front panel interface or via its new web-based Remote Control Software, the
LiveCore™-based processors are extremely easy to use and monitor in the field.
Control from front panel
The LiveCore™ series features a 4.3” TFT
color display with WVGA resolution (800x480
pixels), and a new graphical interface.
The new interface allows management of
input sources with snapshots for monitoring
directly on the front panel’s screen.
New powerful intuitive Remote Control Software
To help operators make the best use of the LiveCore™ platform, Analog Way designed a
brand new Web-based Remote Control Software (Web RCS). This new Web RCS can be run
from any computing system using an Internet browser (PC, Mac, tablet).
16
 T he Web RCS offers a user-friendly graphic interface consisting of 3 independent sections:
Setup, Edition and Live.
W
ith dynamic snapshots of the connected sources available, the intuitive interface allows
operators to fully prepare their shows and control them live during their events.
 An innovative Sequences mode allows easy organization of presets through drag and drop.
Setup
Live
Edition
17
Event controller - Vertige™ (Ref. VRC300)
High-End Remote Controller for
large events/multi-venues
The Vertige™ is a revolutionary Remote Controller
integrating new ways to create and manage powerful
events. The Vertige™ brings a simple and flexible
approach to show creation and management.
Available in late 2013
18
Communicative architecture for collaborative efforts
Through its powerful Web RCS, the LiveCore™ generation of processors offers a great
opportunity for collaborative practices in the set-up of the machine, but also in its
control and maintenance thanks to Remote Service capabilities.
These capabilities ensure easy utilization of the device and highly efficient
maintenance for optimized uptimes.
Multiple users
To save time and increase creativity, up to 5 operators per device can connect on the
Web RCS and work from separate computing systems on different tasks simultaneously.
Any operation is seen in real time by all the Web RCS users, thus ensuring effective
preparation and monitoring.
Remote services
A specific communication module made of a dedicated industrial PC card, is embedded
in the device to allow for remote services. This PC card is dedicated to LAN/WAN support services and is never involved in the real time critical image processing of the
machine.
19
Important information regarding the use of the machine is also available: logs, working hours in total,
working hours per show, etc.
If assistance is needed with a show, Analog Way technicians can remotely connect to the computing
system running the Web RCS. This way, they can access the device and provide help as long as the unit
is accessible via the Internet.
Advanced Dashboard
Remote maintenance tools
If help is needed for troubleshooting, Analog Way's Technical Support teams can remotely connect to a
LiveCore™-based system to get access to internal logs, counters and errors and provide proper assistance.
In order to speed up repair or replacement processes, specific tools were implemented to help identify
potential failures or defective parts in the machine from a remote location.
Training
To help operators make the best use of the advanced features of the LiveCore™ series, Analog Way
established a dedicated training program.
The class will include technical know-how and hands-on experience to explain how to make impressive
shows with easy control through the LiveCoreTM platform and the Web RCS.
20
Overall comparison
References
INPUTS
Universal Analog Input (RGBHV, YUV, Y/C & Composite)
DVI-I Scaled
DVI Dual-Link
HDMI
DIsplayPort
3G/HD/SD-SDI
Max resolution
Universal analog input EDID
EDID (HDMI - DVI - DisplayPort)
HDCP compliant & Disable
OUTPUTS
Program/Output
Preview on Output 2
Max resolution
Independent Preview/Mosaic/Monitoring Output (Full live Preview all sources)
Video Out 3G/HD/SD-SDI - RGB - RGsB - RGBs - YUV - Y/C - Comp
Monitoring DVI or DVI Dual-Link
HDCP compliant DVI
OPERATION MODES
Soft Edge Vertically and Horizontally up to 8 outputs
Hard Edge Vertically and Horizontally up to 8 outputs
PREVIEW
Full Live Preview of all sources (Preview/Mosaic/Monitoring)
Confidence Monitor
Customizable labels on Monitoring/Preview display
Displaying of widgets in Monitoring/preview display
TRANSITIONS & EFFECTS
True A/B Mix
Transition: Cut, Fade, Slide, Wipe, Circle, Stretch & Depth
Background Cut Effect
Flying Curve Effect
LAYERS
6 true-seamless scaled layers
4 true-seamless scaled layers
2 true-seamless scaled layers
Native Background
Advanced Layers Management
FRAME & LOGO
Fully resizable (Supporting all settings and layer transitions)
Formats : BMP, JPEG, TIFF, GIF, PNG, ICO in downloading/uploadling by USB plug
Management of pictures via a thumbnail library
Available Frames/Logos
OTHER FEATURES
Associative Modularity Via Remote Controller (Vertige - Ref. VRC300)
Additive Modularity via Web RCS (Link between 2 units only)
Fast routing mode
Tally/GPI-O
Frame Lock
HUMAN MACHINE INTERFACE
Web RCS (Web Based Remote Control Software)
Specific management of the front panel in matrix mode
Remote Services
Remote Maintenance Tools
Remote Controller - VRC300
FORM FACTOR
Rugged Design
Enclosure
Rack mount kit supplied
Ascender 48 - Ref. ASC4806
Ascender 32 - Ref. ASC3204
SmartMatriX Ultra - Ref. SMX12x4
NeXtage 16 - Ref. NXT1604
12
12
6
3
6
3
12
2K/WQXGA
Except DVI-A
All inputs

12
12
6
3
6
3
12
2K/WQXGA
Except DVI-A
All inputs

12
12
6
3
6
3
12
2K/WQXGA
Except DVI-A
All inputs

8
8
6
2
4
2
8
2K/WQXGA
Except DVI-A
All inputs

4
4
4
WQXGA/ Ultra HD & 4K




WQXGA/ Ultra HD & 4K




WQXGA/ Ultra HD & 4K




2

2K/WQXGA














12



12



12



8
































50/50



50/50



50/50



50/50
















4u

















4u


4u


3u

21
Technical specifications
 Universal inputs
Operation standards: LiveCore™ series conforms with SMPTE standards: ST259: 2008 / ST292-1: 2012 / ST424: 2006 / ST426-9: 2008.
SDTV formats
Standard
Size
Vertical frequency
Horizontal frequency
NTSC
525/480i
59.94Hz/60Hz
15,735 KHz
PAL
625/576i
50Hz
15.625 KHz
SECAM
625/576i
50Hz
15.625 KHz
Standard
Size
Vertical frequency
Horizontal frequency
480p
525/480p
59.94Hz/60Hz
31.47 KHz
576p
625/576p
50Hz
31.25 KHz
EDTV formats
HDTV formats
Inputs formats and plugs
Standard
Size
HD-15
3G-SDI
HDMI
2-Lanes
DisplayPort
4-Lanes3
DisplayPort
Single-Link
DVI-I
Dual-Link
DVI-D
NTSC
525/480i
Yes
No
Yes
No
No
Yes
No
PAL
625/576i
Yes
No
Yes
No
No
Yes
No
SECAM
625/576i
Yes
No
Yes
No
No
No
No
Standard
Size
Vertical frequency
720p
1280 x 720
23.97Hz/24Hz/25Hz/29,97Hz/30Hz/50Hz/59.94Hz/60Hz
1035i
1920 x 1035
59.94Hz/60Hz
480p
525/576i
Yes
No
Yes
Yes
Yes
Yes
Yes
1080i
1920 x 1080
50Hz/59.94Hz/60Hz
576p
625/576p
Yes
No
Yes
Yes
Yes
Yes
Yes
1080sF
1920 x 1080
50Hz/59.94Hz/60Hz
720p
1280x720
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1080p
1920 x 1080
23.97Hz/24Hz/25Hz/29,97Hz/30Hz/50Hz/59.94Hz/60Hz
Cinema formats
Format
Size
Vertical frequency
DCDM
2048 x 1080
24Hz
Inputs and plugs
Plug Type
Formats
1035i
1920x1035
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1080i
1920x1080
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1080p
1920x1080
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1080sF
1920x1080
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1080p
1920x1080
Yes
Yes
Yes
Yes
Yes
Yes
DCDM
2048x1080
No
Yes
No
No
No
No
No
VGA
640x480
Yes
No
Yes
Yes
Yes
No
Yes
Signals
800x480
800x480
Yes
No
Yes
Yes
Yes
Yes
Yes
848x480
Yes
No
Yes
Yes
Yes
Yes
Yes
800x600
Yes
No
Yes
Yes
Yes
Yes
Yes
Universal Analog Input
SDTV - EDTV - HDTV - Computer
Analog SDTV - Analog EDTV - Analog HDTV - Analog Computer
WVGA
DVI-A Input
SDTV - EDTV - HDTV - Computer
Analog SDTV - Analog EDTV - Analog HDTV - Analog Computer
SVGA
DVI-D Input
SDTV - EDTV - HDTV - Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
DisplayPort Input
SDTV - EDTV - HDTV - Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
HDMI Input
SDTV - EDTV - HDTV - Computer
Digital SDTV - Digital EDTV - Digital HDTV - Digital Computer
3G/HD/SD-SDI Input
SDTV - HDTV
Digital SDTV - Digital HDTV
The following types of plugs are available on the rear panel :
4-Lanes DisplayPort in version 1.1a (accept a Dual-Link DVI input via a no supplied active adaptor)
HDMI
Single DVI-I / Dual-Link DVI-D (DVI-I connector),
3G-SDI (BNC),
Universal Analog (HD-15)
22
1280x600
1280x600
Yes
No
Yes
Yes
Yes
Yes
Yes
720p RGB
1280x720
Yes
No
Yes
Yes
Yes
Yes
Yes
XGA
1024x768
Yes
No
Yes
Yes
Yes
Yes
Yes
WXGA
1280x768
Yes
No
Yes
Yes
Yes
Yes
Yes
SWXGA
1360x768
Yes
No
Yes
Yes
Yes
Yes
Yes
1366x768
1366x768
Yes
No
Yes
Yes
Yes
Yes
Yes
800p RGB
1280x800
Yes
No
Yes
Yes
Yes
Yes
Yes
SWXGA+
1366x800
Yes
No
Yes
Yes
Yes
Yes
Yes
1152x864
1152x864
Yes
No
Yes
Yes
Yes
Yes
Yes
[...]
Outputs formats and plugs
Standard
Size
900p RGB
HD-15
1440x900
Yes
3G-SDI
No
HDMI
Yes
2-Lanes
DisplayPort
Yes
4-Lanes
DisplayPort
3
Single-Link
DVI-I
Yes
Yes
Format
Size
Dual-Link
DVI-D
VGA
640x480
Yes
WVGA
848x480
Frequency
50 Hz
60 Hz
Format
Size
Aspect ratio
4/3
Yes
Yes
WUXGA
1920x1200
16/9
Yes
Yes
16/9
Yes
Yes
2K
2048x1080
17/9
Yes
Yes
Yes
Aspect ratio
Frequency
50 Hz
60 Hz
1600x900
1600x900
Yes
No
Yes
Yes
Yes
Yes
Yes
SVGA
800x600
4/3
Yes
Yes
QXGA
2048x1536
4/3
Yes
960p RGB
1280x960
Yes
No
Yes
Yes
Yes
Yes
Yes
720p
1280x720
16/9
Yes
Yes
WQHD1
2560x1440
16/9
Yes
Yes
SXGA
1280x1024
Yes
No
Yes
Yes
Yes
Yes
Yes
XGA
1024x768
4/3
Yes
Yes
WQXGA1
2560x1600
16/10
Yes
Yes
1
1360x1024
1360x1024
Yes
No
Yes
Yes
Yes
Yes
Yes
WXGA
1280x768
5/3
Yes
Yes
Ultra HD2
3840x2160
16/9
Yes
Yes
DILA4/3
1364x1024
Yes
No
Yes
Yes
Yes
Yes
Yes
SWXGA
1360x768
16/9
Yes
Yes
4K2
4096x2160
17/9
Yes
Yes
SXGA+
1400x1050
Yes
No
Yes
Yes
Yes
Yes
Yes
1366x768
1366x768
16/9
Yes
Yes
16/9
Yes
Yes
Yes
WSXGA+
1680x1050
Yes
No
Yes
Yes
Yes
Yes
Yes
WXGA2
1280x800
1080p RGB
1920x1080
Yes1
No
Yes
Yes
Yes
Yes
Yes
SWXGAP
1366x800
5/3
Yes
2K
2048x1080
Yes1
No
Yes
Yes
Yes
Yes
Yes
UXGA
1600x1200
Yes1
No
Yes
Yes
Yes
Yes
Yes
900p
1440x900
16/10
Yes
Yes
WUXGA
1920x1200
Yes1
No
Yes
Yes
Yes
Yes
Yes
SXGA
1280x1024
5/4
Yes
Yes
SXGAP
1400x1050
5/3
Yes
Yes
1920x1440
Bad
quality2
No
No
No
Yes
No
Yes
QXGA4
2048x1536
Bad
quality2
No
No
No
Yes
No
Yes
WQXGA4
2560x1600
No
No
No
No
Yes
No
Yes
1920x1440
Notes:
1) Reduced Blanking
2) The signal is under-sampled: the image cannot be reproduced on 1:1 scaling
3) 4-Lanes DisplayPort in version 1.1a (accept a Dual-Link DVI input via a non-supplied active adaptor)
4) Dual-Link format. This resolution uses 2 input channels.
 Outputs (Program & Preview)
Outputs and plugs
Output Type
Format
Signal
Analog Computer/Video Ouput
HDTV
Computer
Analog HDTV
Analog Computer
DVI-I Dual-Link Output
HDTV
Computer
Analog HDTV
Analog Computer
3G-SDI Output
HDTV
Digital HDTV
Dual Video Optical SFP Module
HDTV
Digital HDTV
(Two Clone outputs via 3G-SDI)
Each output contains four plugs outputs:
 3G/HD/SD-SDI (two clone outputs via 1 BNC and 1 dual video optical SFP module)
 Analog Computer/Video (HD15)
 DVI: Dual Link DVI-I for output #1 and Single-Link DVI-I on output #2 (both with DVI Connectors)
UXGA
1600x1200
4/3
Yes
Yes
WSXGAP
1680x1050
16/9
Yes
Yes
1080p
1920x1080
16/9
Yes
Yes
Notes:
1) This resolution uses 2 output channels (Dual-Link format).
2) This resolution uses 4 output channels (4 x 3G-SDI or 4 x DVI-D).
 Monitoring/Preview/Mosaic Ouput
Outputs and plugs
Output Type
Format
Signal
Video Composite
SDTV
Analog SDTV
Video Y/C Output
SDTV
Analog SDTV
Video Y Pb Pr Output
SDTV / EDTV / HDTV
Analog SDTV
Video RGBS/TTL Output
SDTV / EDTV / HDTV
Analog SDTV
Analog Computer/Video Output
SDTV
EDTV
HDTV
Computer
Analog SDTV
Analog EDTV
Analog HDTV
Analog Computer
DVI-I Dual-Link Output
EDTV
HDTV
Computer
Digital SDTV
Digital EDTV
Digital HDTV
Digital Computer
3G/HD/SD-SDI Output
HDTV
Digital SDTV
Digital HDTV
This module contains one output with the following plugs:
 3G/HD/SD-SDI (1xBNC)
 Analog Computer/Video (HD15)
 Dual-Link DVI-I (DVI-I)
 Analog SDTV (4xBNC: Composite, YC, YUV, RGBS)
NeXtage 16:
Dimensions:
 D 21.41''x W 17.51'' x H 5.23''
 D 544 mm x W 444.8 mm x H 133 m
Weight:
 14Kgs / 30.86lb
Power Supply:
100-240 VAC ; 4.8A ; 50/60Hz ; 225 W
SmartMatriX Ultra, Ascender 32 & Ascender 48:
Dimensions:
 D 21.41''x W 17.51'' x H 6.97''
 D 544 mm x W 444.8 mm x H 177 m
Weight:
 19Kgs / 41.89lb
Power Supply:
100-240 VAC ; 4.8A ; 50/60Hz ; 285 W
Supplied with:
 1 x Power Supply Cord
 1 x Ethernet cross cable (for device control)
 1 x Rack mount kit
 1 x MCO 10 pin connector
 1 x Web-based Remote Control Software (Web RCS)
 1 x User Manual (PDF version)*
 1 x Quick Start Guide*
*User manual and Quick start guide are also available on www.analogway.com
23
Analog Way around the world
Analog Way SAS - Headquarters
Analog Way Inc.
E-mail:
Sales/General information: [email protected]
Technical Support: [email protected]
E-mail:
Sales/General information: [email protected]
Technical Support: [email protected]
Tel.: +33 (0)1 81 89 08 60
Fax: +33 (0)1 57 19 04 54
Address: 2
/4 rue Georges Besse
92160 Antony
FRANCE
Tel.: +1 212 269 1902
Fax: +1 212 269 1943
Address: 2
99 Broadway, Suite 1620
New York, NY 10007
USA
Analog Way Pte Ltd
Tel.: +65 6292 5800
Fax: +65 6292 5205
Address: 1
52 Beach Road
#15-03 Gateway East
SINGAPORE 189721
E-mail:
Sales/General information: [email protected]
Technical Support: [email protected]
Analog Way Germany
Tel.: +49 7161 5075668
E-mail: [email protected]
Analog Way Italy
Tel.: +39 02 39493943
E-mail: [email protected]
Analog Way UK
Tel.: +44 (0)2076 979133
E-mail: [email protected]
Your distributor
Connect with us on www.analogway.com
Follow us
V1-16/05/2013
Pictures and drawings non-contractual. Specifications subject to change without prior notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
