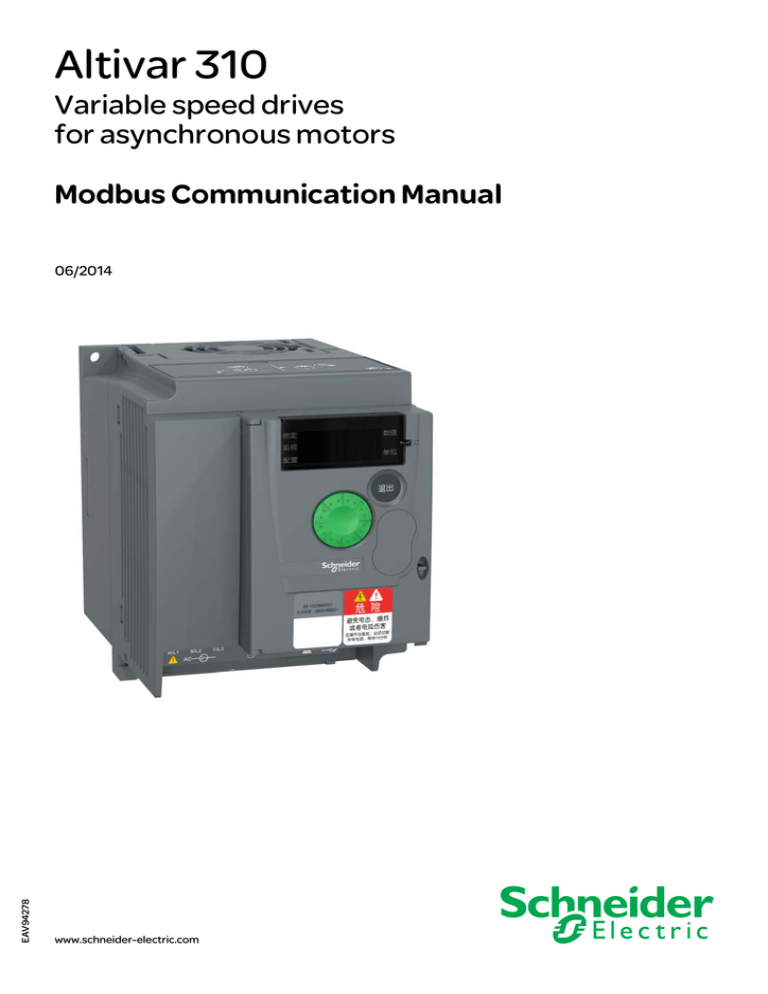

Altivar 310
Variable speed drives
for asynchronous motors
Modbus Communication Manual
EAV94278
06/2014
www.schneider-electric.com
Contents
Important Information __________________________________________________________________________________________ 4
Before you begin______________________________________________________________________________________________ 5
Documentation structure________________________________________________________________________________________ 7
Presentation _________________________________________________________________________________________________ 8
Connection to RS485 bus_______________________________________________________________________________________ 9
Configuration of the Modbus serial port ___________________________________________________________________________ 10
IO Scanner configuration parameters_____________________________________________________________________________ 11
Modbus Functions ___________________________________________________________________________________________ 13
ATV310 state machine ________________________________________________________________________________________ 18
Application example __________________________________________________________________________________________ 22
Connection to RS485 bus______________________________________________________________________________________ 25
EAV94278 06/2014
3
Important Information
NOTICE
Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain
it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call
attention to information that clarifies or simplifies a procedure.
The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard exists, which will result in
personal injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided, can result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, can result in minor or moderate injury.
NOTICE
NOTICE, used without the safety alert symbol, indicates a potentially hazardous situation which, if not avoided, can
result in property damage.
PLEASE NOTE
The word "drive" as used in this manual refers to the controller portion of the adjustable speed drive as defined by NEC.
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by
Schneider Electric for any consequences arising out of the use of this material.
© 2014 Schneider Electric. All Rights Reserved
4
EAV94278 06/2014
Before you begin
Read and understand these instructions before performing any procedure with this drive.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Only appropriately trained persons who are familiar with and understand the contents of this manual and all other pertinent product
documentation and who have received safety training to recognize and avoid hazards involved are authorized to work on and with this
drive system. Installation, adjustment, repair, and maintenance must be performed by qualified personnel.
• The system integrator is responsible for compliance with all local and national electrical code requirements as well as all other
applicable regulations with respect to grounding of all equipment.
• Many components of the product, including the printed circuit boards, operate with mains voltage. Do not touch. Use only electrically
insulated tools.
• Do not touch unshielded components or terminals with voltage present.
• Motors can generate voltage when the shaft is rotated. Before performing any type of work on the drive system, block the motor shaft
to prevent rotation.
• AC voltage can couple voltage to unused conductors in the motor cable. Insulate both ends of unused conductors of the motor cable.
• Do not short across the DC bus terminals or the DC bus capacitors or the braking resistor terminals.
• Before performing work on the drive system:
- Disconnect all power, including external control power that may be present.
- Place a "Do Not Turn On" label on all power switches.
- Lock all power switches in the open position.
- Wait 15minutes to allow the DC bus capacitors to discharge. The DC bus LED is not an indicator of the absence of DC bus voltage
that can exceed 800Vdc.
- Measure the voltage on the DC bus between the DC bus terminals using a properly rated voltmeter to verify that the voltage is
< 42Vdc.
- If the DC bus capacitors do not discharge properly, contact your local Schneider Electric representative.
• Install and close all covers before applying voltage.
Failure to follow these instructions will result in death or serious injury.
DANGER
UNINTENDED EQUIPMENT OPERATION
• Read and understand this manual before installing or operating the ATV310 drive.
• Any changes made to the parameter settings must be performed by qualified personnel.
Failure to follow these instructions will result in death or serious injury.
WARNING
DAMAGED DRIVE EQUIPMENT
Do not operate or install any drive or drive accessory that appears damaged.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
EAV94278 06/2014
5
Before you begin
WARNING
LOSS OF CONTROL
• The designer of any control scheme must consider the potential failure modes of control paths and, for critical control functions,
provide a means to achieve a safe state during and after a path failure. Examples of critical control functions are emergency stop,
overtravel stop, power outage, and restart.
• Separate or redundant control paths must be provided for critical control functions.
• System control paths may include communication links. Consideration must be given to the implications of unanticipated
transmission delays or failures of the link.
• Observe all accident prevention regulations and local safety guidelines. (a)
• Each implementation of the product must be individually and thoroughly tested for proper operation before being placed into service.
Failure to follow these instructions can result in death, serious injury or equipment damage.
a. For USA: Additional information, refer to NEMA ICS 1.1 (latest edition), “Safety Guidelines for the Application, Installation, and
Maintenance of Solid State Control” and to NEMA ICS 7.1 (latest edition), “Safety Standards for Construction and Guide for Selection,
Installation and Operation of Adjustable Speed Drive Systems.”
6
EAV94278 06/2014
Documentation structure
The following Altivar 310 technical documents are available on the Schneider Electric website (www.schneider-electric.com).
ATV310 Quick Start Guide (EAV94272)
The Quick Start describes how to wire and configure the drive to start motor quickly and simply for simple applications.
This document is delivered with the drive with an Annex (S1A58684) for Short Circuit Current Ratings (SCCR) and branch circuit protection.
ATV310 User manual ( EAV94277)
This manual describes how to install, program and operate the drive.
ATV310 Modbus Communication manual (EAV94278)
This manual describes the assembly, connection to the bus or network, signaling, diagnostics, and configuration of the communicationspecific parameters via the 7 segment LED display.
It also describes the communication services of the Modbus protocol.
This manual includes all Modbus addresses. It explains the operating mode specific to communication (state chart).
ATV310 Modbus parameters description file ( EAV94279)
All the parameters are grouped together in an Excel file with the following data:
• Code
• Name
• Modbus Addresses
• Category
• Read/write access
• Type: signed numerical, unsigned numerical, etc.
• Unit
• Factory setting
• Minimum value
• Maximum value
• Display on the 7-segment integrated display terminal
• Relevant menu
• This file offers the option of sorting and arranging the data according to any criterion chosen by the user.
DANGER
UNINTENDED EQUIPMENT OPERATION
• Read and understand this manual before installing or operating the ATV310 drive.
• Any changes made to the parameter settings must be performed by qualified personnel.
• The excel file does not describe the behaviour of the parameters. Before any modification, refer to the ATV310 User Manual.
Failure to follow these instructions will result in death or serious injury.
EAV94278 06/2014
7
Presentation
The Modbus socket on the ATV310 can be used for the following functions:
•
•
•
•
Configuration
Settings
Control
Monitoring
The ATV310 fc drive supports:
• The 2-wire RS485 physical layer
• The RTU transmission mode
8
EAV94278 06/2014
Connection to RS485 bus
Connection to ATV310
Connection accessories should be ordered separately (please consult our catalogues).
Connect the RJ45 cable connector to the ATV310 connector.
Pin out of the ATV310 RJ45 Connector
View from underneath
8........................1
Pin
Signal
1
-
2
-
3
-
4
D1 (1)
5
D0 (1)
6
-
7
VP (2)
8
Common (1)
(1) Modbus signals
(2) Supply for RS232 / RS485 converter or a remote terminal
Protection against interference
• Use the Schneider Electric cable with 2 pairs of shielded twisted conductors (reference: TSXCSA100, TSXCSA200, TSXCSA500).
• Keep the Modbus cable separated from the power cables (30 cm (11.8 in.) minimum).
• Make any crossovers of the Modbus cable and the power cables at right-angles, if necessary.
For more information, please refer to the TSX DG KBL E manual: "Electromagnetic compatibility of industrial networks and fieldbuses".
RS485 bus schematic
The RS485 standard allows variants of different characteristics:
• polarisation
• line terminator
• distribution of a reference potential
• number of slaves
• length of bus
The new Modbus specification published on the Modbus.org site in 2002 contains precise details of all these characteristics. They are also
summarised in Standard schematic section. The new Schneider Electric devices conform to this specification.
EAV94278 06/2014
9
Configuration of the Modbus serial port
Communication Menu Structure
The communication parameters are part of the COM- submenu.
This menu is accessible as follows:
COnF
FCS
FC
FULL
500-
701
LFr
LF
600-
702
700-
703
704
705706707708-
Communication configuration - Parameters decription
Parameter description
Range or listed values
default
Possible Value
Modbus address
MODBUS address of the drive
701
1 to 247
0 : OFF (broadcast only)
OFF
OFF
1 ... 247
16#1771 = 06001
MODBUS baud rate
702
4,8 kbps
9,6 kbps
19,2 kbps
38.4 kbps
19,2 kbps
4.8
9.6
19.2
38.4
16#1773 = 06003
8O1: 8 bits, odd parity, 1 stop bit.
8E1: 8 bits, even parity, 1 stop bit.
8N1, 8 bits, no parity, 1 stop bit
8N2: 8 bits, no parity, 2 stop bits.
8E1
8o1
8E1
8n1
8n2
16#1774 = 06004
Adjustable from 0.1 to 30s
10,0 s
0.1....30
16#1775 = 06005
MODBUS format
703
MODBUS Time out
704
705706707-
Communication scanner submenus :Detailed in the next chapter
708-
The behaviour of the ATV310 when a time-out occurs is defined by the 611 parameter, this parameter can be found in the menu 600(see User Manual).
WARNING
LOSS OF CONTROL
If Modbus fault management (611) = fault ignore (00), communication control will be inhibited. For safety reasons, inhibition of
communication fault should only be used for adjustment or special applications purpose.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
10
EAV94278 06/2014
IO Scanner configuration parameters
Integrated communication scanner
The communication scanner is useful when used in combination by the Modbus client device with the function "Read/Write Multiple
registers" : 23 (0x17), which provides in a single telegram a read multiple registers and a write multiple registers. The detail of the function
23 is described in the supported Modbus functions
Local configuration of the communication scanner
The communication scanner is accessible via the following menus : 700- and 705- 706- submenus.
The 4 output variables and the 4 input variables are assigned by means of parameters 706.0 to 706.3and 705.0 to 705.3.
An 706 or 705 parameter with a value of zero indicates that the parameter is not active. These 8 parameters are described in the table.
NCA or NMA defines the addresses. All these parameters are Modbus eligible addresses.
Submenu
On the local HMI, it is parameter description
Factory setting parameter
Modbus address
705-
NMA1 (705.0)
Source drive address of the 1st input word
Address of ETA=3201
16#0C81
705.0 address
16#319D = 12701
NMA2 (705.1)
Source drive address of the 2nd input word
Address of RFRD=8604
16#219C
705.1 address
16#319E = 12702
NMA3 (705.2)
Source drive address of the 3rd input word
0
705.2 address
16#319F = 12703
NMA4 (705.3)
Source drive address of the 4th input word
0
705.3 address
16#31A0 = 12704
NCA1 (706.0)
Destination drive address of the 1st output word
Address of CMD=8501
16#2135
706.0 address
16#31B1 = 12721
NCA2 (706.1)
Destination drive address of the 2nd output word
Address of LFRD=8602
16#219A
706.1 address
16#31B2 = 12722
NCA3 (706.2)
Destination drive address of the 3rd output word
0
706.2 address
16#31B3 = 12723
NCA4 (706.3)
Destination drive address of the 4th output word
0
706.3 address
16#31B4 = 12724
706-
Monitoring the communication scanner
It is also possible to monitor the parameters value that have been configured in the communication scanner. This monitored values are
accessible via the following menus : 700- and707- 708- submenu.
The 4 output variable values and the 4 input variable values are located into parameters 708.0 to 708.3and 707.0 to 707.3.
Submenu
On the local HMI, it is parameter description
Factory setting parameter
Modbus address
707-
NM1 (707.0)
Source drive value of the 1st input word
ETA value
707.0 address
16#31C5 = 12741
NM2 (707.1)
Source drive value of the 2nd input word
RFRD value
707.1 address
16#31C6 = 12742
NM3 (707.2)
Source drive value of the 3rd input word
0
707.2 address
16#31C7 = 12743
NM4 (707.3)
Source drive value of the 4th input word
0
707.3 address
16#31C8 = 12744
NC1 (708.0)
Destination drive value of the 1st input word
CMD value
708.0 address
16#31D9 = 12761
NC2 (708.1)
Destination drive value of the 2nd input word
LFRD value
708.1 address
16#31DA = 12762
NC3 (708.2)
Destination drive value of the 3rd input word
0
708.2 address
16#31DB = 12763
NC4 (708.3)
Destination drive value of the 4th input word
0
708.3 address
16#31DC = 12764
708-
EAV94278 06/2014
11
IO Scanner configuration parameters
Configuration example
In this example the communication scanner is configured as follow, 706.0, 706.1, 705.0, 705.1 are used with their default
values. 706.2 is configured with the address of CMI Extended control word (Modbus 8504 16#2138). 705.2 is is configured with
the address of EtI Extended control word (Modbus 3206 16#0C86).
How to read the diagram below
Example for 706.2:
706.2 1 contain the logical address (2138) of CMI Extended control word 2
Communication scanner
• menu
• submenu
700700--, 706-
EtI
Extended control word
706.0
1
706.1
706.2
706.3
2135
219A
2138
0000
2
CMI
8504
16#2138
CMd
8501
16#2135
8602
16#219A
3201
16#0C81
8604
16#219C
(Extended control word)
Control word
LFrd
Speed reference via the bus (signed value)
EtA
Status word
rFrd
Speed reference via the bus (signed value)
705.0
705.1
705.2
705.3
3206
16#0C86
0C81
219C
0C86
0000
The required telegram to perform the exchange is the Modbus function 23, Obviously a sequence of requests based on Modbus functions
03 and 16 is also possible.
(See also the chapters Modbus Functions and ATV310 and M218).
12
EAV94278 06/2014
Modbus Functions
Modbus Protocol
The transmission mode used is RTU mode. The frame contains no message header byte, nor end of message bytes.
It is defined as follows:
Slave
address
Request code
Data
CRC16
The data is transmitted in binary code.
CRC16: cyclical redundancy check.
The end of the frame is detected on a silence greater than or equal to 3 characters.
Principle
The Modbus protocol is a master-slave protocol.
Master
Only one device can transmit on the line at any time.
The master manages the exchanges and only it can take
the initiative.
It interrogates each of the slaves in succession.
No slave can send a message unless it is invited to do so.
The master repeats the question when there is an incorrect
exchange, and declares the interrogated slave absent if no
response is received within a given time period.
If a slave does not understand a message, it sends an
exception response to the master. The master may or may
not repeat the request.
Slave i
Slave j
Direct slave-to-slave communications are not possible.
Slave k
For slave-to-slave communication, the application software must therefore be designed to interrogate a slave and send back data received
to the other slave.
Two types of dialogue are possible between master and slaves:
• the master sends a request to a slave and waits for its response
• the master sends a request to all slaves without waiting for a response (broadcasting principle)
Addresses
• The drive Modbus address can be configured from 1 to 247.
• Address 0 coded in a request sent by the master is reserved for broadcasting. ATV310 drives take account of the request, but do not
respond to it.
Supported Modbus functions
The ATV310 supports the following Modbus functions.
Function name
Code
Description
Remarks
Read holding registers
03
16#03
Read N output words
Max PDU length : 63 words
Write one output word
06
16#06
Write one output word
Write multiple registers
16
16#10
Write N output word
Max PDU length : 61 words
Read/write Multiple registers
23
16#17
Read/write multiple registers
Max PDU length : 4 words (W), 4 words (R)
(Sub-function)
Read device Identification
43/14
16#2B
16#OE
Encapsulated interface transport
/ Read device identification
EAV94278 06/2014
13
Modbus Functions
The following paragraphs describes each supported function.
Read Holding registers
Request
Function code
1 Byte
0x03
Starting Address
2 Bytes
0x0000 to 0xFFFF
Quantity of Registers
2 Bytes
1 to 63 (0x 3F)
Function code
1 Byte
0x03
Byte count
1 Byte
2 x N*
Register value
N* x 2 Bytes
Response
*N: Quantity of Registers
Error
Error code
1 Byte
0x83
Exception code
1 Byte
01 or 02 or 03 or 04
(see details on page 17)
Example
Note: Hi = high order byte, Lo = low order byte.
This function can be used to read all ATV310 words, both input words and output words.
Request
Slave
no.
1 byte
Response
Slave
no.
1 byte
03
No. of first word
Number of words
Hi
Hi
1 byte
Lo
2 bytes
03
Number of
bytes read
1 byte
1 byte
CRC16
Lo
Lo
2 bytes
First word value
Hi
Hi
2 bytes
-------
Last word value
Lo
Hi
2 bytes
CRC16
Lo
Lo
2 bytes
Hi
2 bytes
Example: read 4 words W3102 to W3105 (16#0C1E to 16#0C21) in slave 2, using function 3, where:
•
•
•
•
14
315 = Switching frequency = 4 kHz (W3102 = 16#0028)
308 = Maximum output frequency = 60 Hz (W3103 = 16#0258)
512.2 = High speed = 50 Hz (W3104 = 16#01F4)
LSP = Low speed = 0 Hz (W3105 = 16#0000)
Request
02
03
Response
02
03
0C1E
08
0004
276C
0028
0258
01F4
0000
Value of:
W3102
W3103
W3104
W3105
Parameters:
315
308
512.2
512.0
52B0
EAV94278 06/2014
Modbus Functions
Write one output word
Request
Function code
1 Byte
0x06
Register Address
2 Bytes
0x0000 to 0xFFFF
Register value
2 Bytes
0x0000 to 0xFFFF
Function code
1 Byte
0x06
Register Address
2 Bytes
0x0000 to 0xFFFF
Register value
2 Bytes
0x0000 to 0xFFFF
Error code
1 Byte
0x86
Exception code
1 Byte
01 or 02 or 03 or 04
(see details on page 17)
Response
Error
Example
Request and response (the frame format is identical)
Slave
no.
06
1 byte
1 byte
Word number
Hi
Value of word
Lo
Hi
2 bytes
CRC16
Lo
Lo
2 bytes
Hi
2 bytes
Example: write value 16#000D in word W9001 (16#2329) in slave 2 (ACC = 13 s).
Request and response
02
06
2329
000D
9270
Read/write Multiple registers
Description
Length in byte
Value
Comment
Function code
1
16#17
Read starting address
2
16#XXXX
Always Modbus address
Quantity to read
2
16#03
Contain number of holding registers to be read.
Write starting address
2
16#XXXX
Always Modbus address
Quantity to write
2
16#03
Contain number of holding registers to be written.
Write Byte count
1
16#06
The byte count specifies the number of bytes to follow in the field
Write Register Value.
Write Registers Value
Nx2 Bytes
(N: quantity to
write)
16#XX
XXXX
XXXX
XX
Value to be written respectively in 706.0 to 706.2, so the configured
example:
CMD, LFRD, CMI.
Example
Slave n°
Function
Code
1 byte
1 byte
1 byte
Write byte
count
Writing
Value 1 HI
Value 1 Lo
1 byte
1 byte
1 byte
EAV94278 06/2014
Read starting Read starting
Address HI Address LOW
1 byte
Qty
2 byte
Value 1 HI
1 byte
Write starting Write starting
Address HI Address LOW
1 byte
Writing Value
1.. 2... 3...n ...
1 byte
1 byte
Qty
2 byte
CRC16
2 byte
15
Modbus Functions
Read Device Identification
ID
Name / Description
Type
0x00
VendorName
ASCII String
0x01
ProductCode
ASCII String
0x02
MajorMinorRevision
ASCII String
Example
Default values to be detailed
Request
Slave
no.
2B
Type of MEI
0E
ReadDeviceId
01
Object Id
00
1 byte
CRC16
1 byte
1 byte
1 byte
1 byte
Slave
no.
2B
Type of MEI
0E
ReadDeviceId
01
Degree of conformity
02
1 byte
1 byte
1 byte
1 byte
1 byte
Lo
Hi
2 bytes
Response
-------
-------
-------
-------
Number of additional frames
00
Next object Id
00
Number of objects
03
1 byte
1 byte
1 byte
Id of object no. 1
00
Length of object no. 1
12
Value of object no. 1
“Schneider Electric”
1 byte
1 byte
18 bytes
Id of object no. 2
01
Length of object no. 2
0B
Value of object no. 2
“ATV310H037N4”
1 byte
1 byte
11 bytes
Id of object no. 3
02
Length of object no. 3
04
Value of object no. 3
“0201”
1 byte
1 byte
04 bytes
-------
-------
-------
-------
-------
-------
CRC16
Lo
Hi
1 byte
1 byte
The total response size equals 49 bytes
The three objects contained in the response correspond to the following objects:
• Object no. 1:
Manufacturer name (always “Schneider Electric”, ie. 18 bytes).
• Object no. 2:
Device reference (ASCII string; for example: “ATV310H037N4”, ie. 11 bytes).
• Object no. 3:
Device version, in “MMmm” format where “MM” represents the determinant and “mm” the subdeterminant (4-bytes
ASCII string; for example: “0201” for version 2.1).
Note: The response to function 43 may be negative; in this case, the response located at the top of the next page is sent by the ATV310
rather than the response described above.
16
EAV94278 06/2014
Modbus Functions
Error management
Exception responses
An exception response is returned by a slave when it is unable to perform the request which is addressed to it.
Format of an exception response:
Slave
no.
Response
code
Error
code
1 byte
1 byte
1 byte
CRC16
Lo
Hi
2 bytes
Response code: request function code + 16#80.
Error code:
1 = The function requested is not recognized by the slave
2 = The bit or word addresses indicated in the request do not exist in the slave
3 = The bit or word values indicated in the request are not permissible in the slave
4 = The slave has started to execute the request but cannot continue to process it completely
CRC16 calculation
The CRC16 is calculated on all the message bytes by applying the following method:
Initialize the CRC (16-bit register) to 16#FFFF.
Enter the first to the last byte of the message:
CRC
XOR
Enter
8 times
<byte> —> CRC
Move the CRC one bit to the right
If the output bit = 1, enter CRC XOR 16#A001—> CRC
End enter
End enter
The CRC obtained will be transmitted with the low order bytes sent first, followed by the high order ones (unlike the other data contained in
Modbus frames).
XOR = exclusive OR.
EAV94278 06/2014
17
ATV310 state machine
Status chart based on IEC 61800-7*
The state machine below describes the interaction between the drive's state machine, monitored by the status word (ETA) parameter, and
the Command Word (CMD). CiA® and CANopen® are registered Community Trademarks of CAN in Automation e.V.
*:Since 2007, CiA402 profile is part of the IEC standard 61800-7. Therefore DriveCom or CiA402 terminology is no more used.
Fault
Power section line supply present or absent
Entry into
state chart
From all states
Fault
Not ready to switch on
Fault reaction active
Fault disappeared
and faults reset
CMD=16#0080
Fault
Switch on disabled
“--06”
Disable voltage
CMD=16#0000
or
STOP key
or
freewheel stop at
the terminals
Disable
voltage
CMD=16#0000
or
Quick stop
CMD=16#0002
or
STOP key
Shutdown
CMD=16#0006
Disable
voltage
CMD=16#0000
or
Quick stop
CMD=16#0002
or
STOP key
or
freewheel stop
at the terminals
or
modification
of a configuration
parameter
Ready to switch on
“--00”
Switch on
CMD=16#0007
After quick stop order,
the drive stops
according to the fast
stop ramp and then
changes to state "2 Switch on disabled".
Shutdown
CMD=16#0006
Switched on
Shutdown
CMD=16#0006
“--00,--10”
Switch on
CMD=16#xxxF
Enable
operation
CMD=16#xxxF
Disable
operation
CMD=16#0007
or
fast stop
Operation enabled
Quick stop
CMD=16#0002
“--01,--02...”
Quick stop active
“--10,--04”
Examples:
ETA=16#0637: Stop or forward, speed reached
ETA=16#8637: Stop or reverse, speed reached
ETA=16#0237: Forward, accelerating or decelerating
ETA=16#8237: Reverse, accelerating or decelerating
Power section line supply present
Key:
State
Switched on
Value of
status word
“--00,--10”
Transition condition
with example of command
18
Enable
operation
CMD=16#xxxF
Status display on
graphic display terminal
EAV94278 06/2014
ATV310 state machine
State machine description
The Altivar control process using the communication bus follows IEC 61800-7 profile status chart compatible with the DRIVECOM standard.
Each state represents an aspect of the internal behaviour of the drive.
This chart evolves according to whether the control word is sent (CMD W8501) or an event occurs (example: lock following malfunction).
The drive status can be identified by the value of the status word (ETA W3201).
Not ready to switch on (Initialization):
Communication is being initialized.
Transient state invisible to the communication bus.
Switch on disabled (Configuration):
Initialization of the drive is complete.
The configuration and adjustment parameters can be modified. The drive is locked.
Ready to switch on and Switched on (Drive initialized):
The drive is locked.
The power stage of the drive is ready to operate, but voltage has not yet been applied to the output.
The configuration and adjustment parameters can be modified, but modifying a configuration parameter returns the drive to the "Switch on
disabled" state.
Operation enabled (Operational):
The drive is unlocked and voltage can be applied to the motor terminals.
Auto-tuning (tUn) requires an injection of current. The drive must therefore be in this state to perform this command.
The adjustment parameters can be modified even if a run command or a DC injection current is present. However, a configuration parameter
can only be modified if the motor is stopped, and this returns the drive to the "Switch on disabled" state.
Quick stop active (Emergency stop active):
Fast stop
Restarting is only possible after the drive has changed to the "Switch on disabled" state.
Malfunction reaction active (Reaction on fault):
Transient state during which the drive performs an action appropriate to the type of fault detection.
Malfunction (Fault):
The drive is locked.
Summary
State
Power supplied to motor
Modification of configuration parameters
1 - Not ready to switch on
No
Yes
2 - Switch on disabled
No
Yes
3 - Ready to switch on
No
Yes
4 - Switched on
No
Yes, return to "2 - Switch on disabled" state
5 - Operation enabled
Yes, except at zero reference or "halt"
No
6 - Quick stop active
Yes, during fast stop
No
7 - Fault reaction active
Depends on fault managment configuration
-
8 - Fault
No
Yes
EAV94278 06/2014
19
ATV310 state machine
Command word description CMD - 8501
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
0 to 1
transition :
Fault reset
Reserved (=0)
Reserved (=0)
0:Free wheel
staying in
"Operation
Enabled"
Enable
operation
Drivecom
state
activation
Quick stop
Drivecom
state
activation
(bit active at 0)
Switch on
disabled.
Drivecom state
activation
(bit active at 0)
Switch on
bit 15
bit 14
bit 13
bit 12
bit 11
bit 10
bit 9
bit 8
Reserved
Not assignable
Reserved
Reserved
Direction of
rotation asked
0: Forward
1: Reverse
Reserved (=0)
Reserved (=0)
0: RUN asked
Command
Transition
address
Final state
Shutdown
2, 6, 8
Switch on
1: STOP
asked
bit 7
bit 3
bit 2
bit 1
bit 0
Fault
reset
Enable
operation
Quick
stop
Switch on
disabled
Switch on
3 - Ready to
switch on
x
x
1
1
0
16#0006
3
4 - Switched on
x
x
1
1
1
16#0007
Enable
operation
4
5 - Operation
enabled
x
1
1
1
1
16#000F
Disable
operation
5
4 - Switched on
x
0
1
1
1
16#0007
Disable
voltage
7, 9, 10, 12
2 - Switch on
disabled
x
x
x
0
x
16#0000
Quick stop
11
6 - Quick stop
active
x
x
0
1
x
16#0002
7, 10
2 - Switch on
disabled
15
2 - Switch on
disabled
0○1
x
x
x
x
16#0080
Fault reset
Example
value
x: Value is of no significance for this command.
0 ○ 1: Command on rising edge.
20
EAV94278 06/2014
ATV310 state machine
Status word description ETA - 3201
bit 7
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
Reserved
(always 0)
Switch on
disabled
Quick stop
(bit active at 0)
Voltage
enabled
(bit always on)
Fault
detection
Operation
enabled
Switched on
Ready to
switch on
bit 15
bit 14
bit 13
bit 12
bit 11
bit 10
bit 9
bit 8
0: Motor
rotation in
forward
direction (or
stopped)
Stop via STOP
key
Reserved (=0)
Reserved (=0)
Reference
exceeded
(< LSP or >
HSP)
Reference
reached
(steady state)
Local mode
(bit active at 0)
Reserved (=0)
Status
bit 6
bit 5
bit 4
bit 3
bit 2
bit 1
bit 0
ETA
masked by
16#006F (1)
Switch on
disabled
Quick stop
Voltage
enabled
Fault
detection
Operation
enabled
Switched
on
Ready to
switch on
1 -Not ready to
switch on
0
x
x
0
0
0
0
-
2 - Switch on
disabled
1
x
x
0
0
0
0
16#0050
3 - Ready to
switch on
0
1
x
0
0
0
1
16#0031
4 - Switched on
0
1
1
0
0
1
1
16#0033
5 - Operation
enabled
0
1
1
0
1
1
1
16#0037
6 - Quick stop
active
0
0
1
0
1
1
1
16#0017
7 - Fault reaction
active
0
x
x
1
1
1
1
-
8 - Fault
0
x
x
1
0
0
0
16#0018 (2)
or 16#0038
x: In this state, the value of the bit can be 0 or 1.
(1) This mask can be used by the PLC program to test the chart state.
(2) Fault following state "6 - Quick stop active".
EAV94278 06/2014
21
Application example
Connecting an ATV310 to a M218 PLC
Here is an example of an application that shows how to control an ATV310 from a M218 PLC equipped with a Modbus master serial port.
The program provides a control of the drive from an operator screen designed under Unity.
The example illustrates also the previous chapter
Configuration of the Modbus Master
The default settings of the serial port used as a Modbus master are compliant with the default settings of the ATV310.
22
EAV94278 06/2014
Application example
Initialization
The communication is based on the READ_VAR , WRITE_VAR functions. During the first execution of the MAST task you can initialize the
data structures used by these two functions. Devicepath describes the path to the device including its slave address. ReadVarMgt and
WriteVarMgt are arrays used respectively by READ_VAR and WRITE_VAR. Only the 3rd element of these arrays is modifiable by the user:
To define the time out duration of the requests
(* data initialization *)
(* Communication path to Modbus slave device at @ 3
(* The device path can be modified later by the app.
(* MSB of DevicePath[3] contains the device address
DevicePath := ADDM ('0.0.0.3');
(* Time out duration
*)
ReadVarMGT[2]:=50;
WriteVarMGT[2]:=50;
*)
*)
*)
Data structure declaration :
EAV94278 06/2014
23
Application example
Cyclical exchanges
In the example below the application manages 2 requests:
• "A read request of 4 words starting at Modbus address 12741 (NM1) - Modbus function #3
• "A write request of 4 words starting at Modbus address 12761 (NC1) - Modbus function #16
Requests are executed only each N x FAST task to avoid too much activity on the serial line.
The device can be modified (polling several devices) by writing in DevicePath[3].
Cyclical communication
(* Modbus Requests are sent only each:
( ModbusRequestPeriod X FAST period X n) *)
if ModbusRequestPeriod >25 then
(* Read request to ATV310 : Modbus function 3 *)
IF not ReadVarBusy then
READ_VAR(DevicePath, '%MW' , 12741, 4, ReadVarMGT, %MW124:4);
(*Devicepath is initialized during Init_Sequence *)
END_IF;
(* Write request to ATV310 : Modbus function 16 *)
IF not WriteVarBusy then
WRITE_VAR(DevicePath, '%MW' , 12761, 4, %MW120:4, WriteVarMGT);
END_IF;
ModbusRequestPeriod:=0;
END_IF;
The key data are highlighted: address and lengh in the device source and destination of the data in the PLC.
The time out can be managed by the application in a separate way by testing the activity of the 2 bits: ReadVarBusy and WriteVarBusy
Overview of the communication tables:
24
EAV94278 06/2014
Connection to RS485 bus
Standard schematic
The standard schematic corresponds to the Modbus specification published on the Modbus.org
(Modbus_over_serial_line_V1.pdf, Nov 2002) and in particular to the schematic of the 2-wire multidrop serial bus.
site
in
2002
The ATV310 drive follows this specification.
Schematic diagram:
Master
T
R
5V
650 
650 
0V
D1
120 
120 
1n F
1n F
D0
Common
R
R
T
Slave 1
T
Slave n
Type of trunk cable
Shielded cable with 1 twisted pair and at least a 3rd conductor
Maximum length of bus
1000 m at 19200 bps with the Schneider Electric TSX CSAppp cable
Maximum number of stations (without
repeater)
32 stations, ie. 31 slaves
Maximum length of tap links
• 20 m for one tap link
• 40 m divided by the number of tap links on a multiple junction box
Bus polarisation
• One 450 to 650  pulldown resistor at 5 V (650  recommended)
• One 450 to 650  pulldown resistor at the Common (650  recommended)
This polarisation is recommended for the master.
Line terminator
One 120  0.25 W resistor in series with a 1nF 10 V capacitor
Common polarity
Yes (Common), connected to the protective ground at one or more points on the bus
EAV94278 06/2014
25
26
EAV94278 06/2014
EAV94278
ATV310_Modbus_EN_EAV94278_01
06/2014

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
