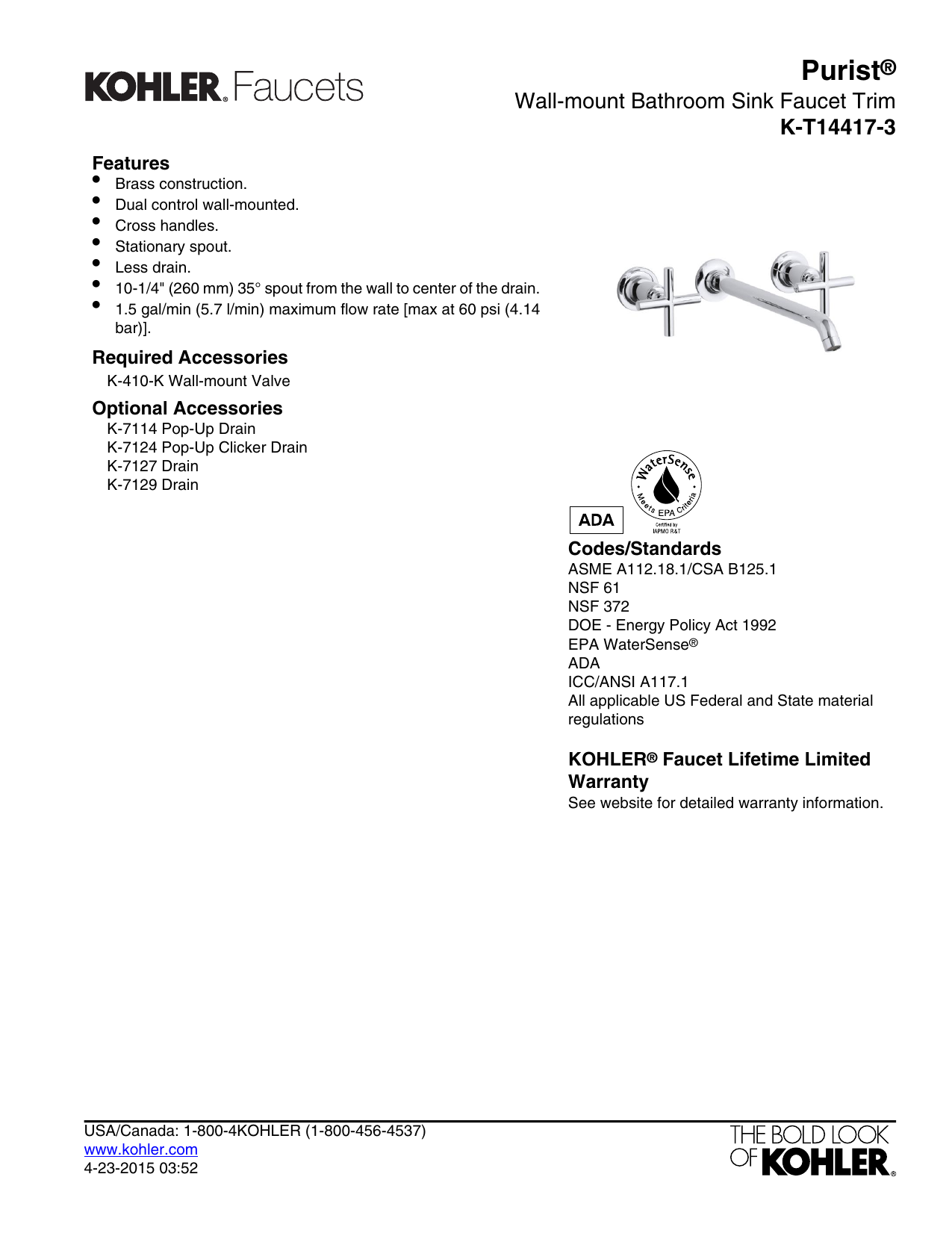

Purist®
Wall-mount Bathroom Sink Faucet Trim
K-T14417-3
Features
•
•
•
•
•
•
•
Brass construction.
Dual control wall-mounted.
Cross handles.
Stationary spout.
Less drain.
10-1/4" (260 mm) 35° spout from the wall to center of the drain.
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Required Accessories
K-410-K Wall-mount Valve
Optional Accessories
K-7114 Pop-Up Drain
K-7124 Pop-Up Clicker Drain
K-7127 Drain
K-7129 Drain
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense®
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-23-2015 03:52
Purist®
Wall-mount Bathroom Sink Faucet Trim
K-T14417-3
O 2" (51 mm)
Technical Information
Notes
All product dimensions are nominal.
Spout reach:
10-3/4" (273 mm)
Install this product according to the installation
guide.
Faucet:
The distance between the bottom of spout and
top of the fixture rim must not be less than 1-1/2"
(38 mm) and not greater than 6" (152 mm).
Flow rate:
Pressure:
1.5 gal/min (5.7 l/min)
60 psi (4.1 bar)
Three 1-1/2" (38 mm) diameter cutout holes are
required for spout and handles.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-23-2015 03:52
