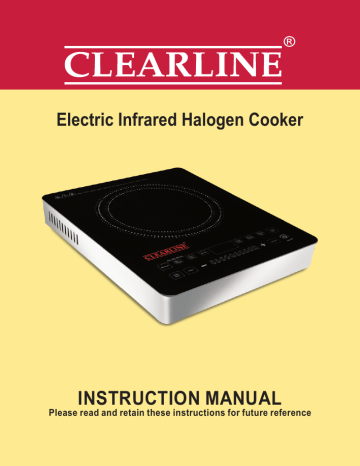

Electric Infrared Halogen Cooker
INSTRUCTION MANUAL
Please read and retain these instructions for future reference
IMPORTANT SAFETY INSTRUCTIONS
=
Check that
the voltage indicated on the appliance corresponds to the local mains voltage
before you connect the appliance.
=
Only connect
the appliance to an earthed wall socket. Always make sure the plug is
inserted firmly into the socket.
=
Do not use
the appliance if the plug, the mains cord or the appliance itself is damaged.
=
If the supply
cord is damaged, it must be replaced by authorized service center.
=
This appliance
is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
=
Children
should be supervised to ensure that they do not play with the appliance.
=
Keep the
mains cord out of the reach of children. Do not let the mains cord hang over
the edge of the table or work top on which the appliance stands.
=
Make sure
the cooking plate is clean and dry before you switch on the appliance.
=
Do not cover
=
Do not plug
the air vent while the halogen cooker is operating.
in the appliance or operate the control panel with wet hands.
=
Do not touch
the cooking plate after cooking as the surface is very hot.
=
Do not cover
any part of the cooking plate.
=
If the surface
of the cooking plate is cracked, switch off the appliance and do not use it
anymore to prevent the risk of electric shock, short circuiting or fire.
=
Do not expose
the appliance to hot gas, steam or damp heat. Do not place the appliance
on or near an operating or still hot stove or cooker.
=
Always
switch off the appliance before you unplug it.
=
This appliance
=
Place the
is intended to be used in household and similar applications.
appliance on a stable, horizontal and level surface and make sure there is at
least 10cm free space around it.
=
Do not place
=
Do not lift
anything between the cookware and the cooking plate.
and move the appliance while it is operating.
=
Do not store
flammable materials and liquids near or on the appliance.
Important
=
Never immerse
the appliance in water or rinse it under the tap.
2
Know your halogen cooker :
2
14
8
4
9
Description:
1. Power (on/off)
2. Cooking area
3. Volts/Units
4. Timer button
5. Led Display
6. Child Lock
7. Pause
10
11
5
6
12
1
13
7
3
Auto Cook Menu Options:
8. Manual
9. Milk/Water (Sim/Boil/Reheat)
10. Roti/Dosa
11. Gravy
12. Slow Cook
13. Stir fry/Deep fry
14. Pressure Cook
Voltage : 230V, AC, 50 Hz
Wattage : 2000W
3
Operating Instructions
Cooking mode
Manual Mode
Usage
With Power on, press manual once to enter Manual
Mode.The default setting is cooking time of
2 hours, 300 degrees/ 1000 watts.
(+)… (-) settings can vary the heat setting at any
time from 200 watts to 2000 watts & timer setting
can be varied from 1 minute to 3 hours.
Press the manual mode till the indicator comes on
sim mode. The default setting is cooking time of
45 min, 200 degrees/ 600 watts.
Sim Mode (+)…(-) setting can change the heat setting at any
time from 200 watts to 800 watts & timer s e t t i n g
can be varied from 1 minute to 1 hour.
Milk/Water
Press the manual mode till the indicator comes on
boil mode. The default setting is cooking time of
45 min, 300 degrees/ 1000 watts.
Boil Mode
(+)… …(-)setting can change the heat setting at
any time from 200 watts to 1000 watts & timer
settings can be varied from 1 minute to 3 hours.
Reheat
Mode
Roti/Dosa - Mode
Press the manual mode till the indicator comes on
reheat mode.The default setting is cooking time of
30 min, 100 degrees/ 200 watts & timer setting can
be varied from 1 minute to 3 hours. We can’t
change the temperature setting in this setting.
Press the manual mode till the indicator comes on
roti/dosa mode. The default setting is cooking time of
60 minutes, 300 degrees/ 1000 watts.
(+)… …(-)setting can change the heat settings at any
time from 200 watts to 1000 watts & timer setting
can be varied from 1 minute to 3 hours.
Continued on the next page.......
4
Cooking mode
Usage
Gravy - Mode
Press the manual mode till the indicator comes on gravy
mode.This setting can be used to make a gravy dish
from the beginning to the end. The halogen cooker
provides moderate heating of 600 watts for 5 minutes.
You can prepare Tadka during that time. Then the
halogen cooker switches to a higher power level of
1000 watts to roast vegetables, meat, and other
ingredients for 13 minutes. After that it automatically
switches to a lower power level of 200 watts for another
27 minutes You may also increase/decrease the time
setting as per your requirement.
Slow cook - Mode
Press the manual mode till the indicator comes on slow
cook mode. The default setting is cooking t i m e o f
180 minutes, 200 degrees/ 600 watts.
The heat setting can’t be changed in this c a s e . T h e
timer settings can be varied from 1 minute to 3 hours.
Stir Fry/Deep Fry
Mode
Press the manual mode till the indicator comes on stir
fry/deep fry mode. The default setting is cooking time
of 180 minutes, 400 degrees/ 1200 watts.
(+)…(-) setting can change the heat setting at any time
from 600 watts to 1200 watts & timer setting can be
varied from 1 minute to 3 hours.
Press the manual mode till the indicator comes on
pressure cook mode. The default setting is cooking time
of 30 minutes, 450 degrees/ 1400 watts.
Pressure cook - Mode
(+)…(-) settings can change the heat setting at any time
from 200 watts to 1400 watts & timer setting can be
varied from 1 minute to 45 minutes.
Important Note : It is advised to use utensils with flat base. The
utensils having a curved base may shake & spill out liquids when
heated. This may cause injury/ burns to user and may damage
the appliance also.
5
Refer to below table for more details of different cooking modes.
Cooking mode
Default
cooking
time
(minute)
Cooking
temperature range
Adjustable
Cooking
time range
(minute)
Manual Mode
120
Keep Warm - 300°C
Milk/Water - Sim Mode
45
Keep Warm - 200°C
1-180
1-60
Milk/Water - Boil Mode
45
Keep Warm - 300°C
1-180
Milk/Water - Reheat Mode
30
Keep Warm - 100°C
1-180
Roti/Dosa - Mode
60
Keep Warm - 300°C
1-180
Gravy - Mode
45
as per the preset
1-180
Slow cook - Mode
180
200°C
1-180
Stir Fry/Deep Fry - Mode
180
Pressure cook - Mode
30
1-180
Keep Warm - 450°C
1-45
Setting up the Child lock
When the halogen Cooker is working, keep the child lock button press till the
indicator gets on.
To comeback normal mode, keep the child lock button press till the indicator
goes off.
Timer Settings
Press timer button. The minutes portion of display will start to blink.
Use (+) and (-) to set the minutes accordingly. The minutes range can be adjusted
from 0 to 59 minutes.
Press the timer button again, the hours portion of display will start to blink.
Press (+) and (-) to set hours accordingly. The hour range can be adjusted from
0 to 2 hours.
Maximum setting allowed is 2 hours & 59 minutes.
Settings will automatically set within a few seconds.
6
Cleaning and maintenance
=
Never immerse the appliance in water nor rinse it under the tap.
=
Never use scouring pads, abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the appliance.
=
Do not put vinegar on the ceramic cooking plate.
=
Unplug the appliance and let it cool down.
=
Clean the appliance with a damp cloth and it necessary, with some mild
cleaning agent.
=
Improper use can lead to scratches on the cooking plate. To avoid
discolouring and scratches use the appliance according to the instructions in
this user manual and always clean the appliance and cookware properly
after use.
Storage
=
Do not place heavy objects on the ceramic cooking plate as it is breakable.
=
Do not store the appliance in a hot place, for example near a cooker. If you
are not going to use the appliance for a long period of time, it is advisable
you to store the appliance in a dry and safe place.
CLEARLINE CUSTOMER SERVICE
This product carries a Warranty of 12 months from the date of purchase
against defects caused by faulty workmanship and materials.
The warranty excludes defects caused by the product not being used in
accordance with instructions, misuse, accidental damage and
tampering with by unauthorized persons, In the event of any defect
arising during the warranty period, the same should be taken to your
nearest dealer or wholesaler. It will then be taken care off as per
discretion of the company’s representative.
Breakage of ceramic cooking plate being a glass item is not
covered under warranty.
Halogen heating tubes also carry no warranty.
