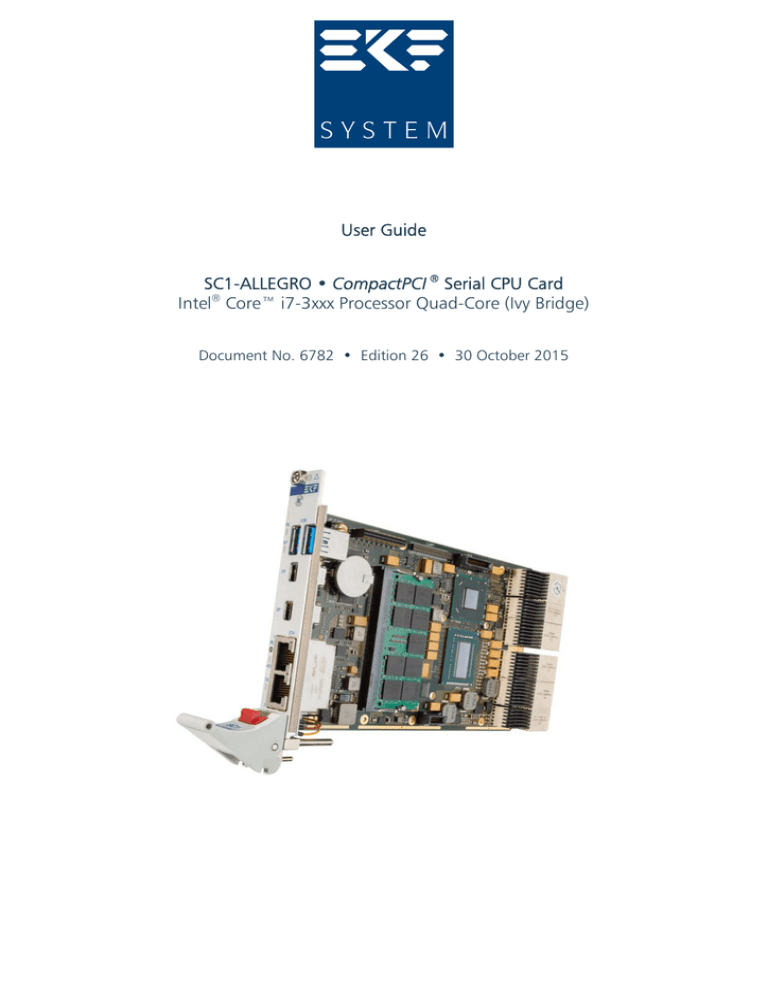

User Guide
SC1-ALLEGRO • CompactPCI ® Serial CPU Card
Intel® Core™ i7-3xxx Processor Quad-Core (Ivy Bridge)
Document No. 6782 • Edition 26 • 30 October 2015
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Contents
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Edition History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trade Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Legal Disclaimer - Liability Exclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4
5
5
5
5
6
7
Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Top View Component Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Front Panel Switches & Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
On-Board Connectors & Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Pin Headers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Main Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Graphics Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
LAN Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Serial ATA Interface (SATA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
PCI Express® Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Universal Serial Bus (USB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Utility Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Real-Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SPI Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PG (Power Good) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
GP (General Purpose) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
HD (Hard Disk Activity) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
EB (Ethernet Backplane) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Main Power Supply Control (PS_ON#) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Power Supply Status (PWR_FAIL#) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Mezzanine Side Board Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
CompactPCI® Serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
System Slot Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Peripheral Slot Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Board Hot-Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installing and Replacing Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EMC Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
© EKF
-2-
42
42
43
44
45
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Replacement of the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Technical Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Local PCI Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Local SMB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hardware Monitor LM87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Board Control and Status Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Write/Read Control Register 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Read/Clear Status Register 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Read/Clear Status Register 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Read PLD Revision Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPIO Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPIO Usage QM77 PCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration PCI Express Switch (DS-P) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading UEFI BIOS Setup Defaults (P-GP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manufacturer Mode Jumper (P-MFG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RTC Reset (P-RTC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DisplayPort Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VGA Video Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mezzanine Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Expansion Interface J-EXP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Speed Expansion Connector J-HSE . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Express® Expansion Header J-PCIE . . . . . . . . . . . . . . . . . . . . . . . . . . .
SDVO/DisplayPort Expansion Header J-SDVO . . . . . . . . . . . . . . . . . . . . . .
Pin Headers & Debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Handle Microswitch Header P-FPH . . . . . . . . . . . . . . . . . . . . .
PLD Programming Header P-ISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Processor Debug Header XDP1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backplane Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P1 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P2 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P3 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P4 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P5 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P6 . . . . . . . . . . . . . . . . . . . . . .
47
47
48
48
49
49
50
51
51
52
52
54
54
55
55
56
57
57
58
61
62
63
64
65
66
67
68
71
71
71
72
73
74
75
76
77
78
79
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
© EKF
-3-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
About this Manual
This manual describes the technical aspects of the SC1-ALLEGRO, required for installation and system
integration. It is intended for the experienced user only.
Edition History
Ed.
Contents/Changes
Author
Date
gn
2012-07-16
jj
11 September 2012
1
User Manual SC1-ALLEGRO, english, preliminary edition
Text #6782, File: sc1_ug.wpd
2
Added photos
3
Changed name of DS_P to DS-P, removed the “not connected” note of 2nd USB3 port on
CompactPCI Serial connector P3, Memory Down and SO-DIMM are changed to PC312800.
gn
2012-11-09
4
Added changes to PCH GPIO assignment coming with rev. 1
gn
2012-12-21
5
Added illustration backplane resources
jj
14 February 2013
6
Changes to section “Serial ATA Interfaces”
gn
2013-02-15
7
Added recommendation regarding DisplayPort cable (pin 20 issue)
jj
5 March 2013
8
Added photos, e.g. SC1 with PCS-BALLET Side Card, and BlueLine Small Systems Rack
jj
30 April 2013
9
Removed display of JMB393 failures via red part of HD LED;
Added changes to CompactPCI Serial and J-HSE SATA assignments coming with rev. 2
gn
2013-05-07
10
Added Power Requirements
gn
2013-06-03
11
Added MTBF
gn
2013-06-04
12
Corrected tables concerning DS-P switch in section “Configuration PCI Express Switch
(DS-P)”
gn
2013-09-26
13
Reworked section “Watchdog”
gn
2013-12-06
14
Added Section “Board Control and Status Registers”
Removed typo in table “P2 CompactPCI Serial Connector”
gn
2014-08-07
15
Added Power Requirements of SC1-041X
gn
2014-09-29
16
Additions to section “CompactPCI Serial”
gn
2014-11-19
17
Clarified resetting of UEFI BIOS settings to factory defaults
gn
2015-01-16
18
Added comment to PCIe polarity inversion on table “P2 CompactPCI Serial Connector”
gn
2015-01-26
19
Updated description of BCSR Control Register 0
gn
2015-02-26
20
Added illustration 'backplane resources' w. system slot right aligned,
added photos SC1 with SCS-TRUMPET side card
jj
26 February 2015
21
Updated description of BCSR Status Registers 0 and 1
gn
2015-04-01
22
Cleaned up section “Watchdog”
gn
2015-04-07
23
Updated LM87 Information
mib
2015-05-28
24
Added photos SC1-ALLEGRO with C48-M2 mezzanine module
jj
28 May 2015
25
Table 'Feature Summary' - added RTOS support
jj
1 October 2015
25
Table 'Feature Summary' - added performance rating
jj
30 October 2015
© EKF
-4-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Related Documents
Related Information SC1-ALLEGRO
SC1-ALLEGRO Home
www.ekf.com/s/sc1/sc1.html
SC1-ALLEGRO Product Information
www.ekf.com/s/sc1/sc1_pi.pdf
Nomenclature
Signal names used herein with an attached '#' designate active low lines.
Trade Marks
Some terms used herein are property of their respective owners, e.g.
<
<
<
<
Chief River, Ivy Bridge, Panther Point, Core i7: ® Intel
CompactPCI, CompactPCI PlusIO, CompactPCI Serial: ® PICMG
Windows XP, Windows 7: ® Microsoft
EKF, ekf system: ® EKF
EKF does not claim this list to be complete.
Legal Disclaimer - Liability Exclusion
This manual has been edited as carefully as possible. We apologize for any potential mistake.
Information provided herein is designated exclusively to the proficient user (system integrator,
engineer). EKF can accept no responsibility for any damage caused by the use of this manual.
© EKF
-5-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Standards
Reference Documents
Term
Document
Origin
CFast™
CFast™ Specification Rev. 1.0
www.compactflash.org
CompactPCI®
CompactPCI Specification, PICMG® 2.0 R3.0, Oct. 1, 1999
www.picmg.org
CompactPCI®
PlusIO
CompactPCI PlusIO Specification, PICMG® 2.30 R1.0,
November 11, 2009
www.picmg.org
CompactPCI®
Serial
CompactPCI Serial Specification, PICMG® CPCI-S.0 R1.0,
March 2, 2011
www.picmg.org
DisplayPort
VESA DisplayPort Standard Version 1.1a
January 11, 2008
VESA Mini DisplayPort Connector Standard Version 1
October 26, 2009
www.vesa.org
DVI
Digital Visual Interface Rev. 1.0
Digital Display Working Group
www.ddwg.org
Ethernet
IEEE Std 802.3, 2000 Edition
standards.ieee.org
LPC
Low Pin Count Interface Specification, Revision 1.1
developer.intel.com/design/
chipsets/industry/lpc.htm
HD Audio
High Definition Audio Specification Rev.1.0
www.intel.com/design/chipsets/
hdaudio.htm
PCI Express®
PCI Express® Base Specification 3.0
www.pcisig.com
SATA
Serial ATA 2.5/2.6 Specification
Serial ATA 3.0 & 3.1 Specification
www.sata-io.org
USB
Universal Serial Bus 3.0 Specification, Revision 1.0
November 12, 2008
www.usb.org
© EKF
-6-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Overview
The SC1-ALLEGRO is a rich featured high
performance 4HP/3U CompactPCI® Serial CPU
board, equipped with an Intel® Core™ i7
Mobile 3rd Generation + ECC (dual- or quadcore) processor based on 22nm technology. The
SC1-ALLEGRO front panel is provided with two
Gigabit Ethernet jacks, two USB 3.0 receptacles,
and two Mini-DisplayPort connectors for
attachment of high resolution digital displays,
configured e.g. as extended desktop.
The SC1-ALLEGRO is equipped with up to 16GB
RAM with ECC support. 8GB memory-down are
provided for rugged applications, and another
8GB are available via the DDR3 ECC SO-DIMM
socket. As an option, a low profile mezzanine
module with dual mSATA SSDs may serve as a
high-speed RAID mass storage solution. The
SC1-ALLEGRO backplane connectors comply
with the PICMG® CompactPCI® Serial system
slot specification.
While mechanically compliant to CompactPCI®
Most CompactPCI® Serial peripheral slot cards
require only the backplane connector P1, which
comprises PCIe, SATA and USB signals, resulting
in a concise and inexpensive peripheral board
design. More powerful peripheral cards profit
from so called Fat Pipe slots (PCIe x 8).
Classic, CompactPCI® Serial (PICMG® CPCIS.0)
defines a completely new card slot, based on
PCI Express®, SATA, Gigabit Ethernet and USB
serial data lines. Up to 6 high-speed backplane
connectors P1 - P6 are provided on a system
slot controller such as the SC1-ALLEGRO, which
can be considered as a root hub with respect to
most signal lines. A passive backplane is used
for distribution of a defined subset of I/O
channels from the system slot to each of up to
eight peripheral slots in a CompactPCI® Serial
system.
The SC1-ALLEGRO is equipped with a set of
local expansion interface connectors, which can
be optionally used to attach a mezzanine side
board. A variety of expansion cards is available,
e.g. providing legacy I/O and additional PCI
Express® based I/O controllers such as SATA,
USB 3.0 and Gigabit Ethernet, or a third video
output. Most mezzanine side cards can
accommodate in addition a 2.5-inch drive.
© EKF
The SC1-ALLEGRO is a native CompactPCI®
Serial CPU card, suitable for usage in a pure
CPCI Serial environment. Due to its generous
backplane capabilities (20 x PCI Express® lanes,
6 x USB, 7 x SATA/RAID, 2 x GbE), very powerful
industrial systems can be built.
Typically, the SC1-ALLEGRO and the related side
card would come as a readily assembled 8HP
unit. As an alternate, low profile Flash based
mezzanine storage modules are available that
fit on the SC1-ALLEGRO while maintaining the
4HP profile. The C42-SATA module e.g. is
equipped with a very fast 1.8-inch SATA Solid
State Drive (SSD), which is suitable for
installation of any popular operating system.
-7-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Related Documents CompactPCI® PlusIO & CompactPCI® Serial
© EKF
CompactPCI® Serial - Concise Guide
www.ekf.com/s/serial_concise.pdf
CompactPCI® Serial - The Smart Solution
www.ekf.com/s/smart_solution.pdf
CompactPCI® Serial Home
www.ekf.com/s/serial.html
CompactPCI® PlusIO Home
www.ekf.com/p/plus.html
-8-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Technical Features
Feature Summary
Feature Summary
<
CompactPCI® Serial (PICMG® CPCI-S.0) System Slot Controller
<
Based on the Intel® Chief River Platform (Ivy Bridge + ECC CPU, Panther Point PCH)
<
Intel® Core™ i7 (i5/i3) Mobile 3rd Generation ECC Processor, 22nm Process Technology, Low Power, Dual-Core and
Quad-Core, Code Name Ivy Bridge
<
i7-3612QE Processor 2.1GHz • 35W TDP Standard Voltage Quad-Core
<
i7-3555LE Processor 2.5GHz • 25W TDP Low Voltage Dual-Core
<
i7-3517UE Processor 1.7GHz • 17W TDP Ultra Low Voltage Dual-Core
<
<
<
i5-3610ME Processor 2.7GHz • 35W TDP Standard Voltage Dual-Core
<
Integrated HD Graphics Engine, 3 Independent Displays, Enhanced Media Processing
<
Integrated Memory Controller up to 16GB DDR3 +ECC 1333 and 1600
<
DDR3 +ECC Soldered Memory up to 8GB
<
DDR3 +ECC SO-DIMM Memory Module Socket up to 8GB
<
Performance Rating Passmark 8.0 SC1-680D (i7-i7-3612QE): Passmark Rating 2241, CPU Rating 7243
<
Intel® QM77 Platform Controller Hub (PCH), Code Name Panther Point
<
Up to 3 Display Configuration (Front Panel: Dual mDP or Single VGA Connector Option)
<
Max Resolution 2560 x 1600 (DisplayPort), 1920 x 1200 (VGA)
<
2 + 1 SATA Channels 6Gbps/3Gbps for Mezzanine Storage Modules (Connector HSE)
<
CompactFlash® Card with C40-SCFA Mezzanine Module Option (4HP Maintained)
<
CFast™ Card with C41-CFAST Mezzanine Module Option (4HP Profile Maintained)
<
SATA 1.8-Inch Solid State Drive with C42-SATA Mezzanine Card Option (4HP Maintained)
<
Dual mSATA Modules with C47-MSATA RAID Mezzanine Card Option (4HP Maintained)
<
Dual M.2 SATA SSD Modules with C48-M2 RAID Mezzanine Card Option (4HP Maintained)
<
7 x SATA Channels 3Gbps to Backplane Connectors, 5 Channels Available for Hardware RAID Configuration Level 0/1/10
i3-3120ME Processor 2.4GHz • 35W TDP Standard Voltage Dual-Core
i3-3217UE Processor 1.6GHz • 17W TDP Ultra Low Voltage Dual-Core
+ Hot Spare (Option RAID Level 3/5)
<
4 x USB 3.0 XHCI SuperSpeed Channels (2 x to F/P Connectors, 2 x Backplane)
<
10 x USB 2.0 EHCI (6 x to Mezzanine Connectors, 4 x Backplane)
<
4 x Gigabit Ethernet Controllers (2 x F/P RJ-45 Jacks and 2 x Backplane Connector)
<
8 + 8 x PCI Express® Gen3 Lanes to CPCI Serial Backplane (CPCI Serial Fat Pipe 1 + 2)
<
4 + 4 x PCI Express® Gen2 Lanes (4 x Mezzanine Connector, 4 x Backplane)
<
Legacy I/O Mezzanine Expansion Connector EXP (USB, HD Audio, LPC)
<
High Speed I/O Mezzanine Expansion Connector HSE (3 x SATA, 4 x USB)
<
PCI Express® Mezzanine Expansion Connector PCIE (4 Lanes)
<
Third Display Mezzanine Expansion Connector SDVO/DP
<
Variety of Mezzanine Expansion Boards (Side Cards) Available with and w/o PCIe
<
Most Mezzanines Optionally Equipped with 2.5-Inch Single- or Dual-Drive
<
UEFI Phoenix BIOS with ACPI
<
Long Term Availability
<
Coating, Sealing, Underfilling on Request
<
RoHS compliant
<
Designed & Manufactured in Germany
<
ISO 9001 Certified Quality Management System
<
RT OS BSP & Driver Support - VxWorks 7.0 Available, QNX and Others on Request
© EKF
-9-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Operating Conditions
Operating Conditions
Thermal &
Environmental
Conditions
<
<
<
<
<
<
Operating Temperature 0°C to +70°C (-40°C to +85°C on Request)
Storage temperature: -40°C to +85°C, max. Gradient 5°C/min
Humidity 5% ... 95% RH non Condensing
Altitude -300m ... +3000m
Shock 15g 0.33ms, 6g 6ms
Vibration 1g 5-2000Hz
EC Regulations
<
<
EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)
2002/95/EC (RoHS)
MTBF
104 x 103 h (11.9 years) @ 50° C
Power Requirements
Power Requirements
Load Current [A] at +12V (±5%)
Maximum Performance
LFM / HFM / Turbo 1)
Windows 7 Idle
LFM / HFM / Turbo 1)
SC1-68XX
3.8 / 4.0 / 4.5 2)
1.0 / 1.0 / 1.0 2)
SC1-42XX
2.6 / 3.2 / 3.4 2)
1.0 / 1.0 / 1.0 2)
SC1-22XX
2.5 / 2.6 / 2.6 2)
1.0 / 1.0 / 1.0 2)
SC1-041X
1.4 / 1.7 / NA
1.0 / 1.0 / NA
Board
Load Current [A] at +5V[STDBY] (±5%) 3)
Full On / Sleep / Hibernate / Soft Off
(S0 / S3 / S4 / S5)
0 / 0 / 0 / 0.1
1)
Intel SpeedStep Frequence Modes LFM: Low Frequency Mode, HFM: High Frequency Mode.
Add 60/200mA (link only/active) @1Gbps per Ethernet Port.
3)
This power supply is optional. It can be left open if not available.
2)
© EKF
-10-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Block Diagram
Simplified Block Diagram
®
SC1-ALLEGRO Rev. 2
®
GbE
GbE
Front Panel Stuffing Alternates either Mini DisplayPort or VGA
PICMG CompactPCI Serial
System Slot Controller
Front
Panel
I/O
GbE
1
GbE
2
82579
LM
Flash
SPI
2
DDR3 ECC SODIMM
82574
IT
Dual Channel
up to 16GB
DDR3 1600
USB3
DP1
VGA
DP2
SPI
PCIe
PCIe
FDI
Ivy Bridge +ECC
Ivy Bridge ECC
Embedded Mobile
CPU
2/4-Core
Panther Point
QM77
Mobile
PCH
5GT/s
DMI2
PCIe Gen3
PCIe Gen3
USB2/3
SDVO/DP
PCIe Gen2
PCIe
SATA 6G/3G
SATA 3G
SATA 3G
8
8
2+9
4
2
2/1
1
2
LPC/Audio/SMB/GPIO
Intel® Chief River Platform
USB2
USB2/3
USB2
USB
Hub
SATA
RAID
0/1/3/5/6
82574
IT
PCIe
Gen2
Switch
4
2+6
2
5
3G
GbE
2
4
4
Mezzanine
Side Card
I/O
P1 P2
Fat Pipe 1
P2
Fat Pipe 2
Backplane
CompactPCI
Serial
ekf.com
-11-
© EKF
DDR3 ECC Soldered
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Top View Component Assembly
P-RTC
P-MFG
1
BAT
HSE
1
EXP
2 Channel ECC DDR3
SODIMM ECC DDR3
Soldered ECC DDR3
SDVO/DP
1
PCIE
Mobile
PCH
P6
P5
P4
P3
-12-
QM77
Ivy Bridge
i7
CPU
P2
P1
© EKF
P-GP
2x
USB
3.0
DP
1
VGA
DP
2
Dual
GbE
© EKF • ekf.com
1
SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com
SC1-ALLEGRO
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Front Panel Connectors
ETH1/2
Dual Gigabit Ethernet RJ-45 receptacles with integrated indicator LEDs
mDP1/2
Mini DisplayPort digital video output receptacle (VGA connector available as
alternate)
USB1/2
Universal Serial Bus 3.0 type A receptacles
VGA
VGA analog video output connector (Mini DisplayPort connectors available as
alternate)
Front Panel Switches & Indicators
EB
LED indicating Backplane Ethernet activity
FPH
Front Panel Handle with integrated switch (programmable function, power event
button by default)
GP
General Purpose bicolour LED
HD
LED indicating any activity on SATA ports
PG
Power Good/Board Healthy bicolour LED
RST
System Reset Button (Option)
© EKF
-13-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
On-Board Connectors & Sockets
J-EXPT
J-EXPB 1)
Utility EXPansion Interface Connector (LPC, USB, HD Audio, SMBus), available either
from top (T) or bottom (B) 1) of the board, interface to optional side board
J-HSE
High Speed Expansion Connector (3 x SATA, 4 x USB), interface to optional low
profile mezzanine module or side board
J-PCIE
PCI Express® Expansion Interface Connector, interface to optional side board
J-SDVO
Digital Display Interface Connector (SDVO/DisplayPort)
P1
CompactPCI® Serial Type A Connector
P2-P4
CompactPCI® Serial Type B Connectors
P5
CompactPCI® Serial Type C Connector
P6
CompactPCI® Serial Type D Connector
SODM1
204-pin DDR3 ECC Memory Module SDRAM PC3-12800 Socket (ECC SODIMM)
XDP
CPU Debug Port 1)
1)
Connector populated on customers request only
Pin Headers
P-FPH
Pin header suitable for Front Panel Handle switch cable harness
P-ISP
PLD glue logic device programming connector, not populated
Jumpers
DS-P
Switches to configure link width and speed on J-PCIE
P-GP
Jumper to reset UEFI BIOS Setup to EKF Factory Defaults
P-MFG
Jumper to enter Manufacturing Mode, not populated
P-RTC
Jumper to reset RTC circuitry (part of PCH), not populated
© EKF
-14-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Microprocessor
The SC1-ALLEGRO is equipped with Intel® CoreTM i7 or i5 3rd generation mobile ECC processor (code
name Ivy Bridge). These low power processors provide integrated graphics and memory controller,
which results in a very efficient platform design. The CoreTM processors almost can be considered as
a single-chip solution, since all functions of a typical north-bridge have been moved to the CPU.
The CoreTM i7 and i5 processor family includes beside the Standard-Voltage (SV) also several Ultra
Low-Voltage (ULV) and Low-Voltage (LV) processors as listed below. The processors are housed in a
Micro FC-BGA package for direct soldering to the PCB, i.e. the chip cannot be removed or changed by
the user.
The processors supported by the SC1-ALLEGRO are running at core clock speeds up to 2.1GHz for
quad core and up to 2.5GHz on dual core devices. Due to Enhanced Intel® SpeedStep® and Intel®
Turbo Boost Technology each core can decrease or increase its nominal operating frequency. The
clock speed is chosen depending on the power states of the processor cores/graphics engine, the
currently required performance, and the actual core temperature.
Power is applied across the CompactPCI® connector P1 (12V). The processors core and graphics
voltages are generated by switched voltage regulators according to Intels IMVP-7 voltage regulator
specification.
Intel® CoreTM Processors Supported
Processor
Number
Physical
Cores
Core Clock
nom./max.
Cache
Gfx
Clock
Junction
Temp.
TDP
CPU ID
Stepping
SPEC
Code
i7-3612QE
4
2.1/3.1GHz
4MB
650MHz
+105°C
35W
306A9h
E-1
SR0ND
i7-3555LE
2
2.5/3.2GHz
4MB
550MHz
+105°C
25W
306A9h
L-1
SR0T5
i7-3517UE
2
1.7/2.8GHz
4MB
350MHz
+105°C
17W
306A9h
L-1
SR0T6
i5-3610ME
2
2.7/3.3GHz
3MB
650MHz
+105°C
35W
306A9h
L-1
SR0QK
© EKF
-15-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Thermal Considerations
In order to avoid malfunctioning of the SC1-ALLEGRO, take care of appropriate cooling of the
processor and system, e.g. by a cooling fan suitable to the maximum power consumption of the CPU
chip actually in use. The processor contains digital thermal sensors (DTS) that are readable via special
CPU registers. DTS allows to get the temperatures of each CPU core separately.
Two further temperature sensors, located in the system hardware monitor LM87, allows for
acquisition of the boards surface temperature and the thermal state of the onboard system memory
channel. Beside this the LM87 also monitors most of the supply voltages. A suitable software on
Microsoft Windows® systems to display both, the temperatures as well as the supply voltages, is
Speedfan, which can be downloaded from the web. After installation, both temperatures and
voltages can be observed permanently from the Windows® taskbar.
The SC1-ALLEGRO is equipped with a passive heatsink. Its height takes into account the 4HP limitation
in mounting space of a CompactPCI® board. In addition, a forced vertical airflow through the system
enclosure (e.g. bottom mount fan unit) is strongly recommended (>20m3/h or 2m/s (400LFM) around
the CPU slot). Be sure to thoroughly discuss your actual cooling needs with EKF. Generally, the faster
the CPU speed the higher its power consumption. For higher ambient temperatures, consider
increasing the forced airflow to 3m/s (600LFM) or more.
The table showing the supported processors above give also the maximum power consumption (TDP
= Thermal Design Power) of a particular processor. Fortunately, the power consumption is by far
lower when executing typical Windows® or Linux tasks. The heat dissipation increases when e.g.
rendering software like the Acrobat Distiller is executed.
The CoreTM i7 processors support Intel's Enhanced SpeedStep® technology. This enables dynamic
switching between multiple core voltages and frequencies depending on core temperature and
currently required performance. The processors are able to reduce their core speed and core voltage
in multiple steps down to 1200MHz (800MHz for LV/ULV processors). Additional a reduction of the
graphics core clock and voltage is possible. This leads to an obvious reduction of power consumption
resulting in less heating. This mode of lowering the processor core temperature is called TM2
(TM=Thermal Monitor).
Another way to reduce power consumption is to modulate the processor clock. This mode (TM1) is
achieved by actuating the 'Stop Clock' input of the CPU. A throttling of 50% e.g. means a duty cycle
of 50% on the stop clock input. However, while saving considerable power consumption, the data
throughput of the processor is also reduced. The processor works at full speed until the core
temperature reaches a critical value. Then the processor is throttled by 50%. As soon as the high
temperature situation disappears the throttling will be disabled and the processors runs at full speed
again.
These features are controllable by BIOS menu entries. By default the BIOS of the SC1-ALLEGRO
enables mode TM2 which is the most efficient.
© EKF
-16-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
© EKF
-17-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Main Memory
The SC1-ALLEGRO features two channels of DDR3 SDRAMs with support of ECC (Error Correction
Code). One channel is realized with 18 memory devices soldered to the board (Memory Down) and
delivers a capacity of up to 8GB with a clock frequency of 1600MHz (PC3-12800).
The 2nd channel provides a socket for installing a 204-pin ECC SODIMM module thus allowing a
simple expansion of system memory (max. module height = 1.25 inch). Supported are unbuffered
DDR3 ECC SODIMMs (72-bit) with VDD=1.5V featuring on-die termination (ODT), according the
PC3-12800 specification. Minimum module size is 512MB; maximum module size is 8GB. Please note
that standard DDR3 SODIMMs without ECC feature do not work on SC1-ALLEGRO.
It is recommended to add a SODIMM module with same size as the Memory Down to get best
performance (some of the system memory is dedicated to the graphics controller). This typically results
in a size of 2x4GB of memory which is recommended to run the operating systems Windows® Vista
or Windows® 7.
The memory controller supports symmetric and asymmetric memory organization. The maximum
memory performance can be obtained by using the symmetric mode. When in this mode, the memory
controller accesses the memory channels in an interleaved way. Since CoreTM i7 processors support
Intels Flex Memory Technology, interleaved operation isn't limited to systems using memory channels
of equal capacity. In the case of unequal memory population the smaller memory channel dictates the
address space of the interleaved accessible memory region. The remainder of the memory is then
accessed in non-interleaved mode.
In asymmetric mode the memory always will be accessed in a non-interleaved manner with the
drawback of less bandwidth. The only meaningful application of asymmetric mode is the special case
when only one memory channel is populated (i.e. the SODIMM socket may be left empty).
The contents of the SPD EEPROM on the SODIMM is used by the BIOS at POST (Power-on Self Test) to
get any necessary timing parameters to program the memory controller within the chipset.
© EKF
-18-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Graphics Subsystem
The graphics subsystem is part of the Intel CoreTM i7 processor and the PCH QM77. While the graphics
controller is located within the CoreTM i7 processor, the different interfaces like DisplayPort, SDVO and
VGA are moved to the PCH. The SC1-ALLEGRO offers two Mini DisplayPort (mDP) interfaces in the
front panel.
Adapters to convert Mini DisplayPort to any other popular interface standard are available.
A 3rd DisplayPort or an SDVO port is fed in a multiplexed manner to the on-board connector J-SDVO.
EKF expansion boards like PCS-BALLET feature the possibility to gain access to the 3rd DisplayPort
interface. Additionally EKF offers a bundle of expansion boards that contain a display transmitter to
provide a DVI channel via a pure digital DVI-D connector.
As an option, the SC1-ALLEGRO can be equipped with an ordinary HD D-Sub 15-lead connector (VGA
style). This connector is suitable for analog signals only. Nevertheless also flat-panel displays can be
attached to the D-Sub connector but with minor reduced image quality.
Independent from the video connector actually in use, Mini DisplayPort, DVI or VGA, the VESA DDC
standard is supported. This allows to read out important parameters, e.g. the maximum allowable
resolution, from the attached monitor. DDC Power, +3.3V or +5V on DisplayPort or VGA connector
respectively, is delivered via a resettable fuse to protect the board from an external short-circuit
condition (0.5A).
Graphics drivers for the CoreTM i7 can be downloaded from the Intel web site.
LAN Subsystem
The Ethernet LAN subsystem is composed of four Gigabit Ethernet ports: One Intel 82579LM Physical
Layer Transceiver (PHY) using the PCH QM77 internal MAC and three Intel 82574IT Gigabit Ethernet
Controllers. These devices provide also legacy 10Base-T and 100Base-TX connectivity. Two of the
Ethernet ports are fed to two RJ45 jacks located in the front panel, the others are attached to the
CompactPCI® Serial interface on P6. Each port includes the following features:
< One PCI Express lane per Ethernet port (250MB/s)
< 1000Base-Tx (Gigabit Ethernet), 100Base-TX (Fast Ethernet) and 10Base-T (Classic Ethernet)
capability.
< Half- or full-duplex operation.
< IEEE 802.3u, 802.3ab Auto-Negotiation for the fastest available connection.
< Jumperless configuration (complete software-configurable).
Two bicoloured LEDs integrated into the dedicated RJ-45 connector in the front panel are used to
signal the LAN link, the LAN connection speed and activity status. A further bicoloured LED in front
panel labelled EB displays the state of the backplane network ports.
Each device is connected by a single PCI Express lane to the PCH. Their MAC addresses (unique
hardware number) are stored in dedicated FLASH/EEPROM components. The Intel Ethernet software
and drivers for the 82579 and 82574 is available from Intel's World Wide Web site for download.
When managing the board by Intel Active Management Technology (iAMT), the dedicated network
port to do so is accessible by the RJ45 connector GbE1 (the upper port within the front panel).
© EKF
-19-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Serial ATA Interface (SATA)
The SC1-ALLEGRO provides a total of ten serial ATA (SATA) ports, derived from two independent
SATA controllers. Two of these ports support data transfer rates of 6Gbps (600MB/s) while all ports
are capable to work with 3Gbps (300MB/s) or 1.5Gbps (150MB/s). The SATA controllers are located
within the QM77 Platform Controller Hub that holds 6 SATA interfaces.
The two 6Gbps and one 3Gbps ports are fed to the high speed expansion connector J-HSE. This
connector allows the installation of low profile expansion boards like C41-CFAST or C42-SATA to
attach the popular CFast cards or Micro SATA SSDs (1.8-inch) respectively. Another mezzanine is the
C47-MSATA, a carrier for two mSATA SSD modules, that is connected via J-HSE to the 6Gbps ports
for fast data storage. Also consider the C48-M2 mezzanine for mass storage, which can
accommodate two M.2 style SATA SSD modules.
Another of the 3Gbps ports is fed from the QM77 to a JMicron JMB393 6-port RAID controller
supporting RAID levels 0/1/3/5/10 as well as JBOD and CLONE. Five of the JMB393 ports as well as the
two remaining QM77 ports are used to supply the CompactPCI® Serial SATA interfaces on the
backplane.
A LED named HD located in the front panel, signals disk activity status of any of the SATA devices.
Additionally a variety of side cards is available, suitable for mounting on the SC1-ALLEGRO in a 4HP
(20.32mm) distance (resulting in 8HP front panel width for the assembly). Some of these side boards
can accommodate a SATA drive, e.g. a 2.5-inch SSD.
Available for download from Intel's web site are drivers for popular operating systems, e.g. Windows®
XP, Windows® Vista, Windows® 7 and Linux.
To manage the RAID configuration of the JMB393 a Windows® application is provided by JMicron
that can be downloaded from EKF’s website.
PCI Express® Interface
The SC1-ALLEGRO is provided with several PCI Express (PCIe) lanes for I/O expansion. Sixteen PCI
Express lanes, originating from the CoreTM i7 processor, are building the two fat pipes defined by
CompactPCI® Serial. These two links consists of eight lanes with transfer rates of up to 8Gbps (PCI
Express Gen 3).
The QM77 offers a total of eight PCI Express ports supporting PCIe Gen 2 speed (5GT/s). Four of them
form the upstream link to a PCI Express switch. The output ports (downstream ports) of the PCIe
switch are connected to the CompactPCI® Serial connector P4 (four lanes) and to the local PCIe
expansion interface connector J-PCIE (four lanes).
Two small DIP switches (DS-P) located on the backside of the board are used to configure different
lane widths to each of both downstream interfaces and to choose the interface transfer rate. Possible
settings are
< Four links x 1 lane to CompactPCI® Serial P4 and a single link x 4 lanes to J-PCIE
< Four links x 1 lane to CompactPCI® Serial P4 and four links x 1 lane to J-PCIE
< 2.5GT/s or 5GT/s transfer speed
See section “Configuration PCI Express Switch (DS-P)” for details.
© EKF
-20-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Universal Serial Bus (USB)
The SC1-ALLEGRO is provided with fourteen USB ports. All of them are USB 2.0 capable, but four
ports are also supporting the USB 3.0 SuperSpeed standard. Two USB 3.0 interfaces are routed to
front panel connectors, the other two SuperSpeed ports are feed to the CompactPCI® Serial
connectors P1 and P3.
The USB 2.0 interfaces are distributed to the front panel (two ports), two to the expansion board
interface connectors J-EXP, four to the high speed expansion connector J-HSE, and six ports are
available across the backplane connectors for CompactPCI® Serial.
The front panel USB connectors can source a minimum of 1.5A/5V each, over-current protected by
two electronic switches. Protection for the USB ports on the expansion interfaces and on the
CompactPCI® Serial connectors is located on expansion boards and the boards on the CompactPCI®
Serial backplane respective. The USB xHCI and two EHCI controllers handling the USB port operation
at SuperSpeed, high-speed, full-speed and low-speed are integrated into the QM77 PCH.
Utility Interfaces
Besides the high speed mezzanine interface connectors J-HSE and J-PCIE, the SC1-ALLEGRO is
provided with the utility interface expansion connector socket J-EXP. This connector comprises several
interfaces, which may be useful for system expansion on mezzanine cards, as an option:
<
<
<
<
HD Audio
LPC (Low Pin Count)
SMBus
2 x USB
The SMBus is controlled by the QM77 platform controller hub. The SMBus signal lines on the J-EXP
utility expansion connector can be switched on/off under software control (PCH GPIO) in order to
isolate external components in case of an I2C address conflict.
The HD Audio port requires an additional audio codec, as provided e.g. on the CCO-CONCERT side
card.
The LPC bus presents an easy way to add legacy interfaces to the system. EKF offers a variety of
mezzanine expansion boards (side cards), to be attached on top of the SC1-ALLEGRO, featuring all
classic Super-I/O functionality, for example the CCO-CONCERT. Access to the connectors PS/2 (mouse,
keyboard), COM, USB and audio in/out is given directly from the front panel.
© EKF
-21-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Real-Time Clock
The SC1-ALLEGRO has a time-of-day clock and 100-year calendar, integrated into the QM77 PCH. A
battery on the board keeps the clock current when the computer is turned off. The SC1 uses a BR2032
lithium battery soldered in the board, giving an autonomy of more than 5 years. Under normal
conditions, replacement should be superfluous during lifetime of the board.
In applications were the use of a battery is not permitted, a SuperCap can be stuffed instead of the
battery.
SPI Flash
The BIOS and iAMT firmware is stored in flash devices with Serial Peripheral Interface (SPI). Up to
16MByte of BIOS code, firmware and user data may be stored nonvolatile in these SPI Flashes.
The SPI Flash contents can be updated by a DOS or Linux based tool. This program and the latest
SC1-ALLEGRO BIOS binary are available from the EKF website. Read carefully the enclosed instructions.
If the programming procedure fails e.g. caused by a power interruption, the SC1-ALLEGRO may no
more be operable. In this case you would possibly have to send in the board, because the Flash
device is directly soldered to the PCB and cannot be changed by the user.
© EKF
-22-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Reset
The SC1-ALLEGRO is provided with several supervisor circuits to monitor supply rails like the CPU core
voltage, 1.5V, 3.3V or 5V. This circuitry is responsible also to generate a clean power-on reset signal.
To force a manual board reset, the SC1-ALLEGRO offers a small tactile switch within the front panel.
This push-button is indent mounted and requires a tool, e.g. a pen to be pressed, preventing from
being inadvertently activated.
The handle within the front panel contains a micro switch that is used to generate a power button
event. By pressing the handle's red push button a pulse is triggered.
Animated GIF: www.ekf.com/c/ccpu/img/reset_400.gif
NOTE: To prevent the board to cause a power button override, the handle should be closed
immediately after unlocking the front panel handle. A power button override is triggered by opening
the front panel handle for at least 4 seconds, which results in bringing the board to power state S5.
In case of entering this state, unlock and lock the front panel handle a 2nd time to reenter normal
power state S0 again. See also section 'PG (Power Good) LED' to see how the SC1-ALLEGRO indicates
the different power states.
WARNING: The SC1-ALLEGRO will enter the power state S5 if the front panel handle is not closed
properly when the system powers up. An open handle is signalled by a yellow blinking ‘PG LED’.
The manual reset push-button and the power button functionality of the front panel handle could be
passivated by BIOS settings.
An alternative (and recommended) way to generate a system reset is to activate the signal PRST#
located on CompactPCI® Serial connector P1 pin H2. Pulling this signal to GND will have the same
effect as to push the tactile reset switch.
The healthy state of the SC1-ALLEGRO is indicated by the LED PG (Power Good) located in the front
panel. This bicoloured LED signals different states of the board (see section below). As soon as this
LED begins to lite green, all power voltages are within their specifications and the reset signal has
been deasserted.
© EKF
-23-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
<4s
5
2
© EKF
© EKF • ekf.com
1
6
3
7
4
8
-24-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Watchdog
An important reliability feature is a software programmable watchdog function. The SC1-ALLEGRO
contains two of these watchdogs. One is part of the QM77 PCH and also known as TCO Watchdog.
A detailed description is given in the QM77 data sheet. Operating systems like Linux offer a driver
interface to the TCO watchdog.
The behaviour of the 2nd watchdog is defined within a PLD of the SC1, which activates/deactivates the
watchdog and controls its time-out period. The time-out delay is adjustable in the steps 2, 10, 50 and
255 seconds. After alerting the WD and programming the time-out value, the related software (e.g.
application program) must trigger the watchdog periodically. For details on programming the
watchdog see section “Board Control and Status Register (BCSR)”.
This watchdog is in a passive state after a system reset. There is no need to trigger it at boot time. The
watchdog is activated on the first trigger request. If the duration between two trigger requests
exceeds the programmed period, the watchdog times out and a full system reset will be generated.
The watchdog remains in the active state until the next system reset. There is no way to disable it once
it has been put on alert, whereas it is possible to reprogram its time-out value at any time.
Front Panel LEDs
The SC1-ALLEGRO is equipped with four LEDs which can be observed from the front panel. Three of
these LEDs are labelled according to their primary meaning, but should be interpreted altogether for
system diagnosis:
LED
Status
PG
Green/Red
GP
Green/Red
HD
Green/Red
OFF
GREEN
GREEN
Sleep State S5 (Soft Off)
OFF
GREEN
OFF
Sleep State S4 (Suspend to Disk/Hibernate)
OFF
OFF
GREEN
Sleep State S3 (Suspend to RAM/Standby)
GREEN
RED BLINK
X
After Reset
GREEN
X
X
Board Healthy and in S0 State
YELLOW BLINK
X
X
Front panel handle is unlocked
RED
X
X
Hardware Failure - Power Fault
RED BLINK
X
X
Software Failure
© EKF
-25-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
PG (Power Good) LED
The SC1-ALLEGRO offers a bicolour LED labelled PG located within the front panel. After system reset,
this LED defaults to signal different power states:
<
<
<
<
<
Off
Green
Yellow blink
Red steady
Red blink
Sleep state S3, S4 or S5
Healthy
Front panel handle open
Hardware failure
Software failure
To enter the PG LED state Software Failure, the bit PGLED in the board control register CTRLL_REG
must be set. The PG LED remains in this red blinking state until this bit is cleared. After that it falls
back to its default function.
GP (General Purpose) LED
This programmable bicolour LED can be observed from the SC1-ALLEGRO front panel. The status of
the red part within the LED is controlled by the GPIO18 of the PCH QM77. Setting GPIO18 to “1" will
switch on the red LED. Turning on or off the green LED is done by setting the bit GPLED in the board
control register CTRLH_REG.
The GP LED is not dedicated to any particular hardware or firmware function with exception of special
power states of the LED PG as described above. Nevertheless, a red blinking GP LED is an indication
that the BIOS code couldn't start.
While the CPU card is controlled by the BIOS firmware, the GP LED is used to signal board status
information during POST (Power On Self Test). After successful operating system boot, the GP LED
may be freely used by customer software. For details please refer to
www.ekf.com/s/sc1/firmware/biosinfo.txt.
HD (Hard Disk Activity) LED
The SC1-ALLEGRO offers a bicoloured LED marked as HD placed within the front panel. This LED,
when blinking green, signals activity on any device attached to the SATA ports.
The red part of the HD LED isn’t used currently.
As previously described, the green part of this LED may change its function dependent on the state of
the LED PG.
© EKF
-26-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
EB (Ethernet Backplane) LED
To monitor the link status and activity on both Ethernet ports attached to the backplane via the
CompactPCI® Serial connector P6 a single bicoloured LED is provided in the front panel. The states are
decoded as follows:
1_ETH
2_ETH
LED EB
no link
no link
OFF
link
no link
GREEN
no link
link
YELLOW
link
link
GREEN/YELLOW
Blinking of the LED EB in the appropriate colour means that there is activity on the port.
Main Power Supply Control (PS_ON#)
The SC1-ALLEGRO draws its power from the +12V main supply rail defined by the CompactPCI® Serial
specification. The board has been designed to control this main power supply by use of the signal
PS_ON# (connector P1 pin E2). If the system enters the sleep state S5 (soft off), the signal PS_ON#
is pulled high, hence the main power supply is switched-off. The SC1-ALLEGRO is held in soft off state
until a power management event (e.g. power button event triggered by the front panel handle) brings
back the system to the S0 state.
In order to work as described above and to generate clean signals on PS_ON#, the stand-by voltage
+5VSTB is necessary. This optional power rail, tied to connector P1 pin B1, is also part of the
CompactPCI® Serial specification. The stand-by power rail must be switched-on “always”, independent
of the state of PS_ON#.
Nevertheless, +5VSTB is not mandatory to operate the SC1-ALLEGRO. If no stand-by power is
available, the board creates this voltage from the main power rail. In this case it is important that the
PS_ON# signal is pulled down somewhere in the system.
Power Supply Status (PWR_FAIL#)
Power supply failures may be detected before the system crashes down by monitoring the signal
PWR_FAIL#. This active low line (connector P1 pin F3) is an addition to the CompactPCI® Serial
specification and may be driven by the power supply. PWR_FAIL# signals the possible failure of the
main supply voltage +12V. On the SC1-ALLEGRO the signal PWR_FAIL# is routed to GPIO6 of the
QM77 PCH to analyse the state of the power supply unit.
© EKF
-27-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Mezzanine Side Board Options
The SC1-ALLEGRO is provided with several stacking connectors for attachment of a mezzanine
expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please
refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore
offers custom specific development of side boads (please contact [email protected]).
2 x SATA 6G
1 x SATA 3G
4 x USB
LPC USB
SMBus
HD Audio
PCI Express®
x4
EXP
HSE
PCIE
P6
2x
USB
3.0
P5
DP
1
VGA
DP
2
SC1-ALLEGRO
Mezzanine
Expansion
Options
P4
Intel® Ivy Bridge
Core™ i7 CPU
© EKF • ekf.com
Dual
GbE
Video
FlatDP/DVI
Panel
P3
P2
SDVO/DP
P1
SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com
Most mezzanine expansion modules require an assembly height of 8HP in total, together with the
CPU carrier board (resulting from two cards at 4HP pitch each).
In addition, cropped low profile mass storage mezzanine modules can be attached to J-HSE, which
maintain the 4HP envelope, for extremely compact systems. Furthermore these small size modules
may be combined with the full-size expansion boards (that means an assembly comprised of 3 PCBs).
Related Documents Mezzanine Modules and Side Cards
© EKF
C4x Series Mezzanine Storage Modules
www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf
Mezzanine Modules Overview
www.ekf.com/c/ccpu/mezz_ovw.pdf
The EKF Mezzanine Module Concept
www.ekf.com/c/ccpu/cpci_mezzanine_evolution.pdf
-28-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
J-EXP
I/F Type
Controller
LPC (Low Pin Count)
CPU
HD Audio
CPU
SMBus
CPU (buffered)
2 x USB 2.0
PCH
J-HSE
I/F Type
Controller
SATA1
PCH 3GT/s
SATA2, SATA3
PCH 6GT/s
4 x USB 2.0
USB Hub
J-PCIE
© EKF
I/F Type
Controller
PCI Express®
PE Switch
-29-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SC1-ALLEGRO with C42-SATA Low Profile Storage Module
4HP Front Panel Width with C42-SATA
© EKF
-30-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SC1-ALLEGRO with C47-MSATA Low Profile Storage Module
4HP Front Panel Width with C47-MSATA
© EKF
-31-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
4HP Front Panel Width Assembly w. C48-M2
SC1-ALLEGRO with C48-M2 Dual M.2 SATA SSD Module
© EKF
-32-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SC1-ALLEGRO with C44-SATA Assembly (8HP Front Panel)
SC1-ALLEGRO with C45-SATA Assembly (8HP Front Panel)
© EKF
-33-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SC1-ALLEGRO with C43-SATA (Internal Connectors)
SC1-ALLEGRO with C41-CFAST Low Profile Storage Module
© EKF
-34-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial
System Slot Controller
The PICMG® CompactPCI® Serial specification defines a card slot system based on the modern high
speed data-links PCI Express®, SATA, Ethernet and USB. The SC1-ALLEGRO, designed to act as a
CompactPCI® Serial system slot controller, provides the resources of these interfaces. The backplane
distributes them in the form of point to point connections to the peripheral slots.
The SC1-ALLEGRO allocates most but not all communication channels defined by CompactPCI® Serial
on the backplane:
<
<
<
<
<
<
Two PCIe Links x8, 2.5GT/s, 5GT/s or 8GT/s (Fat Pipes)
Four PCIe Links x1, 2.5GT/s or 5GT/s
Seven SATA Ports 3GT/s
Two USB 3.0 Ports
Six USB 2.0 Ports
Two Gigabit Ethernet Ports
These resources maybe distributed on a typical 9-slot CompactPCI® Serial backplane as follows:
© EKF
-35-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
1
P5
P6
Clk PE
(1-6)
GbE
(1-2)
SYS
P4
SATA 3G
2 x PCH
5 x RAID
1 x USB3
3 x USB2
PE Gen2
4x1
(3-6)
P3
3 x USB2
I/O
PE Gen3
1 x 8 (2)
½ x 8 (1)
PE Gen3
½ x 8 (1)
1 x USB3
Sideband
PER
GbE
(1)
2
2
PER
GbE
(2)
3
4
5
6
7
8
PER
9
SATA 3G
(PCH)
Peripheral
Slot
SATA 3G
(PCH)
8
PER
SATA 3G (RAID)
USB2
Peripheral
Slot
7
PER
6
PER
5
PER
4
SATA 3G (RAID)
USB2
Peripheral
Slot
PE Gen2 x 1
SATA 3G (RAID)
USB2
Peripheral
Slot
PE Gen2 x 1
SATA 3G (RAID)
USB2
Peripheral
Slot
PE Gen2 x 1
Peripheral
Slot
PE Gen2 x 1
3
PER
SC1-ALLEGRO Rev. 2 • Resources w. 1+8 Slots Backplane (System Slot Left)
1
SATA 3G (RAID)
USB3
PE Gen3
1 x 8 (2)
USB3
Fat Pipe
Slot
PE Gen3
1 x 8 (1)
Fat Pipe
Slot
ekf.com
-36-
© EKF
P2
P1
SC1ALLEGRO
© EKF • ekf.com
Note: The Assignment of the SATA Resources has changed with Revision 2 of the SC1-ALLEGRO. See
sections “CompactPCI Serial Backplane Connector P3” for details.
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SC1-ALLEGRO on a Backplane w. System Slot Left Aligned
Backplane w. System Slot Right Aligned
© EKF
-37-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
P6
P5
P4
P3
P2
P1
1
PER
PER
4
PER
5
5
PER
4
6
PER
3
SATA 3G (RAID)
USB2
Peripheral
Slot
SATA 3G (RAID)
USB2
PE Gen2 x 1
SATA 3G (RAID)
USB2
Peripheral
Slot
PE Gen2 x 1
SATA 3G (RAID)
USB2
Peripheral
Slot
PE Gen2 x 1
Peripheral
Slot
PE Gen2 x 1
6
3
8
PER
GbE
(1)
PER
9
SYS
GbE
(1-2)
Clk PE
(1-6)
PE Gen2
4x1
(3-6)
SATA 3G
2 x PCH
5 x RAID
1 x USB3
3 x USB2
3 x USB2
I/O
PE Gen3
1 x 8 (2)
½ x 8 (1)
USB3
SC1ALLEGRO
1 x USB3
Sideband
PE Gen3
½ x 8 (1)
Fat Pipe
Slot
PE Gen3
1 x 8 (1)
1
PE Gen3
1 x 8 (2)
Fat Pipe
Slot
SATA 3G (RAID)
USB3
2
GbE
(2)
7
SC1-ALLEGRO Rev. 2 • Resources w. 1+8 Slots Backplane (System Slot Right)
2
PER
SATA 3G
(PCH)
7
SATA 3G
(PCH)
Peripheral
Slot
8
Peripheral
Slot
© EKF • ekf.com
ekf.com
-38-
© EKF
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Peripheral Slot Operation
Beyond that the SC1-ALLEGRO is operable in periphery slots as well. In this case it acts as a satellite
system, linked to other (processor-) boards by its backplane Ethernet connections. The other resources
associated with the backplane like PCI Express, SATA or USB are not usable in this situation.
Some of the following, system slot dedicated control signals get an altered function or will be
disconnected from the backplane:
<
<
<
<
<
PWRBTN# (Connector P1 Pin C3) will be disconnected
PWR_FAIL# (Connector P1 Pin F3) becomes GA1
PRST# (Connector P1 Pin H2) becomes RST# and will be disconnected
WAKE# (Connector P1 Pin I2) will be disconnected
SGPIO (Connector P1 Pins G3/H3/J3/K3) will be disconnected
One result of that is, that a SC1-ALLEGRO plugged into a peripheral slot will not get a reset even if the
system controller forces the reset signal on the backplane to an active state.
Board Hot-Plug
Hot-plug of the SC1-ALLEGRO is not supported, no matter whether it is working as a system controller
or satellite board.
SC1-ALLEGRO as System Slot Controller for CompactPCI® Serial Systems
© EKF
-39-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Rack
BluBoxx Series Small Systems Rack
© EKF
-40-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Backplanes
1 + 4 Slots CompactPCI® Serial Backplane
© EKF
-41-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Installing and Replacing Components
Before You Begin
Warnings
The procedures in this chapter assume familiarity with the general terminology associated with
industrial electronics and with safety practices and regulatory compliance required for using and
modifying electronic equipment. Disconnect
the system from its power source and from
any telecommunication links, networks or
modems before performing any of the
procedures described in this chapter. Failure
to disconnect power, or telecommunication
links before you open the system or perform
any procedures can result in personal injury
or equipment damage. Some parts of the
system can continue to operate even though
the power switch is in its off state.
Caution
Electrostatic discharge (ESD) can damage components. Perform the procedures described in this
chapter only at an ESD workstation. If such a
station is not available, you can provide
some ESD protection by wearing an
antistatic wrist strap and attaching it to a
metal part of the system chassis or board
front panel. Store the board only in its
original ESD protected packaging. Retain the
original packaging (antistatic bag and
antistatic box) in case of returning the board to EKF for repair.
© EKF
-42-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Installing the Board
Warning
This procedure should be done only by qualified technical personnel. Disconnect the system from its
power source before doing the procedures described here. Failure to disconnect power, or
telecommunication links before you open the system or perform any procedures can result in personal
injury or equipment damage.
Typically you will perform the following steps:
C
Switch off the system, remove the AC power cord
C
Attach your antistatic wrist strap to a metallic part of the system
C
Remove the board packaging, be sure to touch the board only at the front panel
C
Identify the related CompactPCI® slot (peripheral slot for I/O boards, system slot for CPU
boards, with the system slot typically most right or most left to the backplane)
C
Insert card carefully (be sure not to damage components mounted on the bottom side of the
board by scratching neighboured front panels)
C
A card with onboard connectors requires attachment of associated cabling now
C
Lock the ejector lever, fix screws at the front panel (top/bottom)
C
Retain original packaging in case of return
© EKF
-43-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Removing the Board
Warning
This procedure should be done only by qualified technical personnel. Disconnect the system from its
power source before doing the procedures described here. Failure to disconnect power, or
telecommunication links before you open the system or perform any procedures can result in personal
injury or equipment damage.
Typically you will perform the following steps:
C
Switch off the system, remove the AC power cord
C
Attach your antistatic wrist strap to a metallic part of the system
C
Identify the board, be sure to touch the board only at the front panel
C
Unfasten both front panel screws (top/bottom), unlock the ejector lever
C
Remove any onboard cabling assembly
C
Activate the ejector lever
C
Remove the card carefully (be sure not to damage components mounted on the bottom side
of the board by scratching neighboured front panels)
C
Store board in the original packaging, do not touch any components, hold the board at the
front panel only
Warning
Do not expose the card to fire. Battery cells and other components could explode
and cause personal injury.
© EKF
-44-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
EMC Recommendations
In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules:
C
The chassis or rack including other boards in use must comply entirely with CE
C
Close all board slots not in use with a blind front panel
C
Front panels must be fastened by built-in screws
C
Cover any unused front panel mounted connector with a shielding cap
C
External communications cable assemblies must be shielded (shield connected only at one end
of the cable)
C
Use ferrite beads for cabling wherever appropriate
C
Some connectors may require additional isolating parts
Recommended Accessories
© EKF
Blind CPCI Front
Panels
EKF Elektronik
Widths currently available
(1HP=5.08mm):
with handle 4HP/8HP
without handle
2HP/4HP/8HP/10HP/12HP
Ferrit Bead Filters
ARP Datacom,
63115 Dietzenbach
Ordering No.
102 820 (cable diameter 6.5mm)
102 821 (cable diameter 10.0mm)
102 822 (cable diameter 13.0mm)
Metal Shielding
Caps
Conec-Polytronic,
59557 Lippstadt
Ordering No.
CDFA 09 165 X 13129 X (DB9)
CDSFA 15 165 X 12979 X (DB15)
CDSFA 25 165 X 12989 X (DB25)
-45-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Replacement of the Battery
When your system is turned off, a battery maintains the voltage to run the time-of-day clock and to
keep the values in the CMOS RAM. The battery should last during the lifetime of the SC1-ALLEGRO.
For replacement, the old battery must be desoldered, and the new one soldered. We suggest that you
send back the board to EKF for battery replacement.
Warning
Danger of explosion if the battery is incorrectly replaced or shorted. Replace only with
the same or equivalent type. Do not expose a battery to fire.
© EKF
-46-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Technical Reference
Local PCI Devices
The following table shows the on-board PCI devices and their location within the PCI configuration
space. Several devices are part of the processor and platform controller hub QM77.
Bus #
Device #
Function #
Vendor ID
Device ID
Description
0
0
0
0x8086
0x0154
Processor Host Bridge/DRAM Controller
0
1
0
0x8086
0x0151
Processor PCI Express Controller
0
2
0
0x8086
0x0156
Processor Integrated Graphics Device
0
6
0
0x8086
0x015D
Processor PCI Express Controller
0
20
0
0x8086
0x1E31
USB xHCI Controller
0
22
0
0x8086
0x1E3A
Intel ME Interface #1
0
22
1
0x8086
0x1E3B
Intel ME Interface #2
0
22
2
0x8086
0x1E3C
Intel ME IDE Redirection
0
22
3
0x8086
0x1E3D
Intel ME Keyboard Text Redirection
0
25
0
0x8086
0x1502
PCH Gigabit LAN NC1 (82579LM)
0
26
0
0x8086
0x1E2D
USB EHCI Controller #2
0
27
0
0x8086
0x1E20
Intel High Definition Audio Controller
0
28
0-7
0x8086
0x2448
PCH PCI Express Port 1-8
0
29
0
0x8086
0x1E26
USB EHCI Controller #1
0
31
0
0x8086
0x1E55
LPC Bridge
0
31
2
0x8086
0x1E01
0x1E03
0x282A
0x1E07
SATA: Non-AHCI/RAID (Ports 0-3) 1)
SATA: AHCI Mode 1)
SATA: Intel Rapid Storage Tech. RAID Mode 1)
SATA: RAID Mode Capable 1)
0
31
3
0x8086
0x1E22
SMBus Controller
0
31
5
0x8086
0x1E09
SATA: Non-AHCI/RAID (Ports 4/5)
0
31
6
0x8086
0x1E24
Thermal Controller
2 2)
00
0
0x8086
0x10D3
Ethernet Controller NC2 (82574IT)
3 2)
00
0
0x8086
0x10D3
Ethernet Controller NC3 (82574IT)
4 2)
00
0
0x8086
0x10D3
Ethernet Controller NC4 (82574IT)
5 2)
00
0
0x10B5
0x8614
PCIe Switch Root Port (PEX8614)
6 2)
01,02,04 ...
0
0x10B5
0x8614
PCIe Switch Downstream Ports (PEX8614)
1)
2)
© EKF
Depends on BIOS settings.
Bus number can vary depending on the PCI enumeration schema implemented in BIOS.
-47-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Local SMB Devices
The SC1-ALLEGRO contains devices that are attached to the System Management Bus (SMBus). These
are the SPD EEPROMs for the on-board memory or the possibly plugged SODIMM, a general purpose
serial EEPROM, a supply voltage/temperature controlling device and a set of board control and status
registers. Additional devices may be connected to the SMBus via the CompactPCI® Serial backplane
signals I2C_SCL (P1 B2) and I2C_SDA (P1 B3), or pins 29/30 of the mezzanine expansion connector
J-EXP.
Address
Description
0x58
Hardware Monitor/Memory Down Temperature Sensor (LM87)
0x5C
Board Control/Status
0xA0
SPD of On-board Memory
0xA4
SPD of SODIMM
0xAE
General Purpose EEPROM
Hardware Monitor LM87
Attached to the SMBus, the SC1-ALLEGRO is provided with a hardware monitor (LM87). This device
is capable to observe the board and on-board memory temperatures, as well as several supply voltage
rails with a resolution of 8 bit. The following table shows the mapping of the voltage inputs of the
LM87 to the corresponding supply voltages of the SC1-ALLEGRO:
Input
Source
Resolution
[mV]
Register
AIN1
Processor Core Voltage
9.8
0x28
AIN2
Graphics Core Voltage
9.8
0x29
VCCP1
+1.5V
14.1
0x21
VCCP2/D2-
+1.8V
14.1
0x25
+2.5V/D2+
+1.05V
13
0x20
+3.3V
+3.3V
17.2
0x22
+5V
+5V
26
0x23
+12V
+12V
62.5
0x24
Beside the continuous measuring of temperatures and voltages the LM87 may compare these values
against programmable upper and lower boundaries. As soon as a measurement violates the allowed
value range, the LM87 can request an interrupt via the GPI13 input of the QM77 PCH (which may
result in a system management interrupt).
© EKF
-48-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Board Control and Status Registers
A set of board control and status registers allow to program special features on the SC1-ALLEGRO:
Assert a full reset
Control activity of front panel reset and power event button
Program time-outs and trigger a watchdog
Get access to two LEDs in the front panel
Get power fail and watchdog status of last board reset
<
<
<
<
<
The register set consists of five registers located on the SMBus at Device ID=0x5c on the following
addresses:
0xA0: CMD_CTRL0_WR: Write to Control Register 0 (Write-Only)
0xA1: CMD_CTRL0_RD: Read from Control Register 0 (Read-Only)
0xB0: CMD_STAT0_WR: Write to Status Register 0 (Write-Clear)
0xB1: CMD_STAT0_RD: Read from Status Register 0 (Read-Only)
0xB2: CMD_STAT1_WR: Write to Status Register 1 (Write-Clear)
0xB3: CMD_STAT1_RD: Read from Status Register 1 (Read-Only)
0xC1: CMD_PLDREV_RD: Read from PLD Revision Register (Read-Only)
<
<
<
<
<
<
<
To prevent misfunction accesses to the registers should be done by SMBus “Byte Data” commands.
Further writes to read-only or reads to write-only registers should be omitted.
Write/Read Control Register 0
Write: SMBus Address 0xA0
Read: SMBus Address 0xA1
Bit
Default after reset: 0x00
Description CMD_CTRL0
7
GPLED
0=Green part of the front panel LED GP is off (Default)
1=Green part of the front panel LED GP is on
6
FPDIS
0=Enable the front panel handle switch (Default)
1=Disable the front panel handle switch
5
FERP#
0=The front panel handle switch generates a power event (Default)
1=The front panel handle switch generates a system reset
4:3
WDGT0:WDGT1
Maximum Watchdog retrigger time:
0:0
2 sec
1:0
10 sec
0:1
50 sec
1:1
250 sec
2
WDGTRG
Retrigger Watchdog. Any change of this bit will retrigger the watchdog.
After a system reset the watchdog is in an inactive state. The watchdog is armed on the 1st edge of this bit.
1
PGLED
0=Red part of the front panel LED PG is off (Default)
1=Red part of the front panel LED PG is blinking
© EKF
-49-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Bit
0
Description CMD_CTRL0
SRES
0=Normal operation (Default)
1=A full system reset is performed
Read/Clear Status Register 0
Write: SMBus Address 0xB0
Read: SMBus Address 0xB1
Bit
Description CMD_STAT0
7
PF18S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.8S voltage regulator
6
PF15S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.5S voltage regulator
5
PF13S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.3S voltage regulator
4
PFVSA
0=Normal operation
1=Last system reset may be caused by a power failure of the CPU +VCC_SA voltage regulator
3
PF105L
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.05LAN voltage regulator
2
PF105S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.05S voltage regulator
1
PFVRG
0=Normal operation
1=Last system reset may be caused by a power failure of the CPU +VCC_AXG voltage regulator
0
PFVRC
0=Normal operation
1=Last system reset may be caused by a power failure of the CPU +VCC_CPU voltage regulator
The bits in this register are sticky, i.e. their state will be kept even if a system reset occurs. To clear the
bits a write to the register with arbitrary data may be performed.
© EKF
-50-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Read/Clear Status Register 1
Write: SMBus Address 0xB2
Read: SMBus Address 0xB3
Bit
Description CMD_STAT1
7
RESERVED
Always read as 0
6
WDGRST
0=Normal operation
1=Last system reset may be caused by a watchdog time-out
5
WDGHT
0=Normal operation
1=The watchdog already has elapsed half of its time-out period
4
PF5PS
0=Normal operation
1=Last system reset may be caused by a power failure of the +V5PS voltage regulator
3
PF133S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.05S or +V3.3S voltages
2
PF133M
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.05M or +V3.3M voltages
1
PF33A
0=Normal operation
1=Last system reset may be caused by a power failure of the +V3.3A voltage regulator
0
PF33S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V3.3S voltage regulator
Except of WDGHT the bits in this register are sticky, i.e. their state will be kept even if a system reset
occurs. To clear the bits a write to the register with arbitrary data may be performed.
Read PLD Revision Register
Write: Not allowed
Read: SMBus Address 0xC1
Bit
7:0
© EKF
Description CMD_PLDREV
PLDREV
Read PLD Revison Number
-51-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
GPIO Usage
GPIO Usage QM77 PCH
GPIO Usage QM77 PCH
GPIO
Type
Tol.
Function
Description
GPIO 0
I
3.3V
THRM_ALERT#
Monitoring of processor PROCHOT#
GPIO 1
I
3.3V
EXP_SMI#
Expansion Interface SMI Request (J-EXP Pin 15)
GPIO 2-4
I
5V
HWREV
PCB Revision Code HWREV[2:0]:
GPIO[4:2]
000
001
010
Revision
0
1
2
...
...
111
7
GPIO 5
I
5V
PM_MEMTS#
Memory Thermal Sensor Event
GPIO 6
I
3.3V
CPCI_PWR_FAIL#
Sense CompactPCI® Serial Power Failure Line PWR_FAIL#
GPIO 7
I
3.3V
CPCI_SYSEN#
Sense CompactPCI® System Slot Enable Line SYSEN#
GPIO 8
O
3.3V
SPM_CFG_SET
JMB393 RAID Controller: Configuration MODE2 1)
GPIO 9
I
3.3V
USB_OC5#
USB J-HSE Port 2 Overcurrent Detect
GPIO 10
I
3.3V
USB_OC6#
USB J-HSE Port 3 or 4 Overcurrent Detect
GPIO 11
I
3.3V
GP_JUMP#
Reset UEFI BIOS Setup to Factory Defaults, Jumper P-GP
GPIO 12
O
3.3V
NC1_ENABLE
Enable Ethernet Controller NC1
GPIO 13
I
3.3V
HM_INT#
Hardware Monitor LM87 Interrupt Line
GPIO 14
I
3.3V
USB_OC7#
USB J-EXP Port 1 or 2 Overcurrent Detect
GPIO 15
O
3.3V
SPM_MODE0
JMB393 RAID Controller: Configuration MODE0
GPIO 16
O
3.3V
MODE_DP_SDVO#
Switch Mode of J-SDVO Connector
LOW: J-SDVO in SDVO Mode
HIGH: J-SDVO in DisplayPort Mode
GPIO 17
I
3.3V
N/A
Not used on SC1 (pulled via resistor to GND)
GPIO 18
O
3.3V
GP_LED_RED
General Purpose Red LED Control (via PLD)
GPIO 19
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 20
O
3.3V
SE_SYS_WP
General Purpose Serial EEPROM Write Protection
GPIO 21
O
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 22
O
3.3V
SGPIO_CLOCK
Serial GPIO Bus CLOCK (P1 J3: SATA_SCL)
GPIO 23
I
3.3V
N/A
Not used on SC1
GPIO 24
O
3.3V
USB_POWEN1#
USB Front Panel Right Port Power Enable
GPIO 25-26
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 27
O
3.3V
USB_POWEN2#
USB Front Panel Left Port Power Enable
GPIO 28
O
3.3V
SPM_MODE1
JMB393 RAID Controller: Configuration MODE1
GPIO 29
O
3.3V
N/A
Fixed to chipset internal function
GPIO 30-32
I
3.3V
N/A
Fixed to chipset internal function
GPIO 33
O
3.3V
N/A
Not used on SC1
© EKF
-52-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
GPIO Usage QM77 PCH
GPIO
1)
Type
Tol.
Function
Description
GPIO 34
O
3.3V
EXP_SMB_EN
Connect SMBus on J-EXP to local SMBus
LOW: J-EXP disconnected from SMBus
HIGH: J-EXP connected to SMBus
GPIO 35
I
3.3V
CPCI_SMB_EN
Connect SMBus on CPCI Serial to local SMBus
LOW: CPCI Backplane disconnected from SMBus
HIGH: CPCI Backplane connected to SMBus
GPIO36-37
I
3.3V
N/A
Not used on SC1 (pulled via resistor to GND)
GPIO 38
O
3.3V
SGPIO_LOAD
Serial GPIO Bus LOAD (P1 K3: SATA_SL)
GPIO 39
O
3.3V
SGPIO_OUT
Serial GPIO Bus DATAOUT (P1 H3: SATA_SDO)
GPIO 40
I
3.3V
USB_OC1#
USB Front Panel Right Port Overcurrent Detect
GPIO 41
O
3.3V
ENABLE_NC3
Enable Ethernet Controller NC3
GPIO 42
O
3.3V
ENABLE_NC4
Enable Ethernet Controller NC4
GPIO 43
I
3.3V
USB_OC4#
USB J-HSE Port 1 Overcurrent Detect
GPIO 44-47
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 48-49
I
3.3V
N/A
Not used on SC1 (pulled via resistor to GND)
GPIO 50
I
5V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 51
O
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 52
I
5V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 53
O
3.3V
N/A
Not used on SC1
GPIO 54
I
5V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 55
O
3.3V
ENABLE_NC2
Enable Ethernet Controller NC2
GPIO 56
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 57
O
3.3V
SPM_MODE2
JMB393 RAID Controller: Set Configuration 1)
GPIO 58
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 59
I
3.3V
USB_OC0#
USB Front Panel Right Port Overcurrent Detect
GPIO 60
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 61-62
O
3.3V
N/A
Not used on SC1
GPIO 63
O
3.3V
N/A
Multiplexed with chipset internal function
GPIO 64-67
I
3.3V
BOARD_CFG
Board Configuration Jumpers
GPIO68-71
I
N/A
N/A
Not implemented in PCH QM57
GPIO 72
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIO 73
I
3.3V
N/A
Not used on SC1
GPIO 74-75
I
3.3V
N/A
Not used on SC1 (pulled via resistor to +3.3V)
GPIOs 8 and 57 have been swapped in Rev. 1 of SC1. Shown is the assignment as in Rev. 1.
© EKF
-53-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Configuration Jumpers
Configuration PCI Express Switch (DS-P)
160.15.02.0
© EKF • ekf.com
The link width and transfer rate of the PCI Express interfaces attached to the local expansion
connector P-PCIE is configurable by two DIP switches (DS-P) located on the backside of the
SC1-ALLEGRO. Note that changes in PCIe link configuration are honoured by the SC1-ALLEGRO not
before a system reset was performed.
ON
1
2
DS-P
DS-P
1)
PCIe Link Width
CPCI Serial 1)
1
2
PCIe Switch
Upstream
OFF
OFF
4 Lanes @ 5GT/s
4 Links x 1 Lane @ 5GT/s
4 Links x 1 Lane @ 5GT/s
ON
OFF
4 Lanes @ 5GT/s
4 Links x 1 Lane @ 5GT/s
1 Link x 4 Lanes @ 5GT/s
OFF
ON
4 Lanes @ 2.5GT/s
4 Links x 1 Lane @ 2.5GT/s
4 Links x 1 Lane @ 2.5GT/s
ON
ON
4 Lanes @ 2.5GT/s
4 Links x 1 Lane @ 2.5GT/s
1 Link x 4 Lanes @ 2.5GT/s
J-PCIE
Consists to the non fat pipe slots, generally periphery slots 3 to 6.
When the port on J-PCIE is configured as single link, the PCIe switch may size down the link width to
x2 or x1 by auto-negotiation.
The following table shows the factory settings of DS-P with different side boards mounted to the
SC1-ALLEGRO:
Side Board
© EKF
DS-P
PCIe Link Width
1
2
J-PCIE
None
OFF
OFF
4 Links x 1 Lane @ 5GT/s
CCI-RAP
OFF
OFF
4 Links x 1 Lane @ 5GT/s
CCK-MARIMBA
ON
OFF
1 Link x 4 Lanes @ 5GT/s
CCL-CAPELLA
ON
OFF
1 Link x 4 Lanes @ 5GT/s
CCO-CONCERT
OFF
ON
4 Links x 1 Lane @ 2.5GT/s
PCS-BALLET
OFF
OFF
4 Links x 1 Lane @ 5GT/s
-54-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Loading UEFI BIOS Setup Defaults (P-GP)
The jumper P-GP may be used to reset the UEFI BIOS configuration settings to a default state. The
UEFI BIOS on SC1-ALLEGRO stores most of its settings in an area within the BIOS flash, e.g. the actual
boot devices. Using the jumper P-GP is only necessary, if it is not possible to enter the setup of the
BIOS. To reset the settings mount a jumper on P-GP and perform a system reset. As long as the
jumper is stuffed the BIOS will use the default configuration values after any system reset. To get
normal operation again, the jumper has to be removed.
1
P-GP
P-GP
Function
Jumper Removed 1)
Normal operation
Jumper Installed
BIOS configuration reset performed
1)
This setting is the factory default
Manufacturer Mode Jumper (P-MFG)
The jumper P-MFG is used to bring the board into the manufacturer mode. This is necessary only on
board production time and should not used by customers. For normal operation the jumper should
be removed. The pin header P-MFG is not stuffed on the SC1-ALLEGRO by default.
1
P-MFG
P-MFG
Jumper Removed 1)
Normal operation
Jumper Installed
Entering Manufacturer Mode
1)
© EKF
Function
This setting is the factory default
-55-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
RTC Reset (P-RTC)
The jumper P-RTC may be used to reset certain register bits of the battery backed RTC core within the
PCH QM77. This can be necessary under rare conditions (e.g. battery undervoltage), if the CPU fails to
enter the BIOS POST after power on. Note that installing of jumper P-RTC will neither set UEFI BIOS
Setup to EKF Factory Defaults nor resets the time and date register values of the RTC (Real Time Clock).
To reset the RTC core the board must be removed from the system rack. Short-circuit the pins of
P-RTC for about 1 sec. Thereafter reinstall the board to the system and switch on the power. It is
important to accomplish the RTC reset while the board has no power. The pin header P-RTC is not
stuffed on the SC1-ALLEGRO by default.
1
P-RTC
P-RTC
Jumper Removed 1)
Normal operation
Jumper Installed
RTC reset performed
1)
© EKF
Function
This setting is the factory default.
-56-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Connectors
Caution
Some of the internal connectors provide operating voltage (3.3V and 5V) to devices inside the system
chassis, such as internal peripherals. Not all of these connectors are short circuit protected. Do not use
these internal connectors for powering devices external to the computer chassis. A fault in the load
presented by the external devices could cause damage to the board, the interconnecting cable and
the external devices themselves.
Front Panel Connectors
With respect to the video connector, the SC1-ALLEGRO is available in two flavours, either dual mDP
or VGA.
USB 3.0
PG
PG
GP
mDP
2
G-ETH
RST
HD
© EKF • draft - do not scale • ekf.com
GP
1
GEB
V
G
A
RST
HD
GEB
SC1-ALLEGRO
Dual - mDP
© EKF
USB 3.0
SC1-ALLEGRO
VGA
-57-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
DisplayPort Connectors
The Intel® i7 processors used on SC1-ALLEGRO are equipped with an integrated graphics controller,
which supports DisplayPort and SDVO interfaces permitting simultaneous independent operation of
up to three displays. Two DP receptacles are available from the SC1-ALLEGRO front panel, as mDP
(Mini DisplayPort) connectors, which is a space saving alternate to the standard DP connector and is
also specified by the VESA.
1)
2
19
1
© EKF ekf.com
20
270.61.20.0
Mini DisplayPort
Mini DisplayPort J-DP1/2
20
PWR 1)
19
GND
18
AUX_CH(N)
17
LANE2(N)
16
AUX_CH(P)
15
LANE2(P)
14
GND
13
GND
12
LANE3(N)
11
LANE1(N)
10
LANE3(P)
9
LANE1(P)
8
GND
7
GND
6
CONFIG2 (GND)
5
LANE0(N)
4
CONFIG1
3
LANE0(P)
2
Hot Plug Detect
1
GND
+3.3V protected by a self resetting PolySwitch fuse 0.75A. This voltage is switched on in S0 state only.
Most DisplayPort monitors come with the standard DP connector, hence requiring a mDP to DP cable
assembly for use with the SC1-ALLEGRO. For attachment of either a classic style analog RGB monitor,
DVI or HDMI type display to the J-DP receptacles, there are both adapters and also adapter cables
available.
Specified by the VESA DisplayPort connector standard is a dedicated power pin 20 (+3.3V 0.5A). Both
the GPU (source side) and a DP monitor (sink side) must provide power via this pin. A VESA specified
standard DisplayPort cable however must not connect the pins 20 of both cable ends, in order to
avoid a back driving conflict. Unfortunately there are cable assemblies available with pin 20 passed
through, with unpredictable results on the system behaviour. Before ordering DP cable assemblies,
verify the associated wiring diagram.
Sample VESA Compliant Mini DisplayPort Cable Assemblies
2.0m Mini DisplayPort (mDP) to DisplayPort (DP) plug to plug cable assembly, VESA compliant
EKF Part. #270.66.2.02.0
© EKF
Astron
T2M2M20020-R
Molex
0687850003
Roline
1045636
Wieson
G9858
-58-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
A third DisplayPort video output is available when combining the SC1-ALLEGRO with the mezzanine
side cards SCS-TRUMPET or PCS-BALLET. The standard DP connector is provided with latches, which
may be preferred for some applications.
SC1-ALLEGRO w. PCS-BALLET C32-FIO (12HP)
© EKF
-59-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SC1-ALLEGRO w. SCS-TRUMPET Side Card 8HP Assembly
© EKF
-60-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
VGA Video Connector
As an option, the SC1-ALLEGRO can be equipped with a legacy VGA connector (High-Density D-Sub
15-position female connector). The connector VGA replaces the two Mini DisplayPort receptacles, and
the digital video interface therefore is not available concurrently with this option.
J-VGA (Option)
10
5
15
11
1
6
1)
1
RED
2
GREEN
3
BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
9
DDC_POW 1)
10
GND
11
NC
12
VGA_DDC_SDA
13
HSYNC
14
VSYNC
15
VGA_DDC_SCL
+3.3V protected by a self resetting PolySwitch fuse 0.75A. This voltage is switched on in S0 state only.
© EKF
-61-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
USB Connectors
The Intel® QM77 Platform Controller Hub incorporates a four-port USB 3.0 xHCI host controller. Two
ports are directly available on the SC1-ALLEGRO front panel (type A receptacle), for attachment of
external USB devices.
USB • Dual USB 3.0 Receptacle
#270.23.18.2
© EKF • ekf.com
USB 3.0 dual type A receptacle, stacked, 18-position
1)
USB 3.0
1
2
1
VBUS +5V, 1.5A max 1)
2
USB D-
3
USB D+
4
GND
5
SS RX-
6
SS RX+
7
GND
8
SS TX-
9
SS TX+
+5V via 1.5A current-limited electronic power switch. Power rail may be switched off by software independently for
each port.
Another two USB 3.0 connectors would be available when the SC1-ALLEGRO is combined with the
PCS-BALLET mezzanine side card.
SC1-ALLEGRO w. PCS-BALLET Mezzanine Side Card (8HP)
© EKF
-62-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Ethernet Connectors
Gigabit Ethernet Ports 1/2 (J-ETH, RJ-45)
1
NC1_MDX0+
2
NC1_MDX0-
3
NC1_MDX1+
4
NC1_MDX2+
5
NC1_MDX2-
6
NC1_MDX1-
7
NC1_MDX3+
8
NC1_MDX3-
1
NC2_MDX0+
1
2
NC2_MDX0-
270.02.08.5
3
NC2_MDX1+
4
NC2_MDX2+
5
NC2_MDX2-
6
NC2_MDX1-
7
NC2_MDX3+
8
NC2_MDX3-
Port 1
1
Port 2
The lower green LED indicates LINK established when continuously on, and data transfer (activity)
when blinking. If the lower green LED is permanently off, no LINK is established. The upper
green/yellow dual-LED signals the link speed 1Gbit/s when lit yellow, 100Mbit/s when lit green, and
10Mbit/s when off.
© EKF
-63-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Mezzanine Connectors
Mezzanine Side Card Connector Suite
© EKF
-64-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Expansion Interface J-EXP
J-EXPT (J-EXPB optinal)
2
© EKF 276.53.040.01 ekf.com
1
40
1.27mm
Socket
1)
2)
3)
4)
GND
1
2
+3.3V 1)
PCI_CLK (33MHz)
3
4
RST_PLC#
LPC_AD0
5
6
LPC_AD1
LPC_AD2
7
8
LPC_AD3
LPC_FRM#
9
10
LPC_DRQ#
GND
11
12
+3.3V 1)
LPC_SERIRQ
13
14
WAKE#
EXP_SMI#
15
16
SIO_CLK (14.3MHz)
FWH_ID0
17
18
FWH_INIT#
KBRST#
19
20
A20GATE
GND
21
22
+5V 1)
USB_EXP2-
23
24
USB_EXP1-
USB_EXP2+
25
26
USB_EXP1+
USB_EXP_OC#
27
28
DBRESET#
EXP_SCL 2)
29
30
EXP_SDA 2)
GND
31
32
+5V 1)
HDA_SDOUT
33
34
HDA_SDIN0
HDA_RST#CL_RST# 3)
35
36
HDA_SYNC
HDA_CLK/CL_CLK 3)
37
38
HDA_SDIN1/CL_DATA 3)
SPEAKER
39
40
+12V 4)
Power rail switched on in state S0 only.
Connected to SMBus via buffered switch, isolated after reset.
Stuffing option, default is the HDA option.
Power rail switch off in state S5.
The expansion interface header footprint is available on both sides of the board, top (J-EXPT) and
bottom (J-EXPB). The bottom side connector is stuffed only on customers request.
WARNING: The +3.3V/+5V/+12V power pins are not protected against a short circuit event. The
connector J-EXP therefore should be used only for attachment of an approved expansion side card.
The maximum current flow across these pins should be limited to 1A per power pin.
© EKF
-65-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
High Speed Expansion Connector J-HSE
High Speed Expansion J-HSE
a1 b1
s10
© EKF • 275.90.08.068.01 • ekf.com
1.00mm Pitch High Speed Female Connector (H=8mm)
s1
s9
s18
a25 b25
1)
2)
3)
4)
5)
6)
GND
a1
b1
GND
SATA_HSE1_TXP 5)
a2
b2
SATA_HSE3_TXP 4)
5)
SATA_HSE1_TXN 5)
a3
b3
SATA_HSE3_TXN 4)
5)
GND
a4
b4
GND
SATA_HSE1_RXN 5)
a5
b5
SATA_HSE3_RXN 4) 5)
SATA_HSE1_RXP 5)
a6
b6
SATA_HSE3_RXP 4) 5)
GND
a7
b7
GND
SATA_HSE2_TXP 4)
5)
a8
b8
SATA_HSE4_TXP 5) 6)
SATA_HSE2_TXN 4)
5)
a9
b9
SATA_HSE4_TXN 5) 6)
a10
b10
GND
GND
SATA_HSE2_RXN 4)
5)
a11
b11
SATA_HSE4_RXN 5) 6)
SATA_HSE2_RXP 4)
5)
a12
b12
SATA_HSE4_RXP 5) 6)
GND
a13
b13
GND
USB_HSE1_P
a14
b14
USB_HSE3_P
USB_HSE1_N
a15
b15
USB_HSE3_N
GND
a16
b16
GND
USB_HSE2_P
a17
b17
USB_HSE4_P
USB_HSE2_N
a18
b18
USB_HSE4_N
GND
a19
b19
GND
USB_HSE_OC1#
a20
b20
USB_HSE_OC34#
USB_HSE_OC2#
a21
b21
USB_HSE_OC34#
+3.3VS 1)
a22
b22
+5VS 1)
+3.3VS 1)
a23
b23
+5VS 1)
+3.3VA 2)
a24
b24
+5VA 2)
+12V 3)
a25
b25
+12V 3)
Power rail switched on in state S0 only (Switched).
Power rail on with system stand-by power (Always).
Power rail switch off in state S5.
This SATA channel is capable to perform up to 6Gbps.
All TX/RX designations with respect to the SATA controller.
This SATA channel was moved to the CompactPCI Serial Backplane with Rev.2 of SC1-ALLEGRO.
WARNING: The +3.3V/+5V/+12V power pins are not protected against a short circuit event. The
connector J-HSE therefore should be used only for attachment of an approved expansion side card.
The maximum current flow through these power pins should be limited to 0.5A per pin.
© EKF
-66-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
PCI Express® Expansion Header J-PCIE
J-PCIE
1
2
290.1.040.080
© EKF ekf.com
PCI Express x 4
Top View on CPU Carrier Board
High Speed Socket Connector
1)
GND
1
2
GND
+5V 1)
3
4
+3.3V 1)
+5V 1)
5
6
+3.3V 1)
GND
7
8
GND
PE_CLKP
9
10
PLTRST#
PE_CLKN
11
12
PE_WAKE#
GND
13
14
GND
PE_1TP
15
16
PE_1RP
PE_1TN
17
18
PE_1RN
GND
19
20
GND
GND
21
22
GND
PE_2TP
23
24
PE_2RP
PE_2TN
25
26
PE_2RN
GND
27
28
GND
PE_3TP
29
30
PE_3RP
PE_3TN
31
32
PE_3RN
GND
33
34
GND
PE_4TP
35
36
PE_4RP
PE_4TN
37
38
PE_4RN
GND
39
40
GND
Power rail switched on in state S0 only.
WARNING: The +3.3V/+5V power pins are not protected against a short circuit event. The connector
J-PCIE therefore should be used only for attachment of an approved expansion side card. The
maximum current flow through these power pins should be limited to 1A per pin.
© EKF
-67-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SDVO/DisplayPort Expansion Header J-SDVO
290.1.020.080
© EKF ekf.com
1
2
High Speed Socket Connector
J-SDVO
GND
1
2
GND
SDVO_RED+/DP_LANE0+
3
4
SDVO_CLK+/DP_LANE3+
SDVO_RED-/DP_LANE0-
5
6
SDVO_CLK-/DP_LANE3-
GND
7
8
GND
SDVO_GREEN+/DP_LANE1+
9
10
SDVO_INT+/DP_AUX+
SDVO_GREEN-/DP_LANE1-
11
12
SDVO_INT-/DP_AUX-
GND
13
14
GND
SDVO_BLUE+/DP_LANE2+
15
16
SDVO_CTR_CLK/DP_HPD
SDVO_BLUE-/DP_LANE2-
17
18
SDVO_CTR_DATA/DP_CFG1
GND
19
20
GND
To use J-SDVO as either an SDVO or a further DisplayPort interface, some of the control lines are
configurable by a multiplexer. The state of this multiplexer is controlled by PCH QM77 GPIO16 and
adjustable by BIOS.
Setting GPIO16 to LO configures the connector J-SDVO to work in SDVO mode. In this case pins
10/12 carry the SDVO_INT and pins 16/18 the SDVO_CTR function.
With GPIO16 set to HIGH the connector behaves like a DisplayPort interface. The pins 10/12 function
as DP_AUX while pin 16 and 18 are connected to DP_HPD and DP_CFG1 respectively.
© EKF
-68-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
SC1-ALLEGRO w. PCS-BALLET & Half-Slim SATA SSD (8HP)
SC1-ALLEGRO w. PCS-BALLET & C41-CFAST (8HP)
© EKF
-69-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Typical 8HP Assembly w. PCS-BALLET Side Card & C42-SATA
8HP Assembly w. PCS-BALLET Side Card & C47-MSATA
© EKF
-70-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Pin Headers & Debug
Front Panel Handle Microswitch Header P-FPH
The jumper P-FPH is used for attachment of an external SPDT switch. By default, P-FPH is connected
across a short cable harness to a microswitch, which is integrated into the SC1-ALLEGRO front panel
handle (ejector lever). The switch performs a power button event (e.g. system shutdown) by shortcircuiting the pins 1 and 3 of P-FPH when activated (hold unlock button of front panel handle
depressed momentarily).
P-FPH
# 276.02.003.11
© EKF • ekf.com
1
1
black
Microswitch Pole (Common), Wired to PLD
2
red
Microswitch Throw - F/P Handle Locked Position, NC
3
yellow
Microswitch Throw - F/P Handle Unlocked Position, Wired to GND
PLD Programming Header P-ISP
The SC1-ALLEGRO is provided with a powerful PLD (in-System Programmable Logic Device) which
replaces legacy glue logic. The programming header P-ISP is not stuffed (in use for manufacturing
only). Its footprint is situated at the bottom side of the board.
P-ISP
240.1.08.I • © EKF • ekf.com
key
© EKF
1
+3.3V
2
TDO
3
TDI
4
NC
5
KEY
6
TMS
7
GND
8
TCK
-71-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Processor Debug Header XDP1
The SC1-ALLEGRO may be equipped with a 26-position processor debug header for hard- and
software debugging (specified by Intel® as XDP-SFF-26 Pin Platform Connection). The connector is
suitable for installation of a flat flex cable (FFC), in order to attach an JTAG debugger (emulator) such
as the Arium ECM-XDP3. An adapter (ITP-XDP-SFF-26) is required in addition to convert the 26-pin
XDP-SFF-26 Pin connector to the standard 60-pin XDP.
The header XDP1 would be mounted on the PCB bottom side, but is not stuffed by default.
XDP Processor Debug Connector
269.1.026.902 • FFC Connector
© EKF • ekf.com
© EKF
1
OBSFN_A0 (PREQ#)
OBSFN_A1 (PRDY#)
2
3
GND
OBSDATA_A0
4
5
OBSDATA_A1
GND
6
7
OBSDATA_A2
OBSDATA_A3
8
9
GND
HOOK0 (CPU_PWRGOOD)
10
11
HOOK1 (XDP_PWRBTN)
HOOK2 (CFG[0])
12
13
HOOK3 (SYS_PWROK)
HOOK4 (BCLKP)
14
15
HOOK5 (BCLKN)
VCCOBS_AB (+1.05V)
16
17
HOOK6 (PLTRST#)
HOOK7 (DBRESET#)
18
19
GND
TDO
20
21
TRST#
TDI
22
23
TMS
TCK1
24
25
GND
TCK0 (TCK)
26
-72-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Backplane Connectors
Six high speed backplane connectors optimized for differential signal transmission are specified as P1
to P6 by the PICMG® CompactPCI® Serial. The mandatory P1 conveys amongst others the power,
system control and status pins.
© EKF
-73-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Backplane Connector P1
P1 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1206.20.02 72 pos. 12x6, 14mm Width, Type A
1)
2)
©
P1
A
B
C
D
E
F
G
H
I
J
K
L
6
GND
1_PE_TX02+
1_PE_TX02-
GND
1_PE_RX02+
1_PE_RX02-
GND
1_PE_TX03+
1_PE_TX03-
GND
1_PE_RX03+
1_PE_RX03-
5
1_PE_TX00+
1_PE_TX00-
GND
1_PE_RX00+
1_PE_RX00-
GND
1_PE_TX01+
1_PE_TX01-
GND
1_PE_RX01+
1_PE_RX01-
GND
reserved
1)
reserved
1)
GND
1_SATA_TX+
2)
1_SATA_TX-
2)
GND
1_SATA_RX+
2)
1_SATA_RX- 2)
4
GND
1_USB2+
1_USB2-
GND
3
1_USB3_TX+
1_USB3_TX-
PWRBTN#
1_USB3_RX+
1_USB3_RX-
PWR_FAIL#
SATA_SDI
SATA_SDO
GA2 1)
SATA_SCL
SATA_SL
GA3 1)
2
GND
I2C_SCL
I2C_SDA
GND
PS_ON#
RST#
GND
PRST#
WAKE_IN#
GND
reserved 1)
SYSEN#
1
+12V
+5V STANDBY
GND
+12V
+12V
GND
+12V
+12V
GND
+12V
+12V
GND
Not connected.
Not connected (according the CompactPCI® Serial Precedence Order Rules).
EKF
-74-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Backplane Connector P2
P2 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B
P2
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
IO 1)
IO 1)
GND
2_USB2+
2_USB2-
GND
3_USB2+
3_USB2-
IO 1)
4_USB2+
4_USB2-
7
IO 1)
IO 1)
GND
IO 1)
IO 1)
GND
IO 1)
IO 1)
GND
IO 1)
IO 1)
GND
6
GND
2_PE_TX06+
2_PE_TX06-
GND
2_PE_RX06+
2_PE_RX06-
GND
2_PE_TX07+
2_PE_TX07-
GND
2_PE_RX07+
2_PE_RX07-
5
2_PE_TX04+ 3)
2_PE_TX04- 3)
GND
2_PE_RX04+
2_PE_RX04-
GND
2_PE_TX05+
2_PE_TX05-
GND
2_PE_RX05+
2_PE_RX05-
GND
4
GND
2_PE_TX02+
2_PE_TX02-
GND
2_PE_RX02+
2_PE_RX02-
GND
2_PE_TX03+
2_PE_TX03-
GND
2_PE_RX03+
2_PE_RX03-
3
2_PE_TX00+
2_PE_TX00-
GND
2_PE_RX00+
2_PE_RX00-
GND
2_PE_TX01+ 3)
2_PE_TX01- 3)
GND
2_PE_RX01+
2_PE_RX01-
GND
2
GND
1_PE_TX06+
1_PE_TX06-
GND
1_PE_RX06+
1_PE_RX06-
GND
1_PE_TX07+
1_PE_TX07-
GND
1_PE_RX07+
1_PE_RX07-
1
1_PE_TX04+ 3)
1_PE_TX04- 3)
GND
1_PE_RX04+
1_PE_RX04-
GND
1_PE_TX05+
1_PE_TX05-
GND
1_PE_RX05+
1_PE_RX05-
GND
1)
Not connected.
The PCI Express Lanes 1_PE_* and 2_PE_* are derived from the i7 processor and capable to transfer 8GT/s.
3)
Polarity inversion was made on these lanes on SC1-ALLEGRO for better routing. This is allowed according the “PCI Express Base Specification 3.0" and has no effect on function or
performance of the link. The pin-out shown is as per specification.
2)
©
EKF
-75-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Backplane Connector P3
P3 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B
P3
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
7_SATA_TX+
7_SATA_TX-
GND
7_SATA_RX+
7_SATA_RX-
GND
8_SATA_TX+
8_SATA_TX-
GND
8_SATA_RX+
8_SATA_RX-
7
5_SATA_TX+
5_SATA_TX-
GND
5_SATA_RX+
5_SATA_RX-
GND
6_SATA_TX+
6_SATA_TX-
GND
6_SATA_RX+
6_SATA_RX-
GND
6
GND
3_SATA_TX+
3_SATA_TX-
GND
3_SATA_RX+
3_SATA_RX-
GND
4_SATA_TX+
4_SATA_TX-
GND
4_SATA_RX+
4_SATA_RX-
5
8_USB3_TX+
8_USB3_TX-
GND
8_USB3_RX+
8_USB3_RX-
GND
2_SATA_TX+
2_SATA_TX-
GND
2_SATA_RX+
2_SATA_RX-
GND
4
GND
6_USB3_TX+
6_USB3_TX-
GND
6_USB3_RX+
6_USB3_RX-
GND
7_USB3_TX+
7_USB3_TX-
GND
7_USB3_RX+
7_USB3_RX-
3
4_USB3_TX+
4_USB3_TX-
GND
4_USB3_RX+
4_USB3_RX-
GND
5_USB3_TX+
5_USB3_TX-
GND
5_USB3_RX+
5_USB3_RX-
GND
2
GND
2_USB3_TX+
2_USB3_TX-
GND
2_USB3_RX+
2_USB3_RX-
GND
3_USB3_TX+
3_USB3_TX-
GND
3_USB3_RX+
3_USB3_RX-
1
5_USB2+
5_USB2-
GND
6_USB2+
6_USB2-
GND
7_USB2+
7_USB2-
GND
8_USB2+
8_USB2-
GND
1)
1)
2) 3)
5)
1)
1)
1)
2) 3)
5)
1)
1)
1)
2) 3)
5)
1)
1)
1)
2) 3)
5)
6)
1)
1)
1)
2) 3) 4)
6)
1)
1)
1)
1)
2) 3) 4)
1)
1)
6)
1)
1)
2) 3) 4)
6)
1)
1)
1)
1)
2) 3) 4)
1)
1)
1)
Not connected (according the CompactPCI® Serial Precedence Order Rules).
This SATA channel is derived from the PCH QM77. The remaining SATA channels are derived from the JMB393 RAID Controller.
3)
This SATA channel was derived from the JMB393 RAID Controller in Rev. 1 of SC1-ALLEGRO.
4)
This SATA channel was connected to J-HSE SATA Port 4 in Rev.1 of SC1-ALLEGRO.
5)
This SATA channel was derived from the PCH QM77 in Rev. 1 of SC1-ALLEGRO.
6)
This SATA channel derived from the JMB393 RAID Controller was not connected in Rev. 1 of SC1-ALLEGRO.
2)
©
EKF
-76-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Backplane Connector P4
P4 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B
1)
©
P4
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
6_PE_TX02+
6_PE_TX02-
GND
6_PE_RX02+
6_PE_RX02-
GND
6_PE_TX03+
6_PE_TX03-
GND
6_PE_RX03+
6_PE_RX03-
7
6_PE_TX00+
6_PE_TX00-
GND
6_PE_RX00+
6_PE_RX00-
GND
6_PE_TX01+
6_PE_TX01-
GND
6_PE_RX01+
6_PE_RX01-
GND
6
GND
5_PE_TX02+
5_PE_TX02-
GND
5_PE_RX02+
5_PE_RX02-
GND
5_PE_TX03+
5_PE_TX03-
GND
5_PE_RX03+
5_PE_RX03-
5
5_PE_TX00+
5_PE_TX00-
GND
5_PE_RX00+
5_PE_RX00-
GND
5_PE_TX01+
5_PE_TX01-
GND
5_PE_RX01+
5_PE_RX01-
GND
4
GND
4_PE_TX02+
4_PE_TX02-
GND
4_PE_RX02+
4_PE_RX02-
GND
4_PE_TX03+
4_PE_TX03-
GND
4_PE_RX03+
4__PE_RX03-
3
4_PE_TX00+
4_PE_TX00-
GND
4_PE_RX00+
4_PE_RX00-
GND
4_PE_TX01+
4_PE_TX01-
GND
4_PE_RX01+
4_PE_RX01-
GND
2
GND
3_PE_TX02+
3_PE_TX02-
GND
3_PE_RX02+
3_PE_RX02-
GND
3_PE_TX03+
3_PE_TX03-
GND
3_PE_RX03+
3_PE_RX03-
1
3_PE_TX00+
3_PE_TX00-
GND
3_PE_RX00+
3_PE_RX00-
GND
3_PE_TX01+
3_PE_TX01-
GND
3_PE_RX01+
3_PE_RX01-
GND
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
Not connected.
EKF
-77-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Backplane Connector P5
P5 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1206.20.00 72 pos. 12x6, 12mm Width, Type C
1)
2)
©
P5
A
B
C
D
E
F
G
H
I
J
K
L
6
5_PE_CLKE#
5_PE_CLK+
5_PE_CLK-
6_PE_CLKE#
6_PE_CLK+
6_PE_CLK-
7_PE_CLKE#
7_PE_CLK+
7_PE_CLK-
8_PE_CLKE#
8_PE_CLK+
8_PE_CLK-
5
1_PE_CLK+
1_PE_CLK-
1_PE_CLKE#
2_PE_CLK+
2_PE_CLK-
2_PE_CLKE#
3_PE_CLK+
3_PE_CLK-
3_PE_CLKE#
4_PE_CLK+
4_PE_CLK-
4_PE_CLKE#
4
GND
8_PE_TX02+
8_PE_TX02-
GND
8_PE_RX02+
8_PE_RX02-
GND
8_PE_TX03+
8_PE_TX03-
GND
8_PE_RX03+
8_PE_RX03-
3
8_PE_TX00+
8_PE_TX00-
GND
8_PE_RX00+
8_PE_RX00-
GND
8_PE_TX01+
8_PE_TX01-
GND
8_PE_RX01+
8_PE_RX01-
GND
2
GND
7_PE_TX02+
7_PE_TX02-
GND
7_PE_RX02+
7_PE_RX02-
GND
7_PE_TX03+
7_PE_TX03-
GND
7_PE_RX03+
7_PE_RX03-
1
7_PE_TX00+
7_PE_TX00-
GND
7_PE_RX00+
7_PE_RX00-
GND
7_PE_TX01+
7_PE_TX01-
GND
7_PE_RX01+
7_PE_RX01-
GND
2)
2)
1)
2)
1)
2)
1)
1)
2)
2)
1)
2)
1)
2)
1)
2)
1)
1)
1)
2)
1)
1)
1)
1)
2)
1)
1)
2)
1)
1)
2)
1)
1)
1)
1)
2)
1)
1)
Not connected.
Not connected (according the CompactPCI® Serial Precedence Order Rules).
EKF
-78-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
CompactPCI® Serial Backplane Connector P6
P6 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.02 96 pos. 12x8, 18mm Width, Type D
1)
©
P6
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
8_ETH_A+
8_ETH_A-
GND
8_ETH_B+
8_ETH_B-
GND
8_ETH_C+
8_ETH_C-
GND
8_ETH_D+
8_ETH_D-
7
7_ETH_A+
7_ETH_A-
GND
7_ETH_B+
7_ETH_B-
GND
7_ETH_C+
7_ETH_C-
GND
7_ETH_D+
7_ETH_D-
GND
6
GND
6_ETH_A+
6_ETH_A-
GND
6_ETH_B+
6_ETH_B-
GND
6_ETH_C+
6_ETH_C-
GND
6_ETH_D+
6_ETH_D-
5
5_ETH_A+
5_ETH_A-
GND
5_ETH_B+
5_ETH_B-
GND
5_ETH_C+
5_ETH_C-
GND
5_ETH_D+
5_ETH_D-
GND
4
GND
4_ETH_A+
4_ETH_A-
GND
4_ETH_B+
4_ETH_B-
GND
4_ETH_C+
4_ETH_C-
GND
4_ETH_D+
4_ETH_D-
3
3_ETH_A+
1)
3_ETH_A1)
GND
3_ETH_B+
1)
3_ETH_B1)
GND
3_ETH_C+
1)
3_ETH_C1)
GND
3_ETH_D+
1)
3_ETH_D1)
GND
2
GND
2_ETH_A+
2_ETH_A-
GND
2_ETH_B+
2_ETH_B-
GND
2_ETH_C+
2_ETH_C-
GND
2_ETH_D+
2_ETH_D-
1
1_ETH_A+
1_ETH_A-
GND
1_ETH_B+
1_ETH_B-
GND
1_ETH_C+
1_ETH_C-
GND
1_ETH_D+
1_ETH_D-
GND
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
Not connected (according the CompactPCI® Serial Precedence Order Rules).
EKF
-79-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
Appendix
Mechanical Drawing
The following drawing shows the positions of mounting holes and expansion connectors on the
SC1-ALLEGRO.
100.0mm
3.57/5.5mm
3.57/96.5mm
21.5/
94.5mm
J-HSE
39.5/94.0mm
ekf.com
© EKF
48.5/5.5mm
SC1-ALLEGRO
19.3/5.5mm
J-SDVO
160.0mm
J-EXP
75.5/94.5mm
79.3/5.5mm
J-PCIE
104.3/93.5mm
89.0/7.0mm
132.07/94.5mm
132.07/5.5mm
SC1-ALLEGRO • PCB Dimensions • © EKF • ekf.com
160.0/100.0mm
© EKF
-80-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
© EKF
-81-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
© EKF
-82-
ekf.com
User Guide • SC1-ALLEGRO • CompactPCI® Serial CPU Board • Intel® i7-3xxx Processor
